FA10697_LN2-M

Print

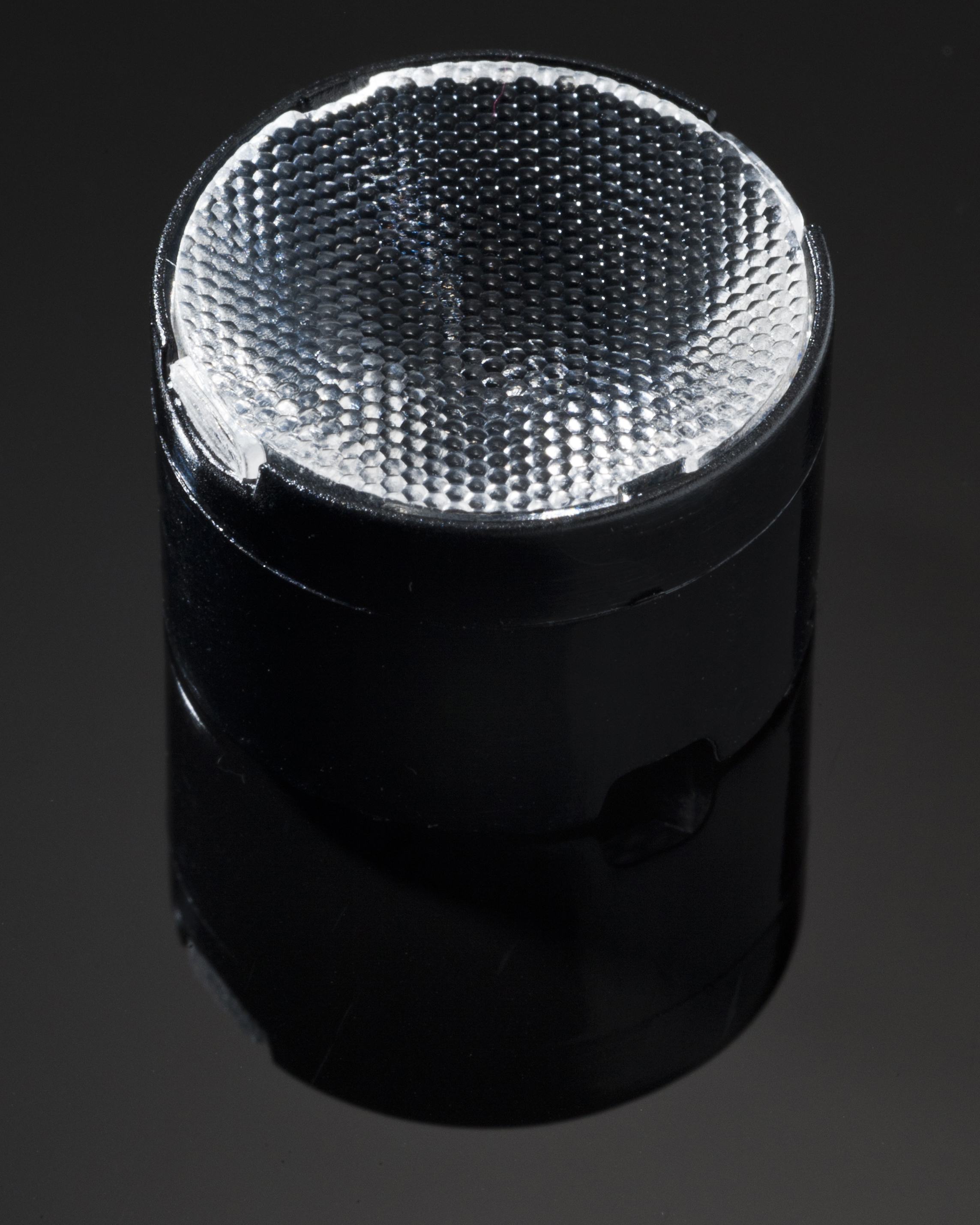

~25° medium beam optimized for Nichia NS6x83. 13.3 mm high assembly with installation tape.

Specification
  • Dimensions:
    22 mm
  • Height:
    13.50 mm
  • Fastening:
    tape
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    2304 pcs
  • Box weight:
    10.1 kg
  • MPQ:
    144 pcs
  • MOQ:
    288 pcs
  • MOQ size:
    470 x 240 x 50 mm
  • MOQ weight:
    1.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FA10697_LN2-M

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

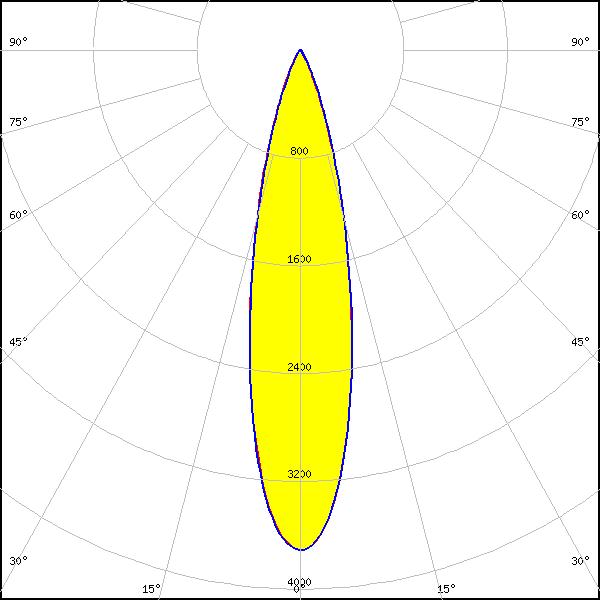

LED: XM-L2
FWHM: 24°
FWTM: 47°
Peak intensity: 3.700 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

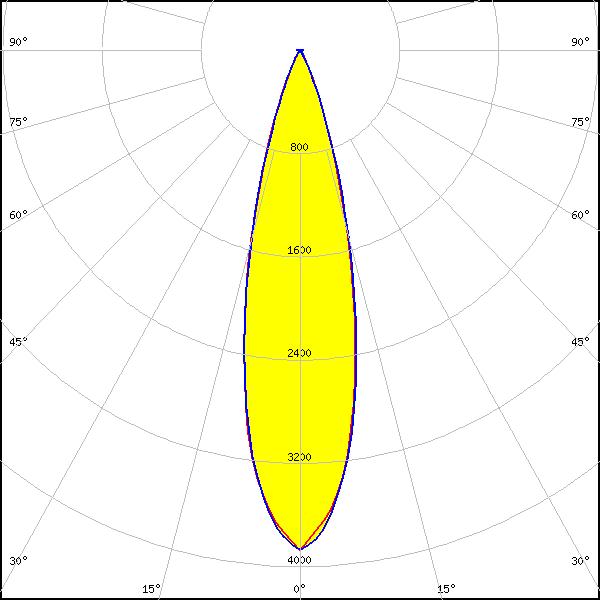

LED: XP-G3
FWHM: 26°
FWTM: 46°
Peak intensity: 3.874 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

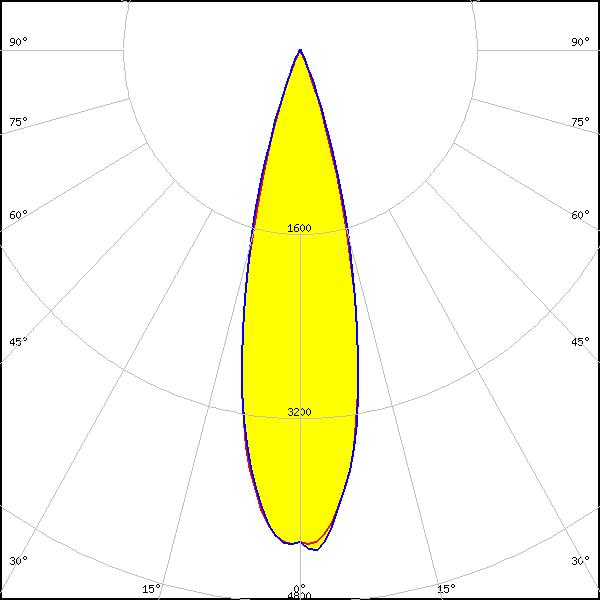

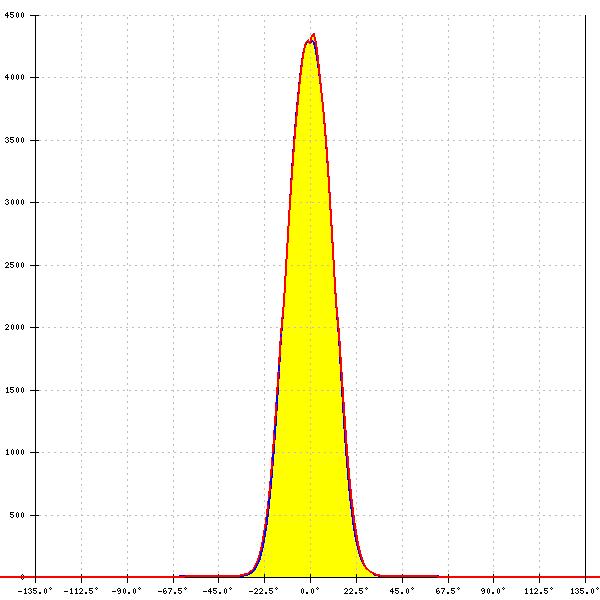

LED: SFT-40-WCS
FWHM: 26°
FWTM: 42°
Peak intensity: 4.371 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

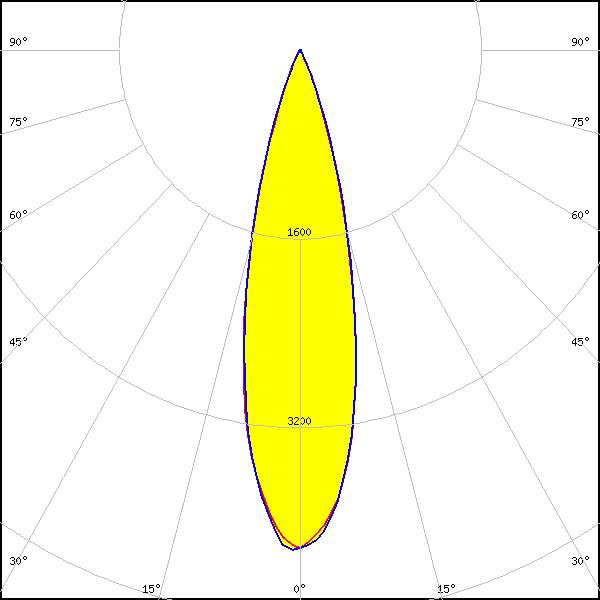

LED: SFT-70X-WCS
FWHM: 26°
FWTM: 44°
Peak intensity: 4.246 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: NS6x83
FWHM: 26°
FWTM: -
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

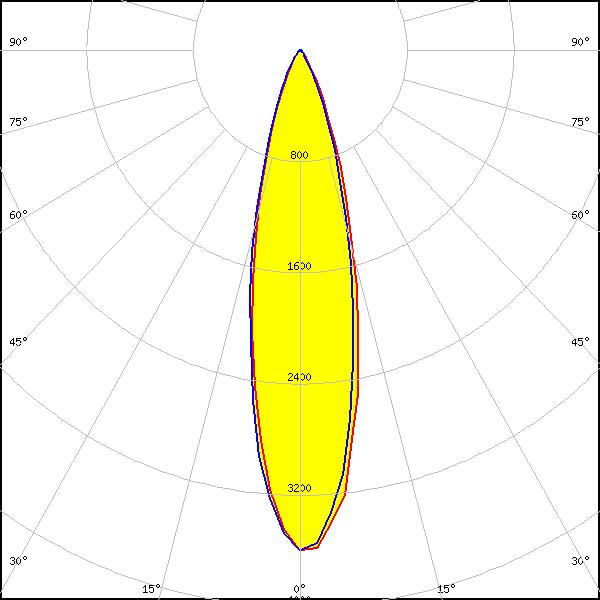

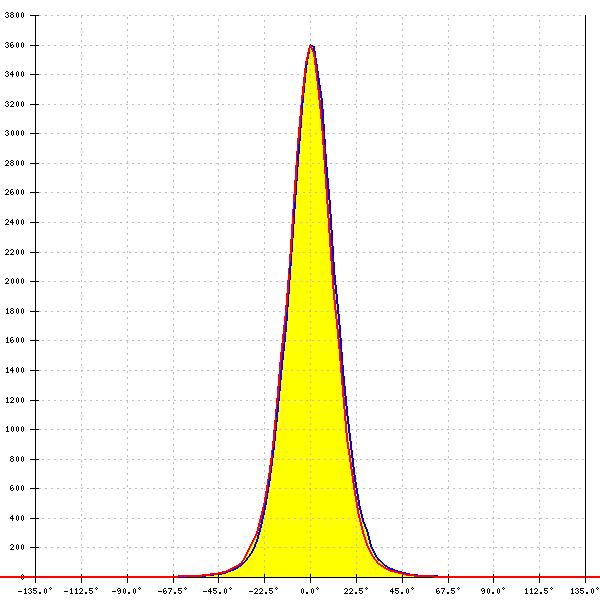

LED: OLP-x5050F6L
FWHM: 28°
FWTM: 54°
Peak intensity: 3.600 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
