APPLICATION EXAMPLE

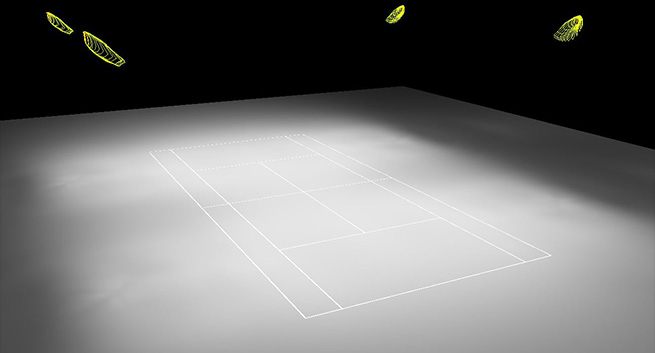

Tennis court lighting with JENNY-FT45


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

SETUP:

Application: Tennis court lighting
Standard: DIN EN 12193 (Sports lighting)
Optics: JENNY-FT45
Upward light ratio: 0.0 %
Maintenance factor: 0.95
Luminous flux (LEDs/Luminaire): 120 000 lm
Luminous flux (Luminaire): 108 500 lm
Lumen output/LED: 1500 lm
Number of LEDs/luminaire: 80 pcs
Number of luminaires in a pole: 1 pcs
Number of poles: 4 pcs
Pole spacing: 14.5 m
Mounting height: 9 m

RESULTS:

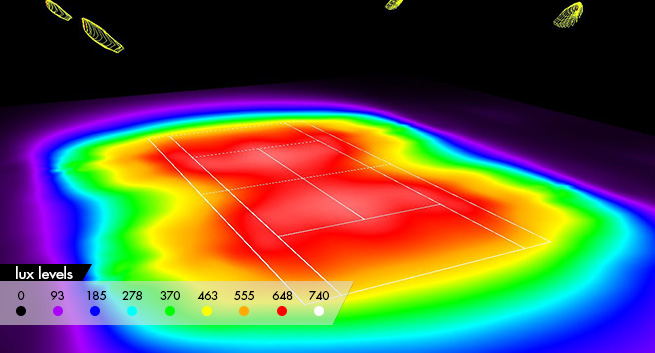

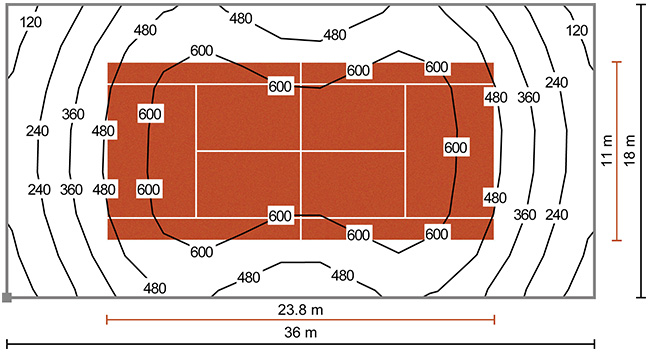

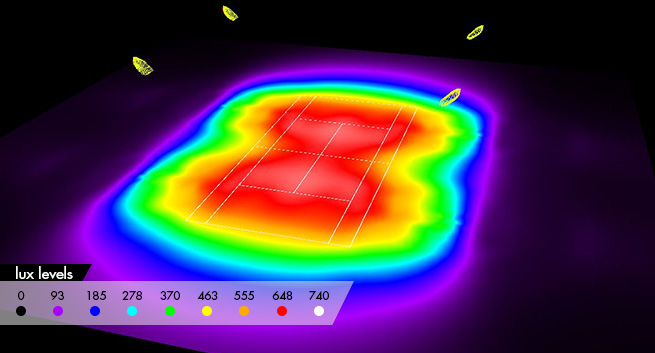

On play area
Average: 630 lx
Average requirement: ≥500 lx
Max: 689 lx
Uo: 0.73
GR: <50
GR requirement: ≤50
GO TO PRODUCT CARDS
F15596_JENNY-FT45
F15574_JENNY-8X1-FT45
