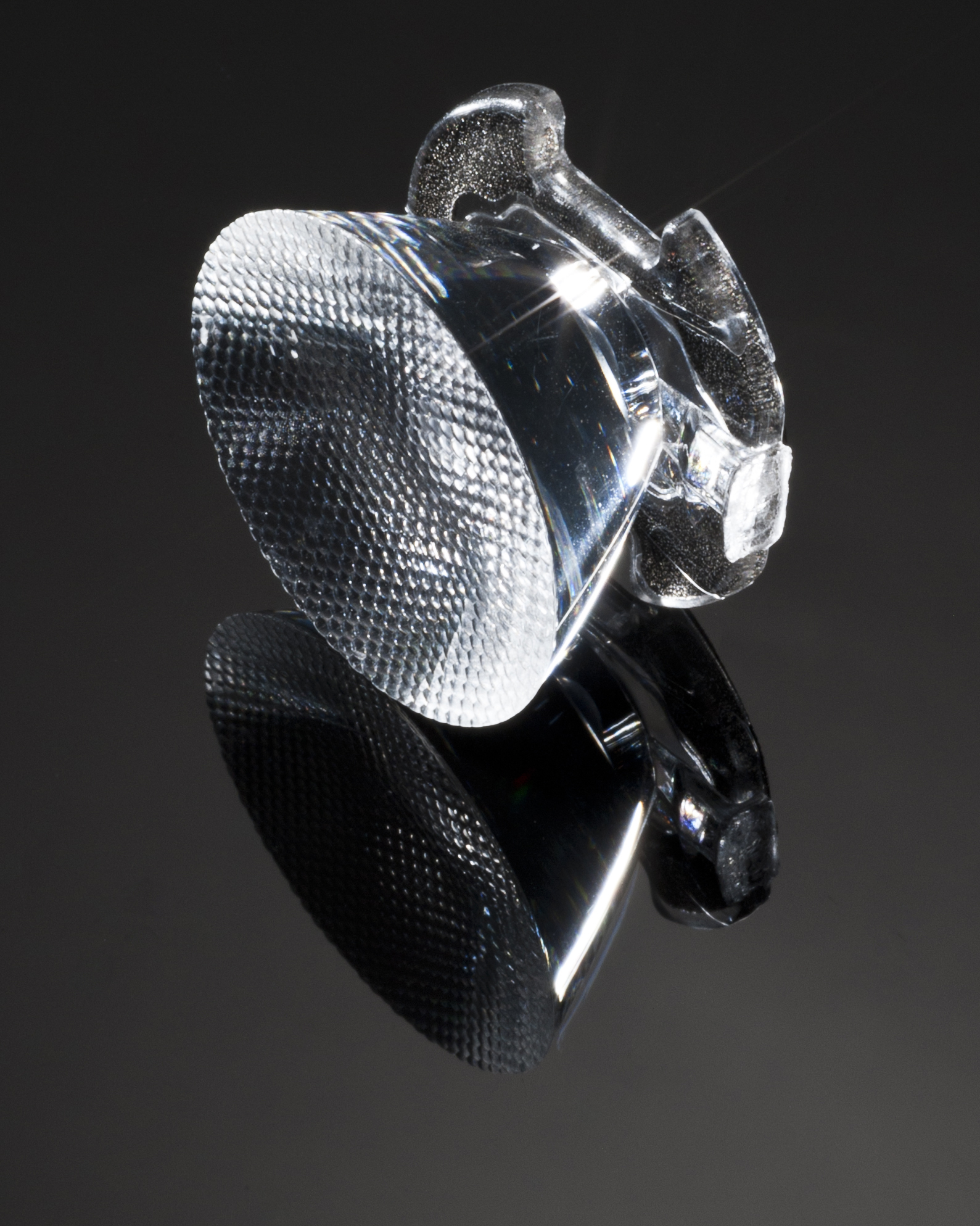

    CA11388_EMILY-M

    Print

    ~20° medium beam. 14.85 mm high lens.

    Specification
    • Dimensions:
      26 mm
    • Height:
      14.85 mm
    • Fastening:
      tape, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      1690 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.4 kg
    • MPQ:
      130 pcs
    • MOQ:
      260 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA11388_EMILY-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR121.b - Packing method and quantity changes 070616

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

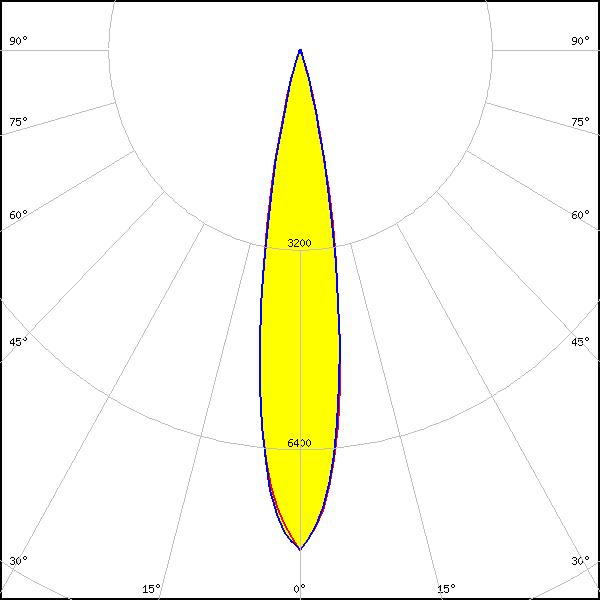

    Optical results

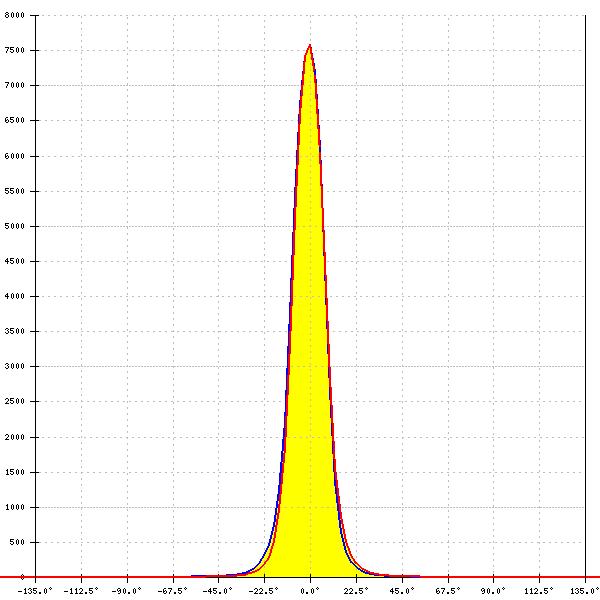

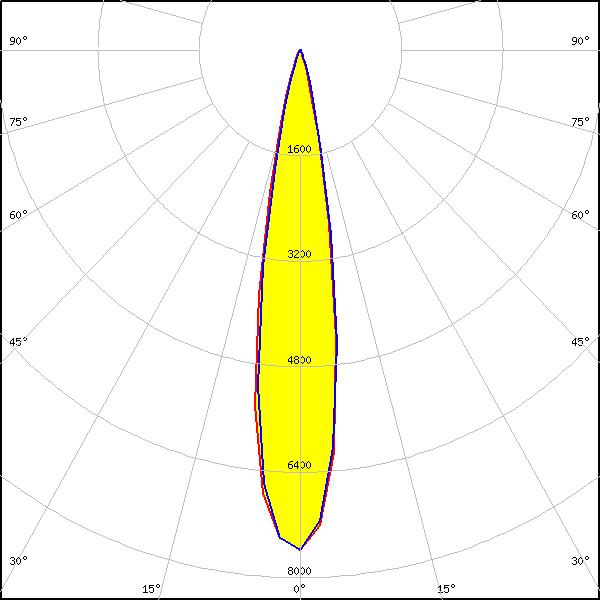

    LED: XB-H
    FWHM: 18°
    FWTM: 32°
    Peak intensity: 7.600 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E
    FWHM: 18°
    FWTM: 27°
    Peak intensity: 7.900 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: 18°
    FWTM: 30°
    Peak intensity: 7.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

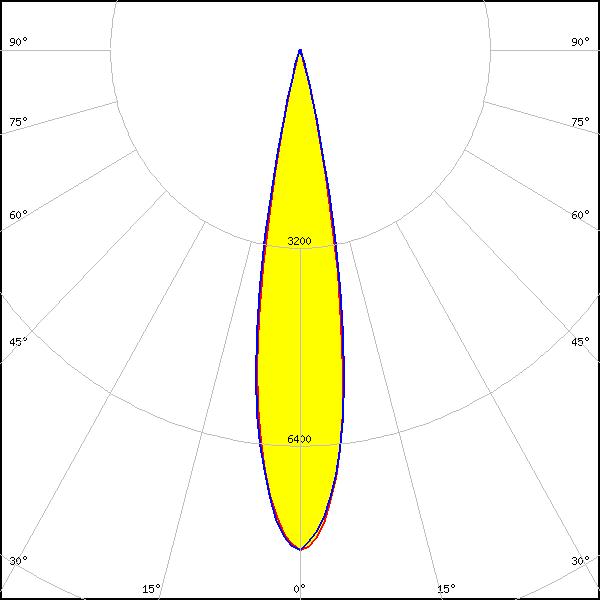

    LED: LUXEON C
    FWHM: 20°
    FWTM: 30°
    Peak intensity: 8.089 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

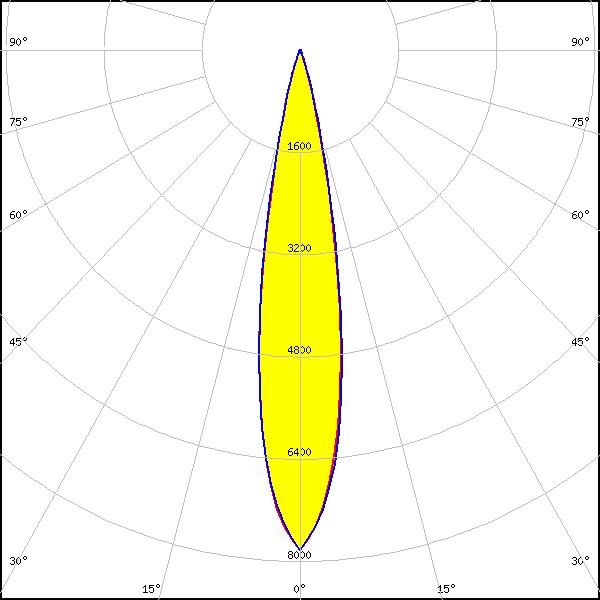

    LED: LUXEON HL2Z
    FWHM: 18°
    FWTM: 32°
    Peak intensity: 7.826 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel
    FWHM: 18°
    FWTM: 29°
    Peak intensity: 7.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

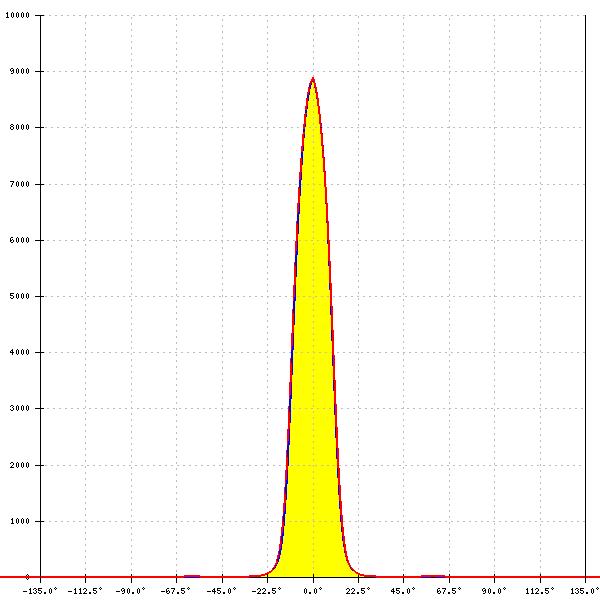

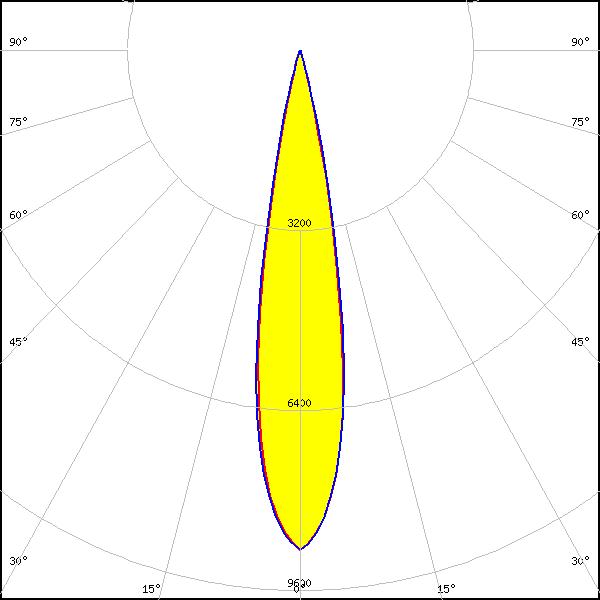

    LED: LUXEON SunPlus 20 Line (120 deg)
    FWHM: 19°
    FWTM: 30°
    Peak intensity: 8.889 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Z ES
    FWHM: 18°
    FWTM: 29°
    Peak intensity: 9.234 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

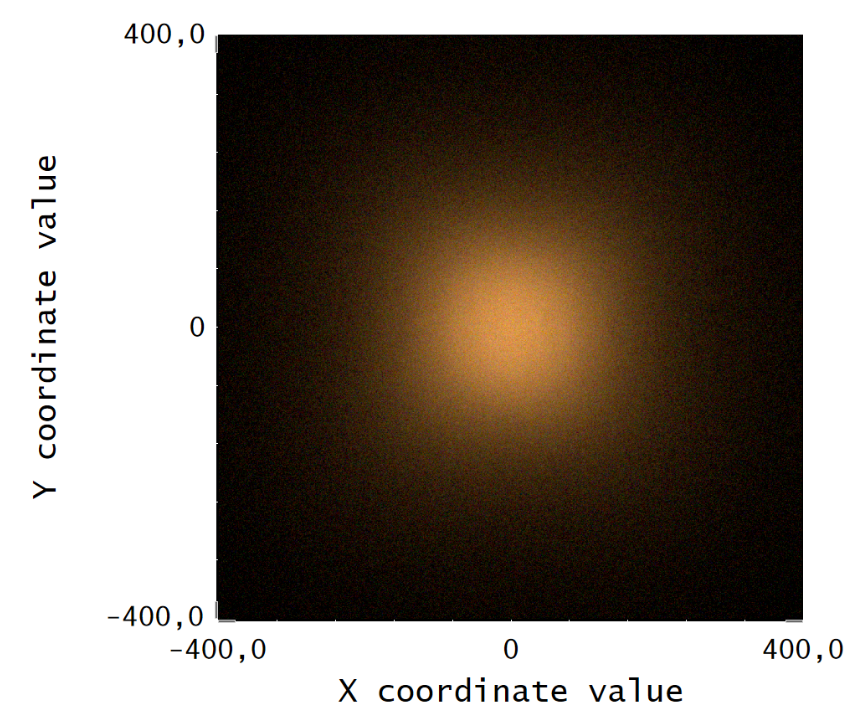

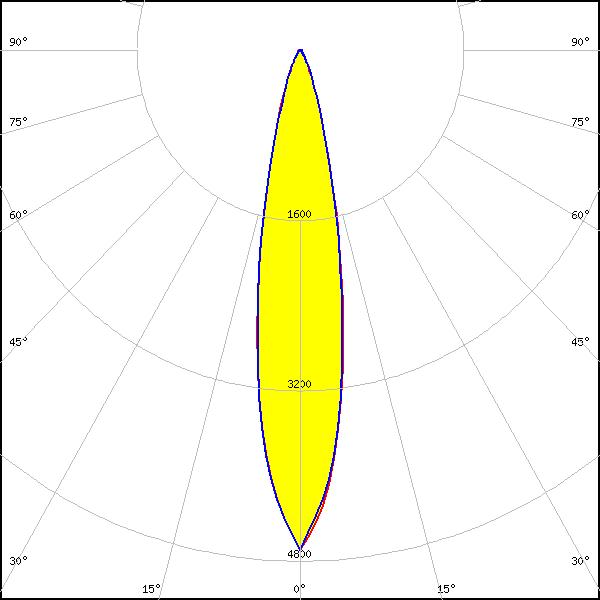

    LED: NCSxE17A
    FWHM: 20°
    FWTM: 41°
    Peak intensity: 4.699 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: NCSxx19A
    FWHM: 18°
    FWTM: -
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

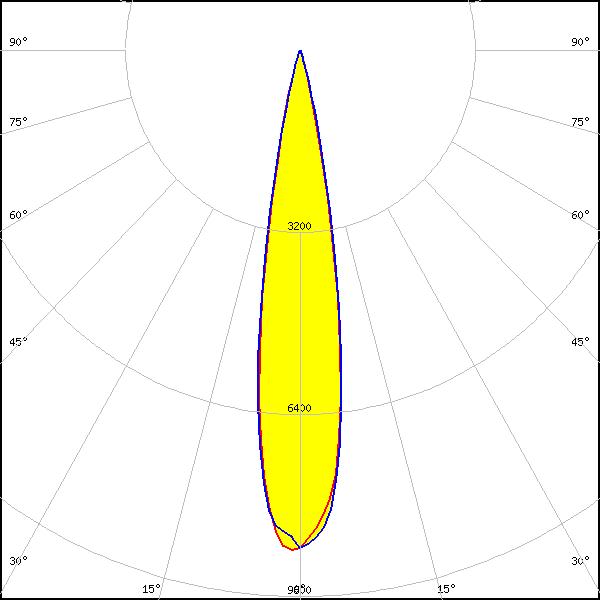

    LED: NCSxx19B
    FWHM: 18°
    FWTM: -
    Peak intensity: 8.700 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19A
    FWHM: 18°
    FWTM: -
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

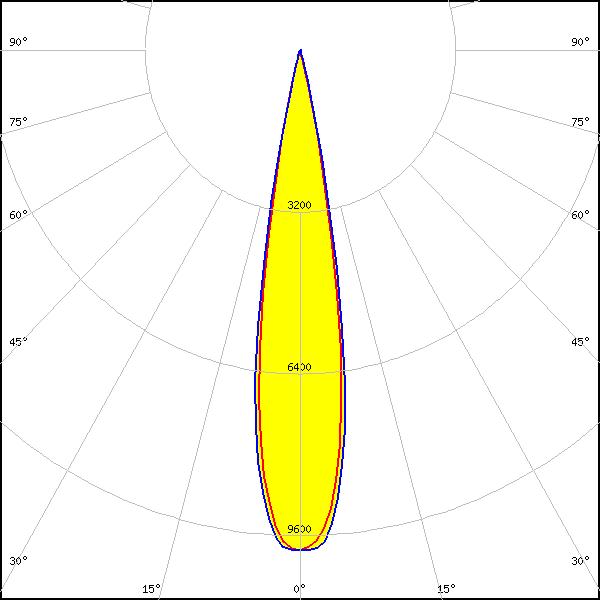

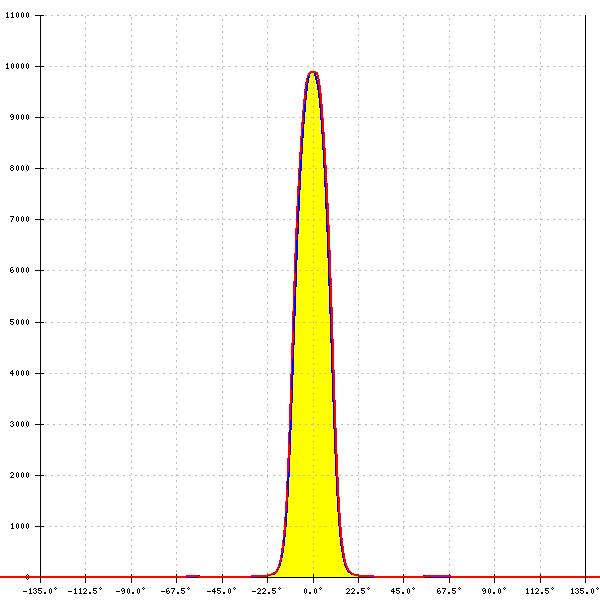

    LED: OSLON Pure 1414
    FWHM: 18° + 19°
    FWTM: 26° + 28°
    Peak intensity: 10.033 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

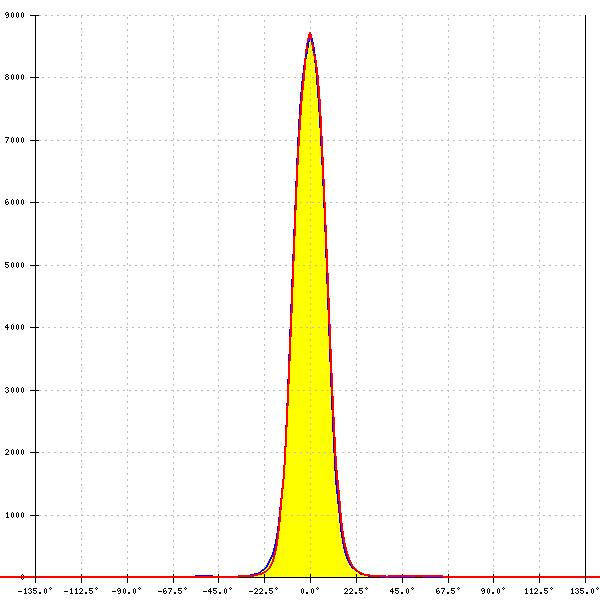

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 18°
    FWTM: 30°
    Peak intensity: 8.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

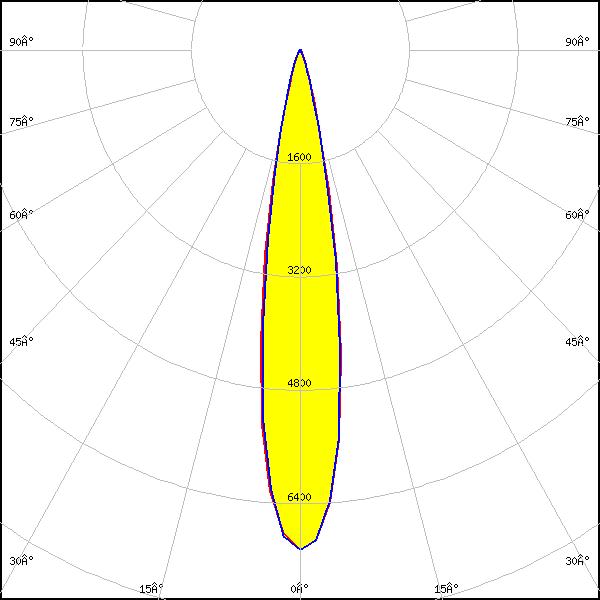

    LED: OSLON Square EC
    FWHM: 18°
    FWTM: 32°
    Peak intensity: 8.250 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 150
    FWHM: 20°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White

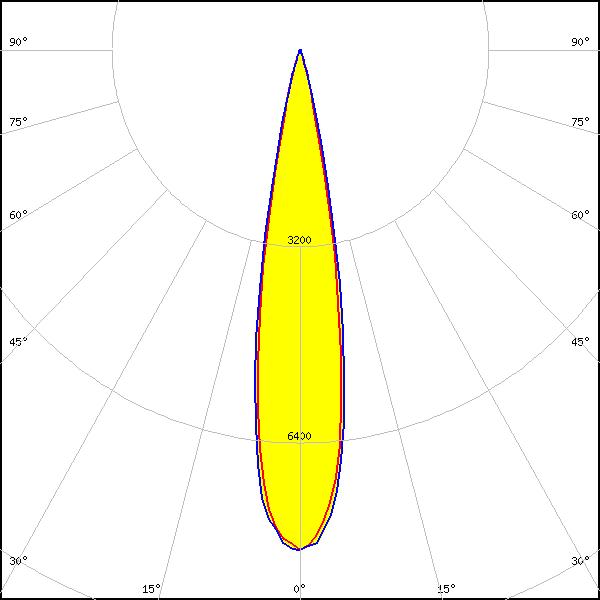

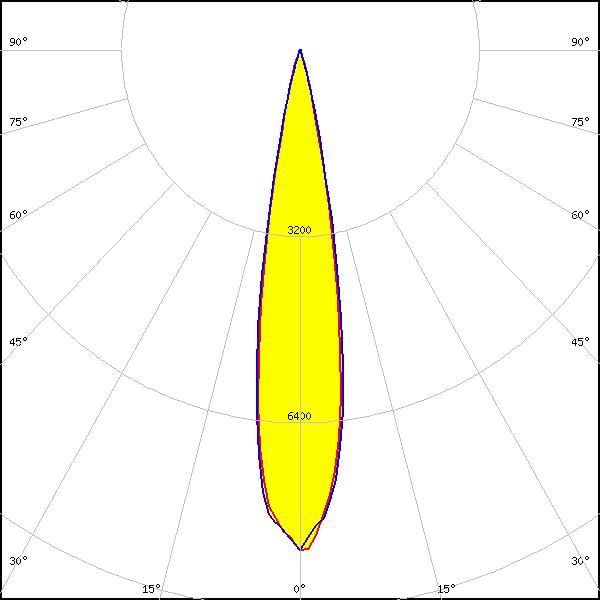

    LED: OSLON SSL 80
    FWHM: 18°
    FWTM: -
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: 18°
    FWTM: 32°
    Peak intensity: 8.015 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5
    FWHM: 18°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
    LED: Double Dome (GM2BB)
    FWHM: 18°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
