CP17692_AMY-50-WW-C

Print

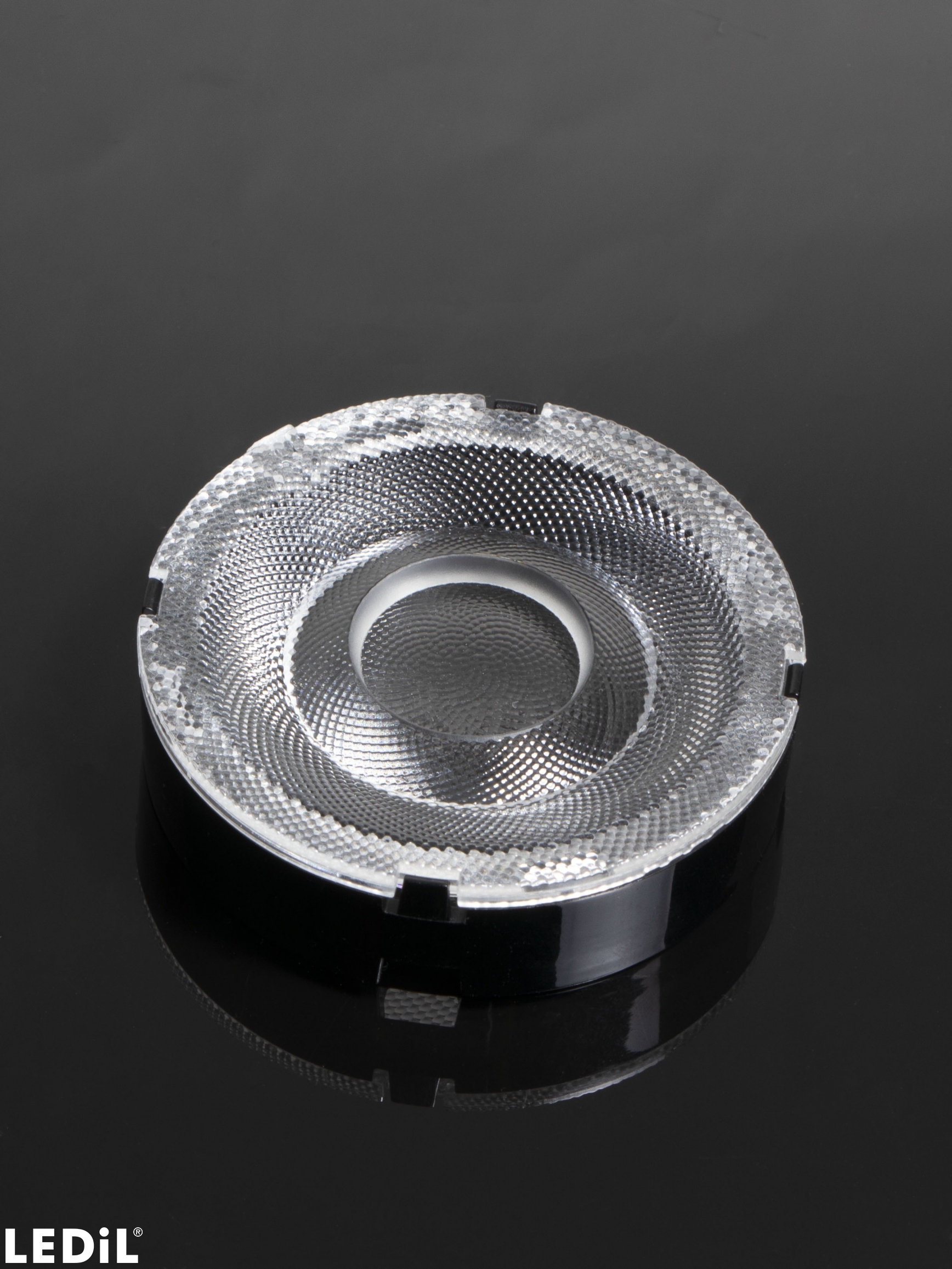

~60° wide beam. Assembly with holder C compatible with HEKLA sockets and connectors. Black version.

Specification
  • Dimensions:
    50 mm
  • Height:
    13.10 mm
  • Fastening:
    socket
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    510 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.2 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    2.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CP17692_AMY-50-WW-C

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

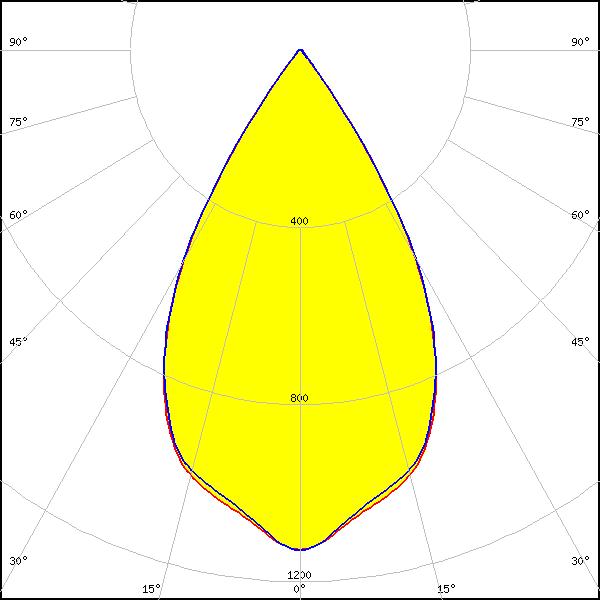

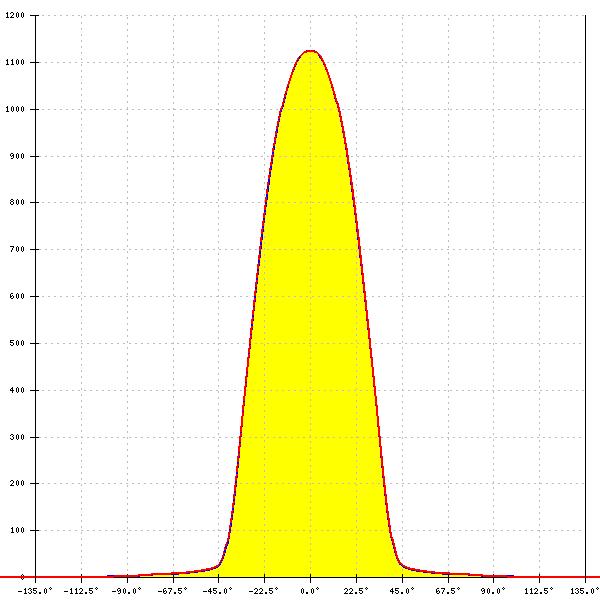

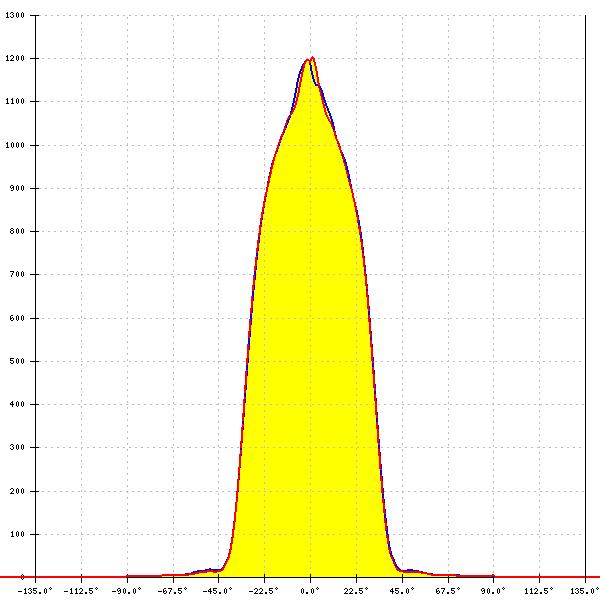

Optical results

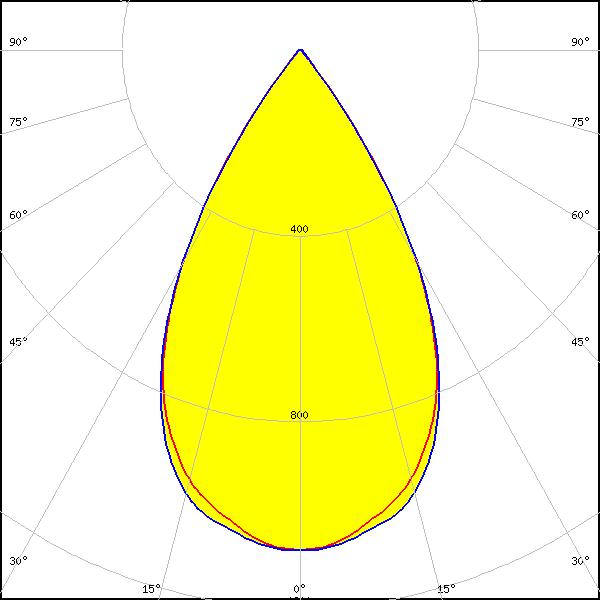

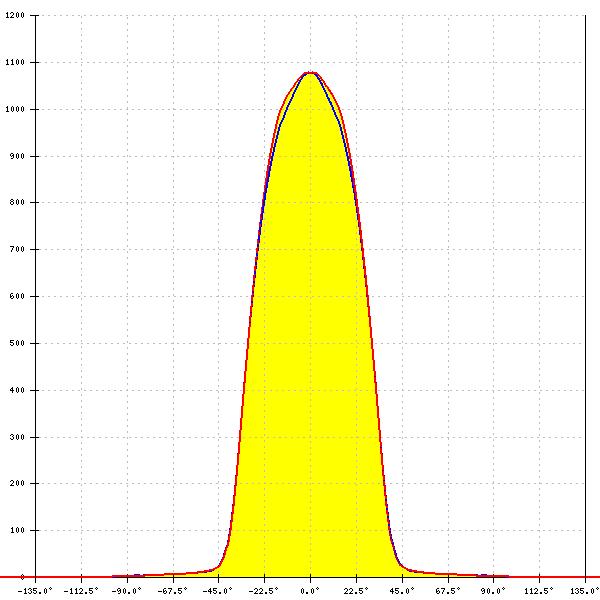

LED: V10 Gen 8
Required components:
FWHM: 59°
FWTM: 78°
Peak intensity: 1.078 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

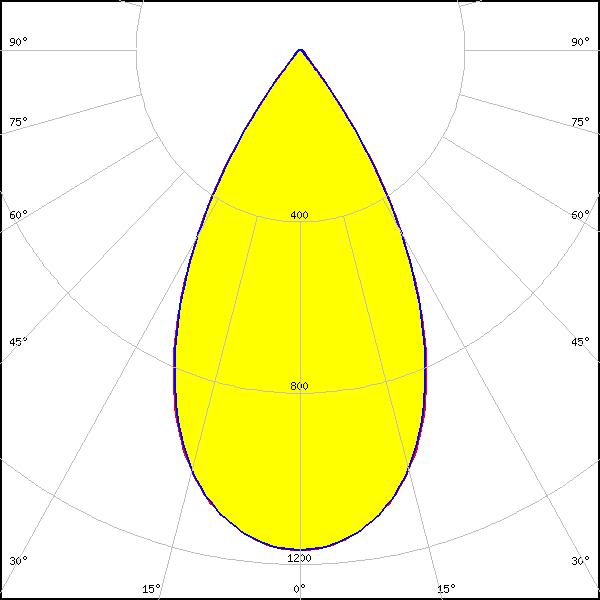

LED: V11 HD Gen 8
Required components:
Bender Wirth: 633d Hekla
FWHM: 56°
FWTM: 78°
Peak intensity: 1.169 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

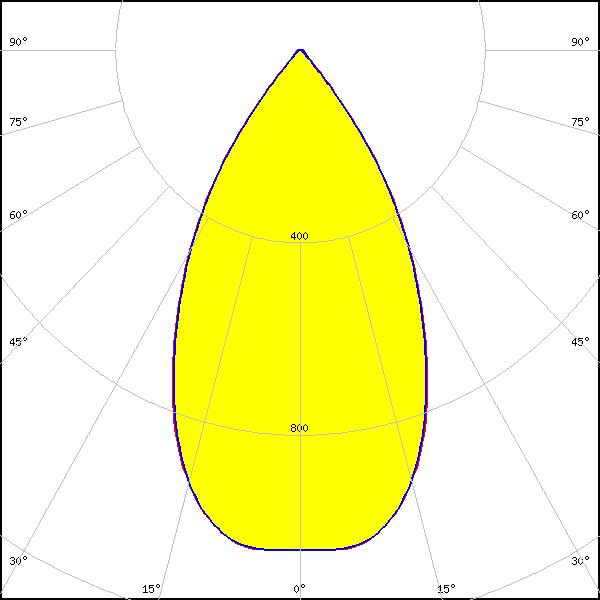

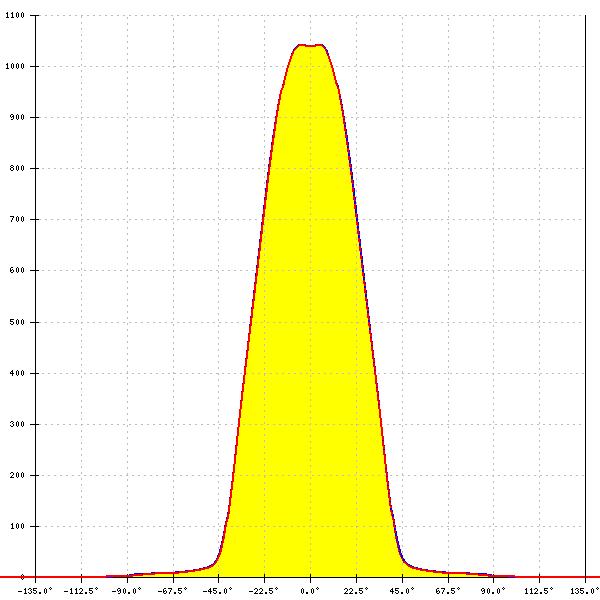

LED: V13 Gen 8
Required components:
FWHM: 57°
FWTM: 82°
Peak intensity: 1.043 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

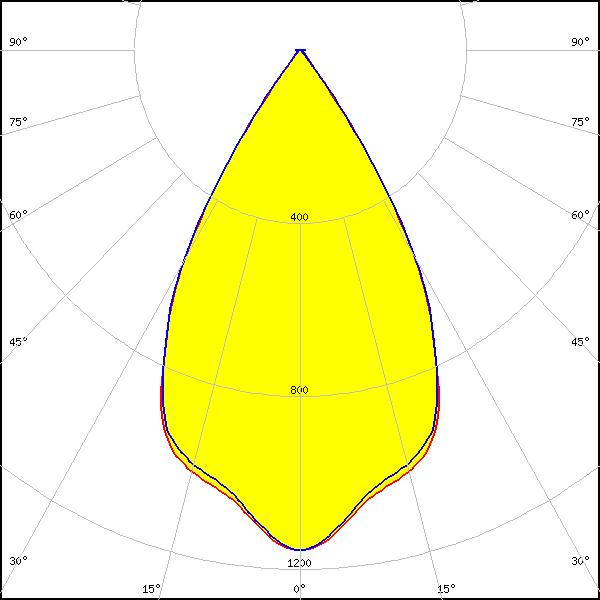

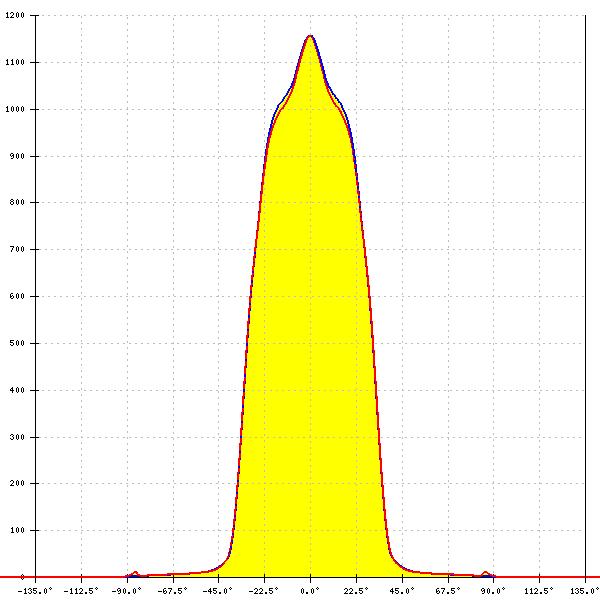

LED: V4 HD Gen 7
Required components:
FWHM: 59°
FWTM: 75°
Peak intensity: 1.157 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

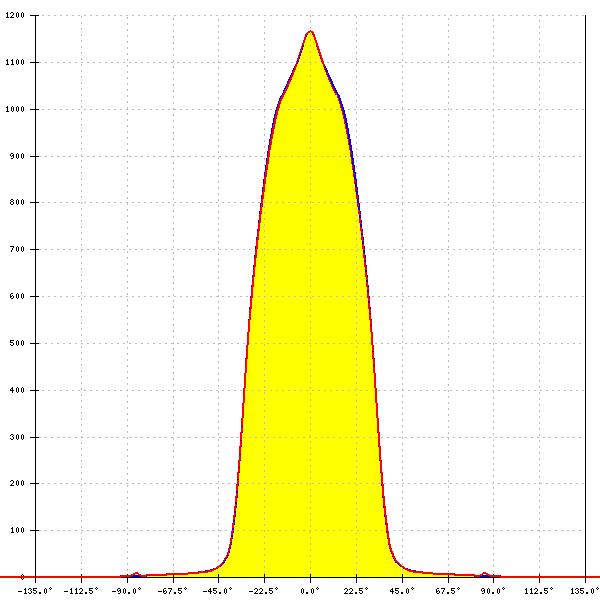

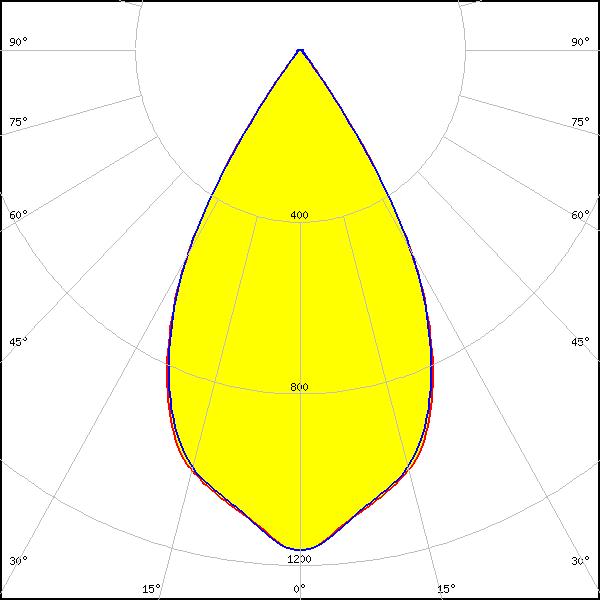

LED: V6 HD Gen 7
Required components:
FWHM: 58°
FWTM: 75°
Peak intensity: 1.168 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

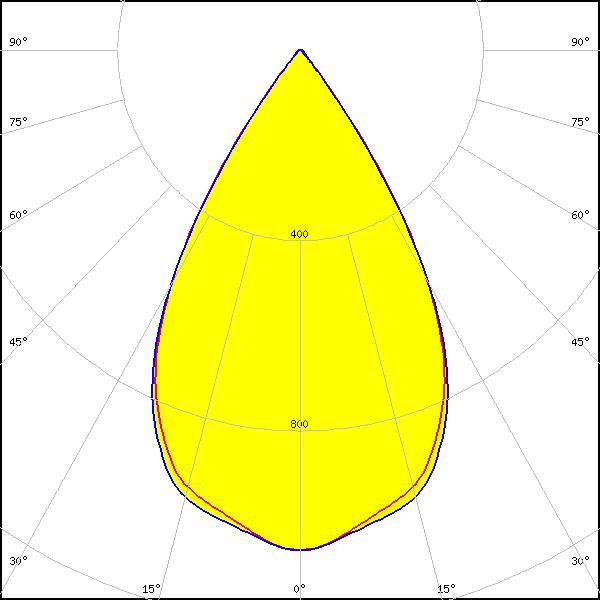

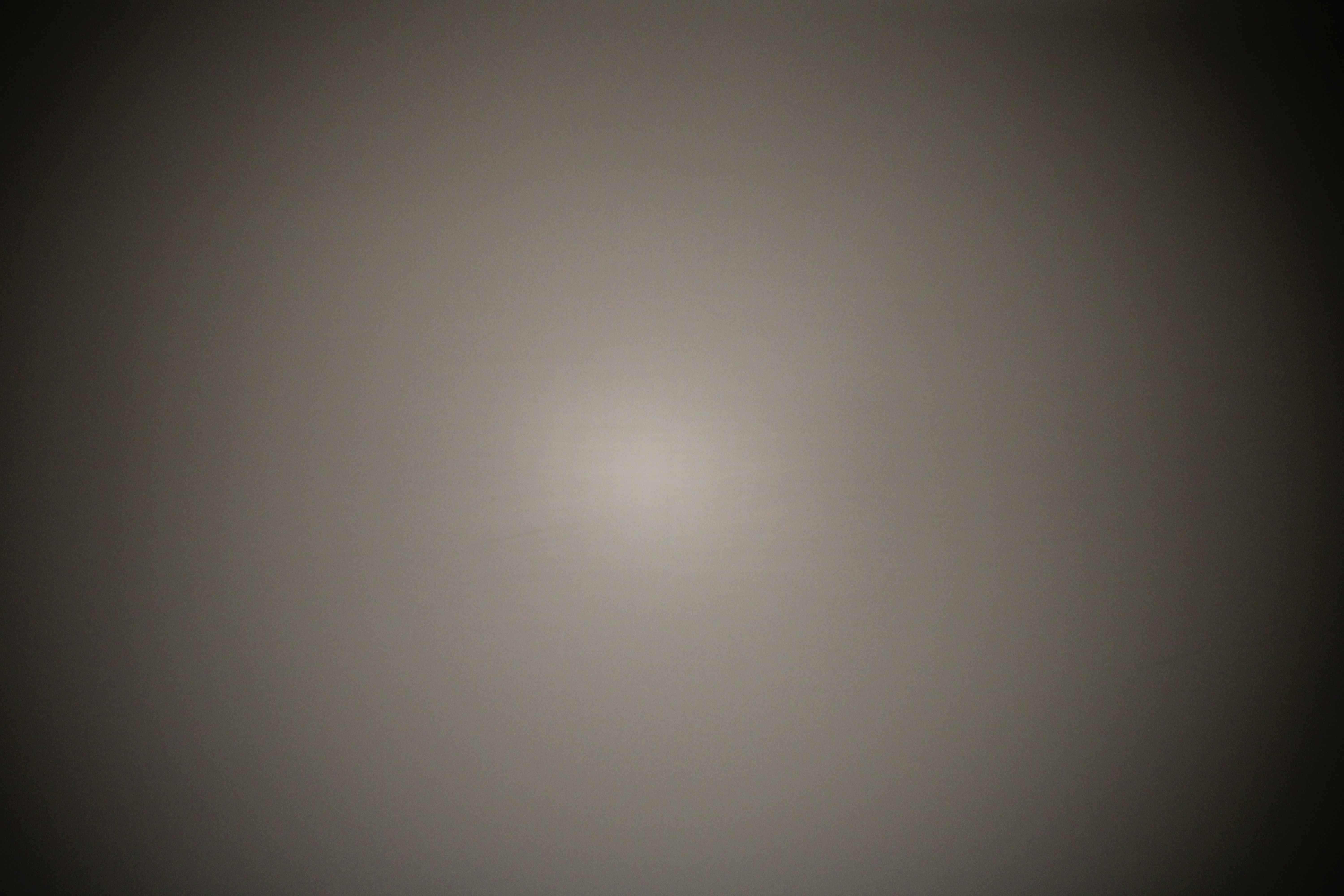

LED: V8 Gen 8
Required components:
FWHM: 61°
FWTM: 78°
Peak intensity: 1.052 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

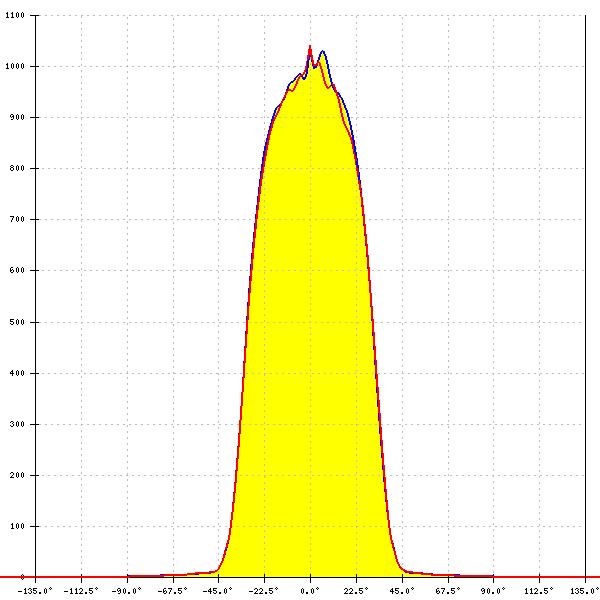

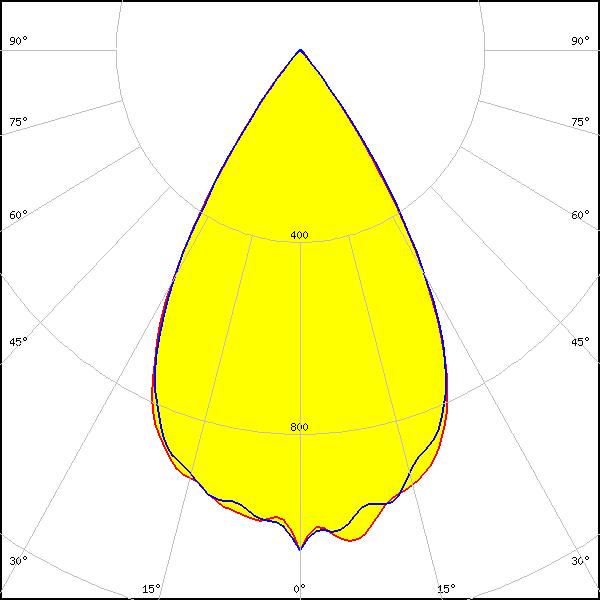

LED: V8 Gen7
Required components:
FWHM: 61°
FWTM: 78°
Peak intensity: 1.051 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

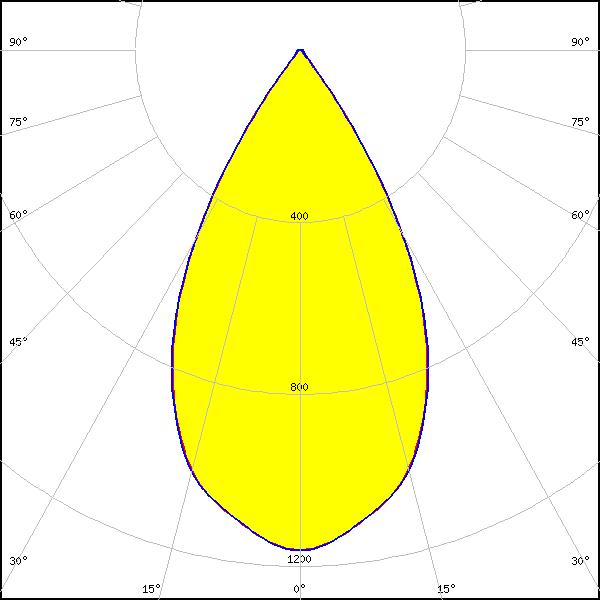

LED: V9 HD Gen7
Required components:
FWHM: 57°
FWTM: 76°
Peak intensity: 1.165 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

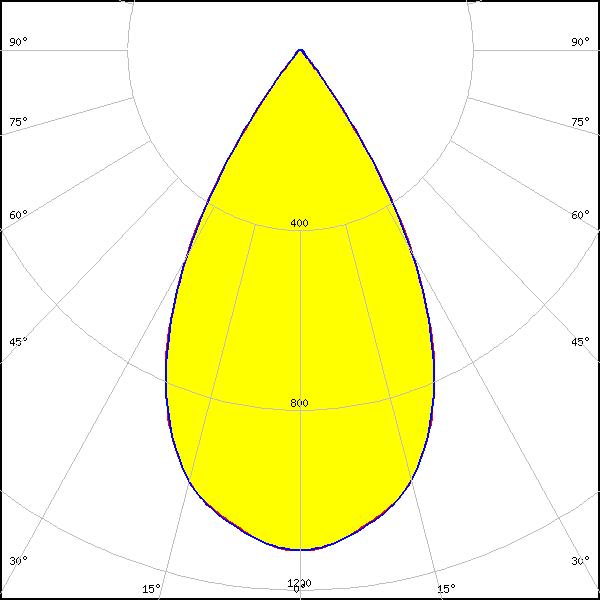

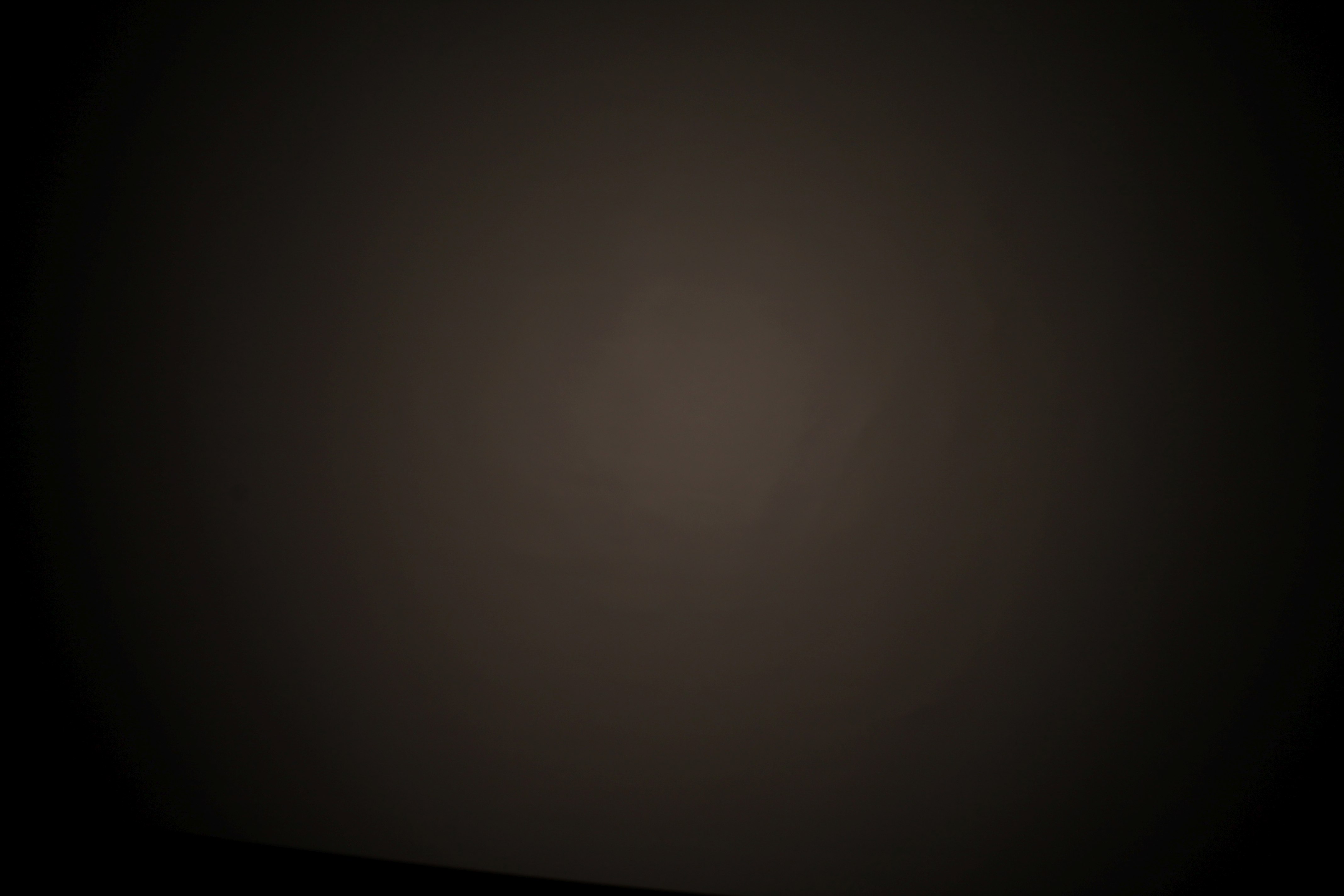

LED: VERO10
Required components:
FWHM: 58°
FWTM: 77°
Peak intensity: 1.114 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

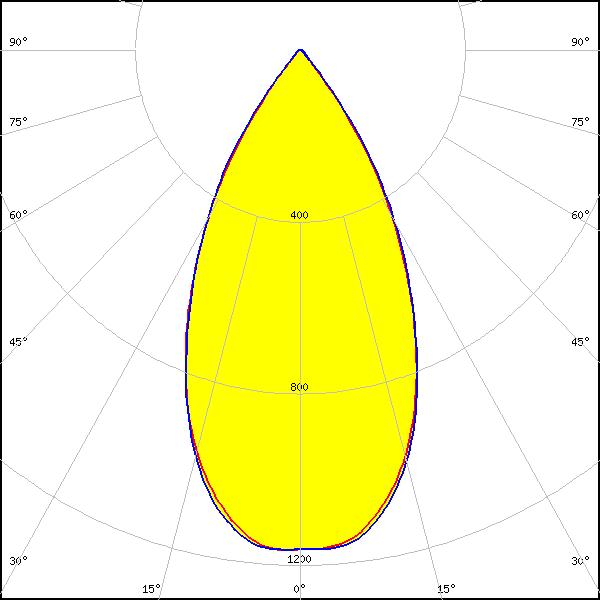

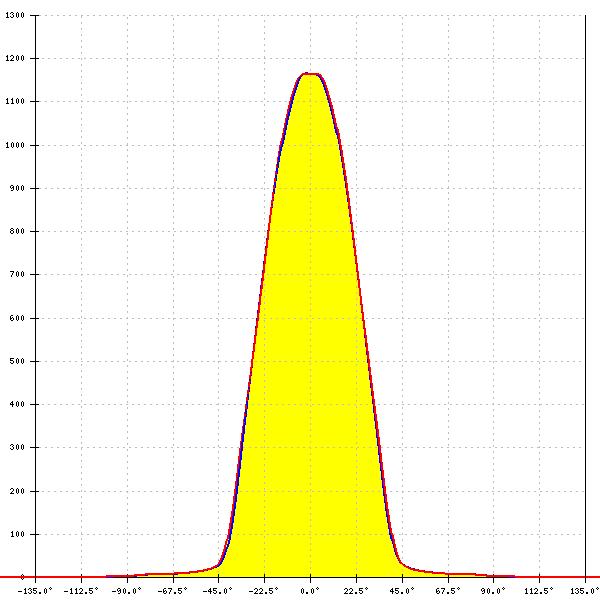

LED: Vesta DTW 13mm (21W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 53°
FWTM: 78°
Peak intensity: 1.165 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

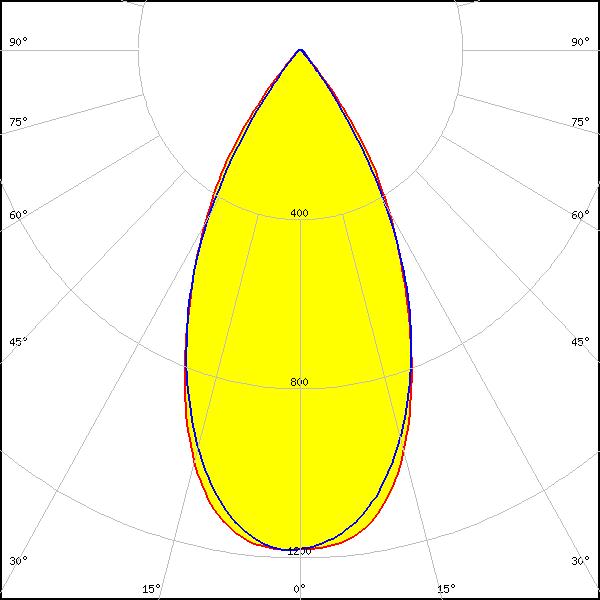

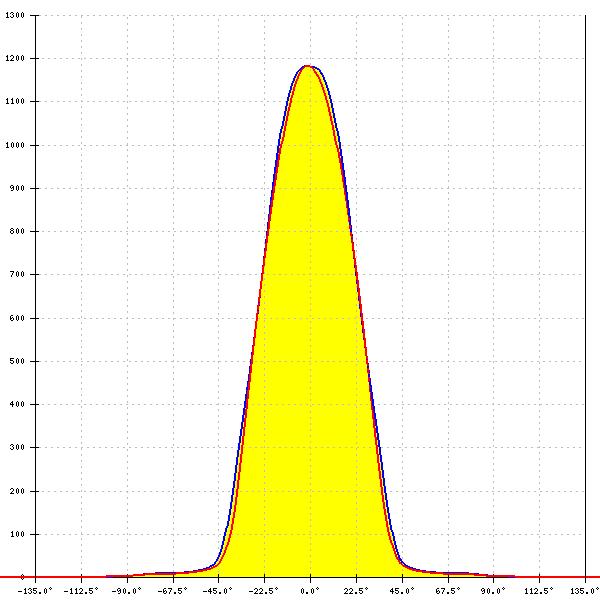

LED: Vesta DTW 15mm (33W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 52°
FWTM: 78°
Peak intensity: 1.183 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

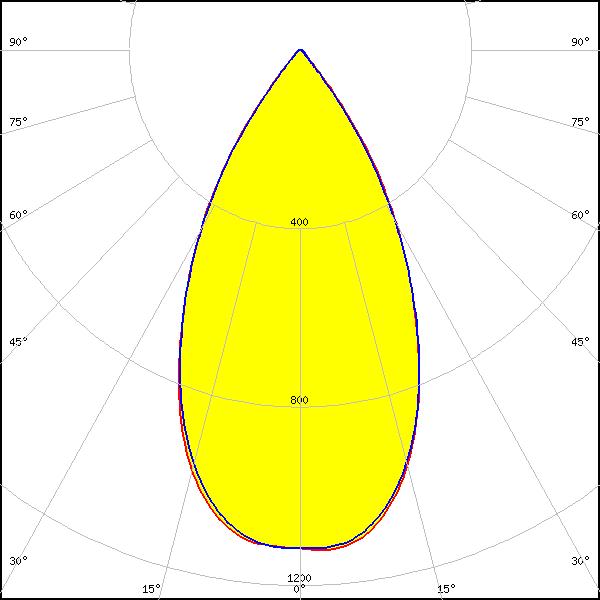

LED: Vesta TW 13mm (18W) DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 492 Typ L8
FWHM: 54°
FWTM: 80°
Peak intensity: 1.123 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: Tunable White

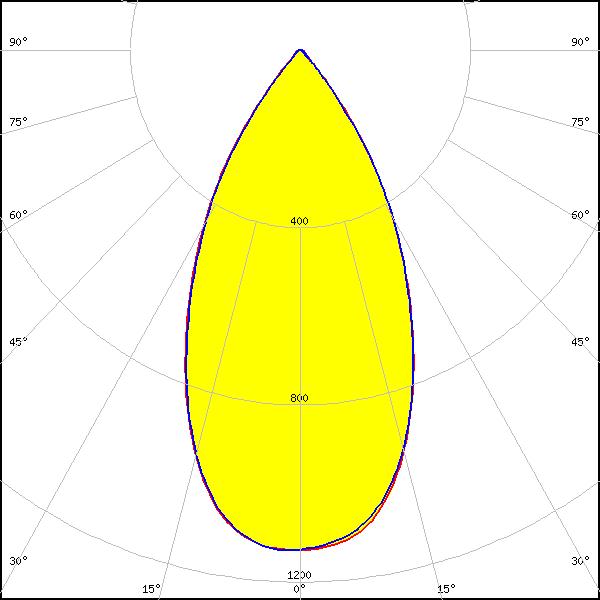

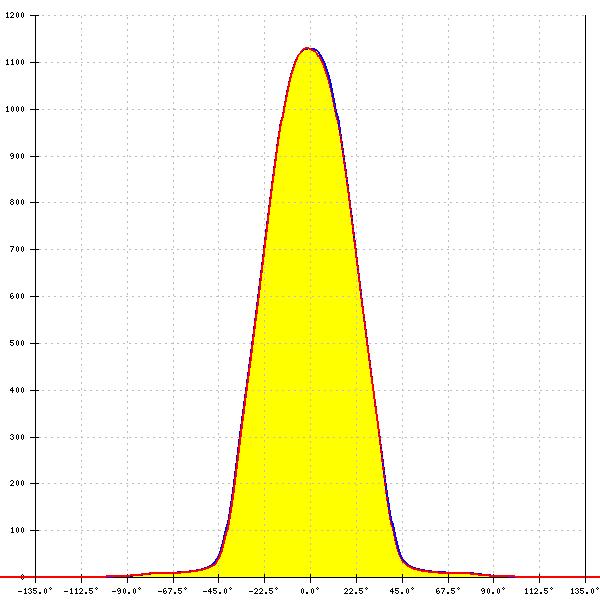

LED: Vesta TW 15mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 482 Typ L8
FWHM: 52°
FWTM: 81°
Peak intensity: 1.129 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: Tunable White
LED: Vesta TW 6mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 57°
FWTM: 74°
Peak intensity: 1.193 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: Tunable White

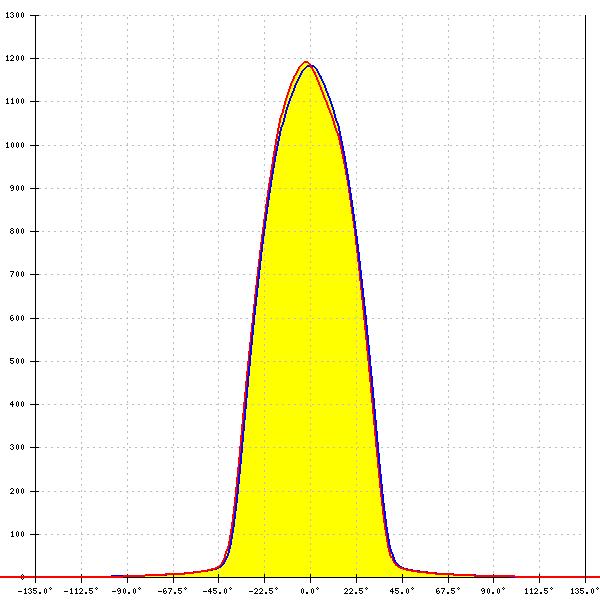

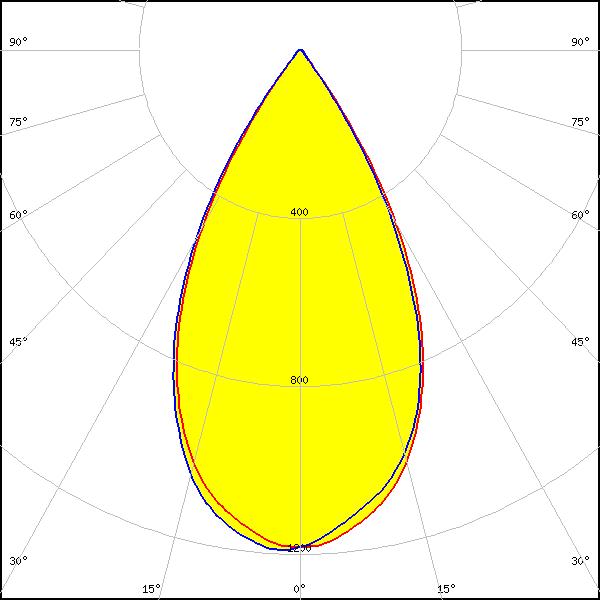

LED: Vesta TW 9mm (9W) DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 55°
FWTM: 75°
Peak intensity: 1.191 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: Tunable White

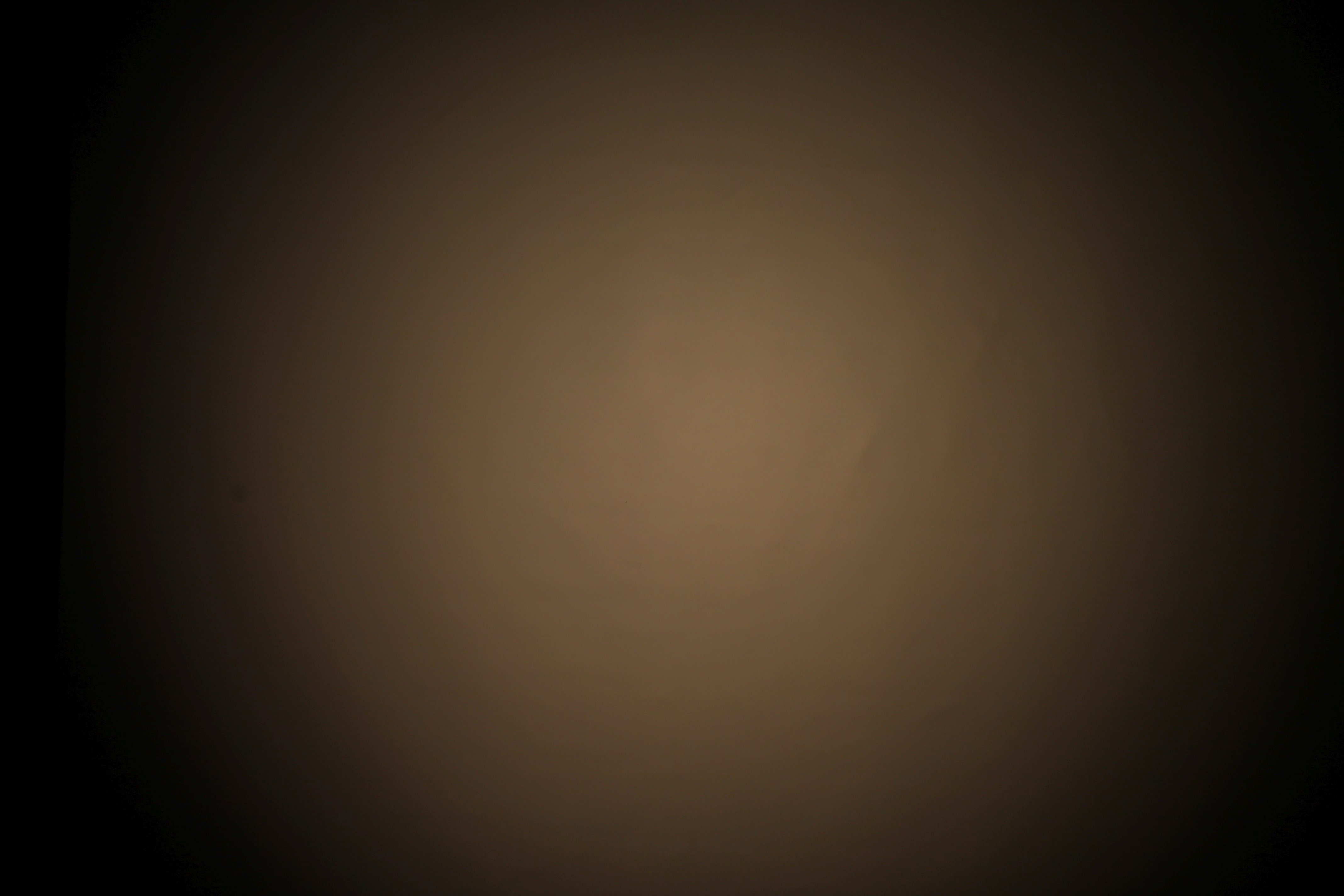

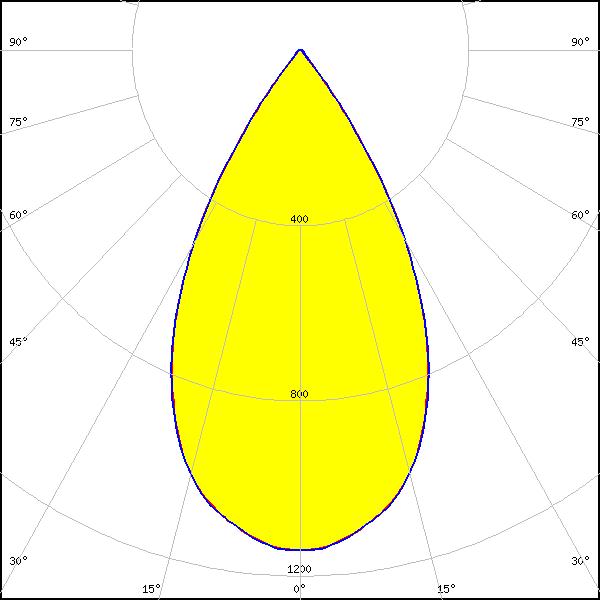

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 57°
FWTM: 77°
Peak intensity: 1.145 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

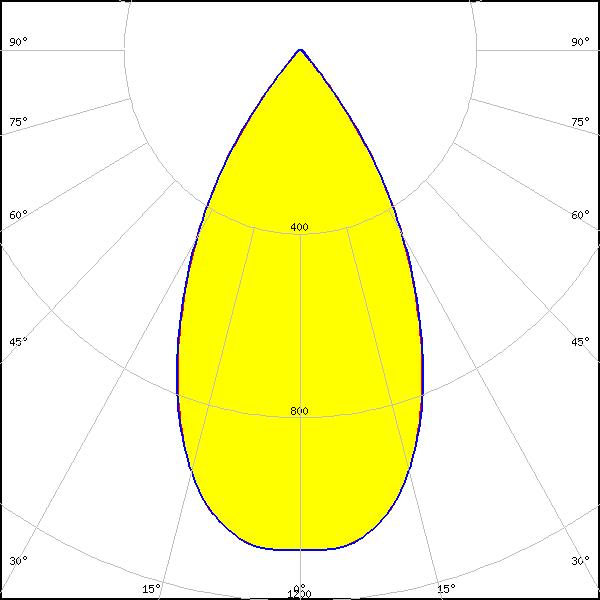

LED: CLL03x/CLU03x
Required components:
FWHM: 55°
FWTM: 80°
Peak intensity: 1.095 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

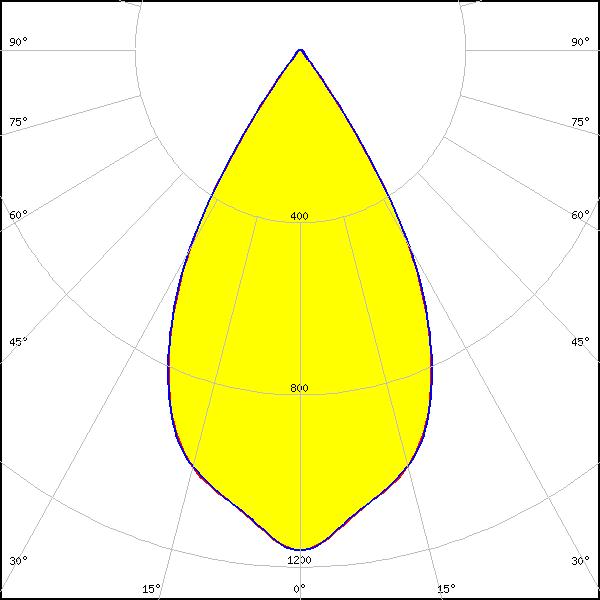

LED: CLU700/701/702
Required components:
FWHM: 58°
FWTM: 75°
Peak intensity: 1.163 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

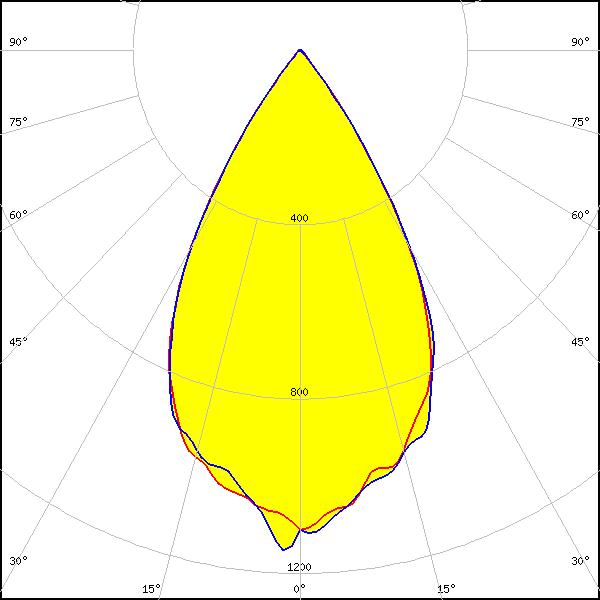

LED: CLU712
Required components:
FWHM: 59°
FWTM: 77°
Peak intensity: 1.148 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

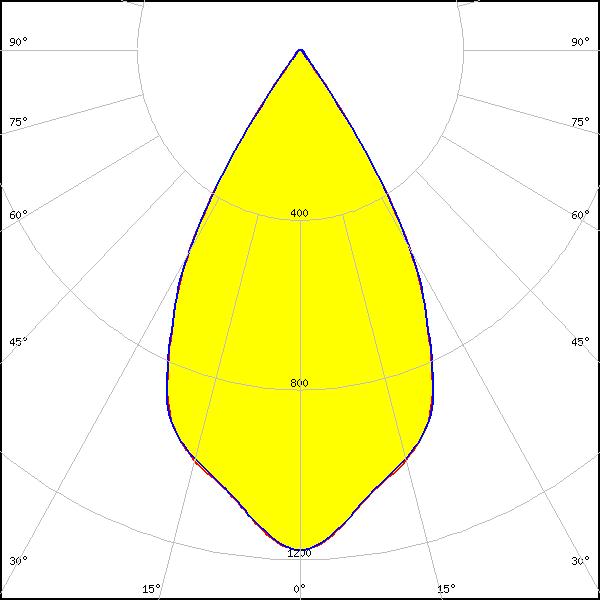

LED: CLU7A2 (LES 4.2mm)
Required components:
FWHM: 58°
FWTM: 74°
Peak intensity: 1.181 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

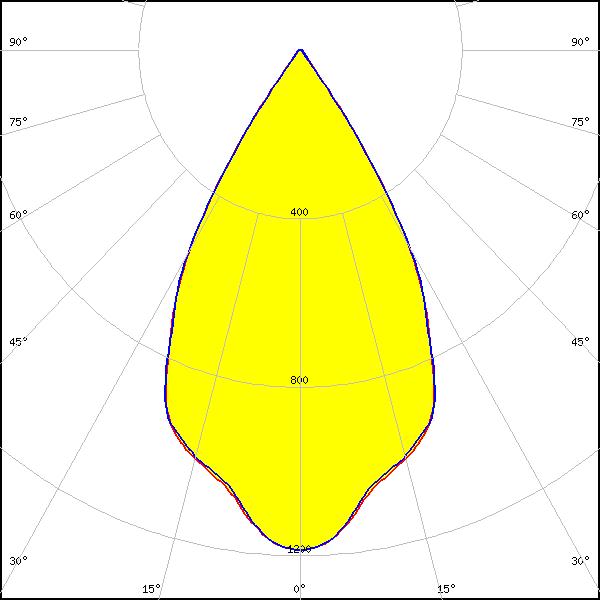

LED: CLU7B2
Required components:
FWHM: 58°
FWTM: 73°
Peak intensity: 1.189 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

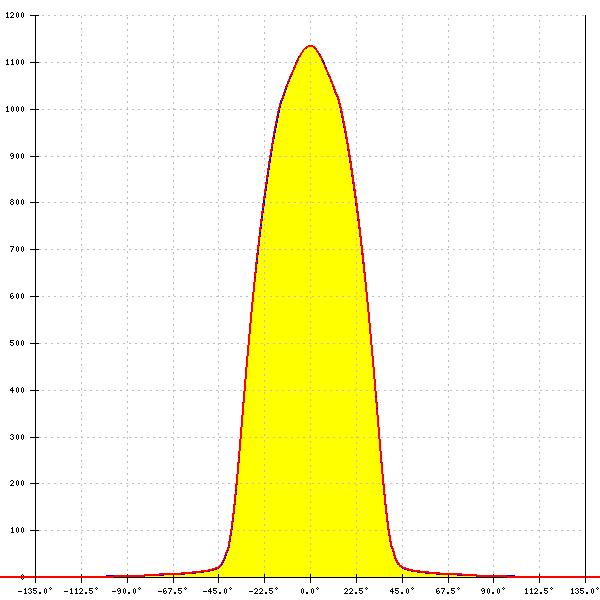

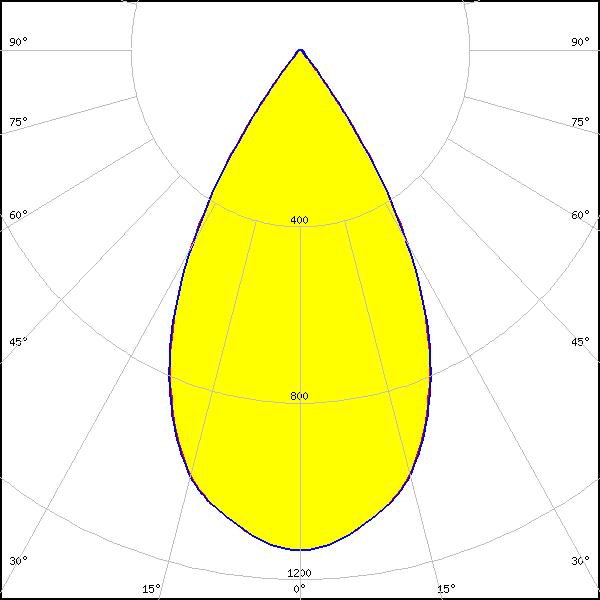

LED: CMA1516
Required components:
FWHM: 57°
FWTM: 77°
Peak intensity: 1.139 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

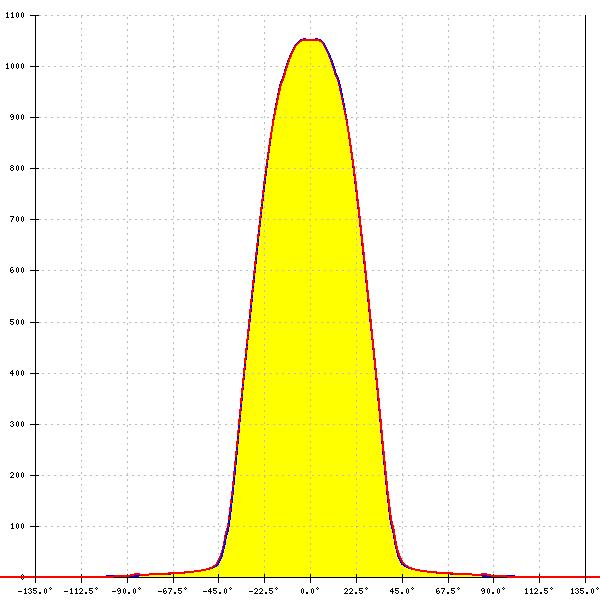

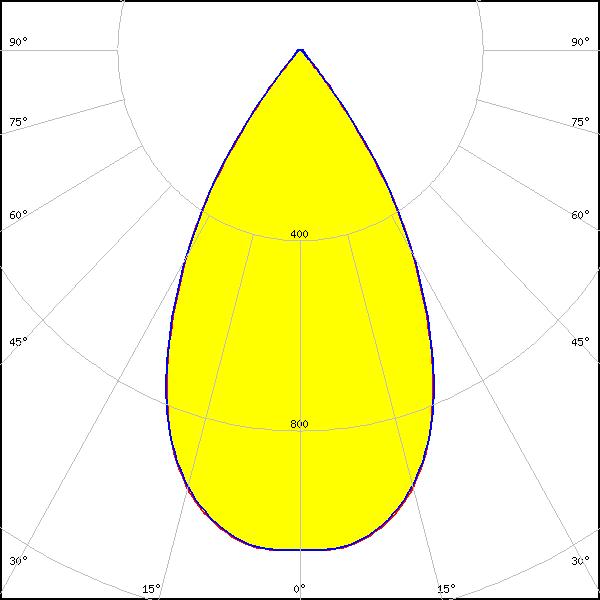

LED: CMA1825
Required components:
FWHM: 58°
FWTM: 80°
Peak intensity: 1.063 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

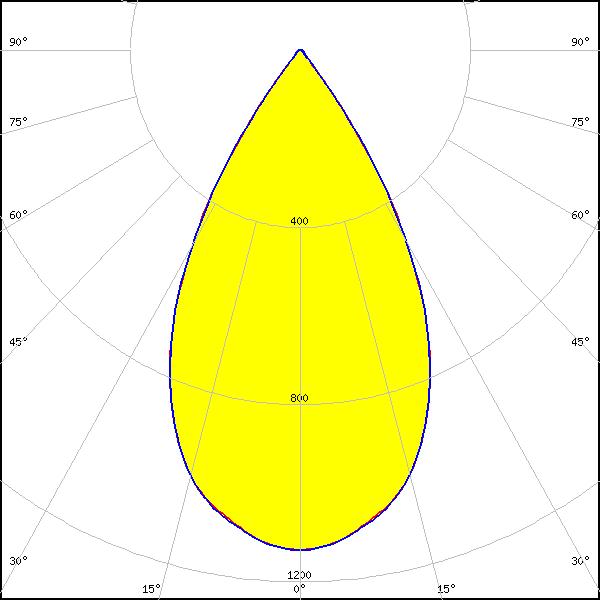

LED: CMT14xx
Required components:
FWHM: 57°
FWTM: 77°
Peak intensity: 1.131 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

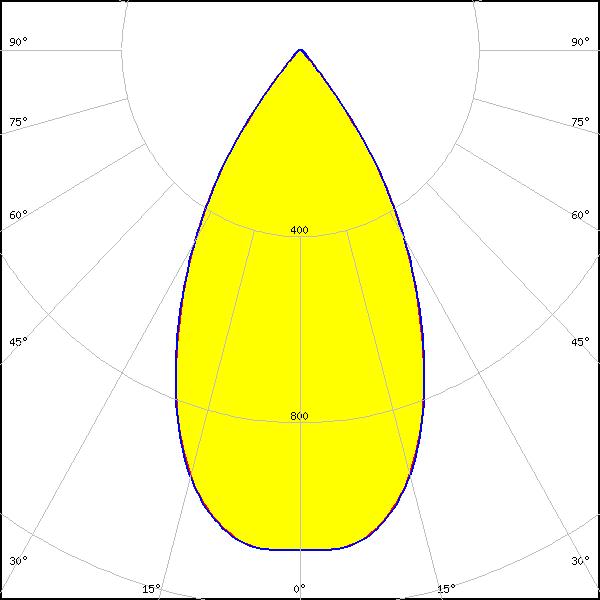

LED: CMT19xx
Required components:
FWHM: 56°
FWTM: 81°
Peak intensity: 1.089 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

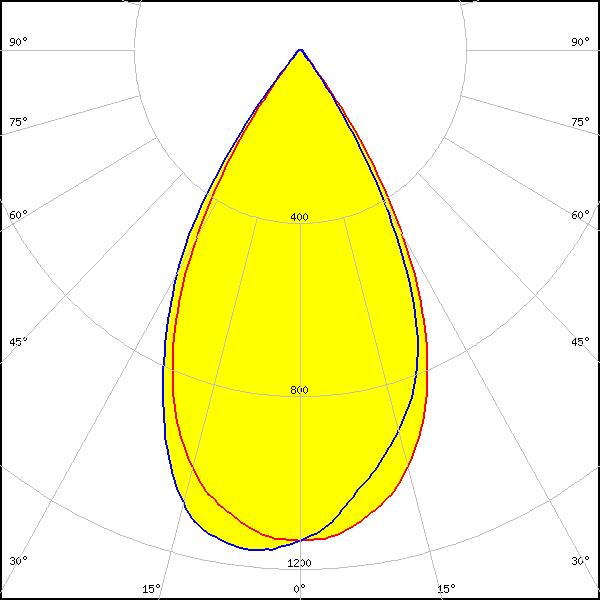

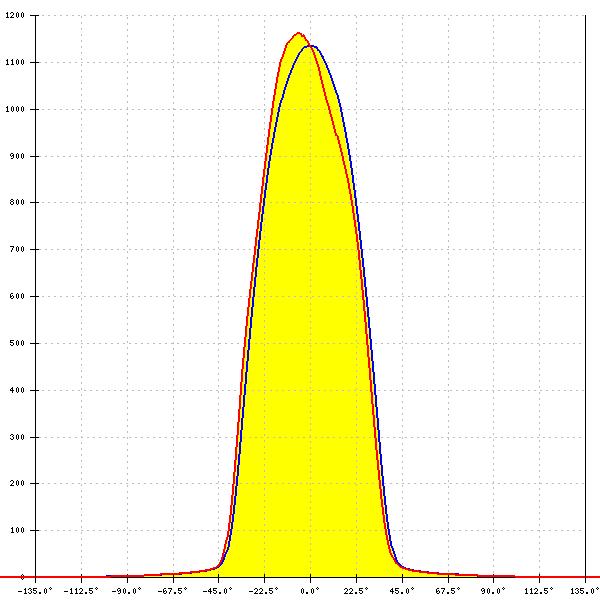

LED: CMU10xx
Required components:
FWHM: 57°
FWTM: 76°
Peak intensity: 1.193 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

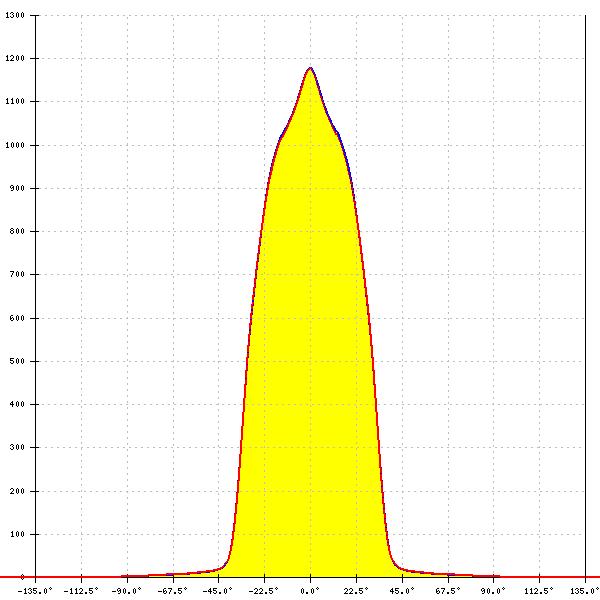

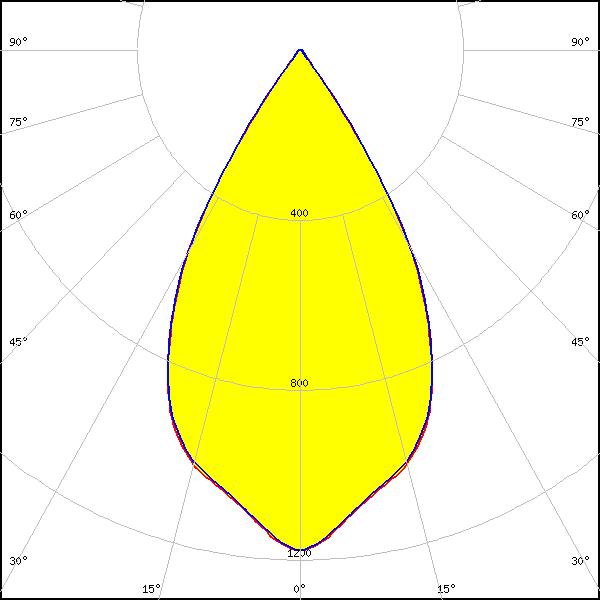

LED: CXA/B 13xx
Required components:
FWHM: 58°
FWTM: 75°
Peak intensity: 1.177 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

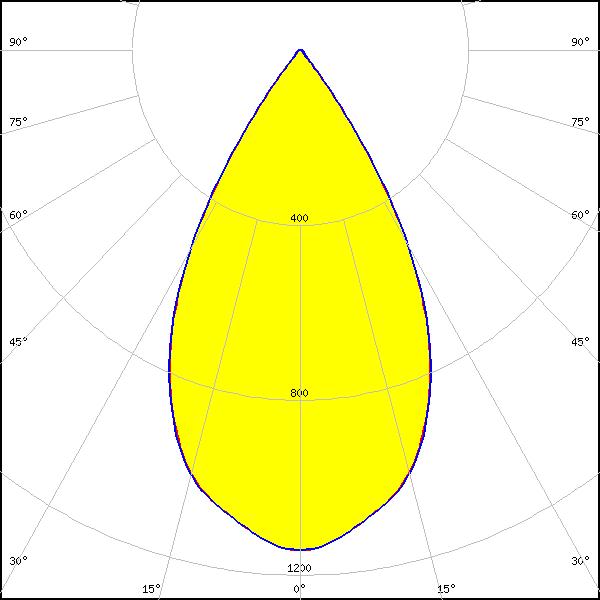

LED: CXA/B 15xx
Required components:
FWHM: 58°
FWTM: 77°
Peak intensity: 1.144 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

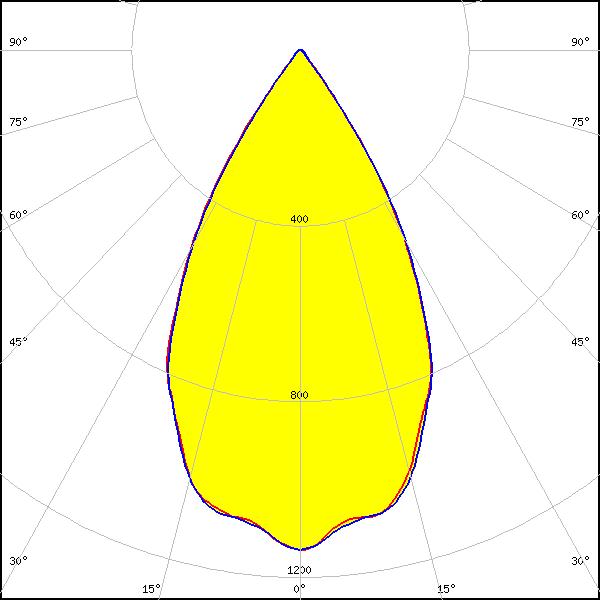

LED: LEDIM/C6
Required components:
FWHM: 57°
FWTM: 76°
Peak intensity: 1.139 cd/lm
Efficiency: 91 %
LEDs/each optic: 9
Light colour: White

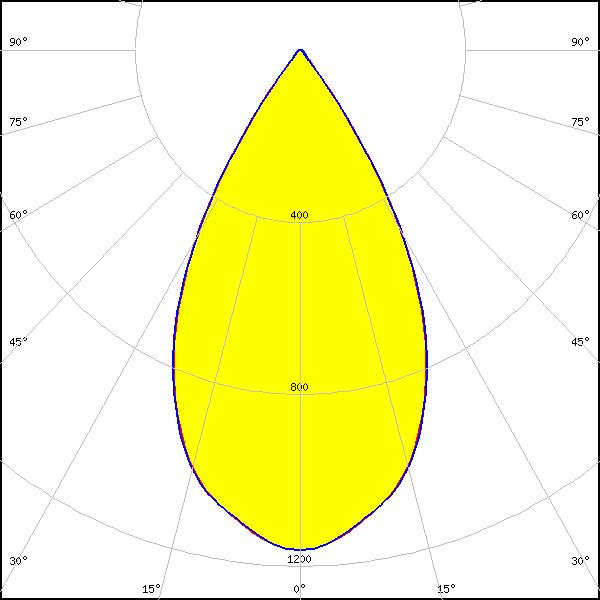

LED: LUXEON CoB 1202/1203
Required components:
FWHM: 56°
FWTM: 75°
Peak intensity: 1.166 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

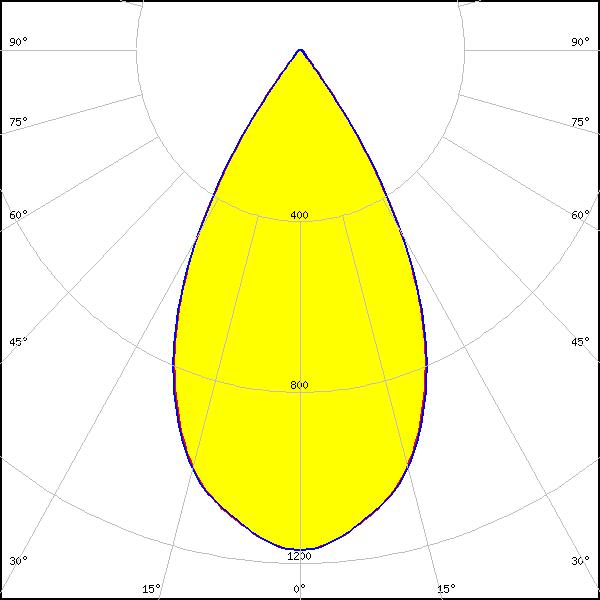

LED: LUXEON CoB 1204HD
Required components:
FWHM: 56°
FWTM: 76°
Peak intensity: 1.171 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

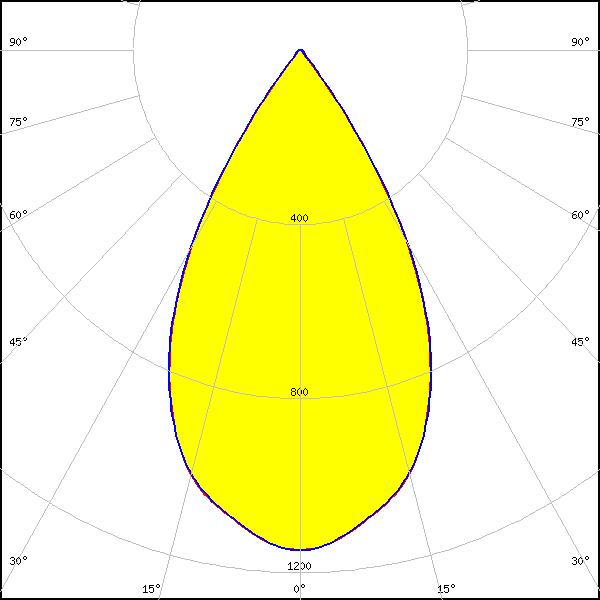

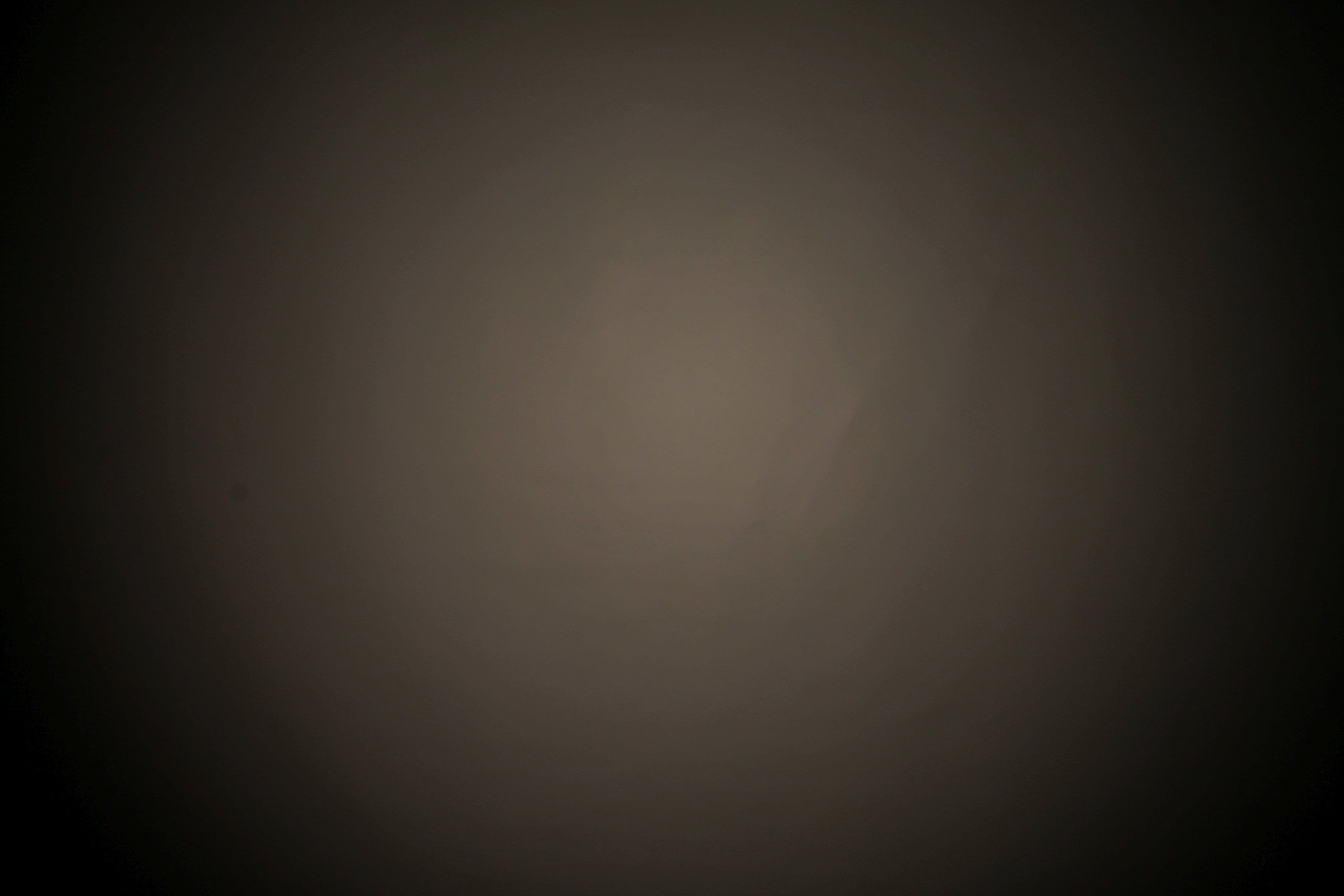

LED: LUXEON CoB M02/M03
Required components:
FWHM: 58°
FWTM: 77°
Peak intensity: 1.151 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

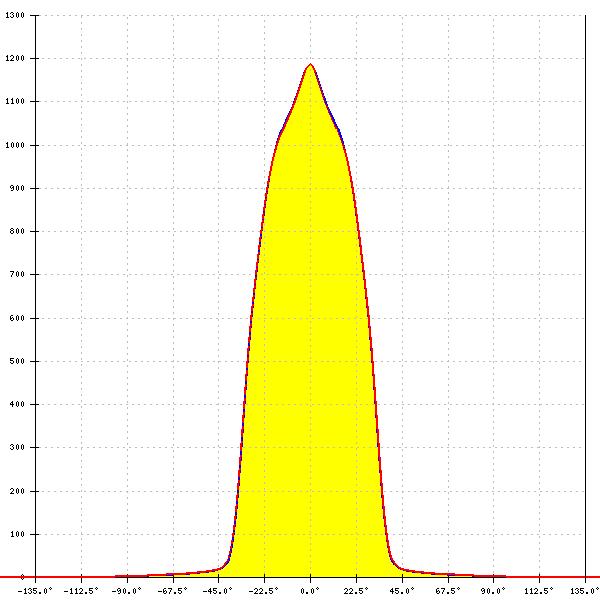

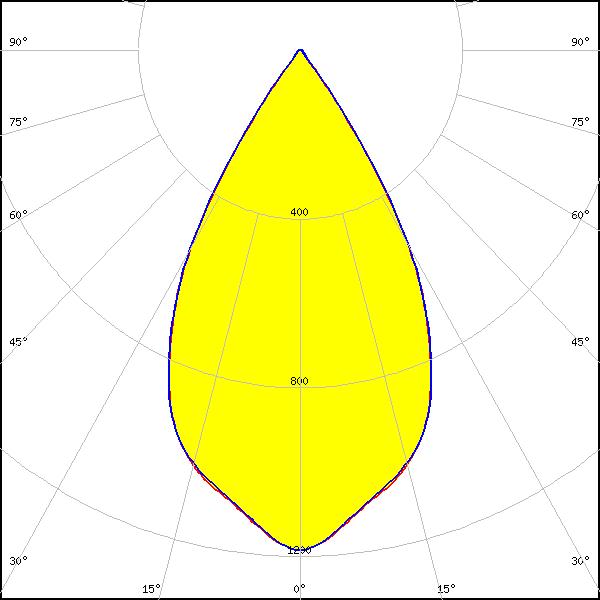

LED: LUXEON CoB S01
Required components:
FWHM: 58°
FWTM: 75°
Peak intensity: 1.186 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON Fusion 12-up (20x24)
Required components:
FWHM: 56°
FWTM: 78°
Peak intensity: 1.056 cd/lm
Efficiency: 85 %
LEDs/each optic: 12
Light colour: White

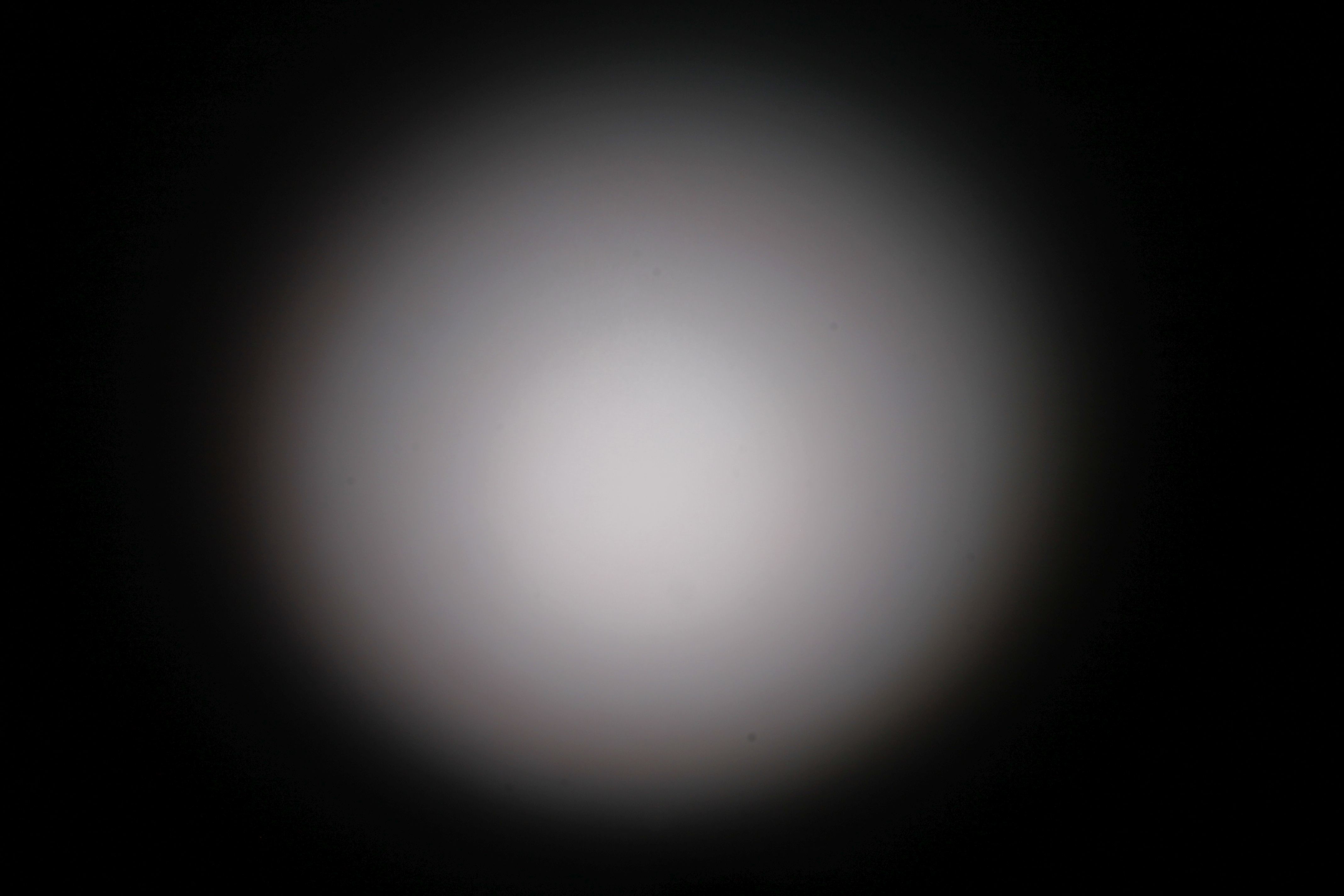

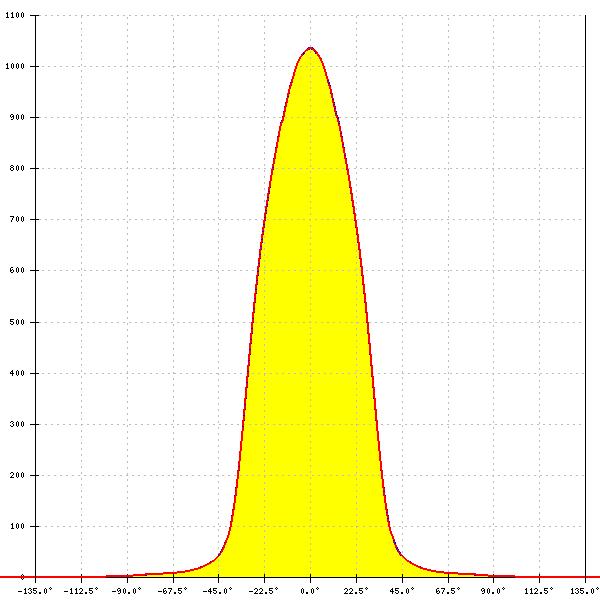

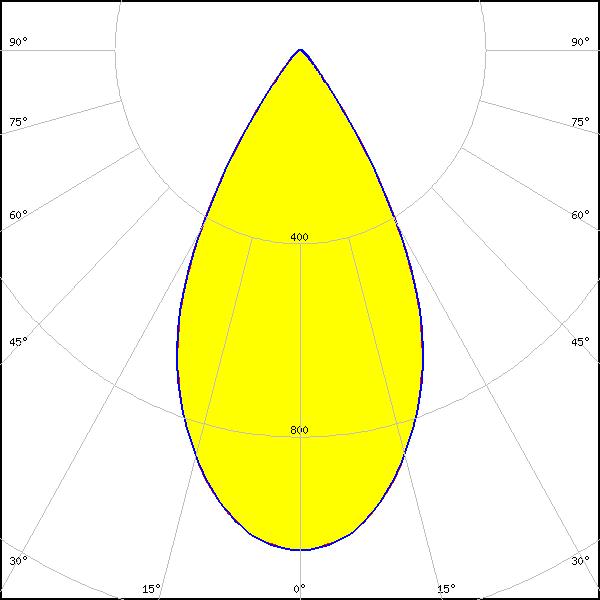

LED: LUXEON Fusion 21-up (20x24)
Required components:
FWHM: 56°
FWTM: 78°
Peak intensity: 1.035 cd/lm
Efficiency: 83 %
LEDs/each optic: 21
Light colour: White

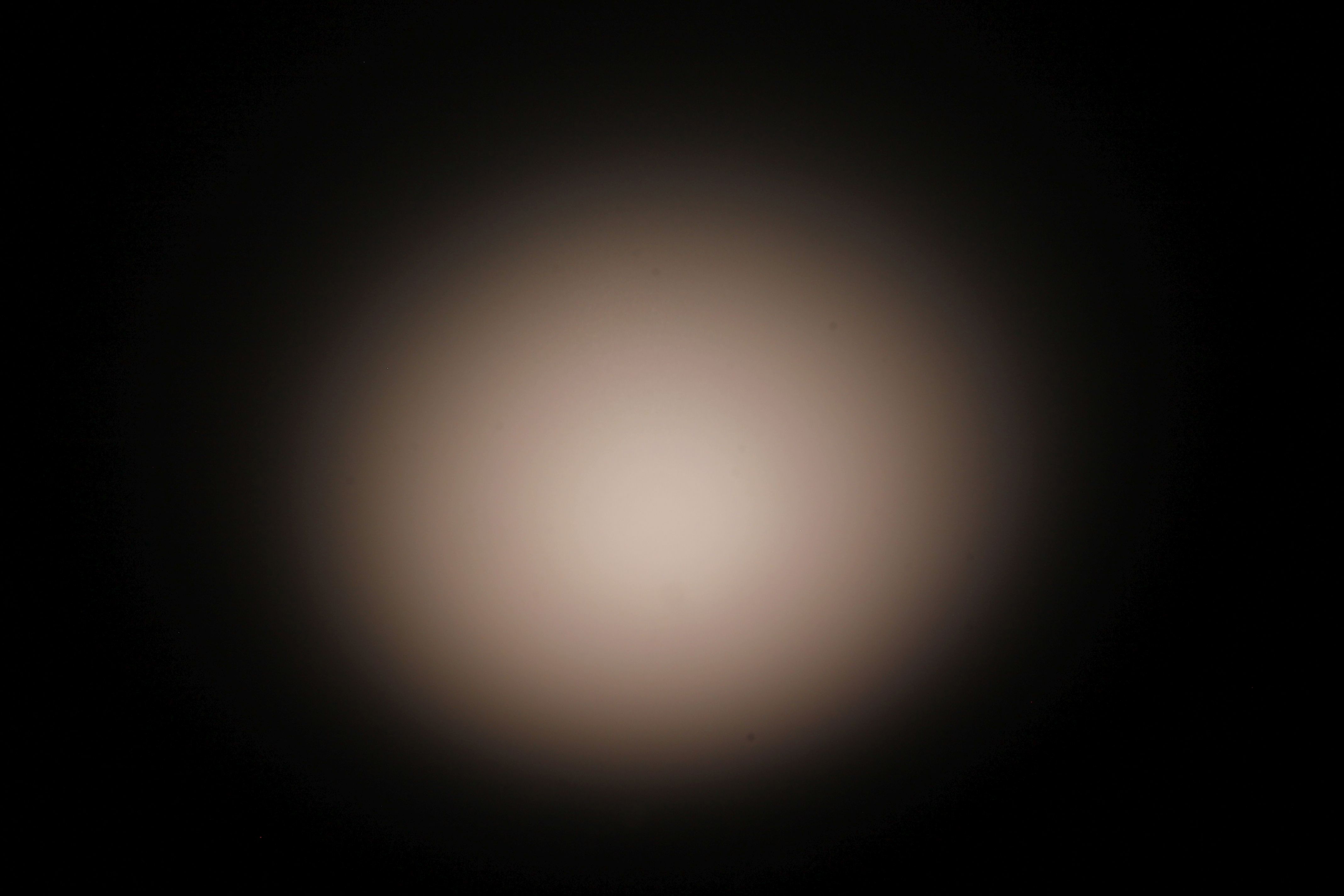

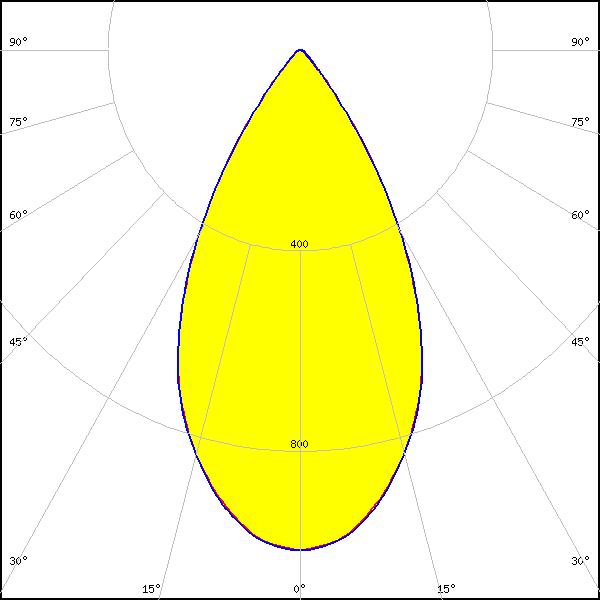

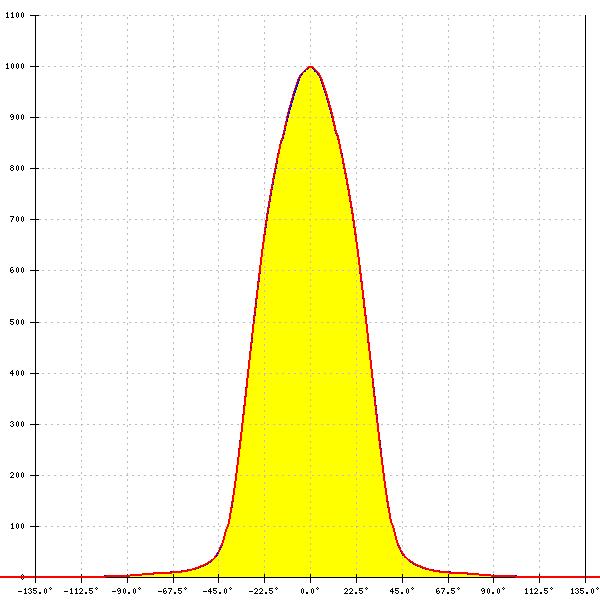

LED: LUXEON Fusion 27-up (20x24)
Required components:
FWHM: 55°
FWTM: 81°
Peak intensity: 1.000 cd/lm
Efficiency: 83 %
LEDs/each optic: 27
Light colour: White

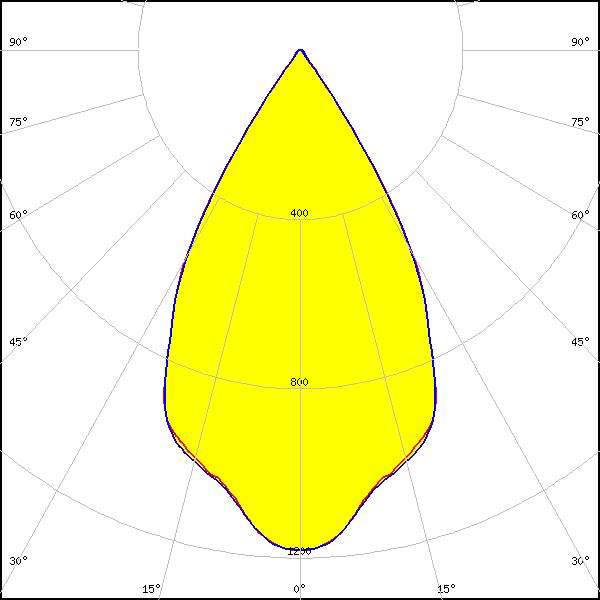

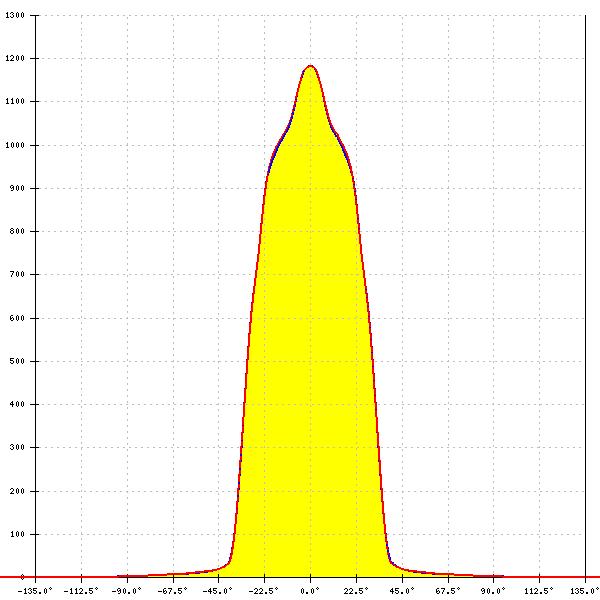

LED: CXM-3
Required components:
FWHM: 58°
FWTM: 74°
Peak intensity: 1.183 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

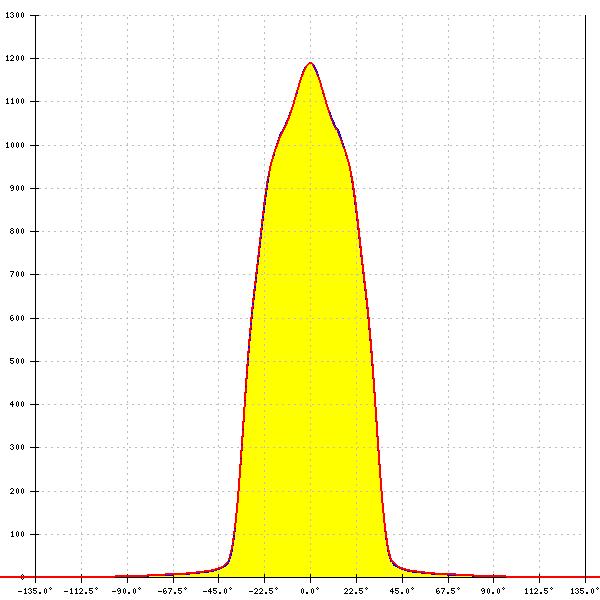

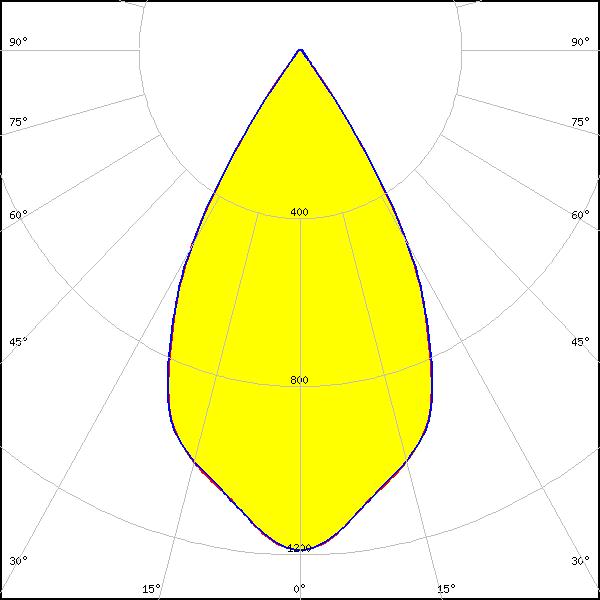

LED: CXM-4
Required components:
FWHM: 58°
FWTM: 74°
Peak intensity: 1.192 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: COB L-Type (LES 11)
Required components:
FWHM: 56°
FWTM: 78°
Peak intensity: 1.131 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: COB L-Type (LES 9)
Required components:
FWHM: 57°
FWTM: 76°
Peak intensity: 1.146 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: COB S-Type (LES 7)
Required components:
FWHM: 59°
FWTM: 76°
Peak intensity: 1.130 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

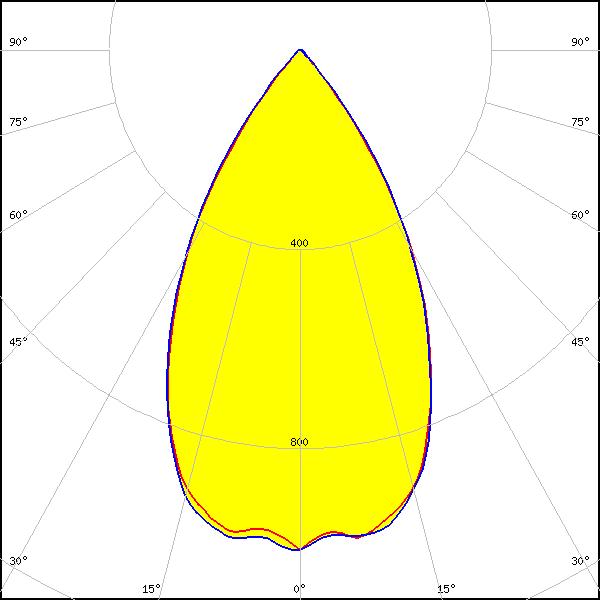

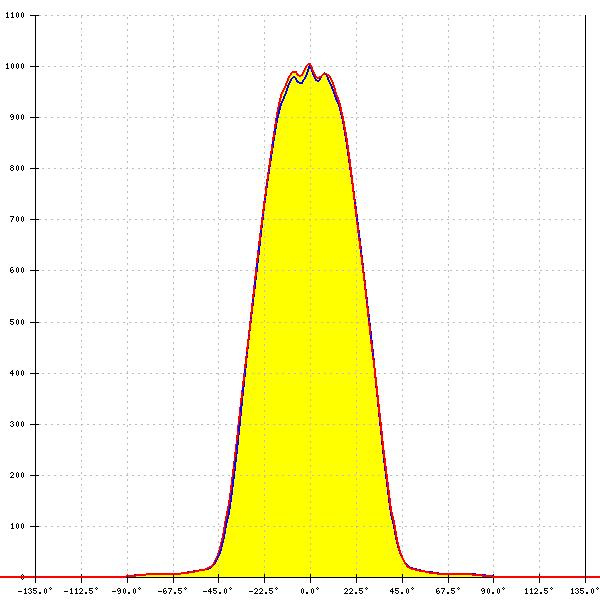

LED: Soleriq S15
Required components:
FWHM: 58°
FWTM: 83°
Peak intensity: 1.016 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

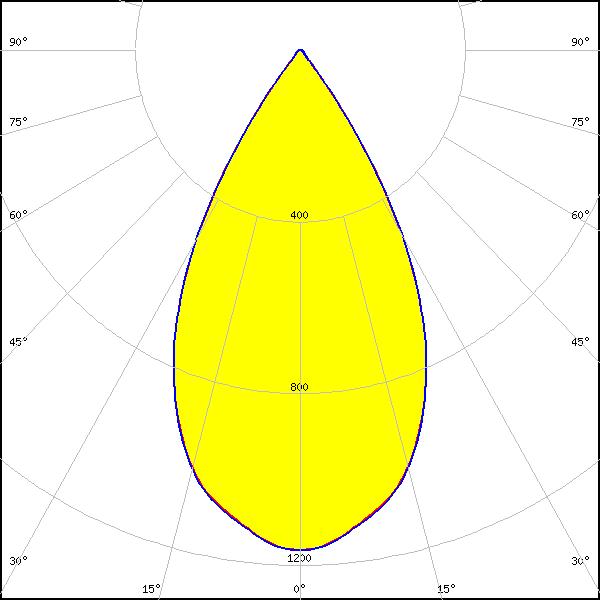

LED: Fortimo SLM L09 CoB
Required components:
FWHM: 56°
FWTM: 76°
Peak intensity: 1.167 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

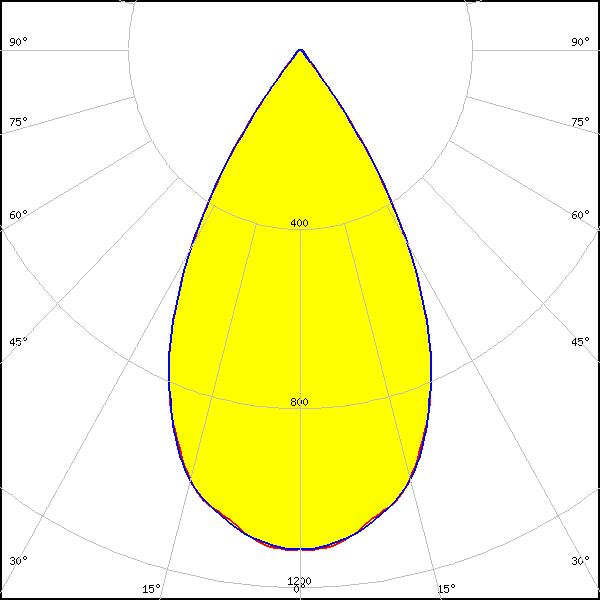

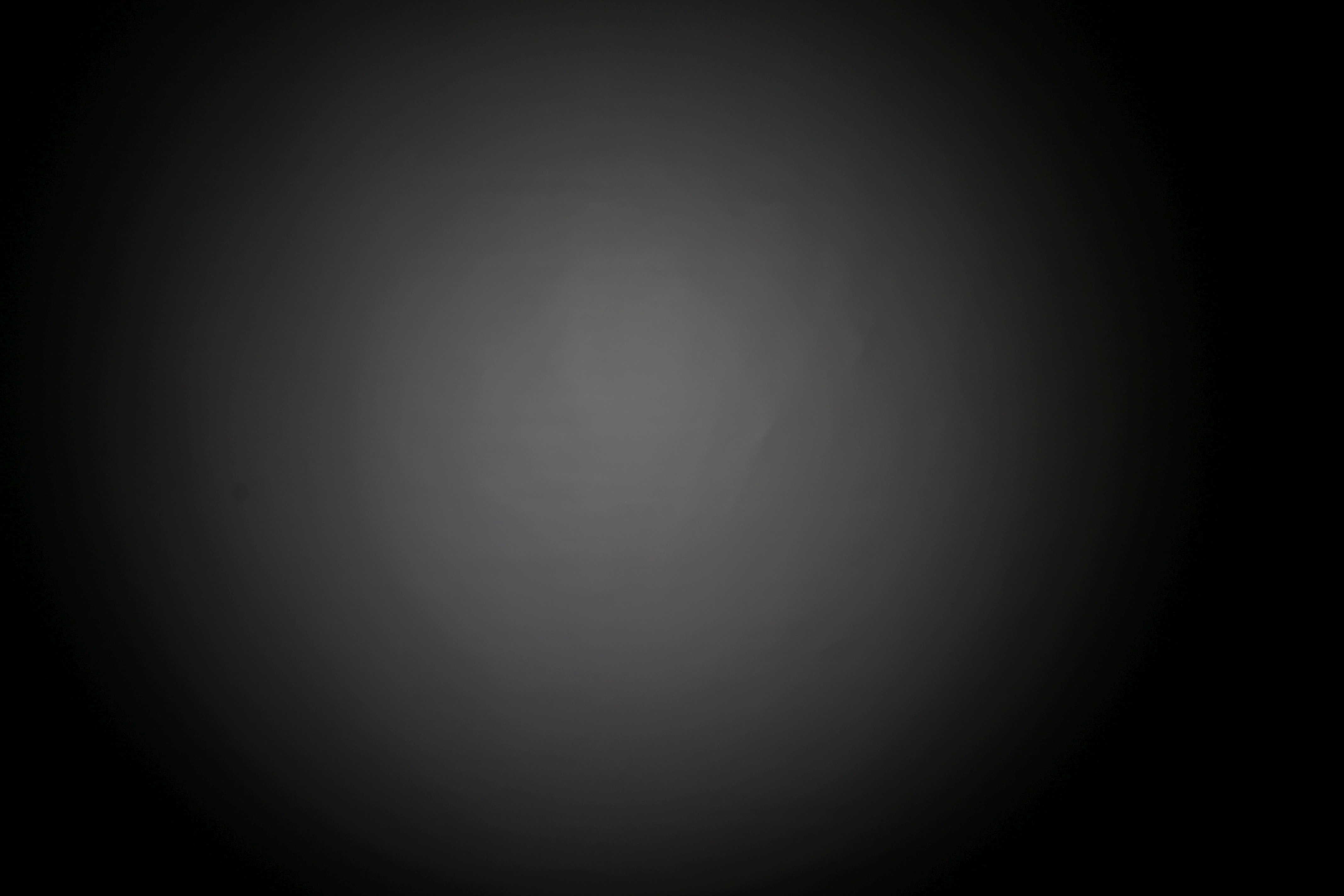

LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: 57°
FWTM: 77°
Peak intensity: 1.126 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

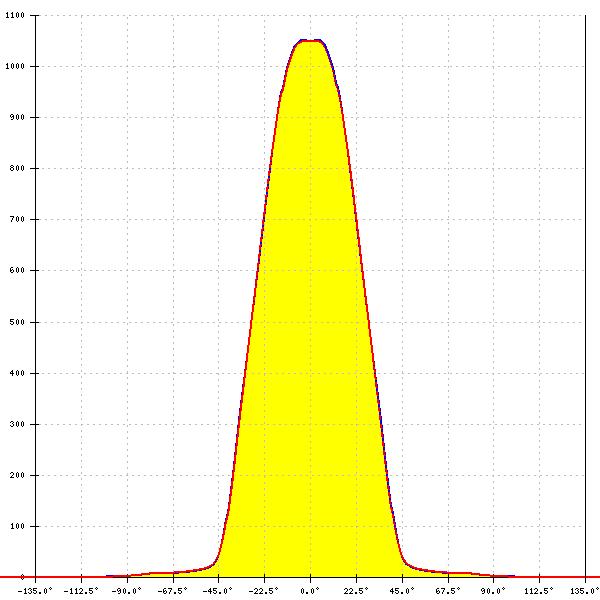

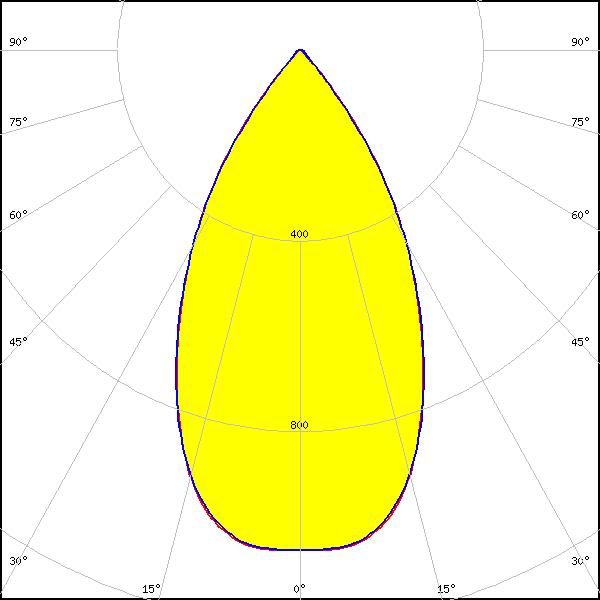

LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: 56°
FWTM: 82°
Peak intensity: 1.057 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

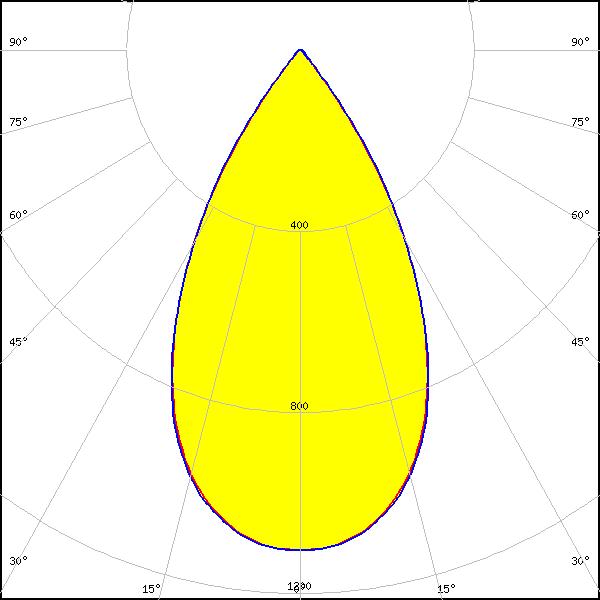

LED: LC030C/040C G2
Required components:
FWHM: 56°
FWTM: 78°
Peak intensity: 1.113 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

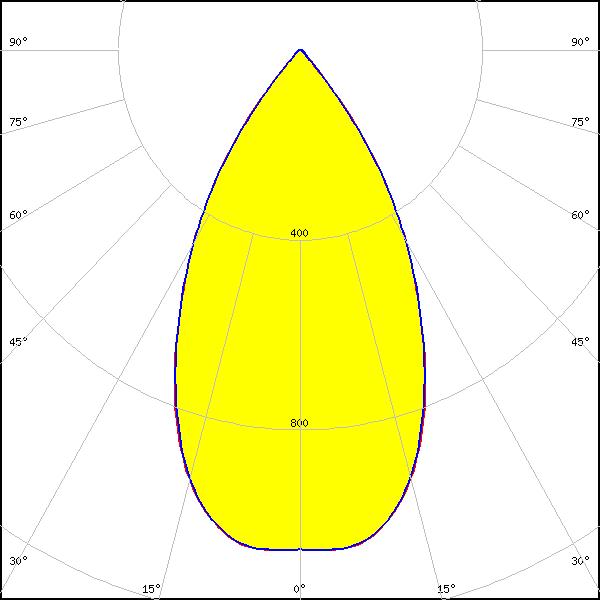

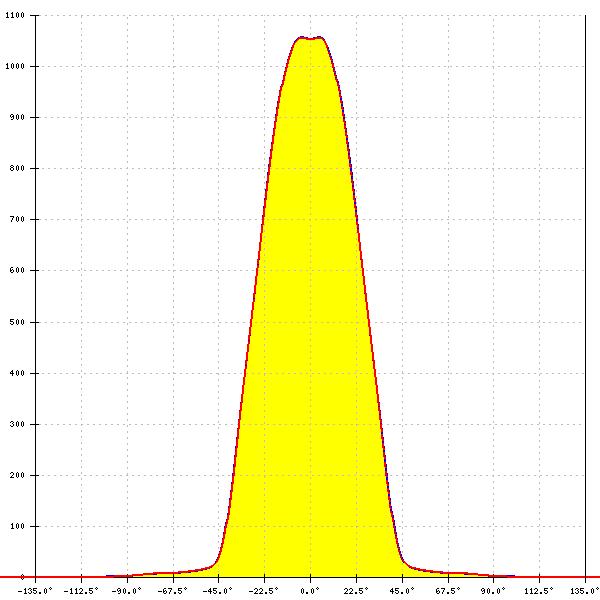

LED: MJT COB LES 14.5
Required components:
FWHM: 56°
FWTM: 82°
Peak intensity: 1.058 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

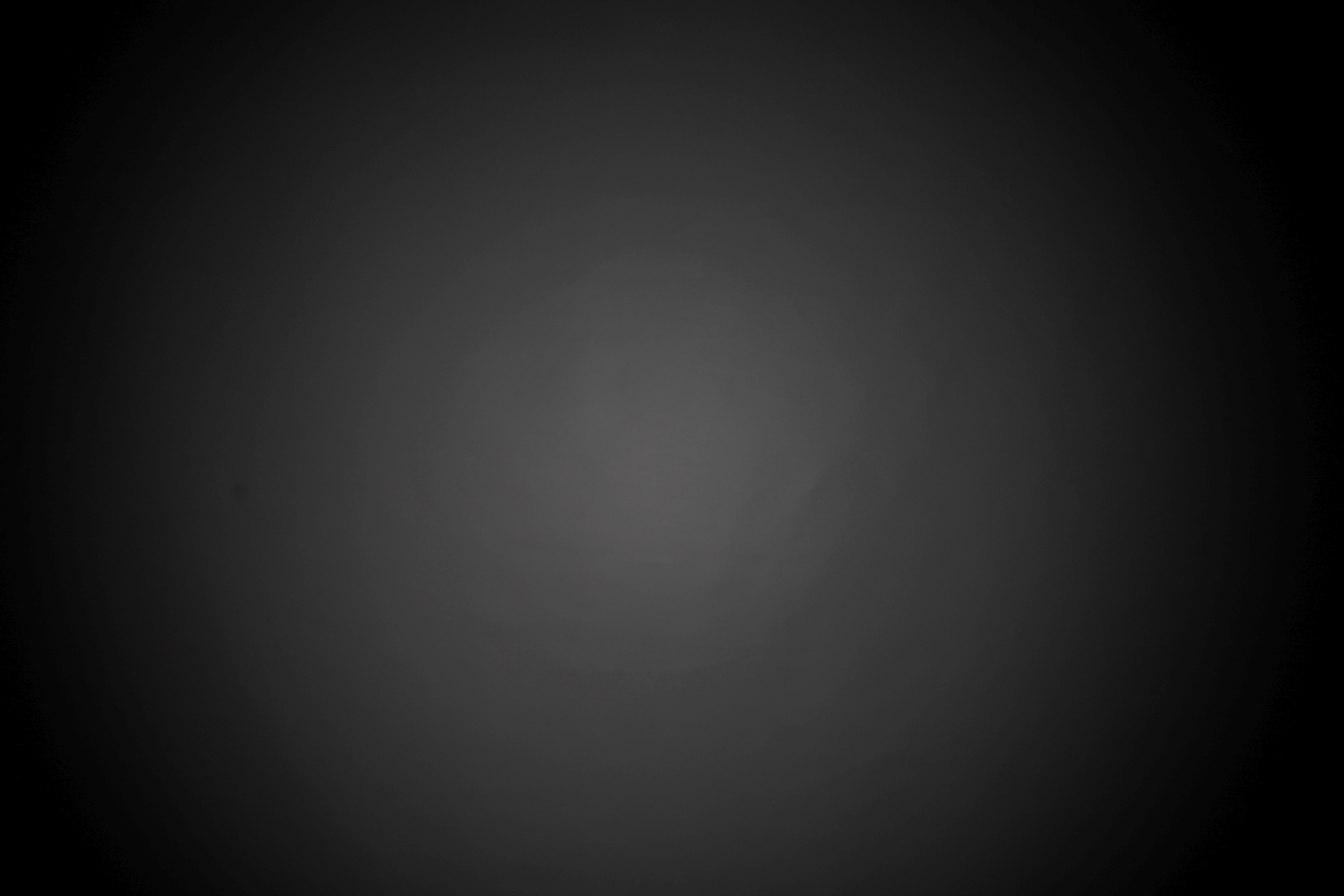

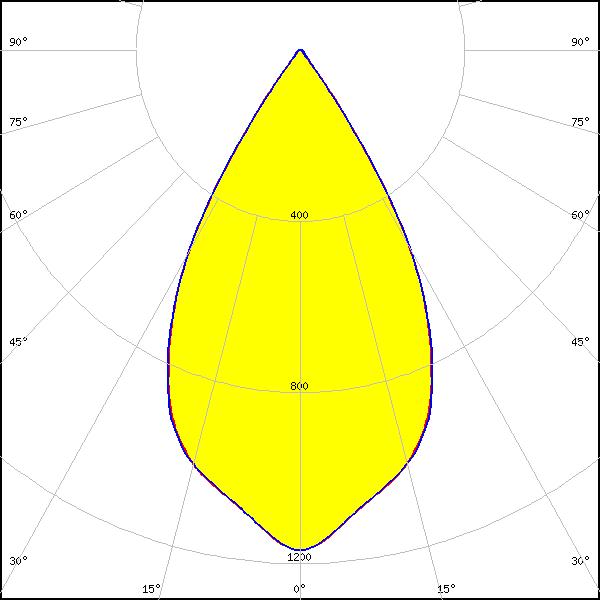

LED: MJT COB LES 6
Required components:
FWHM: 58°
FWTM: 75°
Peak intensity: 1.172 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

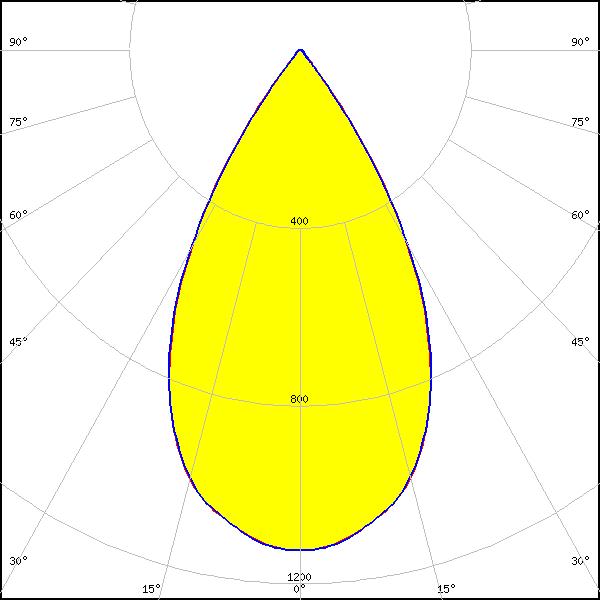

LED: MJT COB LES 9.8
Required components:
FWHM: 57°
FWTM: 77°
Peak intensity: 1.129 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

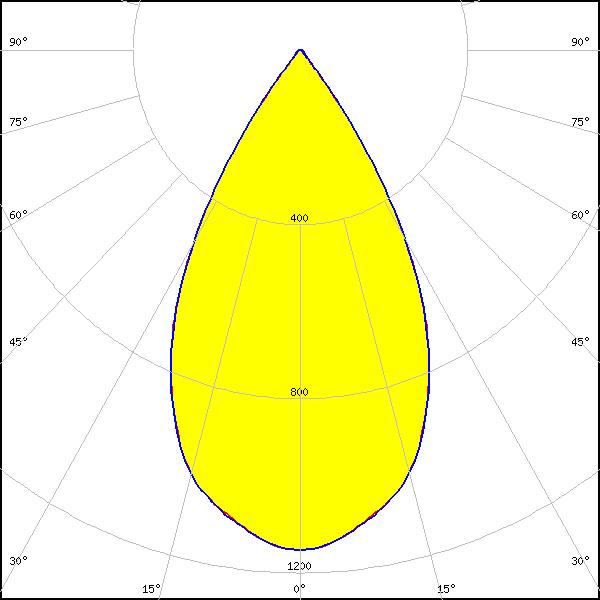

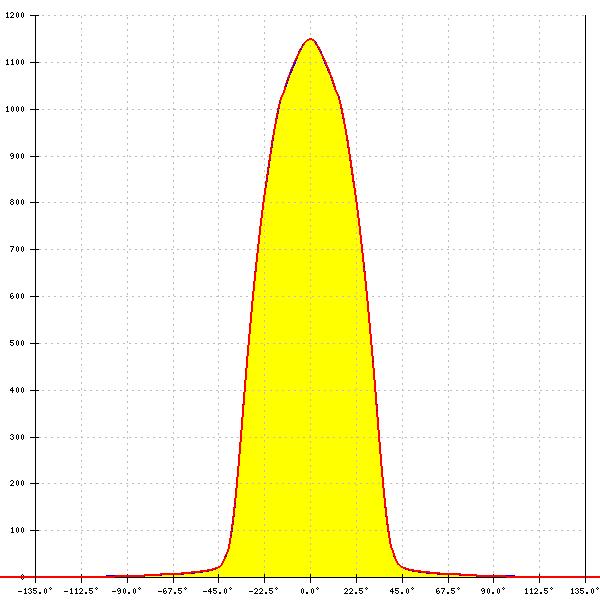

LED: SLE G7 LES09
Required components:
FWHM: 57°
FWTM: 76°
Peak intensity: 1.148 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

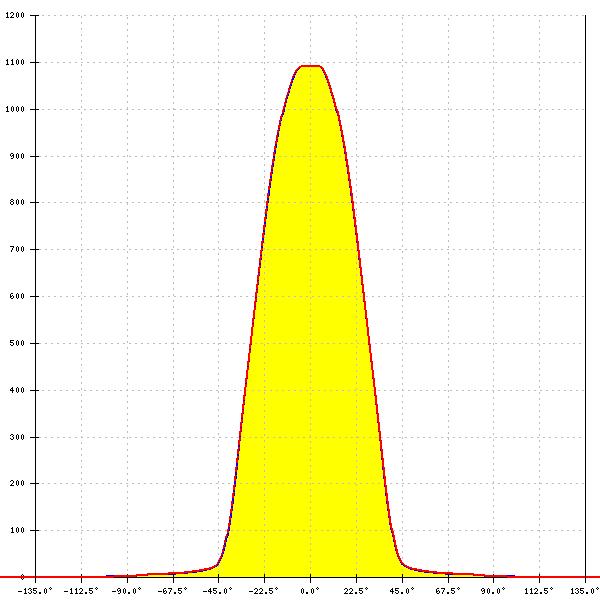

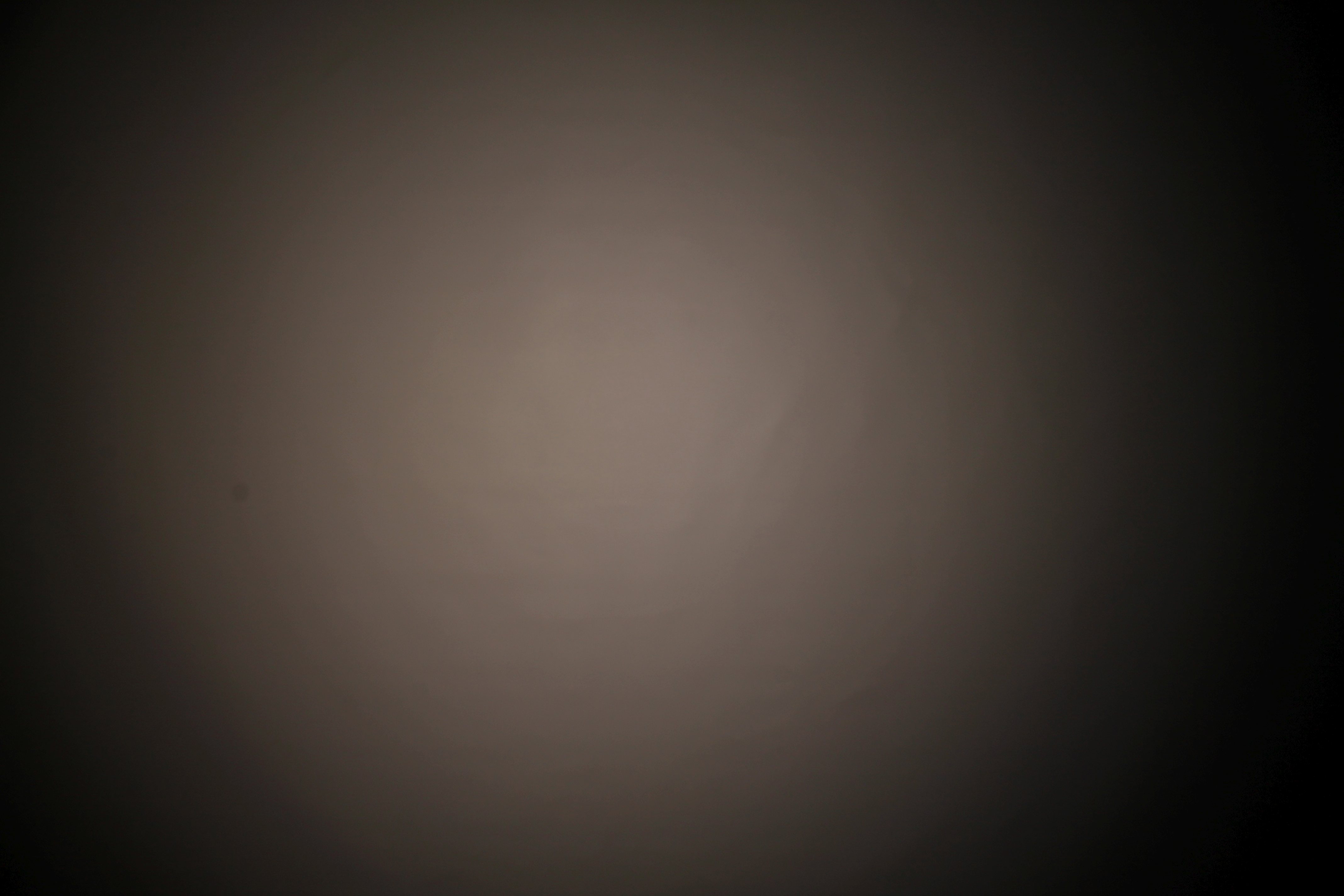

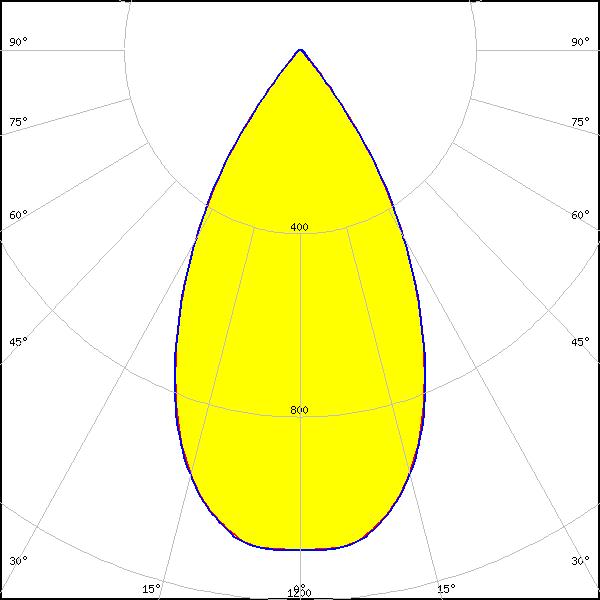

LED: SLE G7 LES13
Required components:
FWHM: 56°
FWTM: 80°
Peak intensity: 1.098 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

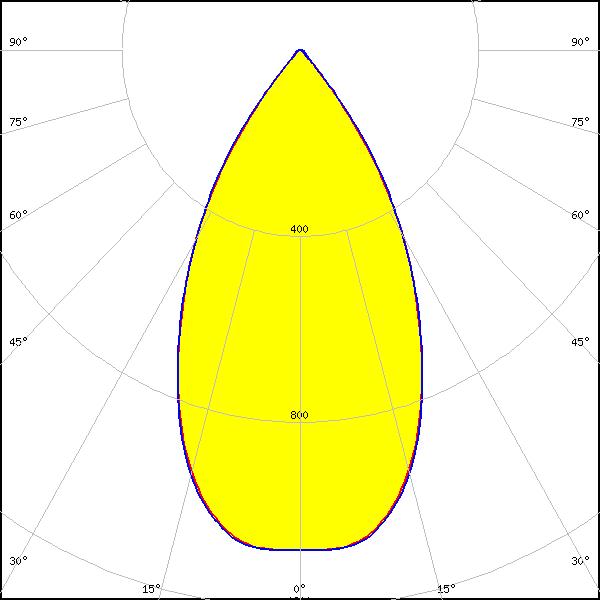

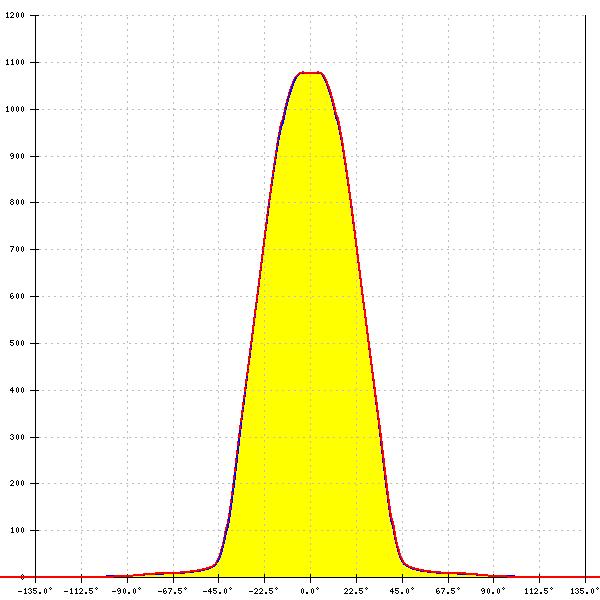

LED: SLE G7 LES15
Required components:
FWHM: 55°
FWTM: 81°
Peak intensity: 1.085 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
