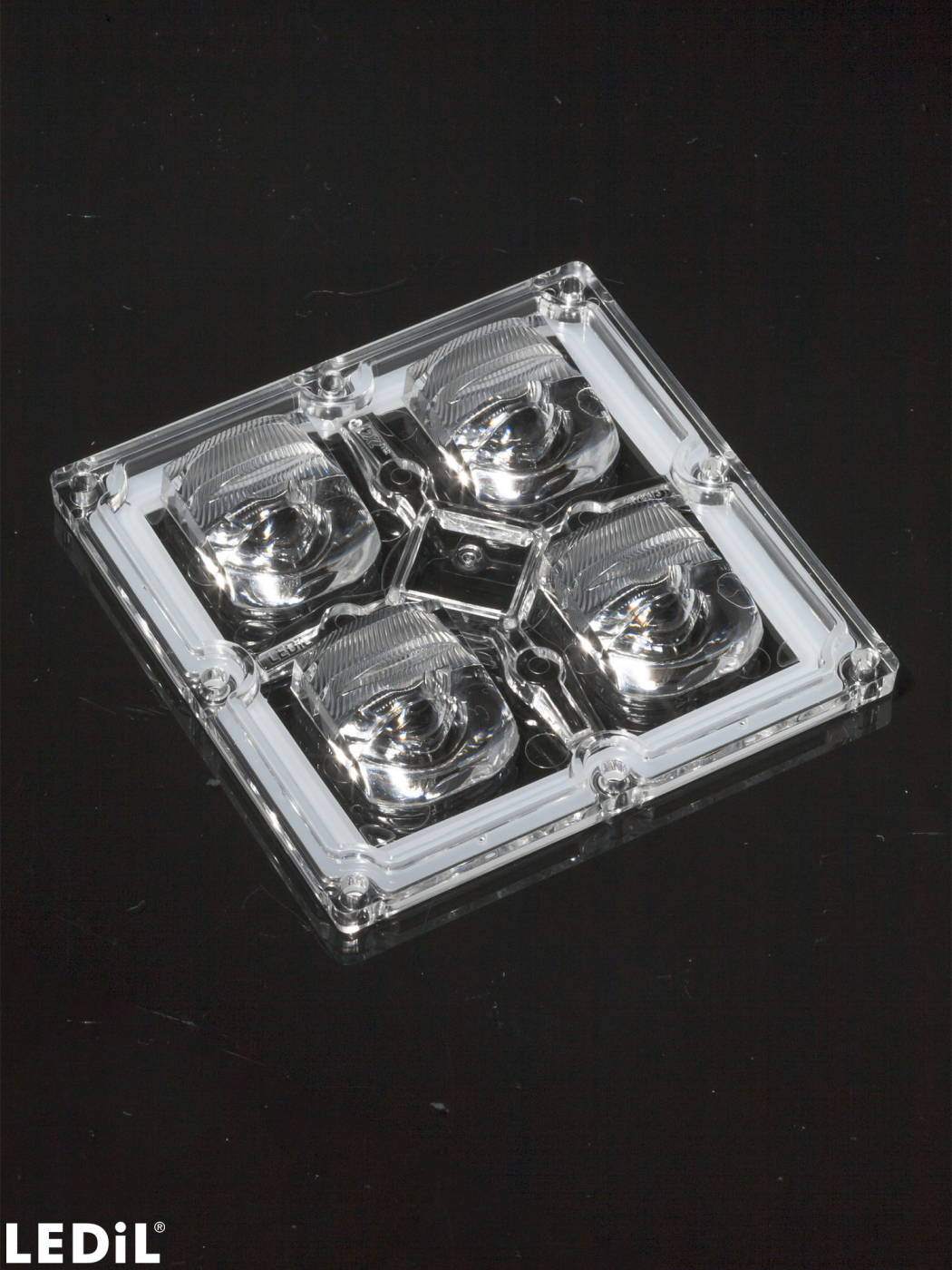

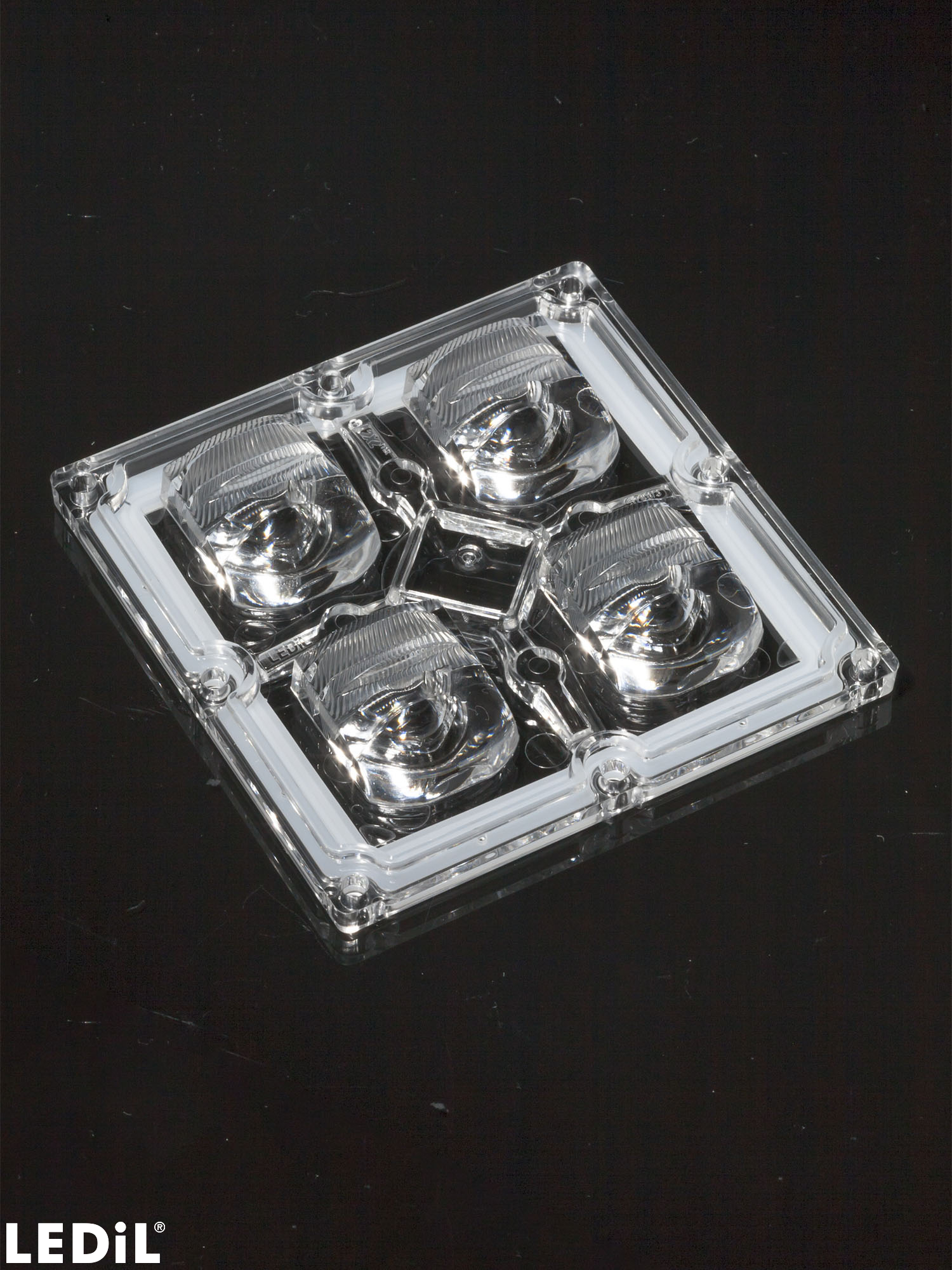

CS15750_STRADA-2X2MX-8-T4-B

Print

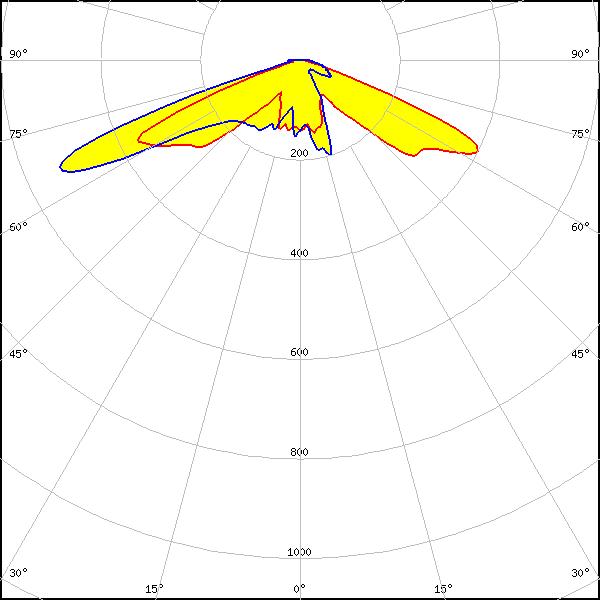

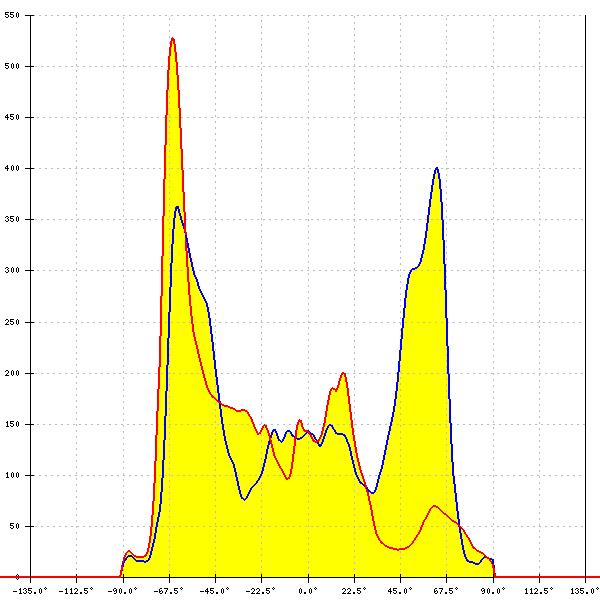

Wide IESNA Type lV forward-throw beam for wide area lighting like car parks

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    13.92 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    7.8 kg
  • MPQ:
    52 pcs
  • MOQ:
    52 pcs
  • MOQ size:
    480 x 280 x 110 mm
  • MOQ weight:
    2.8 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS15750_STRADA-2X2MX-8-T4-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

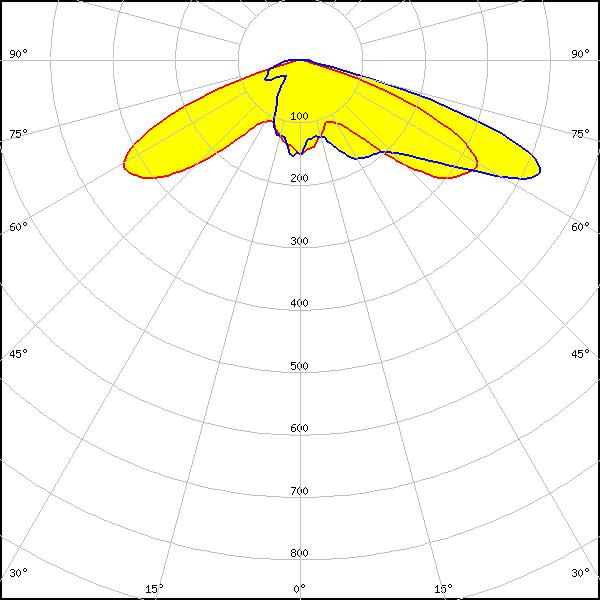

Optical results

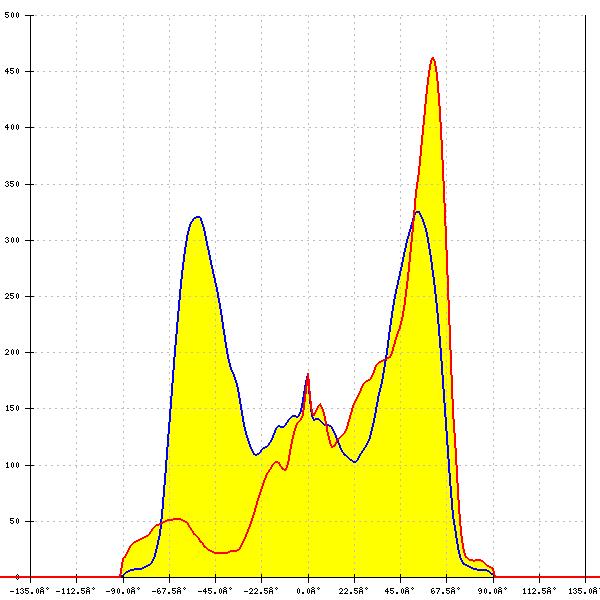

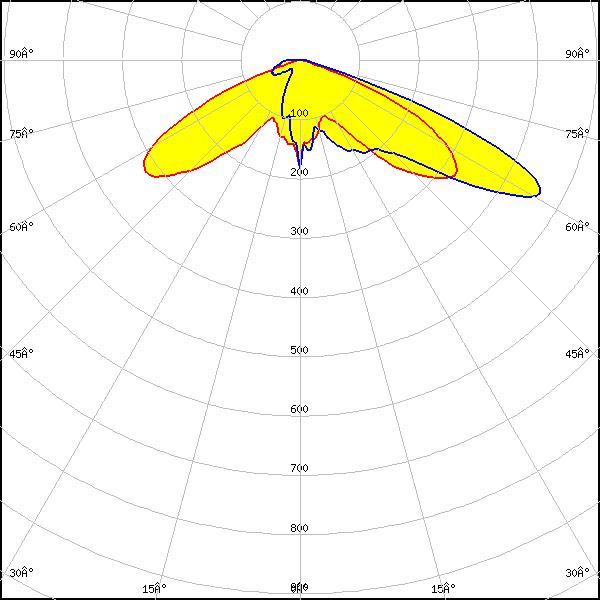

LED: CLU700/701/702
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

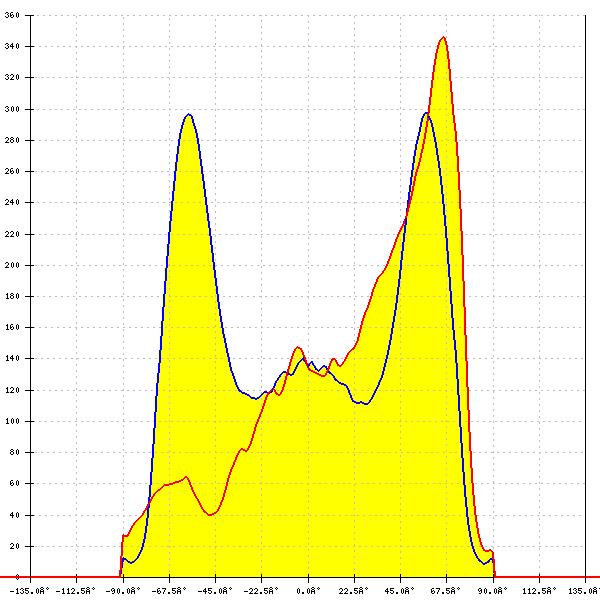

LED: MHD-E/G
FWHM: asymmetric
Peak intensity: 0.460 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: MK-R
LEDs/each optic: 1
Light colour: White

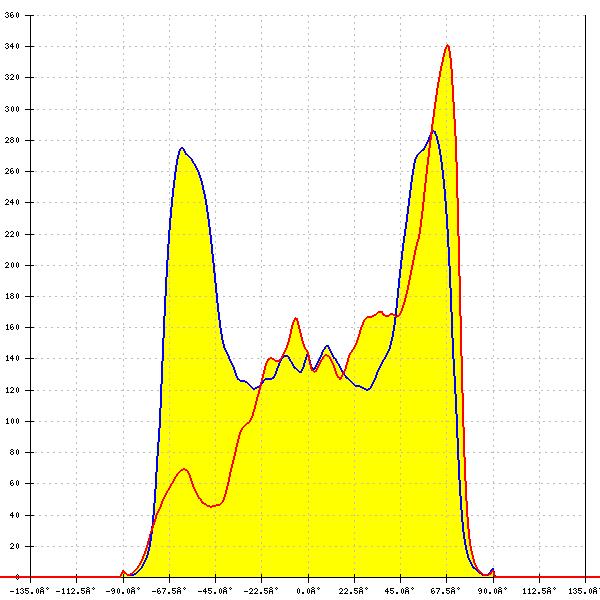

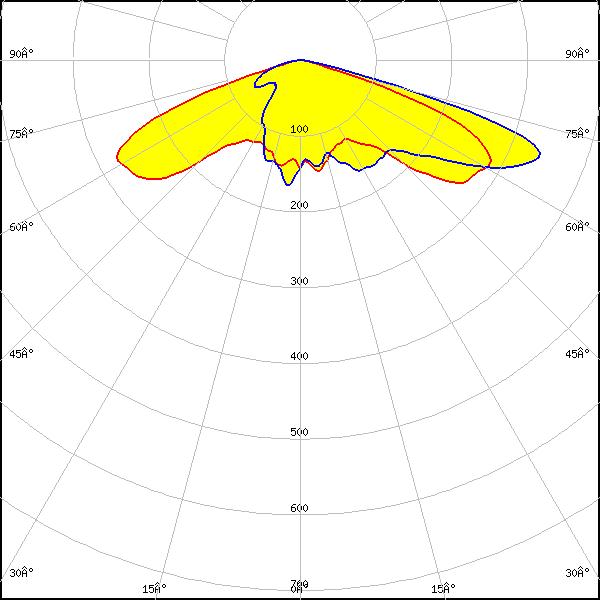

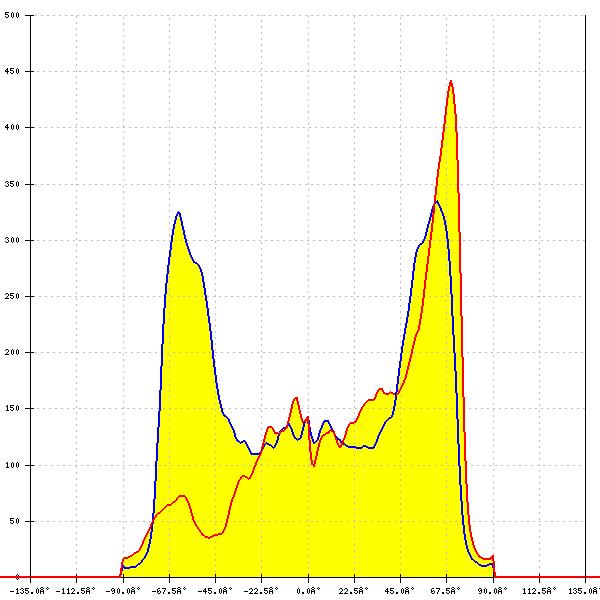

LED: XHP50
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: XHP50
FWHM: asymmetric
Peak intensity: 0.430 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

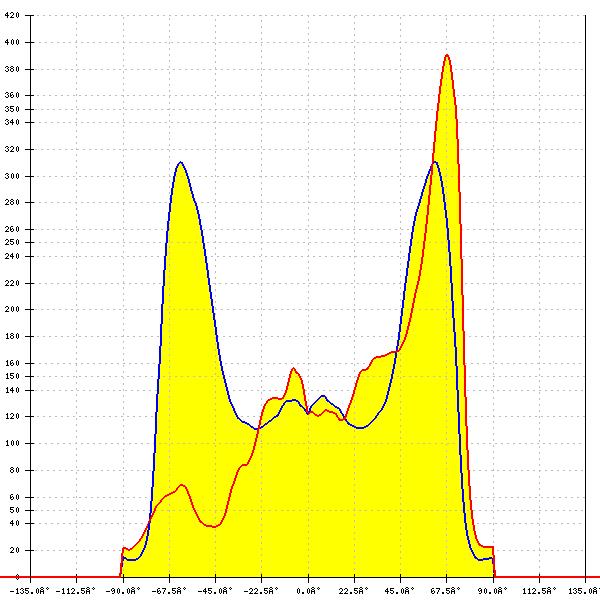

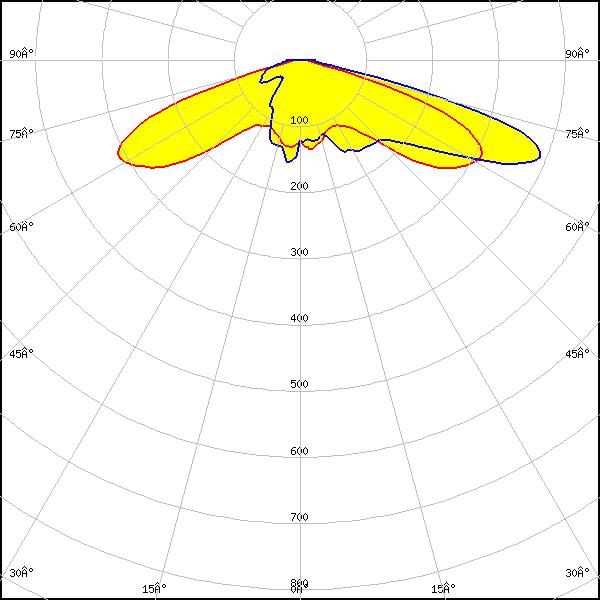

LED: XHP50.2
FWHM: asymmetric
Peak intensity: 0.542 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

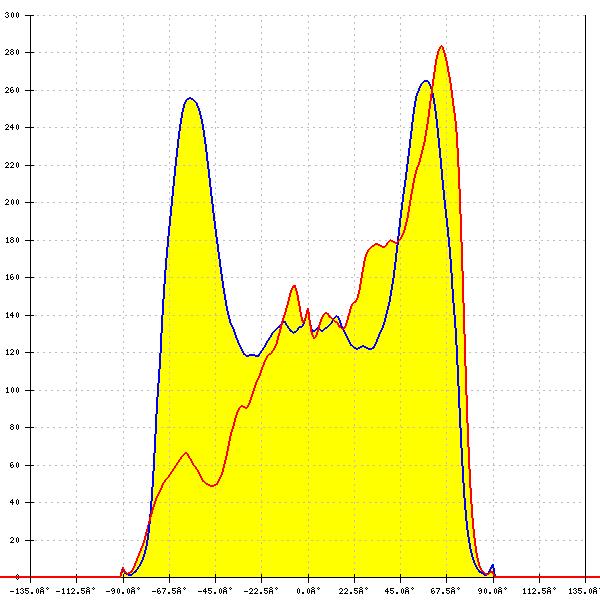

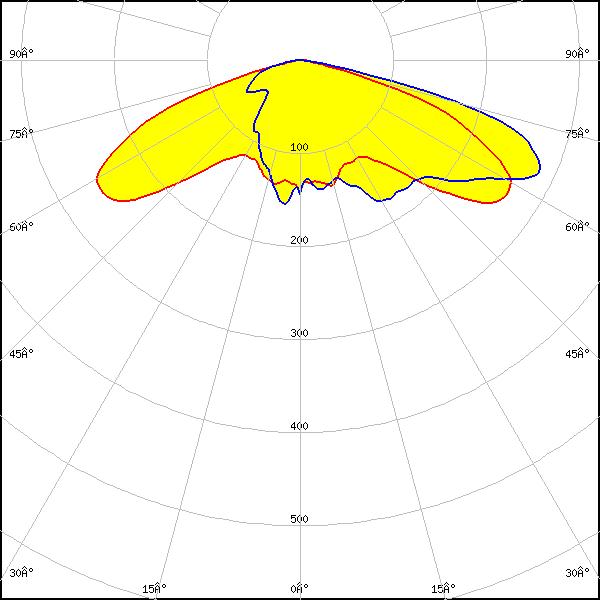

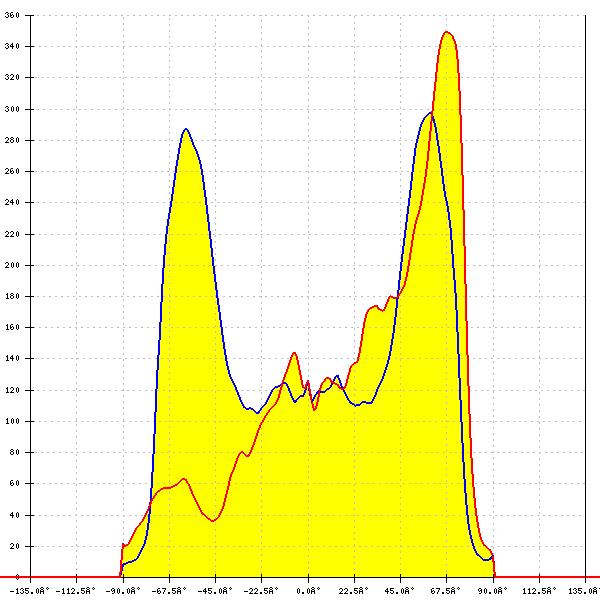

LED: XHP70
FWHM: asymmetric
Peak intensity: 0.490 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: XHP70
FWHM: asymmetric
Peak intensity: 0.370 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

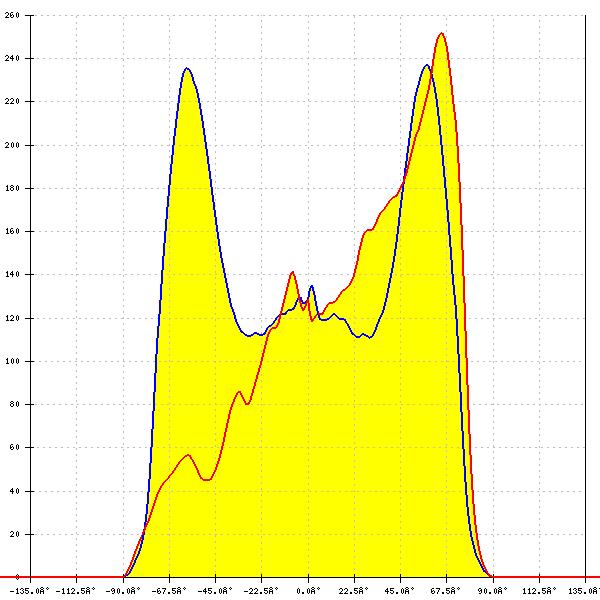

LED: XHP70.2
FWHM: asymmetric
Peak intensity: 0.336 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: White

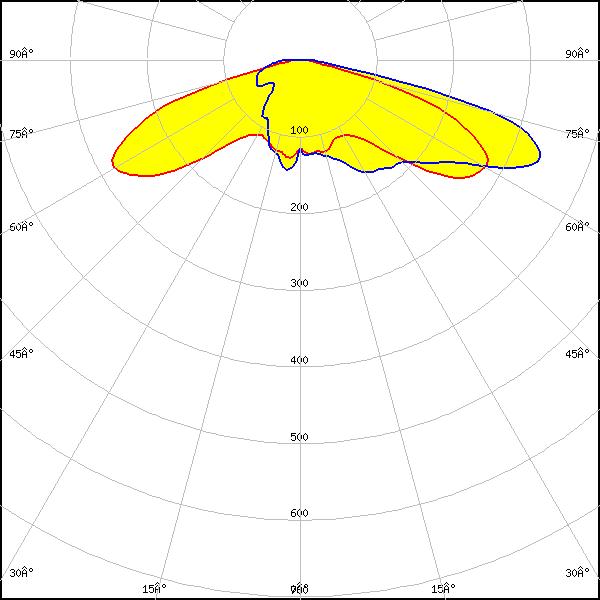

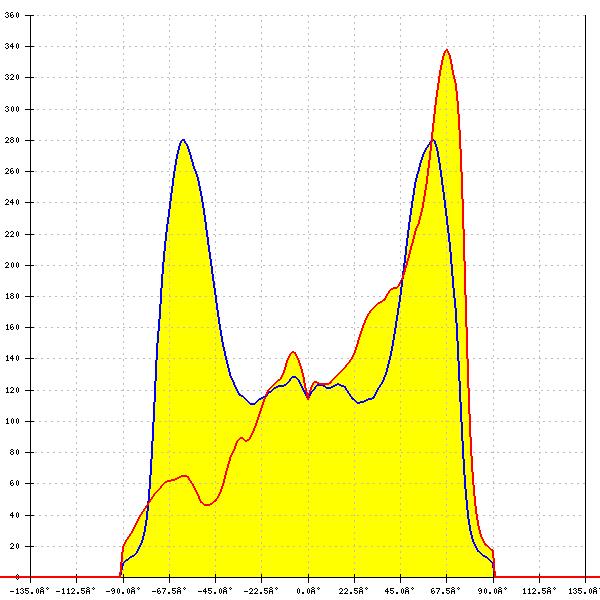

LED: XHP70.3 HD
FWHM: 146° + 47°
FWTM: 159° + 167°
Peak intensity: 0.460 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

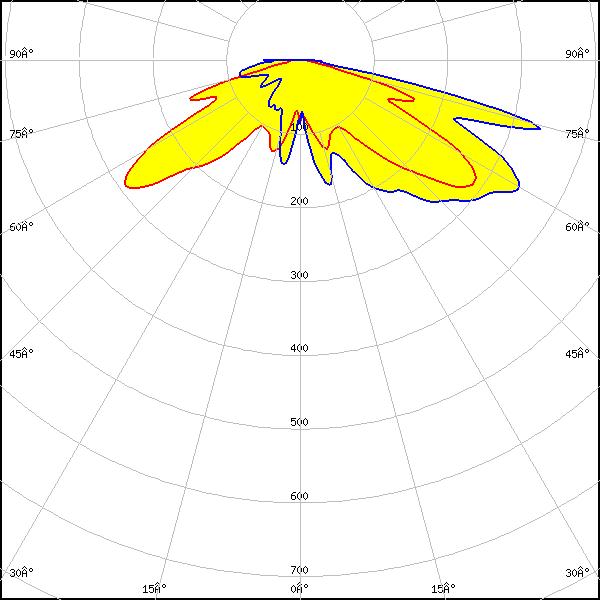

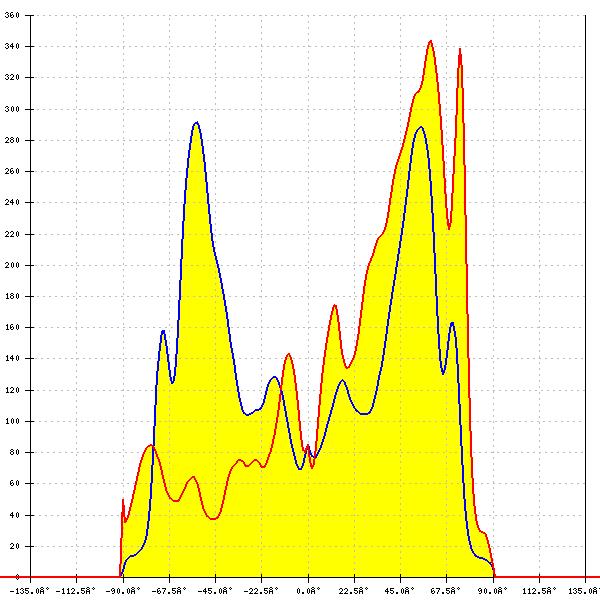

LED: XP-E2
FWHM: asymmetric
Peak intensity: 0.433 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour: White

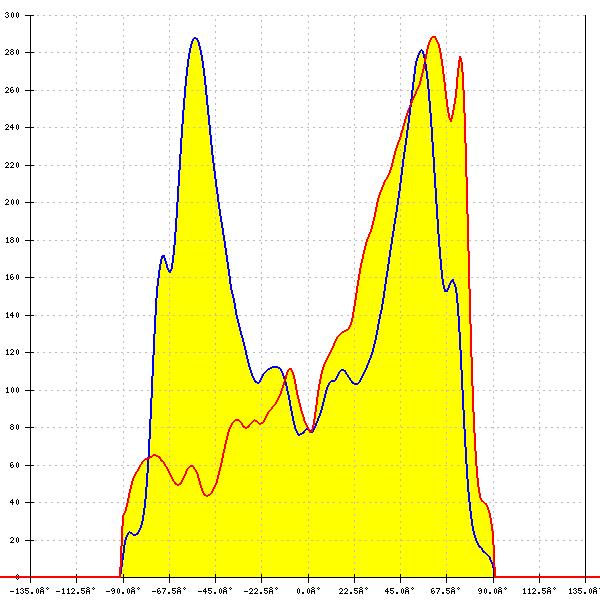

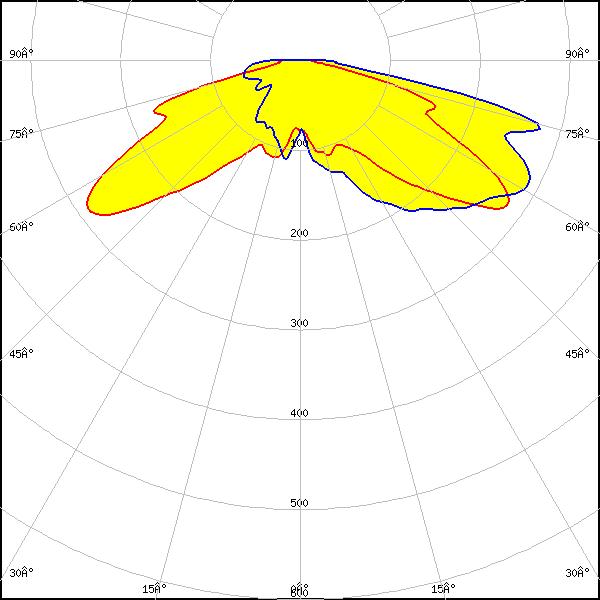

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.391 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour: White

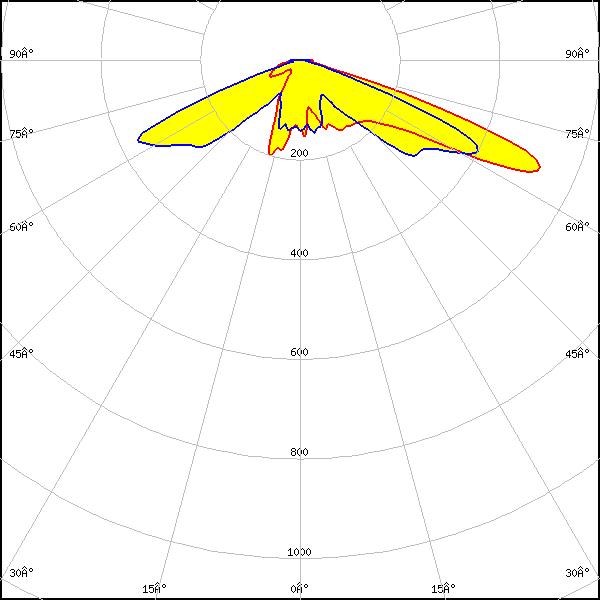

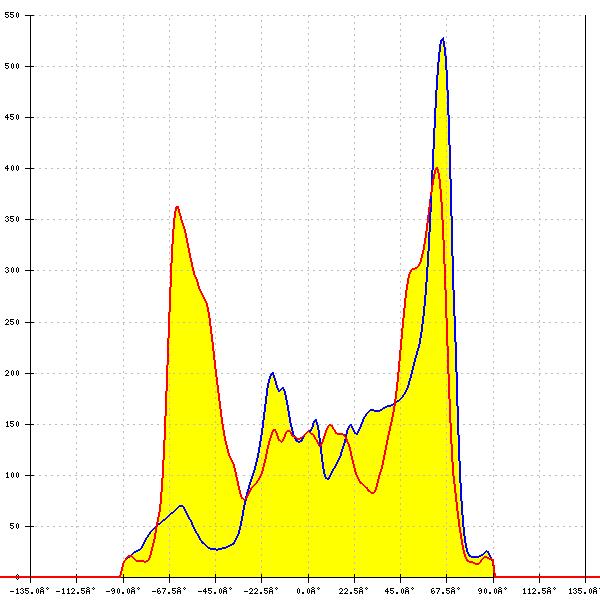

LED: XT-E
FWHM: asymmetric
Peak intensity: 0.780 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

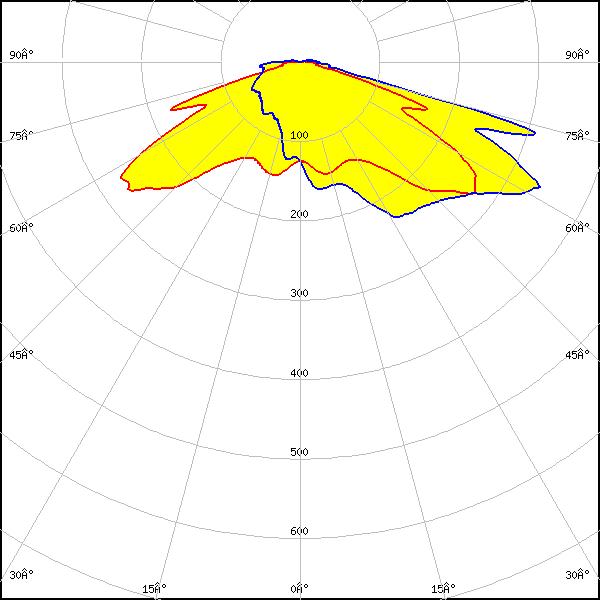

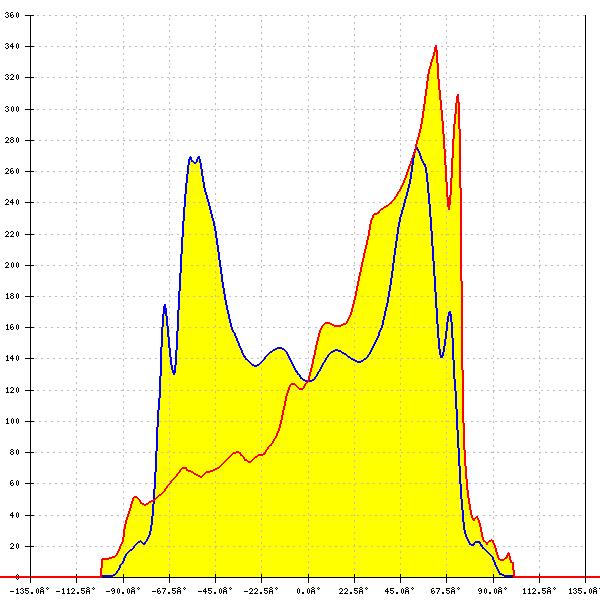

LED: XT-E HE
FWHM: asymmetric
Peak intensity: 0.513 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

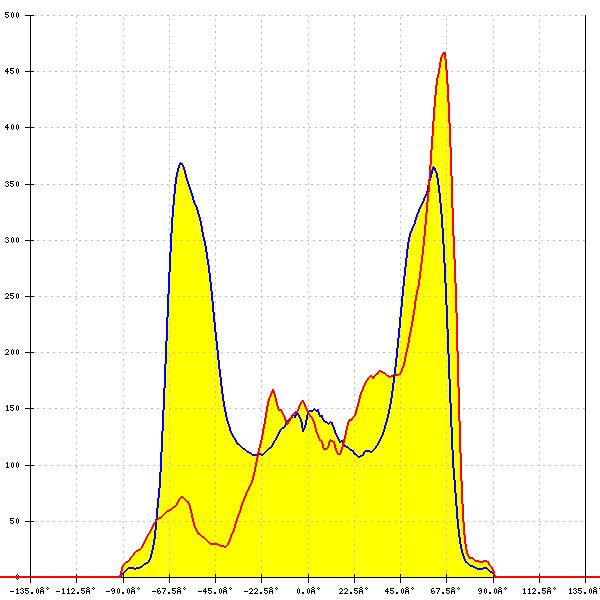

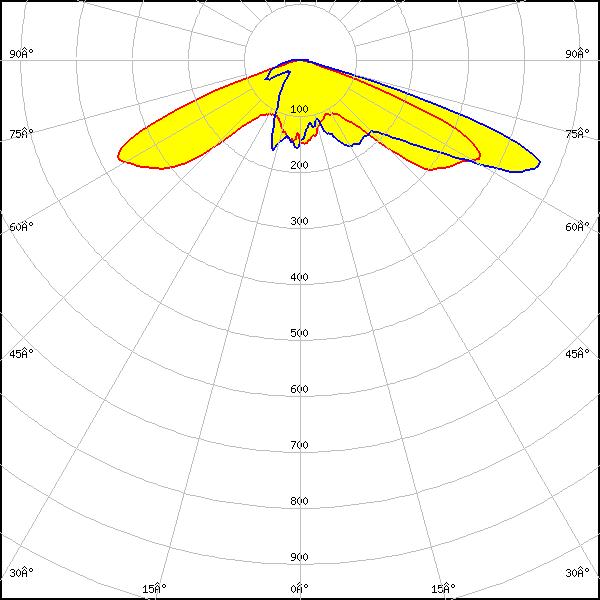

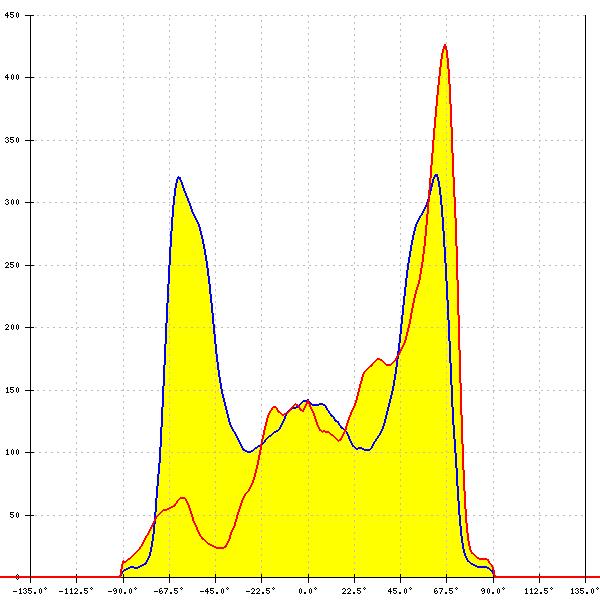

LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.730 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

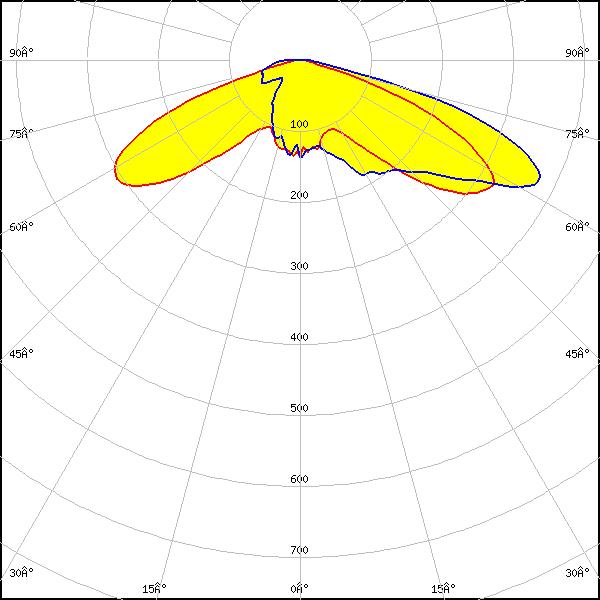

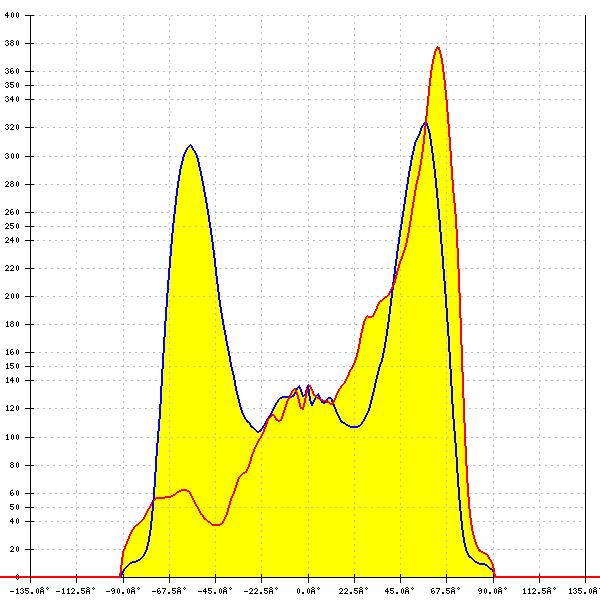

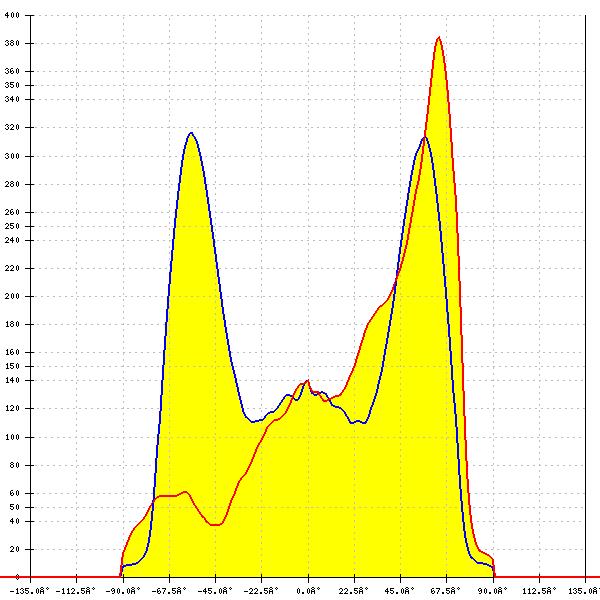

LED: LUXEON 7070
FWHM: asymmetric
Peak intensity: 0.531 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

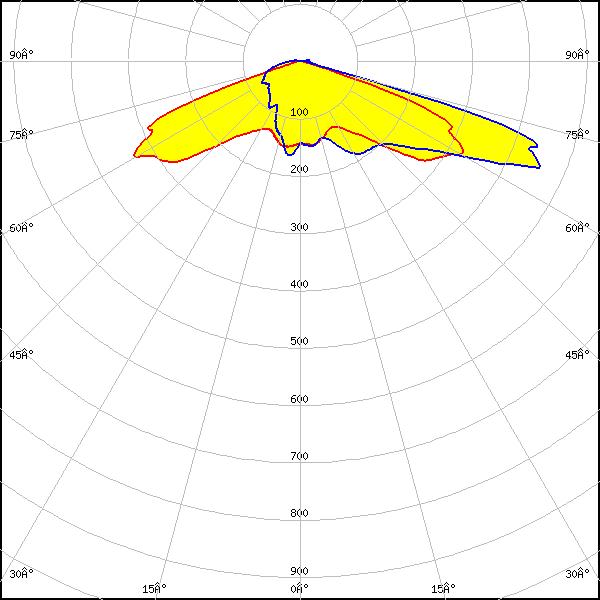

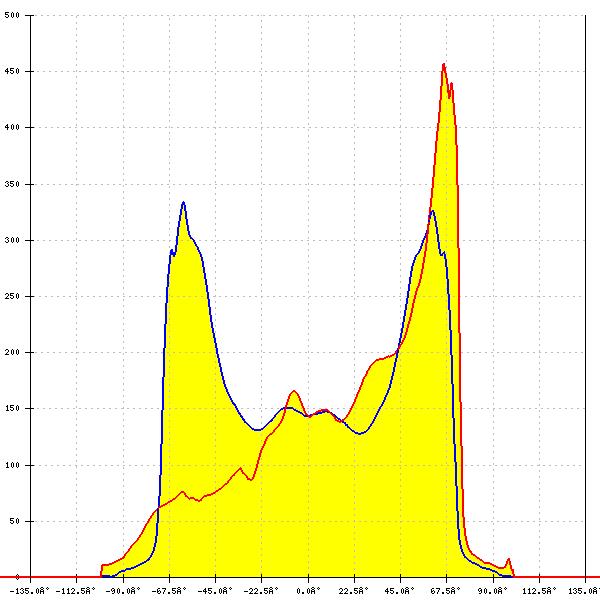

LED: LUXEON M/MX
FWHM: asymmetric
Peak intensity: 0.630 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

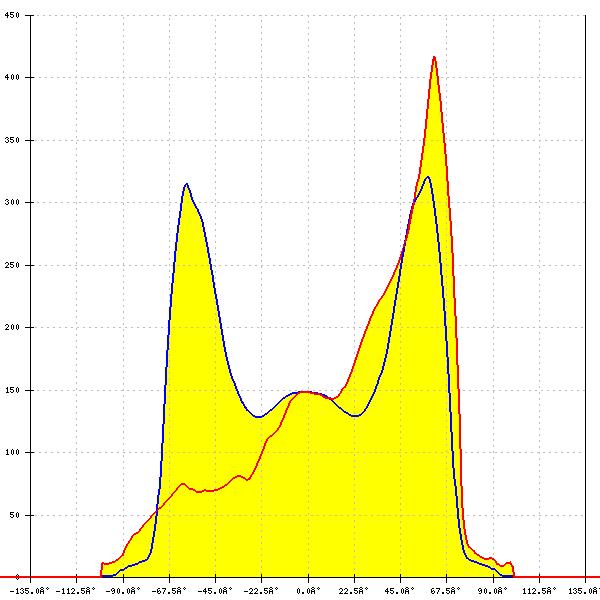

LED: LUXEON XR-7070
FWHM: asymmetric
Peak intensity: 0.578 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

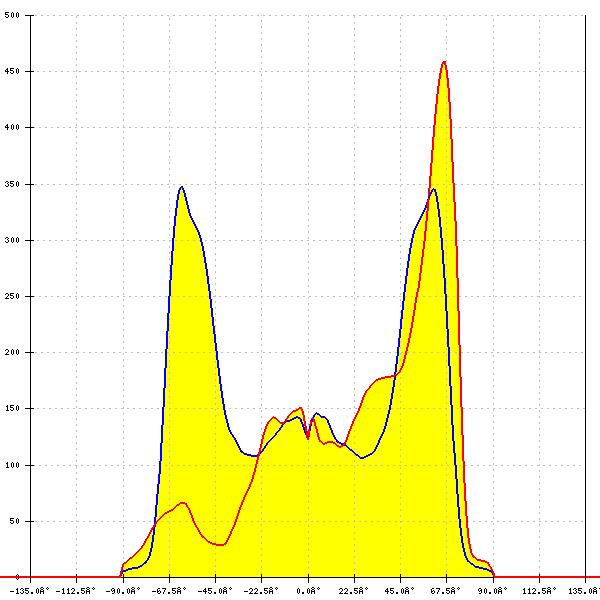

LED: NFMW48xA
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

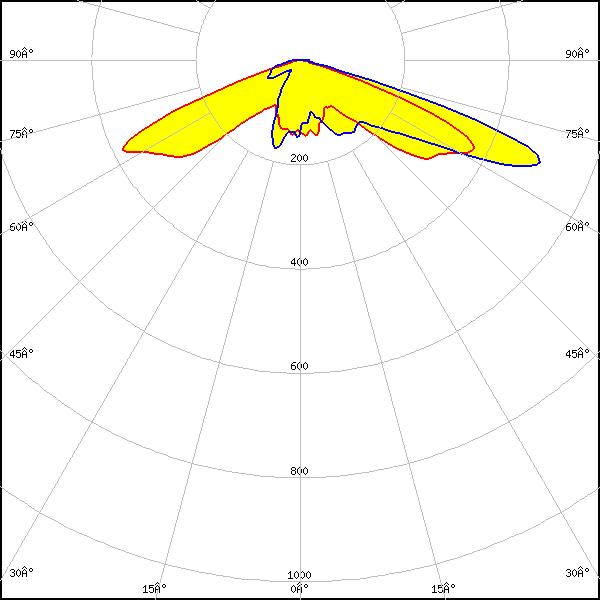

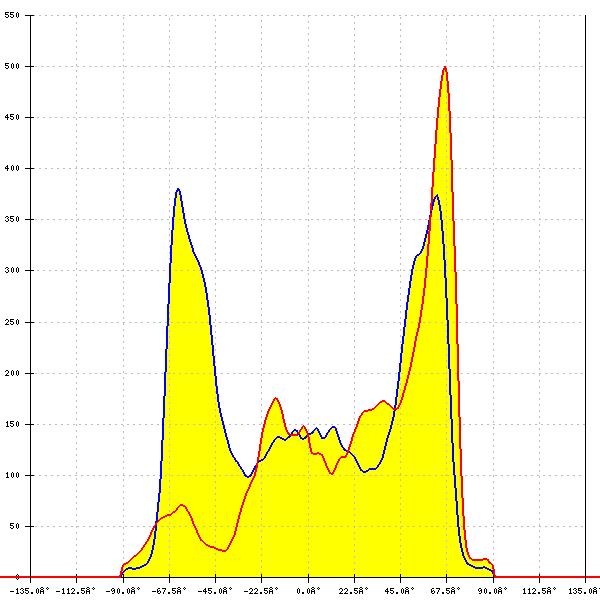

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.719 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

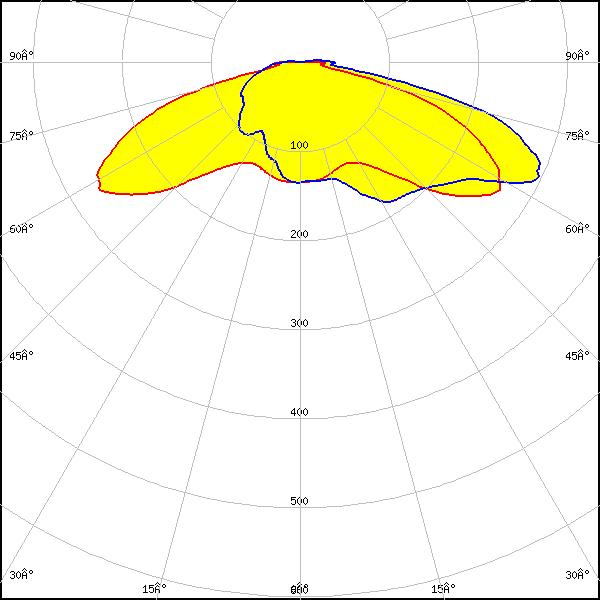

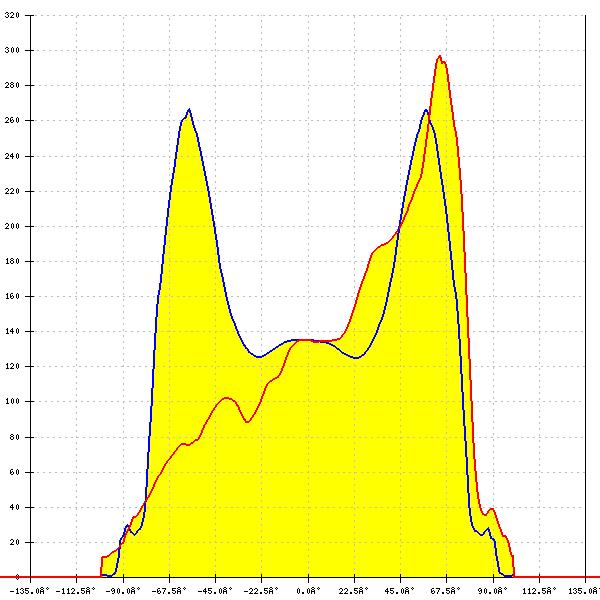

LED: NV9W149AM
FWHM: asymmetric
Peak intensity: 0.450 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

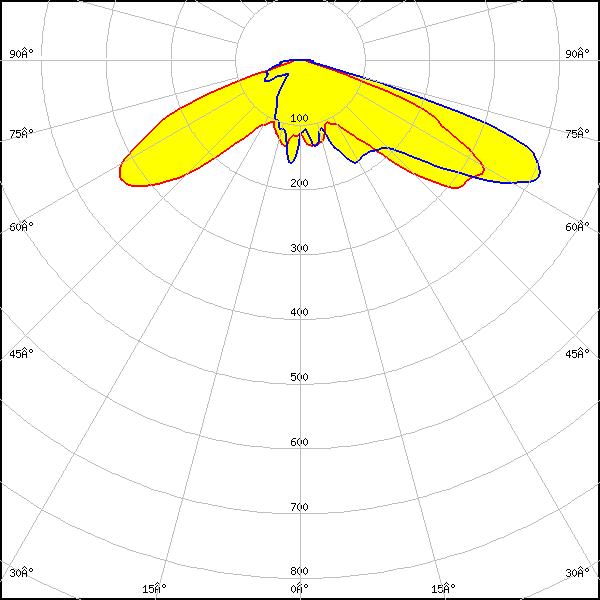

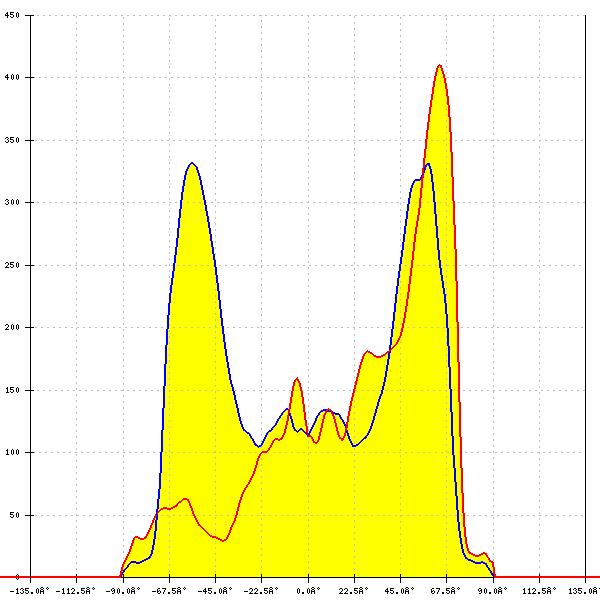

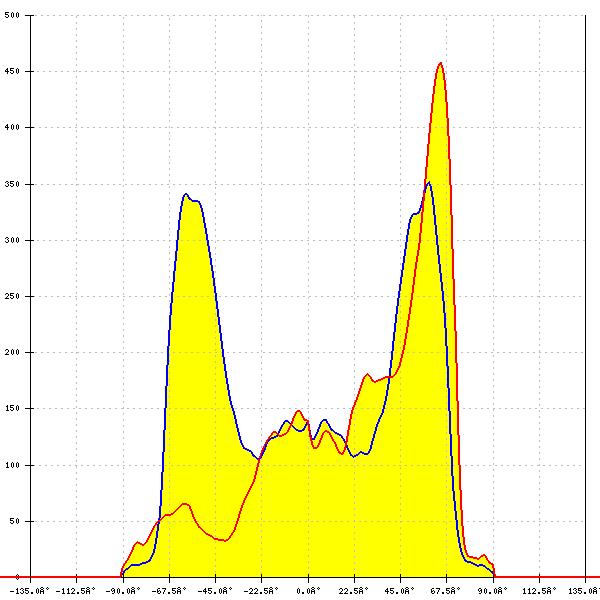

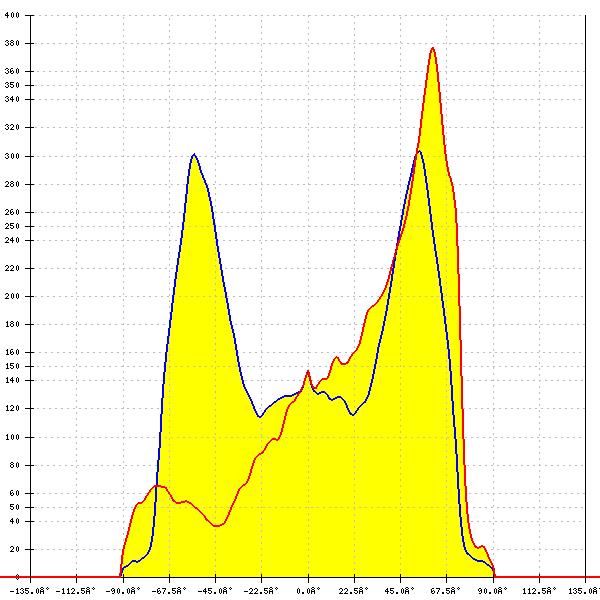

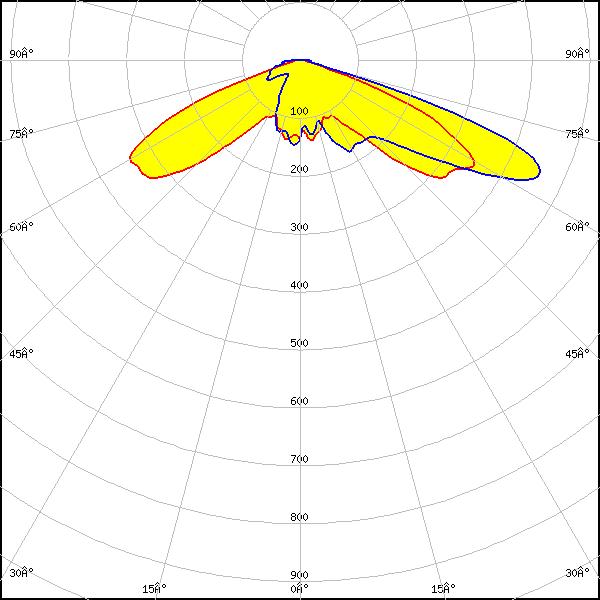

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.661 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White

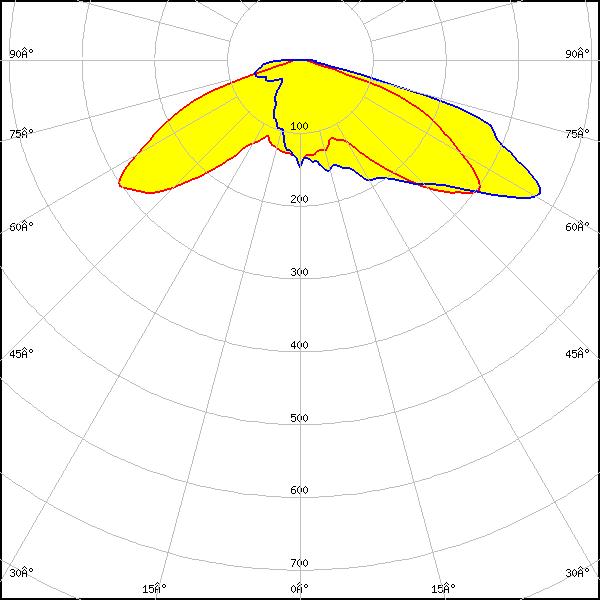

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.496 cd/lm
Efficiency: 91 %
LEDs/each optic: 9
Light colour: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.591 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour: White

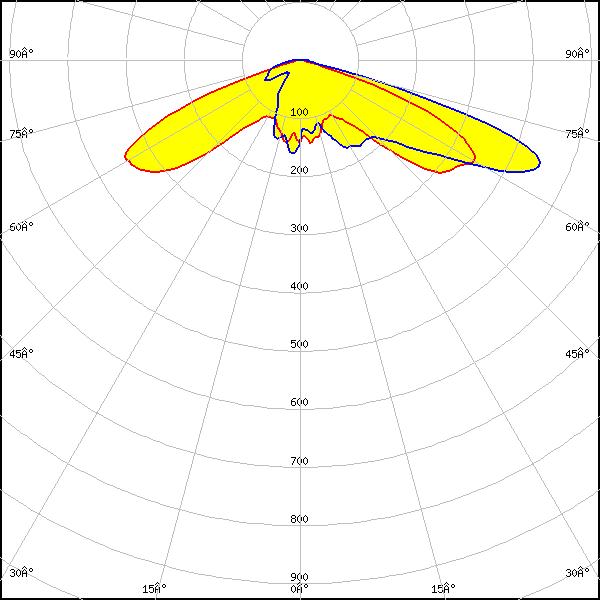

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.626 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 7070
LEDs/each optic: 1
Light colour: White

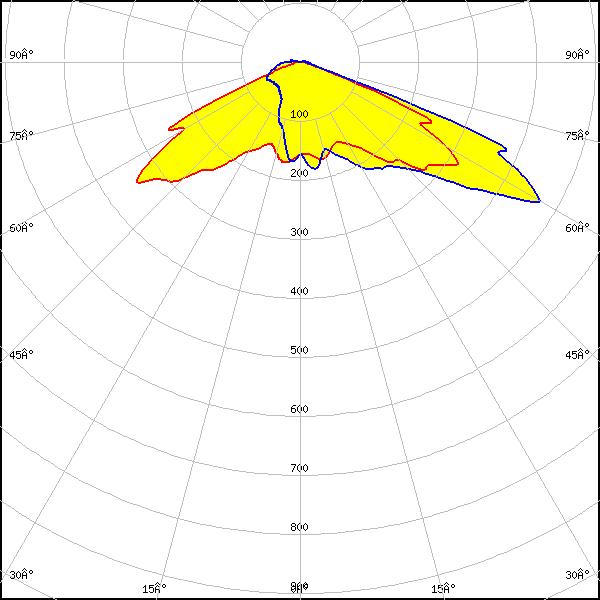

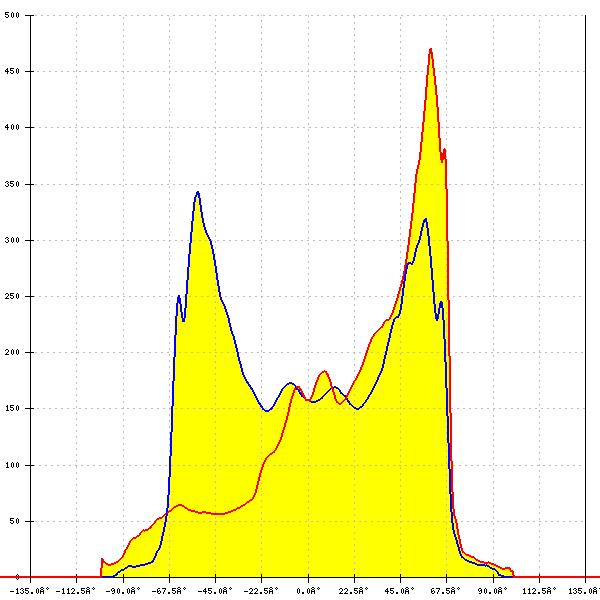

LED: HiLOM SC16 (LH181B)
FWHM: asymmetric
Peak intensity: 0.740 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: XLE-S22C4XD16 (XD16)
FWHM: asymmetric
Peak intensity: 0.719 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour: White
LED: XLE-S22C4XTEHE (XT-E HE)
FWHM: asymmetric
Peak intensity: 0.513 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

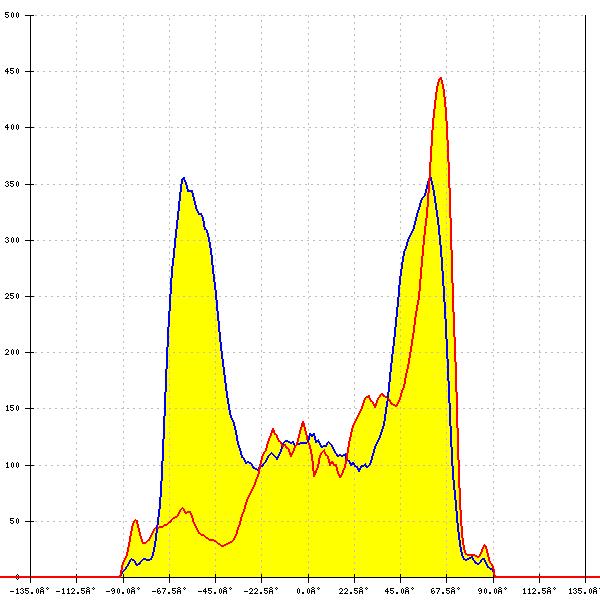

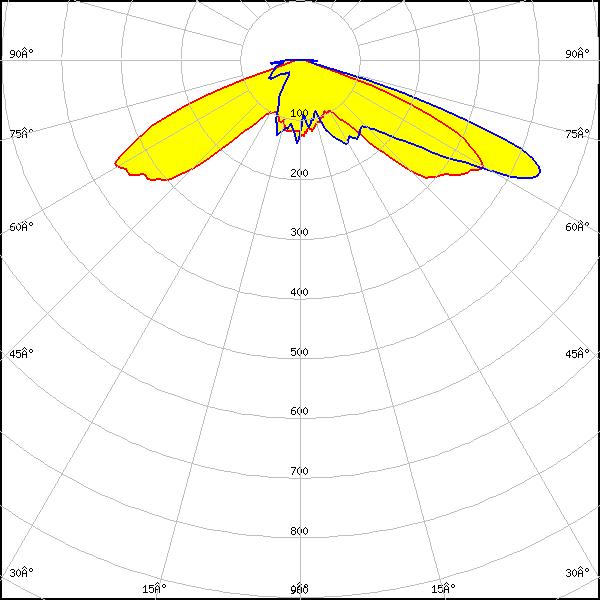

LED: Z8Y19
FWHM: asymmetric
Peak intensity: 0.782 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour: White

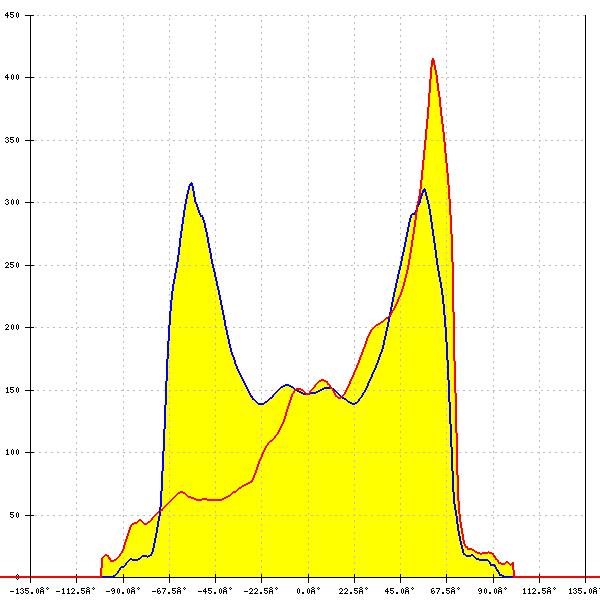

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.681 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour: White
