LINNEA

LINNEA

带集成式卡扣固定的线性透镜,兼容市场上许多不同的 LED 模块

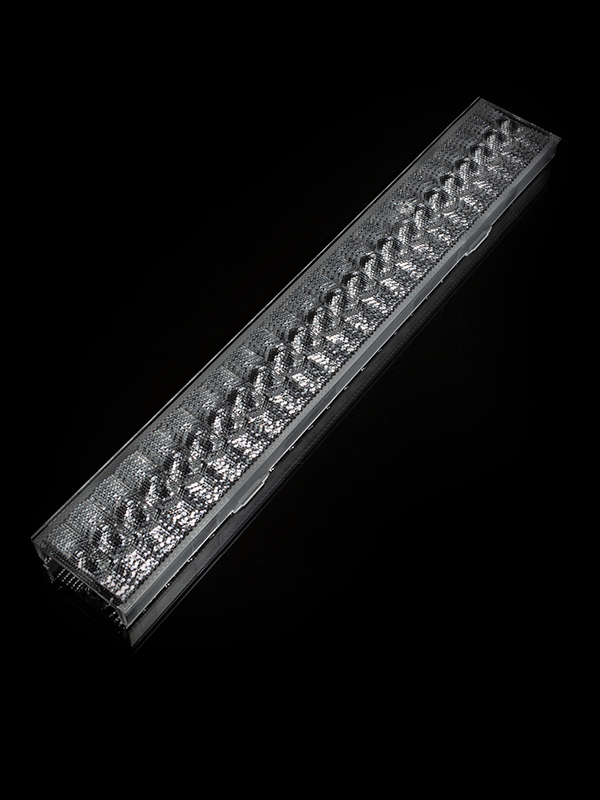

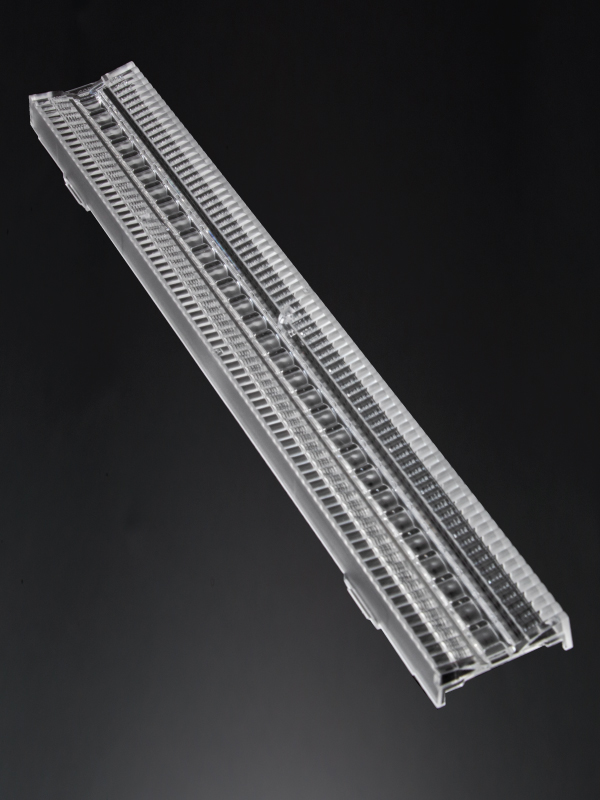

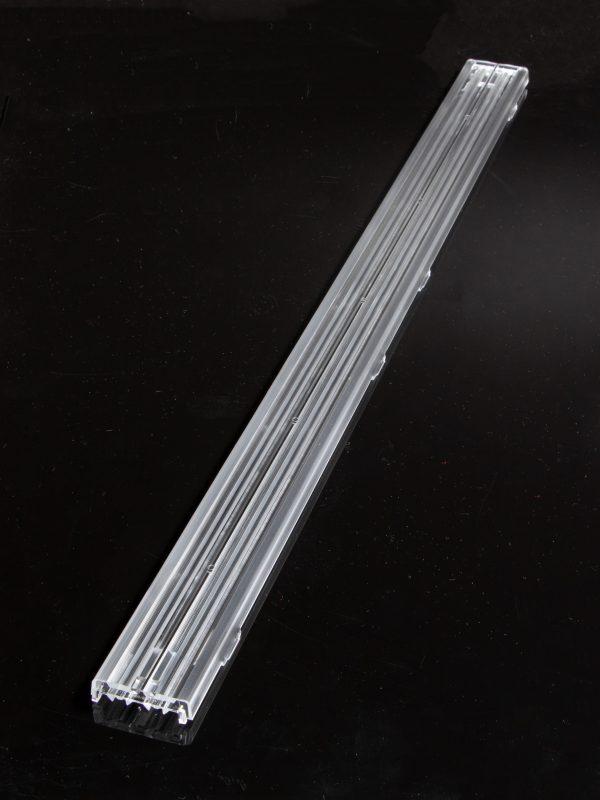

LINNEA 是一款薄型线性设计系列,可实现透镜的无缝连接,并适用于多种现有灯具设计。能够提供高品质少眩光室内照明。通过集成式夹子和专用卡入式端部配件固定光学器件,实现轻松自如的完整安装。该系列含有各种对称和非对称光束,并包含已针对最常见的 Zhaga 中等功率、宽度为 20 和 24 mm 的 PCB 或 Signify 的 Fortimo Edge 双行 LED 模块进行了优化的款型。



Download 2D- and 3D-files from our profile examples:

Metal sheet – 2D Mechanical drawing
Metal sheet – 3D Mechanical model

Metal profile – 2D Mechanical drawing
Metal profile – 3D Mechanical Model

Aluminium extrusion profile – 2D Mechanical drawing
Aluminium extrusion profile – 3D Mechanical model
