    CA12011_LAURA-SS-PIN

    Print

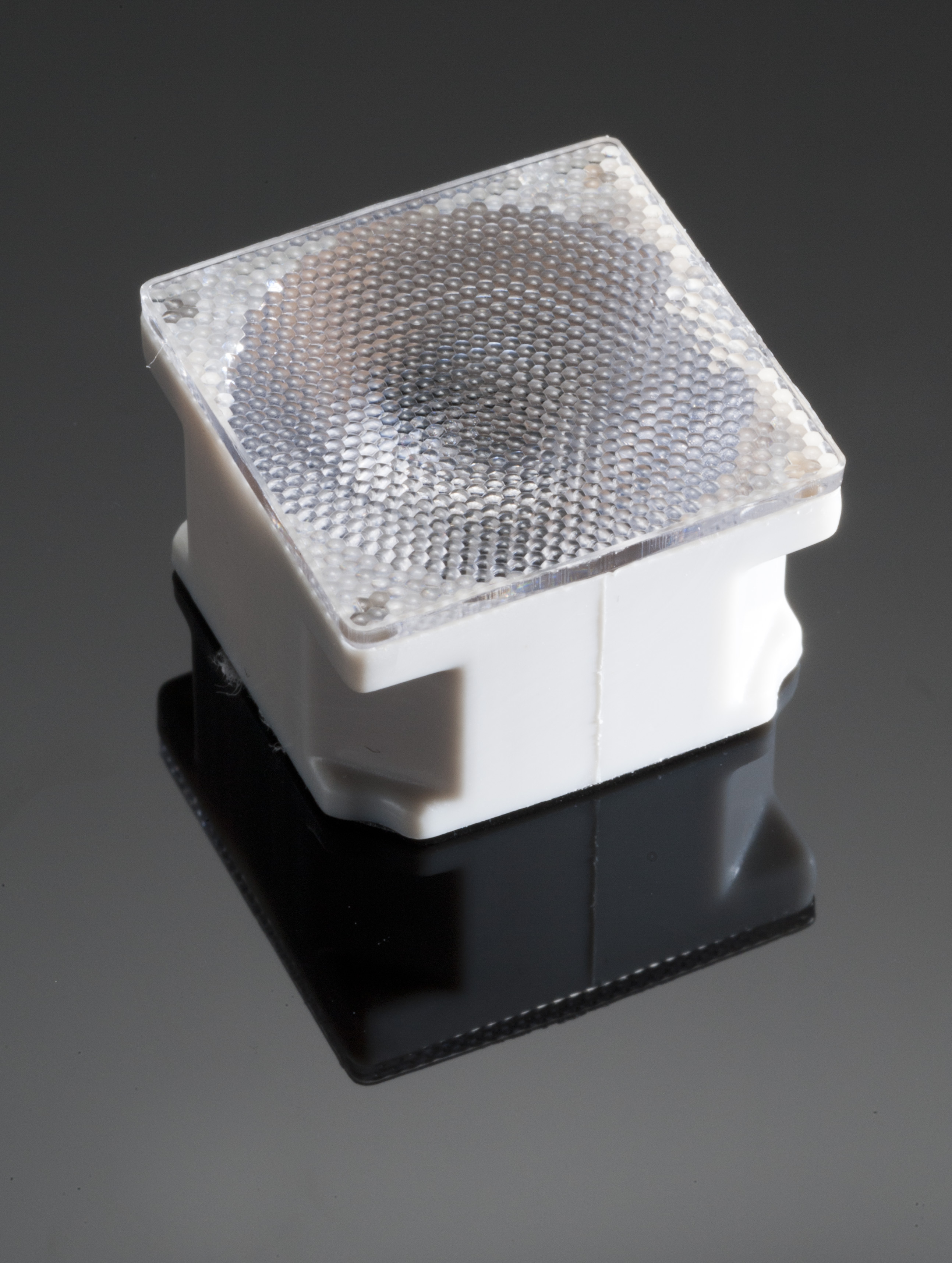

    ~11° smooth spot beam optimized for CREE XP-E. Assembly with white holder, installation tape and location pins.

    Specification
    • Dimensions:
      22 x  22 mm
    • Height:
      13.10 mm
    • Fastening:
      tape, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1440 pcs
    • Box weight:
      7.5 kg
    • MPQ:
      180 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA12011_LAURA-SS-PIN

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

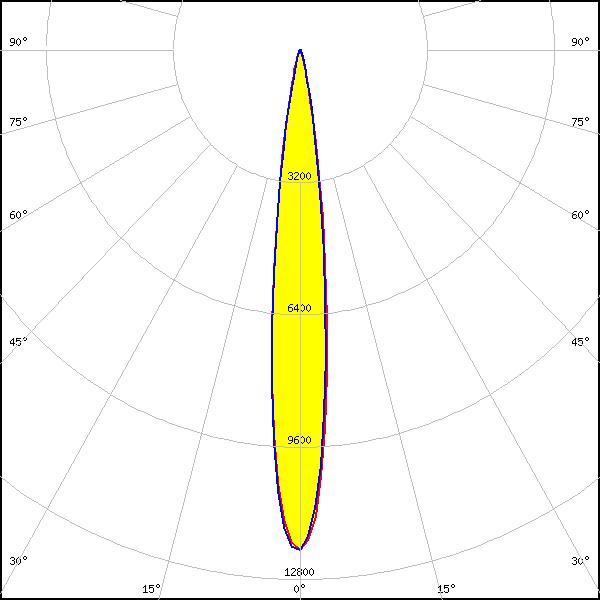

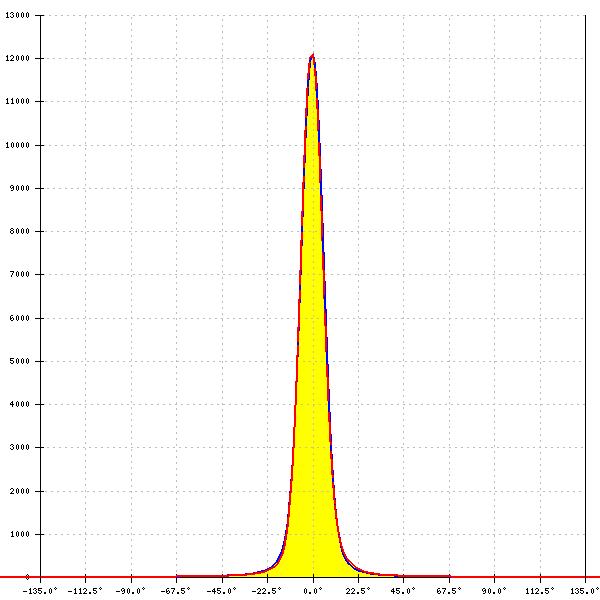

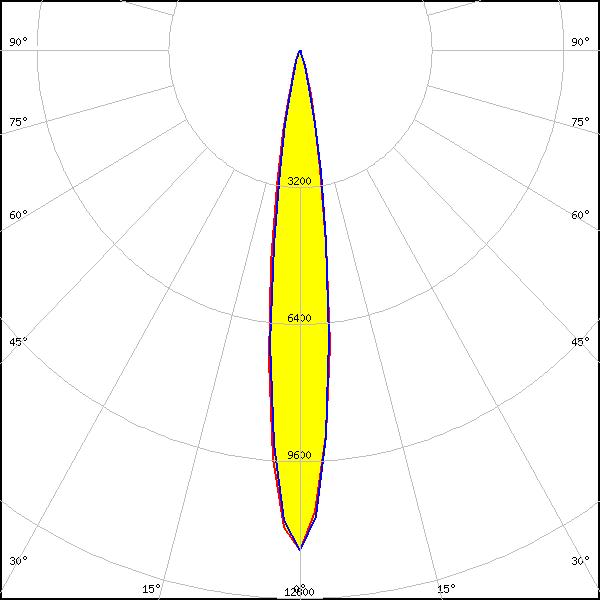

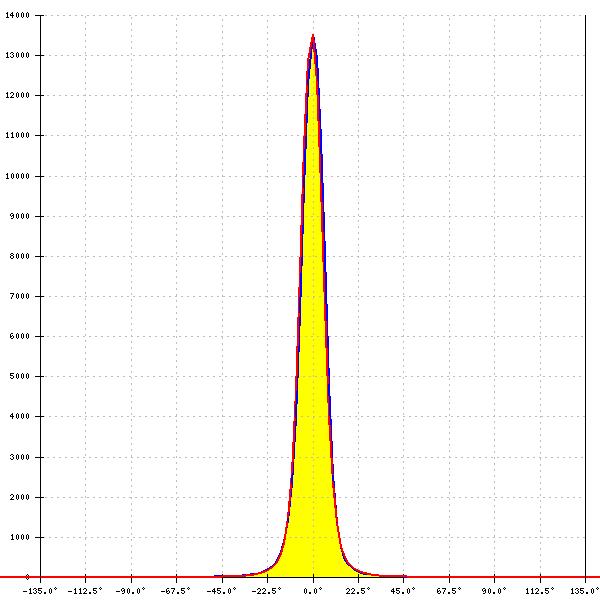

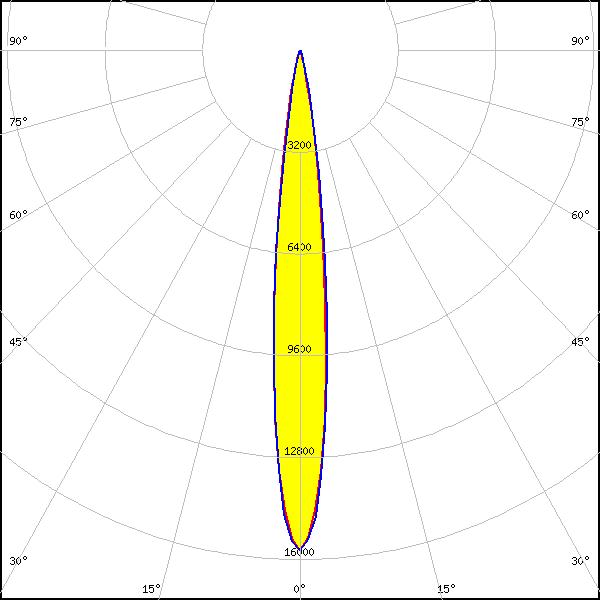

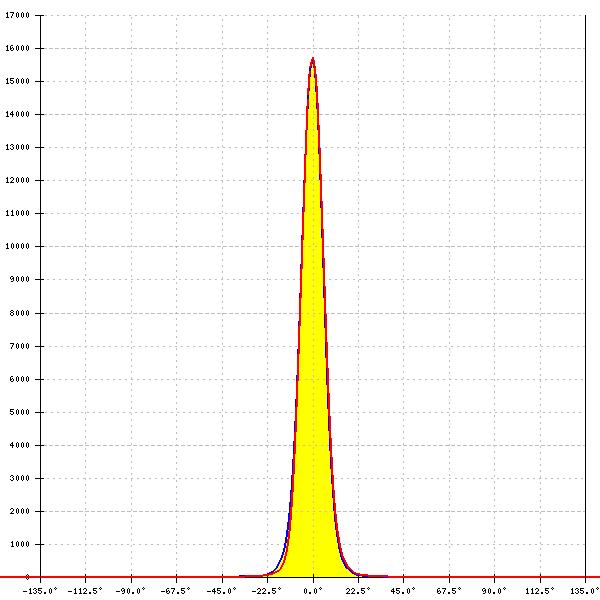

    Optical results

    LED: XB-D
    FWHM: 11°
    FWTM: -
    Peak intensity: 14.400 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E
    FWHM: 11°
    FWTM: 19°
    Peak intensity: 16.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

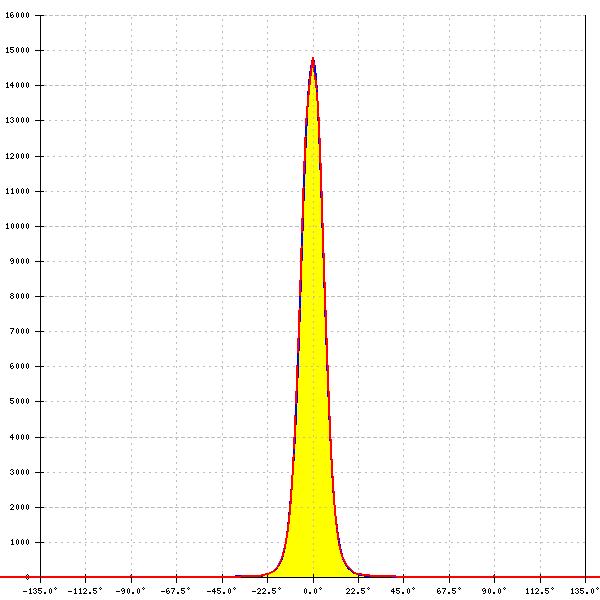

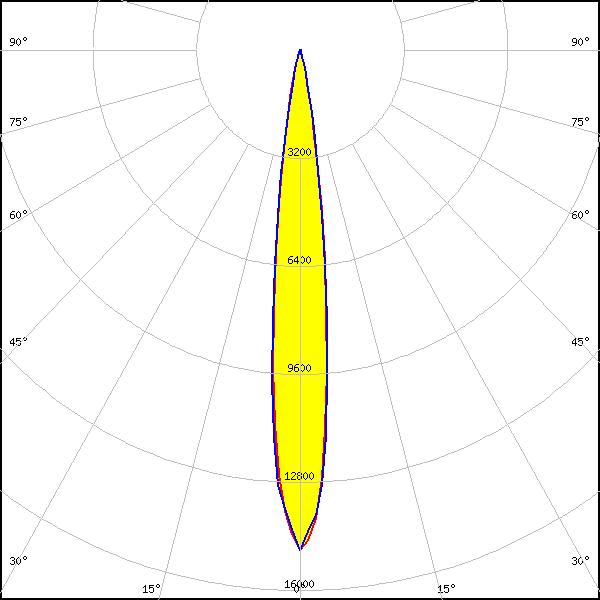

    LED: XP-E-HEW
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 11.700 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

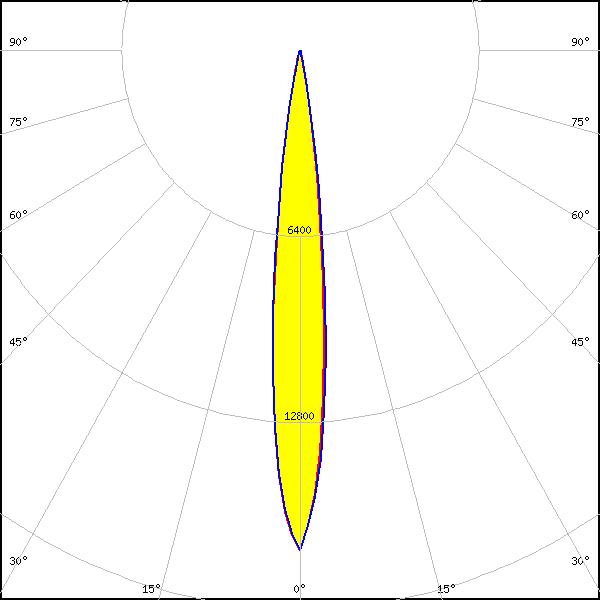

    LED: XP-E2
    FWHM: 12°
    FWTM: 23°
    Peak intensity: 17.202 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Amber
    LED: XP-G
    FWHM: 12°
    FWTM: -
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

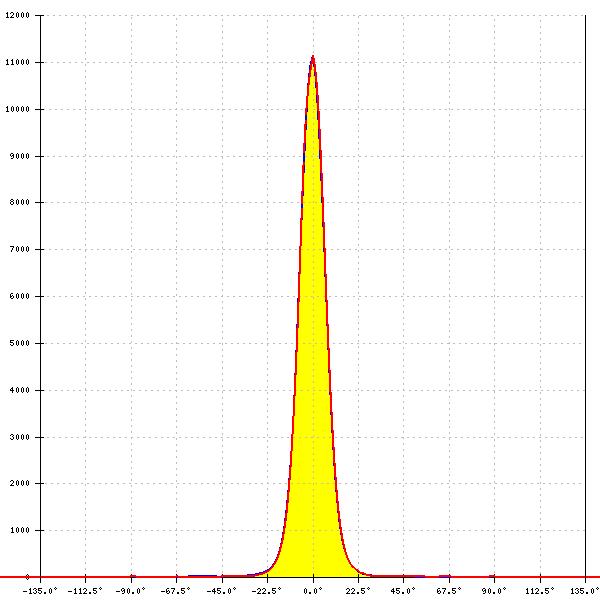

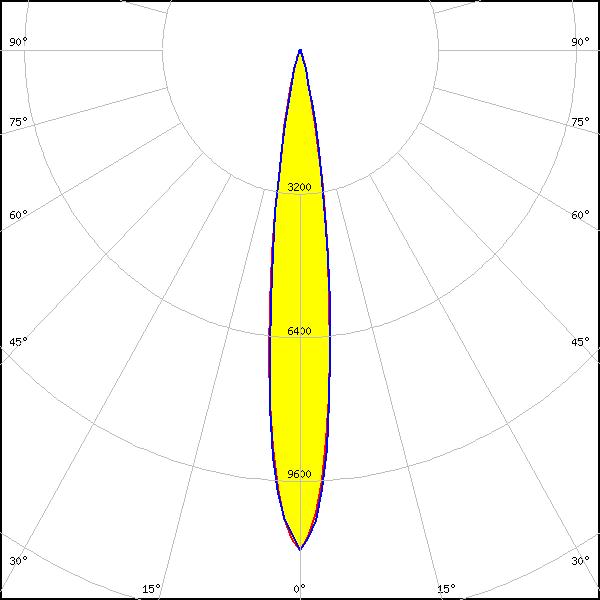

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 11.100 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON IR Domed 150 (L1I0-0xxx150000000)
    FWHM: 14°
    FWTM: 24°
    Peak intensity: 0.000 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON IR Domed 60 (L1I0-0xxx060000000)
    FWHM: 12°
    FWTM: 25°
    Peak intensity: 0.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON IR Domed 90 (L1I0-0xxx090000000)
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 0.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON T
    FWHM: 13°
    FWTM: 24°
    Peak intensity: 12.200 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

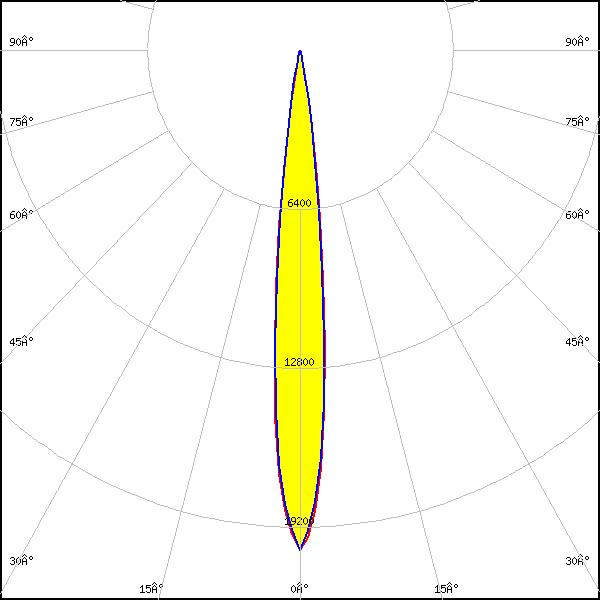

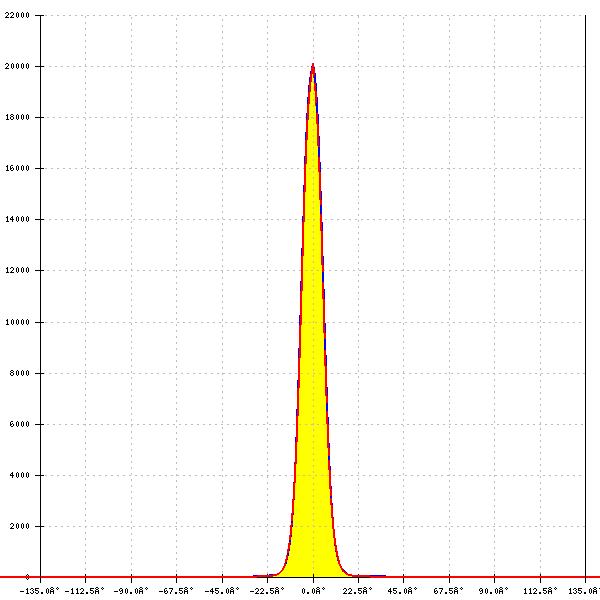

    LED: LUXEON Z ES
    FWHM: 12°
    FWTM: 21°
    Peak intensity: 17.600 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

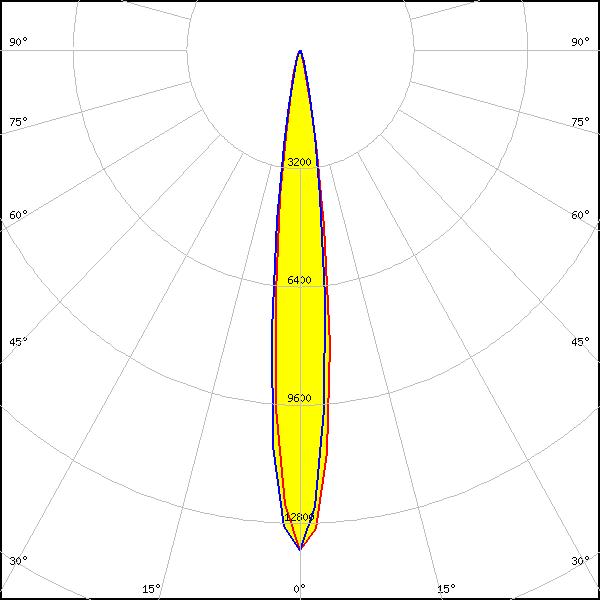

    LED: NCSxx19B
    FWHM: 13°
    FWTM: 25°
    Peak intensity: 13.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

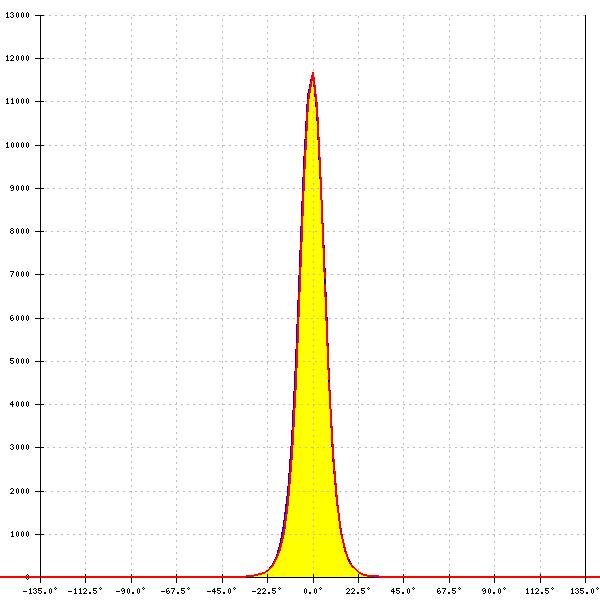

    LED: NF2x757D
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 11.700 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

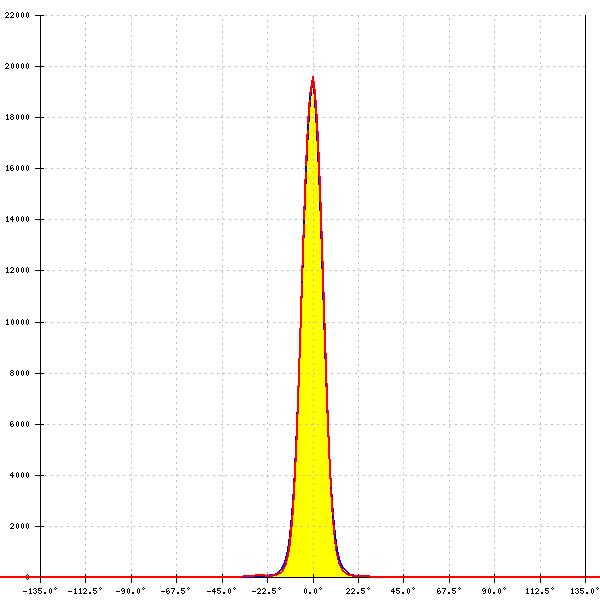

    LED: OSLON Boost HX (KW CULPM1.TG)
    FWHM: 12°
    FWTM: 21°
    Peak intensity: 19.617 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 12°
    FWTM: 23°
    Peak intensity: 15.719 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square EC
    FWHM: 13°
    FWTM: 26°
    Peak intensity: 9.100 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square PC
    FWHM: 12°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 150
    FWHM: 11°
    FWTM: 22°
    Peak intensity: 12.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 80
    FWHM: 11°
    FWTM: 21°
    Peak intensity: 13.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4170S
    FWHM: 12°
    FWTM: 19°
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4715S
    FWHM: 12°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4725S
    FWHM: 14°
    FWTM: 28°
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5
    FWHM: 10°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
