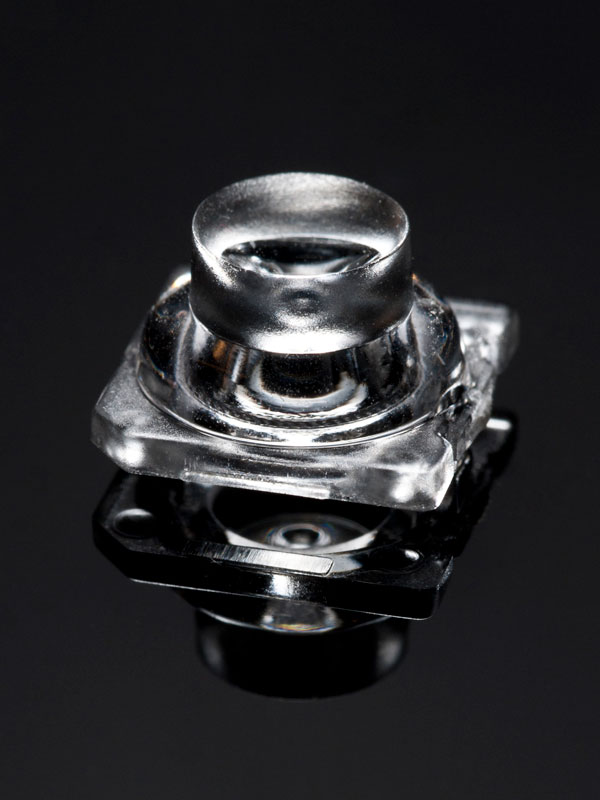

EMMA
EVA
FLARE
GABRIELLA
HEIDI
HELENA
ILONA
IRENE
IRIE
IRIS
JULIA
KIKI
LARISA
LAURA
LEIA
LEILA
LISA
LOTTA
MIRA
MOLLY
OLGA
RGBX
RONDA
ROSE
SAGA
SAKURA

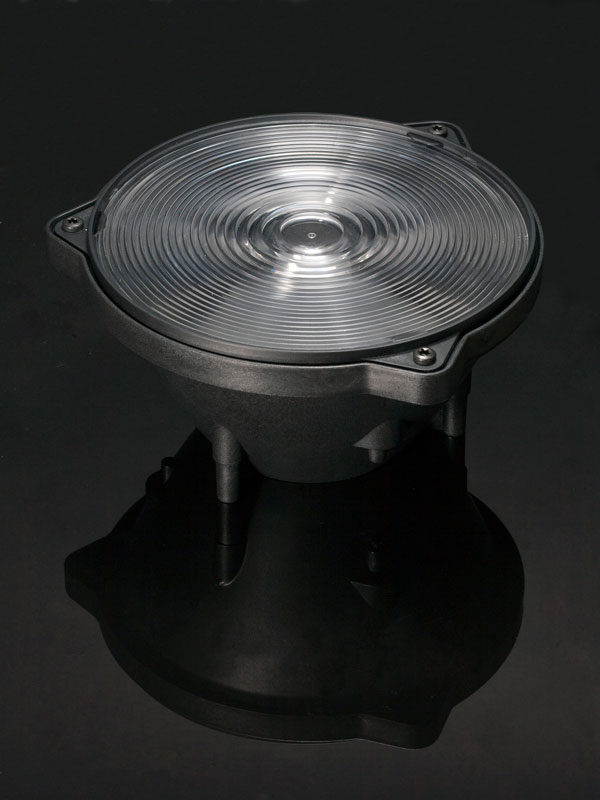

SEANNA
SIRI
SURI
TINA
TITANUM
TWIDDLE
VERONICA
WINNIE
YASMEEN
ZORYA
ANGIE
ANNA
CUTE
FLORENTINA
GT3
GT4
IDA
LUCIA
MARTHA
PETUNIA
QUAK
SANDRA
SATU
TAMPA
TUIJA
VICTORIA
VIRPI
CLAUDIA
DAHLIA
DAISY
FLORENCE
LILIAN
LINDA
LINNEA
SHELLY
VANESSA
VIOLET
ALISE
ANGELA
ANGELETTE
ANGELINA
BARBARA
BLONDIE
BOOM
BRIDGET
BROOKE
ELISE
ELLA
LENA
LENINA
MINNIE
MIRELLA
REGINA
RITA
TYRA
VENLA
JENNY
SITARA
SPORT
STELLA
STRADA
STRADELLA
TATIANA
HIGH BAY
KONNTAKT
LEDiL Product Catalogue
Latest Products Catalogue
Versatile low profile lens family for compact luminaires
Ø21.5 mm lenses for billboard lighting and up to 3535 size LED packages
High precision lenses with black reflectors providing sharp cutoff ideal for non-glare premium quality retail lighting. Compatible with LEDiL HEKLA sockets/connectors.
Ø50 mm lenses with 3˚ beam for spot- and searchlights for up to 7070 size LED packages
Lenses primarily designed for emergency and exit route lighting with an extremely wide beam
Ø26 mm easily sealable TIR-lenses for up to 5050 size LED packages
Ø10 mm 360˚ side emitting lenses for beacon lighting and up to 3535 size LED packages
Ø35 mm TIR-lenses compatible with up to 7070 size LED packages
Free-form lenses with a wide horizontal beam suitable for emergency beacons, wall-washing and corridor lighting
RGB and tuneable white colour mixing lenses for up to 7070 size RGB LEDs
Ø21.6 mm easily sealable TIR-lenses for up to 3035 size LED packages
Ø72.8 mm fresnel lenses for architectural and stage lighting compatible with all LED types and sizes
Ø50 mm TIR lens family for efficient retail lighting. Optimized for 4 to 9 mm and compatible up to 14.5 mm LES size COBs.
Ø21.6 mm lenses for IR / CCTV camera applications and up to 3535 size IR LED packages
14 x 14 mm low profile lens for near field IR applications with 4:3 aspect ratio field of view. Designed for flat high-power IR LEDs.
Ø38 mm narrow beam (4–6˚) TIR-lenses for narrow flood-, accent and searchlights and up to 7070 size LED packages
Ø18.8 mm lenses for backlighting and up to 3535 size LED packages
21.6 x 14 mm rectangular lenses for backlighting and up to 3535 size LED packages
10 x 10 mm square-shaped lenses with various mounting options for up to 3535 size LED packages
21.6 x 21.6 mm square-shaped lenses for general and wall-wash lighting compatible with up to 5050 size LED packages
Extremely narrow beam with sharp oval option for creative decorative lighting
Lenses for general, wall-wash and sports lighting
Miniature TIR-lenses for jewellery shops, reading lights, torches and head lamps
19.6 x 15.4 mm lenses for backlighting and up to 3535 LED packages
Ø35 mm TIR-lenses with sharp cut-off for up to 7070 size LED packages and COBs with up to 12 mm size LES
Ø70 mm lenses with smooth cut-off for track- and spotlights and Zhaga compliant bayonet mounting compatible with up to 19 mm LES size COBs
Ø32 mm elegant indoor lighting family for wide range of LEDs up to 7070 size LED packages
Ø30.4 mm TIR-lenses for RGBW colour mixing applications and up to 5050 size RGB LED packages
Ø70 mm low profile lenses with very wide customization possibilities to cover all indoor lighting needs compatible with up to 14 mm LES size COBs and LEDiL HEKLA sockets/connectors
21.6 x 21.6 mm lenses preassembled in durable holders with an adhesive tape
Ø50 mm silicone lenses for ingress protected luminaires and up to 14 mm LES size COBs
Silicone COB lens family for high lumen output retail and hospitality lighting and up 22 mm LES size COBs
Ø153 mm special spot lens with as narrow as 1-3° beam for high level precision lighting and up to 7070 size LED packages
13.9 x 13.9 mm lenses for backlighting and up to 3535 size LED packages
Ø38 mm lenses for surgery lighting optimized for 3535 and compatible with up to 7070 size LED packages
Ø16.1 mm TIR-lenses for linear lighting, museums, reading lights, compact torches and head lamps compatible with up to 3535 size LED packages
Ø26 mm easily sealable TIR-lenses designed for Osram Dragon LEDs and up to 3535 size LED packages
Ø21.6 mm lenses with adjustable, omnidirectional beam for up to 3535 size LED packages
Easily sealable miniature optics for challenging environments and outdoor lighting
Ø50 mm low profile lenses for retrofits, downlights and compact tracklights, up to 21 mm LES size COBs and LEDiL HEKLA sockets/connectors
COB optics family for high contrast retail lighting without spill light
Innovative lenses with ~340° light distribution that mimics a traditional light bulb beam pattern
