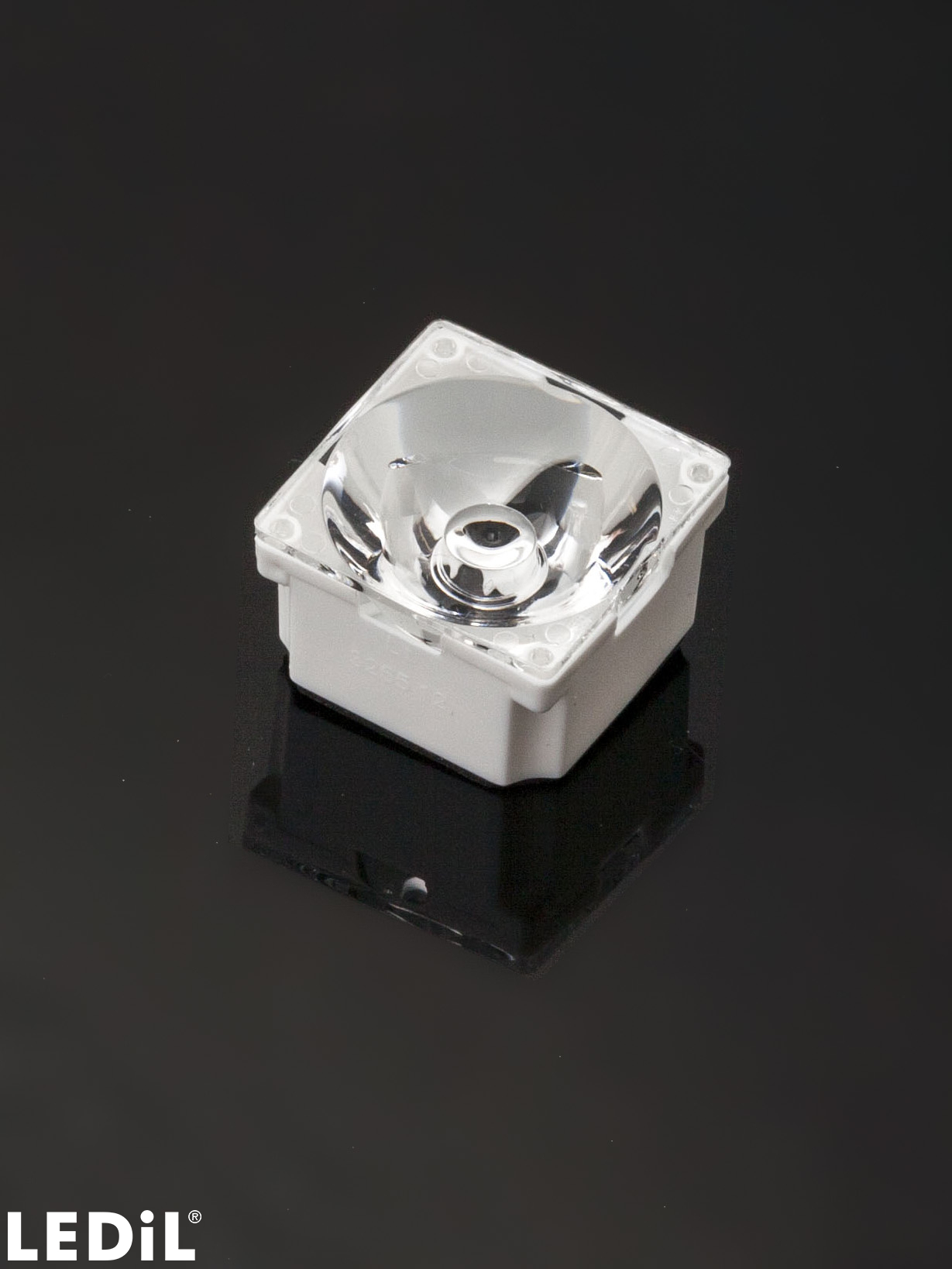

    CA13628_G2-LAURA-RS-P

    Print

    ~8° spot beam. Assembly with thinner white holder, installation tape and location pins.

    Specification
    • Dimensions:
      22 x  22 mm
    • Height:
      13.10 mm
    • Fastening:
      tape, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1440 pcs
    • Box size:
      460 x 260 x 160 mm
    • Box weight:
      5.9 kg
    • MPQ:
      180 pcs
    • MOQ:
      360 pcs
    • MOQ size:
      480 x 280 x 50 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA13628_G2-LAURA-RS-P
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - SECOND GENERATION OF ROSE, LAURA AND LEILA OPTICS

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

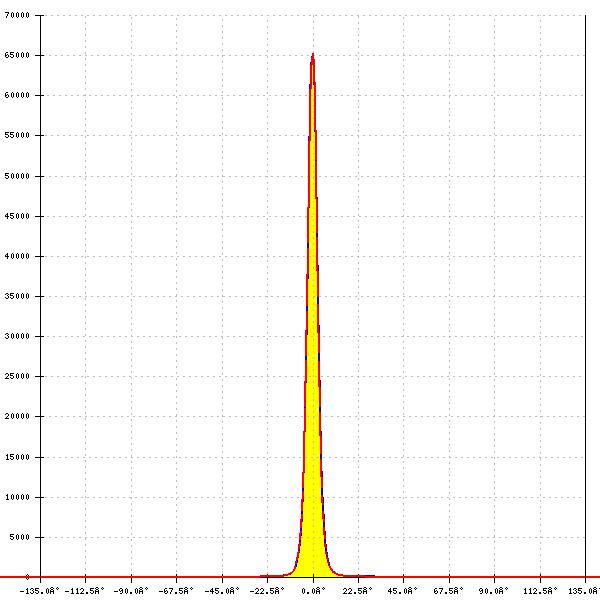

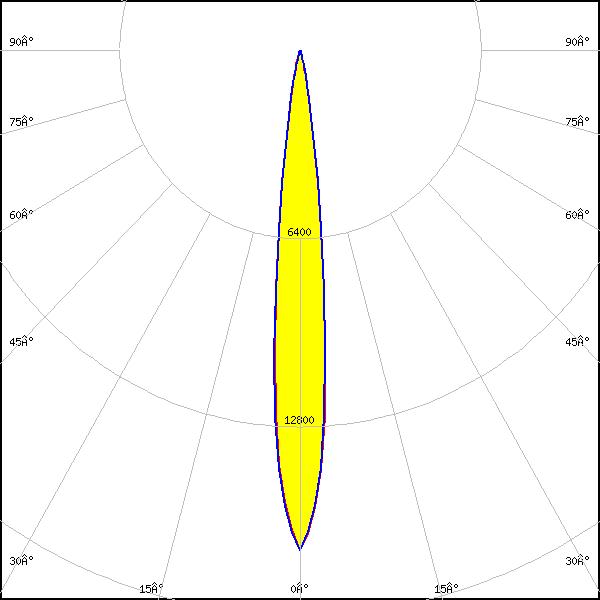

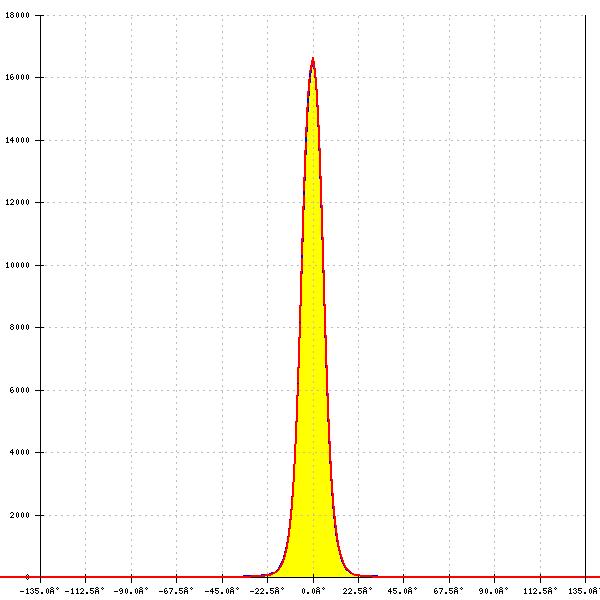

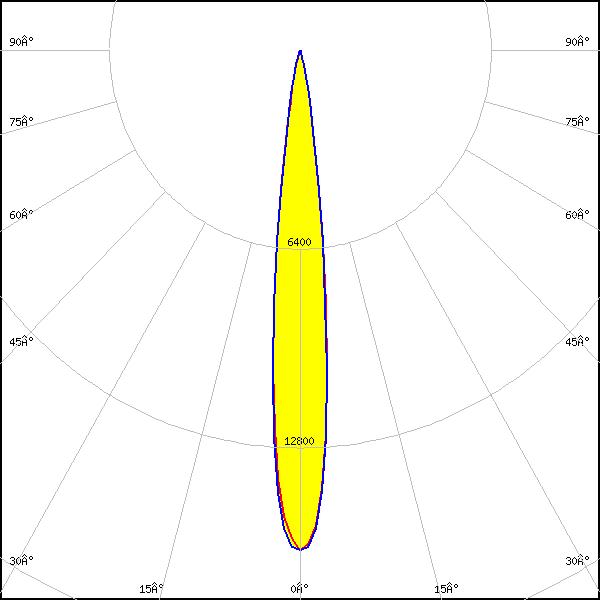

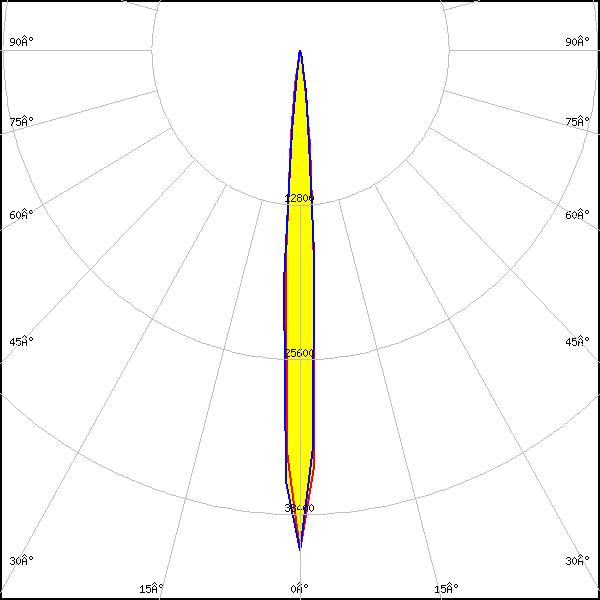

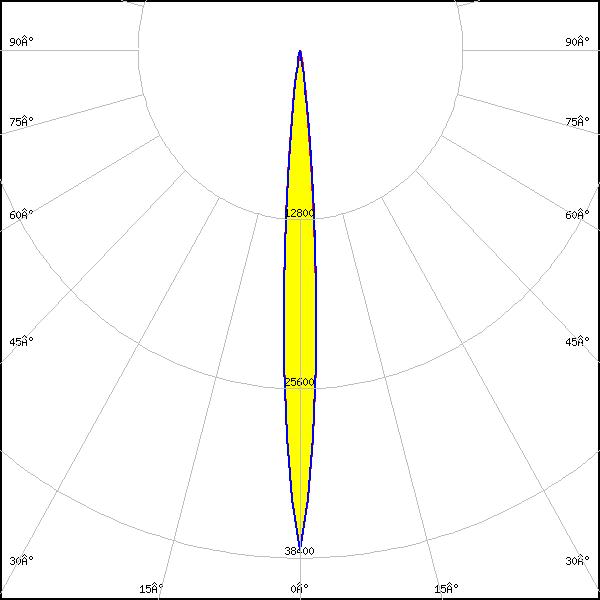

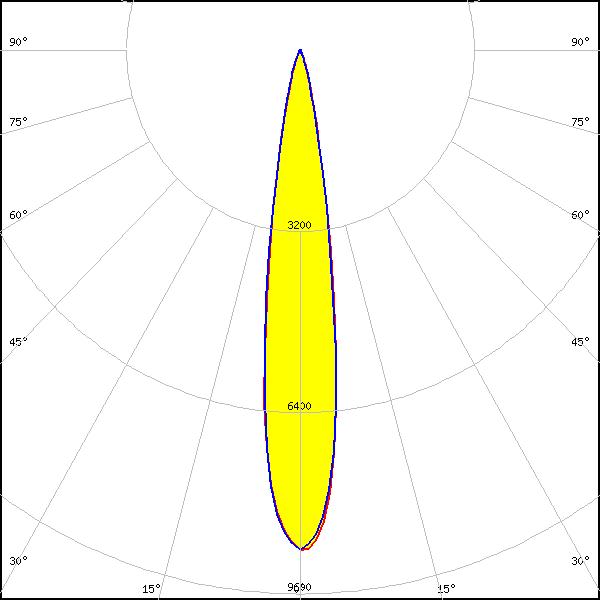

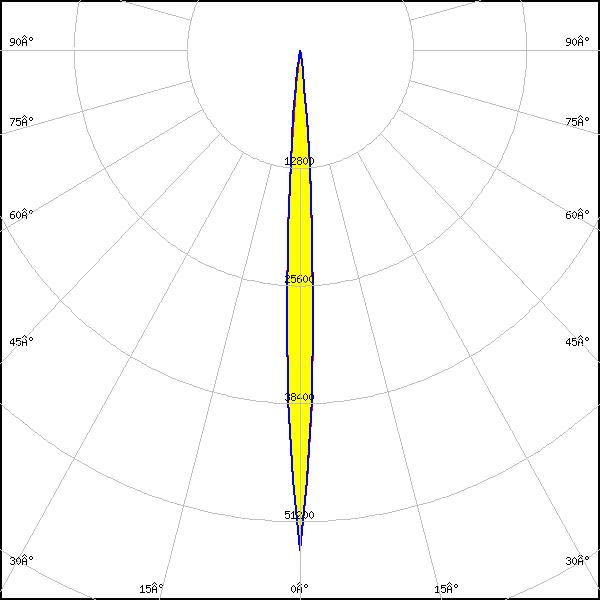

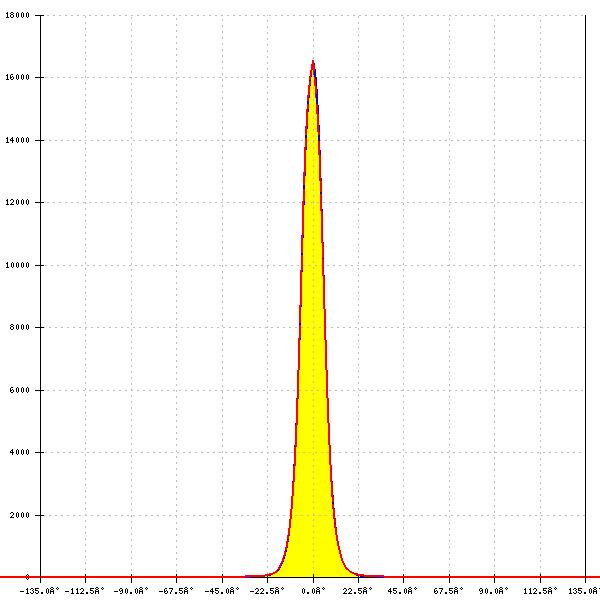

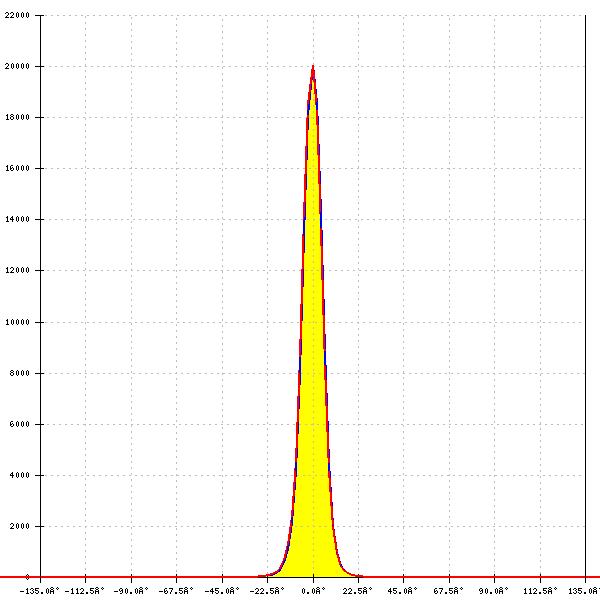

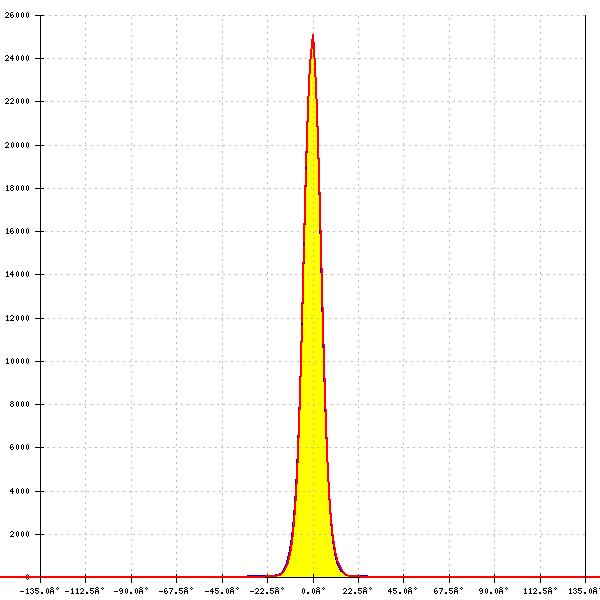

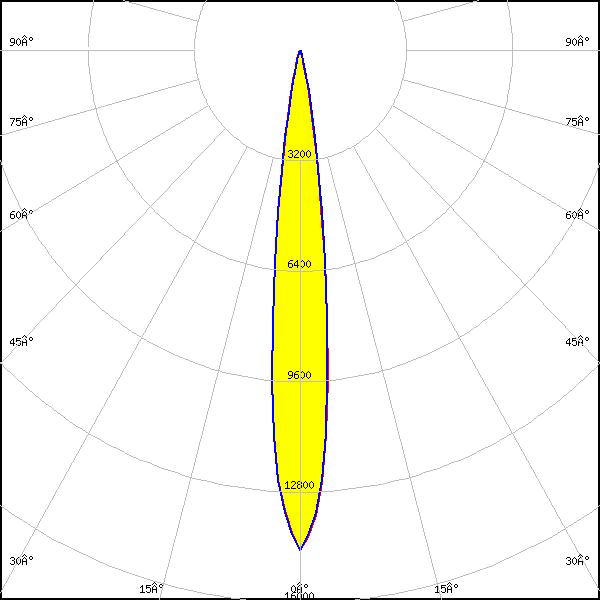

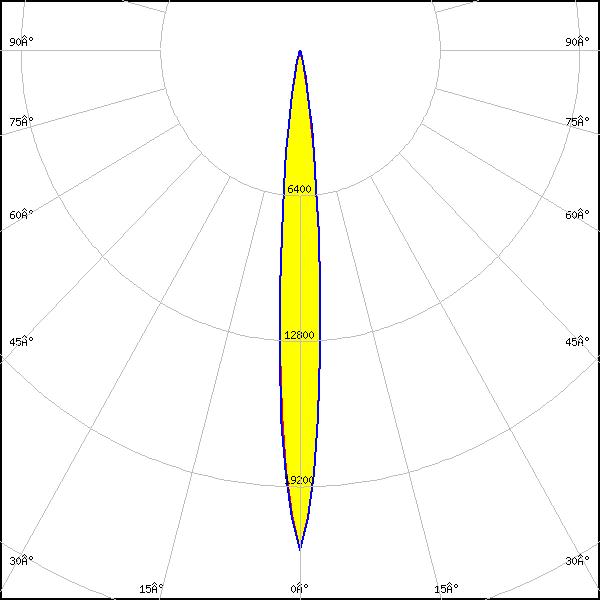

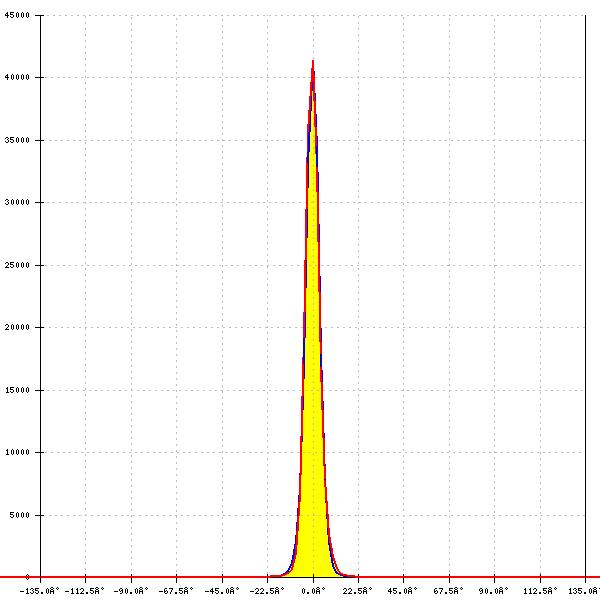

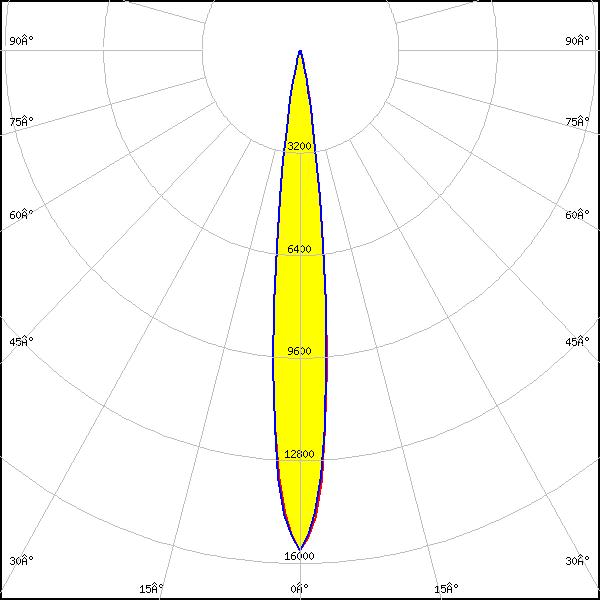

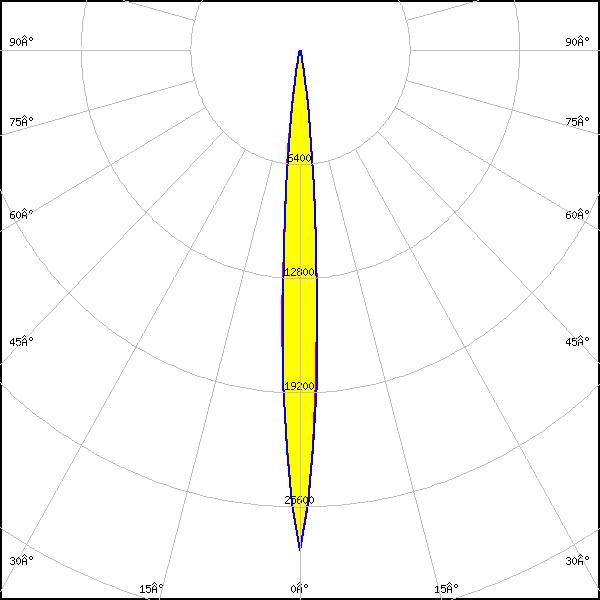

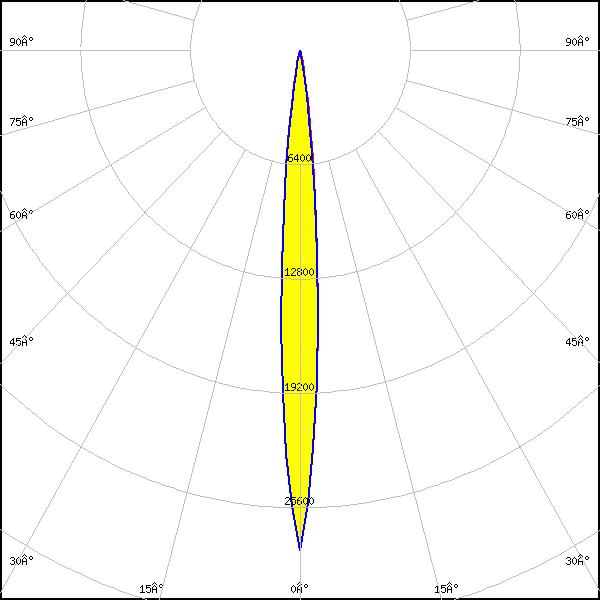

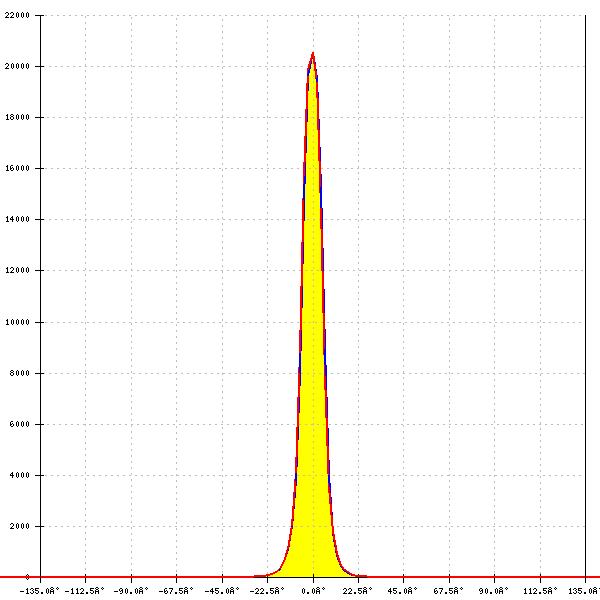

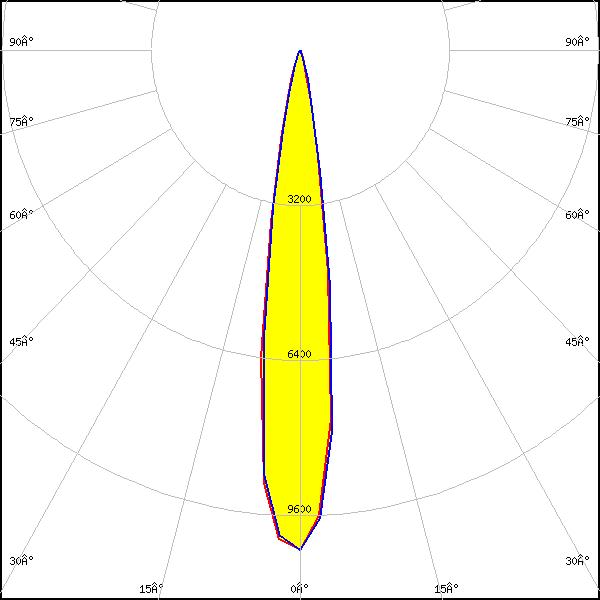

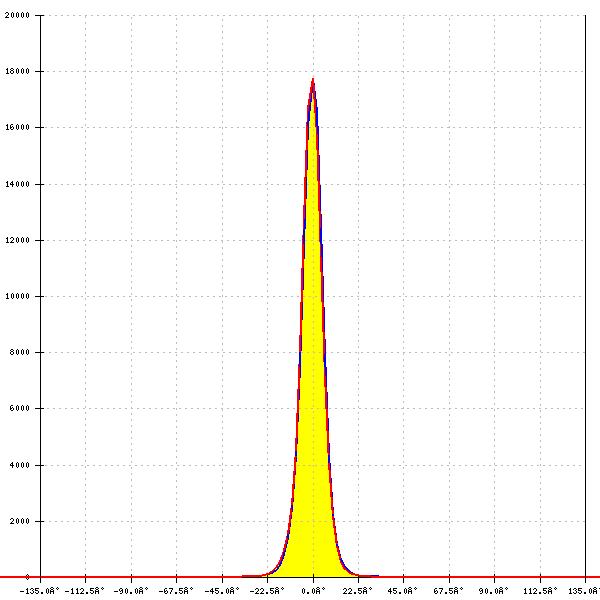

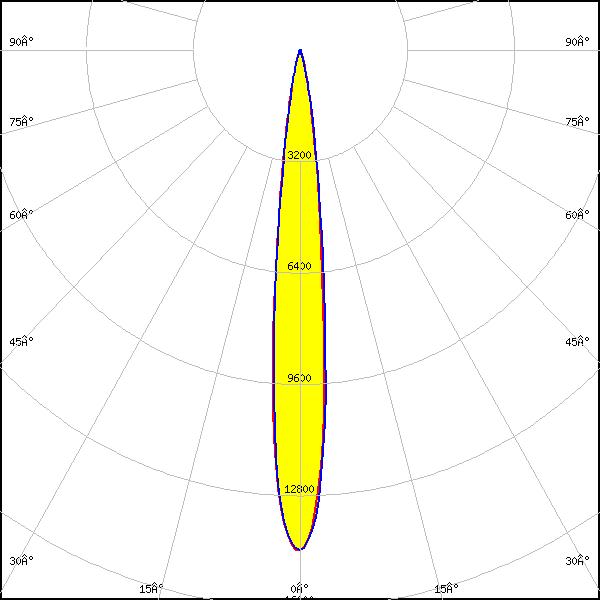

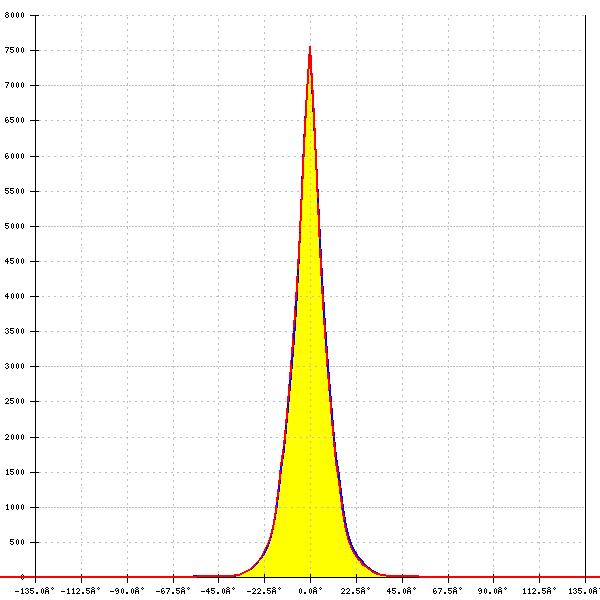

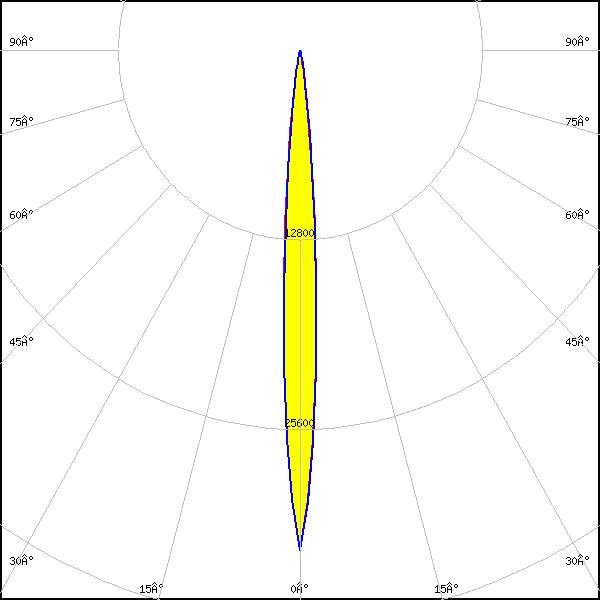

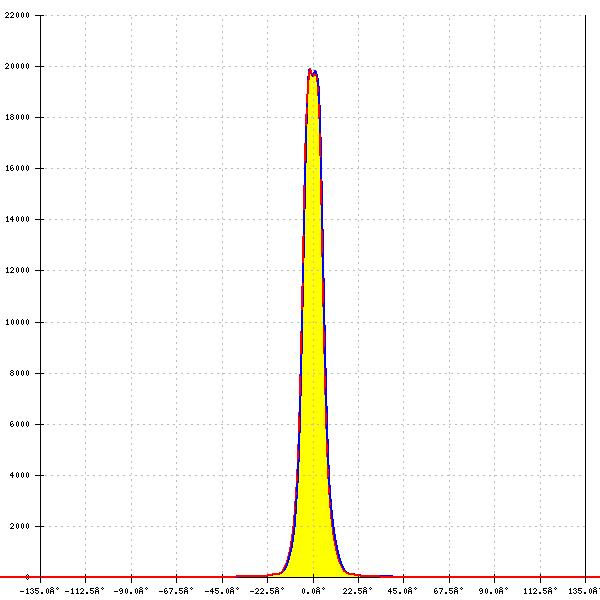

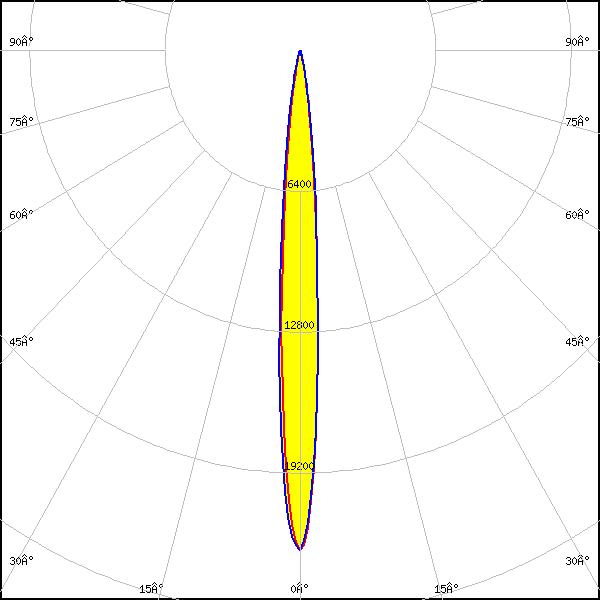

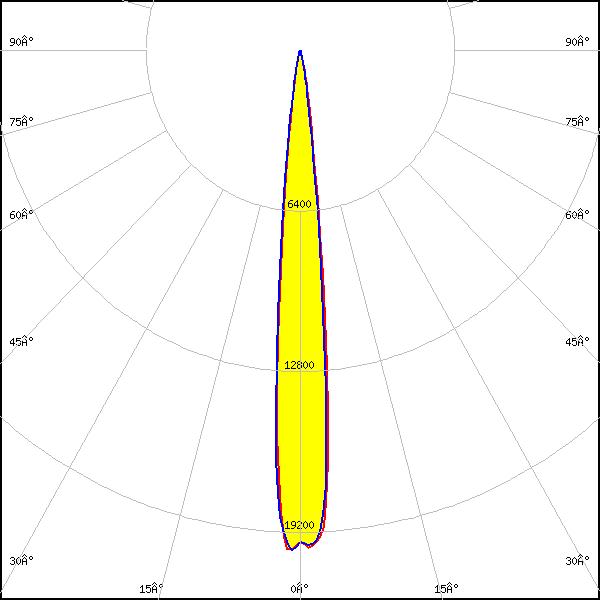

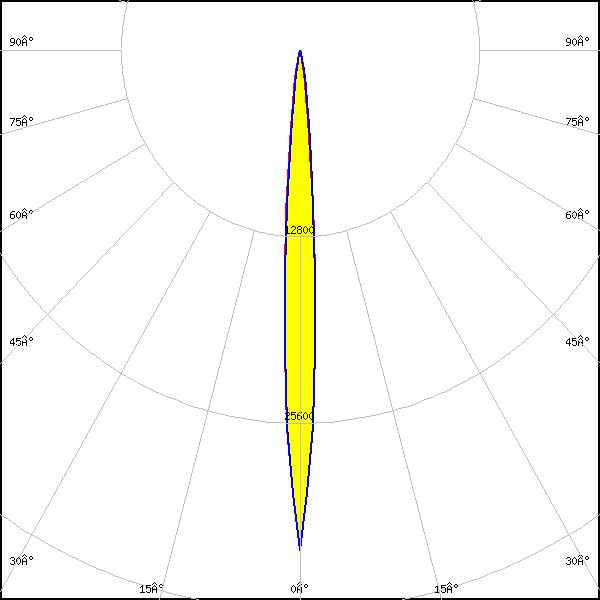

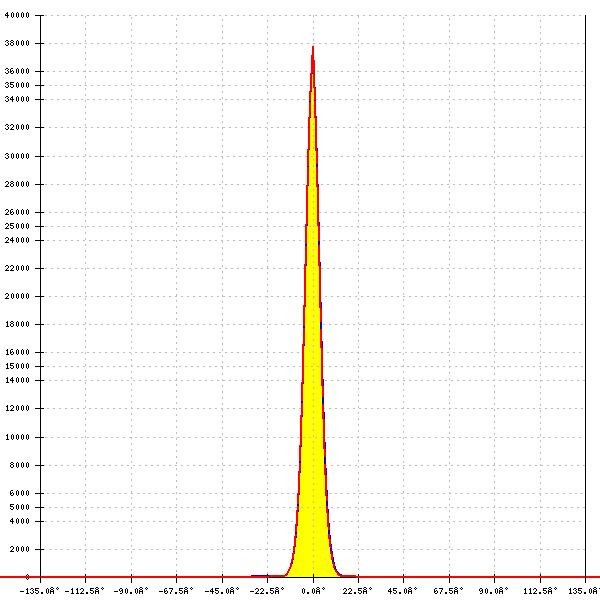

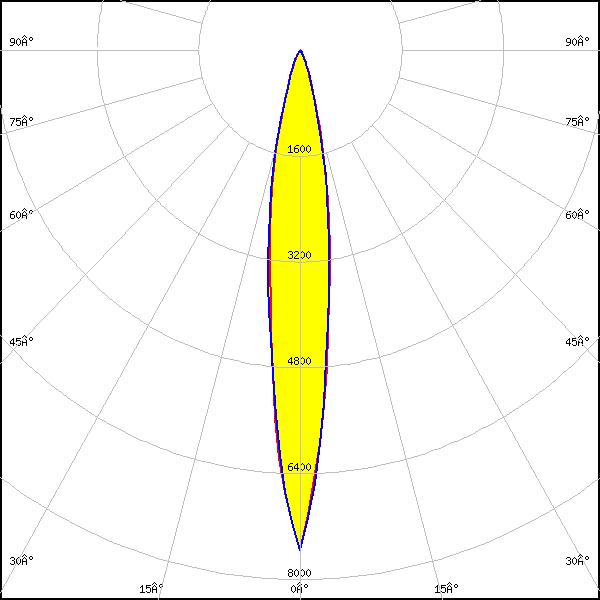

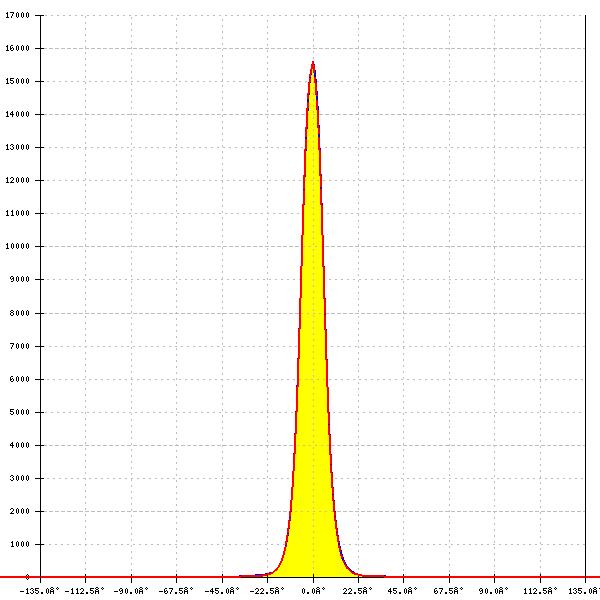

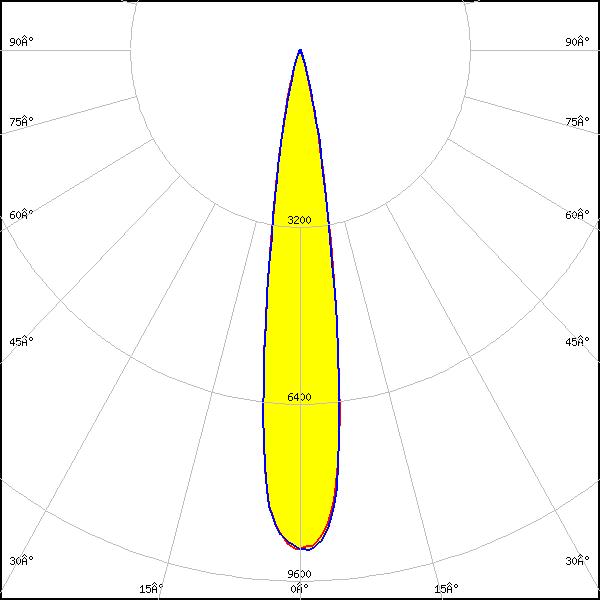

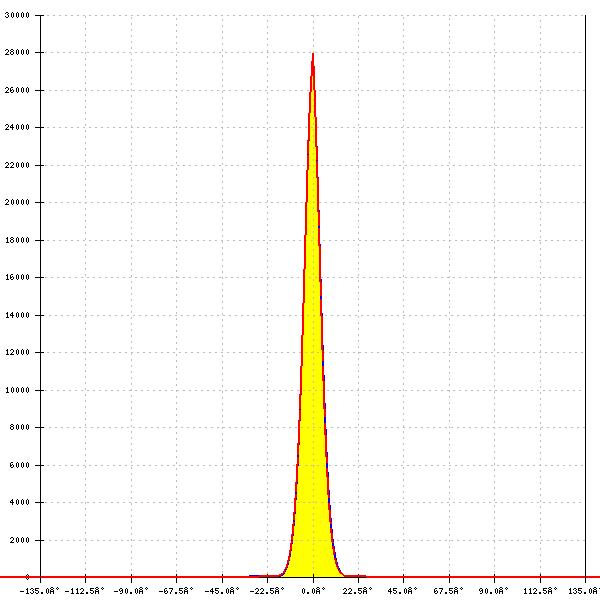

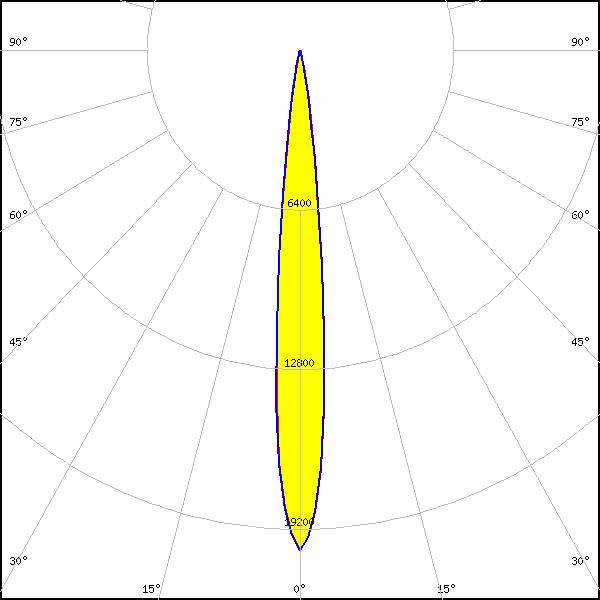

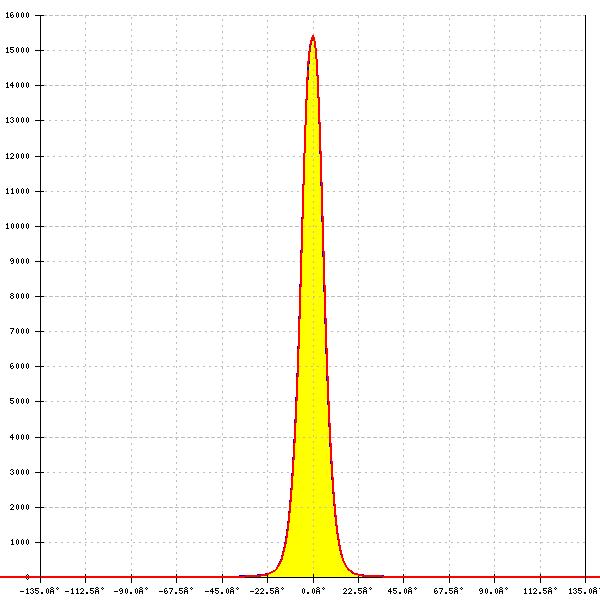

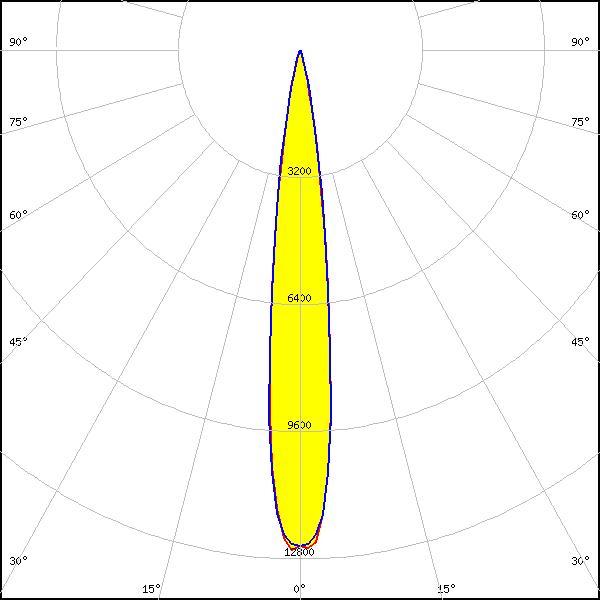

    Optical results

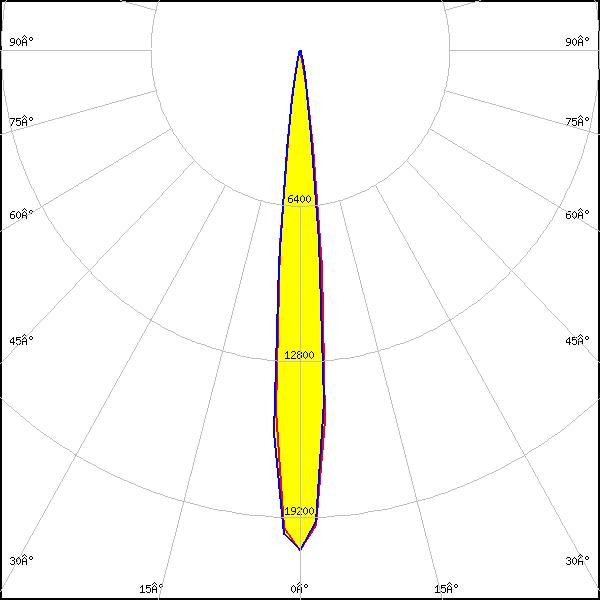

    LED: XB-H
    FWHM: 11°
    FWTM: 20°
    Peak intensity: 20.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

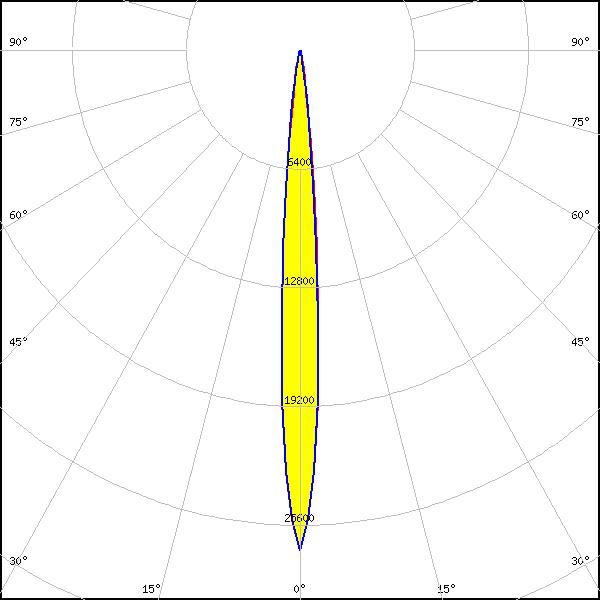

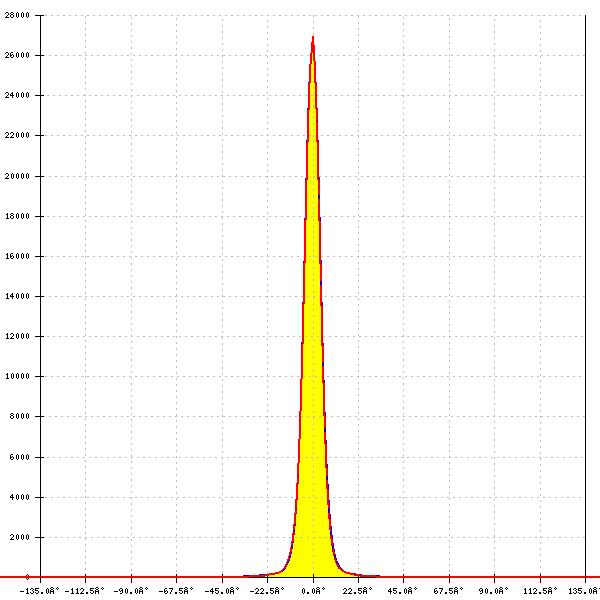

    LED: XD16
    FWHM: 9°
    FWTM: 18°
    Peak intensity: 26.950 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35 HD
    FWHM: 14°
    FWTM: 35°
    Peak intensity: 7.560 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35 HI
    FWHM: 12°
    FWTM: 23°
    Peak intensity: 16.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 27.984 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Red
    LED: XP-E
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 33.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E2
    FWHM: 8°
    FWTM: 15°
    Peak intensity: 41.400 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 14.707 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

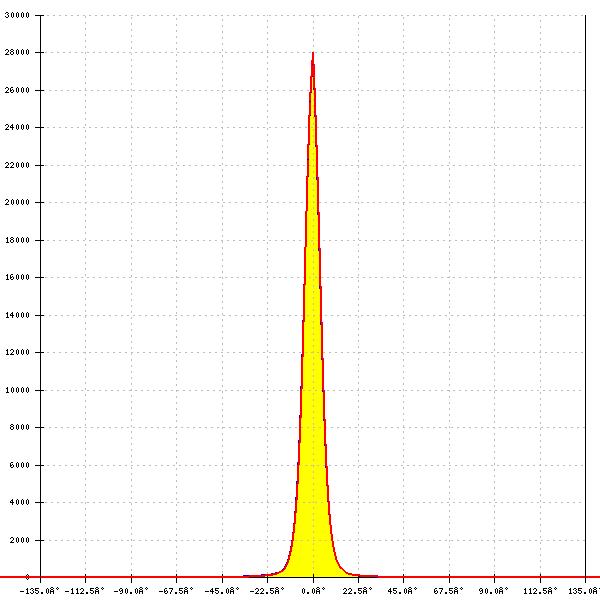

    LED: XP-G4 HI
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 28.036 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: 16°
    FWTM: 27°
    Peak intensity: 10.320 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

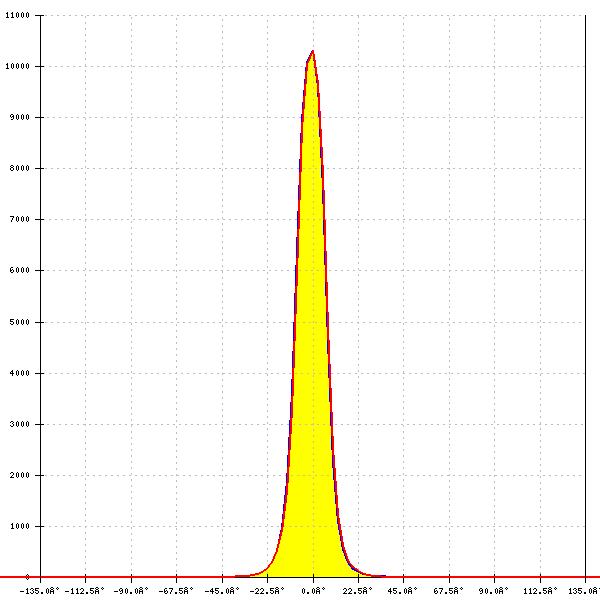

    LED: XP-L2
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 8.832 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

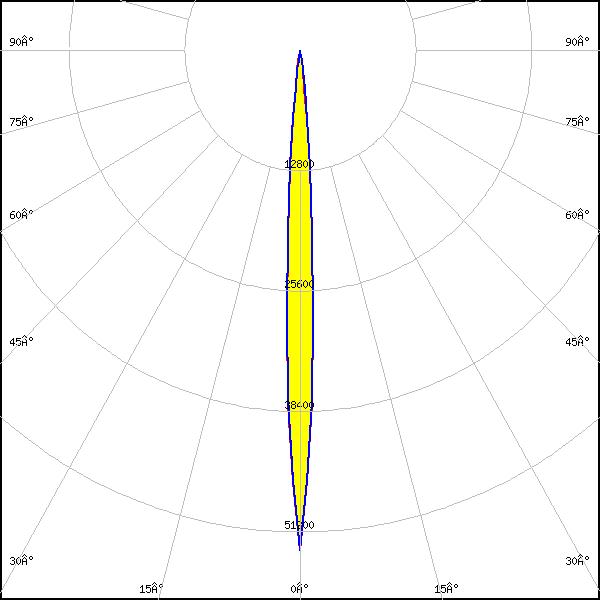

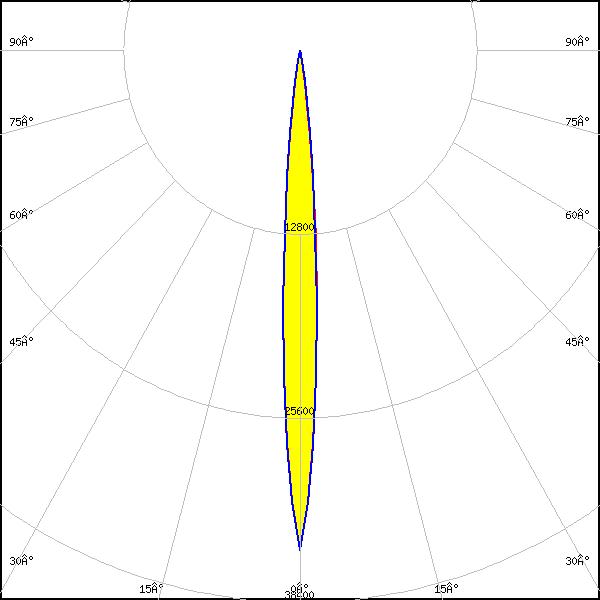

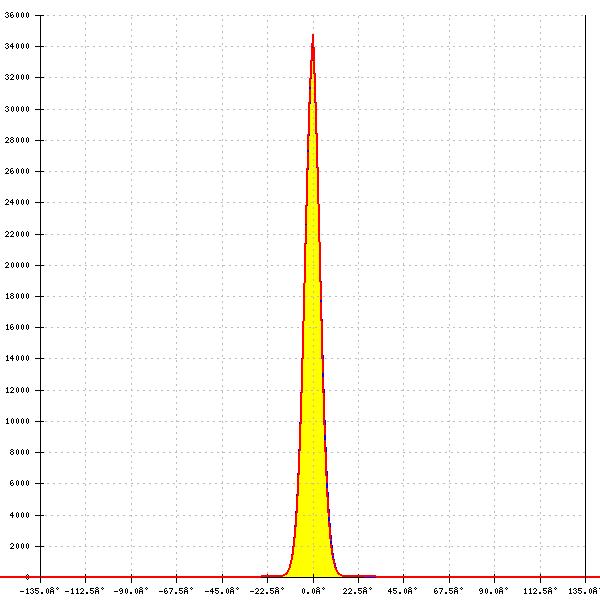

    LED: XP-P
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 34.794 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

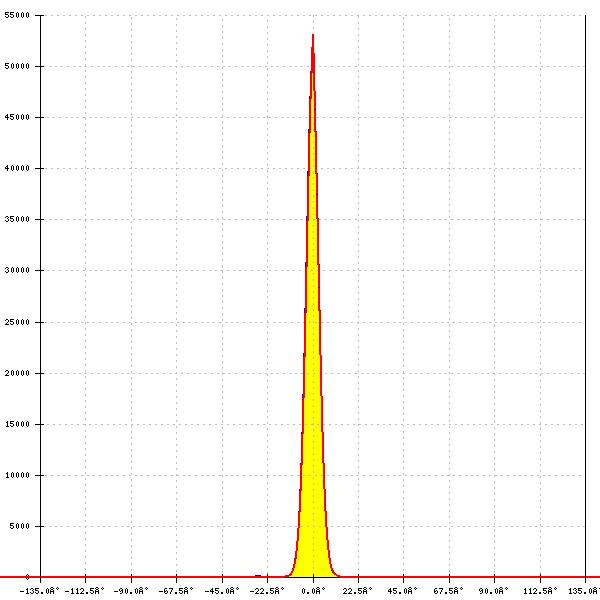

    LED: XP-P
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 53.173 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

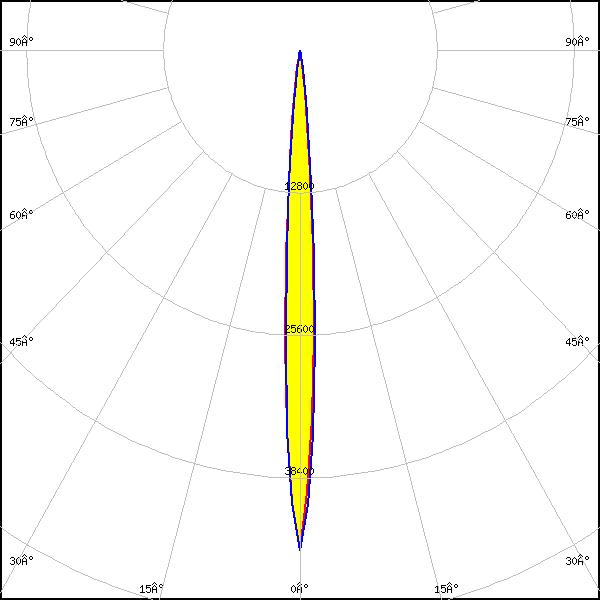

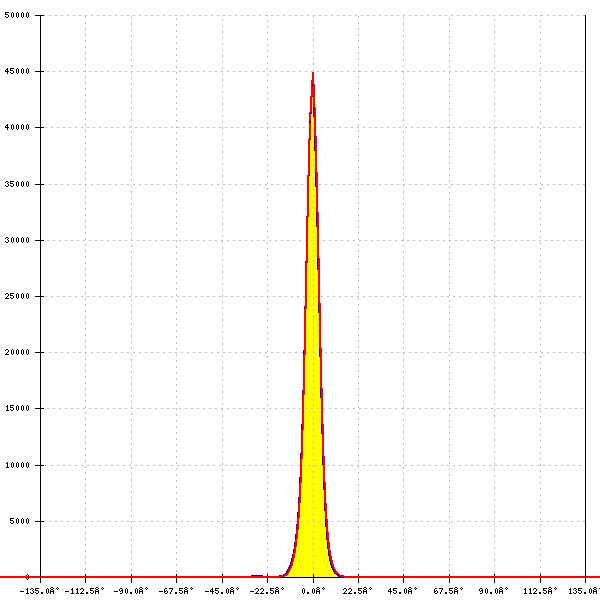

    LED: XQ-E HD
    FWHM: 7°
    FWTM: 15°
    Peak intensity: 44.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

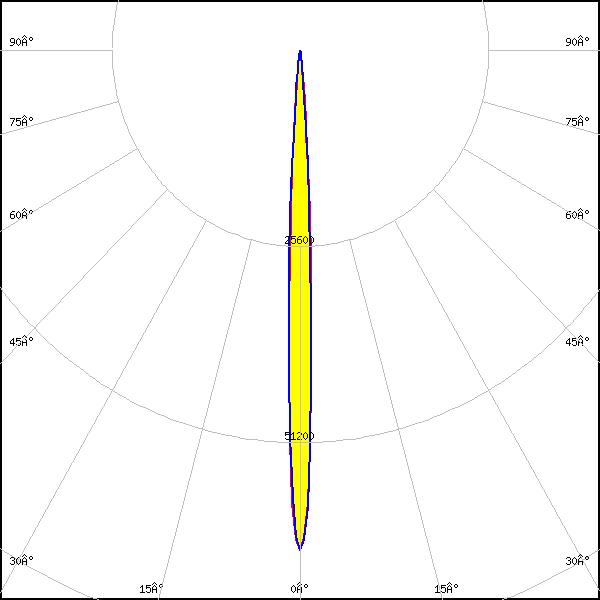

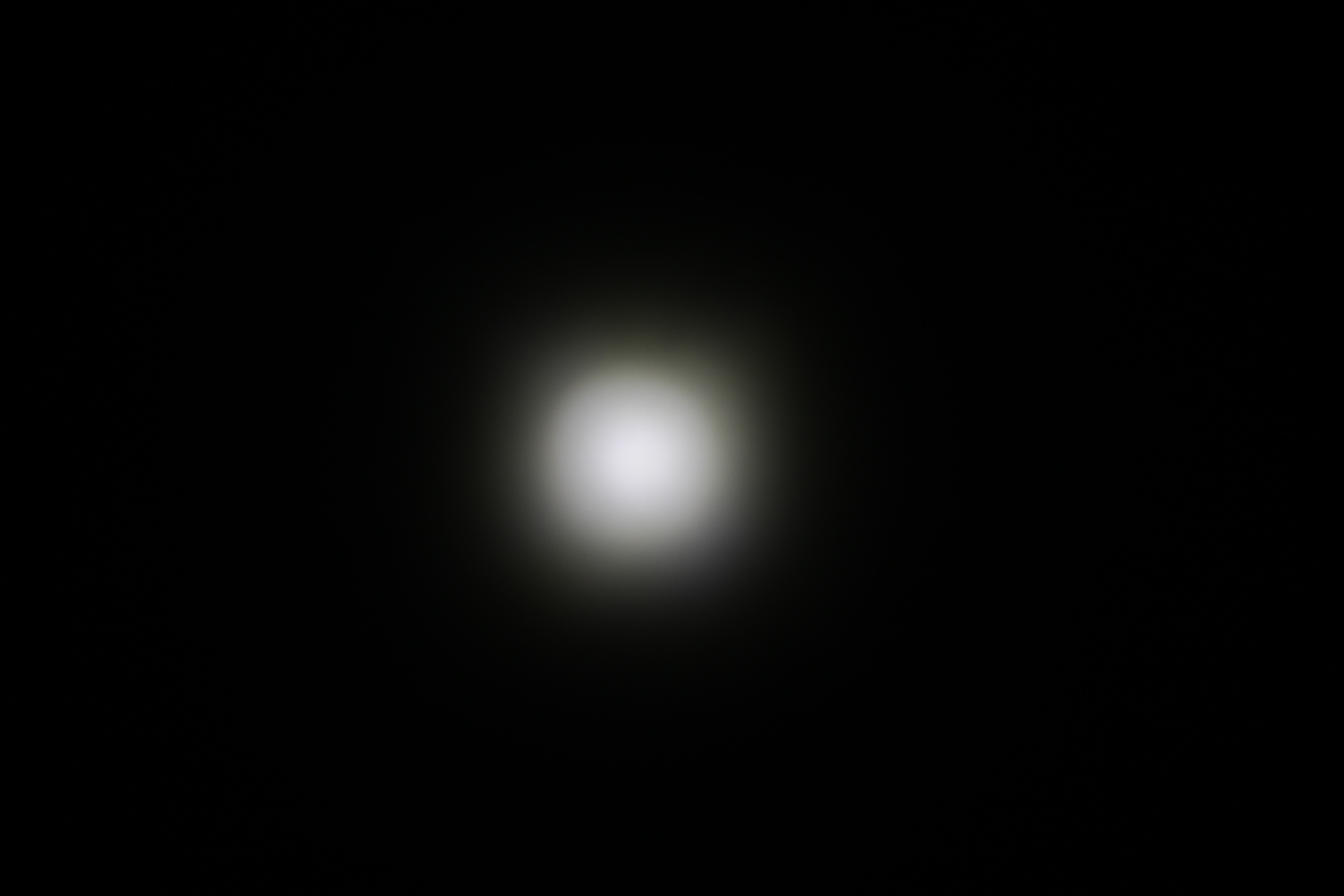

    LED: XQ-E HI
    FWHM: 5°
    FWTM: 11°
    Peak intensity: 65.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

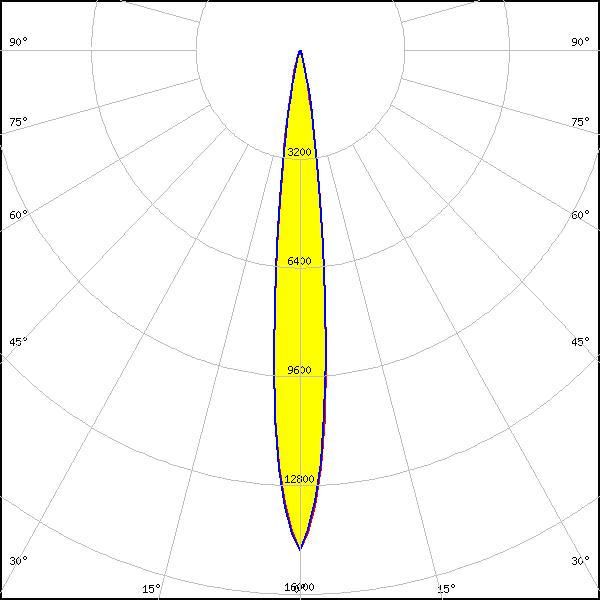

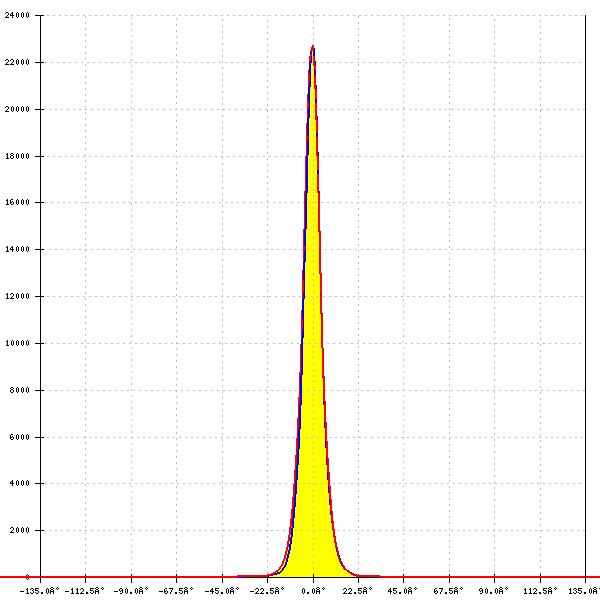

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 9°
    FWTM: 20°
    Peak intensity: 22.700 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CZ
    FWHM: 6°
    FWTM: 13°
    Peak intensity: 54.330 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

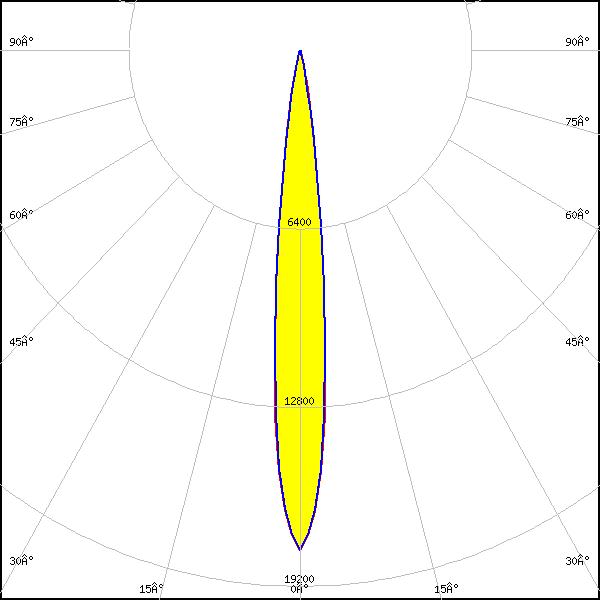

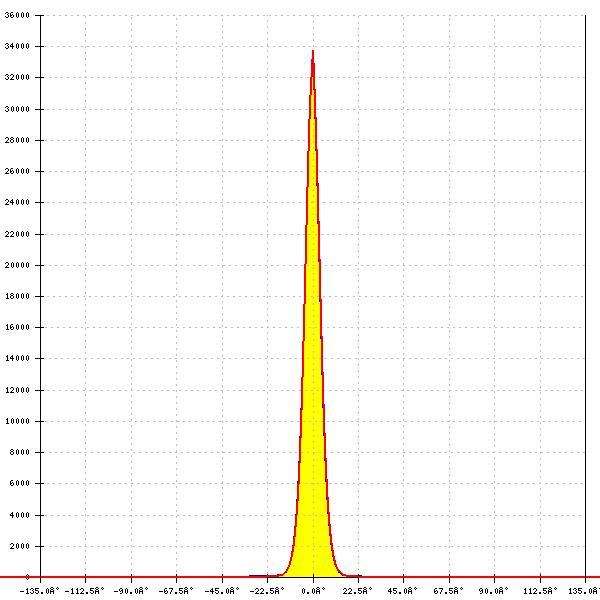

    LED: LUXEON HL1Z (White)
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 33.770 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

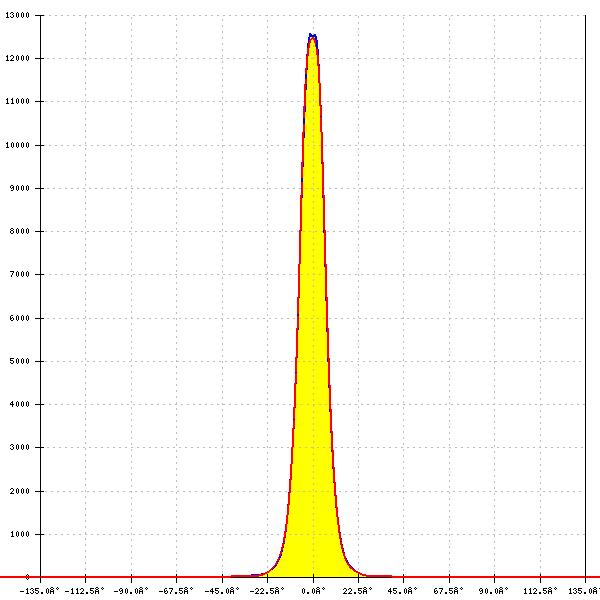

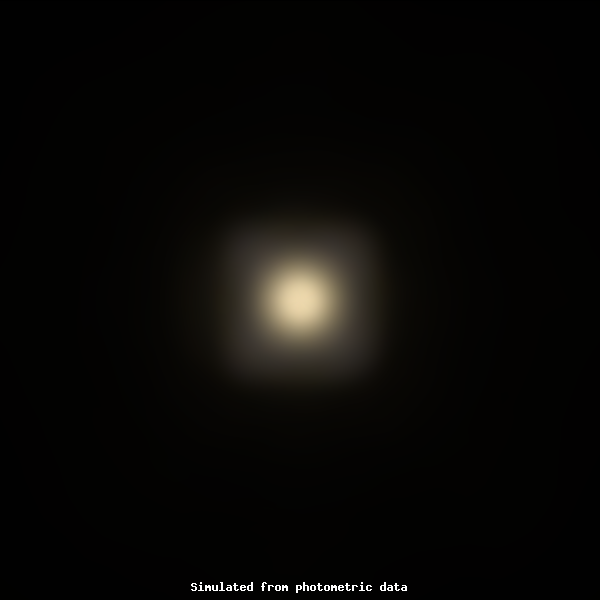

    LED: LUXEON HL2X-E
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 12.605 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

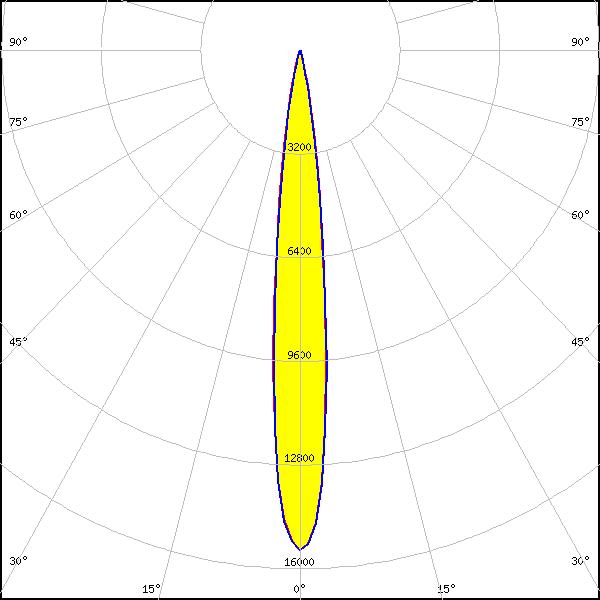

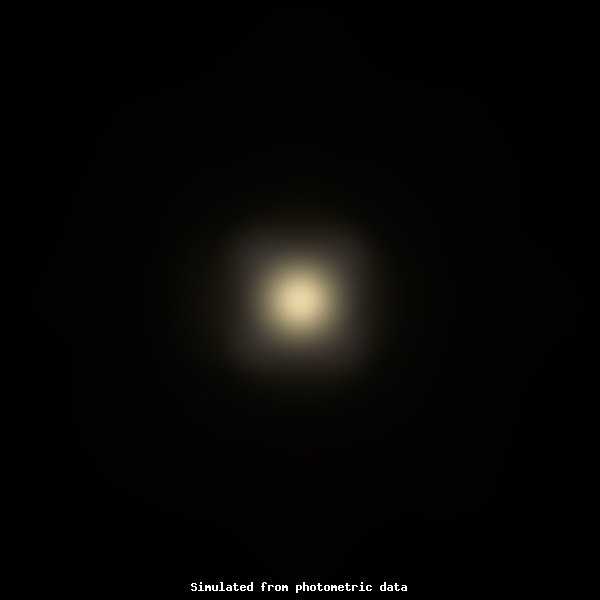

    LED: LUXEON HL2X-V
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.433 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

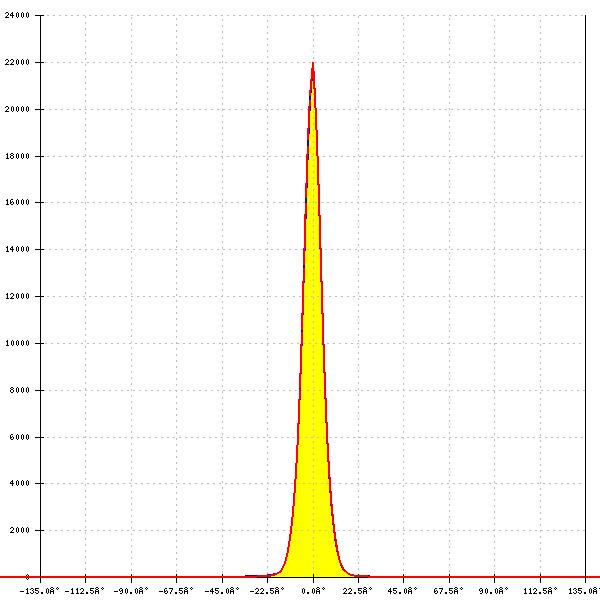

    LED: LUXEON HL2Z
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 21.990 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL4Z
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 17.917 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

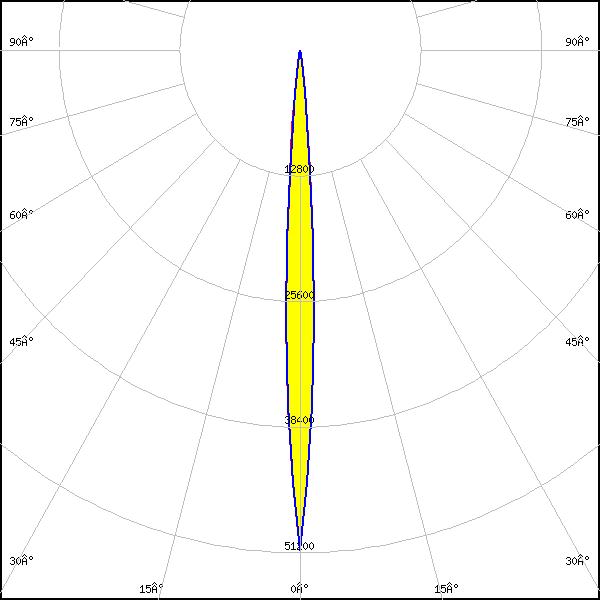

    LED: LUXEON Rubix
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 50.962 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

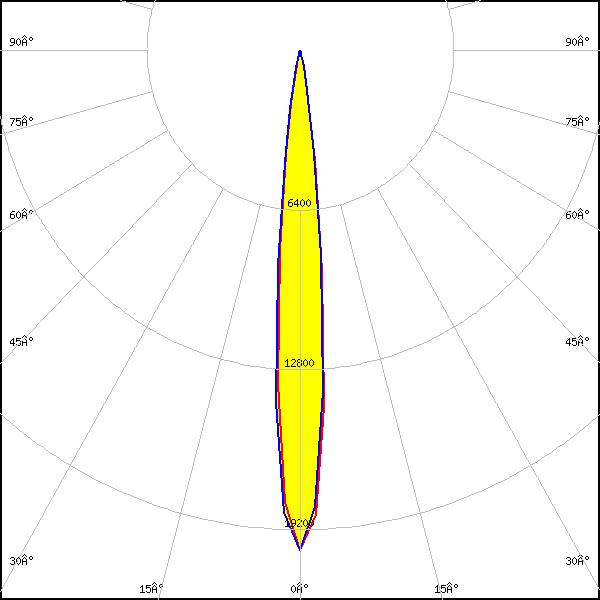

    LED: LUXEON TX
    FWHM: 11°
    FWTM: 21°
    Peak intensity: 20.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Z ES
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 37.822 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-10-UV-X130
    FWHM: 8°
    FWTM: 16°
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: UV-A

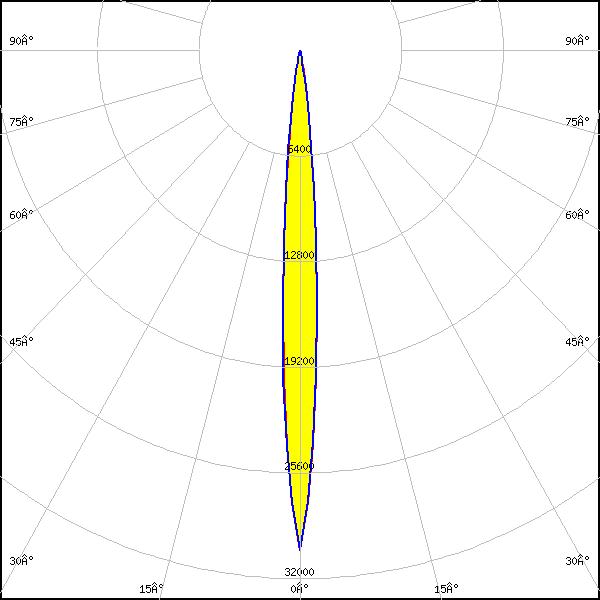

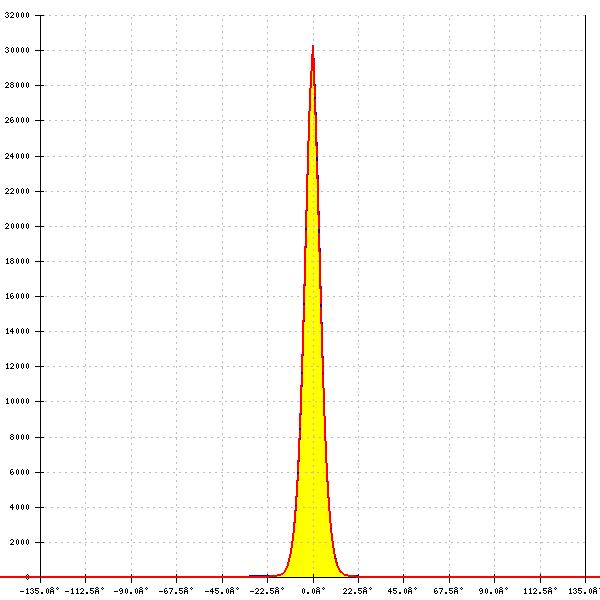

    LED: NCSxE17A
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 30.278 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

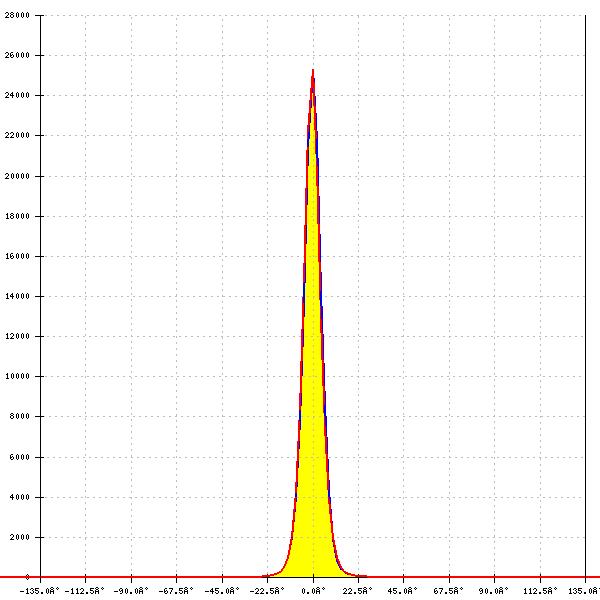

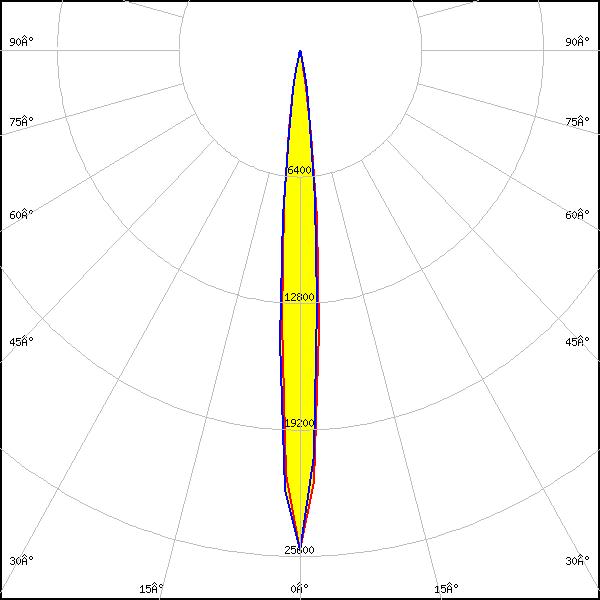

    LED: NCSxx19A
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 25.300 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

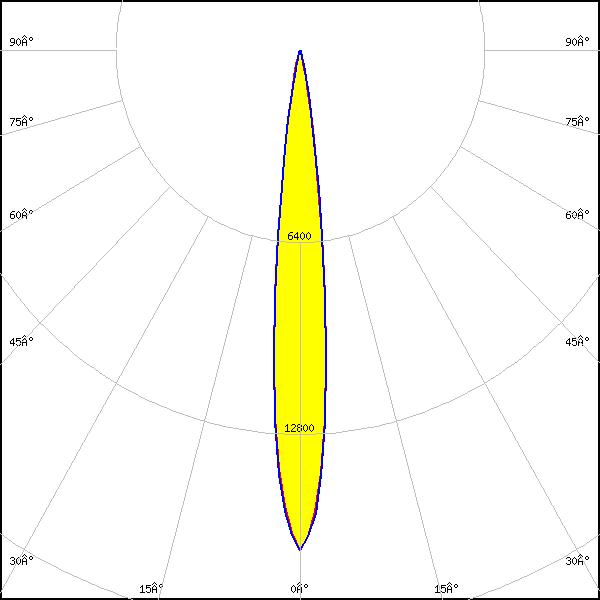

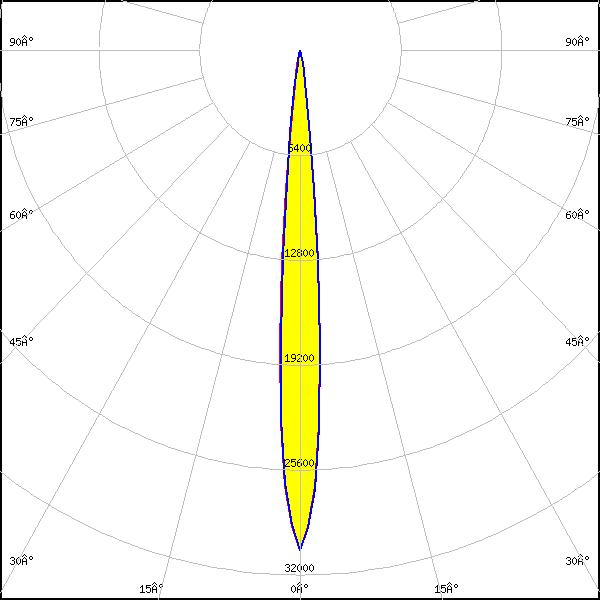

    LED: NVSW219C-V2
    FWHM: 10°
    FWTM: 16°
    Peak intensity: 30.502 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

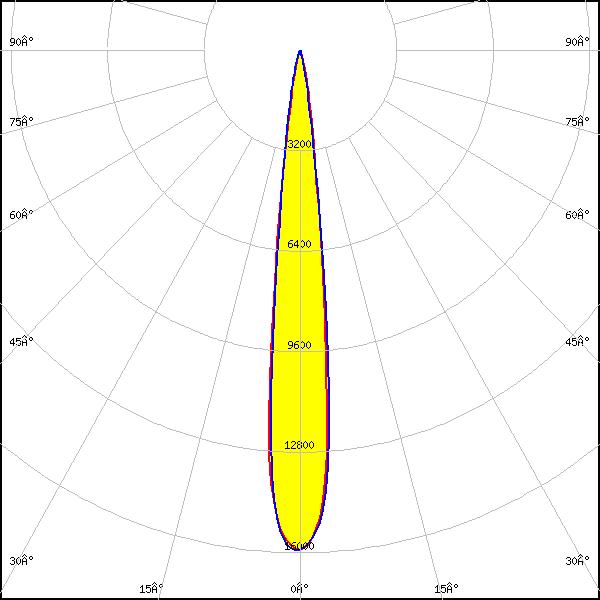

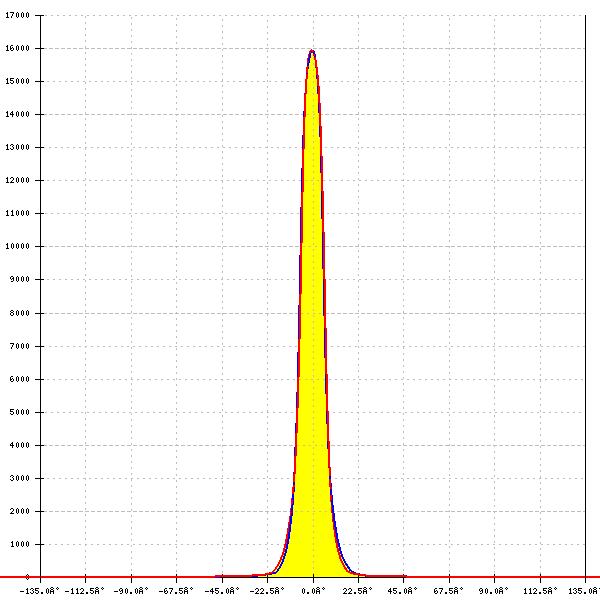

    LED: NVSW219D
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 15.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F-V2
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 16.998 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

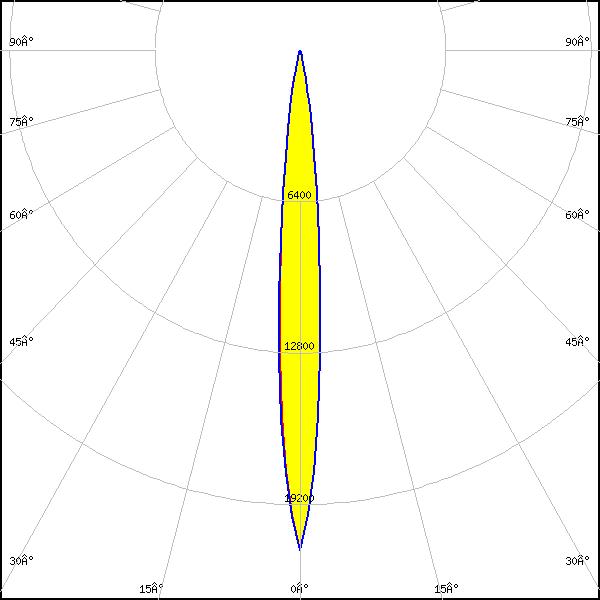

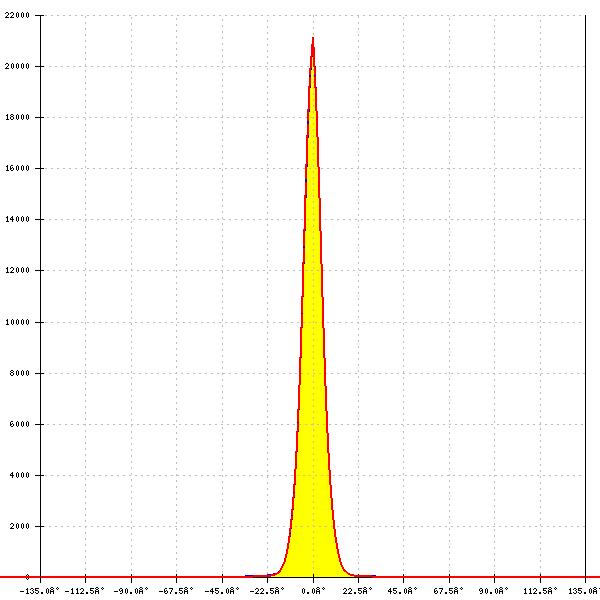

    LED: NVSxE21A
    FWHM: 10°
    FWTM: 21°
    Peak intensity: 21.140 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

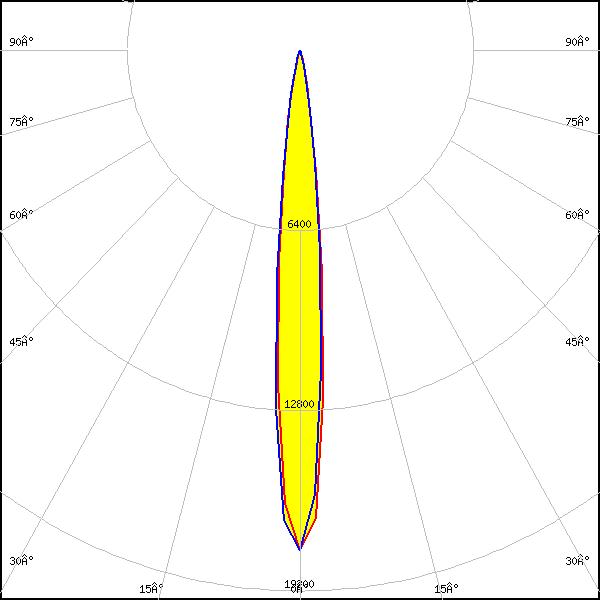

    LED: NVSxx19A
    FWHM: 12°
    FWTM: 23°
    Peak intensity: 17.800 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

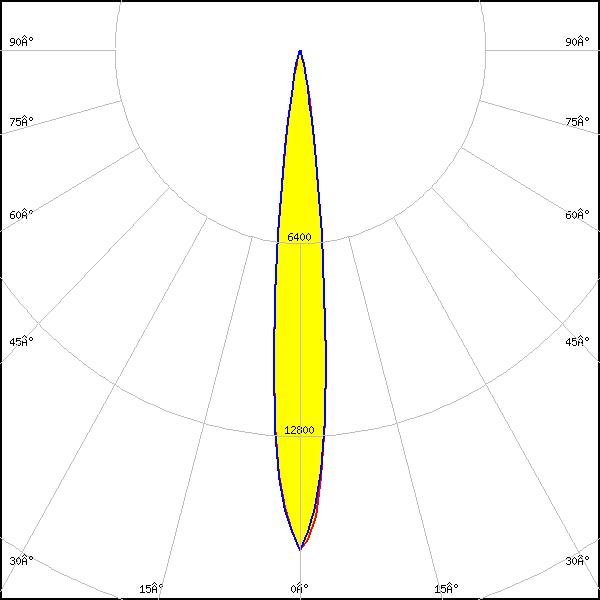

    LED: NVSxx19B/NVSxx19C
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 16.574 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 16.667 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 16.300 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Black
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 23.000 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

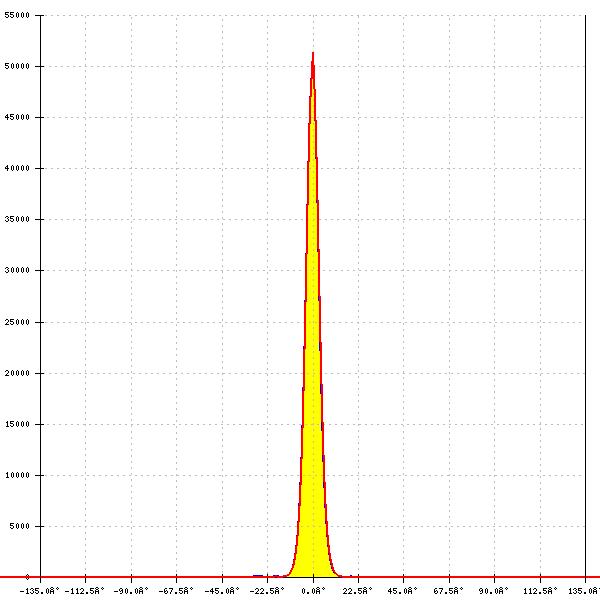

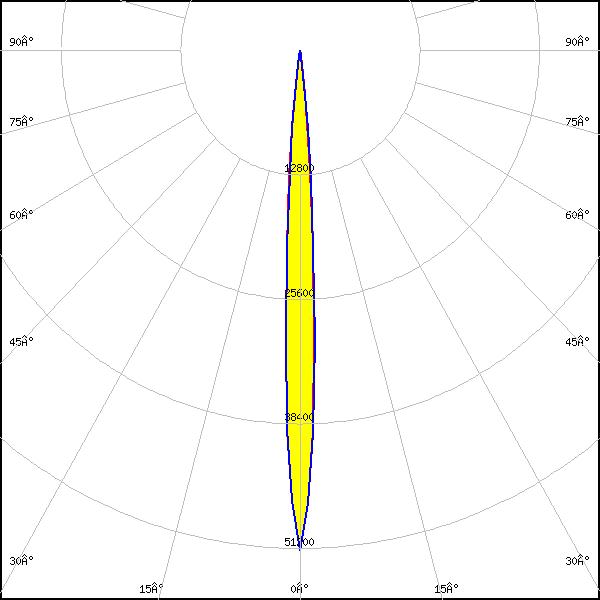

    LED: OSLON Black Flat (LUW HWQP)
    FWHM: 7°
    FWTM: 14°
    Peak intensity: 48.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 20.047 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

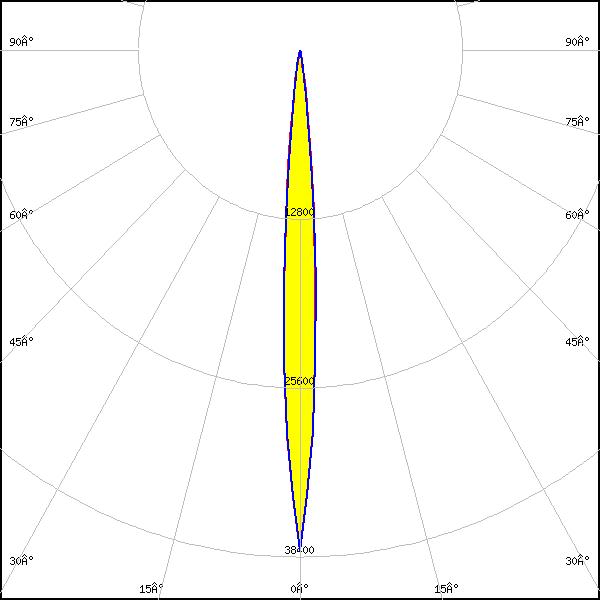

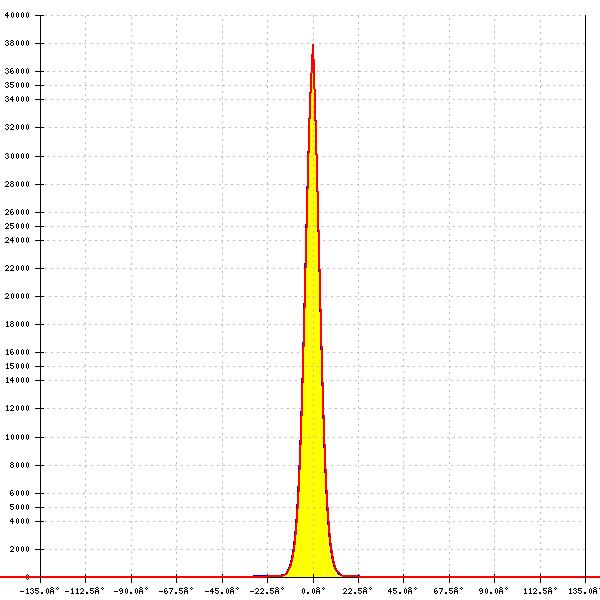

    LED: OSLON SSL 150
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 37.903 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

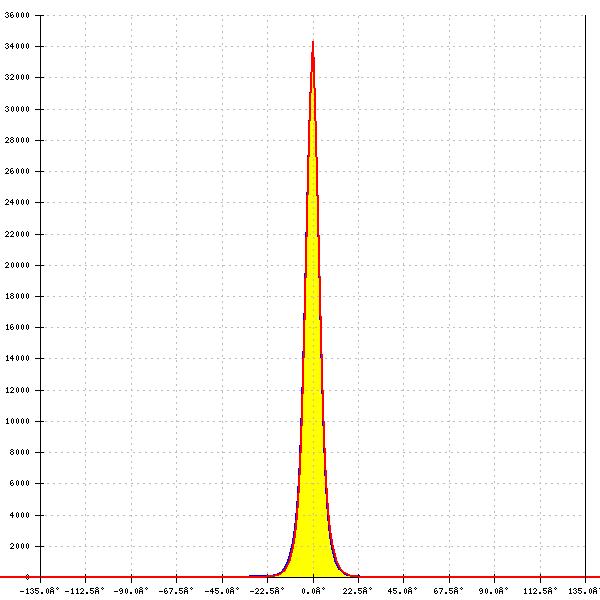

    LED: OSLON SSL 80
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 34.321 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PLPVEC2 850A
    FWHM: 6°
    FWTM: 14°
    LEDs/each optic: 1
    Light colour/type: IR

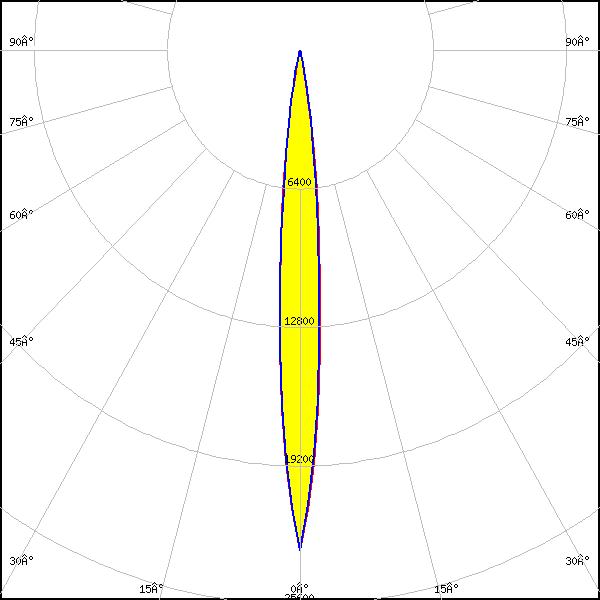

    LED: SFH 4715S
    FWHM: 9°
    FWTM: 18°
    Peak intensity: 29.181 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4770S
    FWHM: 10°
    FWTM: 23°
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.597 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

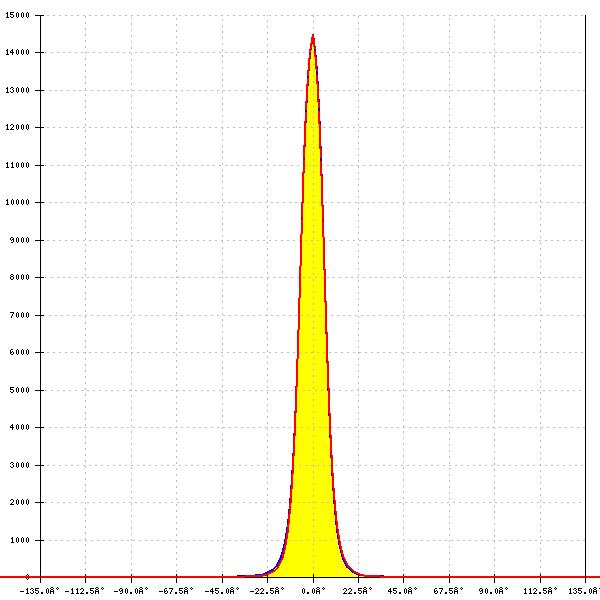

    LED: LH351C
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 14.486 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351D
    FWHM: 16°
    FWTM: 29°
    Peak intensity: 9.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

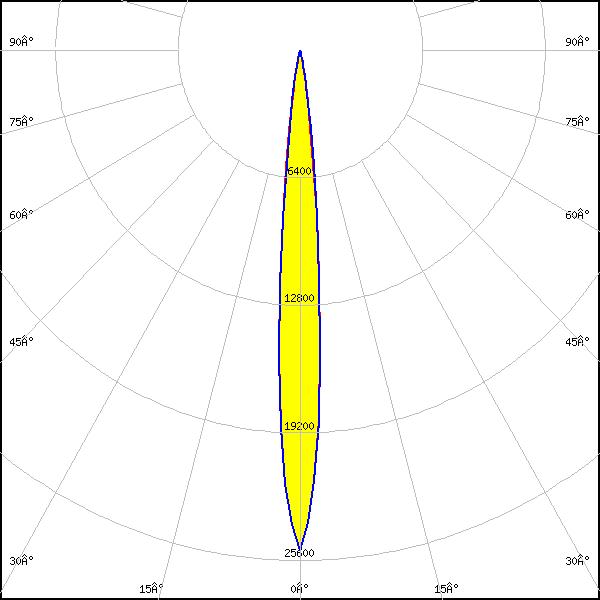

    LED: LH351Z
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 25.000 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

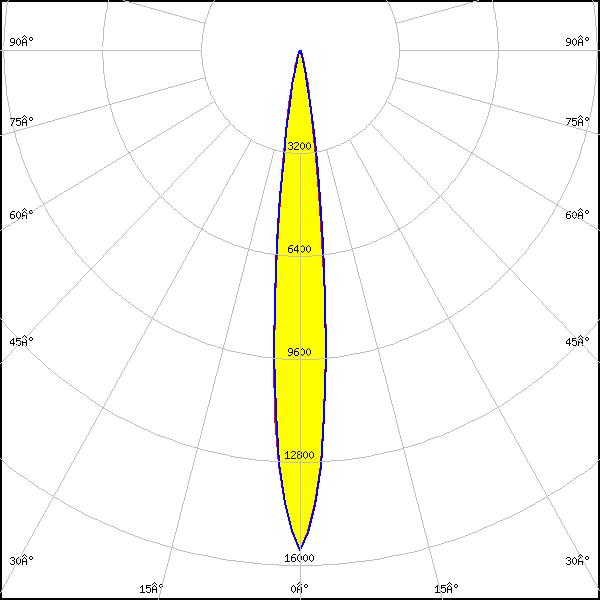

    LED: Z5M1/Z5M2
    FWHM: 11°
    FWTM: 19°
    Peak intensity: 20.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.538 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 14.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
