    CA13630_G2-LAURA-SS-P

    Print

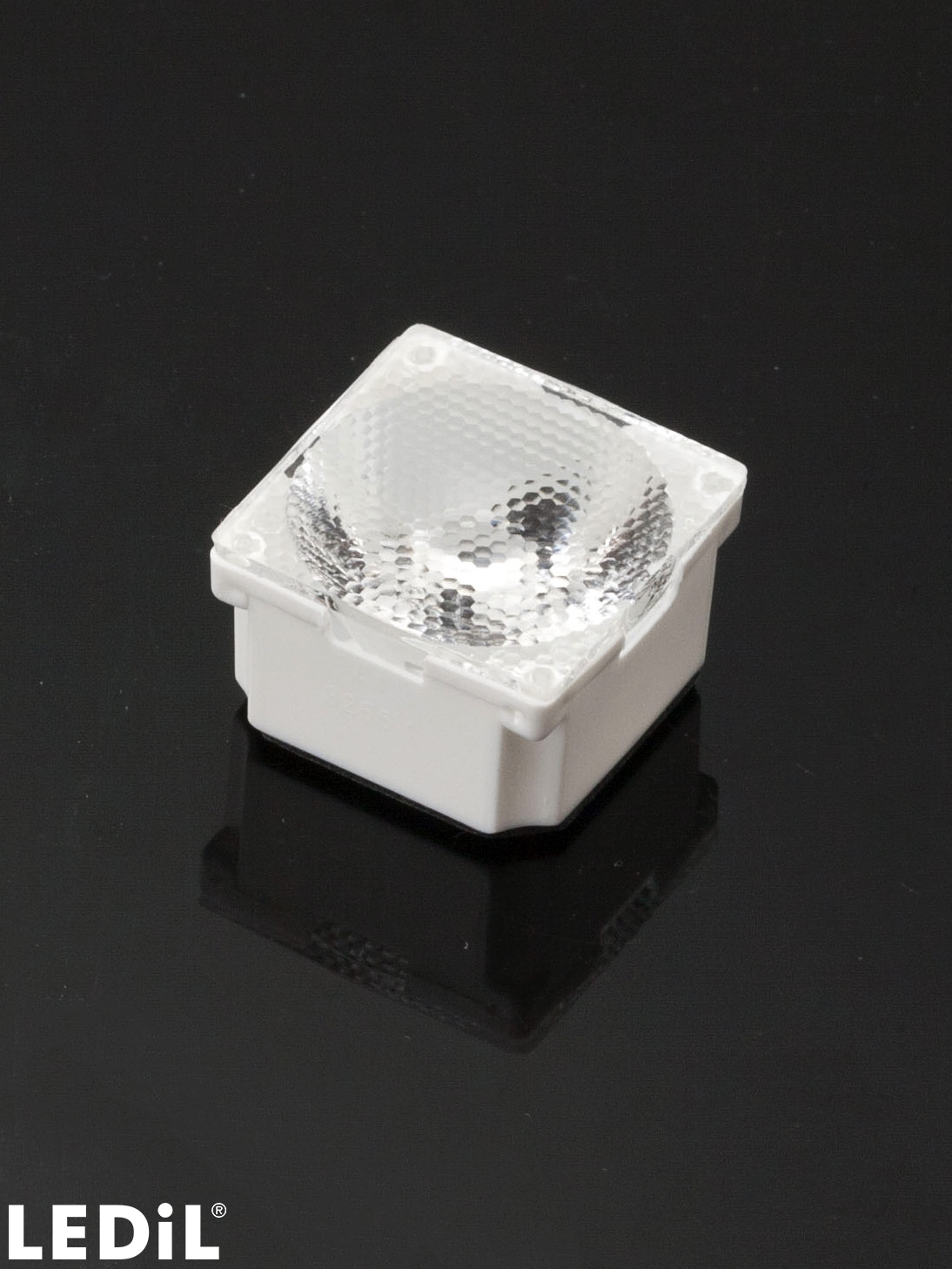

    ~11° smooth spot beam. Assembly with thinner white holder, installation tape and location pins.

    Specification
    • Dimensions:
      22 x  22 mm
    • Height:
      13.10 mm
    • Fastening:
      tape, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Box weight:
      6.0 kg
    • MPQ:
      180 pcs
    • MOQ:
      360 pcs
    • MOQ size:
      480 x 280 x 60 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA13630_G2-LAURA-SS-P
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    Optical results

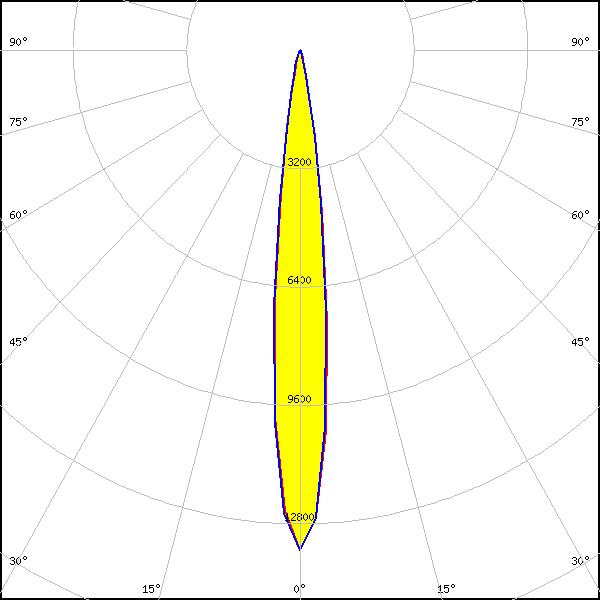

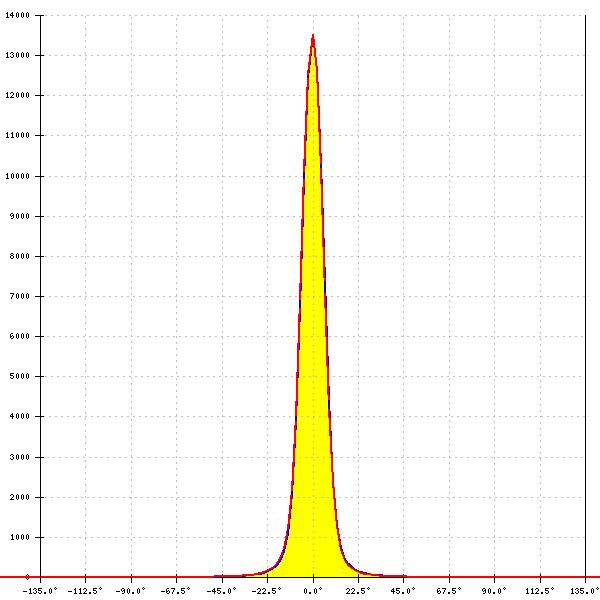

    LED: XB-D
    FWHM: 13°
    FWTM: 24°
    Peak intensity: 13.500 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

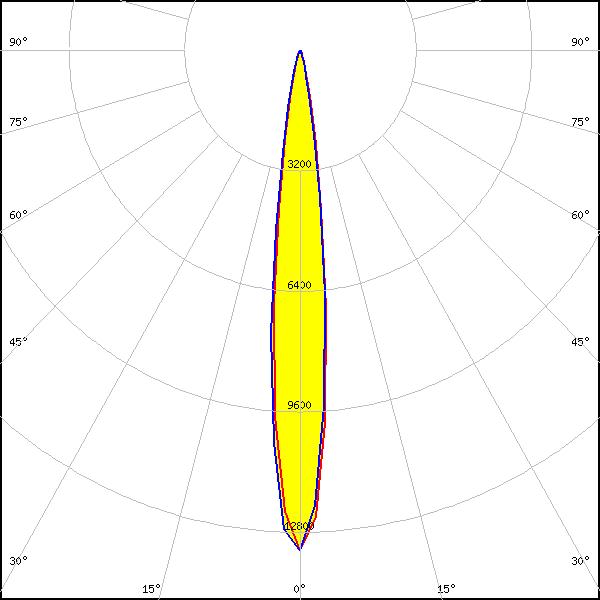

    LED: XB-H
    FWHM: 13°
    FWTM: 25°
    Peak intensity: 13.300 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

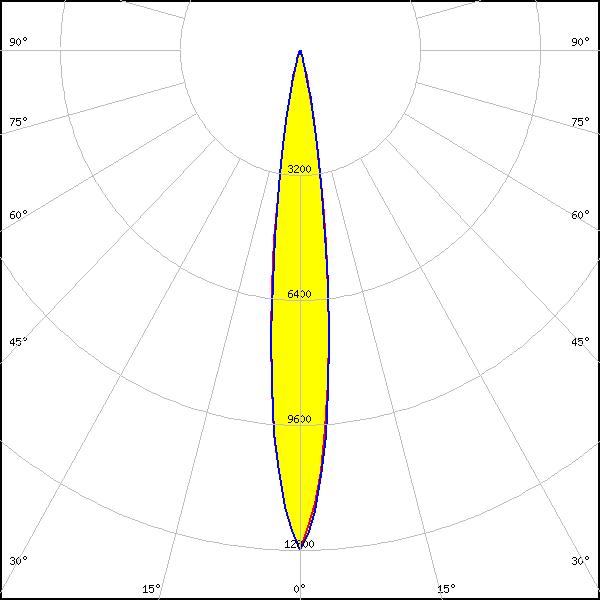

    LED: XHP35 HI
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 12.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E
    FWHM: 11°
    FWTM: 19°
    Peak intensity: 16.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

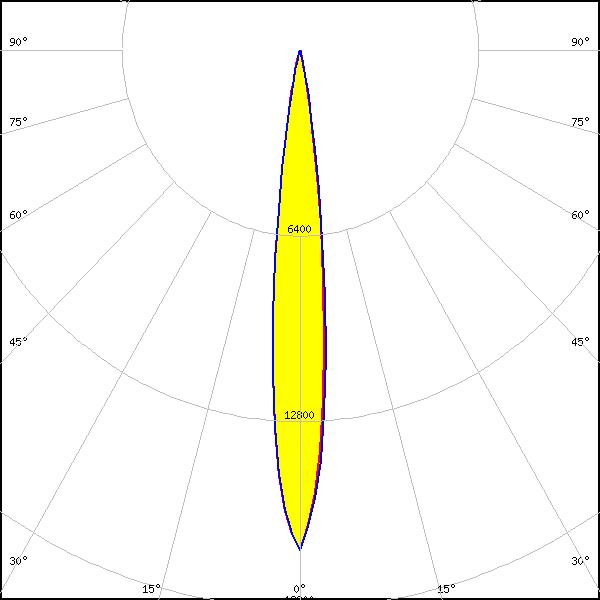

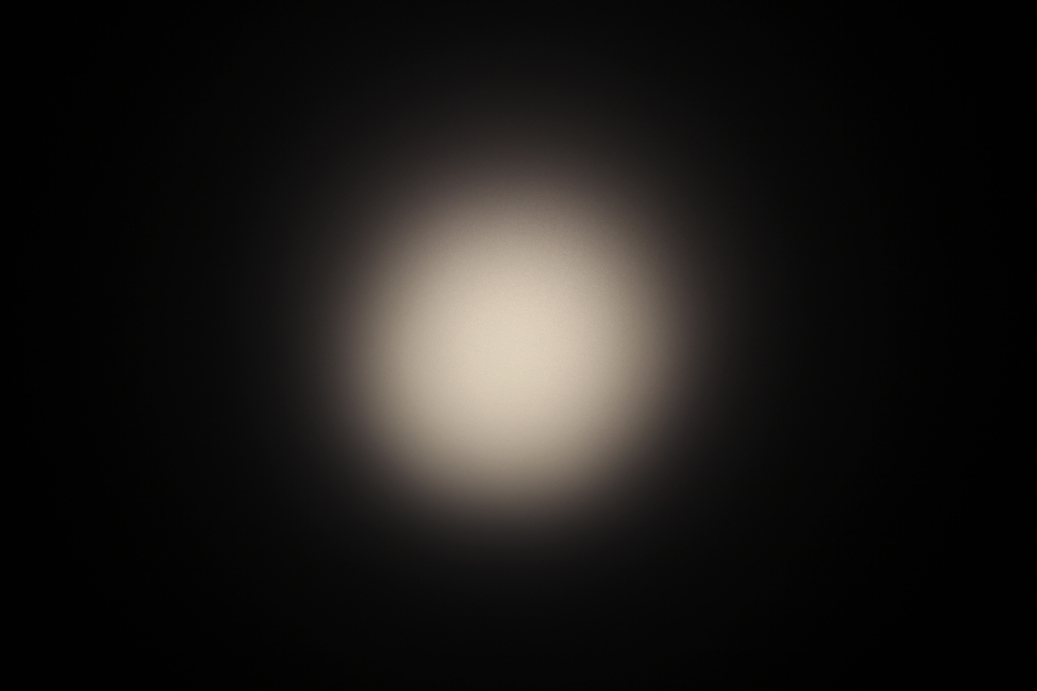

    LED: XP-E2
    FWHM: 12°
    FWTM: 23°
    Peak intensity: 17.239 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Amber

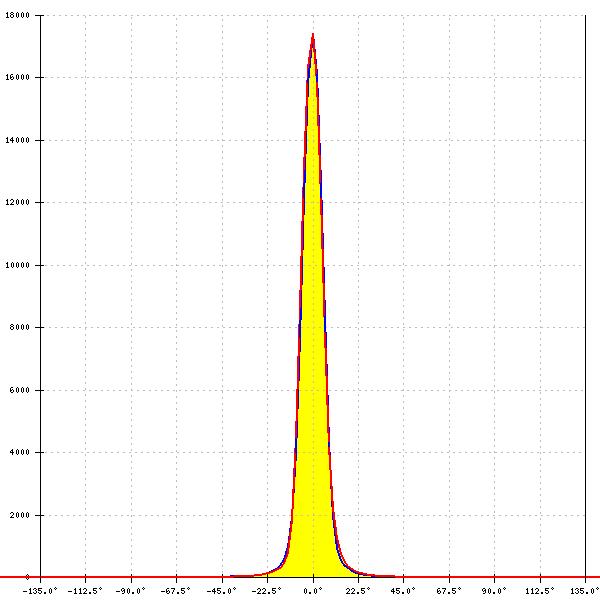

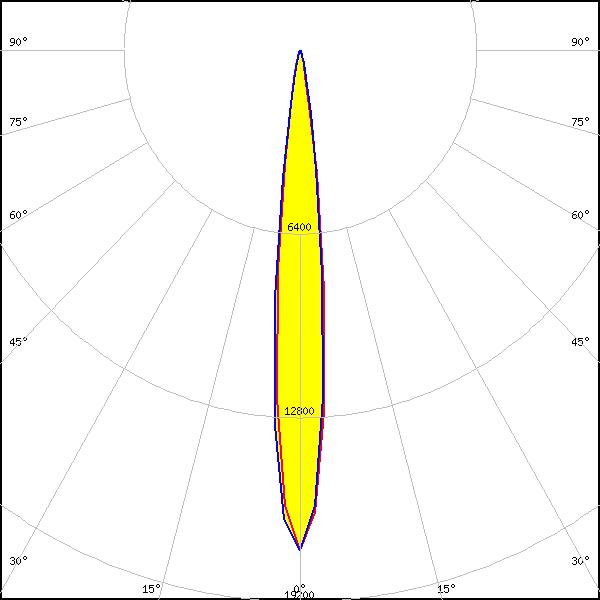

    LED: XP-E2
    FWHM: 12°
    FWTM: 21°
    Peak intensity: 17.400 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

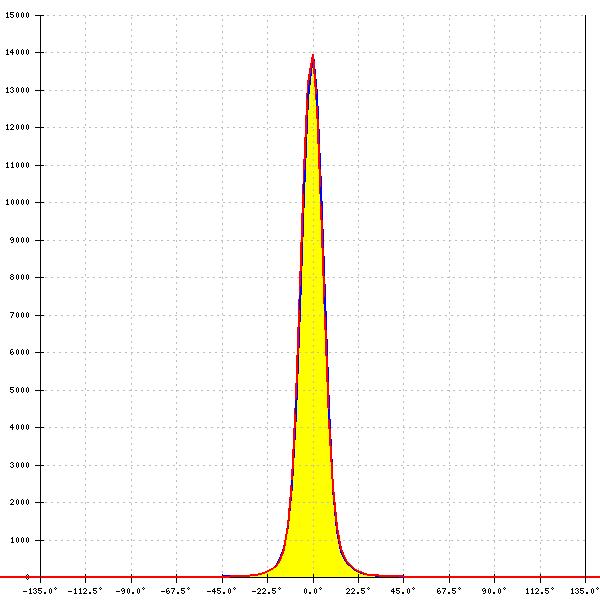

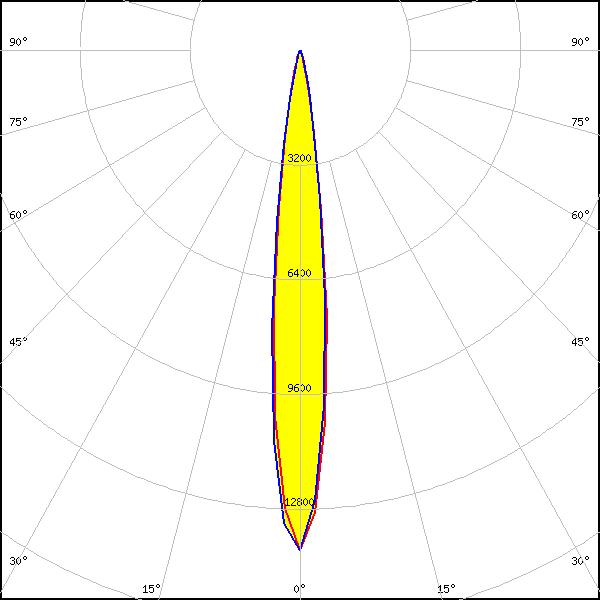

    LED: XP-G2
    FWHM: 13°
    FWTM: 24°
    Peak intensity: 14.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

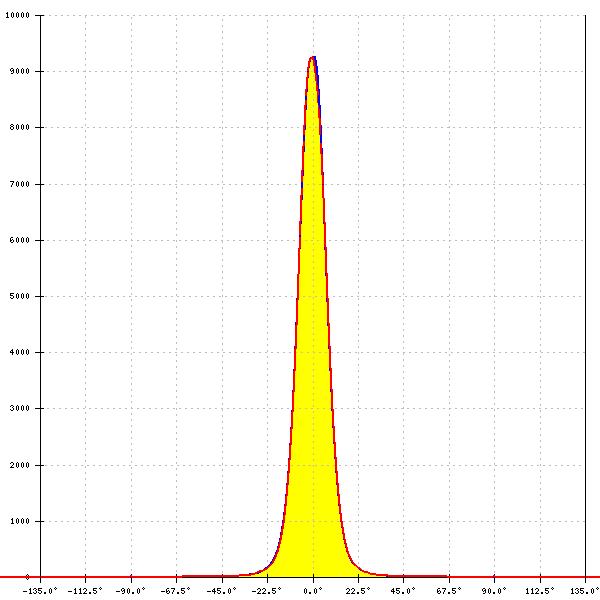

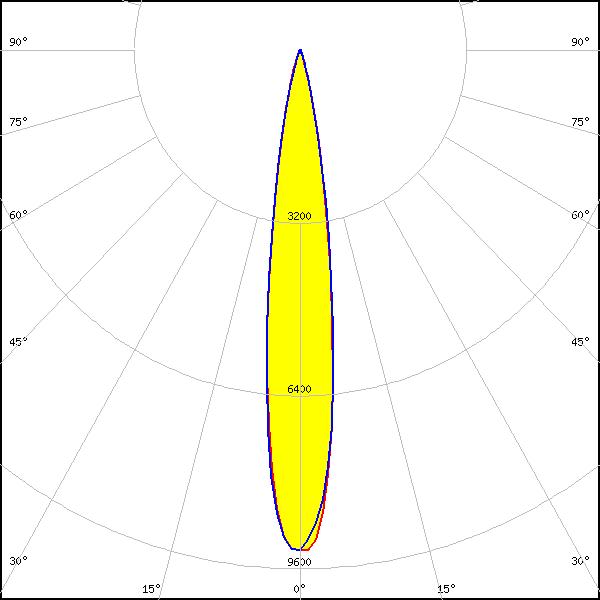

    LED: XP-G3
    FWHM: 15°
    FWTM: 29°
    Peak intensity: 9.310 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

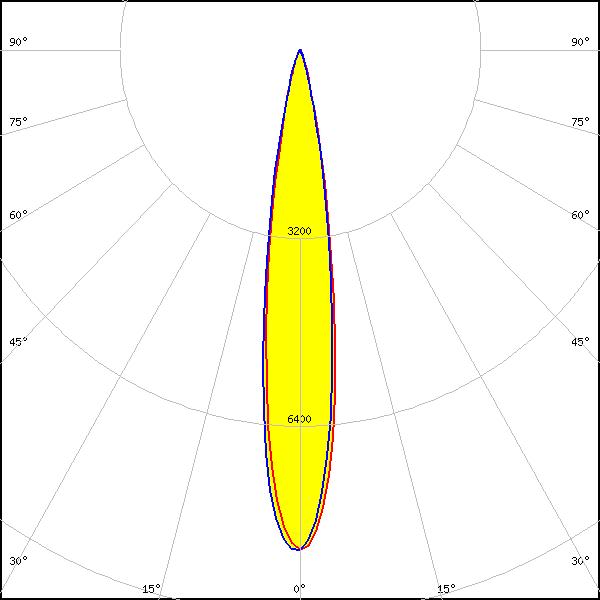

    LED: XP-L HD
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 8.500 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

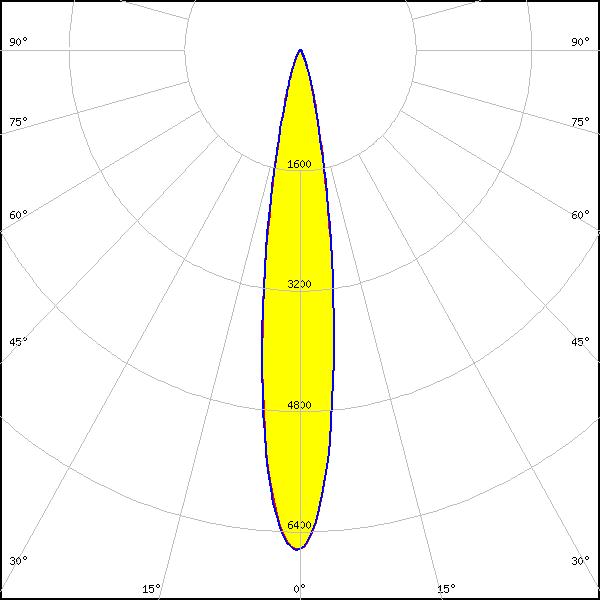

    LED: XP-L2
    FWHM: 17°
    FWTM: 34°
    Peak intensity: 6.600 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

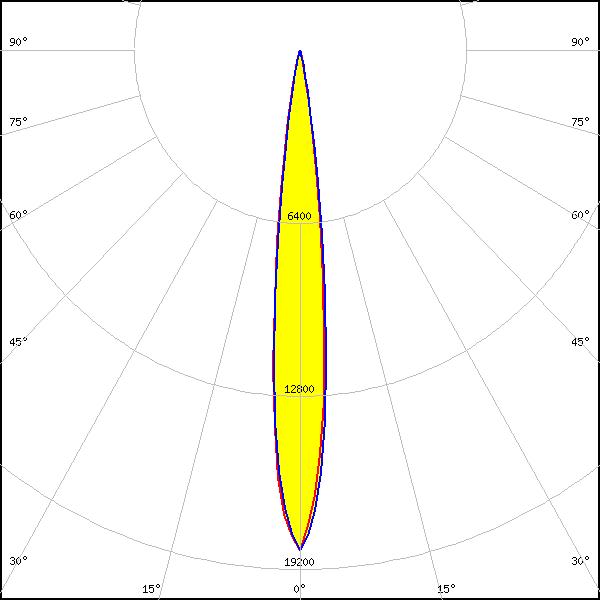

    LED: XQ-E HD
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 18.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

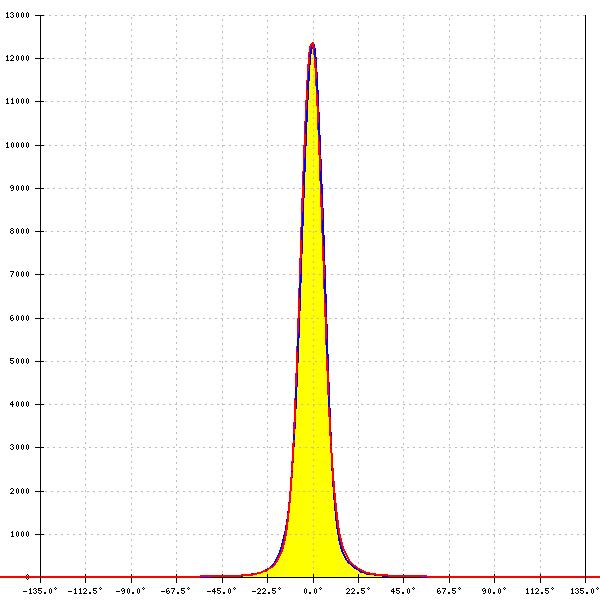

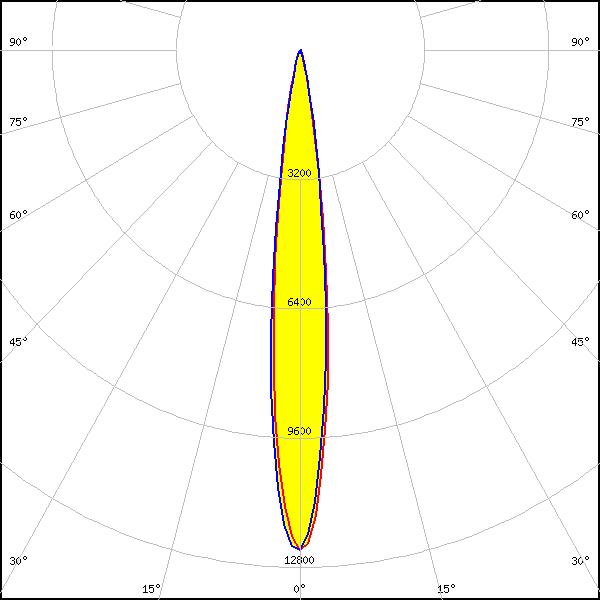

    LED: XT-E
    FWHM: 13°
    FWTM: 25°
    Peak intensity: 12.400 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

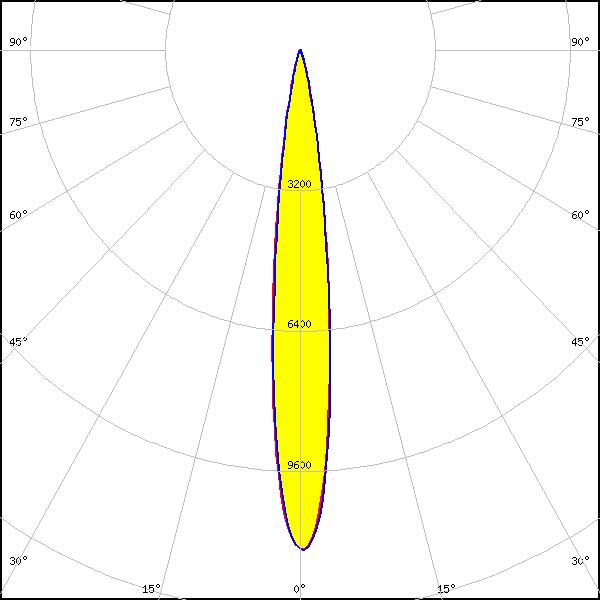

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 13°
    FWTM: 26°
    Peak intensity: 11.400 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

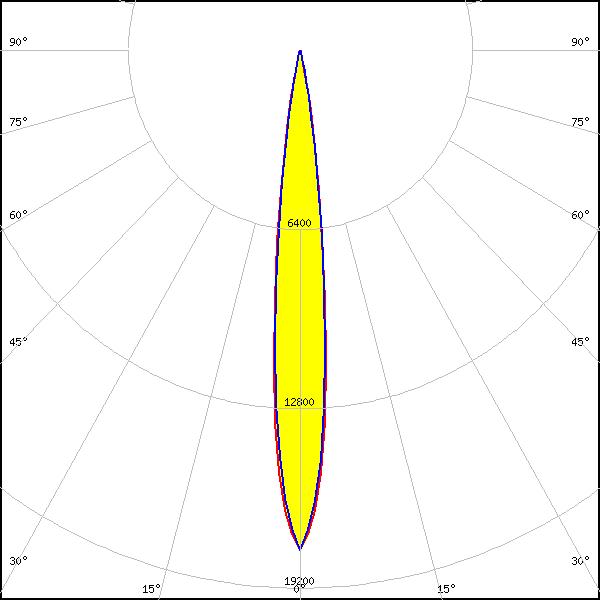

    LED: LUXEON HL1Z (White)
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 17.856 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

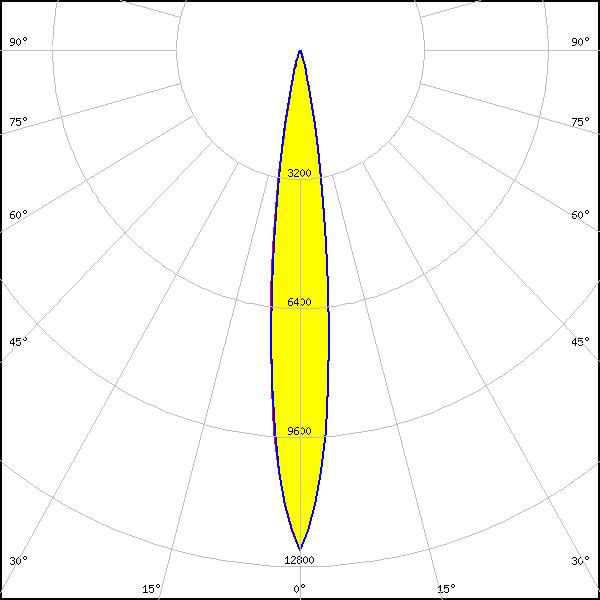

    LED: LUXEON HL2X
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 12.395 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

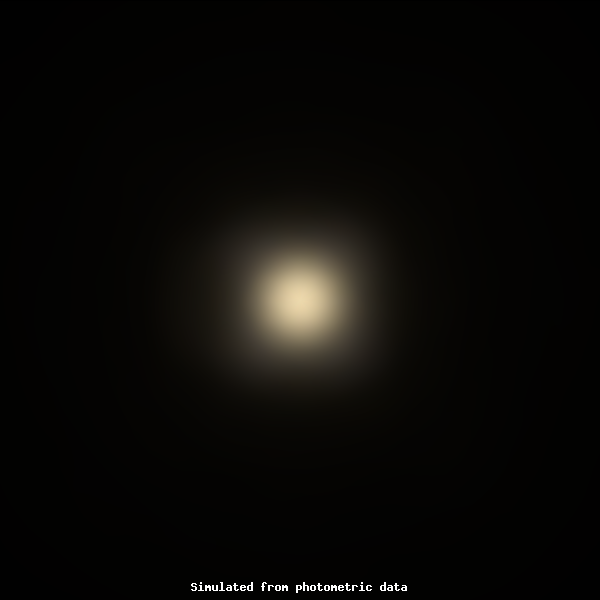

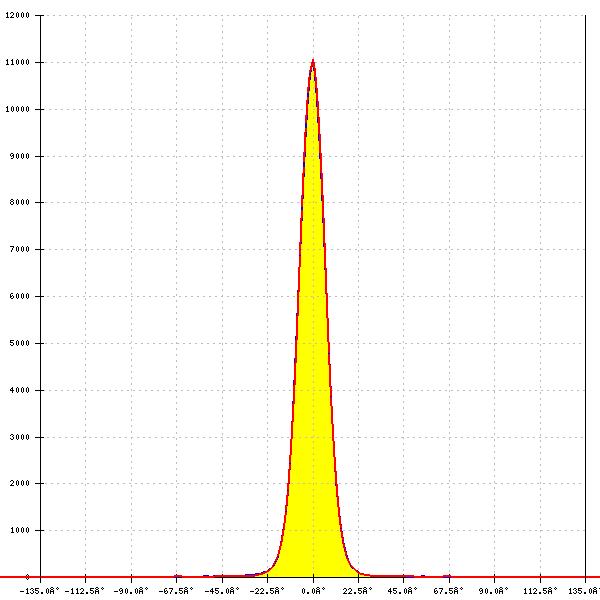

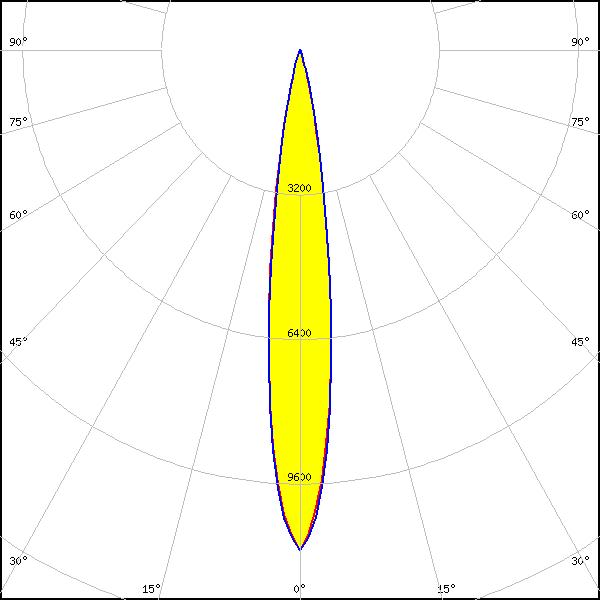

    LED: LUXEON HL2X-E
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 11.068 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

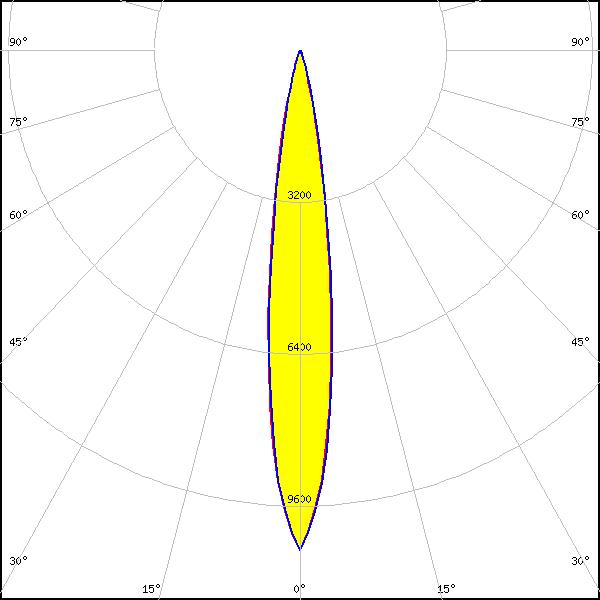

    LED: LUXEON HL2X-P
    FWHM: 15°
    FWTM: 28°
    Peak intensity: 10.531 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

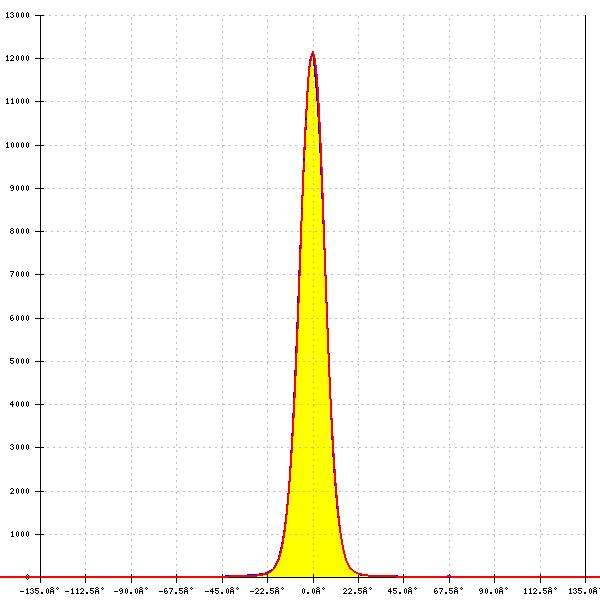

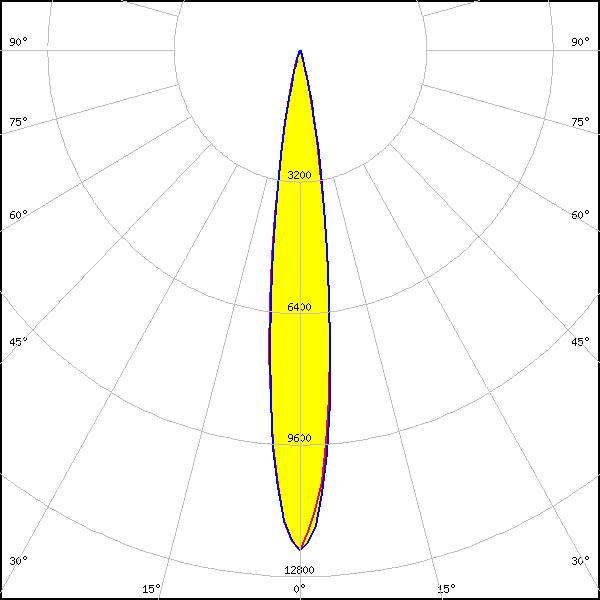

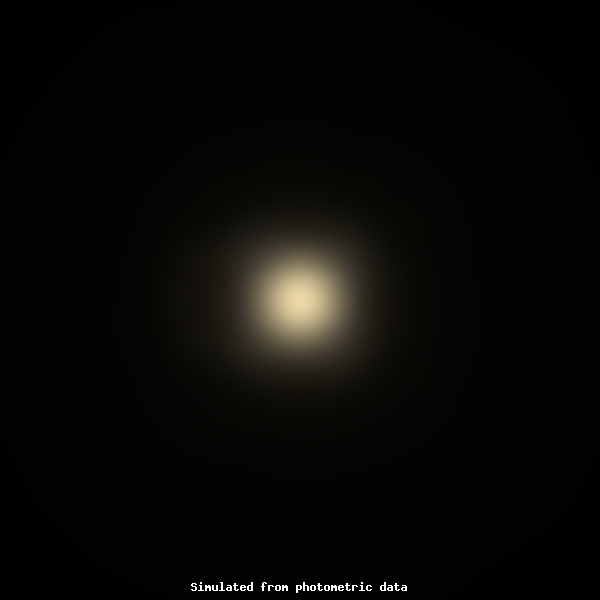

    LED: LUXEON HL2X-V
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 12.160 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

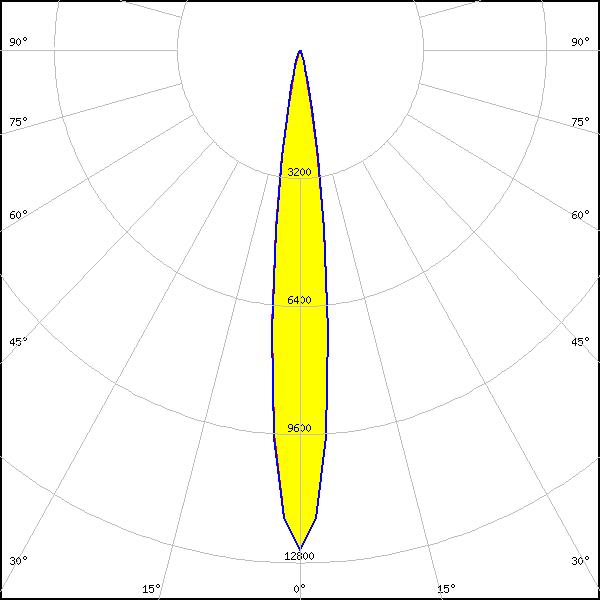

    LED: LUXEON TX
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 12.500 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-10-UV-X130
    FWHM: 12°
    FWTM: 20°
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: UV-A

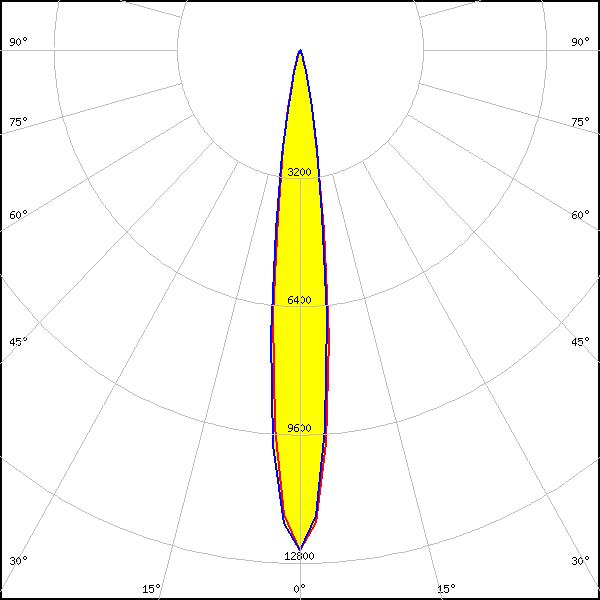

    LED: NCSxx19A
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 12.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

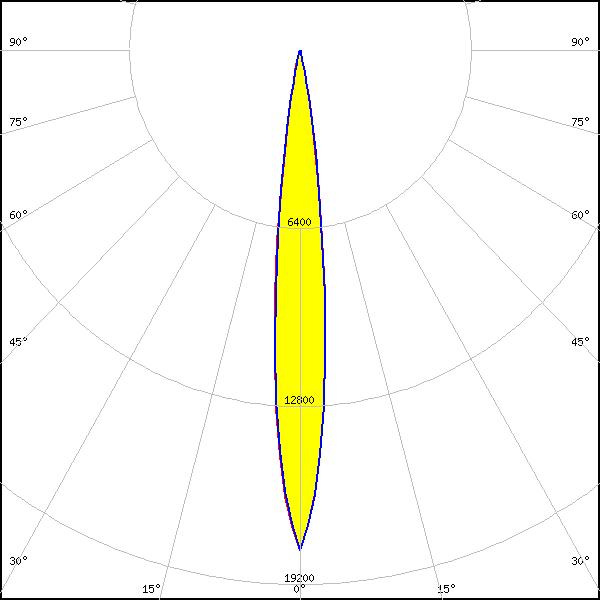

    LED: NVSW219C-V2
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 17.977 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

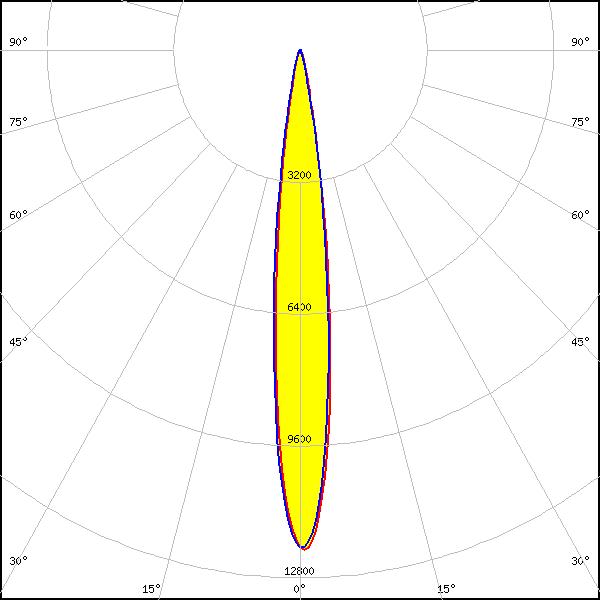

    LED: NVSW219D
    FWHM: 13°
    FWTM: 25°
    Peak intensity: 12.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

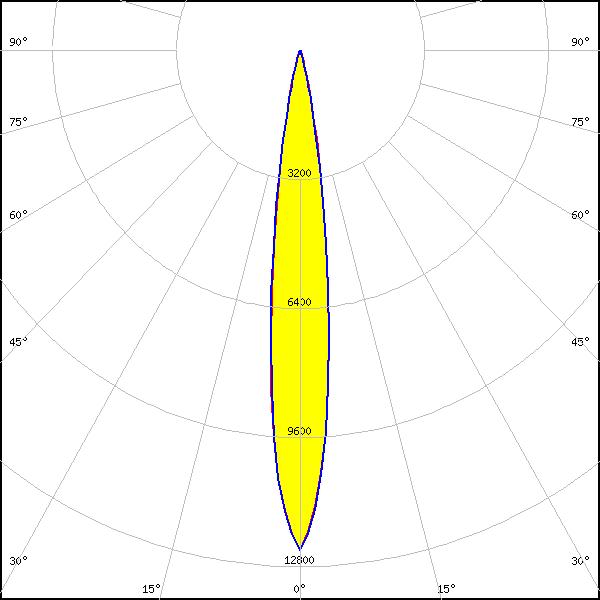

    LED: NVSW219F-V2
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 12.395 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

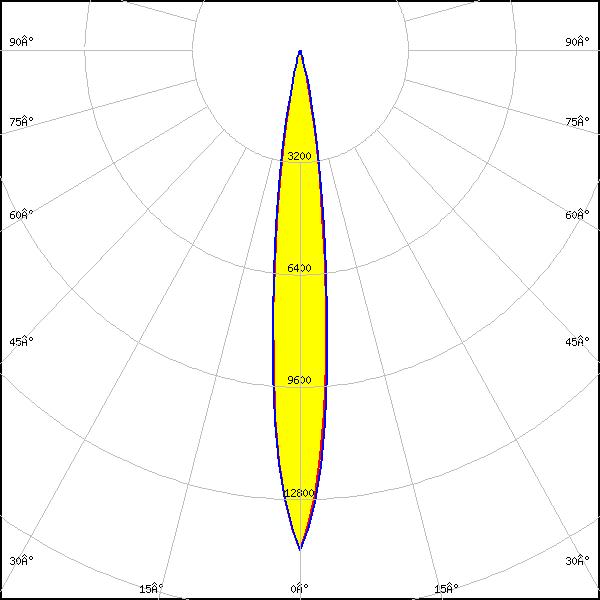

    LED: NVSxE21A
    FWHM: 12°
    FWTM: 26°
    Peak intensity: 14.250 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

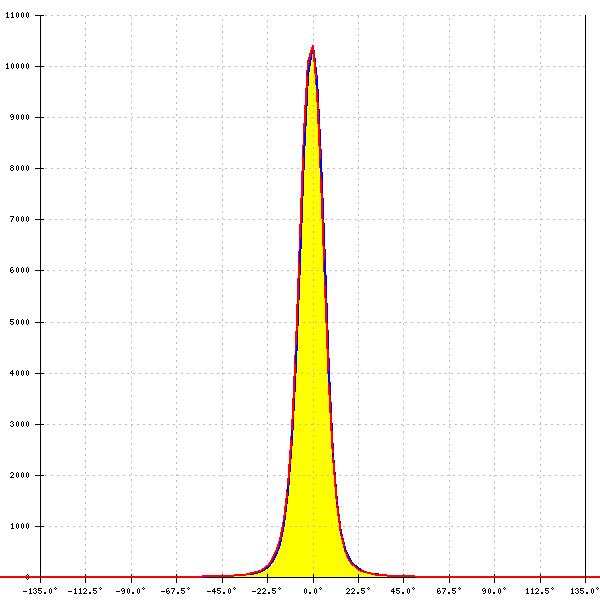

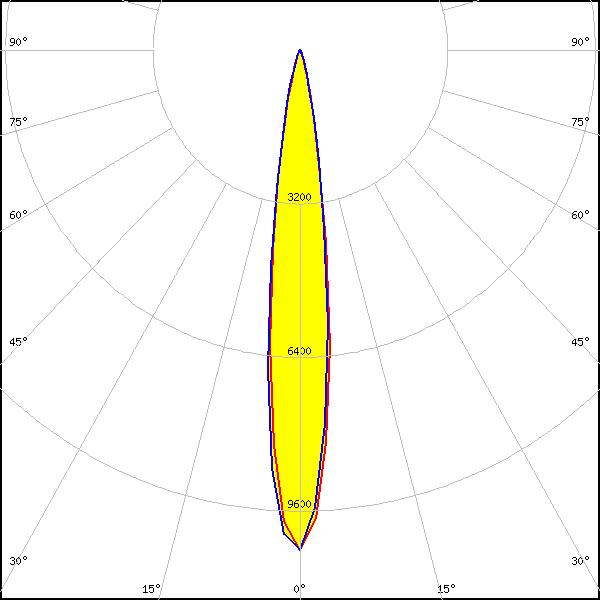

    LED: NVSxx19A
    FWHM: 15°
    FWTM: 28°
    Peak intensity: 10.400 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 14°
    FWTM: 27°
    Peak intensity: 11.400 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Black
    FWHM: 13°
    FWTM: 25°
    Peak intensity: 13.800 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

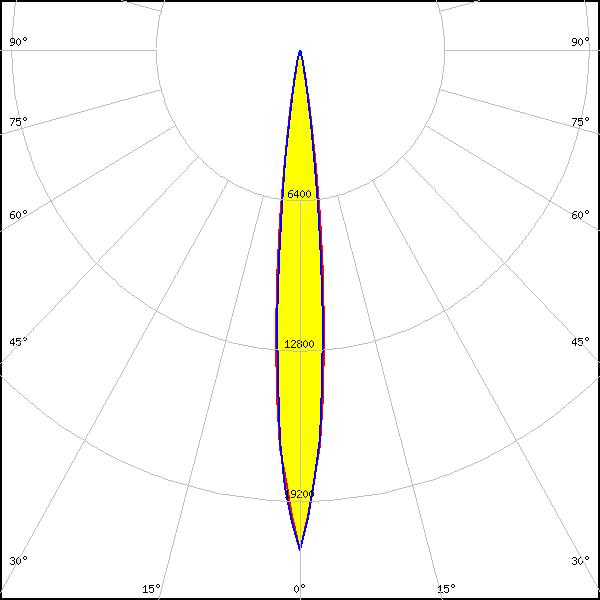

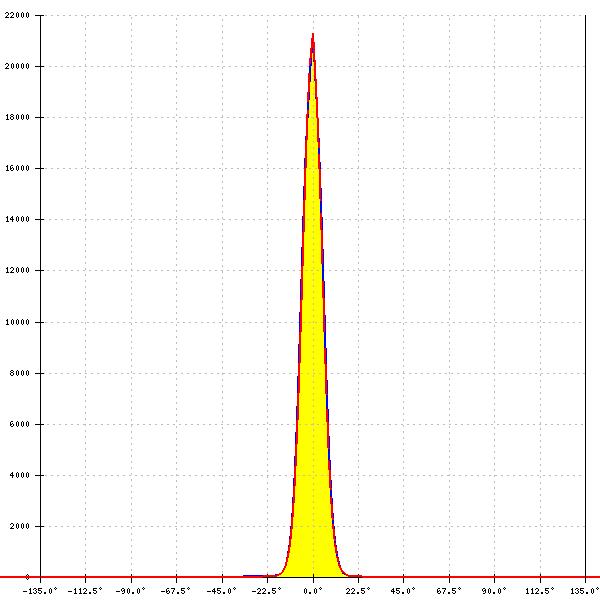

    LED: OSLON Black Flat (LUW HWQP)
    FWHM: 11°
    FWTM: 20°
    Peak intensity: 21.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

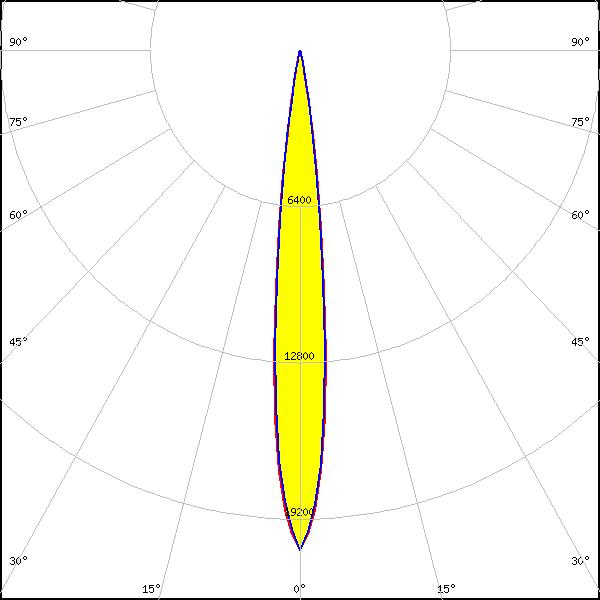

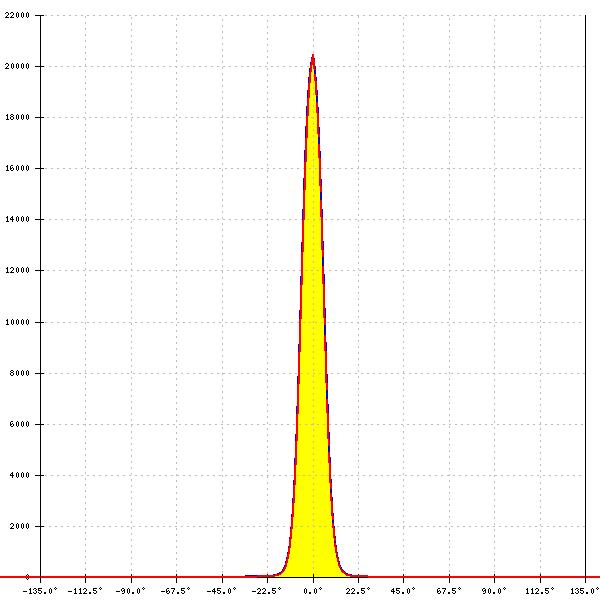

    LED: OSLON Signal
    FWHM: 12°
    FWTM: 20°
    Peak intensity: 20.478 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Red

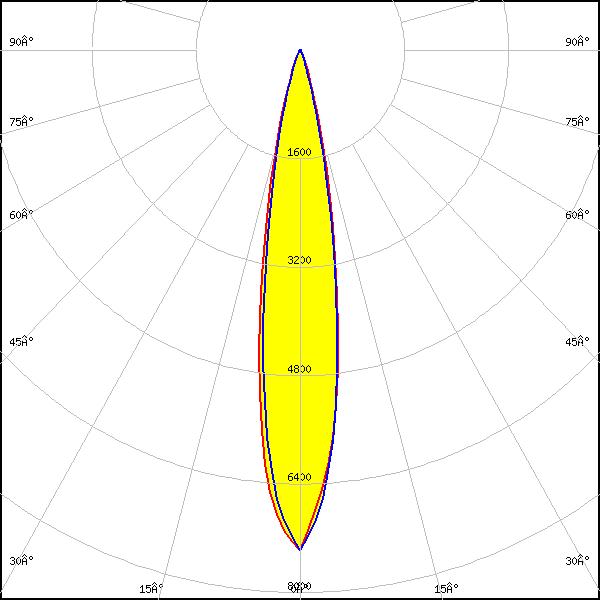

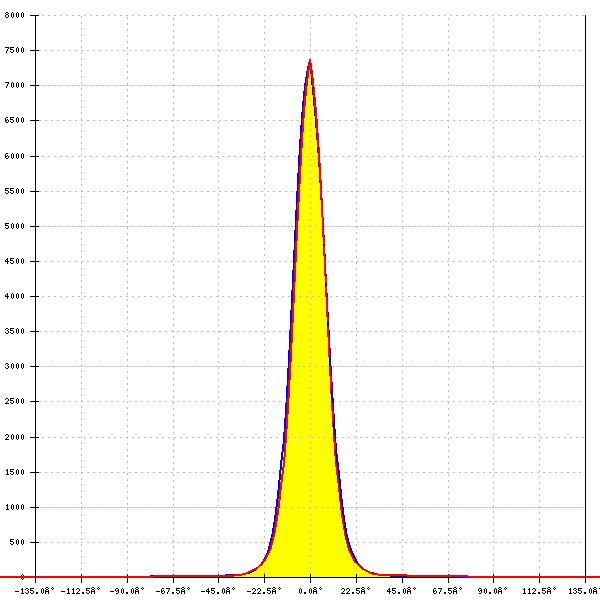

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 7.378 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

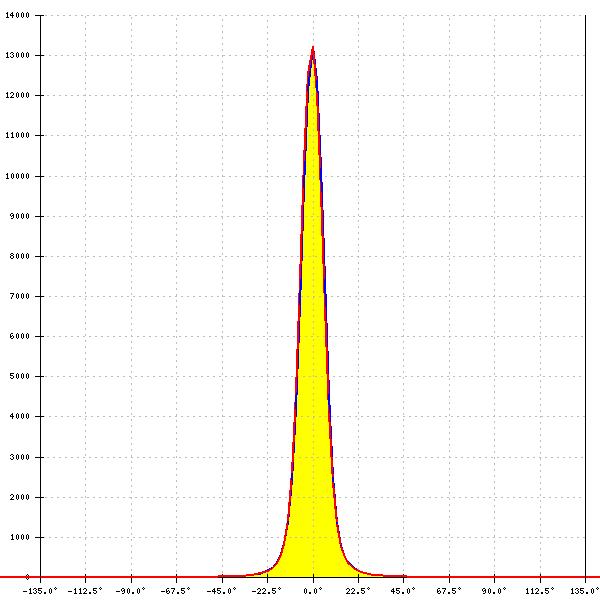

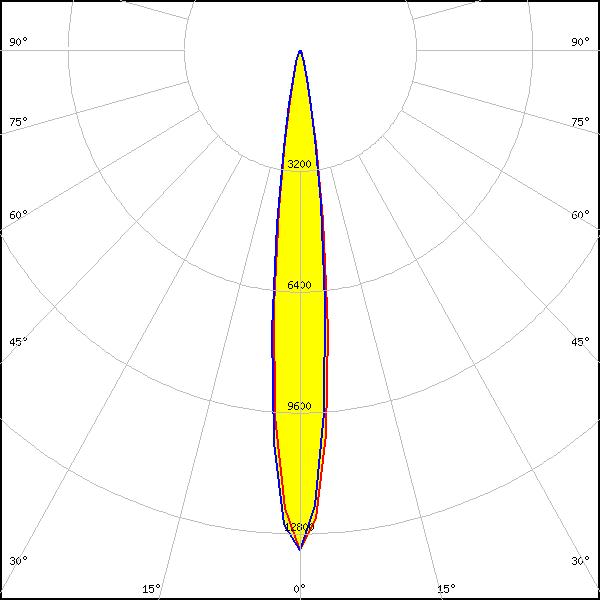

    LED: OSLON Square EC
    FWHM: 13°
    FWTM: 25°
    Peak intensity: 13.200 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

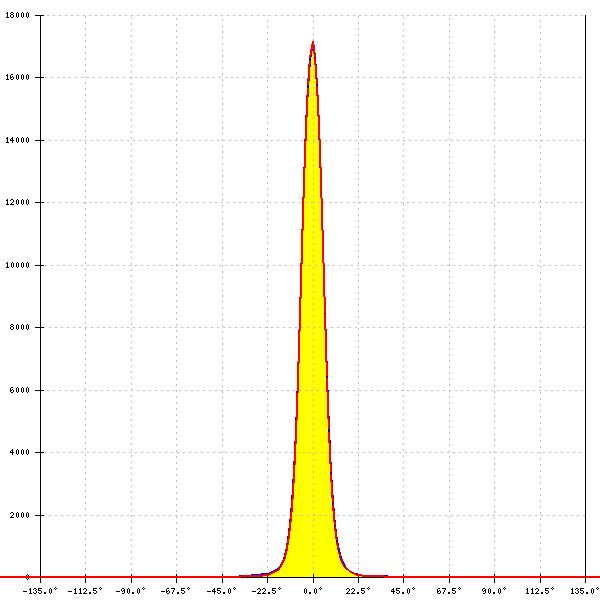

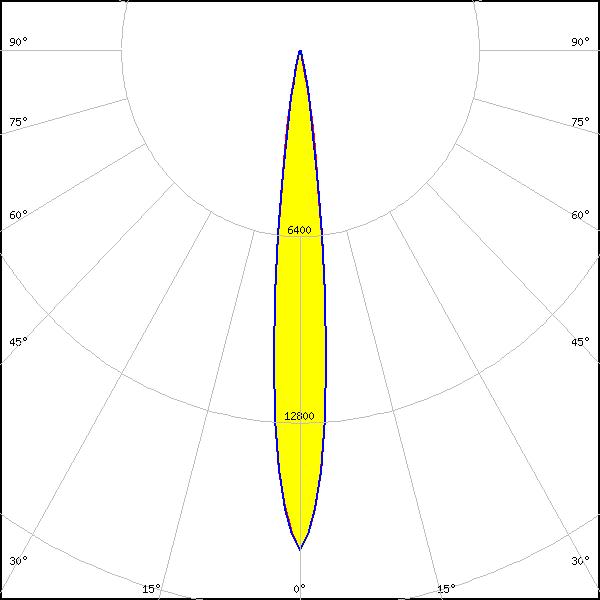

    LED: OSLON Square Flat
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 17.170 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4770S
    FWHM: 13°
    FWTM: 28°
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

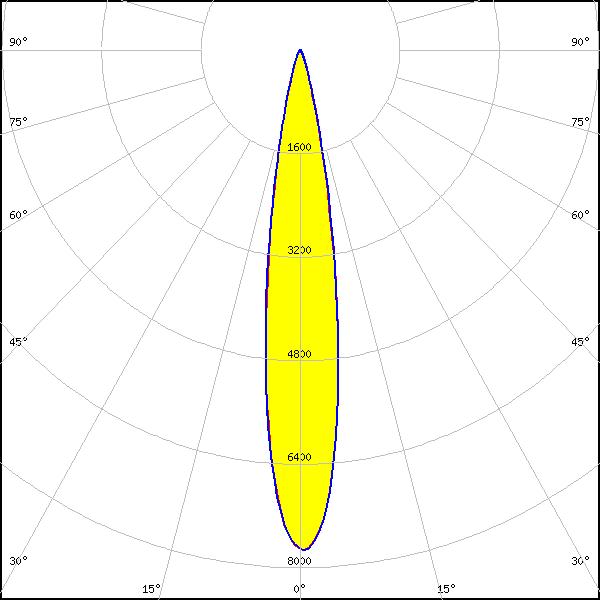

    LED: LH351D
    FWHM: 17°
    FWTM: 32°
    Peak intensity: 7.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

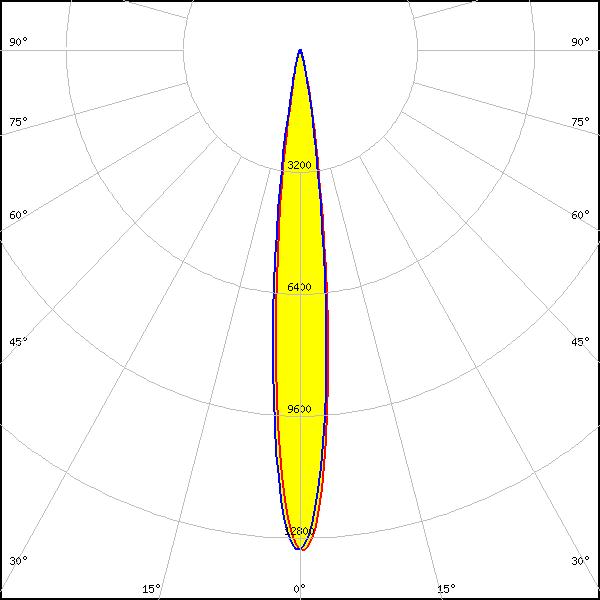

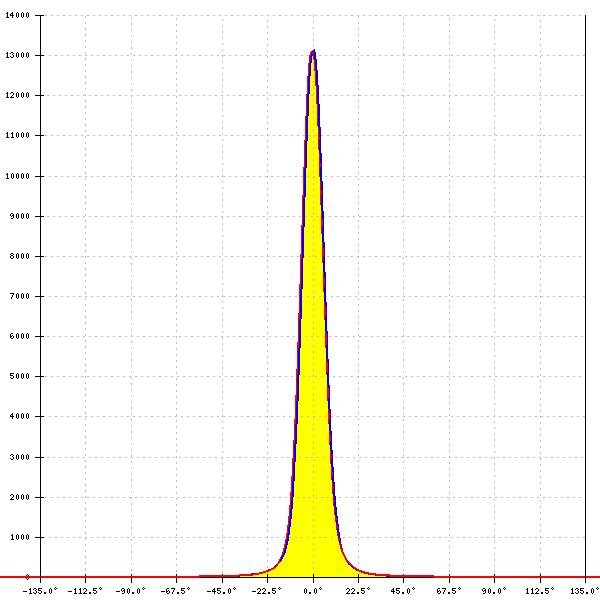

    LED: Z5M1/Z5M2
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 13.140 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

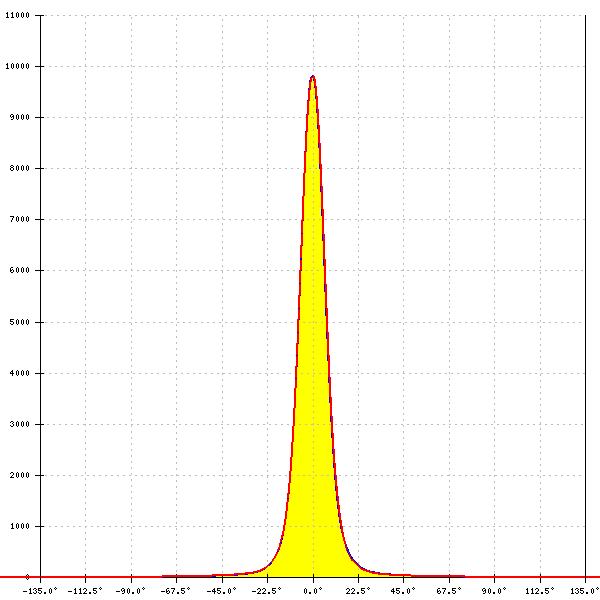

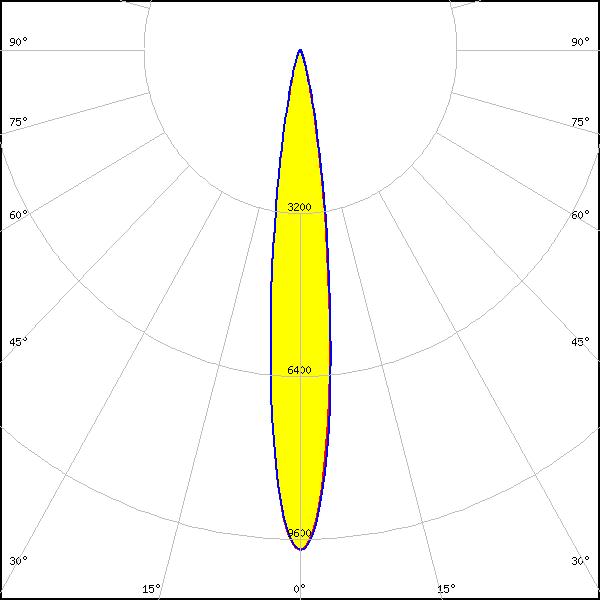

    LED: Z5M3
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 9.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

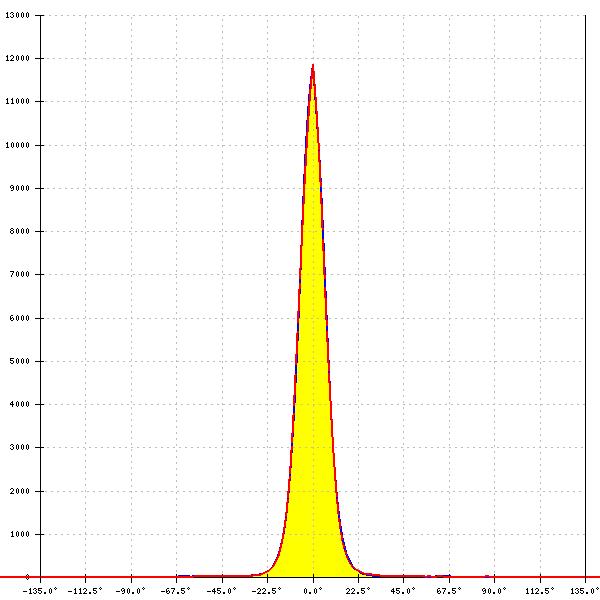

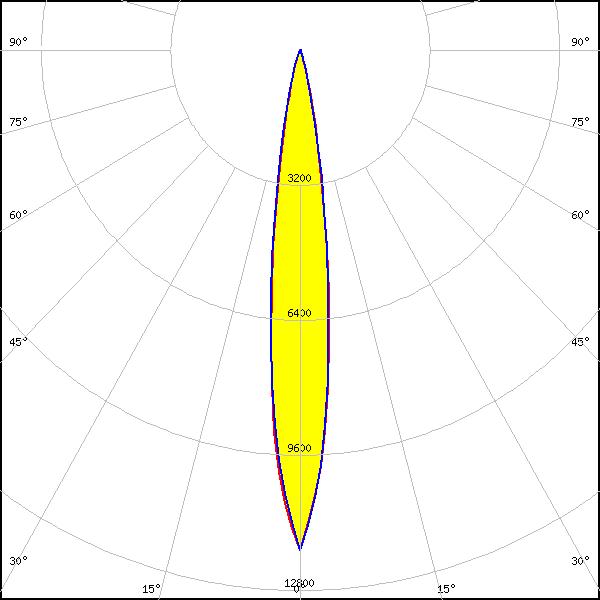

    LED: Z8Y22P
    FWHM: 13°
    FWTM: 26°
    Peak intensity: 11.850 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
