CA13633_G2-LAURA-WW-P
Print

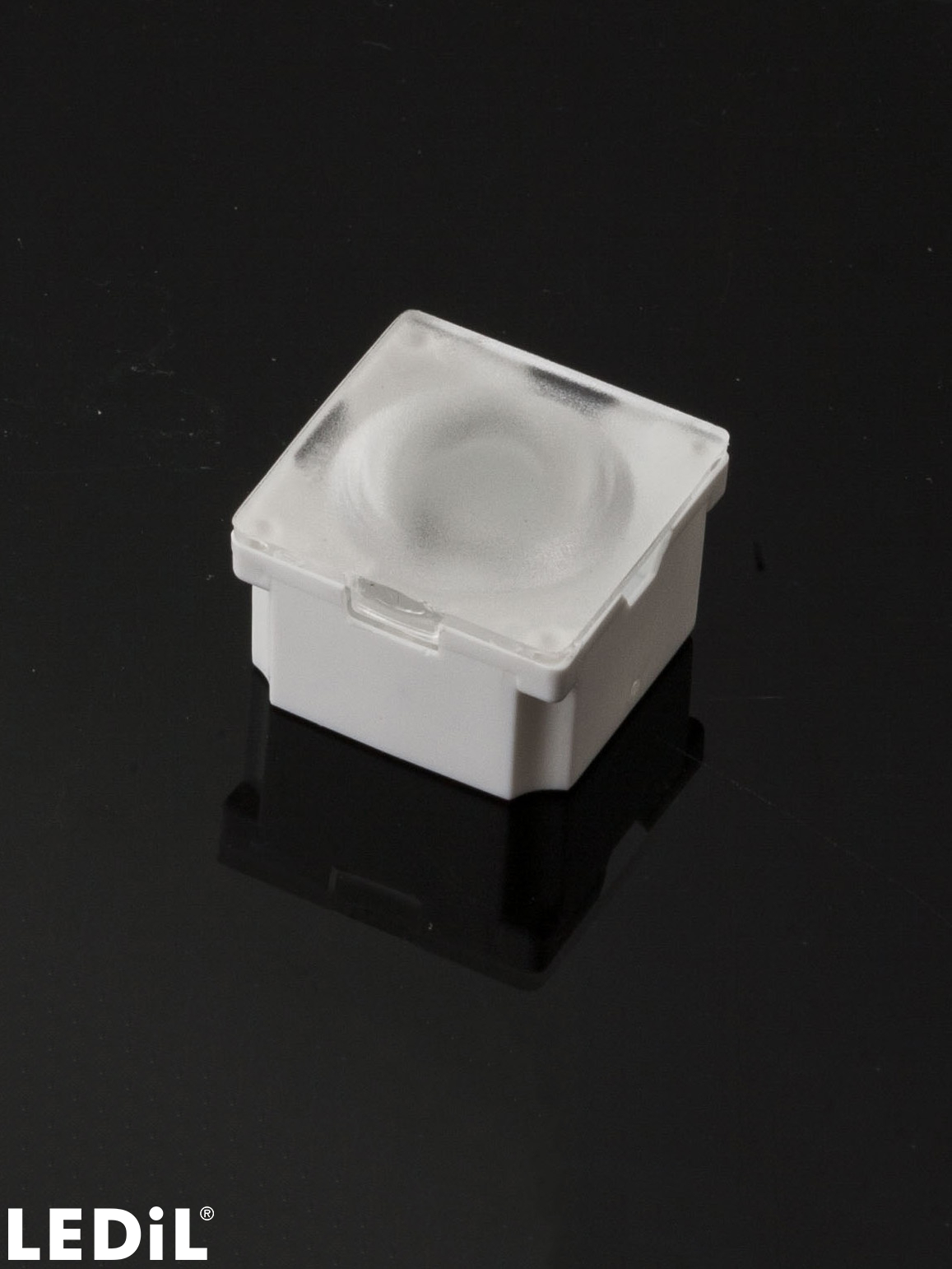

~65° wide beam. Assembly with thinner white holder, installation tape and location pins.
Materials
- LAURA-WW, Single lens, PMMA
- LAURA-LT-PIN-XP-HLD-WHT, Holder, PC
- ROSE-TAPE, Tape, Acrylic foam
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

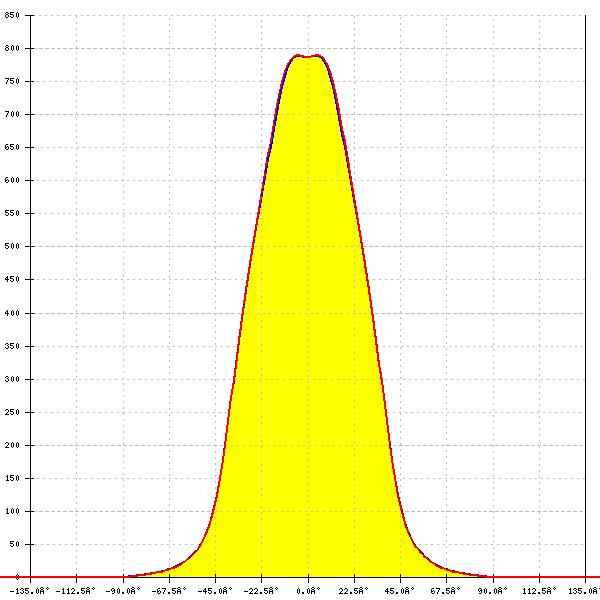

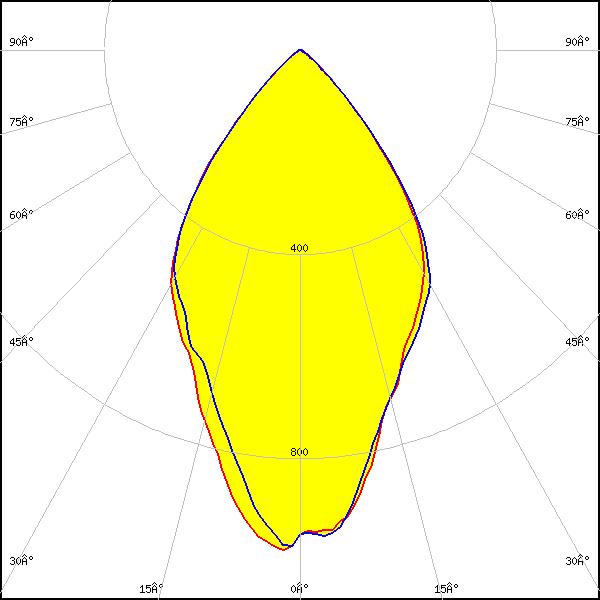

Optical results
LED:

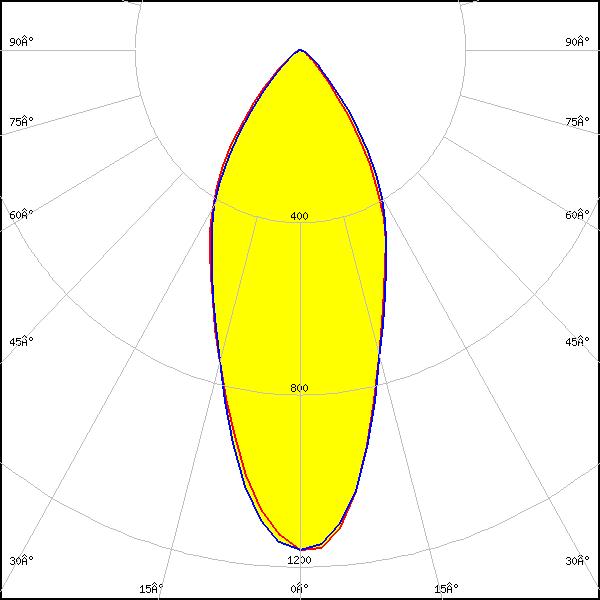

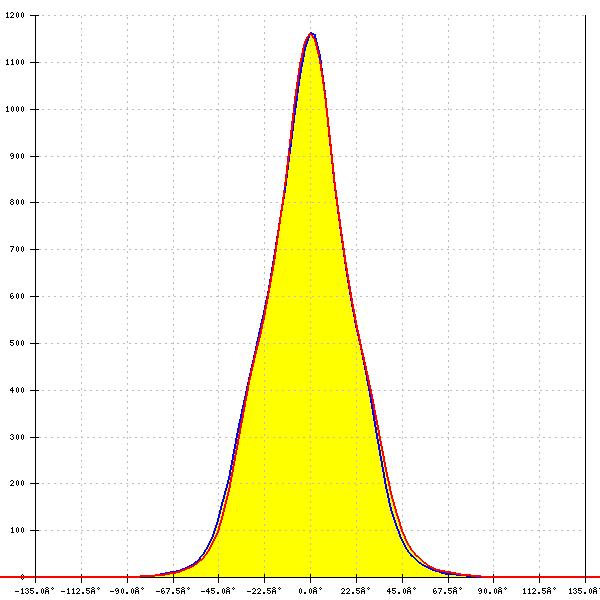

XB-D
FWHM:
44°
FWTM:
88°
Peak intensity:
1.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

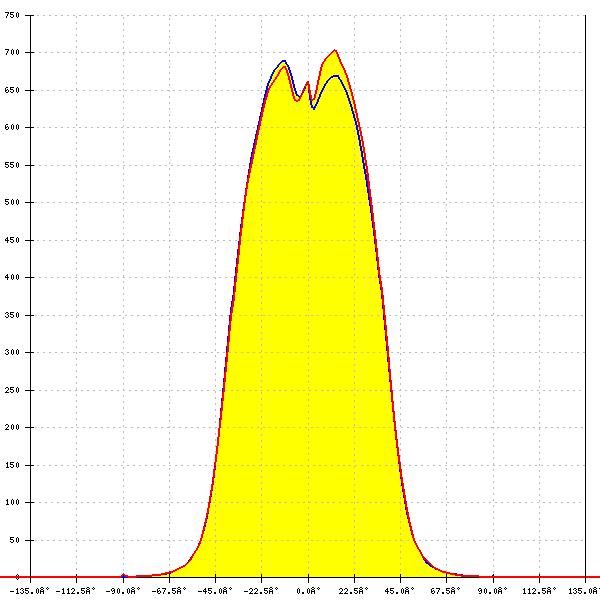

LED:

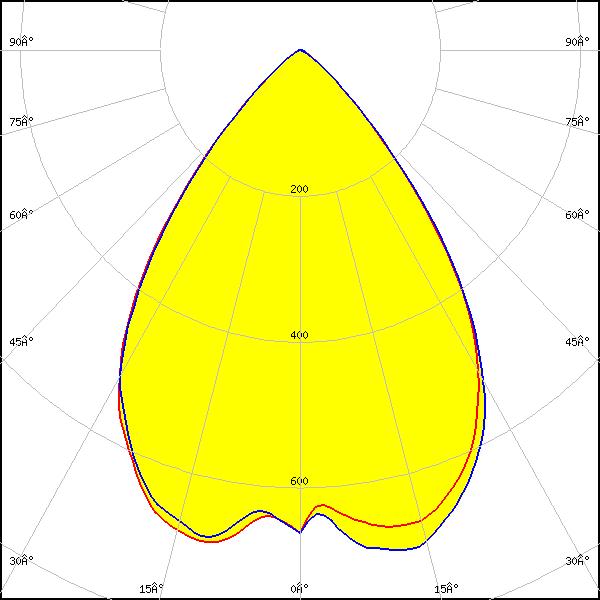

XHP35 HI
FWHM:
74°
FWTM:
100°
Peak intensity:
0.730 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E
FWHM:
66°
FWTM:
96°
Peak intensity:
0.700 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

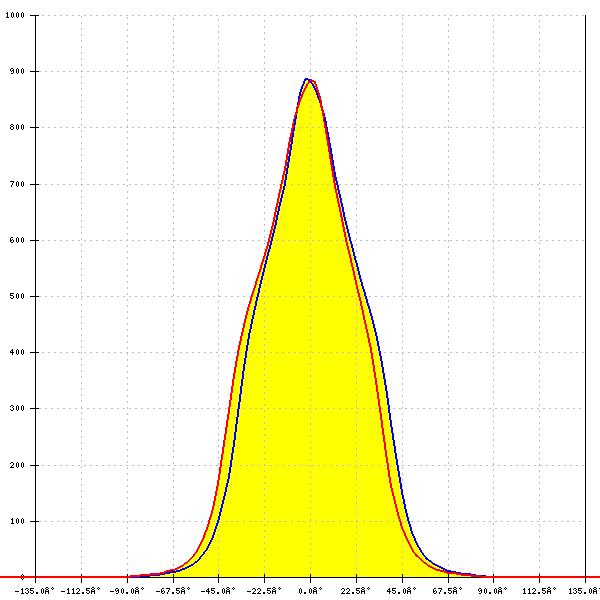

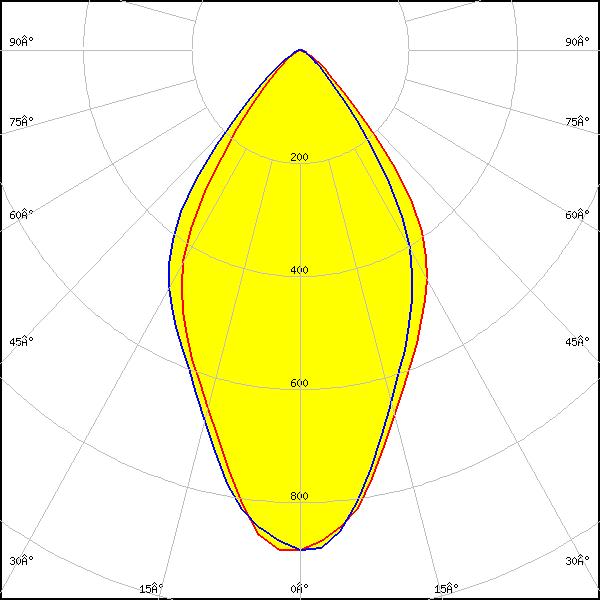

XP-E2
FWHM:
63°
FWTM:
95°
Peak intensity:
0.880 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

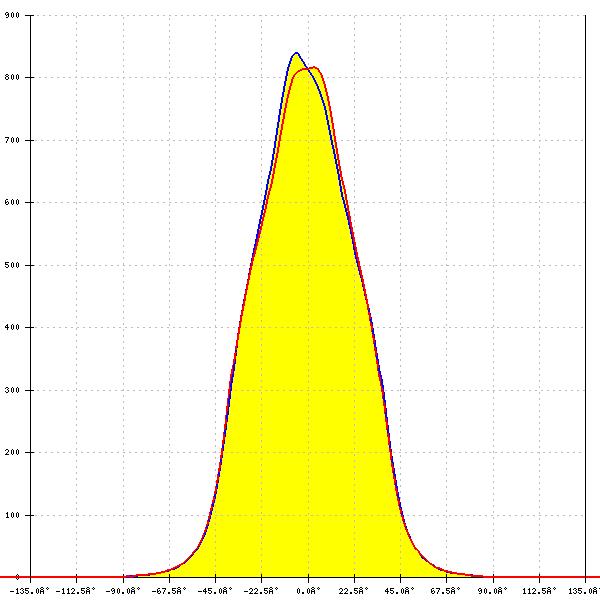

LED:

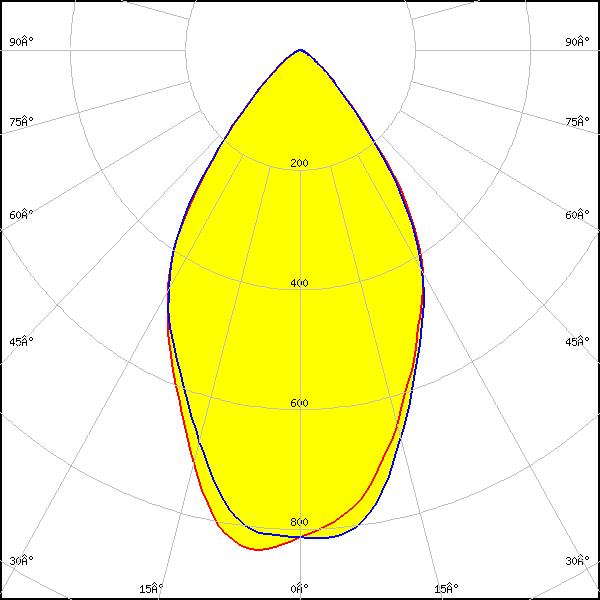

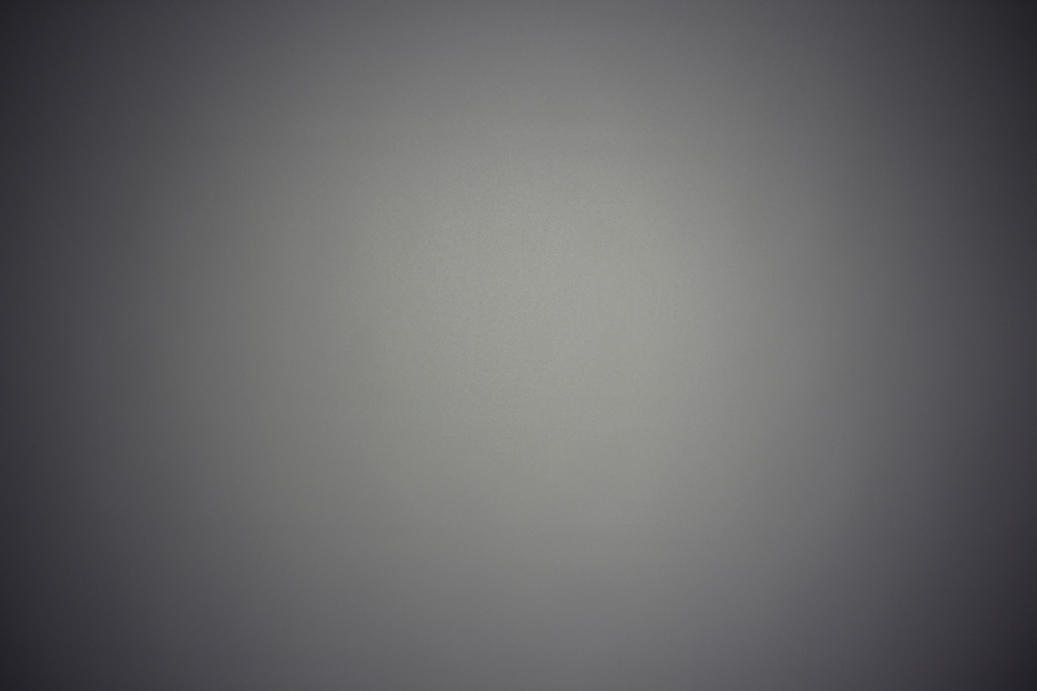

XP-G2
FWHM:
64°
FWTM:
97°
Peak intensity:
0.840 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

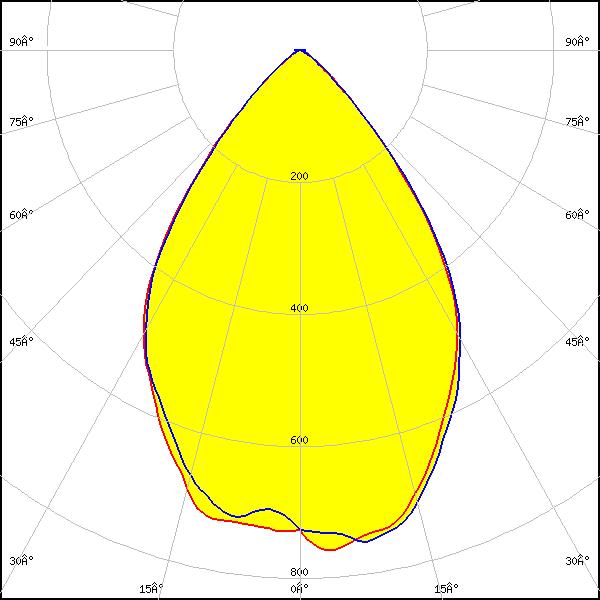

LED:

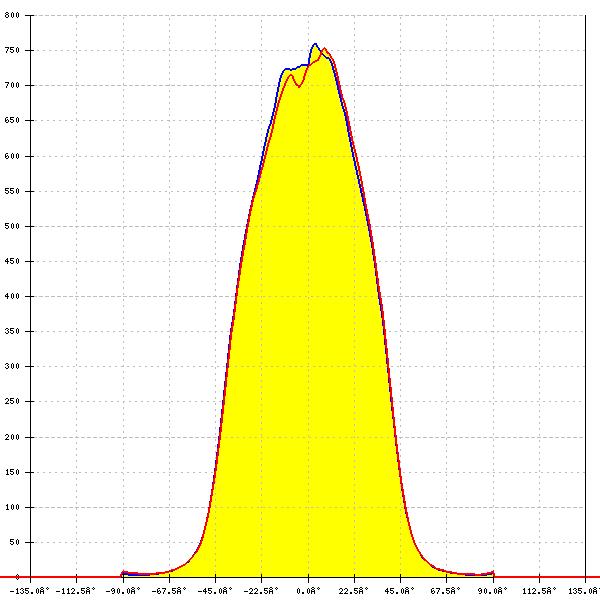

XP-G3
FWHM:
72°
FWTM:
100°
Peak intensity:
0.759 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L2
FWHM:
72°
FWTM:
102°
Peak intensity:
0.784 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

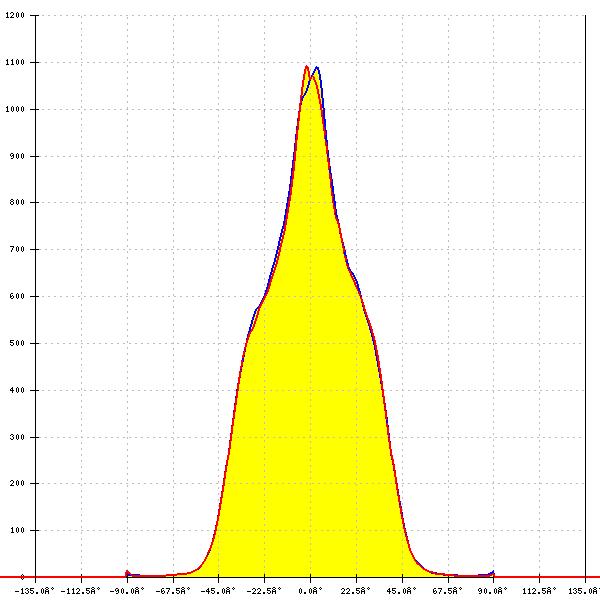

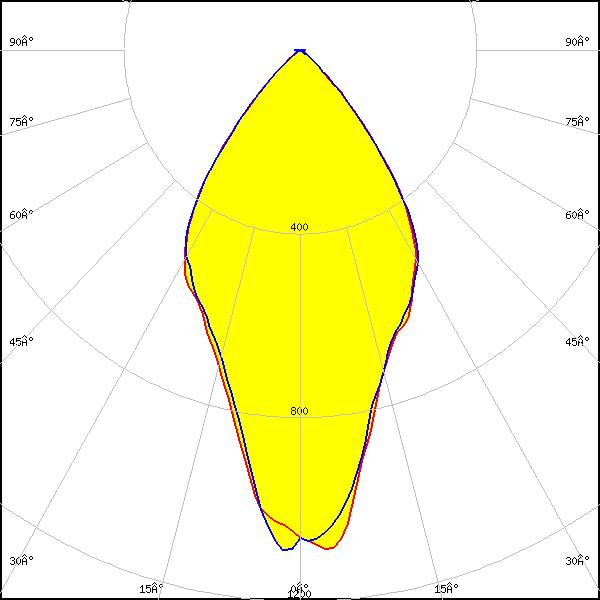

XQ-E HI
FWHM:
58°
FWTM:
92°
Peak intensity:
1.111 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

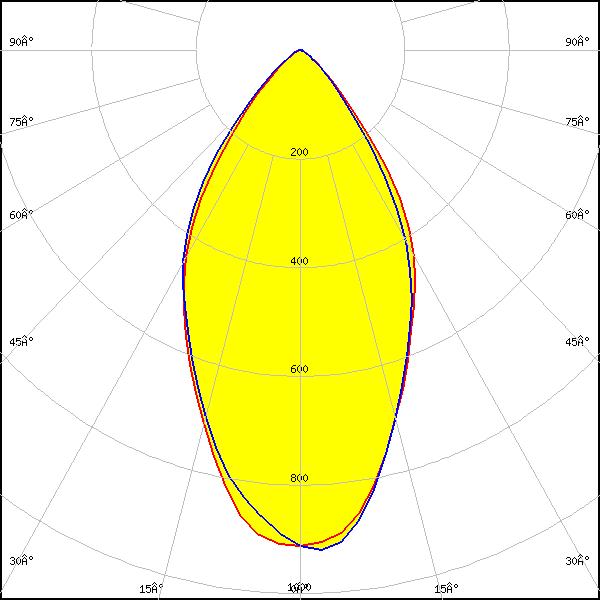

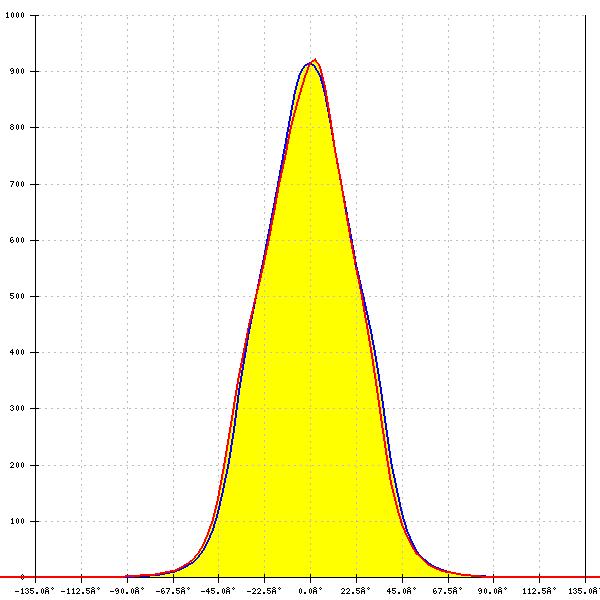

LED:
XT-E
FWHM:
58°
FWTM:
94°
Peak intensity:
0.920 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

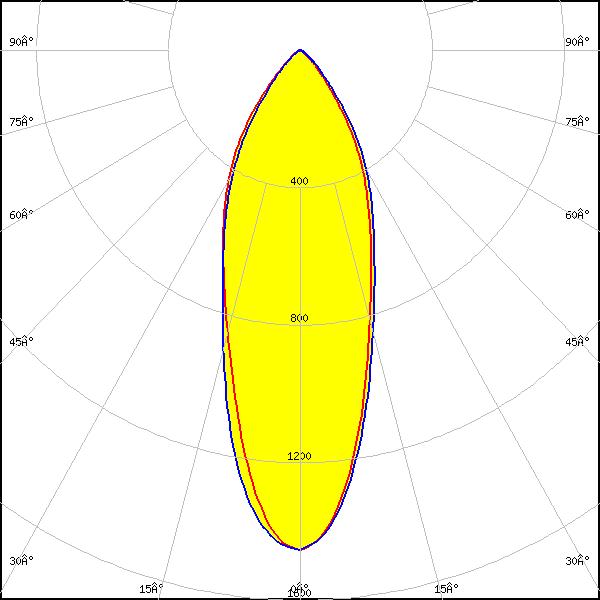

LED:

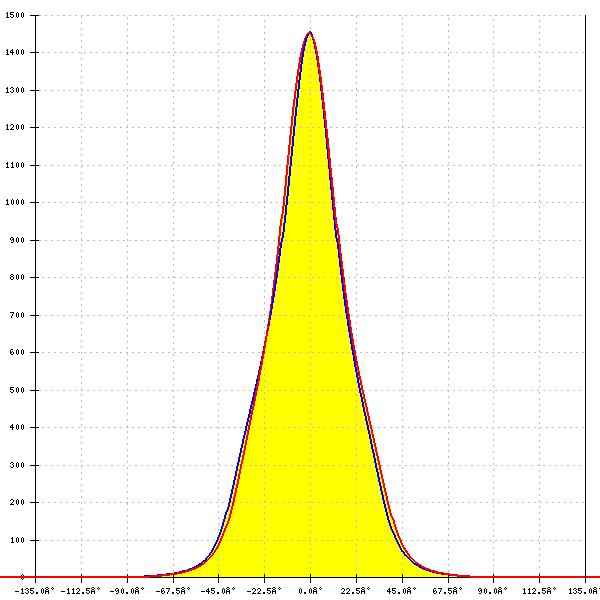

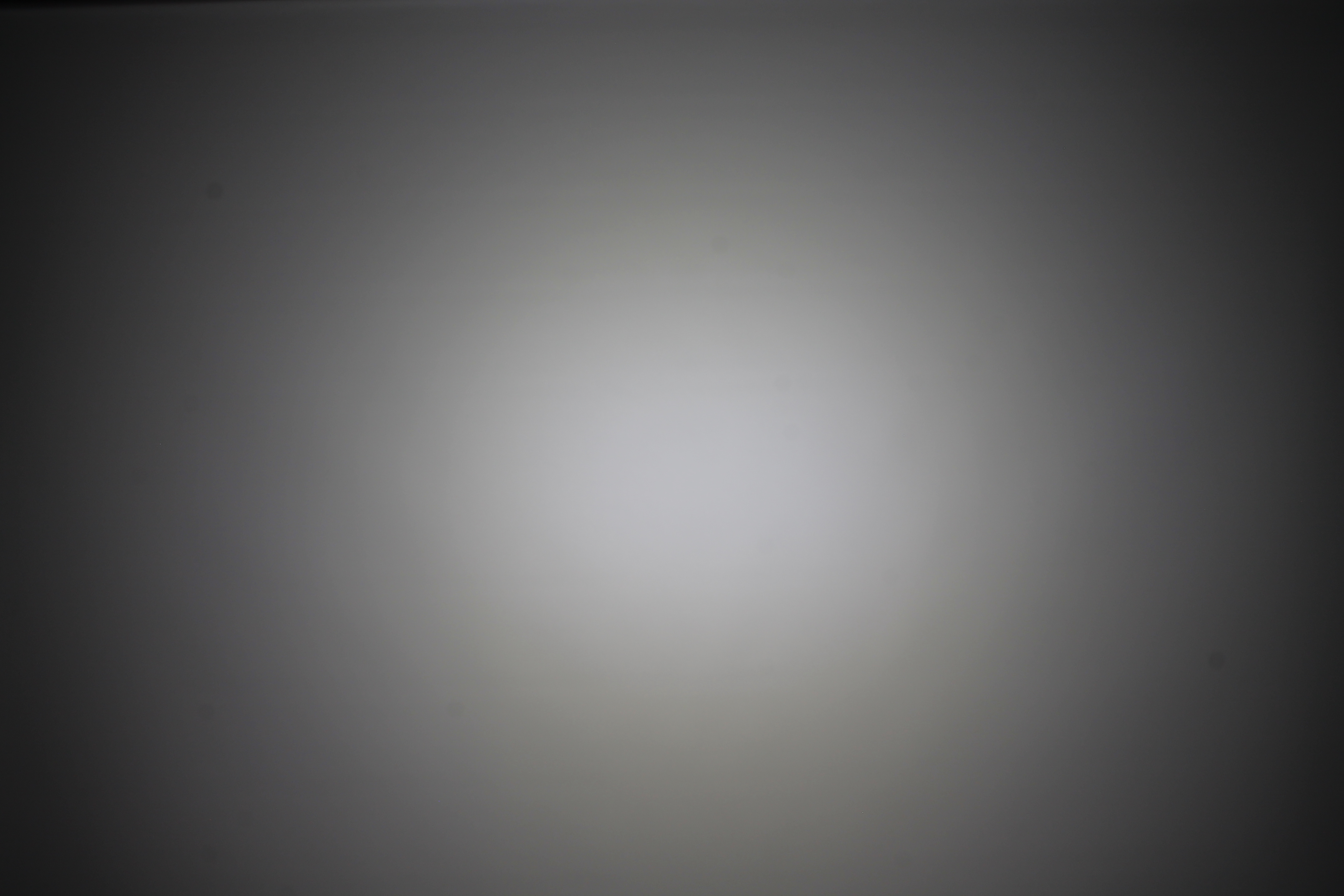

LUXEON 3030 2D (Round LES)
FWHM:
36°
FWTM:
82°
Peak intensity:
1.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON TX
FWHM:
56°
FWTM:
96°
Peak intensity:
1.010 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

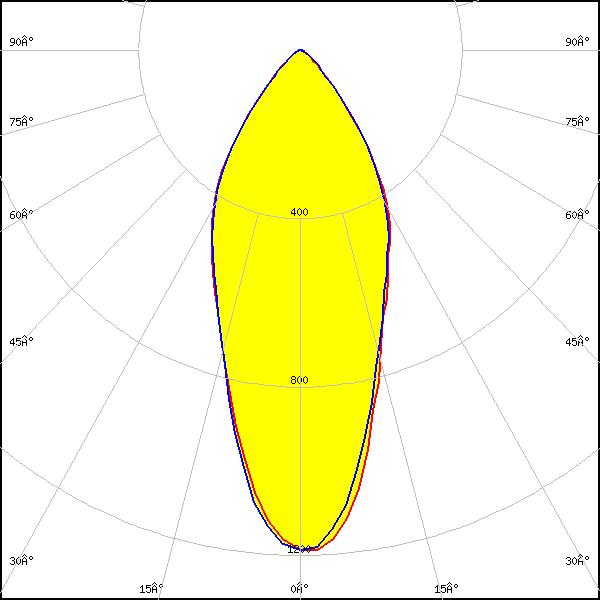

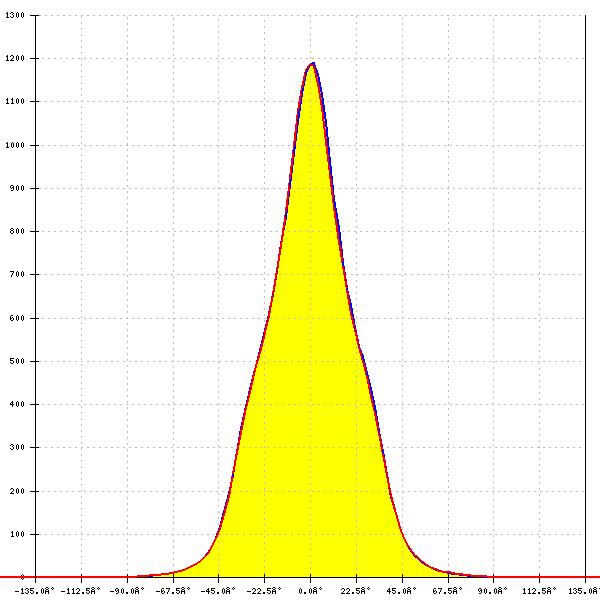

LED:
NCSxx19A
FWHM:
43°
FWTM:
88°
Peak intensity:
1.200 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

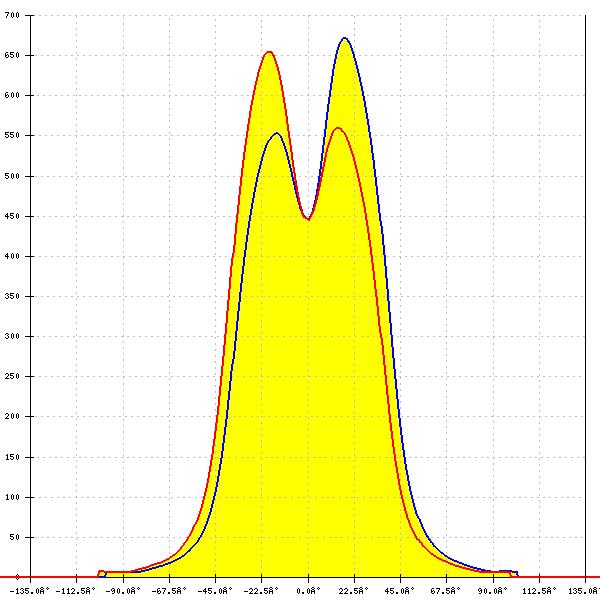

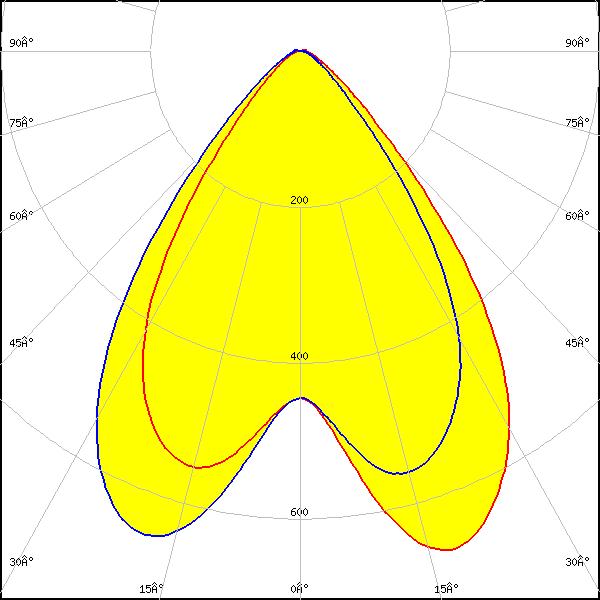

NVSW219D
FWHM:
81°
FWTM:
113°
Peak intensity:
0.720 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

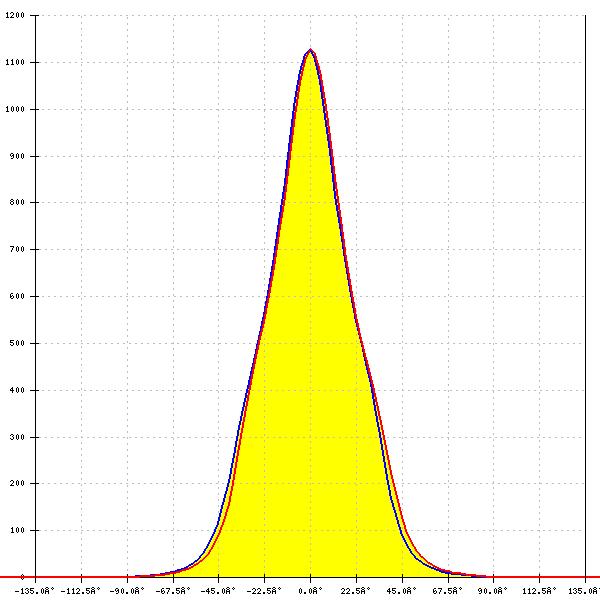

LED:

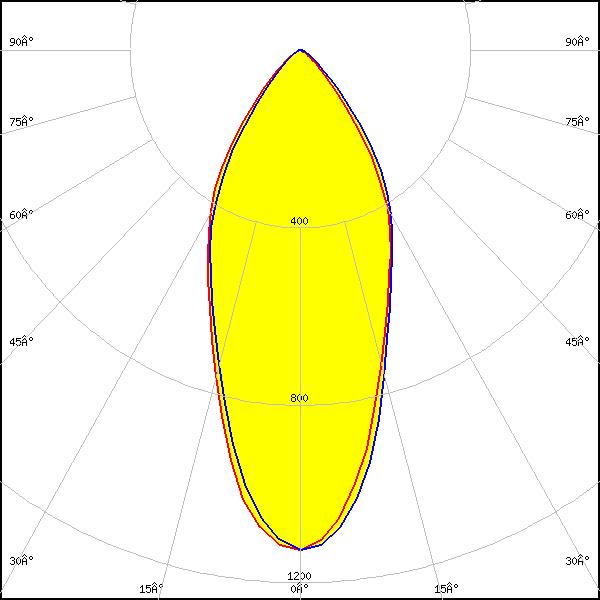

NVSxx19A
FWHM:
44°
FWTM:
89°
Peak intensity:
1.100 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
62°
FWTM:
95°
Peak intensity:
0.830 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

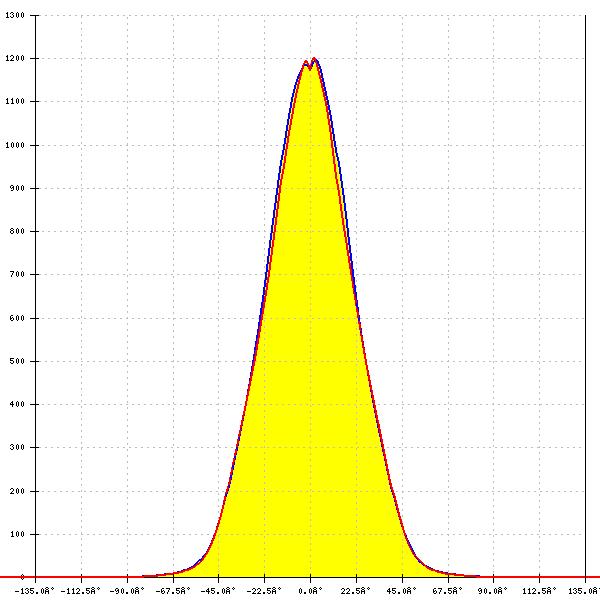

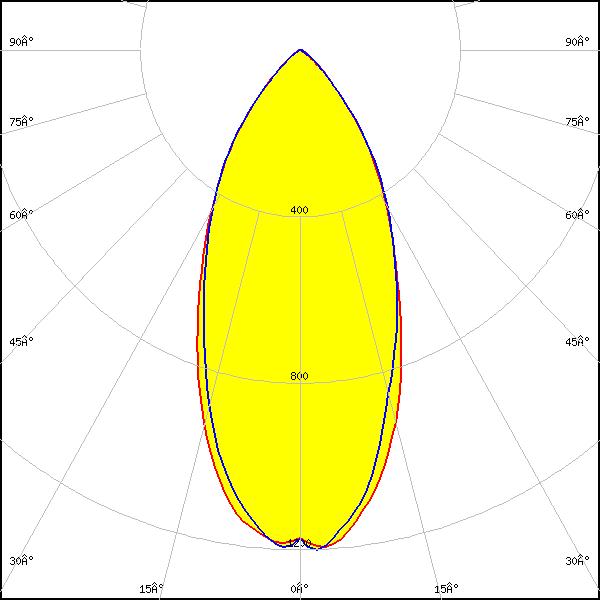

LED:
Duris S8
FWHM:
48°
FWTM:
90°
Peak intensity:
1.213 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
63°
FWTM:
95°
Peak intensity:
1.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

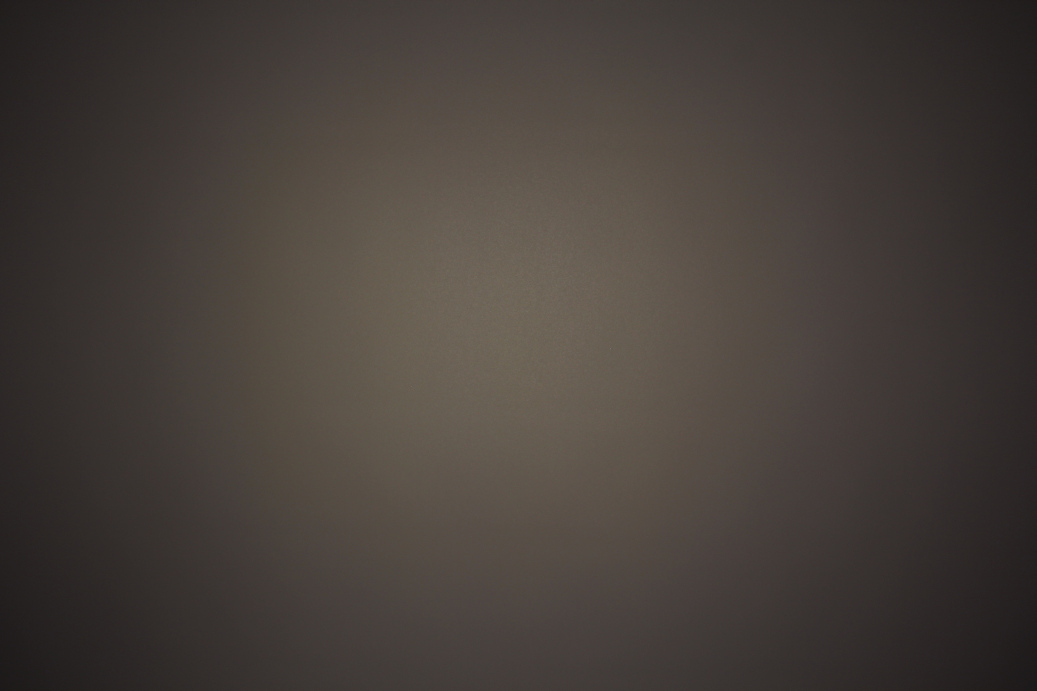

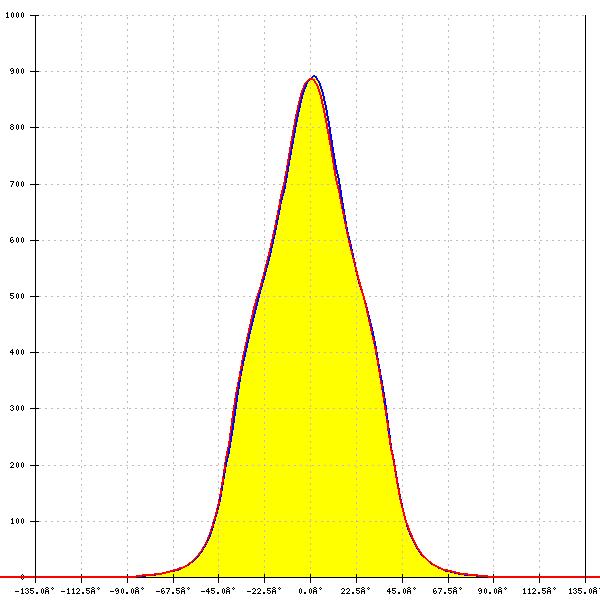

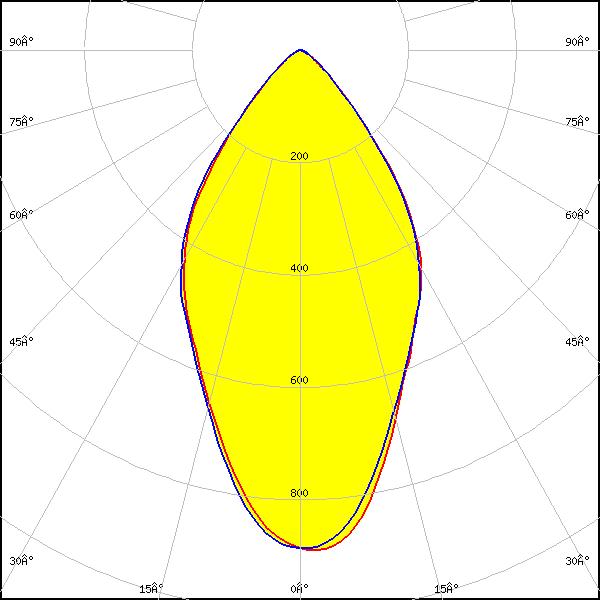

OSLON Square EC
FWHM:
60°
FWTM:
96°
Peak intensity:
0.890 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

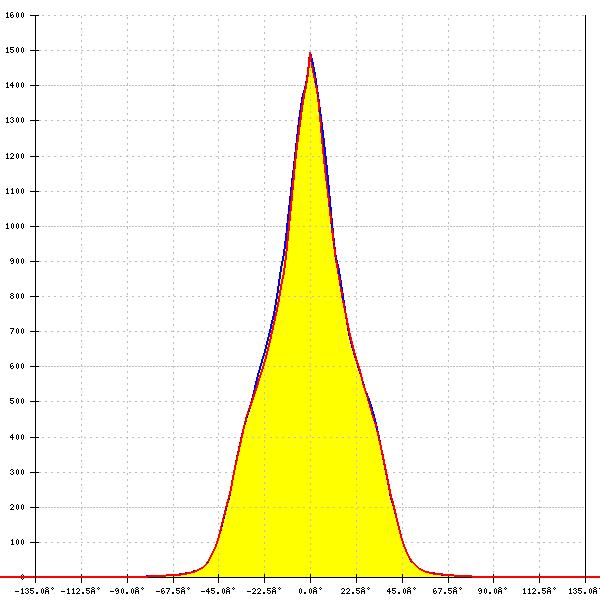

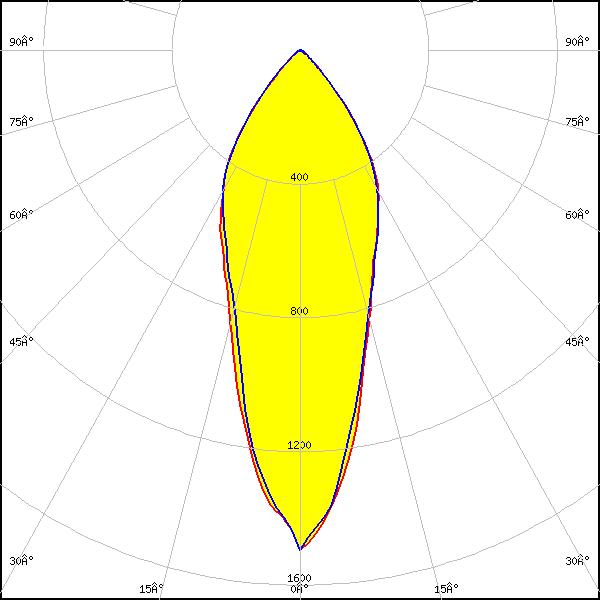

OSLON Square Flat
FWHM:
35°
FWTM:
86°
Peak intensity:
1.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

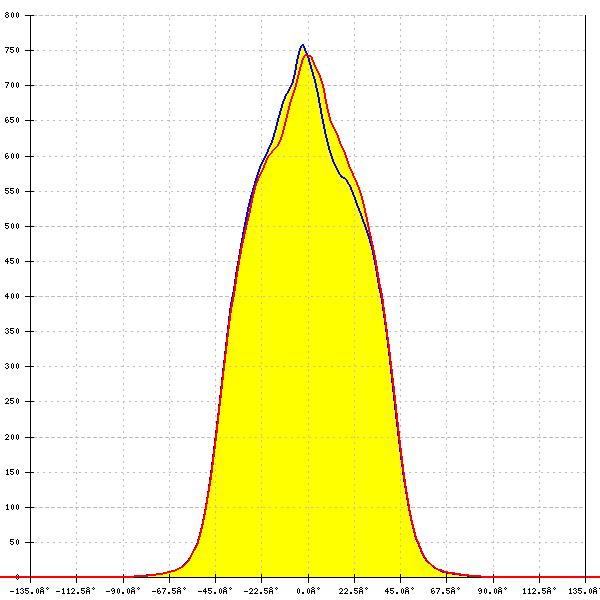

LED:

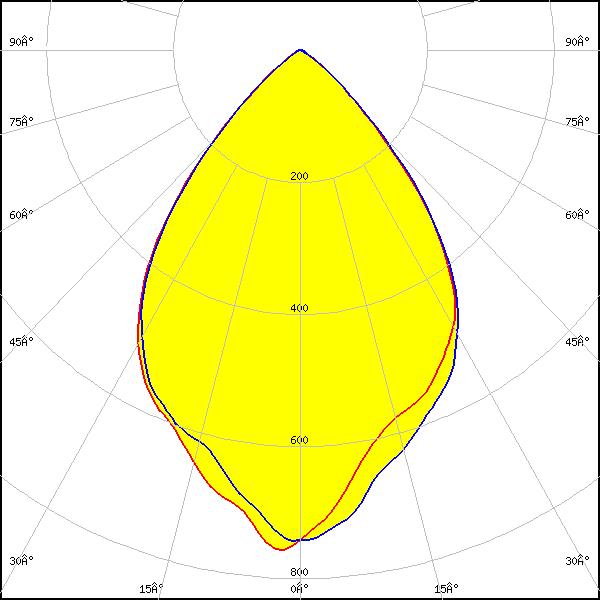

OSLON SSL 150
FWHM:
74°
FWTM:
103°
Peak intensity:
0.760 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4770S
FWHM:
32°
FWTM:
80°
Peak intensity:
1.810 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

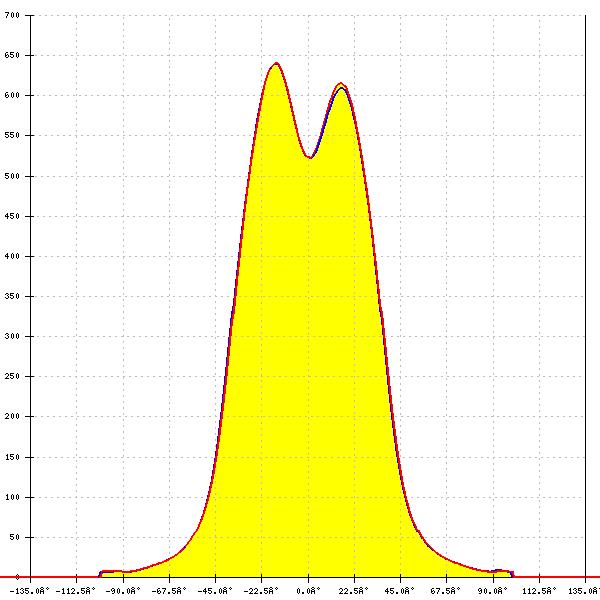

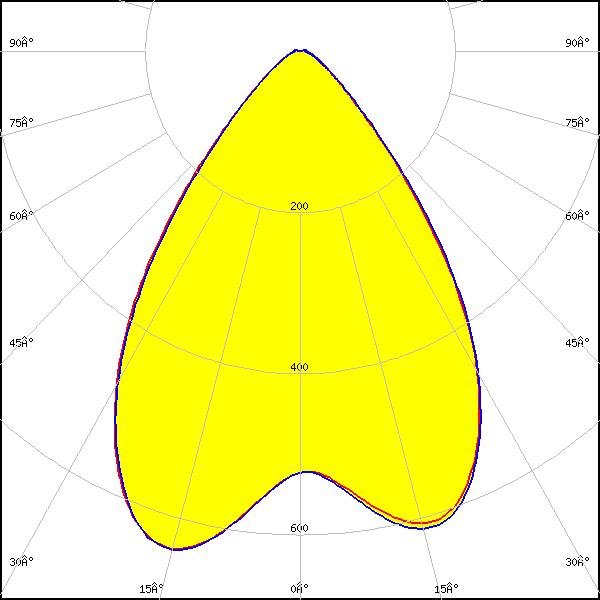

LH351D
FWHM:
78°
FWTM:
110°
Peak intensity:
0.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

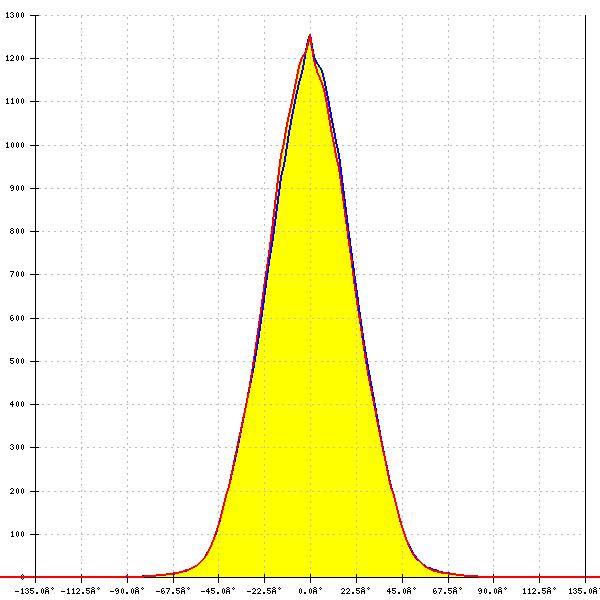

LED:

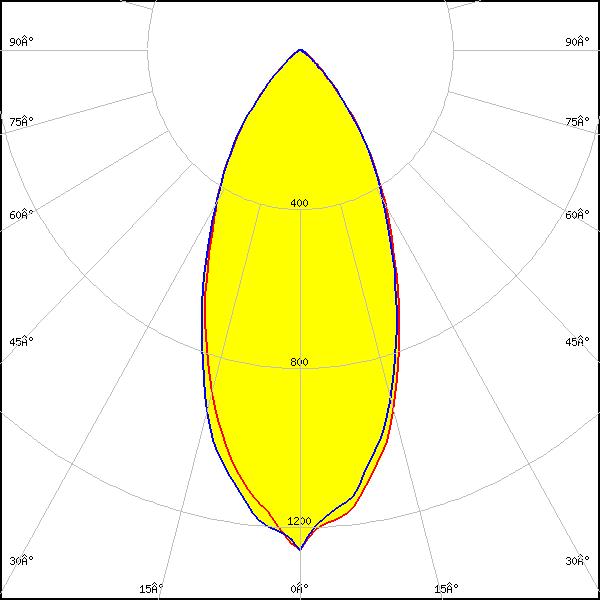

LH508A
FWHM:
47°
FWTM:
89°
Peak intensity:
1.257 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

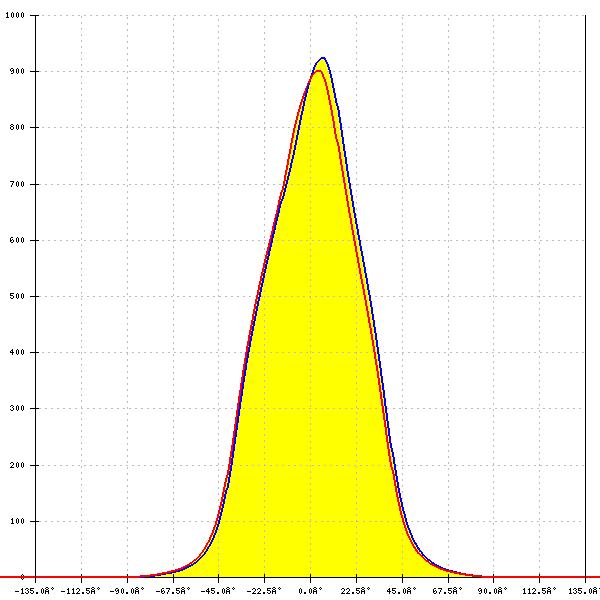

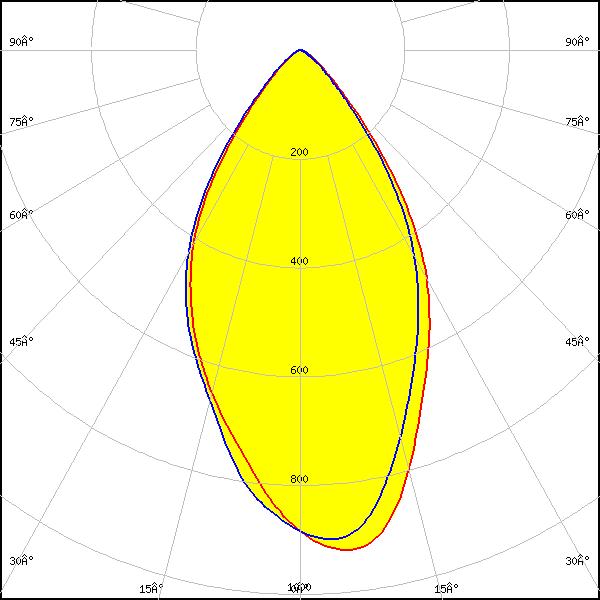

LED:

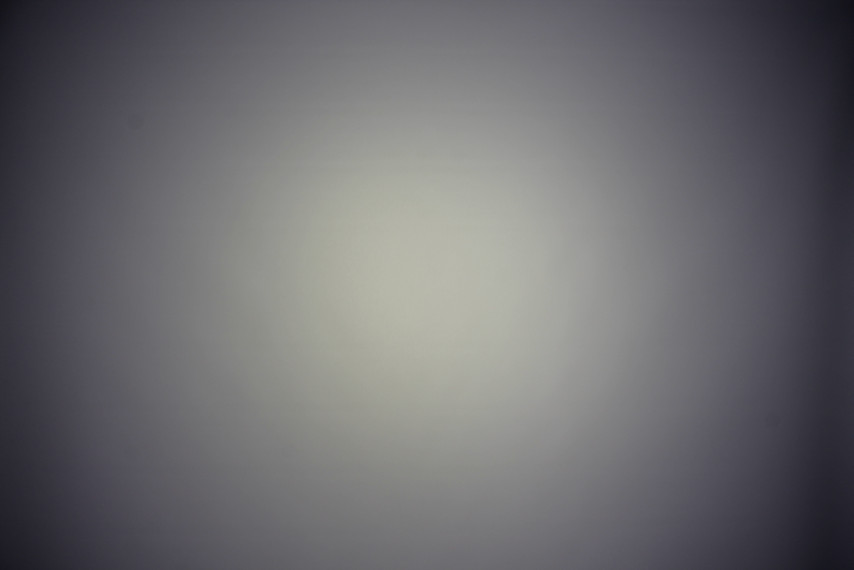

Z5M1/Z5M2
FWHM:
58°
FWTM:
93°
Peak intensity:
0.930 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

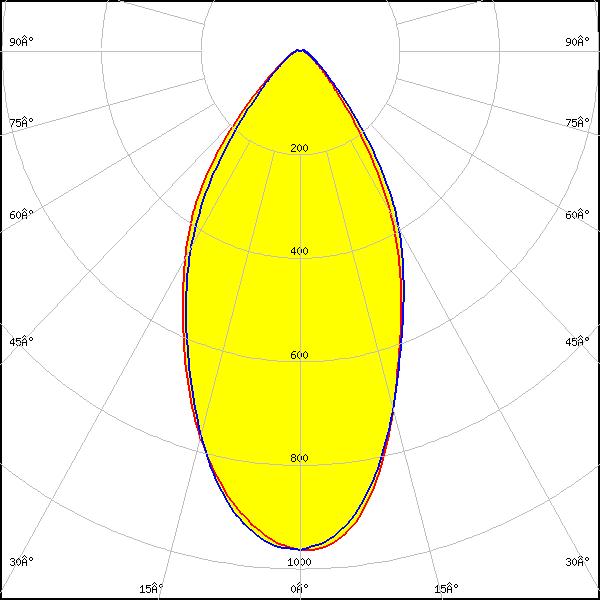

LED:

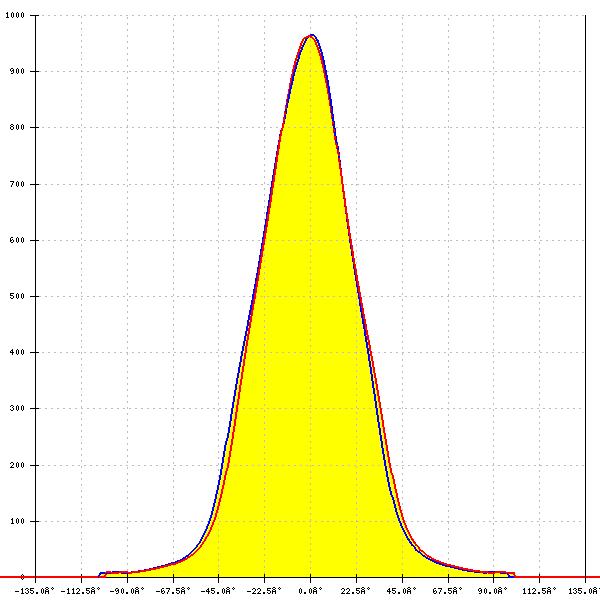

Z5M3
FWHM:
54°
FWTM:
94°
Peak intensity:
0.960 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

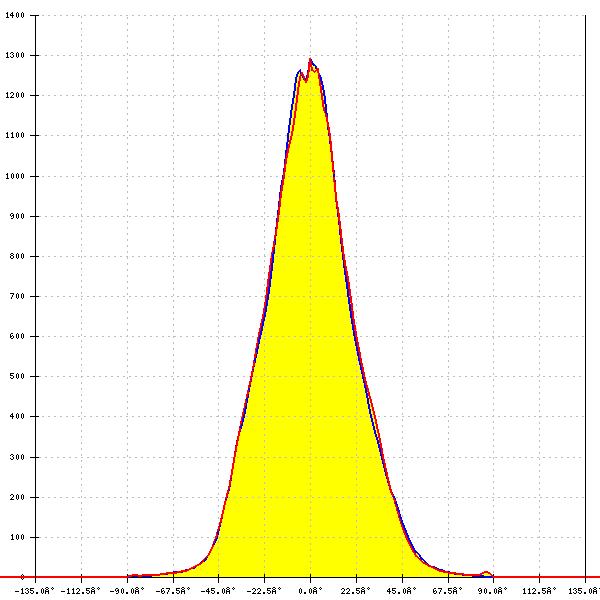

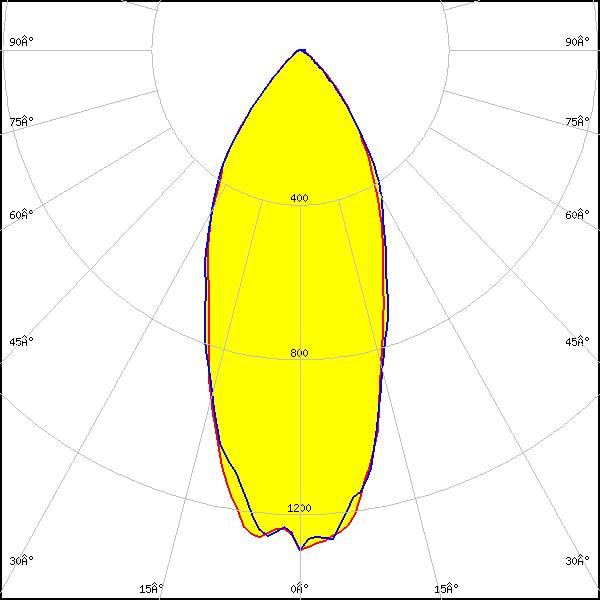

Z8Y22P
FWHM:
42°
FWTM:
88°
Peak intensity:
1.370 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
