CA13634_G2-LAURA-W-P
Print

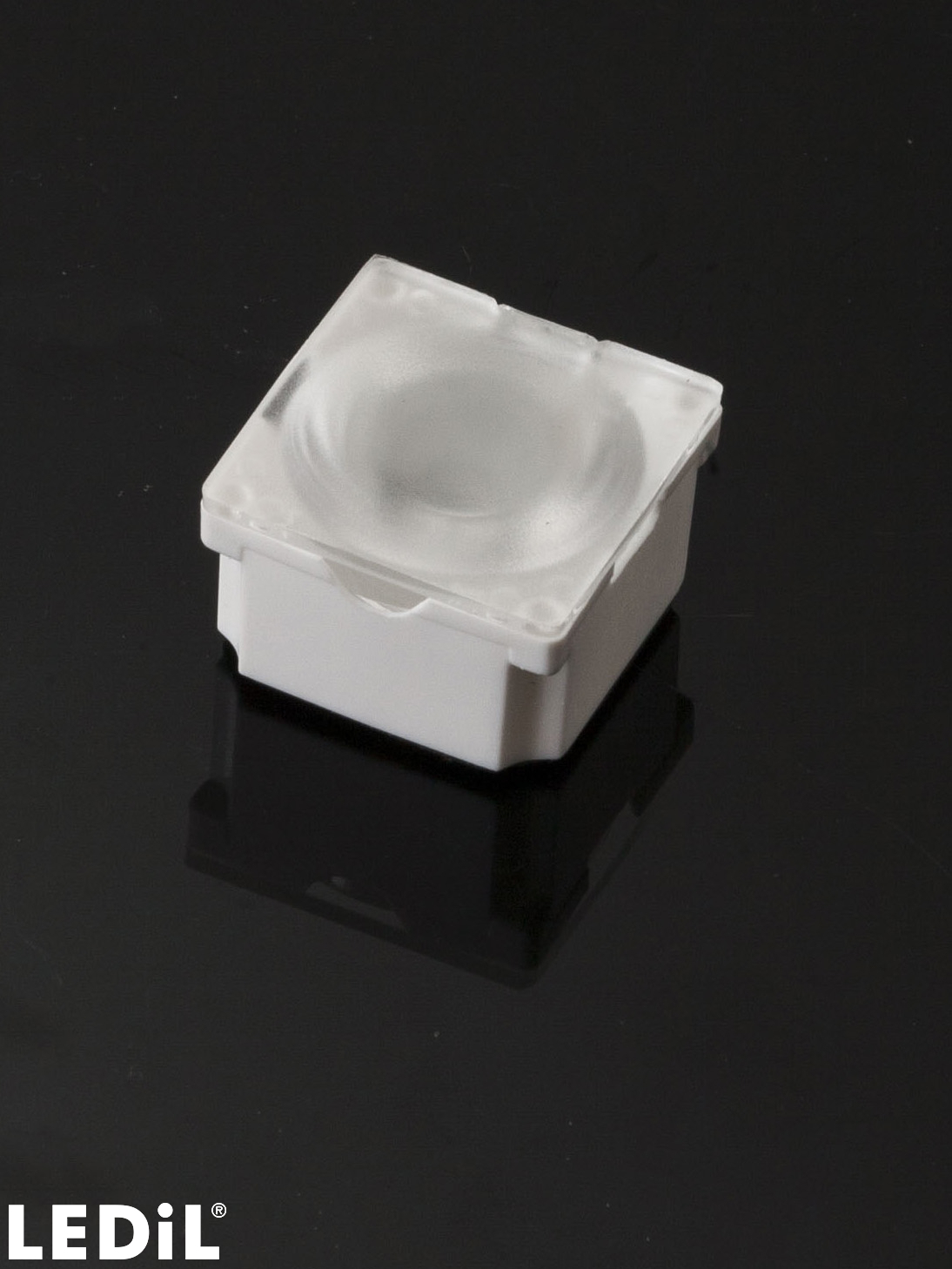

~45° wide beam. Assembly with thinner white holder, installation tape and location pins.
Component Materials
- LAURA-WSingle lensPMMA
- LAURA-LT-PIN-XP-HLD-WHTHolderPC
- ROSE-TAPETapeAcryl tape
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

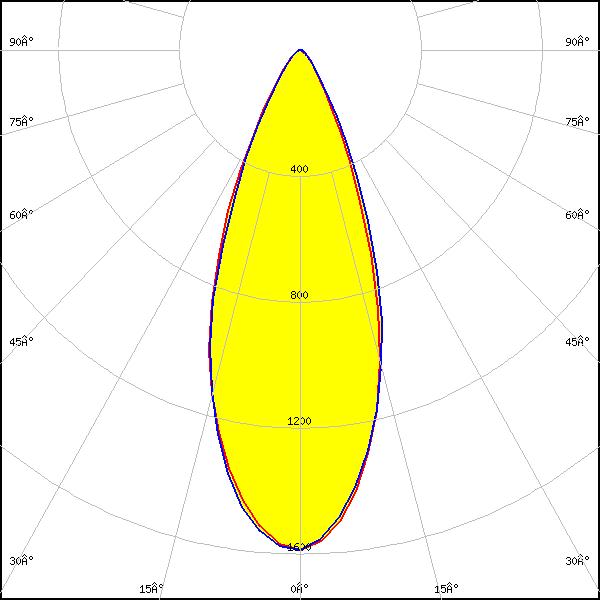

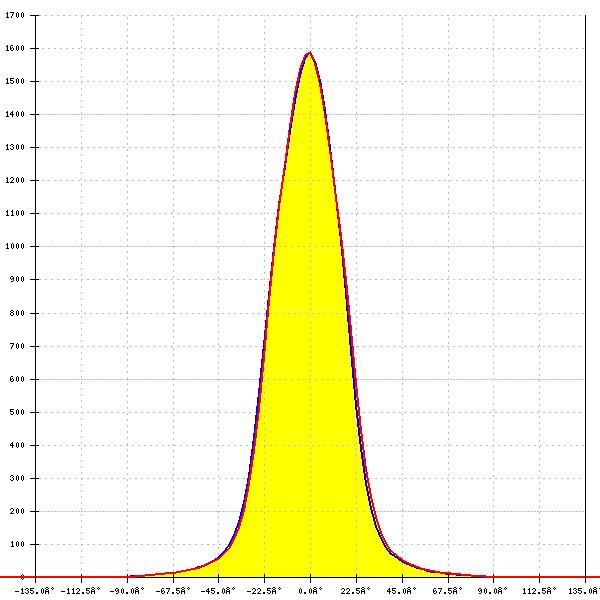

LED:
XB-D
FWHM:
40°
FWTM:
69°
Peak intensity:
1.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

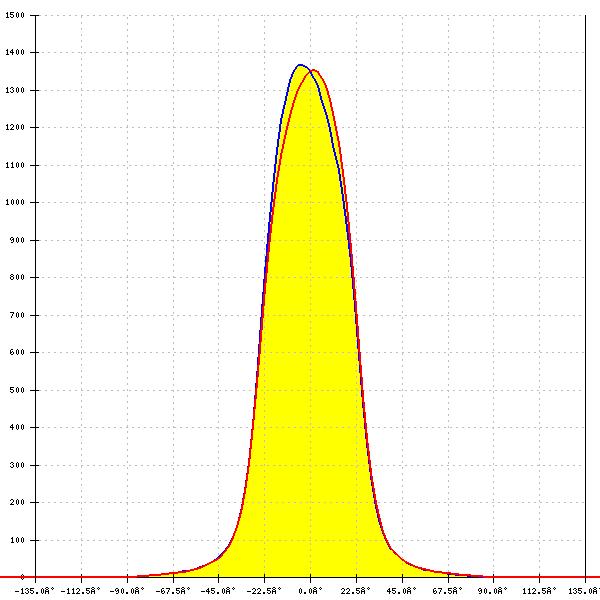

LED:

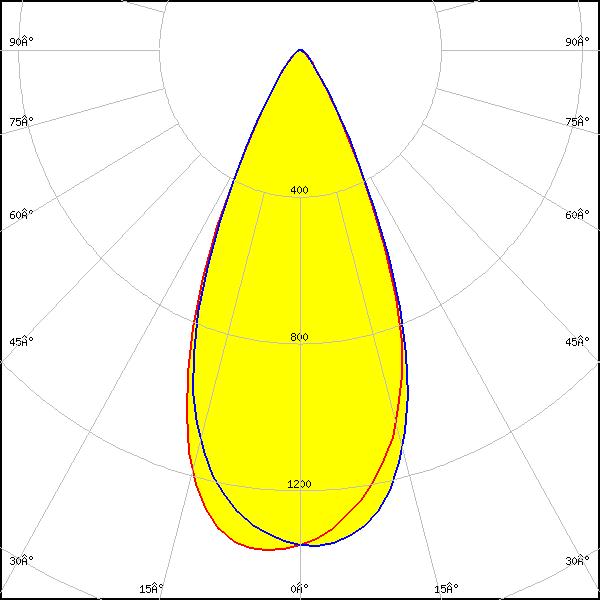

XB-H
FWHM:
47°
FWTM:
71°
Peak intensity:
1.300 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

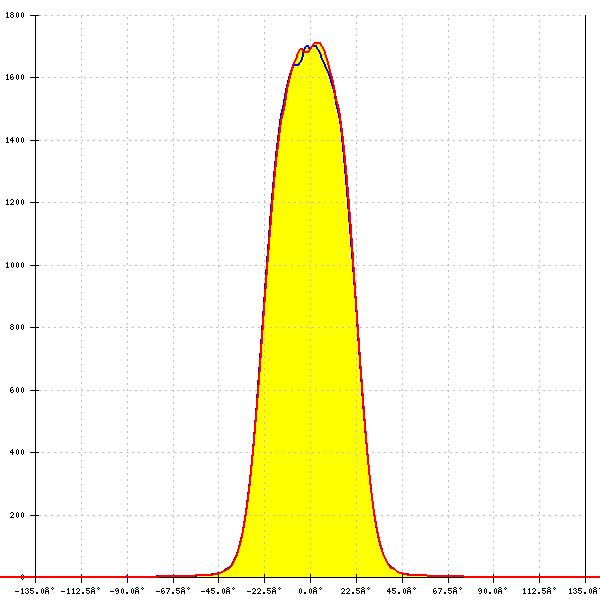

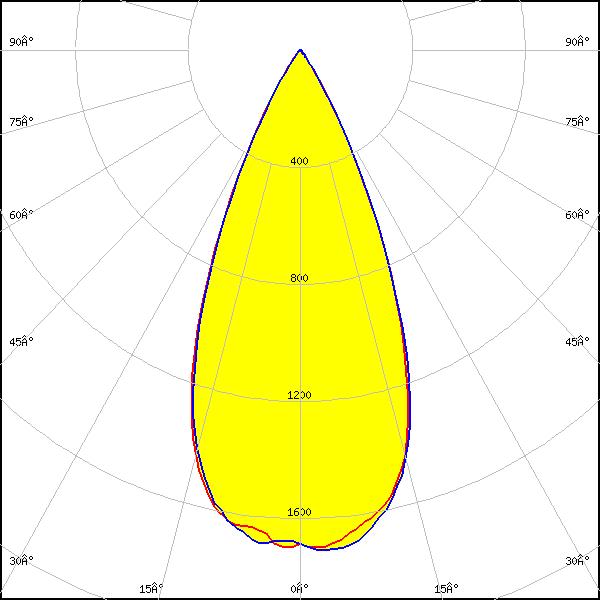

LED:
XHP35 HI
FWHM:
45°
FWTM:
65°
Peak intensity:
1.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

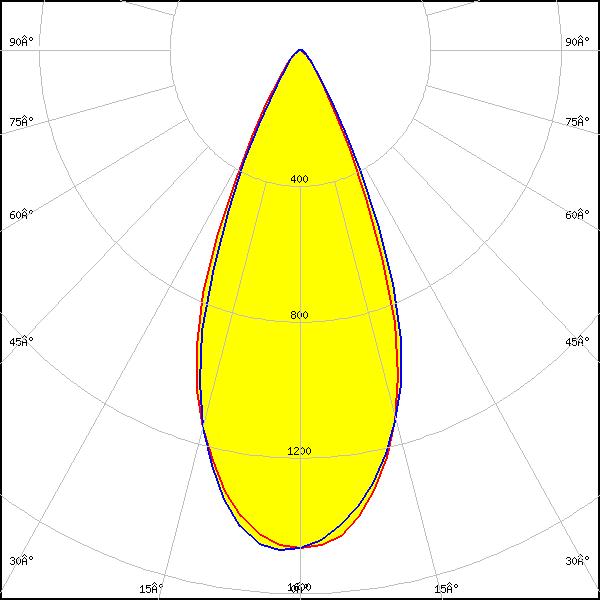

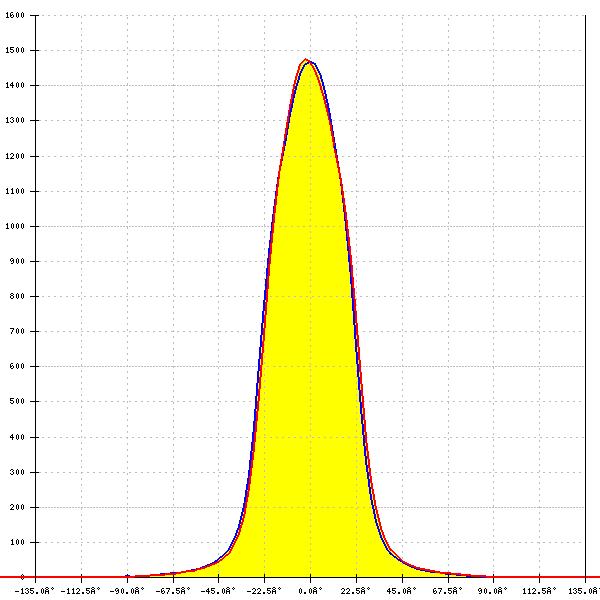

LED:
XP-E
FWHM:
45°
FWTM:
69°
Peak intensity:
1.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

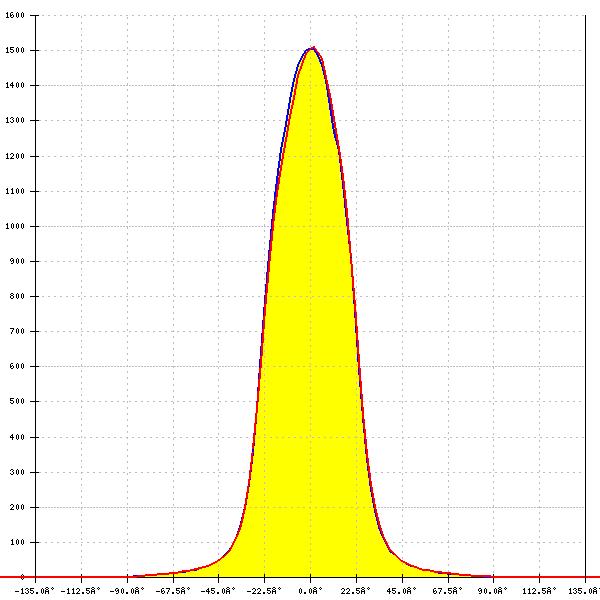

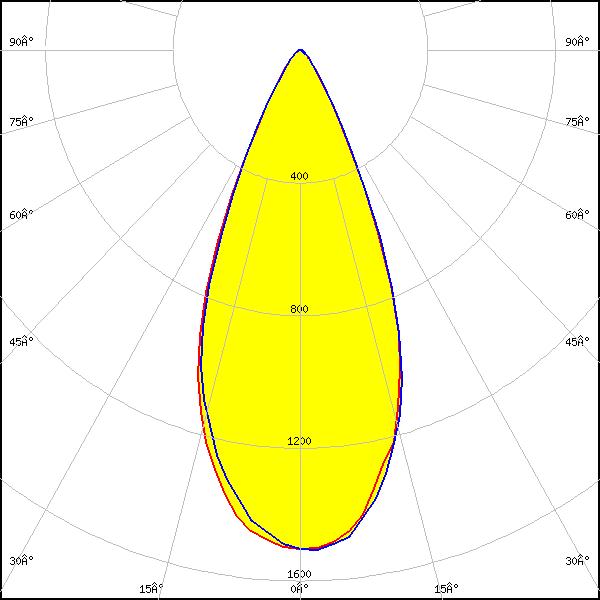

LED:
XP-E2
FWHM:
45°
FWTM:
69°
Peak intensity:
1.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
FWHM:
46°
FWTM:
65°
Peak intensity:
1.550 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

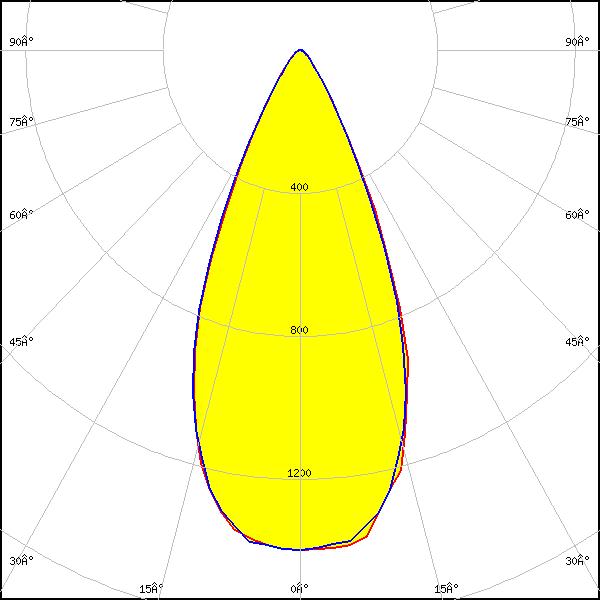

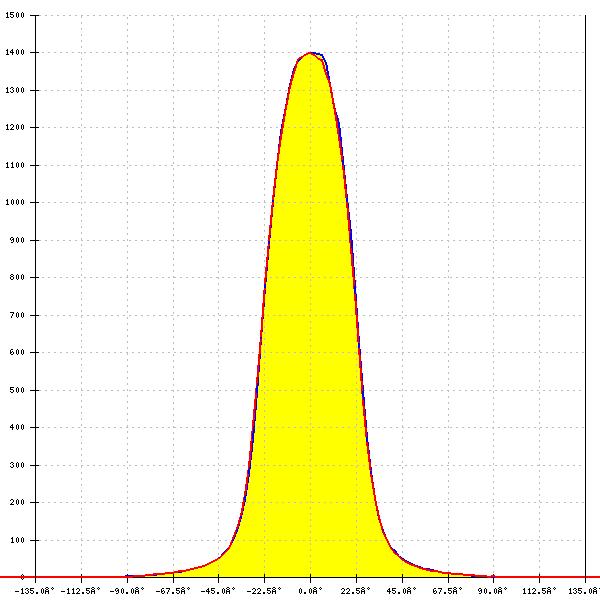

LED:

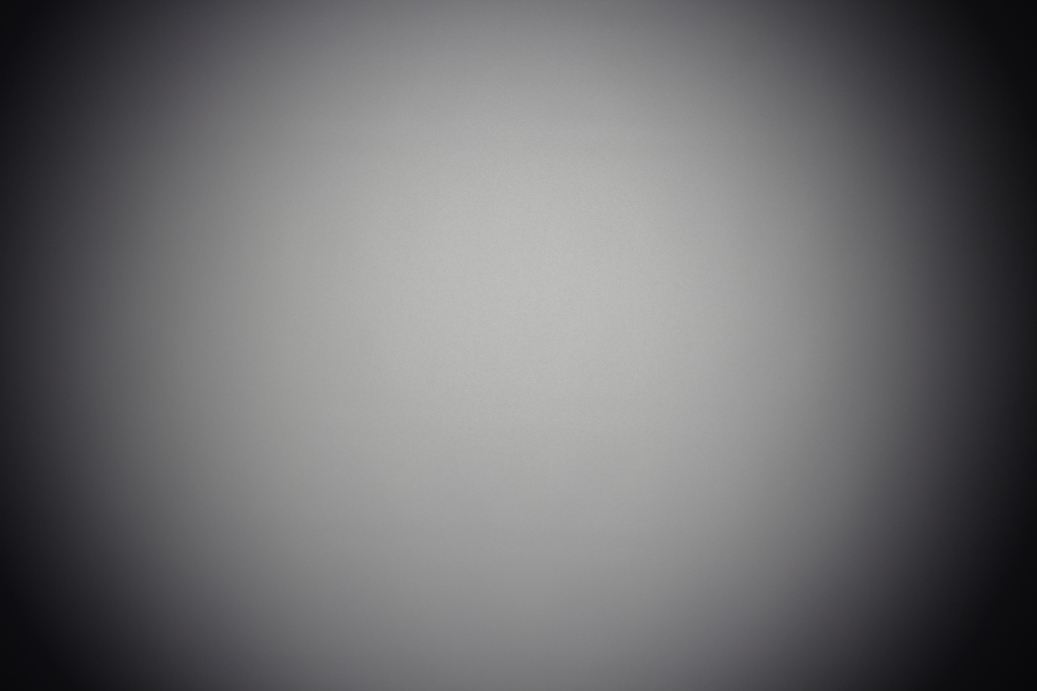

XP-G2
FWHM:
47°
FWTM:
71°
Peak intensity:
1.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

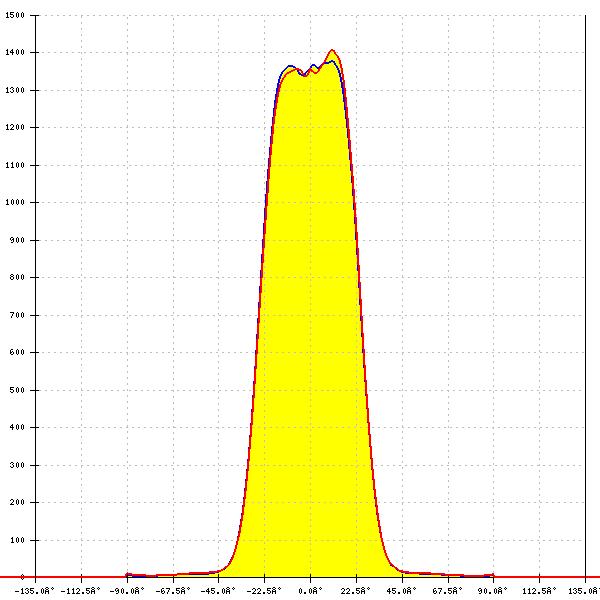

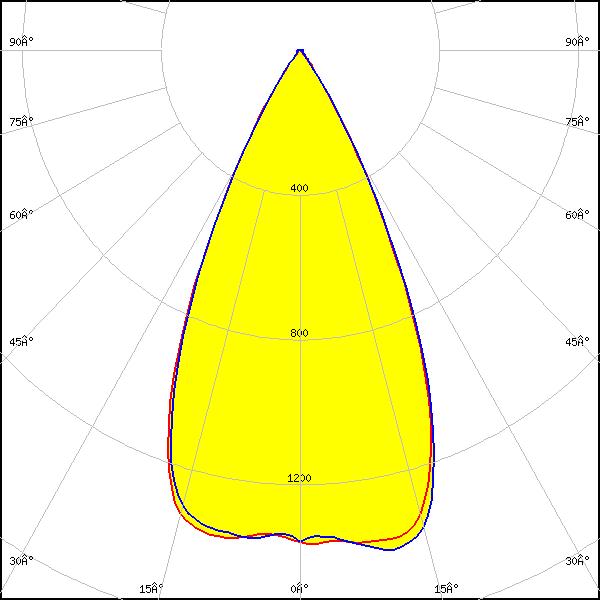

XP-G3
FWHM:
50°
FWTM:
68°
Peak intensity:
1.428 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

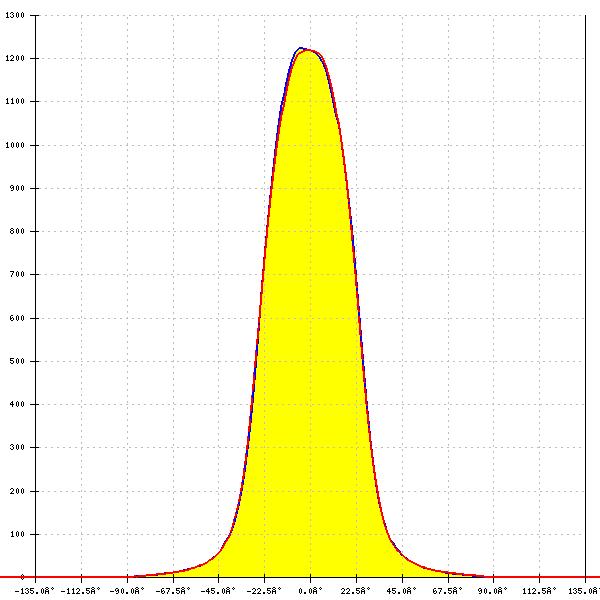

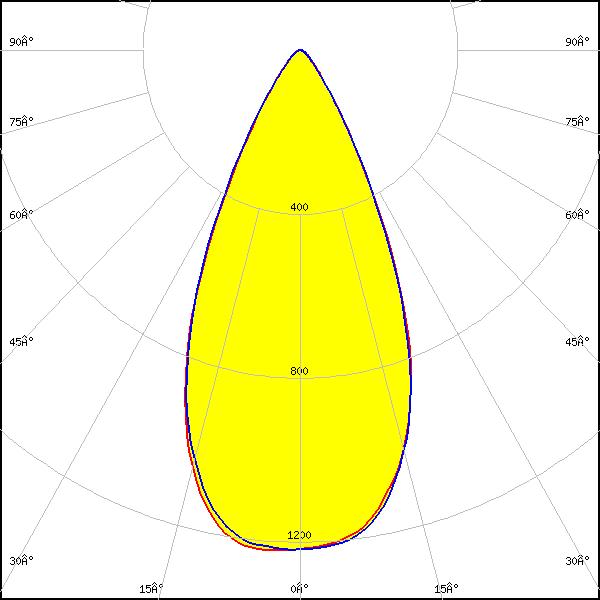

LED:
XP-L HD
FWHM:
49°
FWTM:
76°
Peak intensity:
1.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

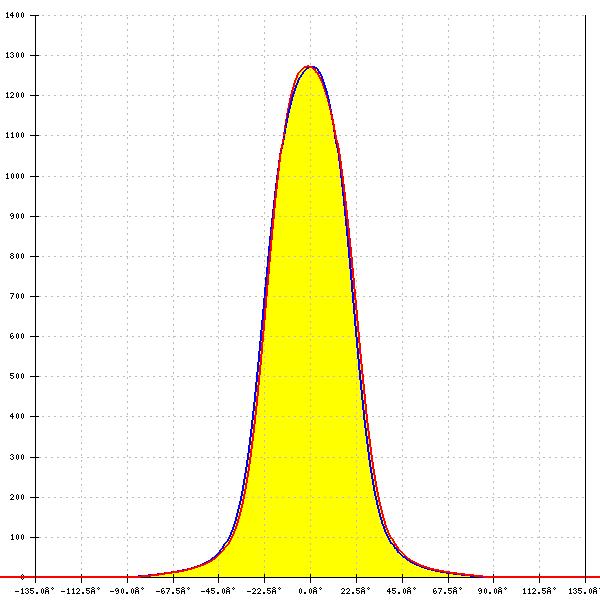

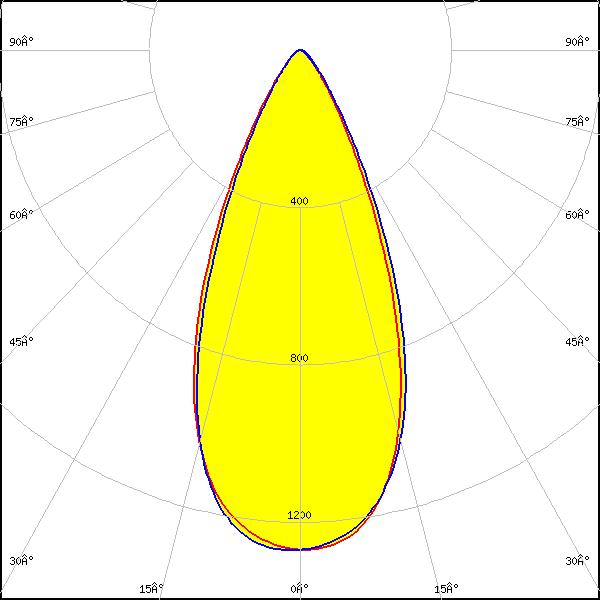

LED:

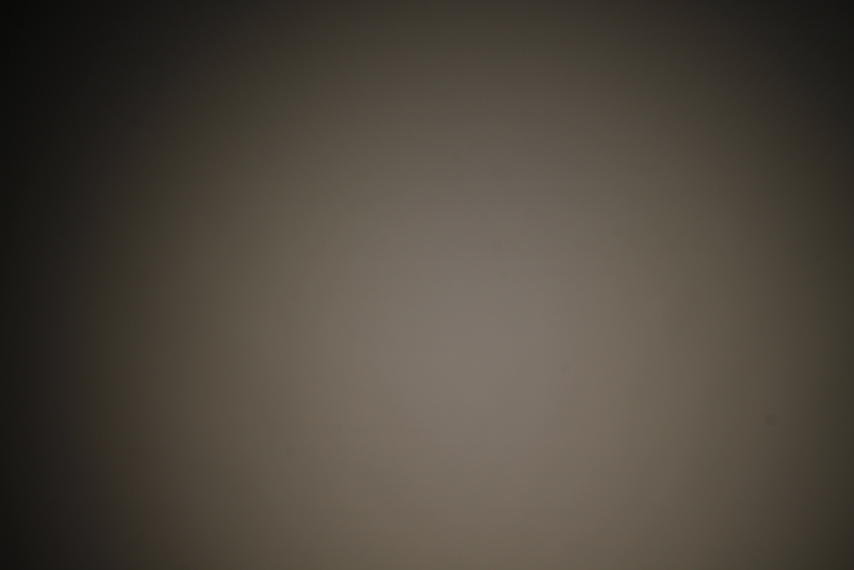

XP-L2
FWHM:
46°
FWTM:
74°
Peak intensity:
1.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

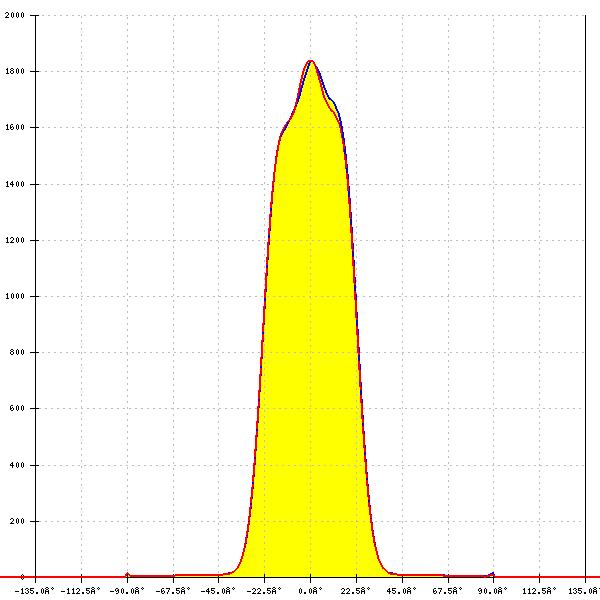

LED:
XQ-E HI
FWHM:
46°
FWTM:
60°
Peak intensity:
1.849 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

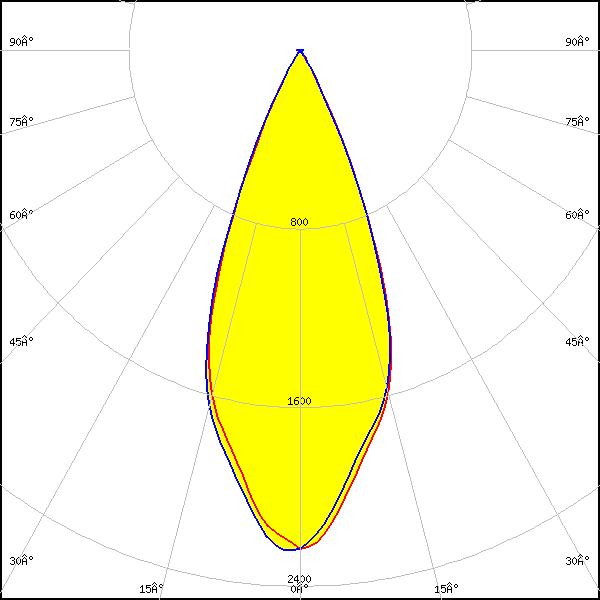

LED:

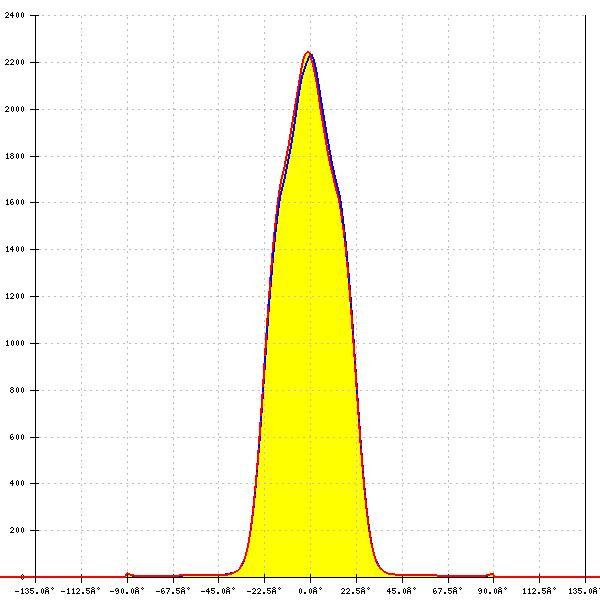

XQ-E HI
FWHM:
41°
FWTM:
58°
Peak intensity:
2.262 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Red

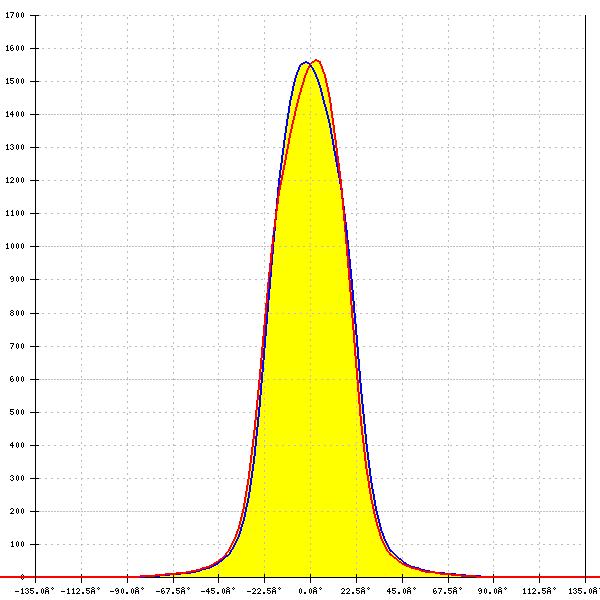

LED:

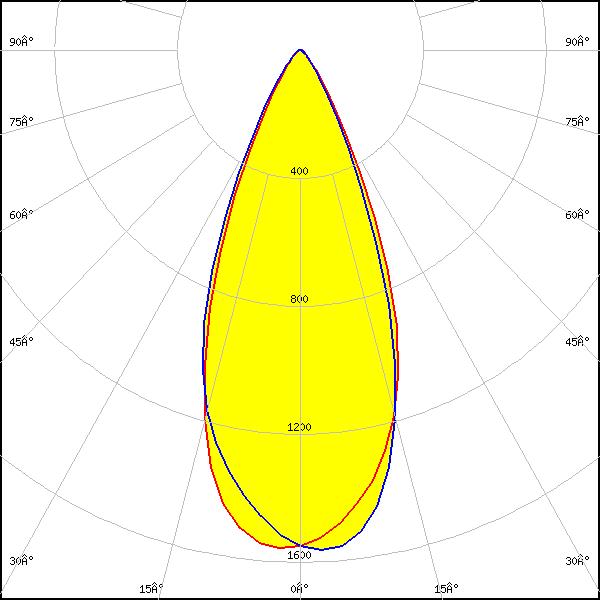

XT-E
FWHM:
43°
FWTM:
69°
Peak intensity:
1.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

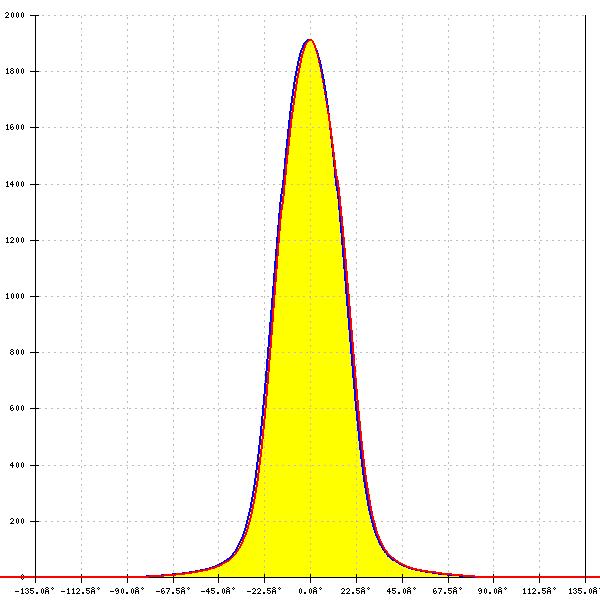

LED:

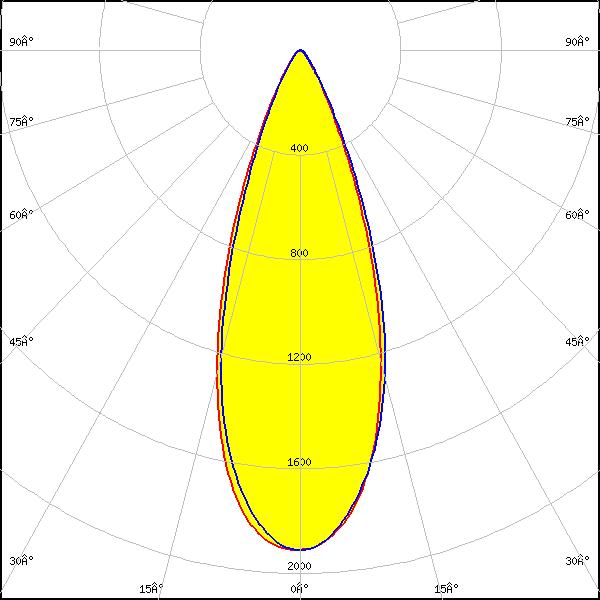

LUXEON 3030 2D (Round LES)
FWHM:
37°
FWTM:
62°
Peak intensity:
1.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

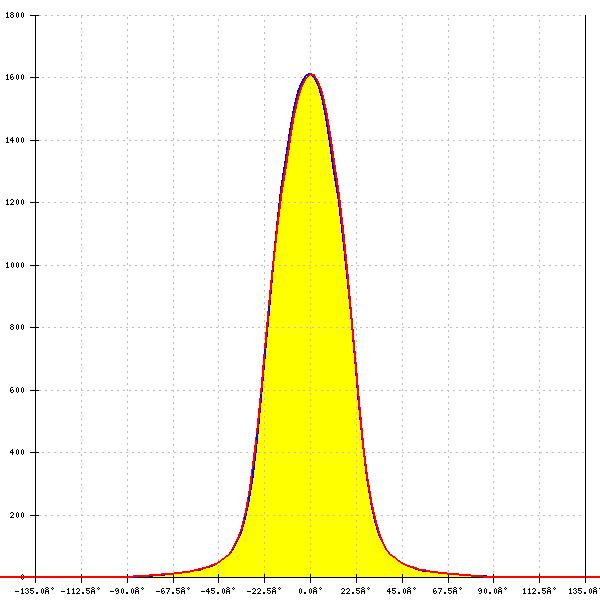

LED:

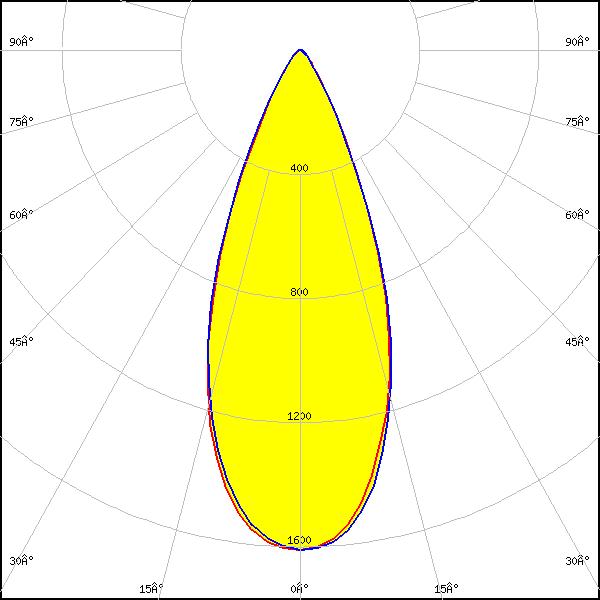

LUXEON TX
FWHM:
42°
FWTM:
67°
Peak intensity:
1.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

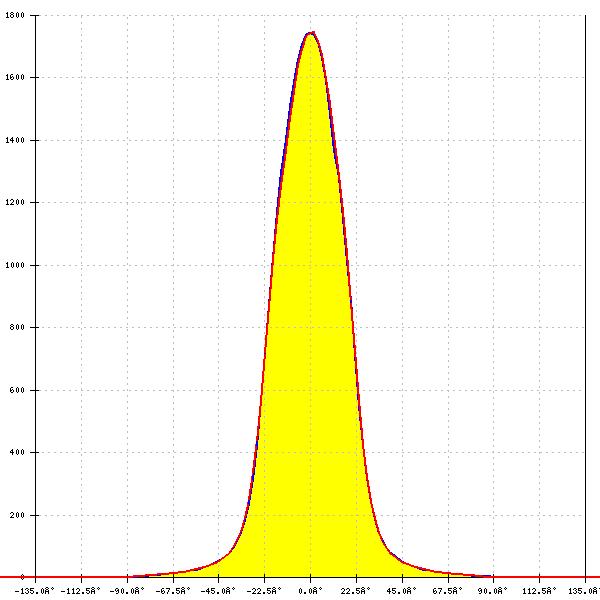

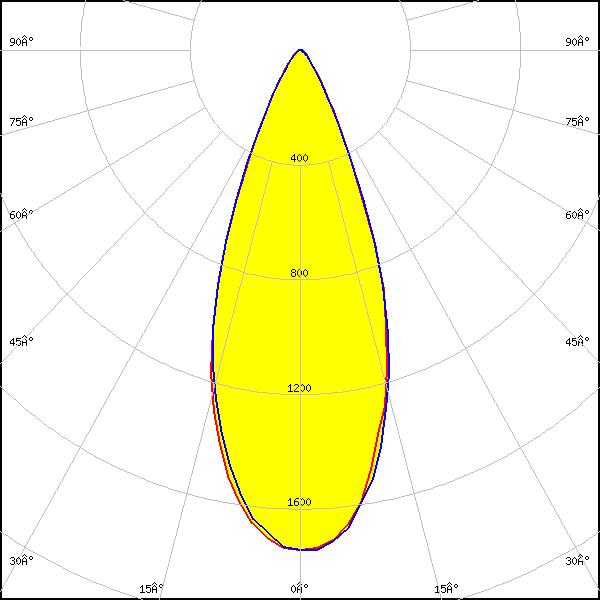

LED:
NCSxx19A
FWHM:
41°
FWTM:
66°
Peak intensity:
1.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

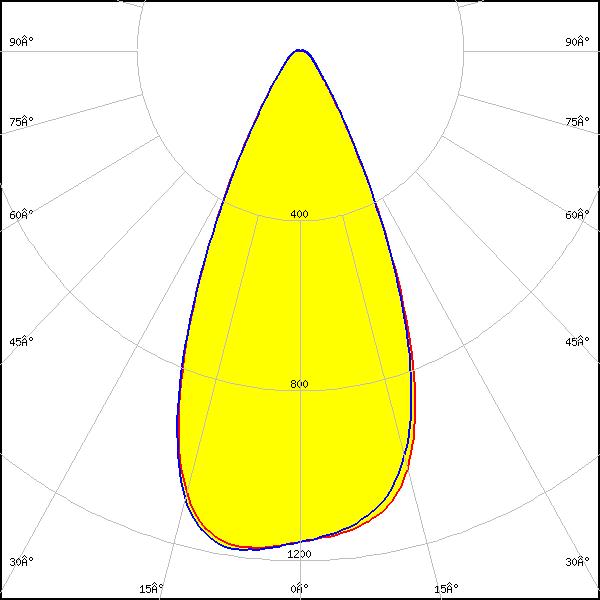

LED:

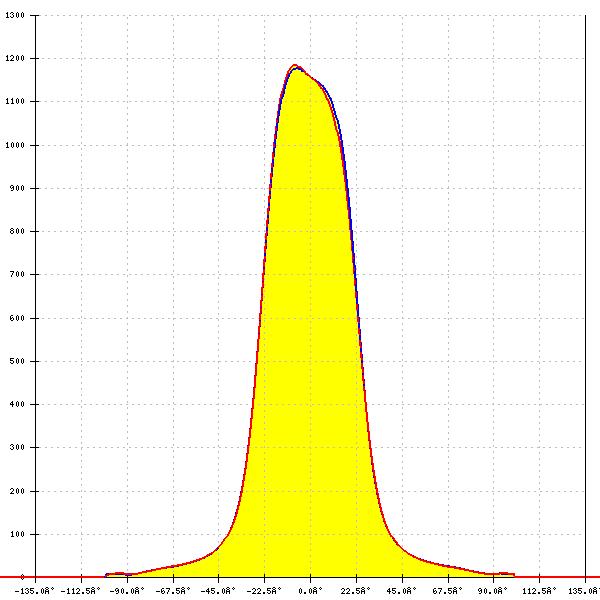

NVSW219F-V2
FWHM:
48°
FWTM:
76°
Peak intensity:
1.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

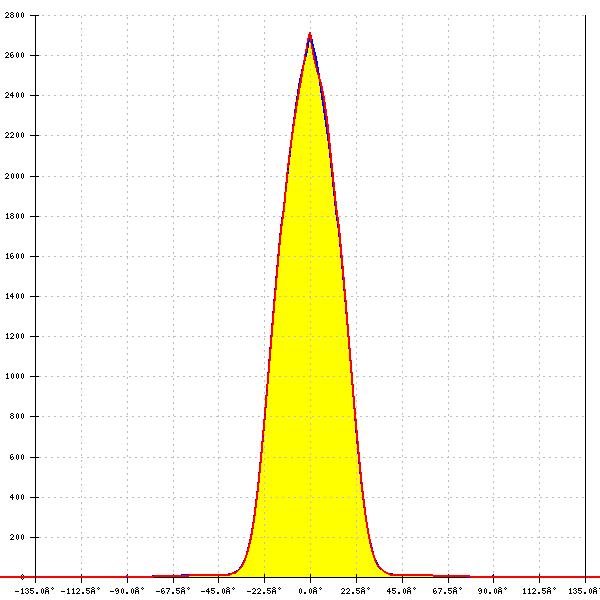

LED:

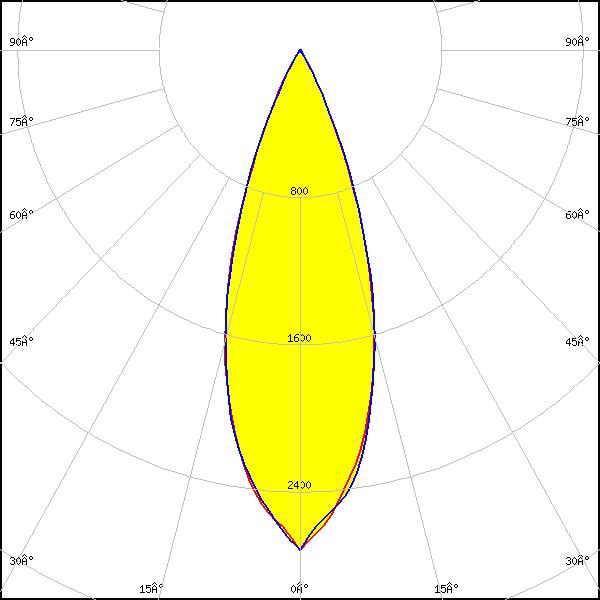

NVSxE21A
FWHM:
34°
FWTM:
56°
Peak intensity:
2.718 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

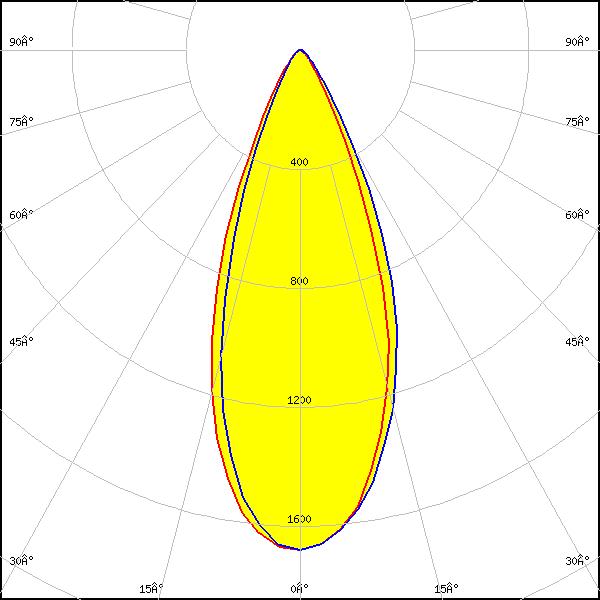

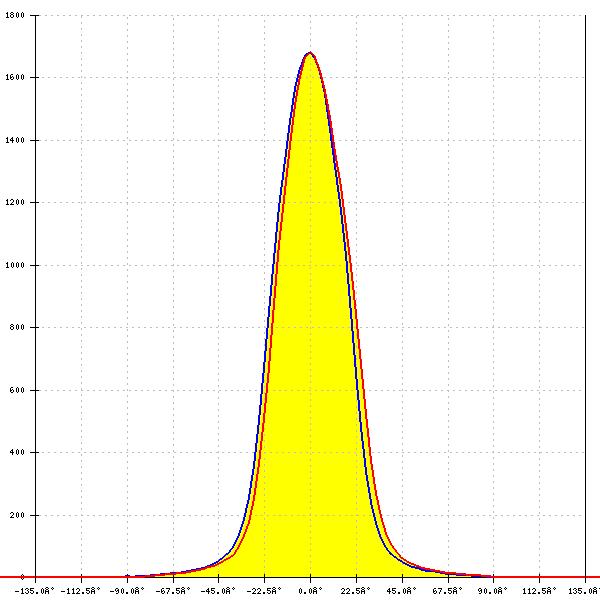

NVSxx19A
FWHM:
41°
FWTM:
67°
Peak intensity:
1.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
41°
FWTM:
68°
Peak intensity:
1.700 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Black
FWHM:
41°
FWTM:
55°
Peak intensity:
2.300 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

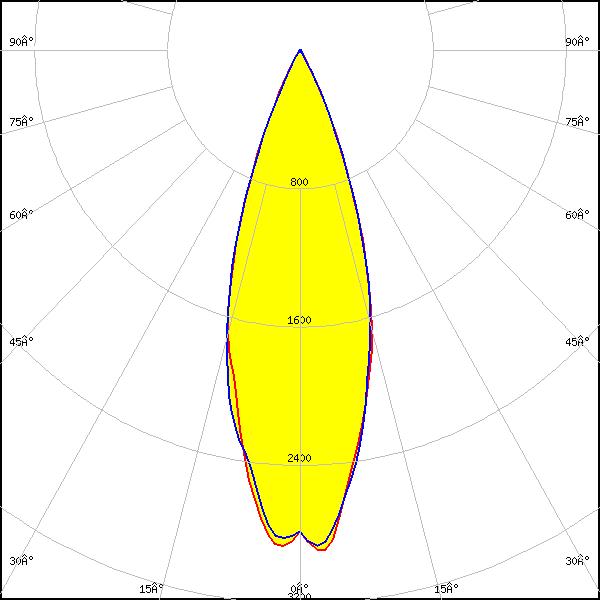

LED:

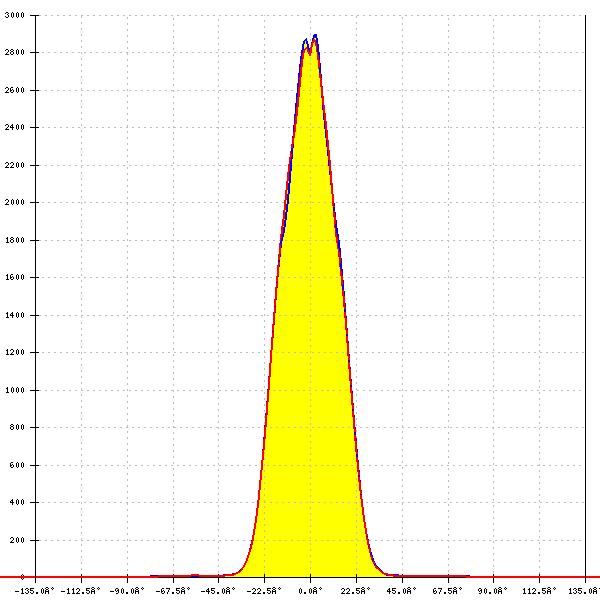

OSLON Black Flat (LUW HWQP)
FWHM:
34°
FWTM:
54°
Peak intensity:
2.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

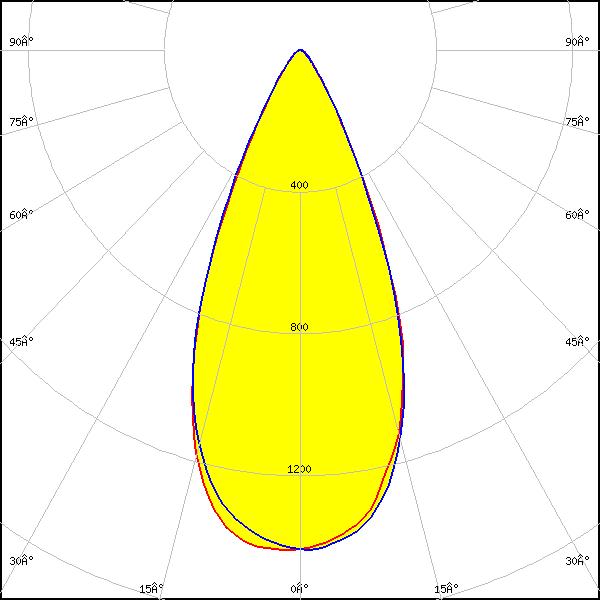

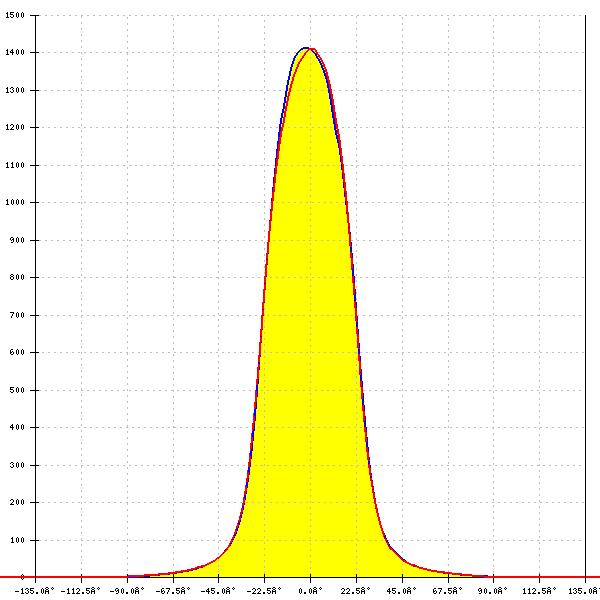

LED:
OSLON Square EC
FWHM:
46°
FWTM:
71°
Peak intensity:
1.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

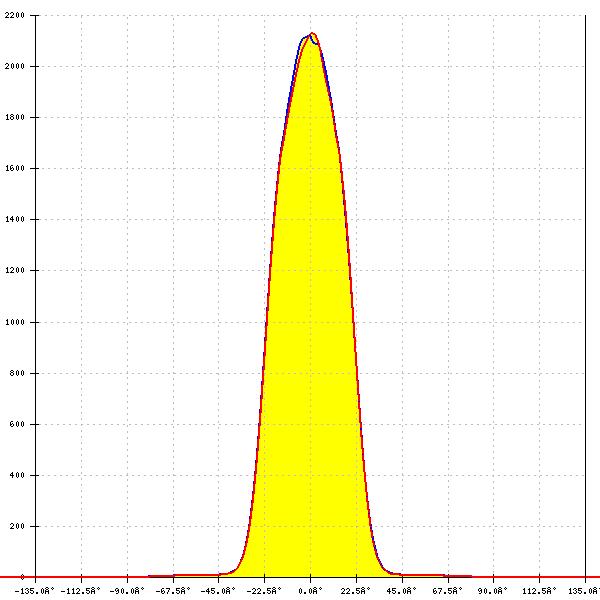

LED:

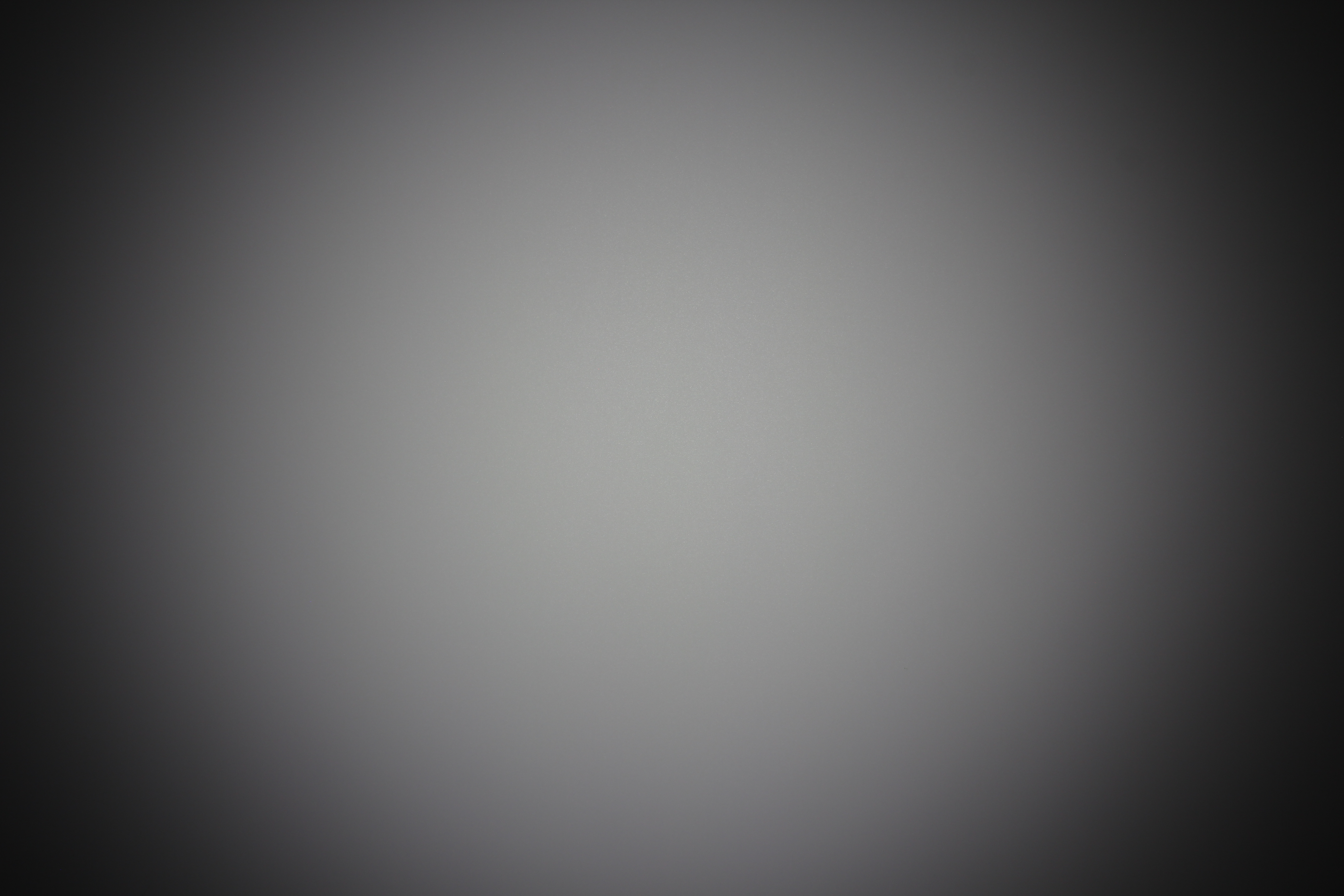

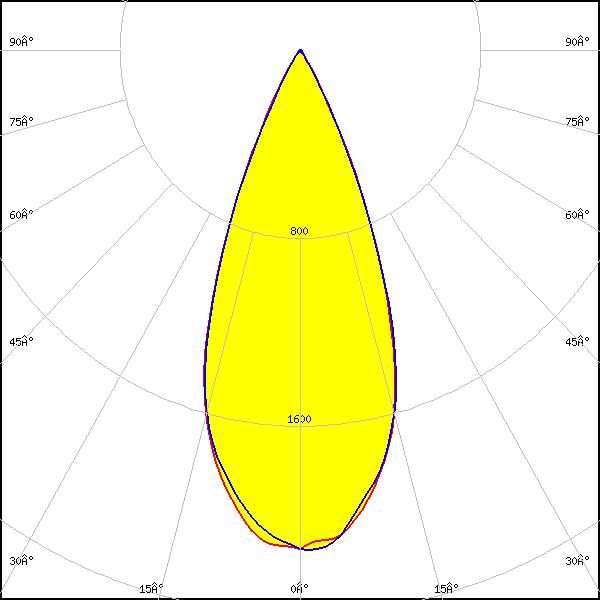

OSLON Square Flat
FWHM:
41°
FWTM:
59°
Peak intensity:
2.150 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4770S
FWHM:
27°
FWTM:
50°
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

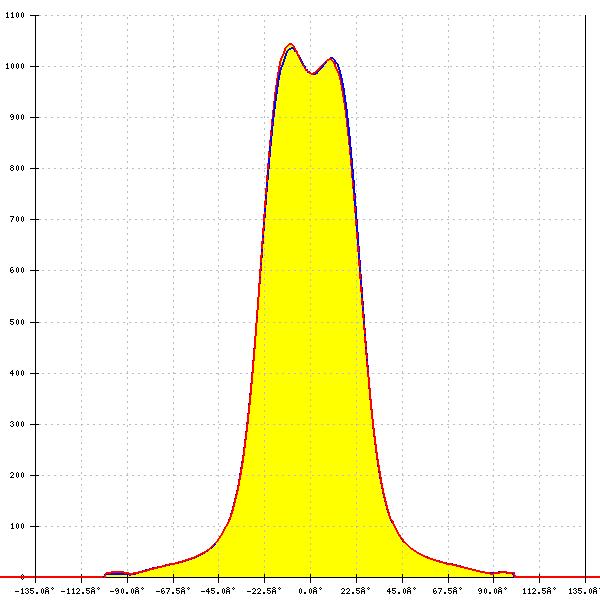

LED:

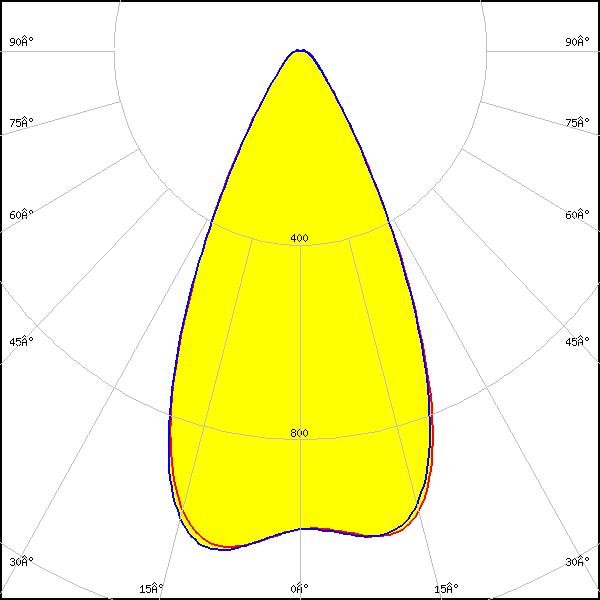

LH351D
FWHM:
52°
FWTM:
81°
Peak intensity:
1.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

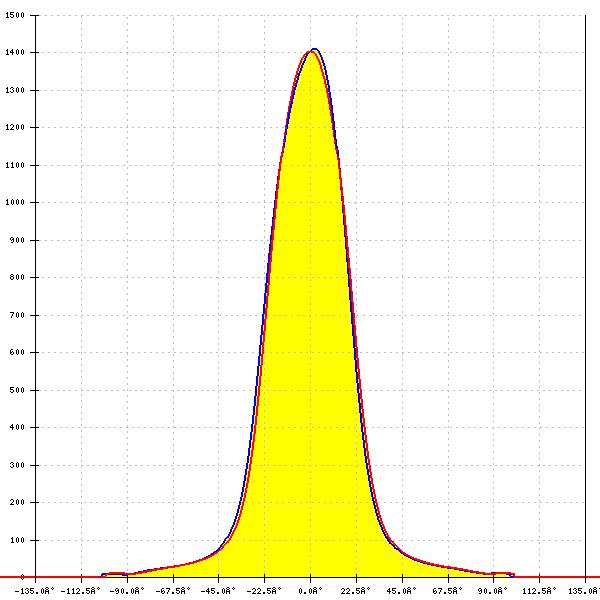

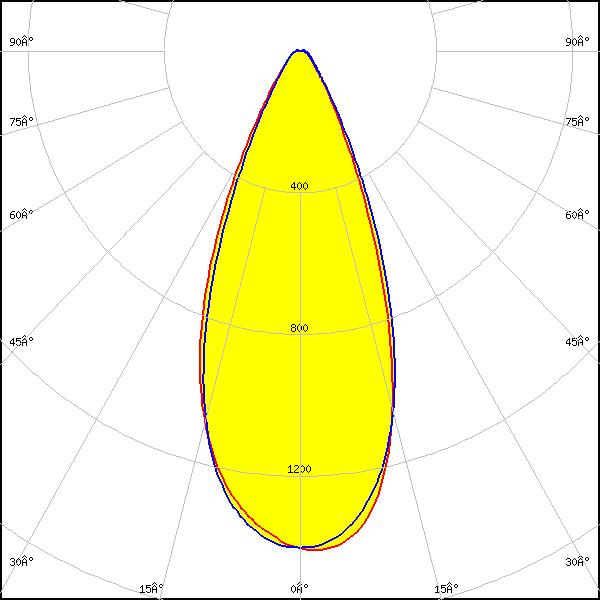

LED:
Z5M3
FWHM:
43°
FWTM:
72°
Peak intensity:
1.400 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

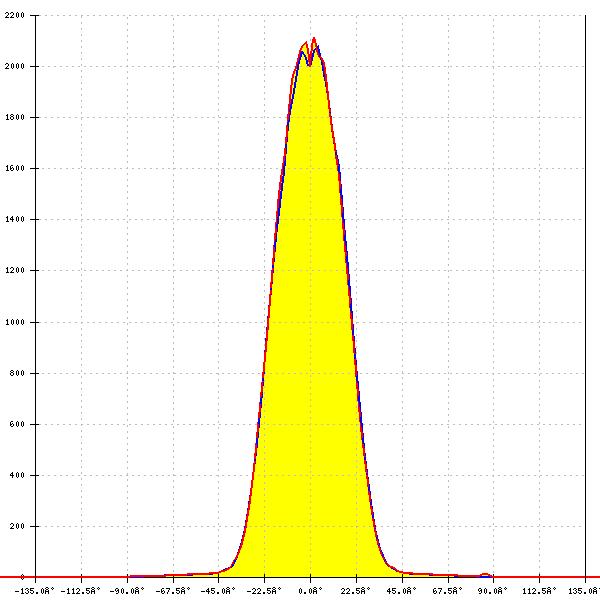

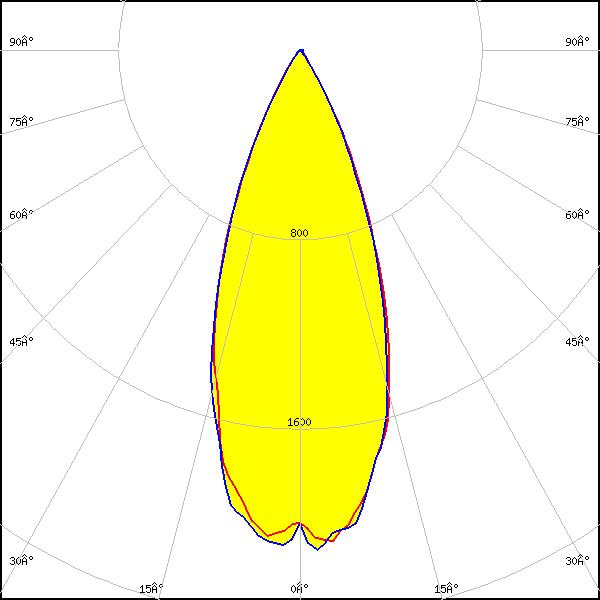

LED:
Z8Y22P
FWHM:
40°
FWTM:
62°
Peak intensity:
2.150 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
