    CA13636_G2-LAURA-R-XW-P

    Print

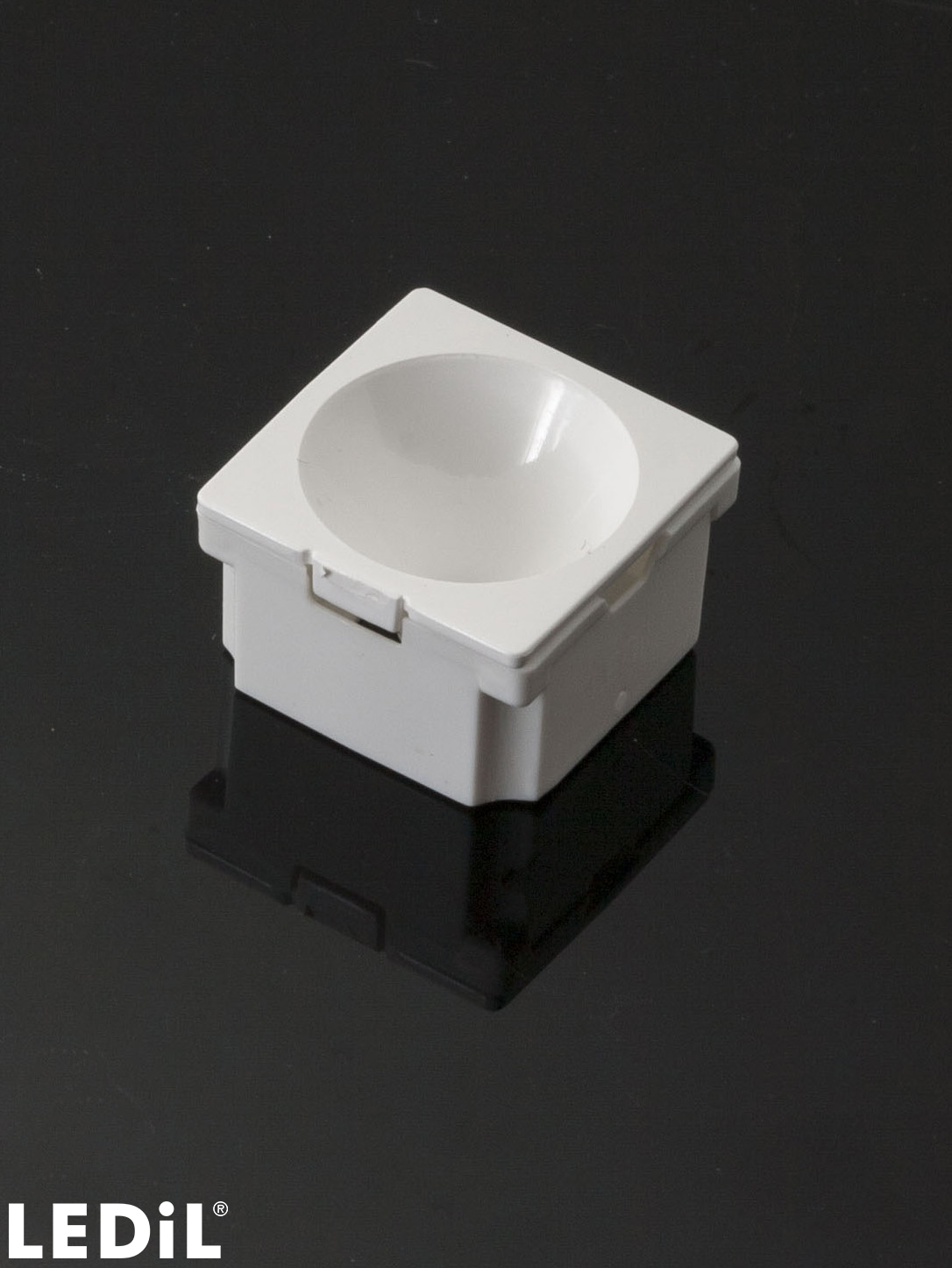

    Mini reflector with ~72° wide beam. Assembly with thinner white holder, installation tape and location pins.

    Specification
    • Dimensions:
      22 x  22 mm
    • Height:
      13.10 mm
    • Fastening:
      tape, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1440 pcs
    • Box size:
      451 x 254 x 152 mm
    • Box weight:
      3.4 kg
    • MPQ:
      180 pcs
    • MOQ:
      360 pcs
    • MOQ size:
      480 x 280 x 50 mm
    • MOQ weight:
      1.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA13636_G2-LAURA-R-XW-P

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - SECOND GENERATION OF ROSE, LAURA AND LEILA OPTICS

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

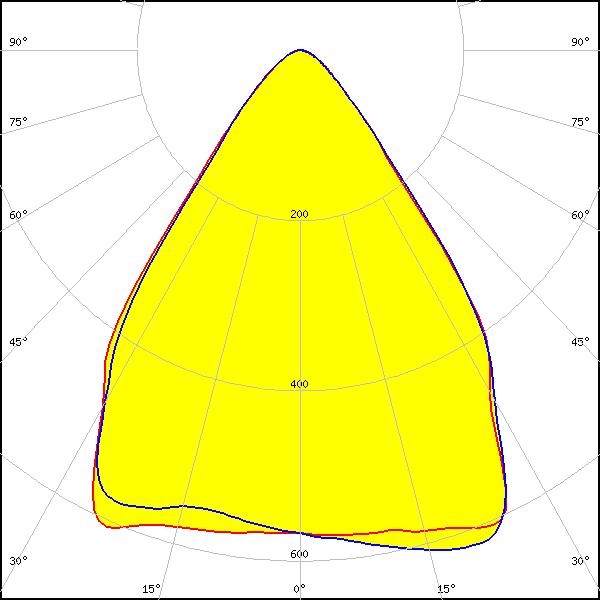

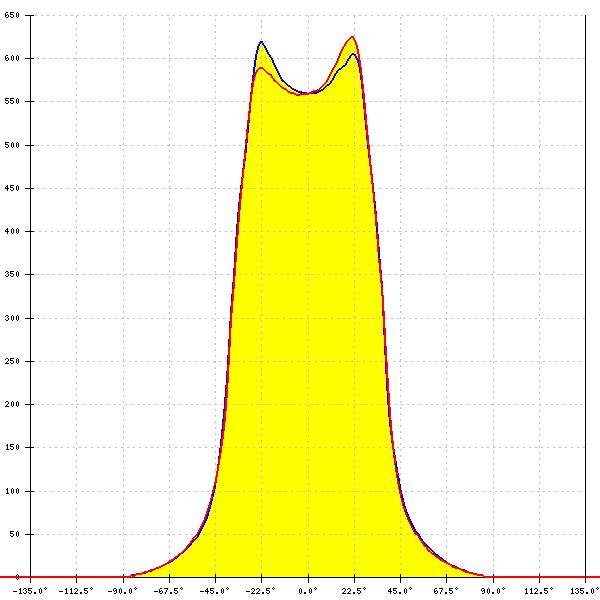

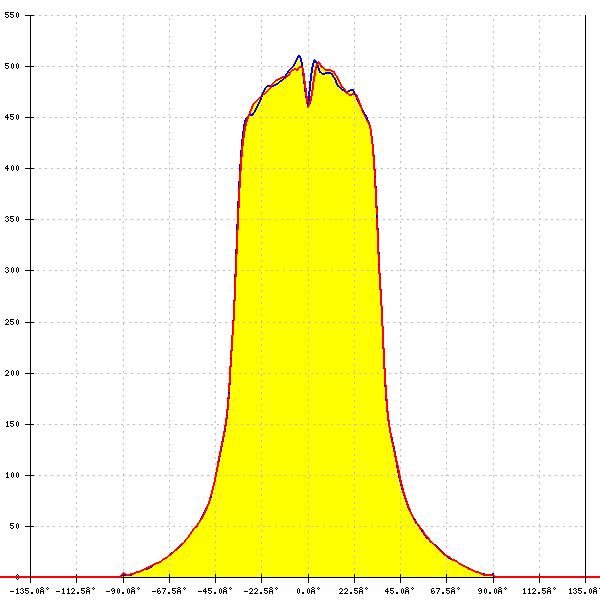

    Optical results

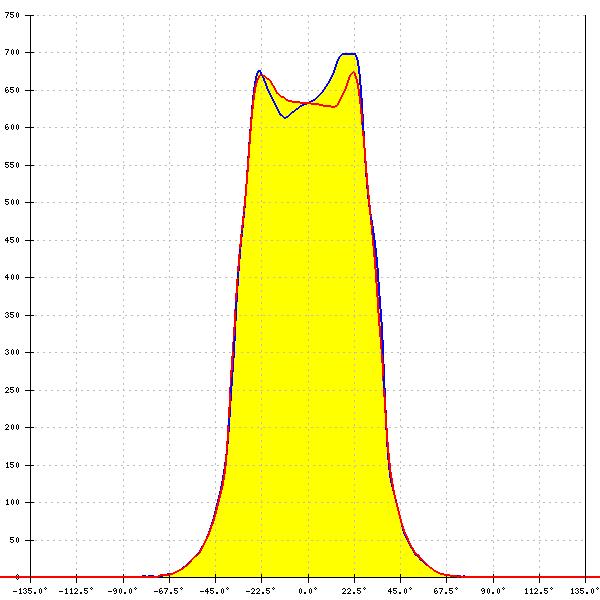

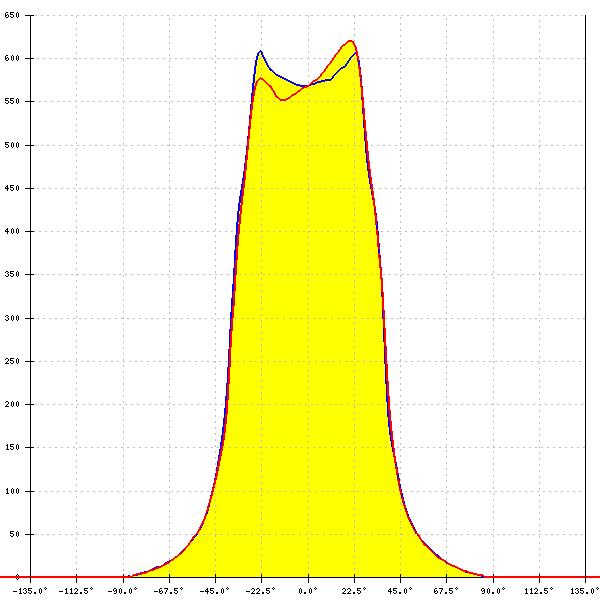

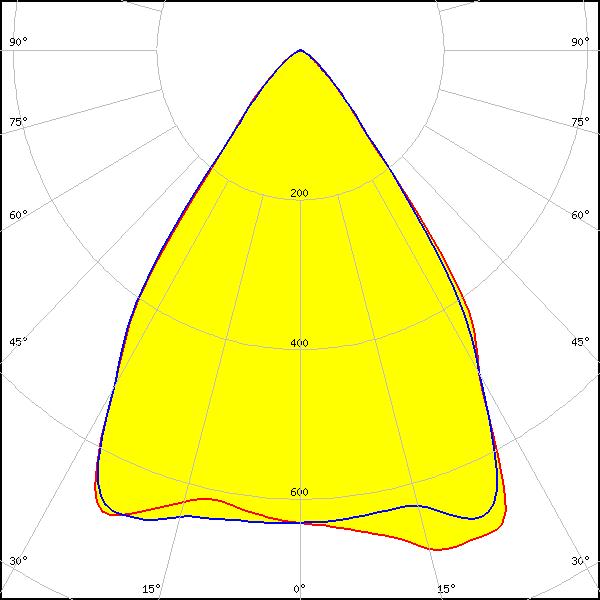

    LED: XP-E
    FWHM: 71°
    FWTM: 93°
    Peak intensity: 0.700 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E2
    FWHM: 74°
    FWTM: 103°
    Peak intensity: 0.630 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: 72°
    FWTM: 100°
    Peak intensity: 0.590 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

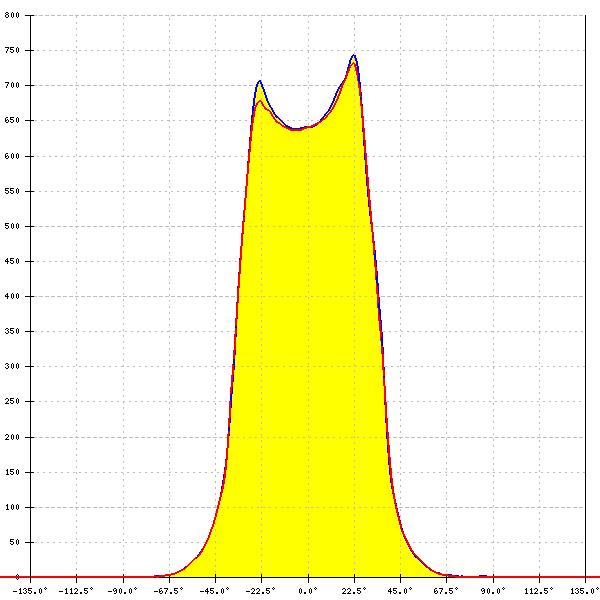

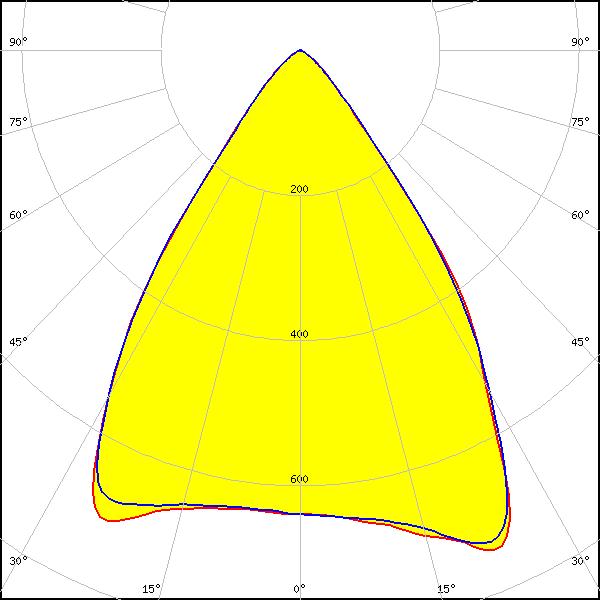

    LED: XP-G2
    FWHM: 71°
    FWTM: 92°
    Peak intensity: 0.760 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

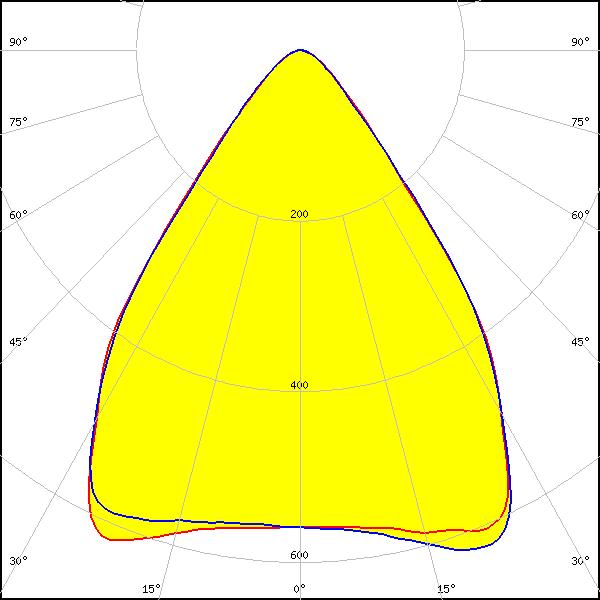

    LED: XT-E
    FWHM: 74°
    FWTM: 101°
    Peak intensity: 0.640 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

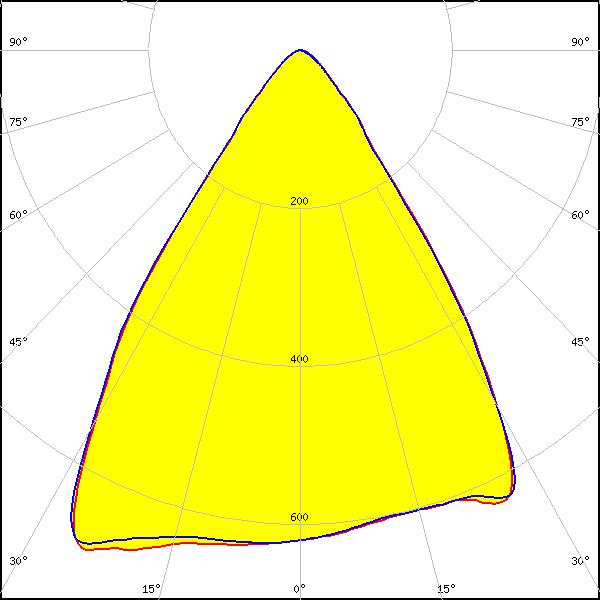

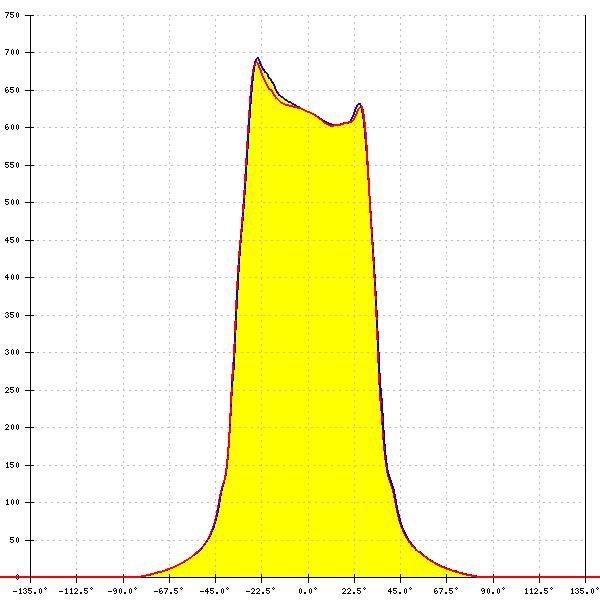

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 70°
    FWTM: 93°
    Peak intensity: 0.710 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

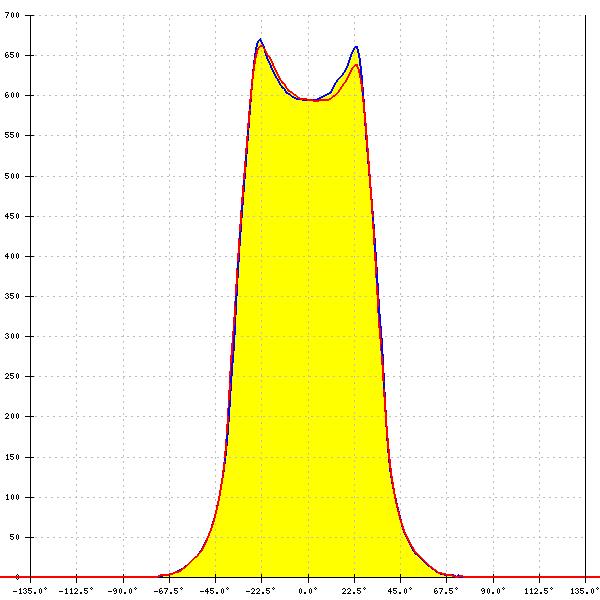

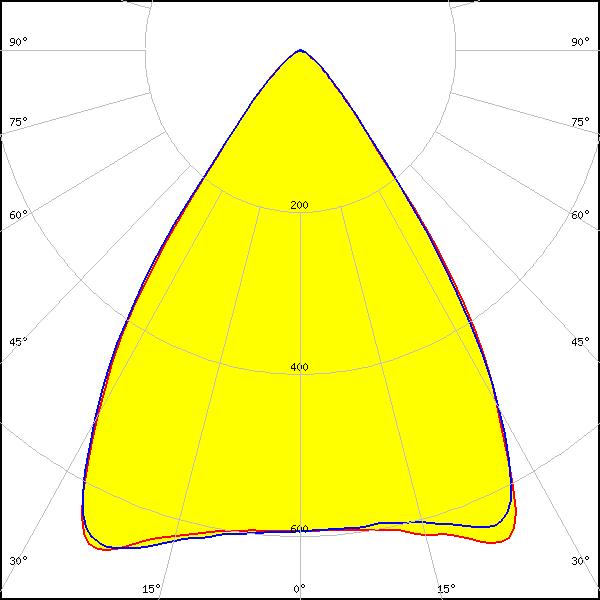

    LED: LUXEON TX
    FWHM: 71°
    FWTM: 93°
    Peak intensity: 0.680 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

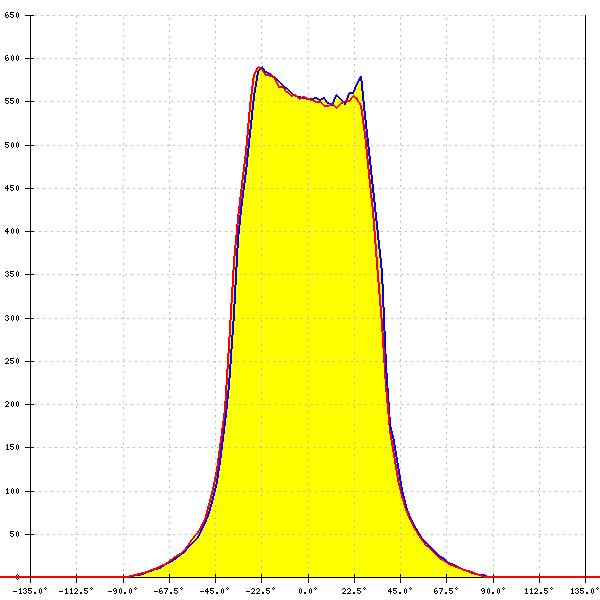

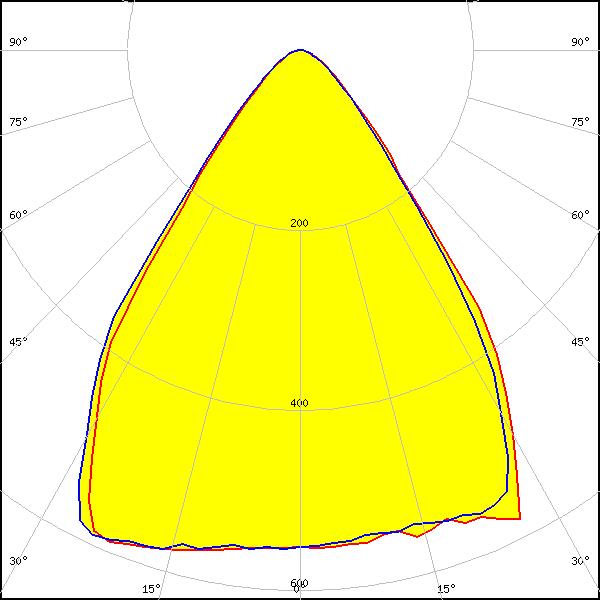

    LED: NCSxx19A
    FWHM: 74°
    FWTM: 104°
    Peak intensity: 0.580 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

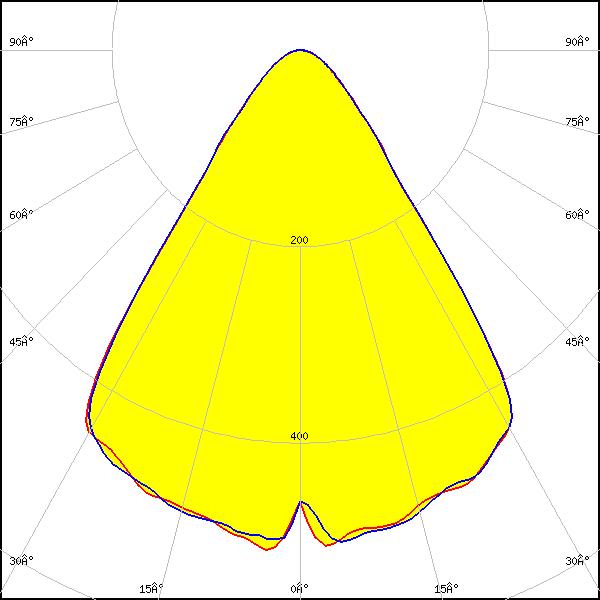

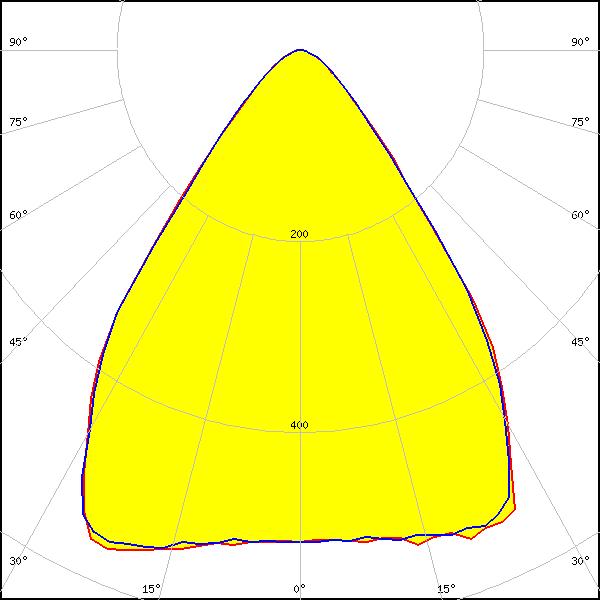

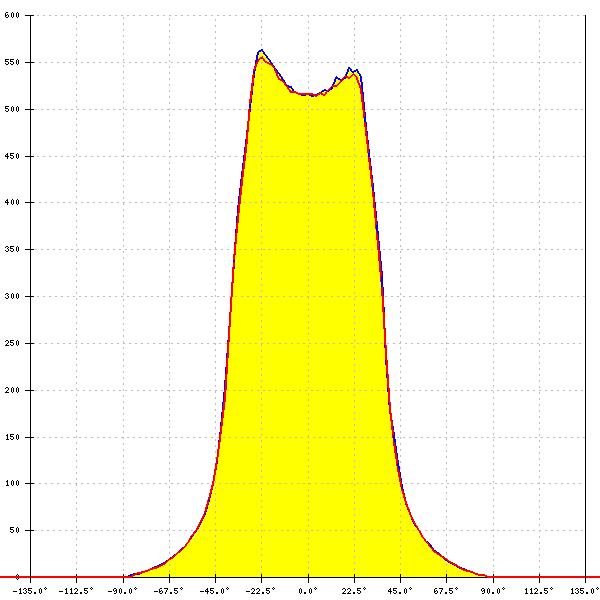

    LED: NVSxx19A
    FWHM: 75°
    FWTM: 106°
    Peak intensity: 0.560 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 70°
    FWTM: 98°
    Peak intensity: 0.700 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

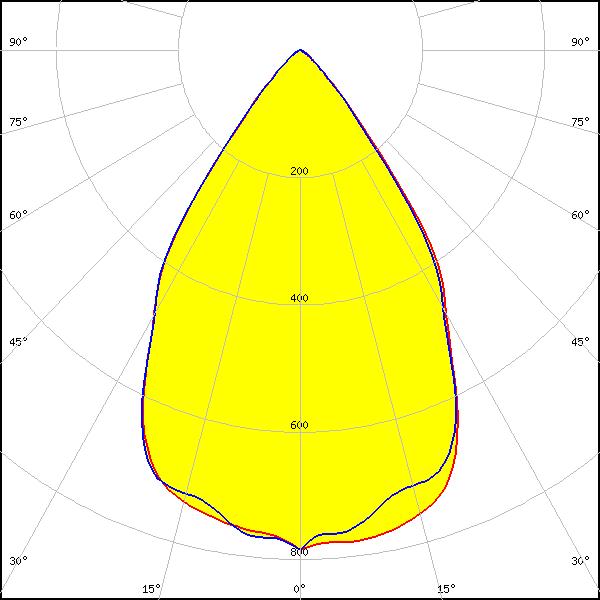

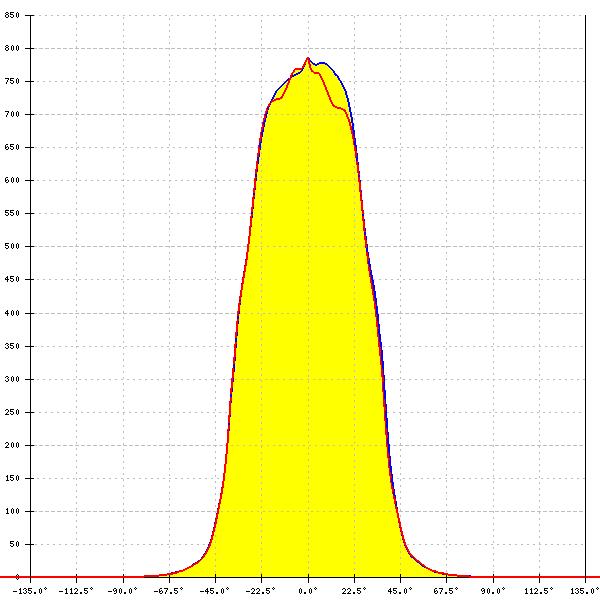

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 68°
    FWTM: 90°
    Peak intensity: 0.792 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

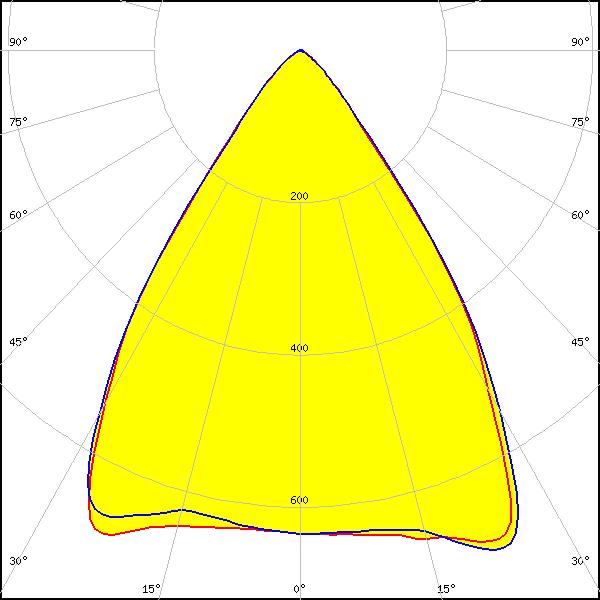

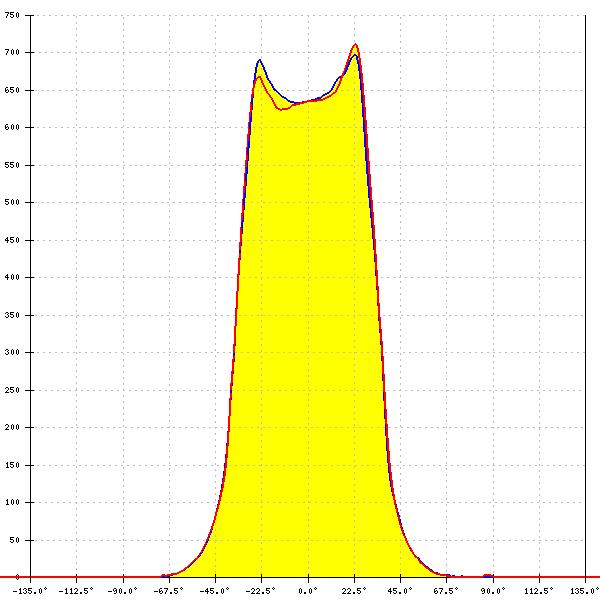

    LED: OSLON Square EC
    FWHM: 70°
    FWTM: 92°
    Peak intensity: 0.720 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

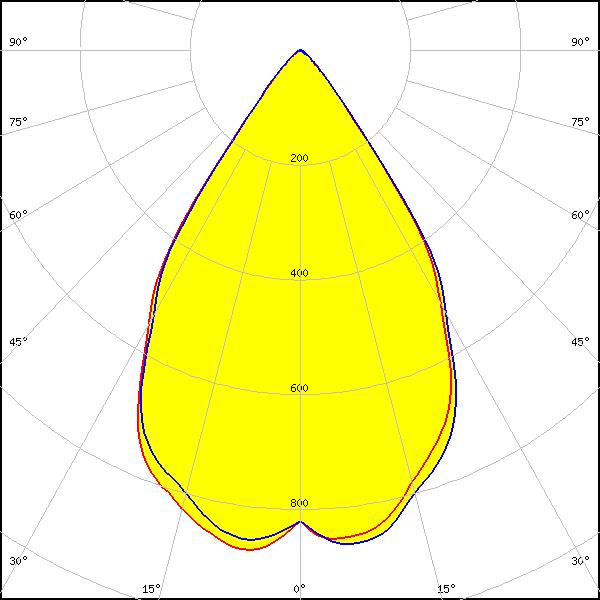

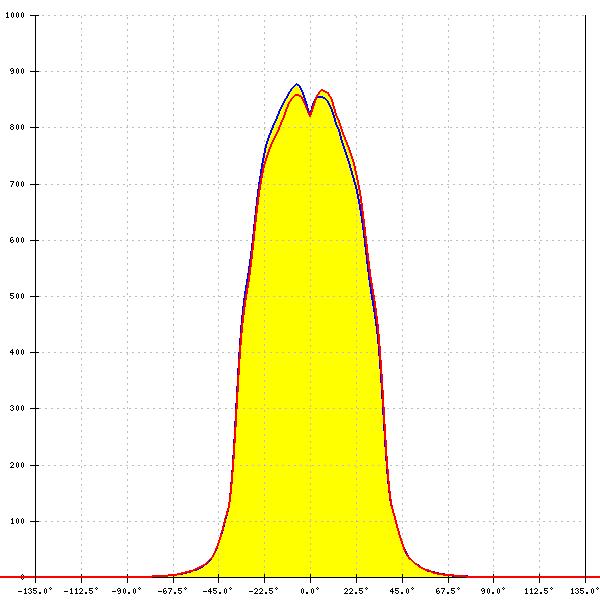

    LED: OSLON SSL 80
    FWHM: 68°
    FWTM: 85°
    Peak intensity: 0.877 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

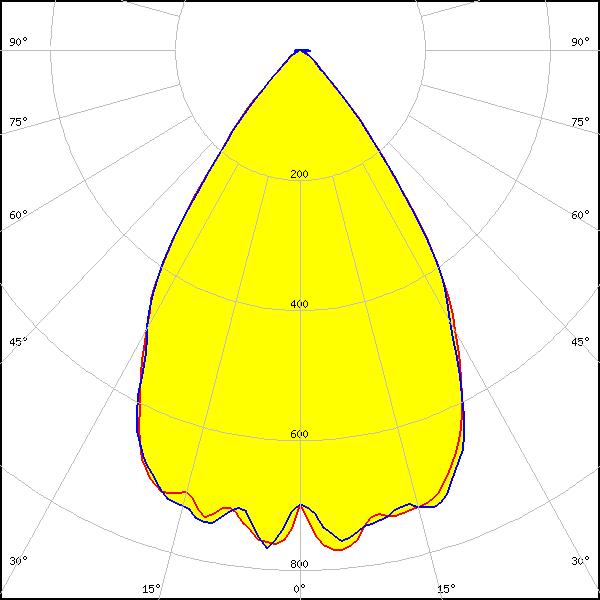

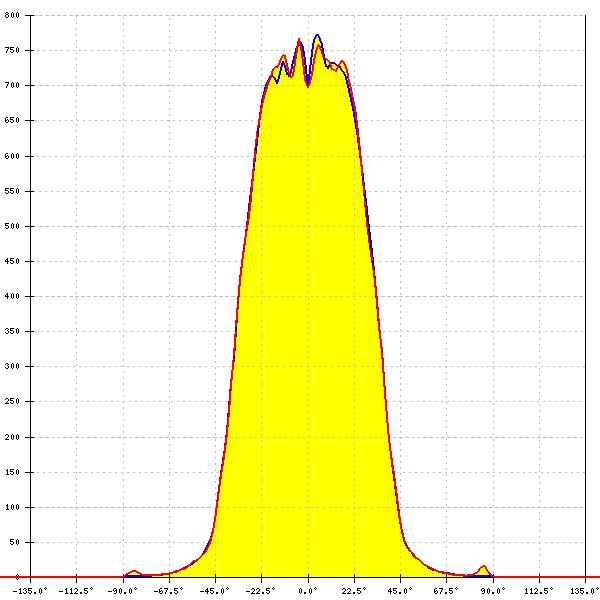

    LED: Z8Y22P
    FWHM: 68°
    FWTM: 90°
    Peak intensity: 0.780 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
