    CA13638_G2-LAURA-O-WAS-P

    Print

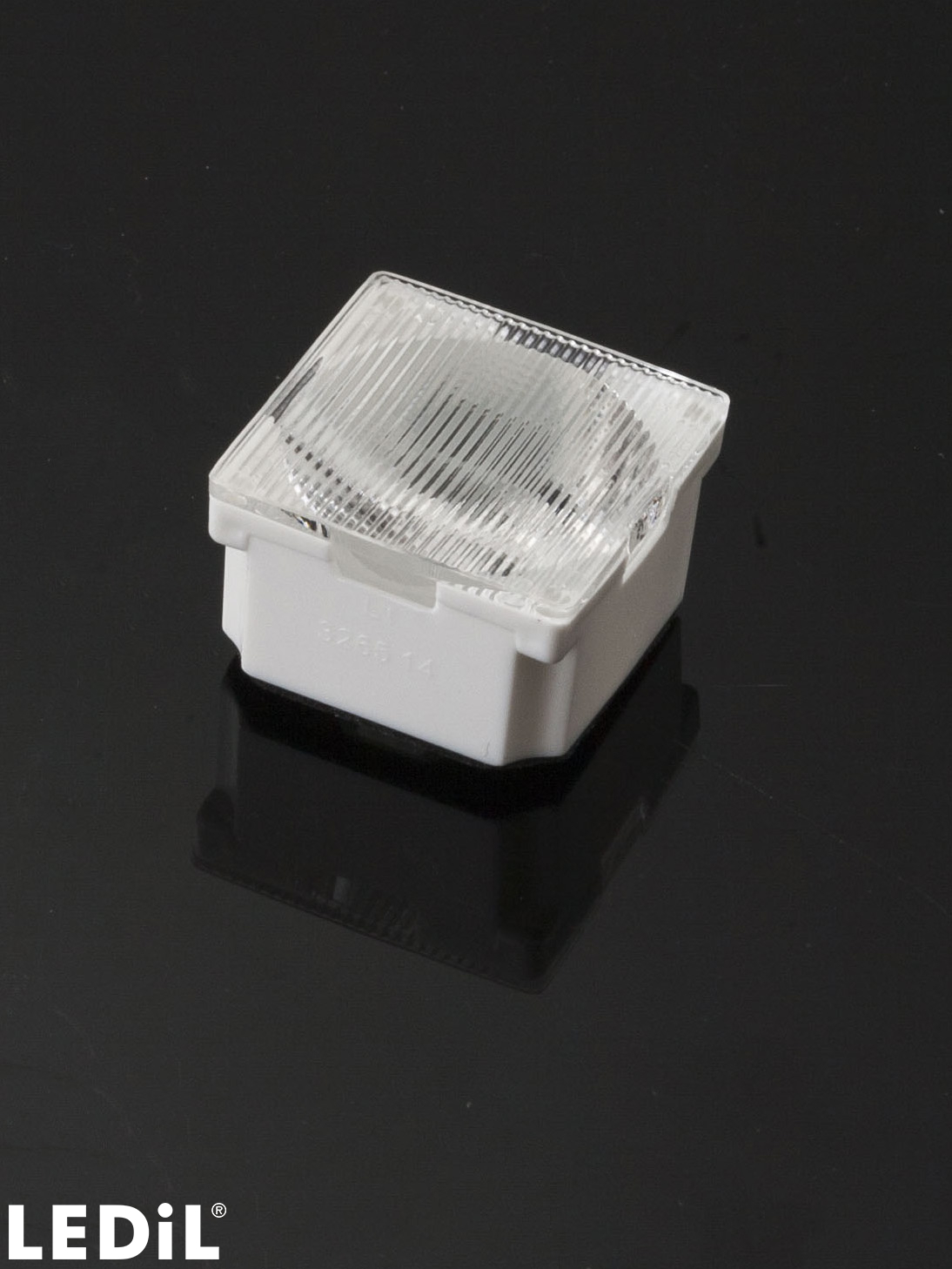

    Asymmetric oval beam for wall-washing. Assembly with thinner white holder, installation tape and location pins.

    Specification
    • Dimensions:
      22 x  22 mm
    • Height:
      13.10 mm
    • Fastening:
      tape, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1440 pcs
    • Box size:
      451 x 254 x 152 mm
    • Box weight:
      5.9 kg
    • MPQ:
      180 pcs
    • MOQ:
      360 pcs
    • MOQ size:
      480 x 280 x 60 mm
    • MOQ weight:
      2.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA13638_G2-LAURA-O-WAS-P

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - SECOND GENERATION OF ROSE, LAURA AND LEILA OPTICS

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

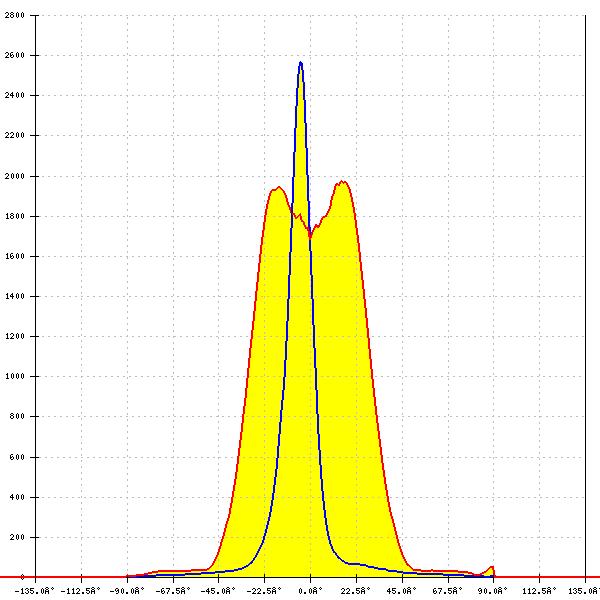

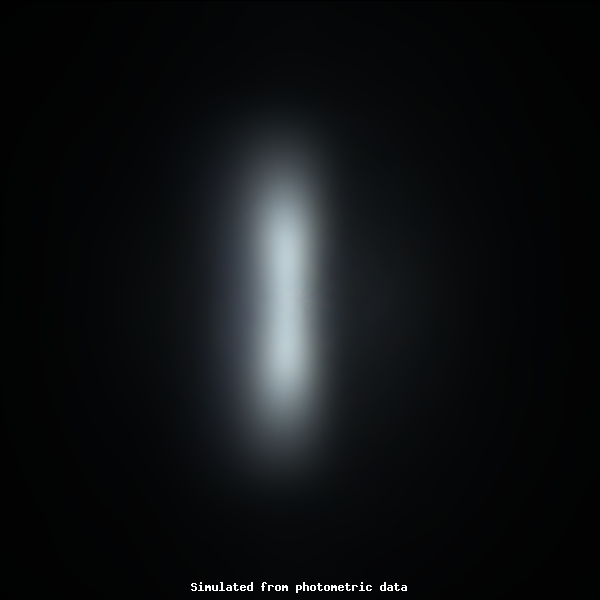

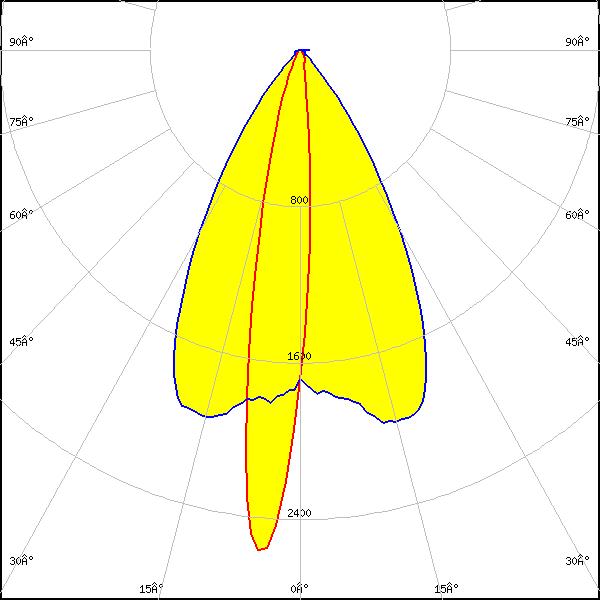

    Optical results

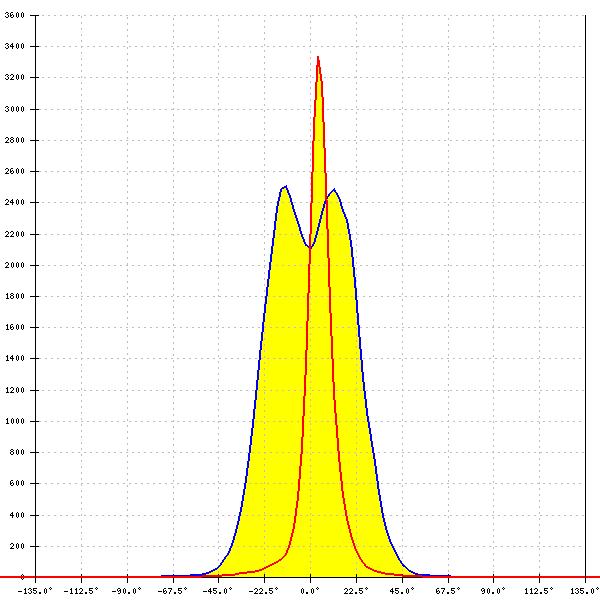

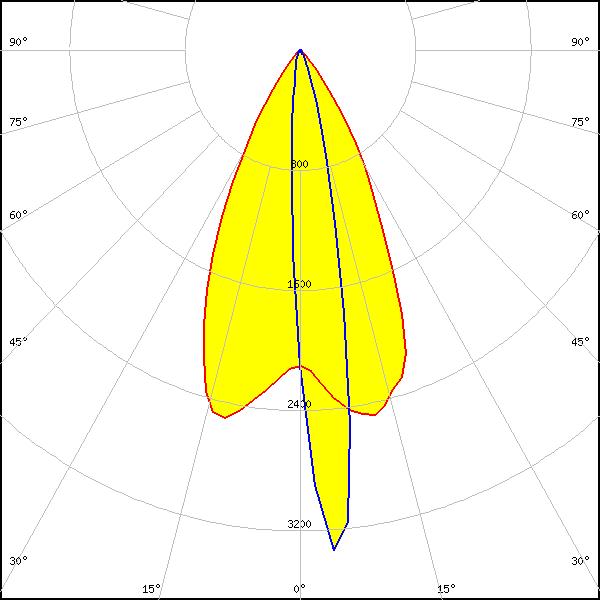

    LED: XB-D
    FWHM: asymmetric
    Peak intensity: 4.000 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

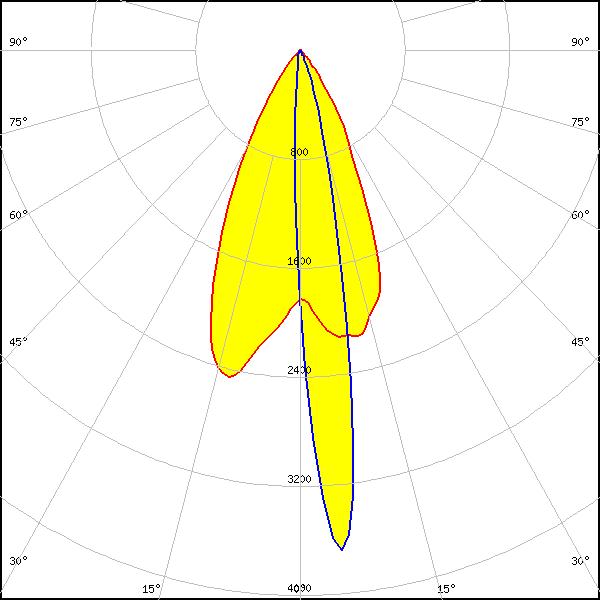

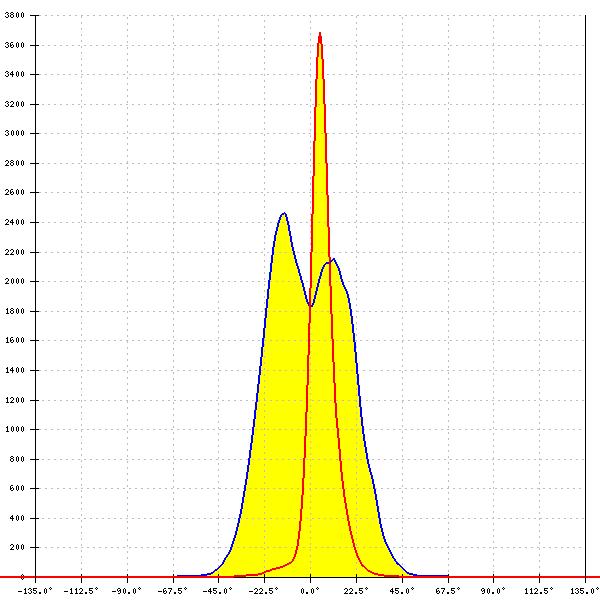

    LED: XP-E2
    FWHM: asymmetric
    Peak intensity: 4.800 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: asymmetric
    Peak intensity: 2.600 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

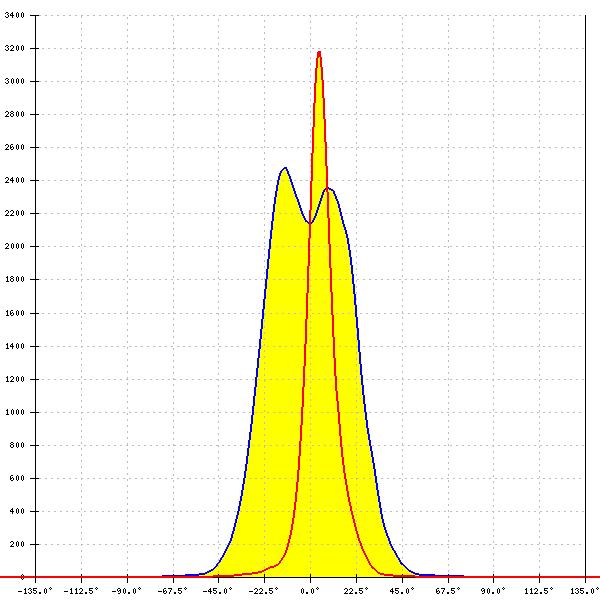

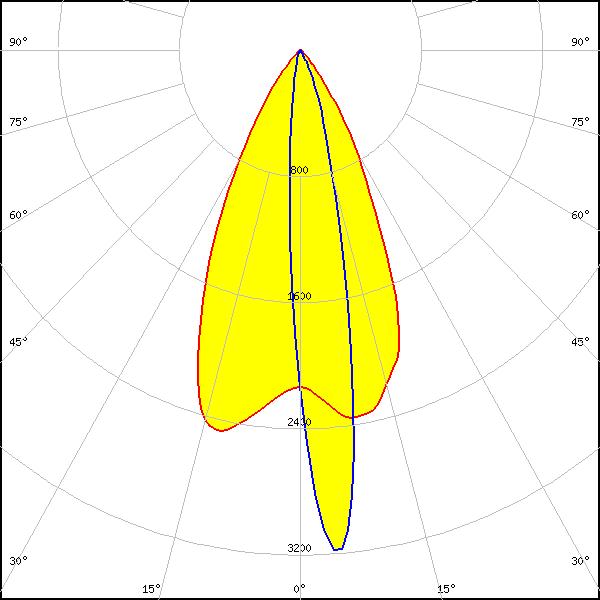

    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 3.700 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

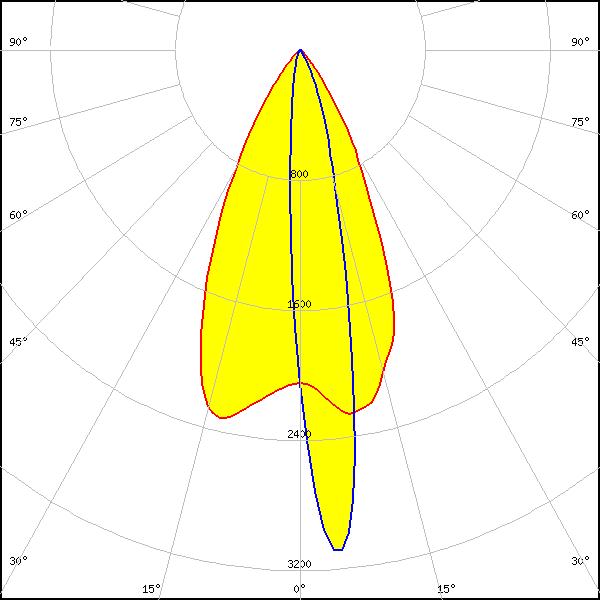

    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 3.400 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

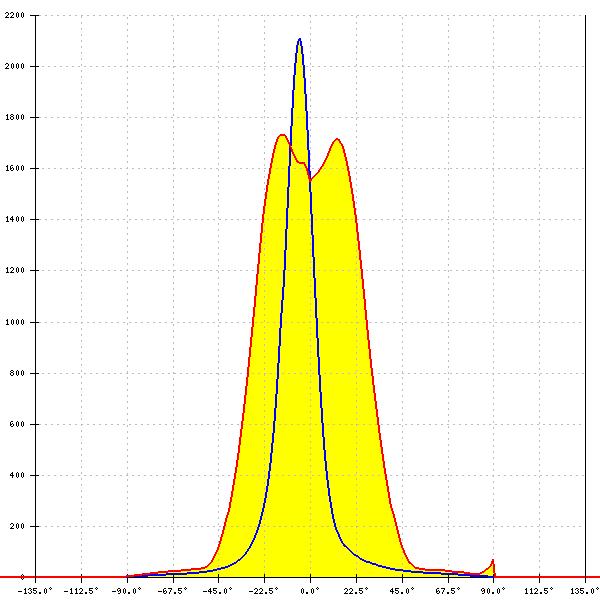

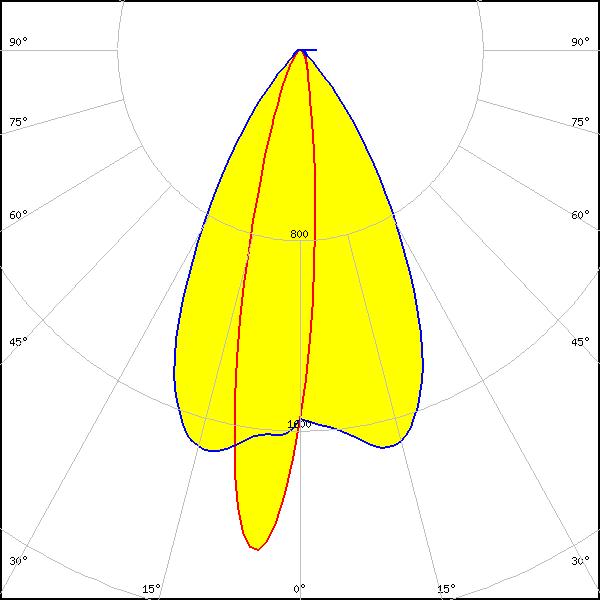

    LED: LUXEON 3535L
    FWHM: asymmetric
    Peak intensity: 2.300 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

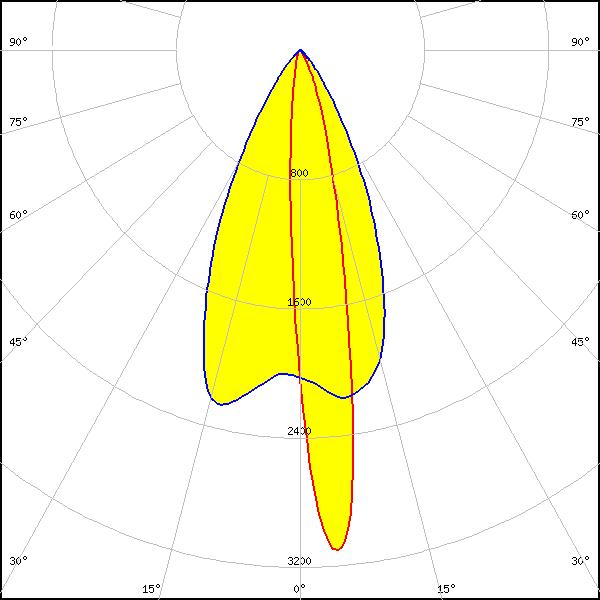

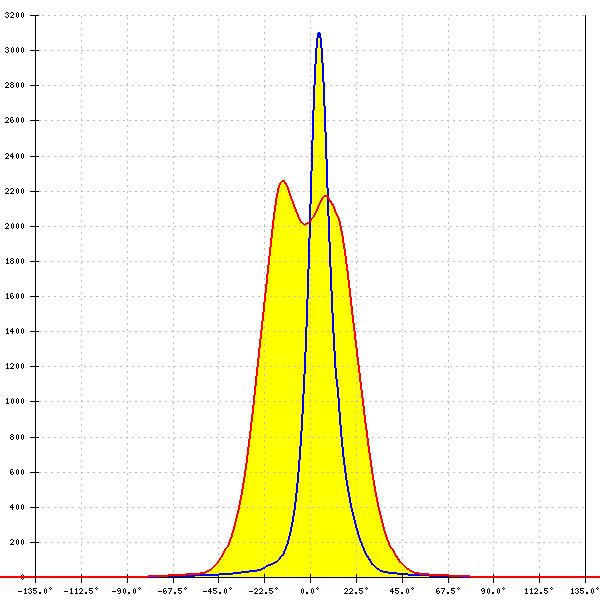

    LED: LUXEON A
    FWHM: asymmetric
    Peak intensity: 3.500 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

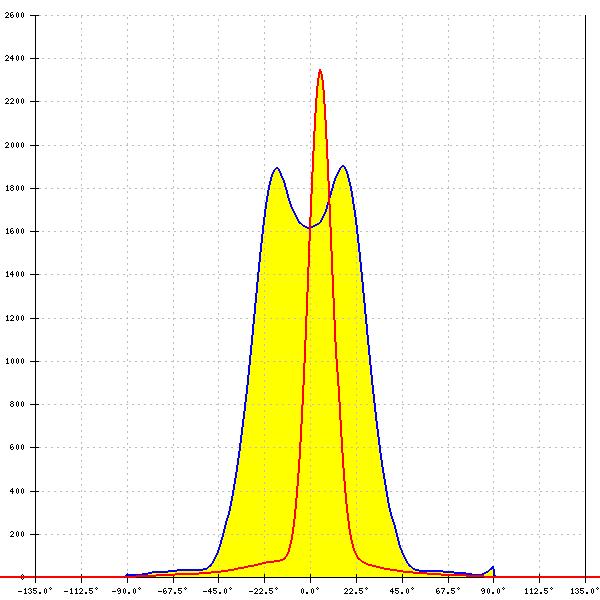

    LED: LUXEON C
    FWHM: asymmetric
    Peak intensity: 2.674 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: Green

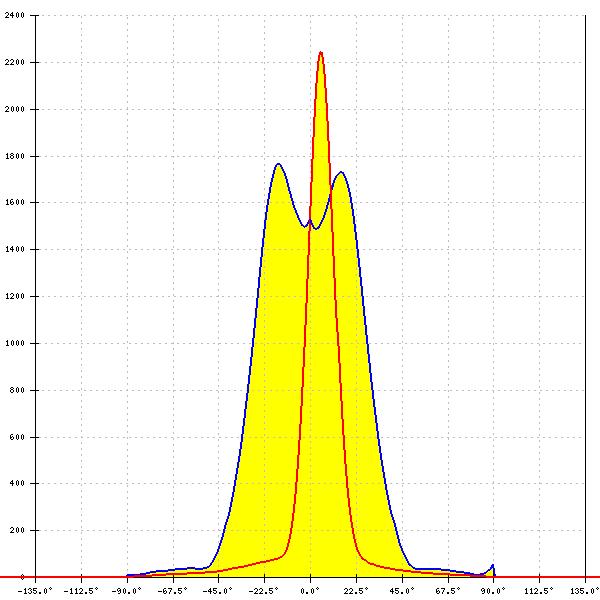

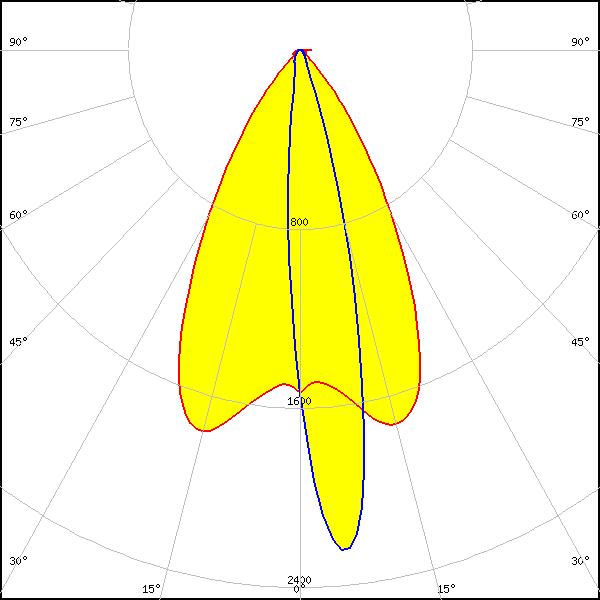

    LED: LUXEON C
    FWHM: asymmetric
    Peak intensity: 2.583 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: Red
    LED: LUXEON C
    FWHM: asymmetric
    Peak intensity: 2.631 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: Royal Blue

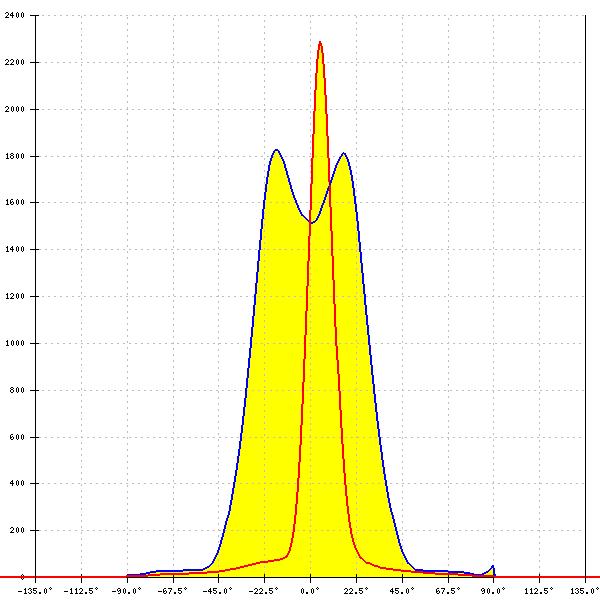

    LED: LUXEON C
    FWHM: asymmetric
    Peak intensity: 2.617 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

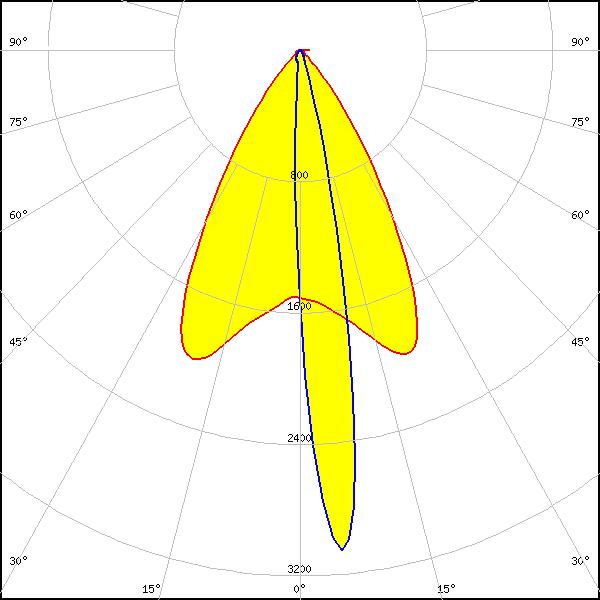

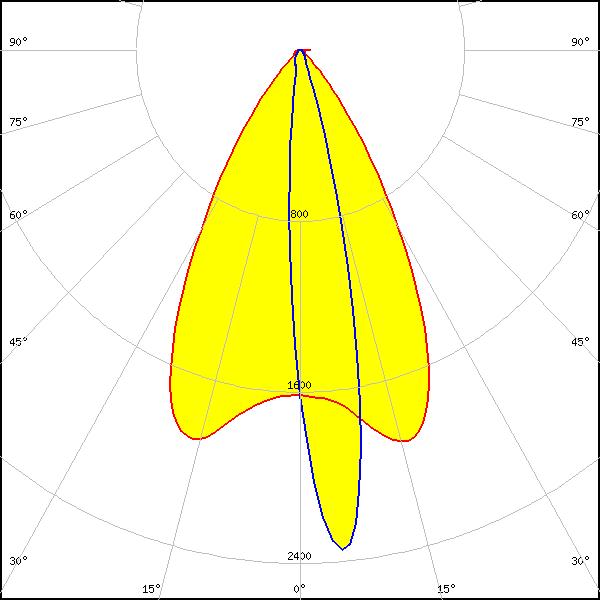

    LED: LUXEON CZ
    FWHM: asymmetric
    Peak intensity: 3.312 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Green

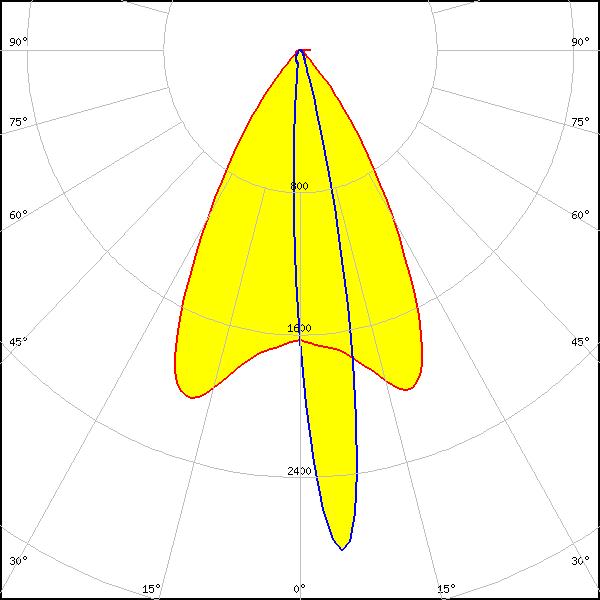

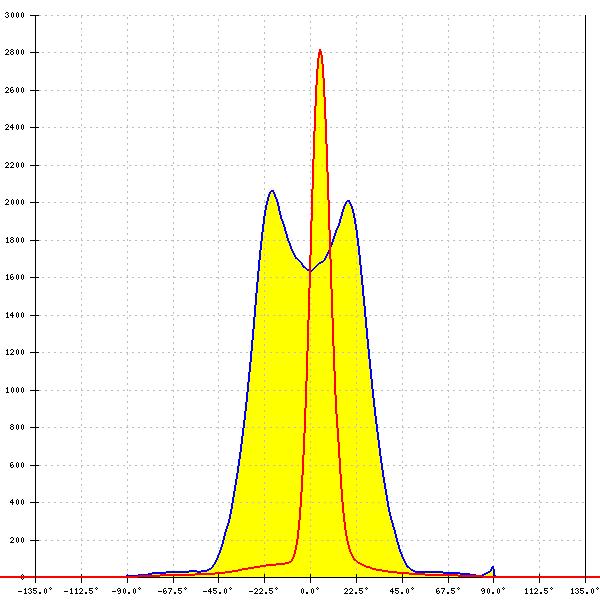

    LED: LUXEON CZ
    FWHM: asymmetric
    Peak intensity: 3.253 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Red

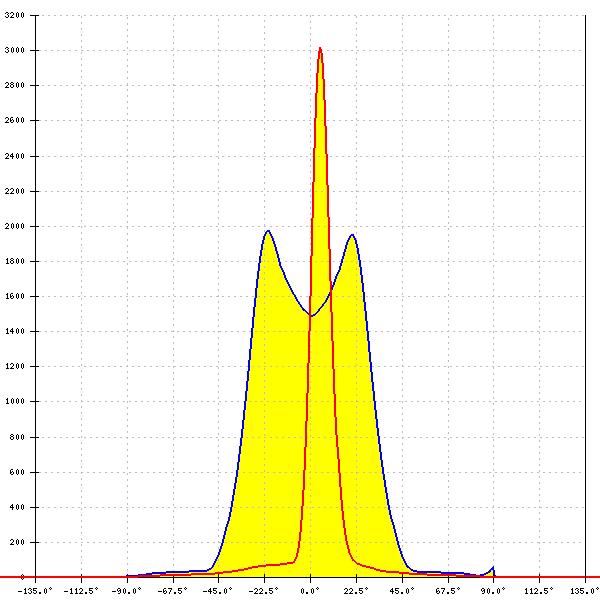

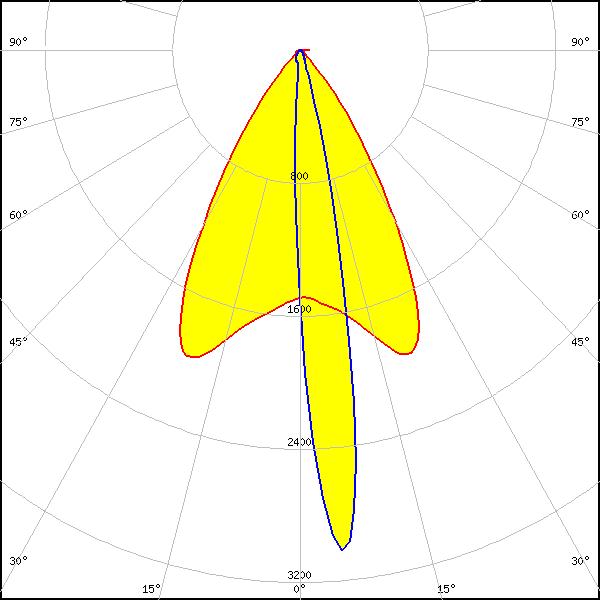

    LED: LUXEON CZ
    FWHM: asymmetric
    Peak intensity: 3.258 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Royal Blue

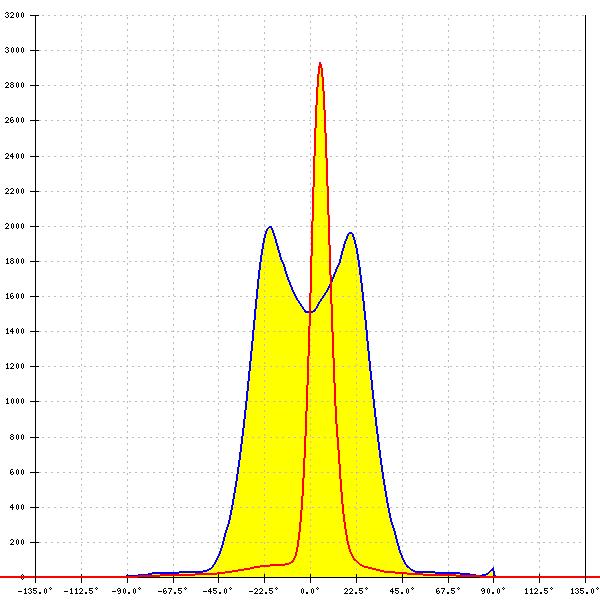

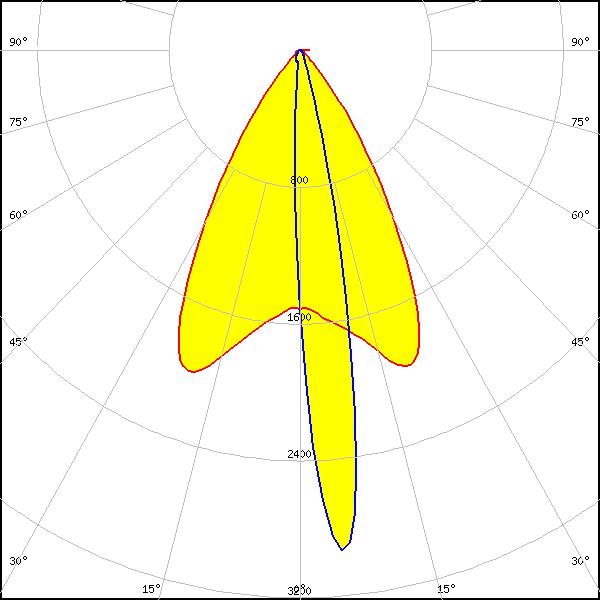

    LED: LUXEON CZ
    FWHM: asymmetric
    Peak intensity: 3.268 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

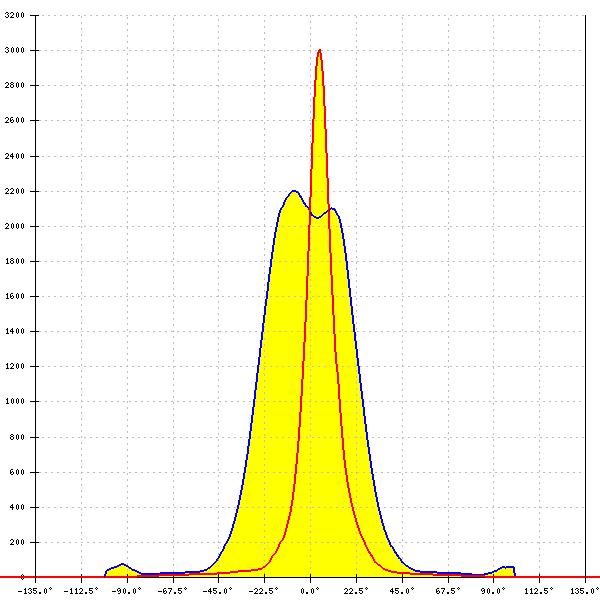

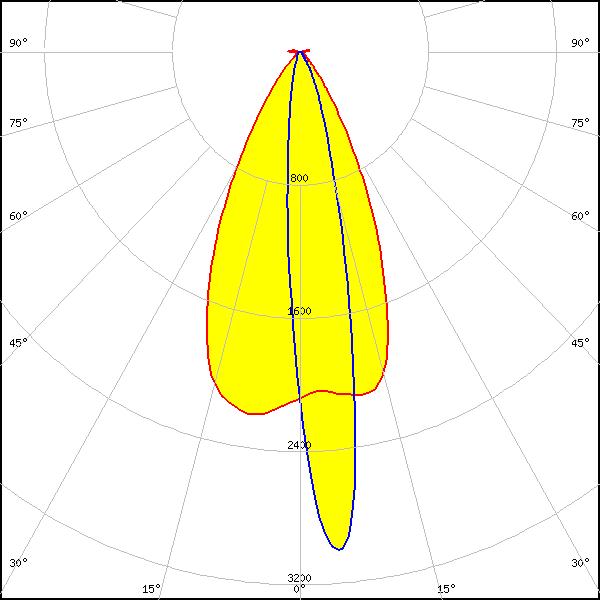

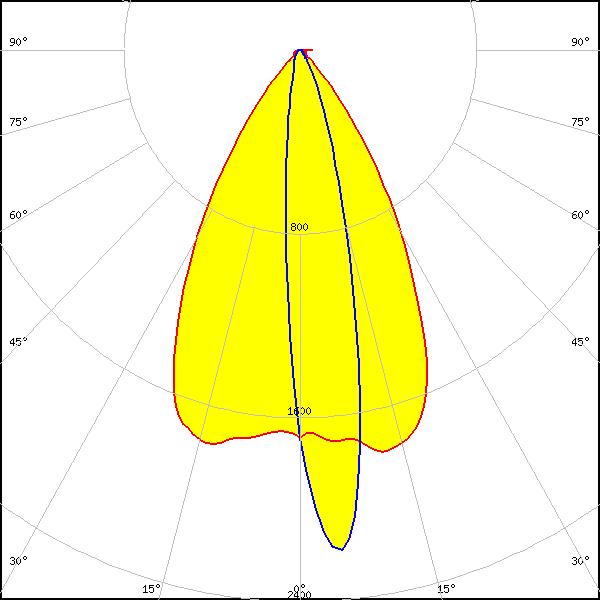

    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 3.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 2.367 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

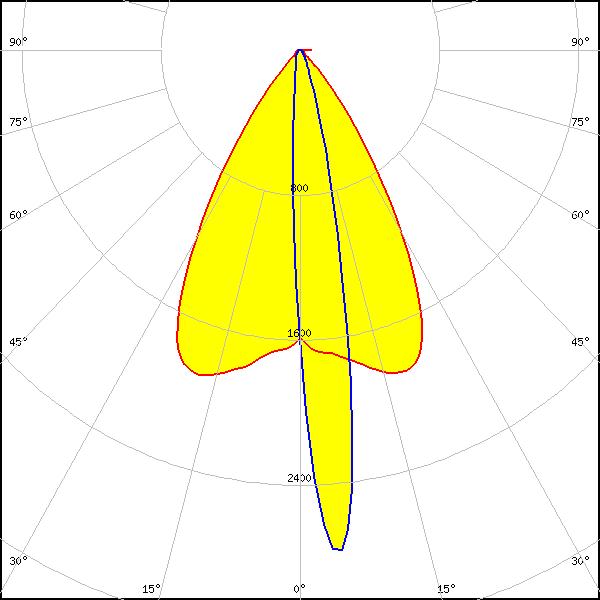

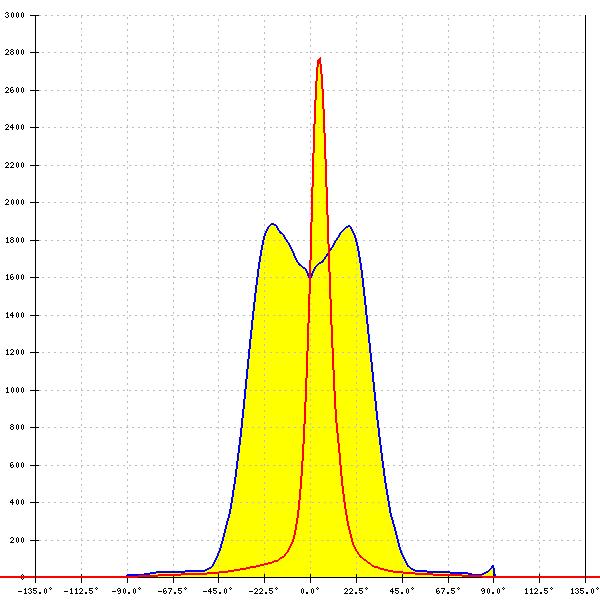

    LED: OSCONIQ P 3030
    FWHM: asymmetric
    Peak intensity: 2.933 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Blue

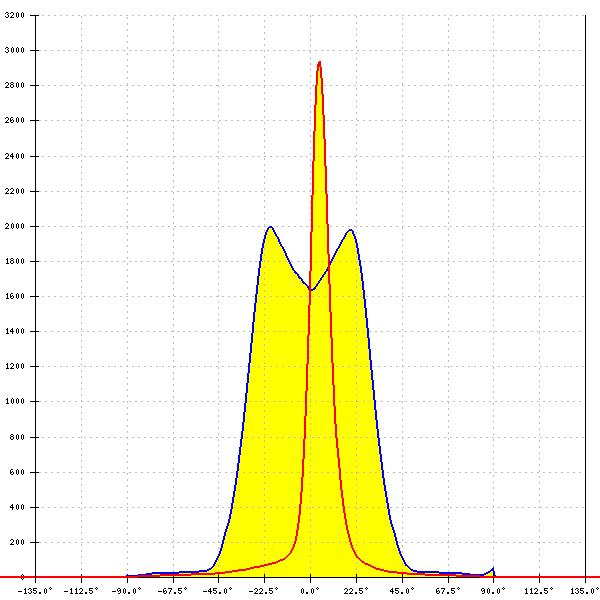

    LED: OSCONIQ P 3030
    FWHM: asymmetric
    Peak intensity: 3.086 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Red
    LED: OSCONIQ P 3030
    FWHM: asymmetric
    Peak intensity: 3.106 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: True Green

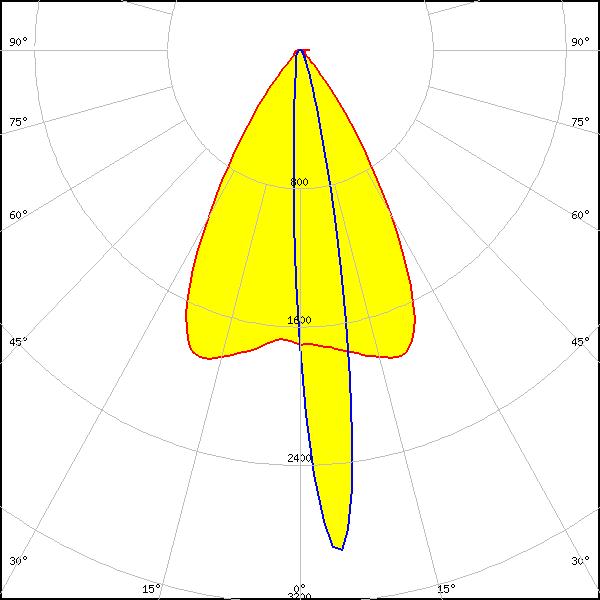

    LED: OSCONIQ P 3030
    FWHM: asymmetric
    Peak intensity: 3.050 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

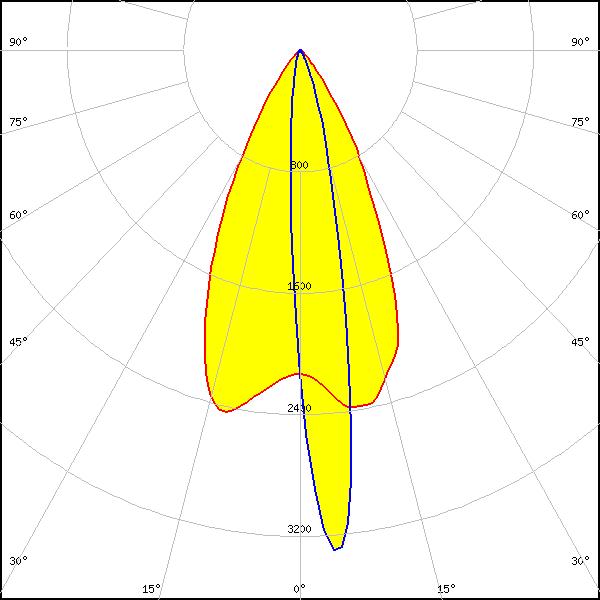

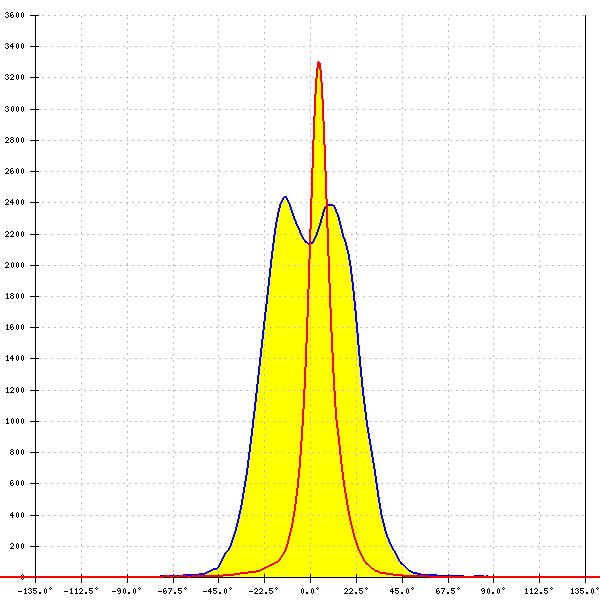

    LED: OSLON Square EC
    FWHM: asymmetric
    Peak intensity: 3.800 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

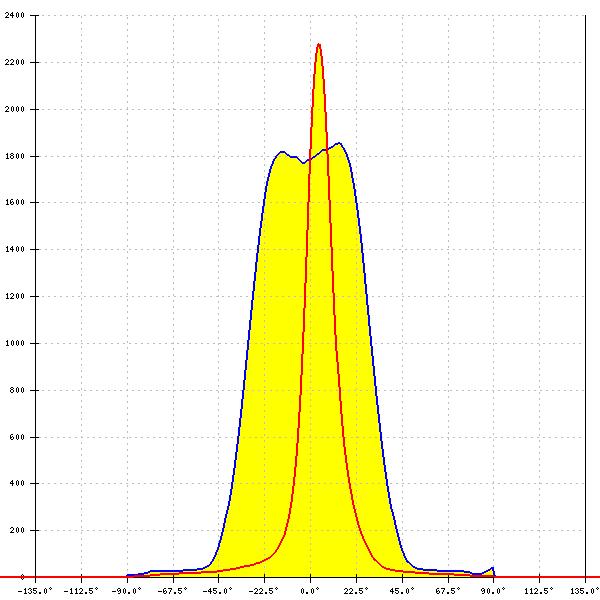

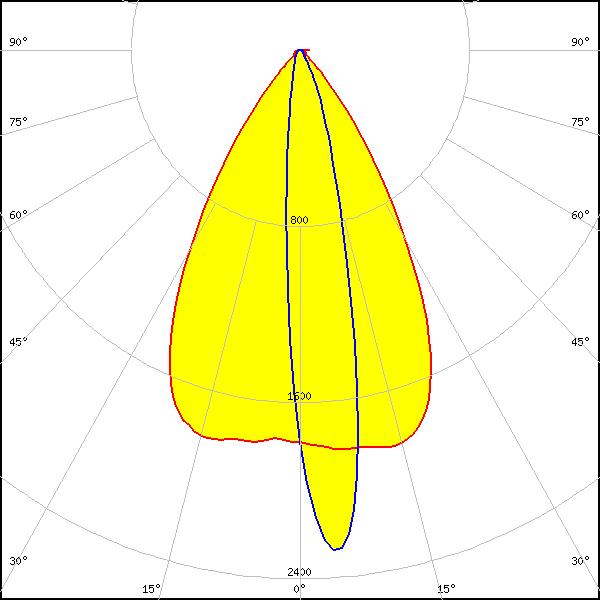

    LED: Z5M4
    FWHM: asymmetric
    Peak intensity: 2.403 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
