    CA13639_G2-LAURA-SS-WAS-P

    Print

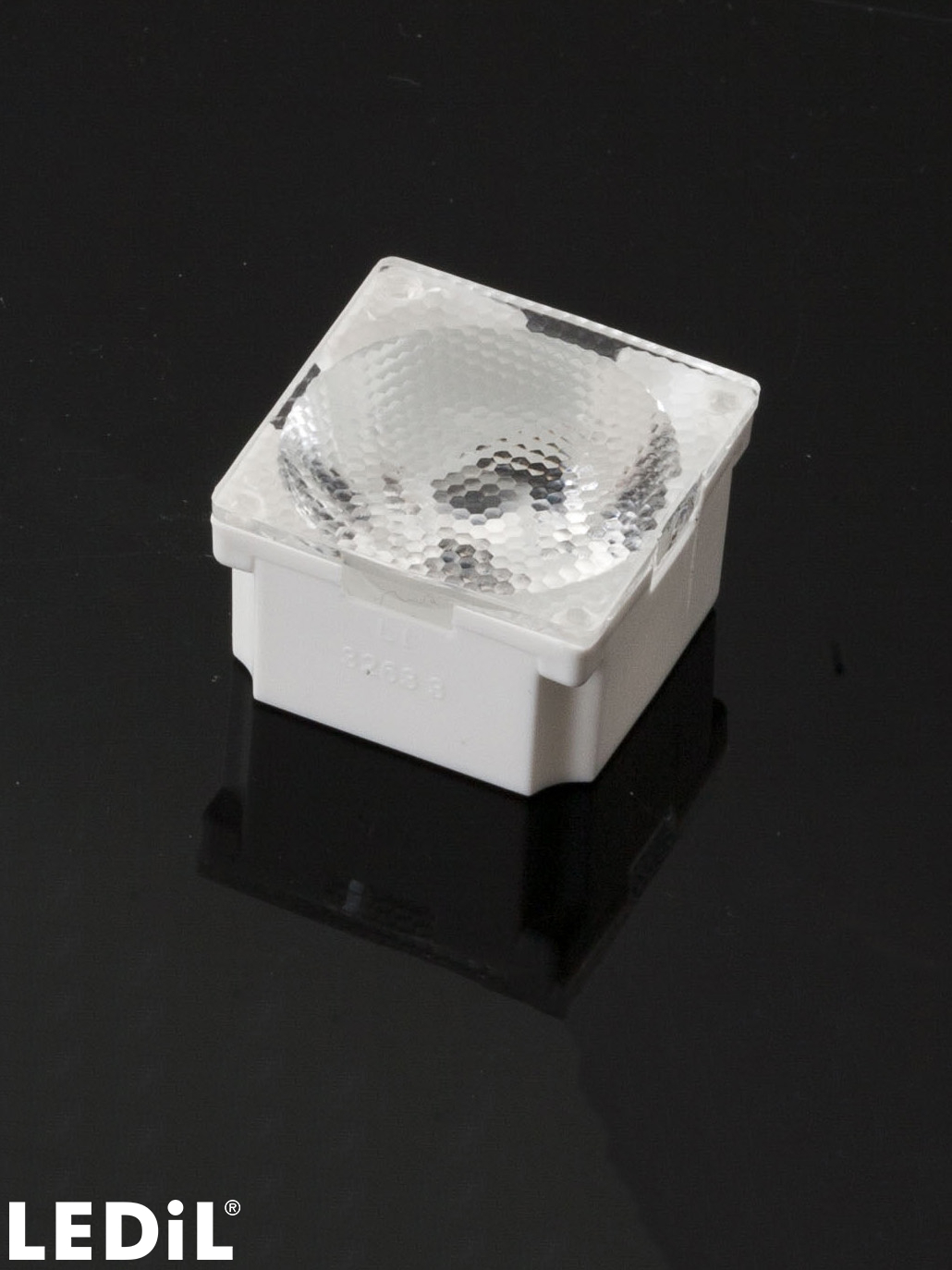

    Asymmetric beam for wall-washing. Assembly with thinner white holder, installation tape and location pins.

    Specification
    • Dimensions:
      22 x  22 mm
    • Height:
      13.10 mm
    • Fastening:
      tape, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1440 pcs
    • Box size:
      451 x 254 x 152 mm
    • Box weight:
      6.0 kg
    • MPQ:
      180 pcs
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA13639_G2-LAURA-SS-WAS-P
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - SECOND GENERATION OF ROSE, LAURA AND LEILA OPTICS

    Case story

    VALHALLA Power Gym

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    Optical results

    LED: XP-E
    FWHM: asymmetric
    Peak intensity: 11.600 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

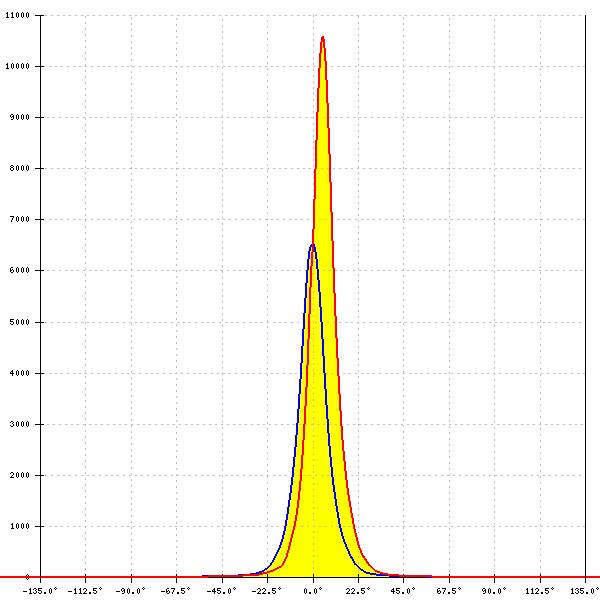

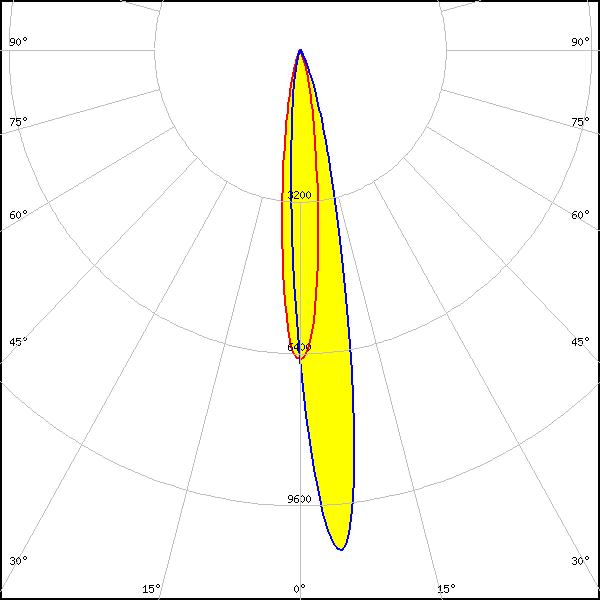

    LED: LUXEON A
    FWHM: asymmetric
    Peak intensity: 11.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON C
    FWHM: asymmetric
    Peak intensity: 10.682 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: Green

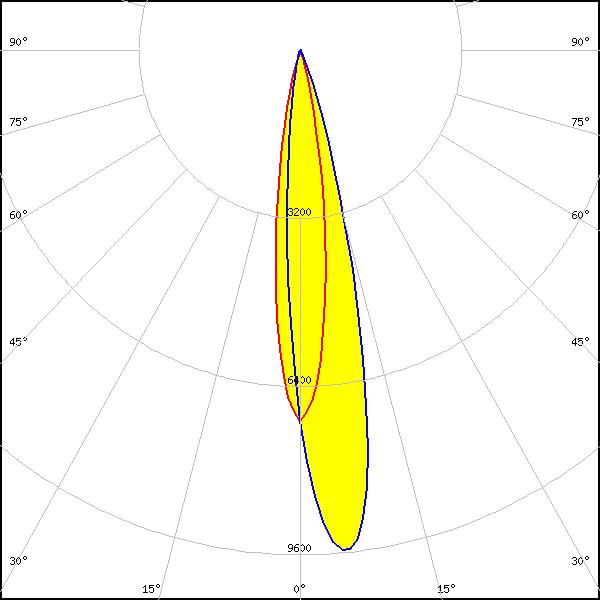

    LED: LUXEON C
    FWHM: asymmetric
    Peak intensity: 9.555 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: Red

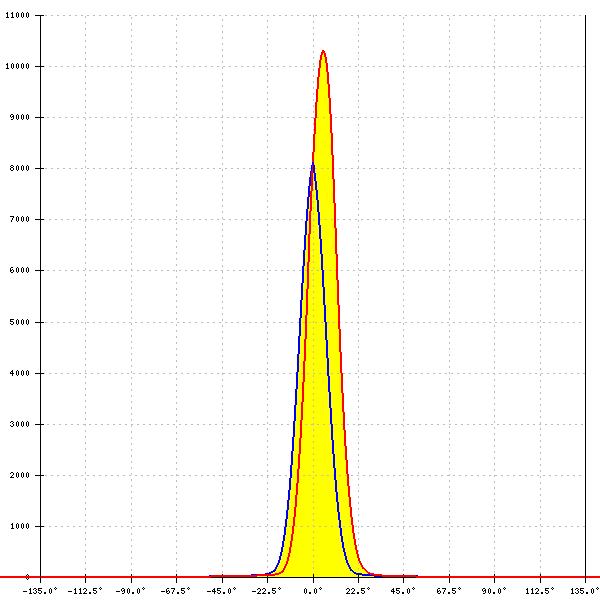

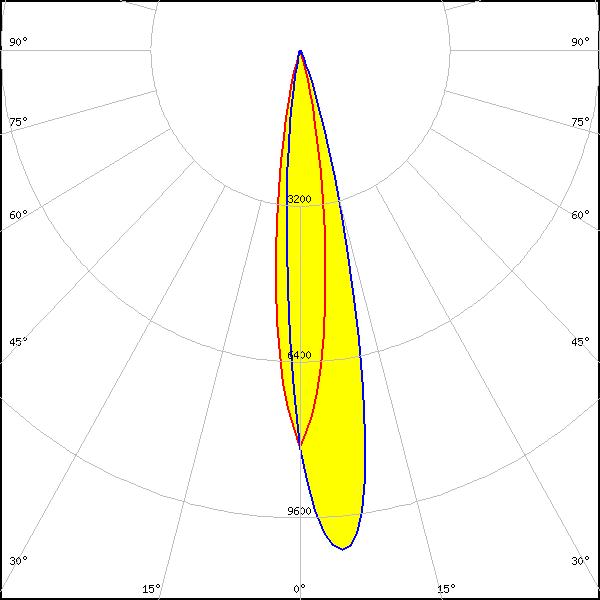

    LED: LUXEON C
    FWHM: asymmetric
    Peak intensity: 10.309 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: Royal Blue
    LED: LUXEON C
    FWHM: asymmetric
    Peak intensity: 10.570 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

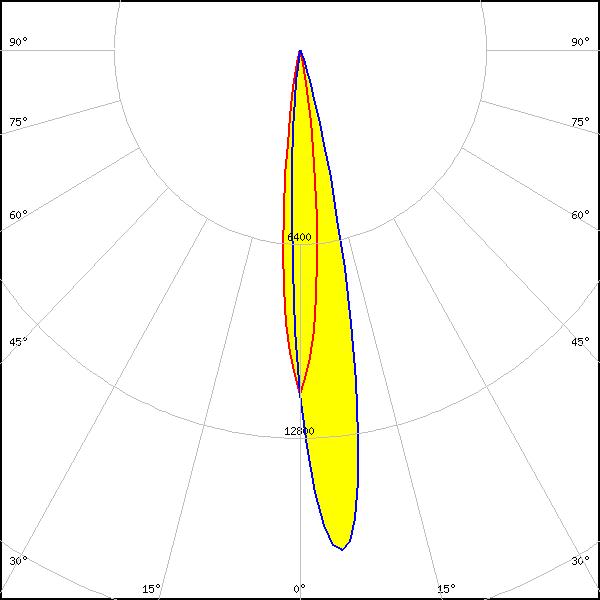

    LED: LUXEON CZ
    FWHM: asymmetric
    Peak intensity: 16.561 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Green

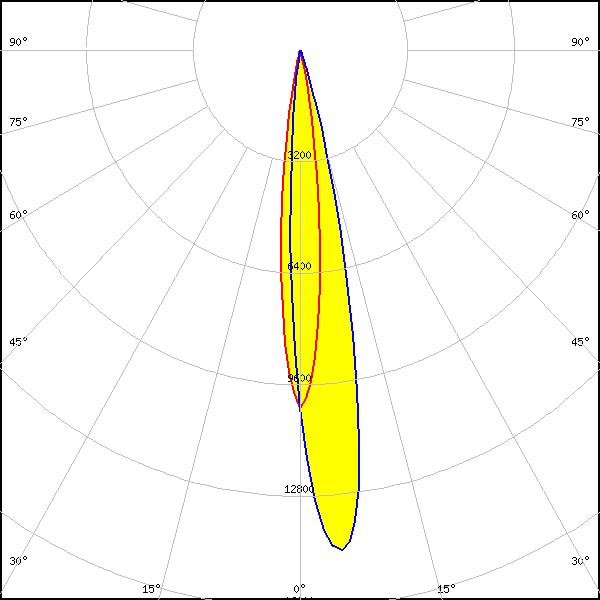

    LED: LUXEON CZ
    FWHM: asymmetric
    Peak intensity: 14.412 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Red

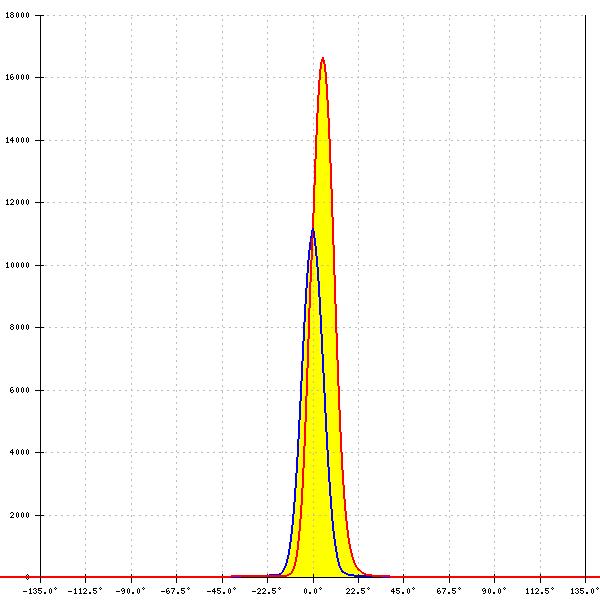

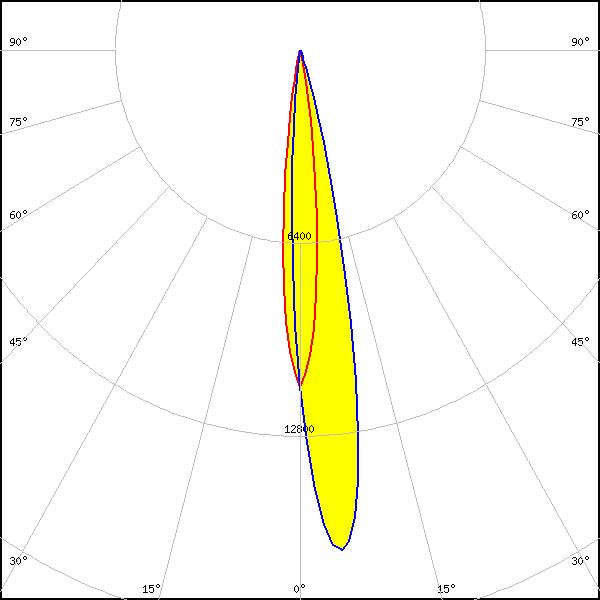

    LED: LUXEON CZ
    FWHM: asymmetric
    Peak intensity: 16.652 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Royal Blue

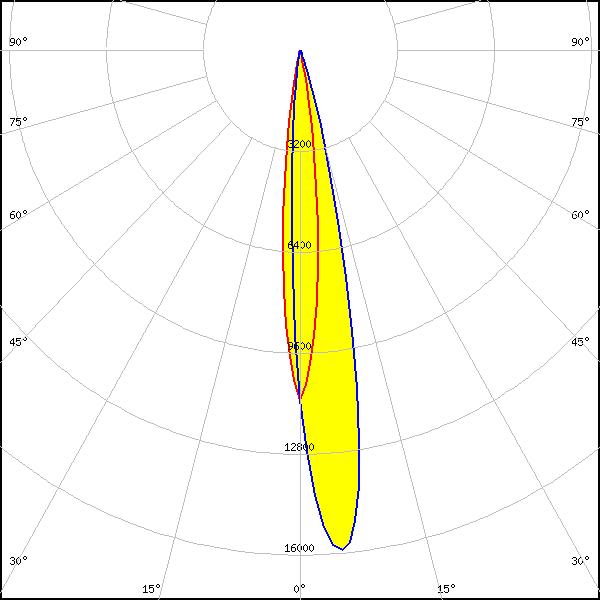

    LED: LUXEON CZ
    FWHM: asymmetric
    Peak intensity: 15.912 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

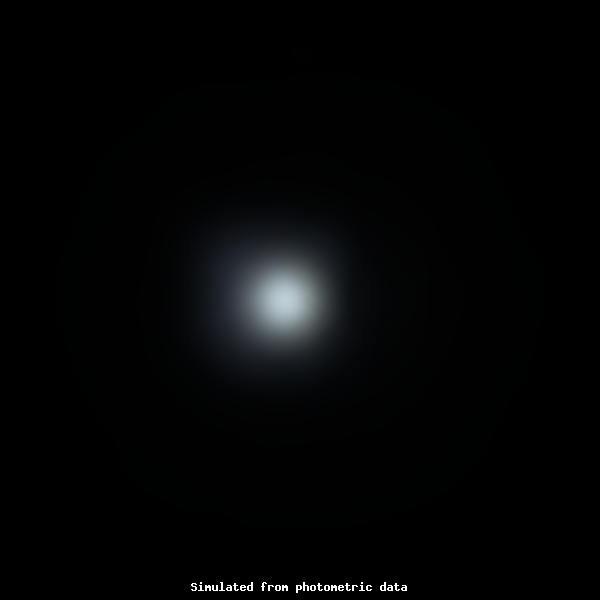

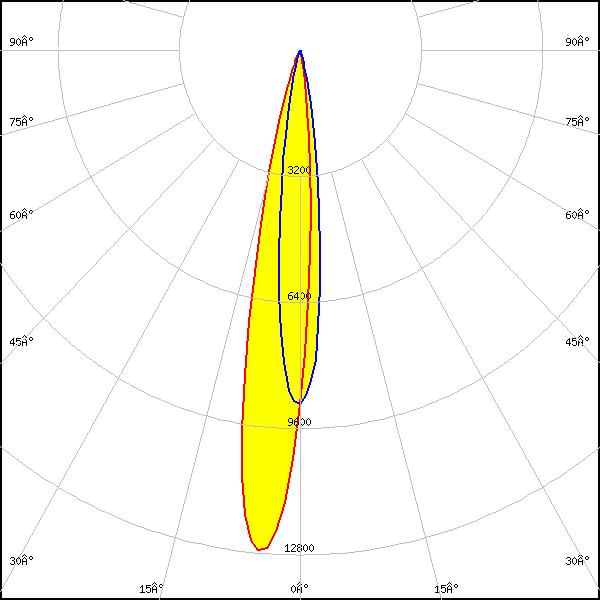

    LED: SST-20 Gen2
    FWHM: 14°
    FWTM: 27°
    Peak intensity: 12.736 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

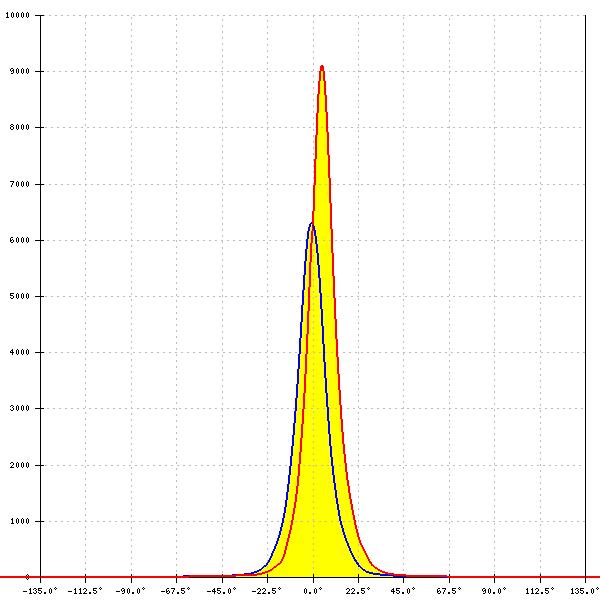

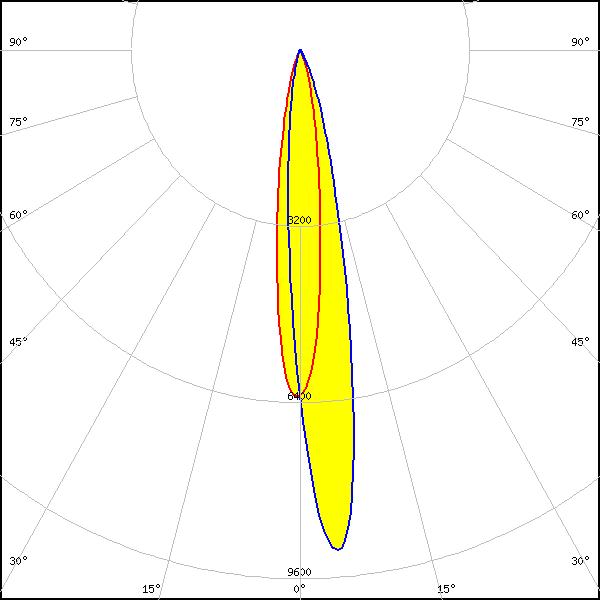

    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 9.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

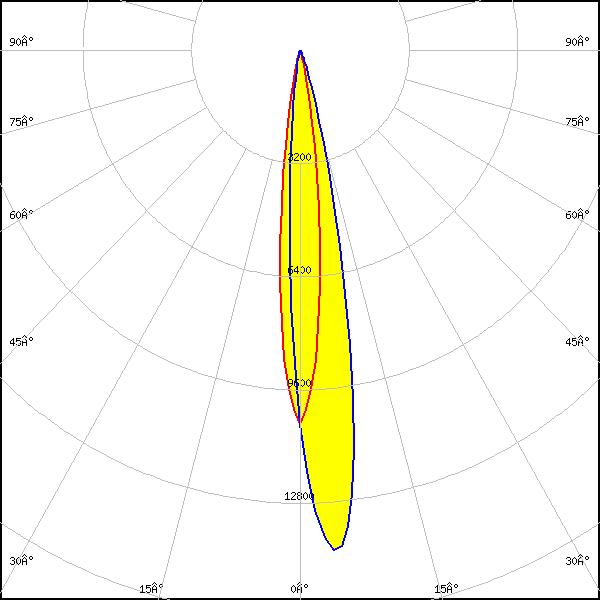

    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 14.170 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3030
    FWHM: asymmetric
    Peak intensity: 14.220 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Blue

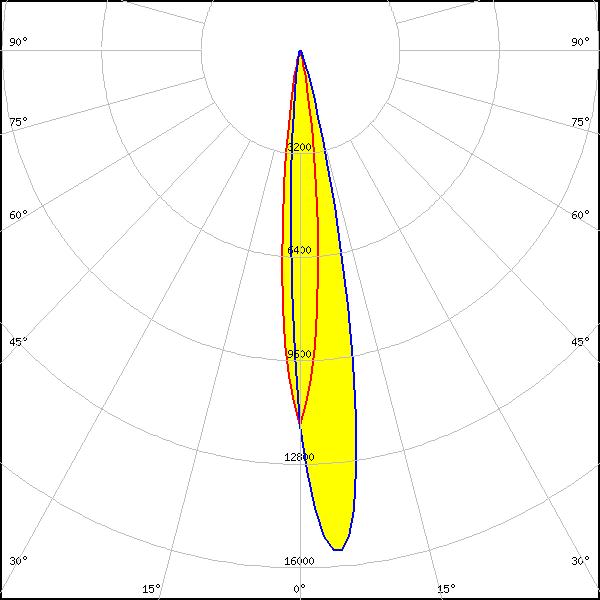

    LED: OSCONIQ P 3030
    FWHM: asymmetric
    Peak intensity: 15.521 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Red

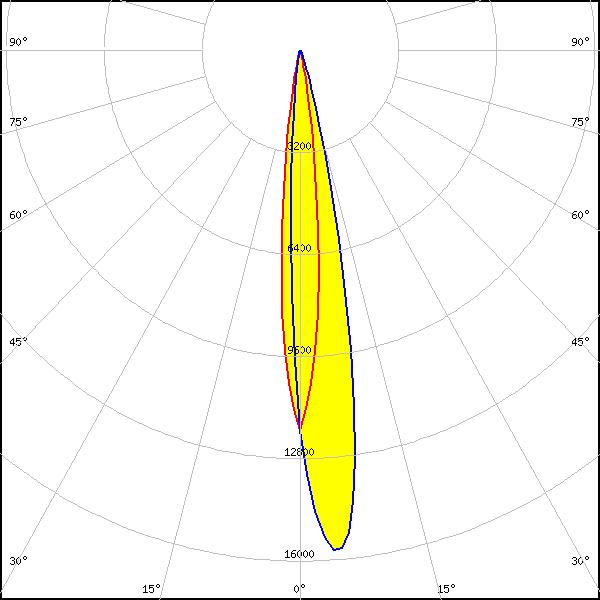

    LED: OSCONIQ P 3030
    FWHM: asymmetric
    Peak intensity: 15.706 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: True Green

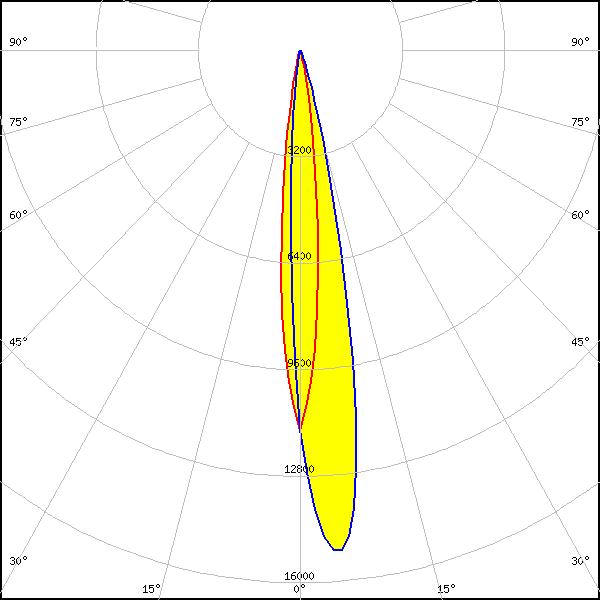

    LED: OSCONIQ P 3030
    FWHM: asymmetric
    Peak intensity: 15.084 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

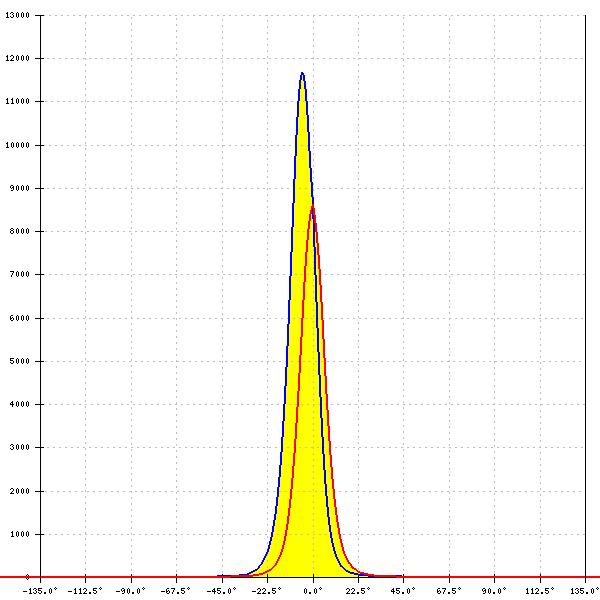

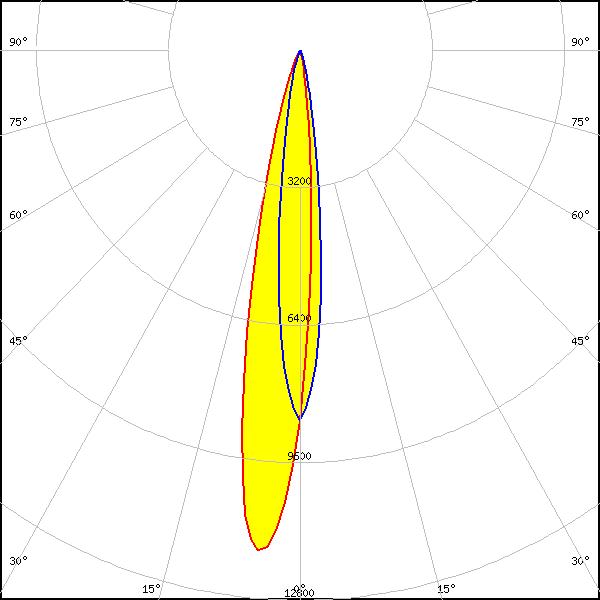

    LED: OSCONIQ P 3737 (2W version)
    FWHM: asymmetric
    Peak intensity: 11.686 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

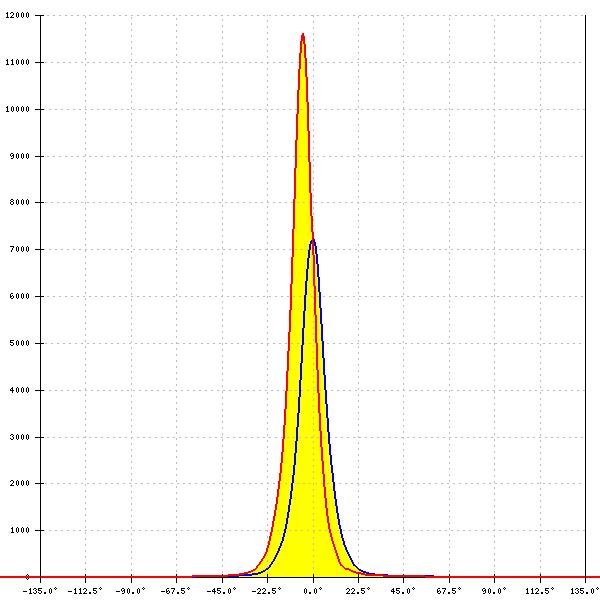

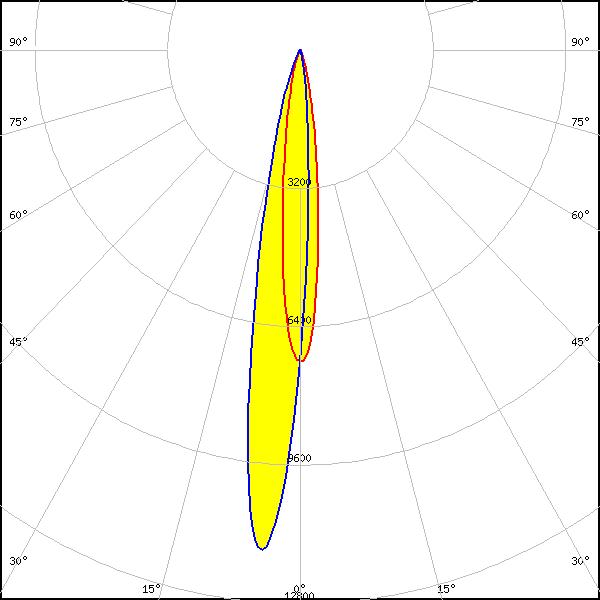

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 11.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

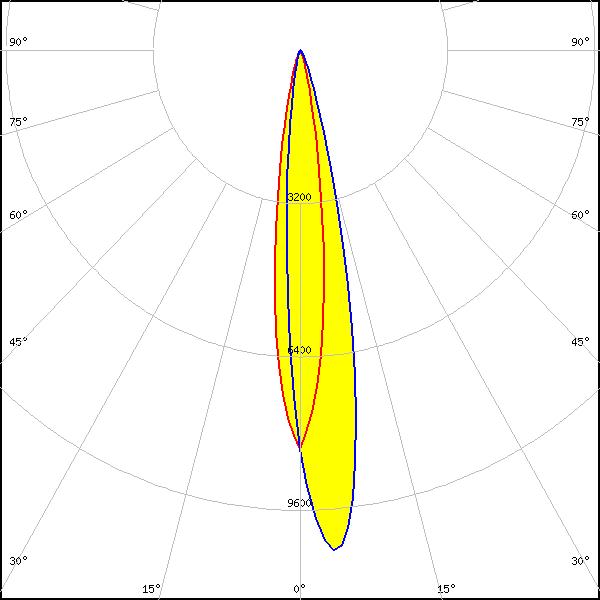

    LED: Z5M4
    FWHM: asymmetric
    Peak intensity: 10.481 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
