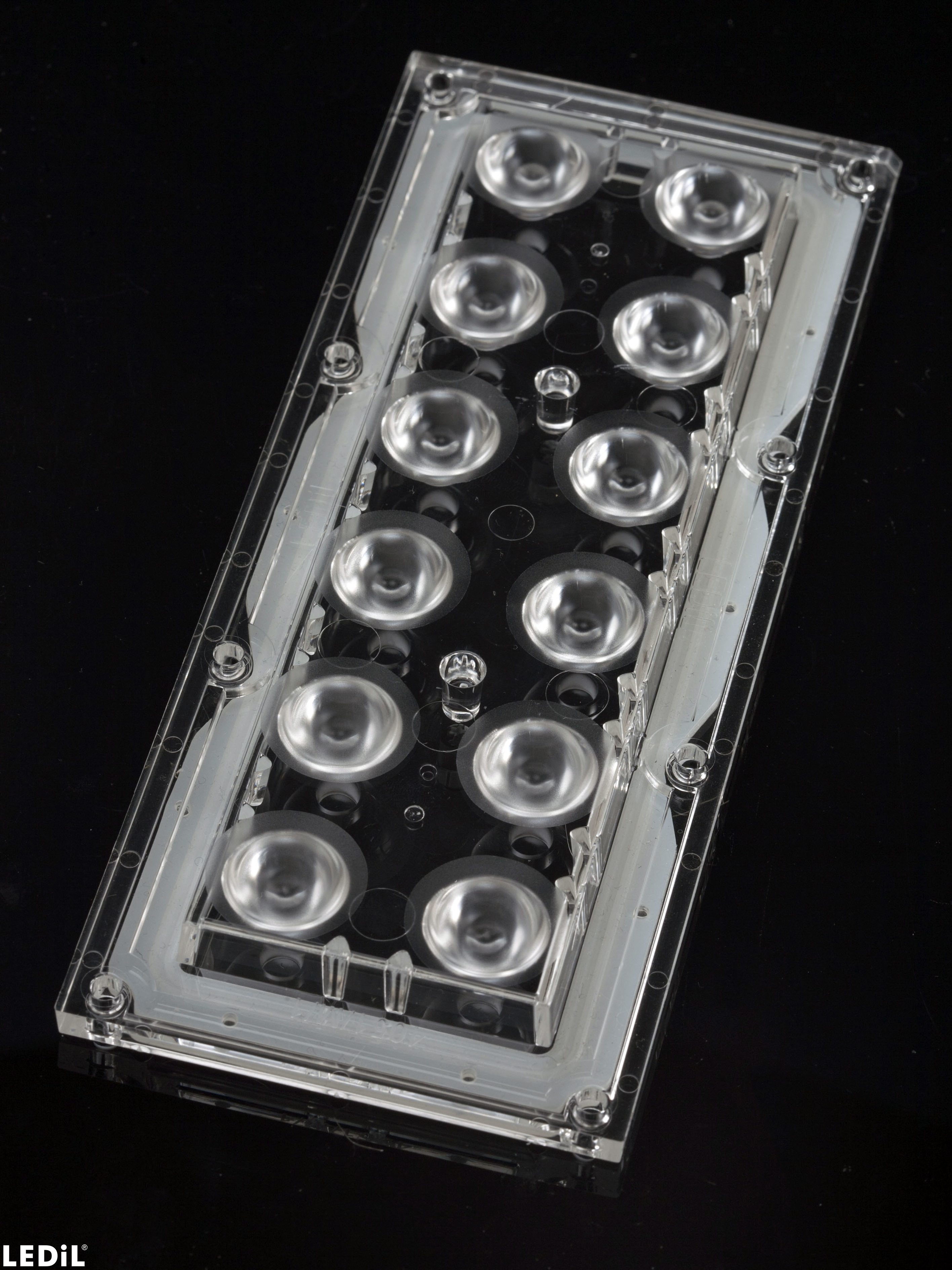

    CS14891_HB-IP-2X6-M

    Print

    ~25° medium beam

    Specification
    • Dimensions:
      173 x  71 mm
    • Height:
      11.39 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      120 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      8.1 kg
    • MPQ:
      40 pcs
    • MOQ:
      40 pcs
    • MOQ size:
      480 x 280 x 100 mm
    • MOQ weight:
      3.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CS14891_HB-IP-2X6-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    Case story

    Russian Railways office

    PCN

    Product change notification NR125.b - Packing method and quantity changes 050916

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    PCN

    Product change notification NR164 - Material change for STRADA- and HB-IP-2X6 lens gaskets

    Case story

    GM-TRAC LED headlight

    Case story

    Hyundai manufacturing plant

    PCN

    Product change notification NR134.a - Change of packaging methods 200417

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

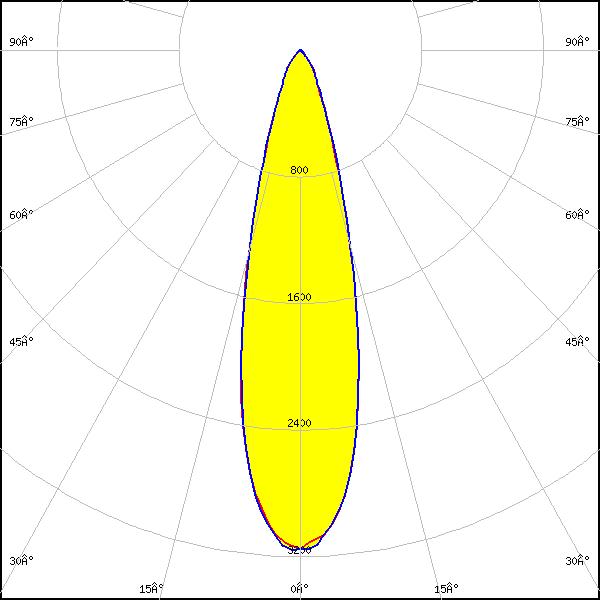

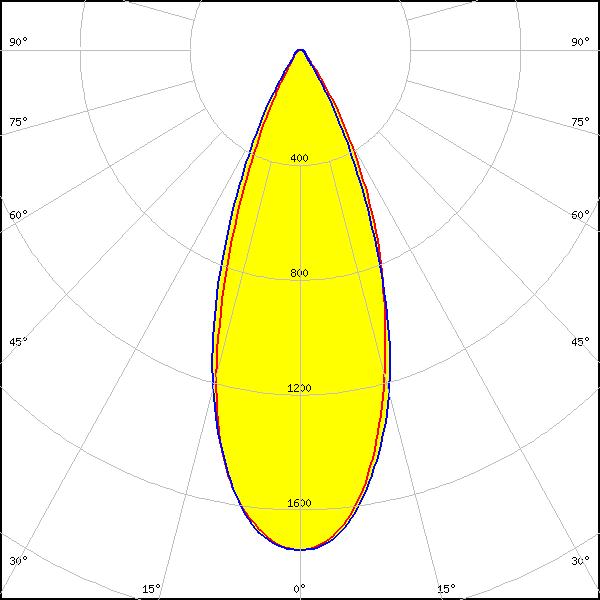

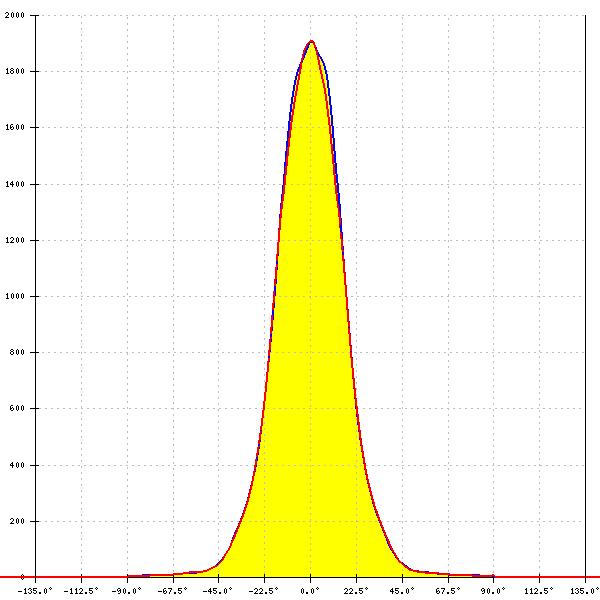

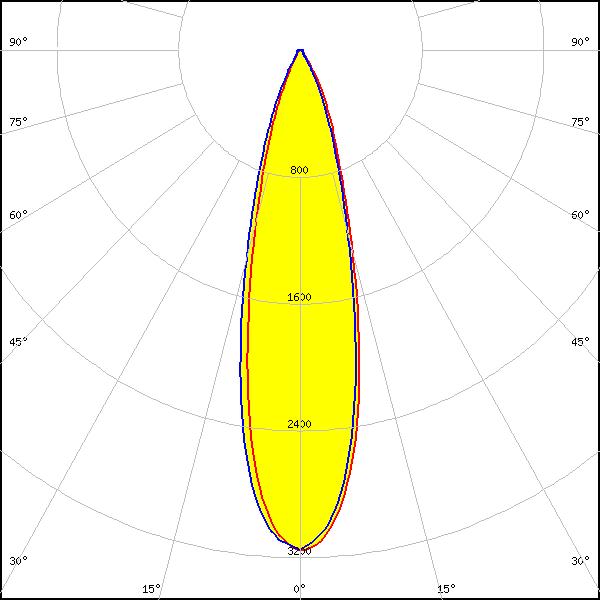

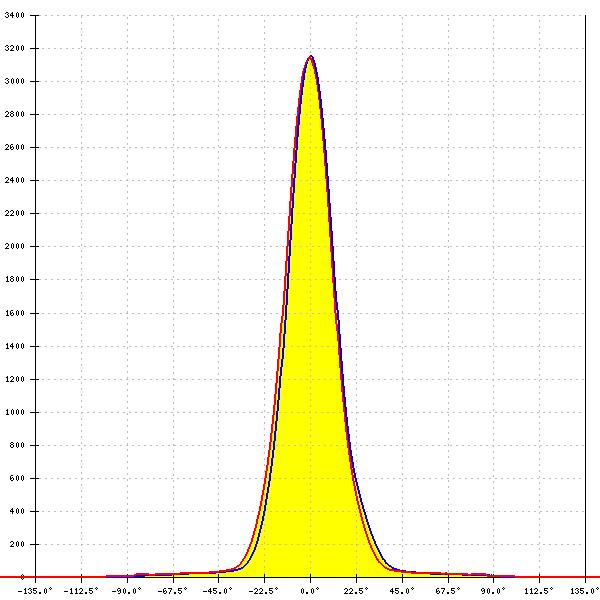

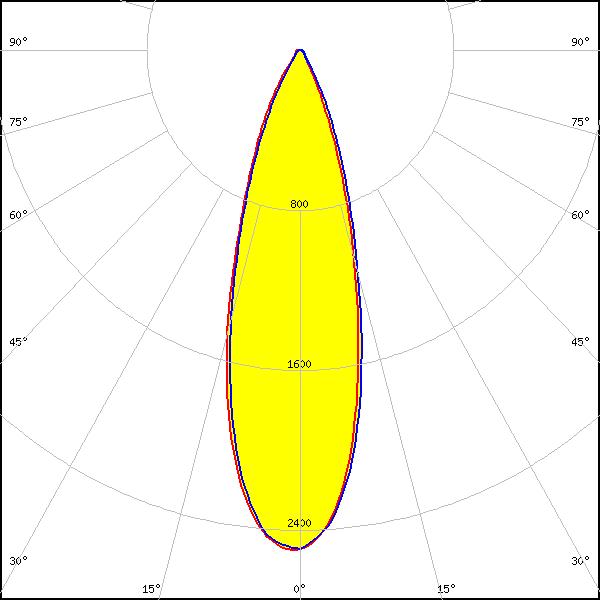

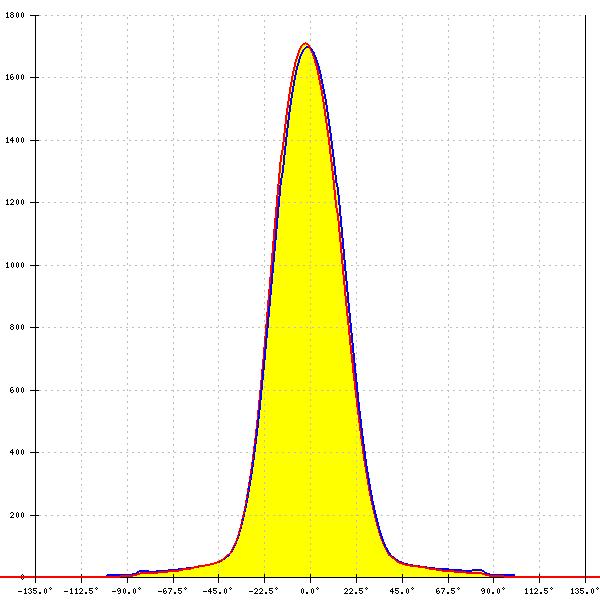

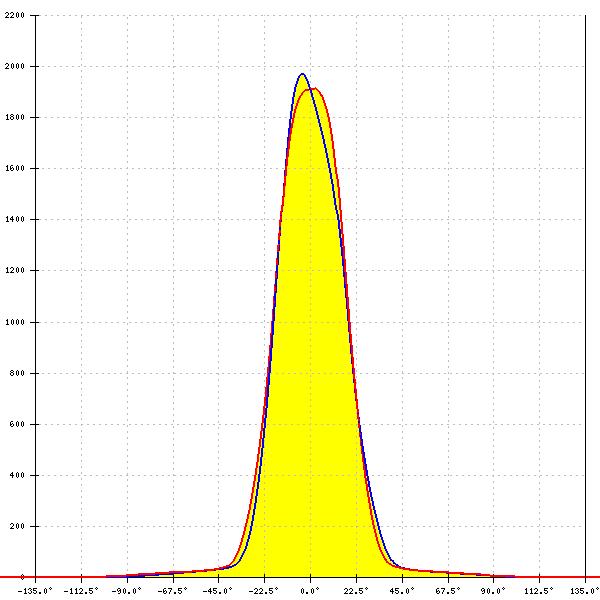

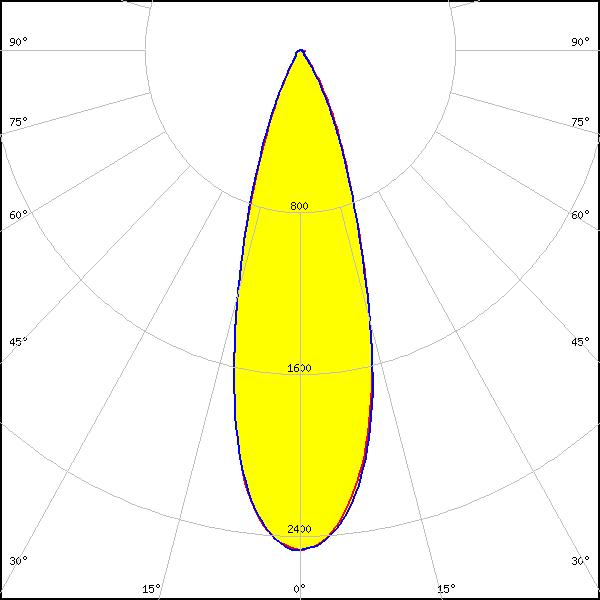

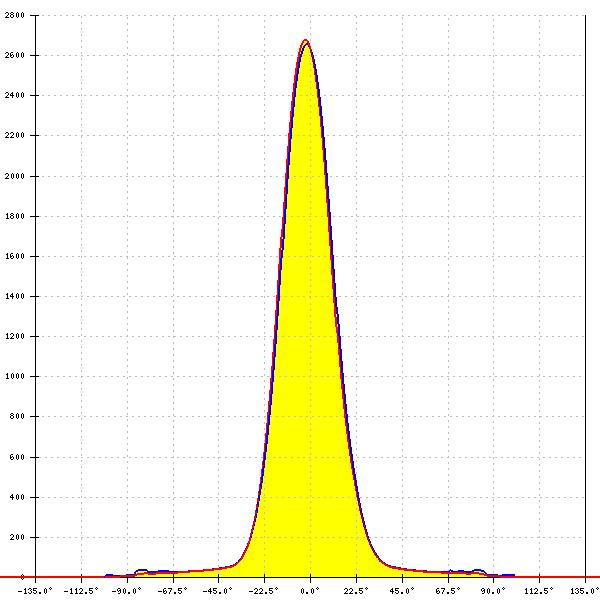

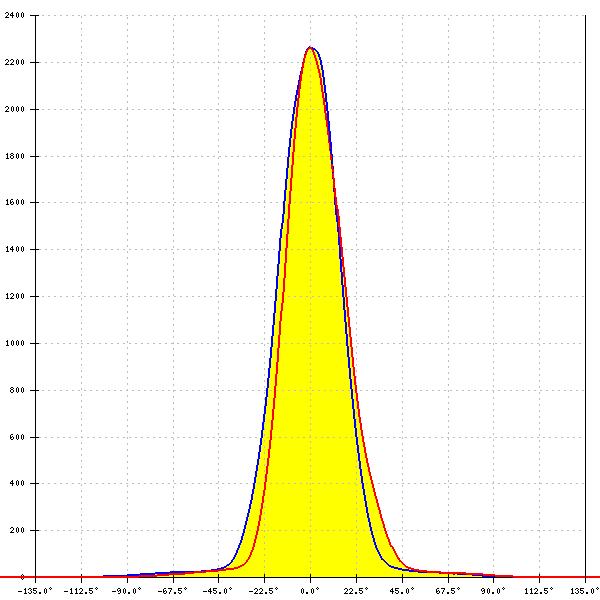

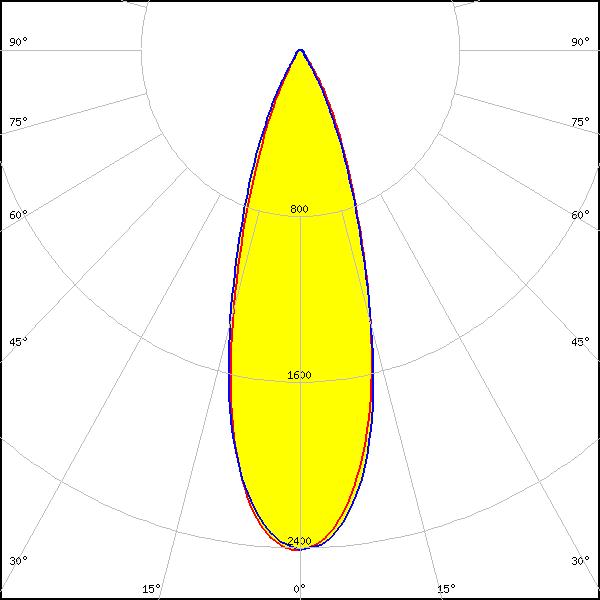

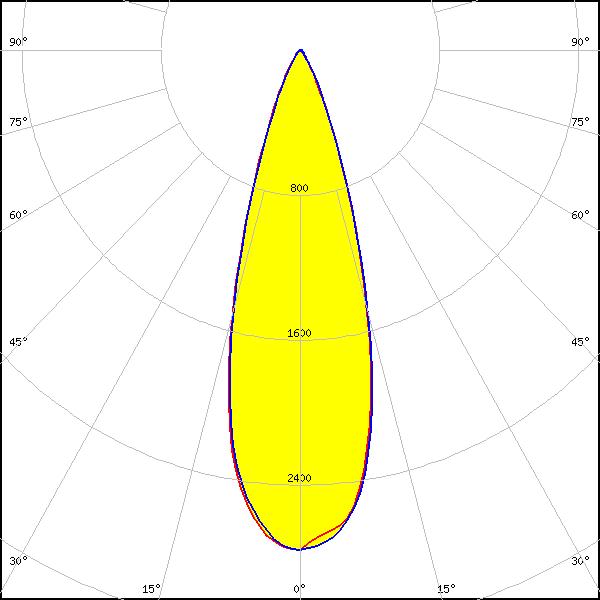

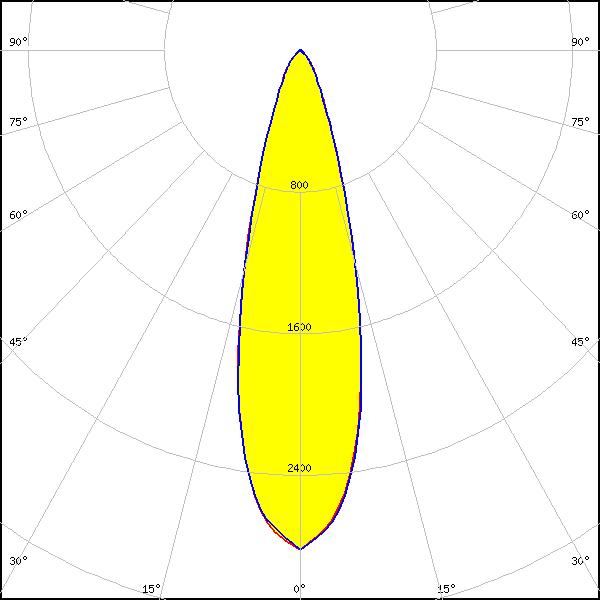

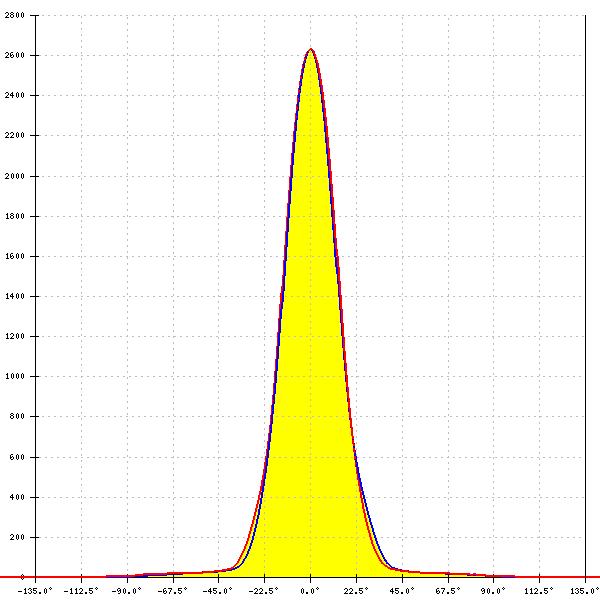

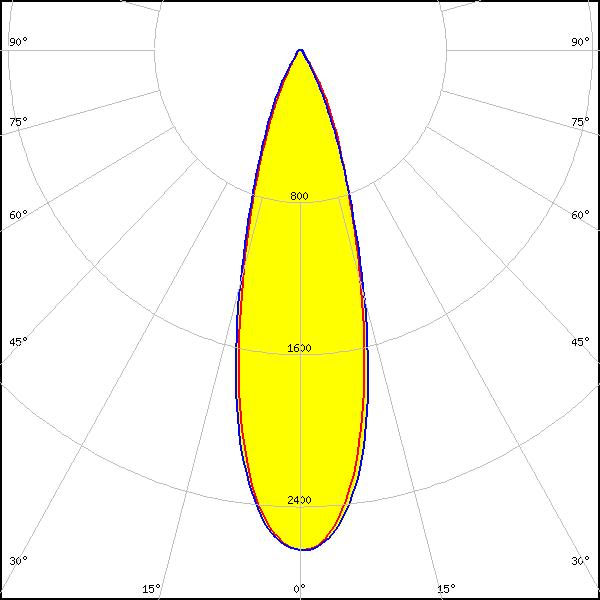

    Optical results

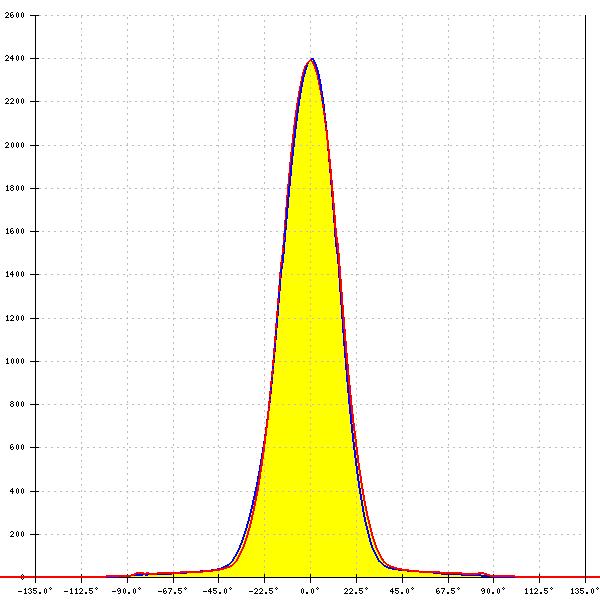

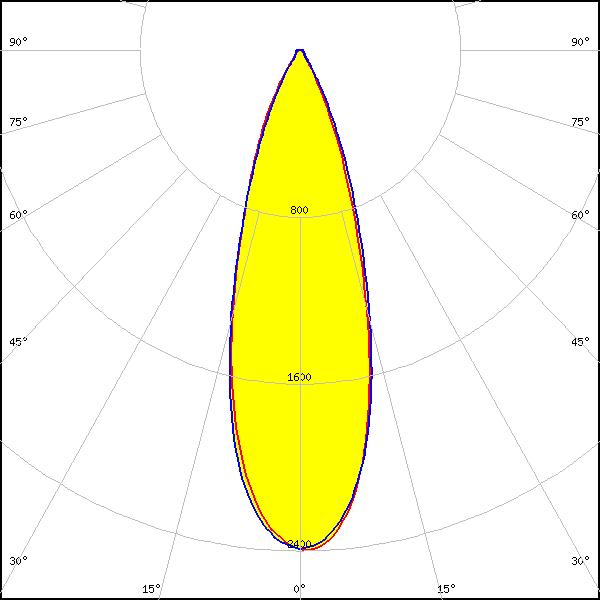

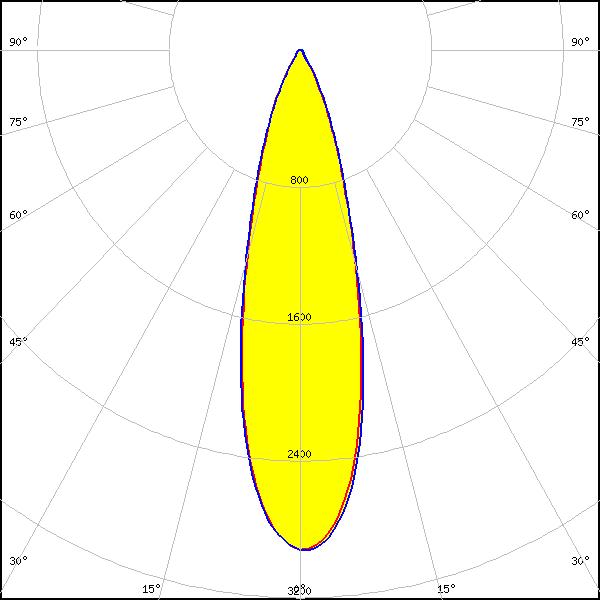

    LED: QUICK FLUX 2x6 LED XG xxx G7+
    FWHM: 32°
    FWTM: 59°
    Peak intensity: 2.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

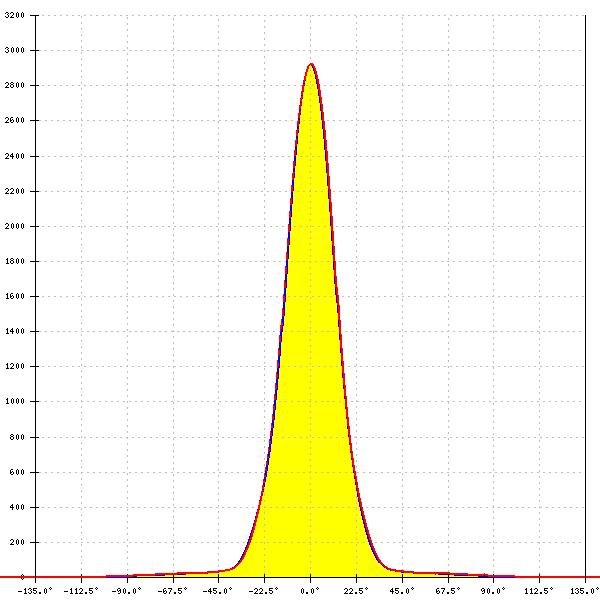

    LED: QUICK FLUX 2x6 LED XT xxx G5
    FWHM: 28°
    FWTM: 55°
    Peak intensity: 2.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

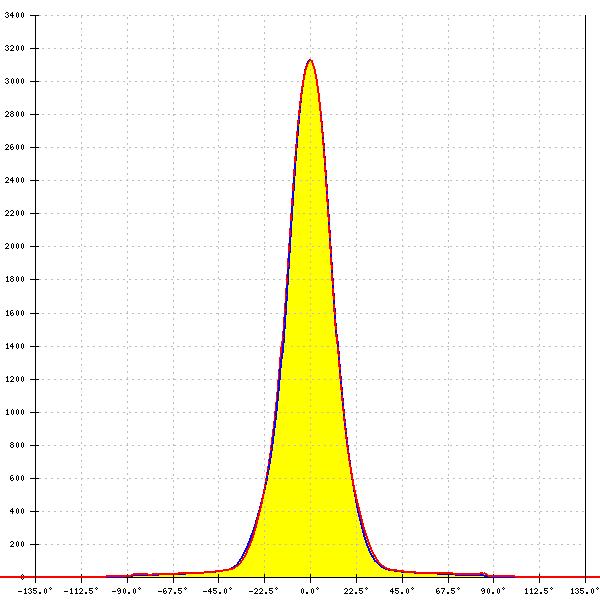

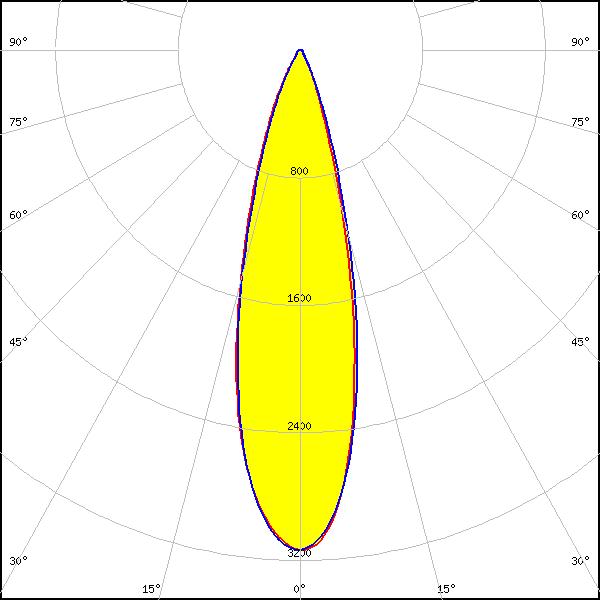

    LED: XM-L
    FWHM: 27°
    FWTM: 50°
    Peak intensity: 3.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

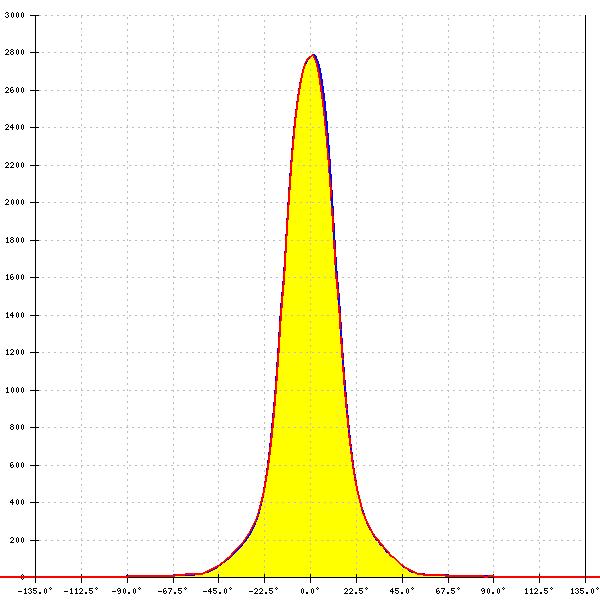

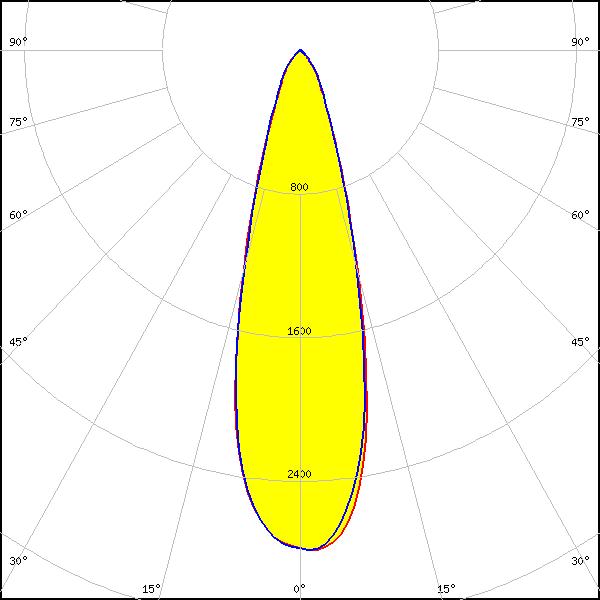

    LED: XP-E
    FWHM: 28°
    FWTM: 56°
    Peak intensity: 2.810 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

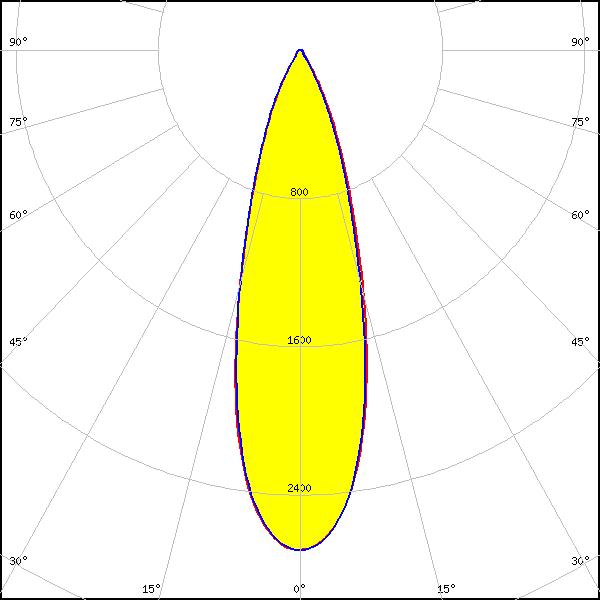

    LED: XP-G2
    FWHM: 30°
    FWTM: 57°
    Peak intensity: 2.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

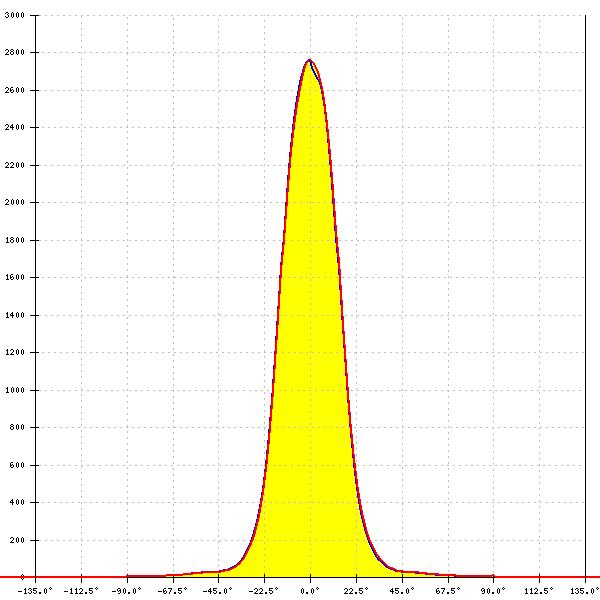

    LED: XP-G2 HE
    FWHM: 31°
    FWTM: 53°
    Peak intensity: 2.770 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 32°
    FWTM: 58°
    Peak intensity: 2.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

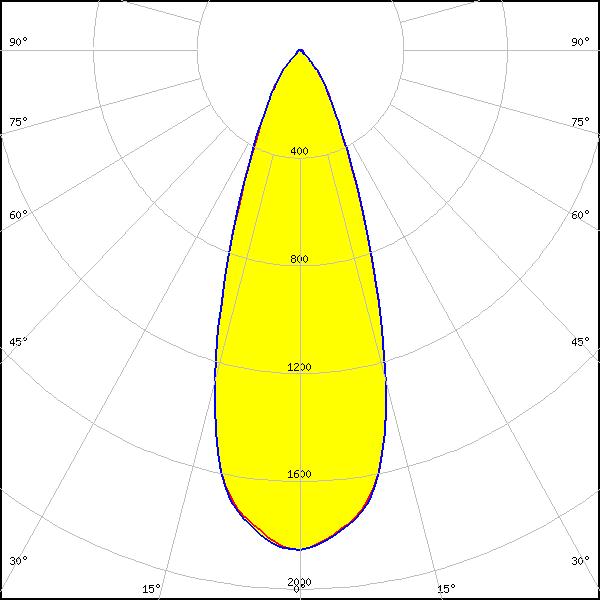

    LED: XP-G4
    FWHM: 38°
    FWTM: 70°
    Peak intensity: 1.857 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

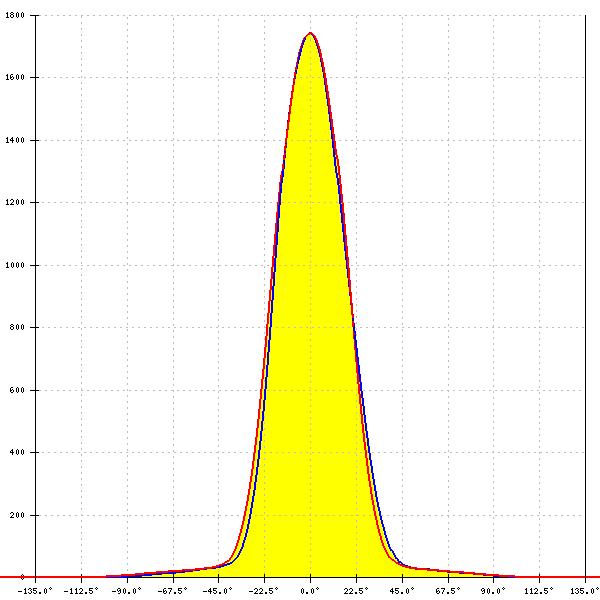

    LED: XP-L HD
    FWHM: 39°
    FWTM: 66°
    Peak intensity: 1.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

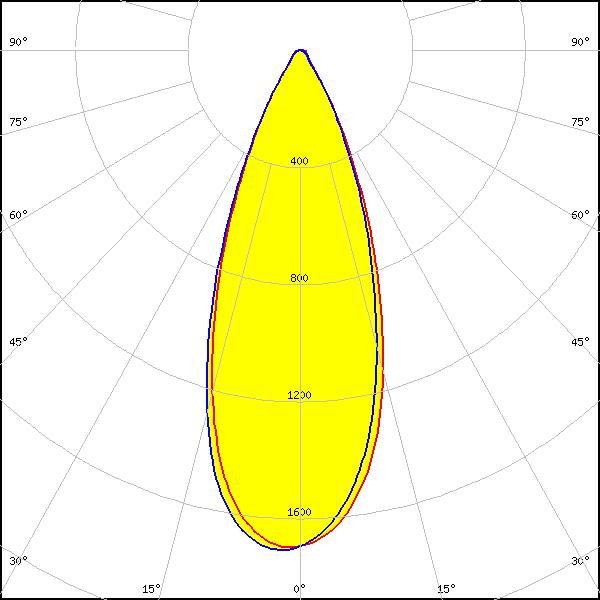

    LED: XP-L2
    FWHM: 39°
    FWTM: 67°
    Peak intensity: 1.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

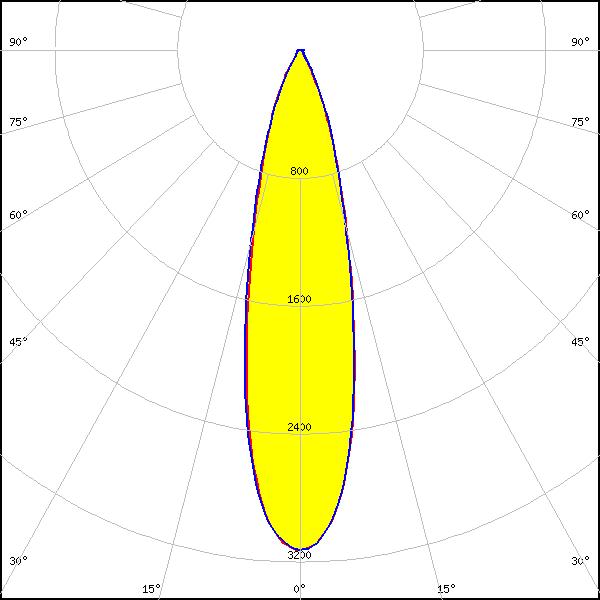

    LED: XT-E
    FWHM: 25°
    FWTM: 52°
    Peak intensity: 3.100 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E HE
    FWHM: 26°
    FWTM: 53°
    Peak intensity: 3.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

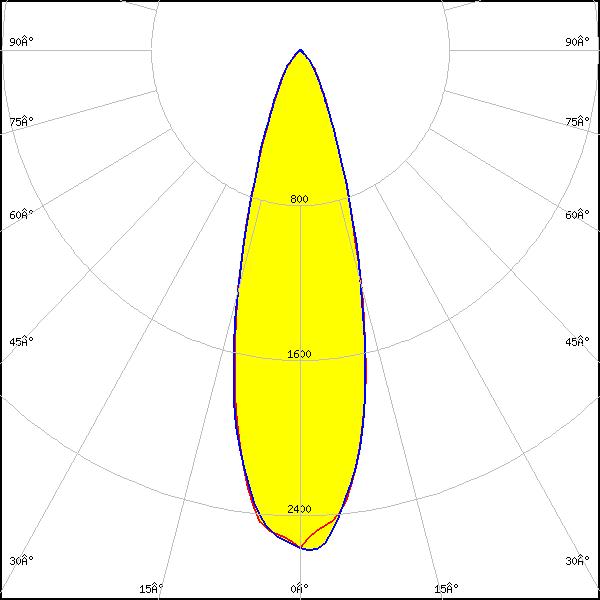

    LED: PrevaLED Brick HP IP 2x6
    FWHM: 30°
    FWTM: 58°
    Peak intensity: 2.606 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

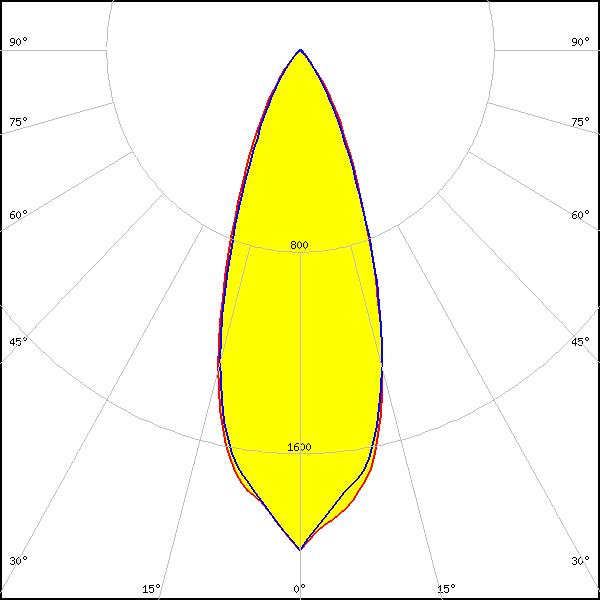

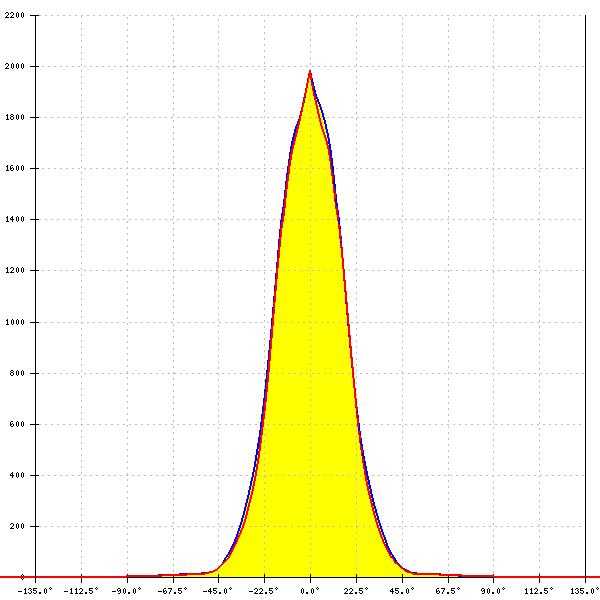

    LED: LUXEON 5050 Round LES
    FWHM: 37°
    FWTM: 68°
    Peak intensity: 1.980 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

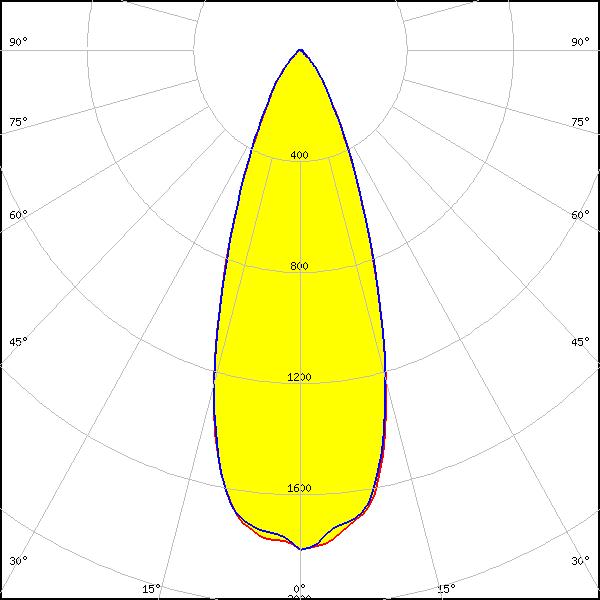

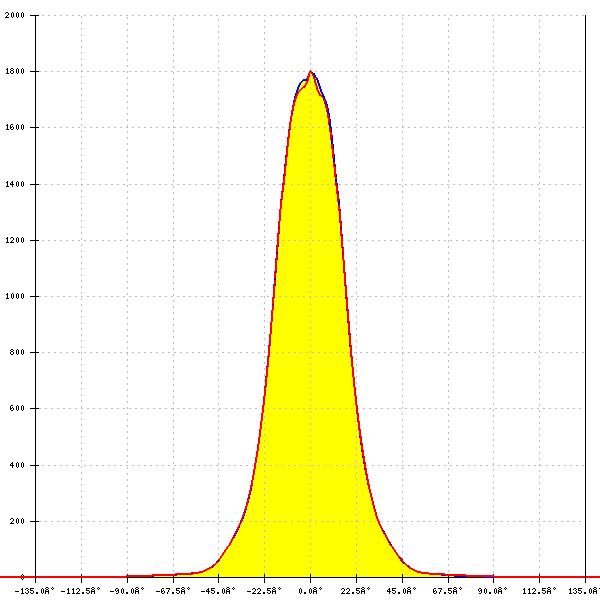

    LED: LUXEON HL2X
    FWHM: 38°
    FWTM: 70°
    Peak intensity: 1.805 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

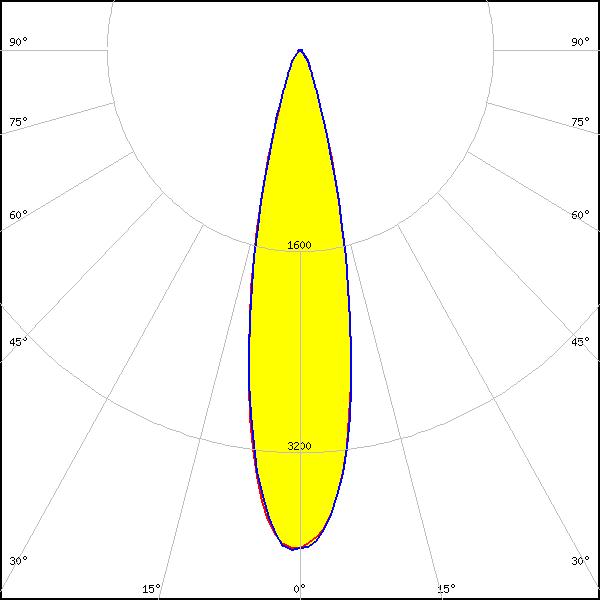

    LED: LUXEON HL2Z
    FWHM: 24°
    FWTM: 44°
    Peak intensity: 3.979 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

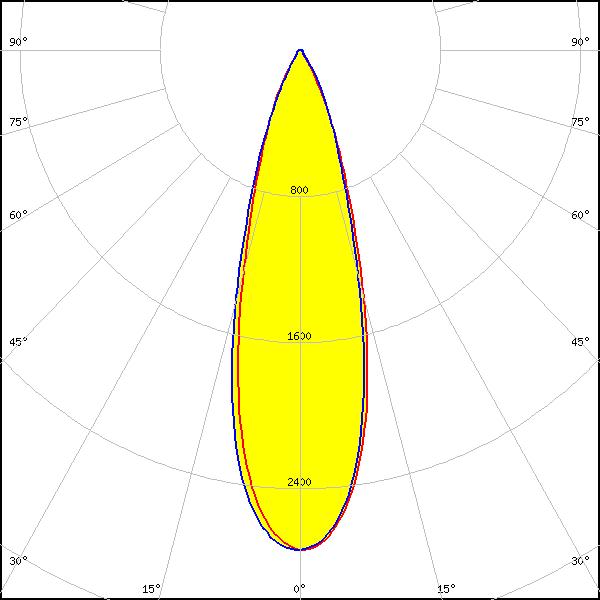

    LED: LUXEON T
    FWHM: 29°
    FWTM: 55°
    Peak intensity: 2.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

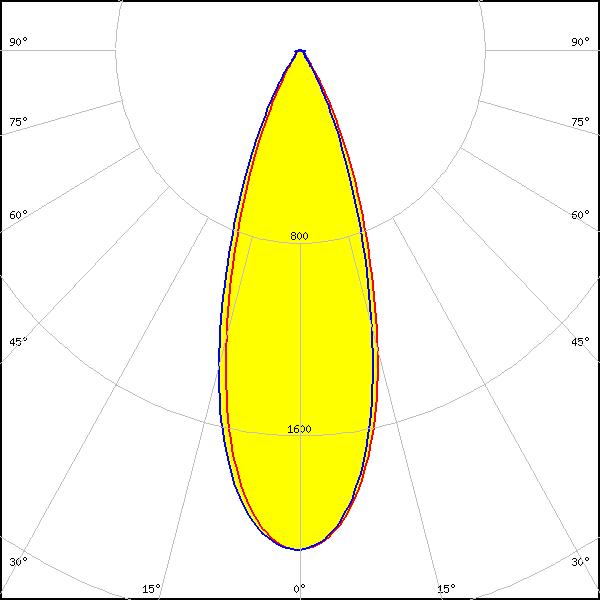

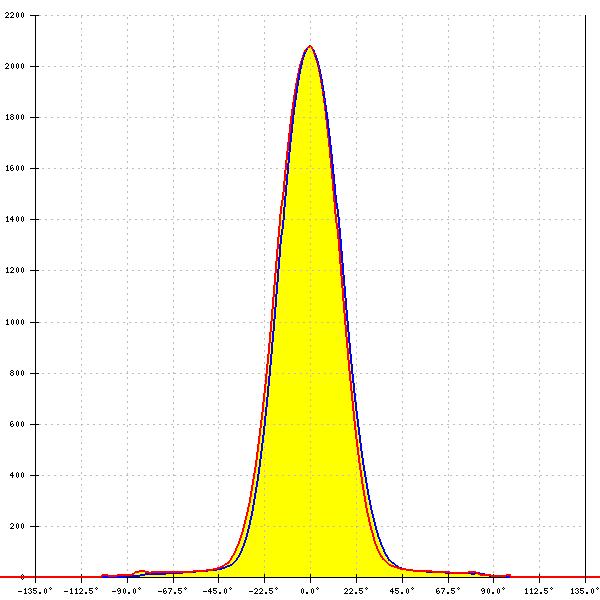

    LED: LUXEON V
    FWHM: 35°
    FWTM: 62°
    Peak intensity: 2.100 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

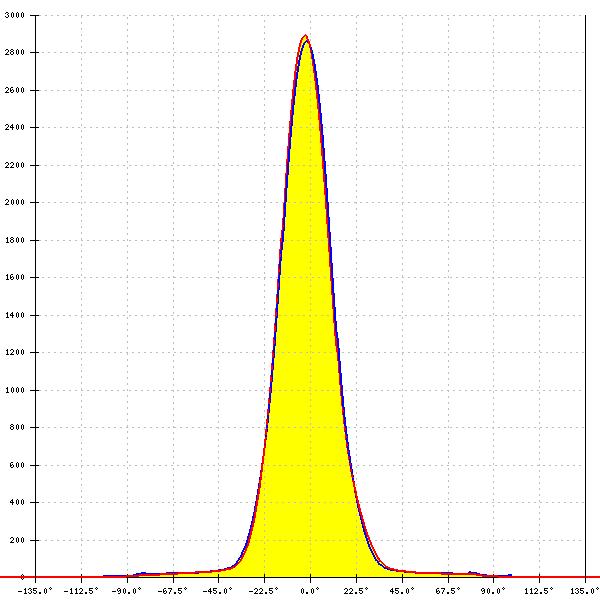

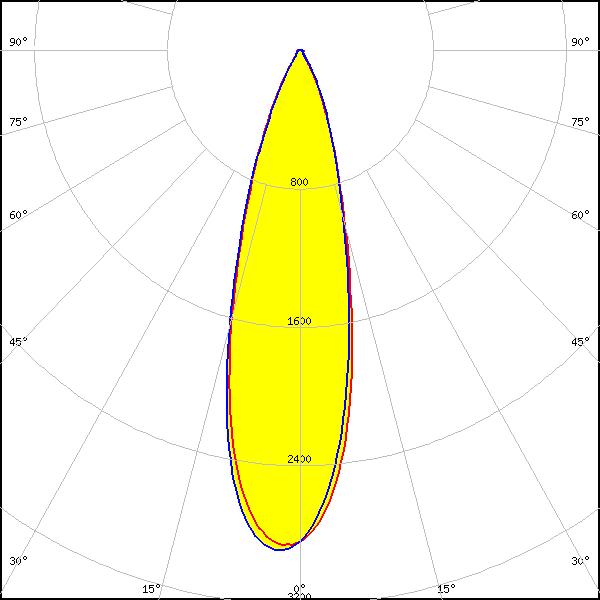

    LED: LUXEON V2
    FWHM: 28°
    FWTM: 54°
    Peak intensity: 2.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

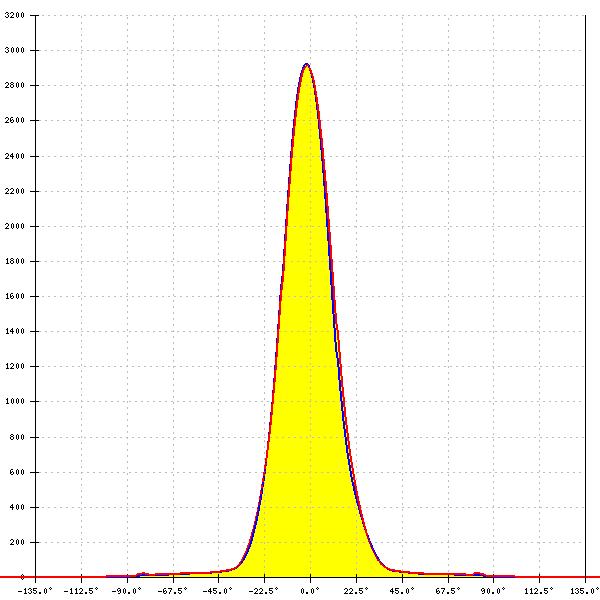

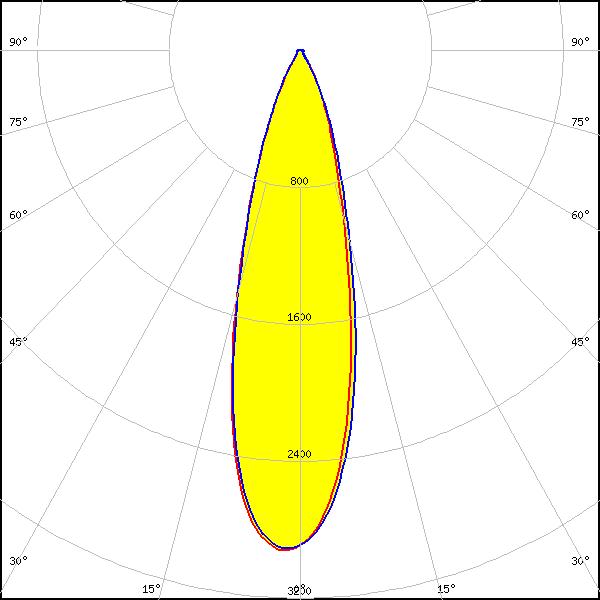

    LED: LUXEON XR-TX (L2T0-xxxx012M0000)
    FWHM: 28°
    FWTM: 54°
    Peak intensity: 2.950 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

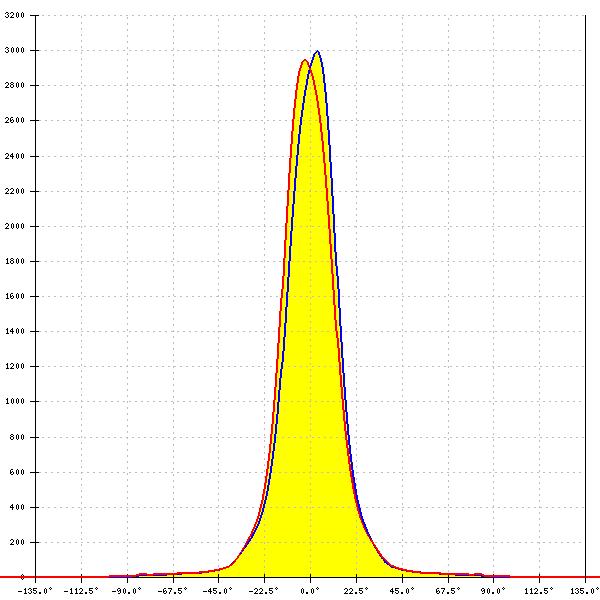

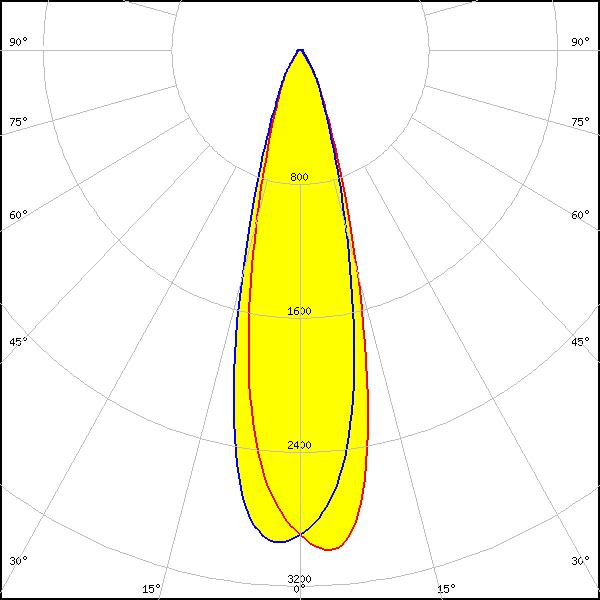

    LED: SST-10-B130
    FWHM: 27°
    FWTM: 53°
    Peak intensity: 3.018 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Deep Red

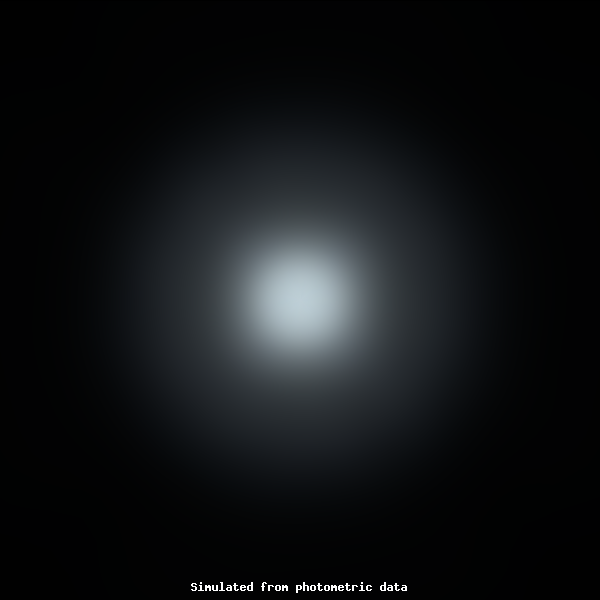

    LED: SST-20 Gen2
    FWHM: 26°
    FWTM: 52°
    Peak intensity: 3.167 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

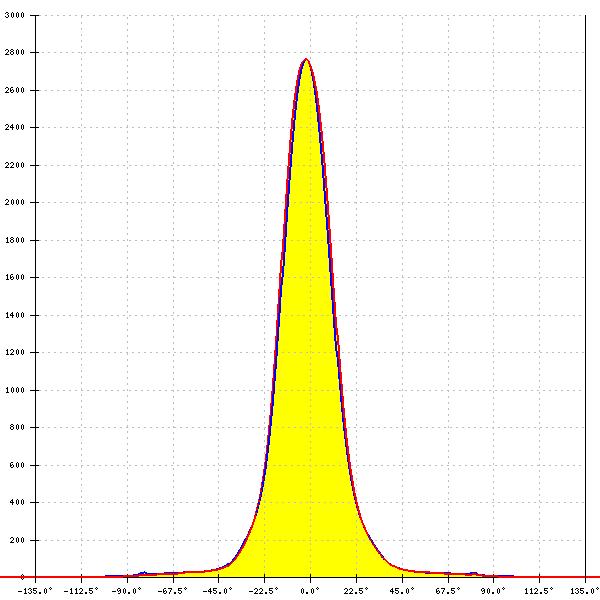

    LED: RecLED 146x45mm 2900lm 730 2x6 IP G1
    FWHM: 28°
    FWTM: 55°
    Peak intensity: 2.789 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

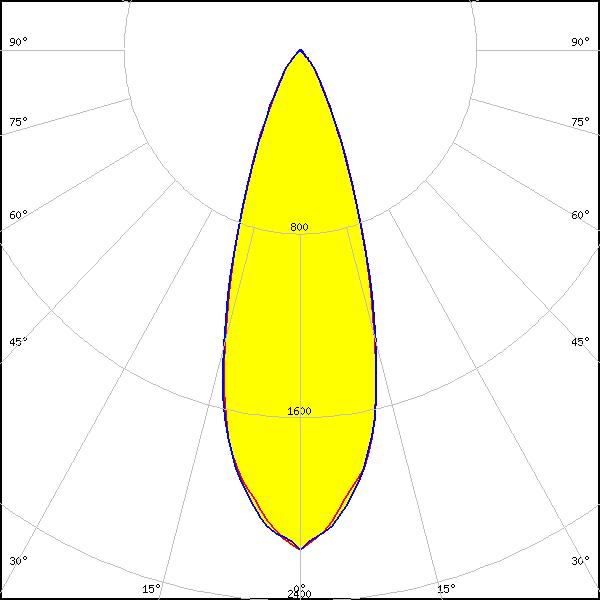

    LED: NV4WB35AM
    FWHM: 34°
    FWTM: 62°
    Peak intensity: 2.179 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

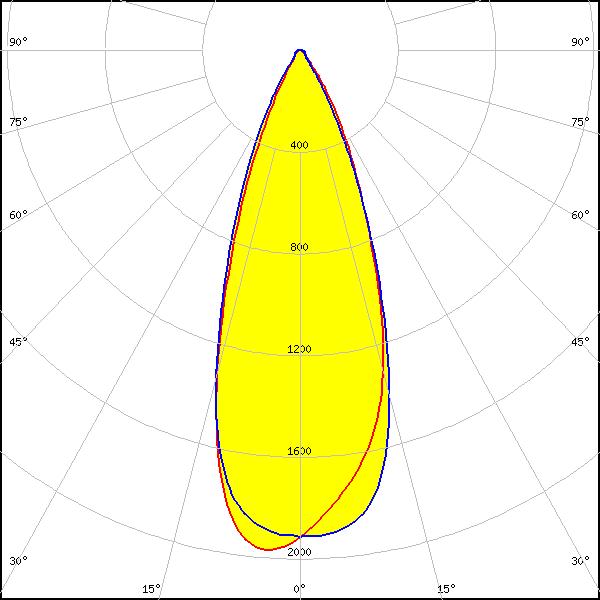

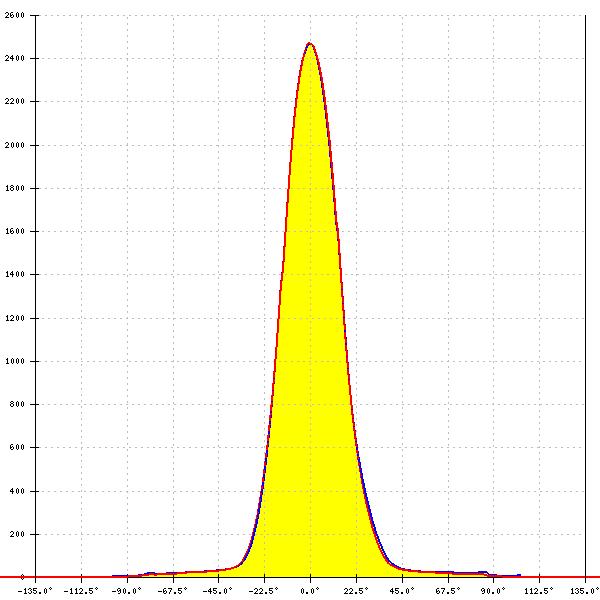

    LED: NVSW219D
    FWHM: 38°
    FWTM: 63°
    Peak intensity: 2.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

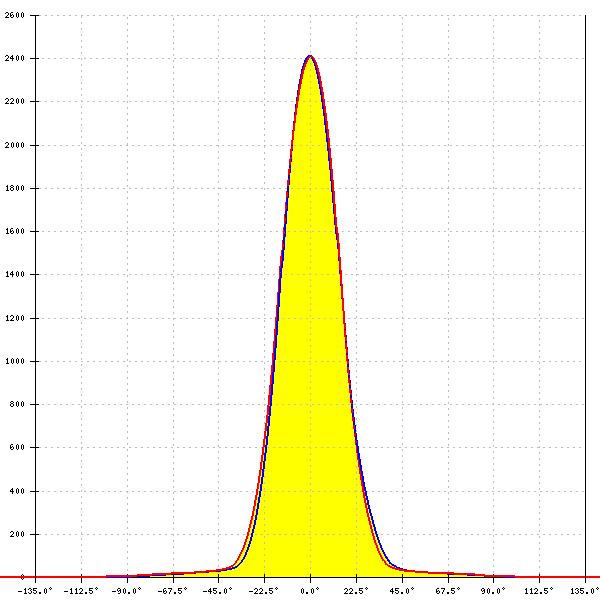

    LED: NVSW219F-V2
    FWHM: 33°
    FWTM: 59°
    Peak intensity: 2.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

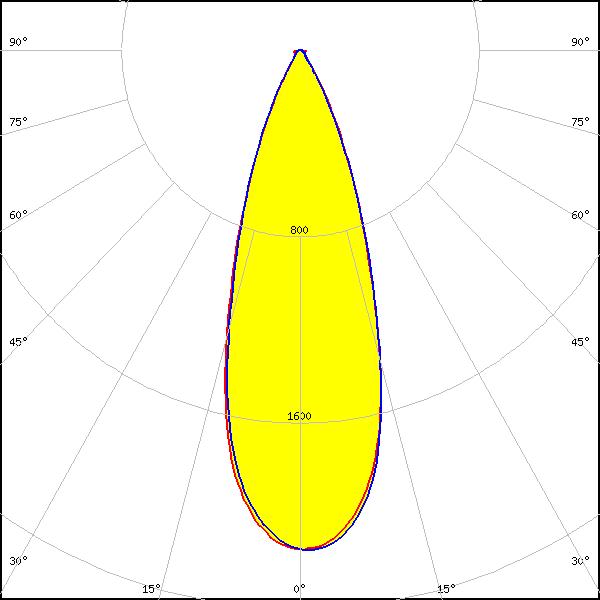

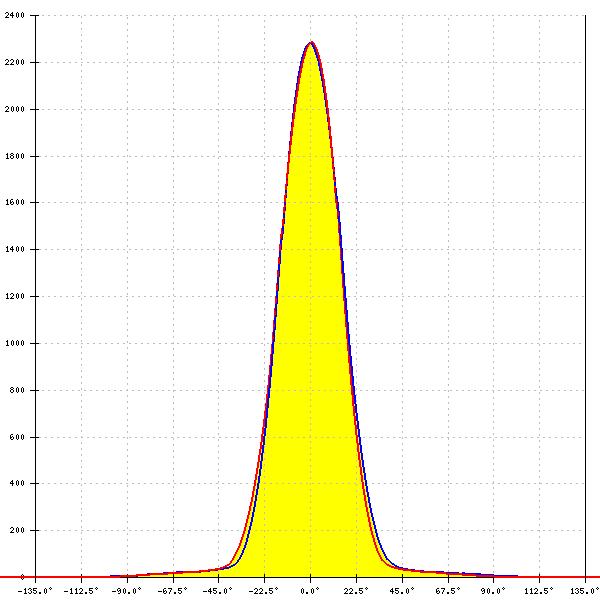

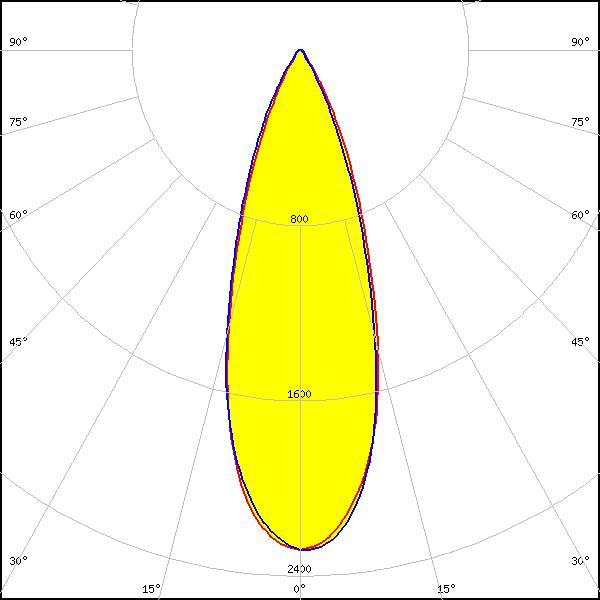

    LED: NVSW319B
    FWHM: 34°
    FWTM: 61°
    Peak intensity: 2.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

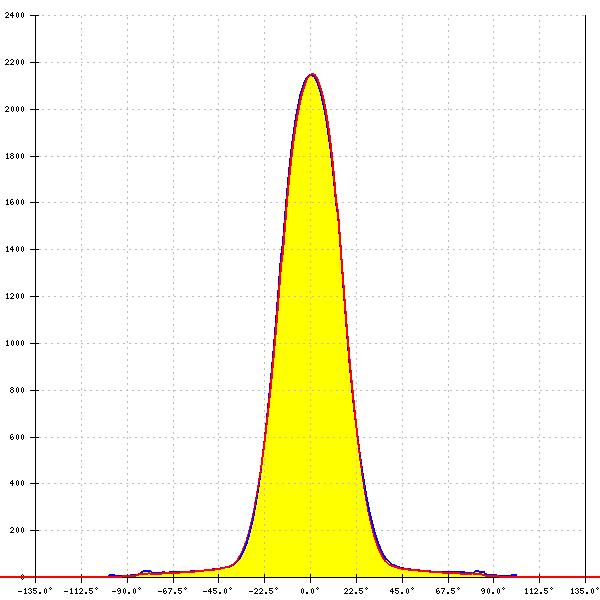

    LED: NVSW3x9A
    FWHM: 34°
    FWTM: 60°
    Peak intensity: 2.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

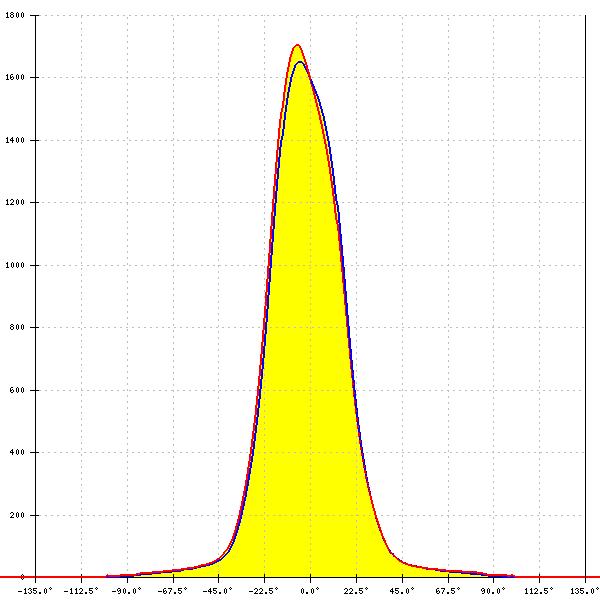

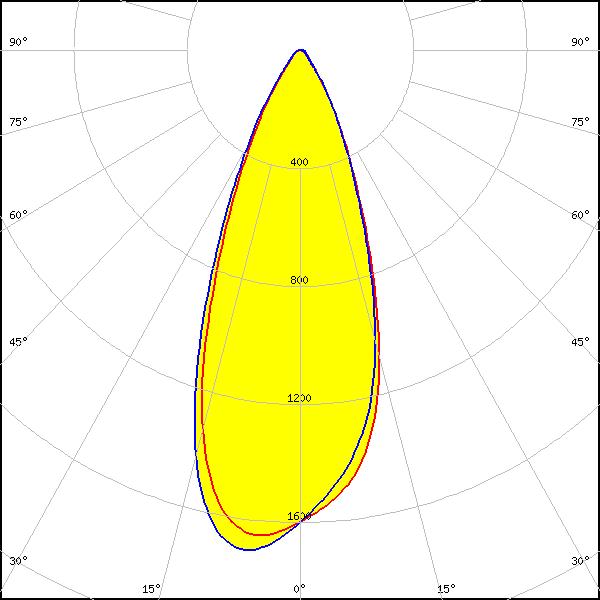

    LED: NVSW519A
    FWHM: 40°
    FWTM: 70°
    Peak intensity: 1.722 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

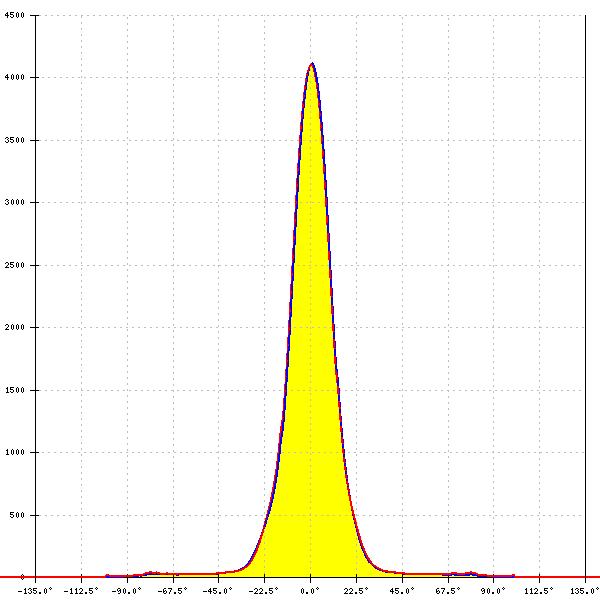

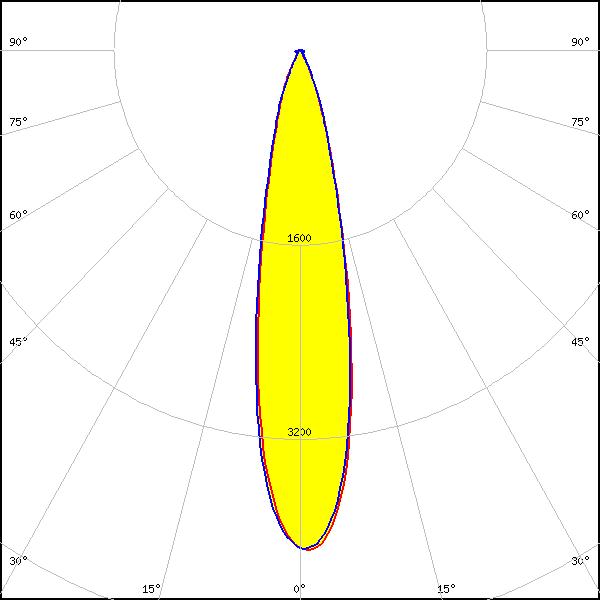

    LED: NVSxE21A
    FWHM: 24°
    FWTM: 53°
    Peak intensity: 4.100 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 31°
    FWTM: 58°
    Peak intensity: 2.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

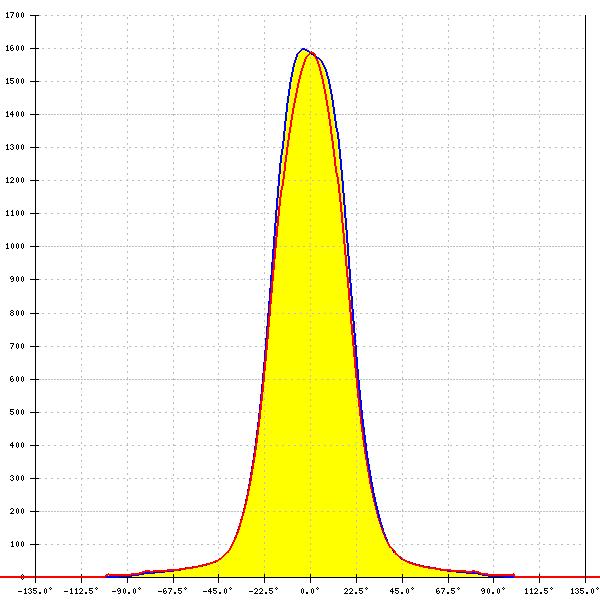

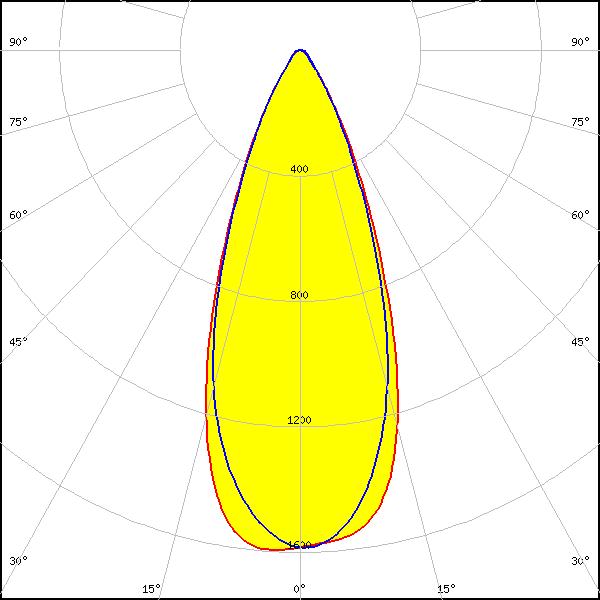

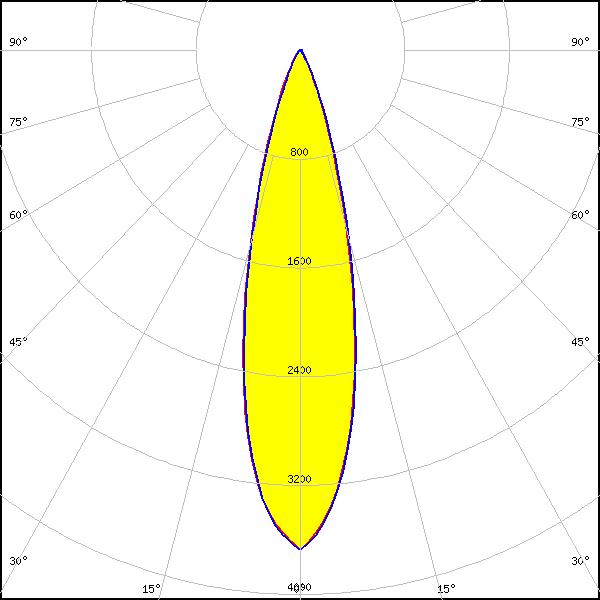

    LED: Duris S8
    FWHM: 41°
    FWTM: 70°
    Peak intensity: 1.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

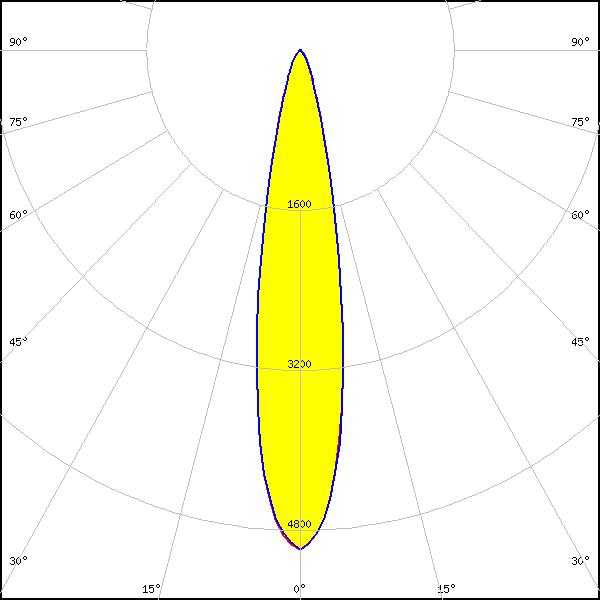

    LED: OSCONIQ P 3030
    FWHM: 20°
    FWTM: 40°
    Peak intensity: 4.998 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: True Green

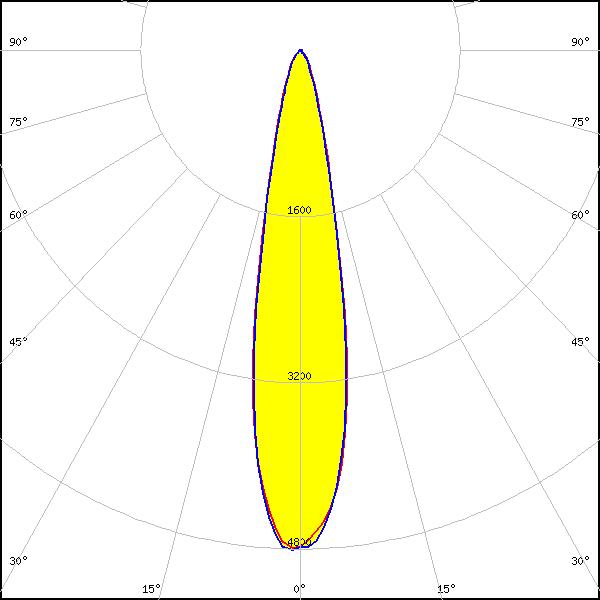

    LED: OSCONIQ P 3030
    FWHM: 20°
    FWTM: 42°
    Peak intensity: 4.814 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

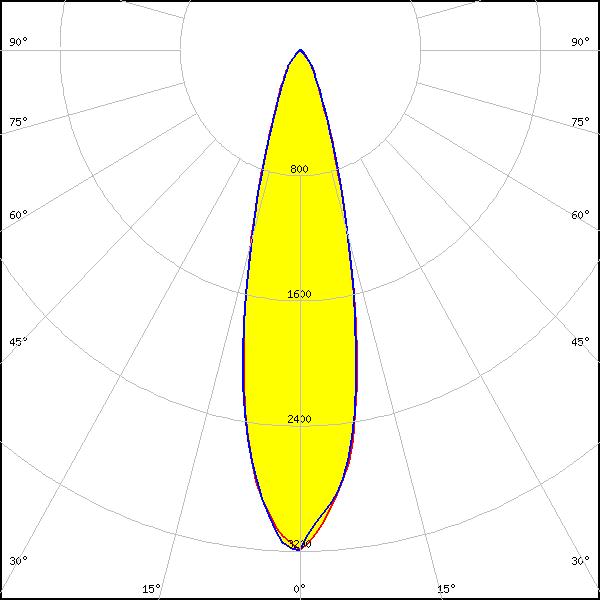

    LED: OSCONIQ P 3737 (2W) PUSRA1
    FWHM: 26°
    FWTM: 52°
    Peak intensity: 3.194 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W) PUSTA1
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.680 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

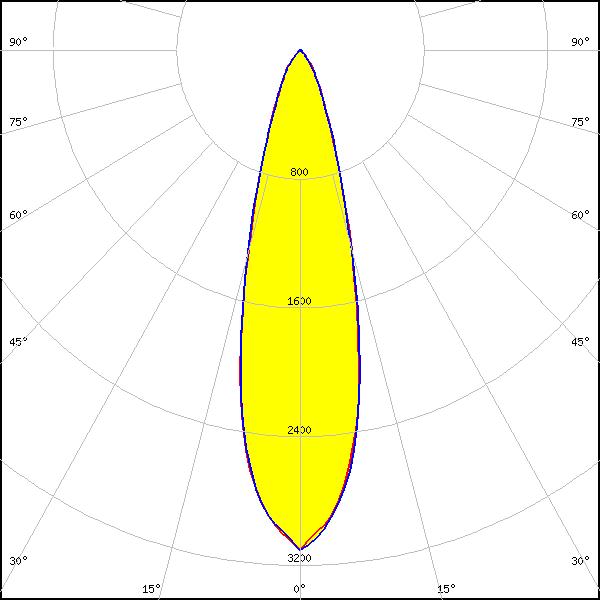

    LED: OSCONIQ P 3737 Flat
    FWHM: 27°
    FWTM: 54°
    Peak intensity: 3.117 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

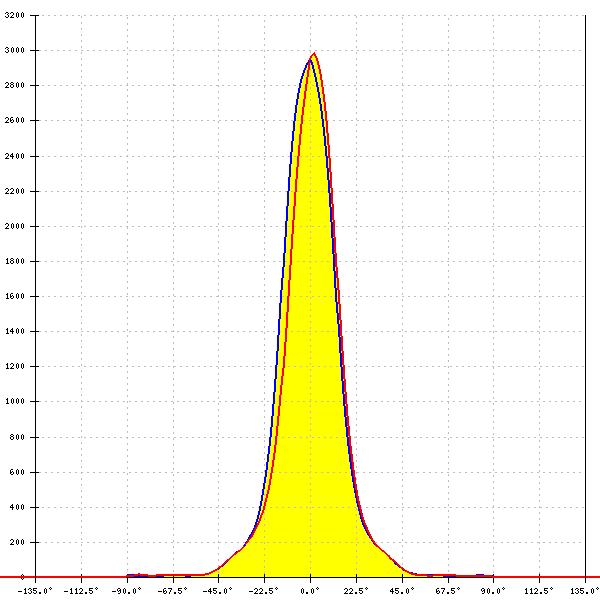

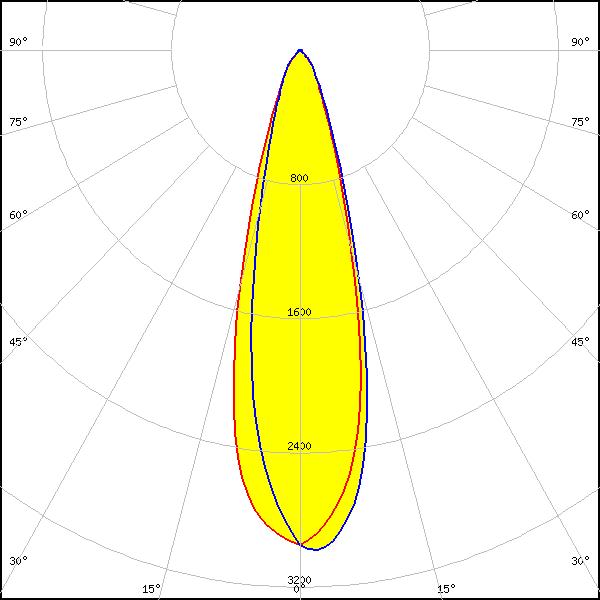

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 27°
    FWTM: 53°
    Peak intensity: 2.990 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square GH CSSRM6.24
    FWHM: 28°
    FWTM: 54°
    Peak intensity: 2.824 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Hyper Red

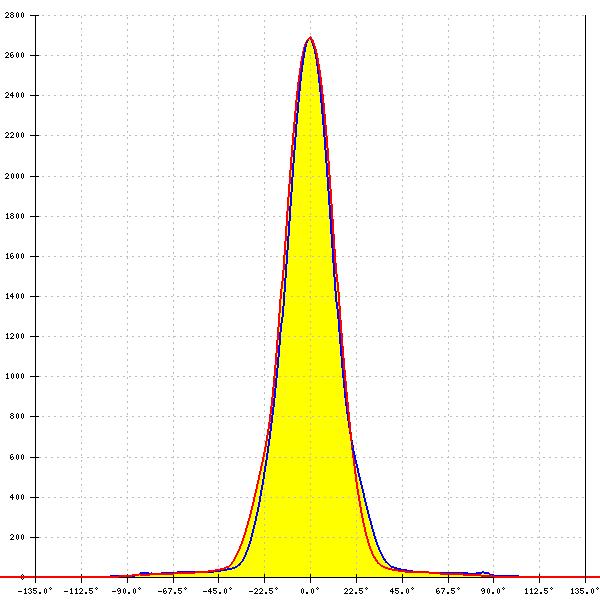

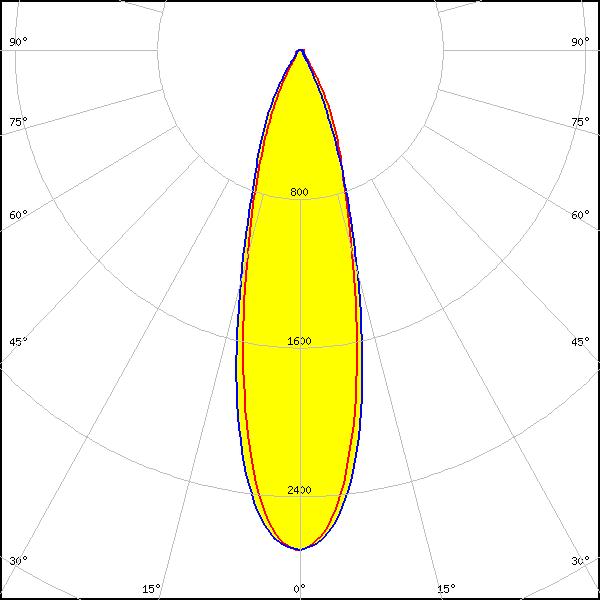

    LED: OSLON Square PC
    FWHM: 29°
    FWTM: 57°
    Peak intensity: 2.690 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

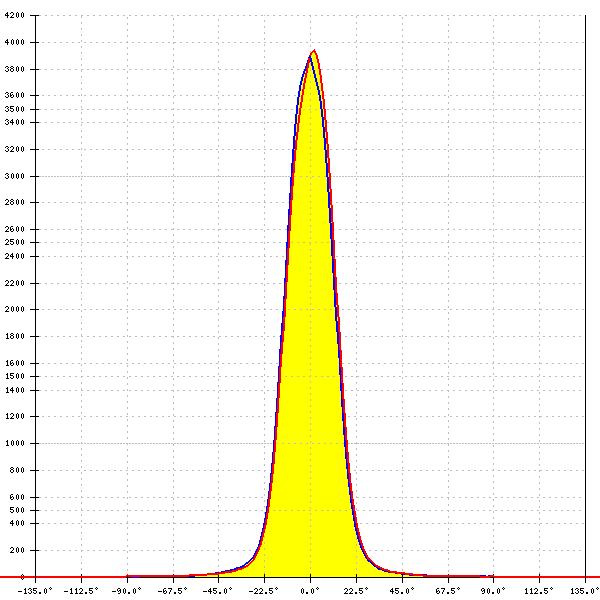

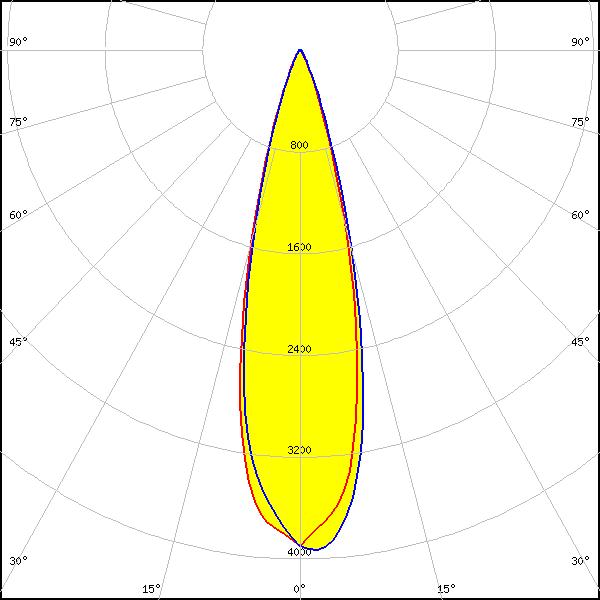

    LED: Fortimo FastFlex LED 2x6 DP G4
    FWHM: 26°
    FWTM: 45°
    Peak intensity: 3.950 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x6 DP G5
    FWHM: 32°
    FWTM: 62°
    Peak intensity: 2.331 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

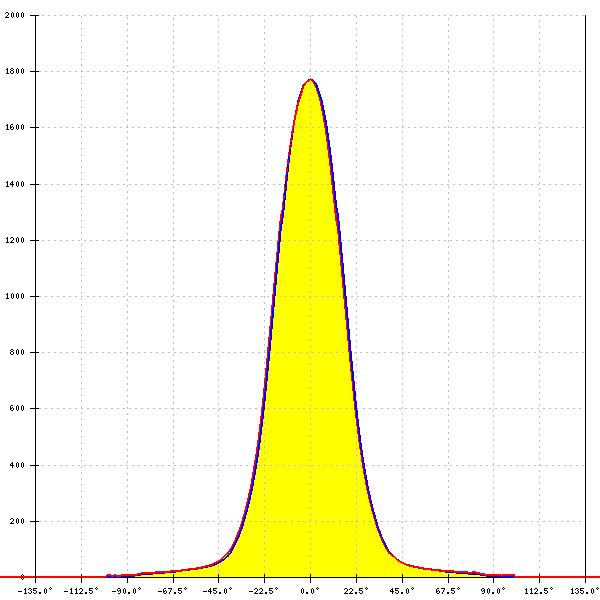

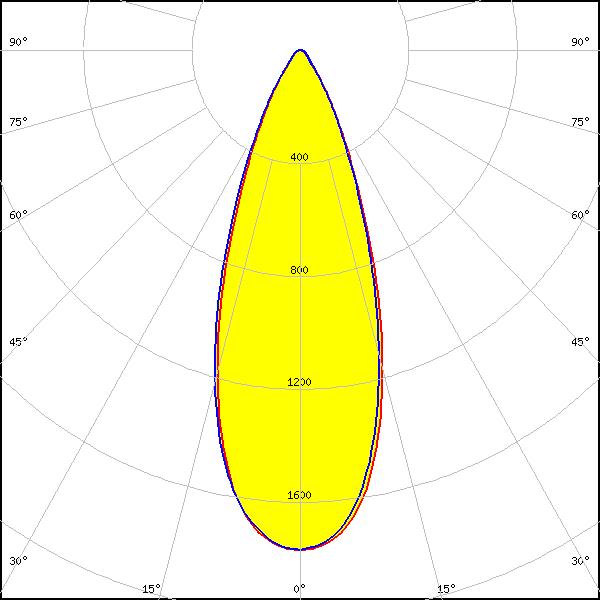

    LED: Fortimo FastFlex LED 2x6 DP HE
    FWHM: 38°
    FWTM: 68°
    Peak intensity: 1.772 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

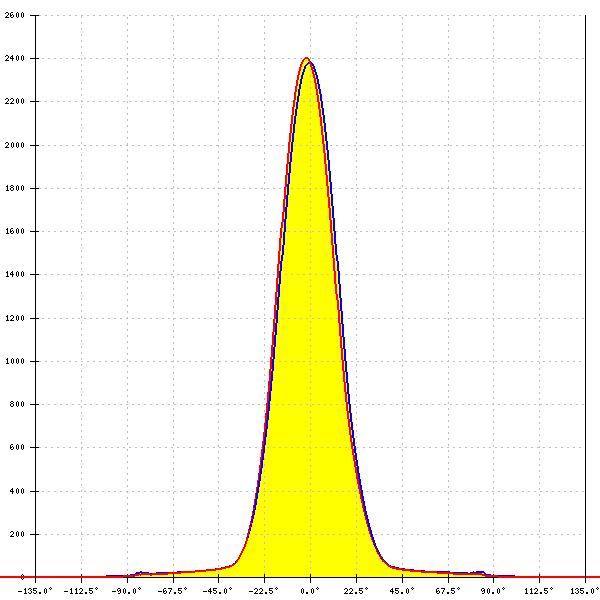

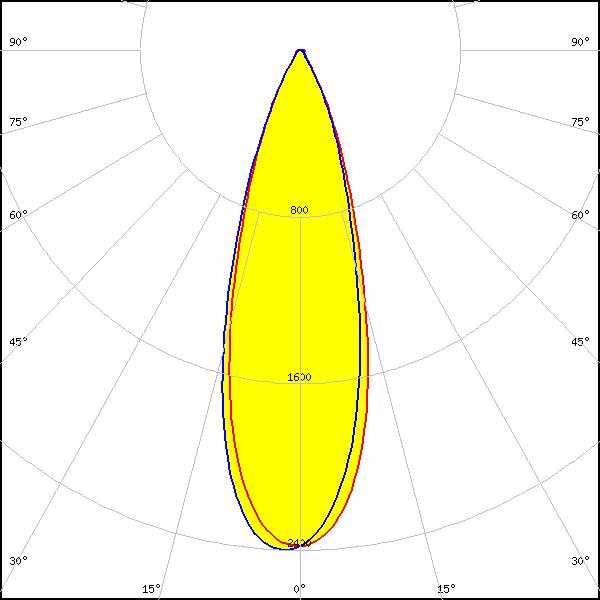

    LED: Fortimo FastFlex LED 2x6 DPX G4
    FWHM: 32°
    FWTM: 58°
    Peak intensity: 2.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

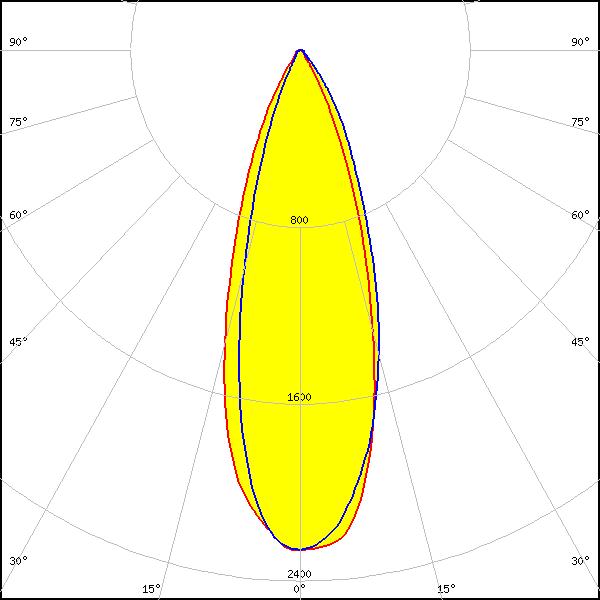

    LED: HiLOM RH12 (LH351C)
    FWHM: 33°
    FWTM: 61°
    Peak intensity: 2.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

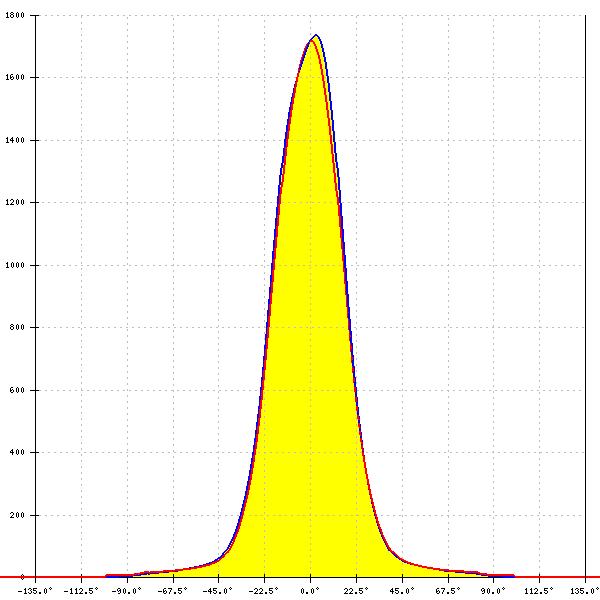

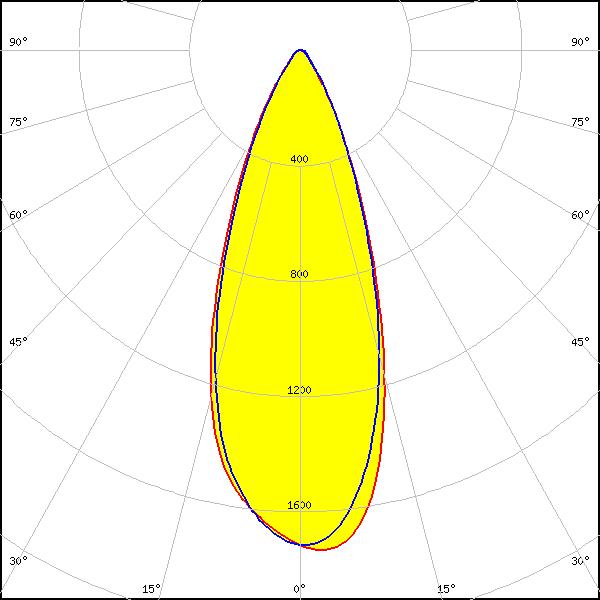

    LED: HiLOM RM12 ZP (LH502C)
    FWHM: 38°
    FWTM: 69°
    Peak intensity: 1.736 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

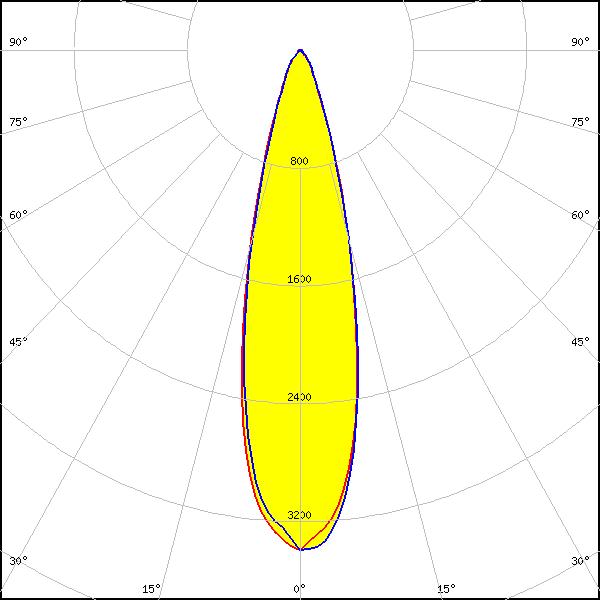

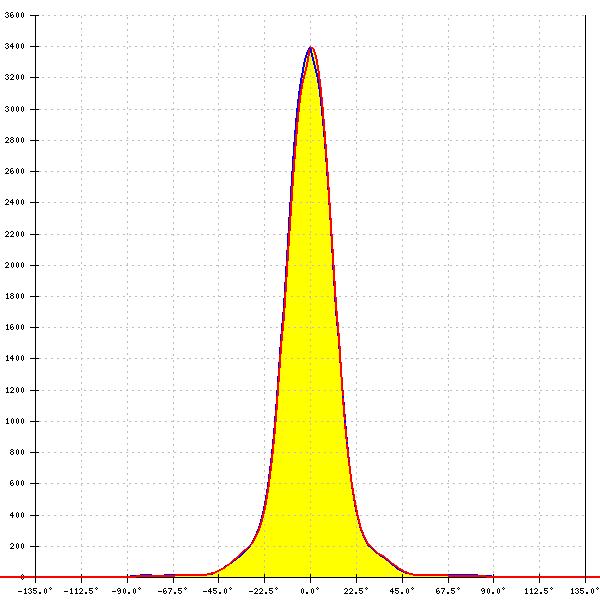

    LED: LH181B
    FWHM: 27°
    FWTM: 50°
    Peak intensity: 3.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

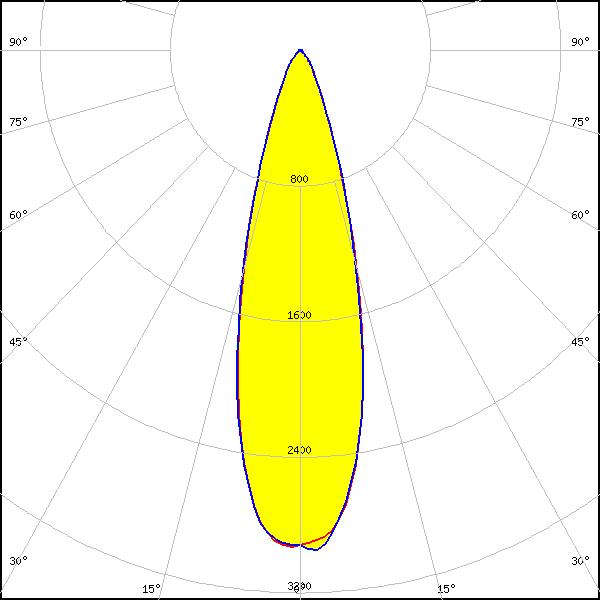

    LED: LH231B
    FWHM: 28°
    FWTM: 52°
    Peak intensity: 2.962 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

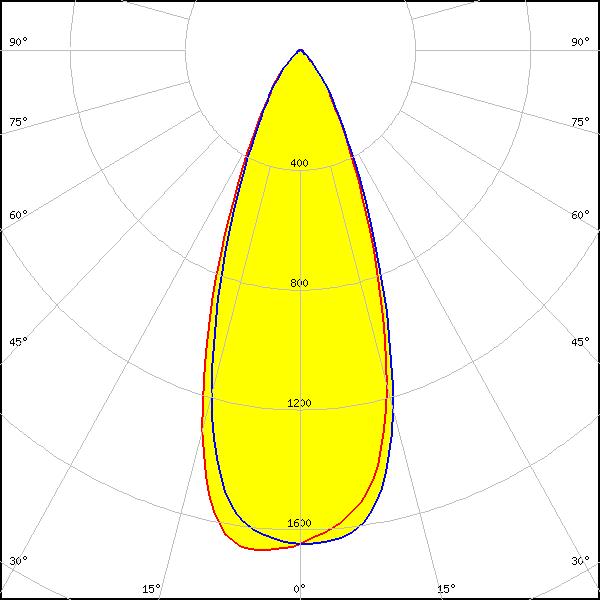

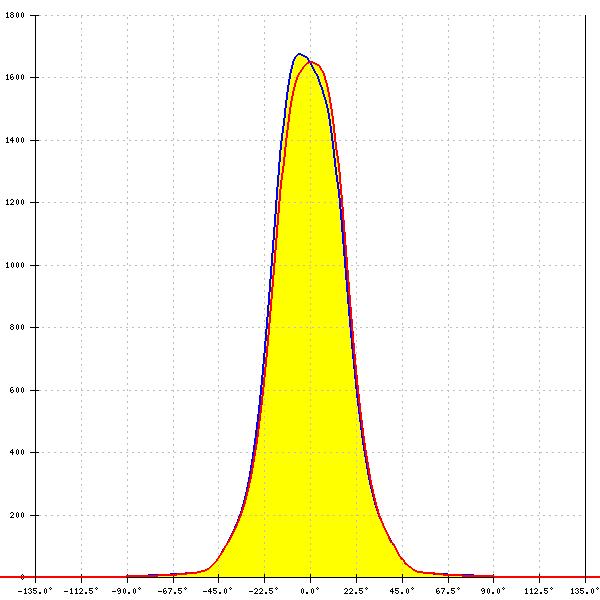

    LED: LH351C
    FWHM: 40°
    FWTM: 72°
    Peak intensity: 1.680 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

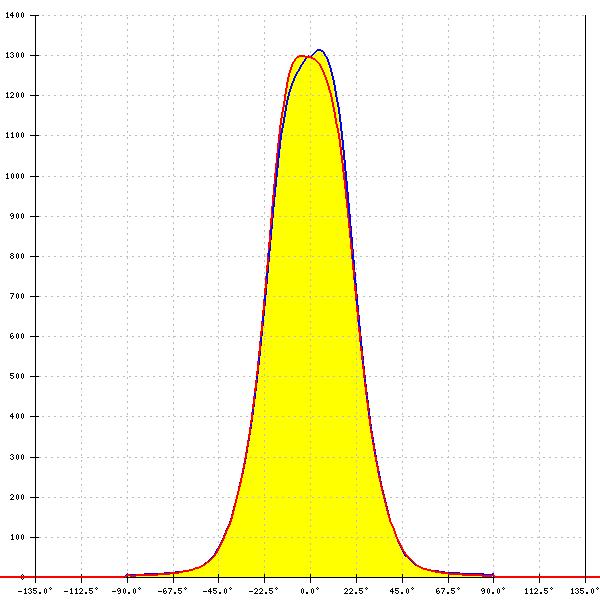

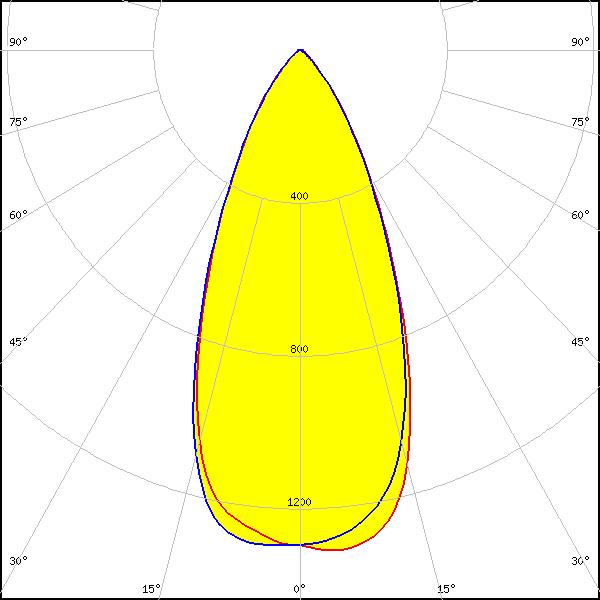

    LED: LH351D
    FWHM: 46°
    FWTM: 80°
    Peak intensity: 1.320 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

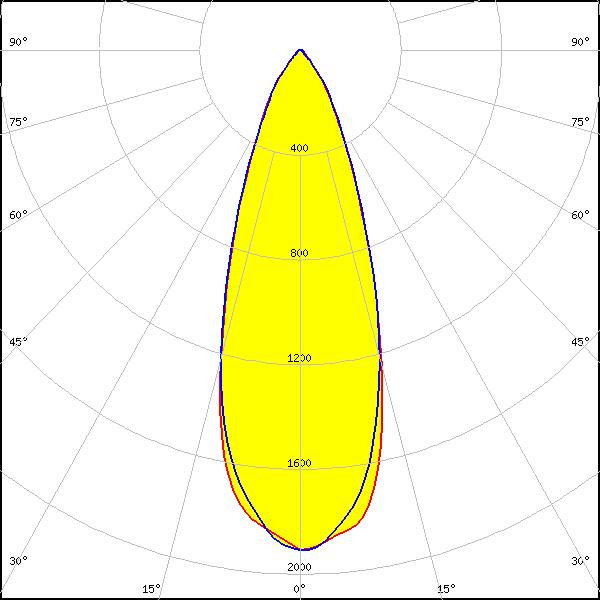

    LED: LH508B
    FWHM: 36°
    FWTM: 70°
    Peak intensity: 1.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XLE-S22C4XTEHE (XT-E HE)
    FWHM: 26°
    FWTM: 53°
    Peak intensity: 3.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

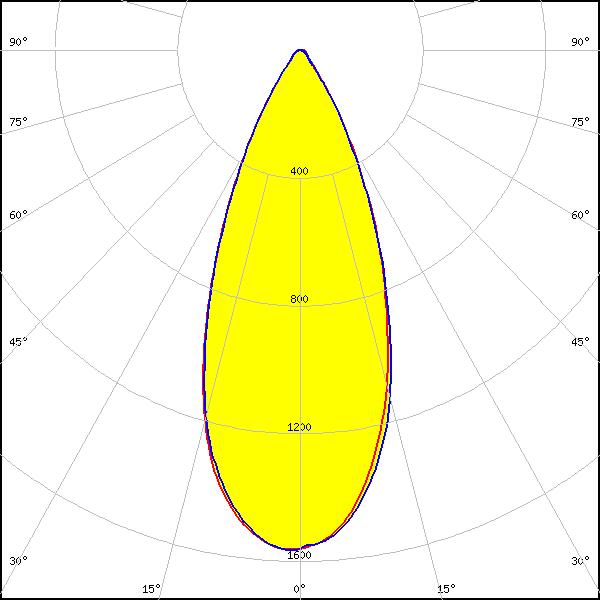

    LED: XLE-S26XHP35 (XHP35 HD)
    FWHM: 42°
    FWTM: 71°
    Peak intensity: 1.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

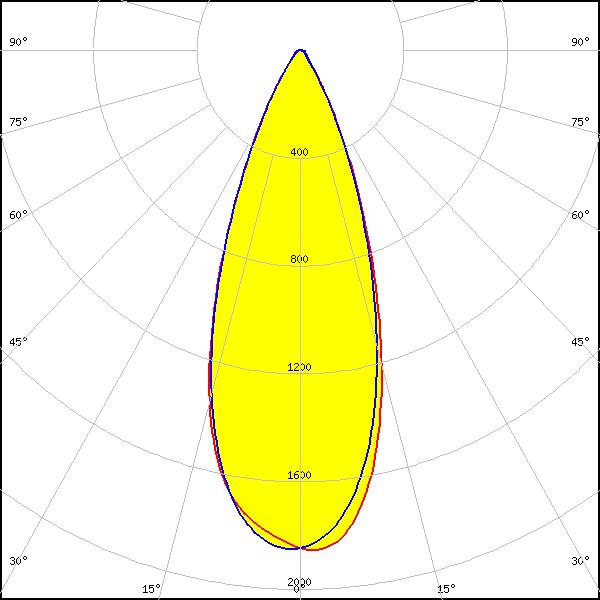

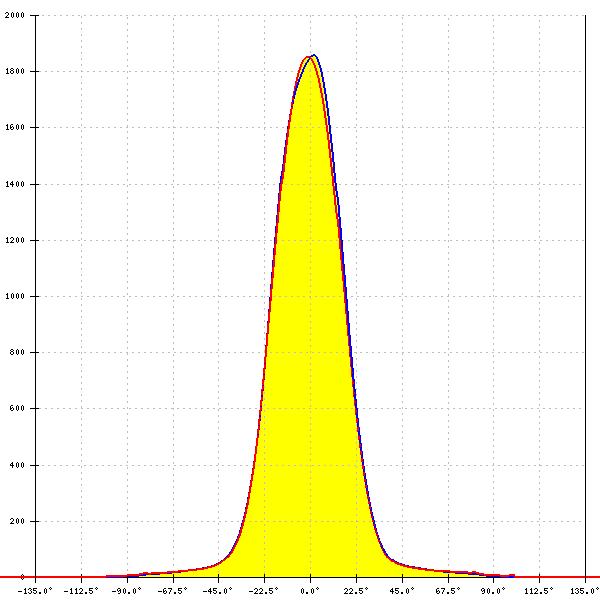

    LED: 2x6 5050 module - SMJD-3625012F-XX
    FWHM: 38°
    FWTM: 65°
    Peak intensity: 1.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

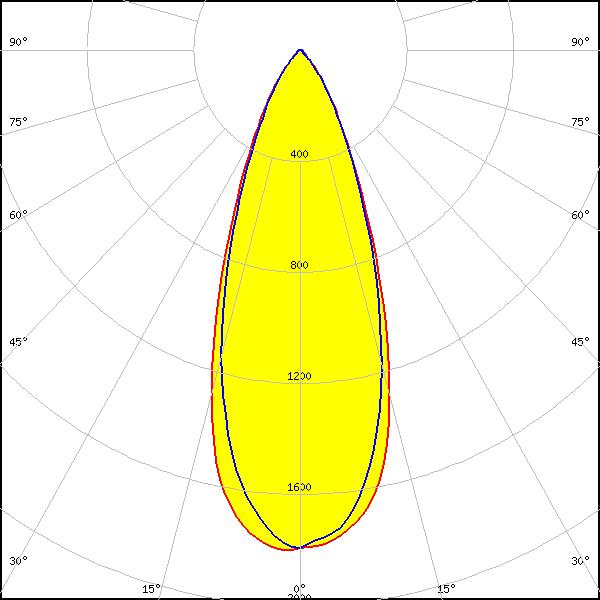

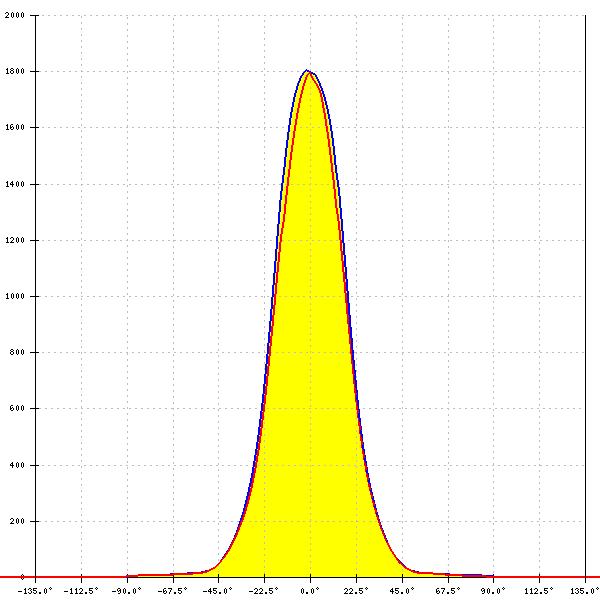

    LED: SEOUL DC 5050 6V
    FWHM: 39°
    FWTM: 72°
    Peak intensity: 1.820 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

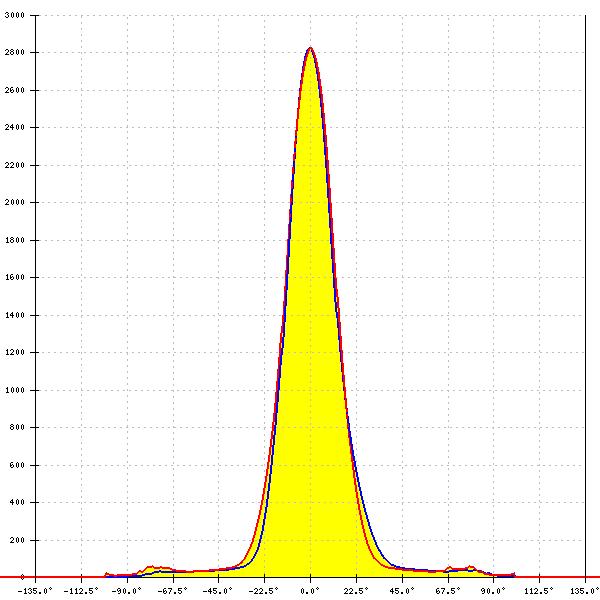

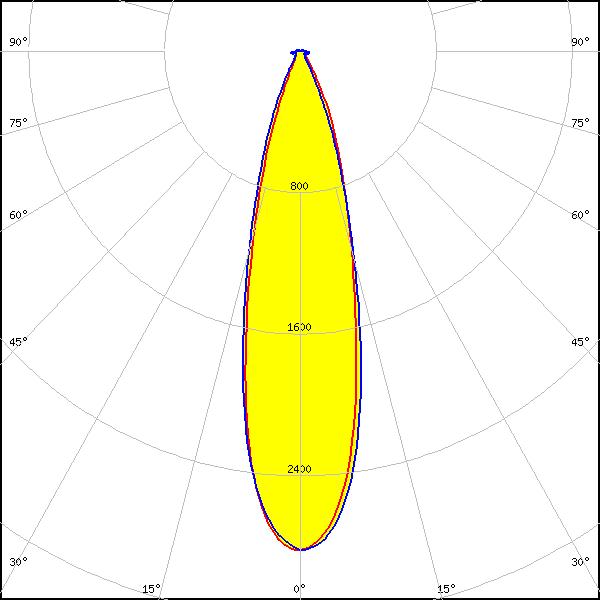

    LED: SMJQ-D36W12Mx
    FWHM: 26°
    FWTM: 52°
    Peak intensity: 2.800 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

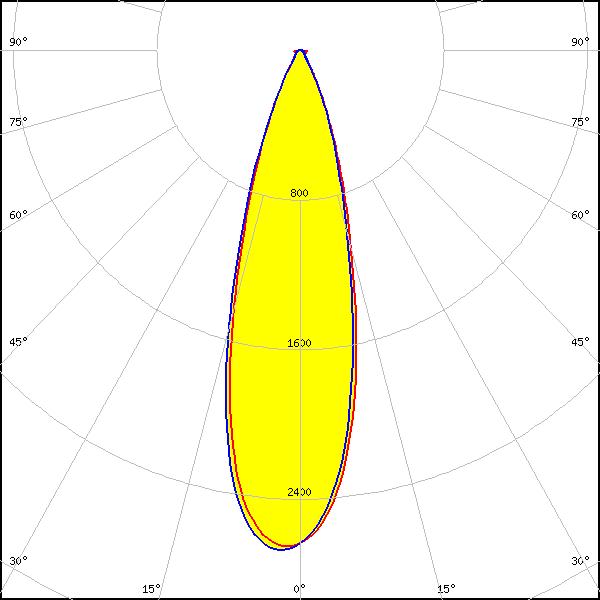

    LED: SMJQ-D36W12Px
    FWHM: 29°
    FWTM: 54°
    Peak intensity: 2.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M1/Z5M2
    FWHM: 30°
    FWTM: 57°
    Peak intensity: 2.630 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

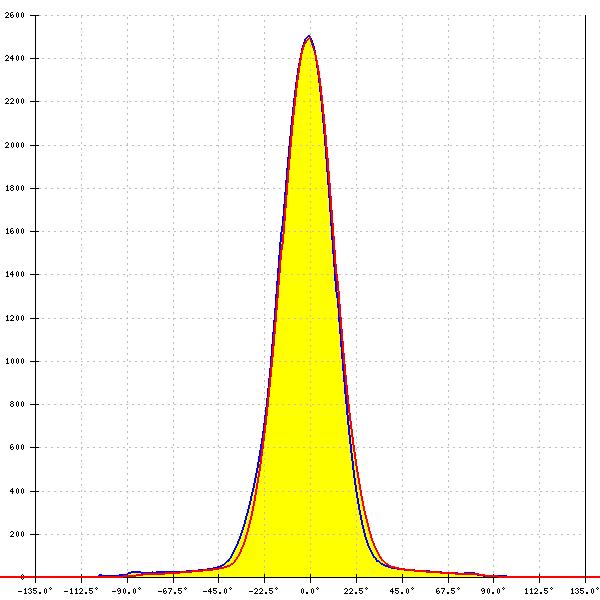

    LED: Z5M3
    FWHM: 30°
    FWTM: 58°
    Peak intensity: 2.501 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

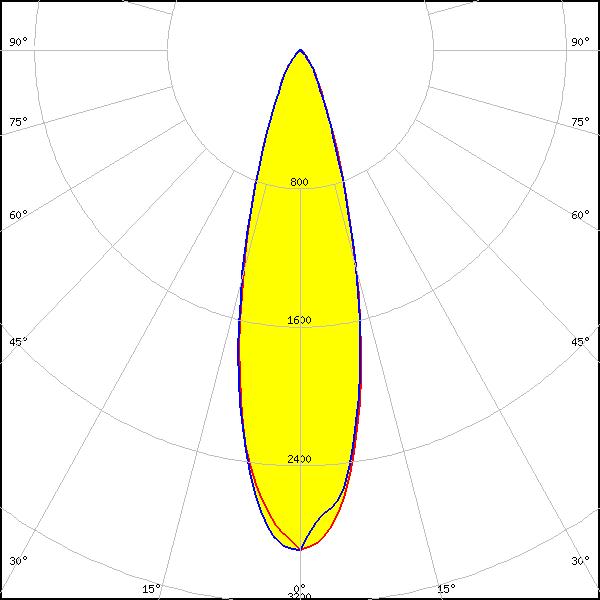

    LED: Z5M4
    FWHM: 28°
    FWTM: 55°
    Peak intensity: 2.930 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

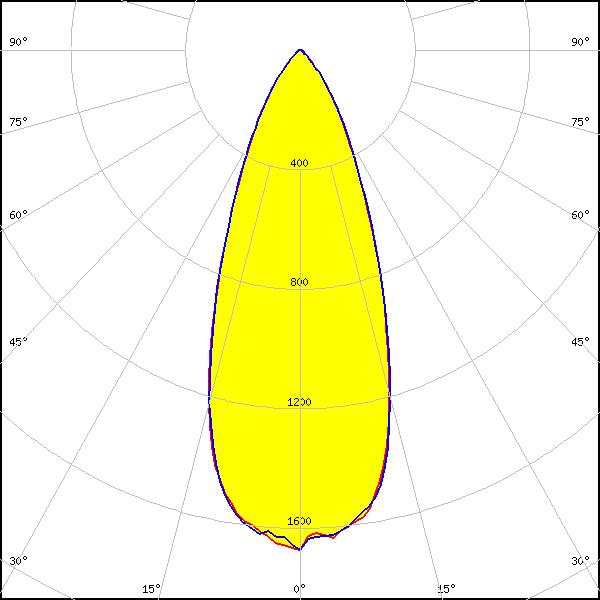

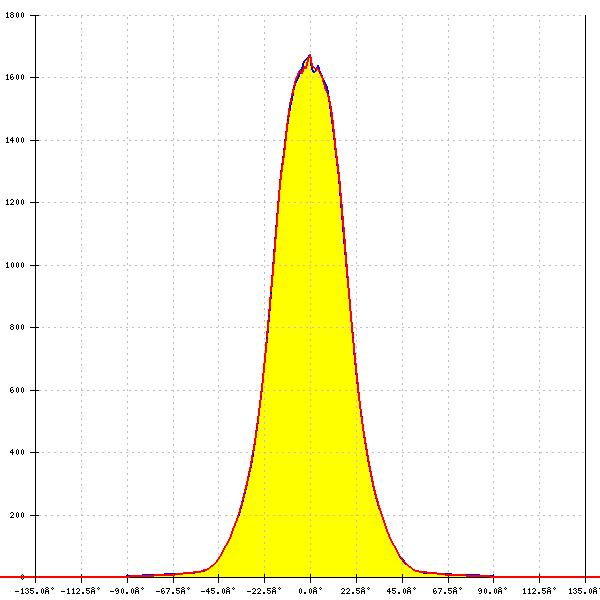

    LED: Z5M4-E1
    FWHM: 40°
    FWTM: 74°
    Peak intensity: 1.695 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

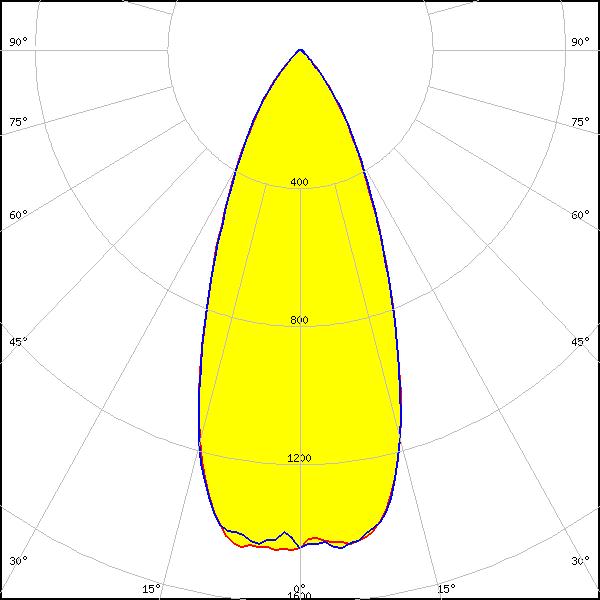

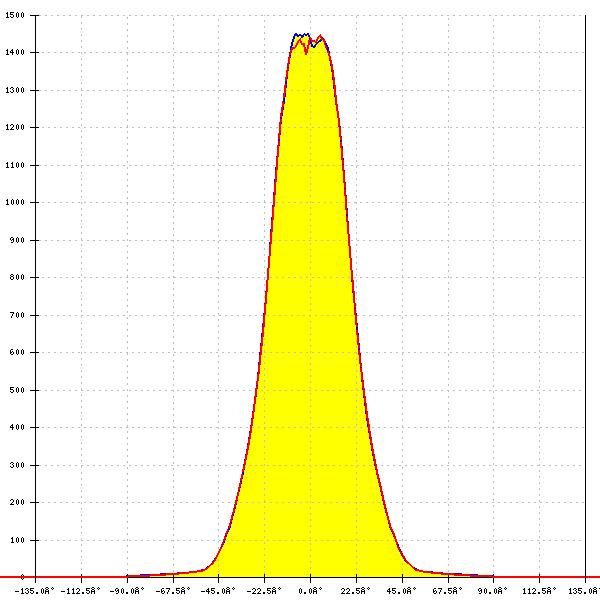

    LED: Z5M4-E2
    FWHM: 44°
    FWTM: 78°
    Peak intensity: 1.469 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22
    FWHM: 26°
    FWTM: 52°
    Peak intensity: 2.800 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

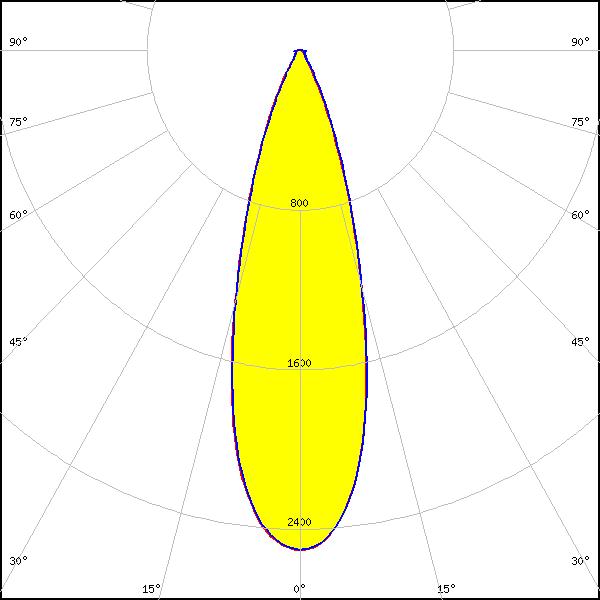

    LED: Z8Y22P
    FWHM: 30°
    FWTM: 55°
    Peak intensity: 2.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

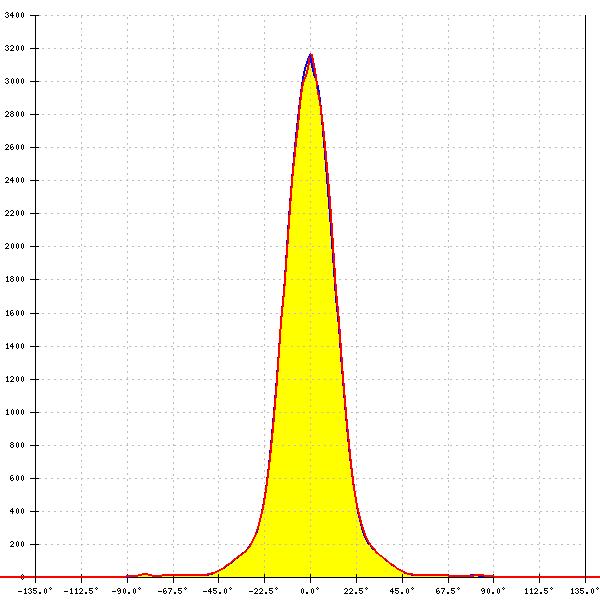

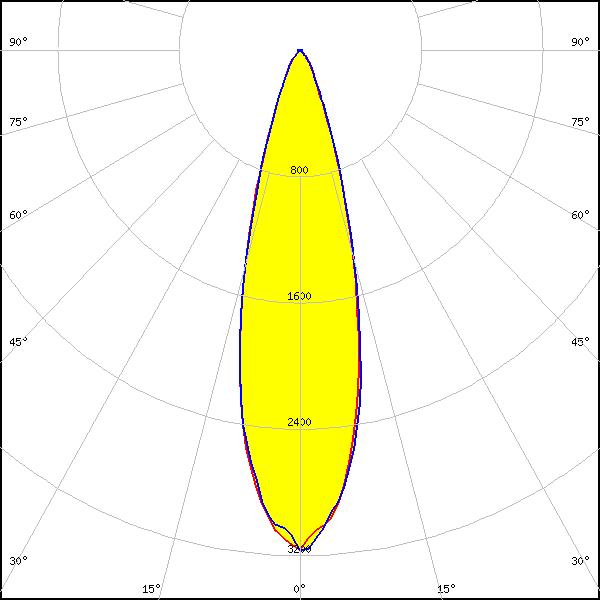

    LED: Z8Y22T
    FWHM: 28°
    FWTM: 51°
    Peak intensity: 3.170 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

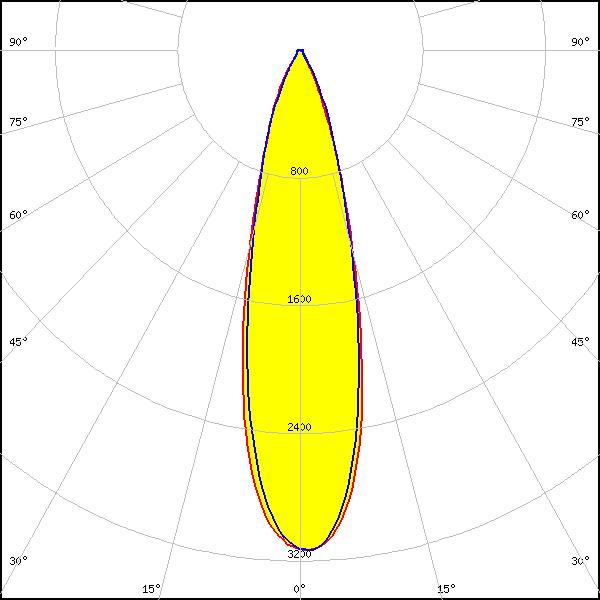

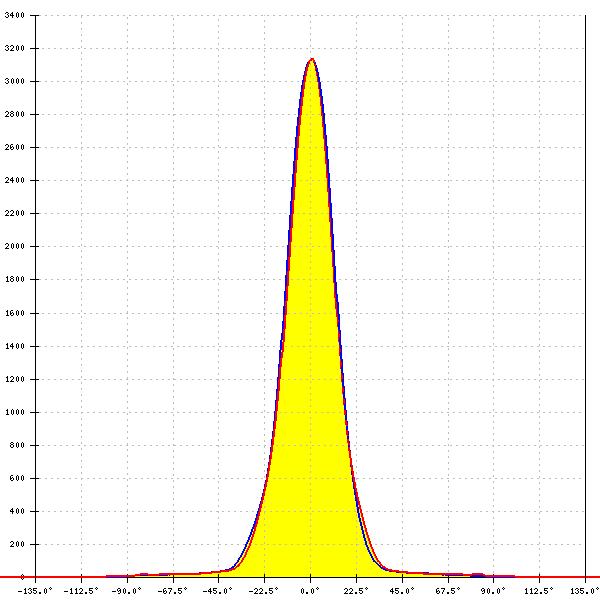

    LED: RLE 2x6 3000lm HP EXC2 OTD
    FWHM: 26°
    FWTM: 53°
    Peak intensity: 3.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

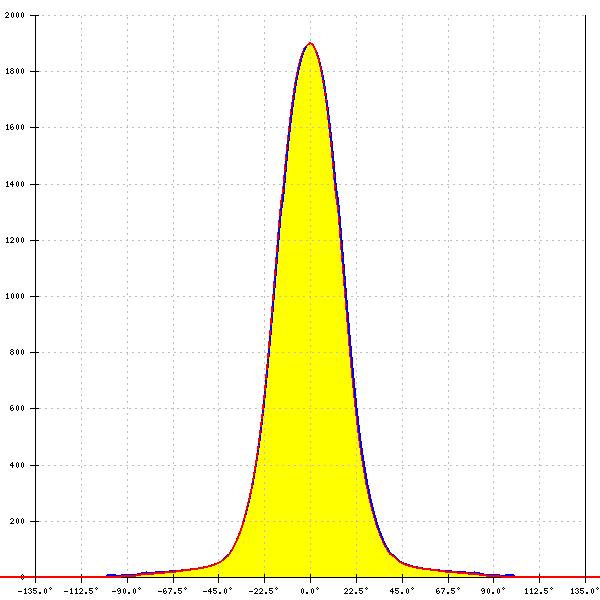

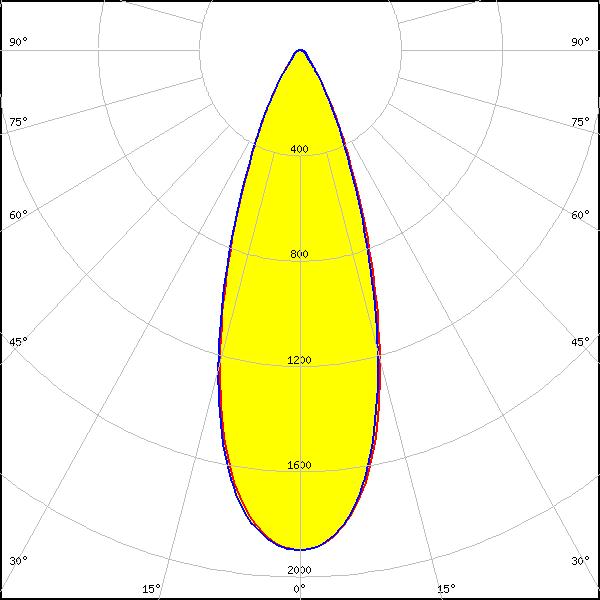

    LED: RLE 2x6 4500lm HP HE EXC3 OTD Z19
    FWHM: 36°
    FWTM: 67°
    Peak intensity: 1.899 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
