Application example

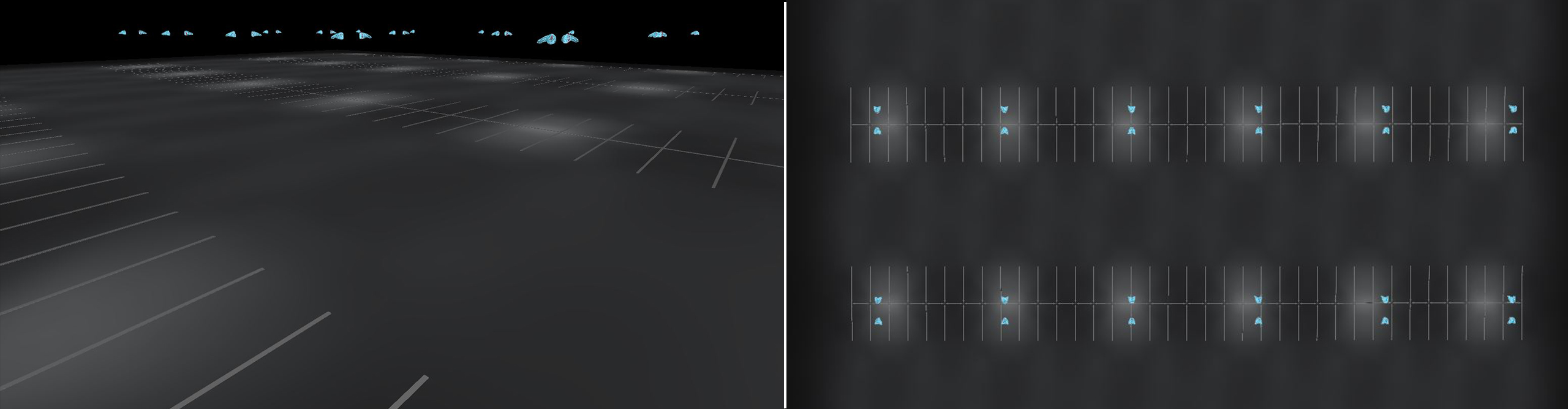

Parking lot lighting with contact Tech support
Setup:
| Application: | Parking lot lighting |
| Installation height: | 5 m |
| Spacing: | 16 m |
| LED: | Lumileds Luxeon 5050 square |

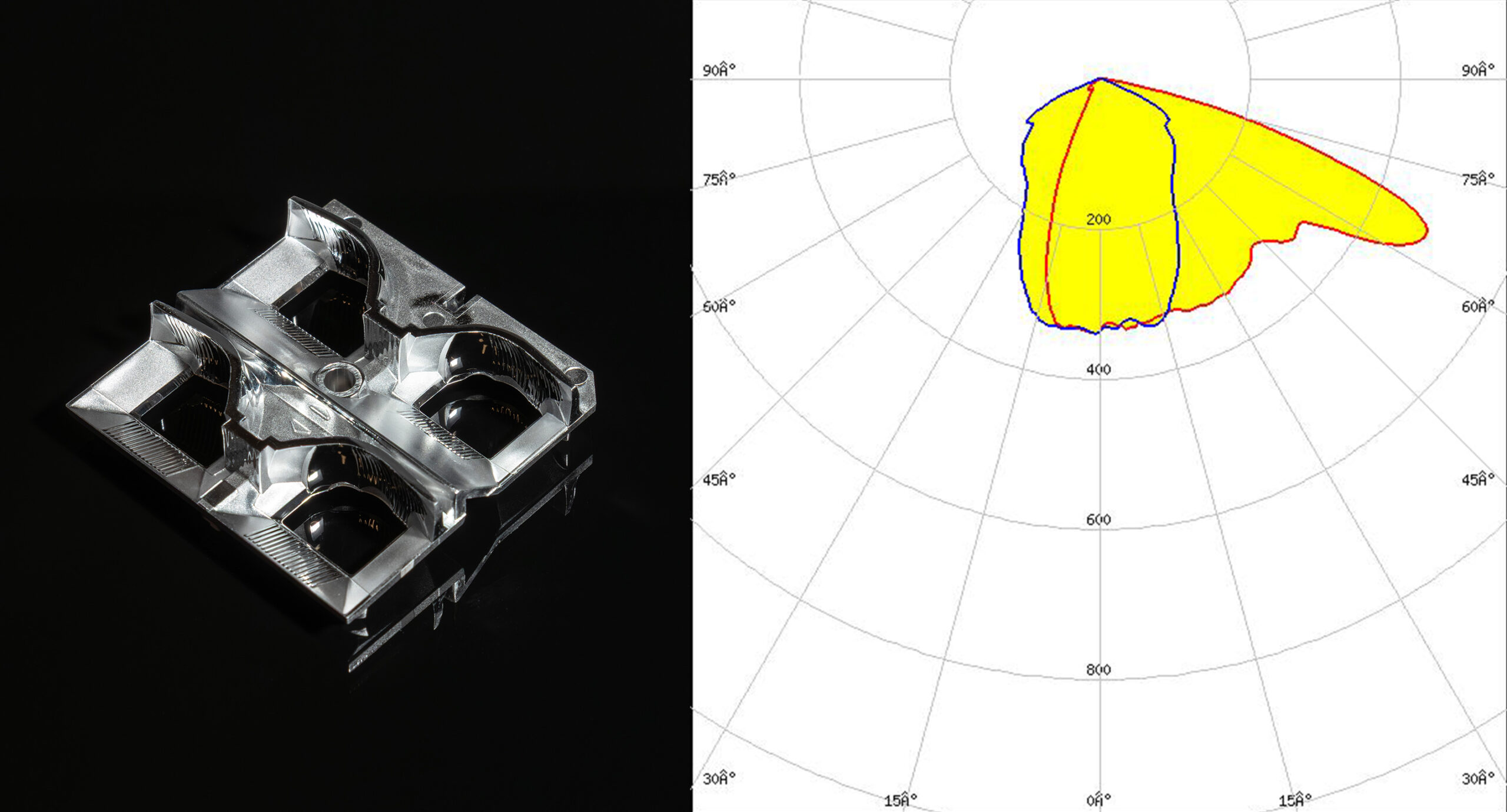

| Optics: | STRADA-2X2R-T4 |
| Luminaire LED lumens: | 3000 lm |
| Luminaire luminous flux: | 2600 lm |
| Luminaire power: | 17.7 W |

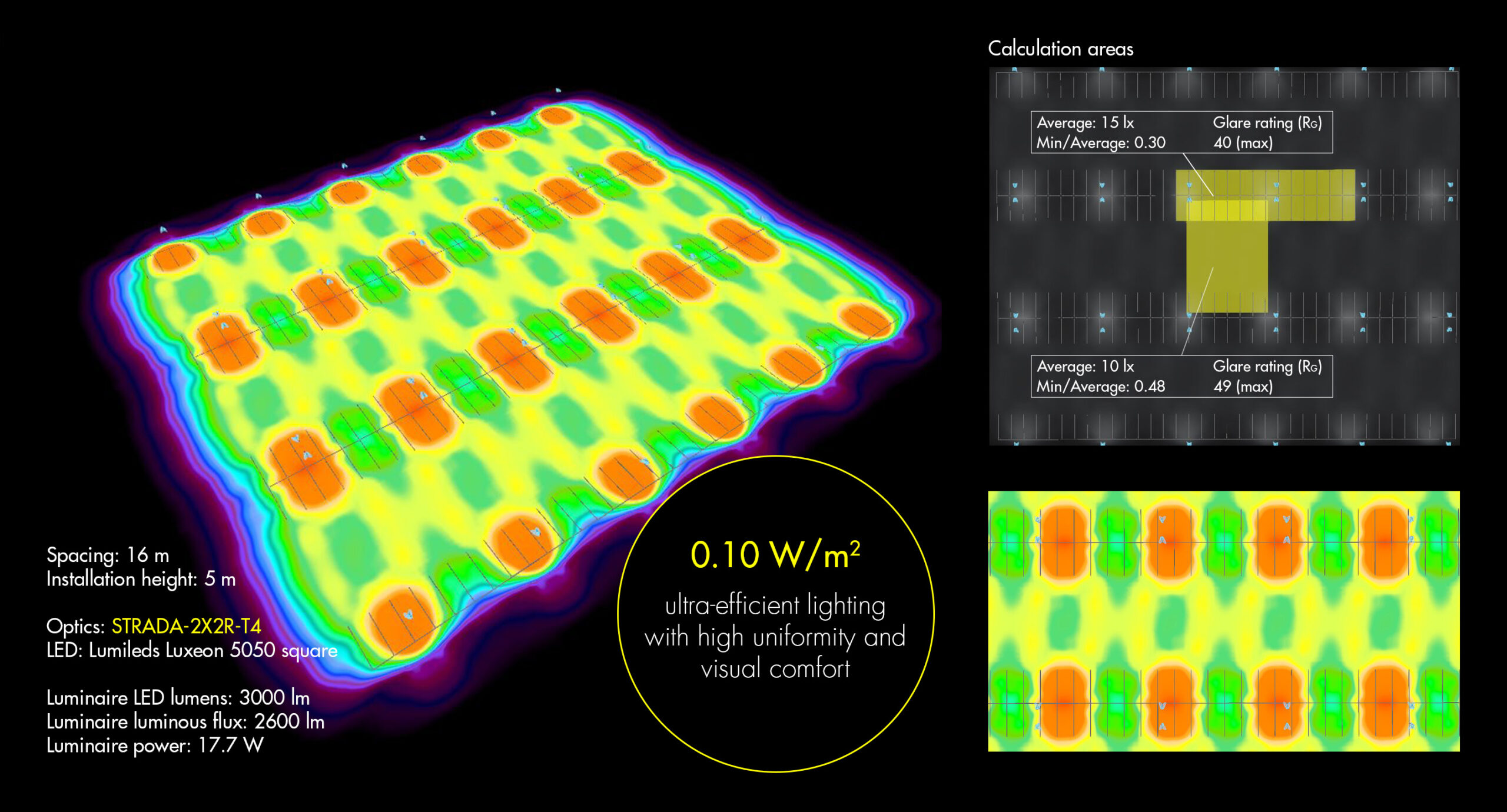

Results:
| In the parking box | |
| Average: | 15 lx |
| Min/Average: | 0.30 |
| Glare rating (RG) | 40 (max) |
| Driveway | |
| Average: | 10 lx |
| Min/Average: | 0.48 |
| Glare rating (RG) | 49 (max) |
