Luminaire example

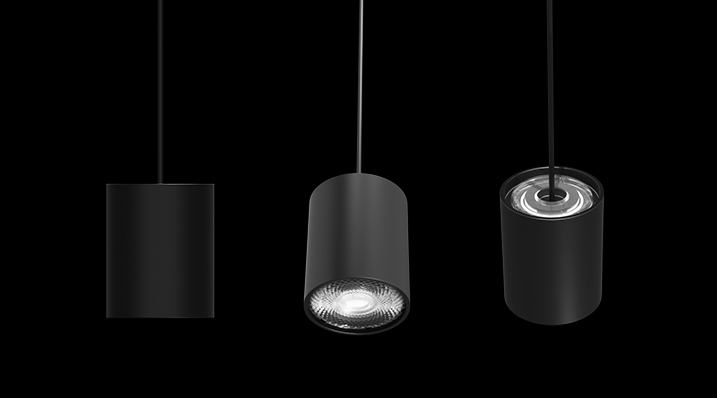

Downlight luminaire with uplighting using AMY-70-WWW and ULLA-UP-D
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Luminaire example
| Luminaire size: | 70 mm |
Downlighting
| Optics: | AMY-70-W |
| Number of optics: | 1 |
| LED: | Cree CMU1516 LES 14.5mm LED package 1919 |
| Number of LEDs: | 1 |
| Connector: | F17438_HEKLA-G2-I |
| Luminous flux: | 1000 lm |
Uplighting
| Optics: | ULLA-UP-D |
| Number of optics: | 1 |
| LED: | Audax electronix 24 LEDs LIGHT ENGINE |
| Number of LEDs: | 24 |
| Luminous flux: | 2000 lm |
Downlight luminaire with uplighting using AMY-70-WWW and ULLA-UP-D
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
