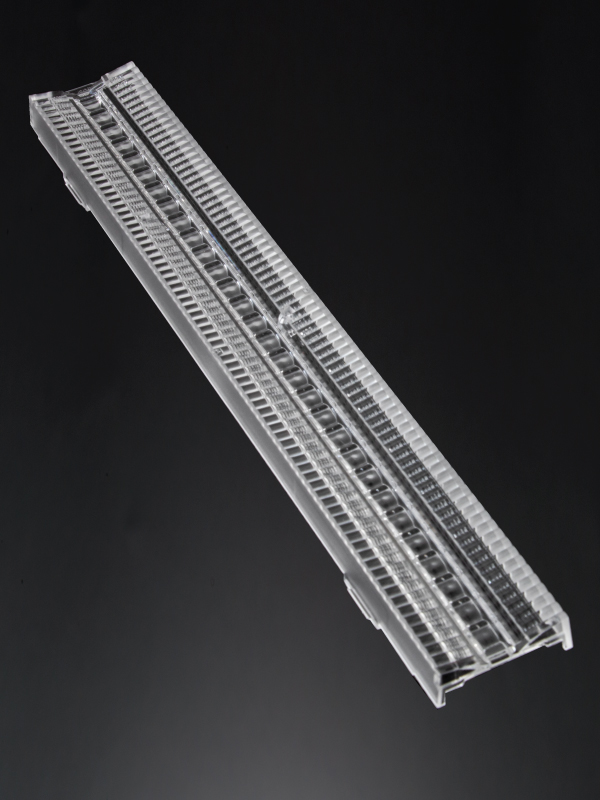

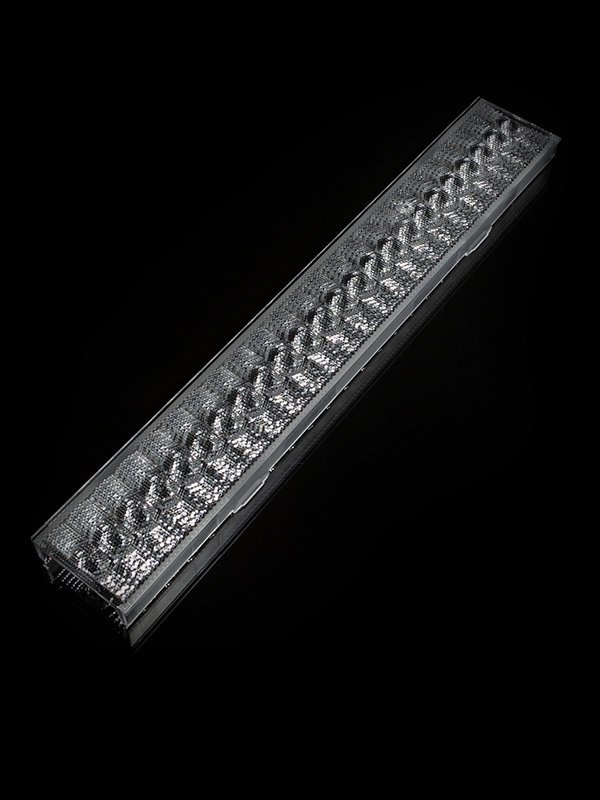

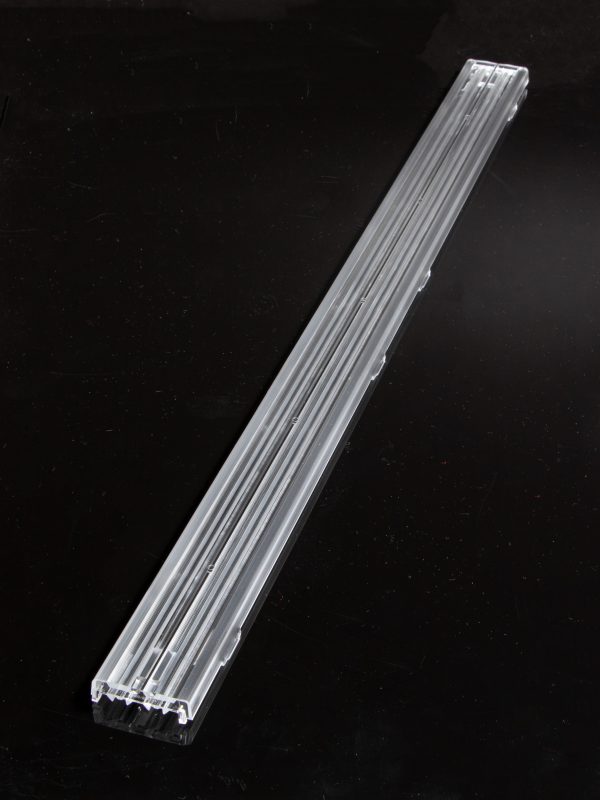

285 x 40 mm linear lenses with integrated clip fixing optimized for the most common Zhaga mid-power 20 and 24 mm wide PCBs
LINNEA is a low profile linear design family (285 x 40 x 9.7 mm) that allows lenses to be attached seamlessly together and fitted into many existing luminaire designs. It provides high quality indoor lighting with reduced glare. Fastening the optic with integrated clips and dedicated snap-on end part accessories makes the whole installation process quck and easy. The family consists of a variety of symmetrical and asymmetrical beams and is optimized for the most common Zhaga mid-power 20 and 24 mm wide PCBs.
Download 2D- and 3D-files from our profile examples!
Metal sheet – 2D Mechanical drawing
Metal sheet – 3D Mechanical model
Metal profile – 2D Mechanical drawing
Metal profile – 3D Mechanical Model
Aluminium extrusion profile – 2D Mechanical drawing
Aluminium extrusion profile – 3D Mechanical model
