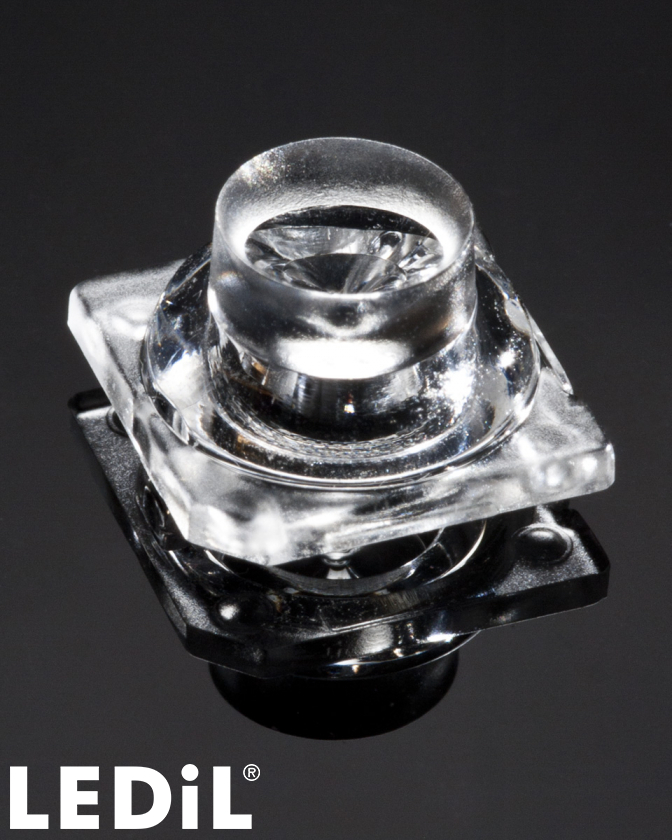

    C13055_EMMA-360

    Print

    ~170° side emitter

    Specification
    • Dimensions:
      10 x  10 mm
    • Height:
      5.70 mm
    • Fastening:
      glue, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      5000 pcs
    • Box weight:
      1.6 kg
    • MPQ:
      100 pcs
    • MOQ:
      300 pcs
    • MOQ size:
      230 x 160 x 30 mm
    • MOQ weight:
      0.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C13055_EMMA-360

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

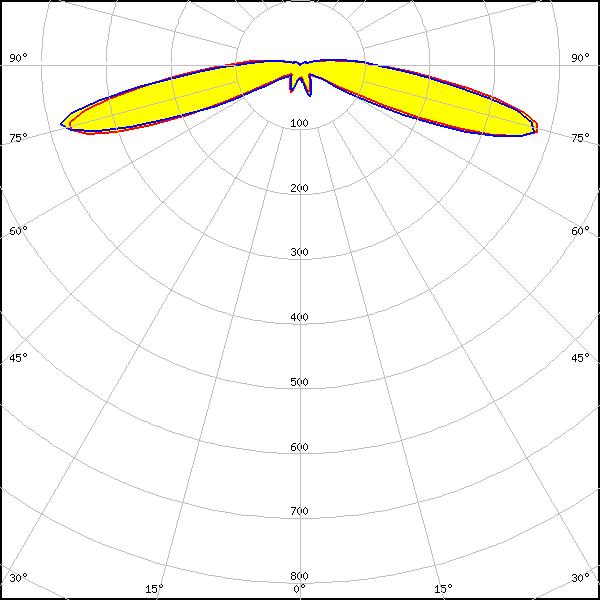

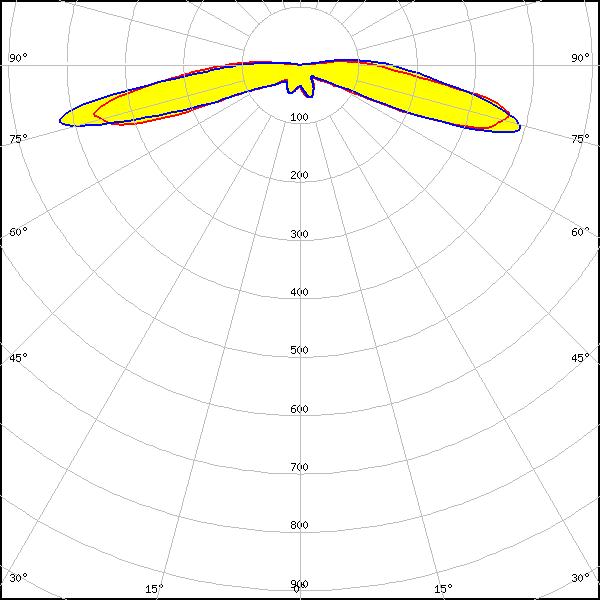

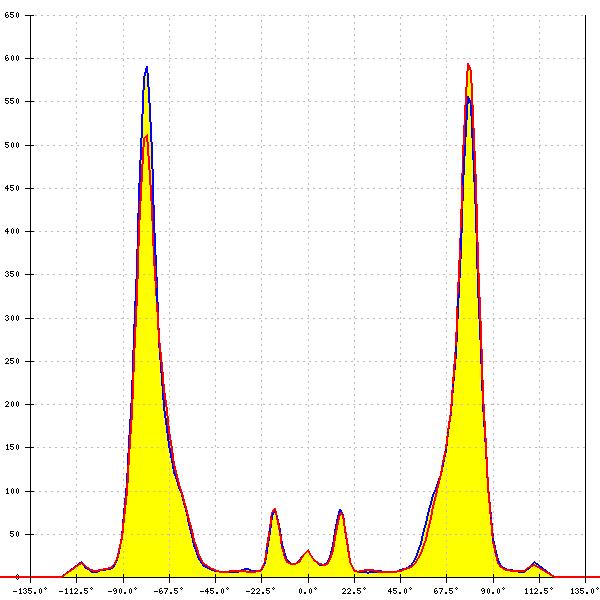

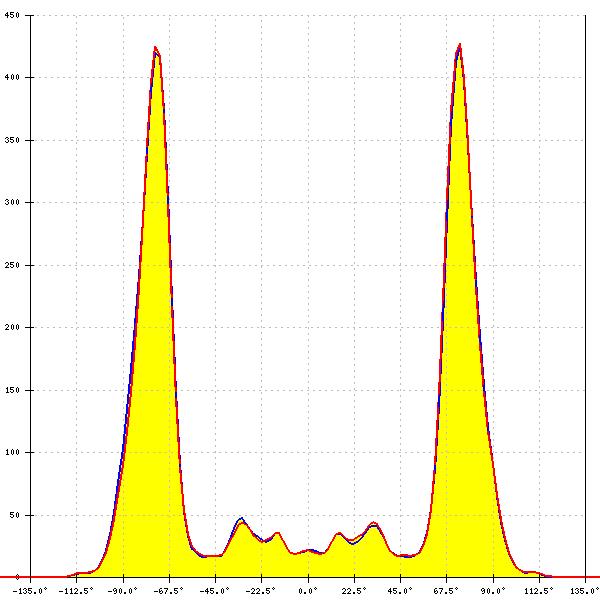

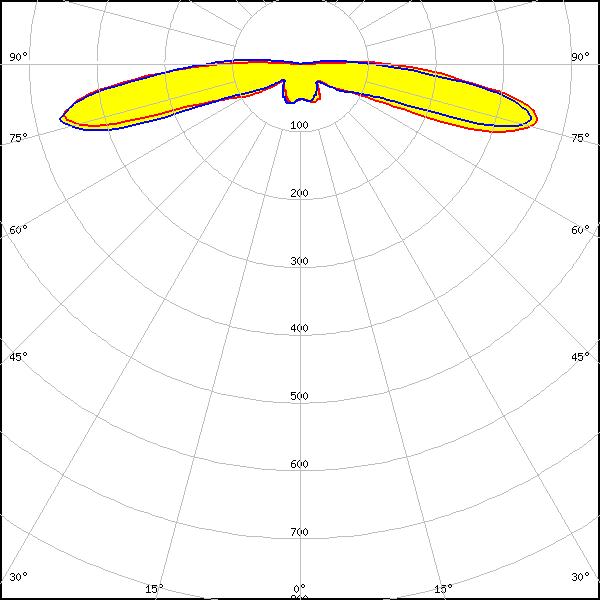

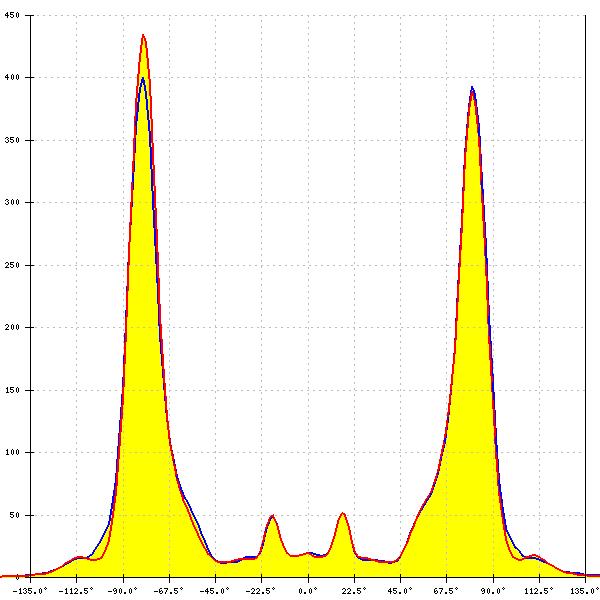

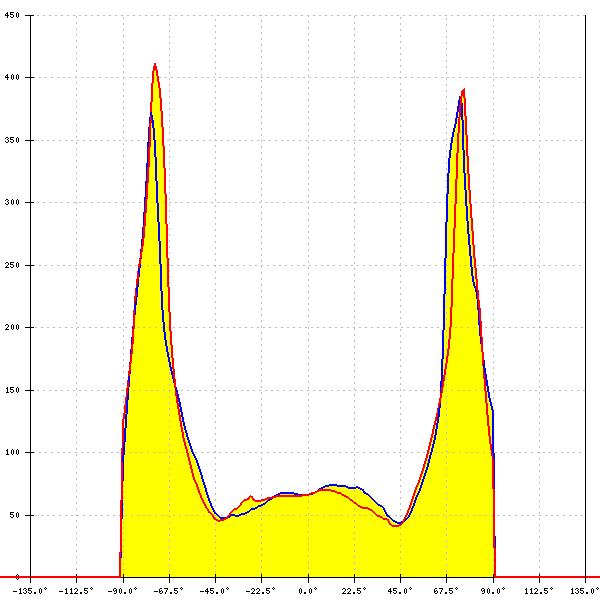

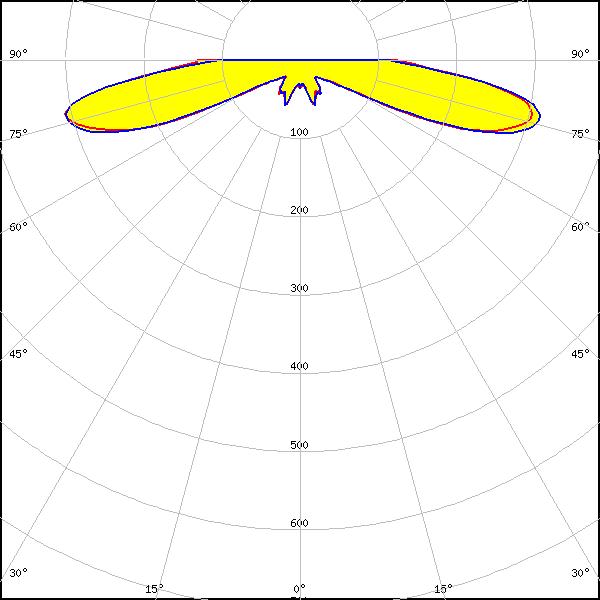

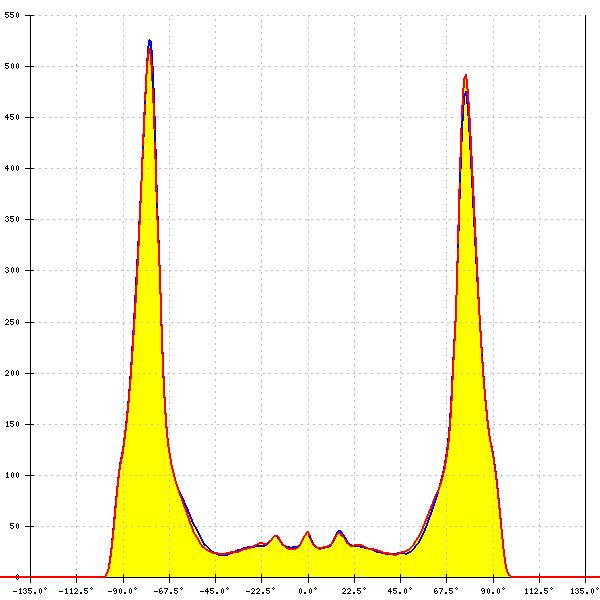

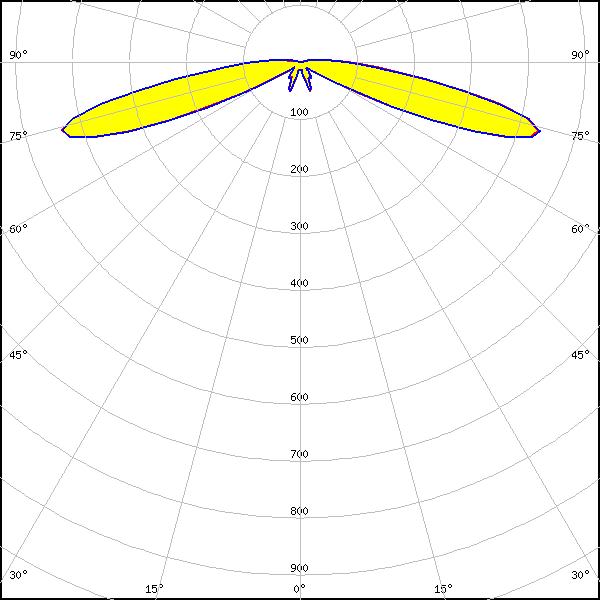

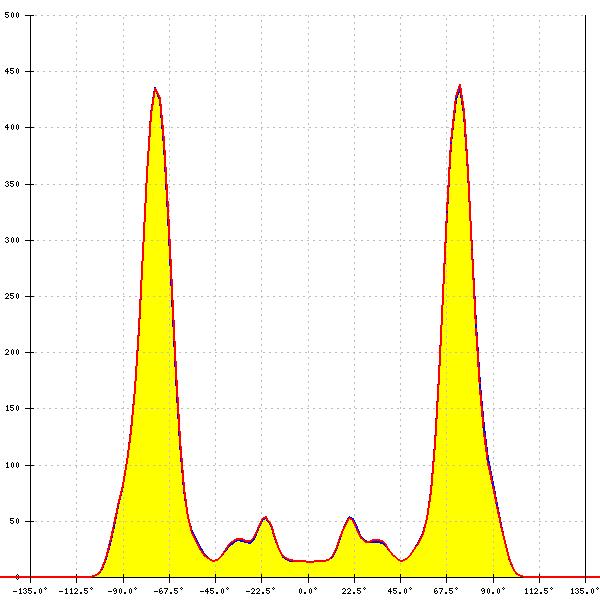

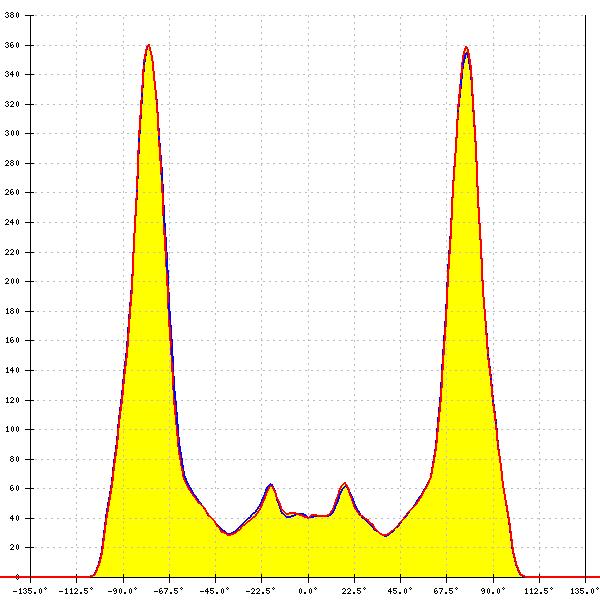

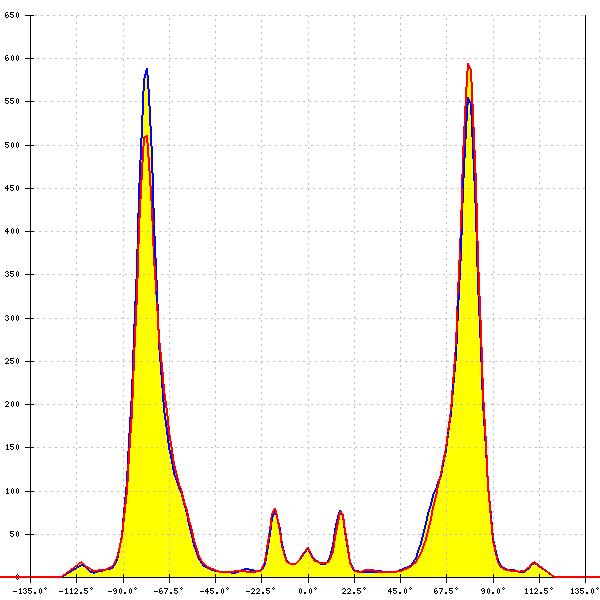

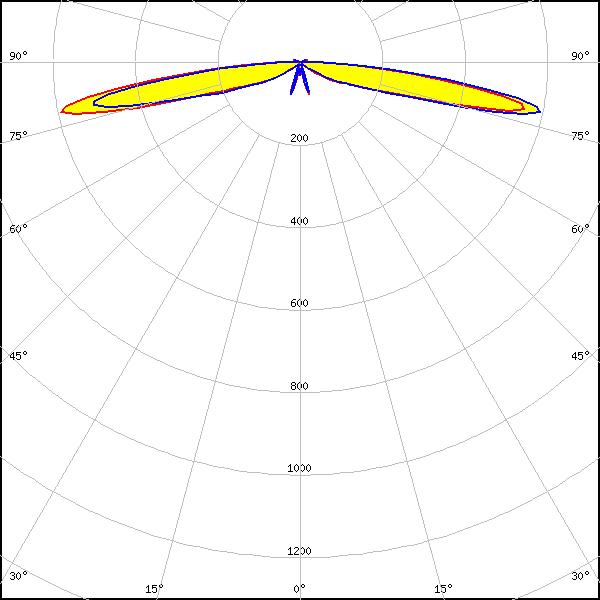

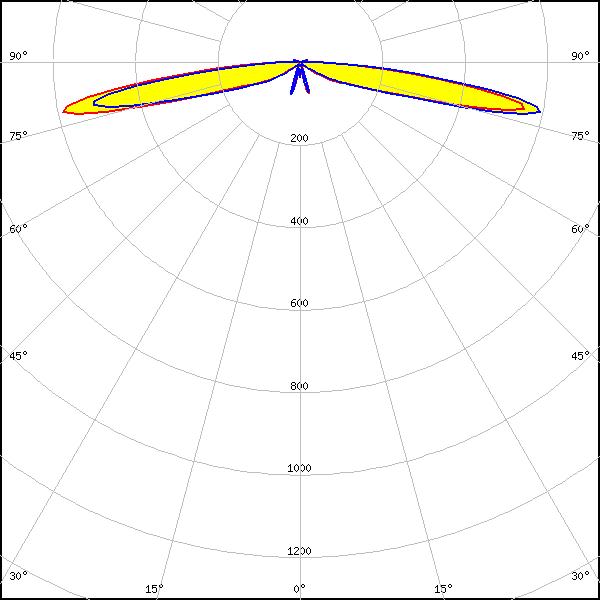

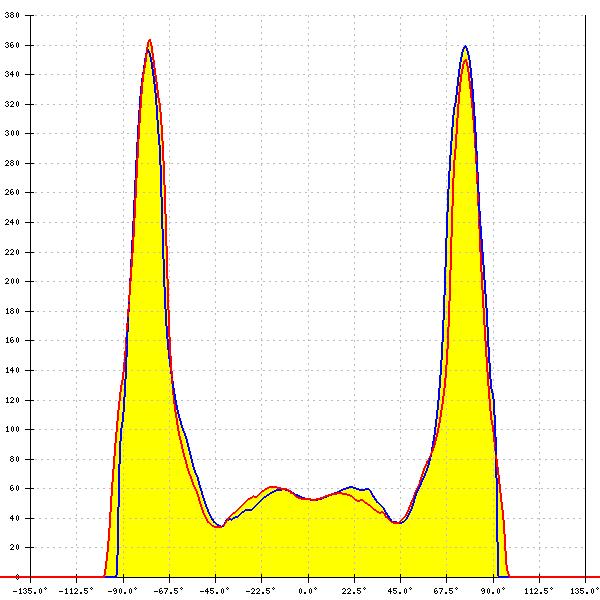

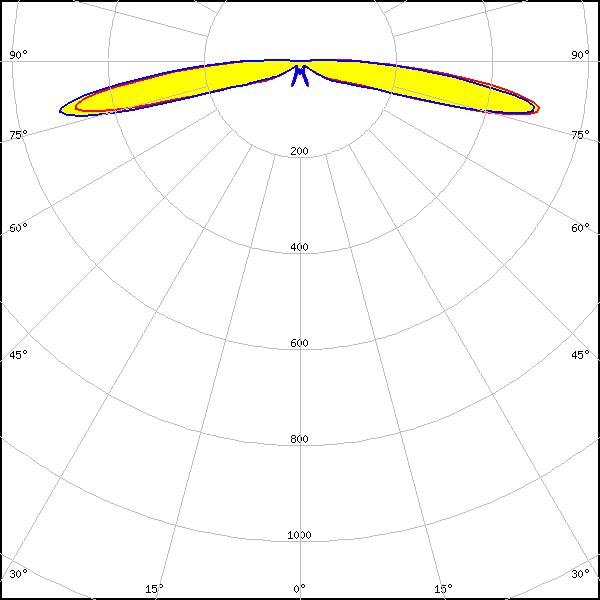

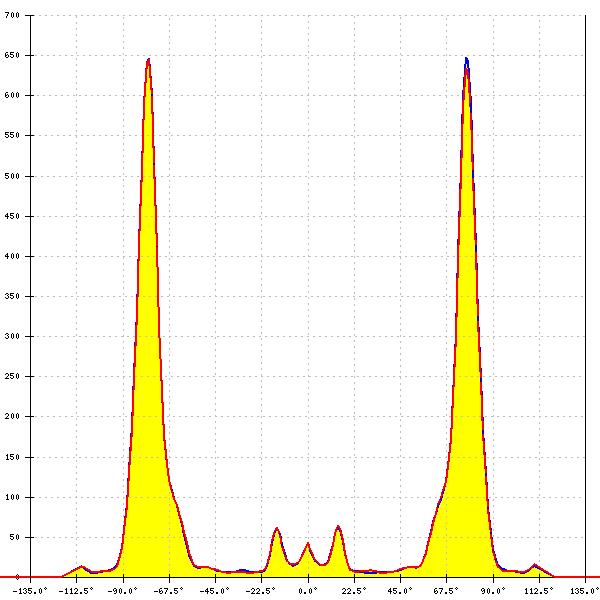

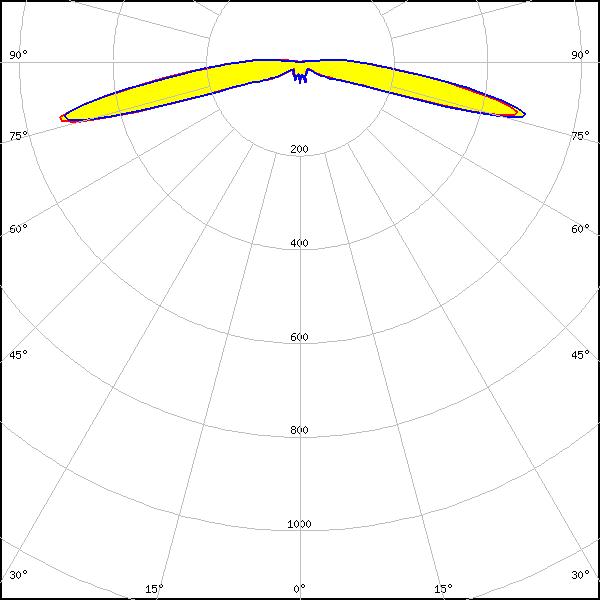

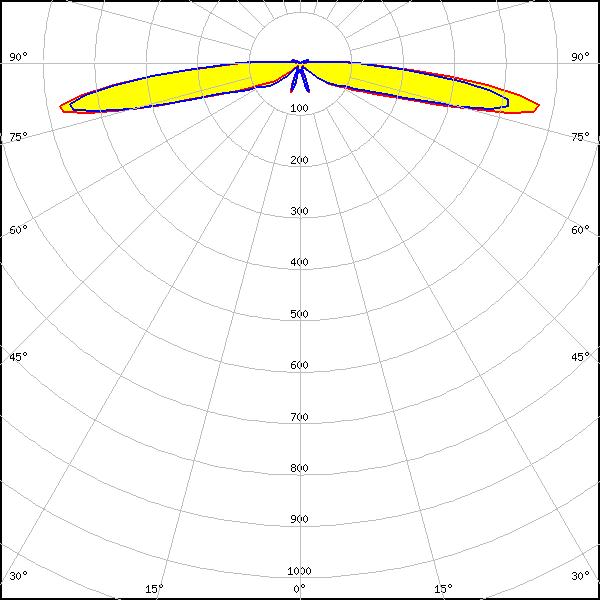

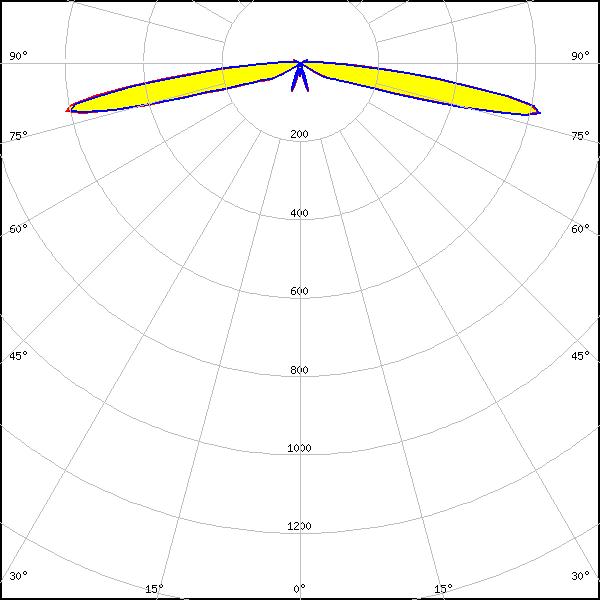

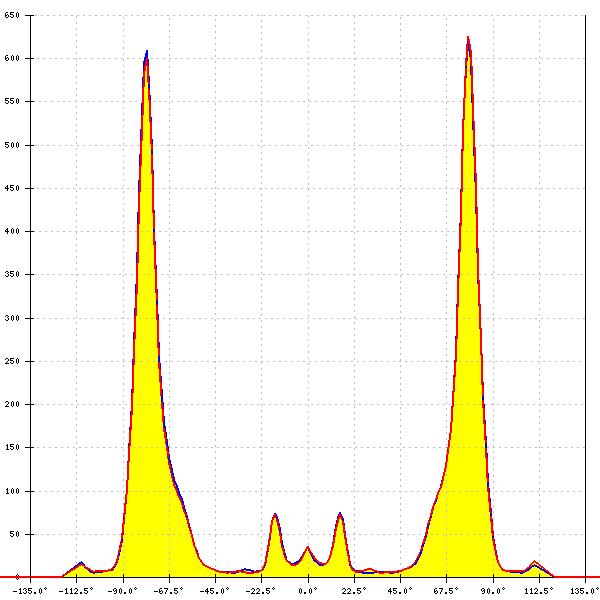

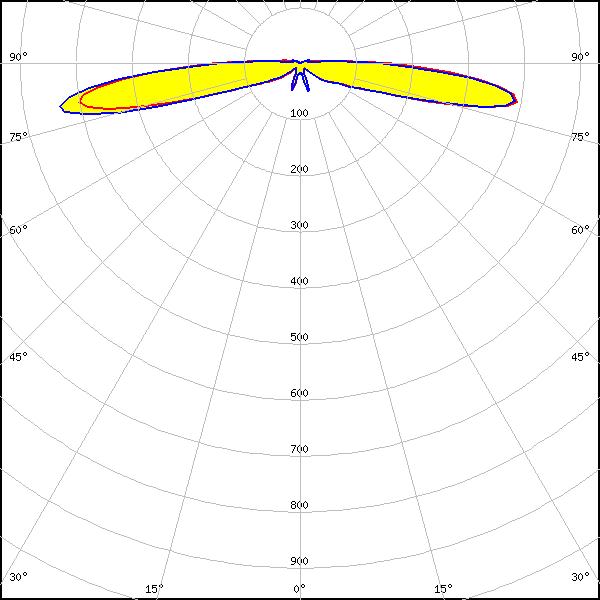

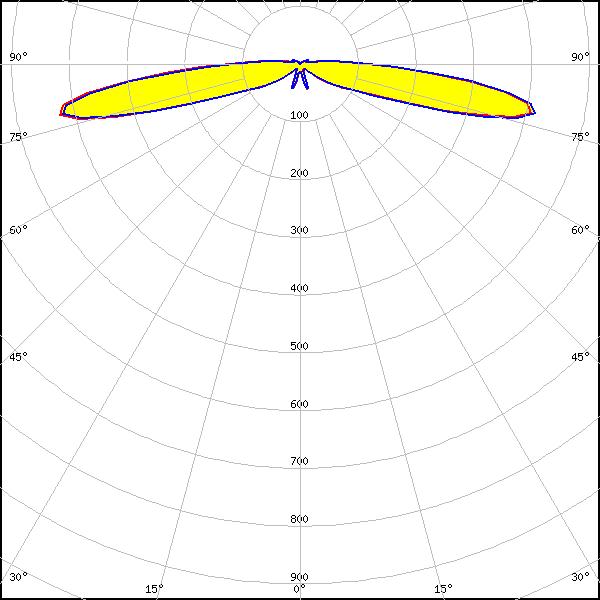

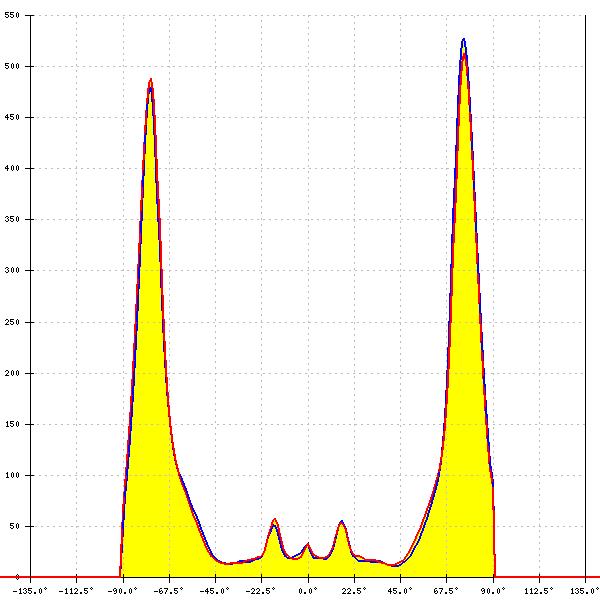

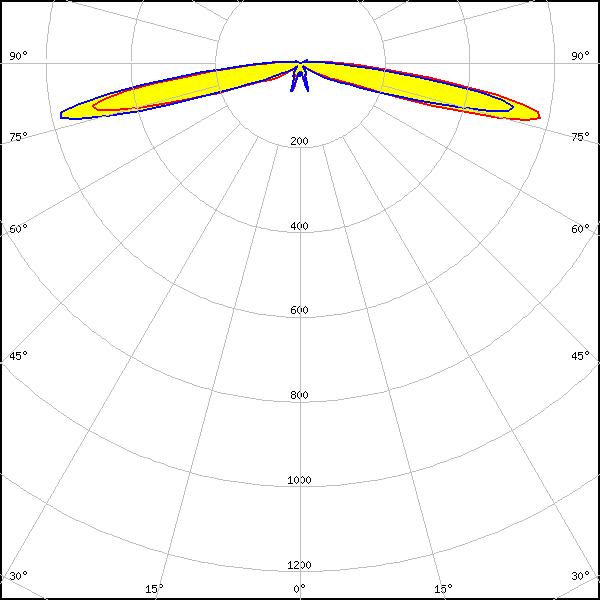

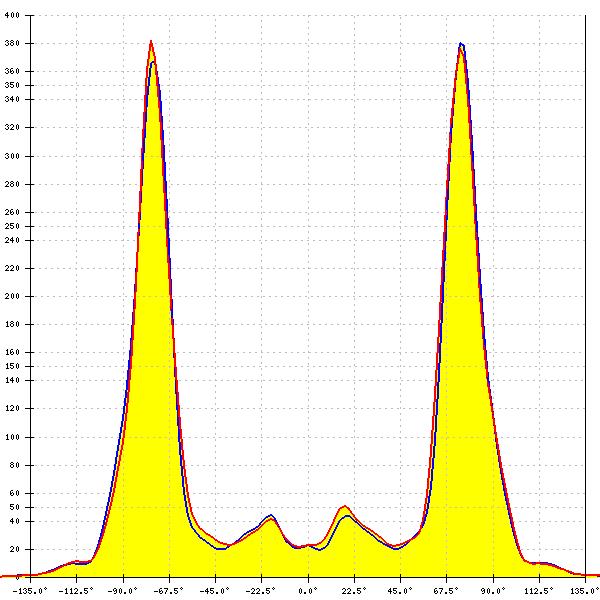

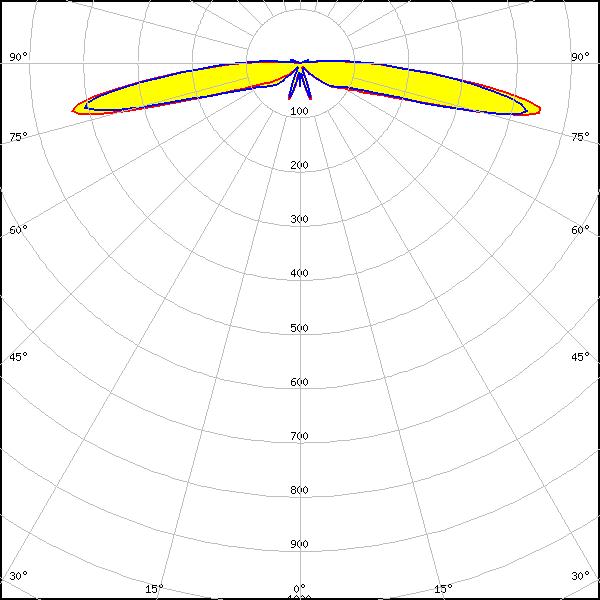

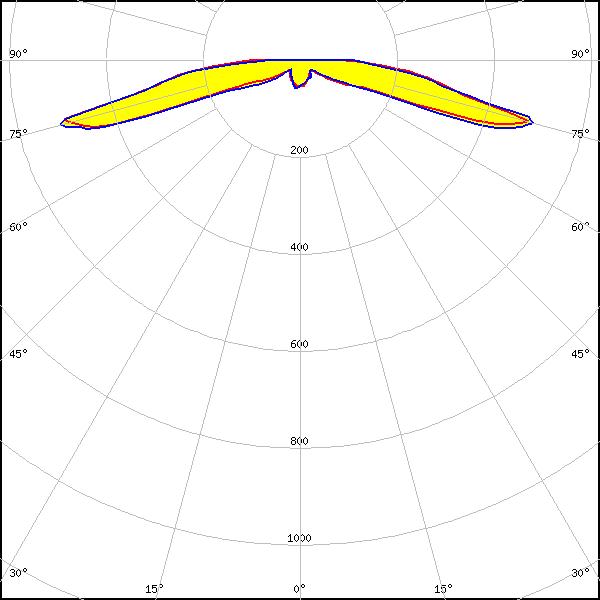

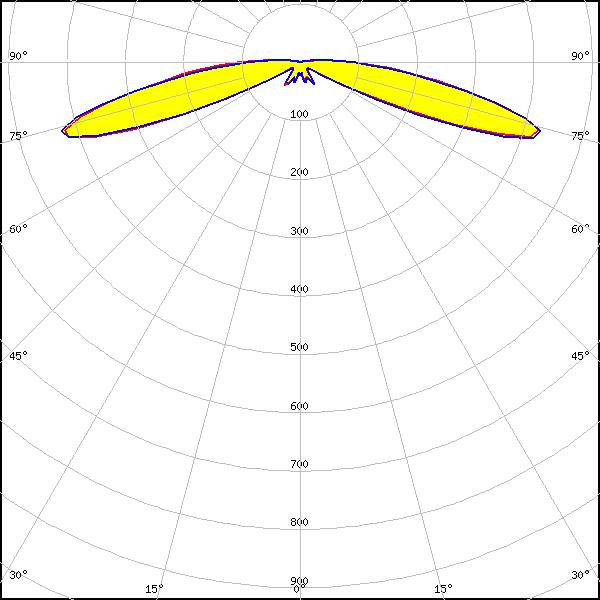

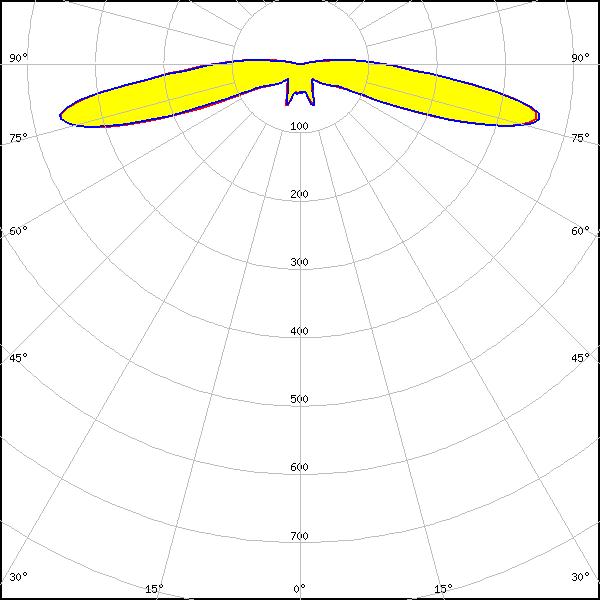

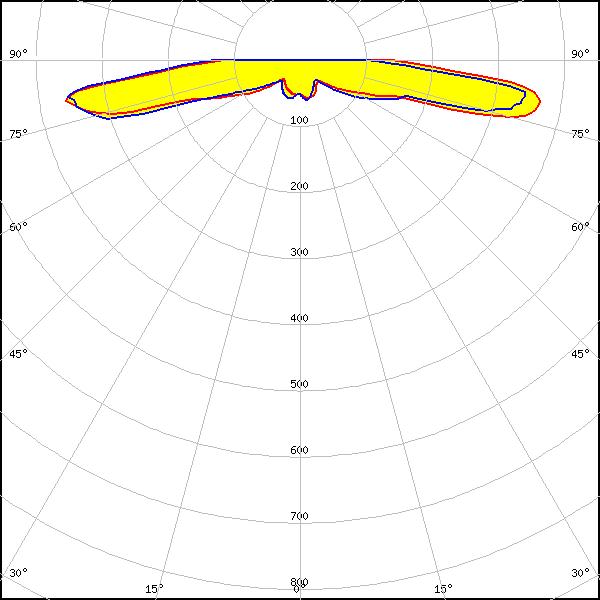

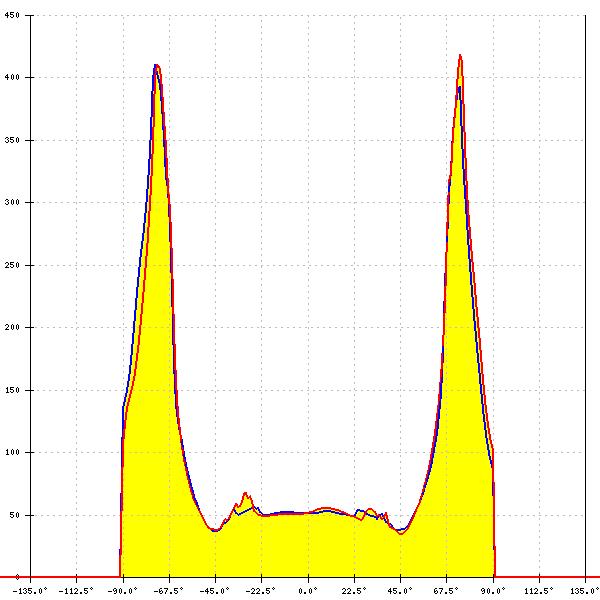

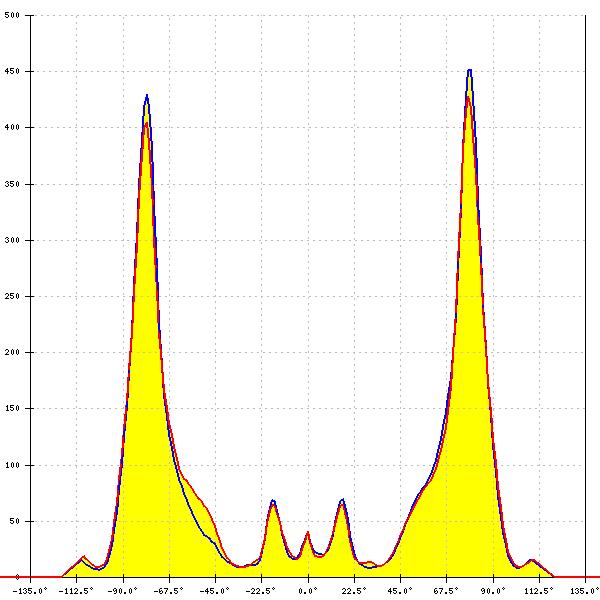

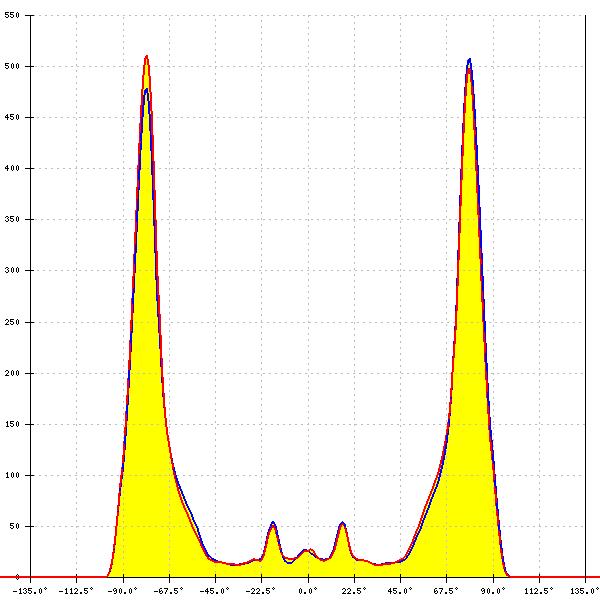

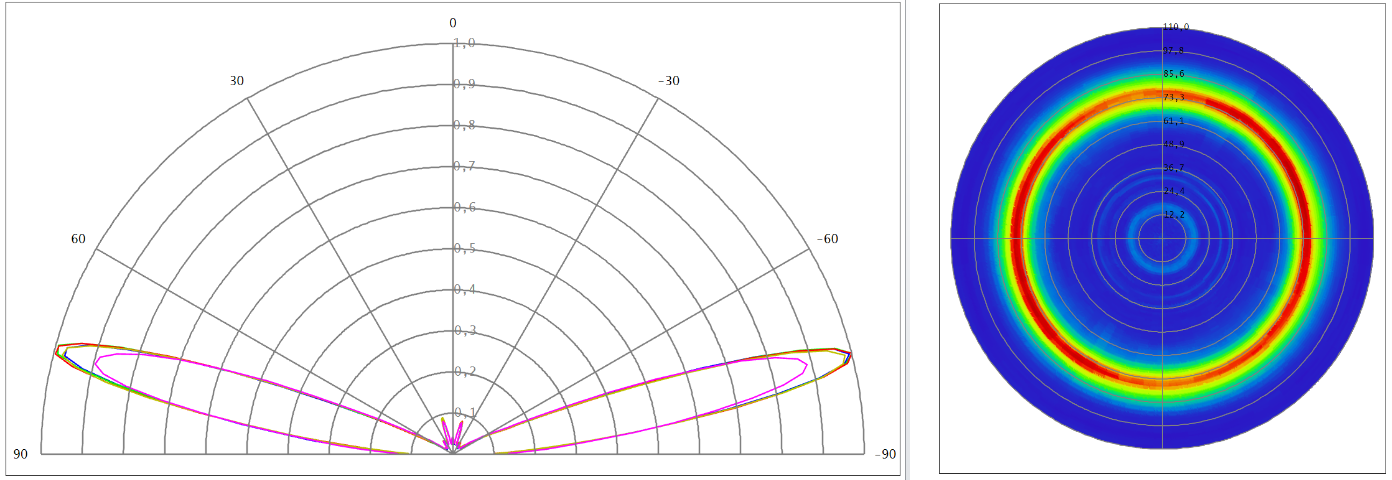

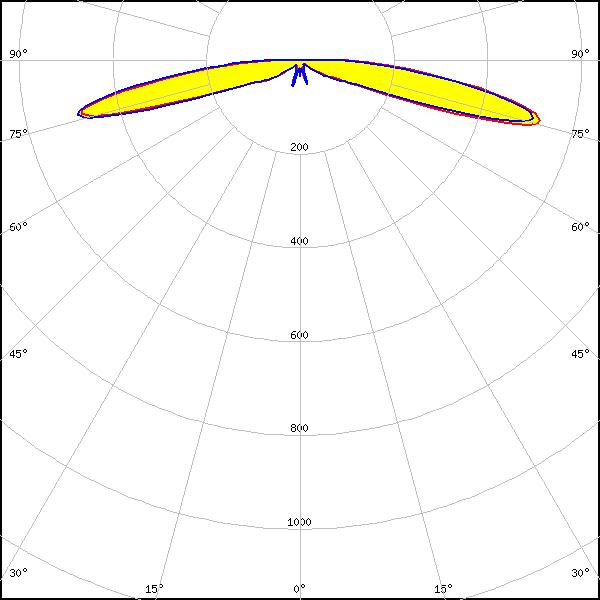

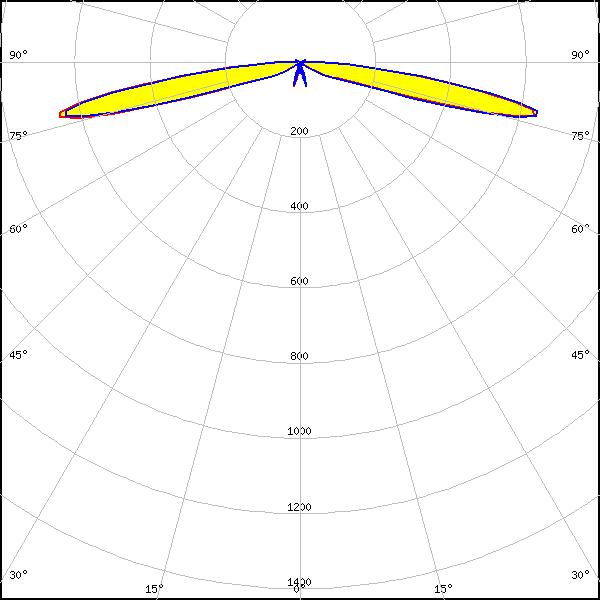

    Optical results

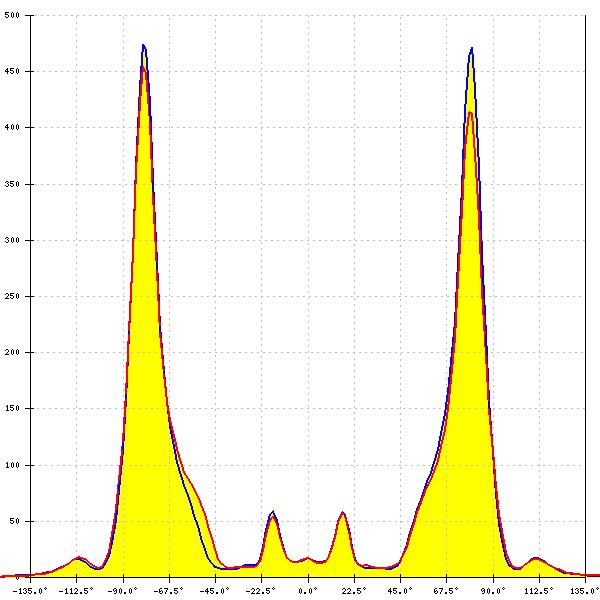

    LED: J Series 2835
    FWHM: 167°
    FWTM: 194°
    Peak intensity: 0.444 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 3030
    FWHM: 167°
    FWTM: 198°
    Peak intensity: 0.360 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

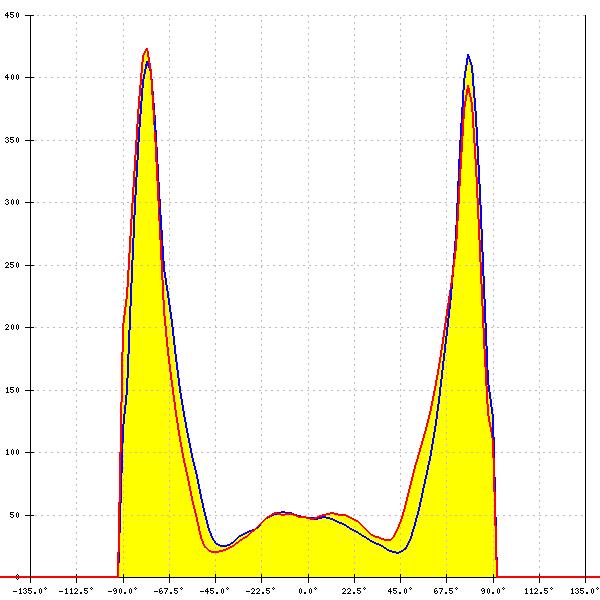

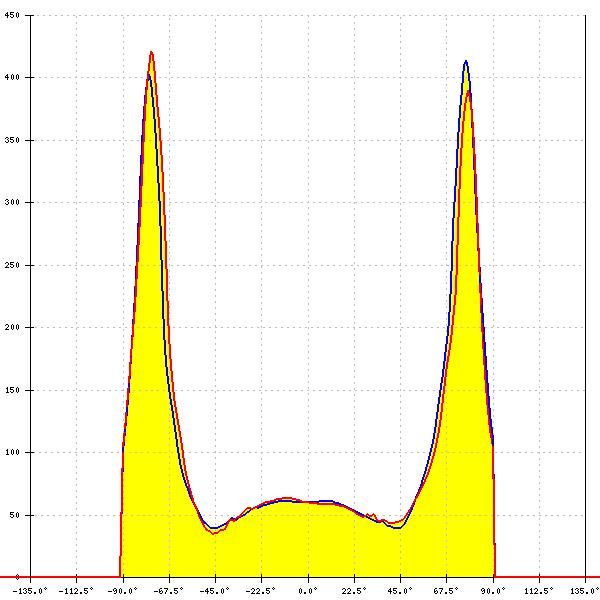

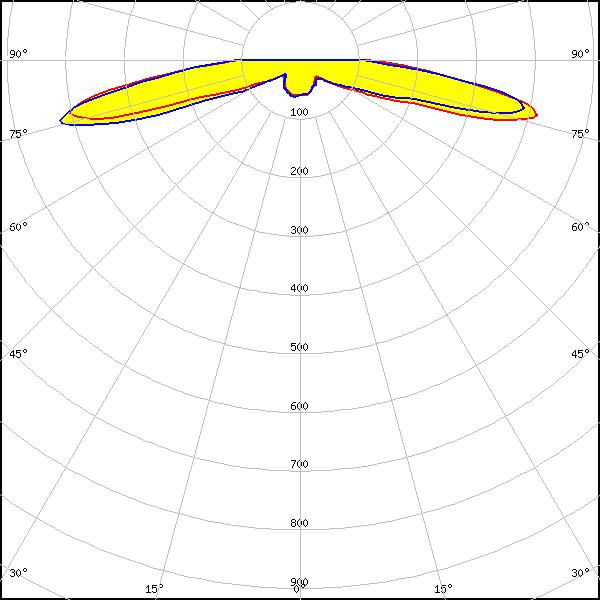

    LED: XB-D
    FWHM: 170°
    FWTM: -
    Peak intensity: 0.440 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

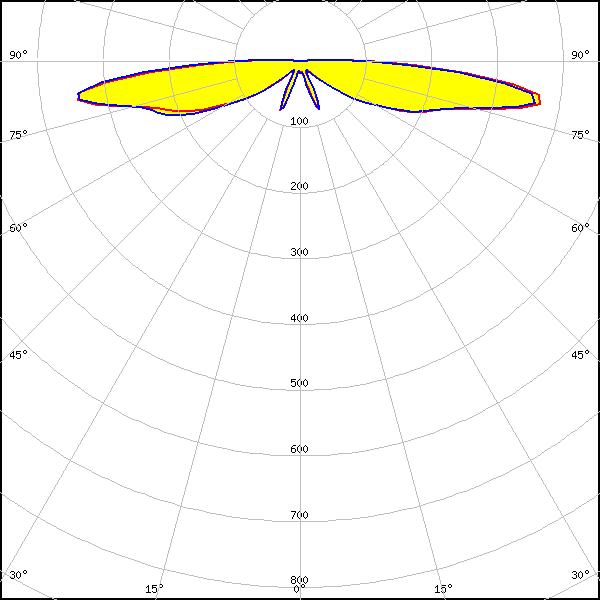

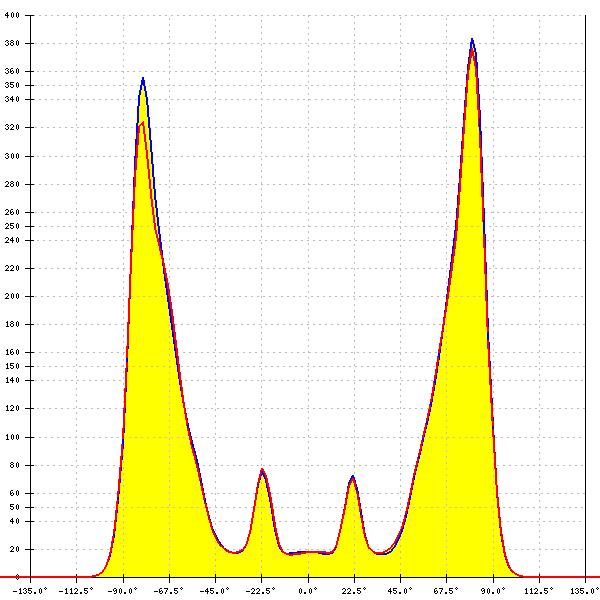

    LED: XE-G
    FWHM: 175°
    FWTM: 188°
    Peak intensity: 0.399 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

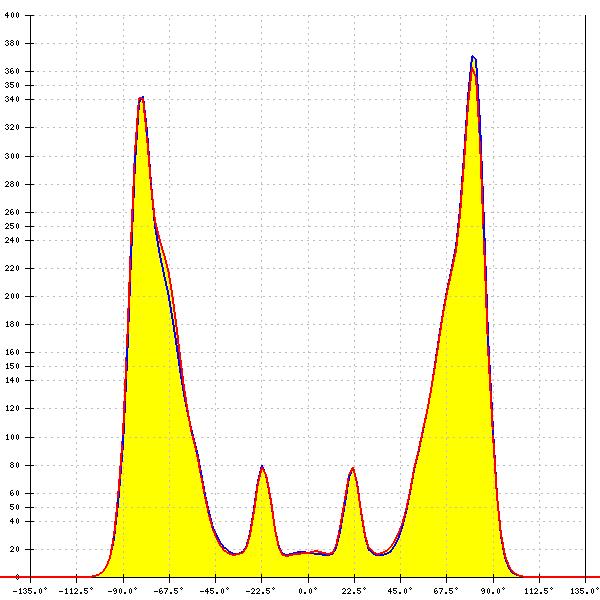

    LED: XE-G
    FWHM: 176°
    FWTM: 188°
    Peak intensity: 0.372 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Green

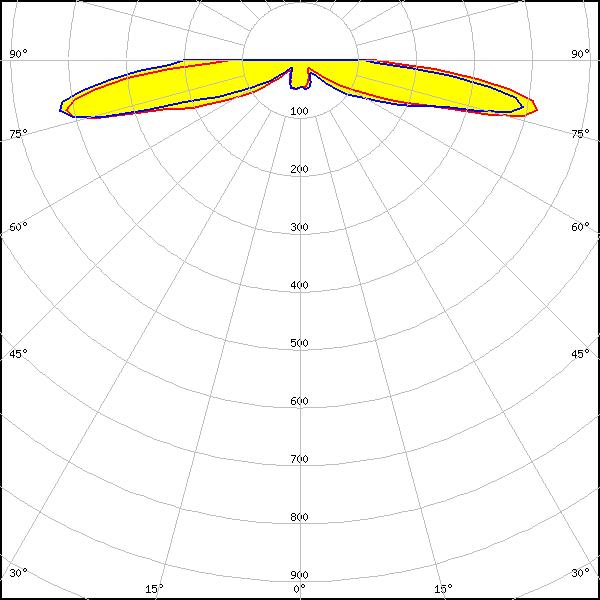

    LED: XP-E2
    FWHM: 172°
    FWTM: -
    Peak intensity: 0.430 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

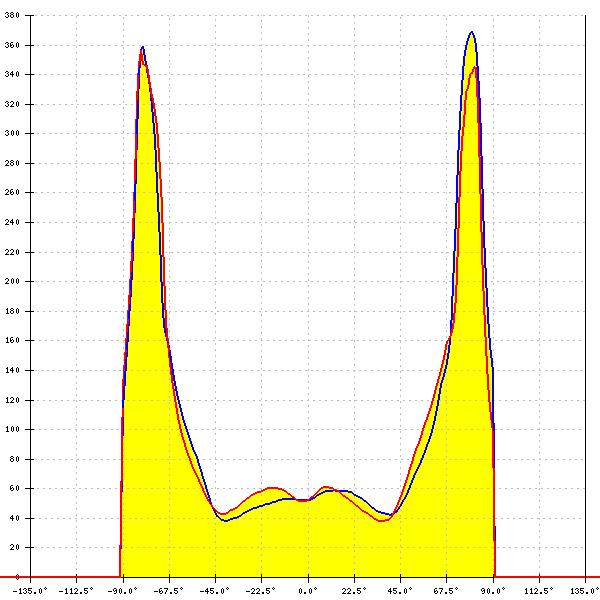

    LED: XP-G
    FWHM: 173°
    FWTM: -
    Peak intensity: 0.390 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

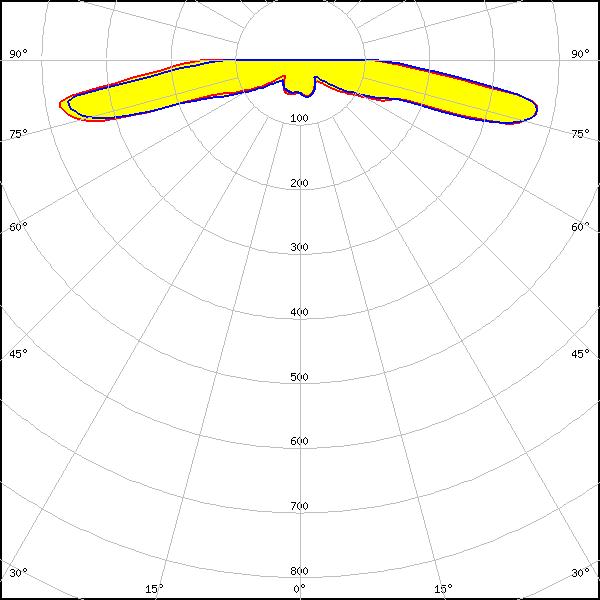

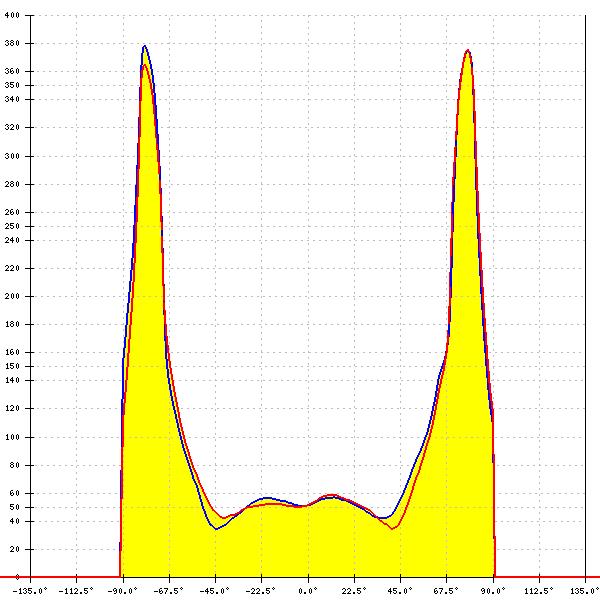

    LED: XP-G2
    FWHM: 172°
    FWTM: -
    Peak intensity: 0.410 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

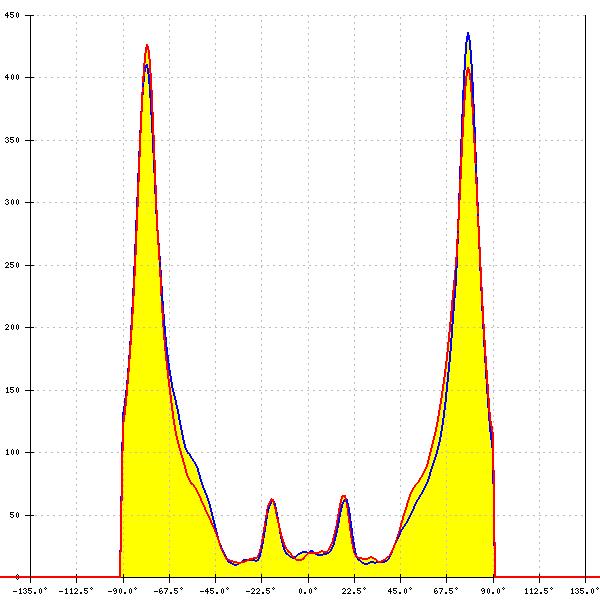

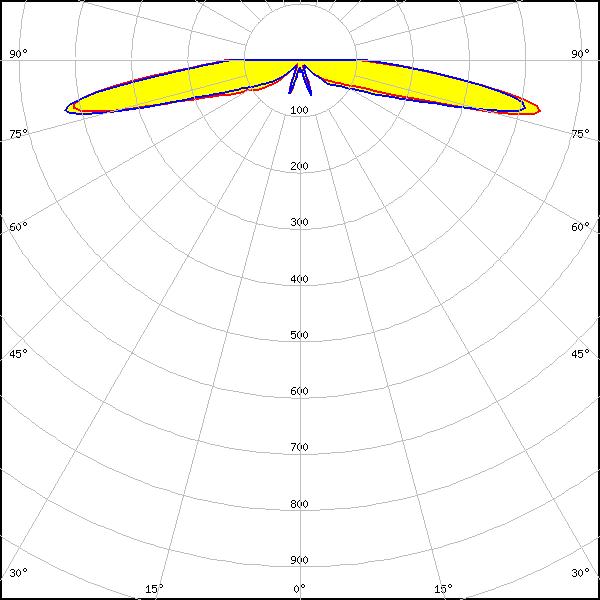

    LED: XQ-E HD
    FWHM: 170°
    FWTM: 182°
    Peak intensity: 0.449 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: PC Amber
    LED: XQ-E HD
    FWHM: 172°
    FWTM: 189°
    Peak intensity: 0.459 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: Red
    LED: XQ-E HD
    FWHM: 164°
    FWTM: 174°
    Peak intensity: 0.530 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

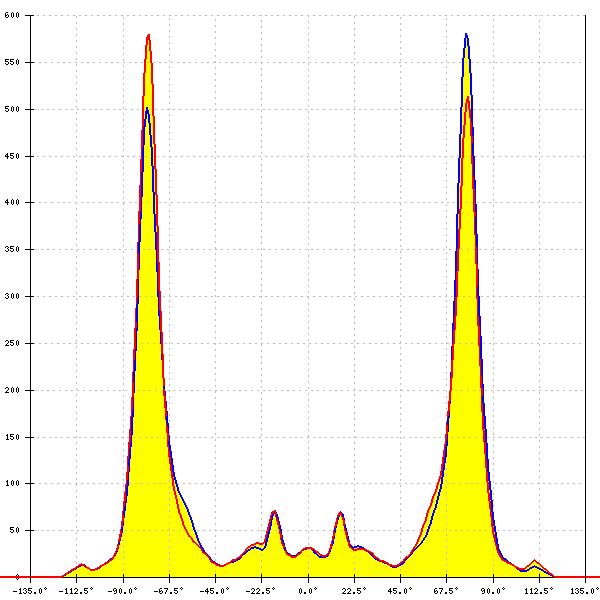

    LED: XQ-E HI
    FWHM: 166°
    FWTM: 181°
    Peak intensity: 0.620 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: Red
    LED: XT-E
    FWHM: 174°
    FWTM: 188°
    Peak intensity: 0.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

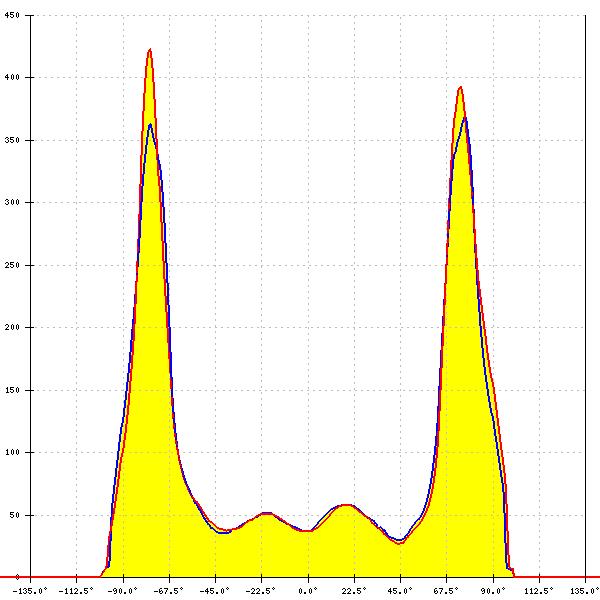

    LED: LUXEON 3535 2D
    FWHM: 170°
    FWTM: -
    Peak intensity: 0.430 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

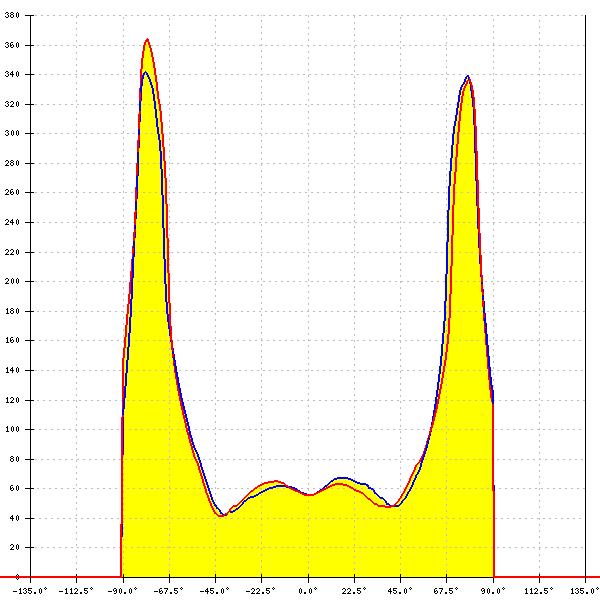

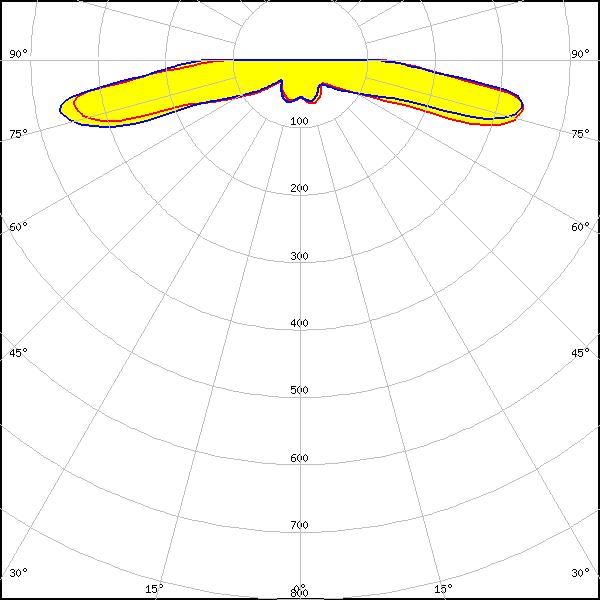

    LED: LUXEON A
    FWHM: 173°
    FWTM: -
    Peak intensity: 0.370 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON C
    FWHM: 177°
    FWTM: 192°
    Peak intensity: 0.479 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Red

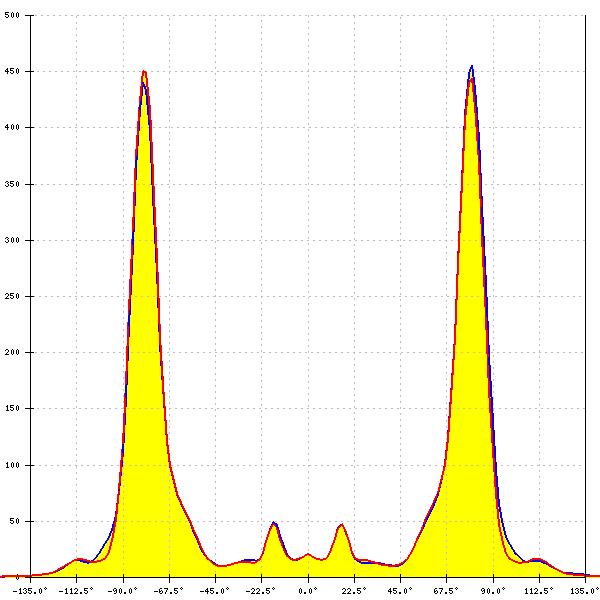

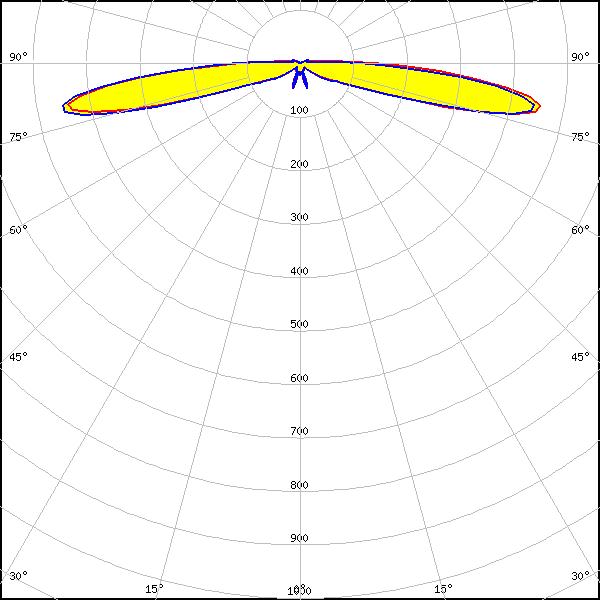

    LED: LUXEON C
    FWHM: 175°
    FWTM: 188°
    Peak intensity: 0.486 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Green
    LED: LUXEON CZ
    FWHM: 168°
    FWTM: 179°
    Peak intensity: 0.622 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: Amber
    LED: LUXEON CZ
    FWHM: 168°
    FWTM: 179°
    Peak intensity: 0.622 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: Red

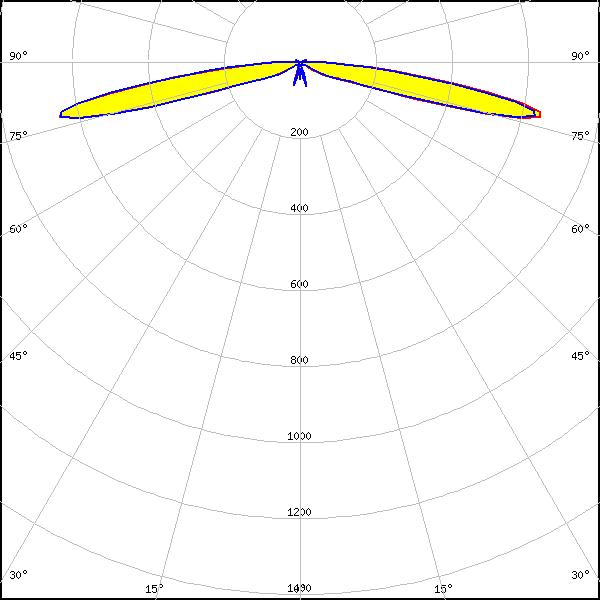

    LED: LUXEON CZ
    FWHM: 166°
    FWTM: 178°
    Peak intensity: 0.691 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: Royal Blue

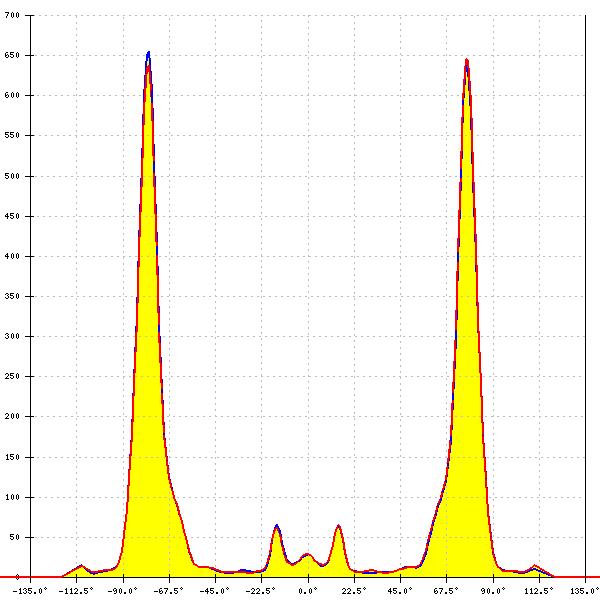

    LED: LUXEON CZ
    FWHM: 166°
    FWTM: 178°
    Peak intensity: 0.690 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: Blue

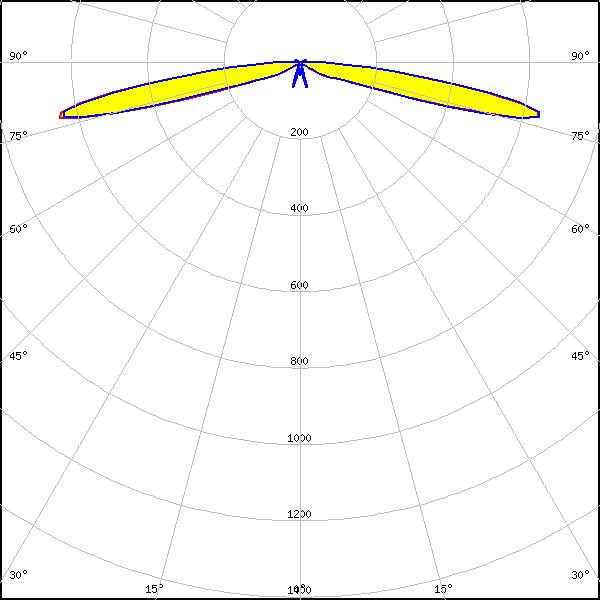

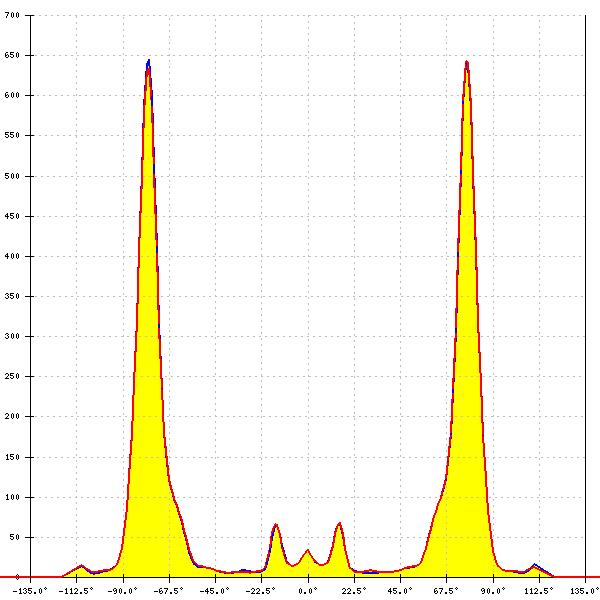

    LED: LUXEON CZ
    FWHM: 166°
    FWTM: 178°
    Peak intensity: 0.684 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: Green

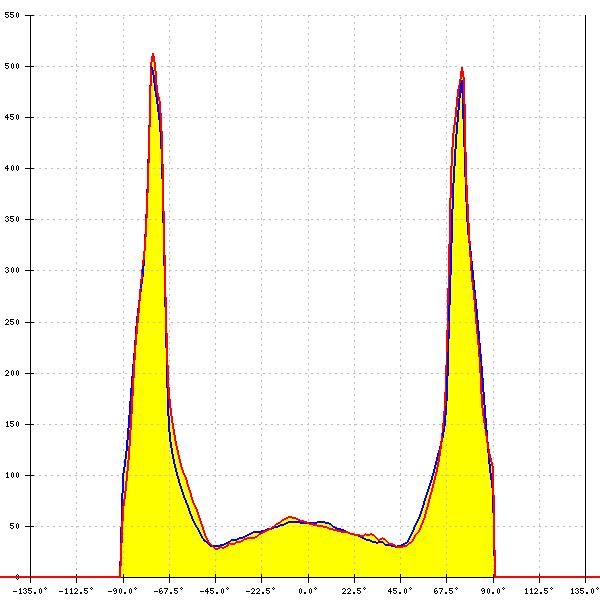

    LED: LUXEON Rebel
    FWHM: 165°
    FWTM: -
    Peak intensity: 0.530 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rubix
    FWHM: 168°
    FWTM: 178°
    Peak intensity: 0.673 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: Green
    LED: LUXEON V2
    FWHM: 172°
    FWTM: 196°
    Peak intensity: 0.380 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxE17A
    FWHM: 166°
    FWTM: 189°
    Peak intensity: 0.443 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Green

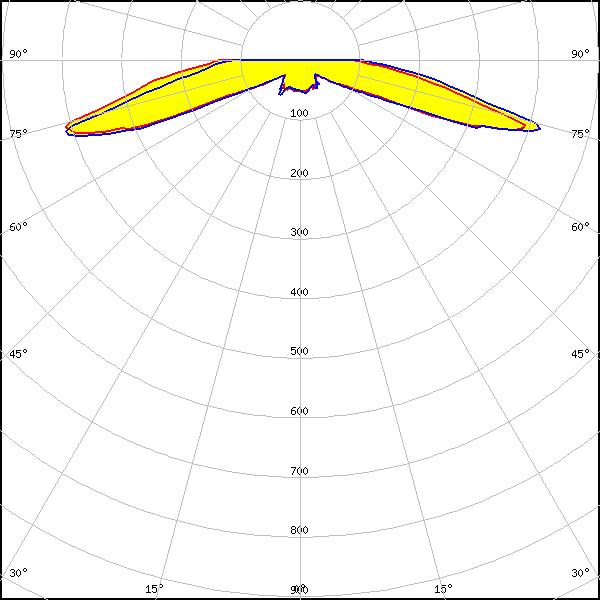

    LED: NCSxx19A
    FWHM: 165°
    FWTM: -
    Peak intensity: 0.420 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

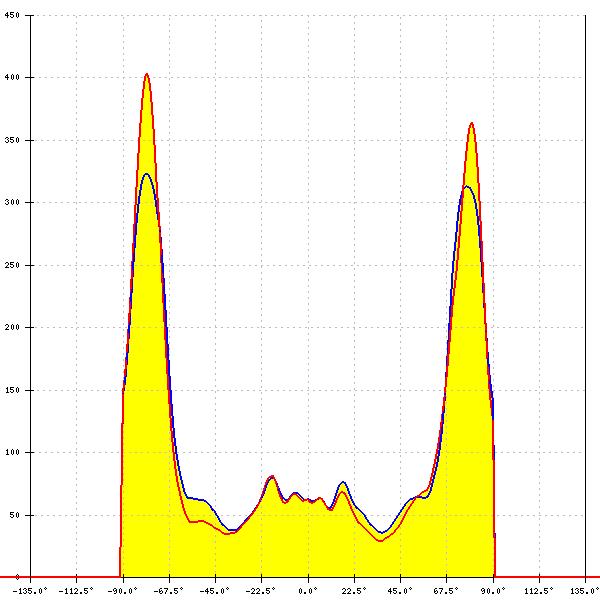

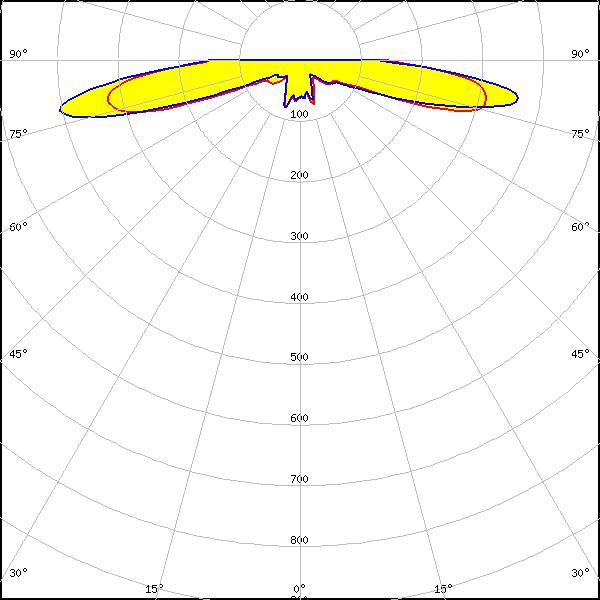

    LED: NF2W757G-MT (Tunable White)
    FWHM: 174° + 178°
    FWTM: 182° + 182°
    Peak intensity: 0.404 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: NVSxE21A
    FWHM: 164°
    FWTM: 188°
    Peak intensity: 0.446 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

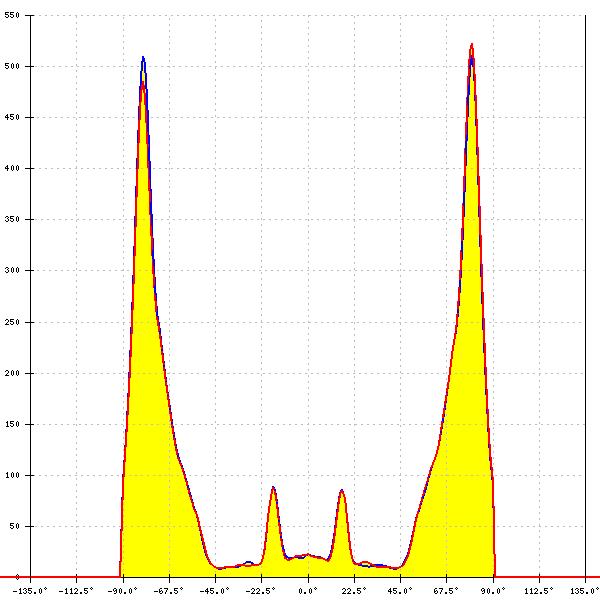

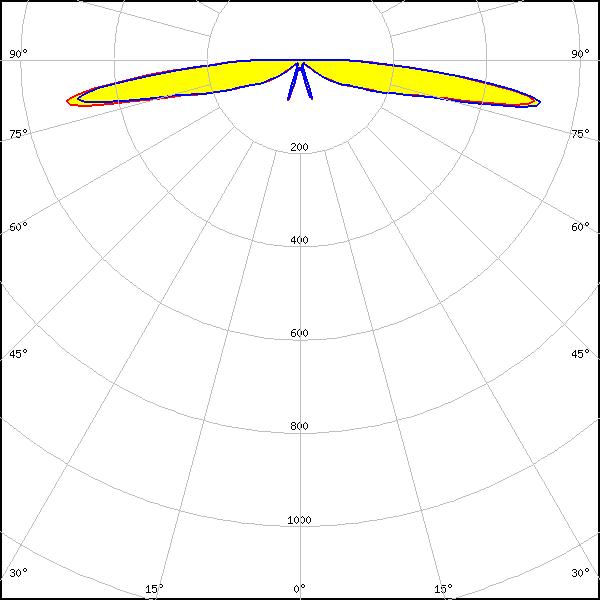

    LED: OSLON Pure 1414
    FWHM: 171°
    FWTM: 180°
    Peak intensity: 0.534 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

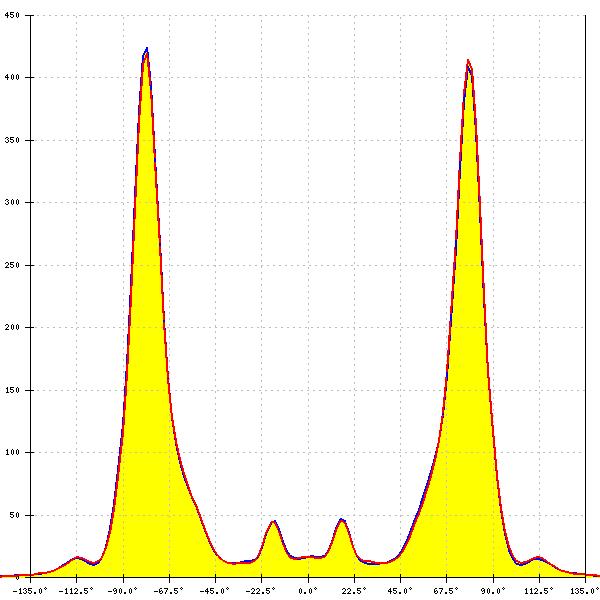

    LED: OSLON Signal
    FWHM: 172°
    FWTM: 188°
    Peak intensity: 0.487 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: Red
    LED: OSLON Signal
    FWHM: 172°
    FWTM: 192°
    Peak intensity: 0.443 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

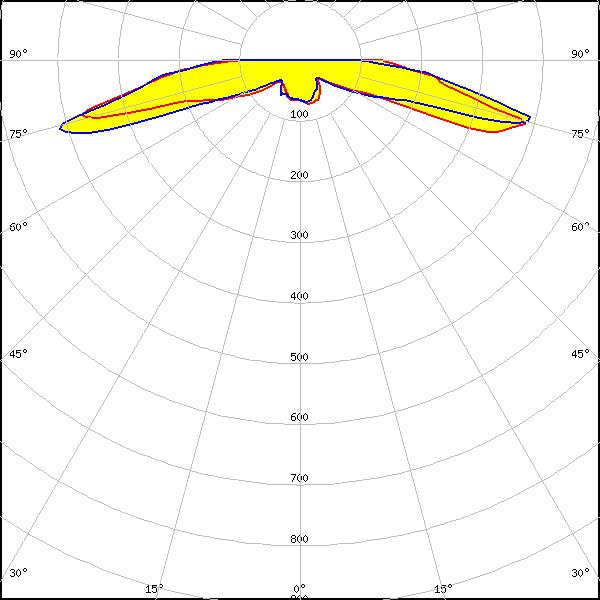

    LED: OSLON Square EC
    FWHM: 170°
    FWTM: -
    Peak intensity: 0.420 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

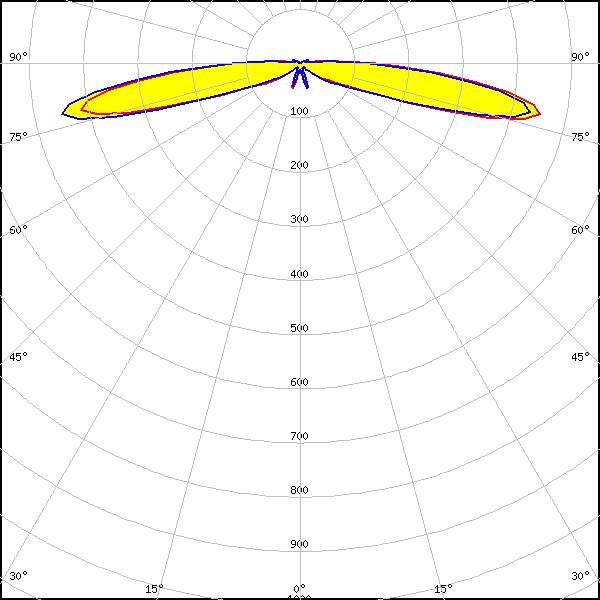

    LED: OSLON SSL 150
    FWHM: 172°
    FWTM: 186°
    Peak intensity: 0.545 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

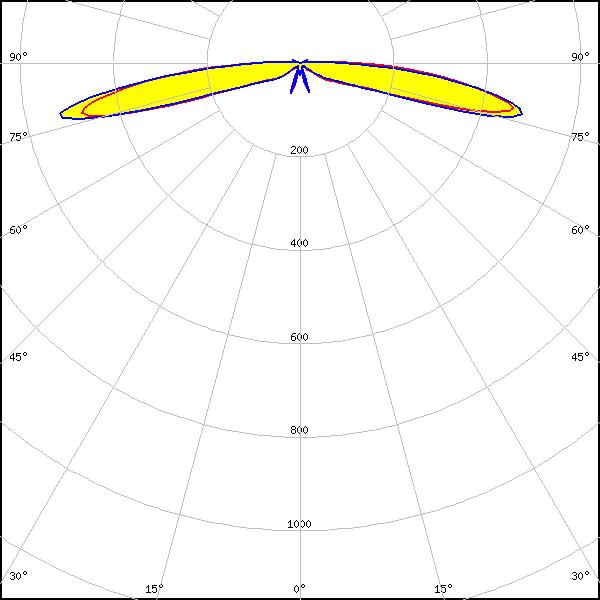

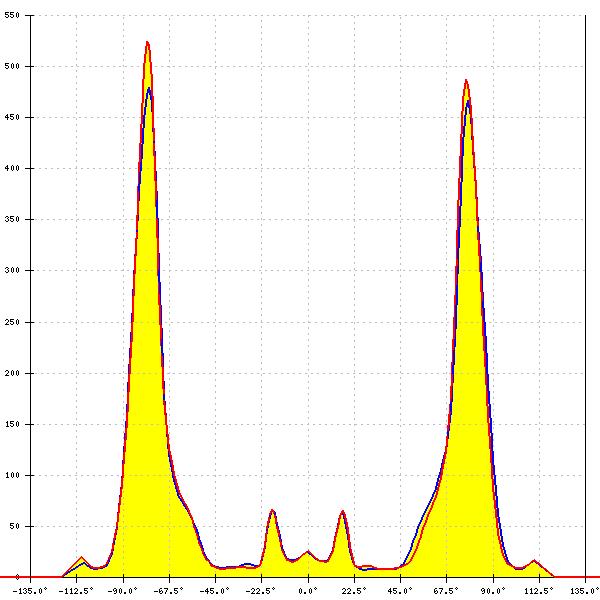

    LED: OSLON SSL 150
    FWHM: 171°
    FWTM: 187°
    Peak intensity: 0.541 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: Red

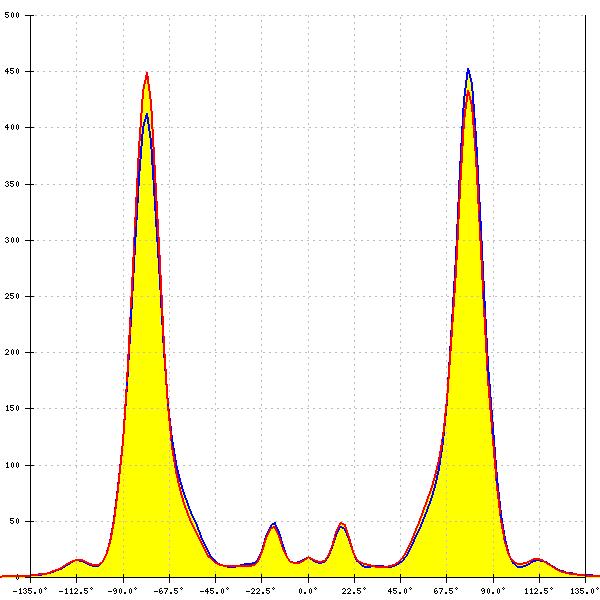

    LED: OSLON SSL 150
    FWHM: 172°
    FWTM: 188°
    Peak intensity: 0.469 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 80
    FWHM: 168°
    FWTM: 188°
    Peak intensity: 0.533 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4716AS
    FWHM: 164°
    FWTM: 180°
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: LM28xB Series
    FWHM: 169°
    FWTM: 199°
    Peak intensity: 0.387 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

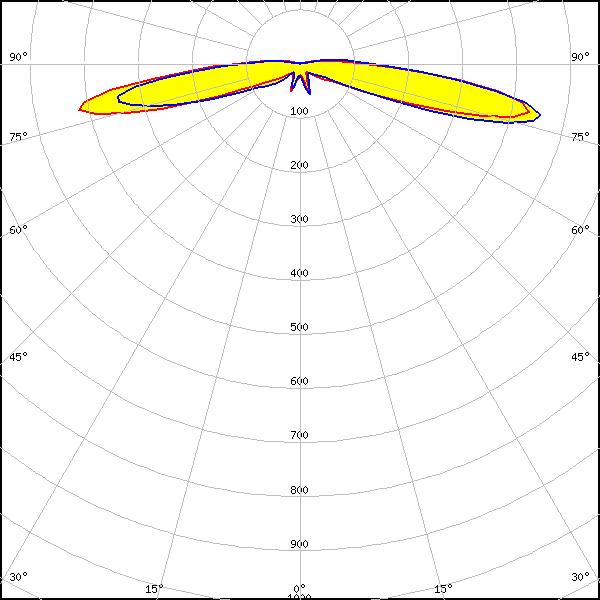

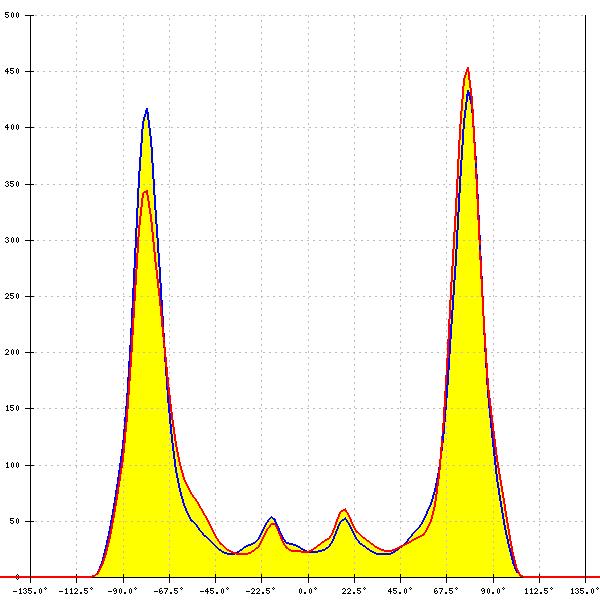

    LED: MJT 3030
    FWHM: 172°
    FWTM: 194°
    Peak intensity: 0.471 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

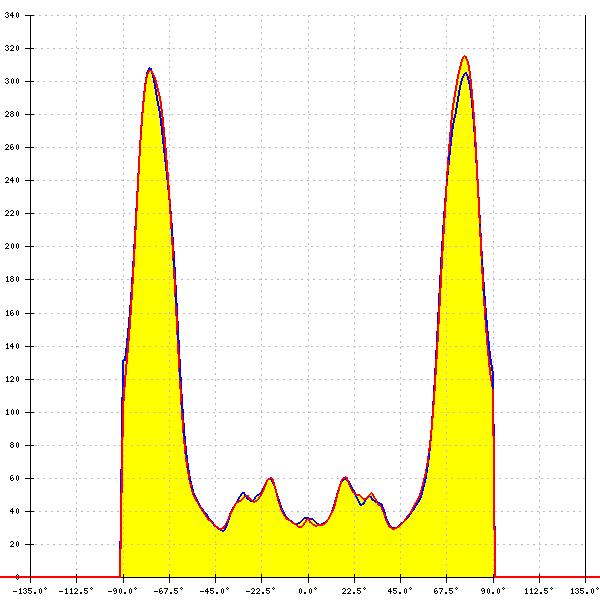

    LED: Z8Y22P
    FWHM: 152°
    FWTM: -
    Peak intensity: 0.350 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
