    CA11960_LAURA-D-PIN

    Print

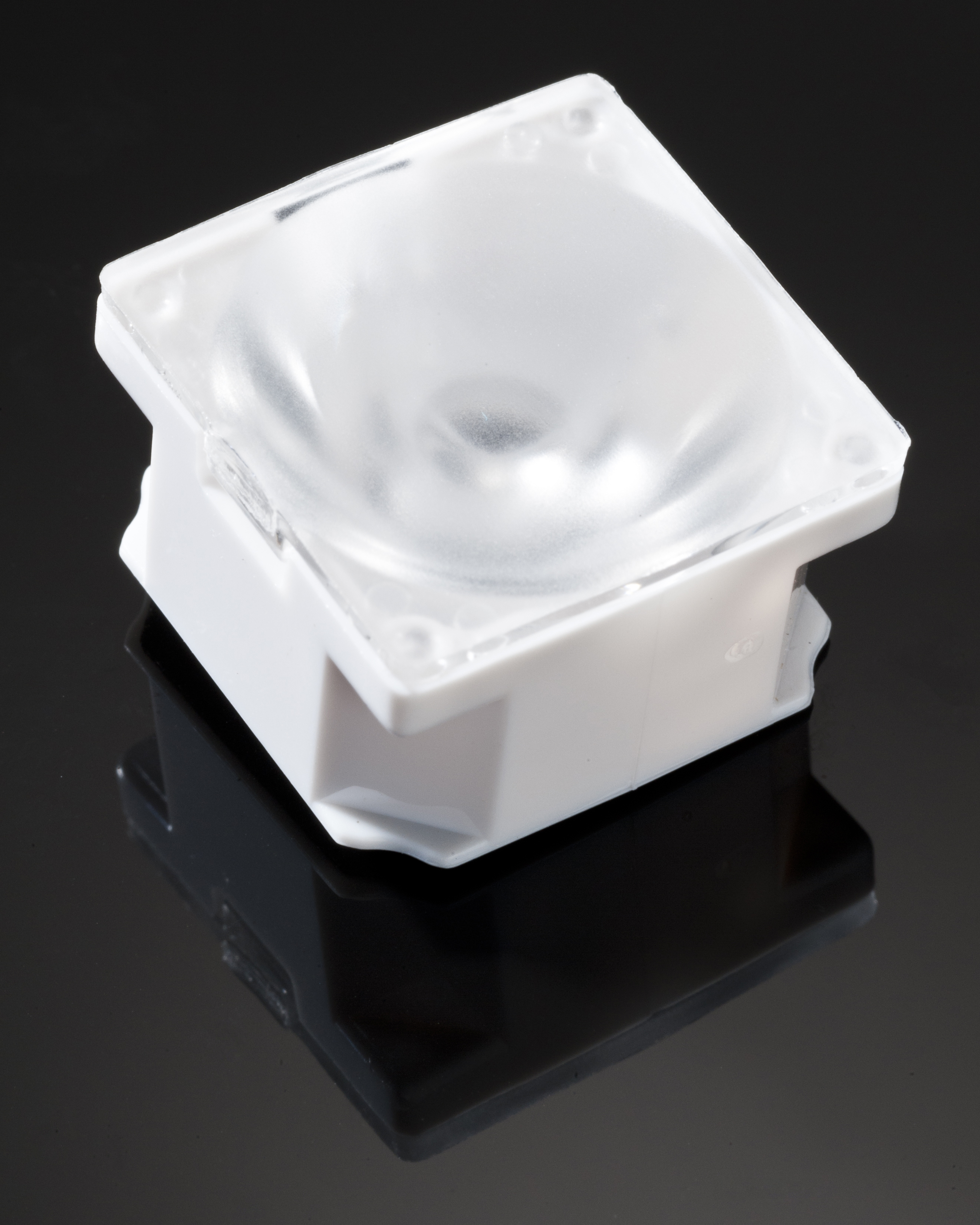

    ~15° diffused spot beam optimized for CREE XP-E. Assembly with white holder, installation tape and location pins.

    Specification
    • Dimensions:
      22 x  22 mm
    • Height:
      13.10 mm
    • Fastening:
      tape, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1440 pcs
    • Box weight:
      7.5 kg
    • MPQ:
      180 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA11960_LAURA-D-PIN
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    Optical results

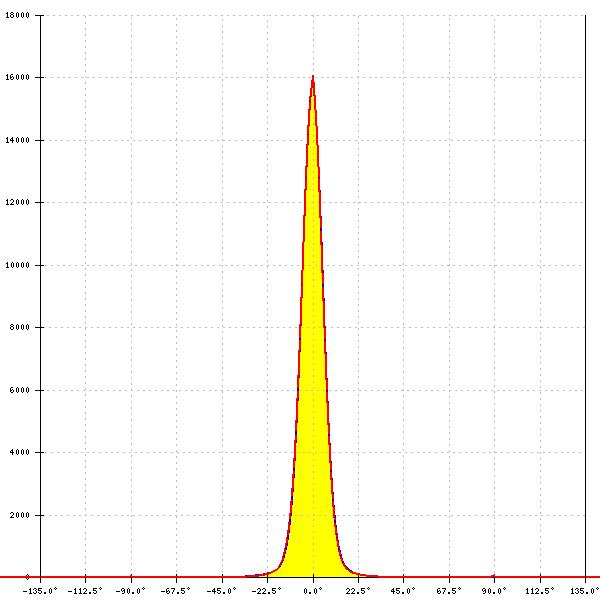

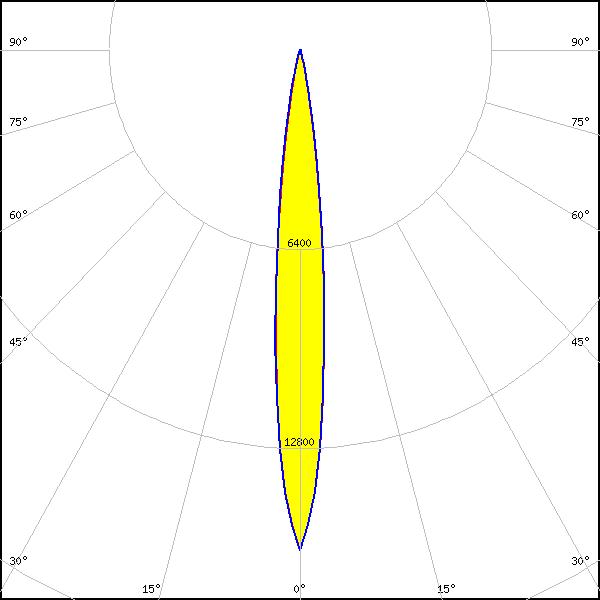

    LED: XD16
    FWHM: 12°
    FWTM: 23°
    Peak intensity: 16.068 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

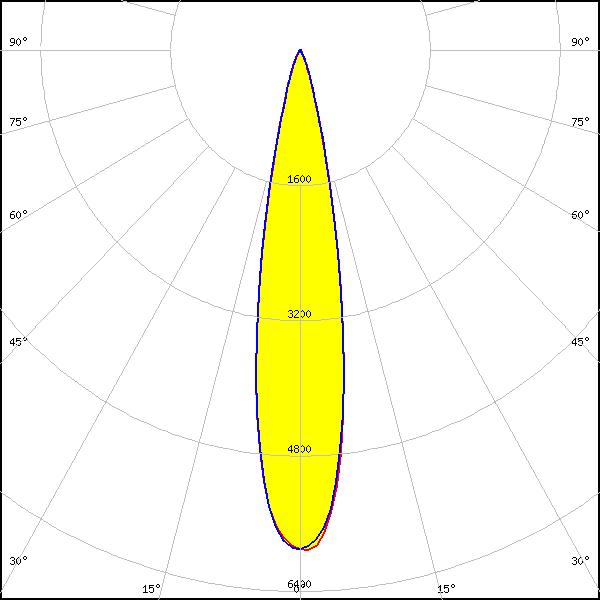

    LED: XHP35.2 HD
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 5.917 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

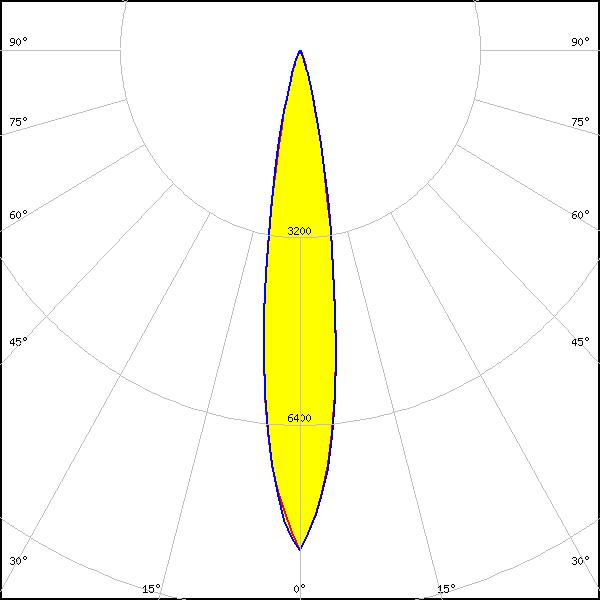

    LED: XP-E
    FWHM: 13°
    FWTM: 31°
    Peak intensity: 9.300 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E-HEW
    FWHM: 15°
    FWTM: 33°
    Peak intensity: 6.200 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

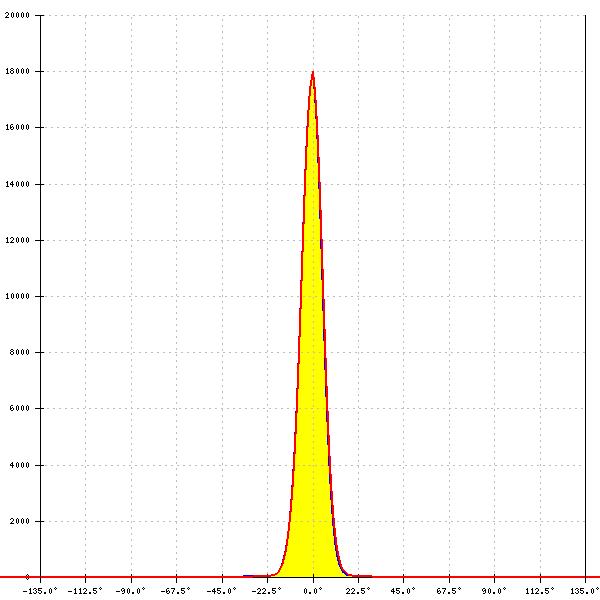

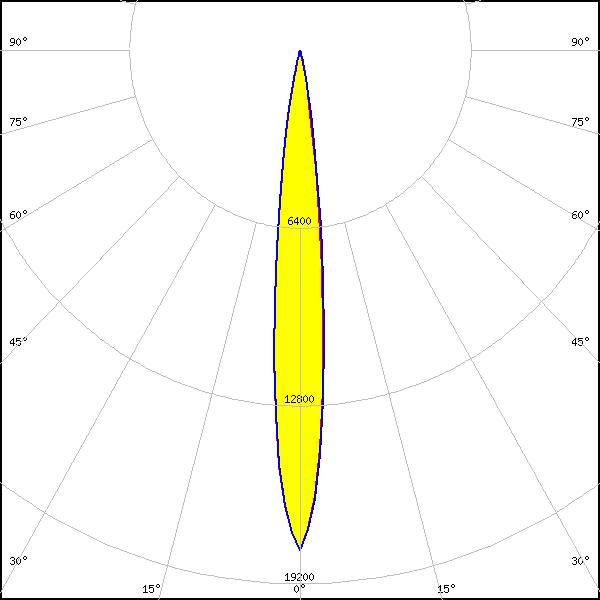

    LED: XP-E2
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 17.999 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Amber
    LED: XP-E2
    FWHM: 15°
    FWTM: 36°
    Peak intensity: 6.370 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: 16°
    FWTM: -
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

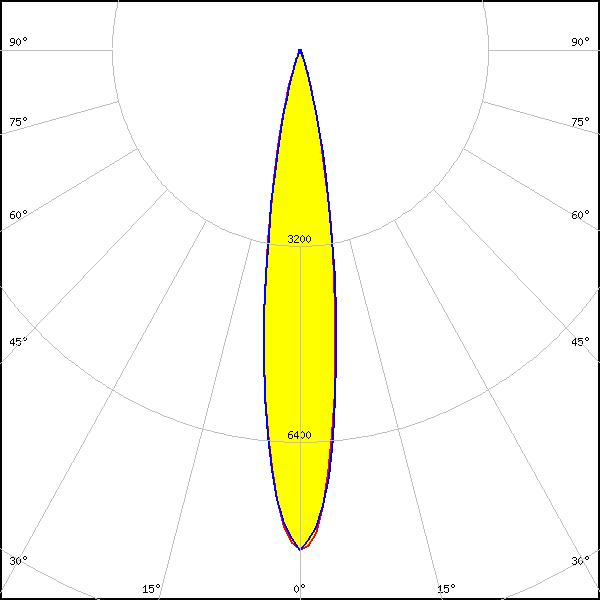

    LED: XP-G3
    FWHM: 17°
    FWTM: 32°
    Peak intensity: 8.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON H50-2
    FWHM: 13°
    FWTM: 28°
    Peak intensity: 9.500 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON IR Domed 150 (L1I0-0xxx150000000)
    FWHM: 9°
    FWTM: 18°
    Peak intensity: 0.000 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON IR Domed 60 (L1I0-0xxx060000000)
    FWHM: 12°
    FWTM: 25°
    Peak intensity: 0.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON IR Domed 90 (L1I0-0xxx090000000)
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 0.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel
    FWHM: 15°
    FWTM: 37°
    Peak intensity: 5.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

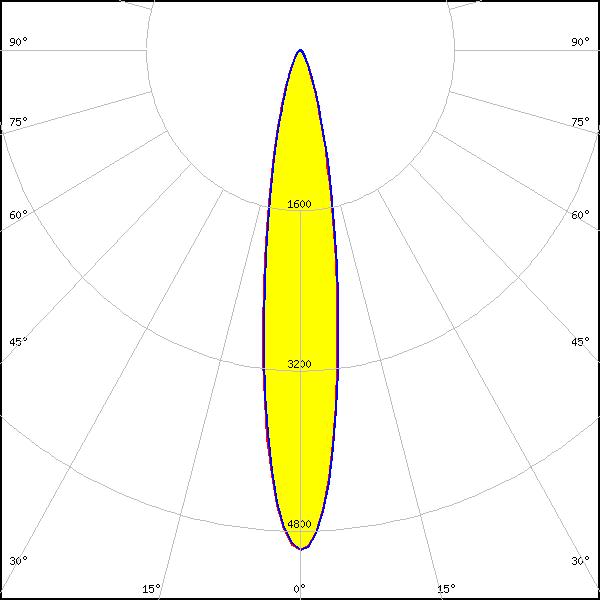

    LED: LUXEON T
    FWHM: 18°
    FWTM: 40°
    Peak intensity: 4.500 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Z ES
    FWHM: 15°
    FWTM: 34°
    Peak intensity: 7.100 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

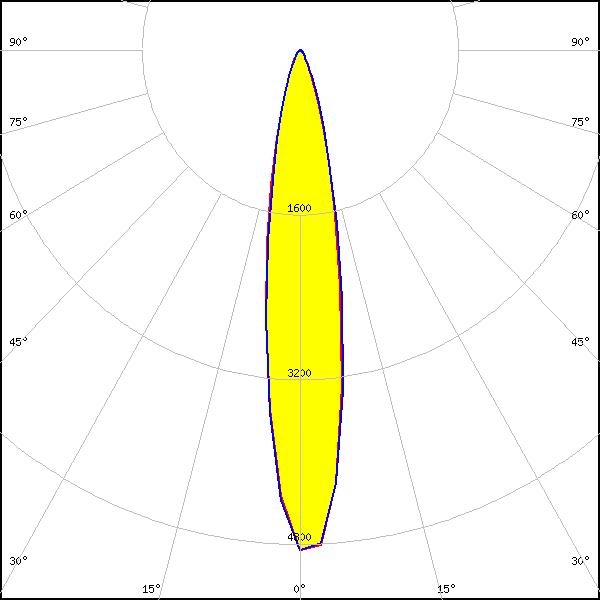

    LED: NCSxx19B
    FWHM: 19°
    FWTM: 41°
    Peak intensity: 5.000 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

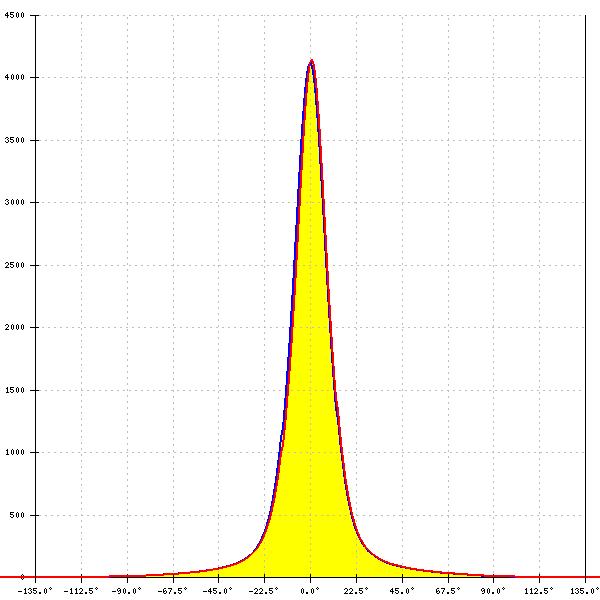

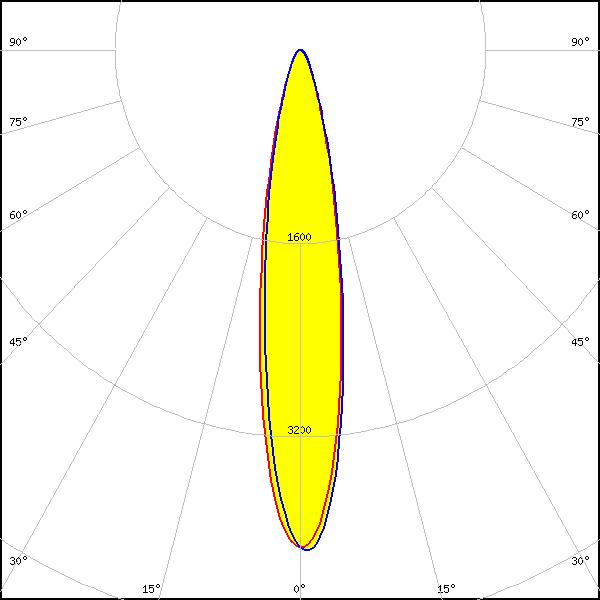

    LED: NF2x757D
    FWHM: 19°
    FWTM: 43°
    Peak intensity: 4.200 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: 16°
    FWTM: 32°
    Peak intensity: 8.534 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

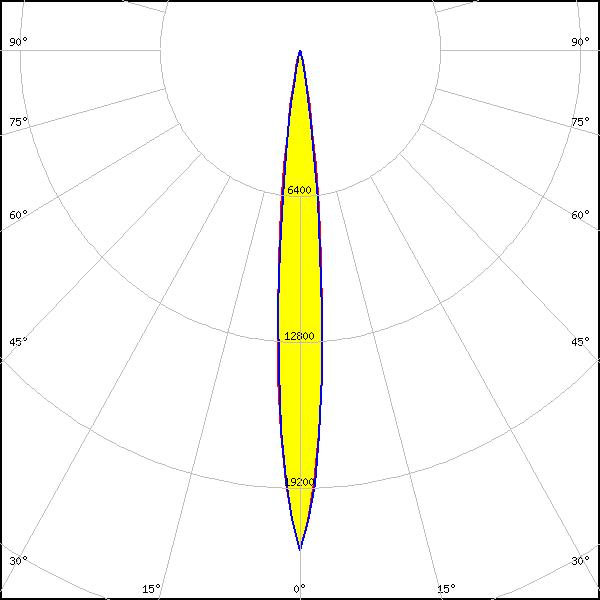

    LED: OSLON Boost HX (KW CULPM1.TG)
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 21.914 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

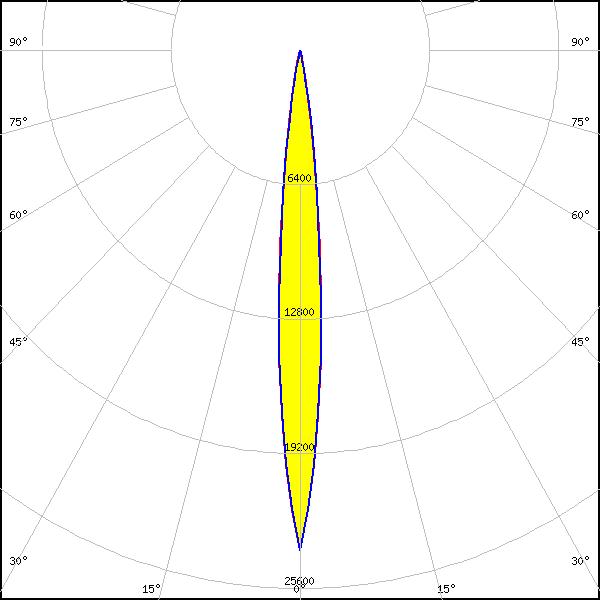

    LED: OSLON Signal
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 23.793 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Red

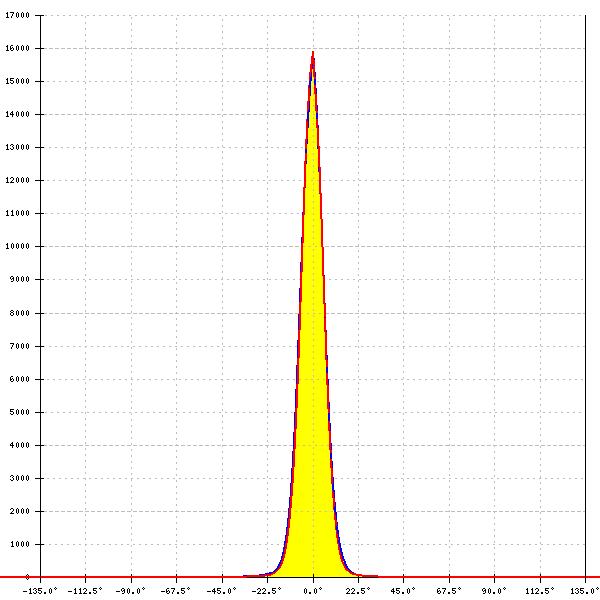

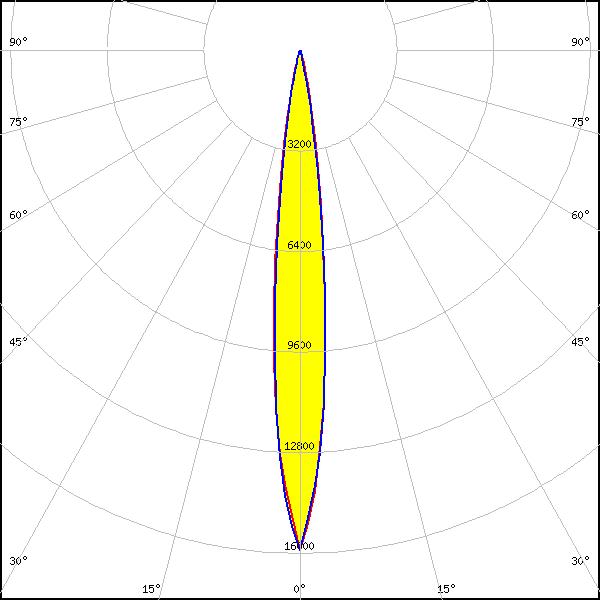

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.900 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square EC
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 6.650 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 150
    FWHM: 12°
    FWTM: 28°
    Peak intensity: 8.900 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 80
    FWHM: 14°
    FWTM: 31°
    Peak intensity: 7.260 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4715S
    FWHM: 13°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4725S
    FWHM: 18°
    FWTM: 42°
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5
    FWHM: 14°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
