CA11998_EMILY-SS-WAS
Print

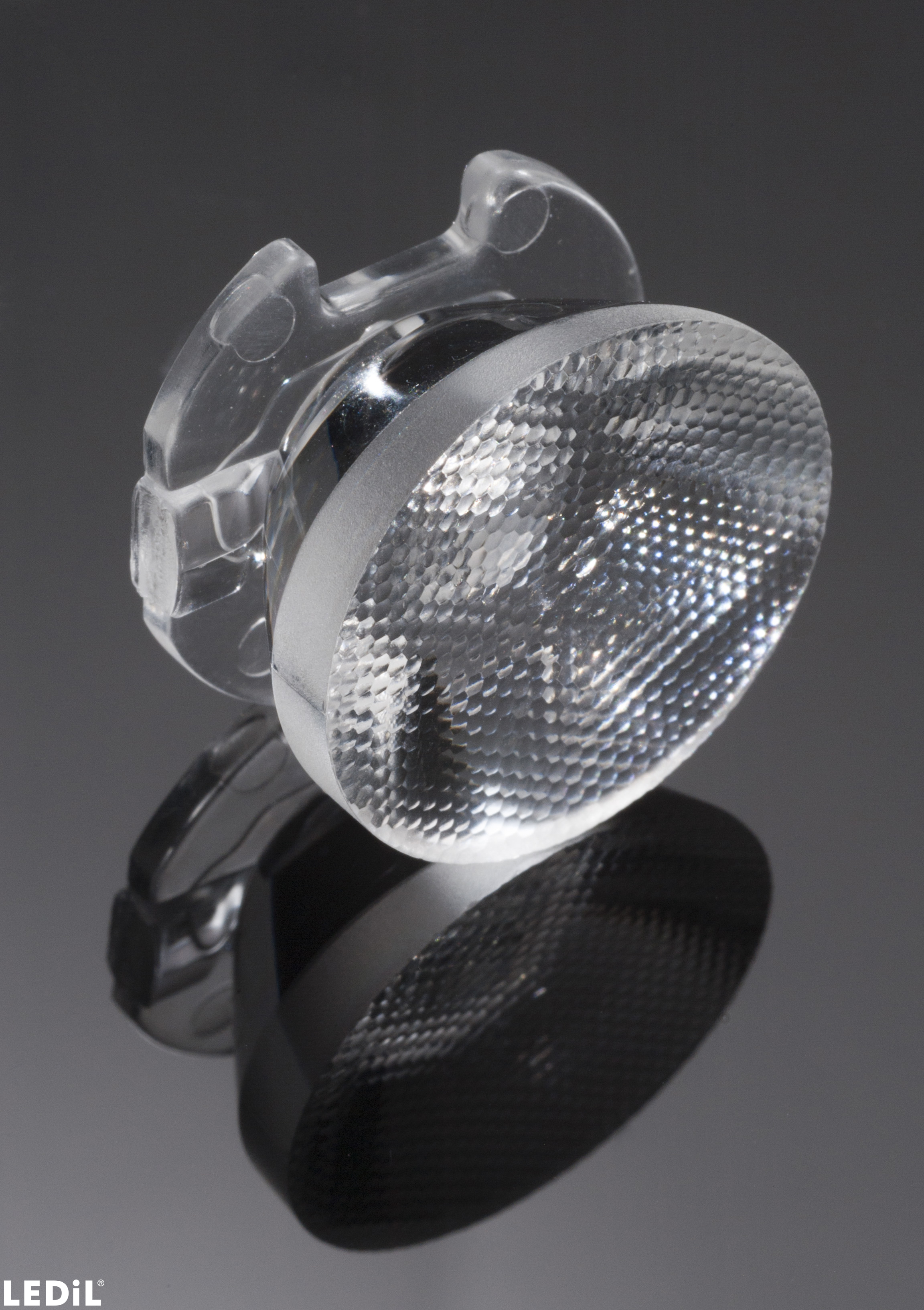

~8° beam for wall-washing. 14.83 mm high lens.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

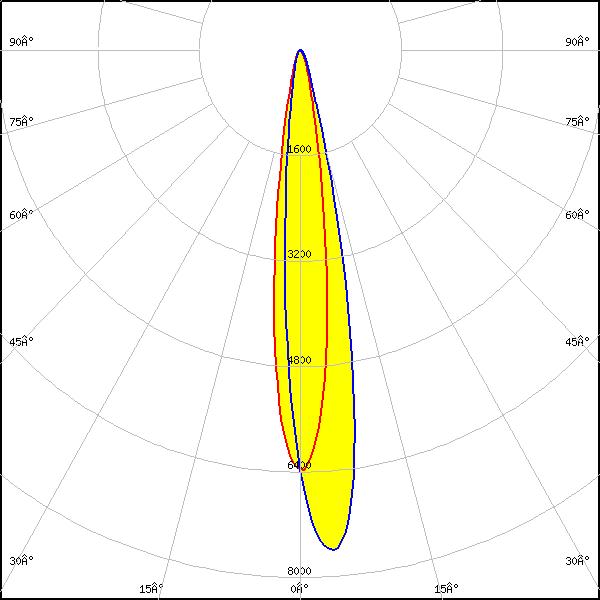

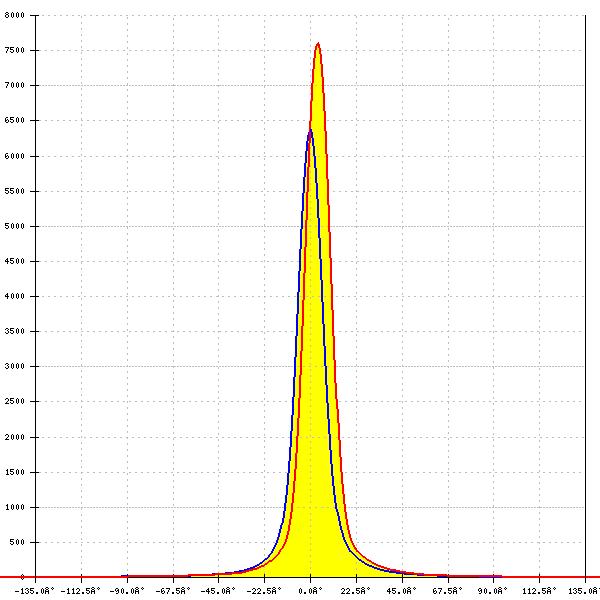

LED:
XHP35 HD
FWHM: asymmetric
Peak intensity:
7.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

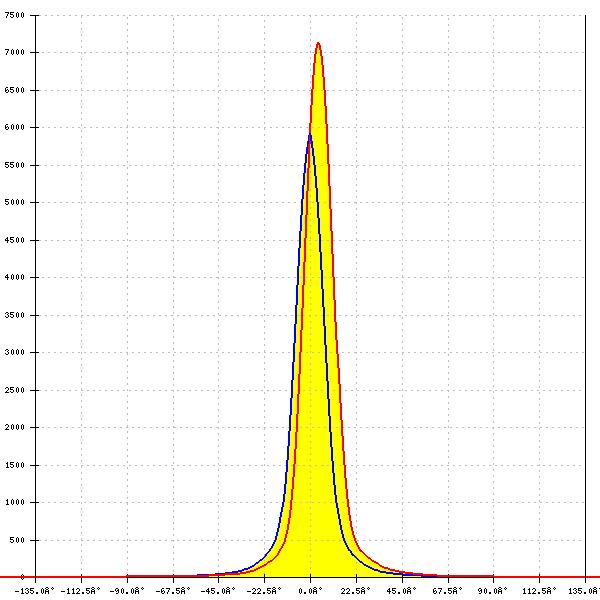

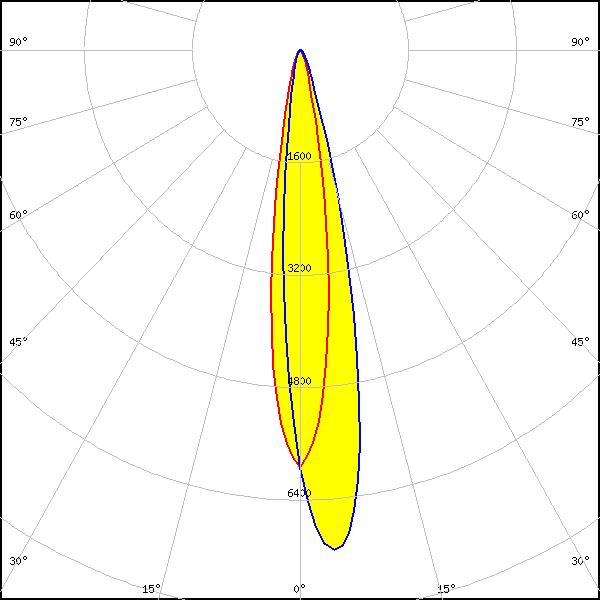

LED:
XHP35.2 HD
FWHM:
16°
FWTM:
31°
Peak intensity:
7.134 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

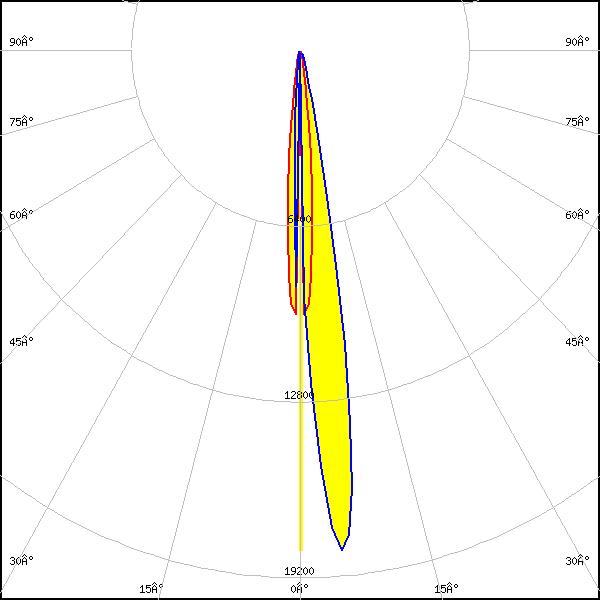

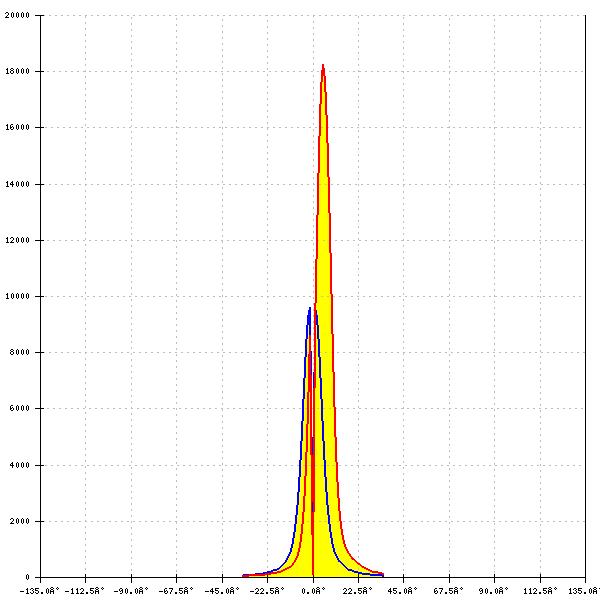

XP-E
FWHM:
10°
FWTM:
20°
Peak intensity:
18.300 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

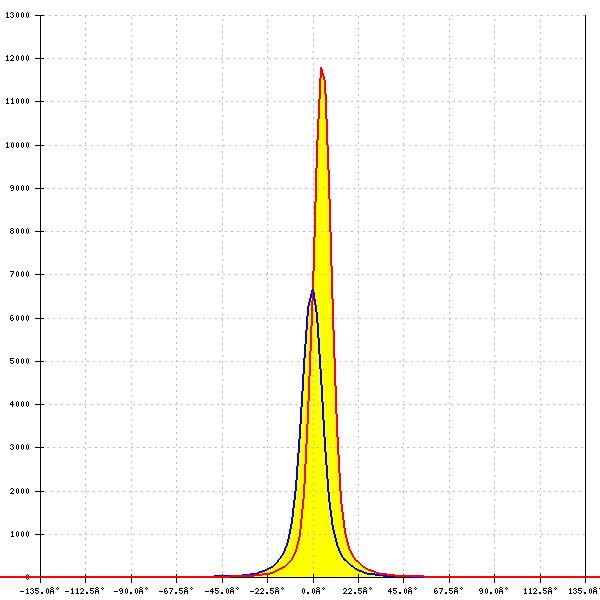

LED:
XP-G
FWHM:
11°
FWTM:
23°
Peak intensity:
11.920 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

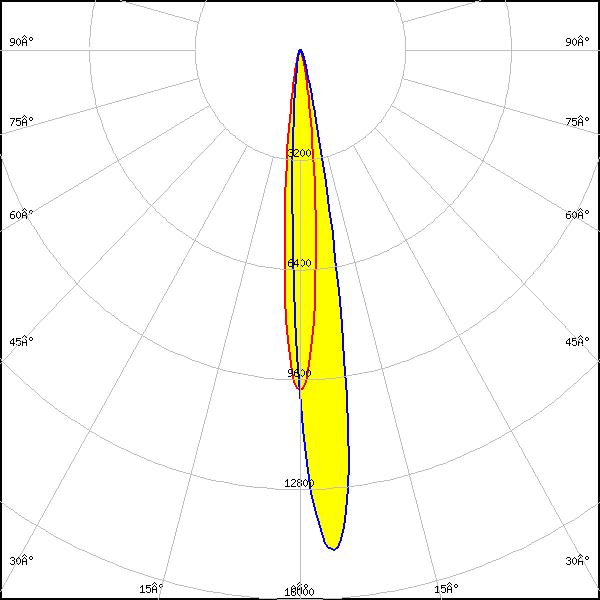

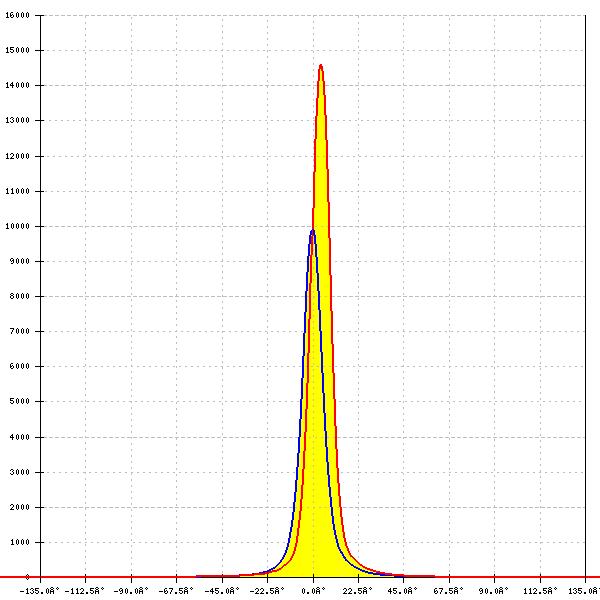

XP-L HI
FWHM: asymmetric
Peak intensity:
14.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

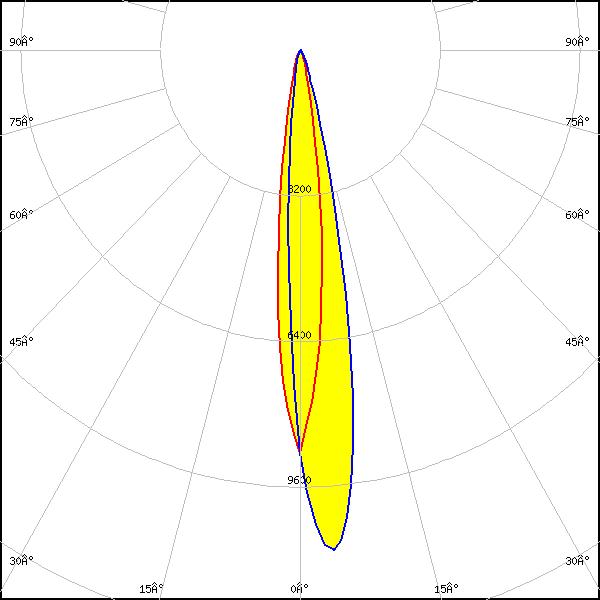

XT-E
FWHM: asymmetric
Peak intensity:
11.020 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

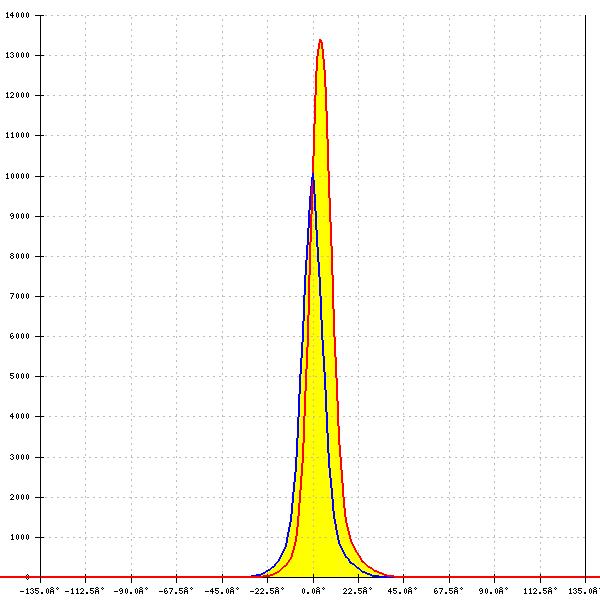

LED:

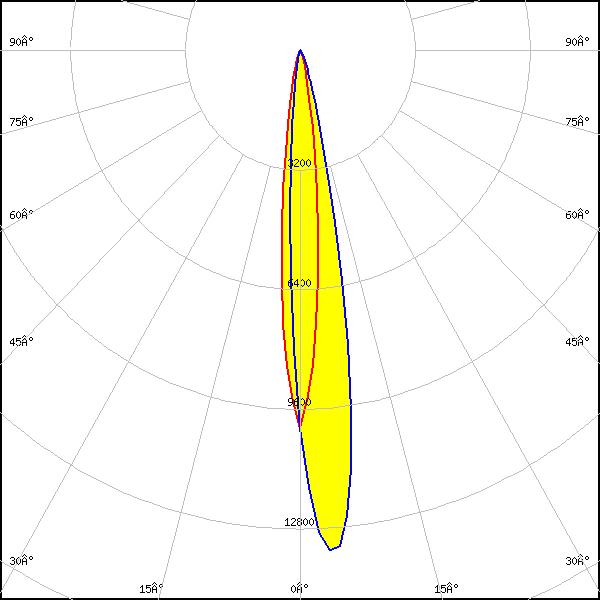

LUXEON H50-2
FWHM: asymmetric
Peak intensity:
13.400 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

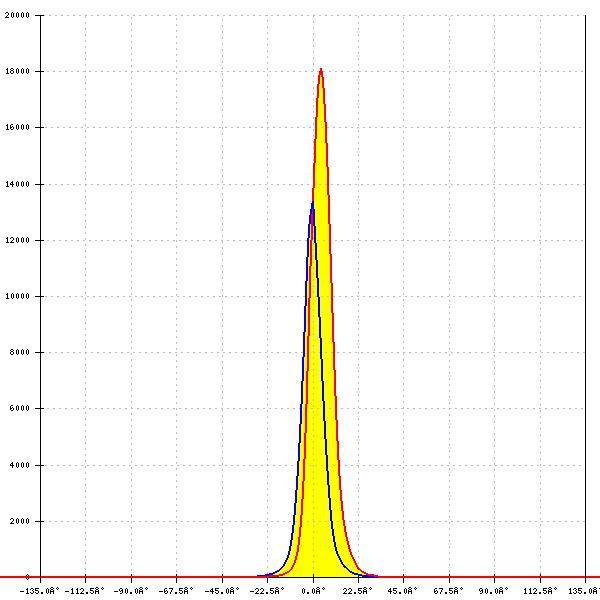

LUXEON Rebel
FWHM:
8°
FWTM:
23°
Peak intensity:
11.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

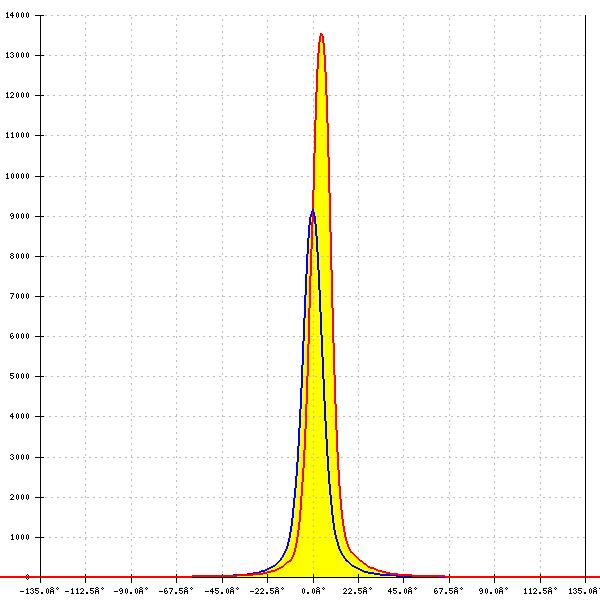

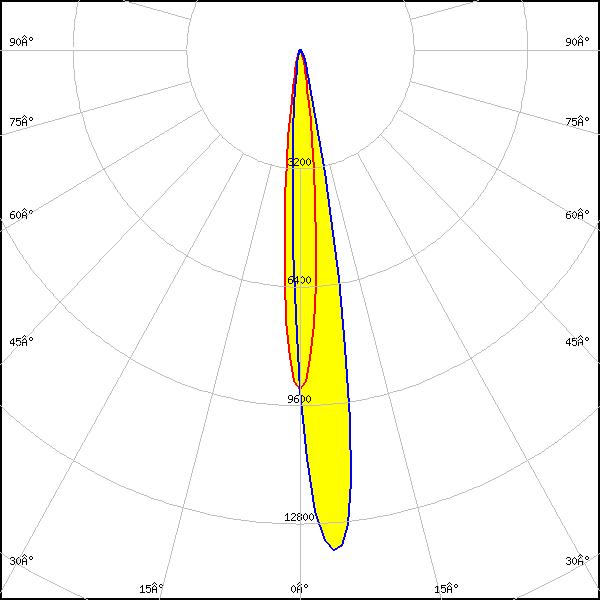

LED:
LUXEON T
FWHM:
11°
FWTM:
22°
Peak intensity:
14.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

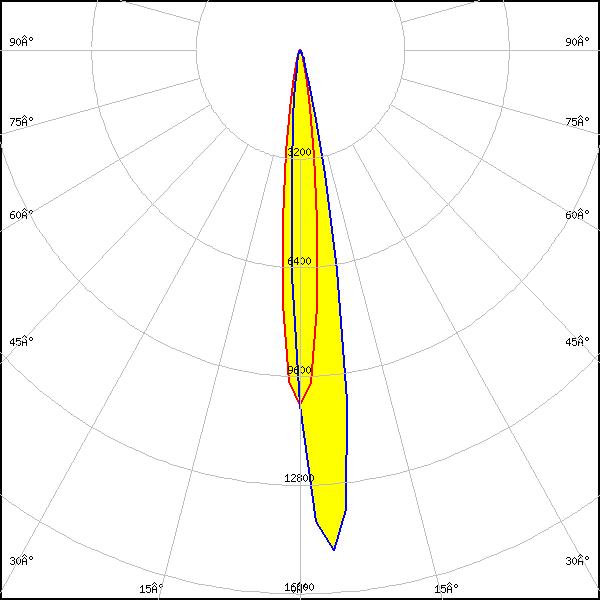

LED:
LUXEON TX
FWHM: asymmetric
Peak intensity:
14.800 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

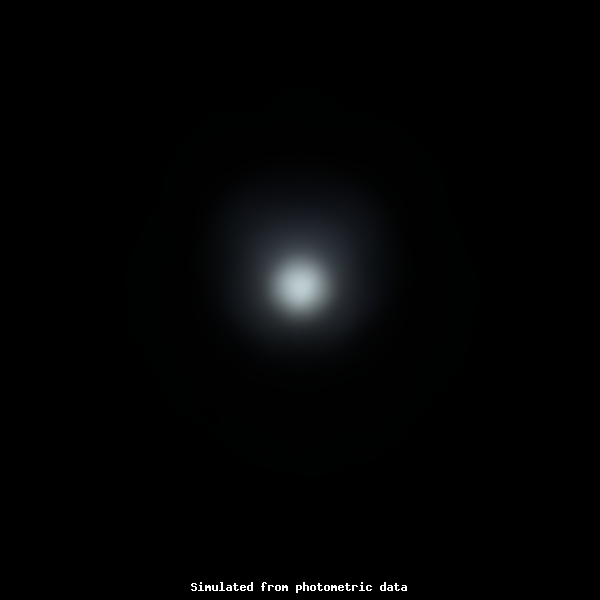

LED:

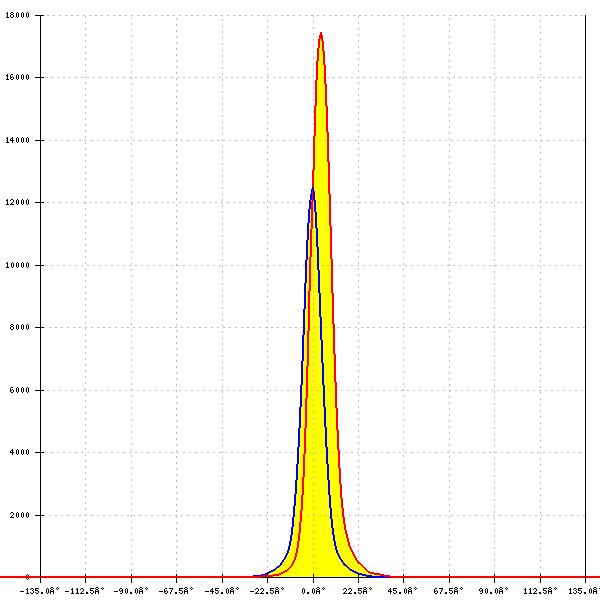

SST-20 Gen2
FWHM:
10° + 11°
FWTM:
22° + 22°
Peak intensity:
17.445 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

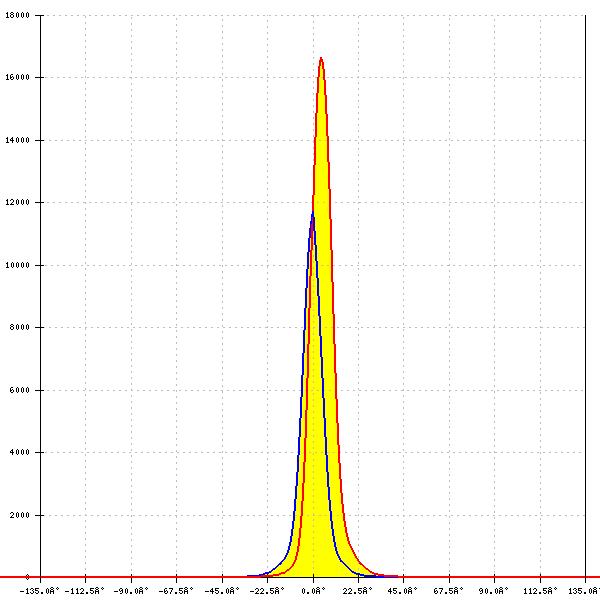

LED:

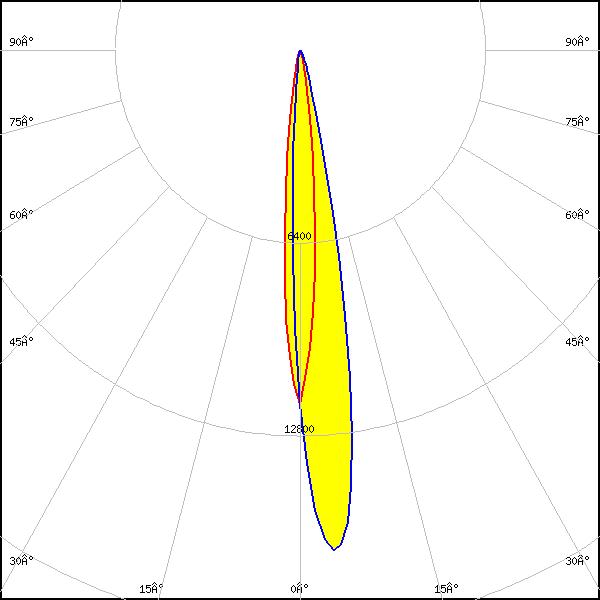

NCSxx19A
FWHM: asymmetric
Peak intensity:
16.690 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

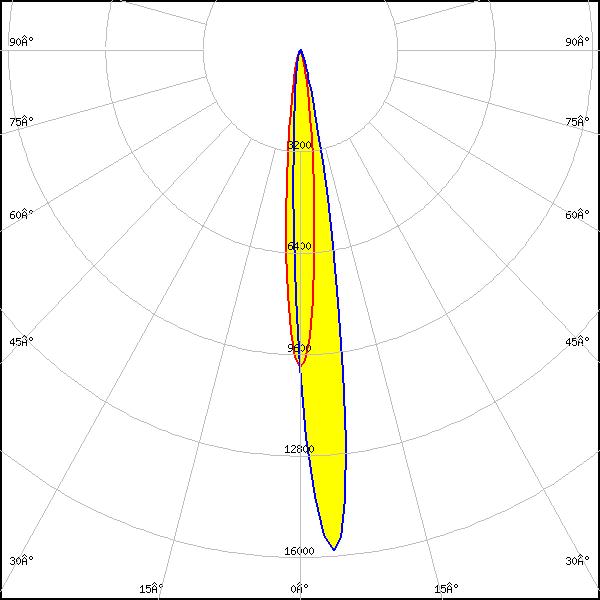

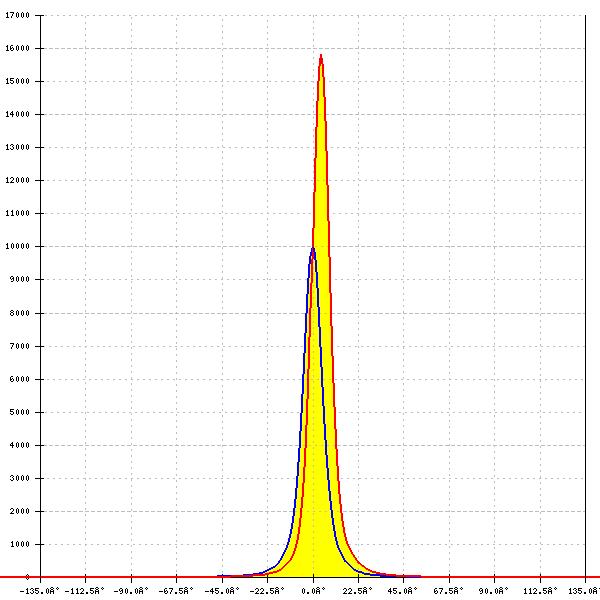

LED:
NCSxx19B
FWHM:
11°
FWTM:
22°
Peak intensity:
15.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

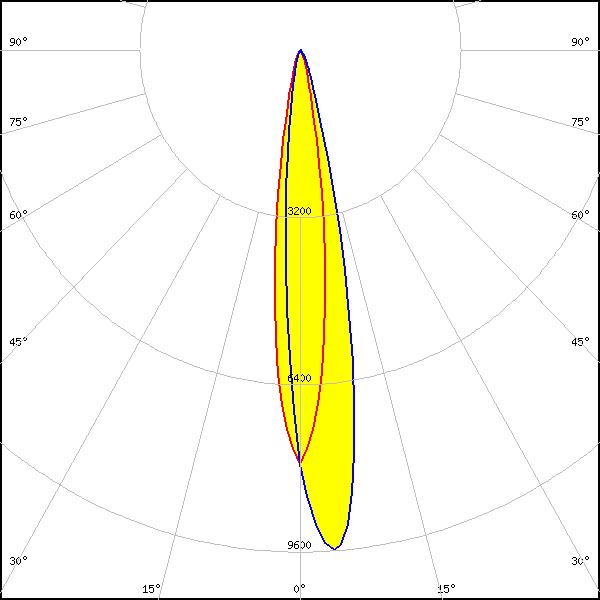

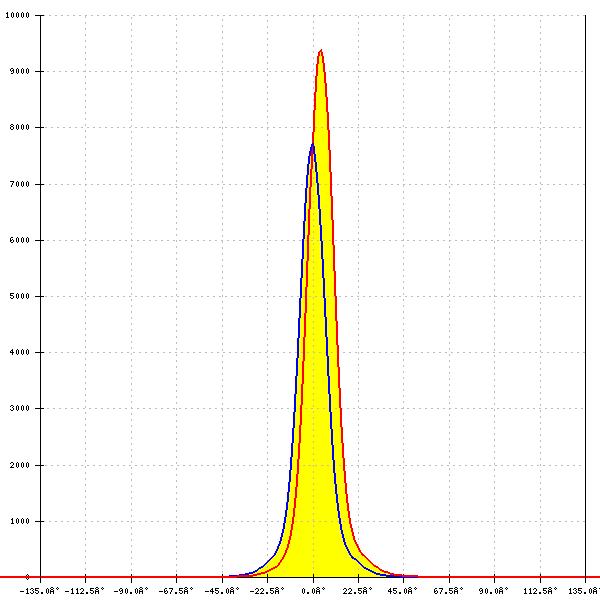

LED:

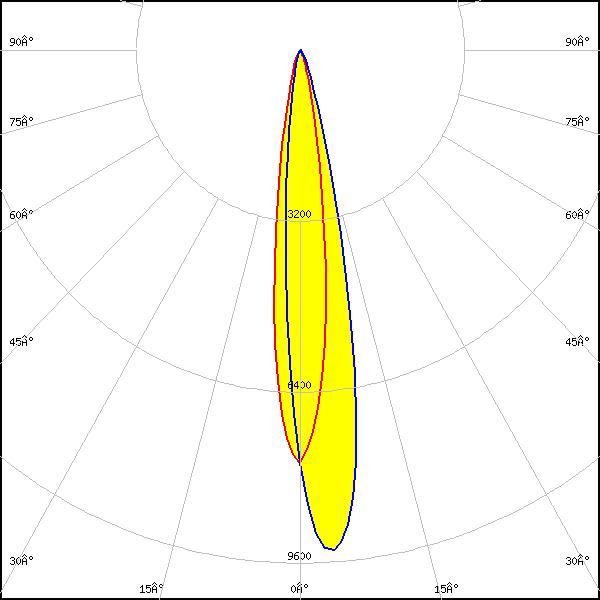

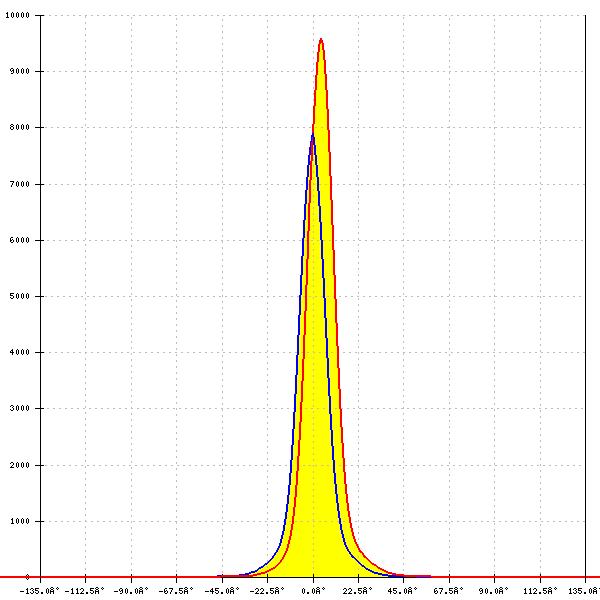

NV4WB35AM
FWHM: asymmetric
Peak intensity:
9.439 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NV4WB35AM
FWHM: asymmetric
Peak intensity:
9.593 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

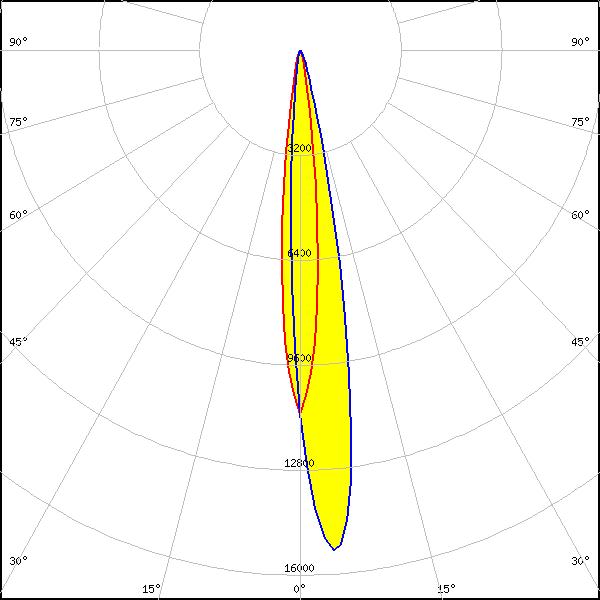

LED:
NVSW719AC
FWHM: asymmetric
Peak intensity:
15.281 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

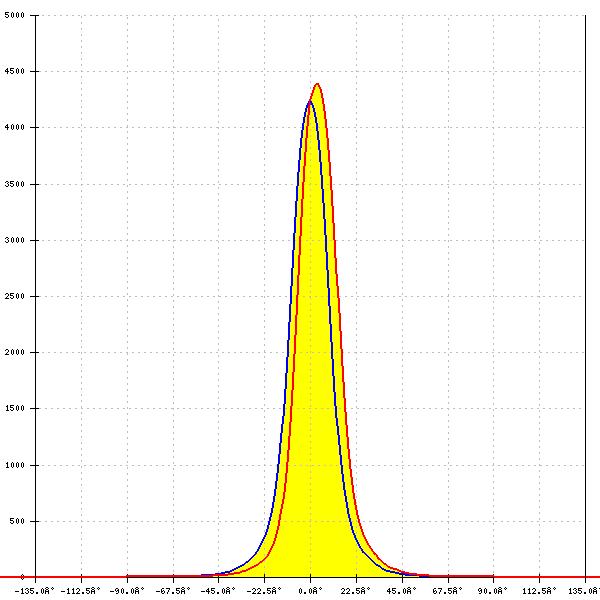

LED:

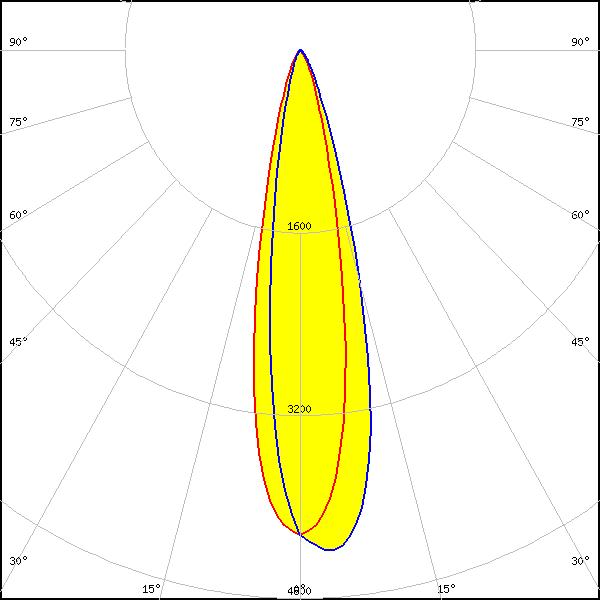

NVSxE21A
FWHM: asymmetric
Peak intensity:
4.391 cd/lm
Efficiency:
95 %
LEDs/each optic:
4
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity:
12.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

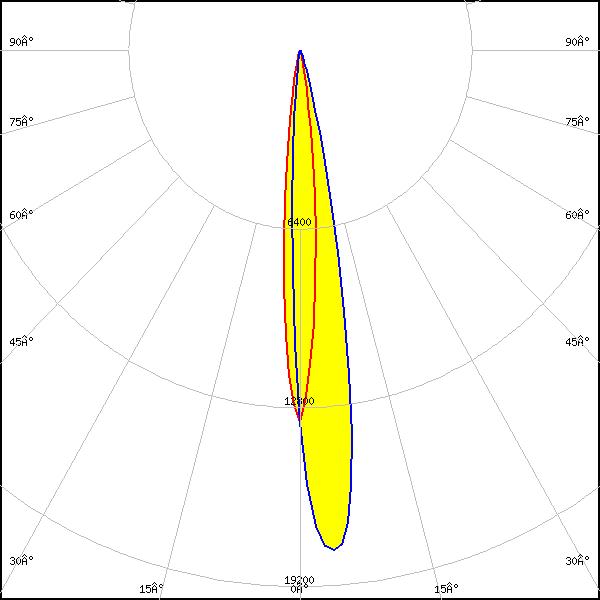

LED:
OSCONIQ P 3030
FWHM: asymmetric
Peak intensity:
17.970 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

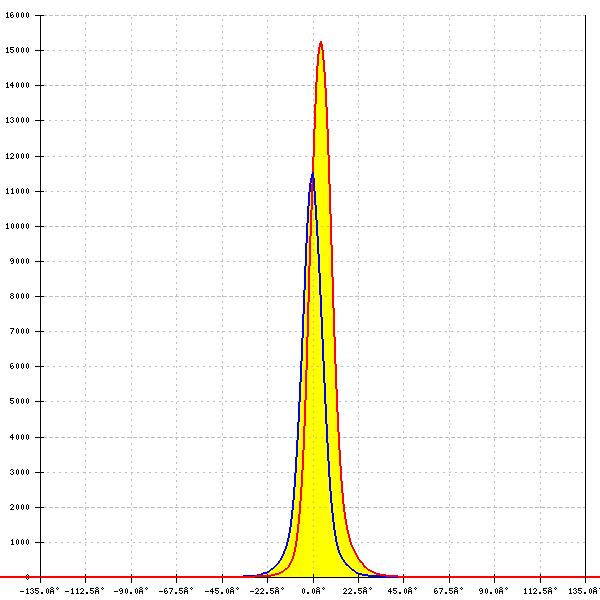

LED:

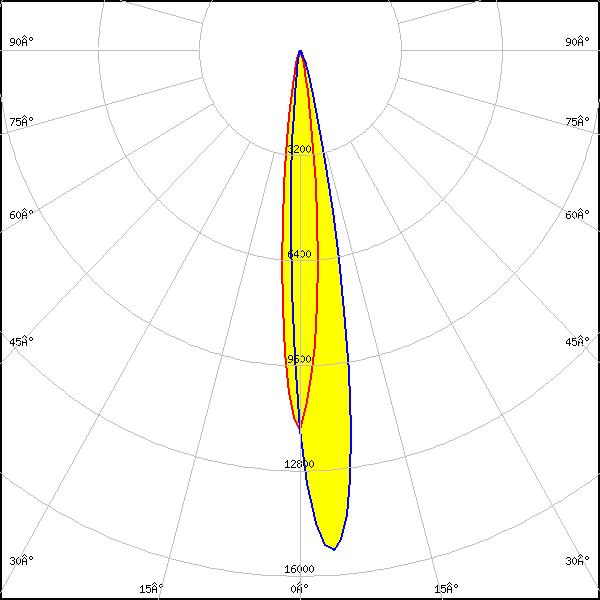

OSCONIQ P 3737 (2W version)
FWHM: asymmetric
Peak intensity:
15.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

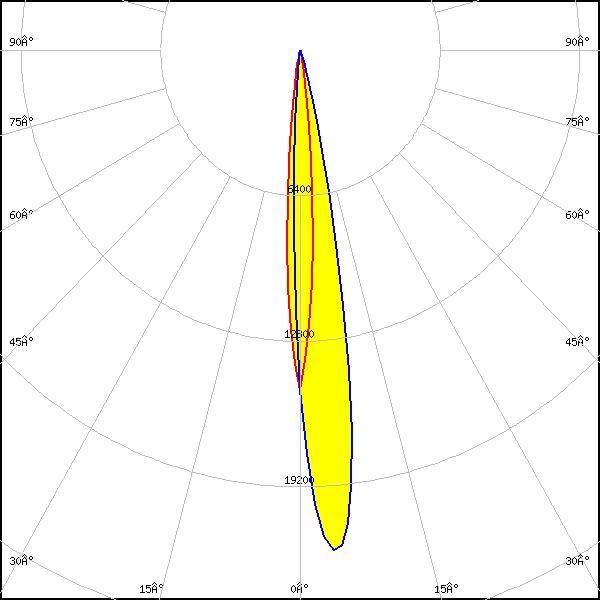

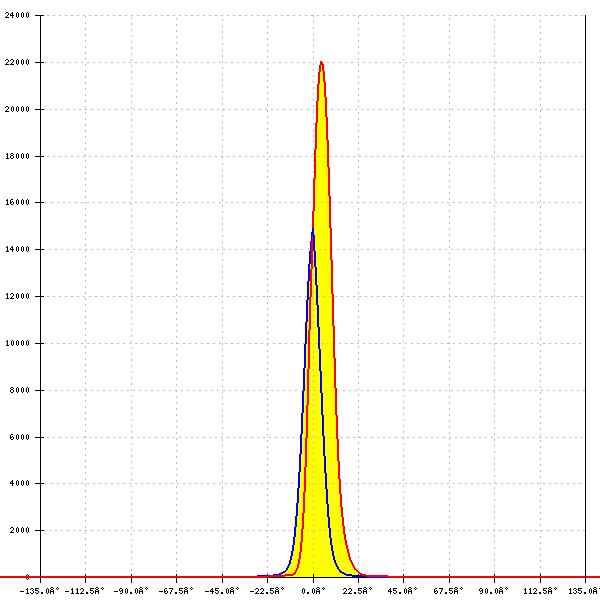

OSLON Pure 1414
FWHM:
9° + 11°
FWTM:
18° + 20°
Peak intensity:
22.119 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

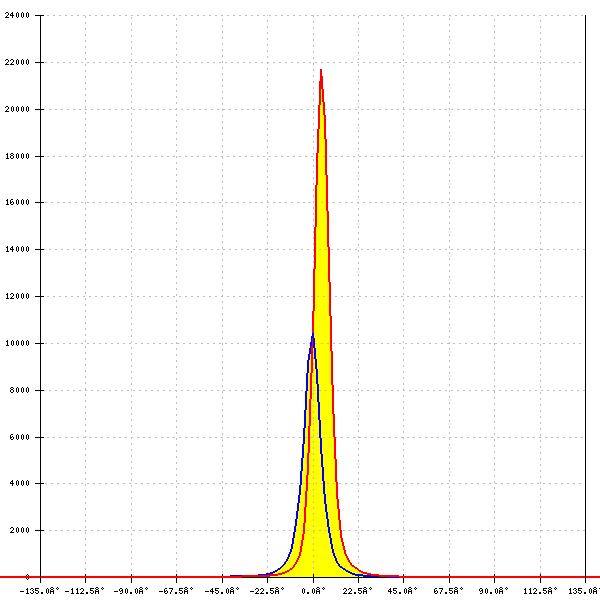

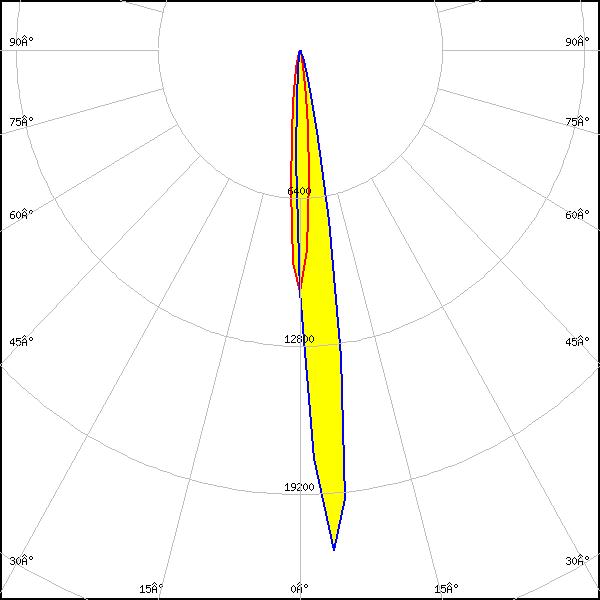

OSLON SSL 150
FWHM:
11°
FWTM:
22°
Peak intensity:
14.870 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
FWHM:
11°
FWTM:
-
Peak intensity:
10.980 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM301B
FWHM: asymmetric
Peak intensity:
14.590 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

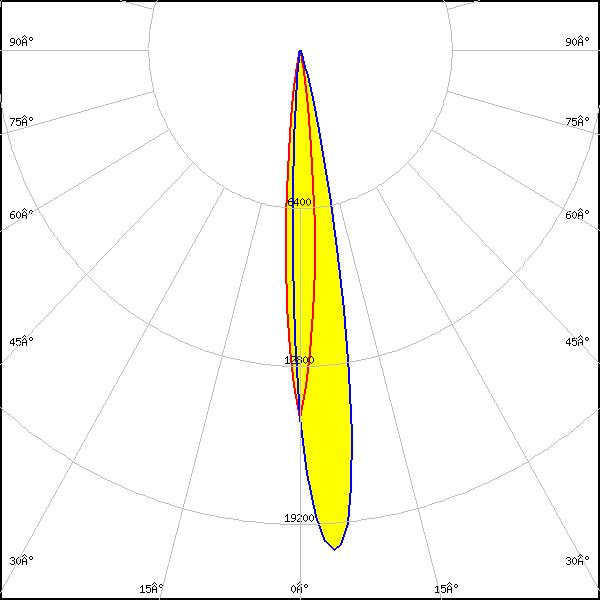

LED:

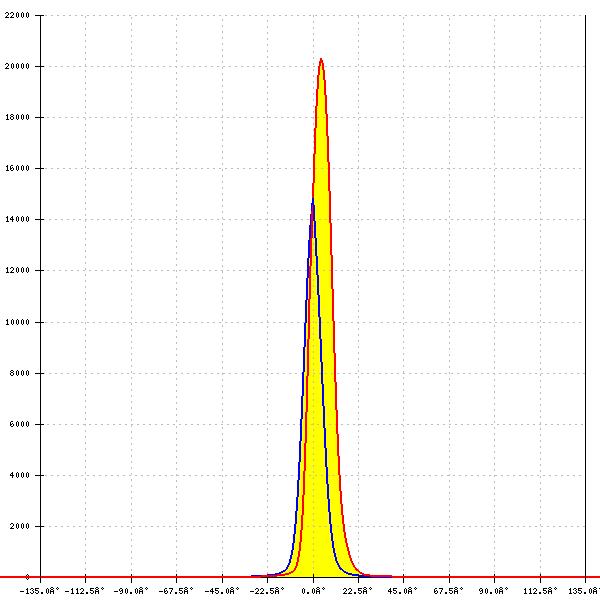

Z5
FWHM: asymmetric
Peak intensity:
20.430 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

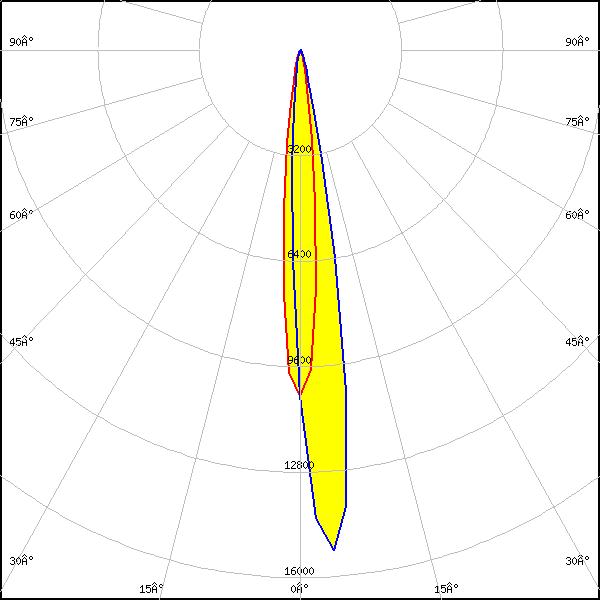

Z5M1/Z5M2
FWHM: asymmetric
Peak intensity:
15.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
