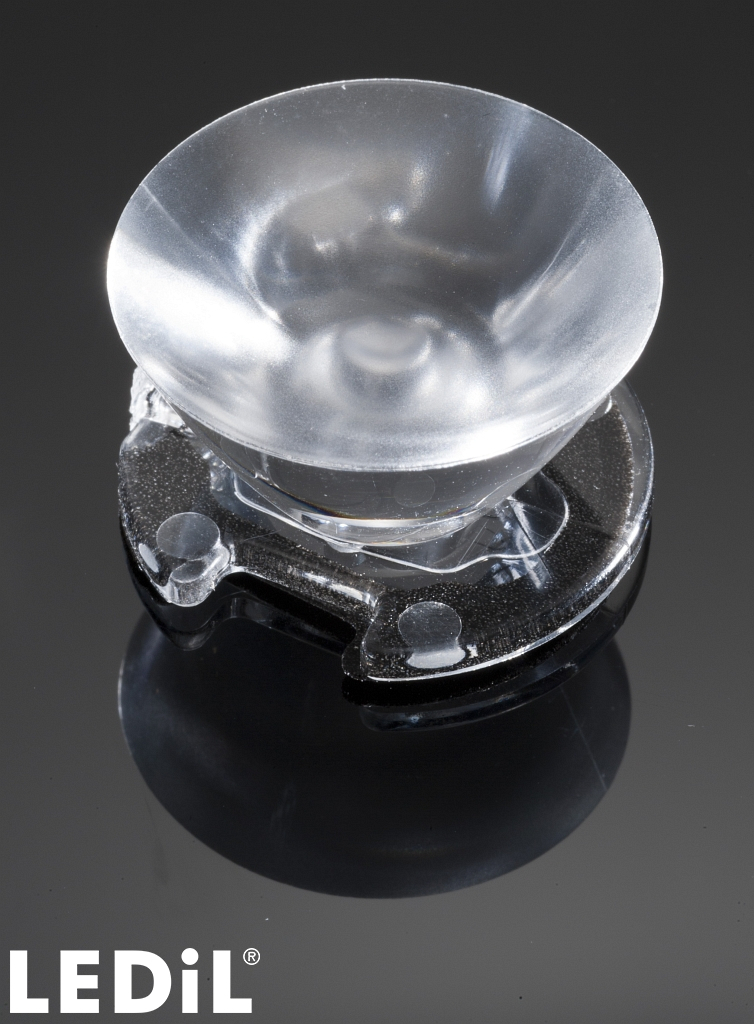

    CA12062_EMILY-D

    Print

    ~11° diffused spot beam. 14.74 mm high lens.

    Specification
    • Dimensions:
      26 mm
    • Height:
      14.74 mm
    • Fastening:
      tape, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      1690 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.5 kg
    • MPQ:
      130 pcs
    • MOQ:
      260 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA12062_EMILY-D

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR121.b - Packing method and quantity changes 070616

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    World's brightest LED luminaire

    Case story

    Machang bridge

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

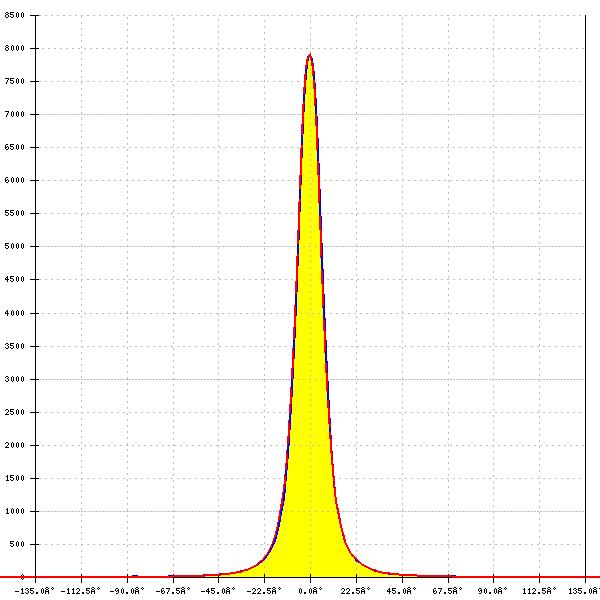

    Optical results

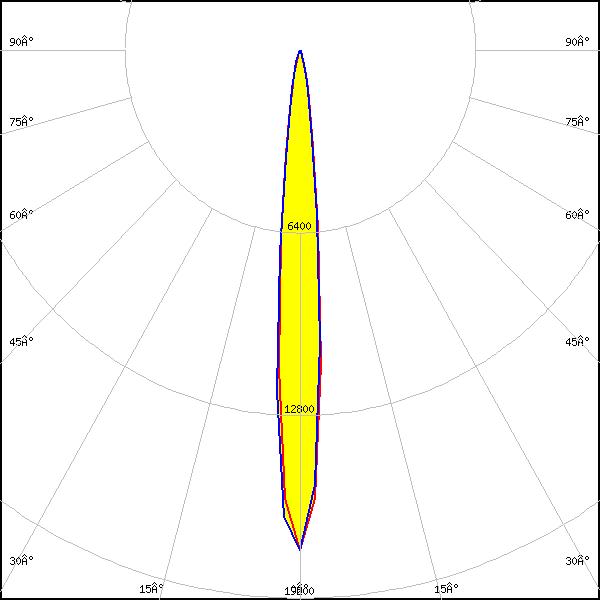

    LED: XB-H
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 17.500 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

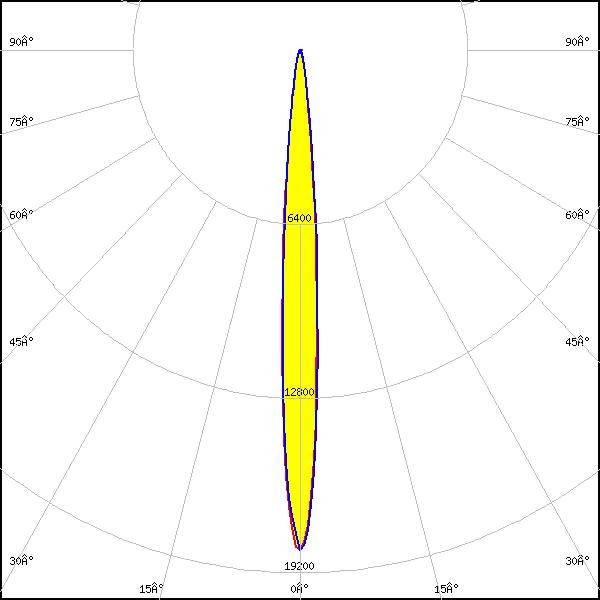

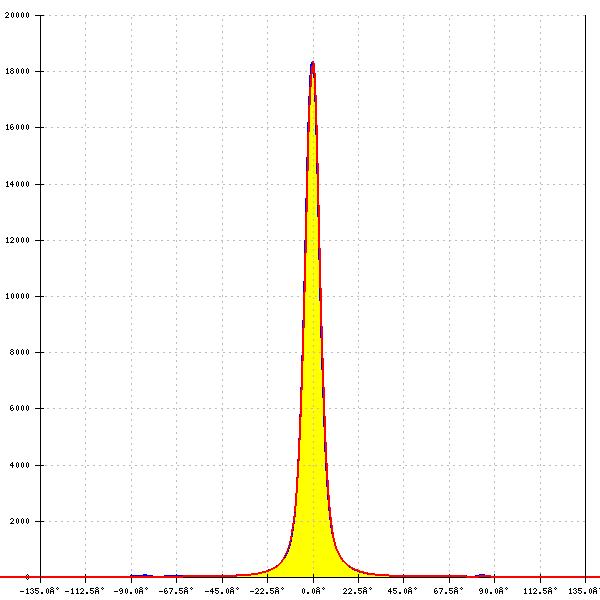

    LED: XD16
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 18.400 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

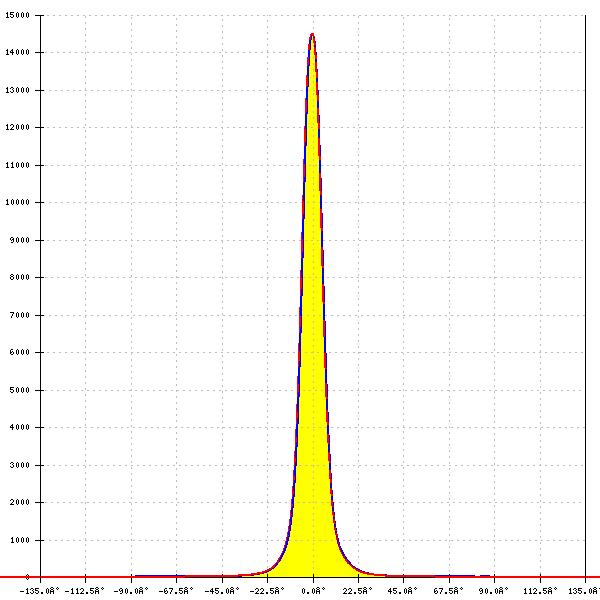

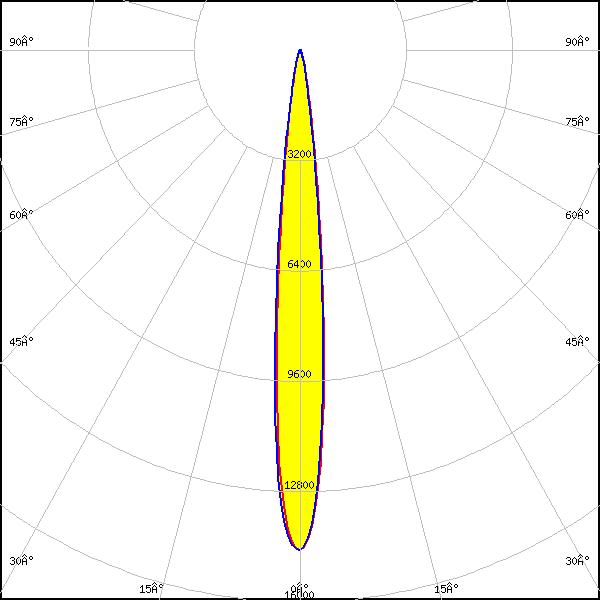

    LED: XHP35 HI
    FWHM: 11°
    FWTM: 22°
    Peak intensity: 14.500 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

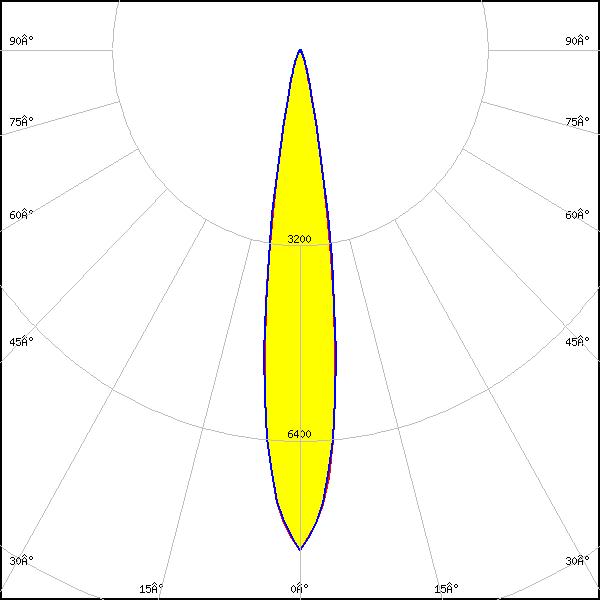

    LED: XHP35.2 HD
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 8.186 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

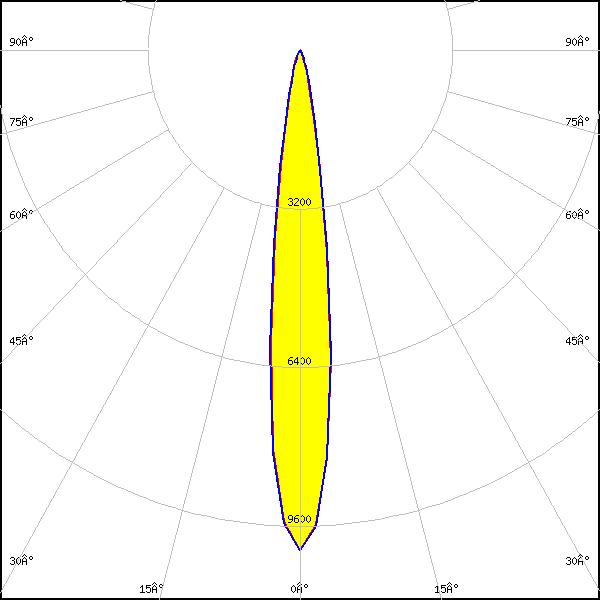

    LED: XM-L
    FWHM: 14°
    FWTM: 27°
    Peak intensity: 10.100 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

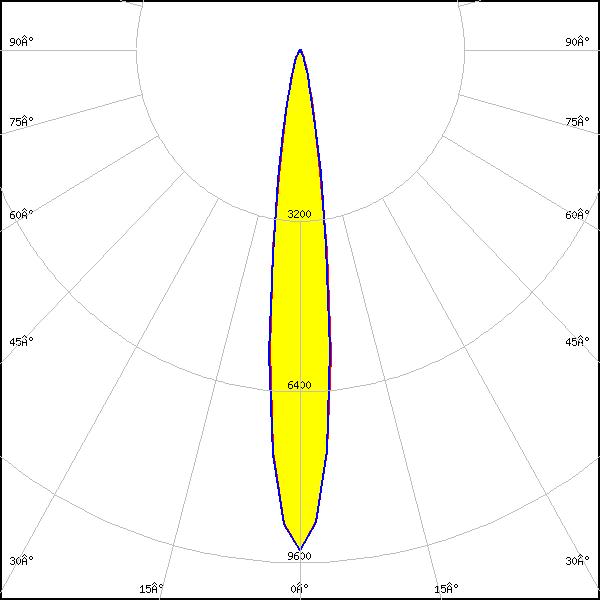

    LED: XM-L HVW
    FWHM: 14°
    FWTM: 27°
    LEDs/each optic: 1
    Light colour/type: White

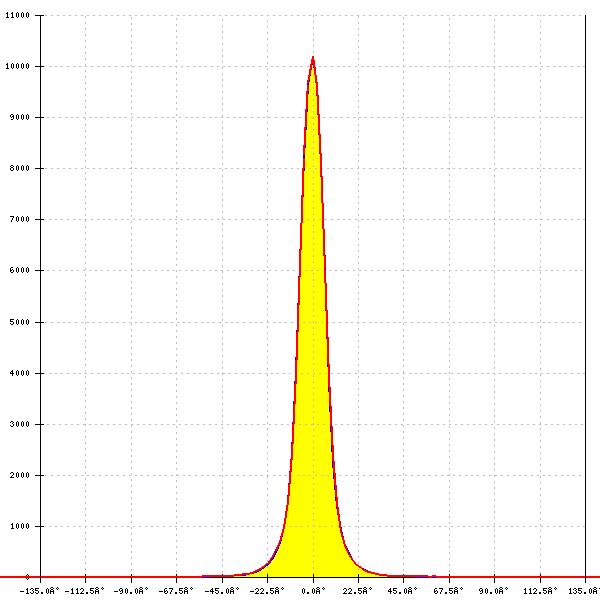

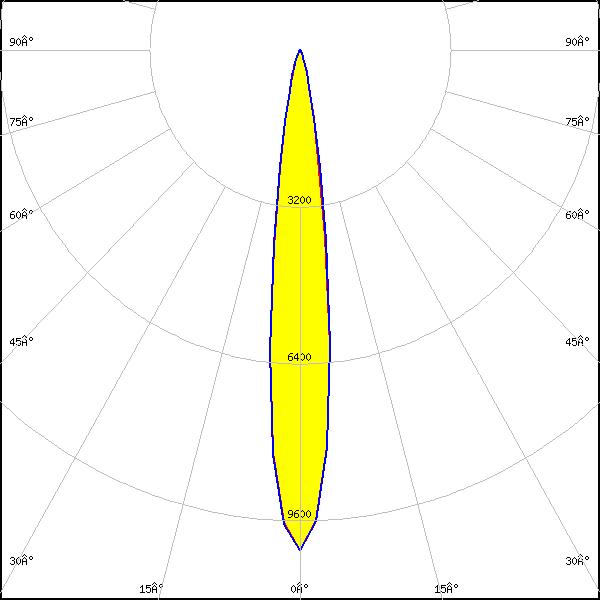

    LED: XM-L2
    FWHM: 14°
    FWTM: 27°
    Peak intensity: 10.200 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

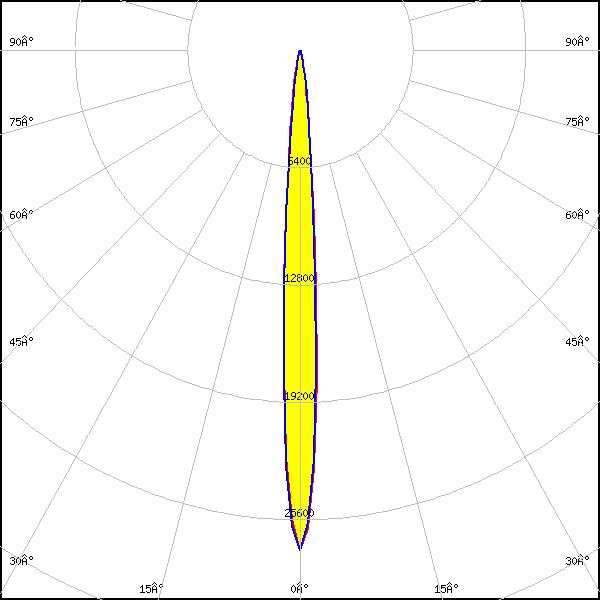

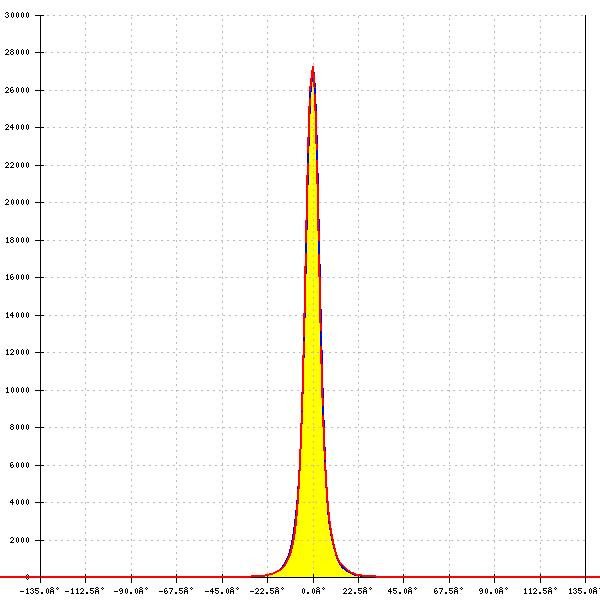

    LED: XP-E2
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 27.300 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

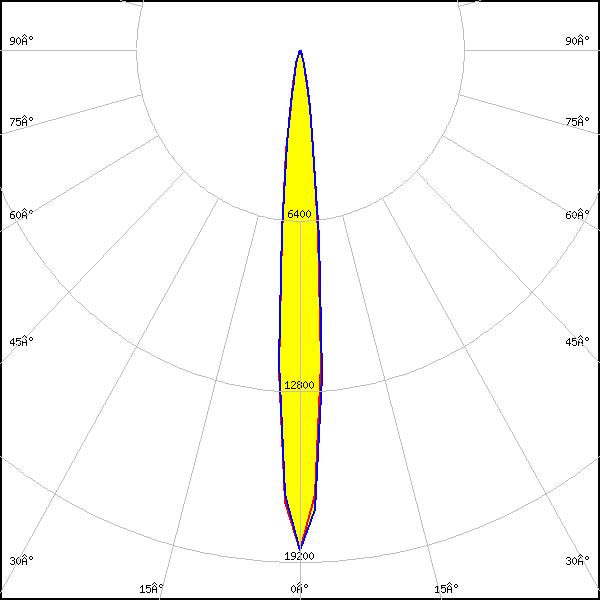

    LED: XP-G2
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 20.800 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

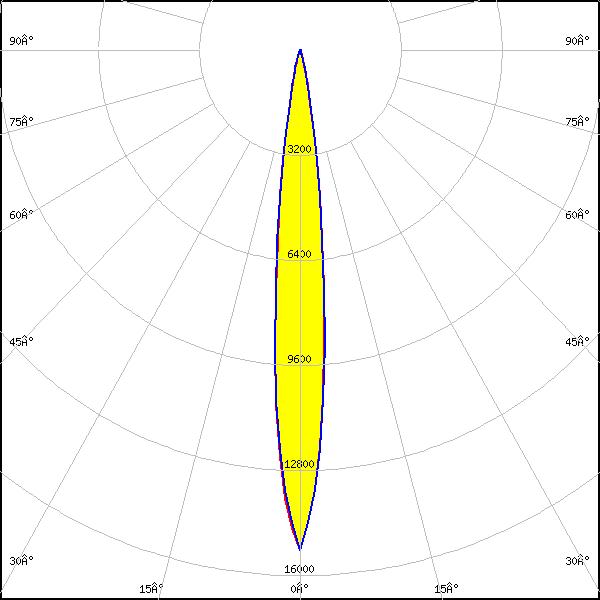

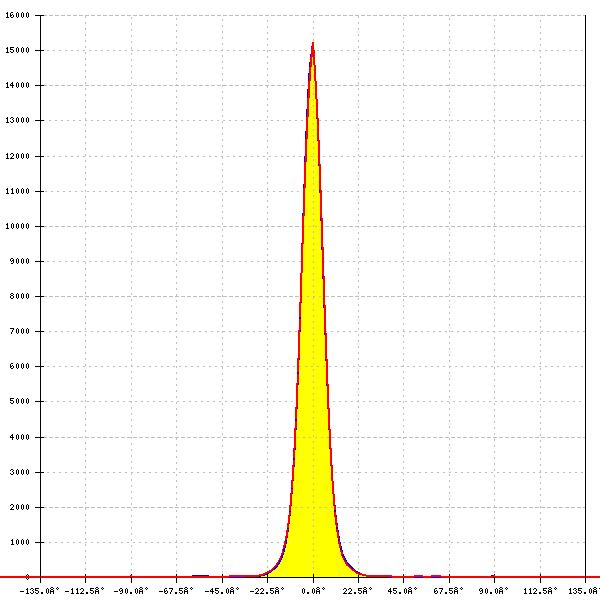

    LED: XP-G2 HE
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.232 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

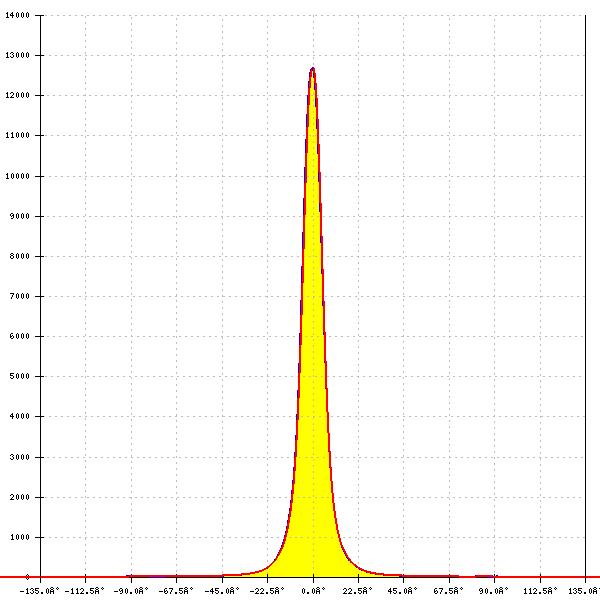

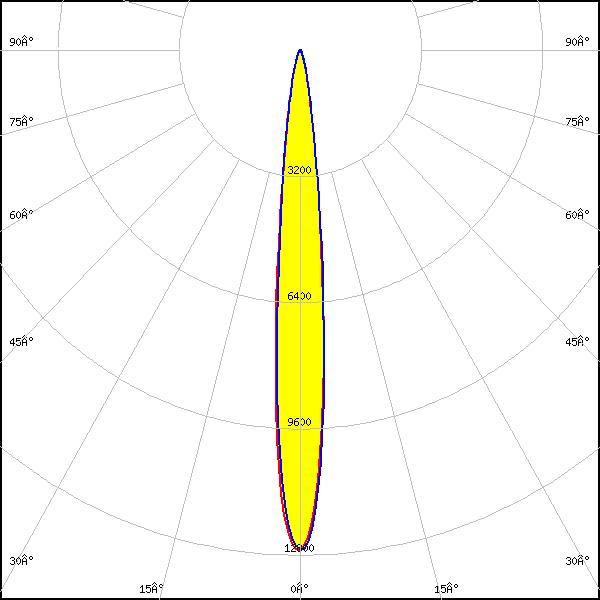

    LED: XP-G3
    FWHM: 11°
    FWTM: 24°
    Peak intensity: 13.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

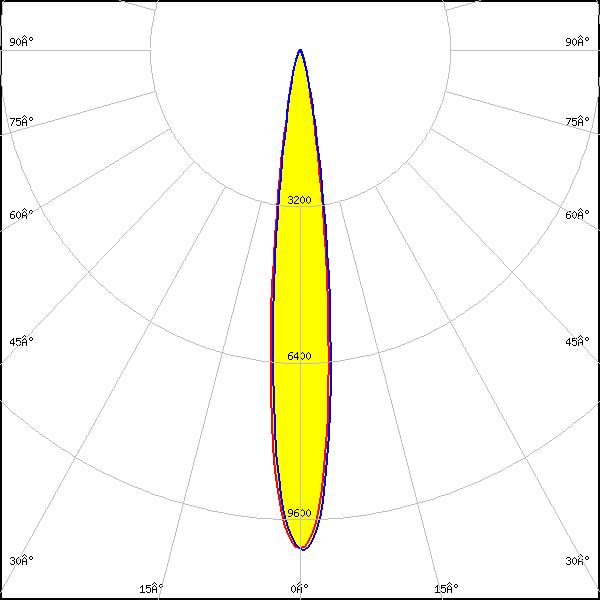

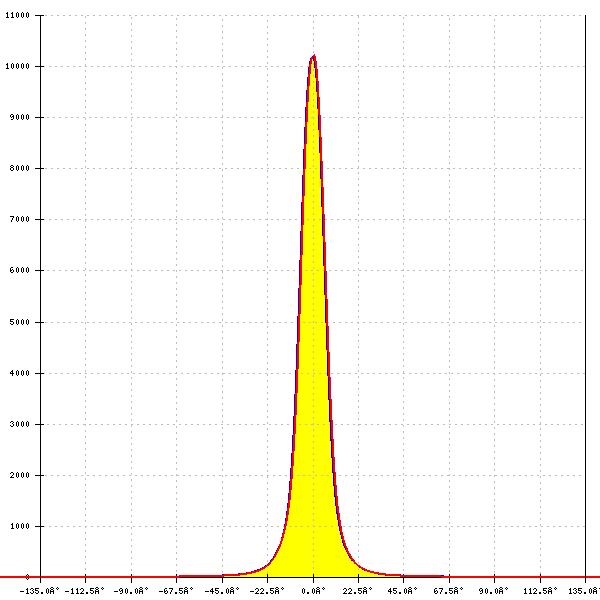

    LED: XP-L HD
    FWHM: 13°
    FWTM: 26°
    Peak intensity: 10.200 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

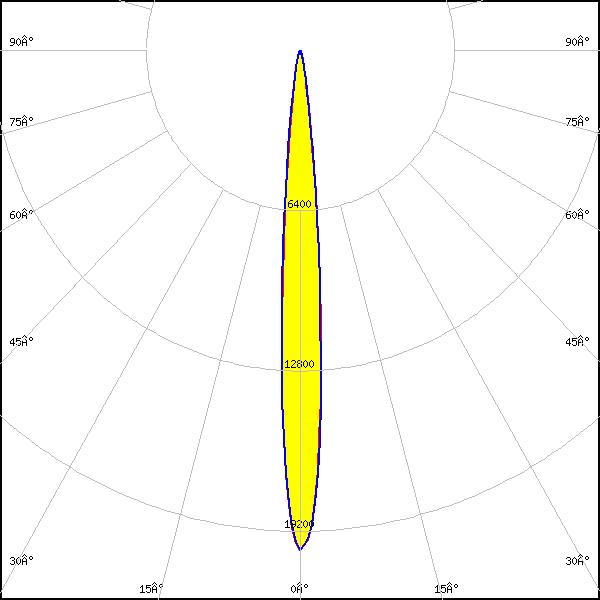

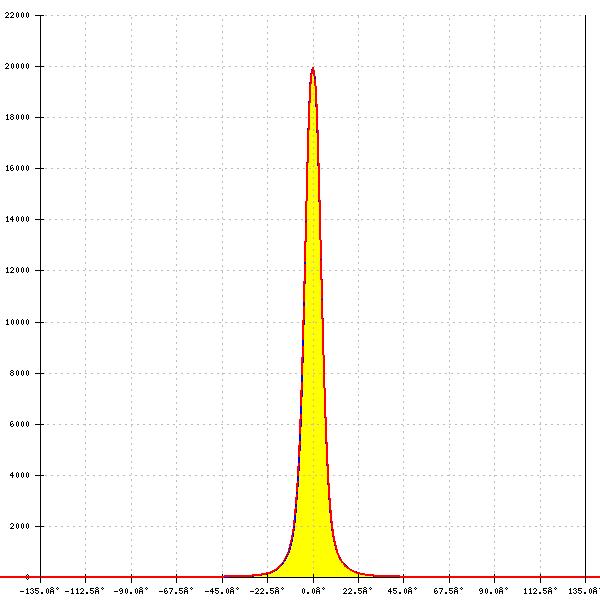

    LED: XP-L HI
    FWHM: 9°
    FWTM: 19°
    Peak intensity: 20.000 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: 9°
    FWTM: -
    Peak intensity: 14.000 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON A
    FWHM: 11°
    FWTM: -
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

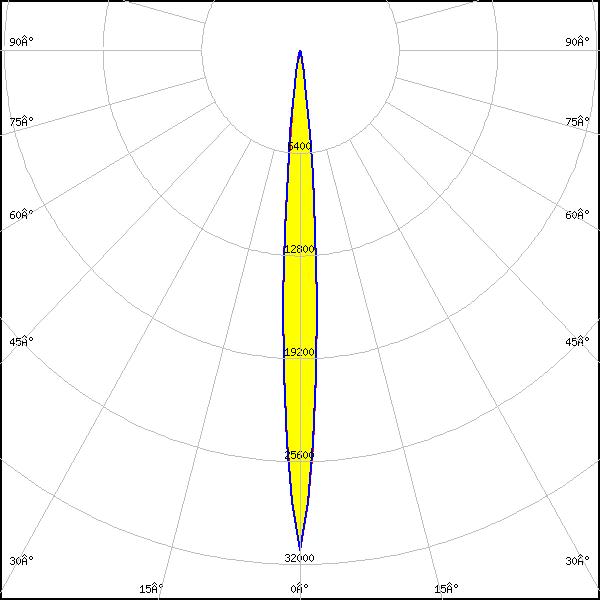

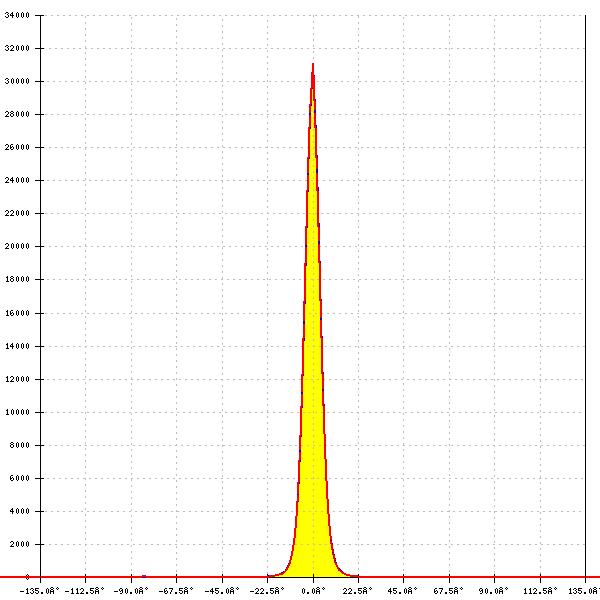

    LED: LUXEON C
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 31.126 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

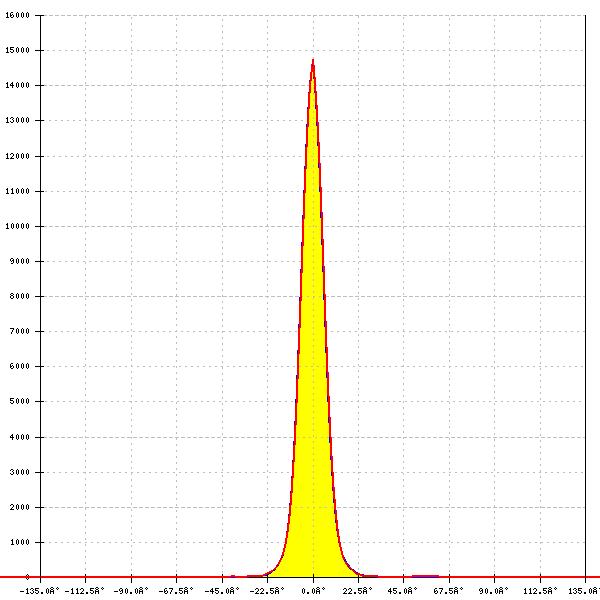

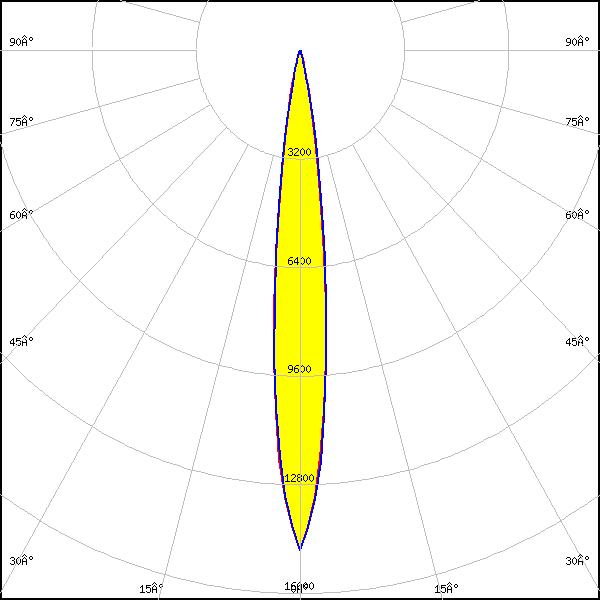

    LED: LUXEON HL2X
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 14.734 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

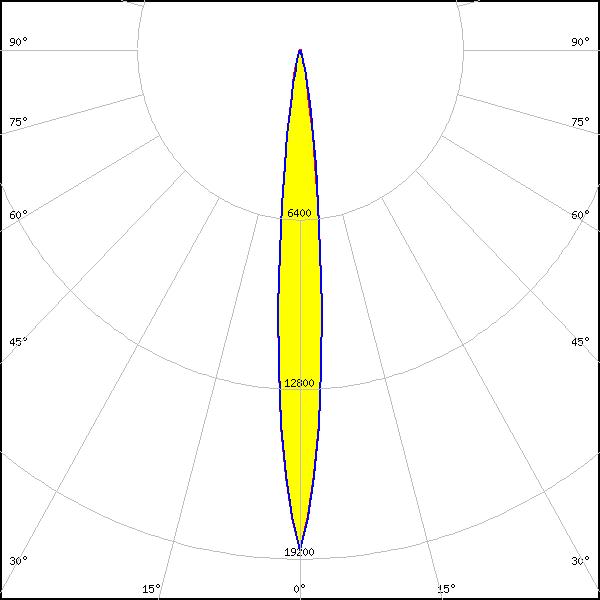

    LED: LUXEON HL2Z
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 18.871 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

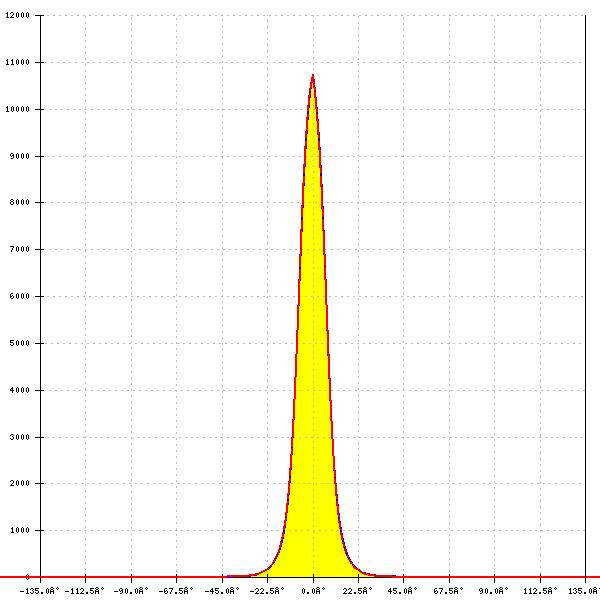

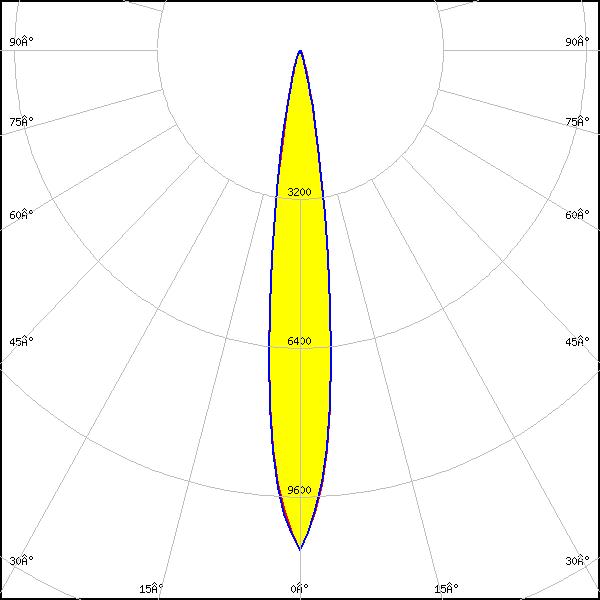

    LED: LUXEON MZ
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 10.748 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

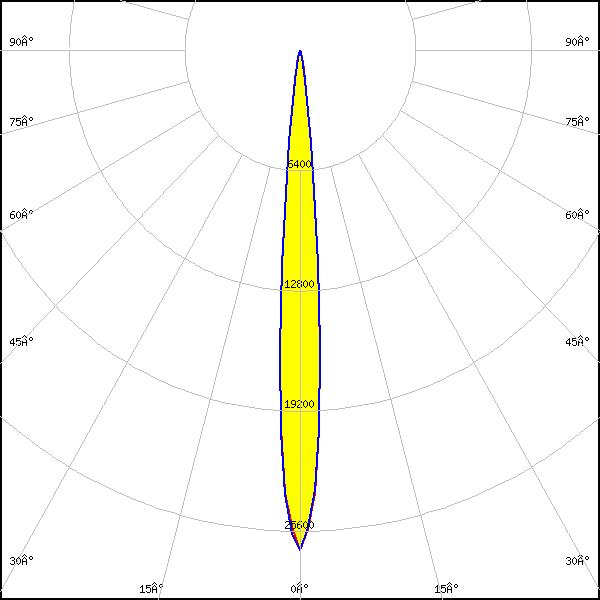

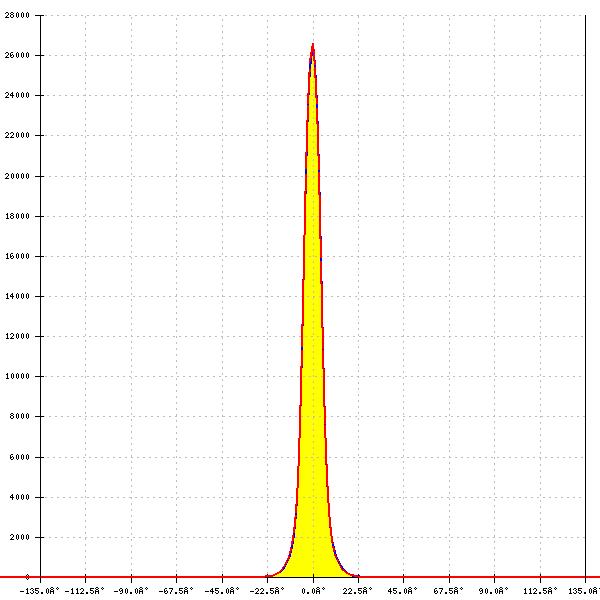

    LED: LUXEON Rebel ES
    FWHM: 10°
    FWTM: -
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

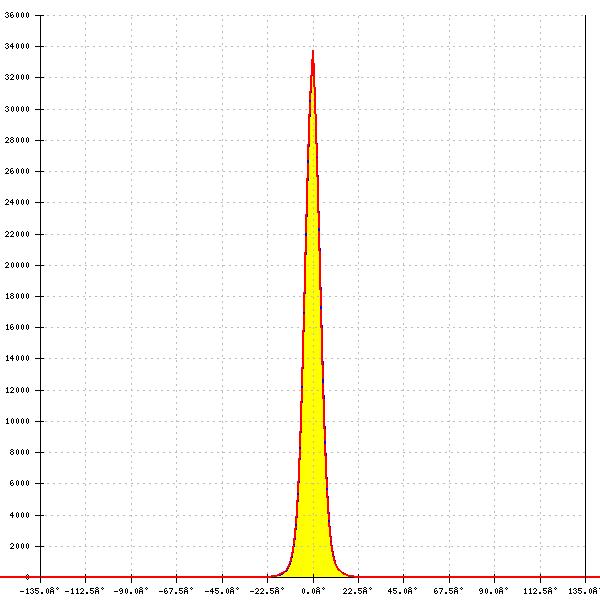

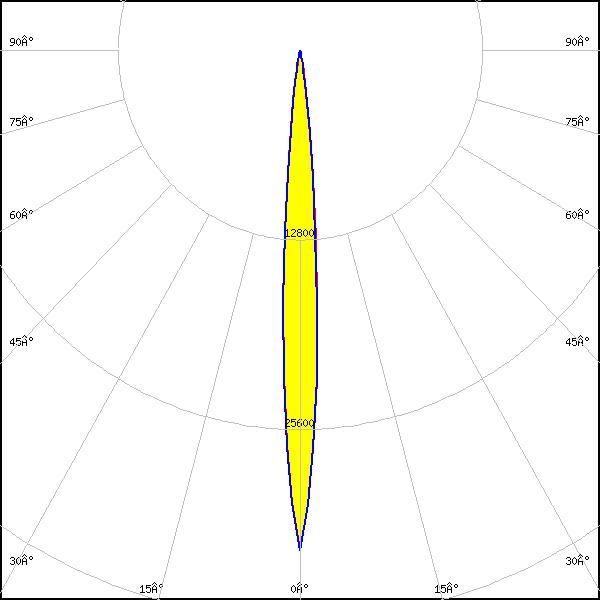

    LED: LUXEON SunPlus 20 Line (120 deg)
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 33.754 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

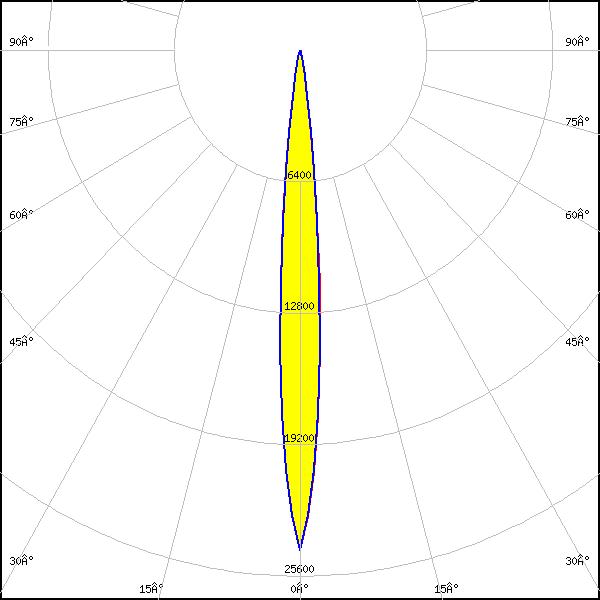

    LED: LUXEON TX
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 24.347 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

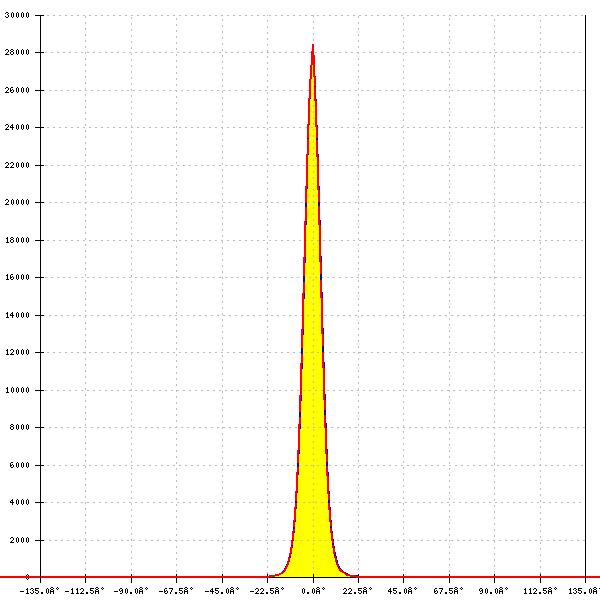

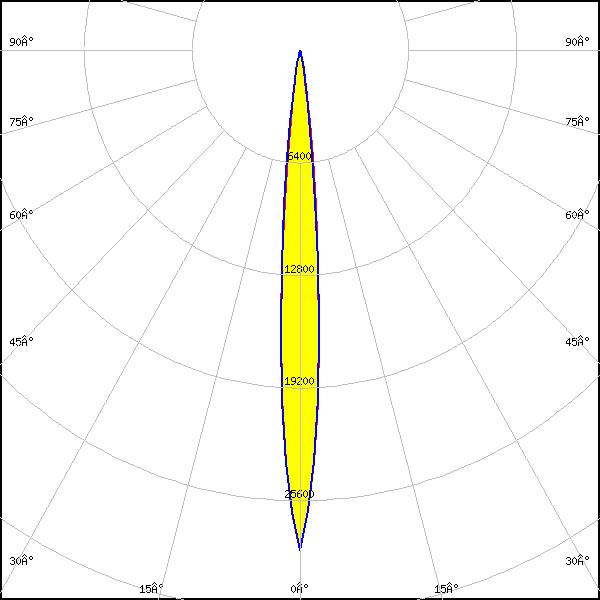

    LED: LUXEON Z ES
    FWHM: 9°
    FWTM: 18°
    Peak intensity: 28.435 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

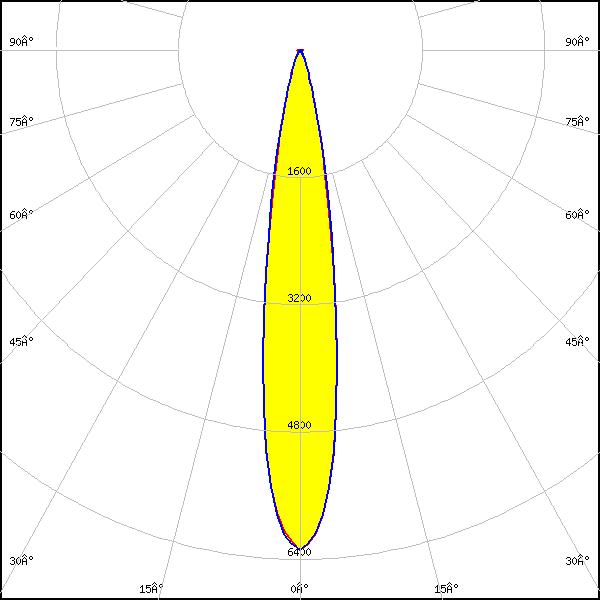

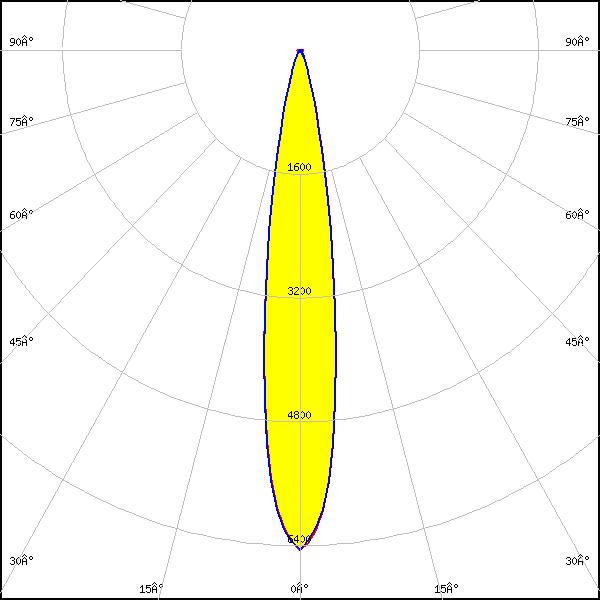

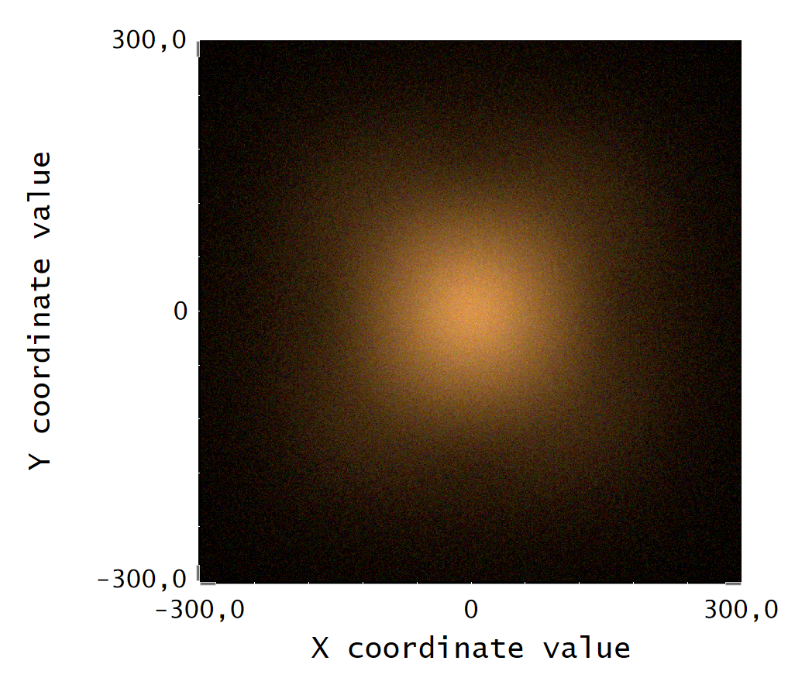

    LED: NCSxE17A
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 6.289 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: NCSxE17A
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 21.820 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NS9x383
    FWHM: 14°
    FWTM: 30°
    Peak intensity: 7.900 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

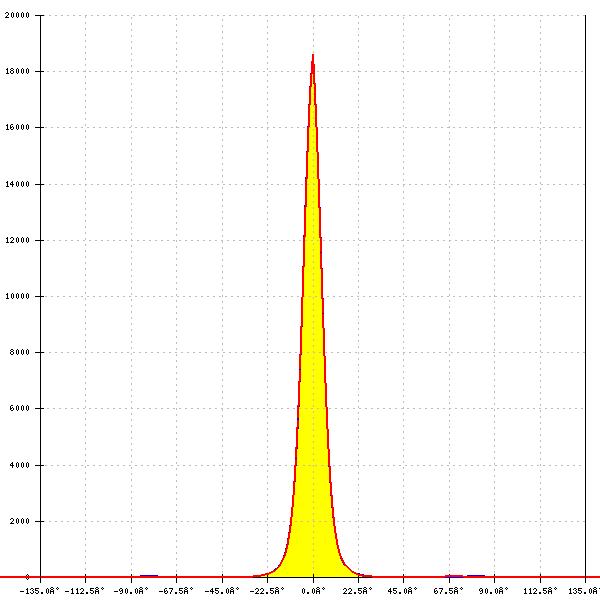

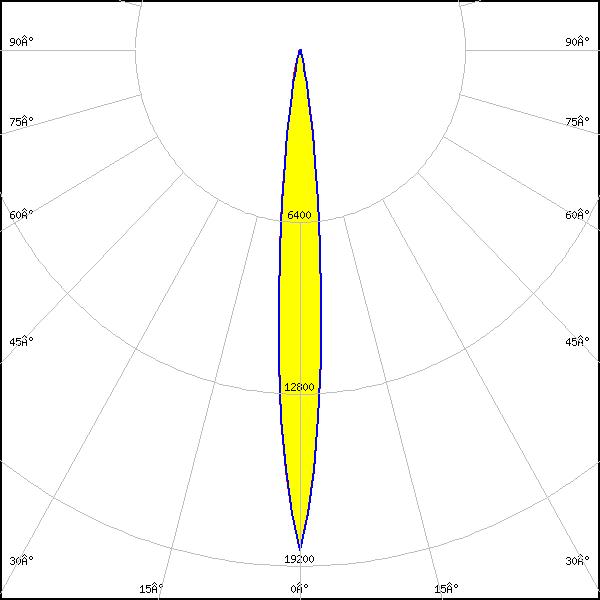

    LED: NVSxE21A
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 18.618 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

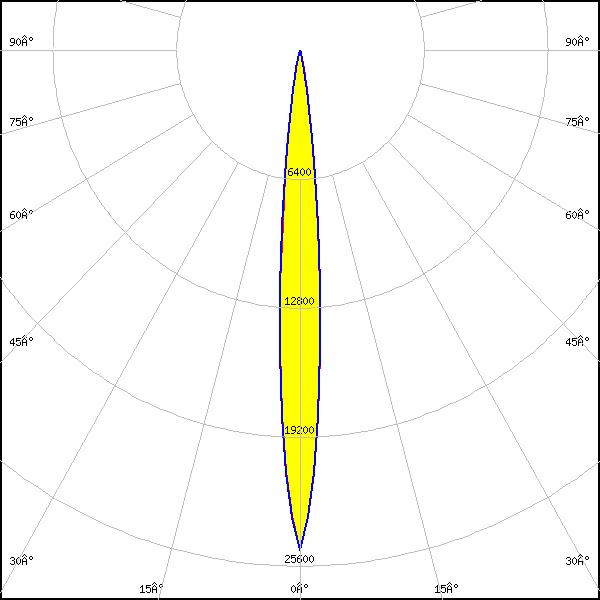

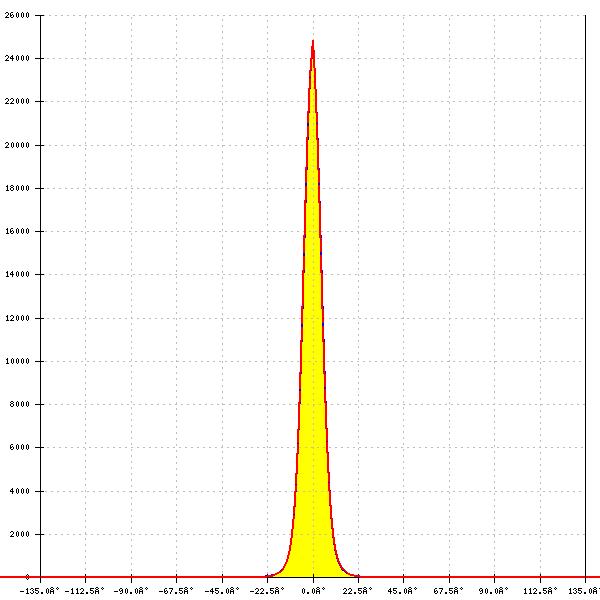

    LED: OSCONIQ C 2424
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 24.821 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

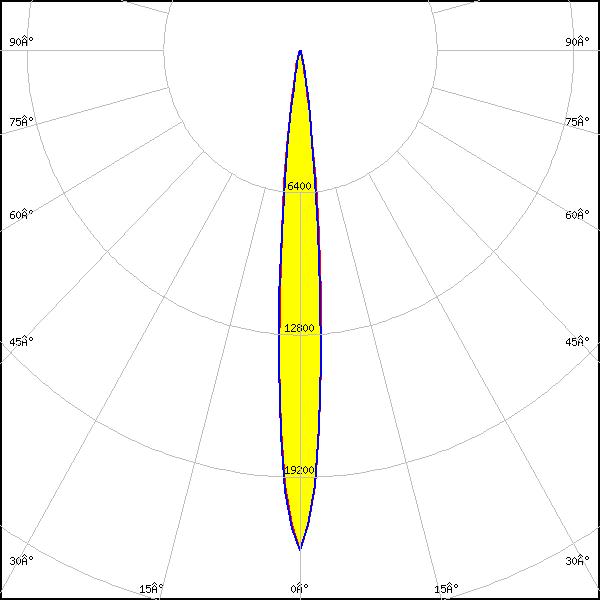

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 22.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square EC
    FWHM: 9°
    FWTM: 20°
    Peak intensity: 20.060 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

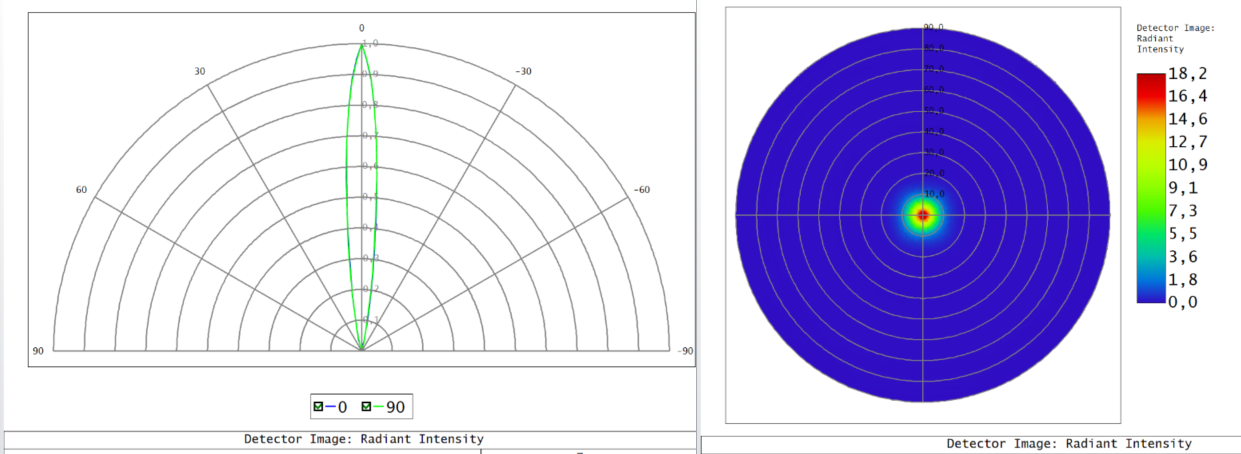

    LED: SFH 4725AS
    FWHM: 11°
    FWTM: 22°
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: IR

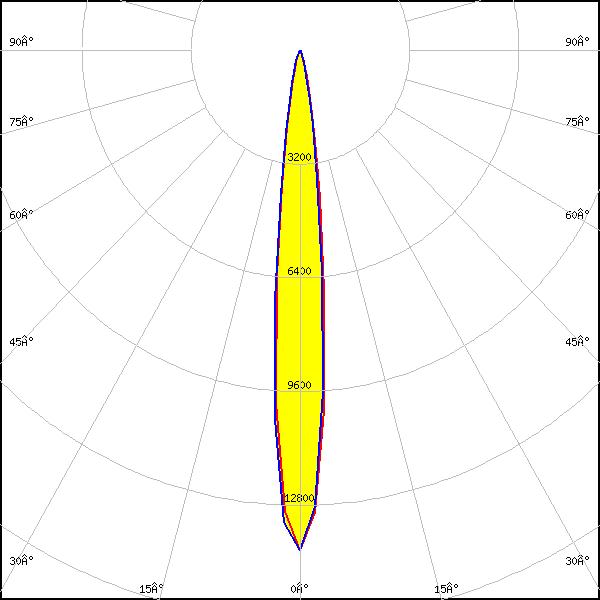

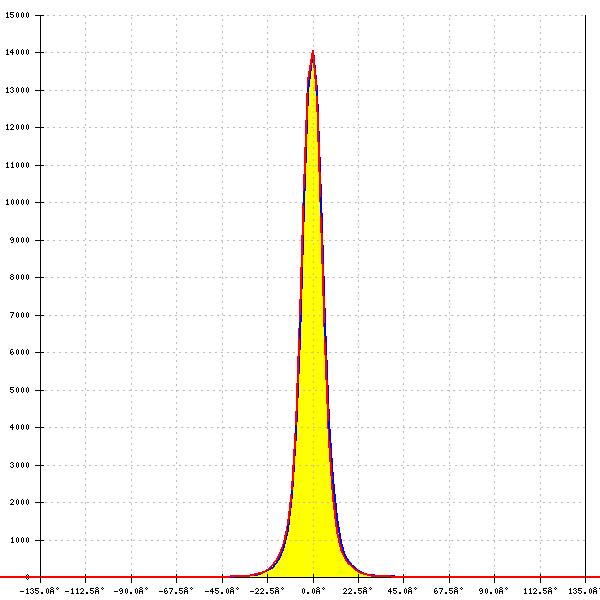

    LED: LH351B
    FWHM: 12°
    FWTM: 25°
    Peak intensity: 14.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

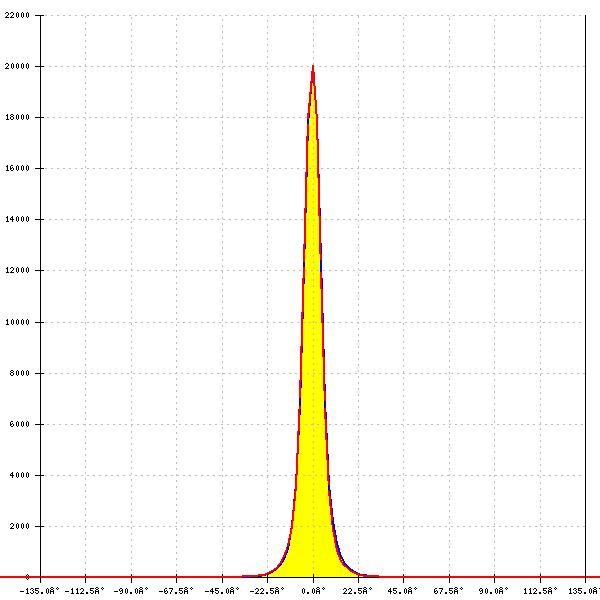

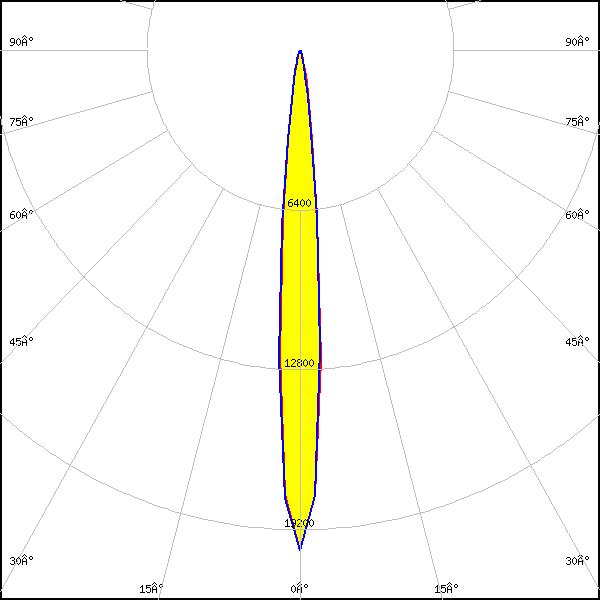

    LED: LH351Z
    FWHM: 10°
    FWTM: 21°
    Peak intensity: 20.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

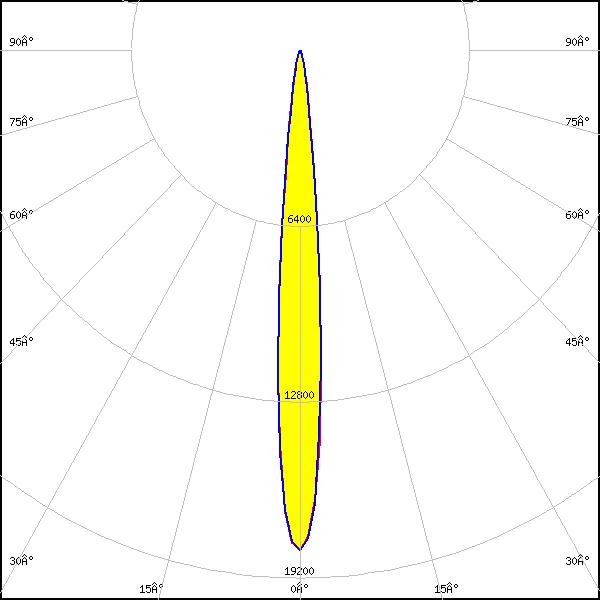

    LED: Z5M1/Z5M2
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 18.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

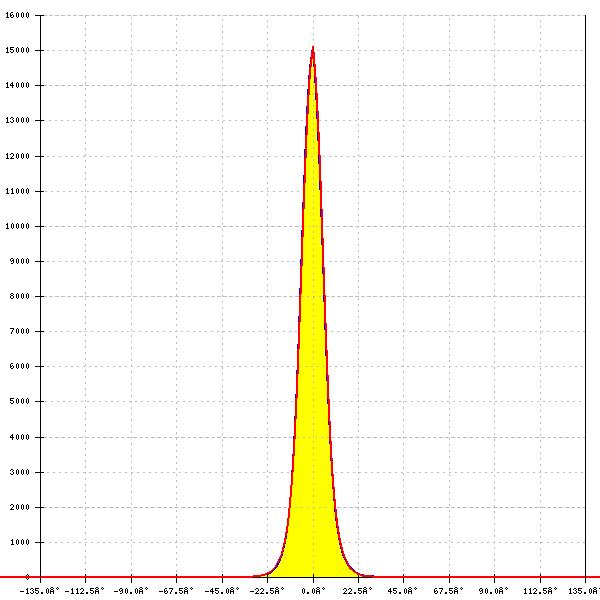

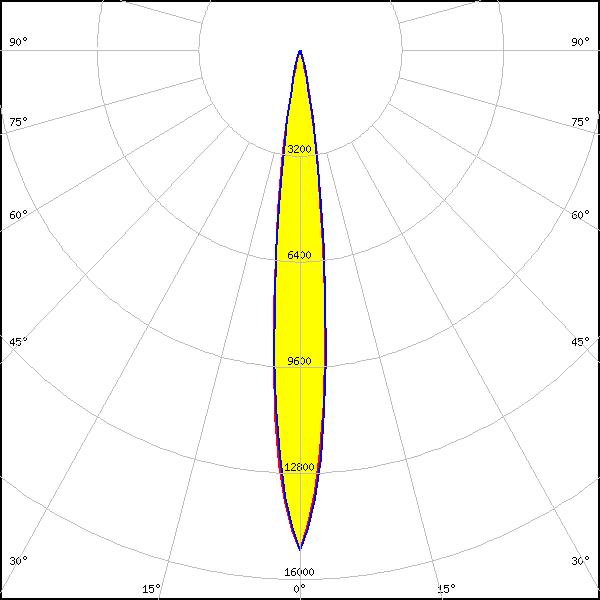

    LED: Z5M4
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.127 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

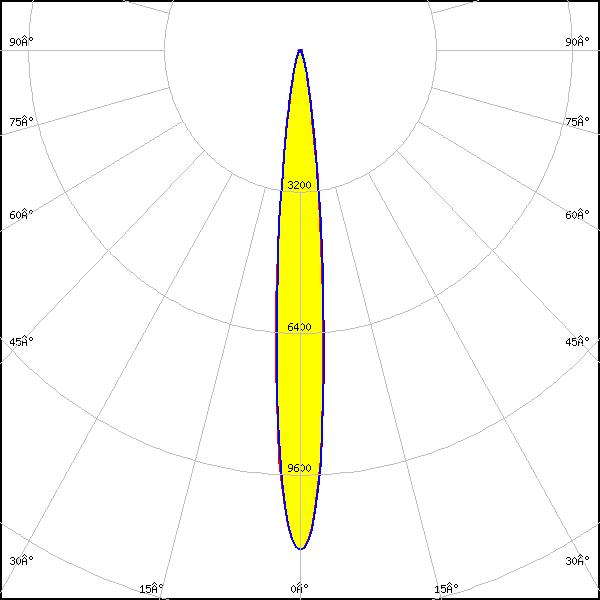

    LED: Z8Y22P
    FWHM: 11°
    FWTM: 24°
    Peak intensity: 11.300 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
