    CA12070_EMILY-M2

    Print

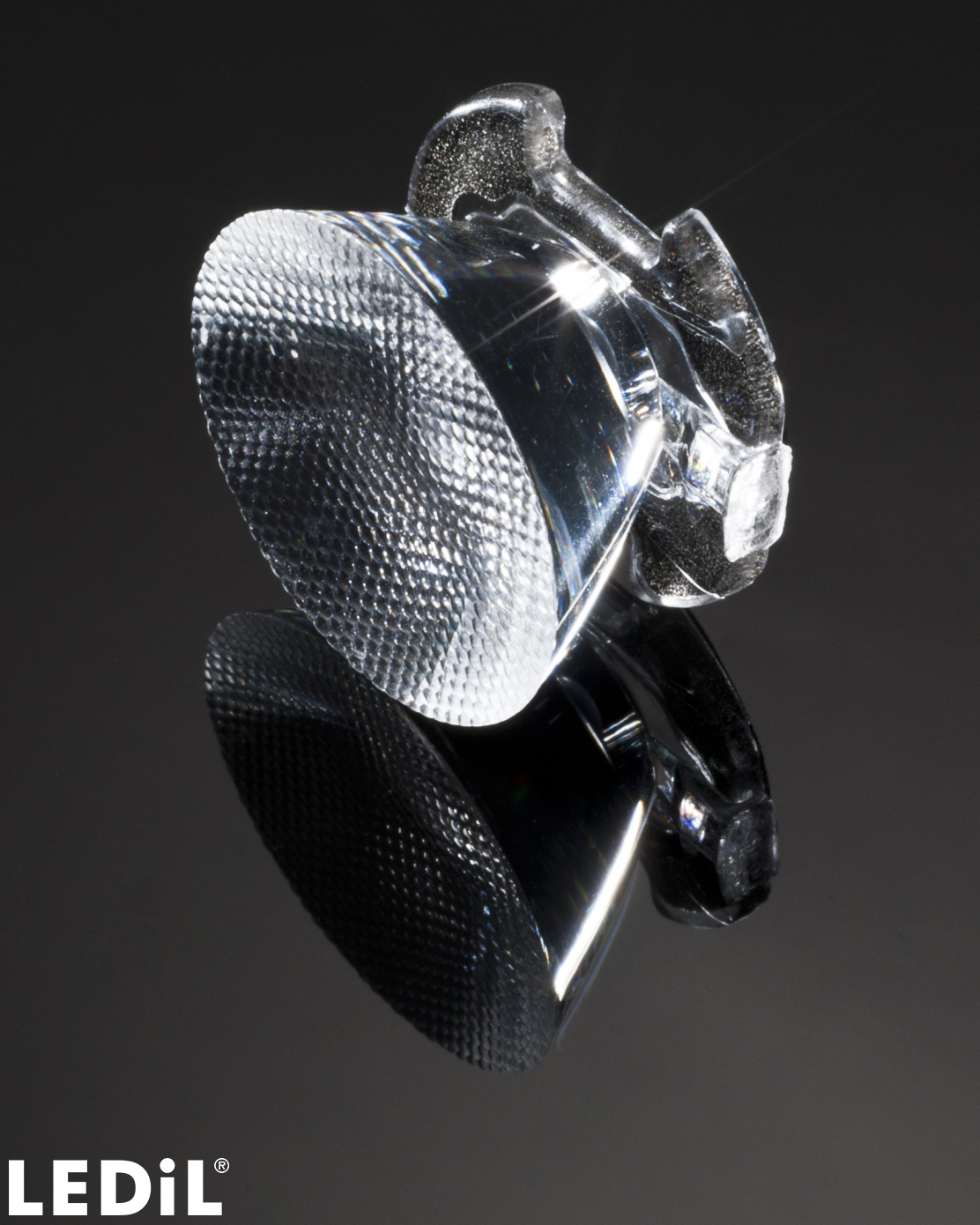

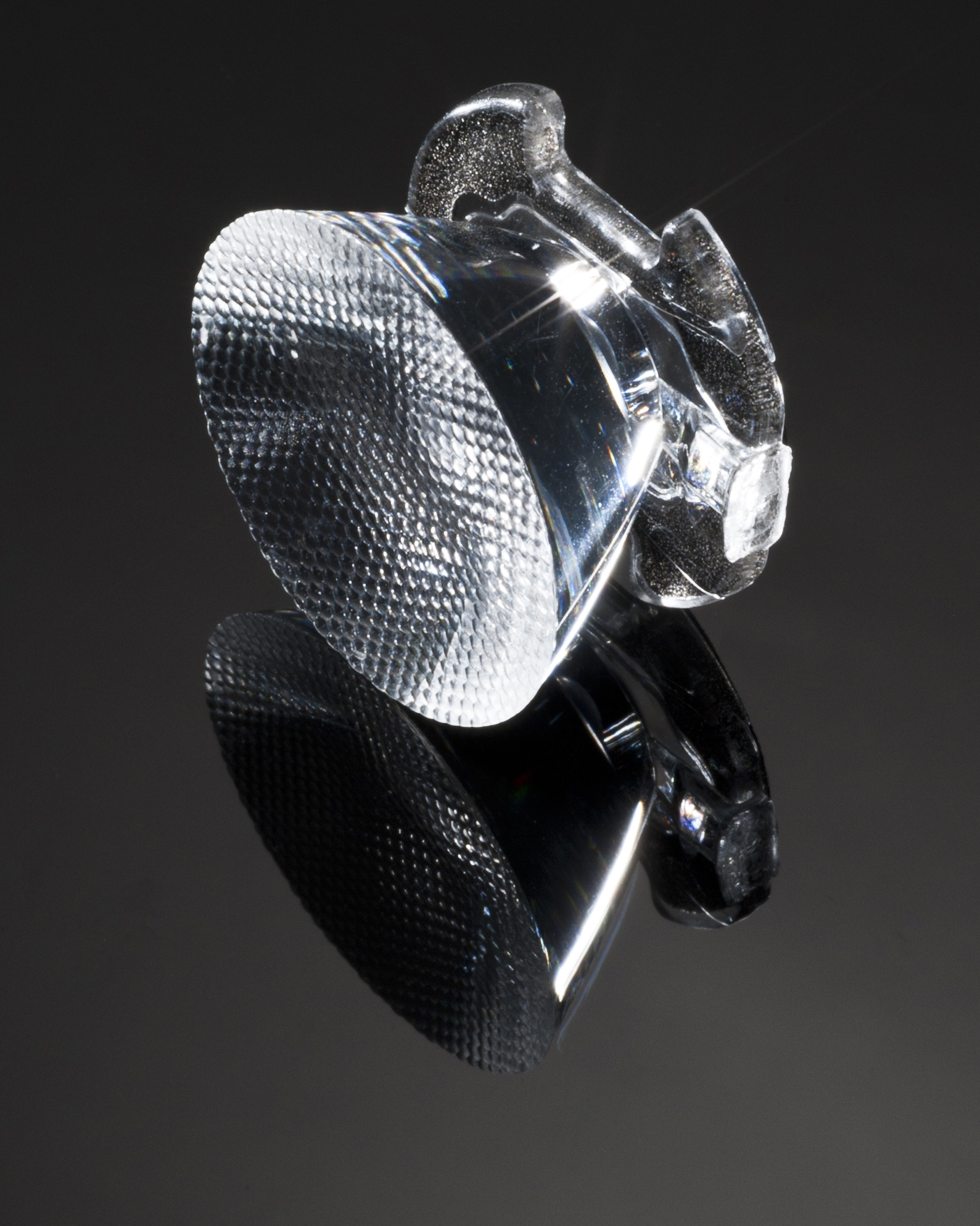

    ~30° medium beam. 14.88 mm high lens.

    Specification
    • Dimensions:
      26 mm
    • Height:
      14.88 mm
    • Fastening:
      tape, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      1690 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.5 kg
    • MPQ:
      130 pcs
    • MOQ:
      260 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA12070_EMILY-M2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR121.b - Packing method and quantity changes 070616

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    World's brightest LED luminaire

    Case story

    Machang bridge

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

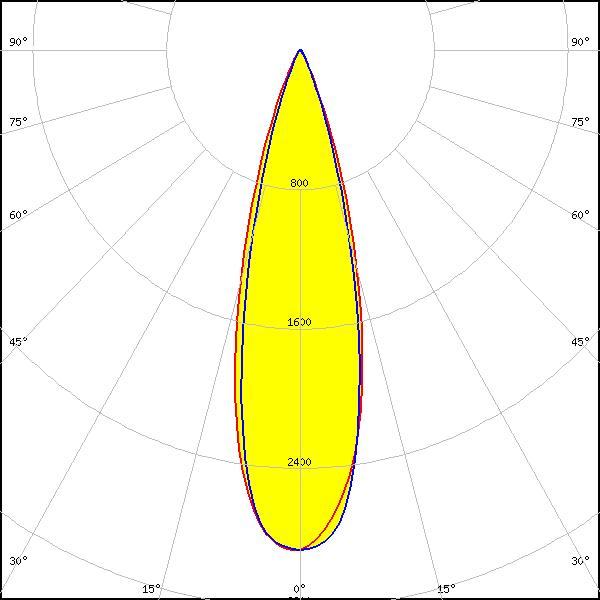

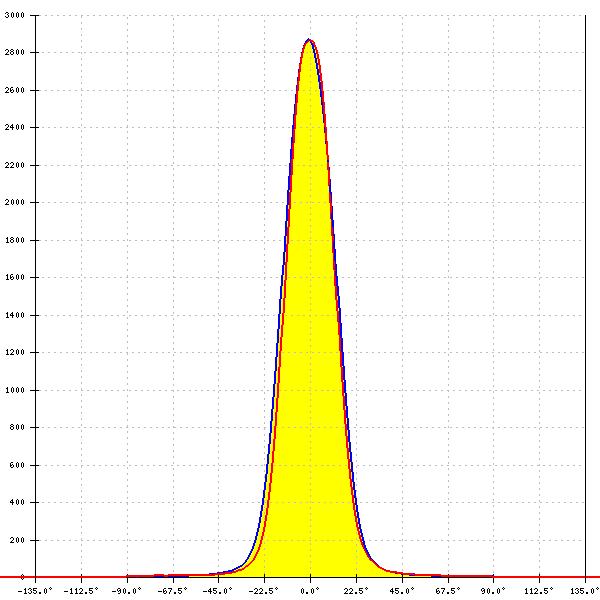

    LED: XM-L
    FWHM: 28°
    FWTM: -
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L HVW
    FWHM: 30°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White

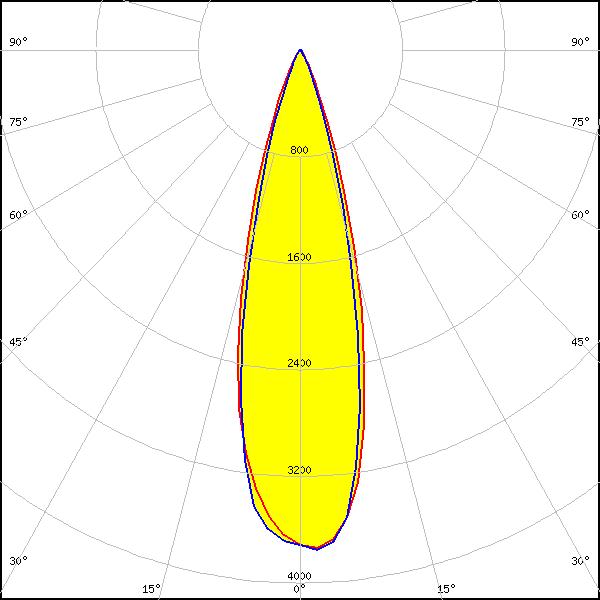

    LED: XM-L2
    FWHM: 29°
    FWTM: 48°
    Peak intensity: 3.800 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

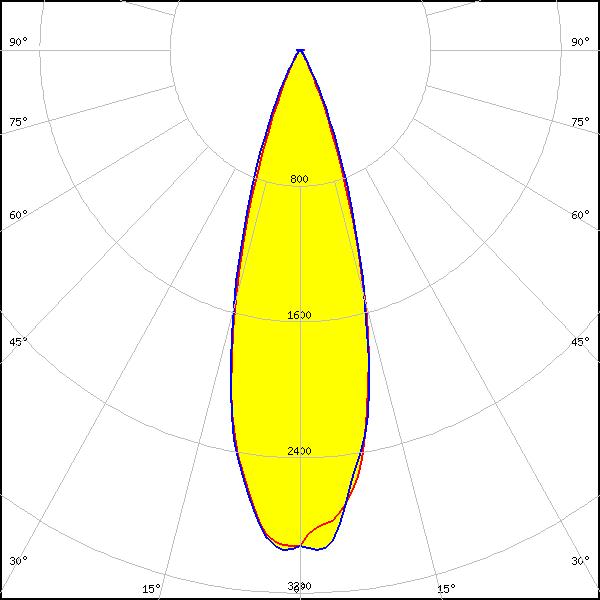

    LED: XP-G2 HE
    FWHM: 32°
    FWTM: 52°
    Peak intensity: 3.066 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

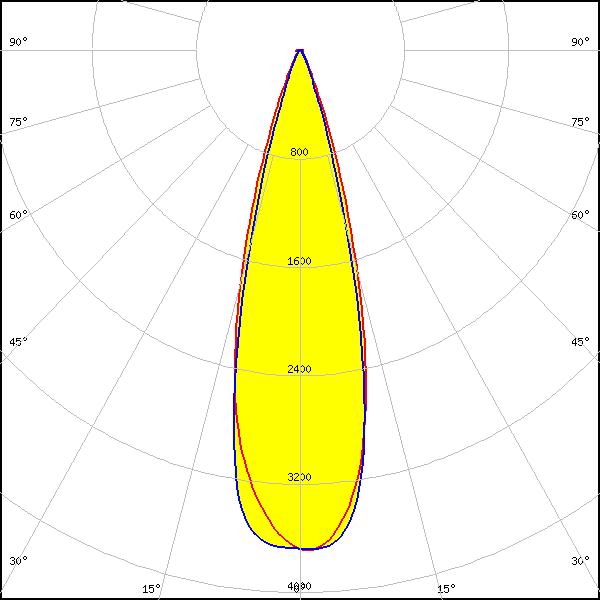

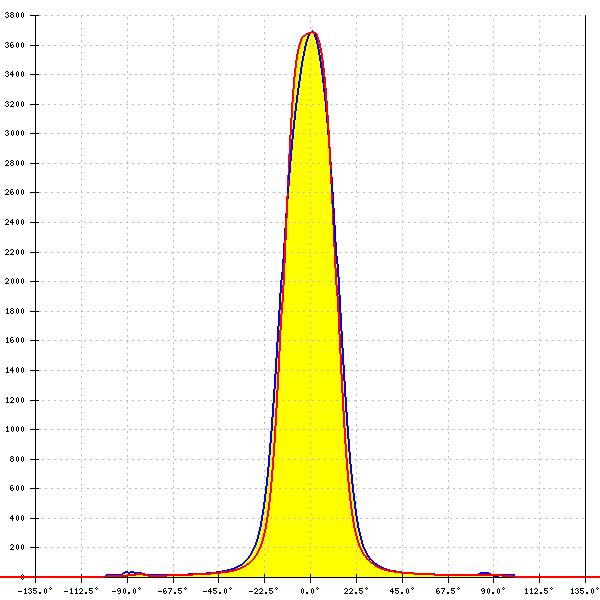

    LED: XP-G3
    FWHM: 27°
    FWTM: 44°
    Peak intensity: 3.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

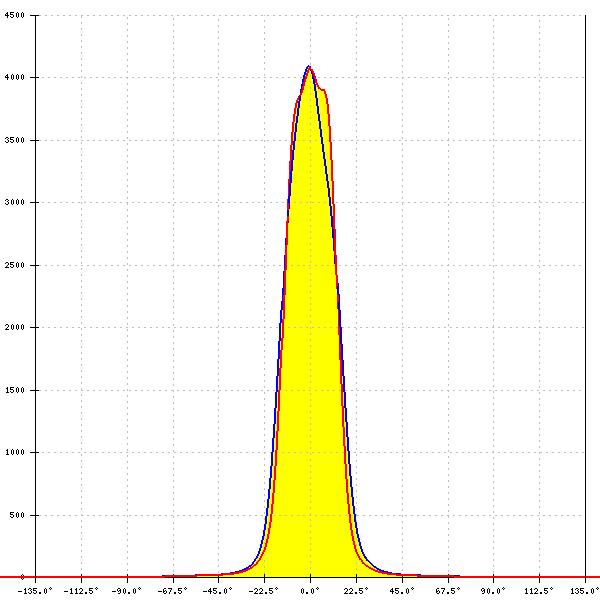

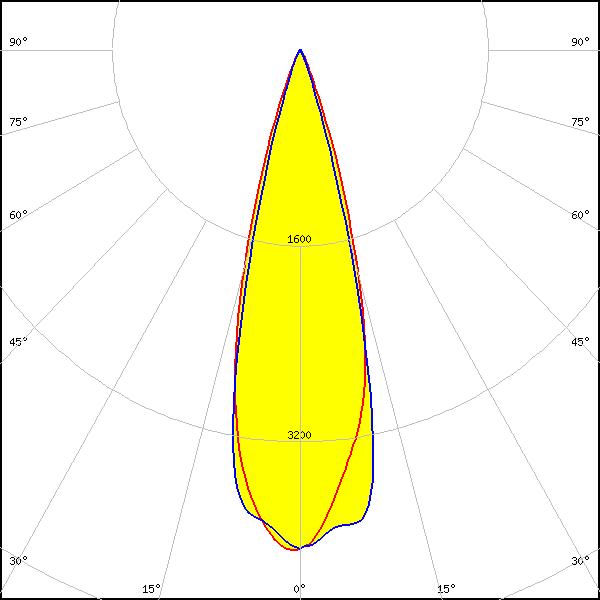

    LED: XP-L HI
    FWHM: 27°
    FWTM: 40°
    Peak intensity: 4.100 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

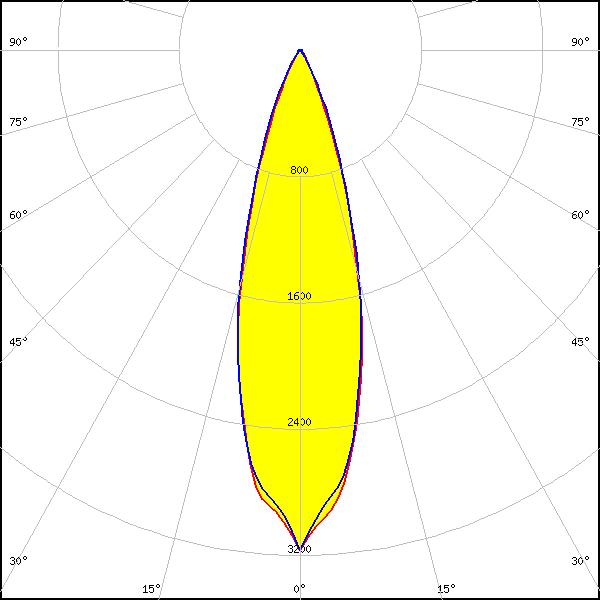

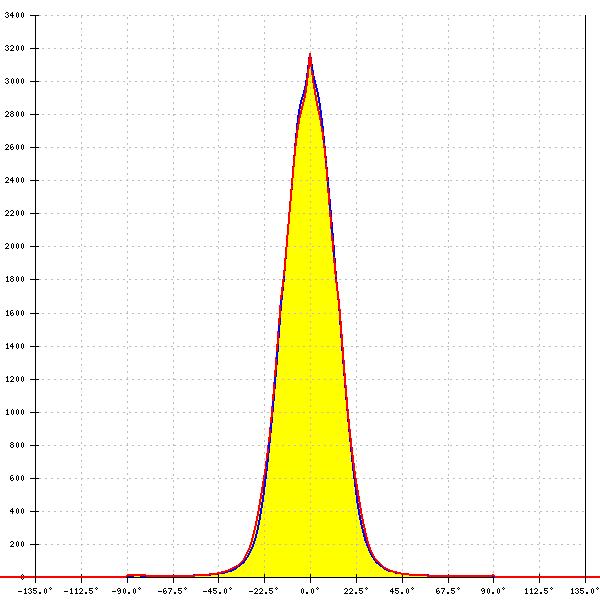

    LED: LUXEON MZ
    FWHM: 29°
    FWTM: 52°
    Peak intensity: 3.167 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

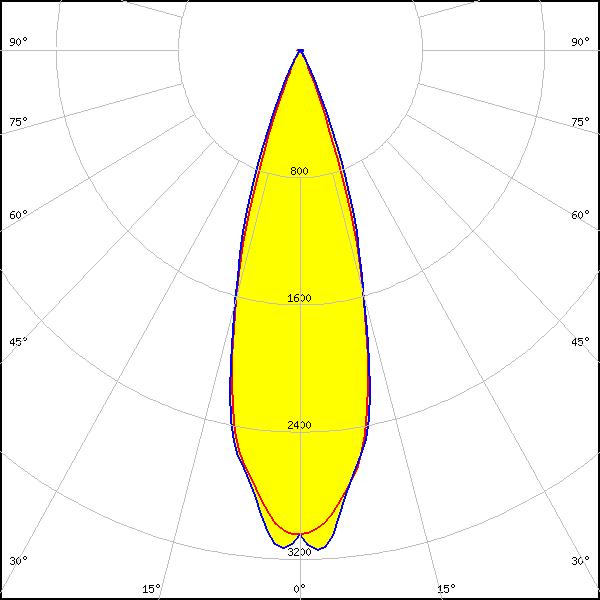

    LED: NCSxE17A
    FWHM: 31°
    FWTM: 48°
    Peak intensity: 3.196 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

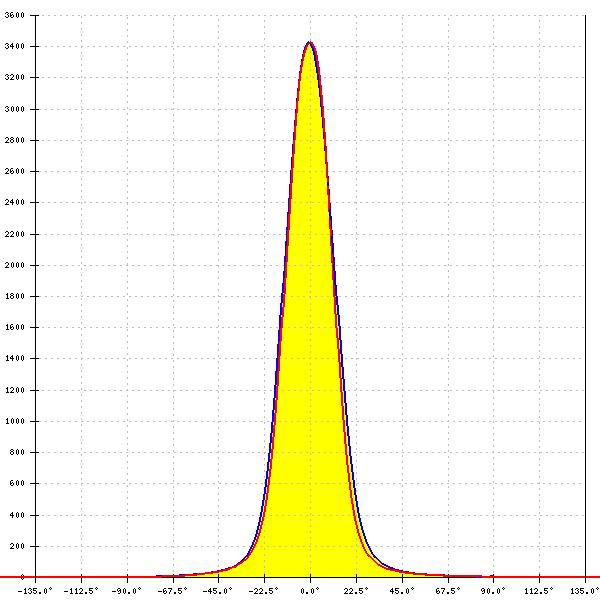

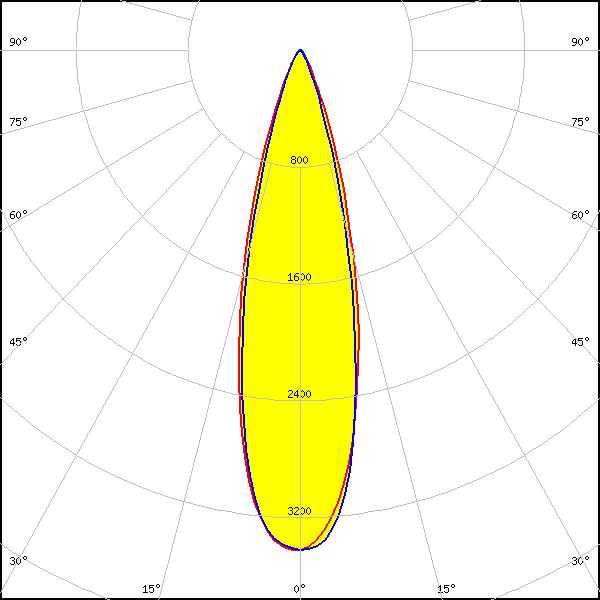

    LED: NS9x383
    FWHM: 26°
    FWTM: 47°
    Peak intensity: 3.400 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

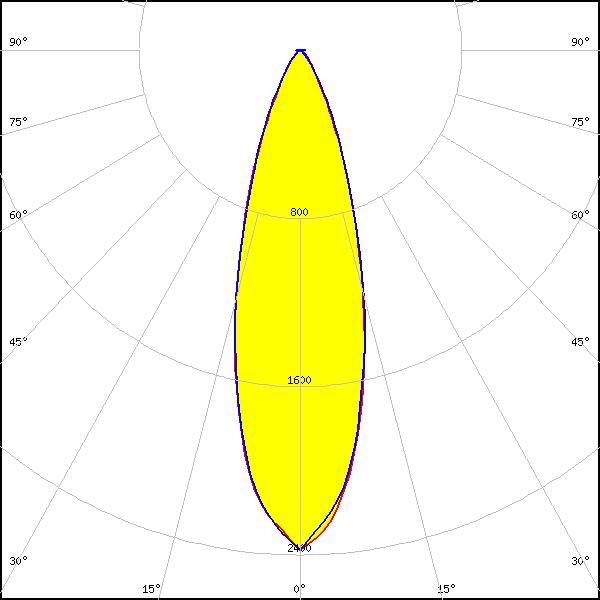

    LED: NVSxE21A
    FWHM: 30°
    FWTM: 59°
    Peak intensity: 2.379 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White

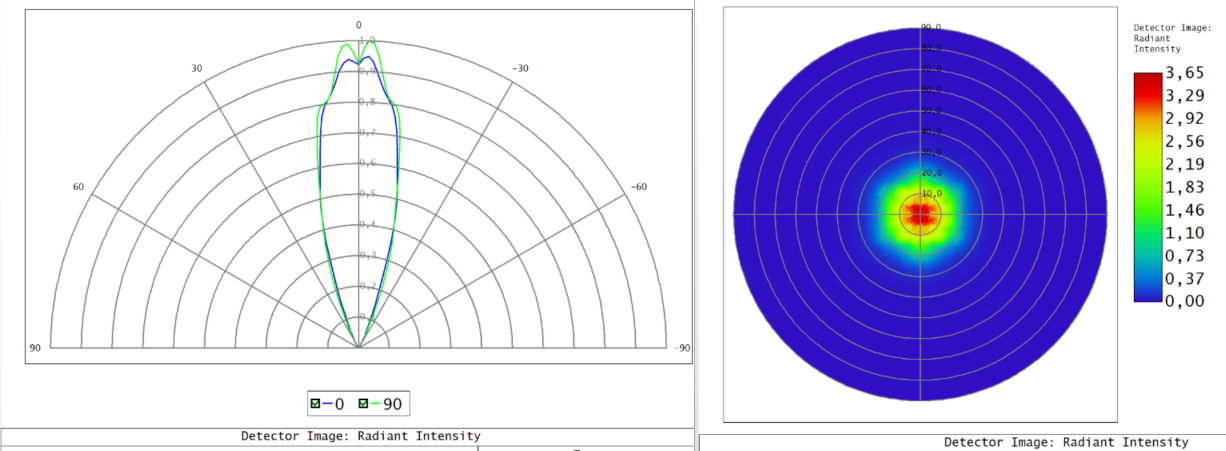

    LED: SFH 4725AS
    FWHM: 30°
    FWTM: 50°
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: IR

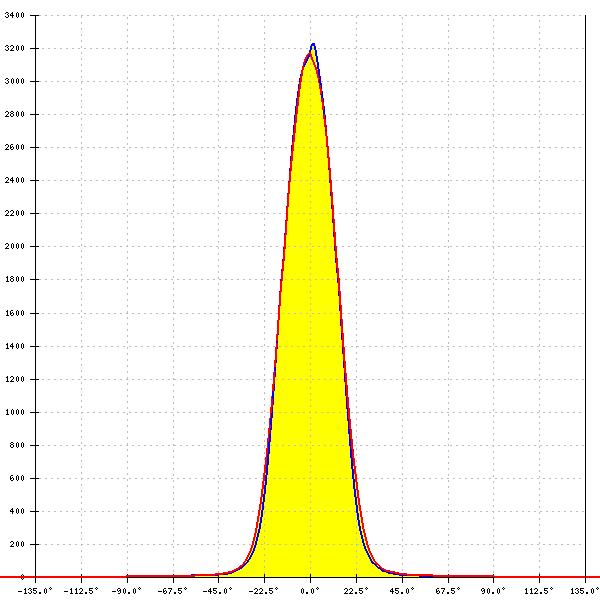

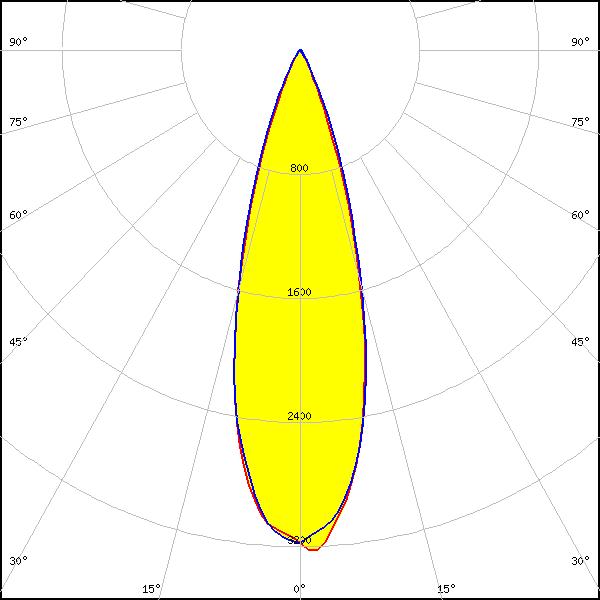

    LED: Z5M4
    FWHM: 30°
    FWTM: 50°
    Peak intensity: 3.235 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
