CA12589_EMILY-WWW
Print
~60° wide beam. 13.43 mm high lens.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

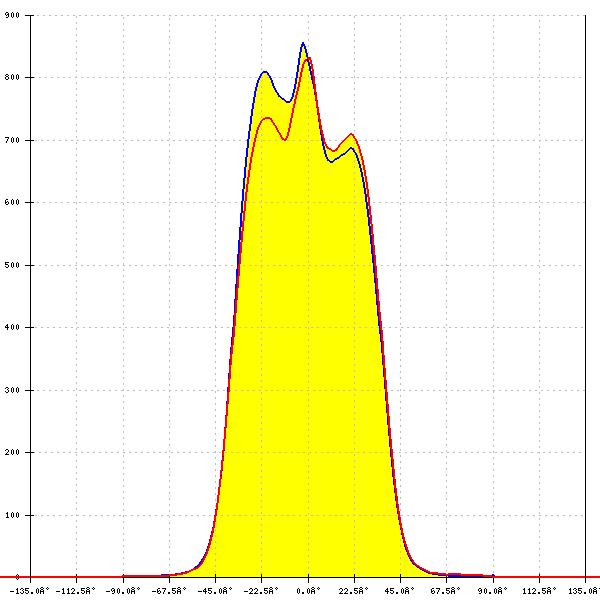

Optical results

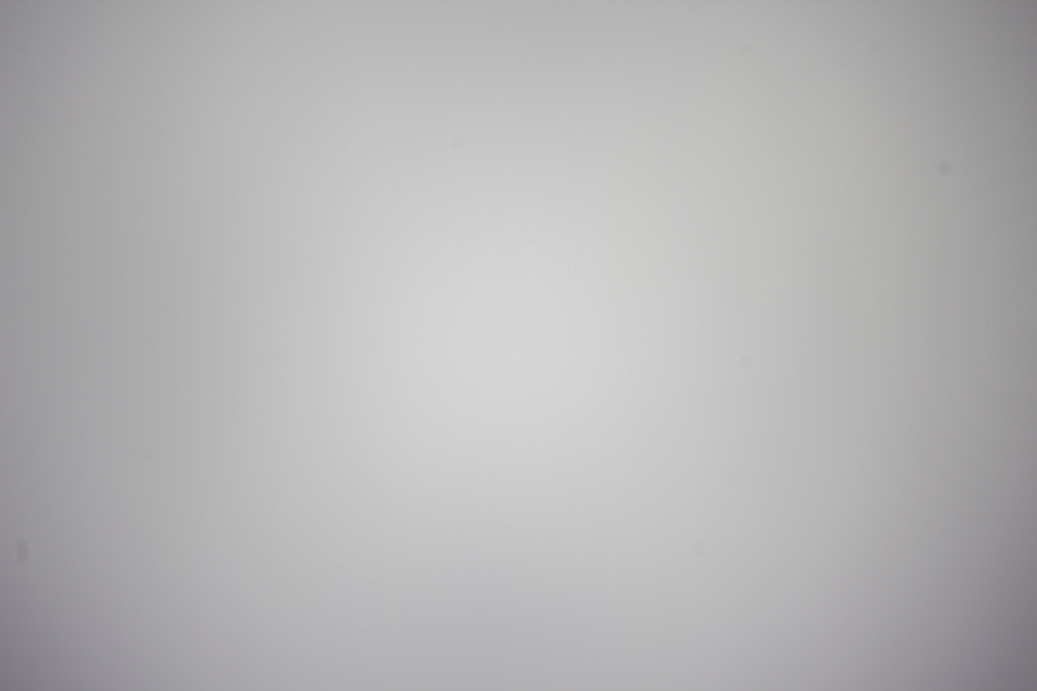

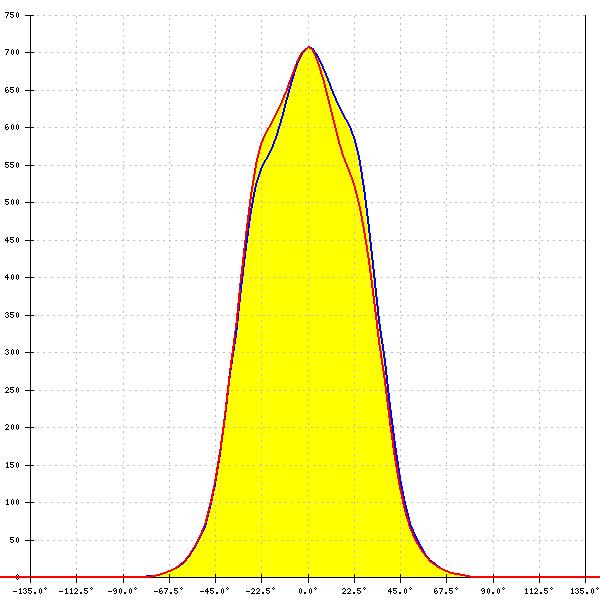

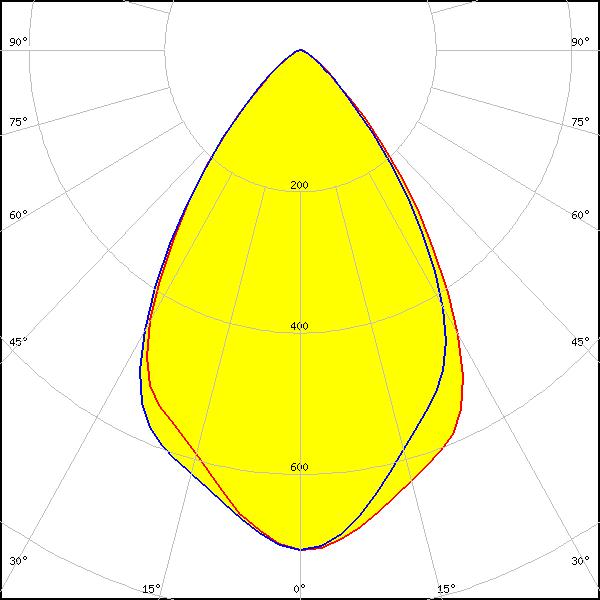

LED:
XHP35 HD
FWHM:
70°
FWTM:
101°
Peak intensity:
0.710 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

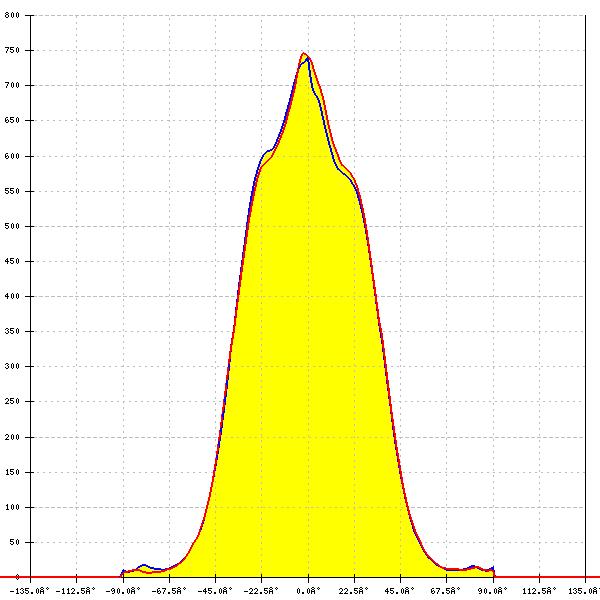

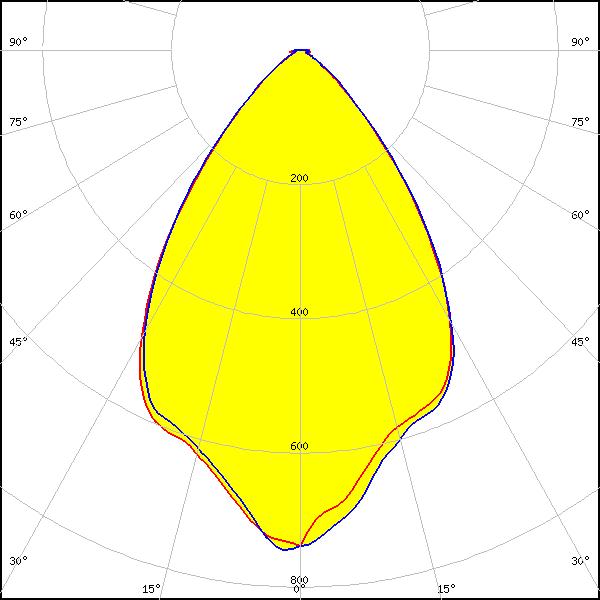

LED:
XHP35.2 HD
FWHM:
70°
FWTM:
104°
Peak intensity:
0.746 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

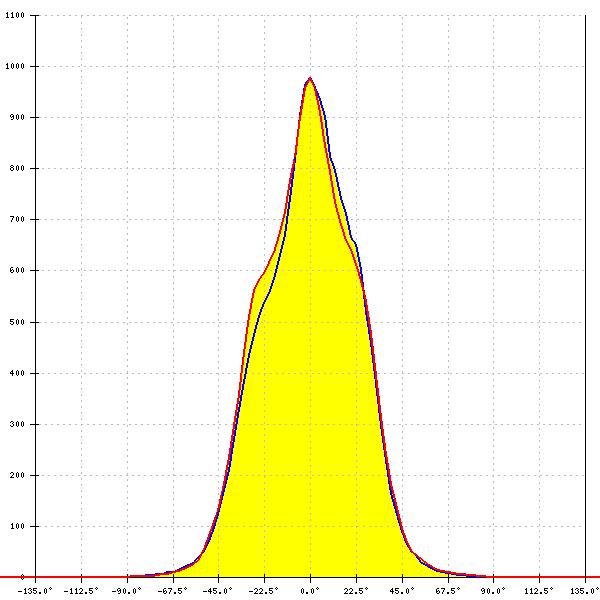

LED:

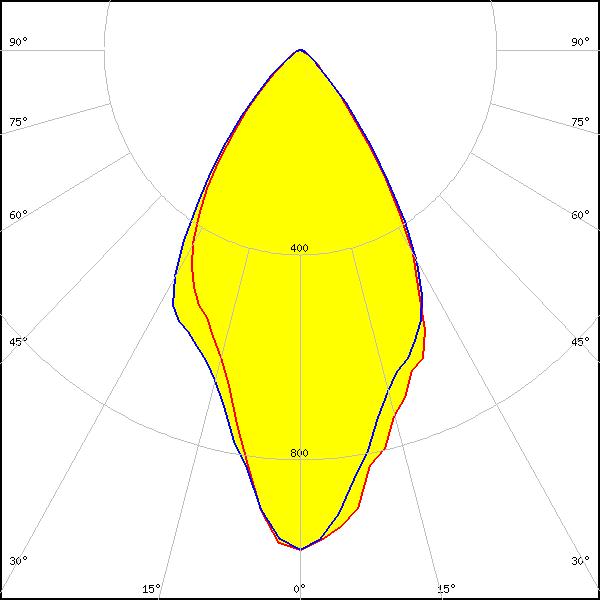

XP-E
FWHM:
58°
FWTM:
89°
Peak intensity:
1.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

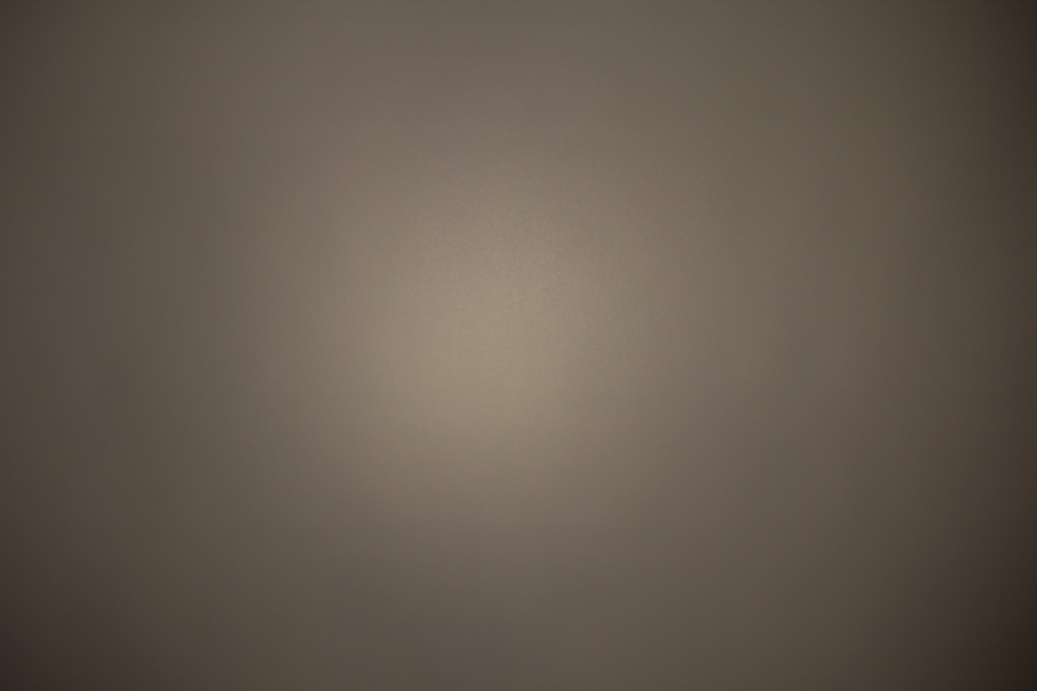

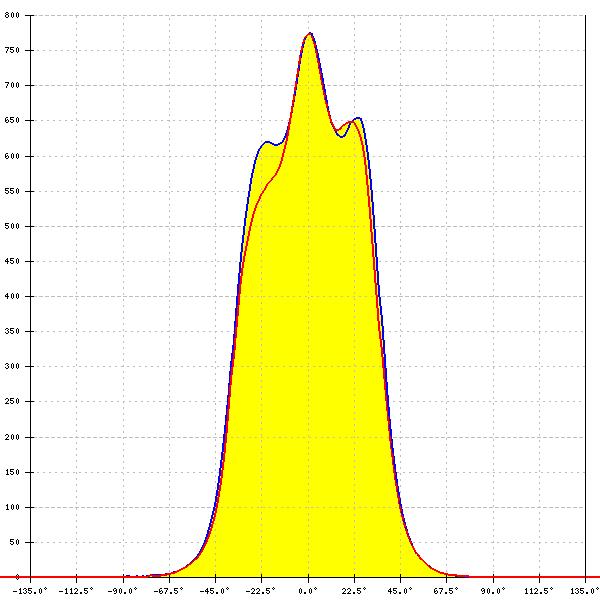

LED:

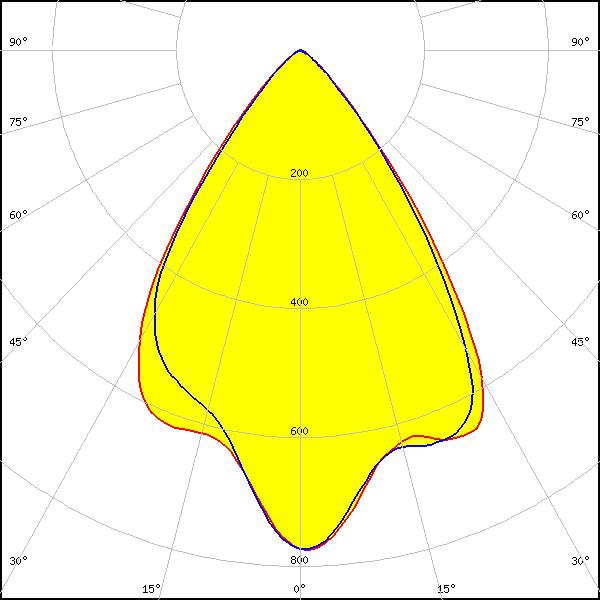

XP-E2
FWHM:
69°
FWTM:
94°
Peak intensity:
0.770 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

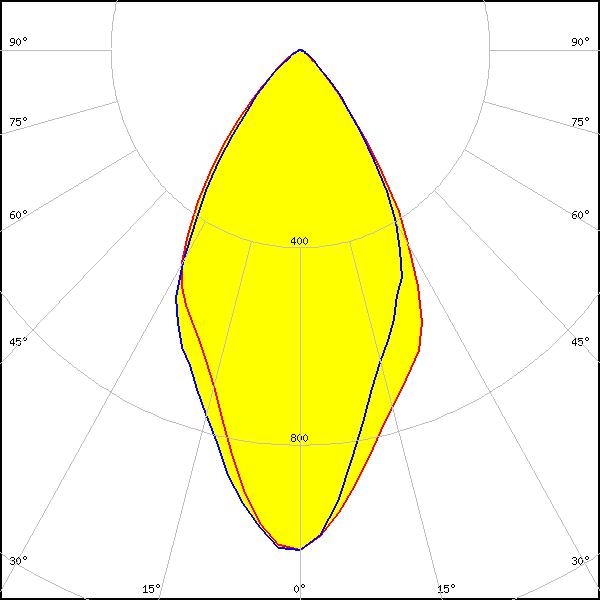

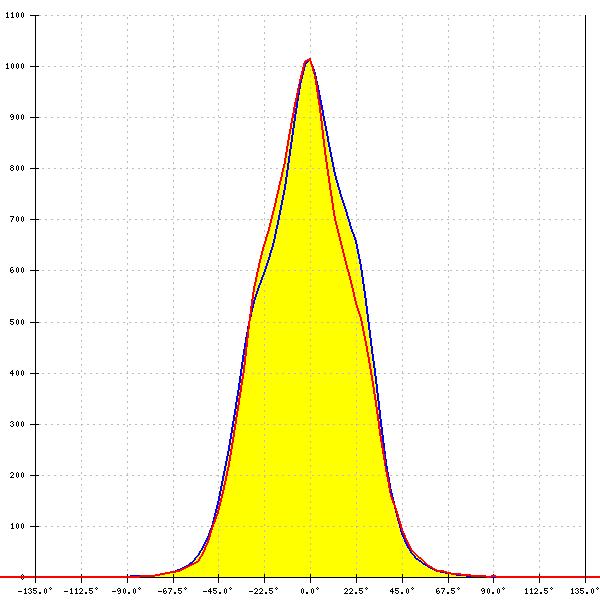

LED:
XP-G
FWHM:
57°
FWTM:
88°
Peak intensity:
1.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

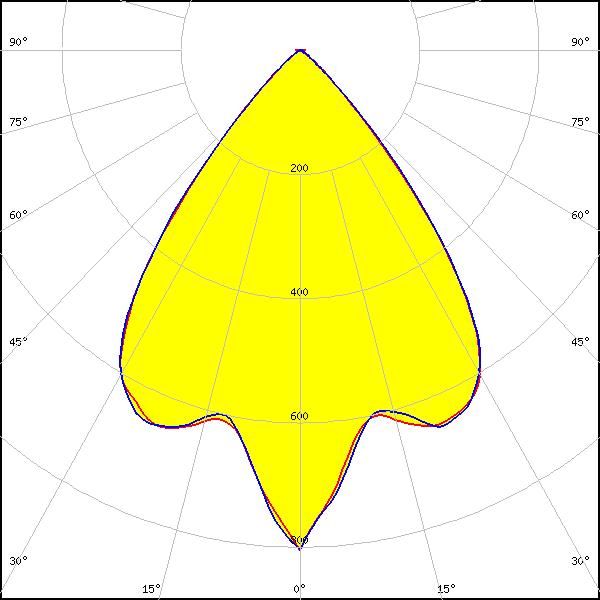

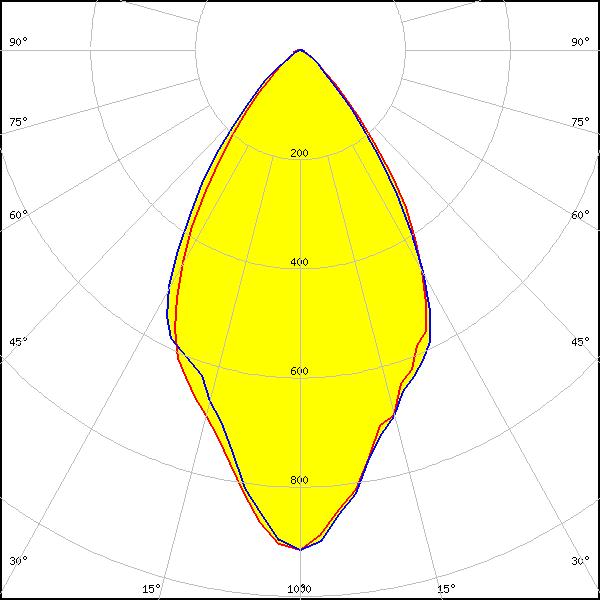

LED:
XP-G2
FWHM:
74°
FWTM:
94°
Peak intensity:
0.806 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
61°
FWTM:
95°
Peak intensity:
0.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

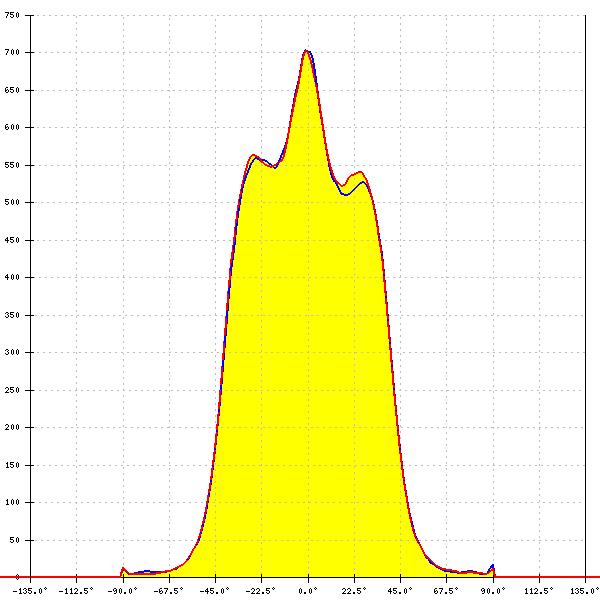

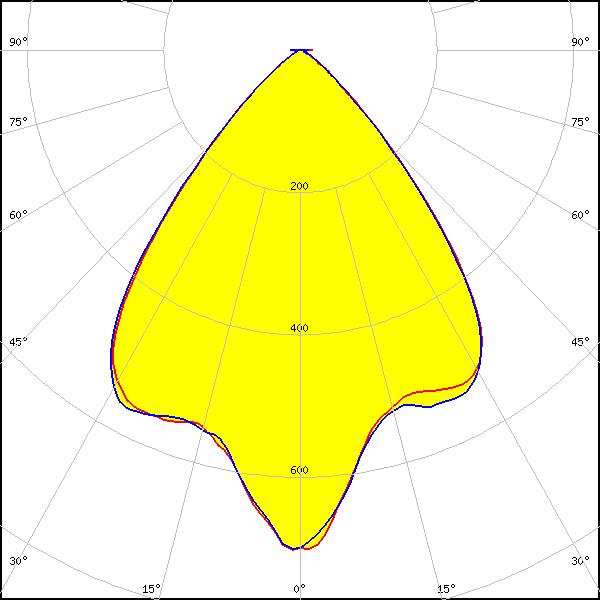

LED:
XP-G2 HE
FWHM:
78°
FWTM:
102°
Peak intensity:
0.707 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM:
63°
FWTM:
96°
Peak intensity:
0.830 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

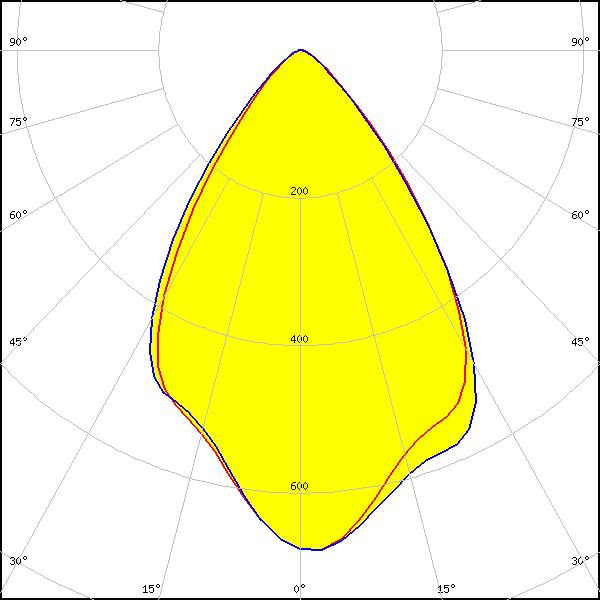

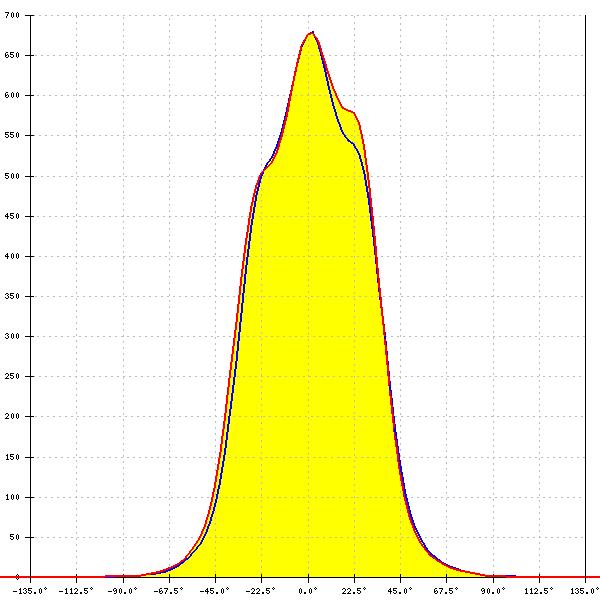

LED:
XP-L HD
FWHM:
69°
FWTM:
100°
Peak intensity:
0.680 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

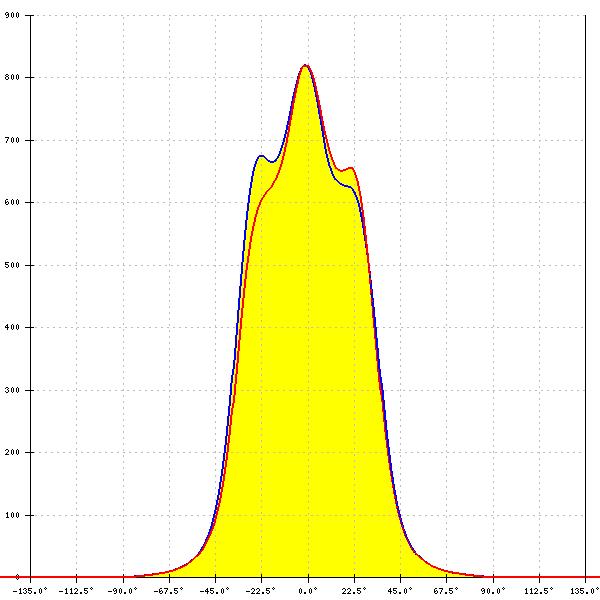

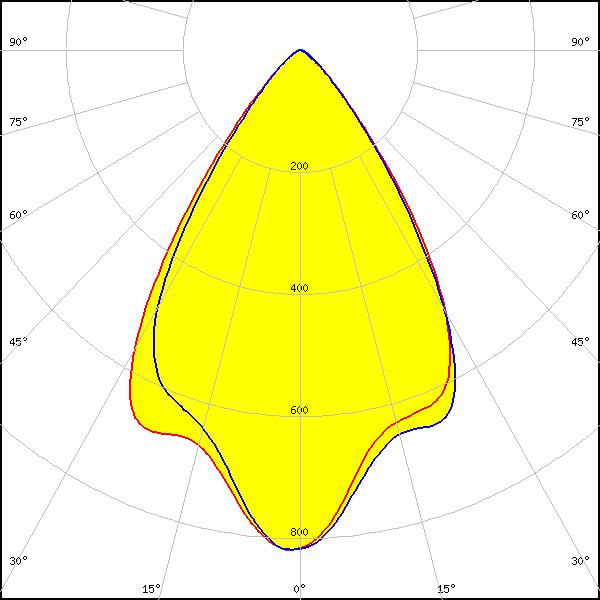

LED:

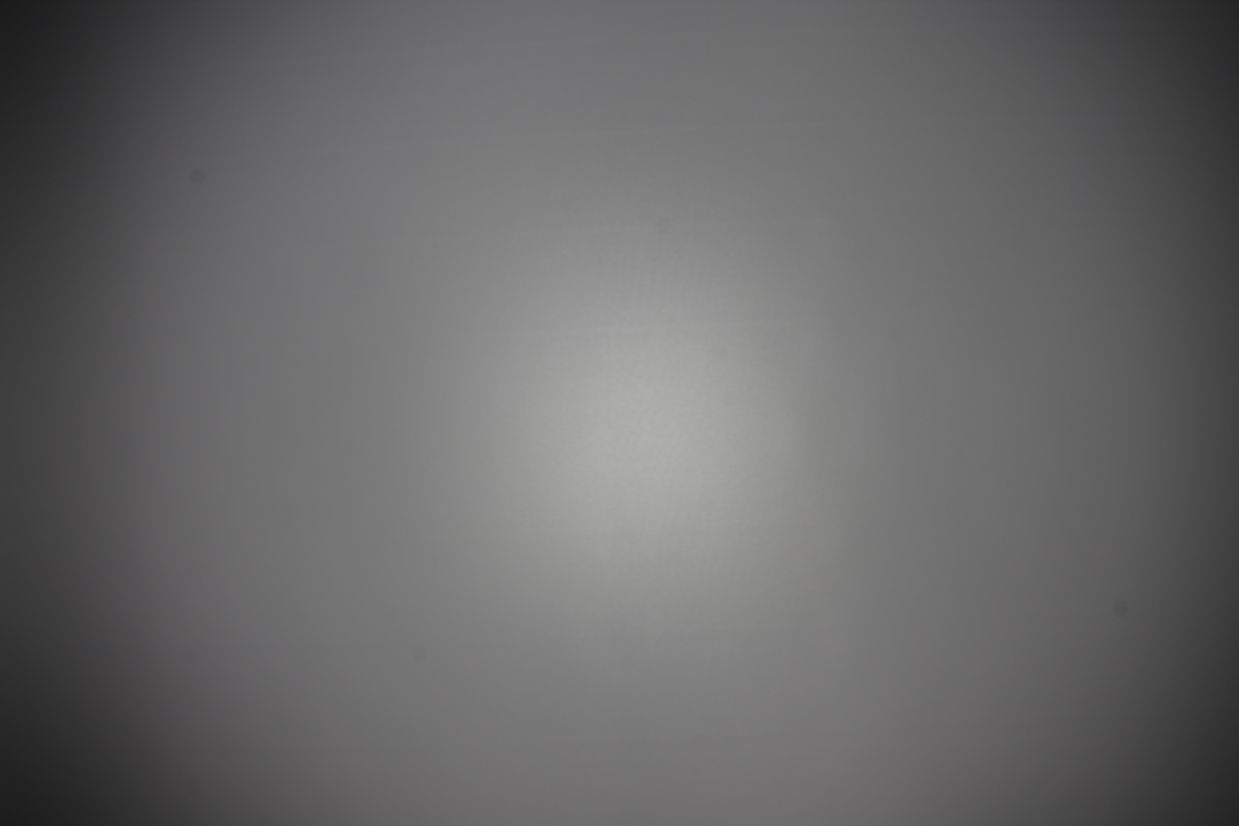

XP-L HI
FWHM:
66°
FWTM:
93°
Peak intensity:
0.820 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

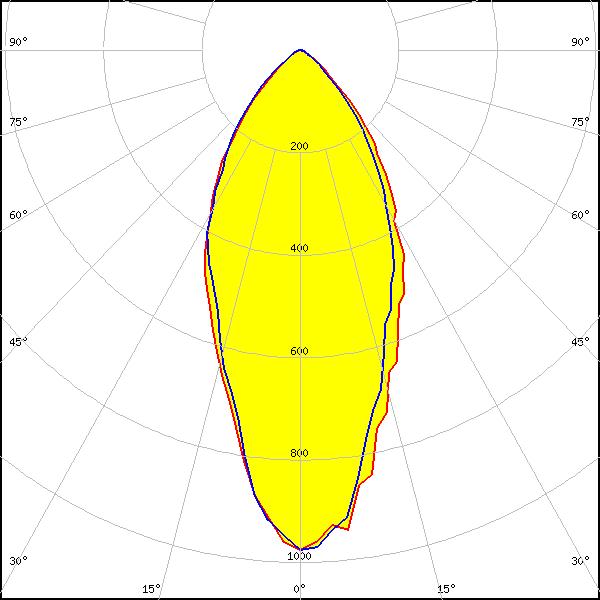

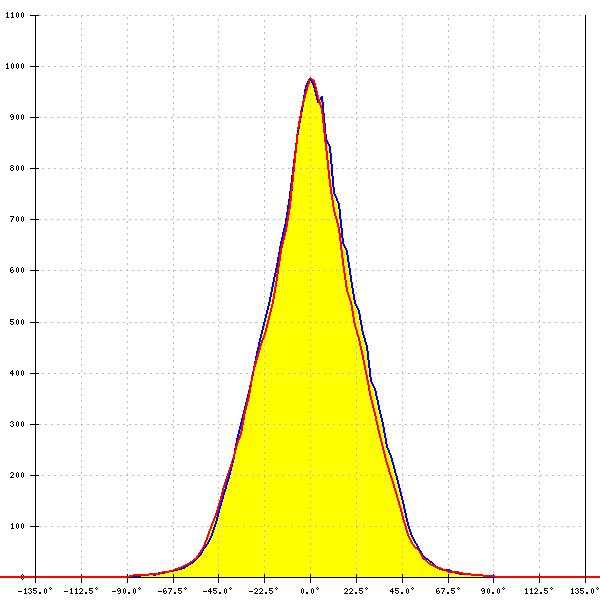

LED:
LUXEON A
FWHM:
57°
FWTM:
92°
Peak intensity:
0.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

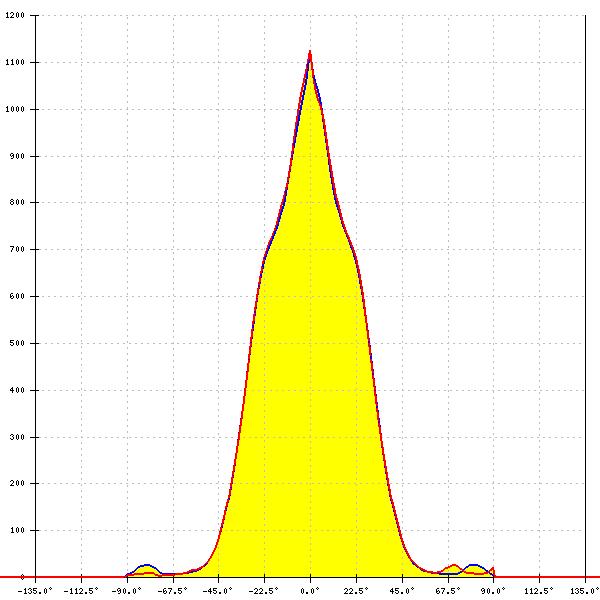

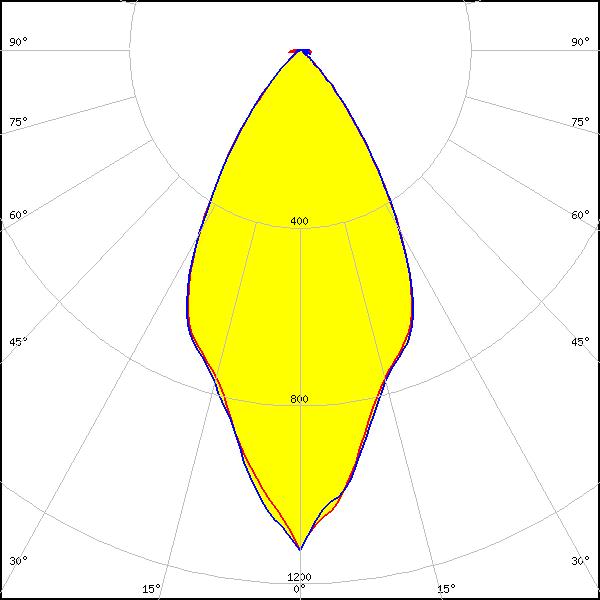

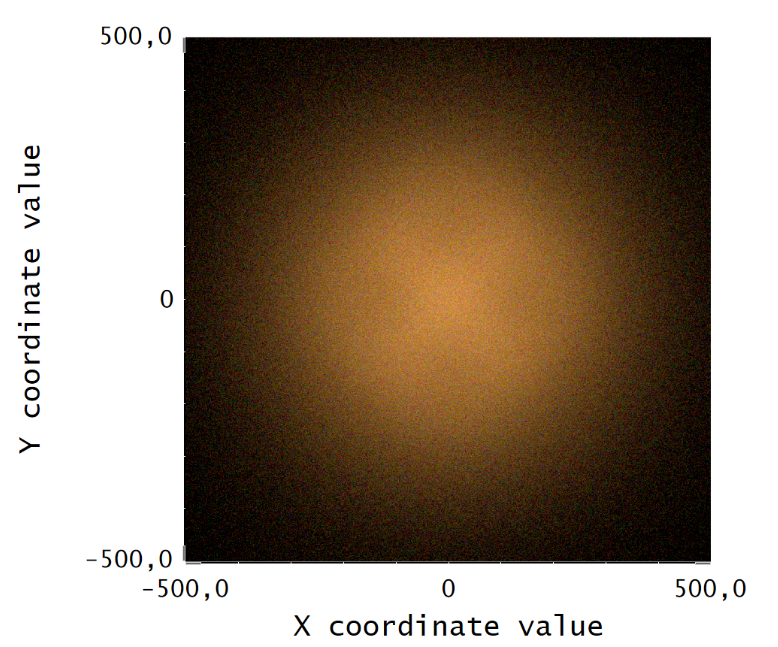

LED:
NCSxE17A
FWHM:
54°
FWTM:
86°
Peak intensity:
1.125 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
White

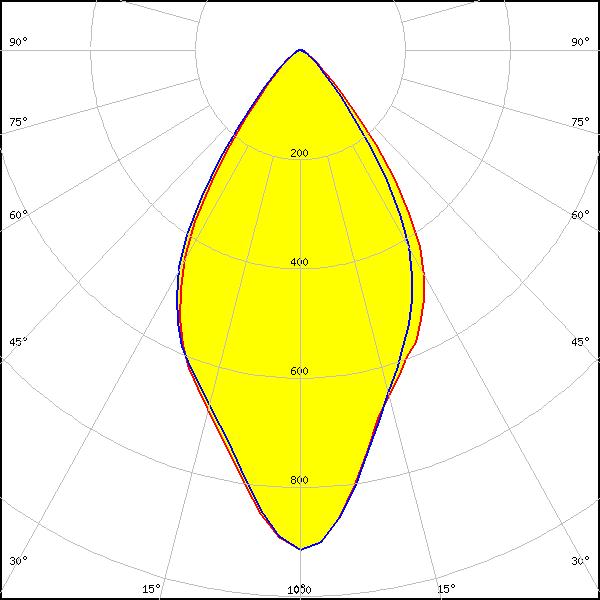

LED:
NCSxx19B
FWHM:
60°
FWTM:
91°
Peak intensity:
0.900 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

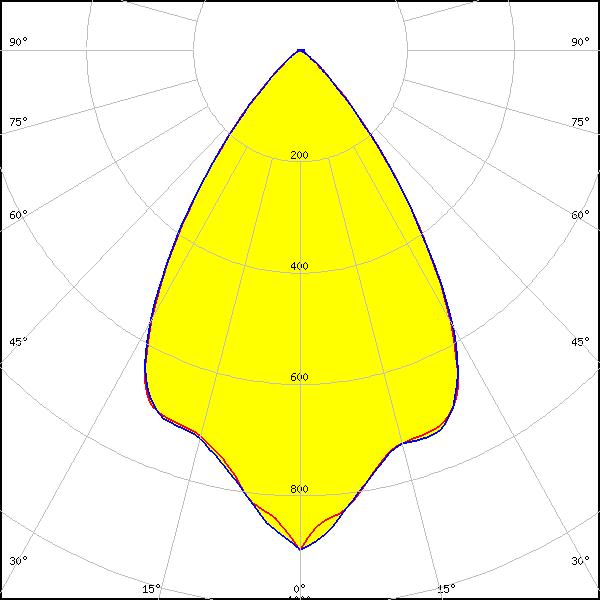

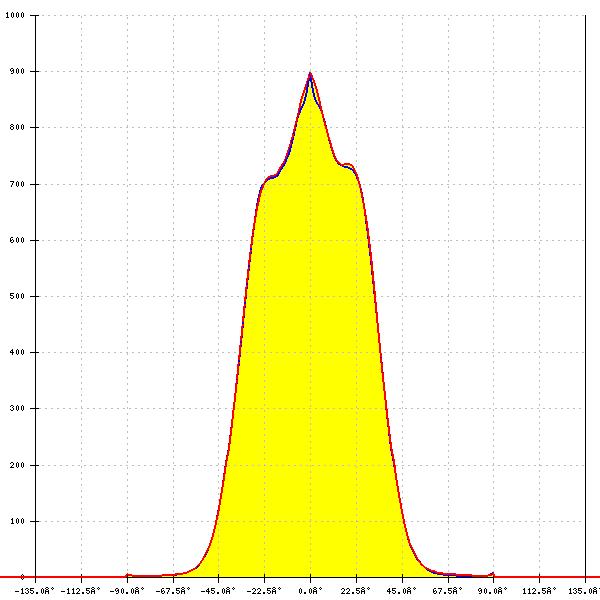

NV4WB35AM
FWHM:
66°
FWTM:
94°
Peak intensity:
0.898 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

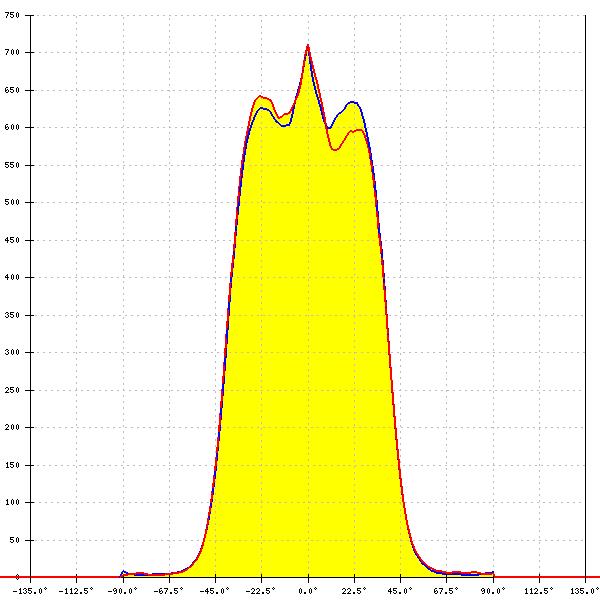

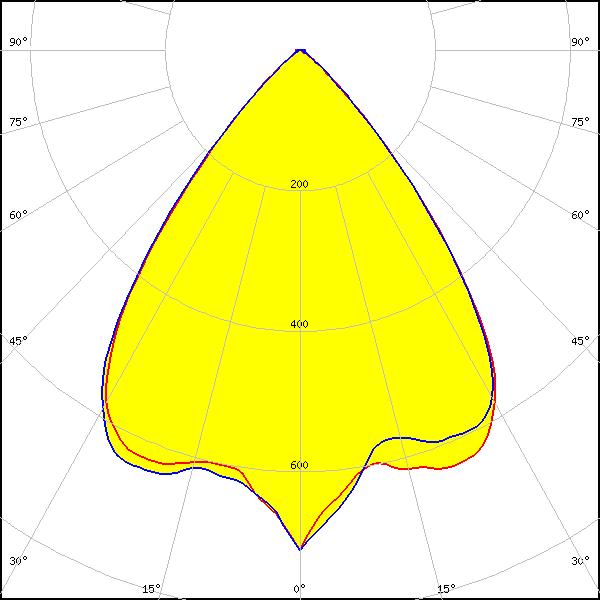

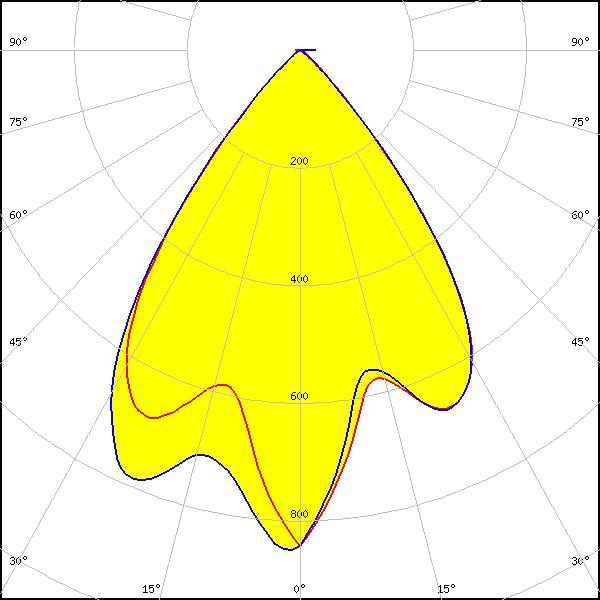

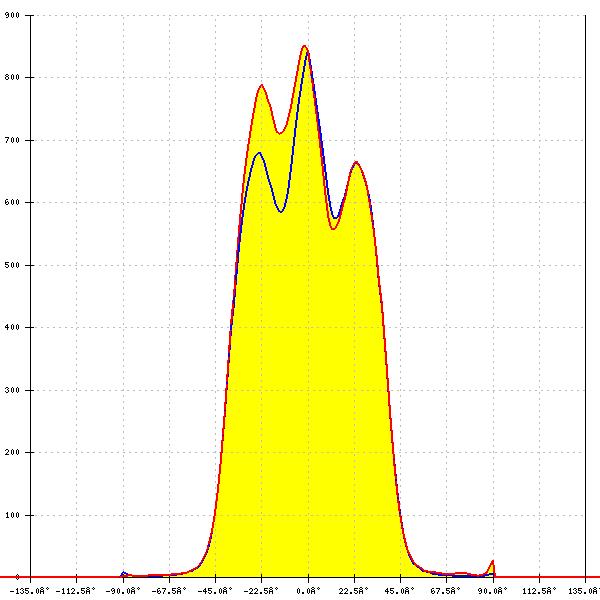

NVSW219C-V2
FWHM:
73°
FWTM:
92°
Peak intensity:
0.850 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

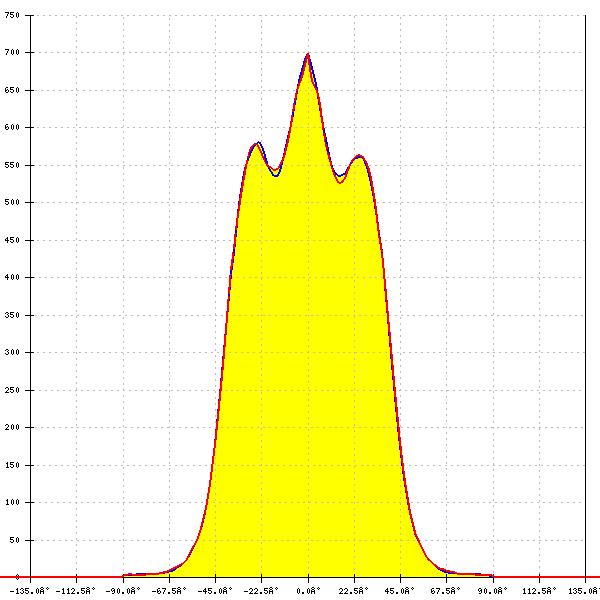

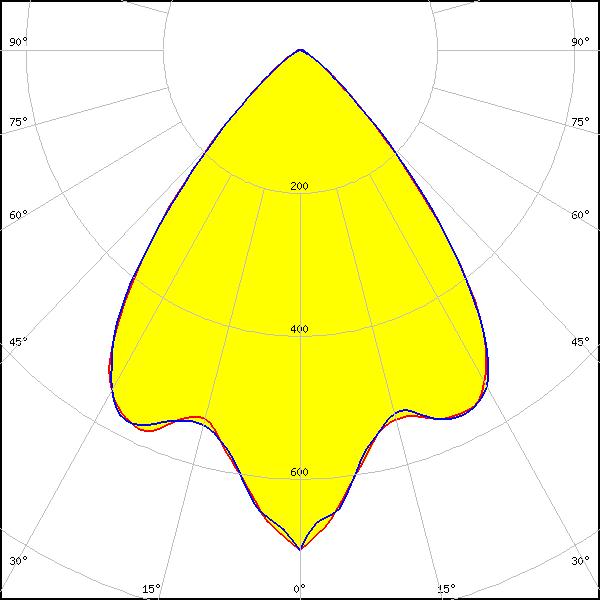

NVSW319B
FWHM:
78°
FWTM:
104°
Peak intensity:
0.700 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

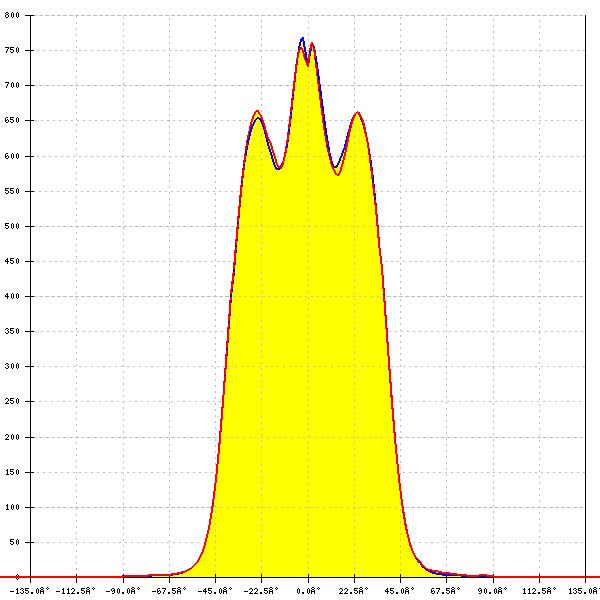

LED:

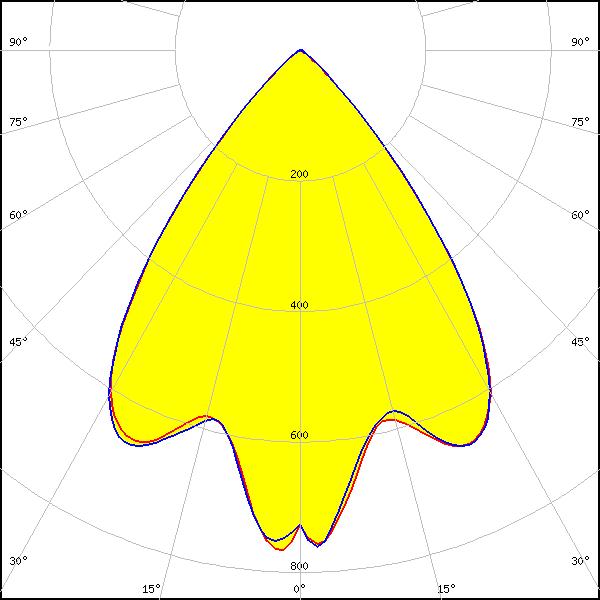

NVSW719AC
FWHM:
76°
FWTM:
96°
Peak intensity:
0.774 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

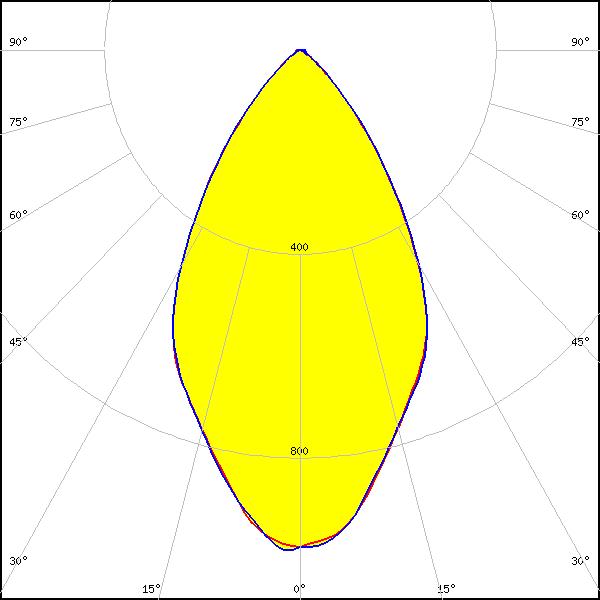

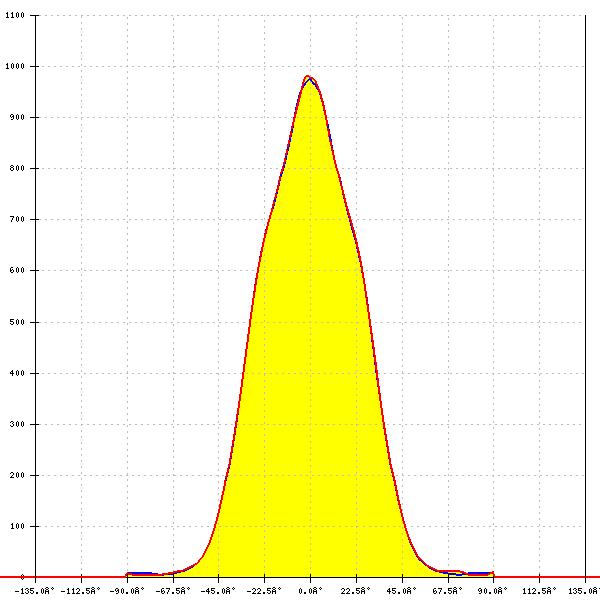

LED:
NVSxE21A
FWHM:
60°
FWTM:
94°
Peak intensity:
0.983 cd/lm
Efficiency:
96 %
LEDs/each optic:
4
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
76°
FWTM:
98°
Peak intensity:
0.712 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

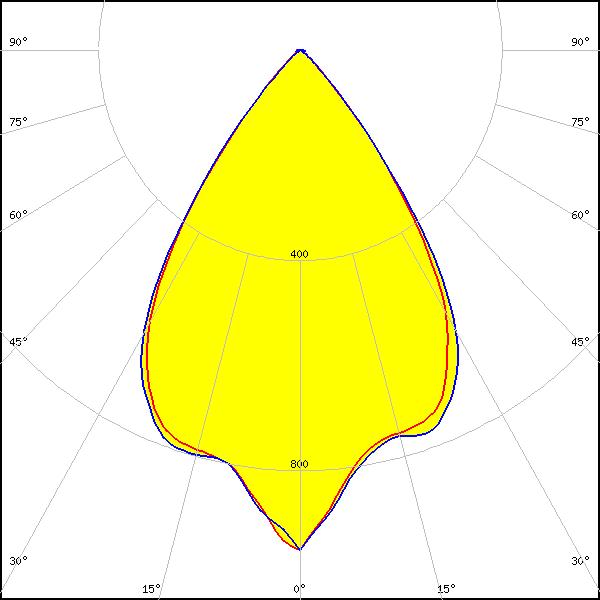

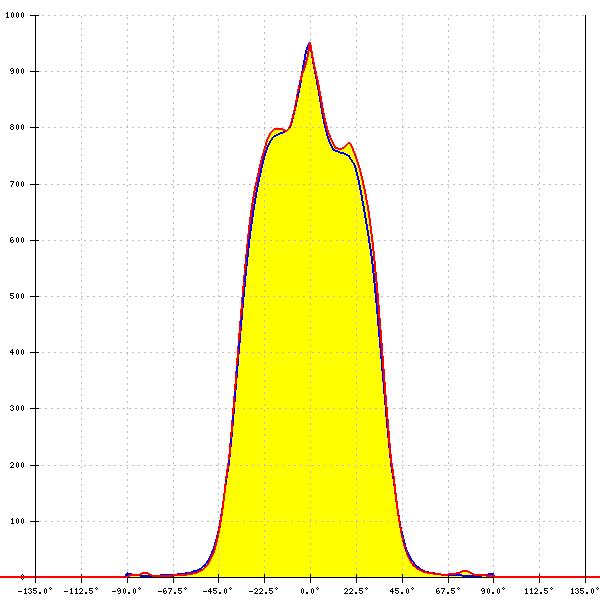

LED:
OSCONIQ P 3030
FWHM:
67°
FWTM:
88°
Peak intensity:
0.952 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

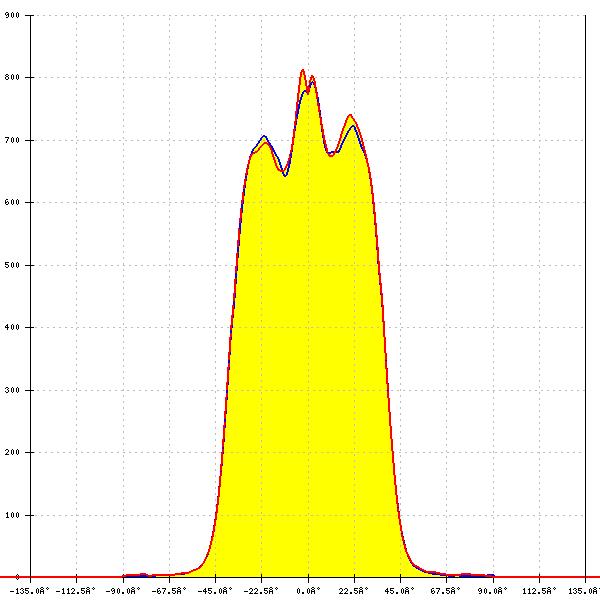

LED:

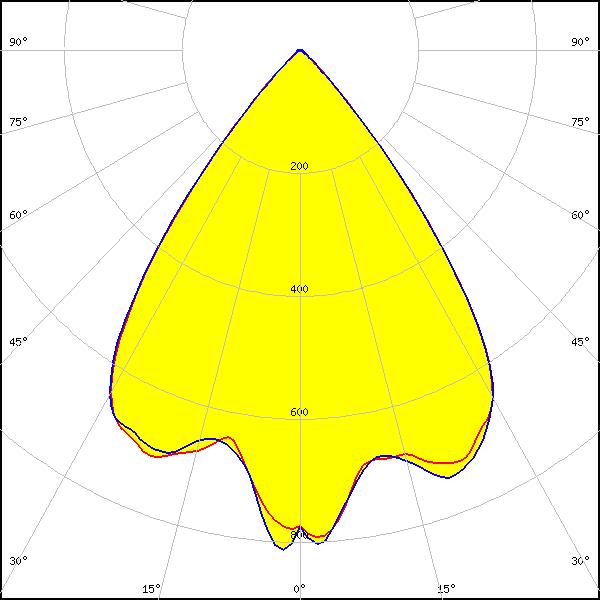

OSLON Signal
FWHM:
74°
FWTM:
91°
Peak intensity:
0.831 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
Blue

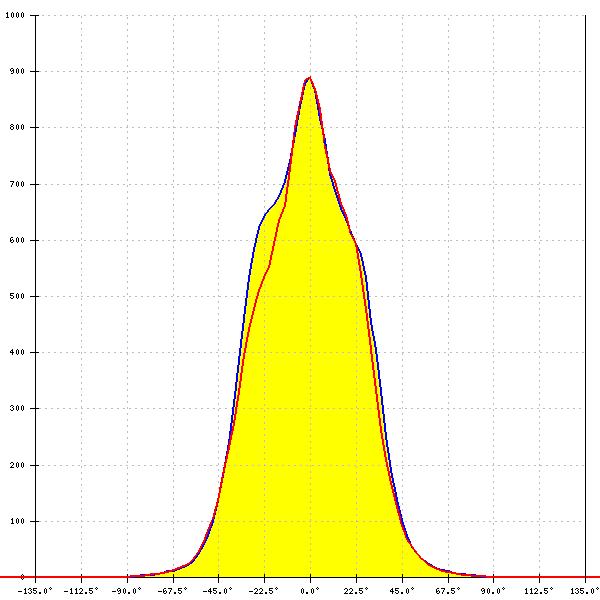

LED:
OSLON Square EC
FWHM:
61°
FWTM:
92°
Peak intensity:
0.900 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

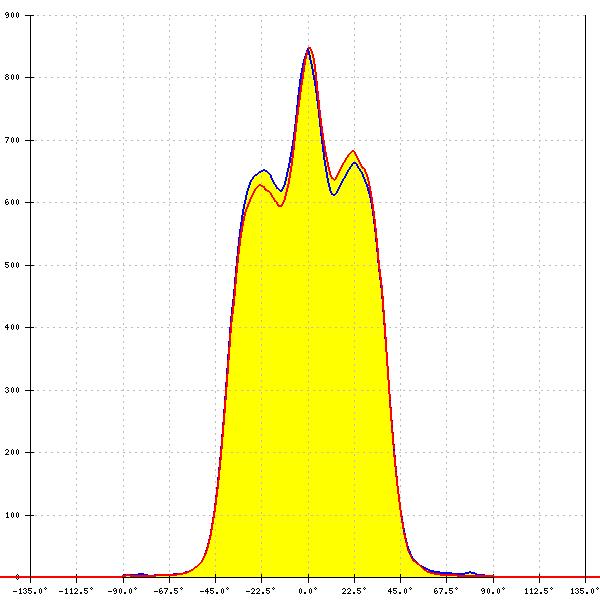

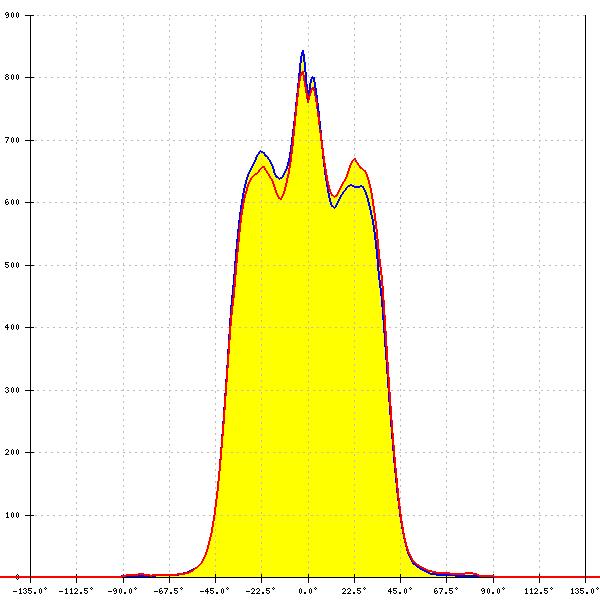

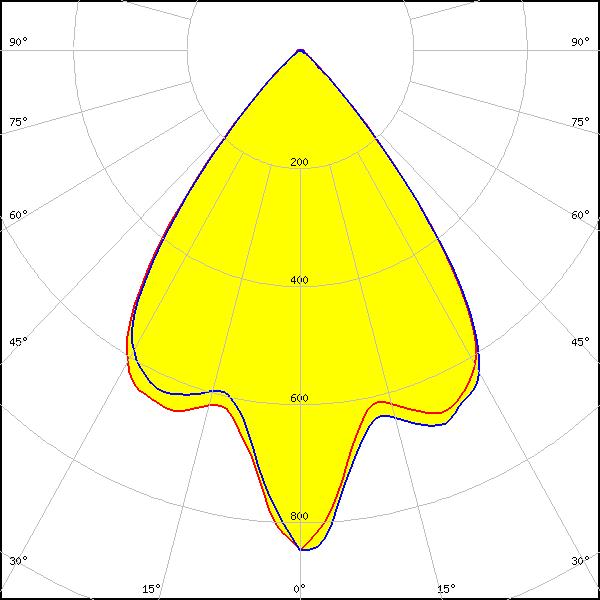

LED:
OSLON SSL 150
FWHM:
74°
FWTM:
92°
Peak intensity:
0.848 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
74°
FWTM:
92°
Peak intensity:
0.848 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

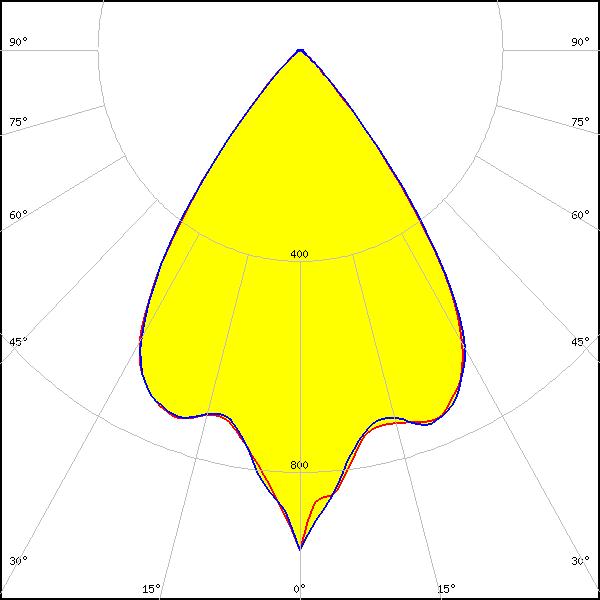

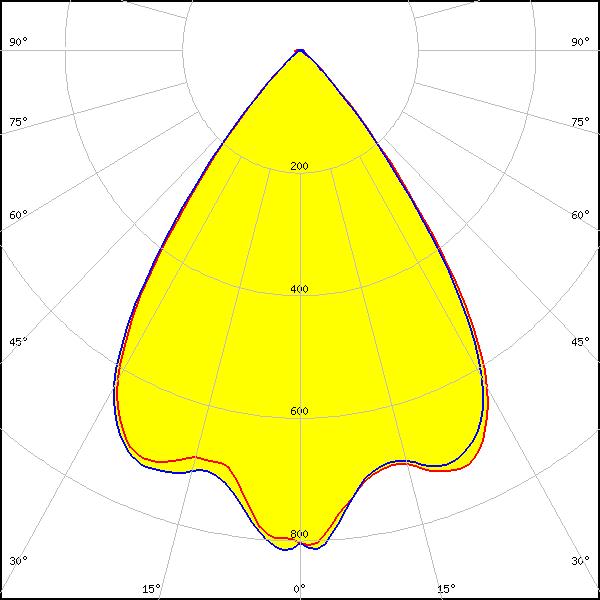

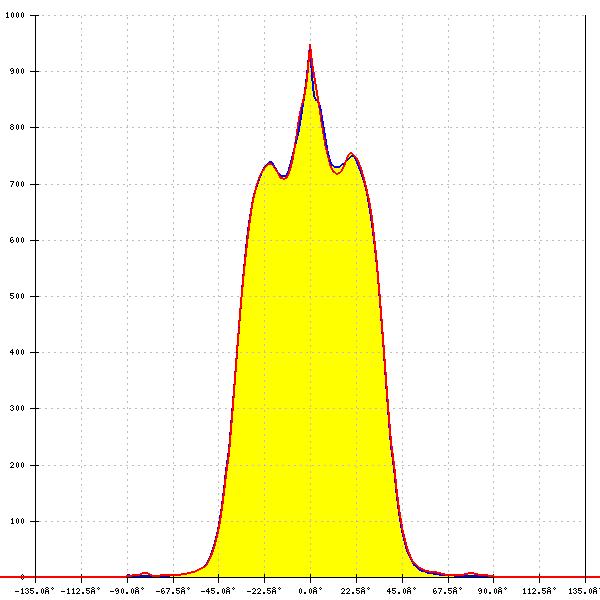

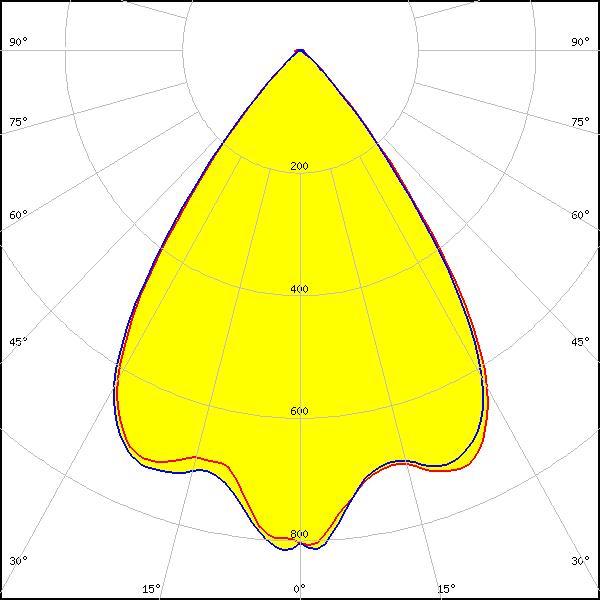

LED:

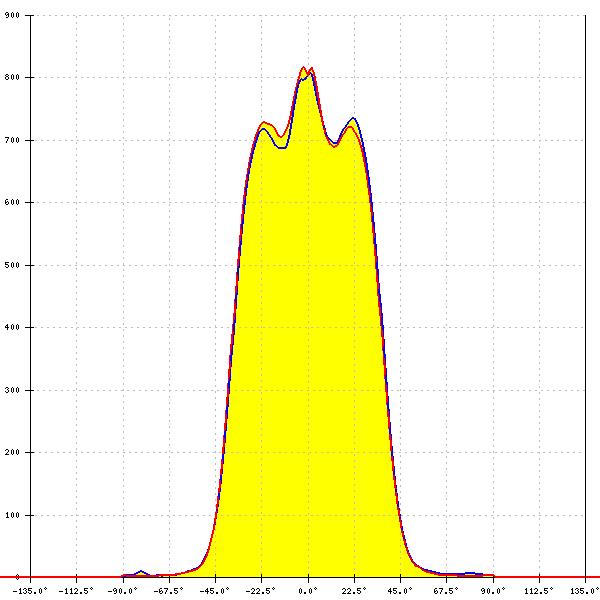

OSLON SSL 80
FWHM:
69°
FWTM:
89°
Peak intensity:
0.948 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

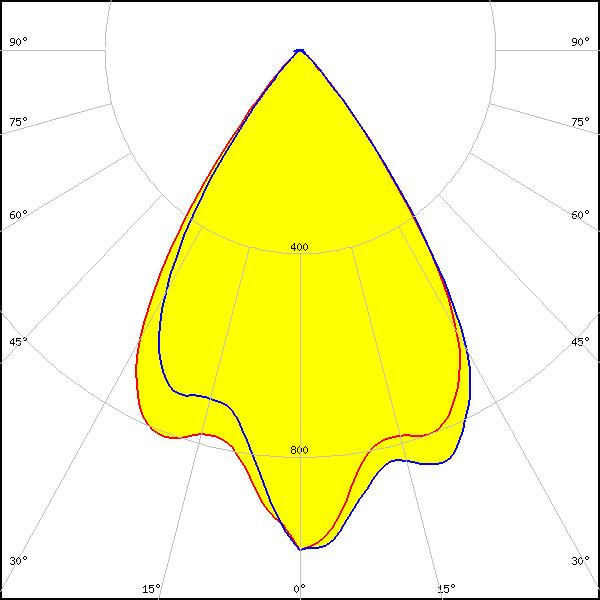

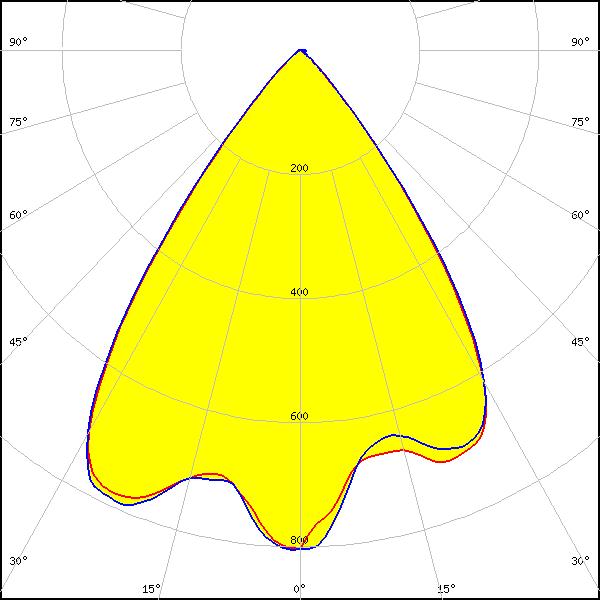

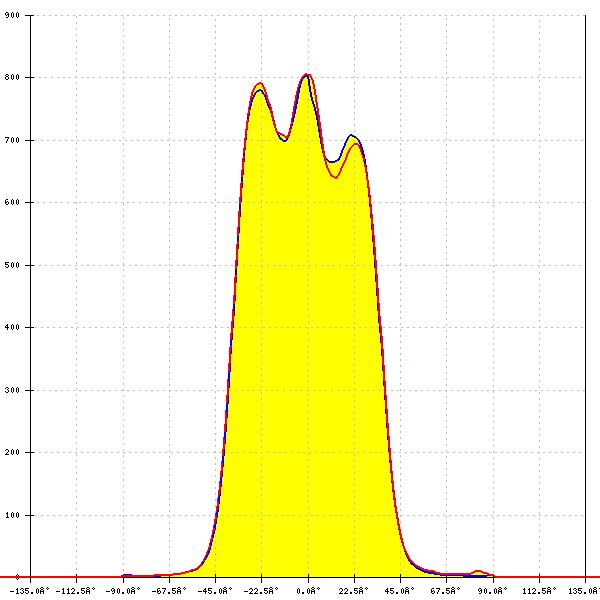

LED:
OSLON SSL 80
FWHM:
72°
FWTM:
90°
Peak intensity:
0.820 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
True Green

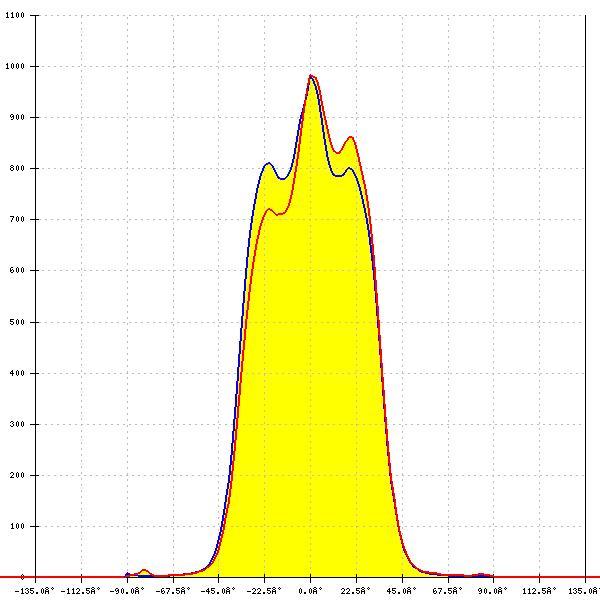

LED:
OSLON SSL 80
FWHM:
67°
FWTM:
86°
Peak intensity:
1.000 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
OSLON SSL 80
FWHM:
72°
FWTM:
91°
Peak intensity:
0.830 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4716AS
FWHM:
62°
FWTM:
84°
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
SEOUL DC 3528
FWHM:
70°
FWTM:
92°
Peak intensity:
0.856 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

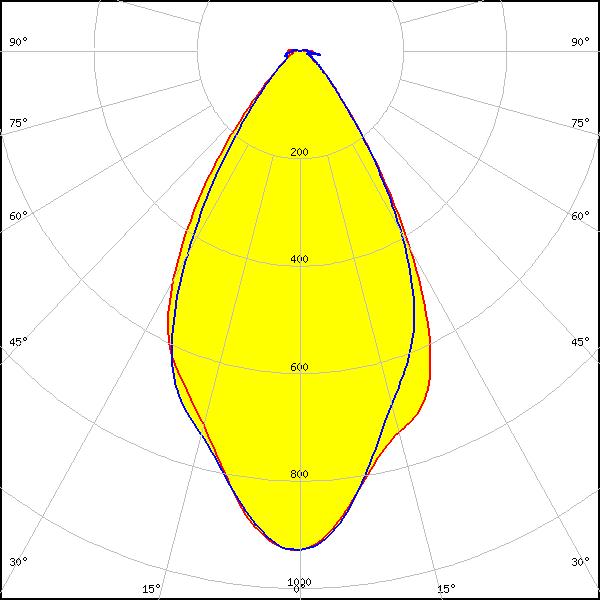

LED:
Z8Y22P
FWHM:
60°
FWTM:
92°
Peak intensity:
0.930 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
