    CA13498_EMILY-WWW

    Print

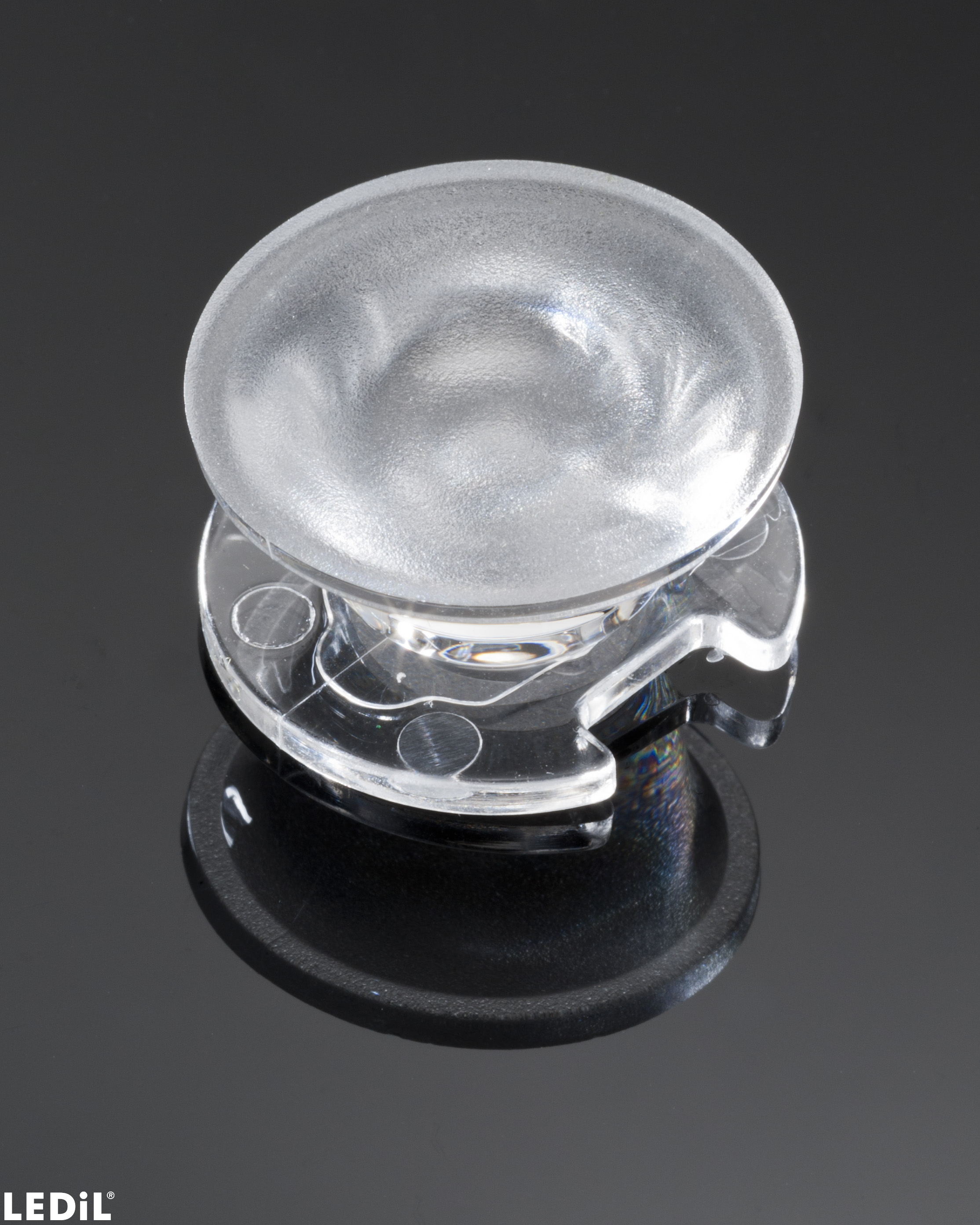

    ~60° wide beam. 13.43 mm high lens. Modified version to fit CREE XM-L LEDs.

    Specification
    • Dimensions:
      26 mm
    • Height:
      13.43 mm
    • Fastening:
      tape
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      1690 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.9 kg
    • MPQ:
      130 pcs
    • MOQ:
      260 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA13498_EMILY-WWW
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR121.b - Packing method and quantity changes 070616

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    World's brightest LED luminaire

    Case story

    Machang bridge

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

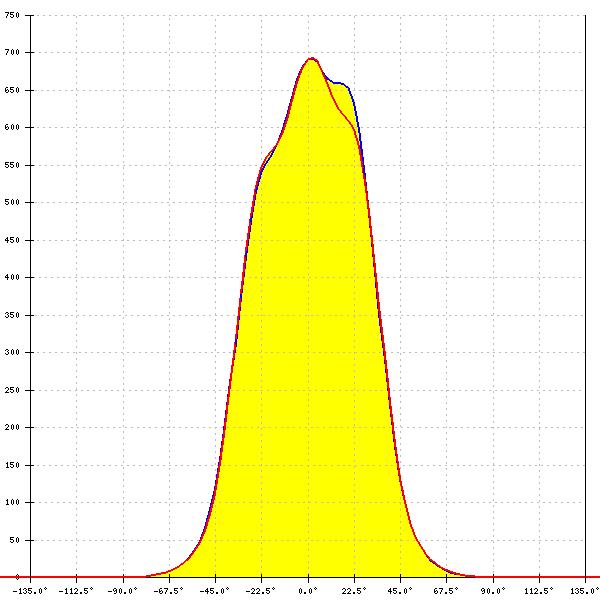

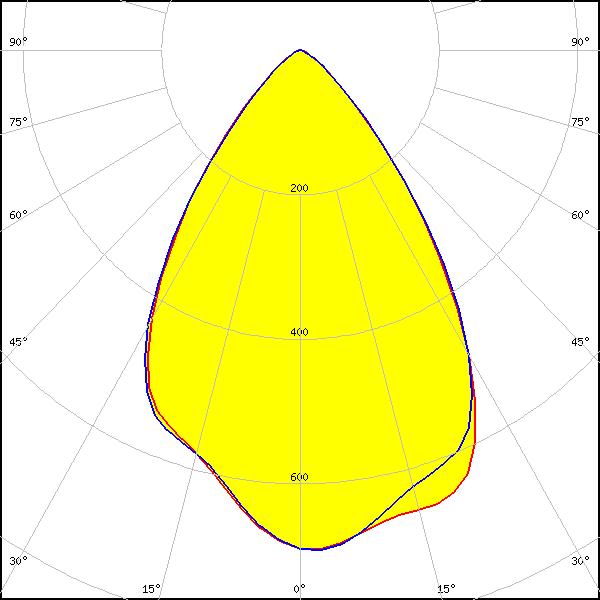

    LED: XHP35 HD
    FWHM: 70°
    FWTM: 101°
    Peak intensity: 0.700 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

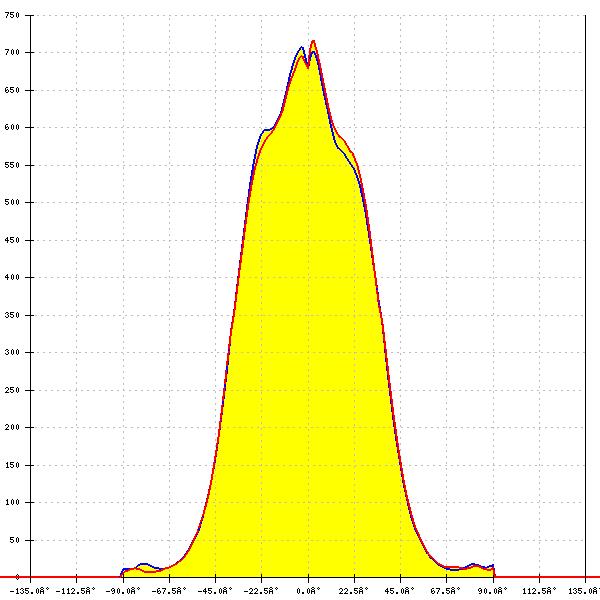

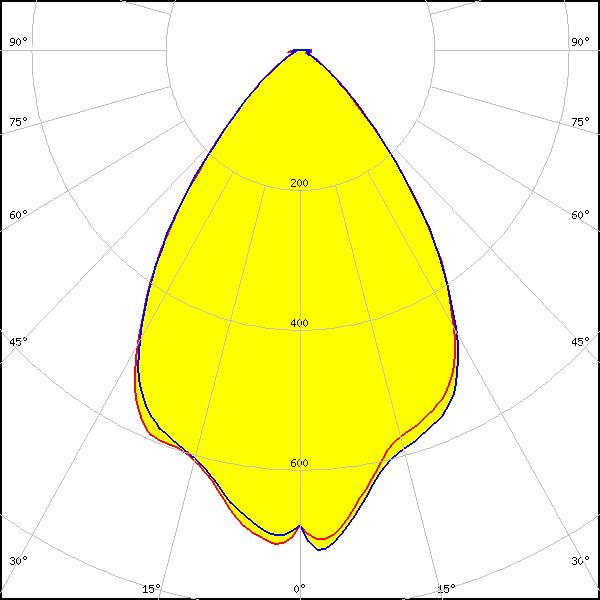

    LED: XHP35.2 HD
    FWHM: 72°
    FWTM: 104°
    Peak intensity: 0.735 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

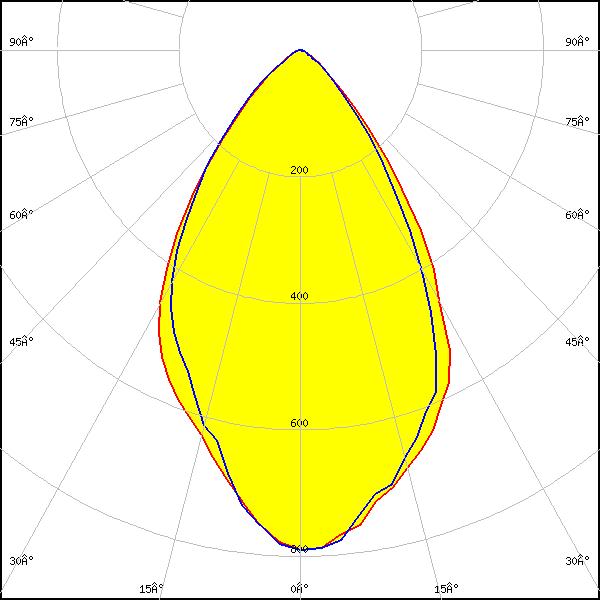

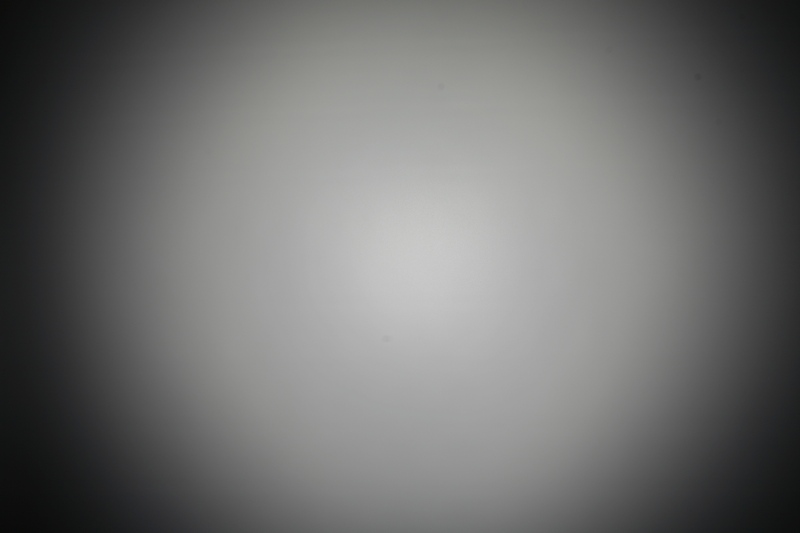

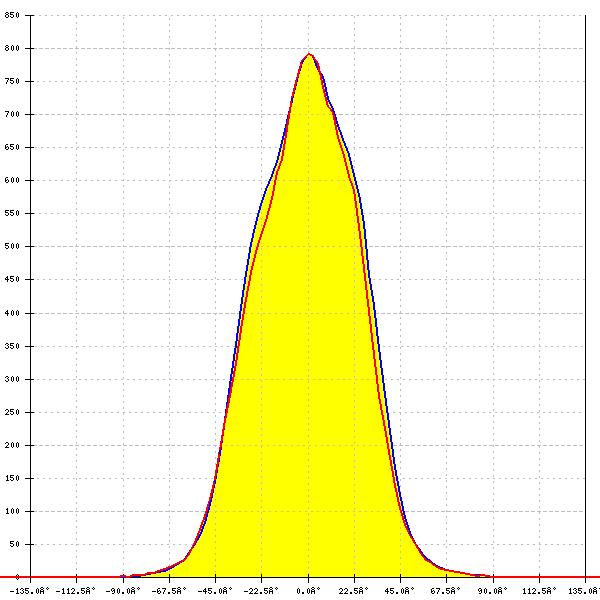

    LED: XM-L
    FWHM: 70°
    FWTM: 98°
    Peak intensity: 0.700 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

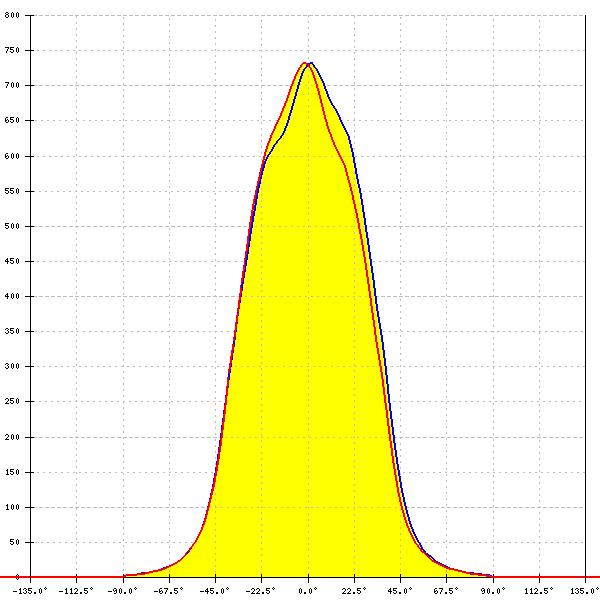

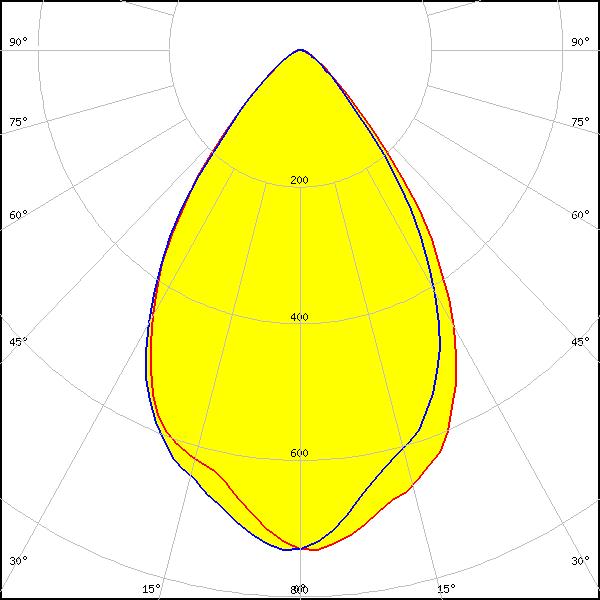

    LED: XM-L2
    FWHM: 70°
    FWTM: 102°
    Peak intensity: 0.700 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

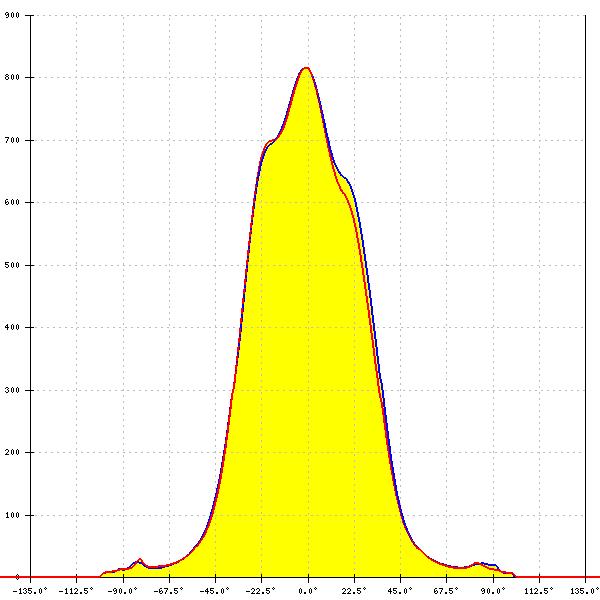

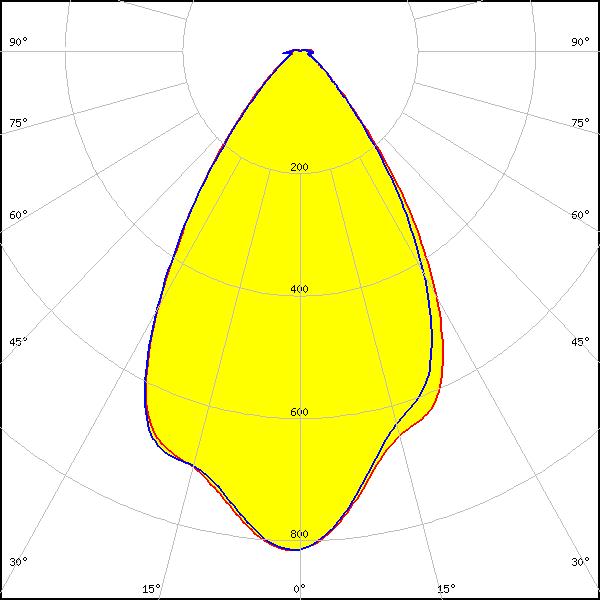

    LED: XP-G3
    FWHM: 64°
    FWTM: 96°
    Peak intensity: 0.820 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

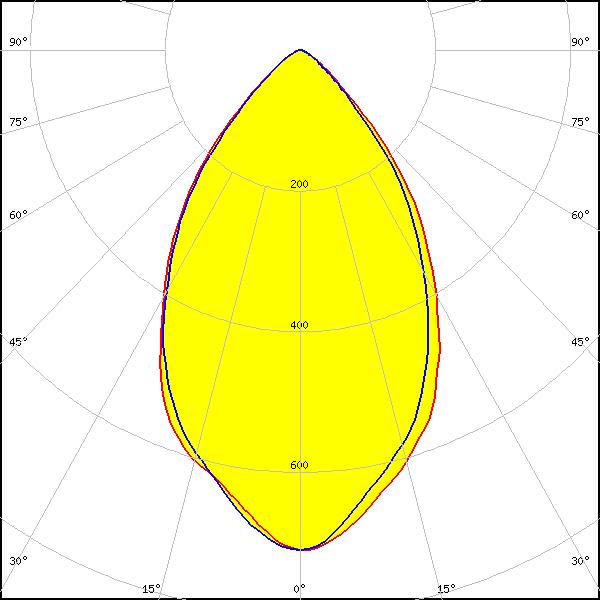

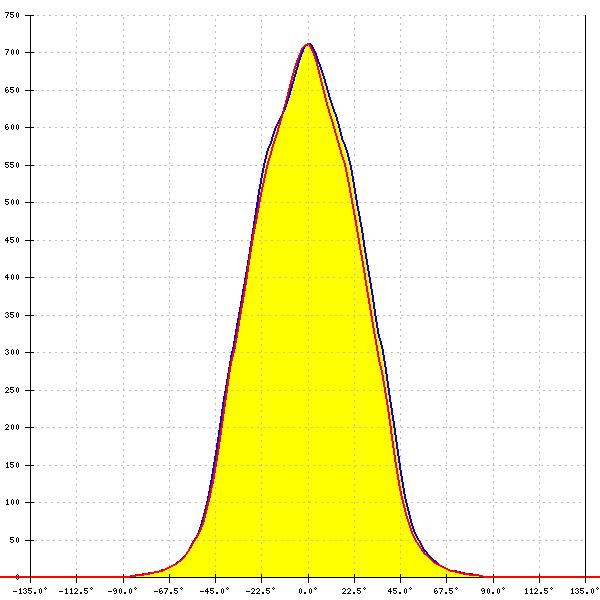

    LED: XP-L HD
    FWHM: 66°
    FWTM: 103°
    Peak intensity: 0.710 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

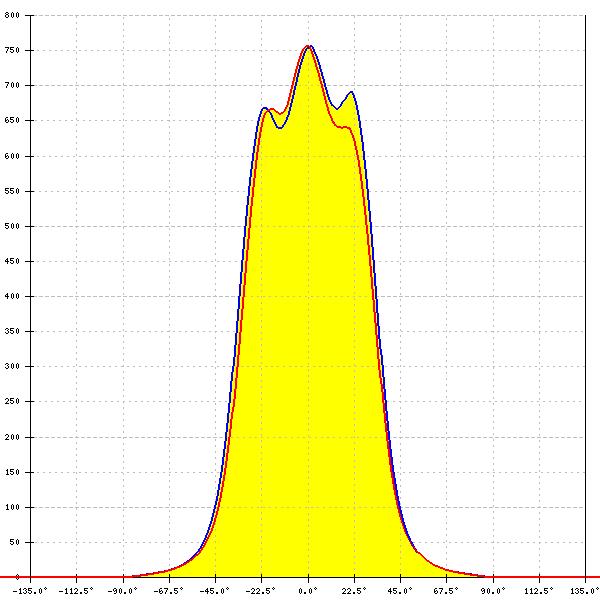

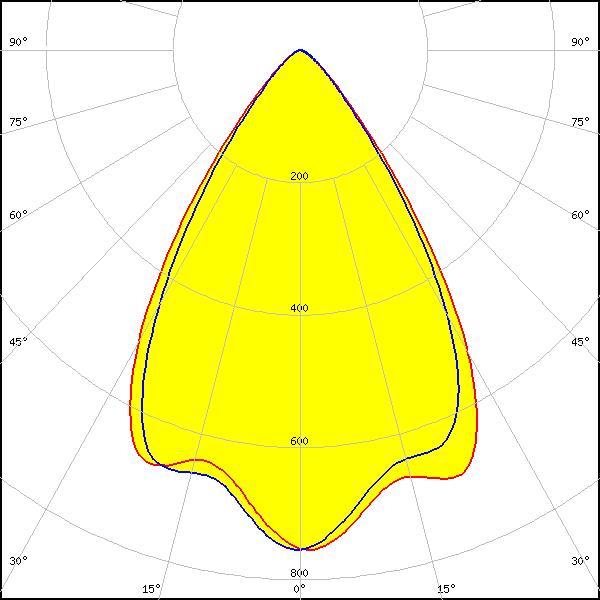

    LED: XP-L HI
    FWHM: 67°
    FWTM: 93°
    Peak intensity: 0.760 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

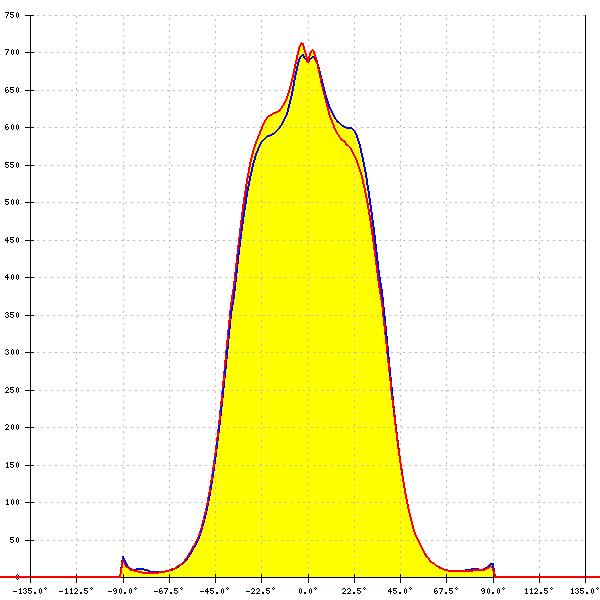

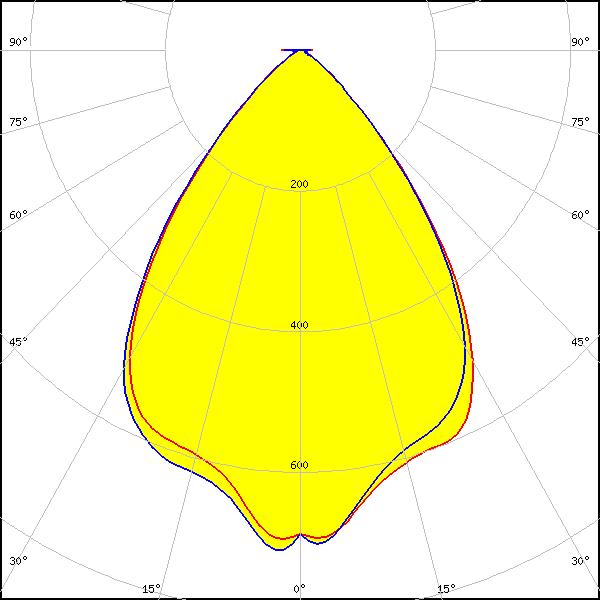

    LED: XP-L2
    FWHM: 74°
    FWTM: 102°
    Peak intensity: 0.710 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

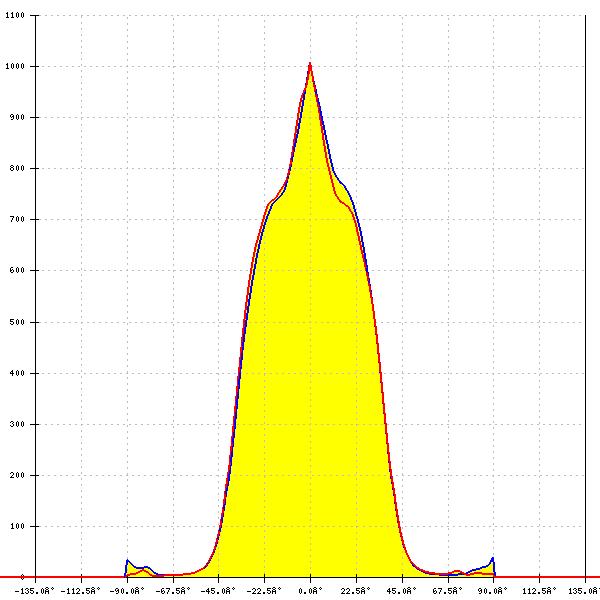

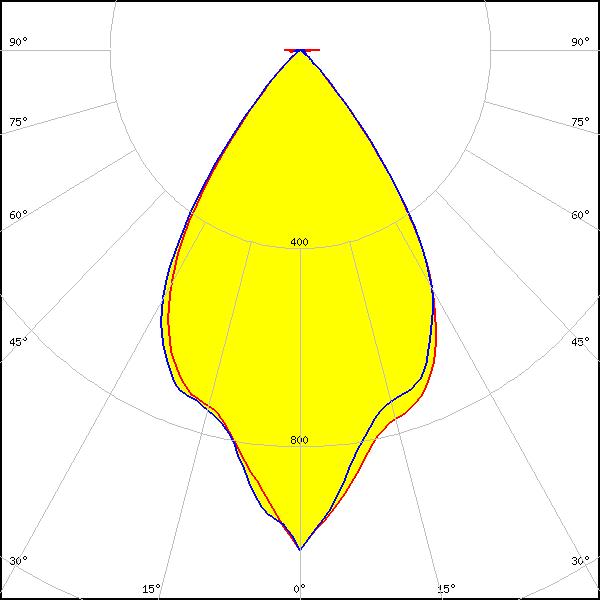

    LED: XT-E
    FWHM: 64°
    FWTM: 88°
    Peak intensity: 1.009 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

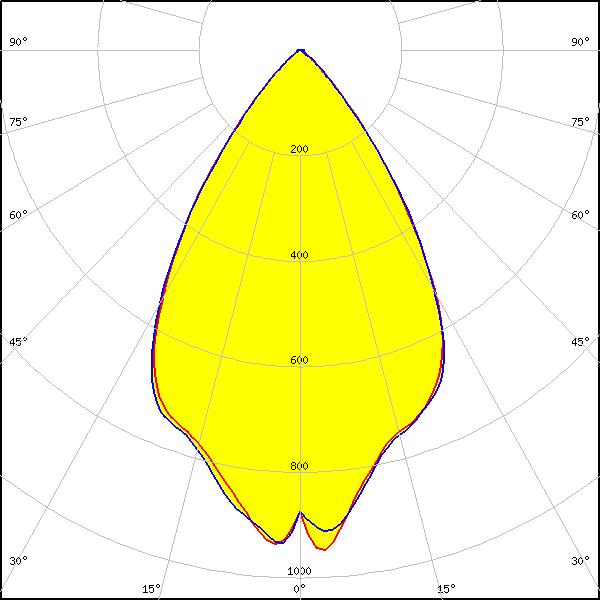

    LED: LUXEON MZ
    FWHM: 64°
    FWTM: 91°
    Peak intensity: 0.959 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

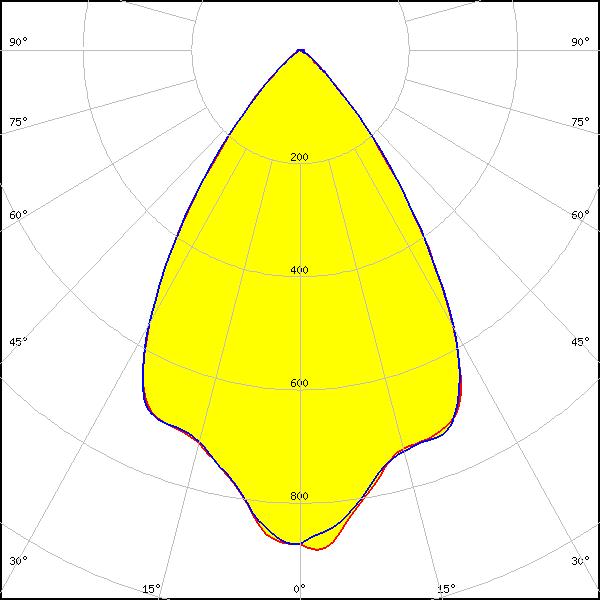

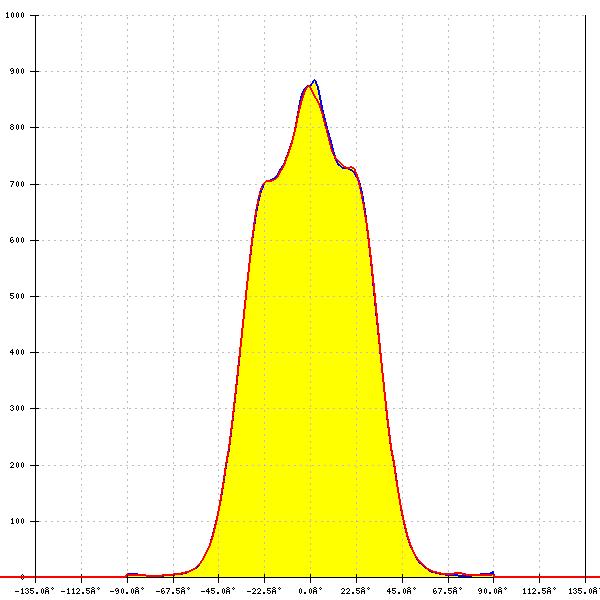

    LED: NV4WB35AM
    FWHM: 67°
    FWTM: 94°
    Peak intensity: 0.904 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

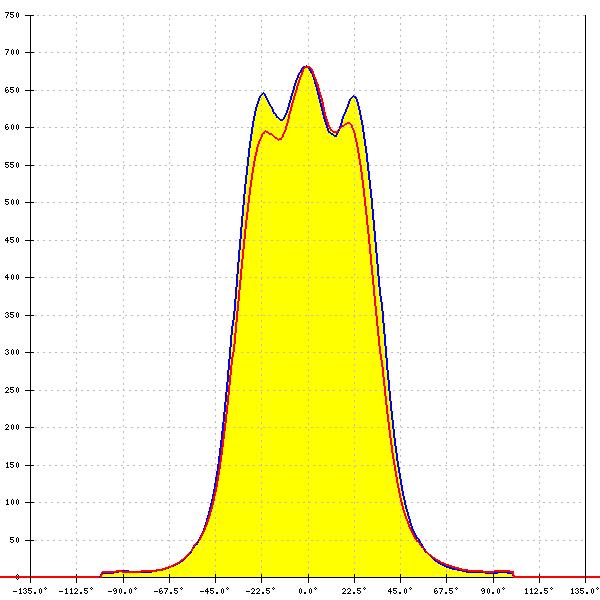

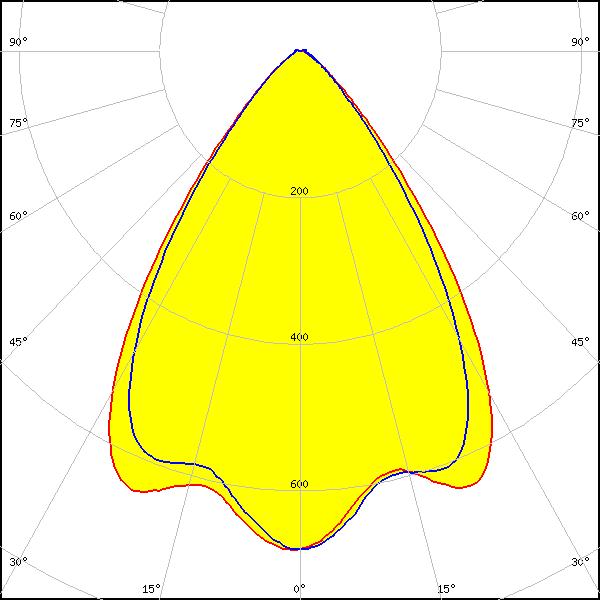

    LED: NVSW219F-V2
    FWHM: 71°
    FWTM: 100°
    Peak intensity: 0.680 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

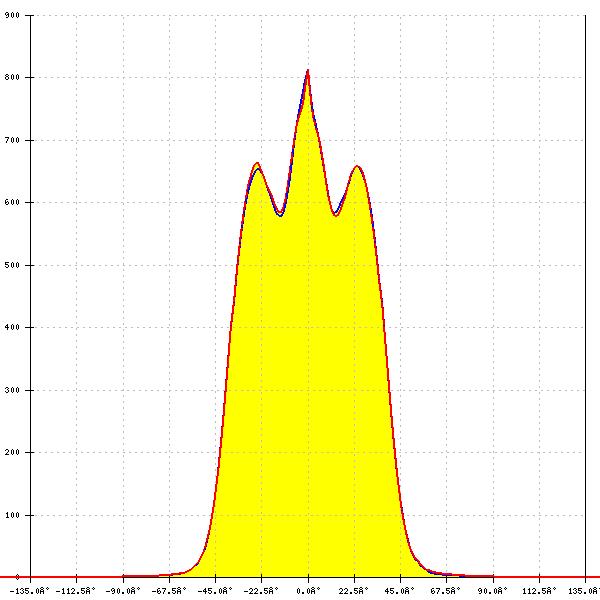

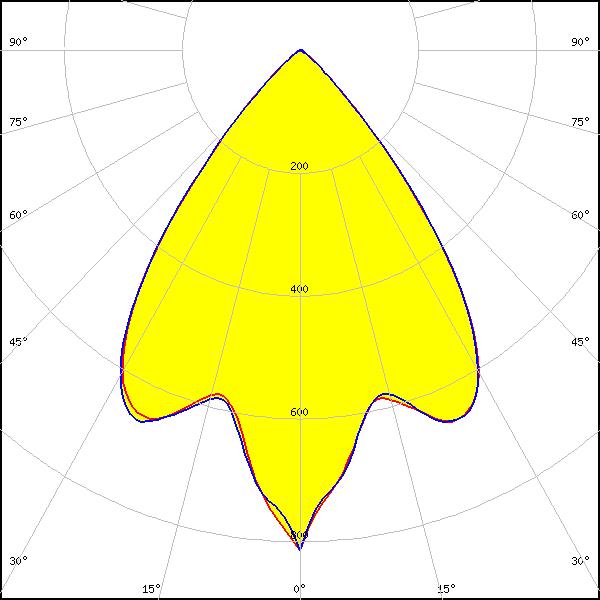

    LED: NVSW719AC
    FWHM: 74°
    FWTM: 94°
    Peak intensity: 0.814 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

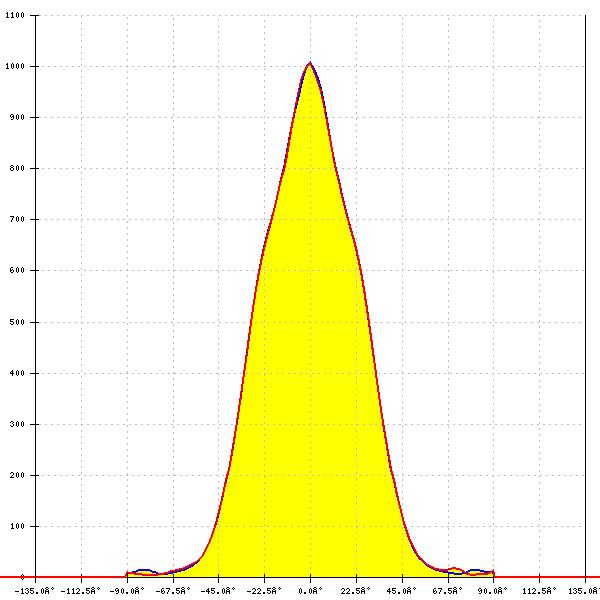

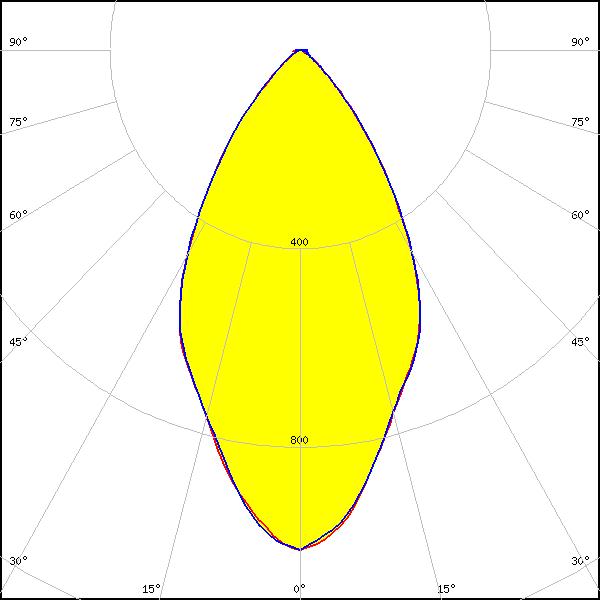

    LED: NVSxE21A
    FWHM: 58°
    FWTM: 93°
    Peak intensity: 1.008 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 4
    Light colour/type: White

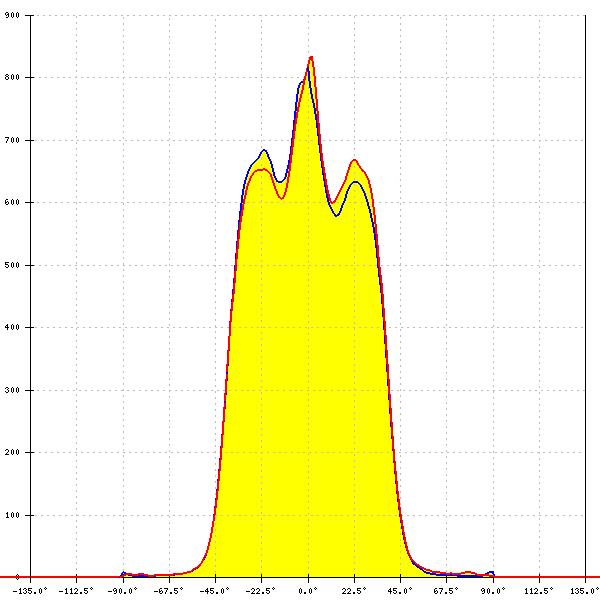

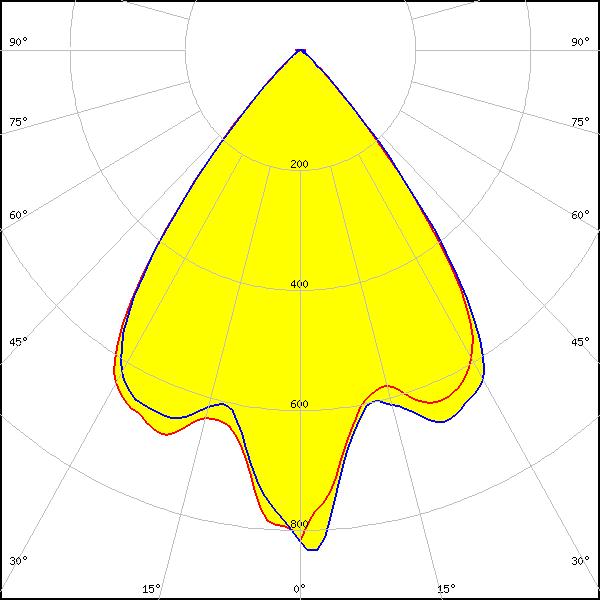

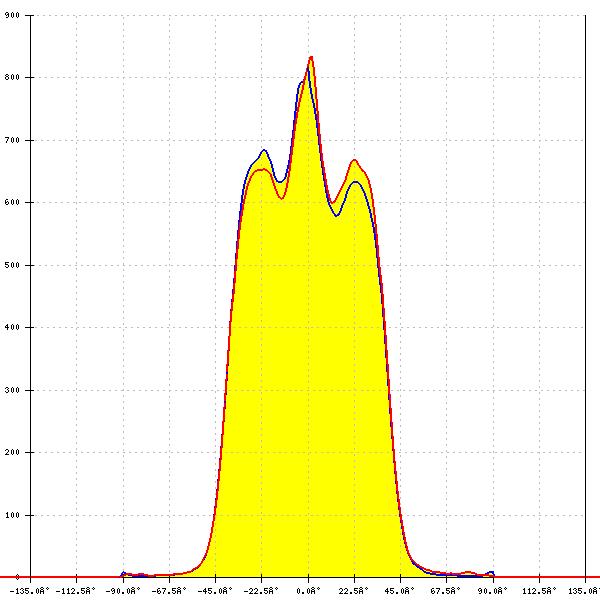

    LED: OSLON SSL 150
    FWHM: 74°
    FWTM: 92°
    Peak intensity: 0.840 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

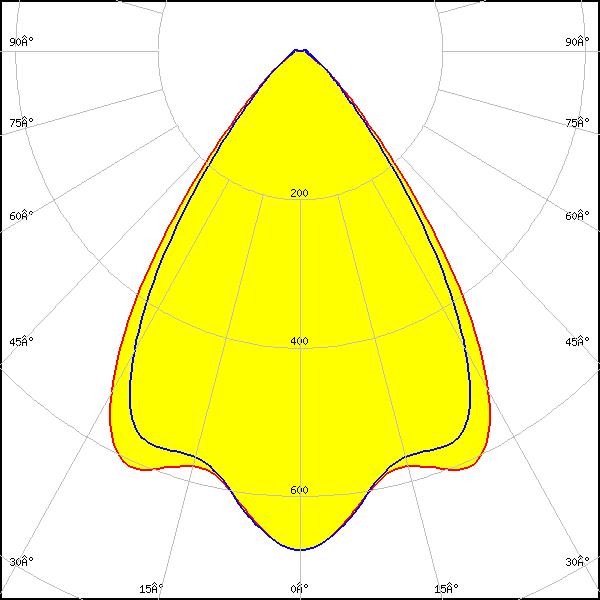

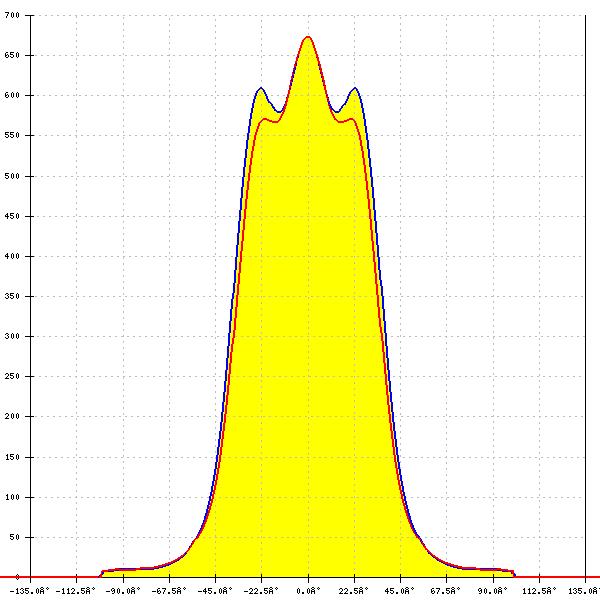

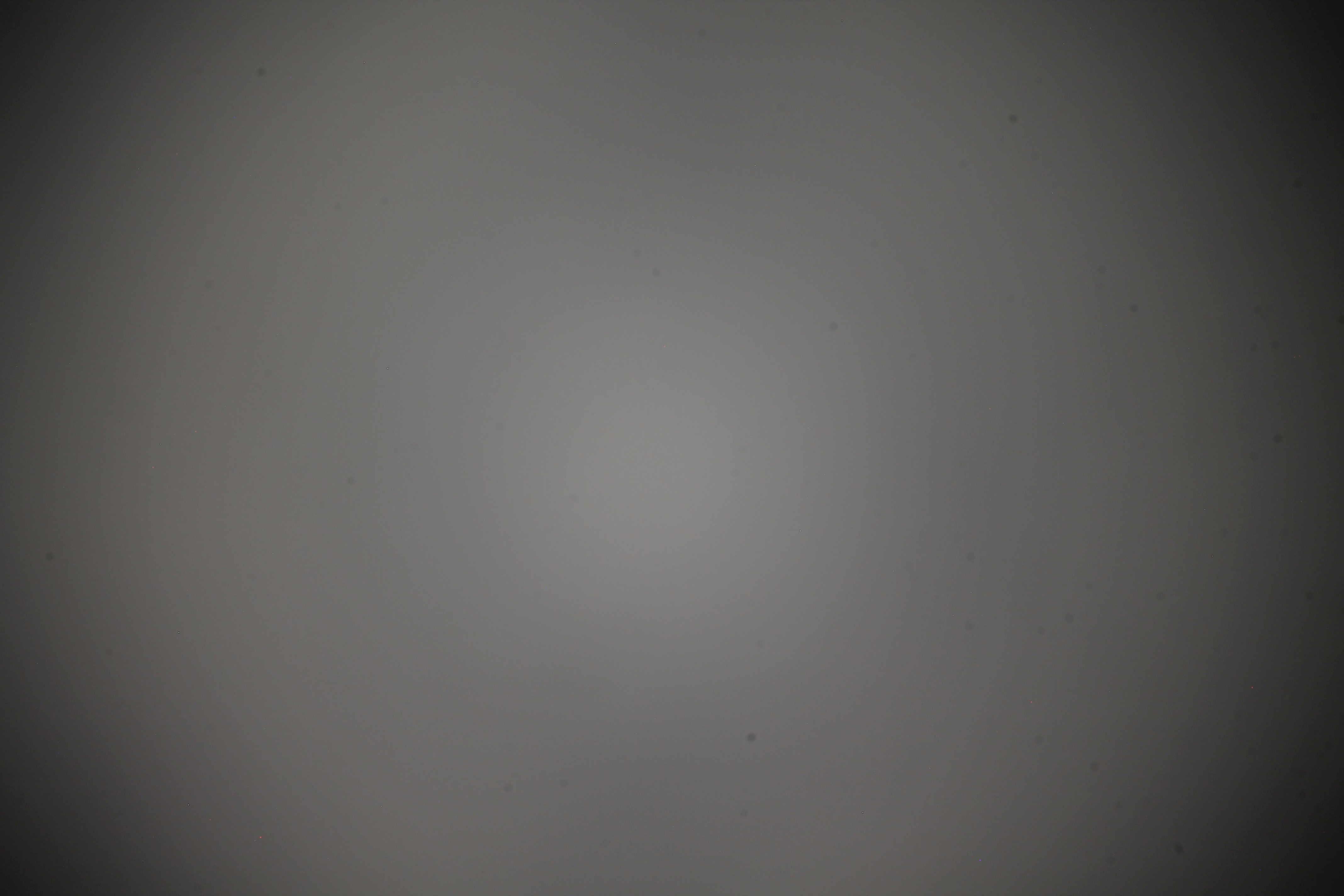

    LED: LH351B
    FWHM: 72°
    FWTM: 101°
    Peak intensity: 0.673 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

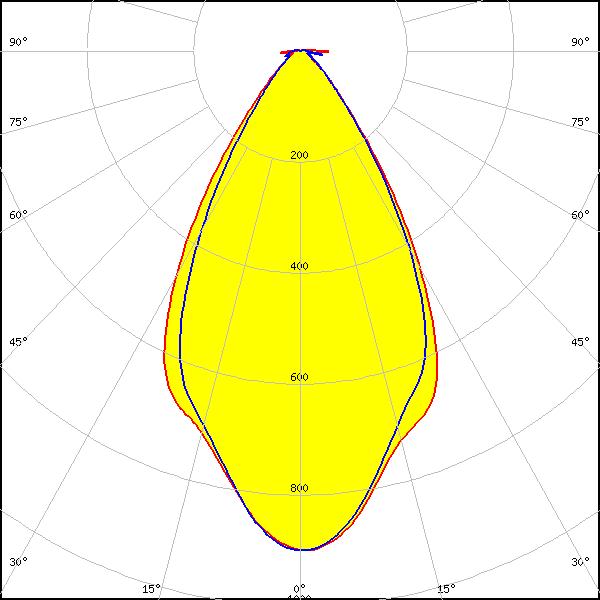

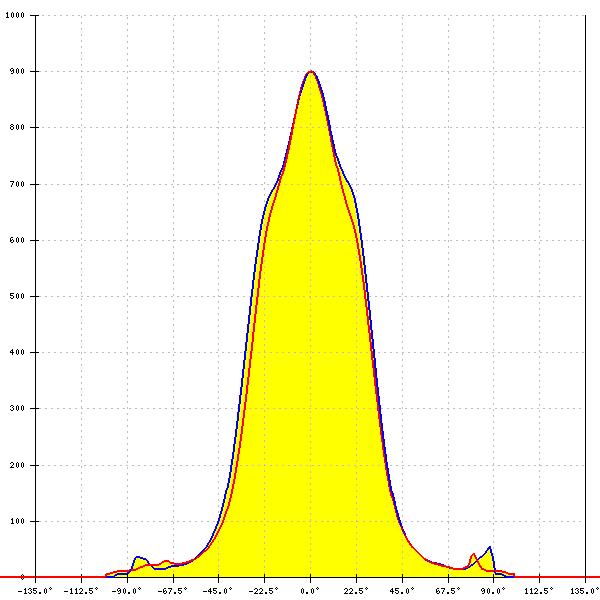

    LED: Z8Y22P
    FWHM: 58°
    FWTM: 90°
    Peak intensity: 0.900 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
