CA15359_EMILY-WW

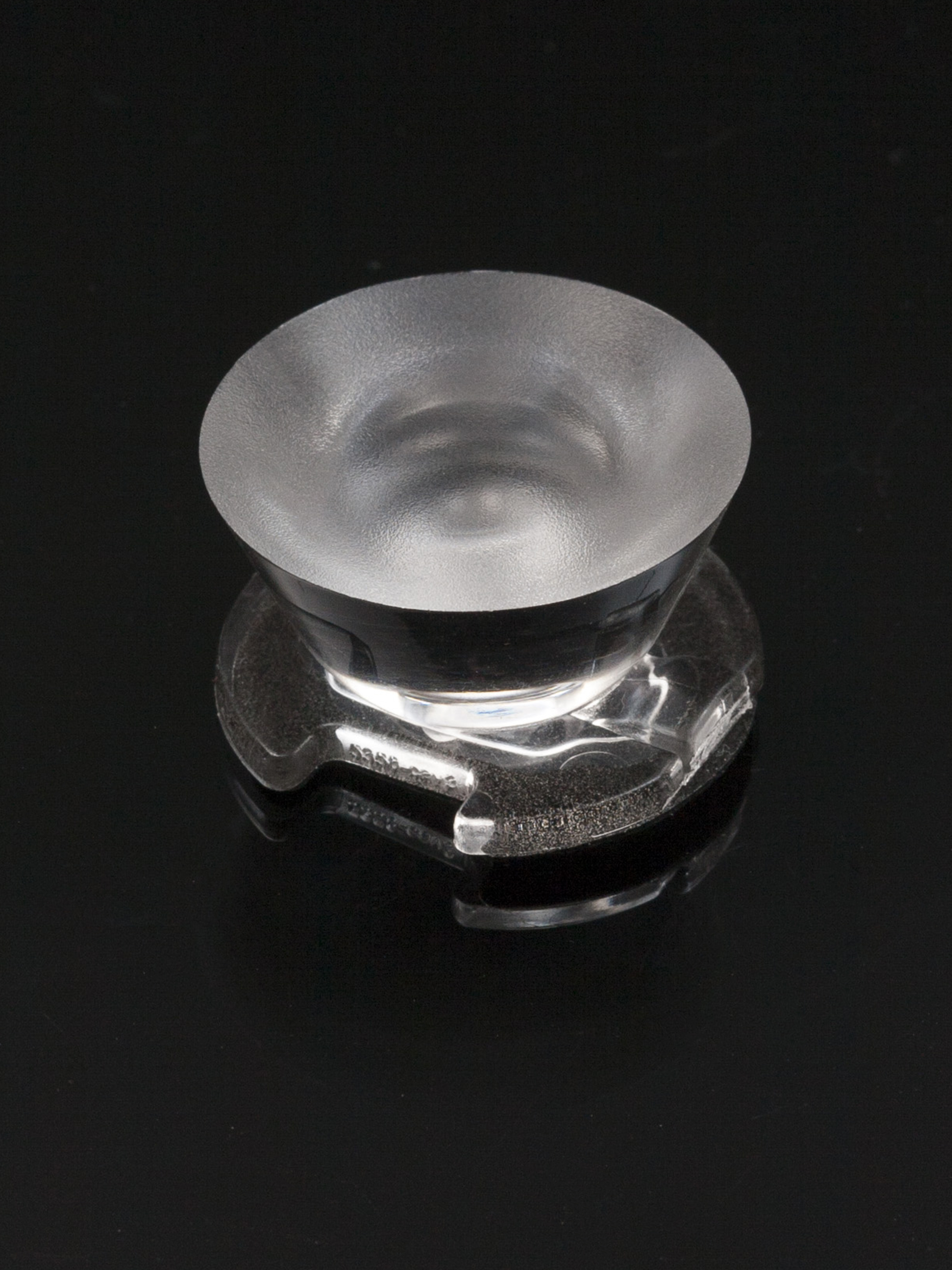

Print~45° wide beam. 14.74 mm high lens.
Specification
-
Dimensions:26 mm
-
Height:14.74 mm
-
Fastening:tape, pin
-
Colour:clear
-
RoHS and REACH compliant:Yes
Component Materials
- EMILY-WWSingle lensPMMA
- SPUTNIK-TAPETapeAcryl tape
- Request material files from Tech Support
Ordering information
-
Quantity in box:1690 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:11.3 kg
-
MPQ:130 pcs
-
MOQ:260 pcs
-
MOQ size:480 x 280 x 80 mm
-
MOQ weight:2.2 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Related Content

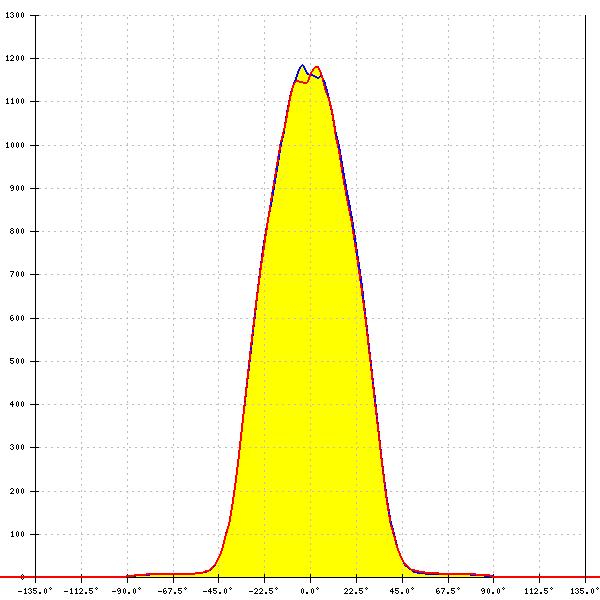

Optical results

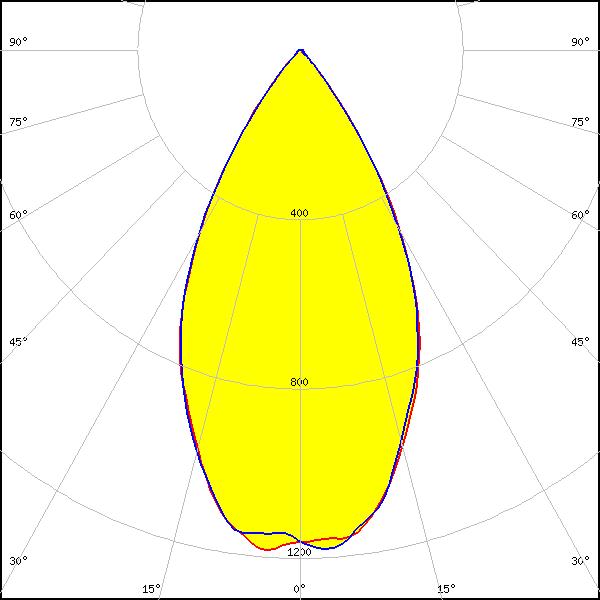

LED:
XHP35 HD
FWHM:
55°
FWTM:
80°
Peak intensity:
1.192 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

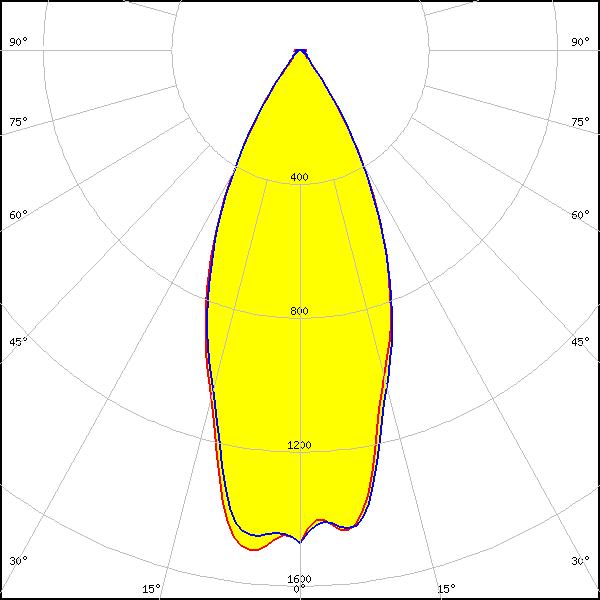

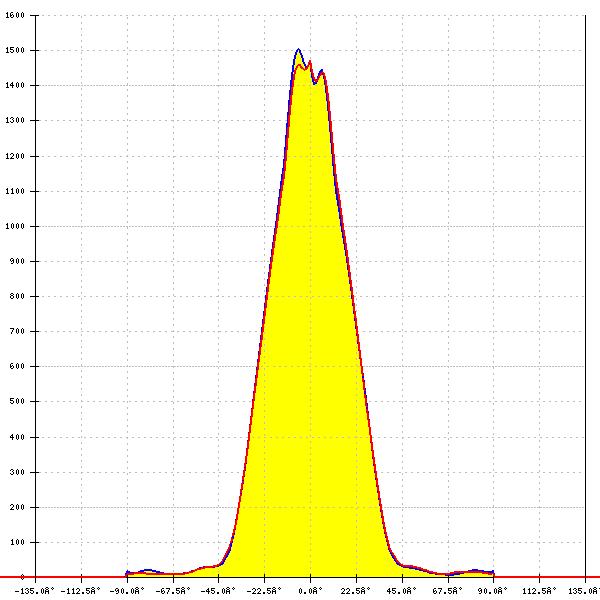

LED:
XHP35.2 HD
FWHM:
44°
FWTM:
74°
Peak intensity:
1.647 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

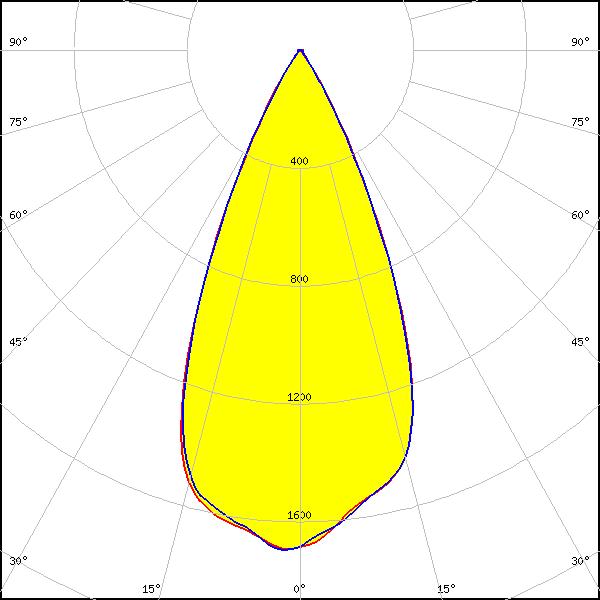

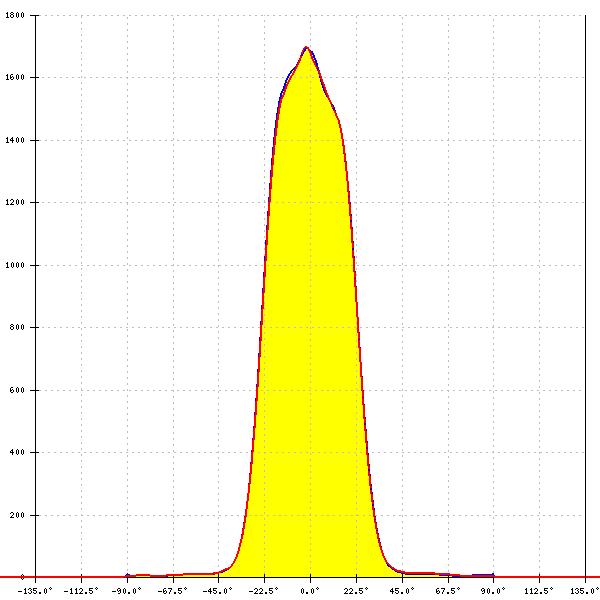

LED:
XP-E2
FWHM:
46°
FWTM:
64°
Peak intensity:
1.709 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

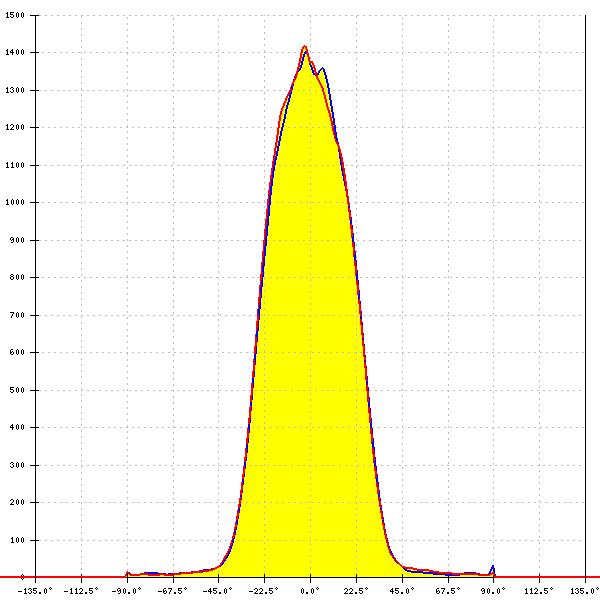

LED:

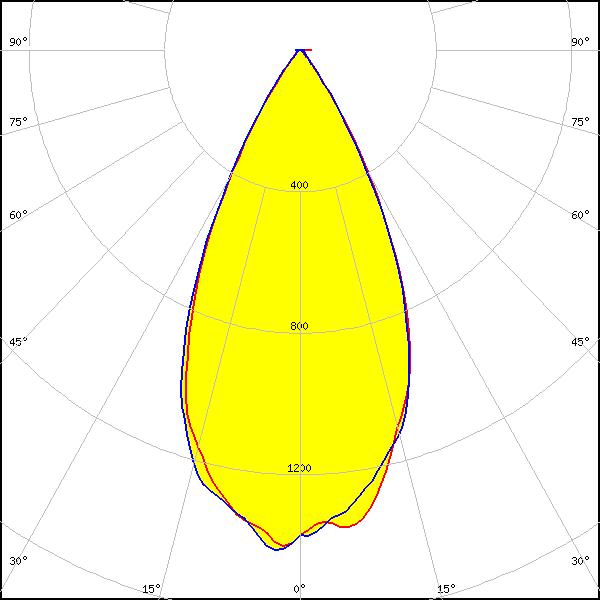

XP-G2 HE
FWHM:
50°
FWTM:
72°
Peak intensity:
1.417 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

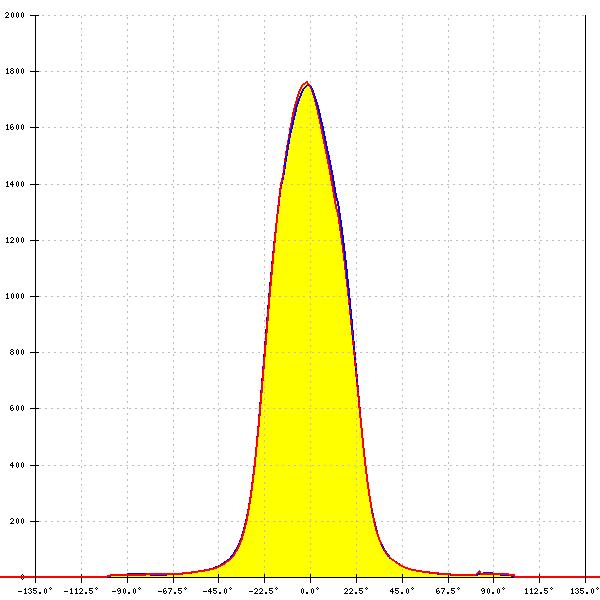

LED:

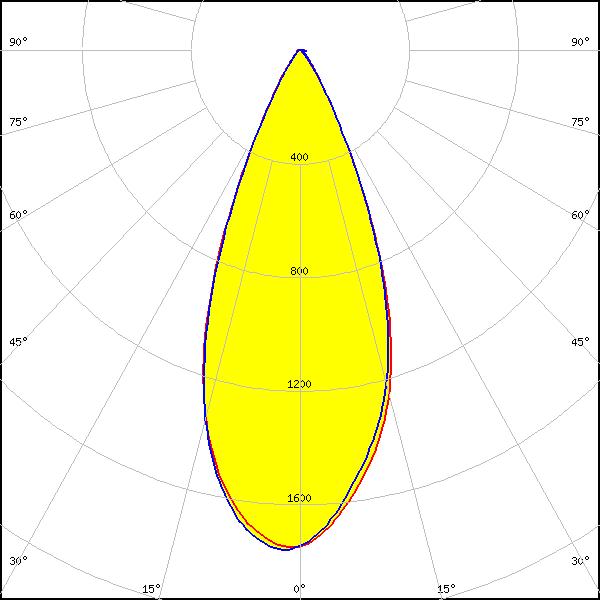

XP-L HI
FWHM:
42°
FWTM:
65°
Peak intensity:
1.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

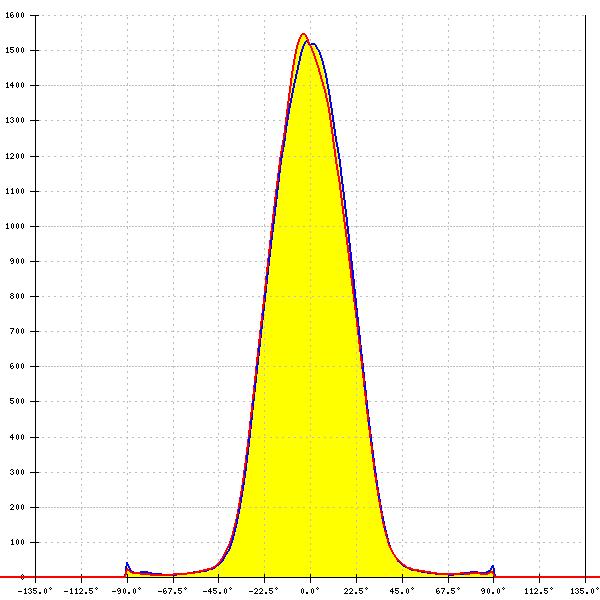

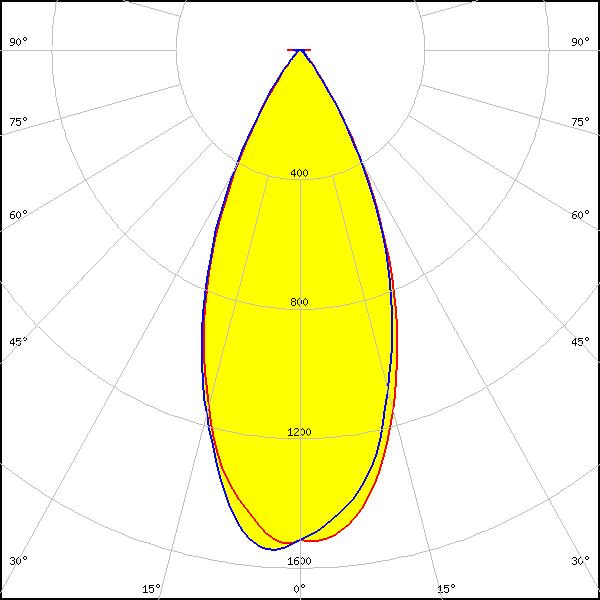

LED:
XP-L2
FWHM:
46°
FWTM:
73°
Peak intensity:
1.550 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

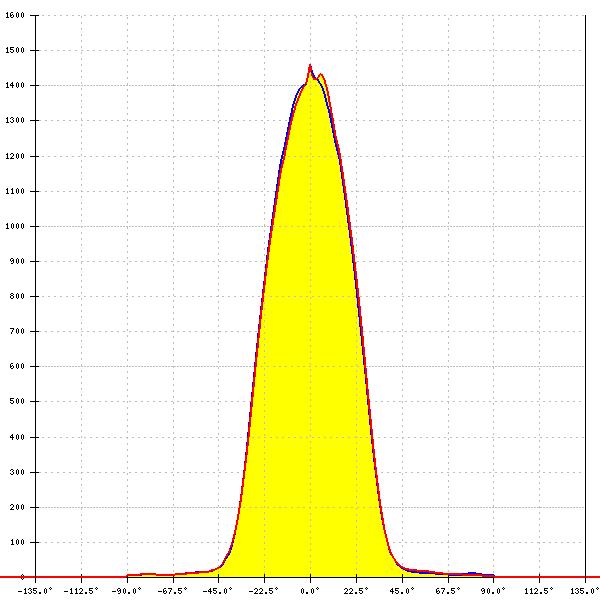

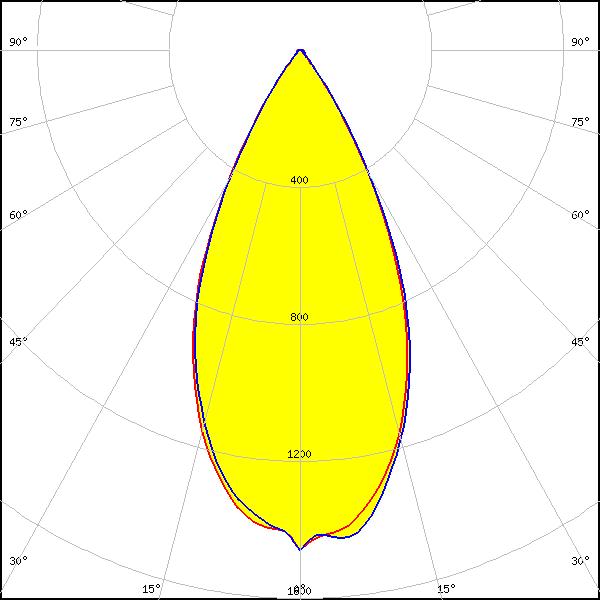

LED:
LUXEON HL2X
FWHM:
49°
FWTM:
72°
Peak intensity:
1.460 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

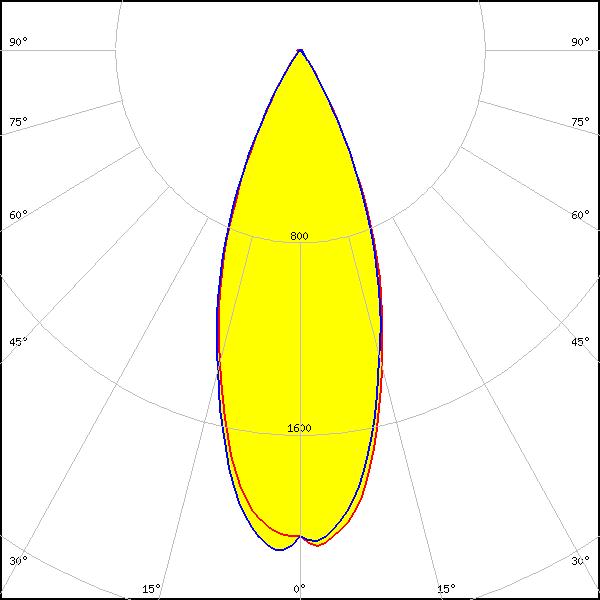

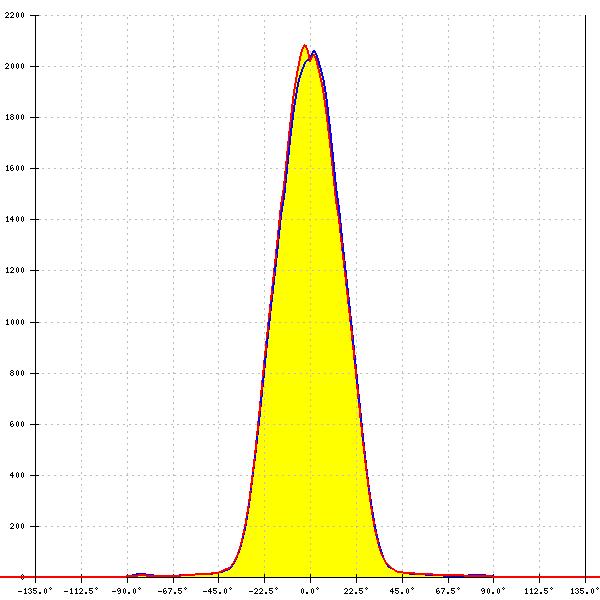

LUXEON MZ
FWHM:
39°
FWTM:
64°
Peak intensity:
2.082 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

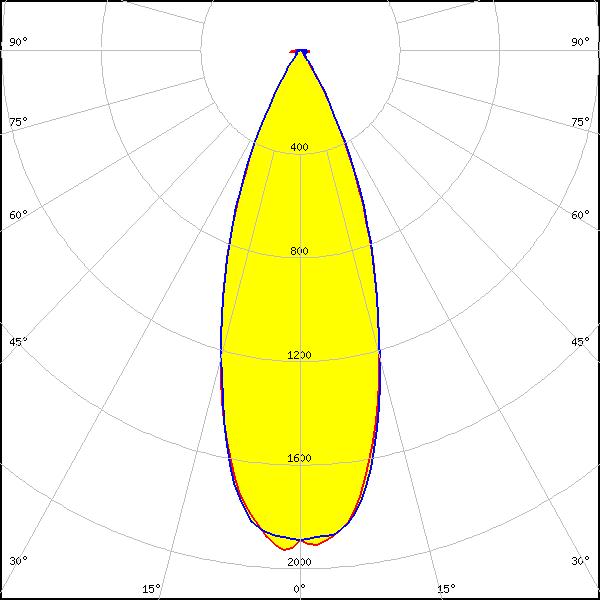

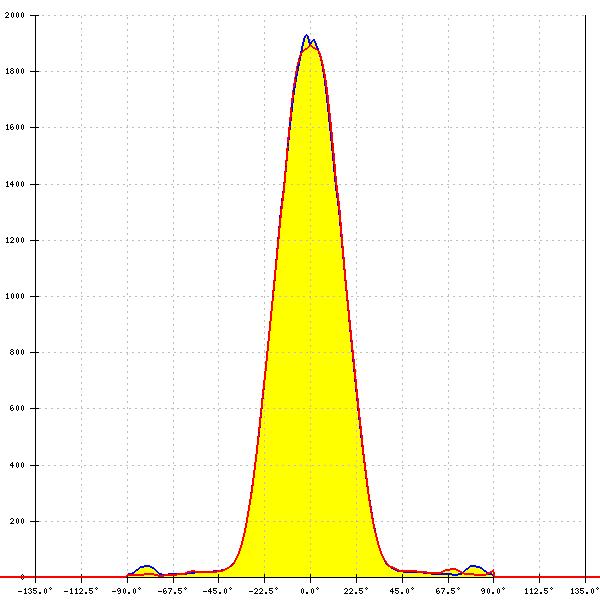

LED:

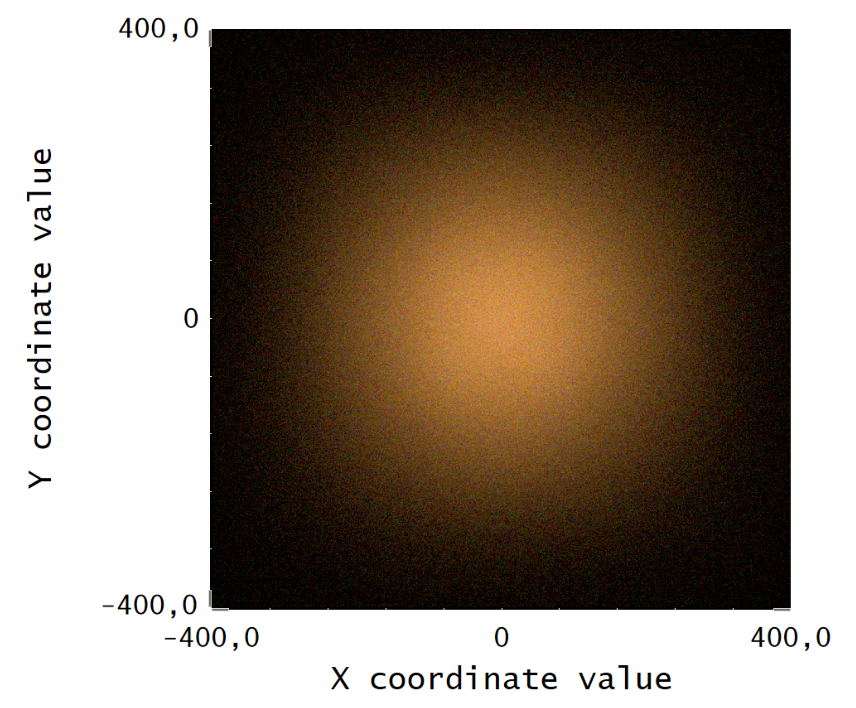

NCSxE17A
FWHM:
37°
FWTM:
62°
Peak intensity:
1.936 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
White

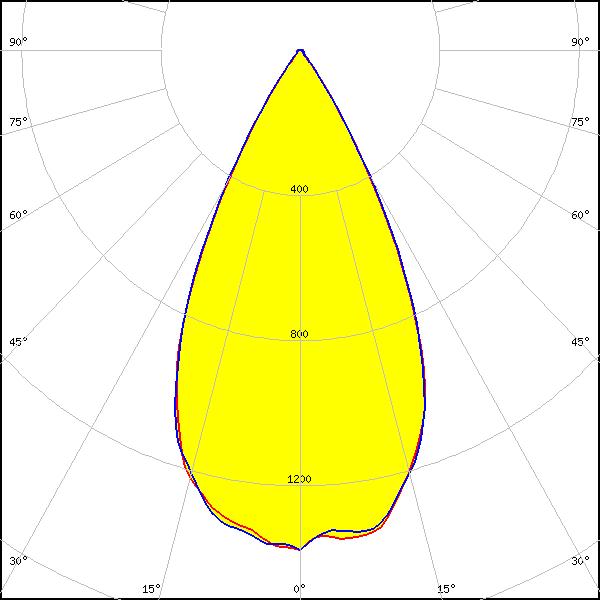

LED:
NVSW219D
FWHM:
52°
FWTM:
70°
Peak intensity:
1.401 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

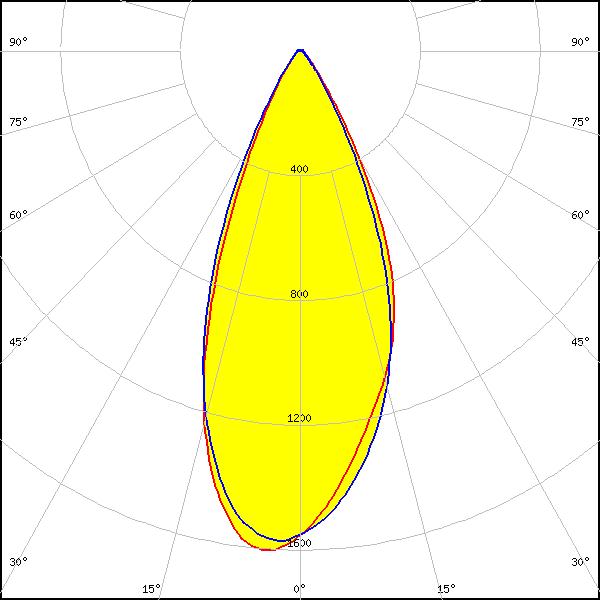

LED:

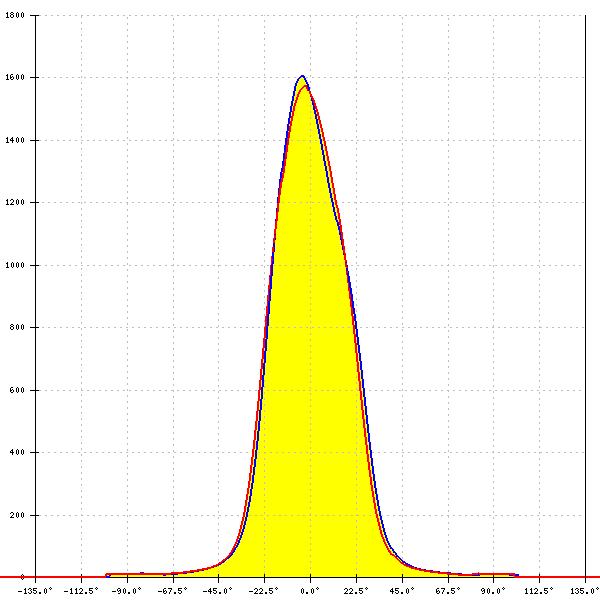

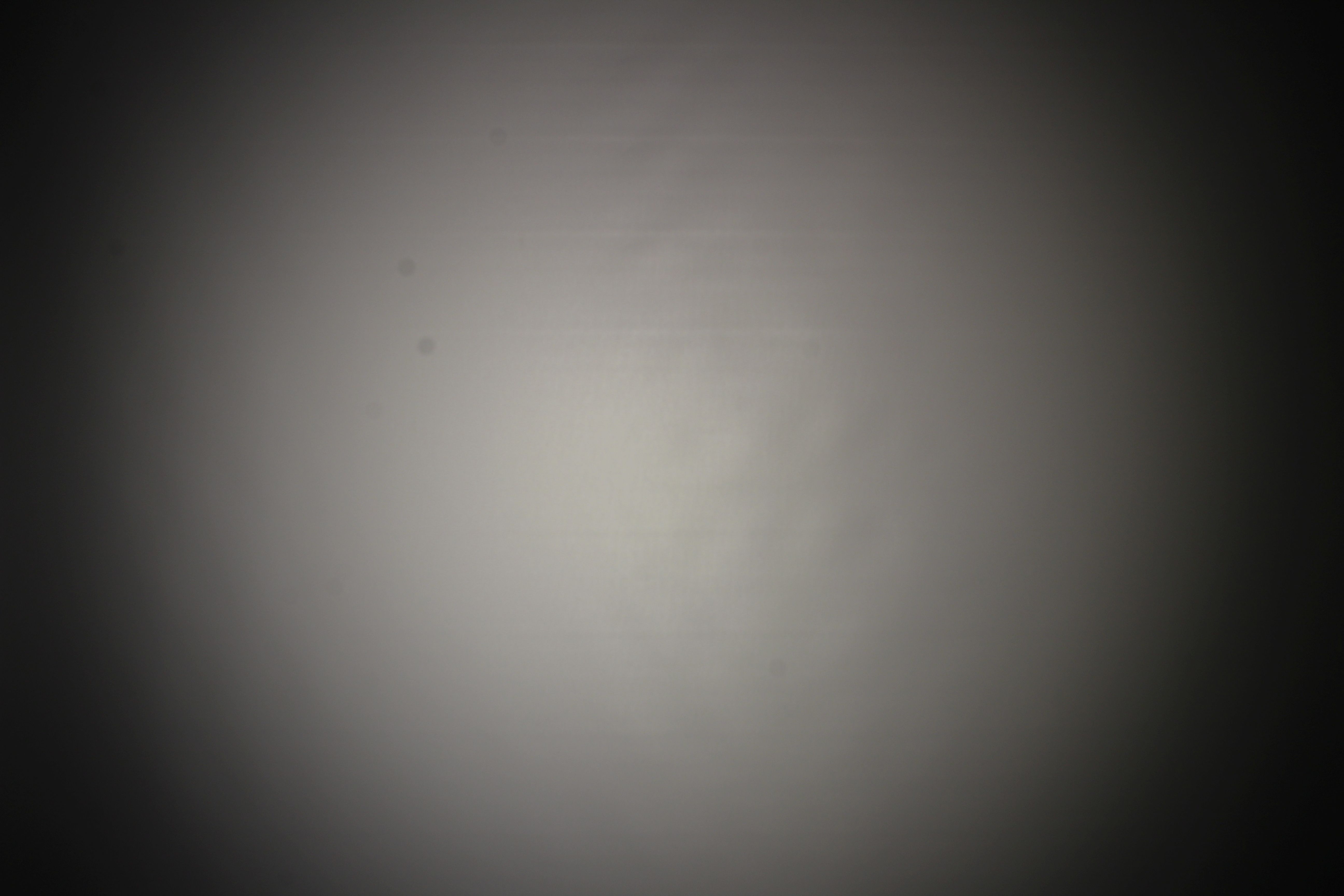

NVSW219F-V2
FWHM:
44°
FWTM:
69°
Peak intensity:
1.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

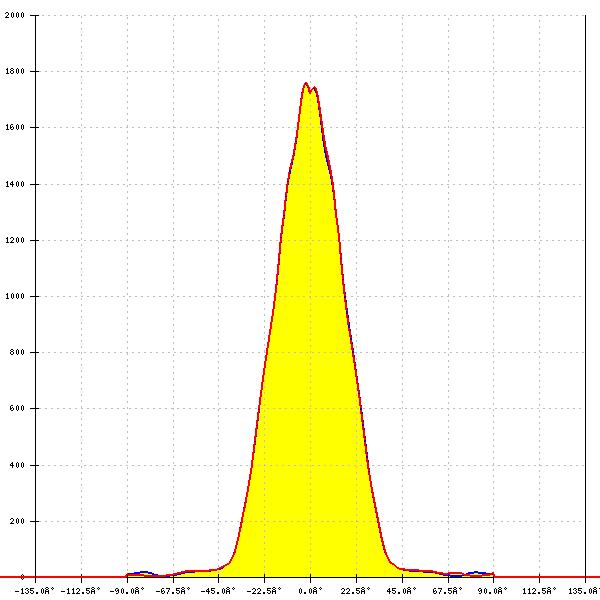

LED:
NVSxE21A
FWHM:
38°
FWTM:
68°
Peak intensity:
1.928 cd/lm
Efficiency:
96 %
LEDs/each optic:
4
Light colour/type:
White

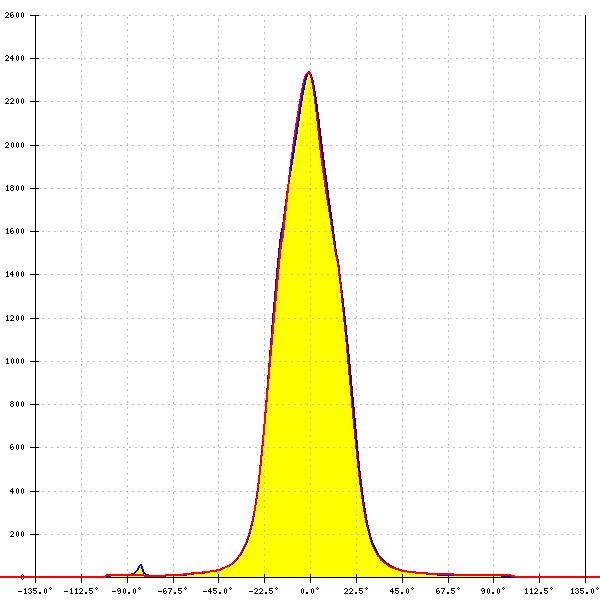

LED:

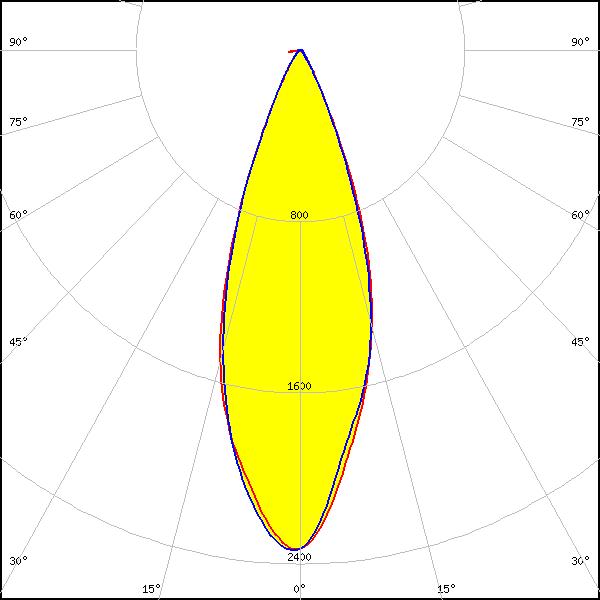

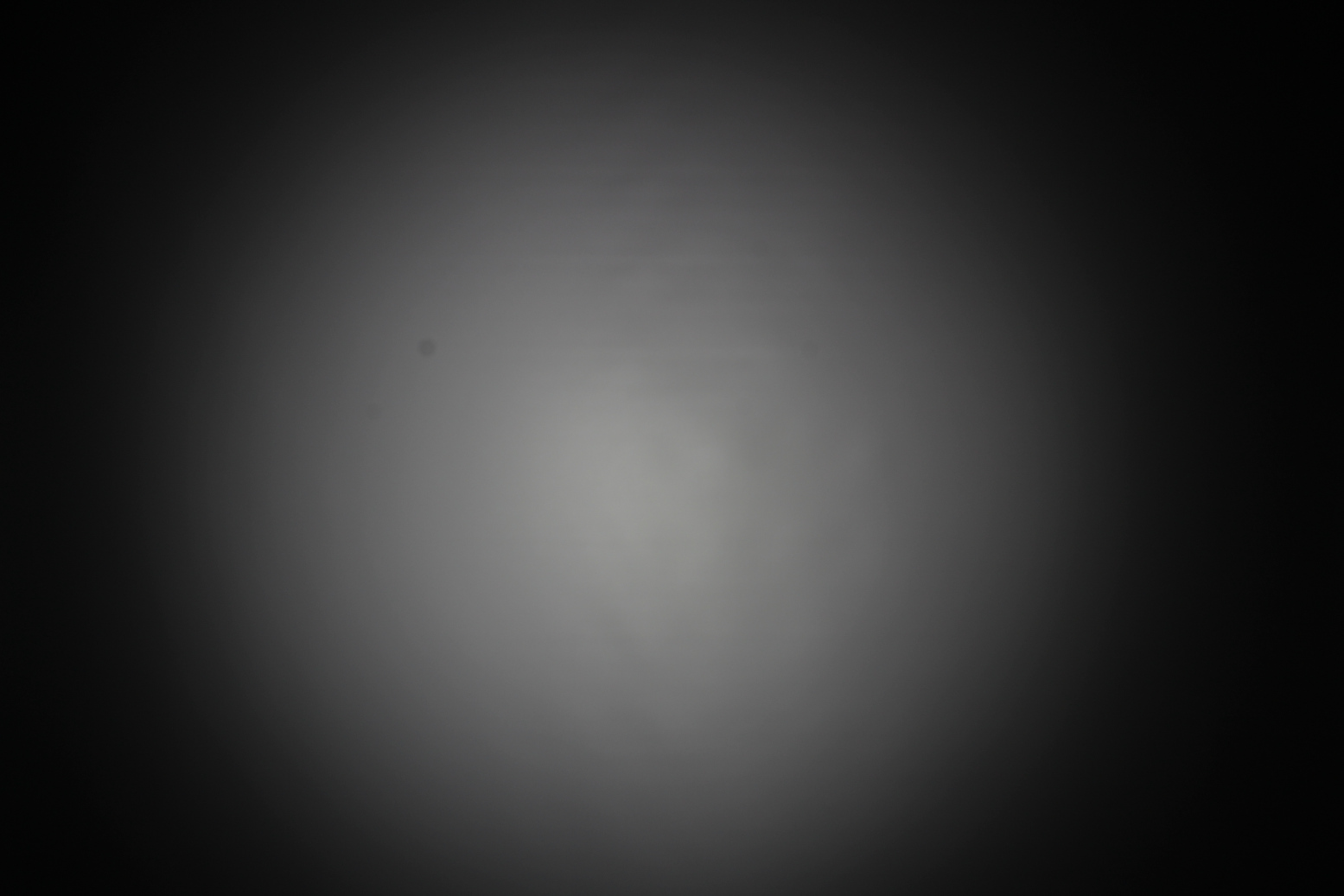

OSLON Black Flat (LUW HWQP)
FWHM:
35°
FWTM:
57°
Peak intensity:
2.300 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

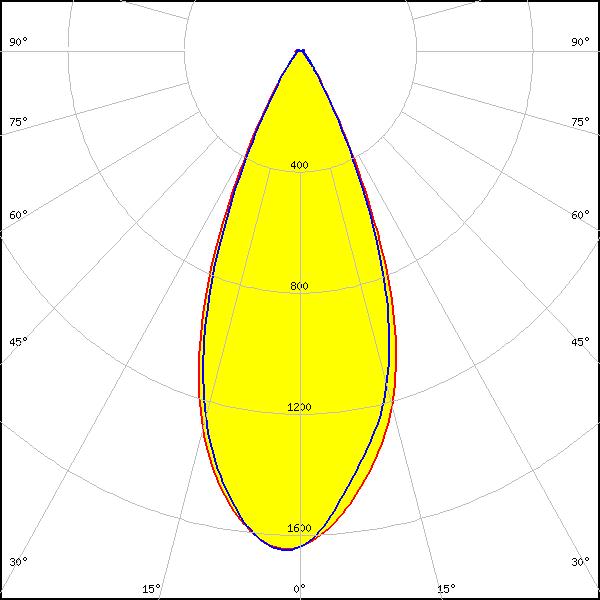

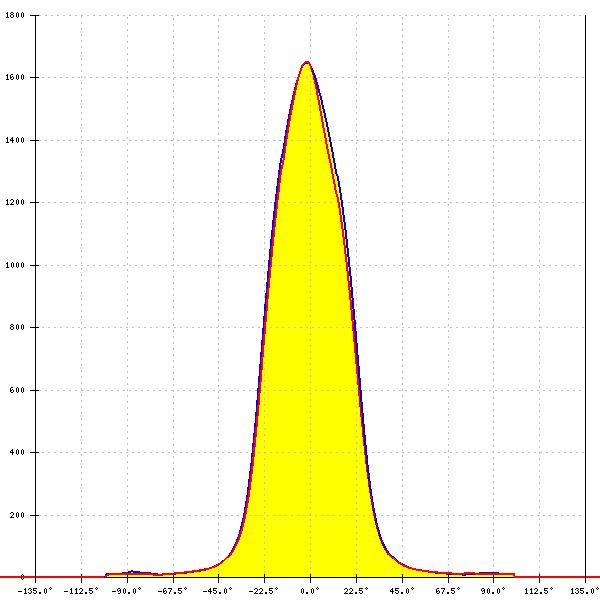

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
44°
FWTM:
67°
Peak intensity:
1.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

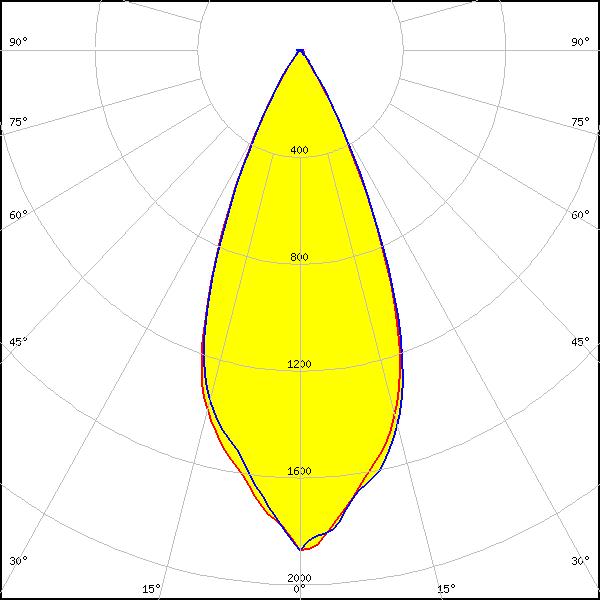

LED:

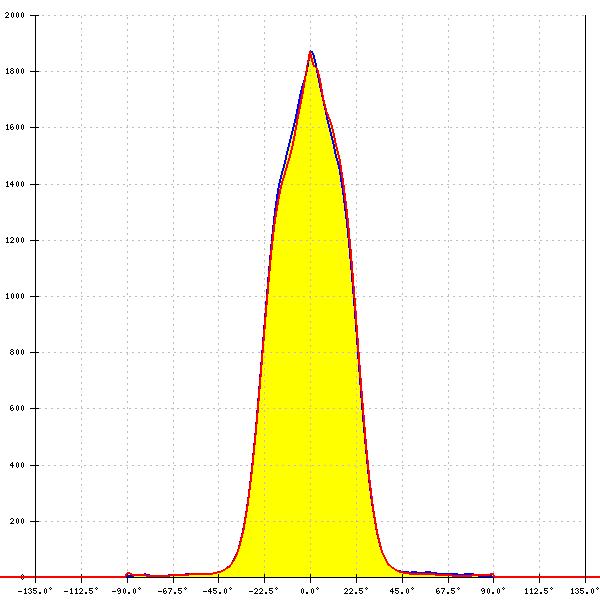

OSLON SSL 150
FWHM:
44°
FWTM:
64°
Peak intensity:
1.872 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

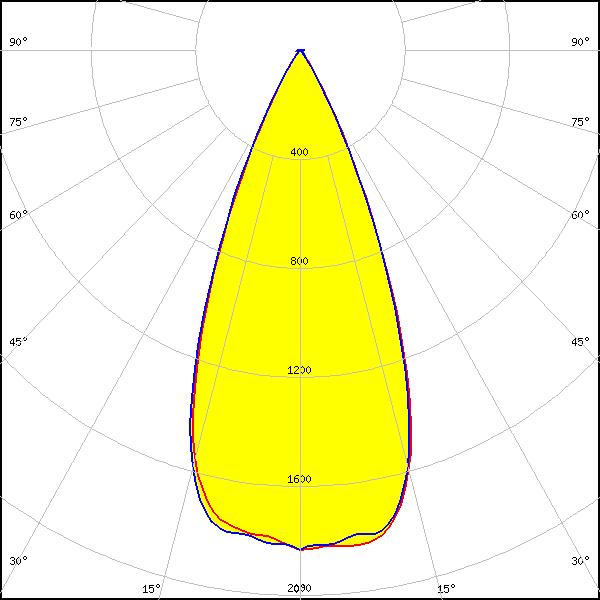

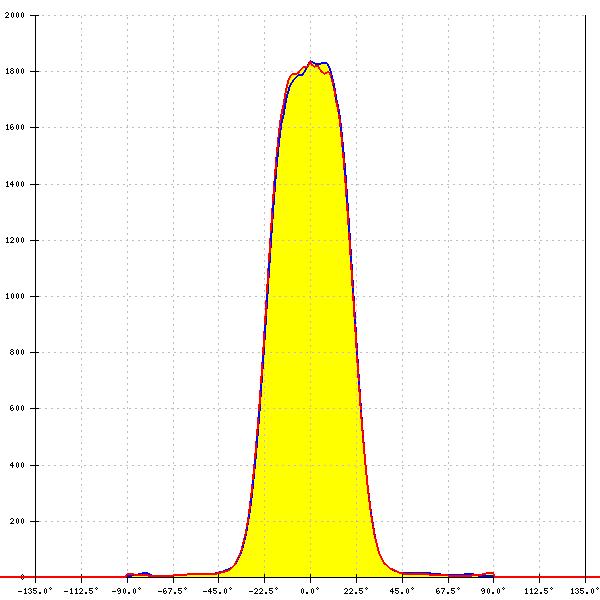

LED:
OSLON SSL 80
FWHM:
44°
FWTM:
62°
Peak intensity:
1.849 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4716AS
FWHM:
35°
FWTM:
58°
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
IR
LED:

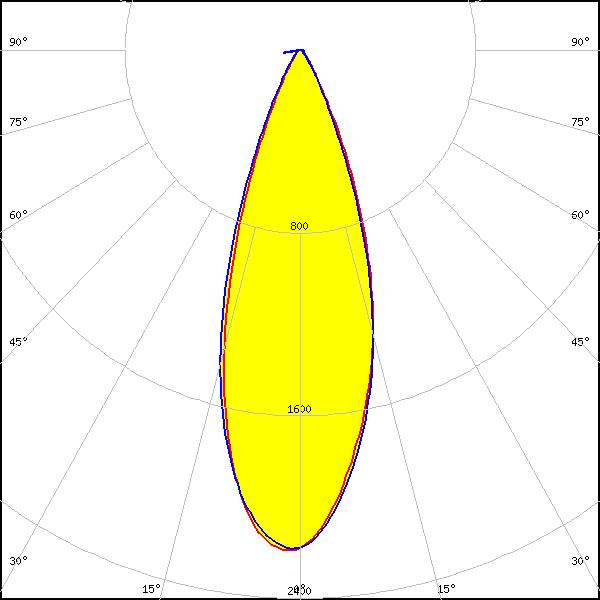

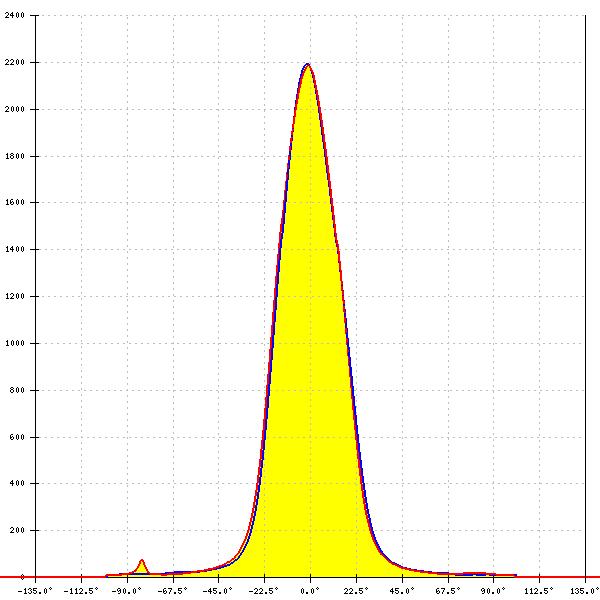

LH181B
FWHM:
35°
FWTM:
59°
Peak intensity:
2.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

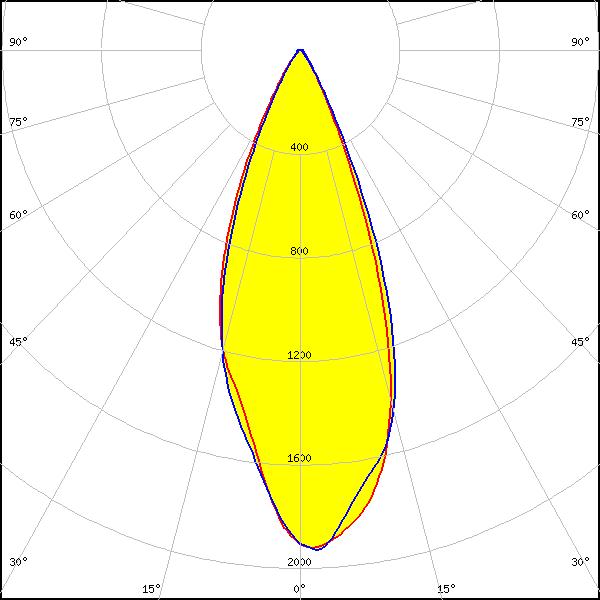

LED:

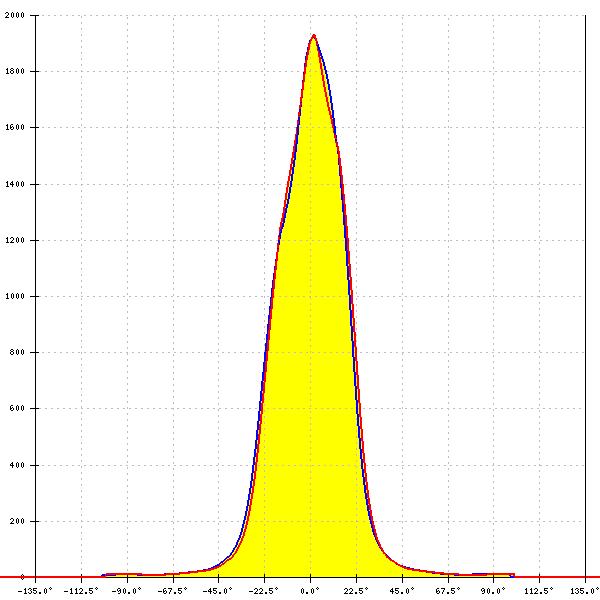

nPola
FWHM:
50°
FWTM:
85°
Peak intensity:
1.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

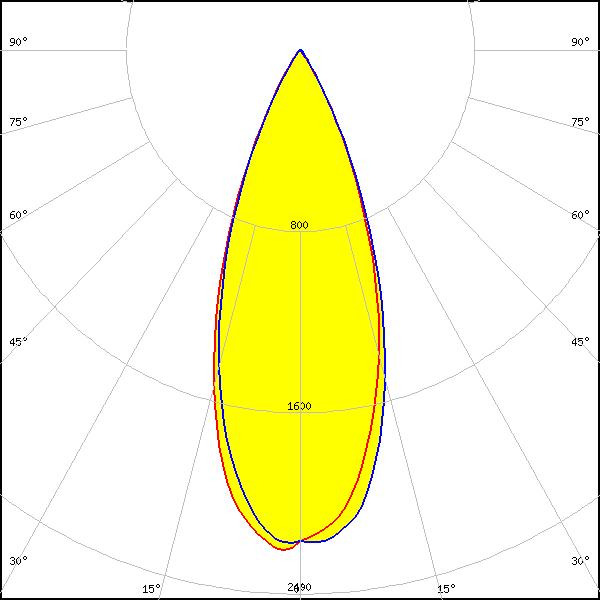

LED:

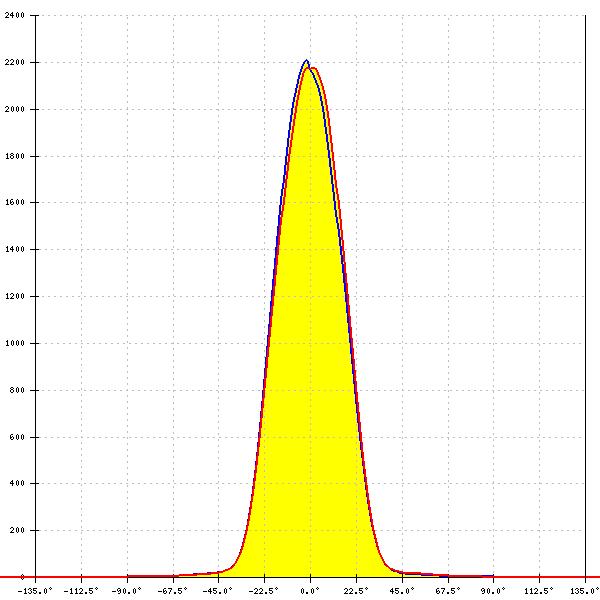

Z5M4
FWHM:
39°
FWTM:
62°
Peak intensity:
2.226 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

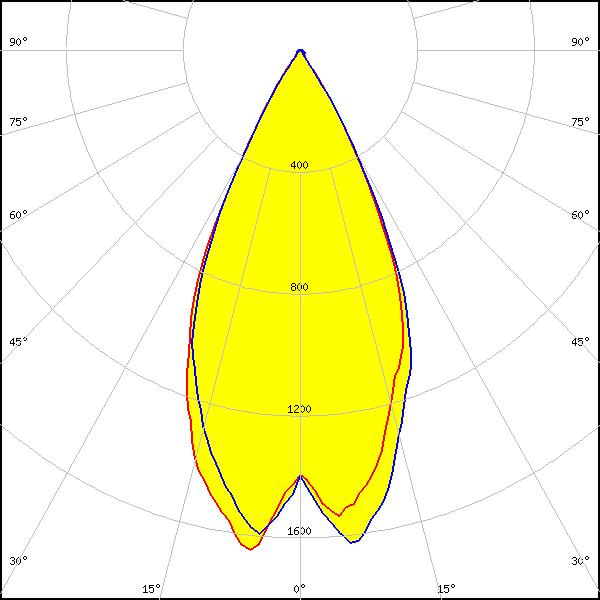

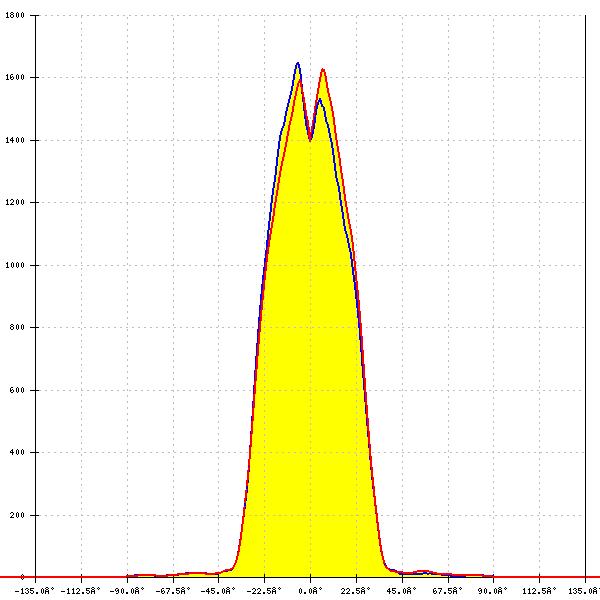

LED:

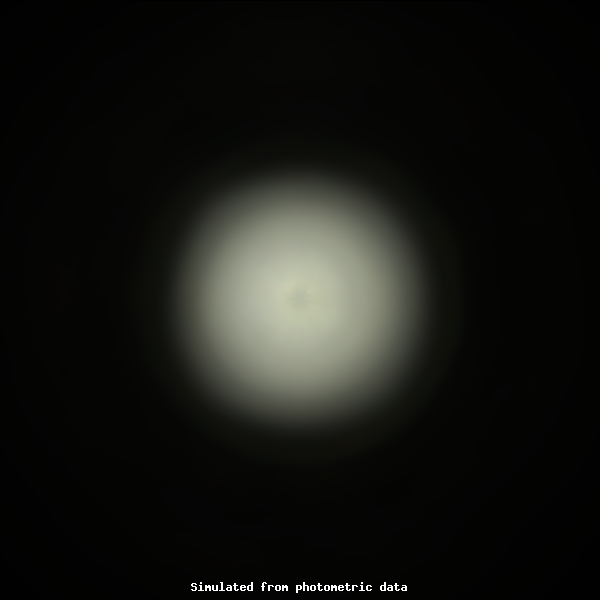

Z5M4-E1
FWHM:
49°
FWTM:
66°
Peak intensity:
1.739 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

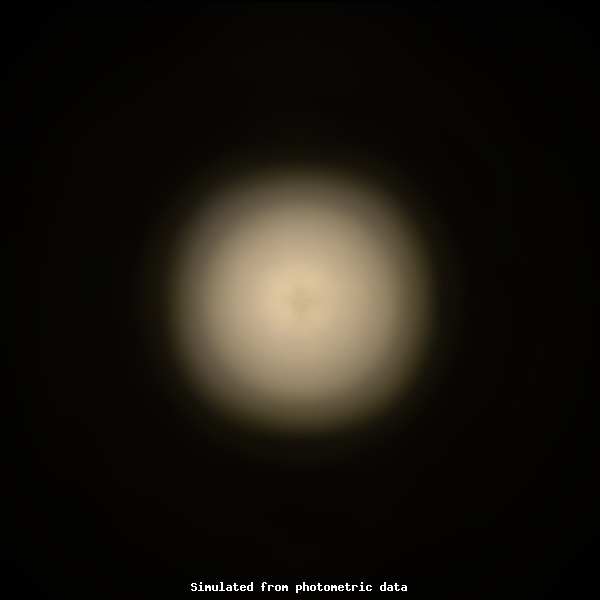

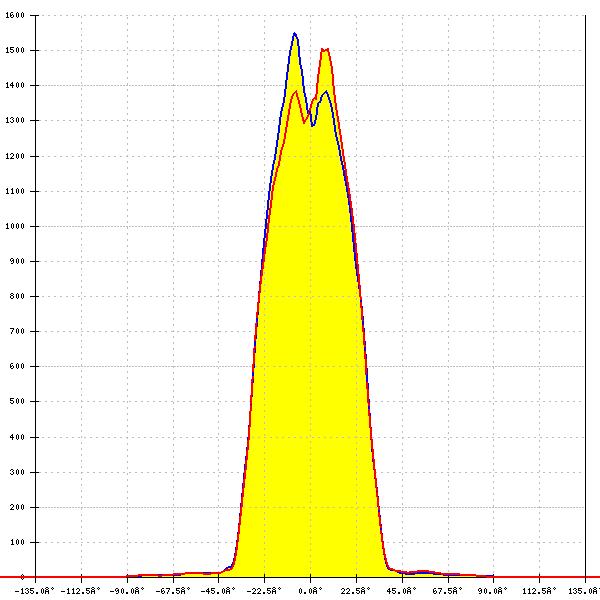

LED:

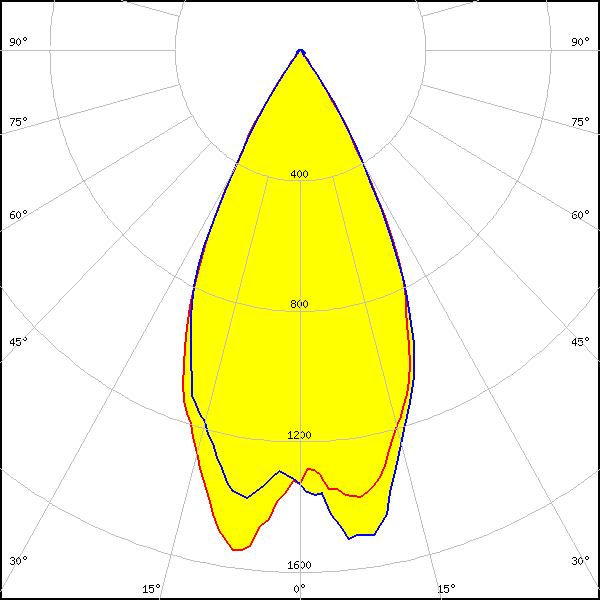

Z5M4-E2
FWHM:
50° + 51°
FWTM:
70° + 70°
Peak intensity:
1.596 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
