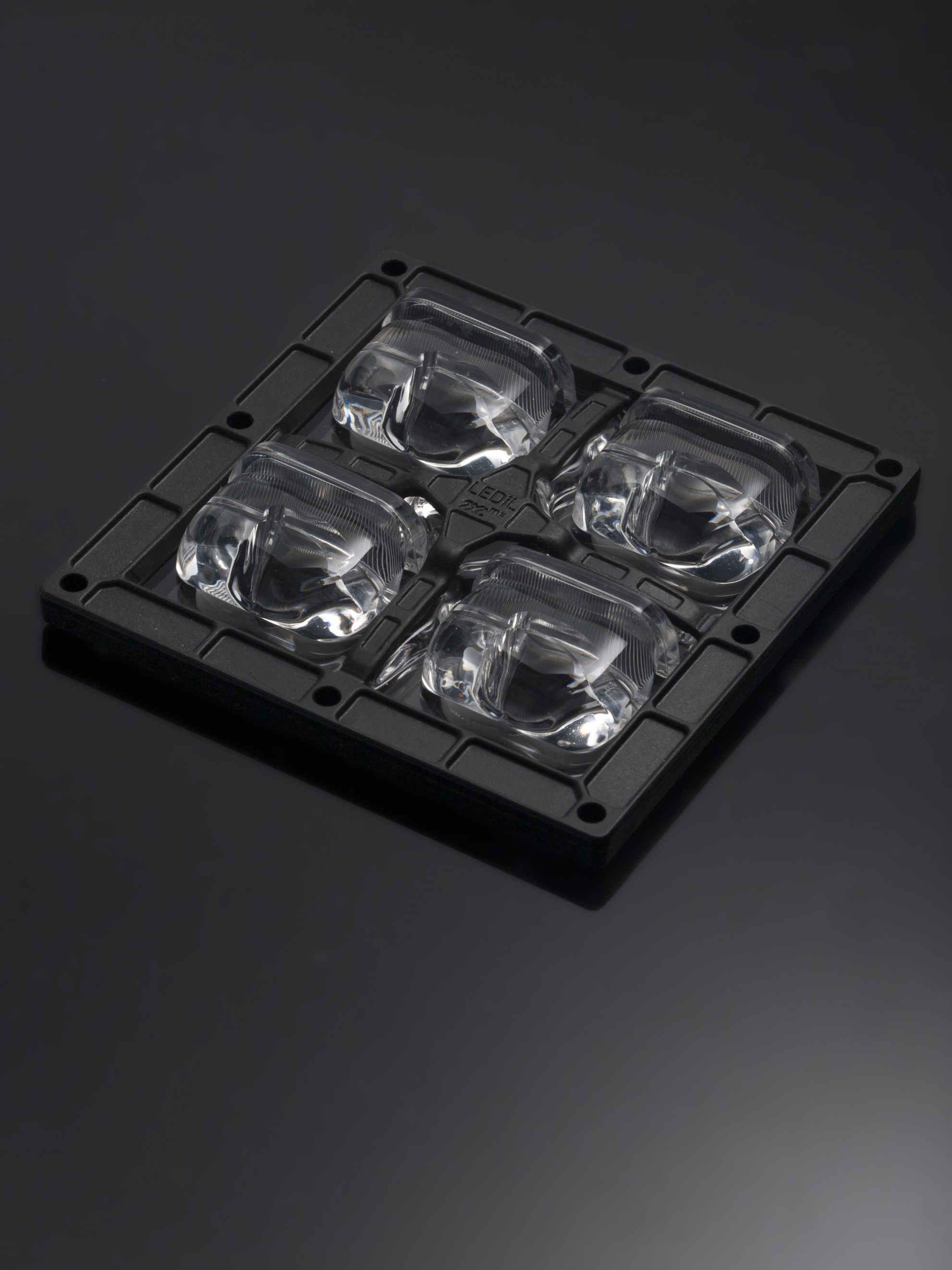

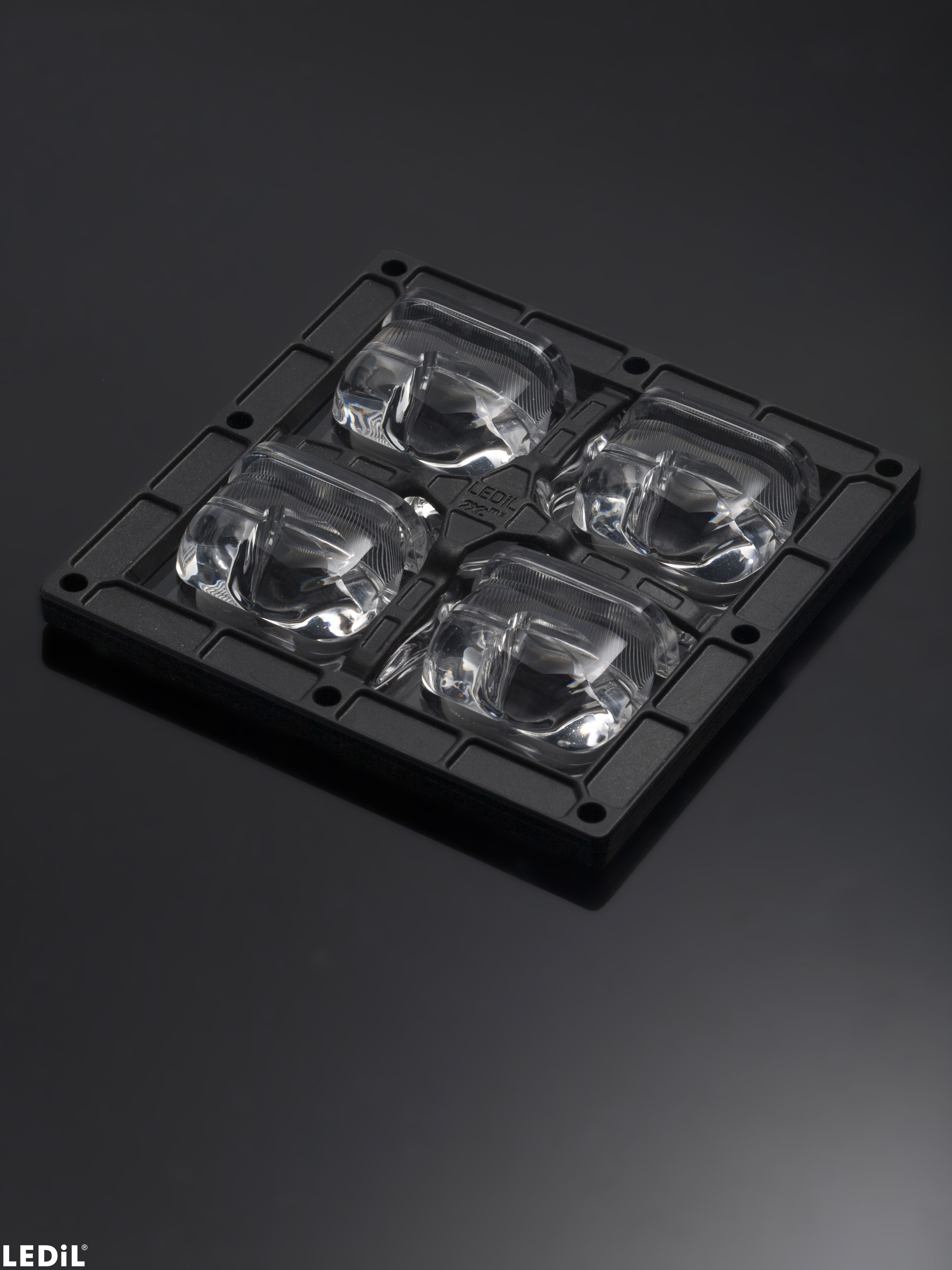

FP15752_STRADA-2X2MXS-T3

Print

IESNA Type III (medium) beam for roads that are equal to or wider than mounting height.

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    14.83 mm
  • Fastening:
    screw
  • Colour:
    black
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    192 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    10.2 kg
  • MPQ:
    12 pcs
  • MOQ:
    24 pcs
  • MOQ size:
    480 x 280 x 50 mm
  • MOQ weight:
    1.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FP15752_STRADA-2X2MXS-T3

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

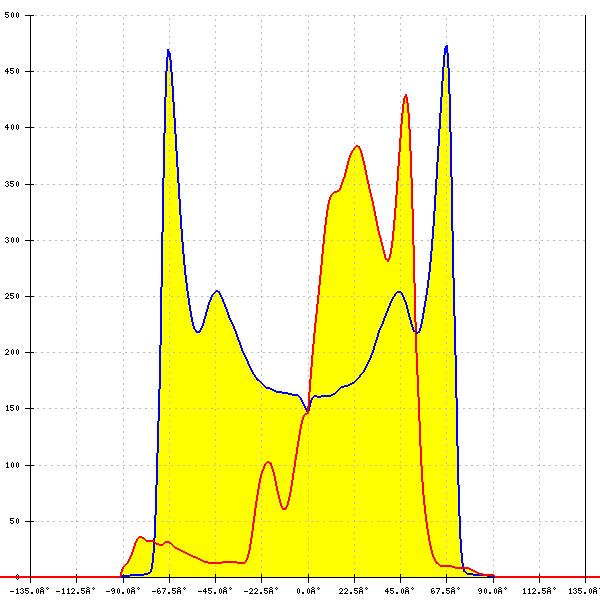

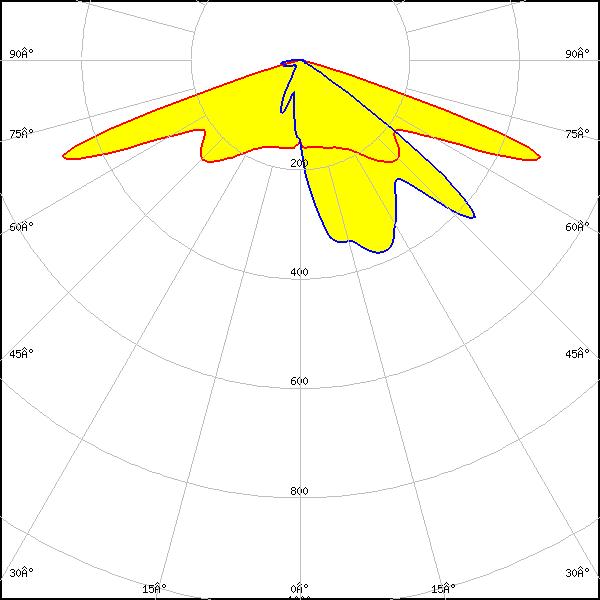

Optical results

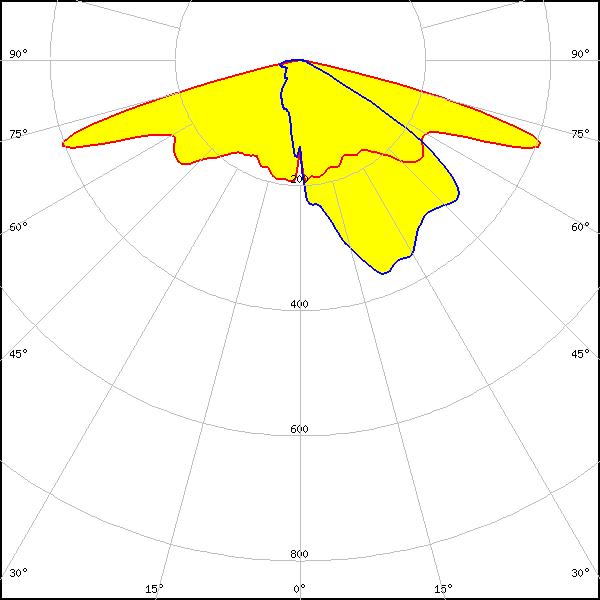

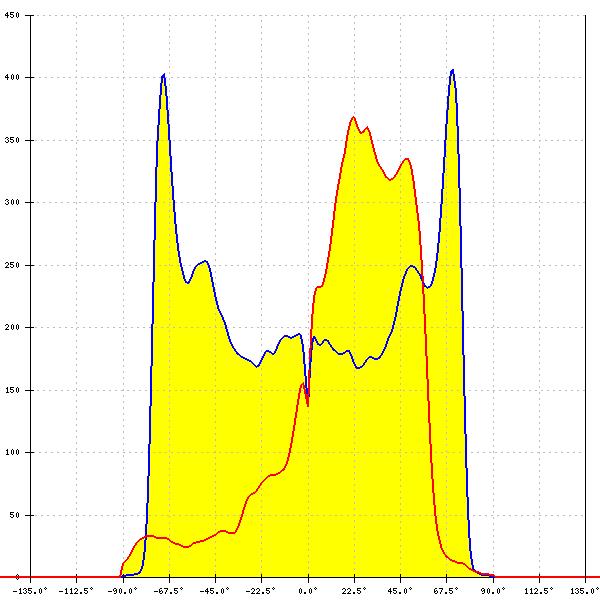

LED: Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

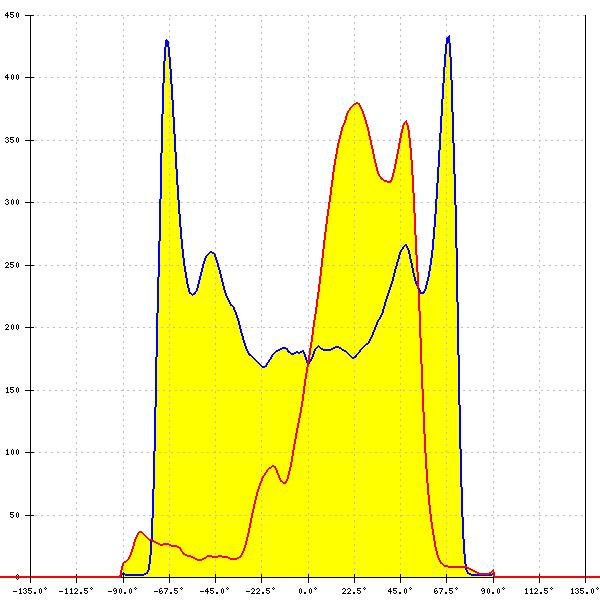

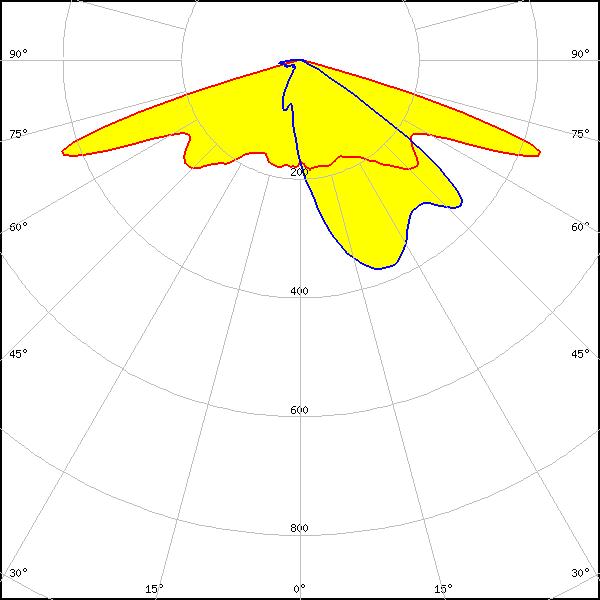

LED: V3 HD Gen 8
Required components:
Bender Wirth: 460 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity: 0.828 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

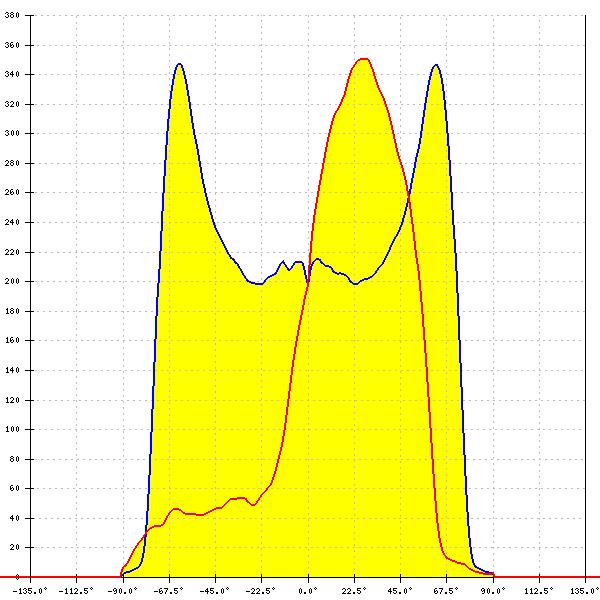

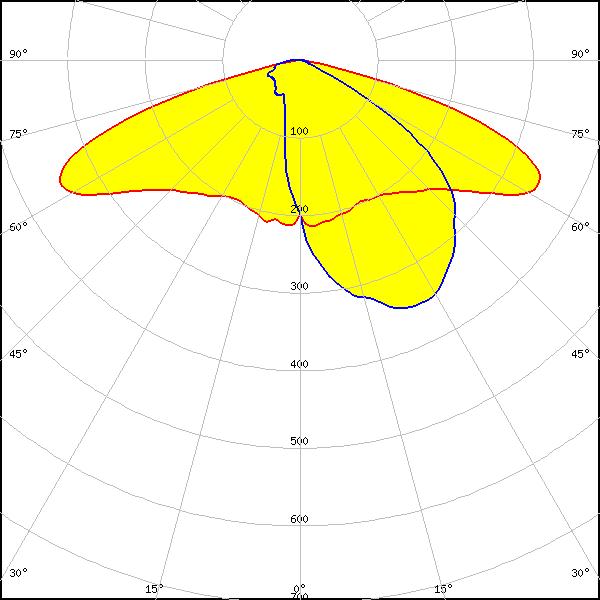

LED: CLL02x/CLU02x (LES10)
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity: 0.491 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

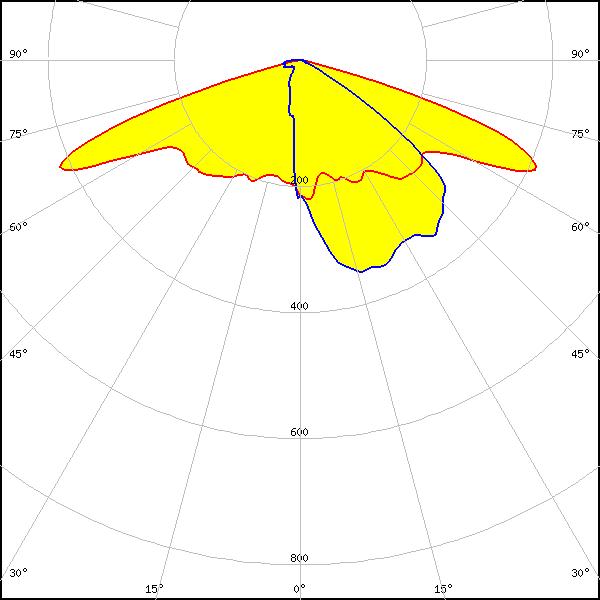

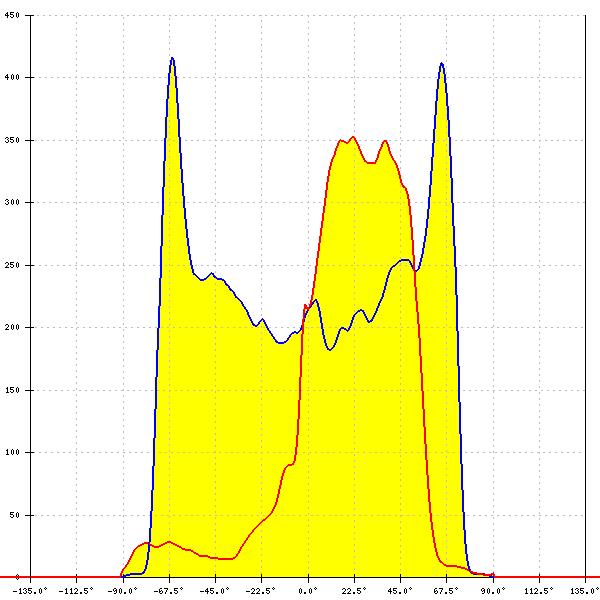

LED: CLU700/701/702/703
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

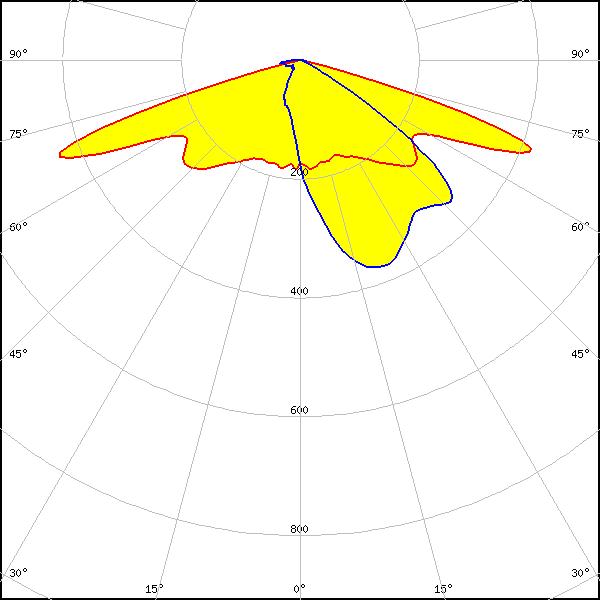

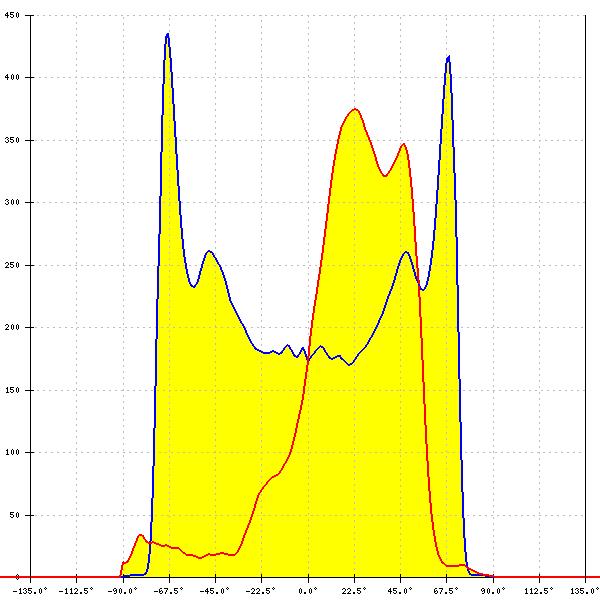

LED: CMA1303
Required components:
Bender Wirth: 448 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity: 0.785 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

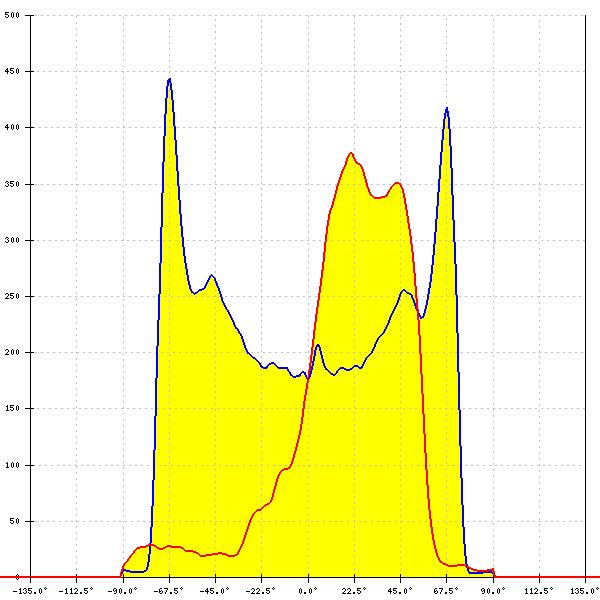

LED: MHB-A/B
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

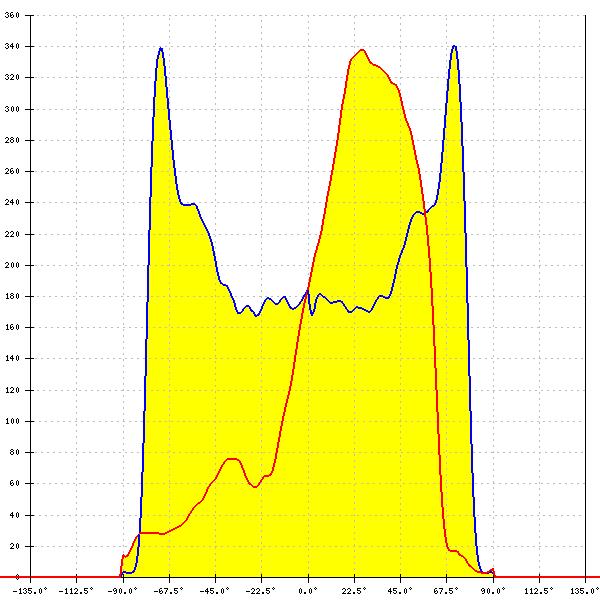

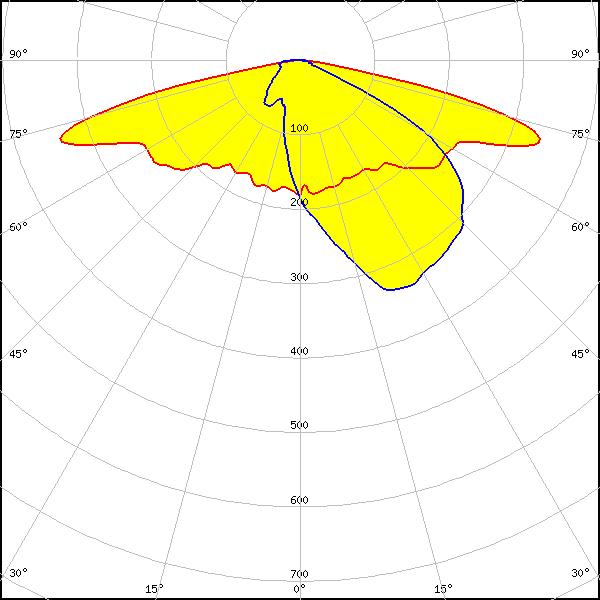

LED: MHD-E/G
FWHM: asymmetric
Peak intensity: 0.516 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

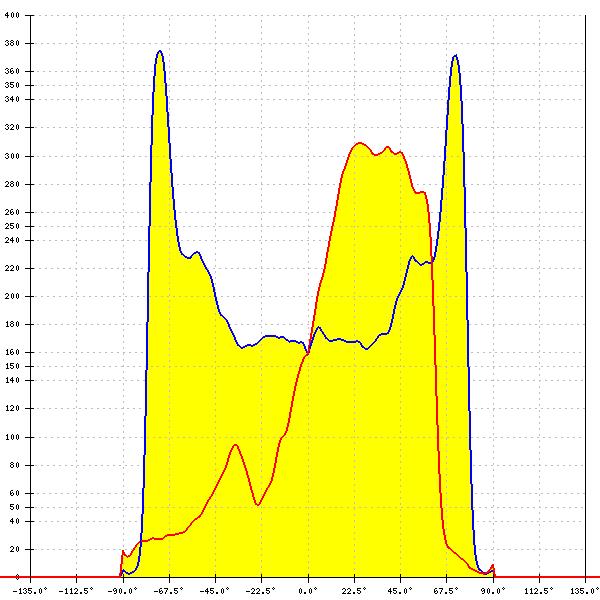

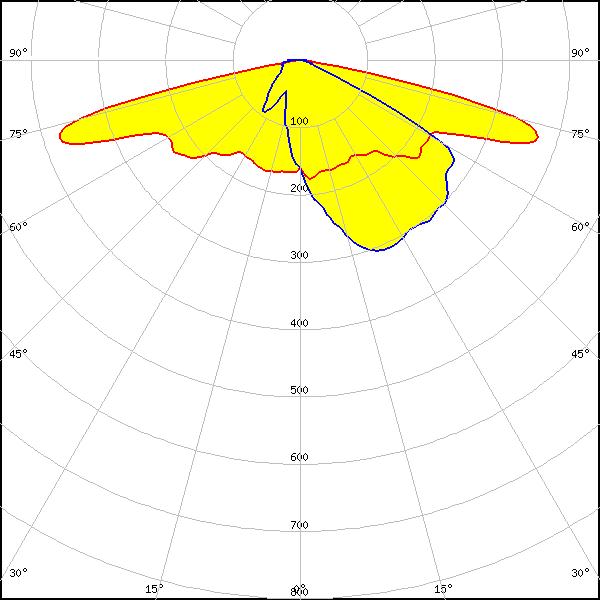

LED: XHP70
FWHM: asymmetric
Peak intensity: 0.591 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

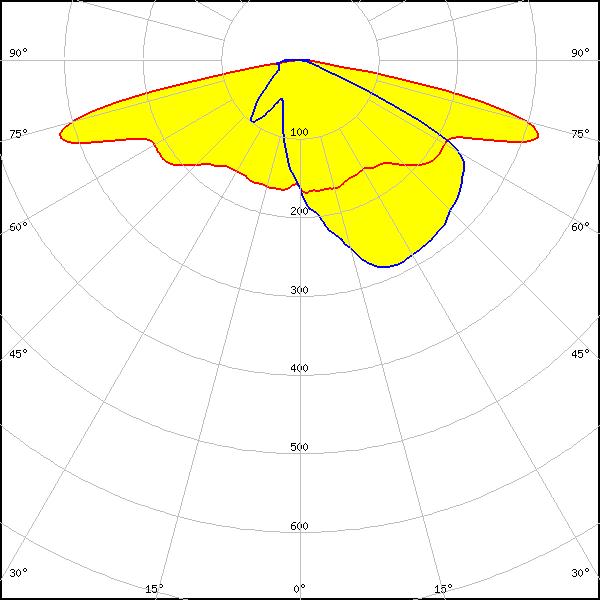

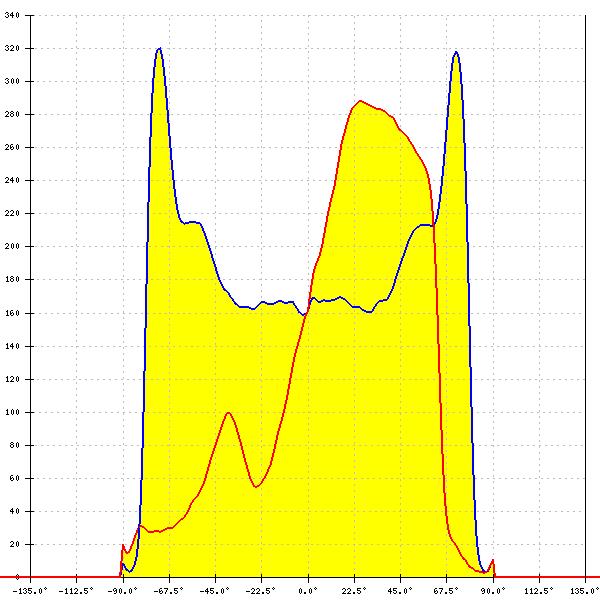

LED: XHP70.2
FWHM: asymmetric
Peak intensity: 0.477 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

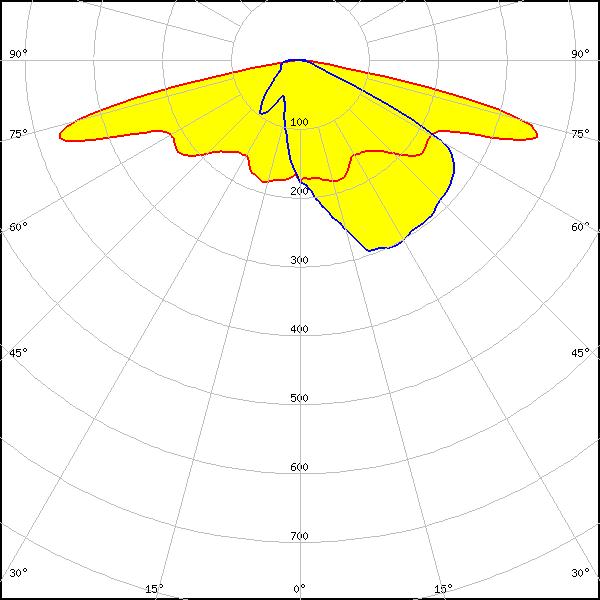

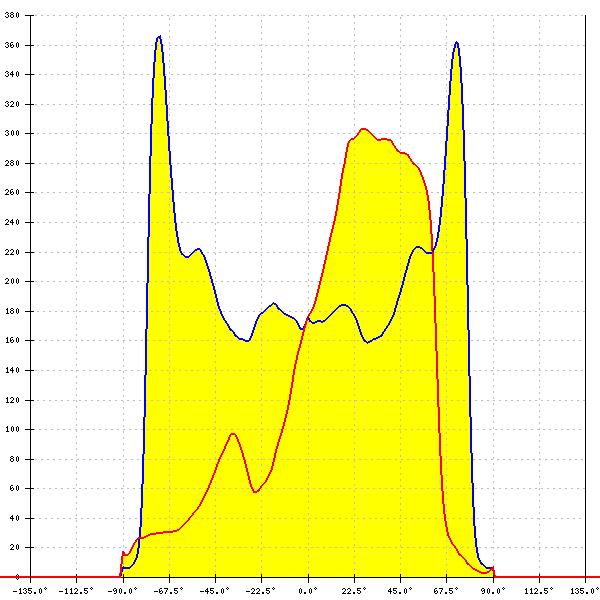

LED: XHP70.3 HD
FWHM: asymmetric
Peak intensity: 0.559 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

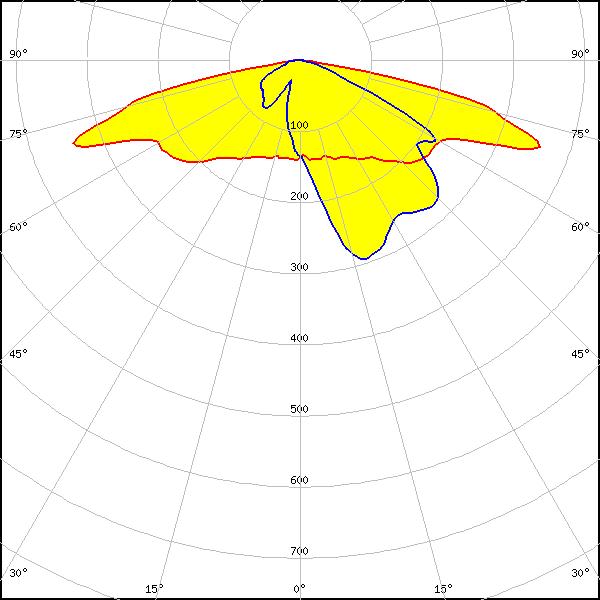

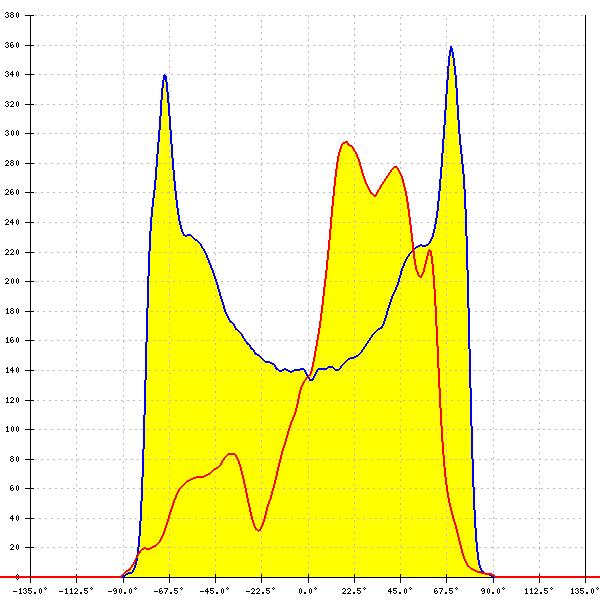

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour/type: White

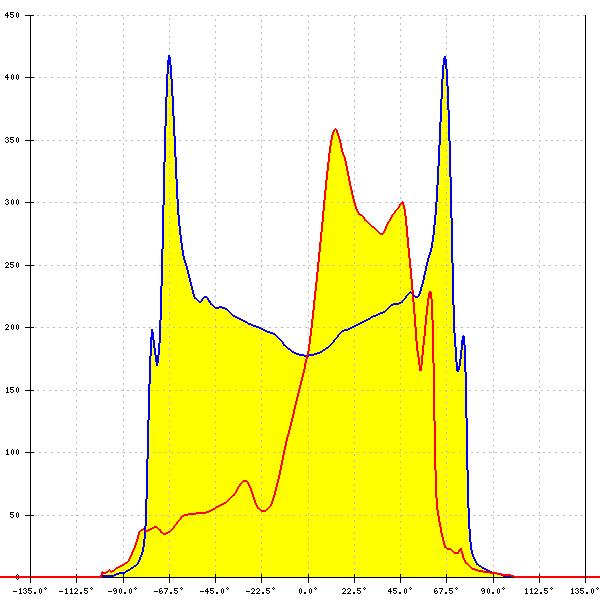

LED: XT-E HE
FWHM: asymmetric
Peak intensity: 0.684 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

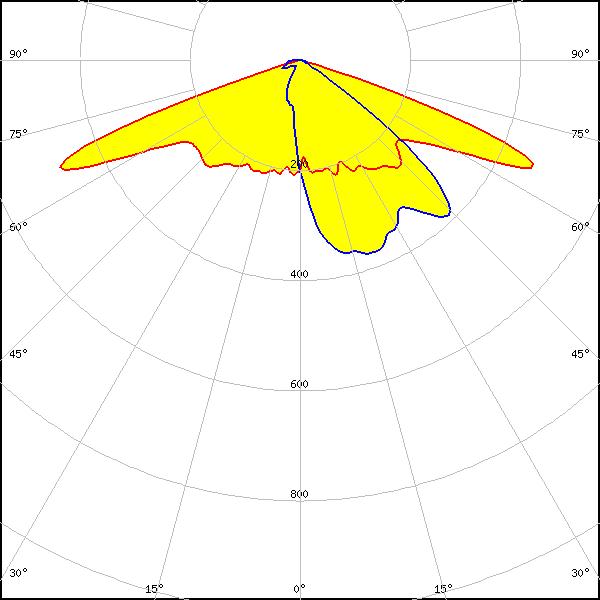

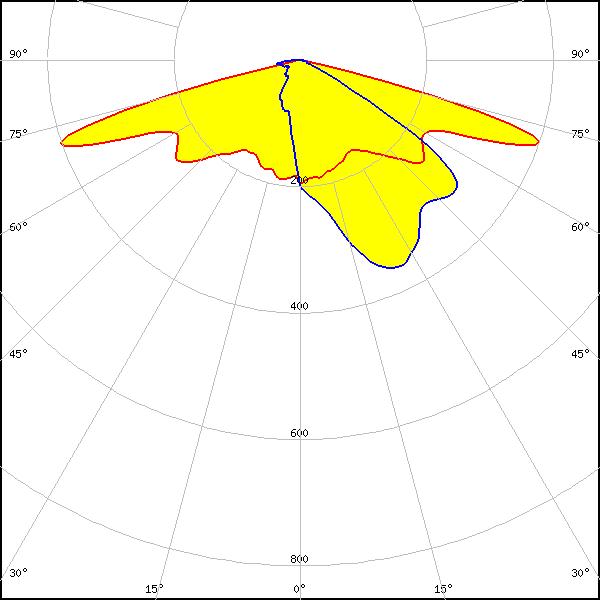

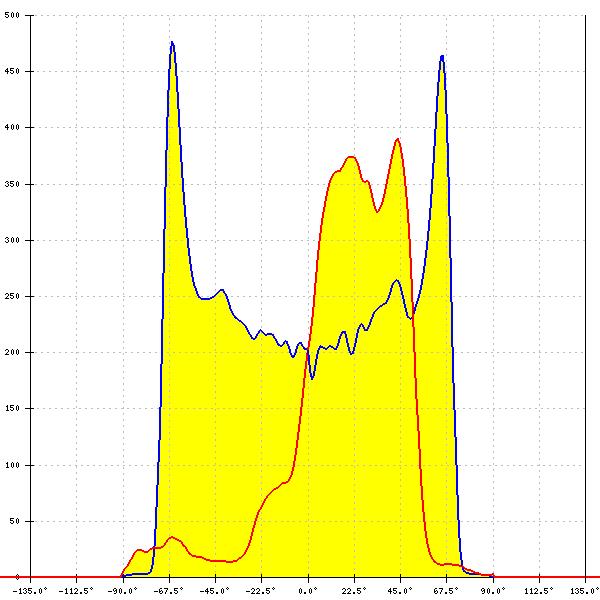

LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.713 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

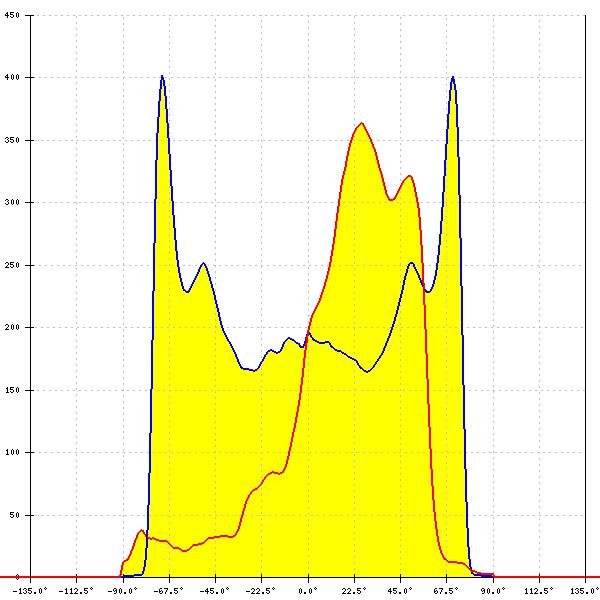

LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.890 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

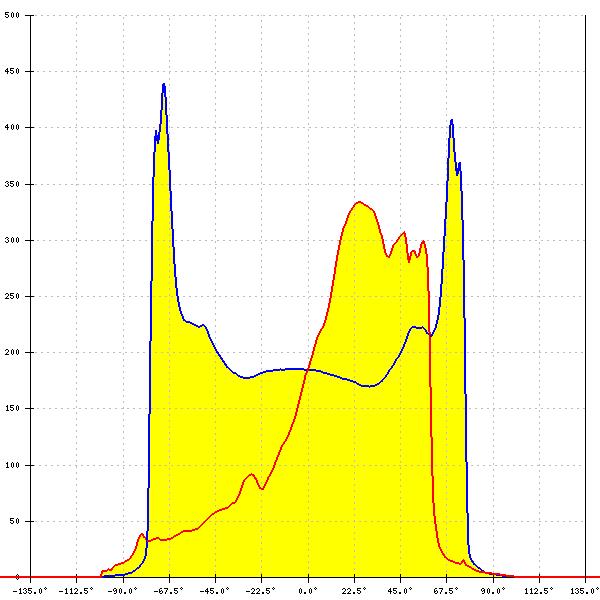

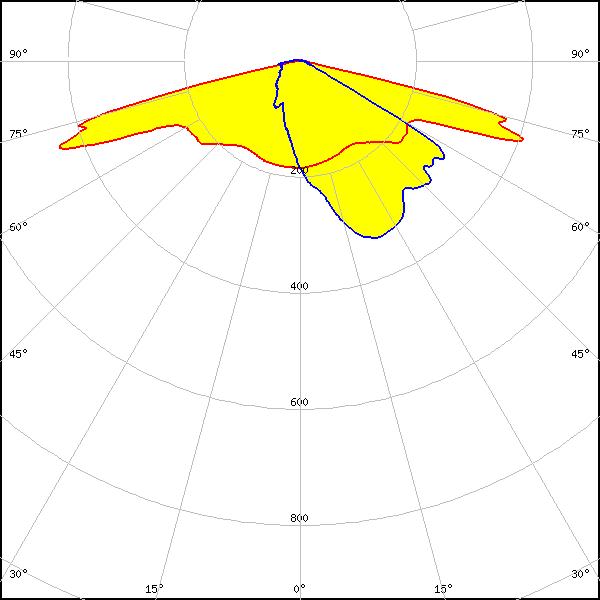

LED: LUXEON M/MX
FWHM: asymmetric
Peak intensity: 0.860 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

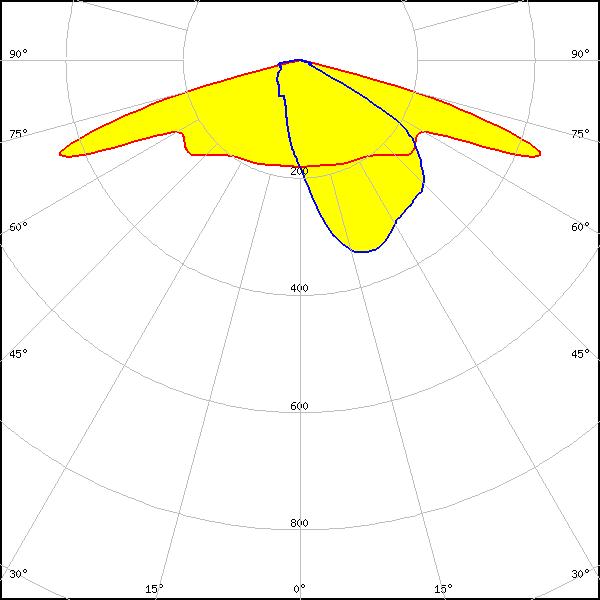

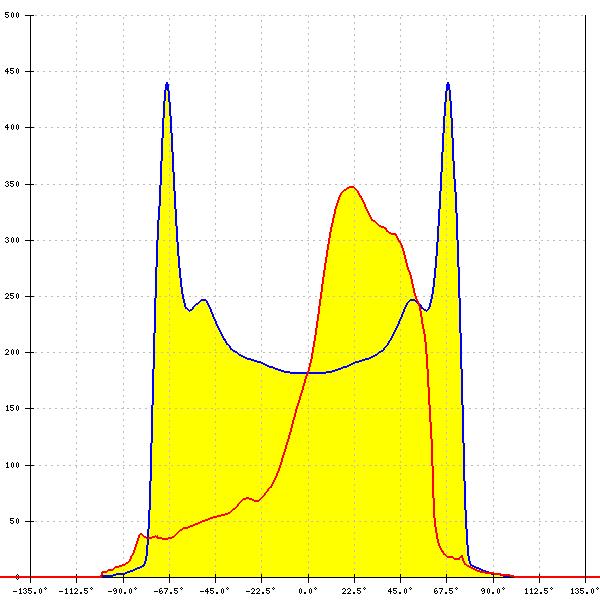

LED: LUXEON XR-7070 (L224-xxxx004MLU010)
FWHM: asymmetric
Peak intensity: 0.769 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

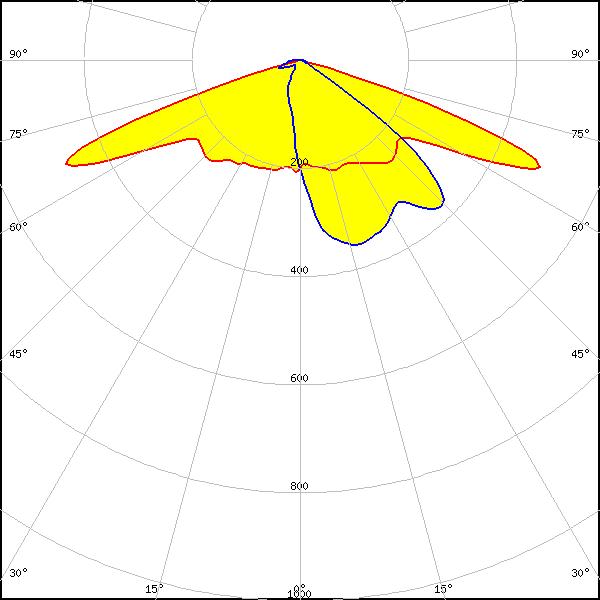

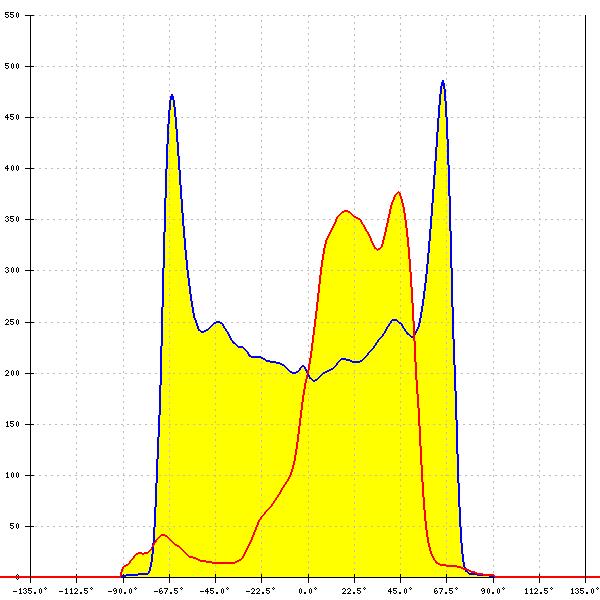

LED: NFMW48xA
FWHM: asymmetric
Peak intensity: 0.860 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

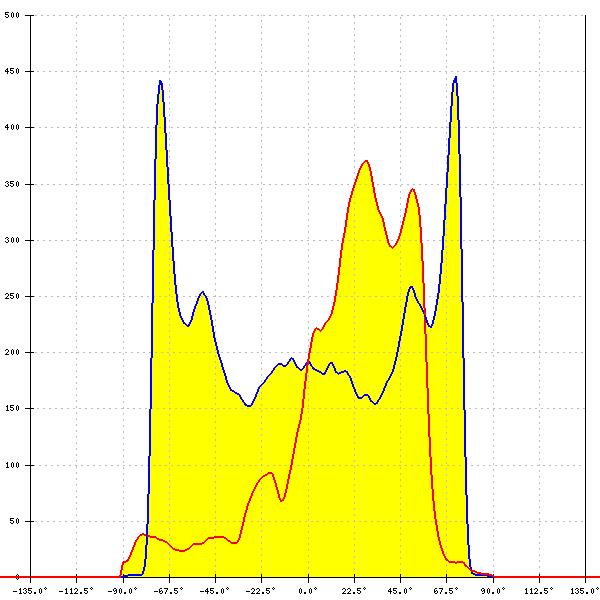

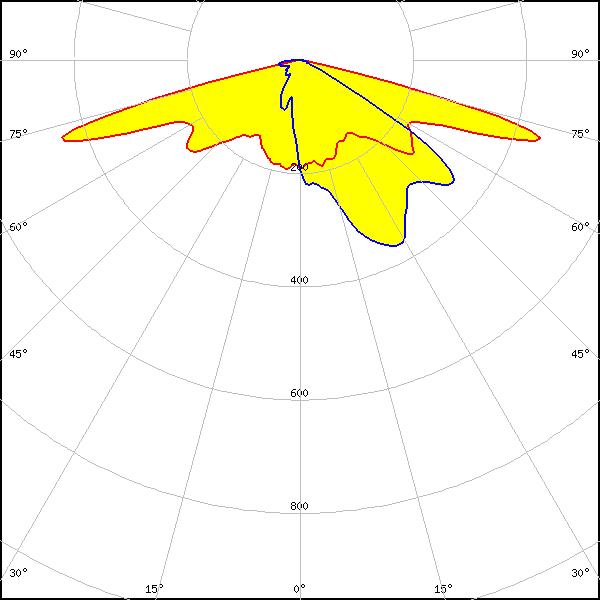

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.821 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

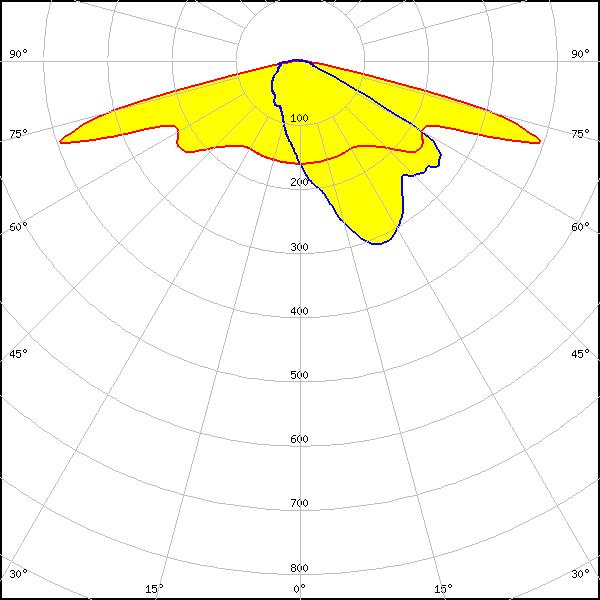

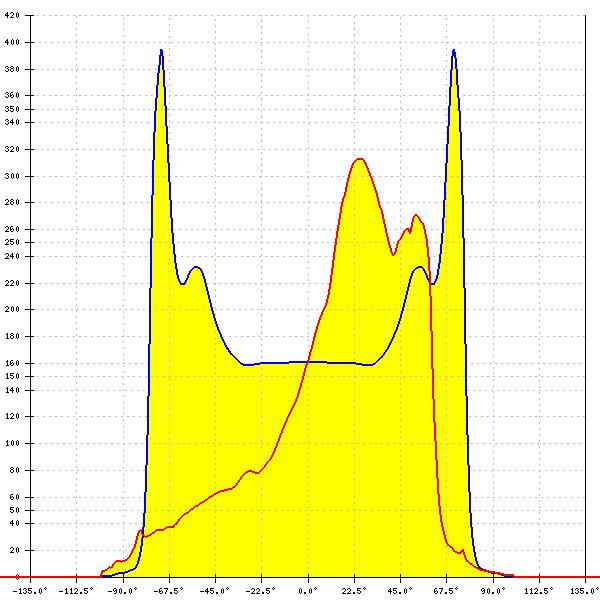

LED: NV4x144A
FWHM: asymmetric
Peak intensity: 0.827 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

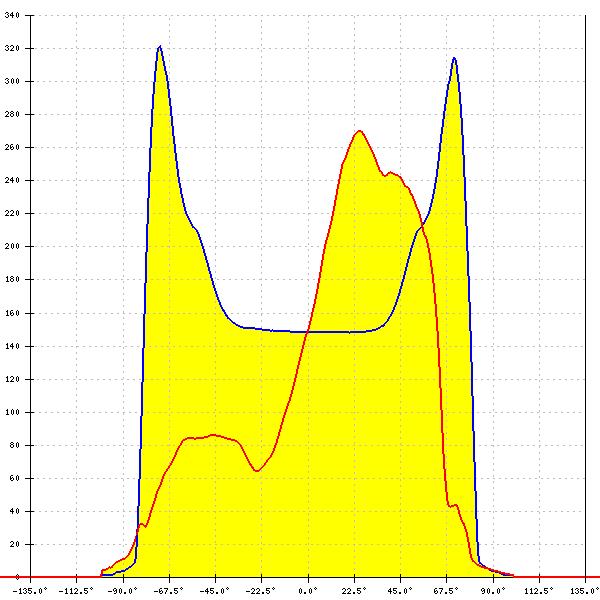

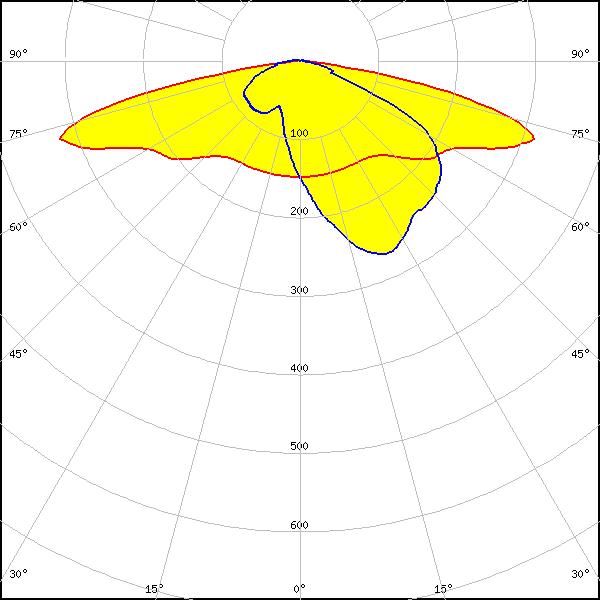

LED: NV9W149AM
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ C 2424
FWHM: asymmetric
Peak intensity: 0.708 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: White

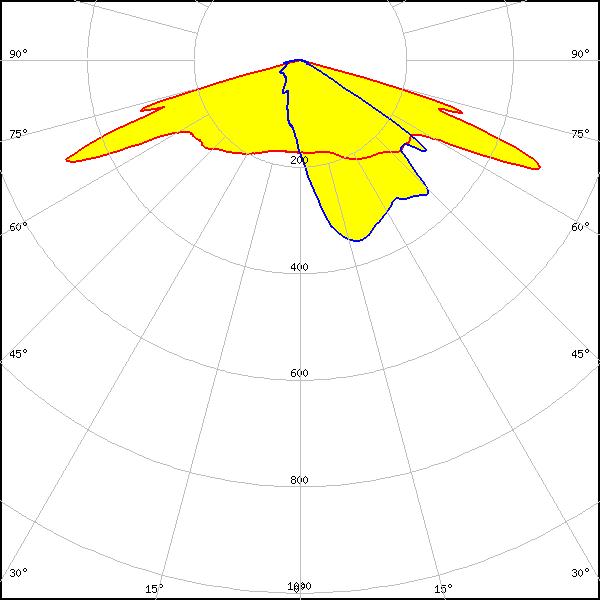

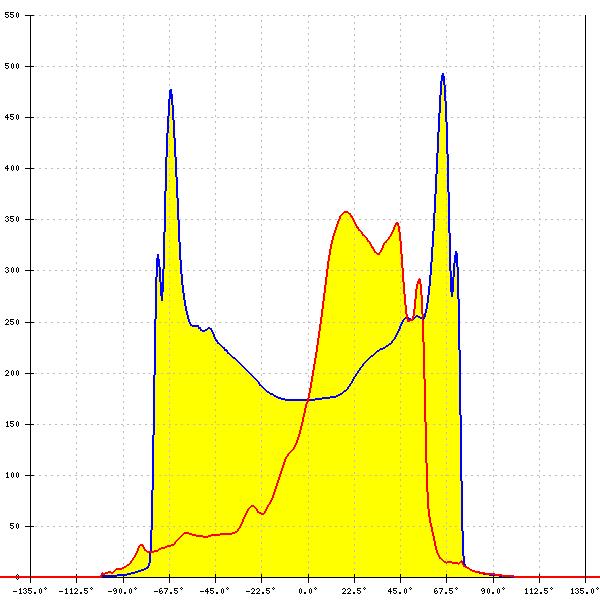

LED: HiLOM SC16 (LH181B)
FWHM: asymmetric
Peak intensity: 0.970 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

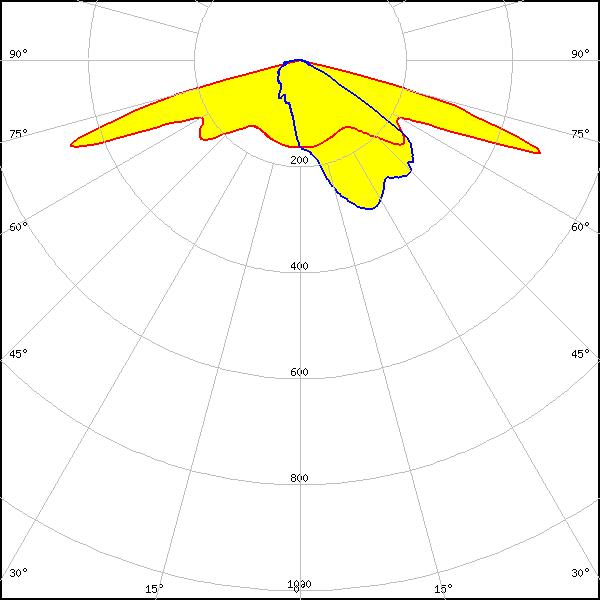

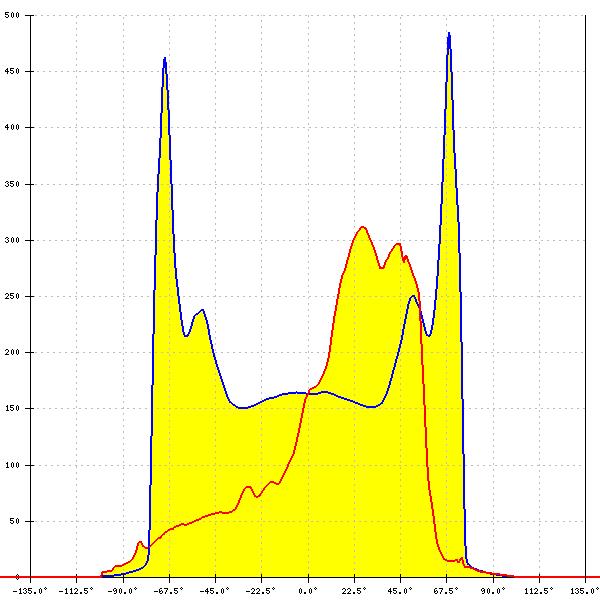

LED: XLE-S22C4XD16 (XD16)
FWHM: asymmetric
Peak intensity: 1.040 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

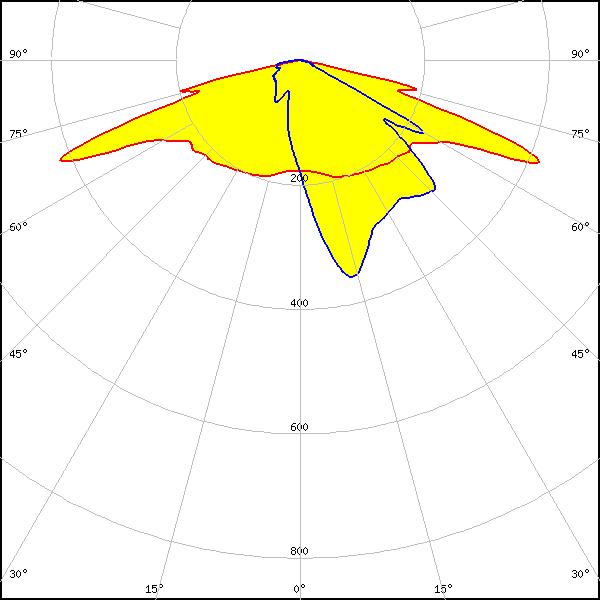

LED: XLE-S22C4XTEHE (XT-E HE)
FWHM: asymmetric
Peak intensity: 0.684 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

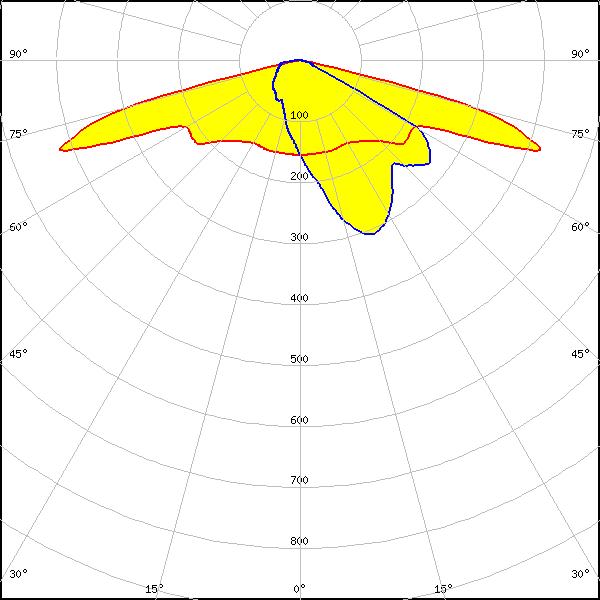

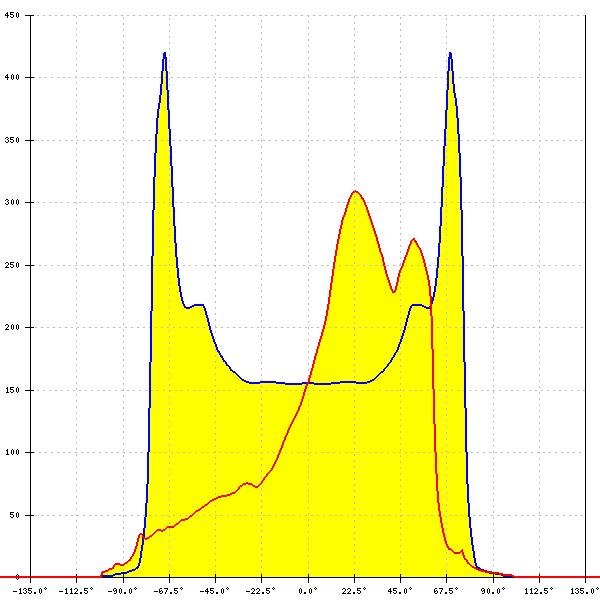

LED: WICOP 5050
FWHM: asymmetric
Peak intensity: 0.841 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
