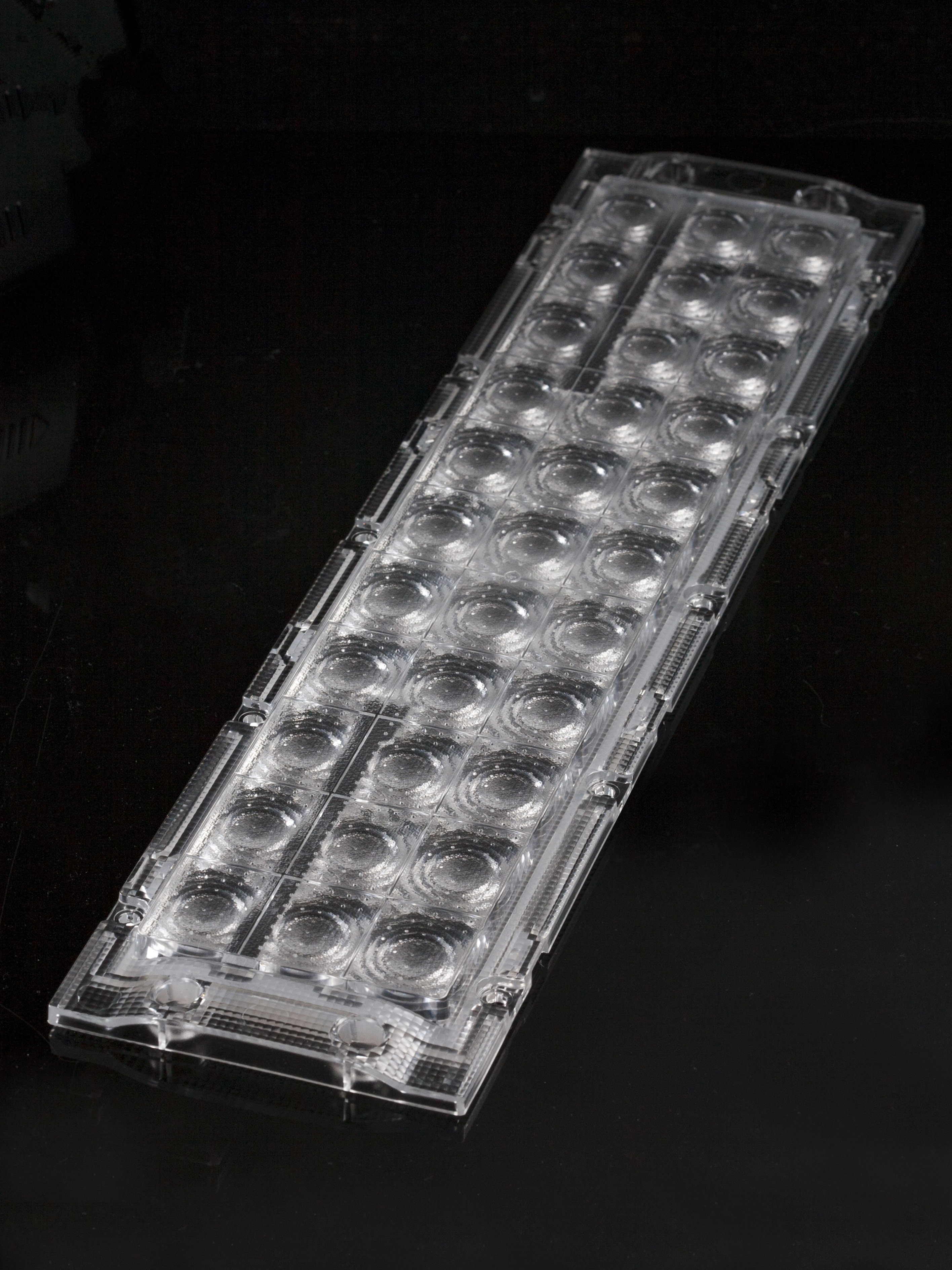

    FS15786_FLORENCE-3R-IP-Z60

    Print

    ~60° wide beam

    Specification
    • Dimensions:
      321 x  79 mm
    • Height:
      9.40 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      80 pcs
    • Box size:
      356 x 356 x 292 mm
    • Box weight:
      12.0 kg
    • MPQ:
      4 pcs
    • MOQ:
      80 pcs
    • MOQ size:
      356 x 356 x 292 mm
    • MOQ weight:
      12.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FS15786_FLORENCE-3R-IP-Z60
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    Application example

    Garage floodlight with FLORENCE-3R-IP-Z60

    Application example

    Fuel station lighting with FLORENCE-3R-IP and FLORENCE2

    Application guide

    Guide for Horticultural lighting

    News

    PRODUCT NEWS - FLORENCE-3R-IP

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Horticultural Lighting

    Application guide

    Guide for Retail Lighting Optics

    Article

    Illuminating supermarkets with LEDiL optics

    News

    Linear lighting solutions

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    Application area

    Retail Lighting

    Optical results

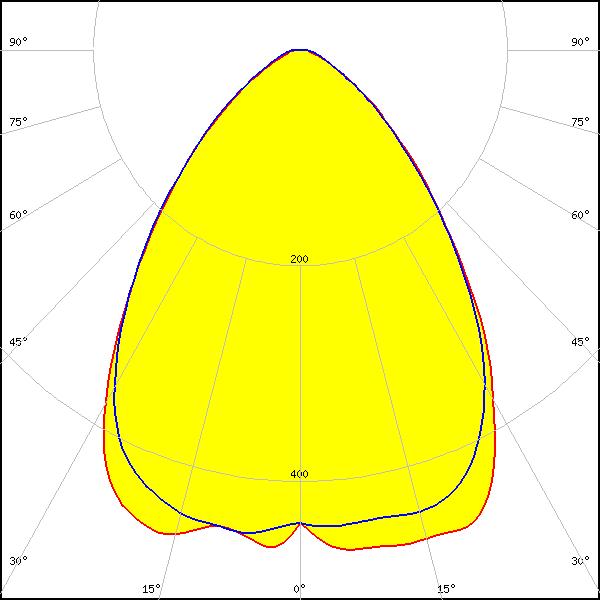

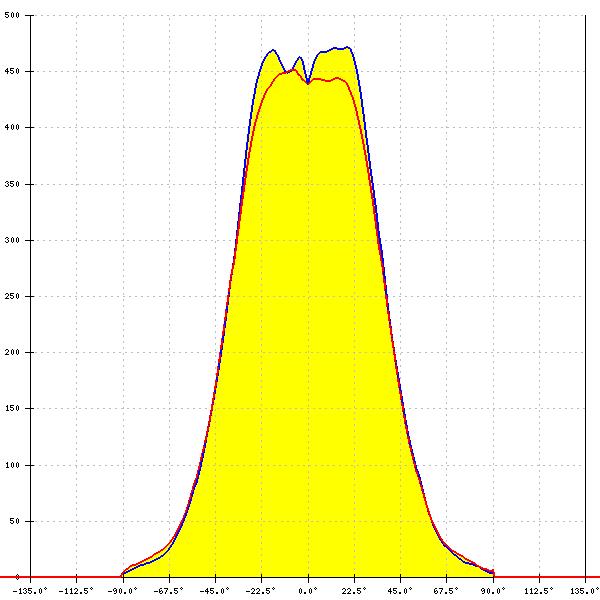

    LED: Bridgelux SMD 5050
    FWHM: 79°
    FWTM: 123°
    Peak intensity: 0.470 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

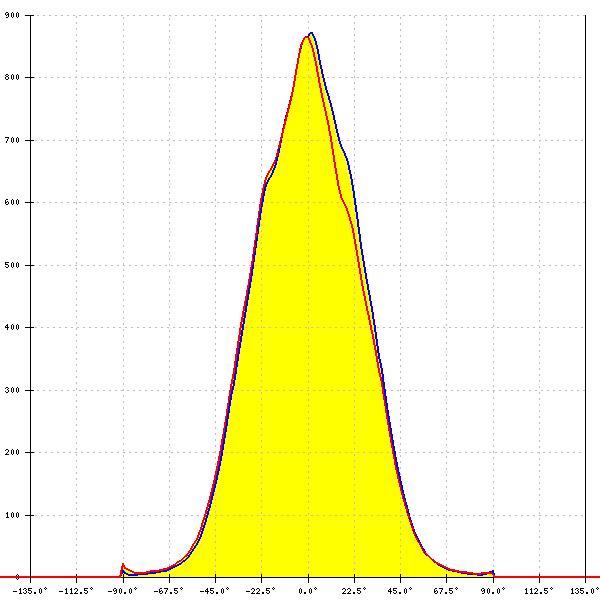

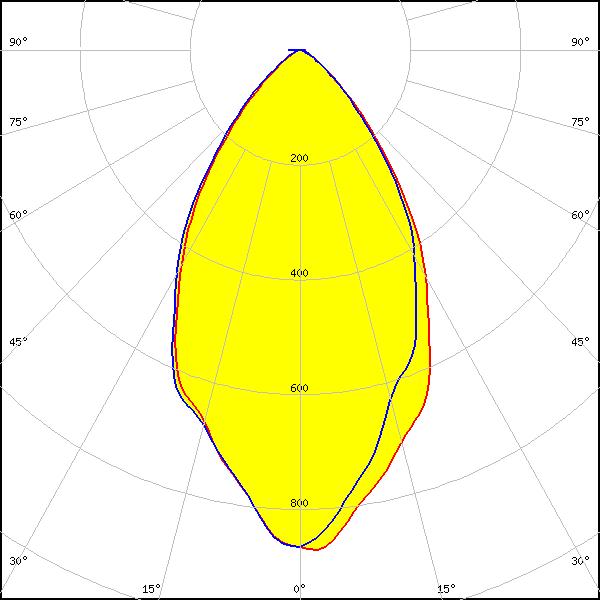

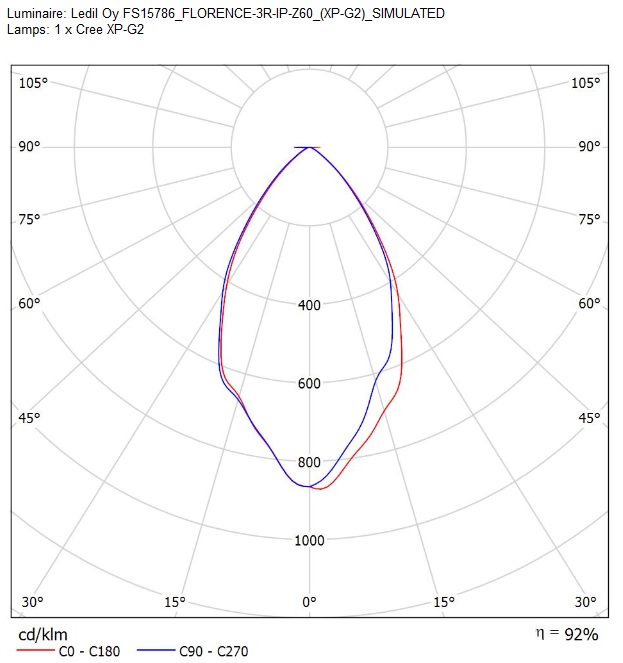

    LED: XP-G2
    FWHM: 60°
    FWTM: 102°
    Peak intensity: 0.900 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

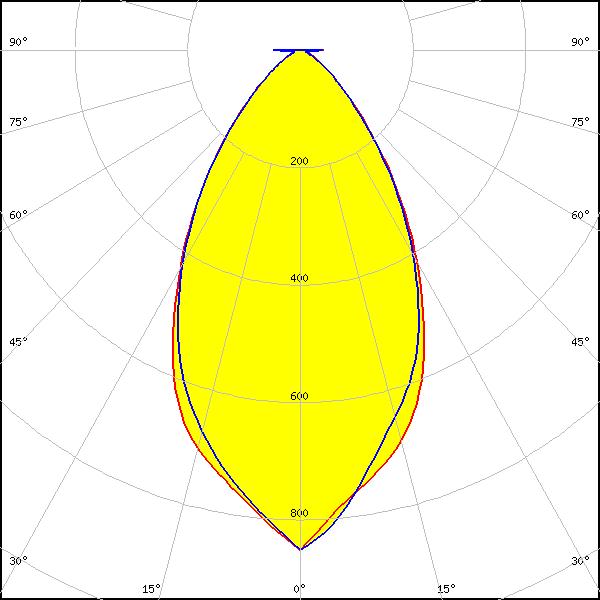

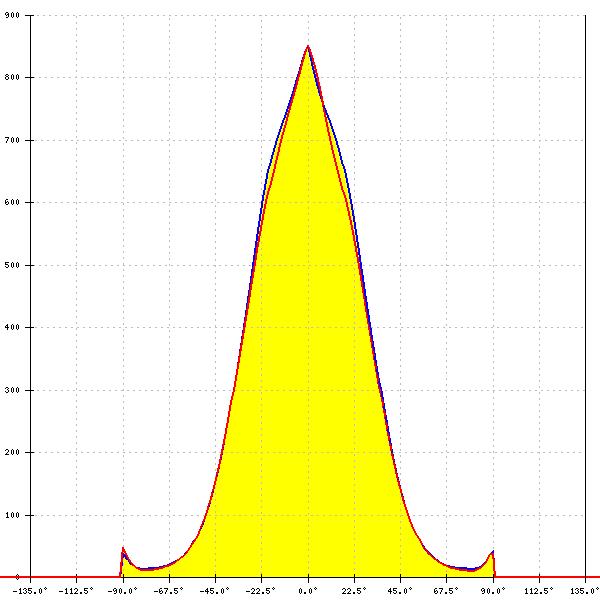

    LED: XP-G3
    FWHM: 59°
    FWTM: 102°
    Peak intensity: 0.850 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

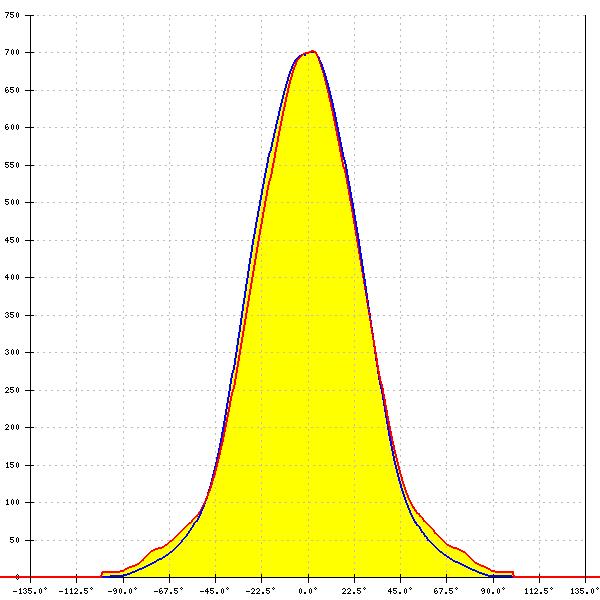

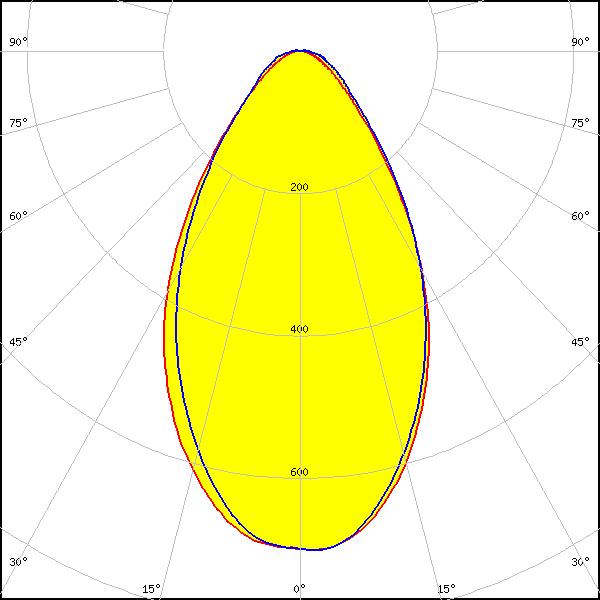

    LED: LUXEON 5050 Round LES
    FWHM: 63° + 60°
    FWTM: 109° + 116°
    Peak intensity: 0.702 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-3535L (L202 - xxxx033C30001)
    LEDs/each optic: 1
    Light colour/type: White

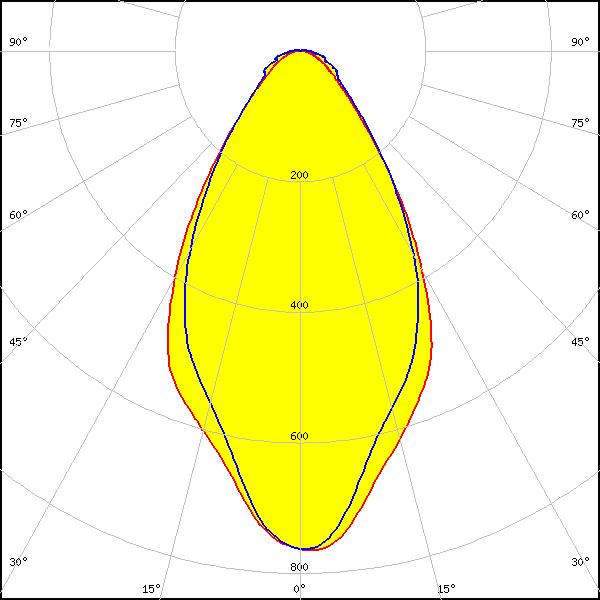

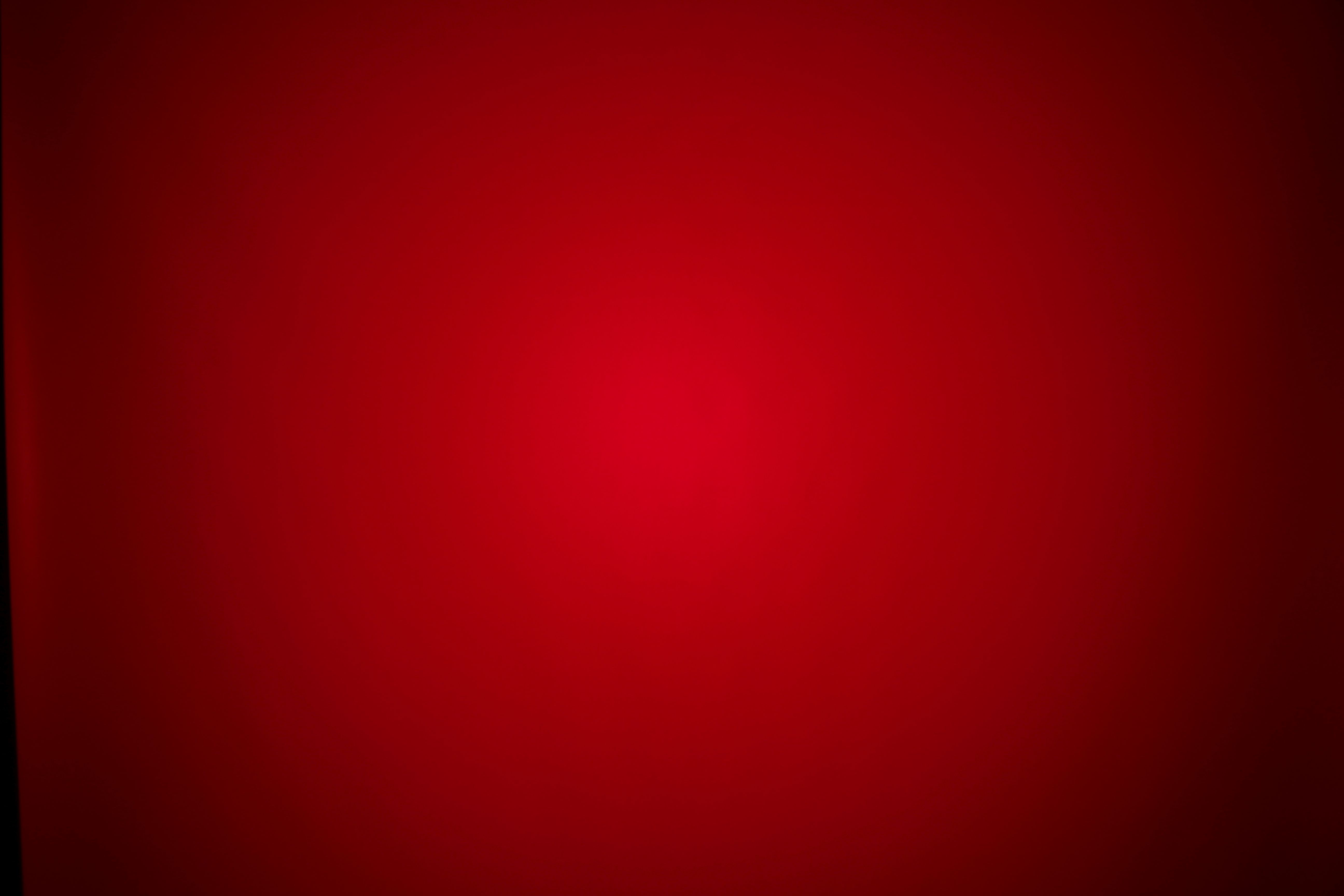

    LED: SST-10-B130
    FWHM: 61°
    FWTM: 104°
    Peak intensity: 0.765 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: Deep Red

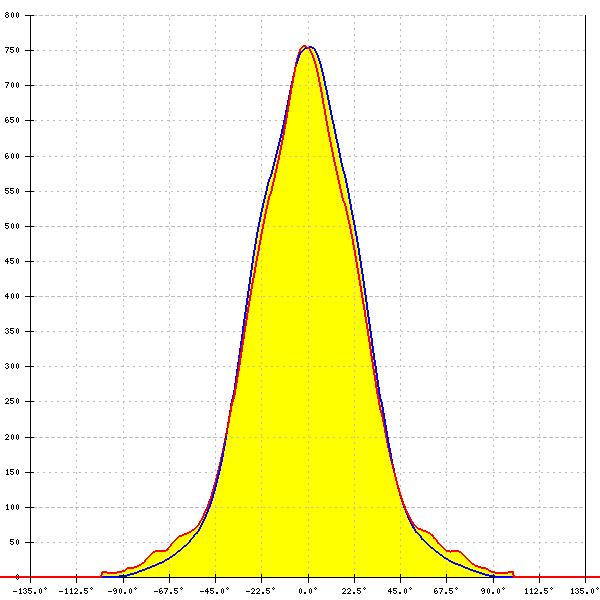

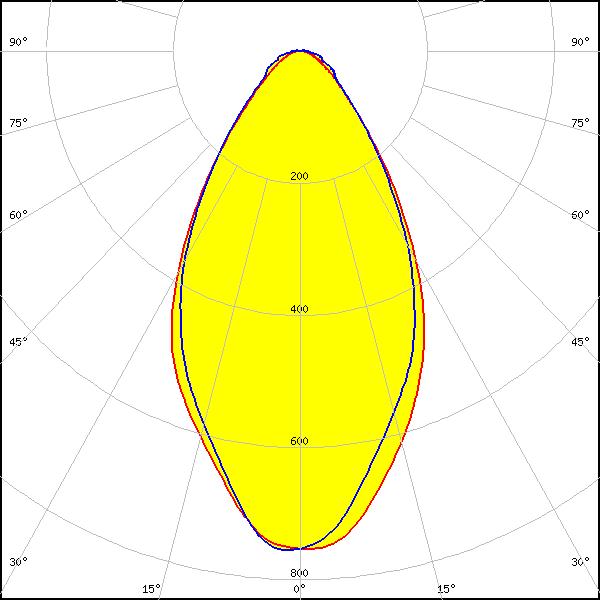

    LED: LinLED 280x55mm 1100lm 840 3x11 33V Opt G2
    FWHM: 60° + 57°
    FWTM: 103° + 105°
    Peak intensity: 0.756 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

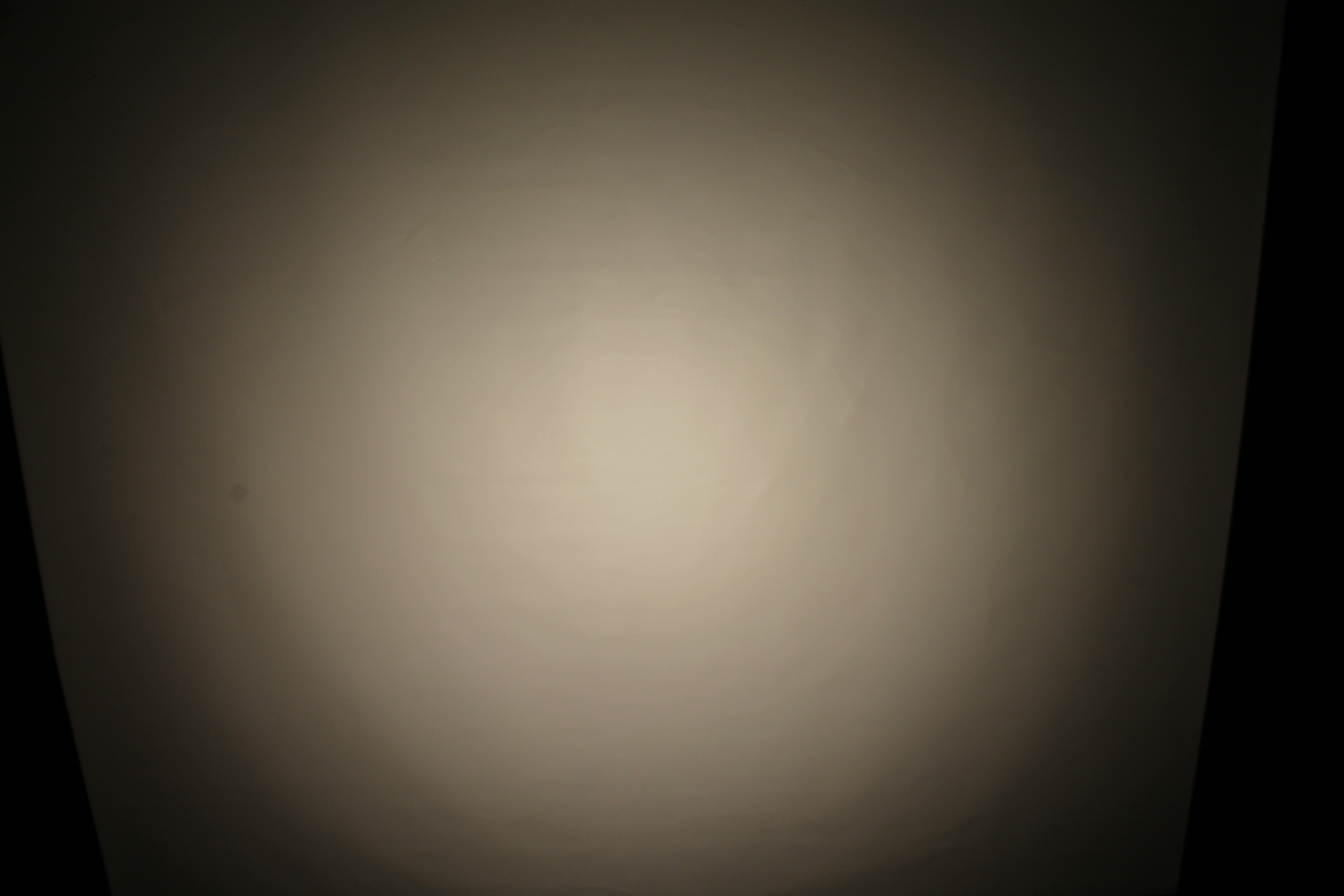

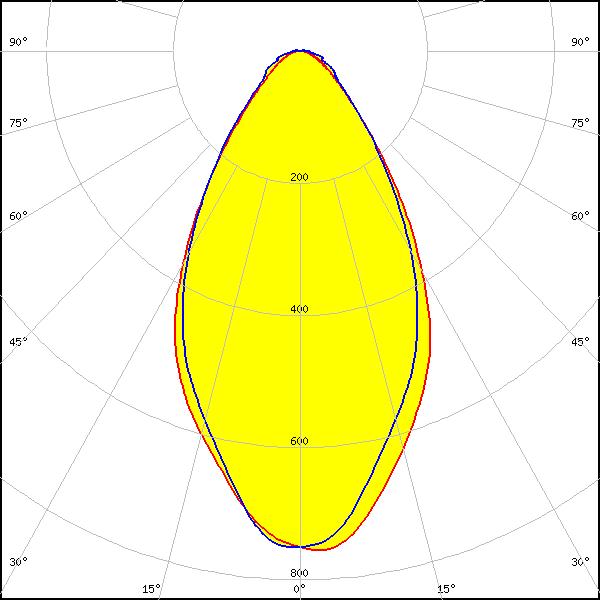

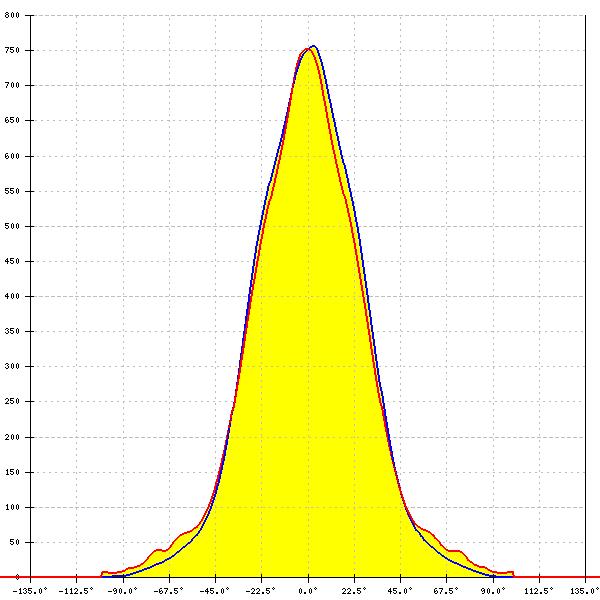

    LED: LinLED 280x55mm 2000lm 830 33V Opt G1
    FWHM: 60° + 57°
    FWTM: 102° + 106°
    Peak intensity: 0.756 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

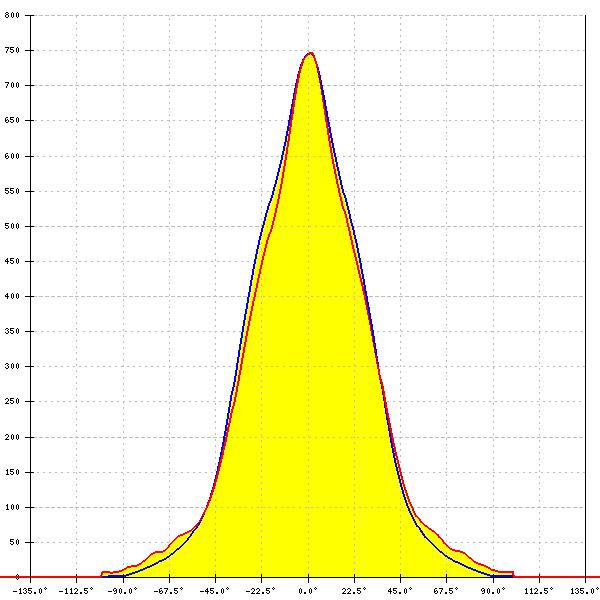

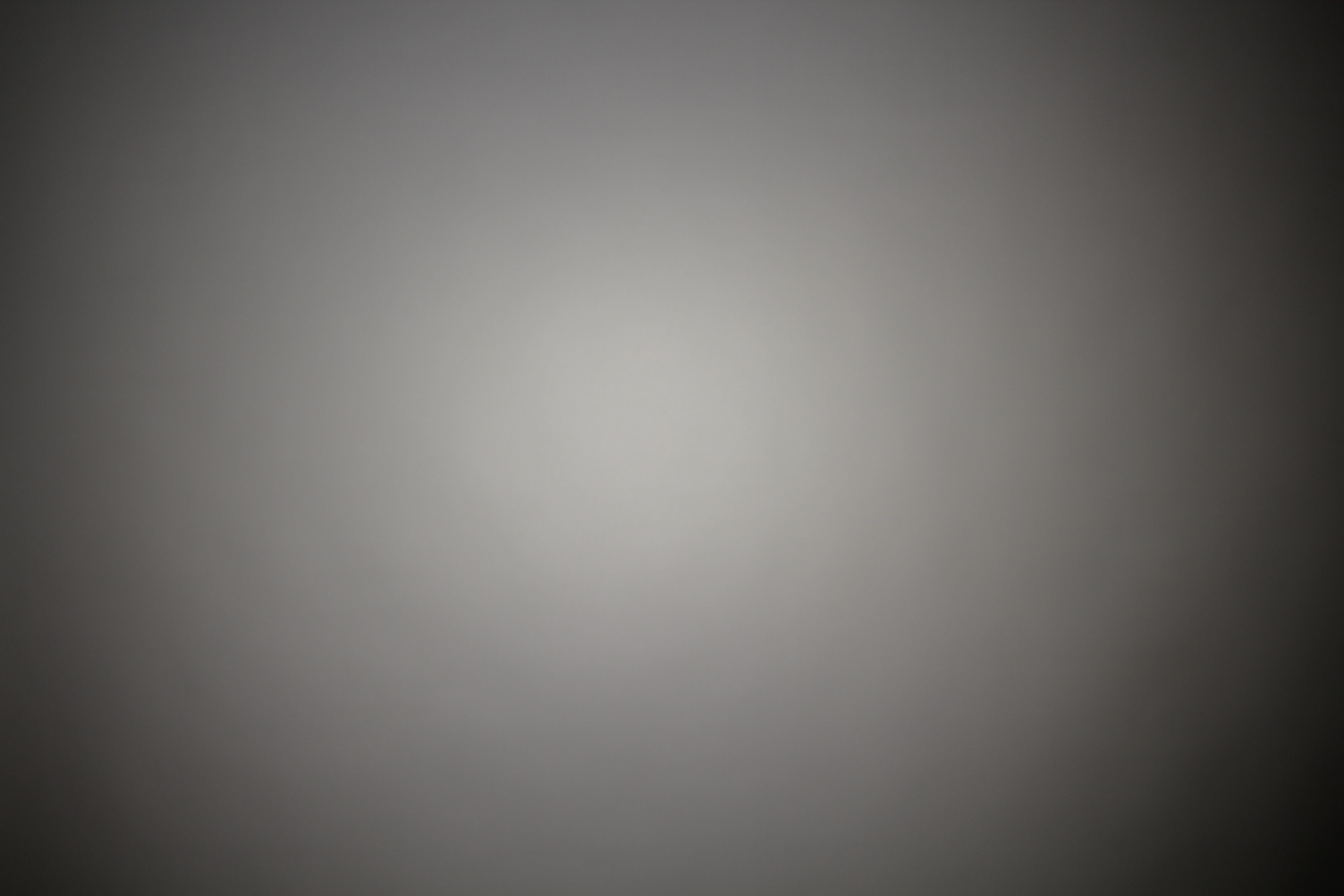

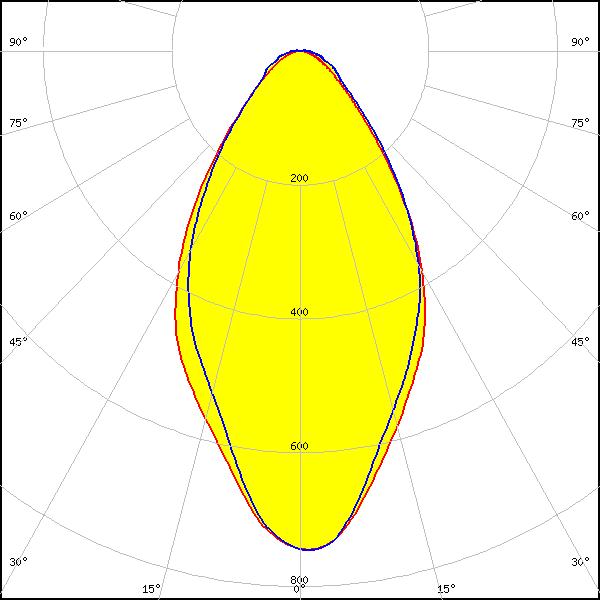

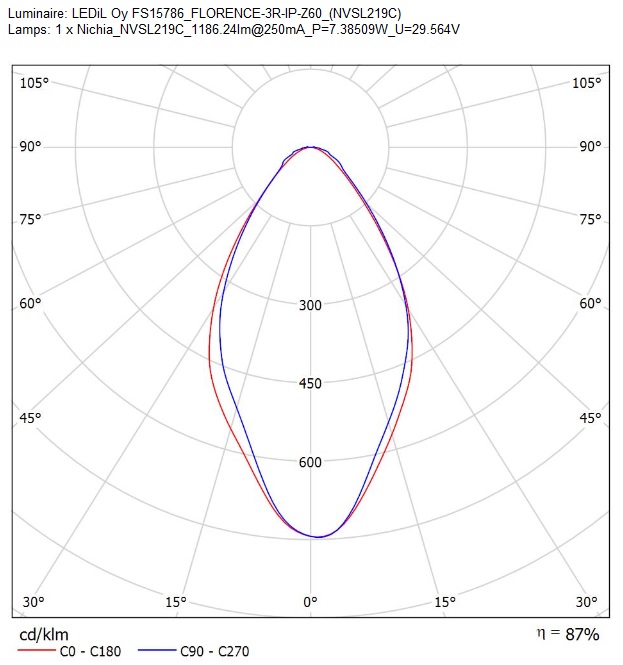

    LED: NVSxx19B/NVSxx19C
    FWHM: 59°
    FWTM: 109°
    Peak intensity: 0.750 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

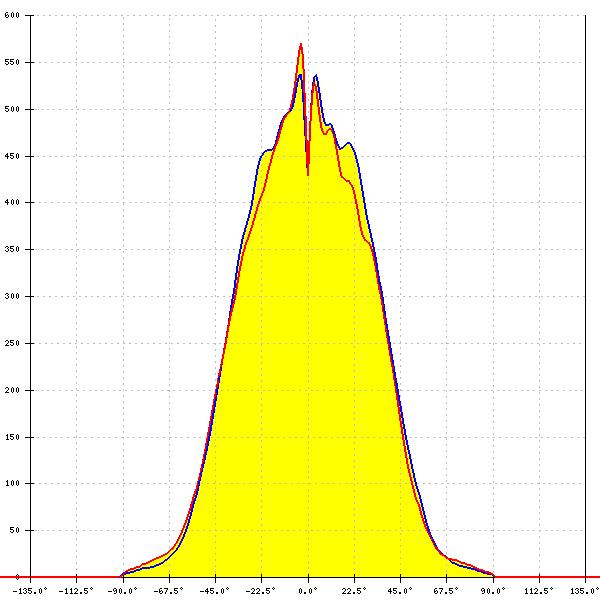

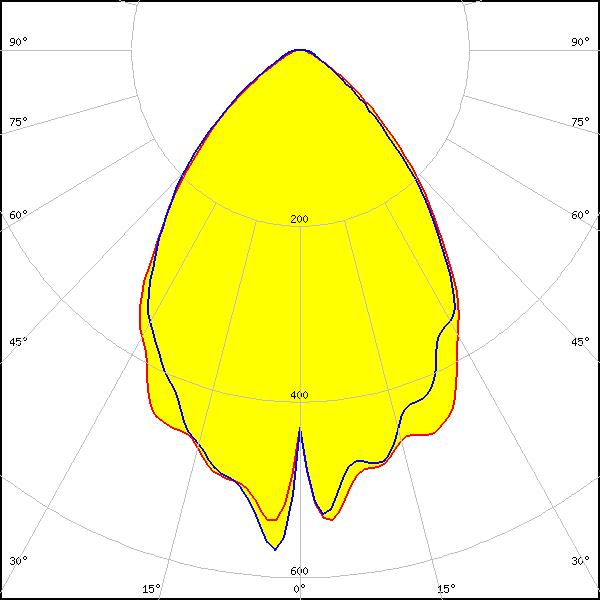

    LED: Duris E 2835
    FWHM: 74°
    FWTM: 116°
    Peak intensity: 0.580 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

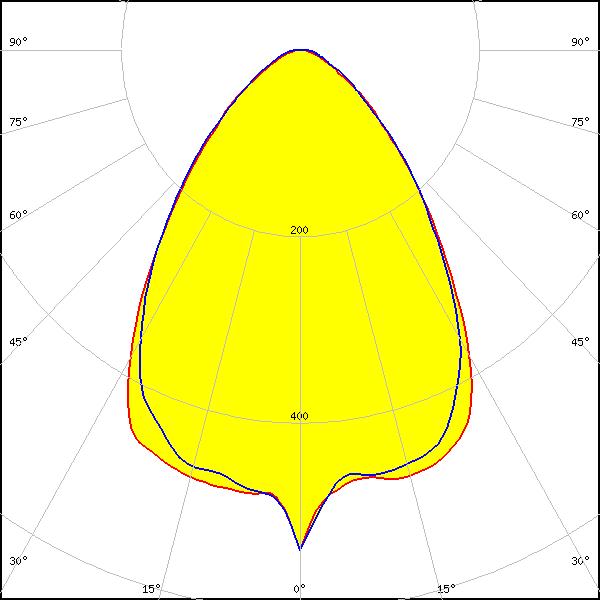

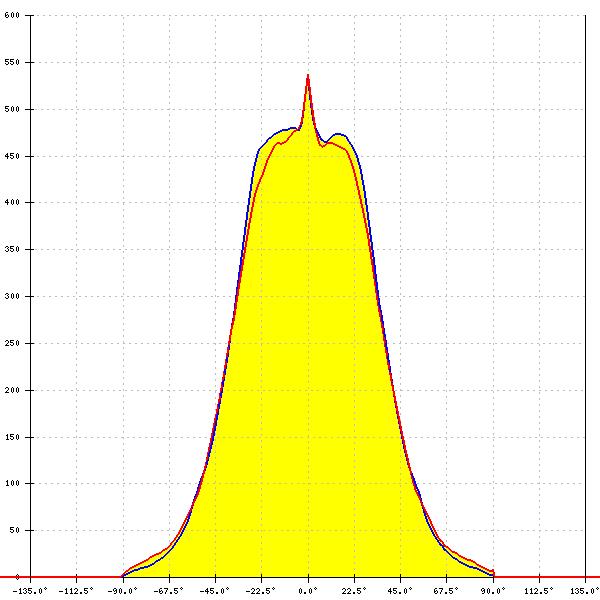

    LED: Duris S10
    FWHM: 74°
    FWTM: 120°
    Peak intensity: 0.537 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

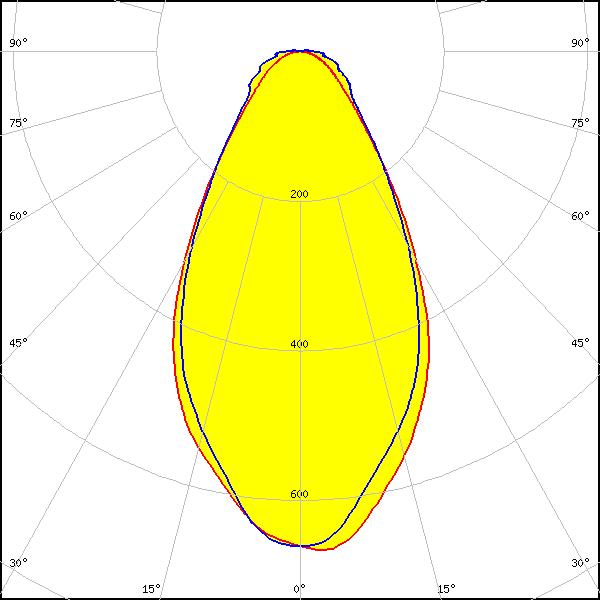

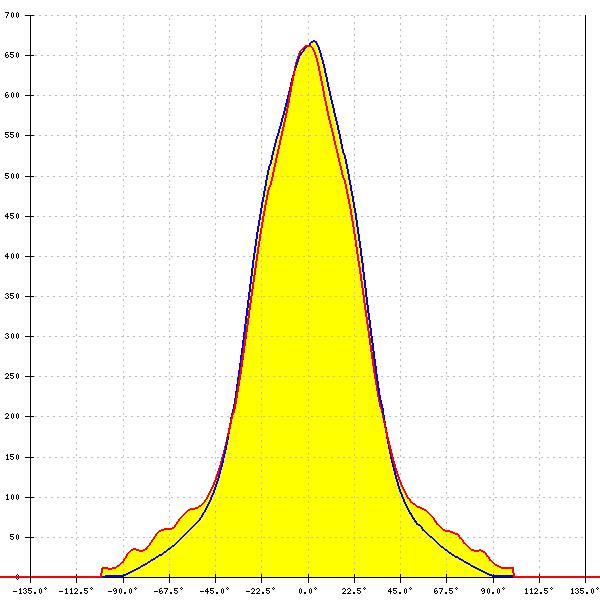

    LED: Duris S2
    FWHM: 58°
    FWTM: 117°
    Peak intensity: 0.667 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

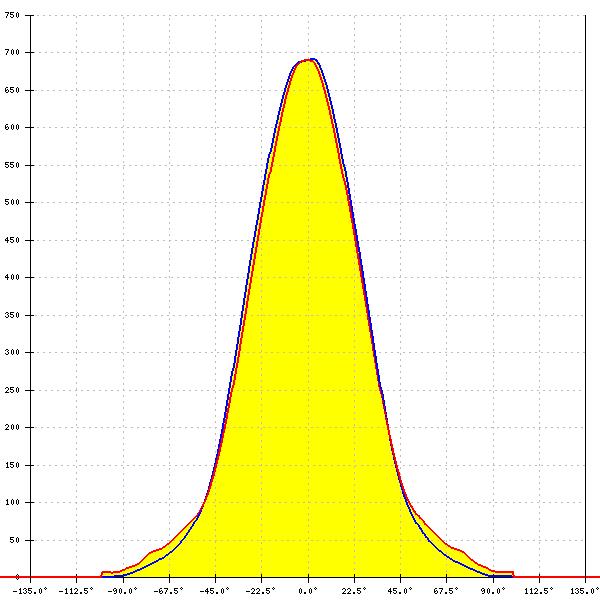

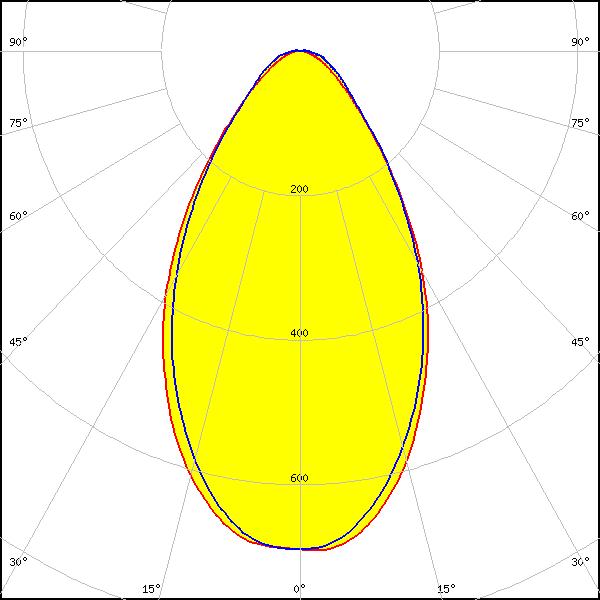

    LED: Duris S8
    FWHM: 62°
    FWTM: 113°
    Peak intensity: 0.690 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

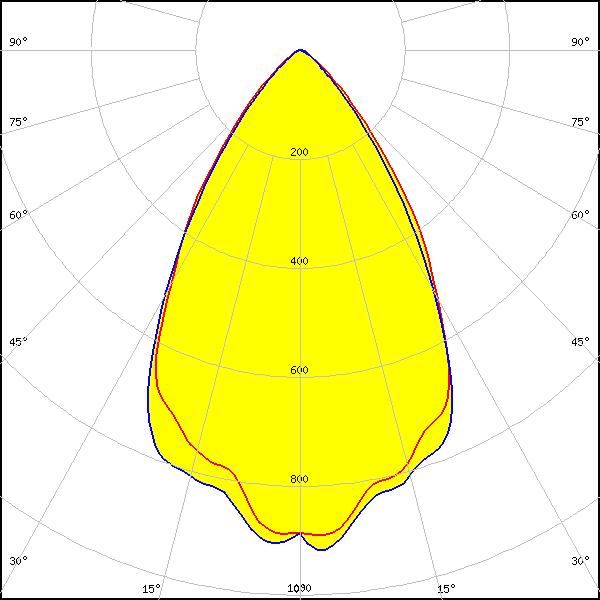

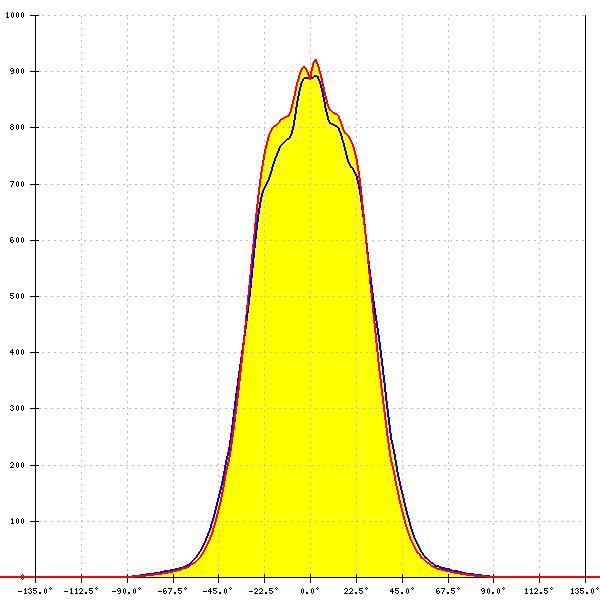

    LED: OSCONIQ P 3030
    FWHM: 64°
    FWTM: 96°
    Peak intensity: 0.830 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Hyper Red

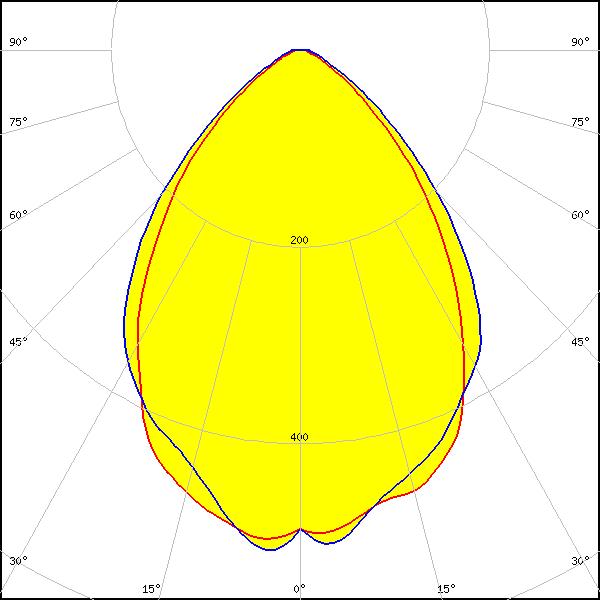

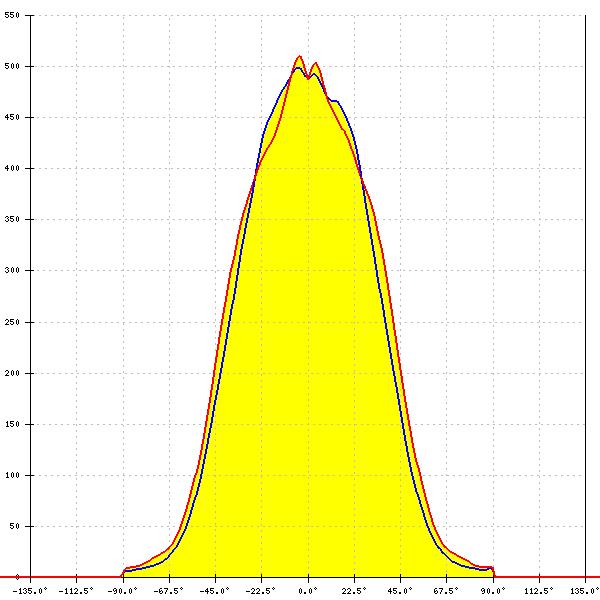

    LED: OSCONIQ P 3737 (2W) PUSRA1
    FWHM: 78°
    FWTM: 120°
    Peak intensity: 0.520 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

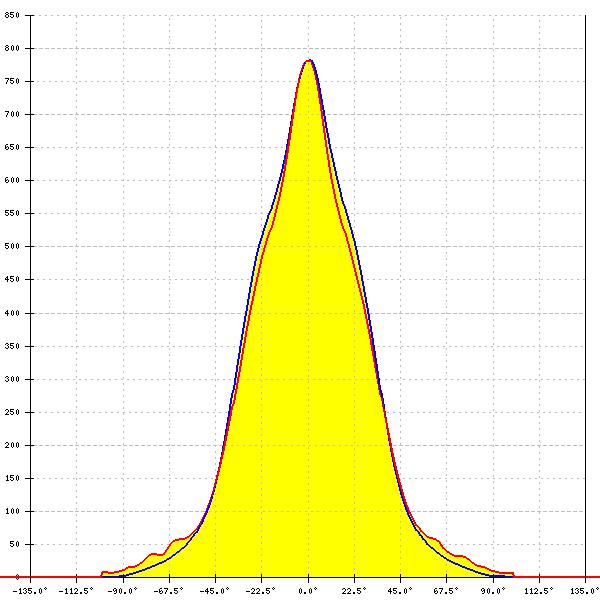

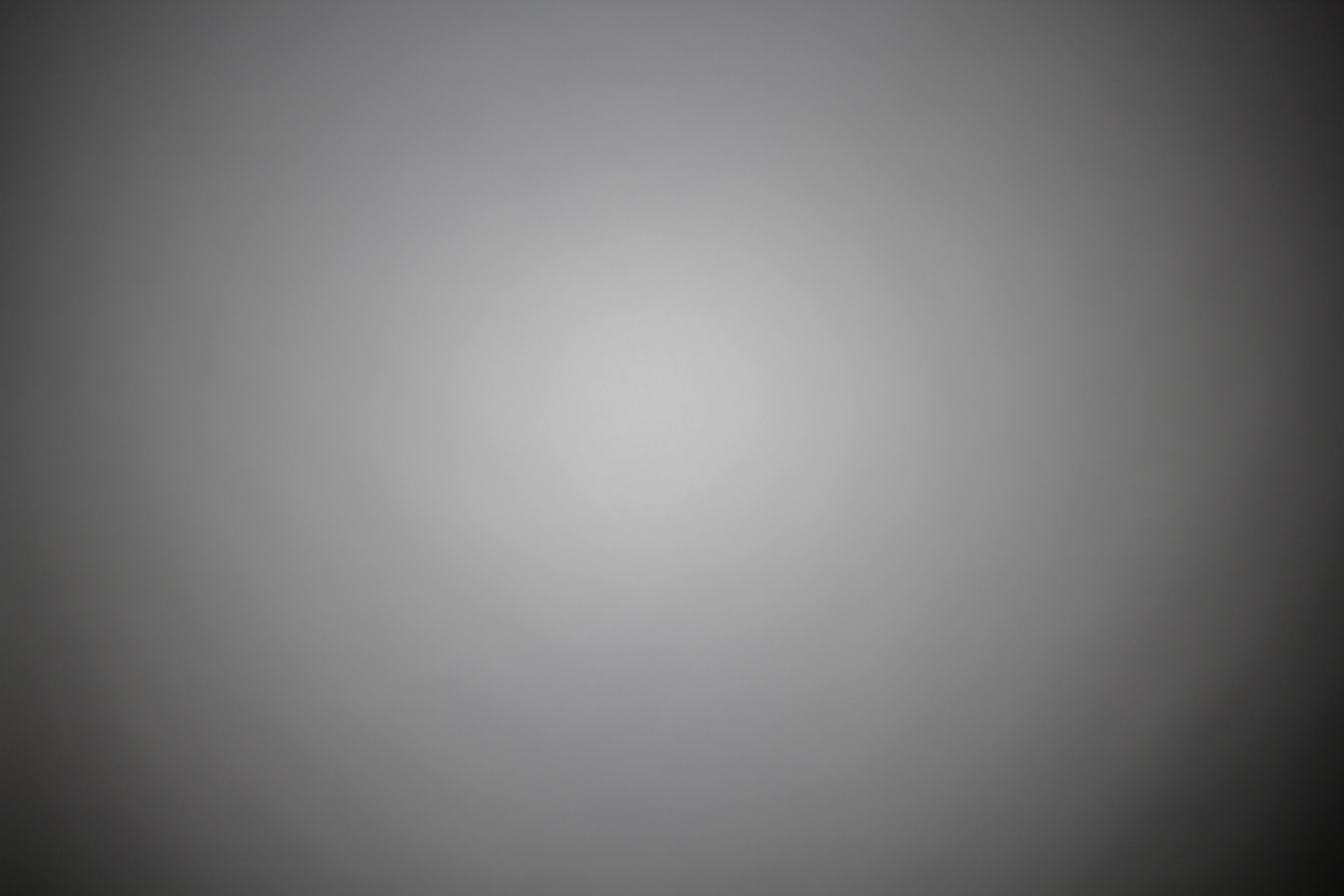

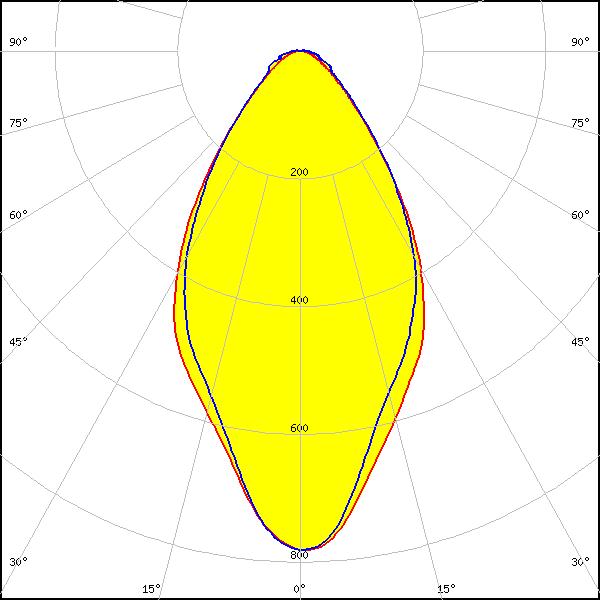

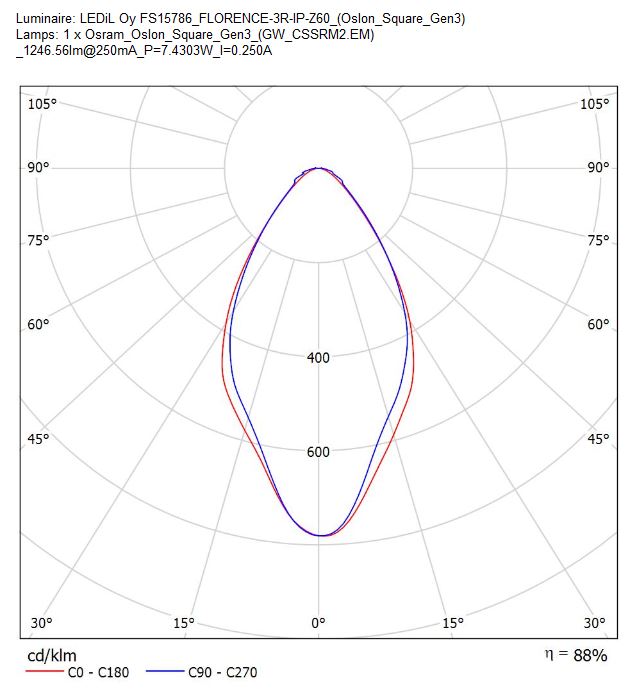

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 59°
    FWTM: 105°
    Peak intensity: 0.780 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

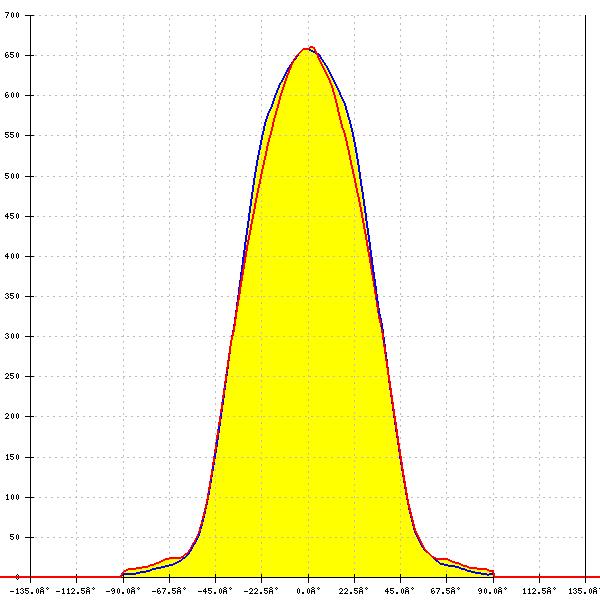

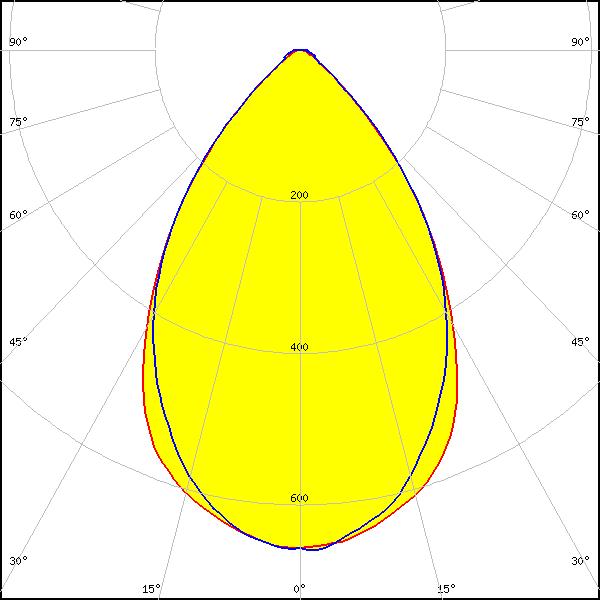

    LED: LH502D
    FWHM: 70°
    FWTM: 104°
    Peak intensity: 0.663 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

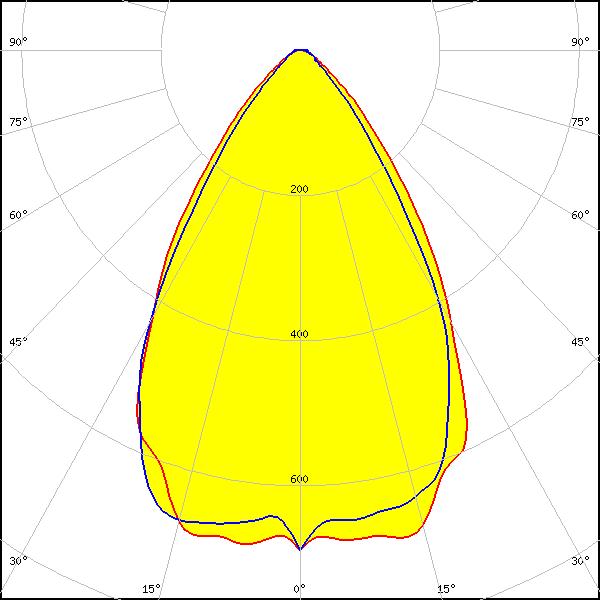

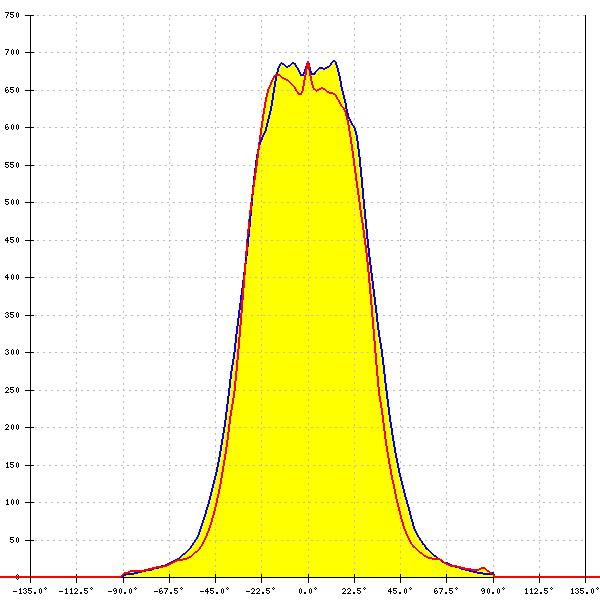

    LED: LM302Z
    FWHM: 68° + 64°
    FWTM: 104° + 94°
    Peak intensity: 0.690 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 2
    Light colour/type: White

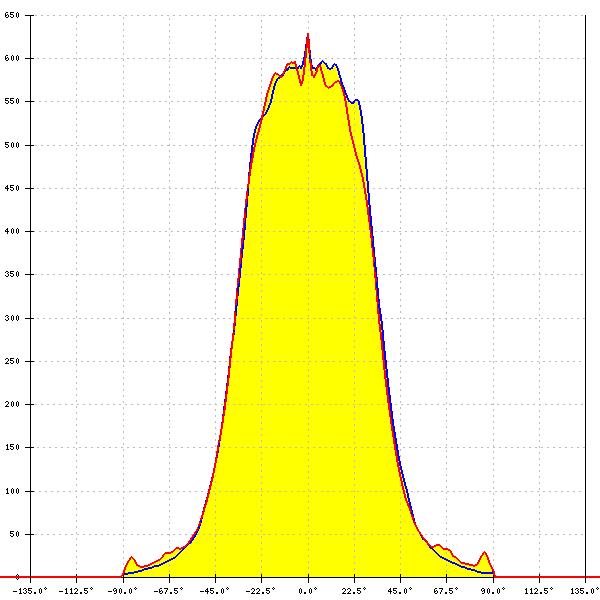

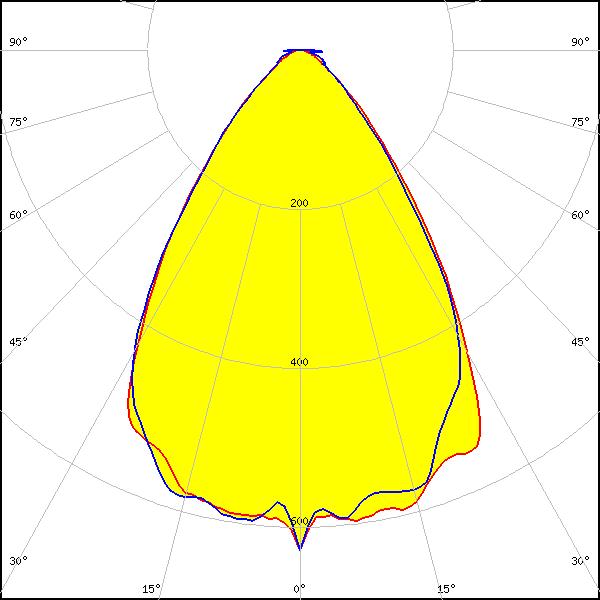

    LED: LM302Z
    FWHM: 70° + 69°
    FWTM: 105° + 105°
    Peak intensity: 0.640 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LT-R286A
    LEDs/each optic: 1
    Light colour/type: White

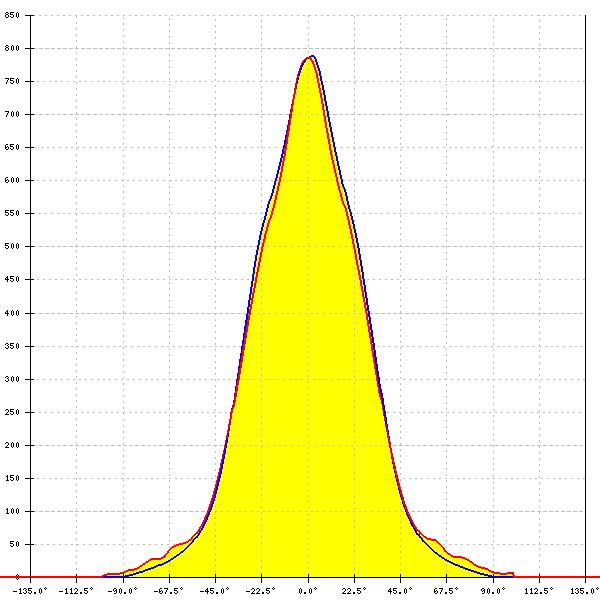

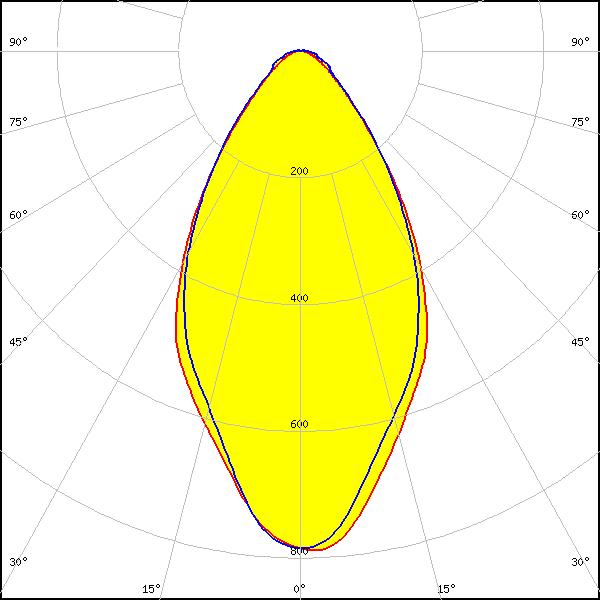

    LED: SEOUL 5630C
    FWHM: 59°
    FWTM: 103°
    Peak intensity: 0.790 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

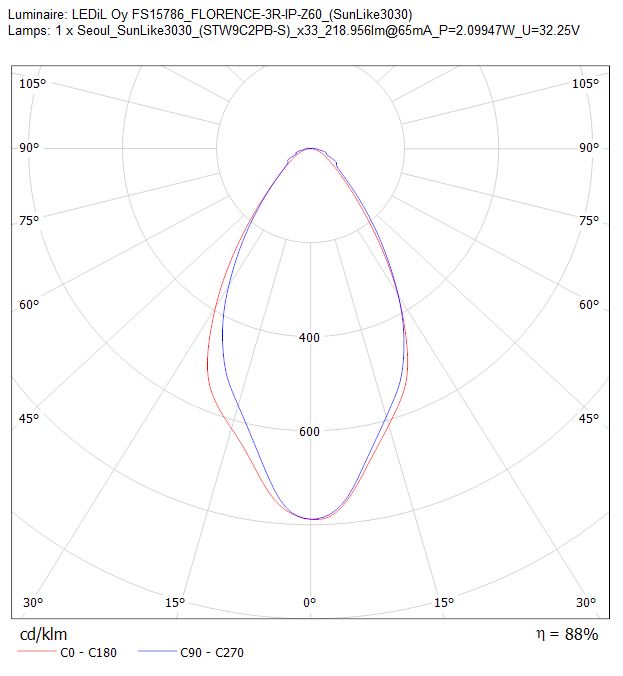

    LED: SEOUL DC 3030
    FWHM: 60° + 57°
    FWTM: 101° + 104°
    Peak intensity: 0.790 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

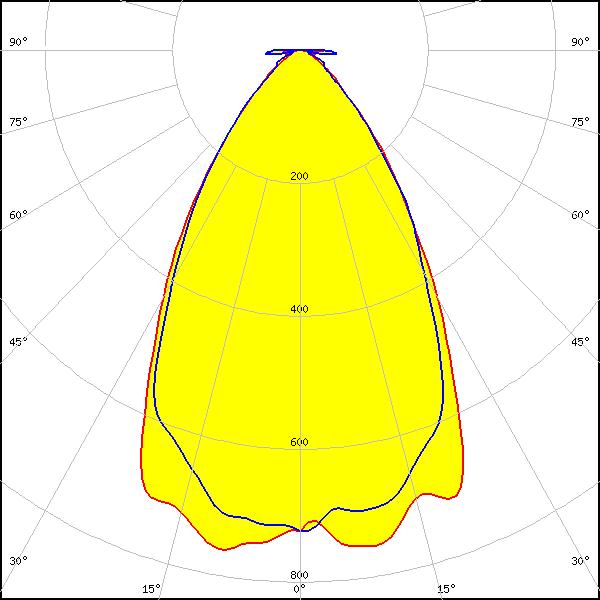

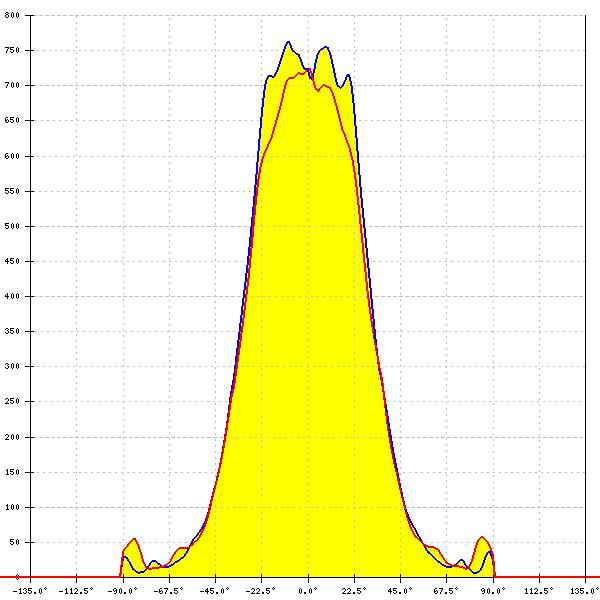

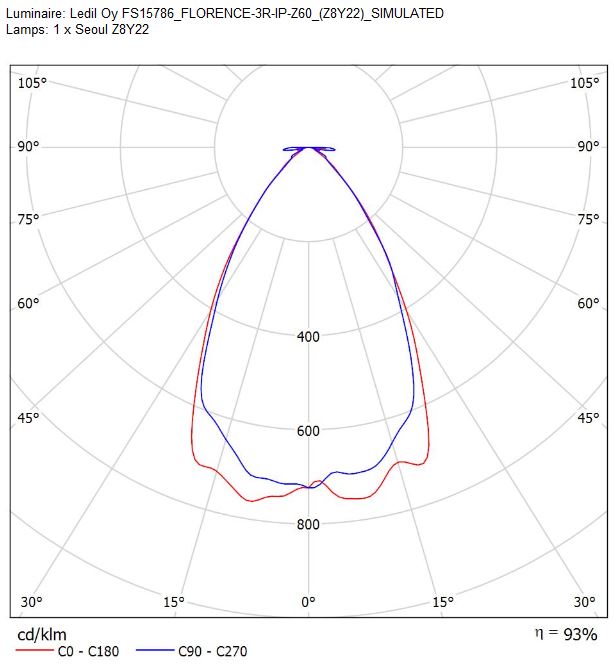

    LED: Z8Y22
    FWHM: 62°
    FWTM: 100°
    Peak intensity: 0.770 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

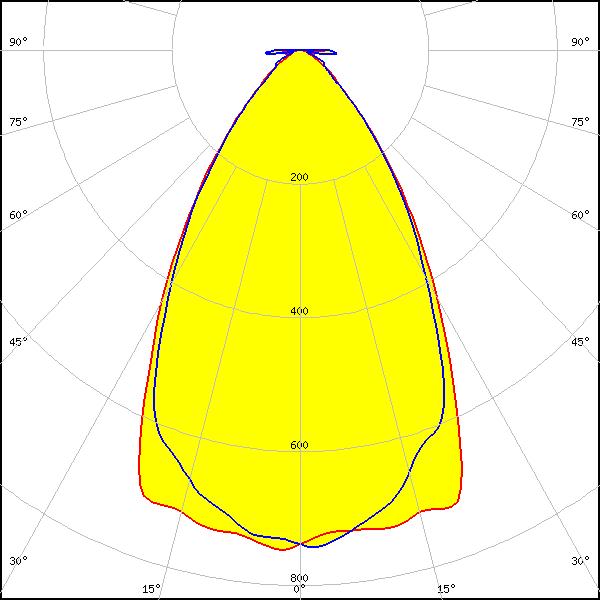

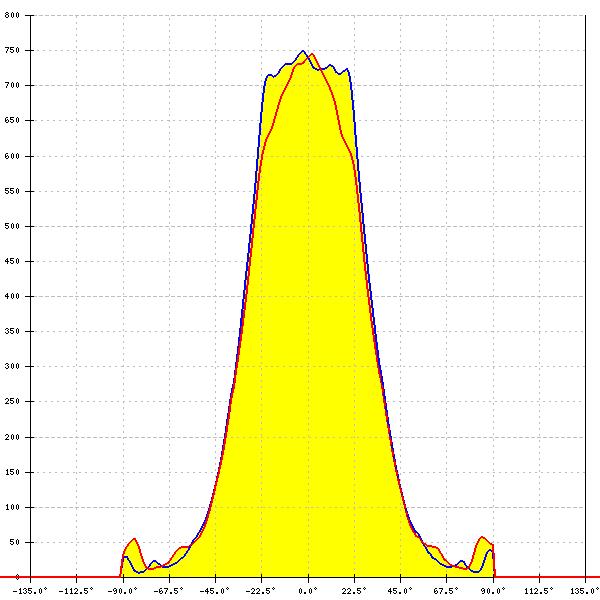

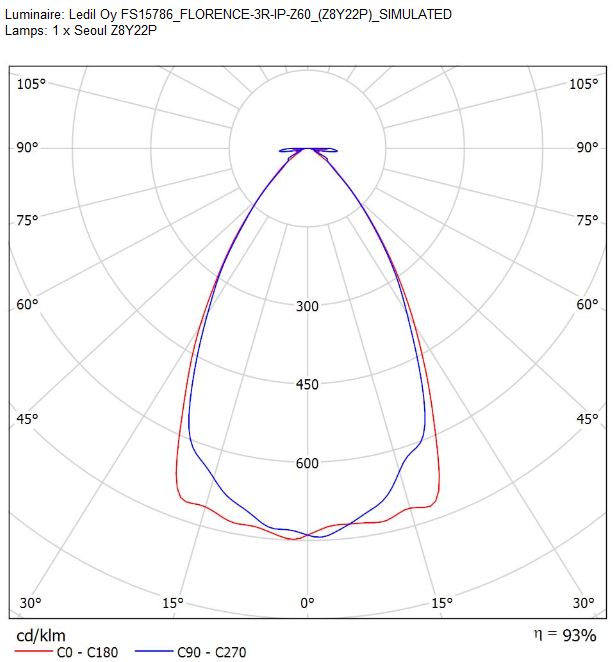

    LED: Z8Y22P
    FWHM: 63°
    FWTM: 101°
    Peak intensity: 0.750 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

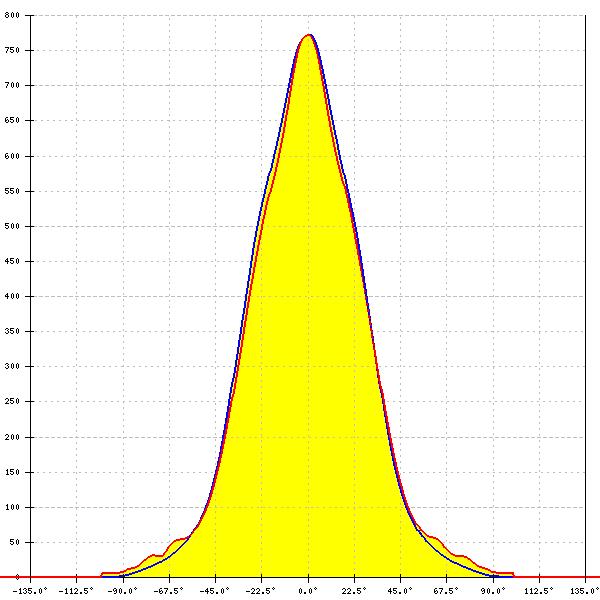

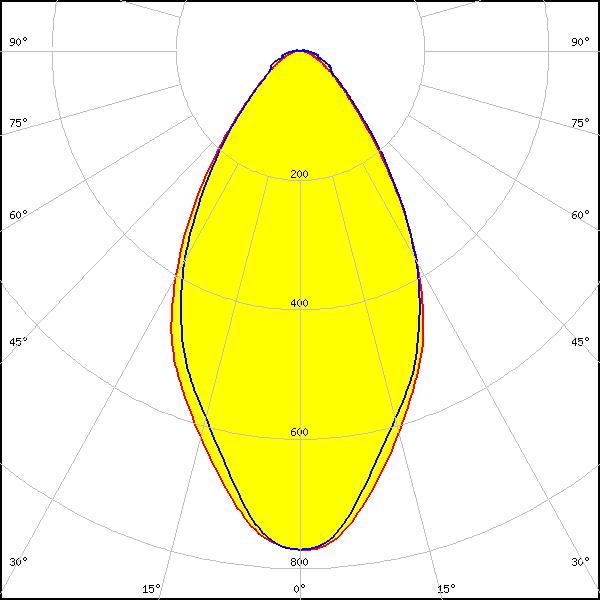

    LED: LLE G2 55x280mm 2000lm
    FWHM: 59°
    FWTM: 105°
    Peak intensity: 0.770 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
