APPLICATION EXAMPLE

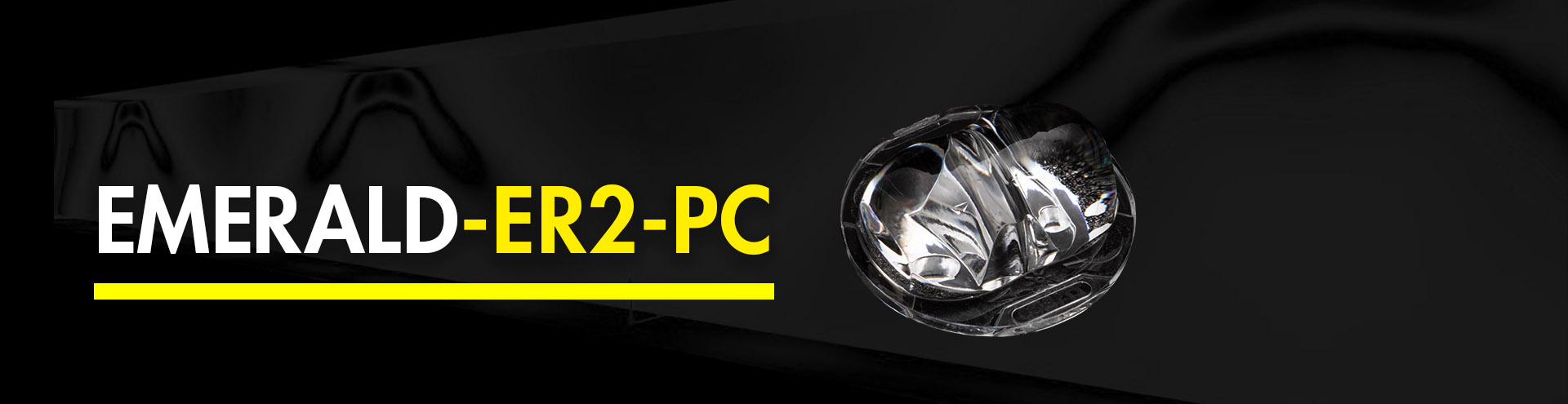

Escape route lighting with EMERALD-ER2
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Three different setups using EMERALD-ER2 optics for escape route lighting.
Setup: | 1. | 2. | 3. |
Installation height: | 6 m | 6 m | 6 m |
Hallway width: | 2 m | 2 m | 2 m |
Luminous flux: | 80 lm | 180 lm | 350 lm |
Luminaire spacing: | 7 m | 23 m | 26 m |
Average (center line): | 1.08 lx | 1.24 lx | 2.13 lx |
Min (center line): | 1.07 lx | 1.07 lx | 1.09 lx |
Uo (min/ave): | 0.99 | 0.86 | 0.51 |
Escape route lighting with EMERALD-ER2
