Application example

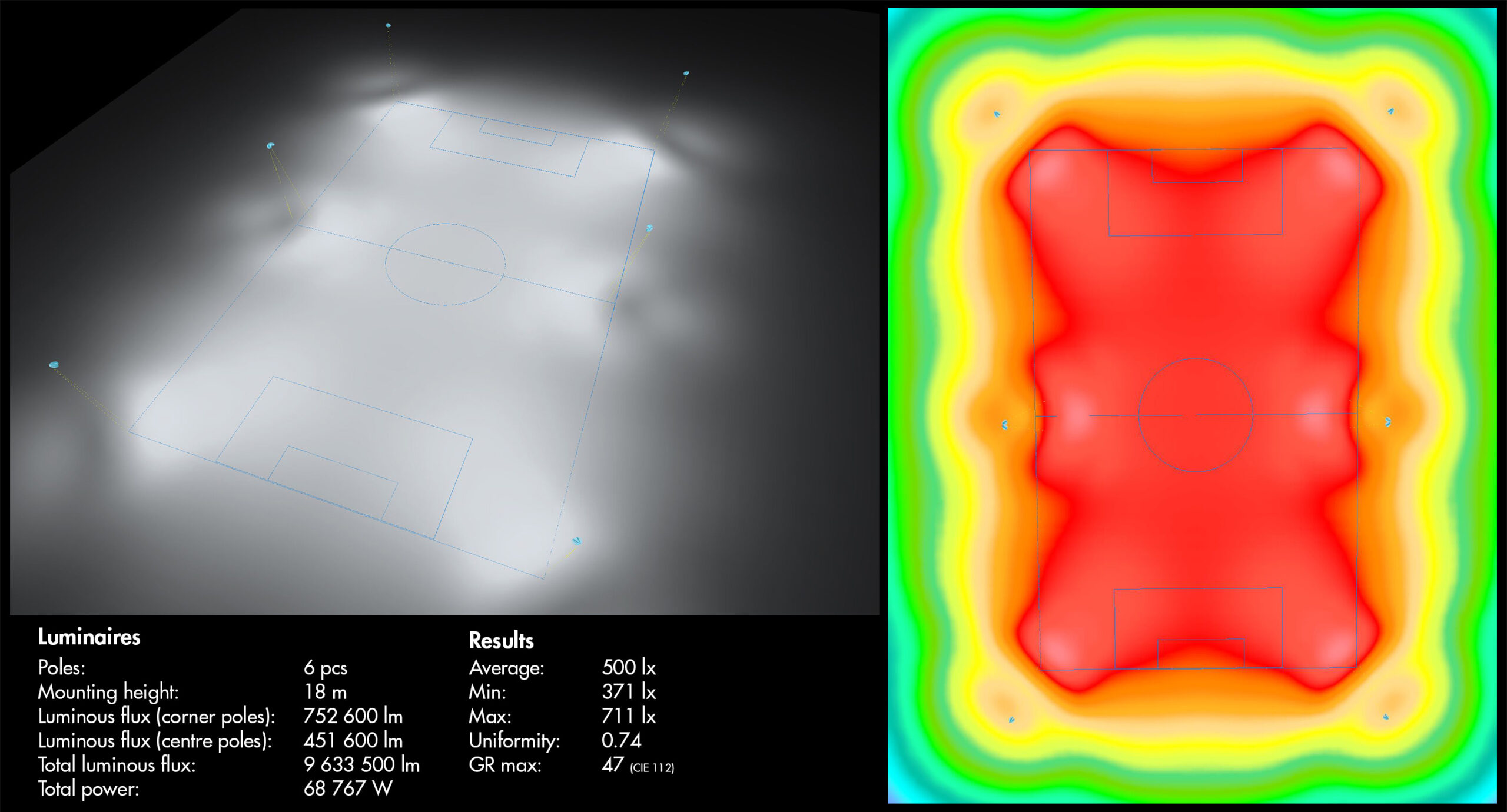

Football field lighting with SPORT-SQ-SC2-FT6.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Setup:
| Application: | Sports lighting |
| Optics: | SPORT-SQ-SC2-FT6 |
| Number of poles: | 6 pcs |
| Mounting height: | 18 m |
| Luminous flux (corner poles): | 752 600 lm |
| Luminous flux (centrepoles): | 451 600 lm |
| Total luminous flux: | 9 633 500 lm |
| Total power: | 68 767 W |
Results:
| Average: | 500 lx |
| Min: | 371 lx |
| Max: | 711 lx |
| Uniformity: | 0.74 |
| GR Max (CIE112): | 47 |
Football field lighting with SPORT-SQ-SC2-FT6.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
