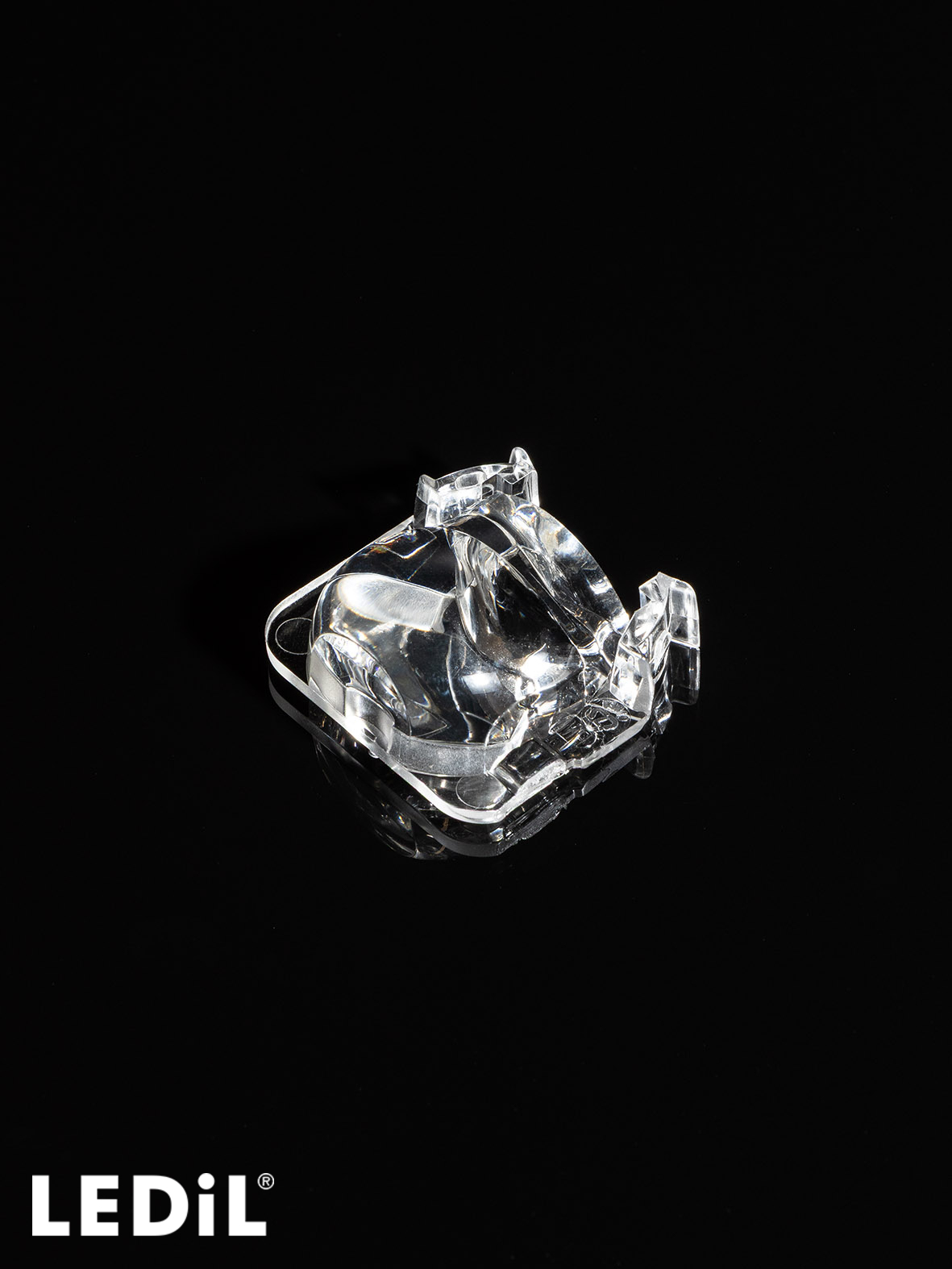

    C19755_SPORT-SQ-SC2-FT6

    Print

    Narrow forward throw beam with optimised cut-off for high masts.

    Specification
    • Dimensions:
      28 x  29 mm
    • Height:
      14.72 mm
    • Fastening:
      pin, solder clip
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      891 pcs
    • Box size:
      480 x 280 x 165 mm
    • Box weight:
      5.9 kg
    • MPQ:
      891 pcs
    • MOQ:
      891 pcs
    • MOQ size:
      480 x 280 x 170 mm
    • MOQ weight:
      5.9 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C19755_SPORT-SQ-SC2-FT6
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application example

    Football field lighting with SPORT-SQ-SC2-FT6

    Application example

    Tunnel lighting with SPORT-SQ-SC2-FT6

    Catalogue

    LEDiL Latest products catalogue 2026

    News

    New solder clip connection for fast and secure lens installation

    News

    The new champion of power, precision, and design freedom - SQ-SC2

    News

    New beams and products – August 2025

    Application example

    Tunnel lighting with SPORT-SQ-SC2-FT6W

    Application example

    Sports field luminaire with SPORT-SQ-SC2

    Application guide

    Guide for Sports lighting optics

    Application guide

    Guide for Street lighting optics

    News

    SPORT-2X2-S1 – Our narrowest, most powerful sport beam + new optic material for higher temperatures

    Application area

    Sports outdoor lighting

    AVAILABLE LEDiL ACCESSORIES

    SOLDER-CLIP-2

    Reel with 2nd generation of solder clips for easy lens mounting

    SQ-SC2-SHD

    Black shade for additional backlight control.

    Optical results

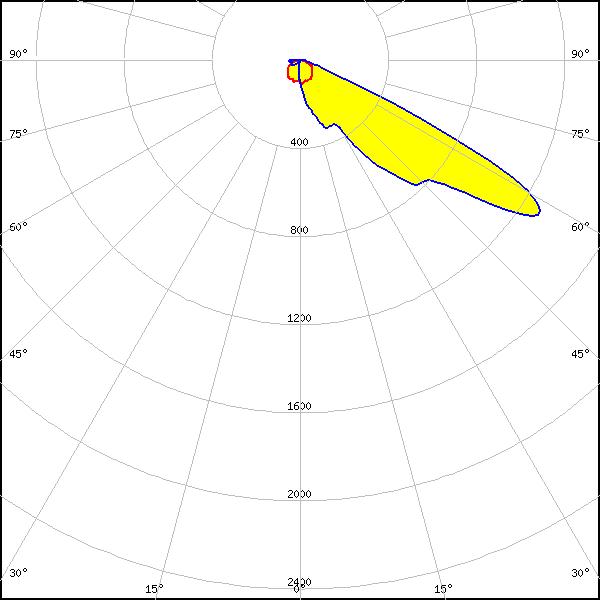

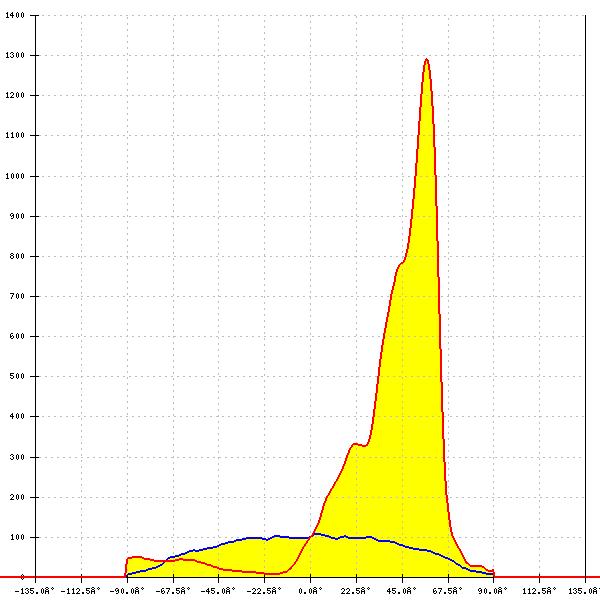

    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 1.291 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

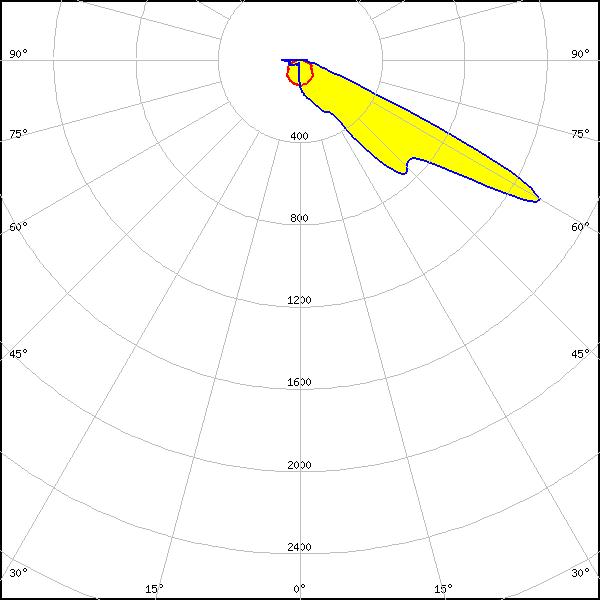

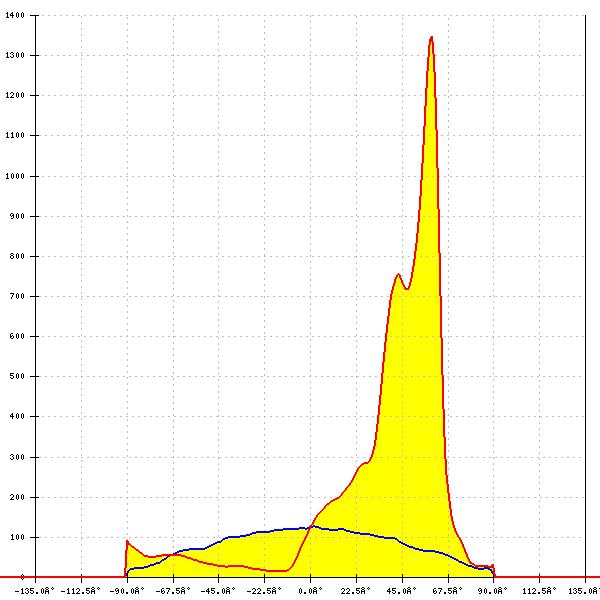

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 1.348 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

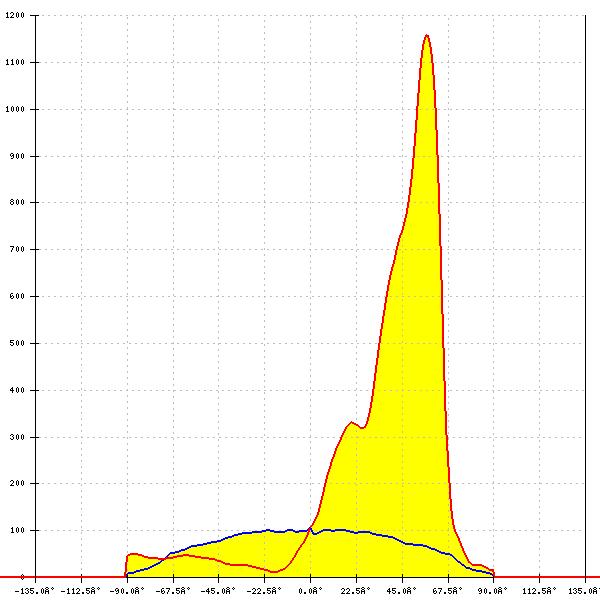

    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 1.157 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

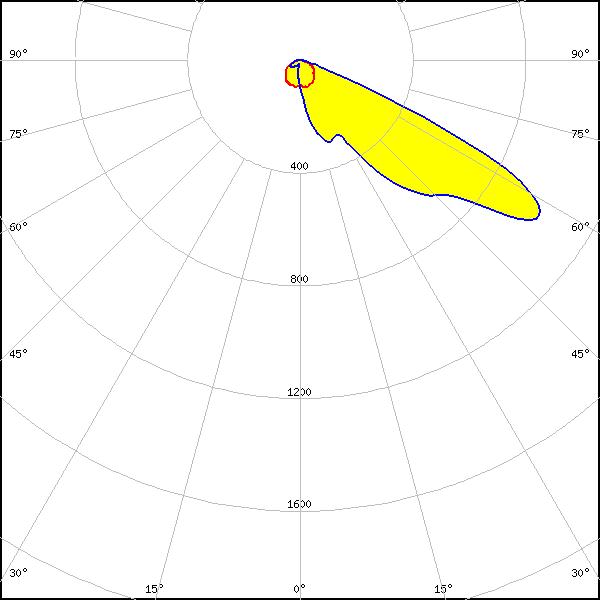

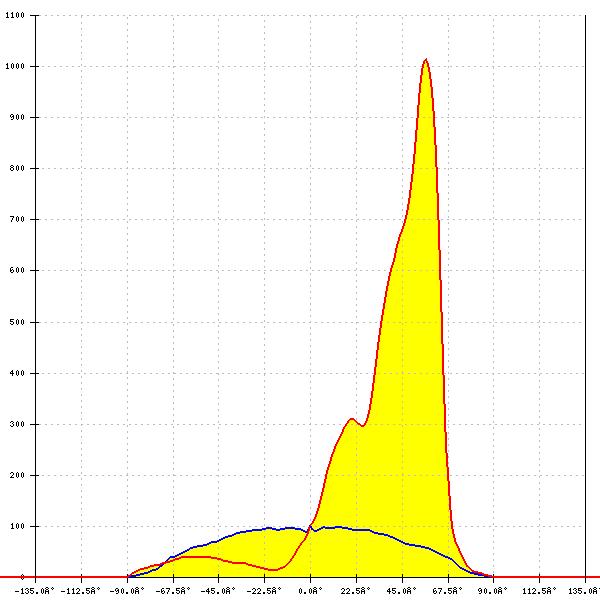

    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 1.013 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

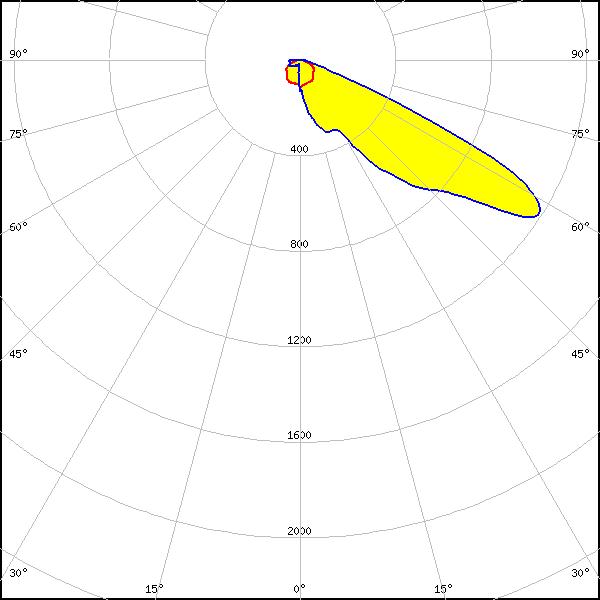

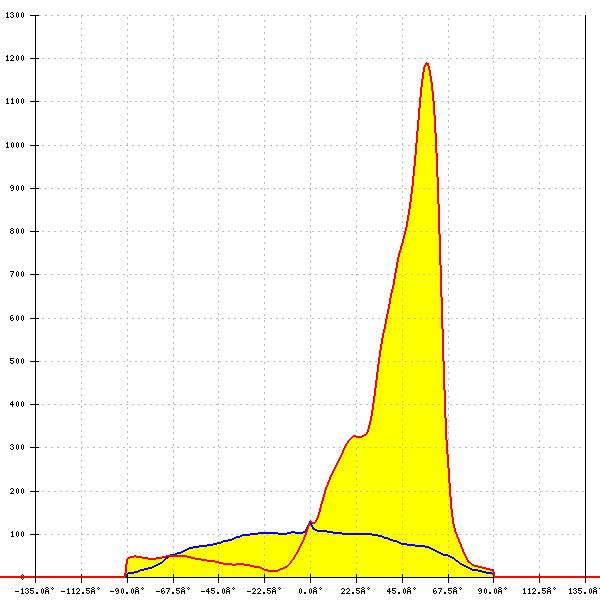

    LED: LUXEON 5050 HE Plus
    FWHM: asymmetric
    Peak intensity: 1.189 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

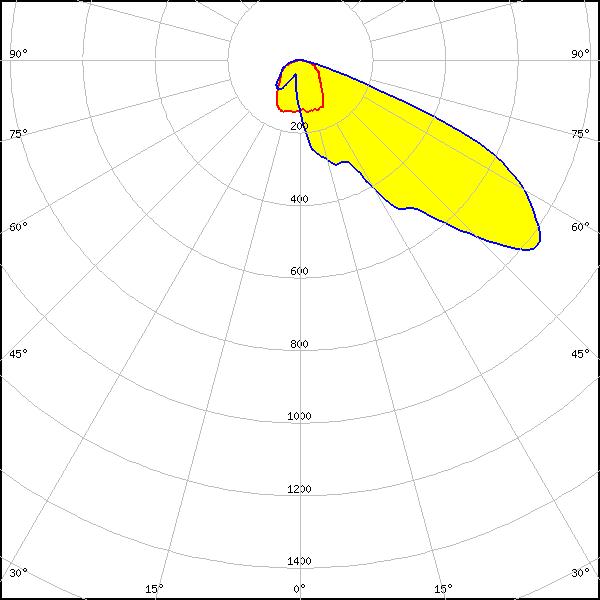

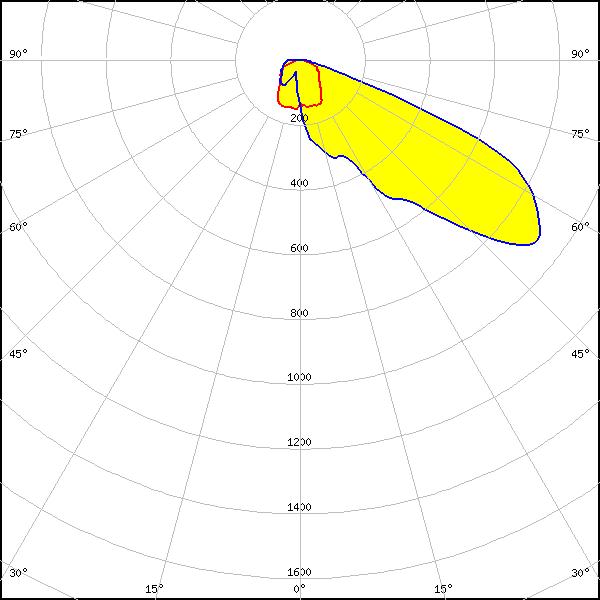

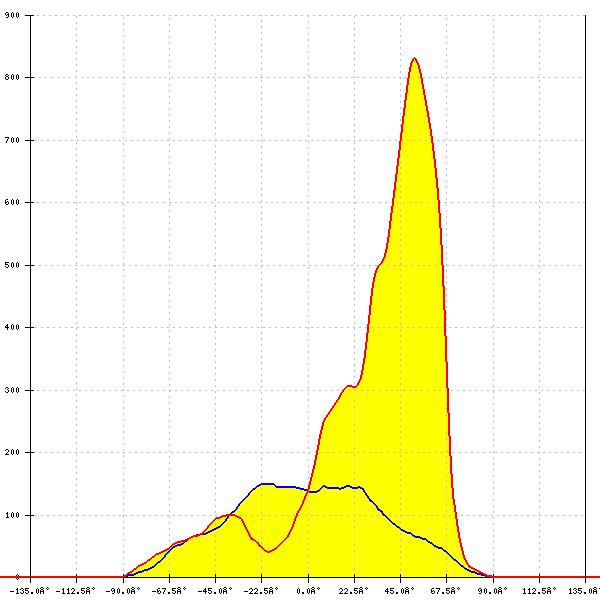

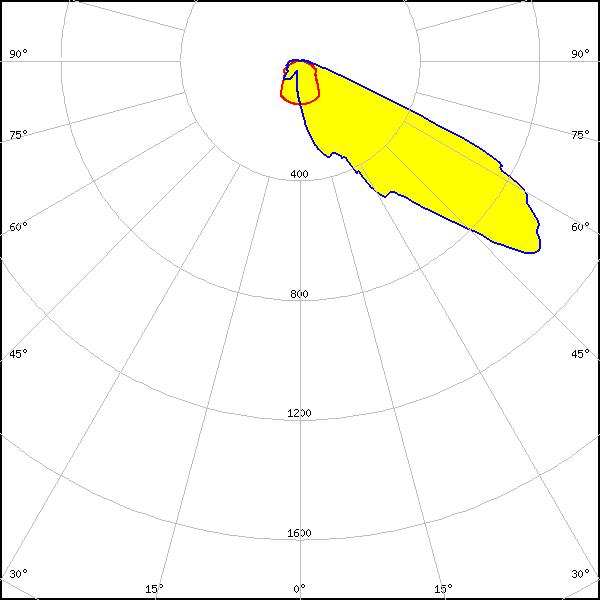

    LED: LUXEON 7070
    FWHM: asymmetric
    Peak intensity: 0.831 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 7070
    FWHM: asymmetric
    Peak intensity: 1.019 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

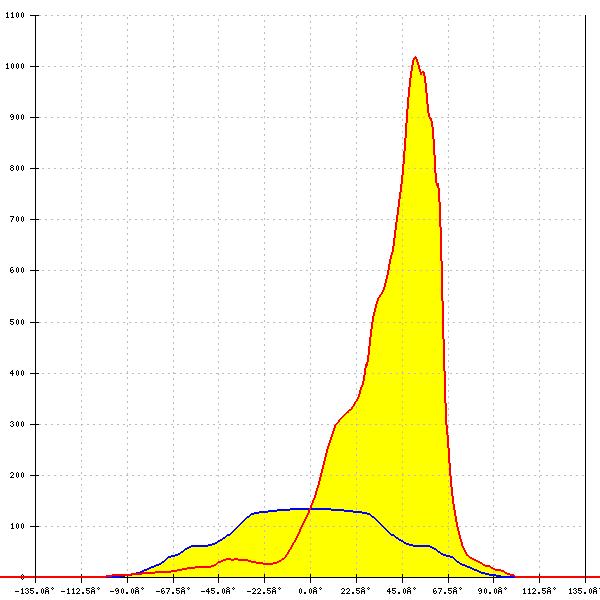

    LED: LUXEON 7070
    Required components:
    L20286_SQ-SC2-SHD
    FWHM: asymmetric
    Peak intensity: 1.018 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

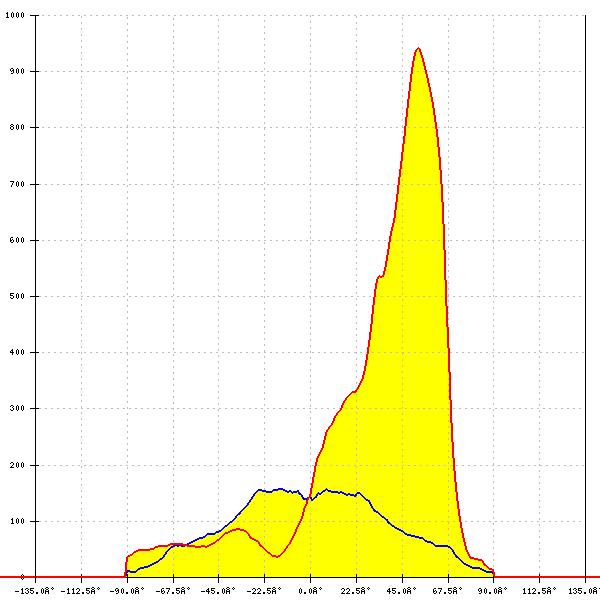

    LED: LUXEON 7070 HE
    FWHM: asymmetric
    Peak intensity: 0.941 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

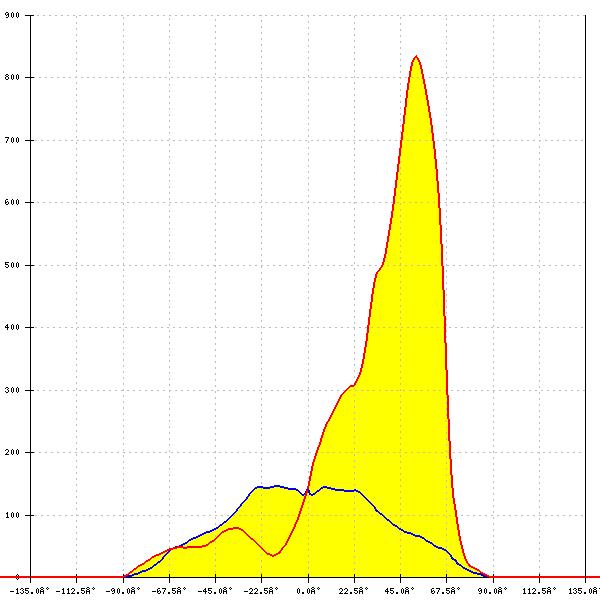

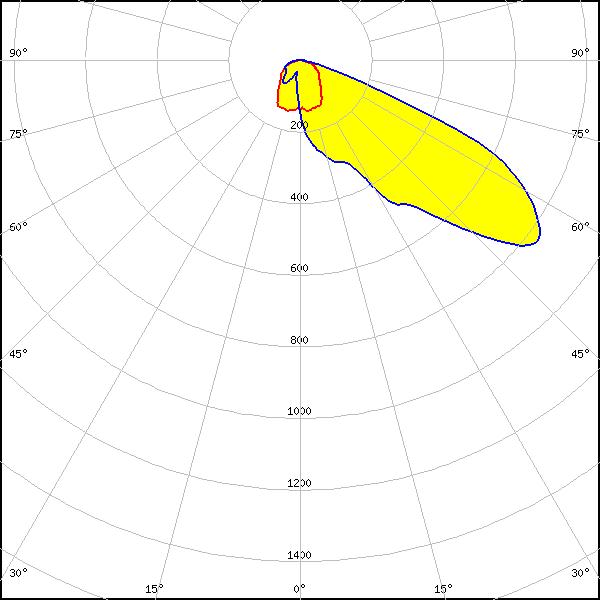

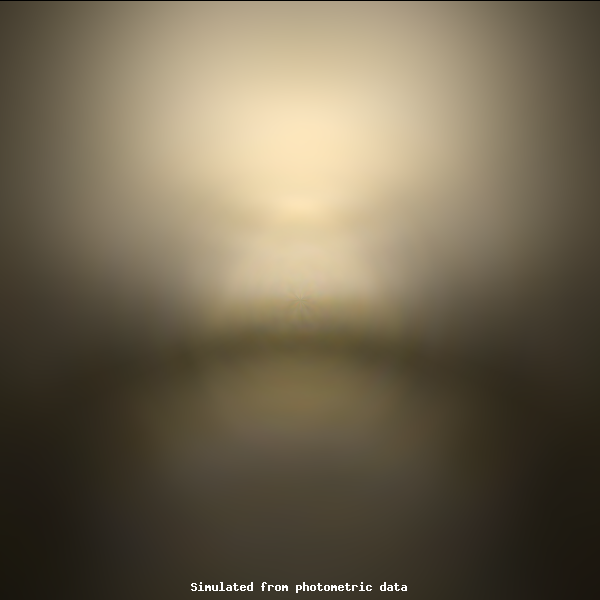

    LED: LUXEON 7070 HE
    FWHM: asymmetric
    Peak intensity: 0.834 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

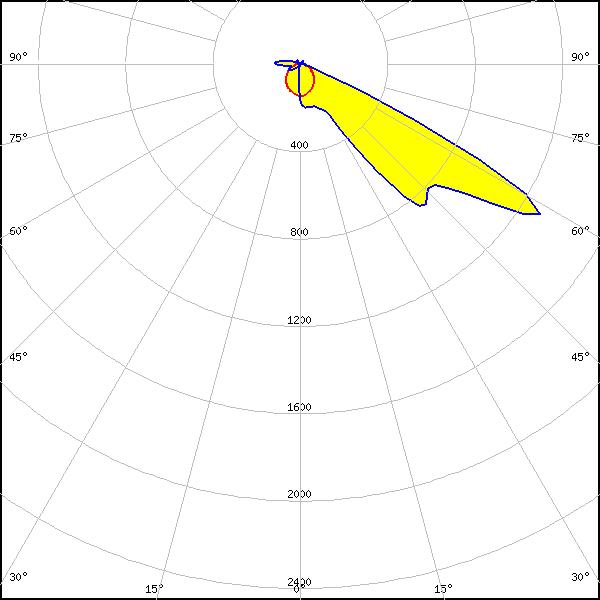

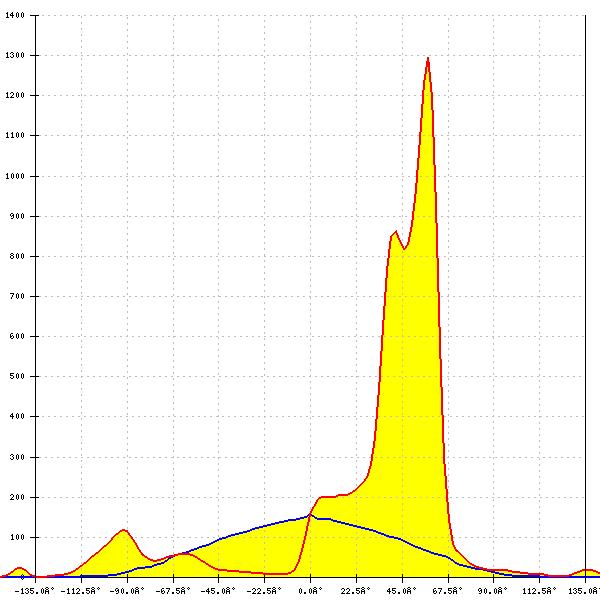

    LED: OSLON Signal LUW CRBP.01
    FWHM: asymmetric
    Peak intensity: 1.296 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
