APPLICATION EXAMPLE

M1 Street lighting with STRADA-2X2-LN1


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

SETUP:

Application:Street lighting
Roadway class:M1
Tarmac:R3
Optics:STRADA-2X2-LN1
LED:3535 High-Power
Road width:7 m
Number of lanes:2
Arrangement:Median
Pole distance:55 m
Mounting height:16 m
Overhang:-0.5 m
Boom angle:
Boom lenght:1 m
Pole distance from roadway:1.5 m
Maintenance factor:0.67
Total lumen output/luminaire:34 000 lm
Power consumption/km:8820 W
Energy consumption/year:1960 kWh

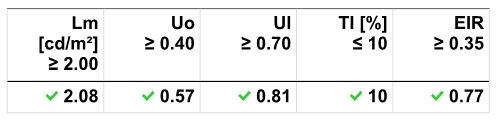

RESULTS (M1 class):

strada-2x2-ln1-example-results

FIND THE PRODUCTS
C17446_STRADA-2X2-LN1

M1 Street lighting with STRADA-2X2-LN1


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
