APPLICATION EXAMPLE
M3 Street lighting with STRADELLA-8-HV-CSP-LM1
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
Application: | Street lighting |
Roadway class: | M3 |
Tarmac: | R3 |
Optics: | STRADELLA-8-HV-CSP-LM1 |
LED: | FastFlex Gen5 |
Road width: | 10.5 m |
Number of lanes: | 3 |
Arrangement: | single side, bottom |
Pole distance: | 40 m |
Mounting height: | 10 m |
Overhang: | 0 m |
Boom angle: | 0° |
Boom lenght: | 2 m |
Maintenance factor: | 0.7 |
Total lumen output/luminaire: | 15 500 lm |
Power consumption/km: | 2575 W |
Energy consumption/year: | 412 kWh |

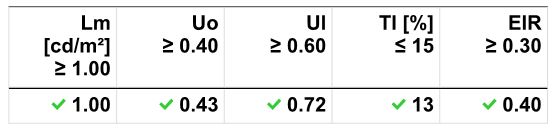

RESULTS (M3 class):
M3 Street lighting with STRADELLA-8-HV-CSP-LM1
