APPLICATION EXAMPLE

M4 Street lighting with STRADELLA-8-HV-CSP-LN1


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

SETUP:

Application:Street lighting
Roadway class:M4
Tarmac:R3
Optics:STRADELLA-8-HV-CSP-LN1
LED:FastFlex Gen5
Road width:7 m
Number of lanes:2
Arrangement:single side, bottom
Pole distance:50 m
Mounting height:10 m
Overhang:0 m
Boom angle:
Boom lenght:2 m
Maintenance factor:0.7
Total lumen output/luminaire:9100 lm
Power consumption/km:1220 W
Energy consumption/year:244 kWh

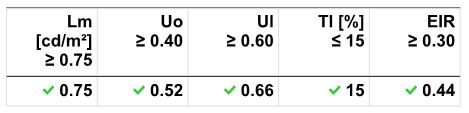

RESULTS (M4 class):
