Application example

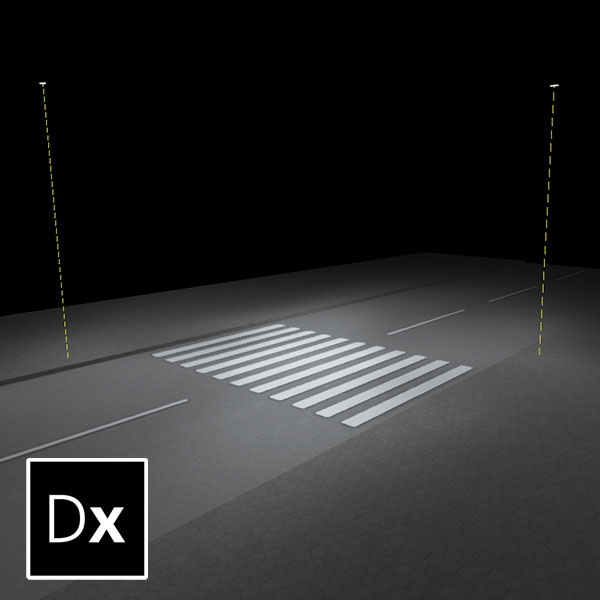

Pedestrian crossing lighting with STRADA-IP-2X6-PXL


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

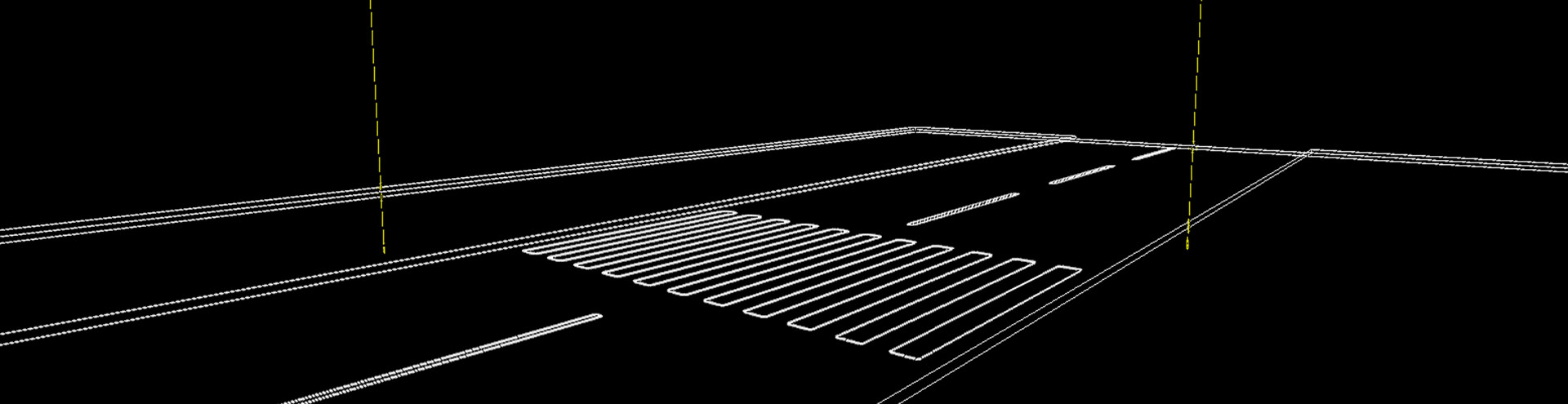

Setup:

Application:Pedestrian crossing
Pole height:6 m
Road width:7 m
Crossing size:4 x 7 m
Optics:STRADA-IP-2X6-PXL
Number of luminaires:2 pcs
Luminaire output:5946 lm
Luminaire power:36 W
Efficacy w/o driver:166 lm/W

Results:

Lighting levels following best practise in Europe
Center line at 1 m height
Average:43 lx
Uniformity:0.39
On crossing
Average:81 lx
Uniformity:0.65

Download the simulation for pedestrian crossing lighting with STRADA-IP-2X6-PXL
