APPLICATION EXAMPLE
Volleyball court lighting with SPORT-IP-24-FT6
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

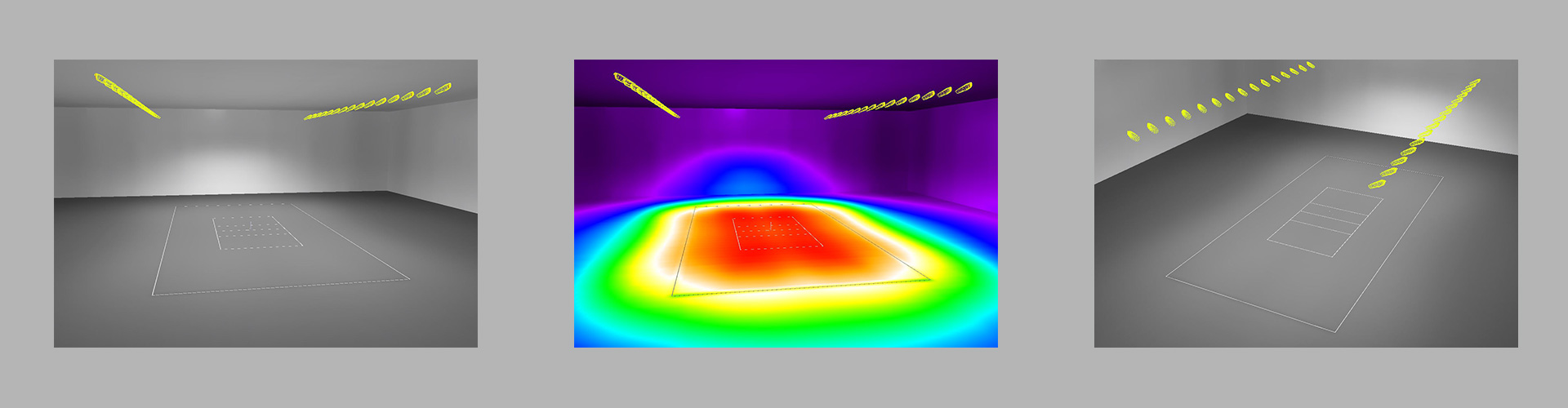

Volleyball court lighting example
Fulfills the requirements for Brazilian CBF national level (televised).
Setup:
| Application: | Volleyball court lighting |
| Play area: | 20.64 x 42.36 m |
| Number of luminaires: | 30 pcs |
| Spacing: | 2.9 m |
| Mounting height: | 16 m |
| Optics: | SPORT-IP-24-FT6 |
| Luminous flux (luminaire): | 179 klm |
| Luminaire power: | 1224 W |
| Luminous flux (total): | 5367 klm |
| Total luminaire power: | 36 714 W |
Results:
| Average: | 2004 lx |
| Uniformity: | 0.74 |
| Max glare (GR): | 36 |
Volleyball court lighting with SPORT-IP-24-FT6
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
