Application example

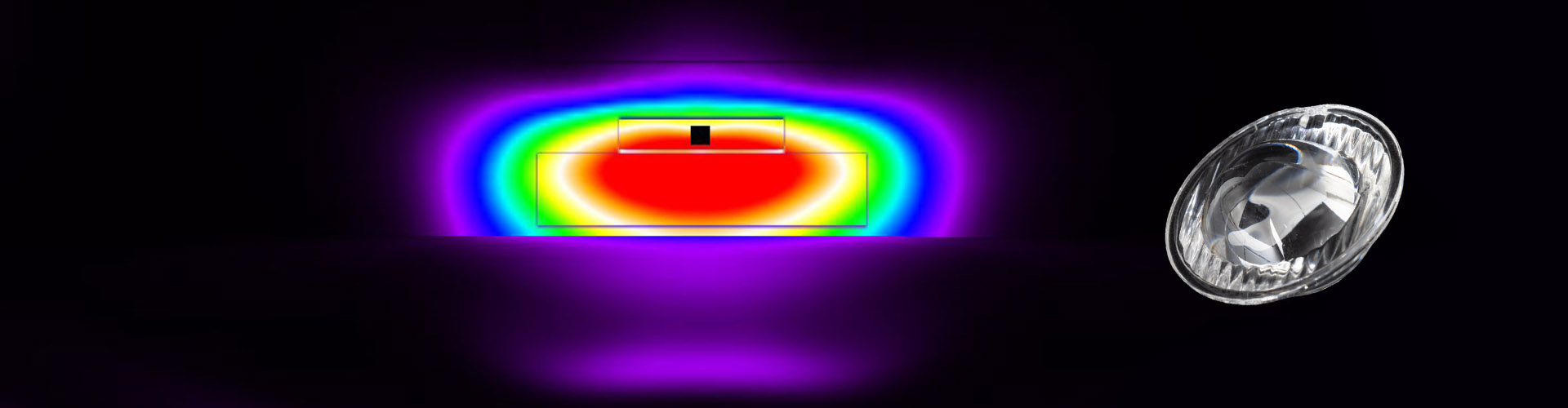

Bicycle lighting with FILIPPA-STVZO
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Setup:
| Application: | Bicycle lighting |
| Standard: | StVZO |
| Optics: | FILIPPA-STVZO |
| LED type: | 3535 |
| Distance to wall: | 10 m |
| Luminaire output: | 200 lm |
| Luminaire tilt: | -1° |

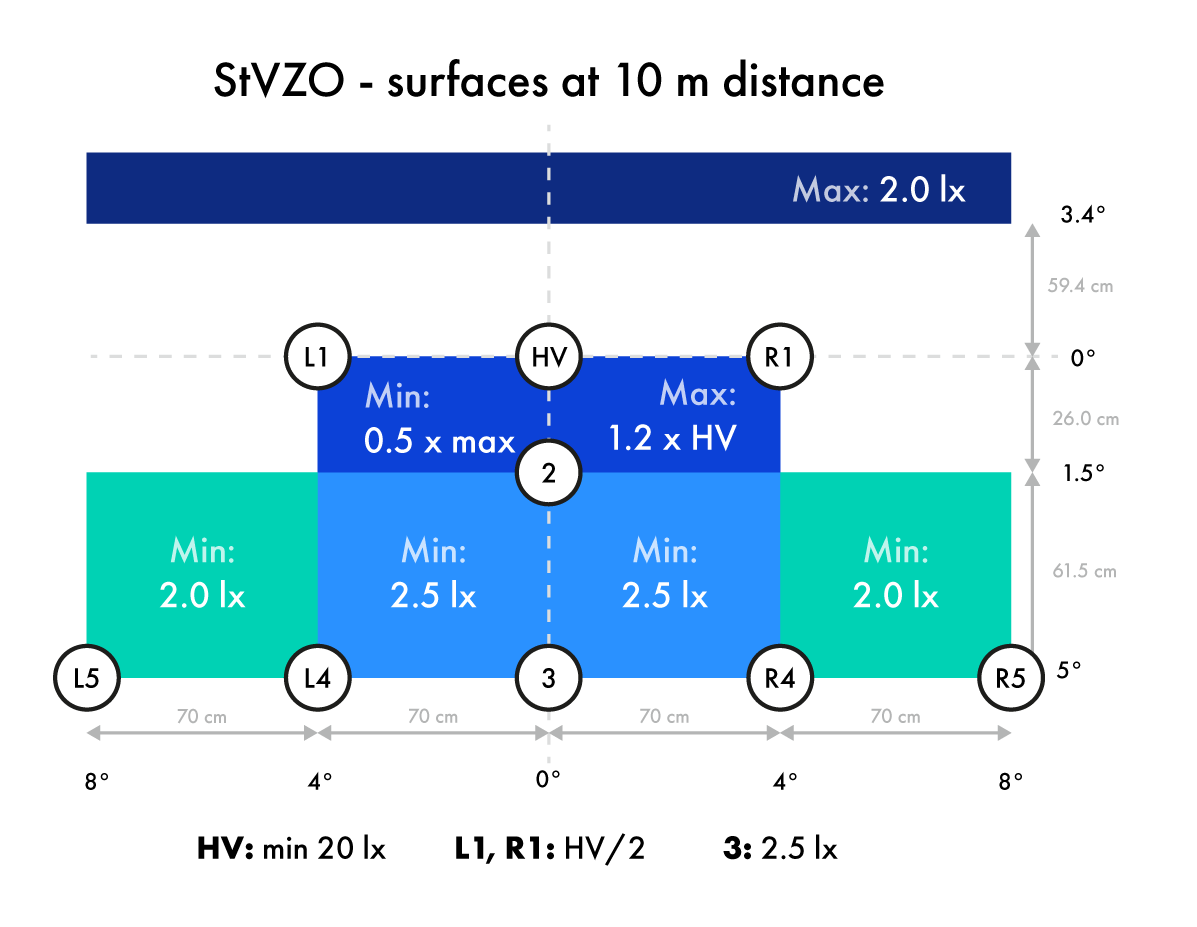

The requirements
Results:
| Max (59.4 cm above horizontal centre line): | 1.9 lx |
| Max (Right below horizontal centre line): | 34 lx |
| Min (Right below horizontal centre line): | 18 lx |
| Min (26.0 cm below horizontal centre line): | 13 lx |
Bicycle lighting with FILIPPA-STVZO
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
