APPLICATION EXAMPLE

Façade lighting with BLONDIE


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

  • Produces very tight blade-type wall washing beam for façade lighting

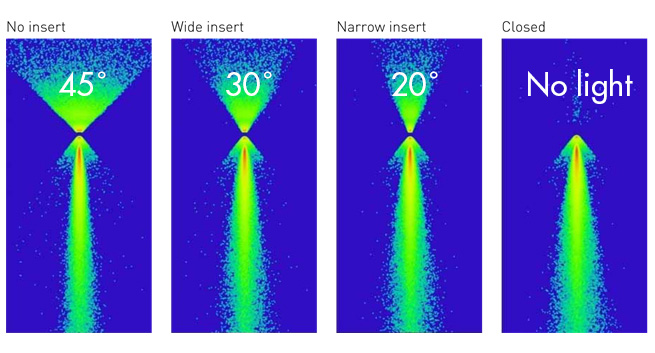

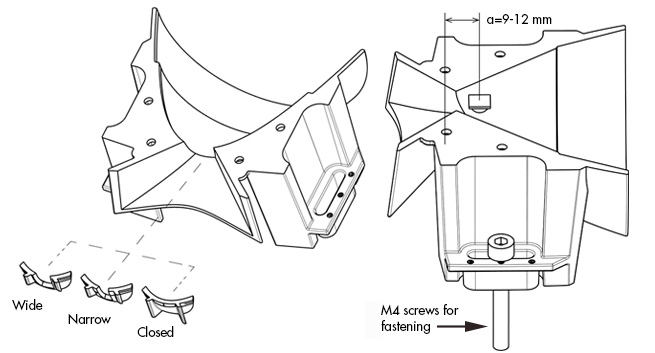

  • Comes with three interchangeable inserts to easily shape light into different angles

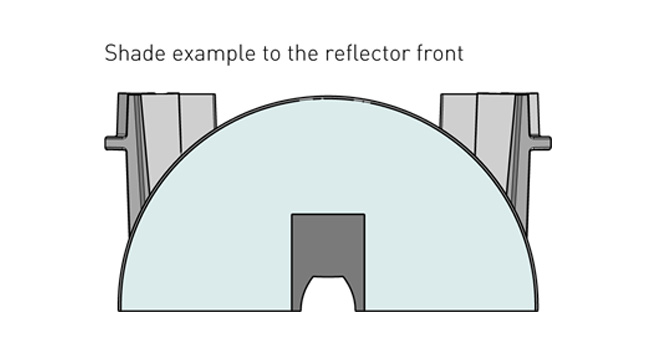

  • If needed, cut-off can be improved with narrow shade in front, and backward going light can be shaped or blocked entirely

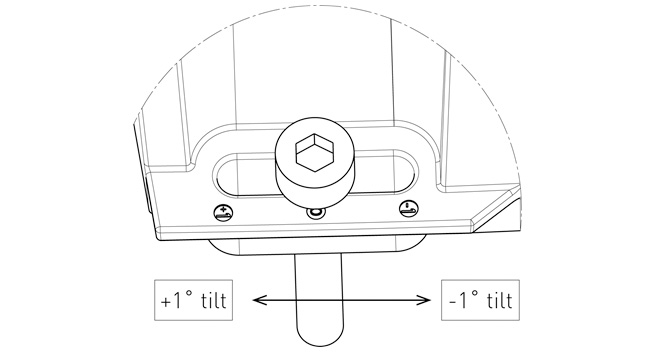

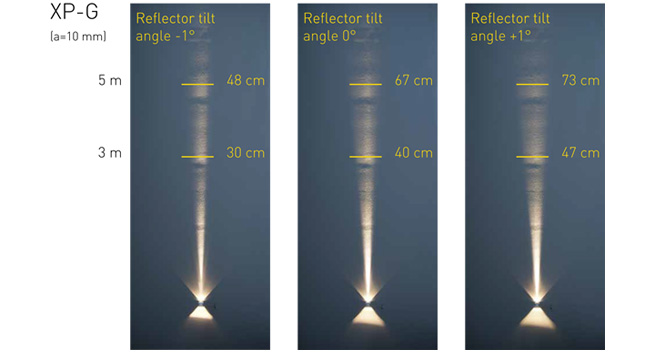

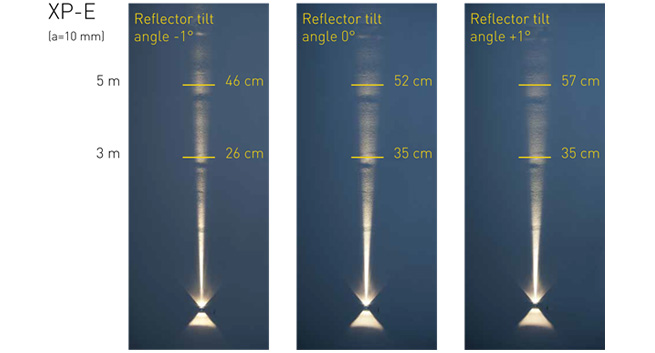

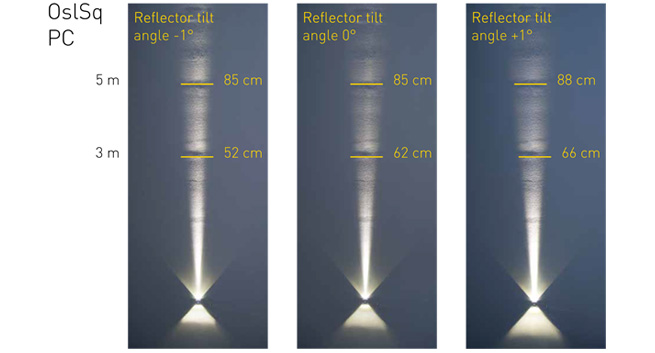

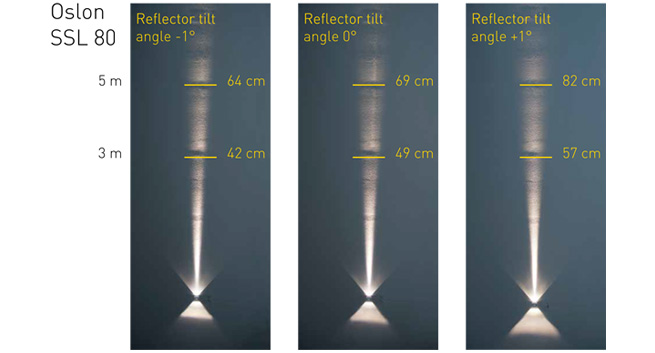

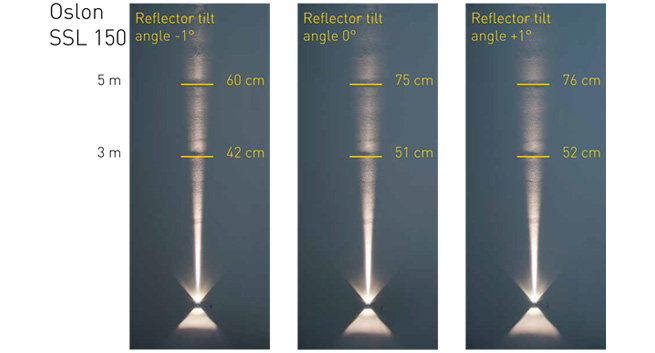

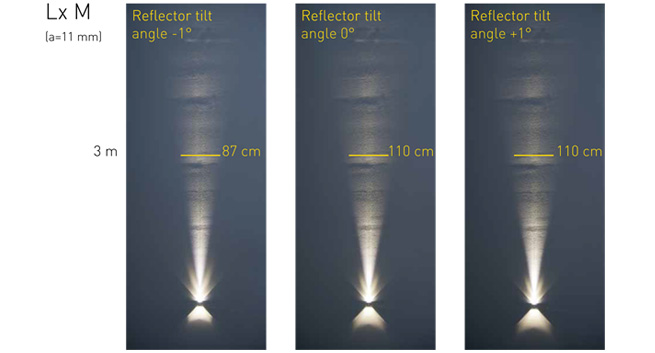

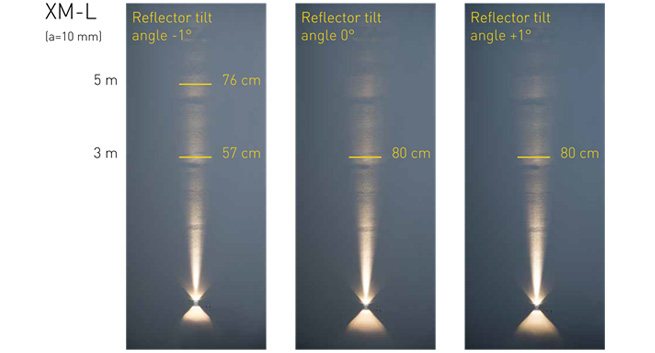

  • Can be tilted in +1˚ to -1˚ angles from the wall to further modify beam shape
  • Fastening to the wall with two M4 screws
  • Better efficiency than with cylindrical lenses
  • Compatible with single and multi-crystal LEDs up to 7070 size packages
  • PCB design / protoboards available on request

GO TO PRODUCT CARDS

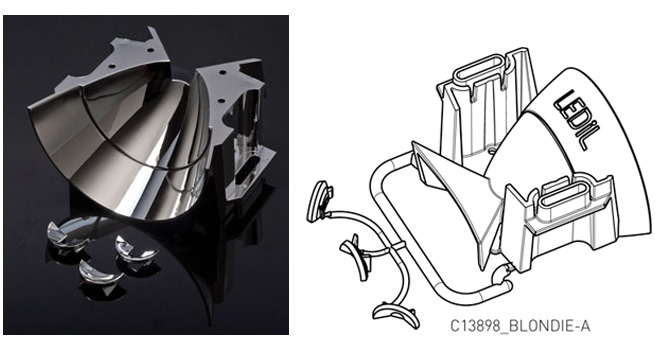

C13898_BLONDIE-A
