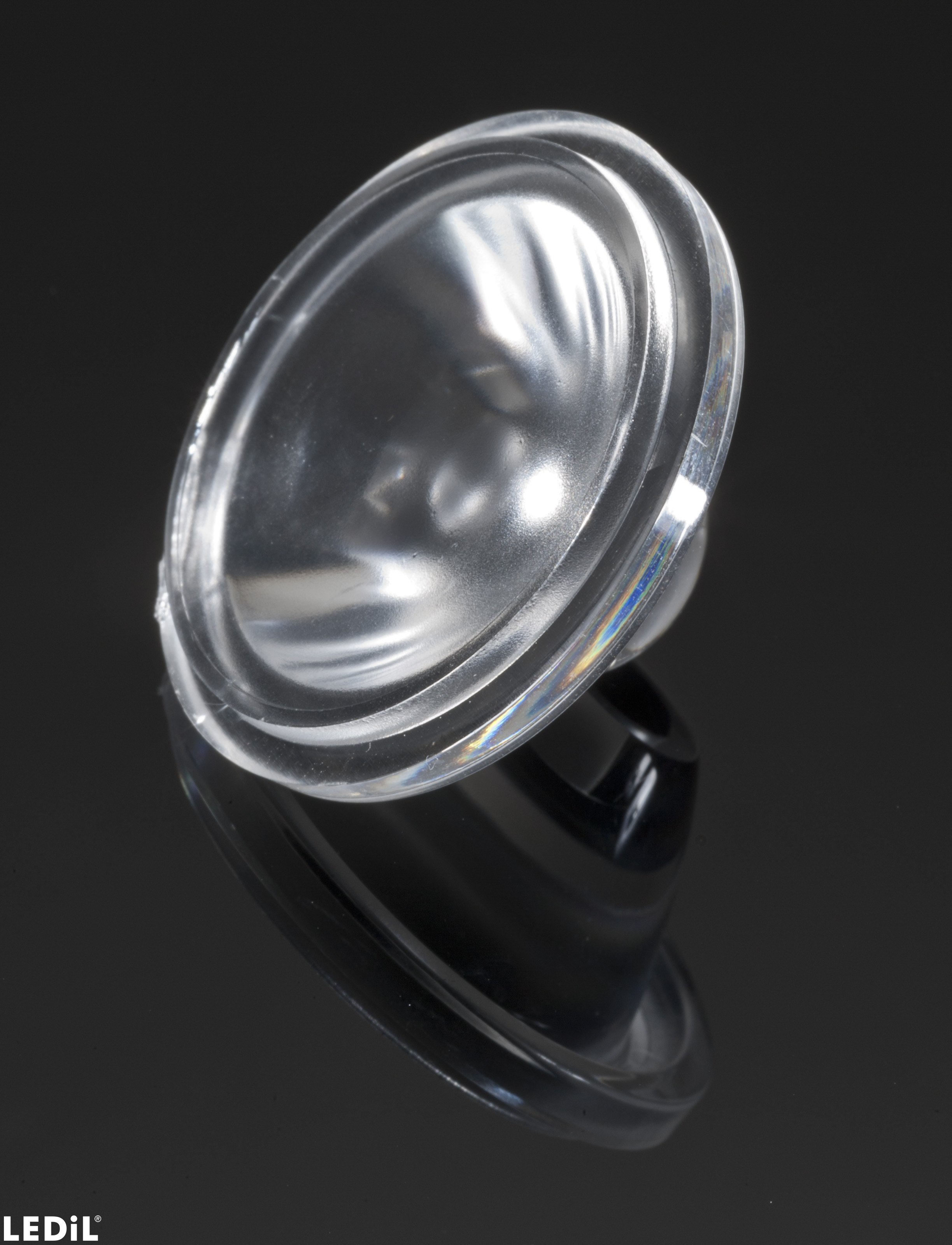

    C10684_EVA-D

    Print

    ~16° diffused spot beam

    Specification
    • Dimensions:
      35 mm
    • Height:
      16.40 mm
    • Fastening:
      glue
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      540 pcs
    • Box weight:
      4.0 kg
    • MPQ:
      45 pcs
    • MOQ:
      90 pcs
    • MOQ size:
      480 x 280 x 60 mm
    • MOQ weight:
      1.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C10684_EVA-D
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

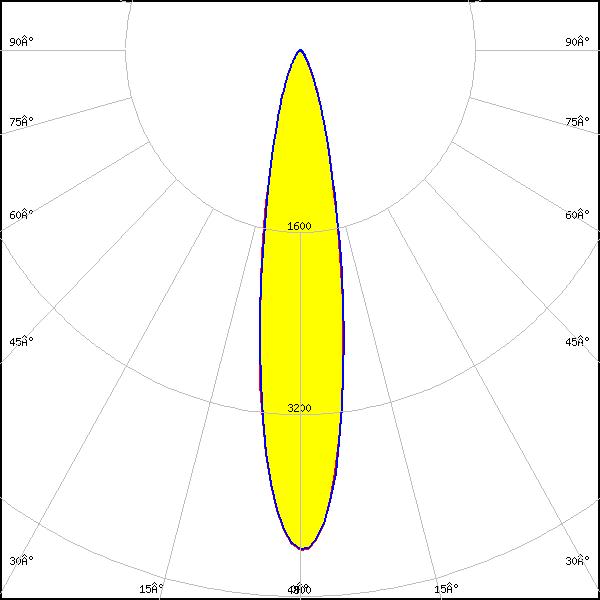

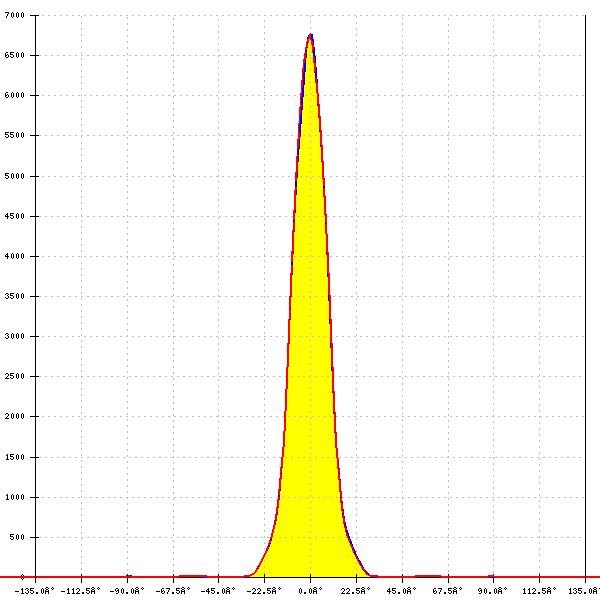

    Optical results

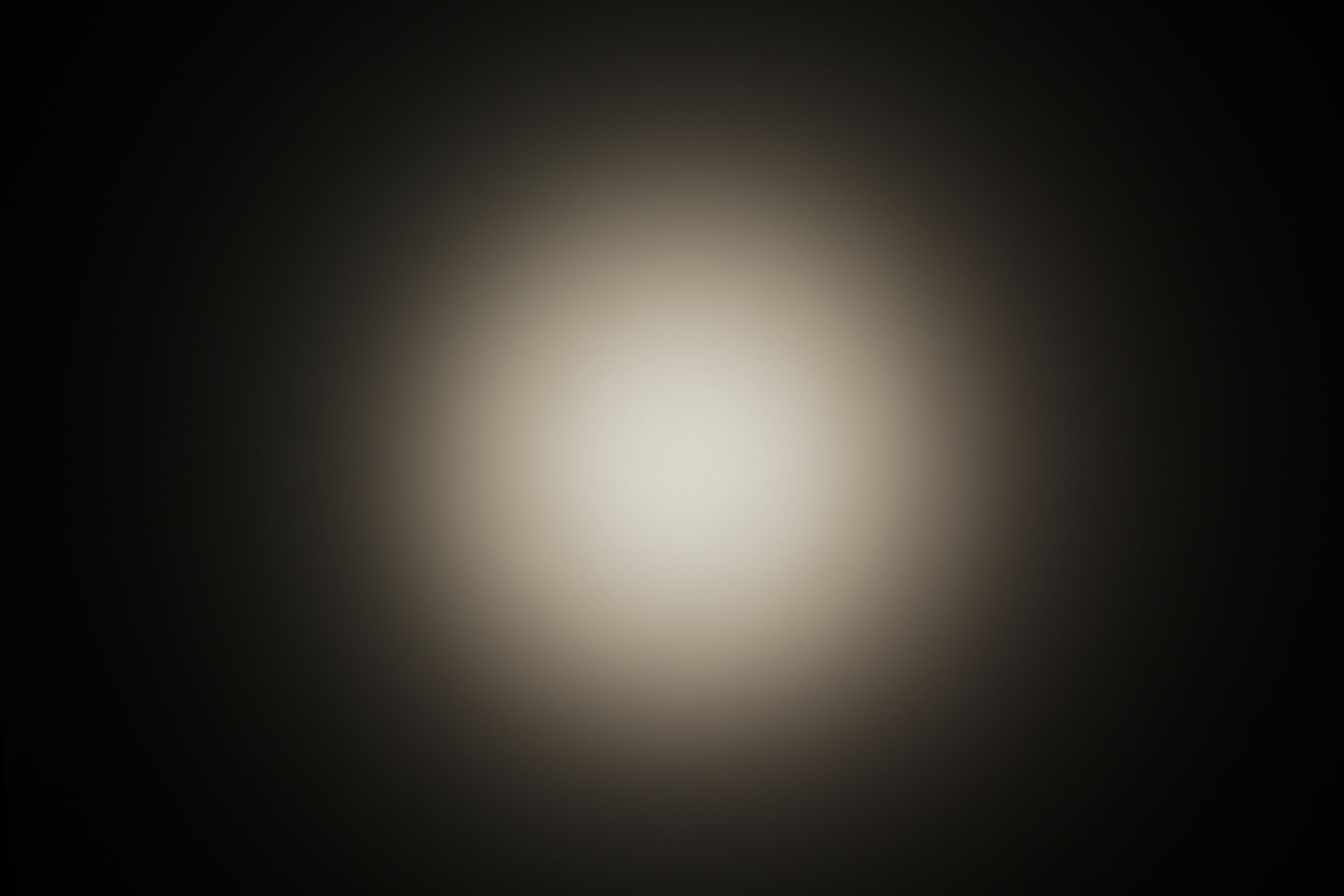

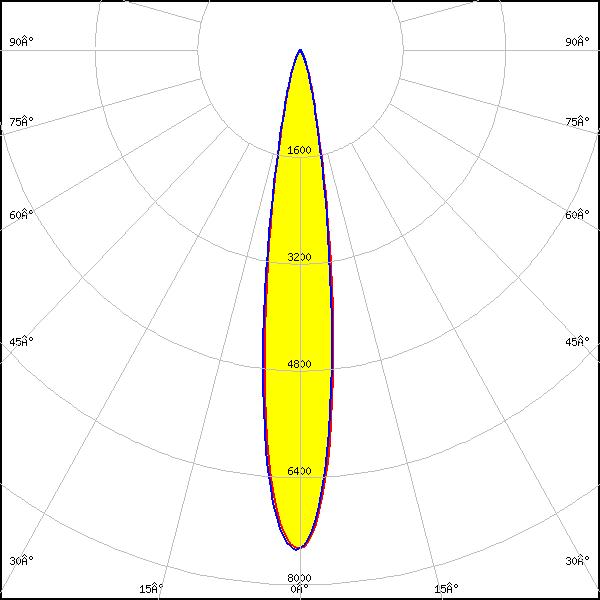

    LED: CLU7A2/7A3
    FWHM: 16°
    FWTM: 33°
    Peak intensity: 7.500 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MC-E
    FWHM: 16°
    FWTM: -
    Peak intensity: 6.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

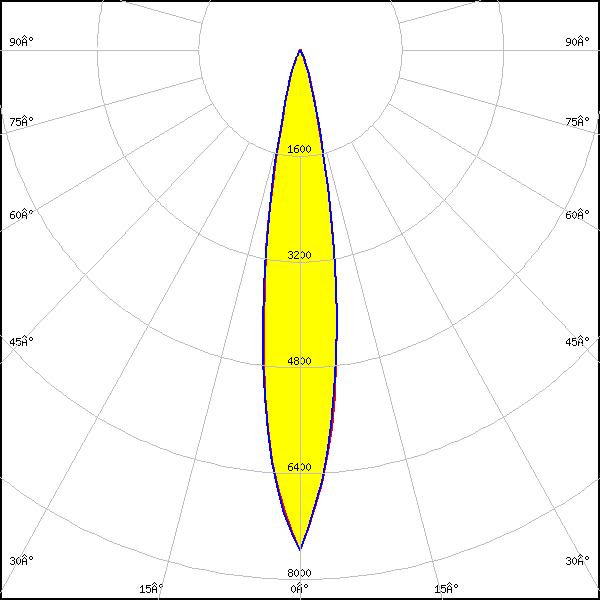

    LED: MHB-A/B
    FWHM: 19°
    FWTM: 40°
    Peak intensity: 5.400 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

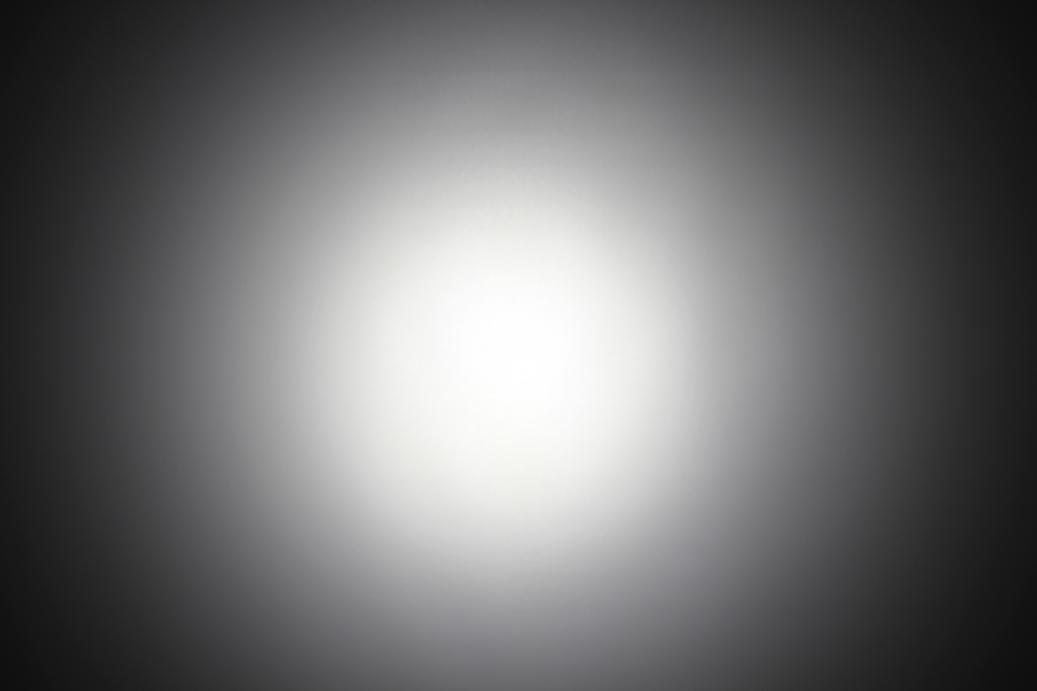

    LED: XHP35 HI
    FWHM: 22°
    FWTM: 46°
    Peak intensity: 3.900 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L
    FWHM: 16°
    FWTM: -
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: 16°
    FWTM: 30°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

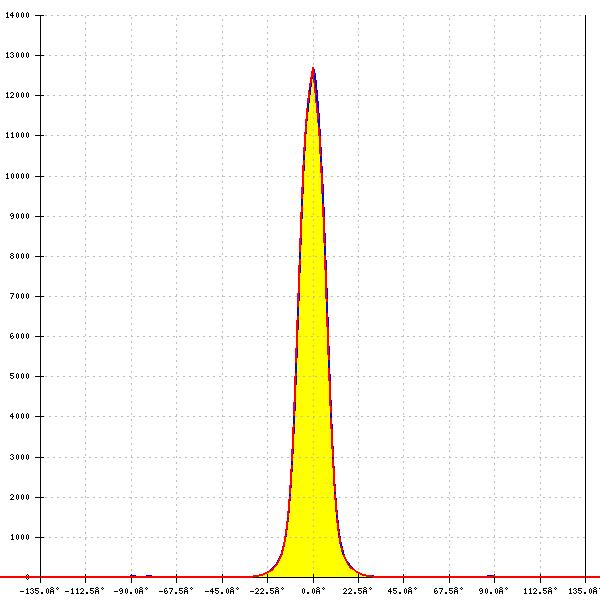

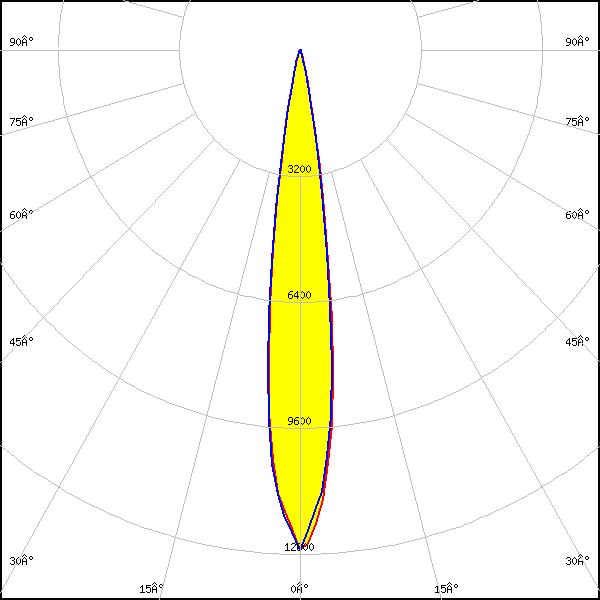

    LED: XT-E
    FWHM: 14°
    FWTM: -
    Peak intensity: 7.500 cd/lm
    LEDs/each optic: 1
    Light colour/type: White

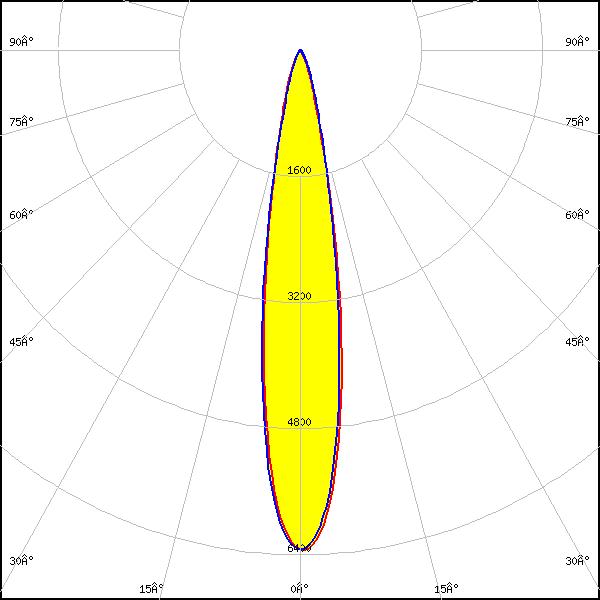

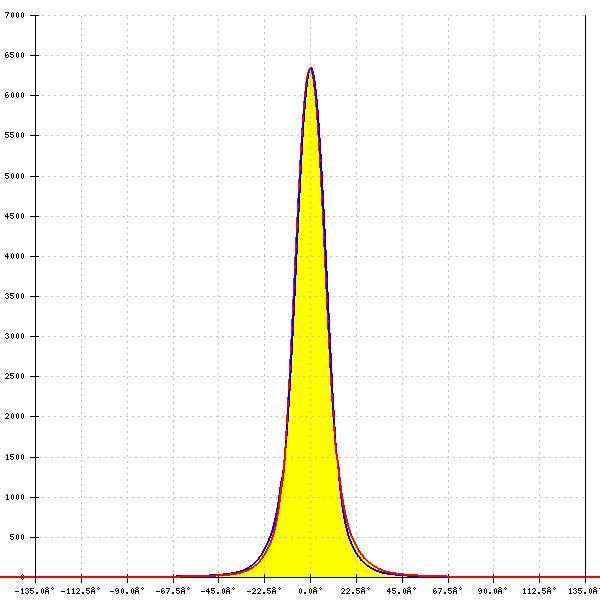

    LED: LUXEON 5050 Round LES
    FWHM: 18°
    FWTM: 35°
    Peak intensity: 6.400 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

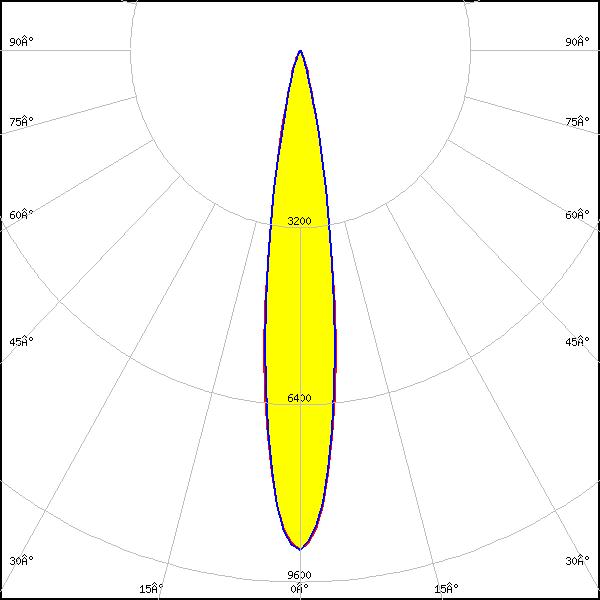

    LED: LUXEON 5258
    FWHM: 17°
    FWTM: 30°
    Peak intensity: 8.600 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON M/MX
    FWHM: 21°
    FWTM: -
    Peak intensity: 4.200 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

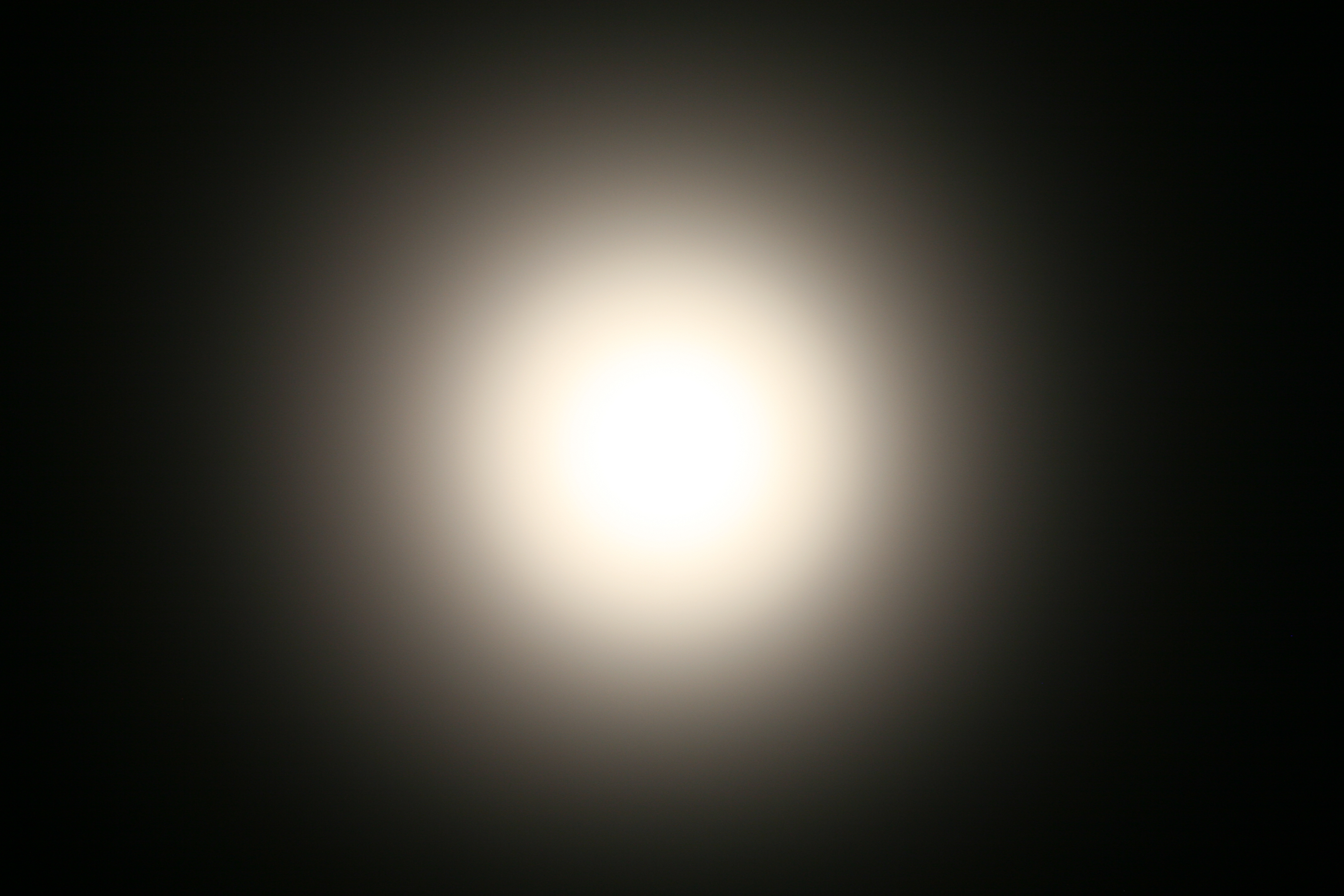

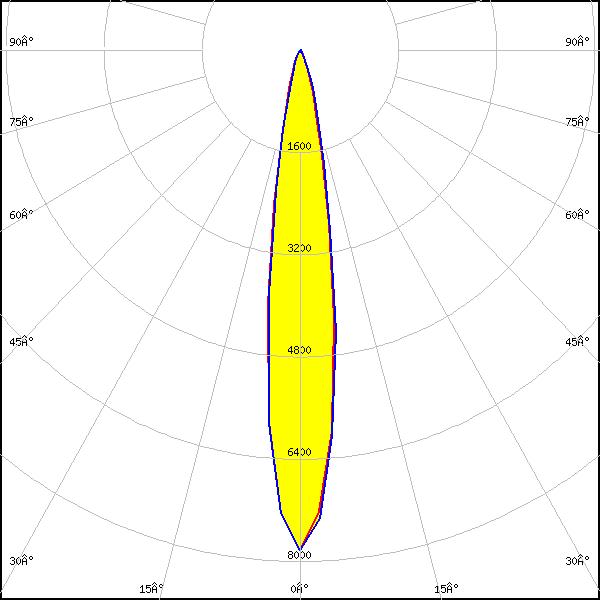

    LED: LUXEON MZ
    FWHM: 16°
    FWTM: 33°
    Peak intensity: 7.800 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

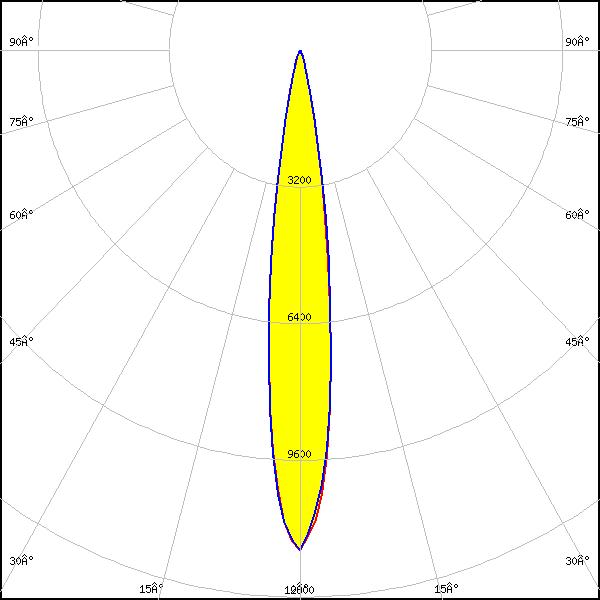

    LED: CXM-3
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 11.707 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

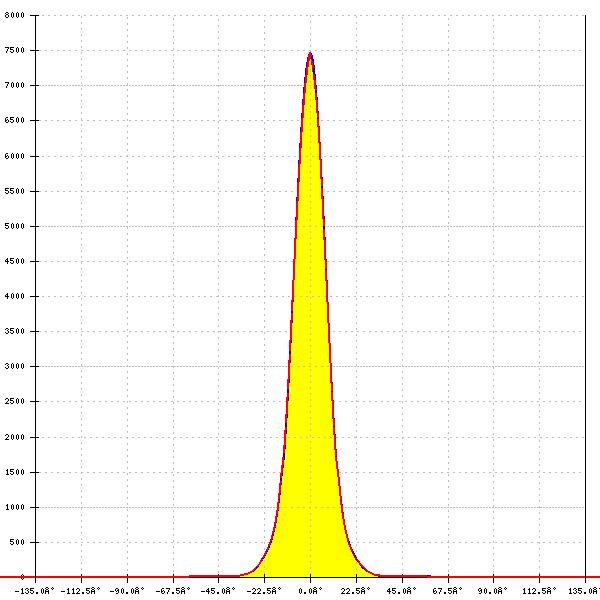

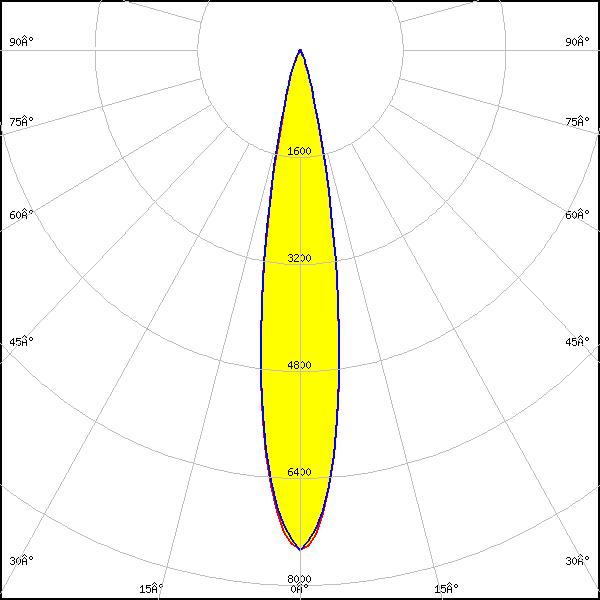

    LED: CXM-4
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 7.475 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

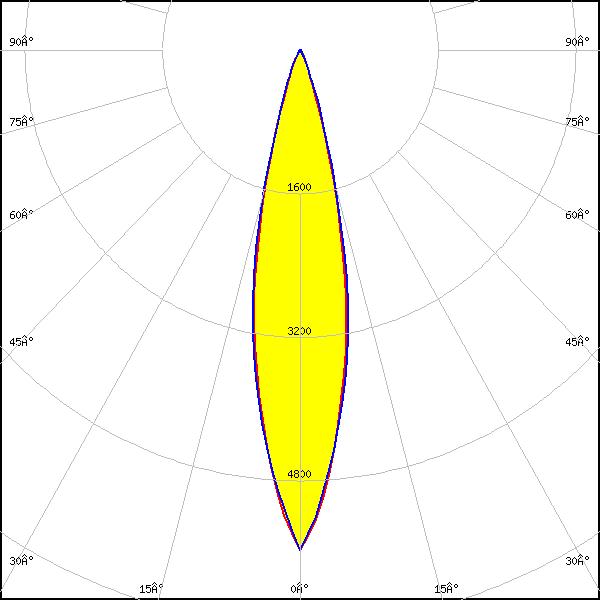

    LED: NFMW48xA
    FWHM: 22°
    FWTM: 39°
    Peak intensity: 5.574 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NS9x383
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 6.800 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

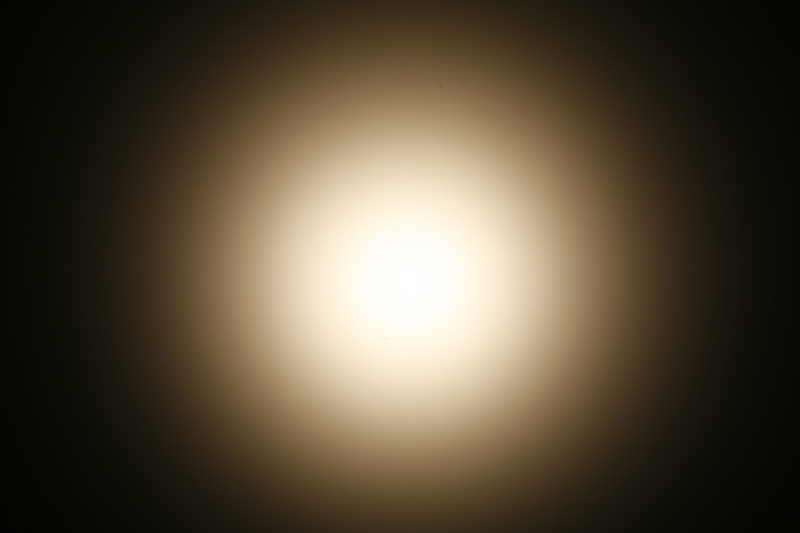

    LED: NSMx286M
    FWHM: 20°
    FWTM: 44°
    Peak intensity: 4.400 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

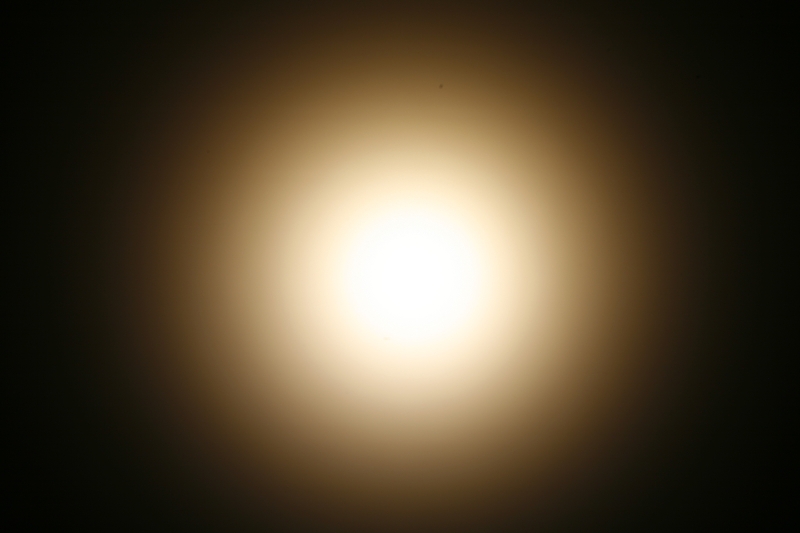

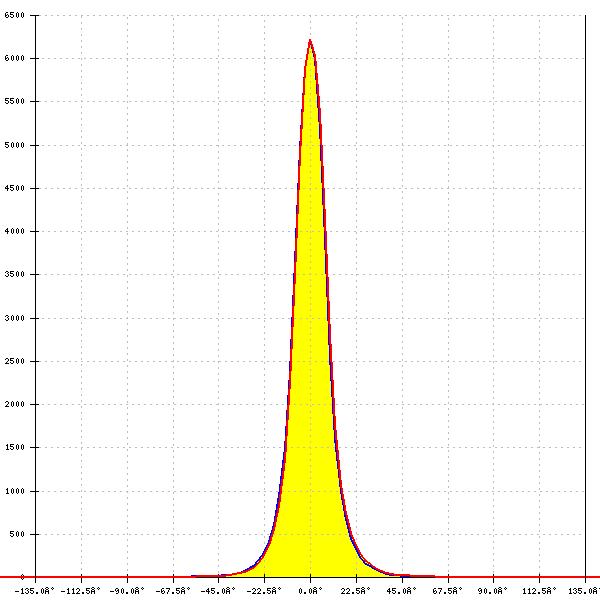

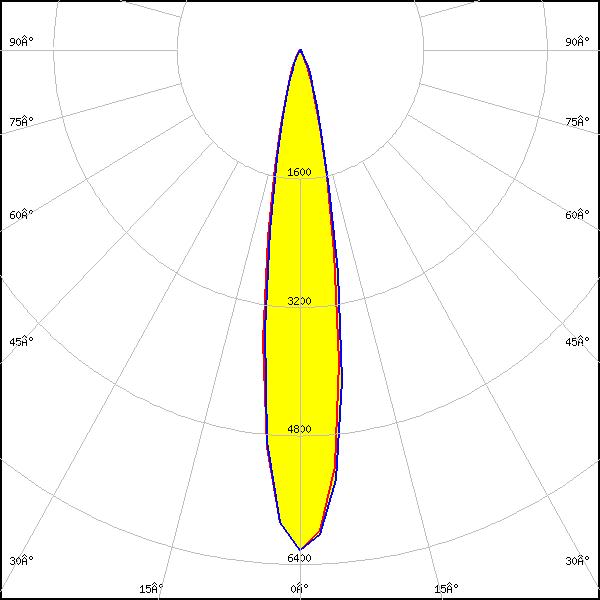

    LED: Duris S8
    FWHM: 18°
    FWTM: 36°
    Peak intensity: 6.200 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 7070
    FWHM: 20°
    FWTM: 33°
    Peak intensity: 6.850 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y15
    FWHM: 13°
    FWTM: 28°
    Peak intensity: 11.530 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y19
    FWHM: 13°
    FWTM: 28°
    Peak intensity: 11.000 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
