C10686_EVA-W
Print
~40° wide beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

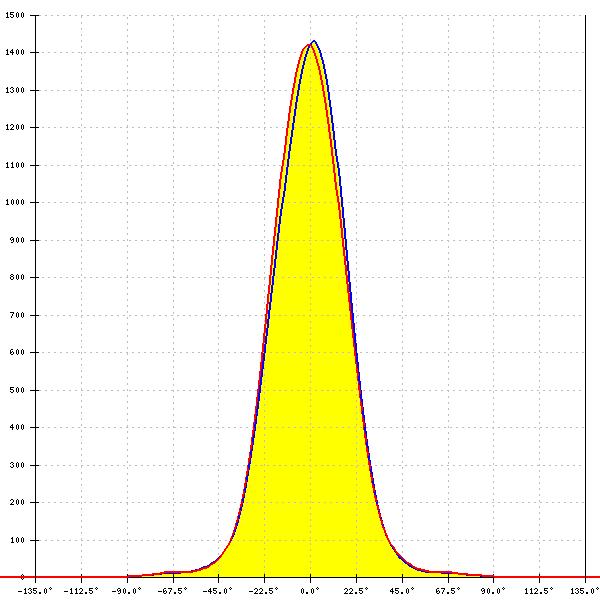

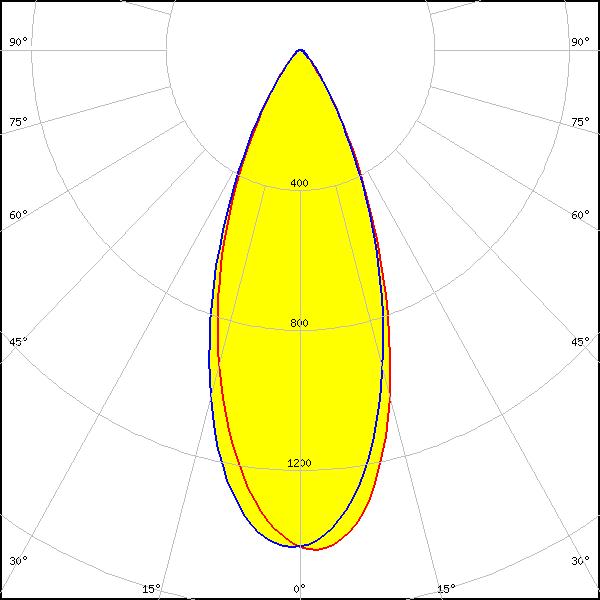

Optical results

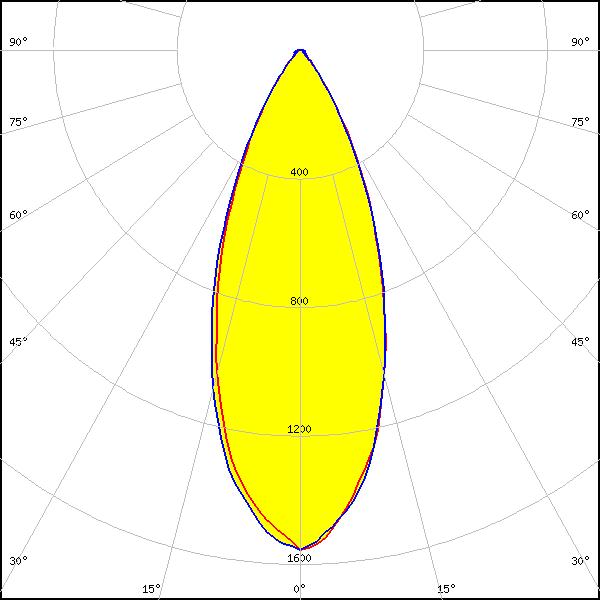

LED:

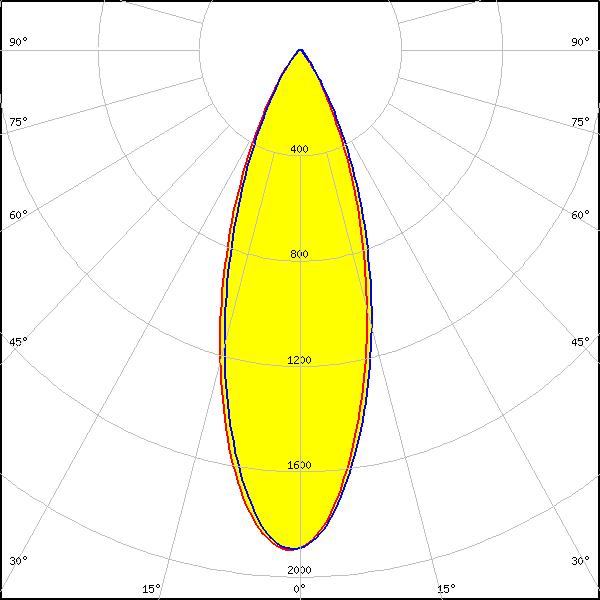

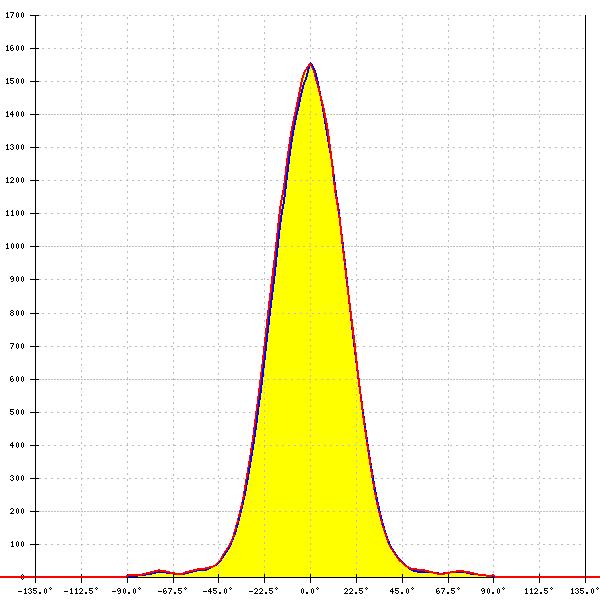

CLU700/701/702/703
FWHM:
41°
FWTM:
72°
Peak intensity:
1.579 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

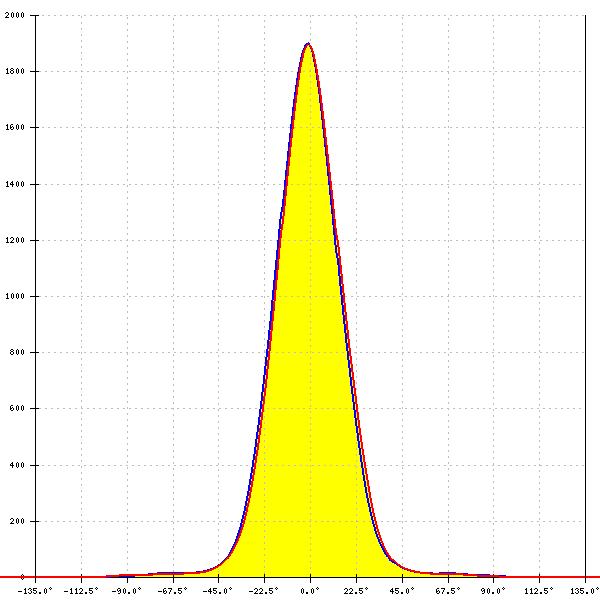

LED:
CLU7A2/7A3
FWHM:
35°
FWTM:
65°
Peak intensity:
1.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MC-E
FWHM:
36°
FWTM:
-
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHB-A/B
FWHM:
39°
FWTM:
70°
Peak intensity:
1.670 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

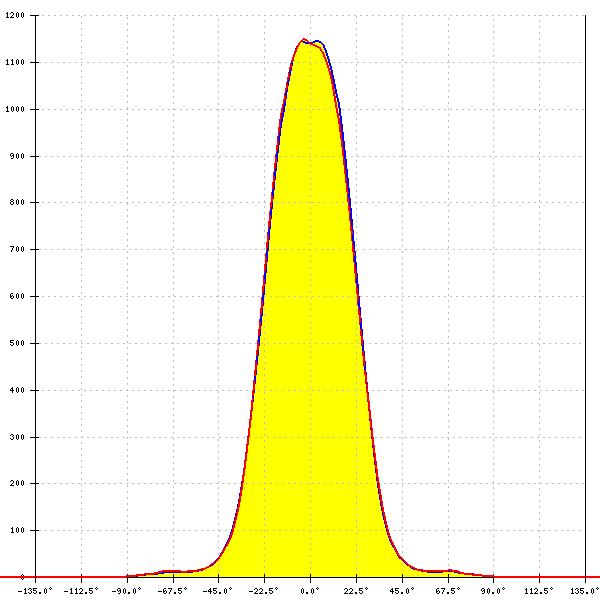

LED:

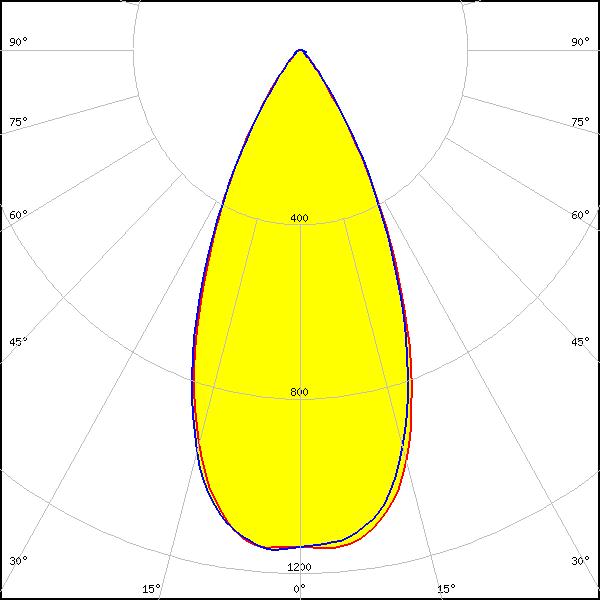

MK-R
FWHM:
48°
FWTM:
75°
Peak intensity:
1.150 cd/lm
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HI
FWHM:
57°
FWTM:
82°
Peak intensity:
0.810 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L
FWHM:
40°
FWTM:
-
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L HVW
FWHM:
38°
FWTM:
-
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
32°
FWTM:
64°
Peak intensity:
2.200 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

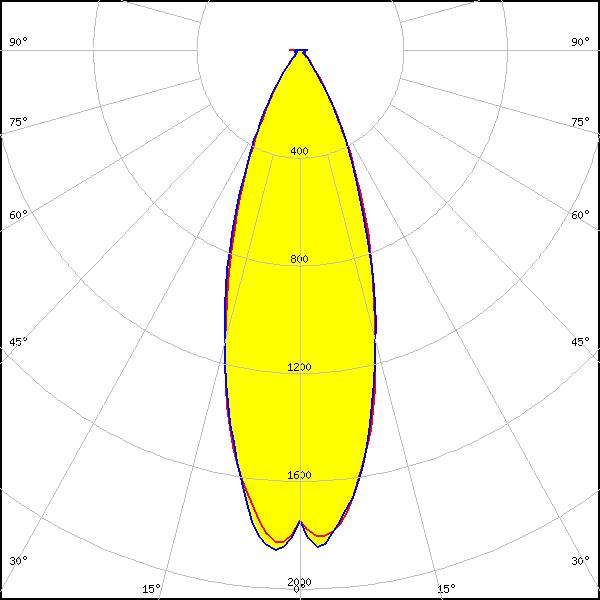

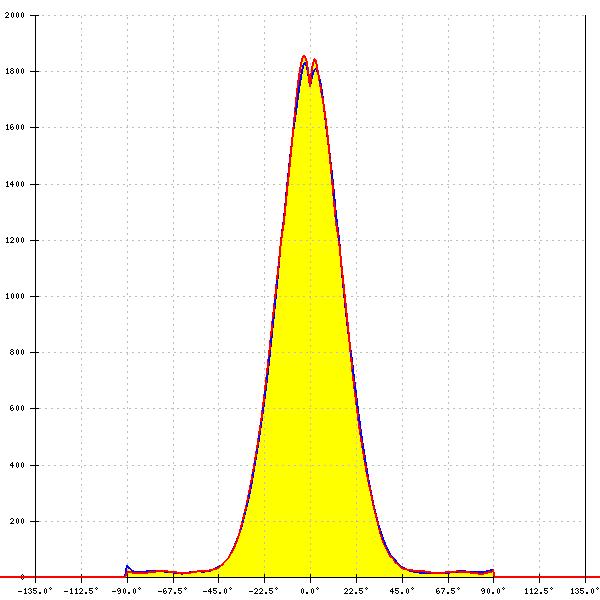

XT-E
FWHM:
32°
FWTM:
-
Peak intensity:
1.800 cd/lm
LEDs/each optic:
1
Light colour/type:
White

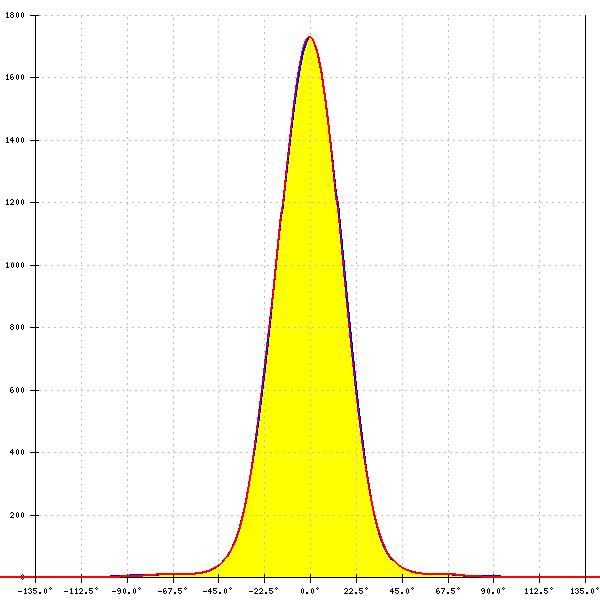

LED:

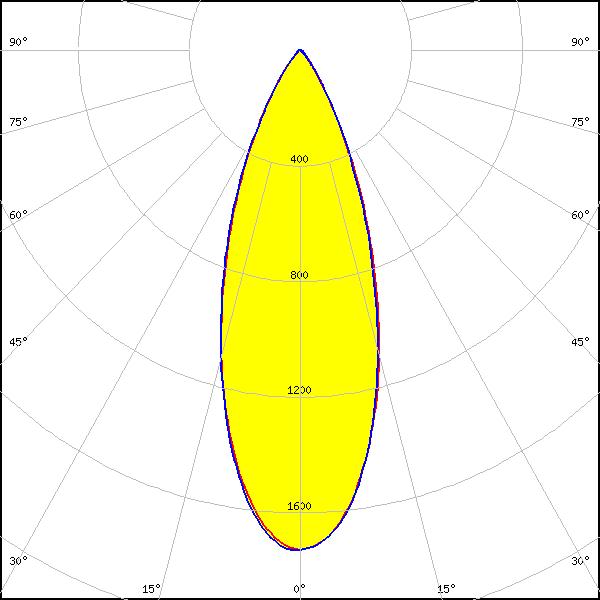

LUXEON 5050 Round LES
FWHM:
37°
FWTM:
67°
Peak intensity:
1.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

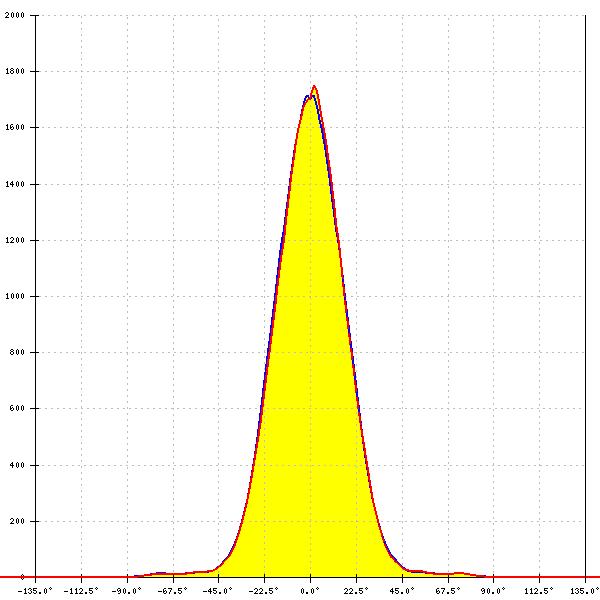

LED:

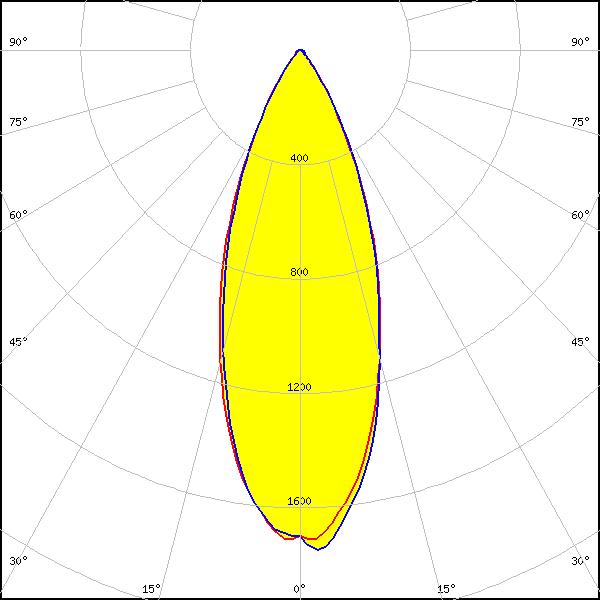

LUXEON 5258
FWHM:
34°
FWTM:
66°
Peak intensity:
1.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

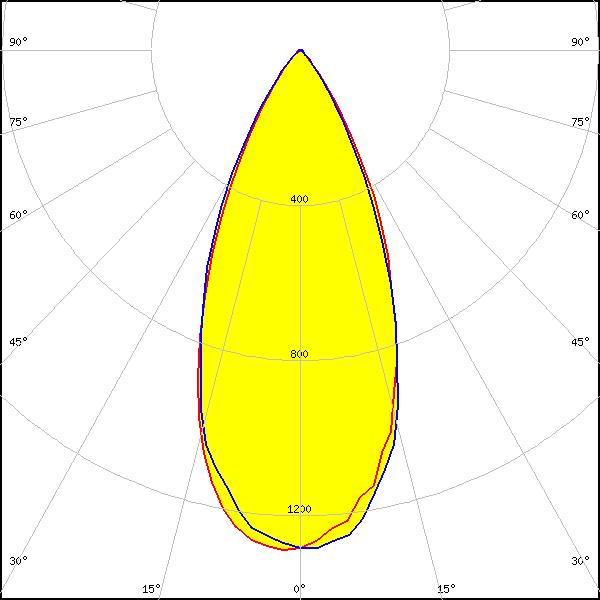

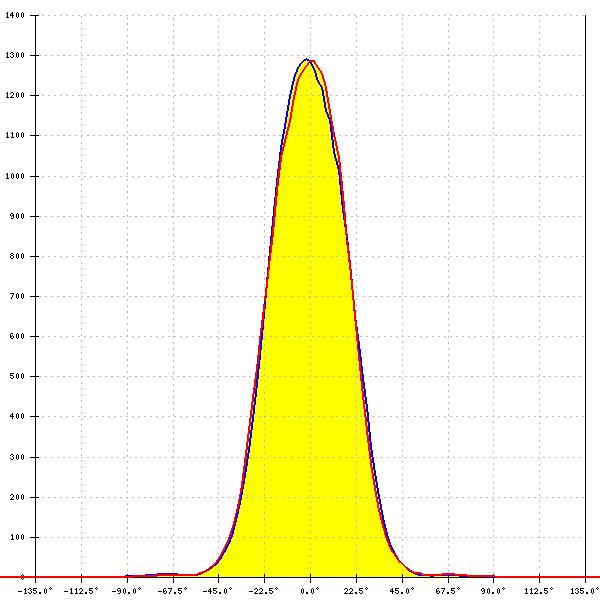

LUXEON M/MX
FWHM:
45°
FWTM:
-
Peak intensity:
1.300 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

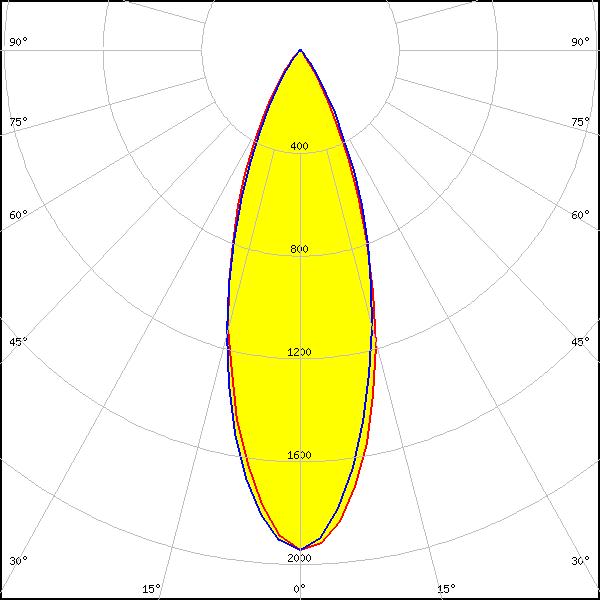

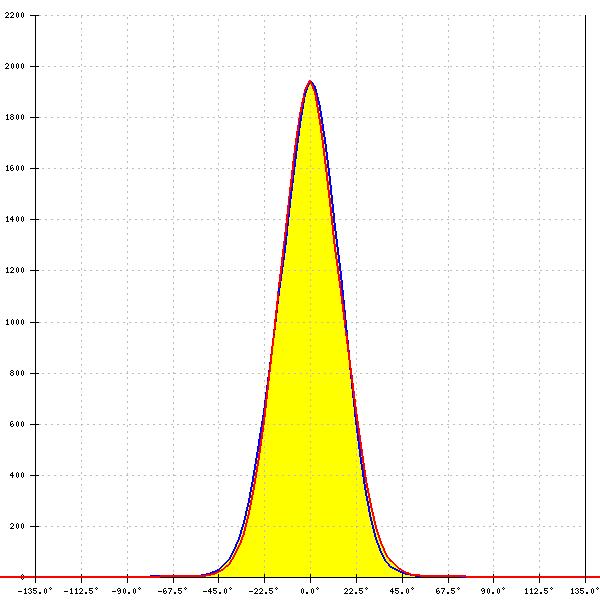

LED:
LUXEON MZ
FWHM:
36°
FWTM:
66°
Peak intensity:
1.900 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-3
FWHM:
35°
FWTM:
66°
Peak intensity:
1.983 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-4
FWHM:
36°
FWTM:
68°
Peak intensity:
1.885 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

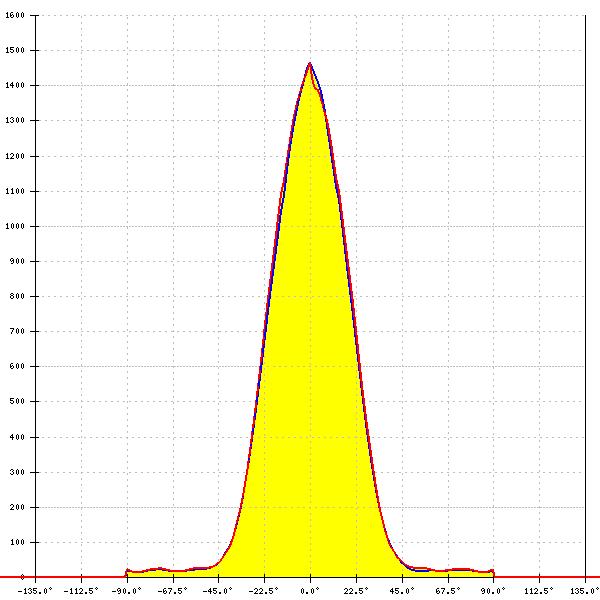

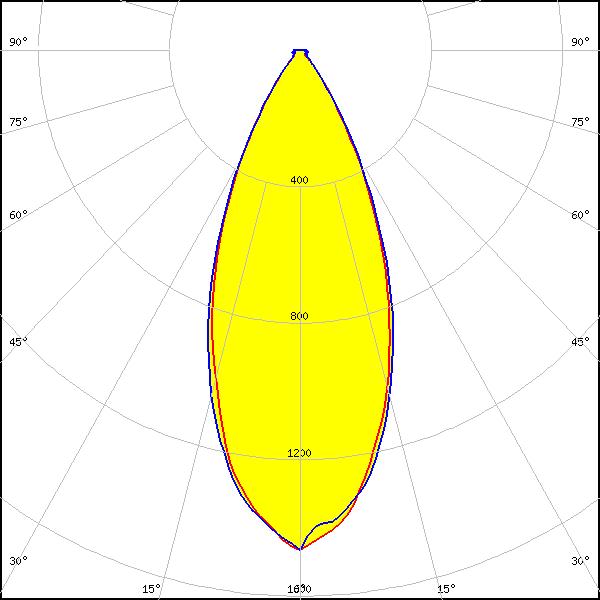

NFMW48xA
FWHM:
43°
FWTM:
72°
Peak intensity:
1.475 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NS9x383
FWHM:
39°
FWTM:
68°
Peak intensity:
1.600 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NSMx286M
FWHM:
41°
FWTM:
72°
Peak intensity:
1.430 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

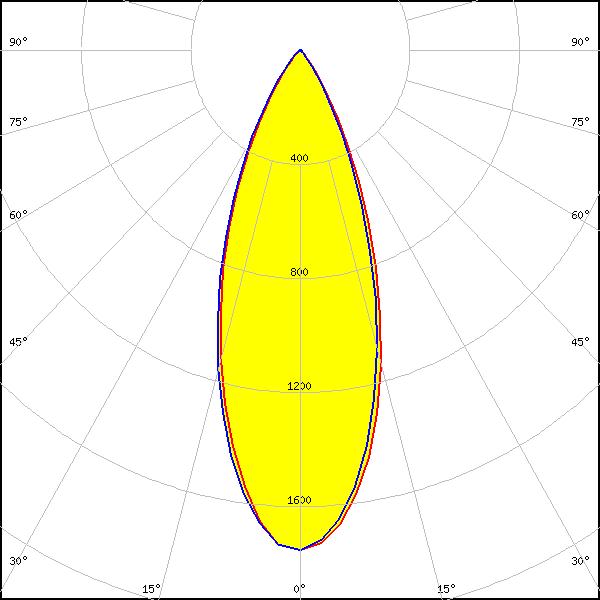

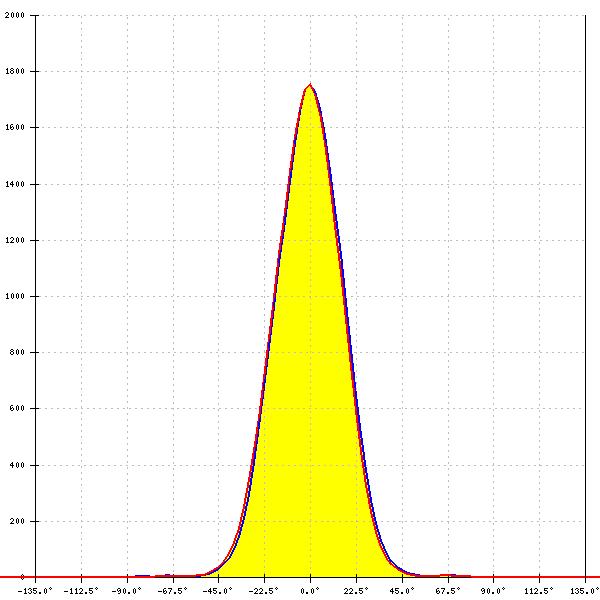

LED:
Duris S8
FWHM:
39°
FWTM:
68°
Peak intensity:
1.800 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
41°
FWTM:
71°
Peak intensity:
1.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y15
FWHM:
29°
FWTM:
62°
Peak intensity:
2.310 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y19
FWHM:
30°
FWTM:
62°
Peak intensity:
2.340 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
