C10946_FLARE-B
Print

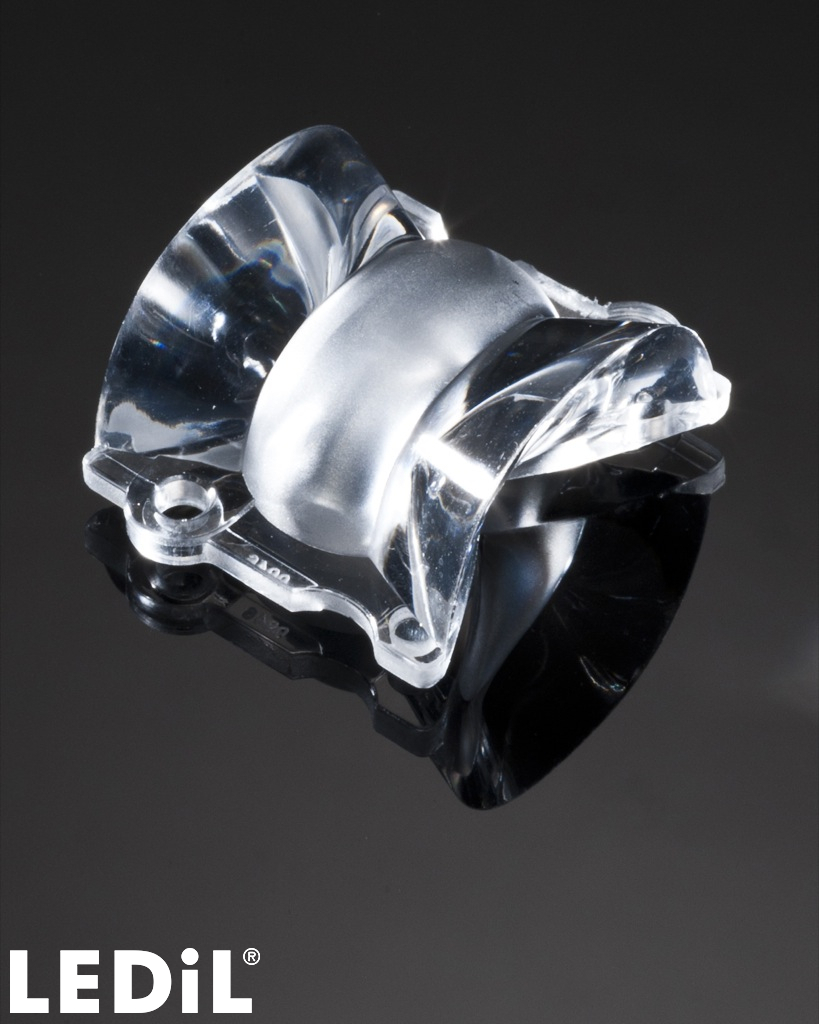

29 x 23 mm lens with ~100° x 10° oval beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

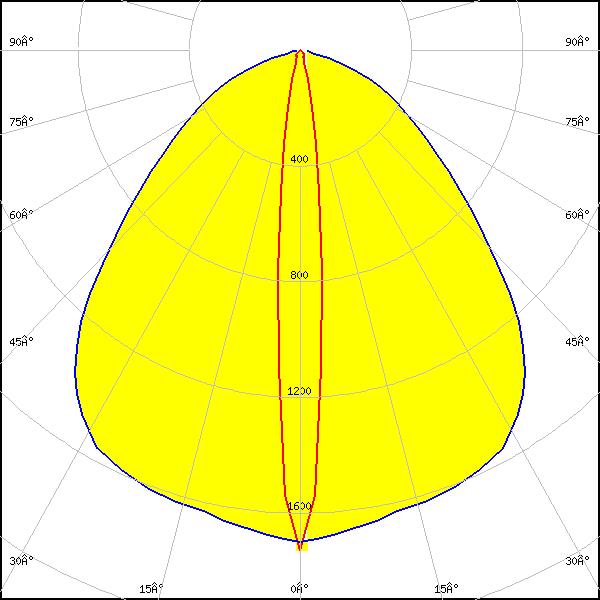

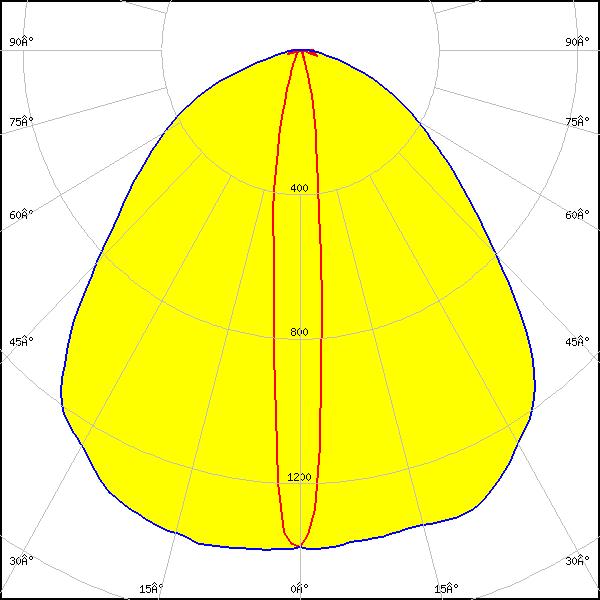

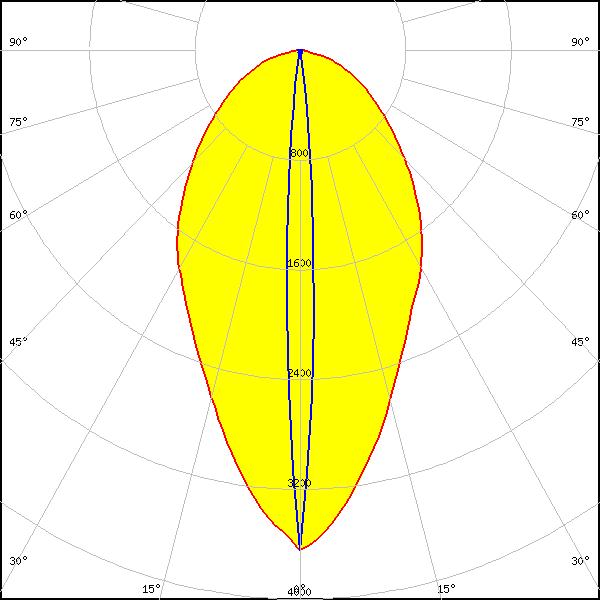

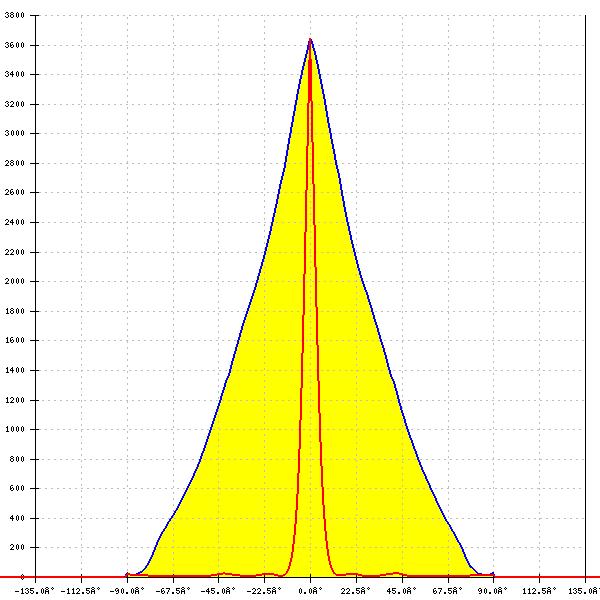

Optical results

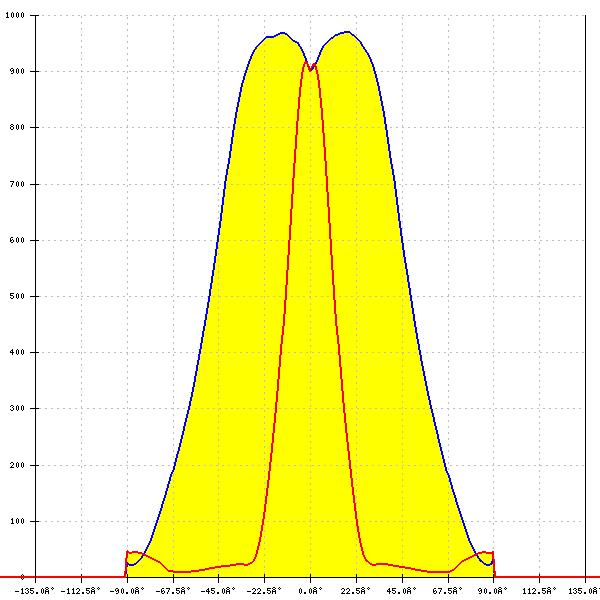

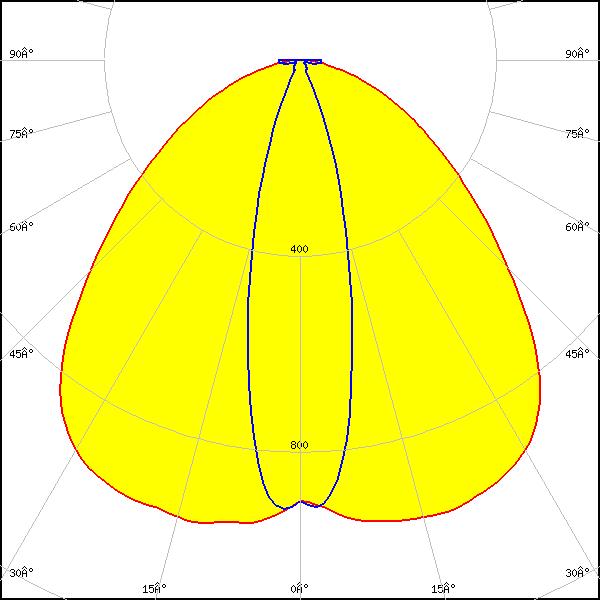

LED:
MHB-A/B
FWHM:
26° + 100°
FWTM:
48° + 150°
Peak intensity:
0.970 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

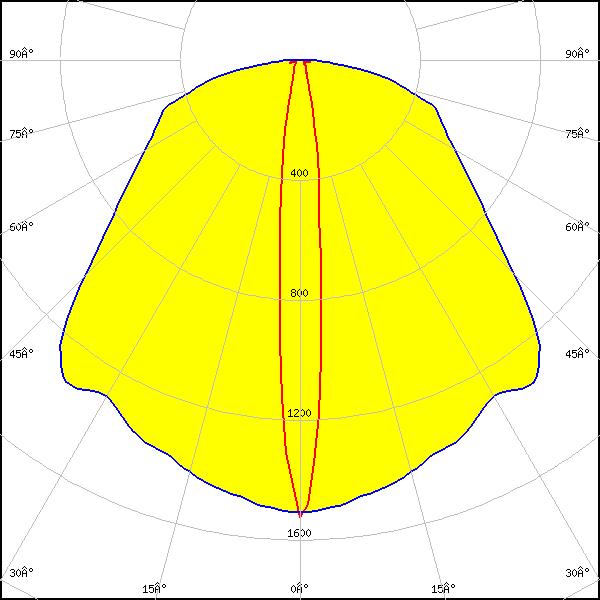

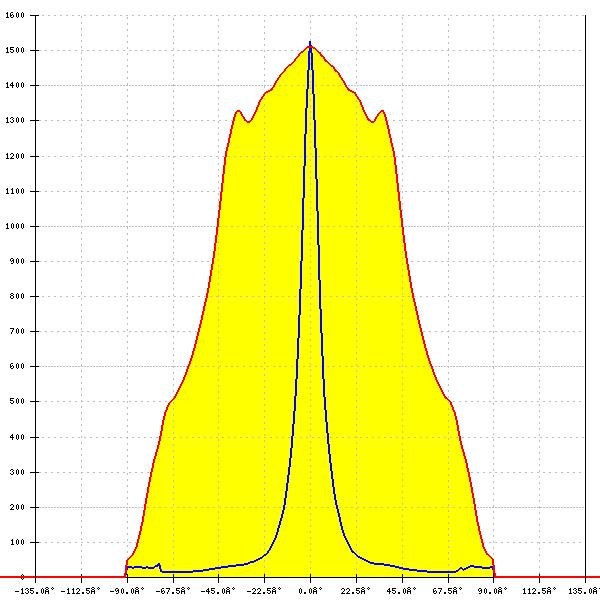

LED:
XB-D
FWHM:
10° + 108°
FWTM:
30° + 167°
Peak intensity:
1.520 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

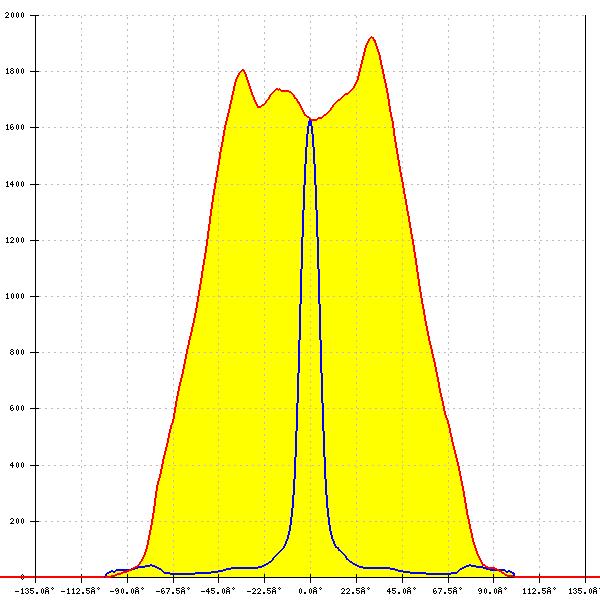

LED:

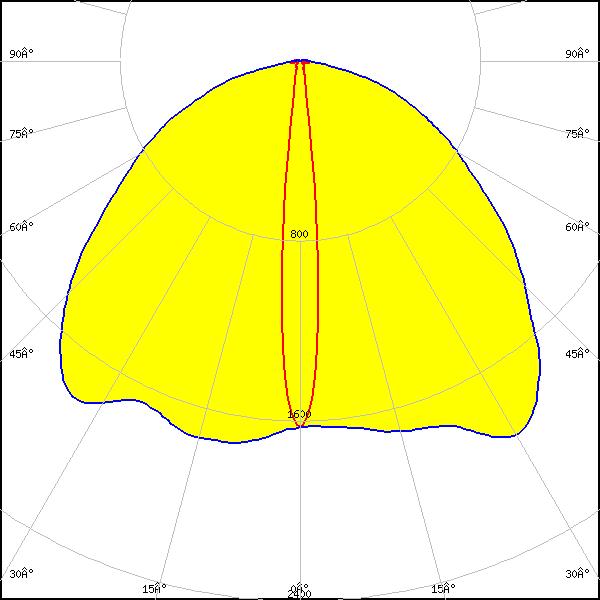

XD16
FWHM:
11° + 111°
FWTM:
21° + 156°
Peak intensity:
1.922 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

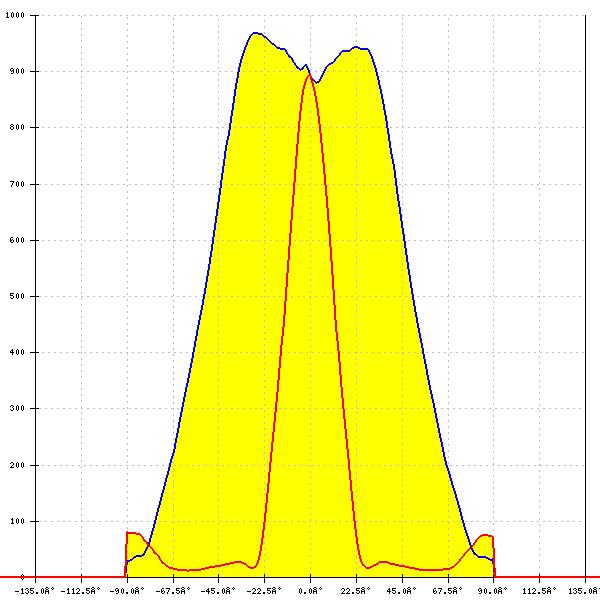

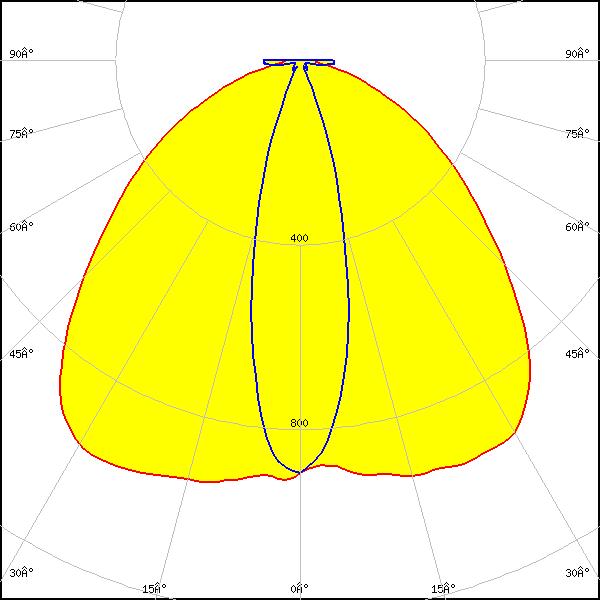

LED:
XHP50.3 HD
FWHM:
104° + 26°
FWTM:
151° + 112°
Peak intensity:
0.969 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

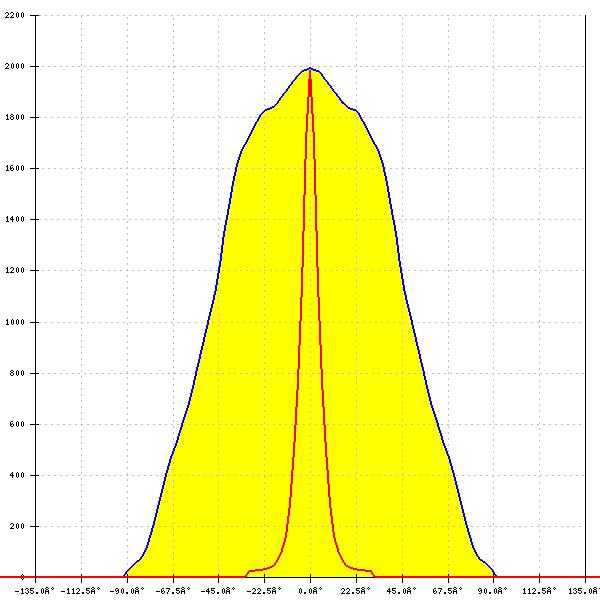

LED:
XP-E
FWHM:
12° + 96°
FWTM:
0° + 0°
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E2
FWHM:
18° + 108°
FWTM:
32° + 155°
Peak intensity:
1.590 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

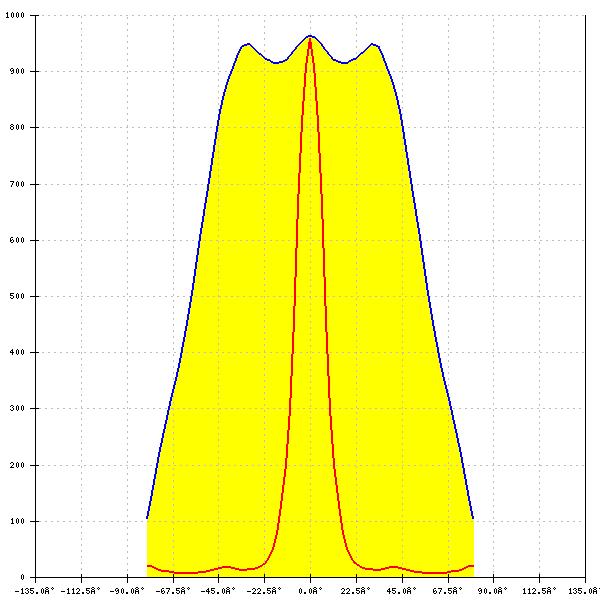

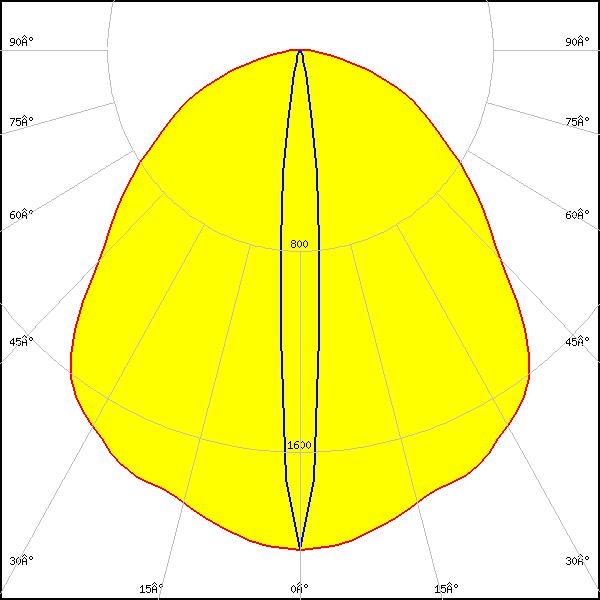

LED:
XP-G
FWHM:
14° + 112°
FWTM:
0° + 0°
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

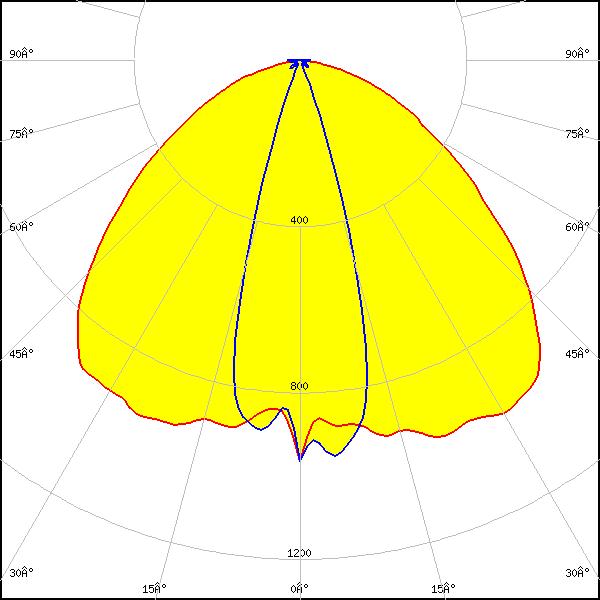

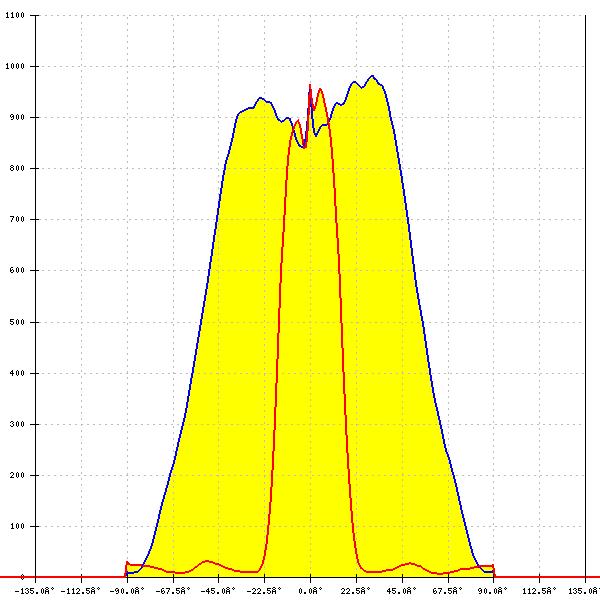

LED:
XP-G2
FWHM:
110° + 30°
FWTM:
151° + 41°
Peak intensity:
1.002 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2 HE
FWHM:
16° + 99°
FWTM:
29° + 150°
Peak intensity:
15.215 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

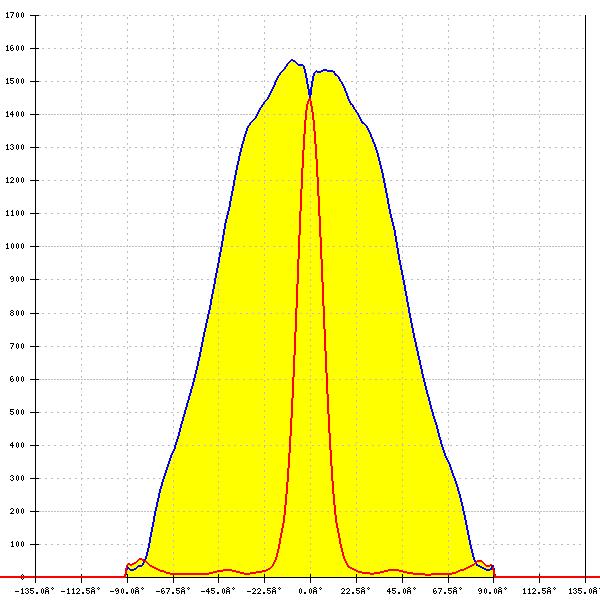

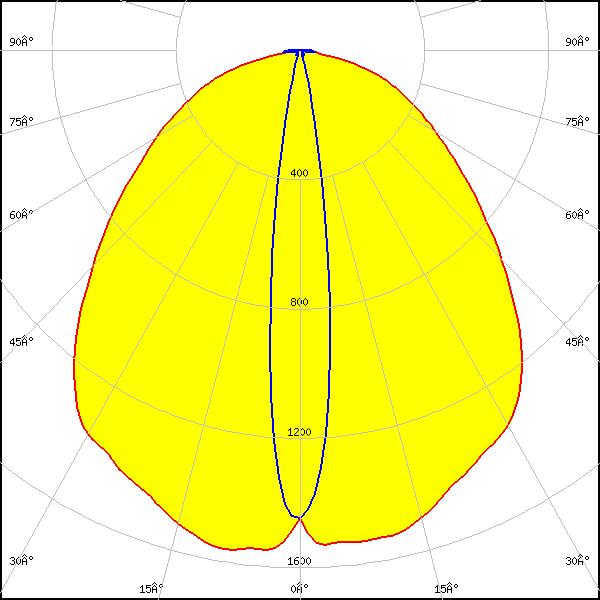

LED:
XP-G3
FWHM:
99° + 14°
FWTM:
154° + 28°
Peak intensity:
1.563 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel
FWHM:
11° + 93°
FWTM:
0° + 0°
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

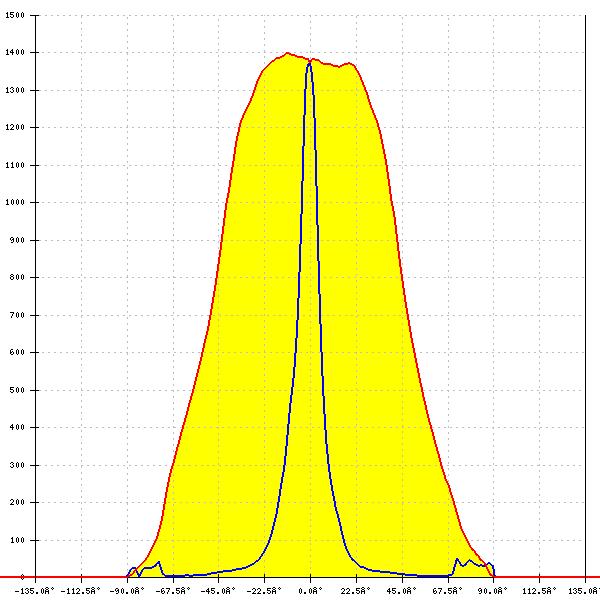

LED:
LUXEON Rebel ES
FWHM:
12° + 104°
FWTM:
35° + 154°
Peak intensity:
1.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxx19A
FWHM:
9° + 88°
FWTM:
0° + 0°
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

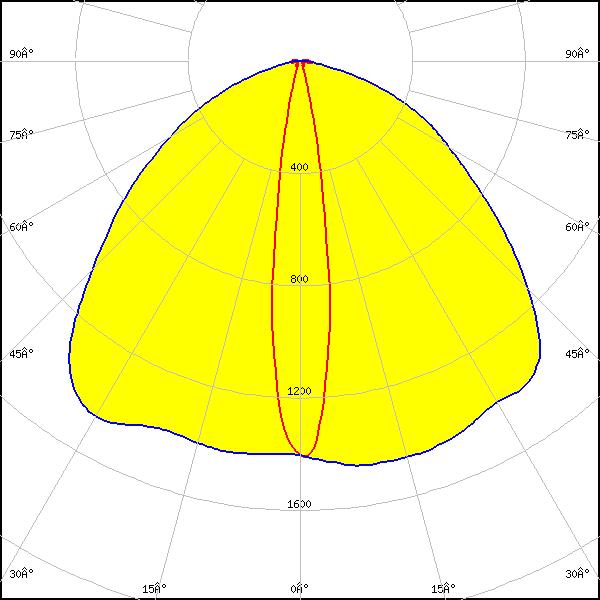

LED:
NVSW219F
FWHM:
16° + 111°
FWTM:
29° + 151°
Peak intensity:
1.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

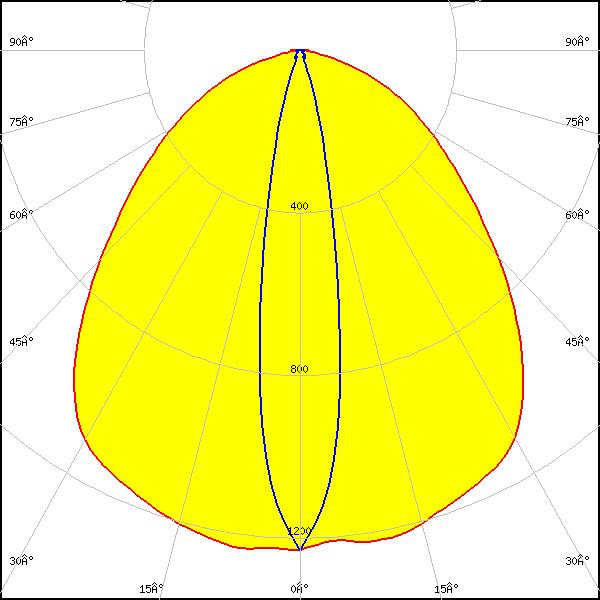

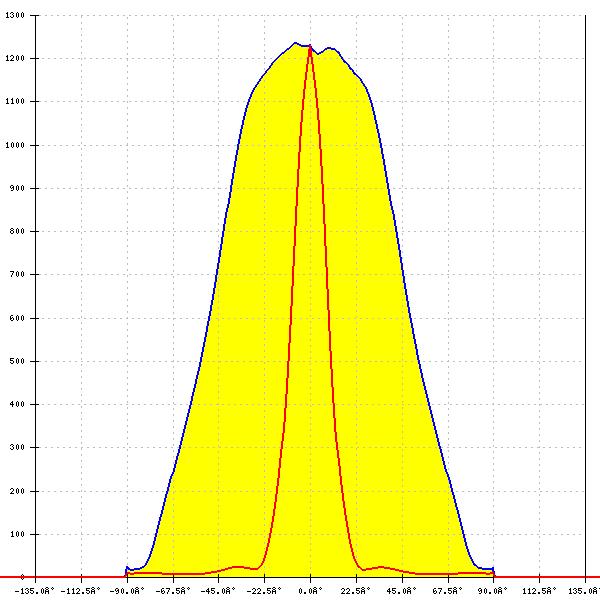

LED:
Duris S8
FWHM:
19° + 97°
FWTM:
37° + 148°
Peak intensity:
1.240 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

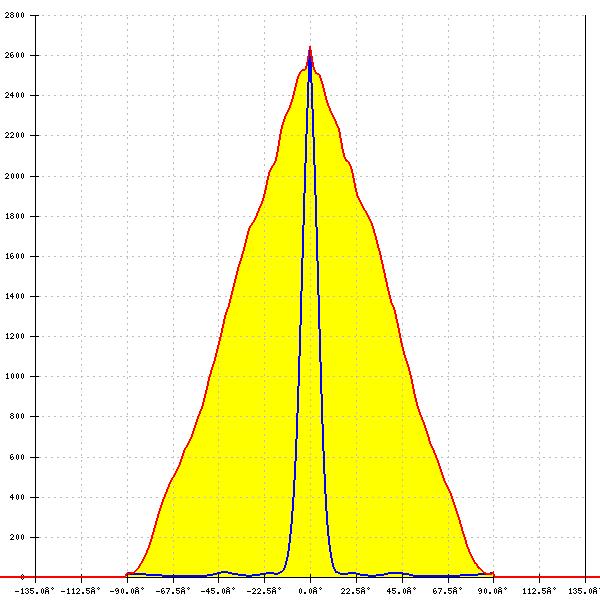

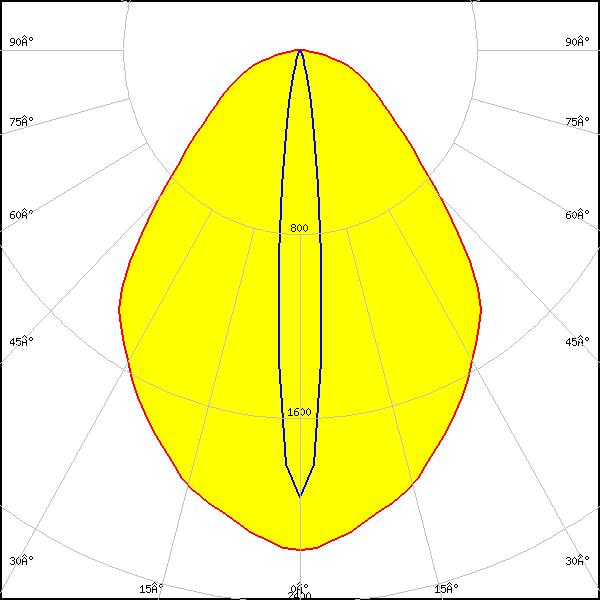

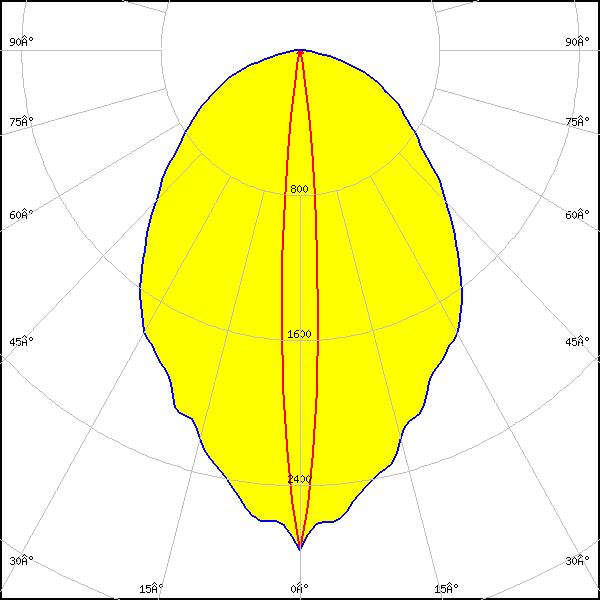

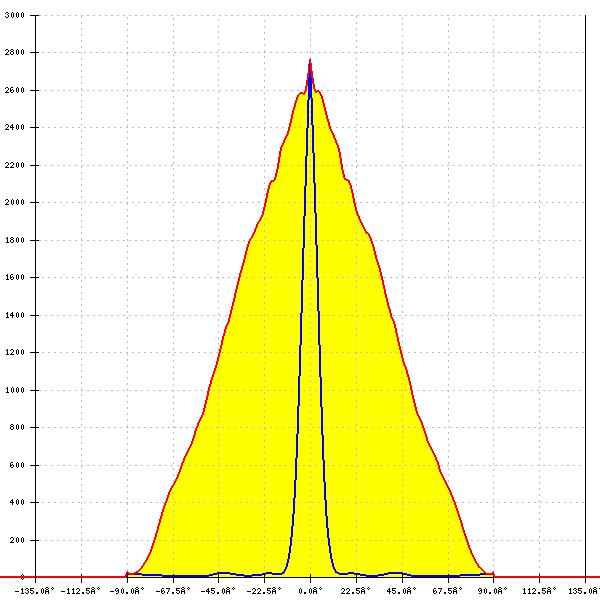

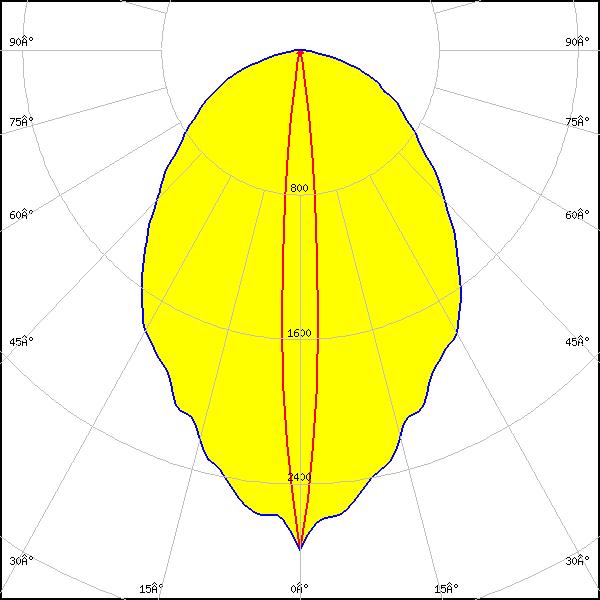

LED:
OSLON Signal
FWHM:
9° + 82°
FWTM:
18° + 150°
Peak intensity:
2.648 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

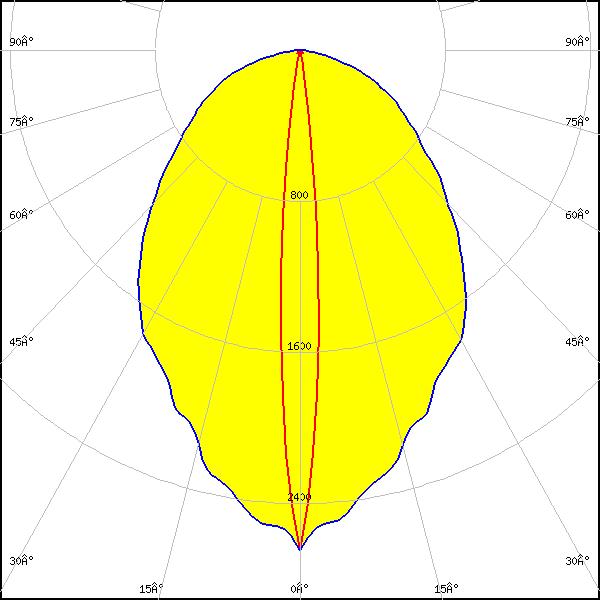

LED:
OSLON Signal
FWHM:
8° + 80°
FWTM:
18° + 149°
Peak intensity:
2.756 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Signal
FWHM:
8° + 80°
FWTM:
18° + 149°
Peak intensity:
2.767 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

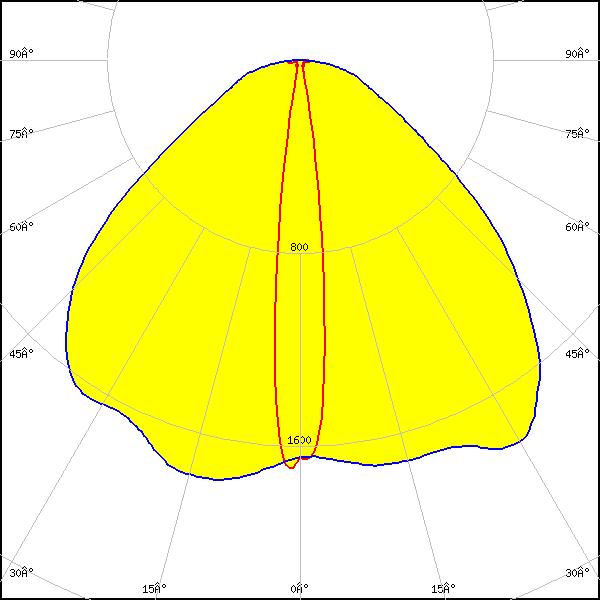

LED:

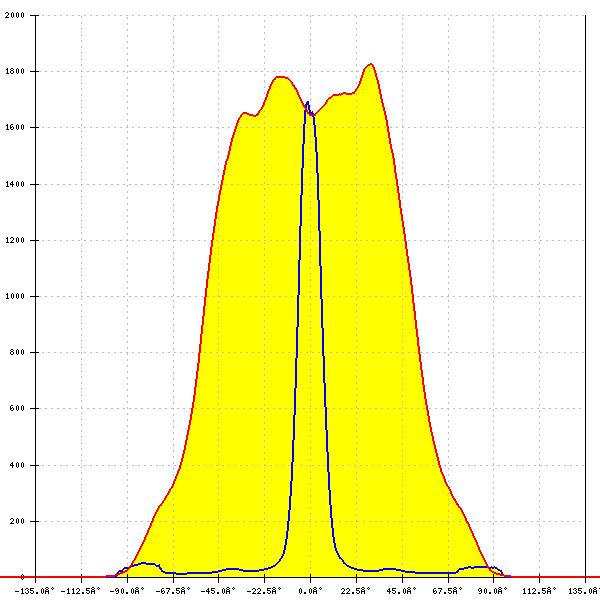

OSLON Square EC
FWHM:
13° + 107°
FWTM:
23° + 158°
Peak intensity:
1.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
9° + 117°
FWTM:
0° + 0°
Peak intensity:
1.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
FWHM:
9° + 88°
FWTM:
0° + 0°
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

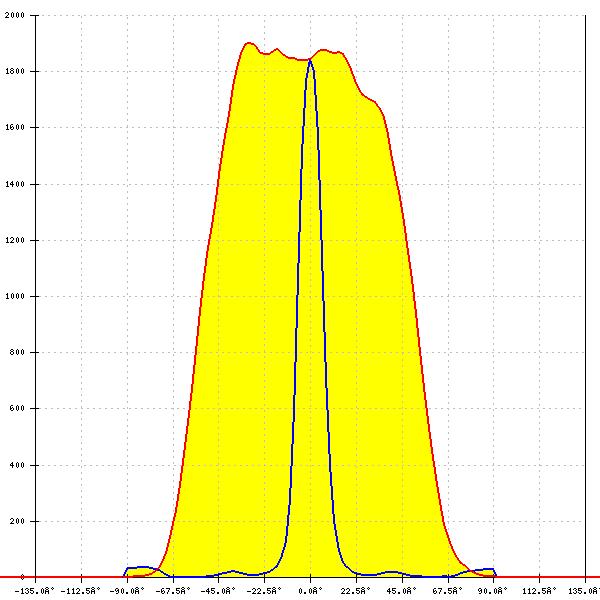

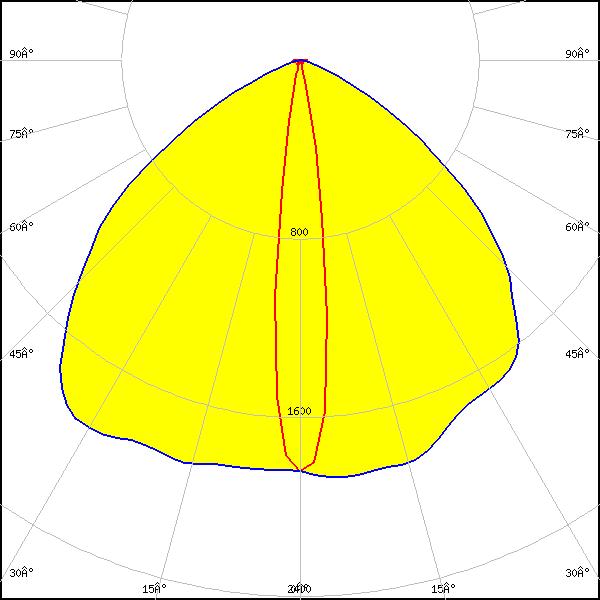

LED:
LH351Z
FWHM:
14° + 106°
FWTM:
24° + 134°
Peak intensity:
1.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5
FWHM:
12° + 96°
FWTM:
0° + 0°
LEDs/each optic:
1
Light colour/type:
White
LED:
Double Dome (GM2BB)
FWHM:
11° + 104°
FWTM:
0° + 0°
LEDs/each optic:
1
Light colour/type:
White
