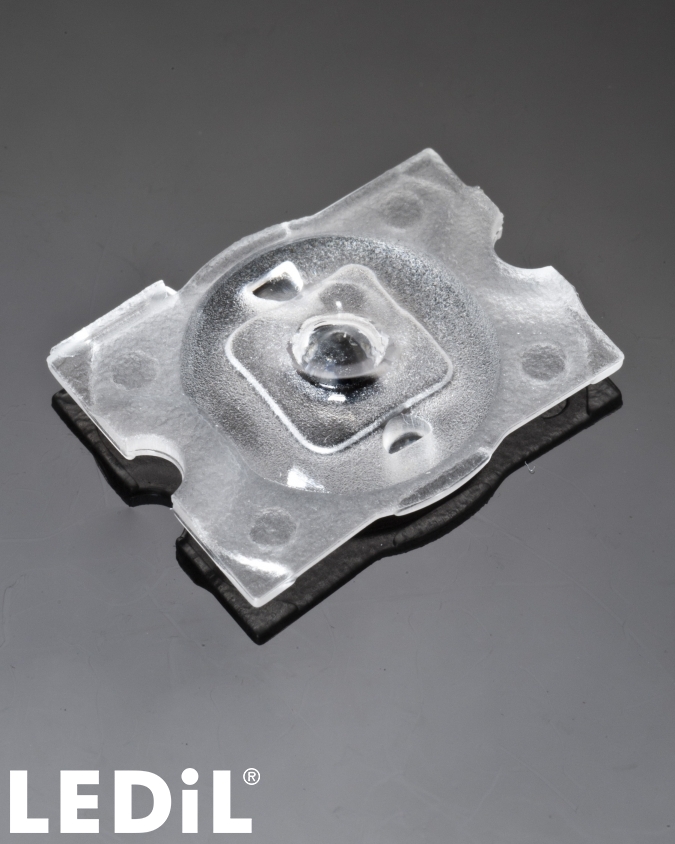

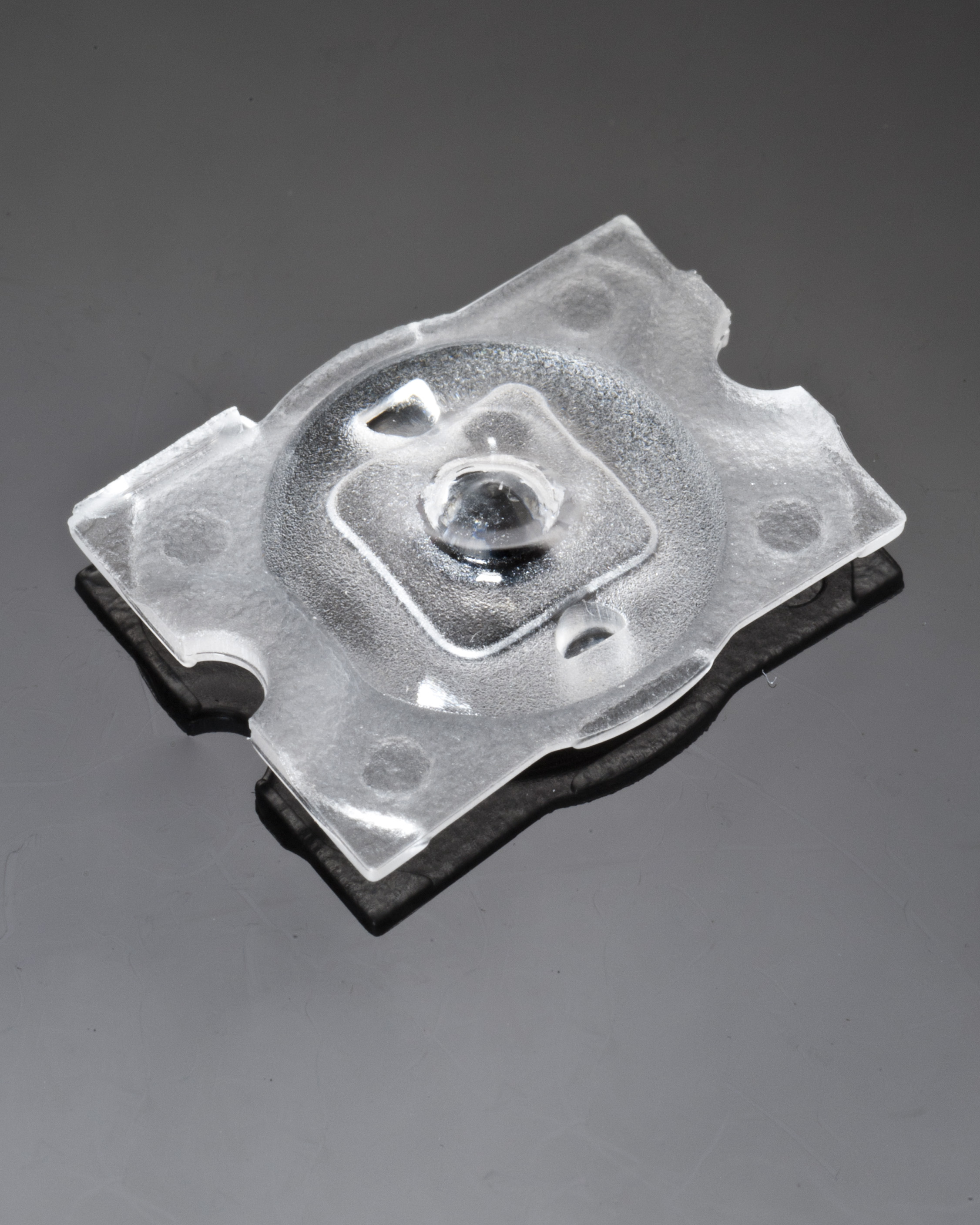

C11518_LOTTA-A

Print

~170° wide area beam

Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

Specification
  • Dimensions:
    20 x  15 mm
  • Height:
    3.65 mm
  • Fastening:
    tape, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    2880 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    3.5 kg
  • MPQ:
    2880 pcs
  • MOQ:
    2880 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    3.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C11518_LOTTA-A

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
WHERE TO BUY

Optical results

LED: LUXEON Rebel
FWHM: 168°
FWTM: -
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
