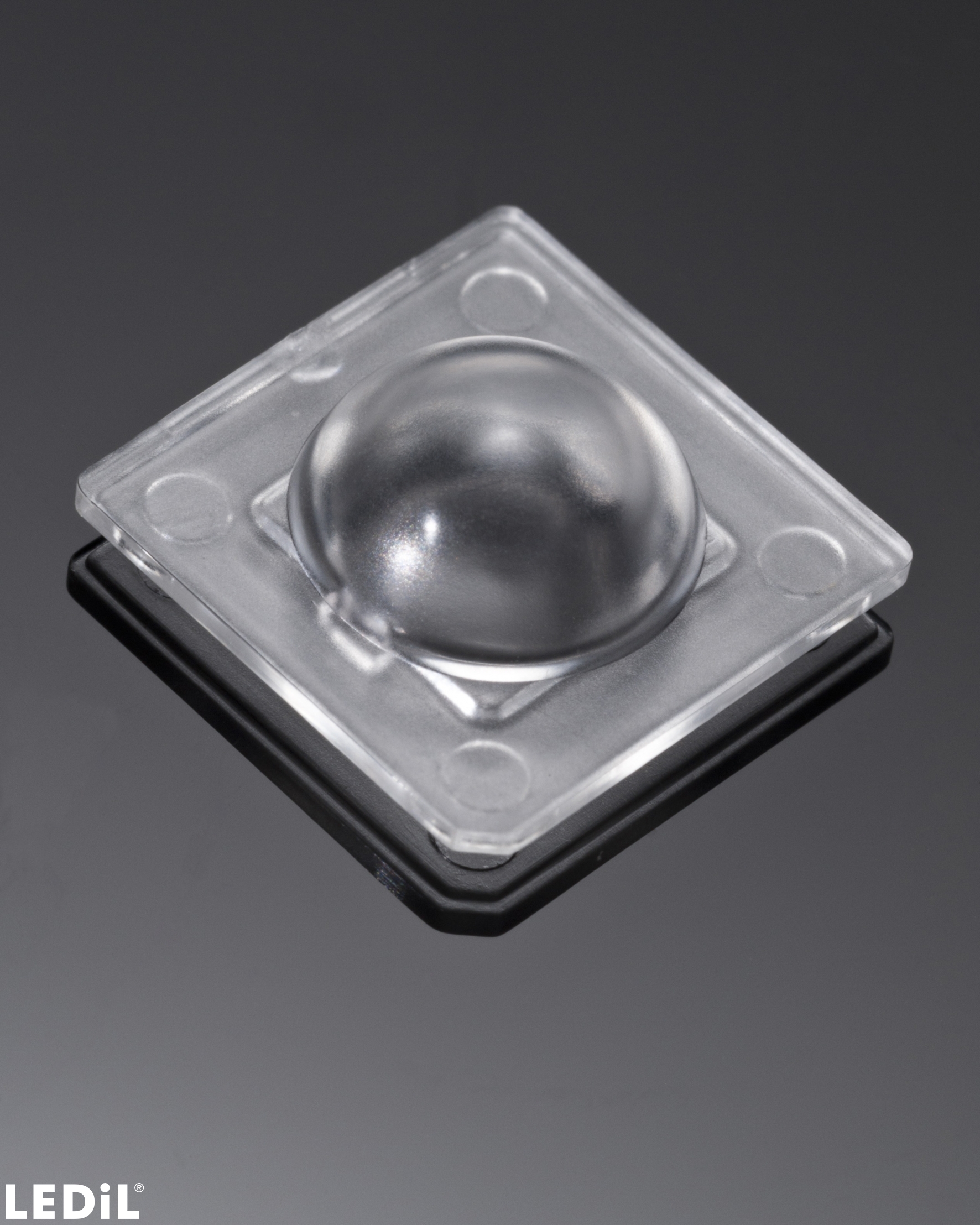

C12491_SIRI-DIFF

~145° wide diffused beam

Specification

Dimensions:

14 x 14 mm
Height:

4.90 mm
Fastening:

glue, pin
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

4560 pcs
Box size:

300 x 250 x 250 mm
Box weight:

3.2 kg
MPQ:

240 pcs
MOQ:

240 pcs
MOQ size:

300 x 260 x 40 mm
MOQ weight:

0.5 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: C12491_SIRI-DIFF

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

C12491_SIRI-DIFF

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Indoor Architectural Lighting

Optical results

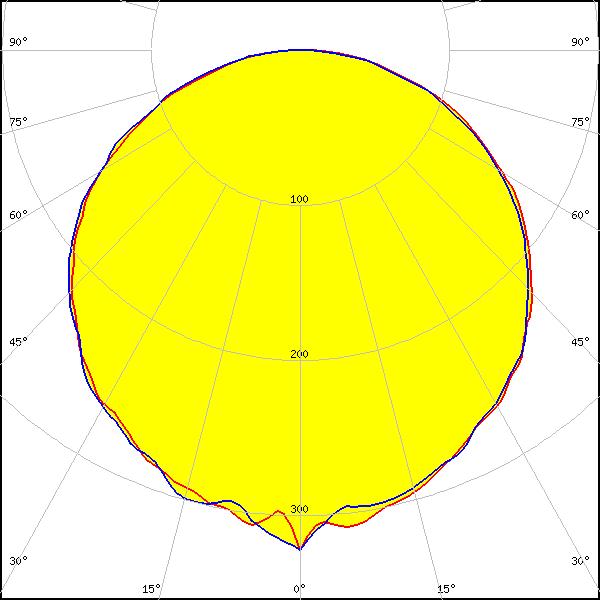

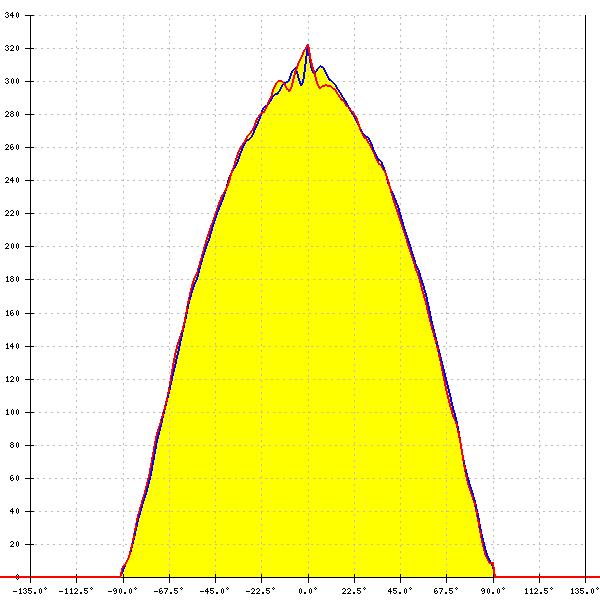

LED: J Series 2835

FWHM: 117°

FWTM: 167°

Peak intensity: 0.322 cd/lm

Efficiency: 96 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

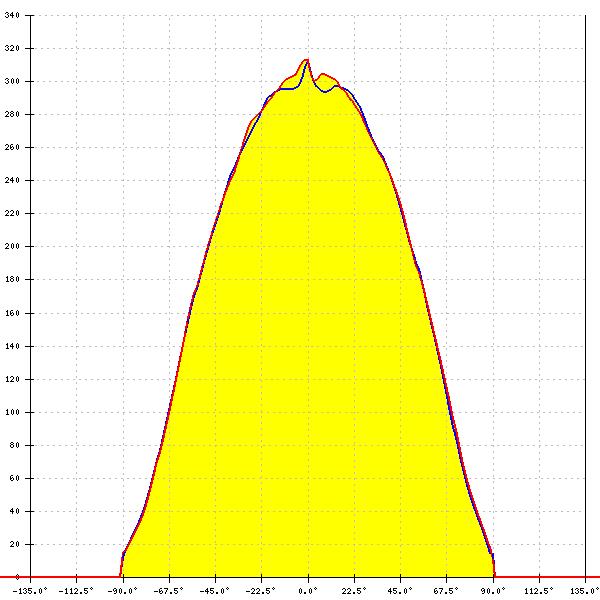

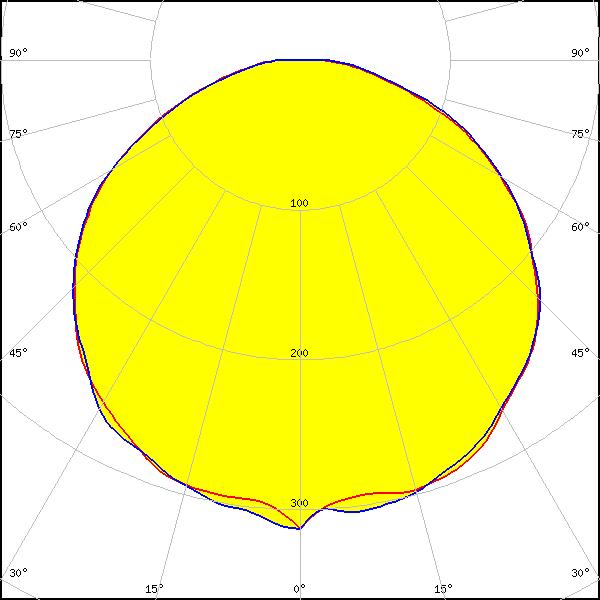

LED: XHP35 HD

FWHM: 117°

FWTM: 167°

Peak intensity: 0.320 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: XM-L

FWHM: 120°

FWTM: -

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

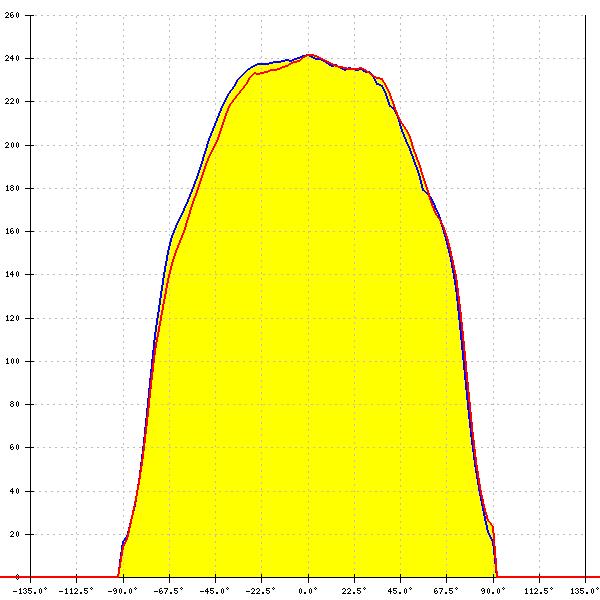

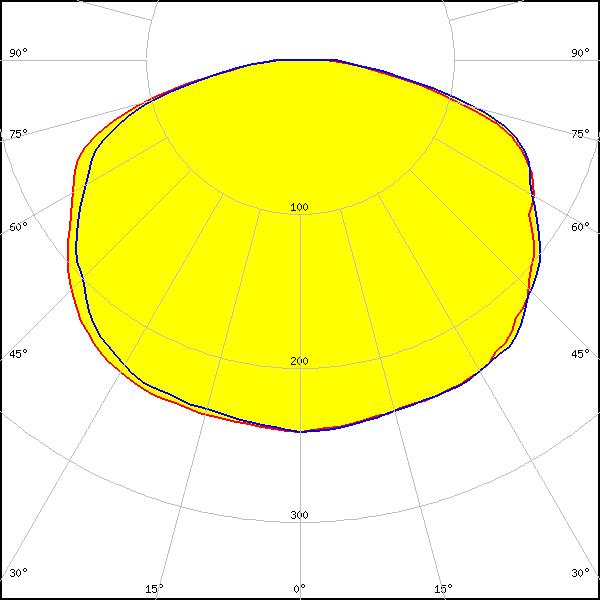

LED: XM-L2

FWHM: 147°

FWTM: 176°

Peak intensity: 0.200 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

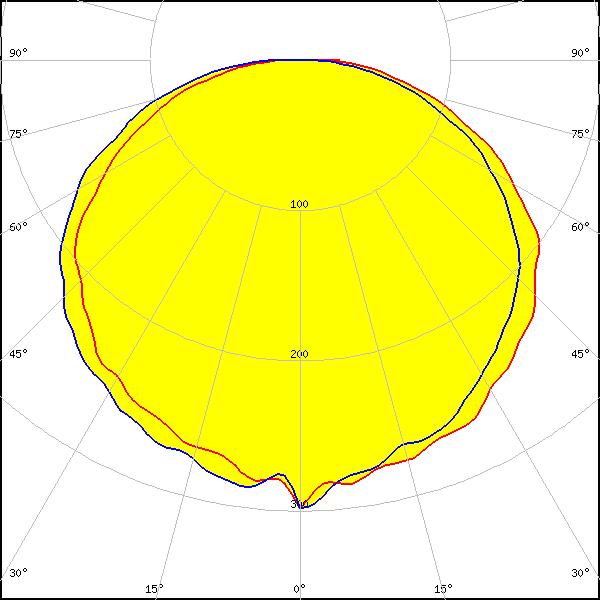

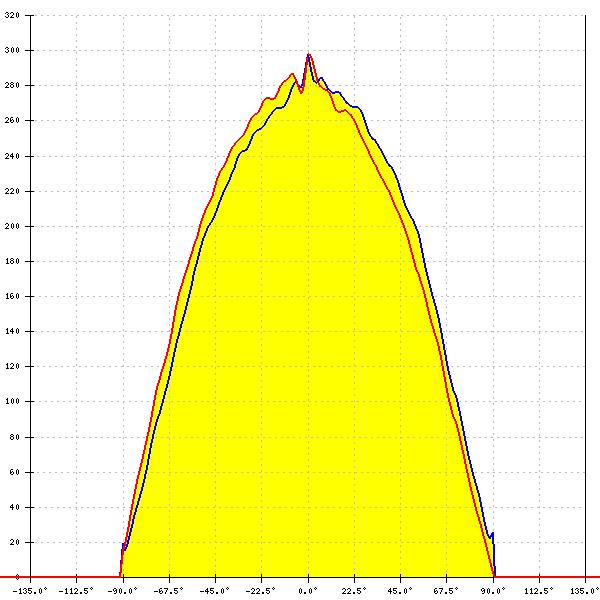

LED: XP-G2

FWHM: 124°

FWTM: 172°

Peak intensity: 0.307 cd/lm

Efficiency: 96 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

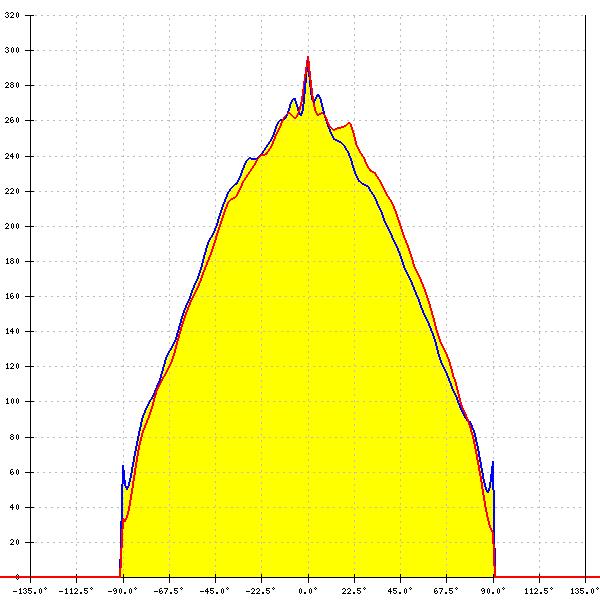

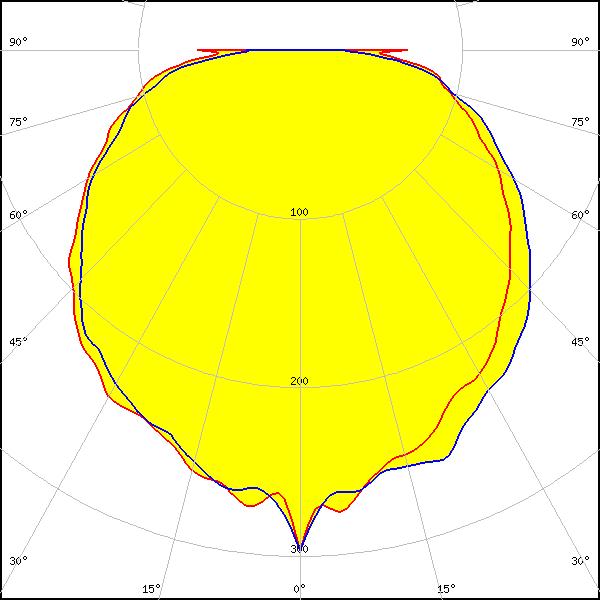

LED: XT-E

FWHM: 120°

FWTM: 181°

Peak intensity: 0.296 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON A

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

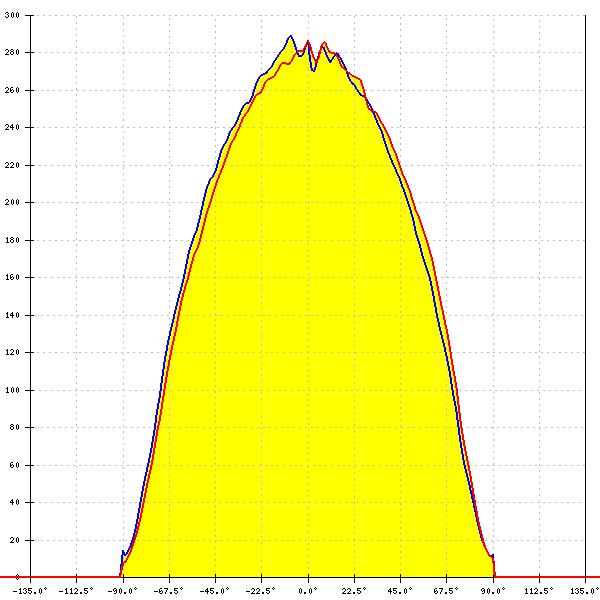

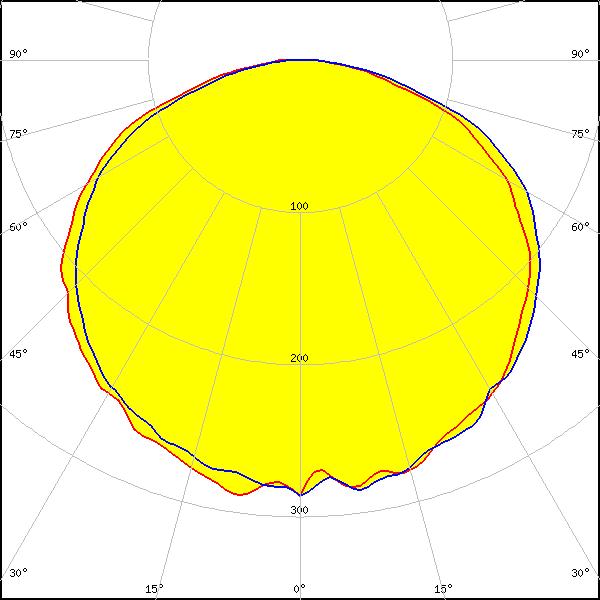

LED: NVSxx19B/NVSxx19C

FWHM: 127°

FWTM: 166°

Peak intensity: 0.299 cd/lm

Efficiency: 95 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSLON Square EC

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
