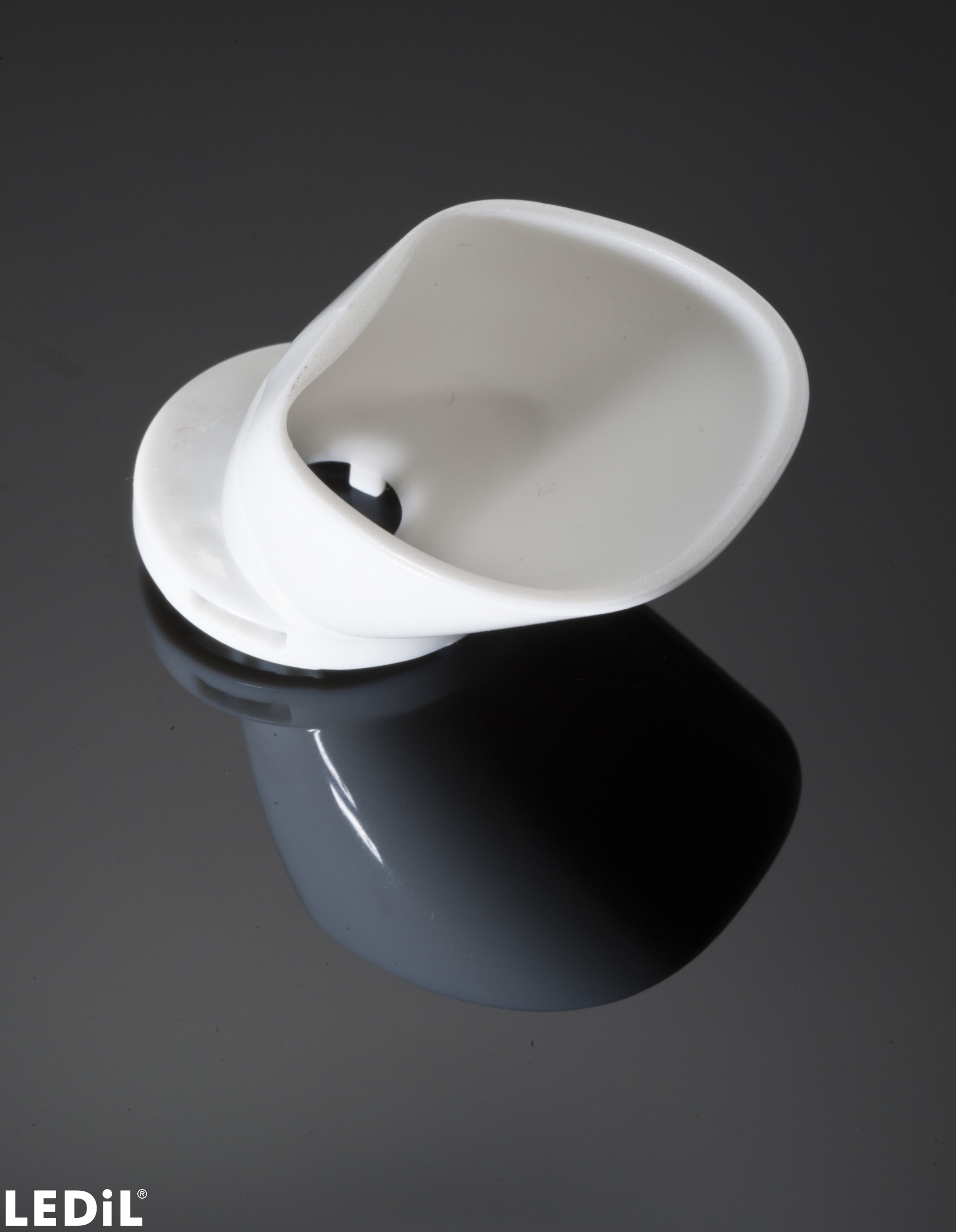

    C12512_RITA-A

    Print

    Asymmetric beam

    Specification
    • Dimensions:
      36 x  28 mm
    • Height:
      17.10 mm
    • Fastening:
      glue, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      810 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      4.2 kg
    • MPQ:
      54 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C12512_RITA-A
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - RITA-A

    News

    PRODUCT NEWS - WHITE REFLECTORS

    Application area

    Indoor Architectural Lighting

    Optical results

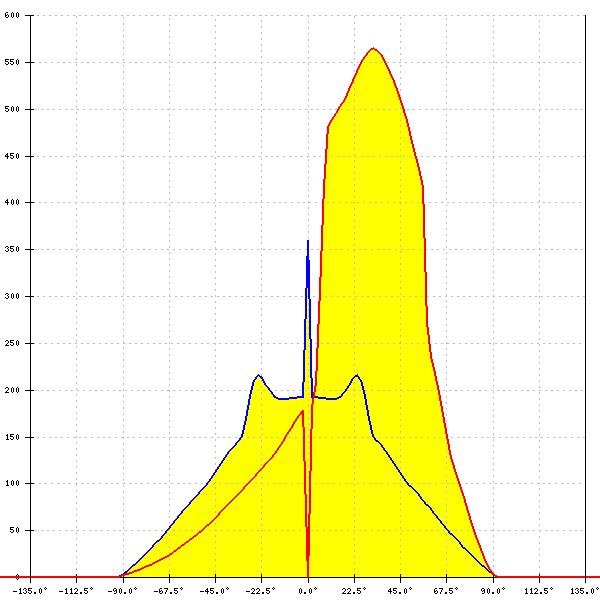

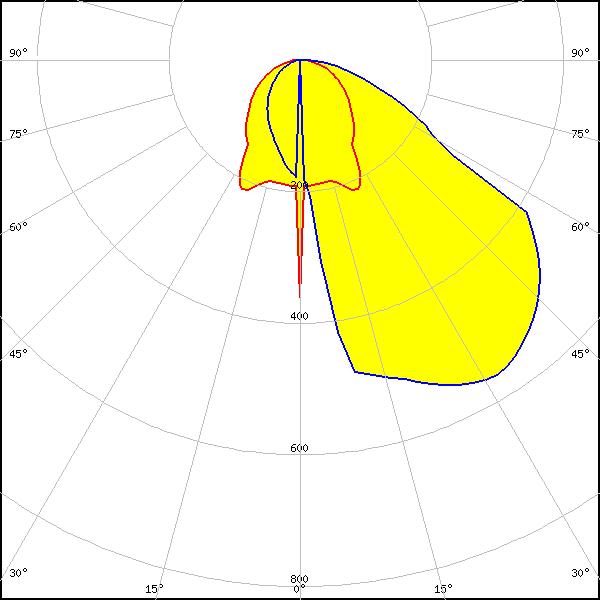

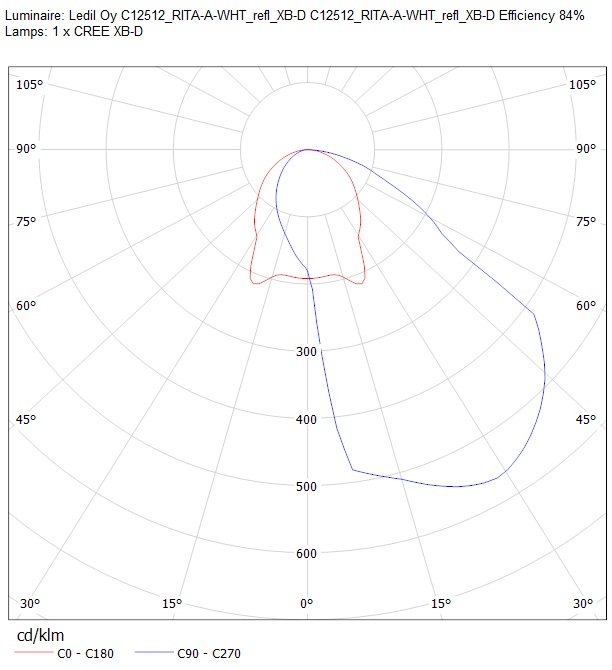

    LED: XB-D
    FWHM: asymmetric
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

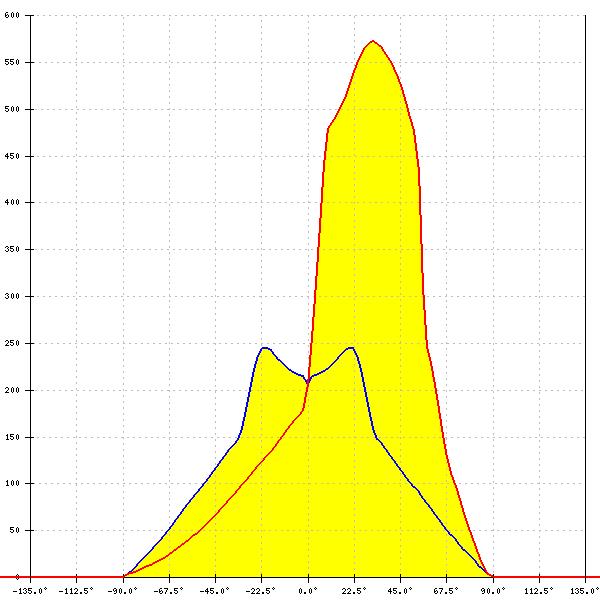

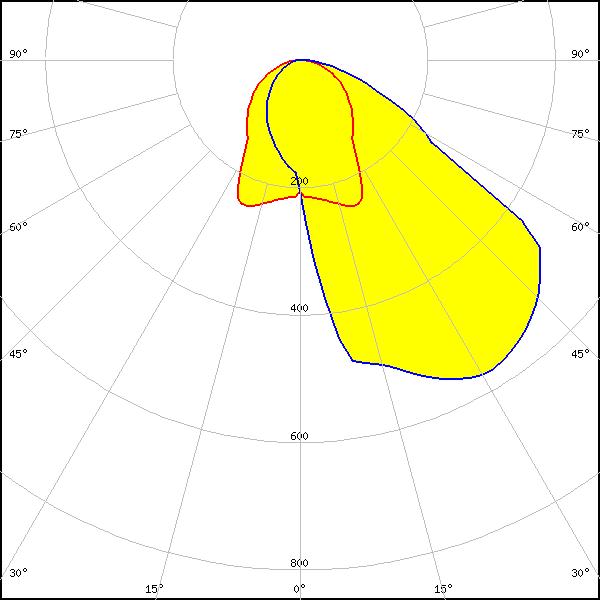

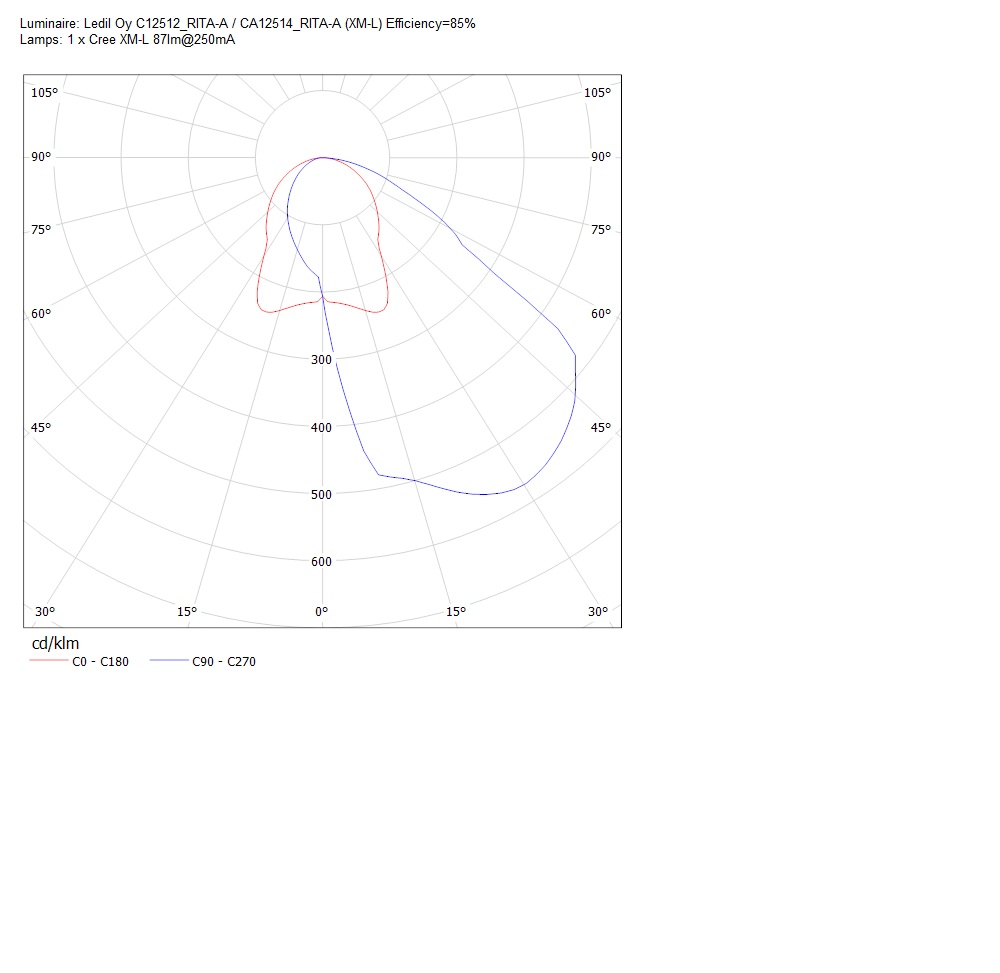

    LED: XM-L
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

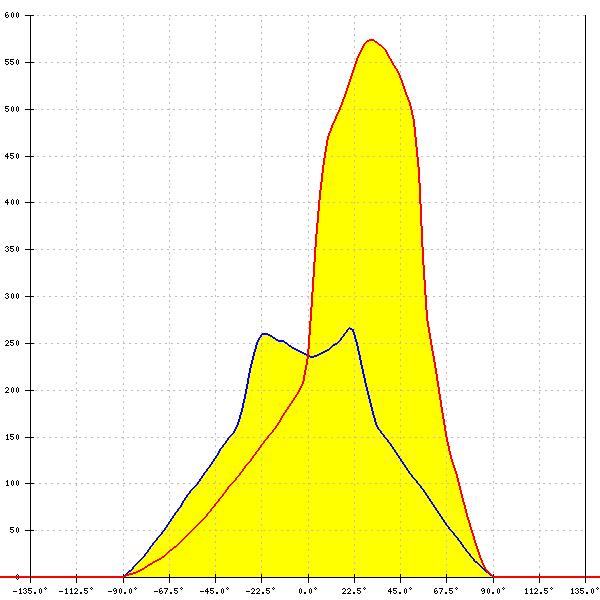

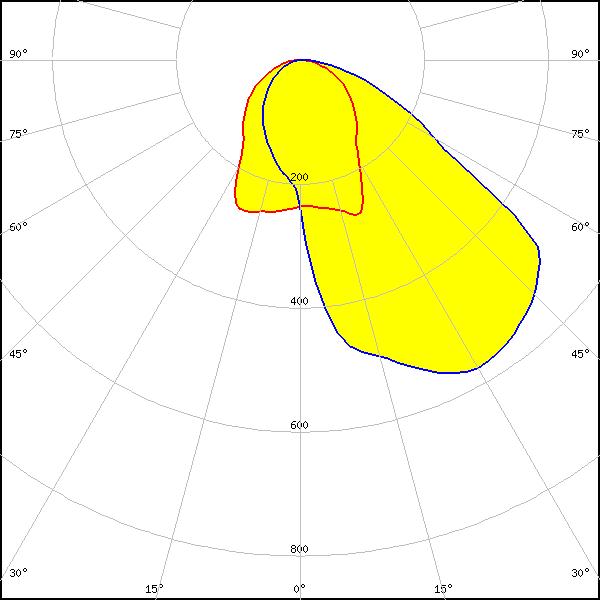

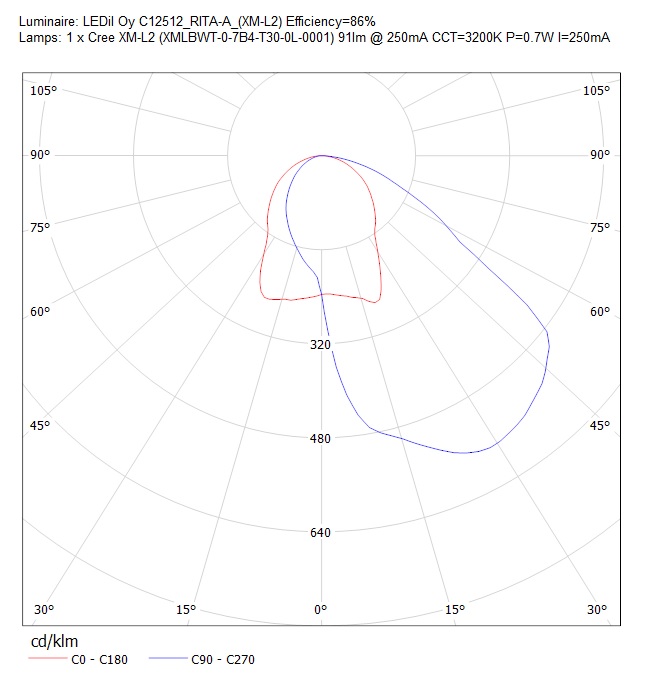

    LED: XM-L2
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

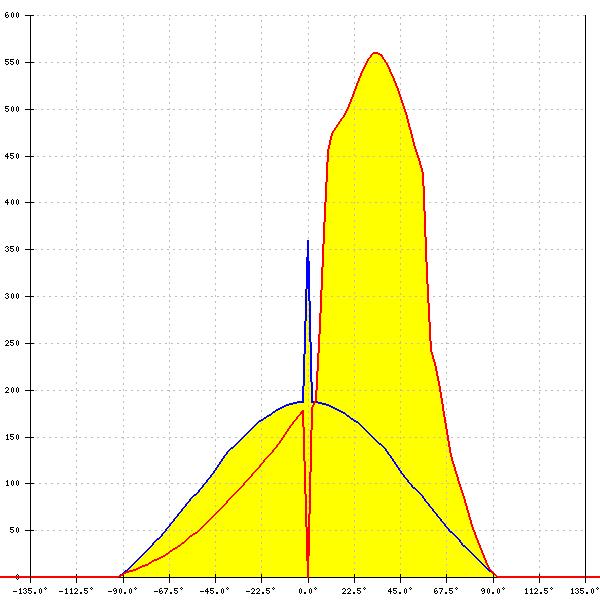

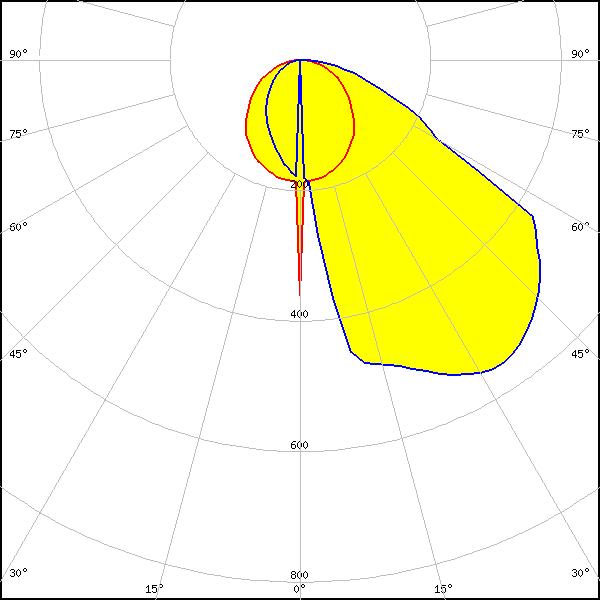

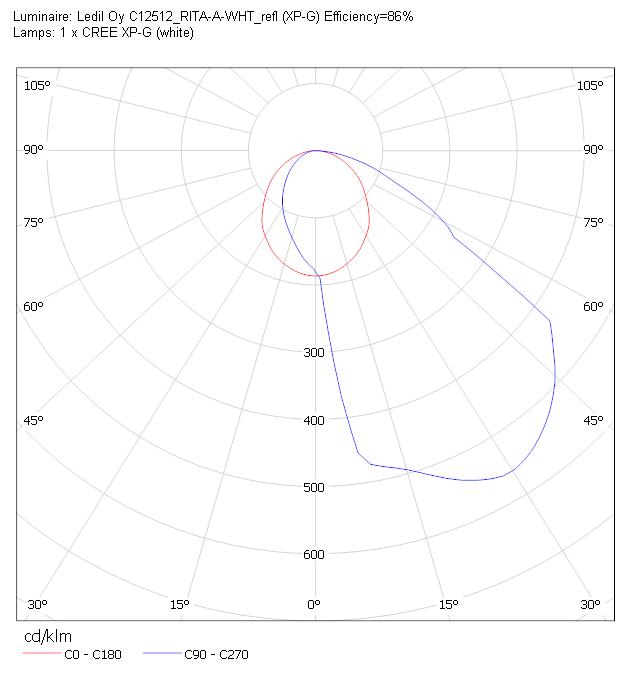

    LED: XP-G
    FWHM: asymmetric
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

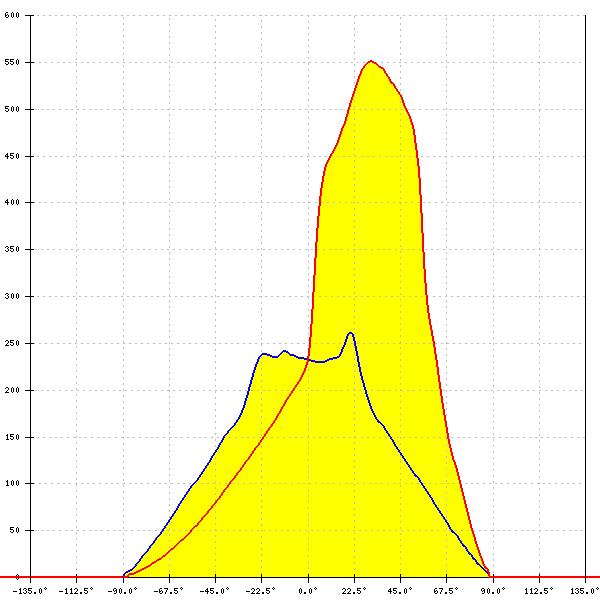

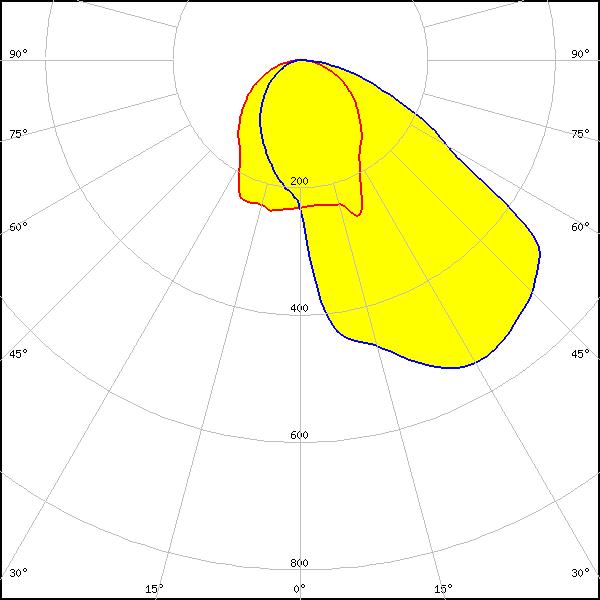

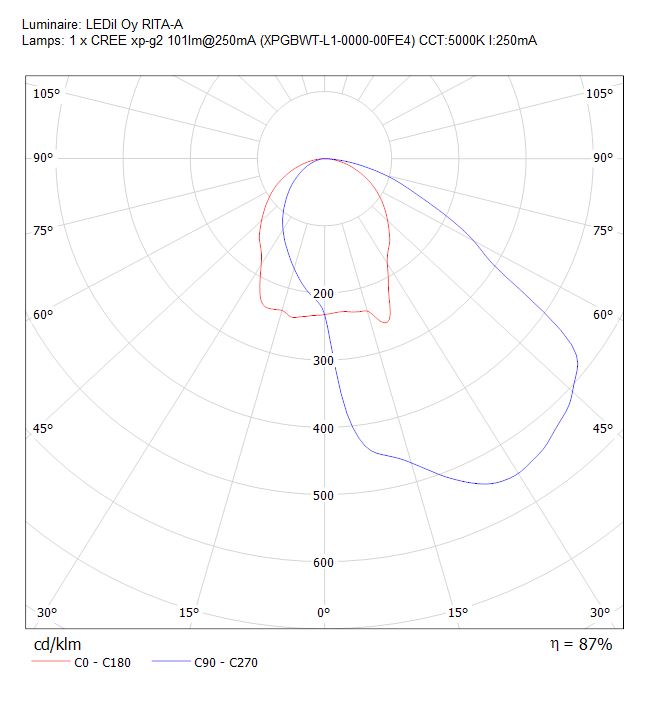

    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 0.550 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

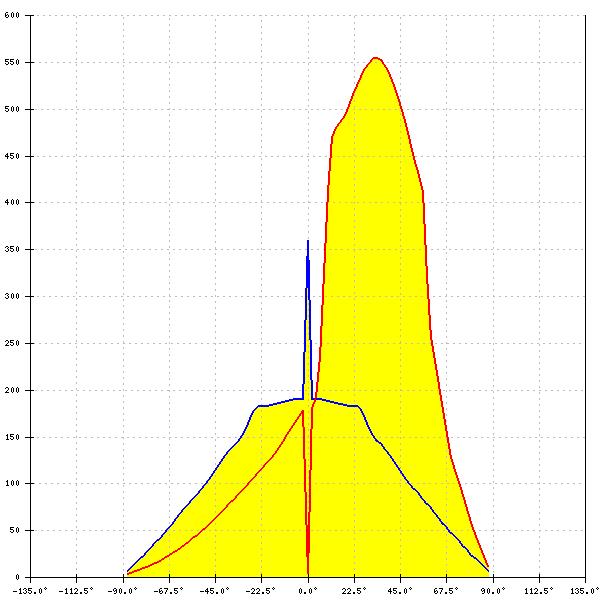

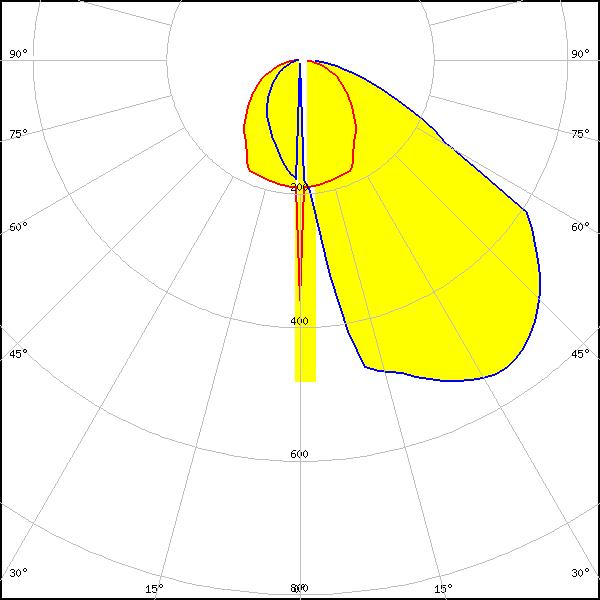

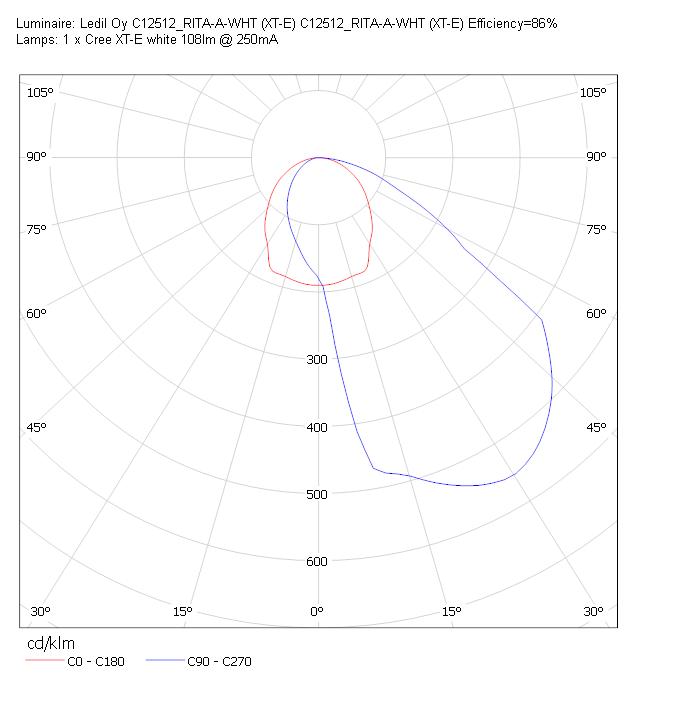

    LED: XT-E
    FWHM: asymmetric
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

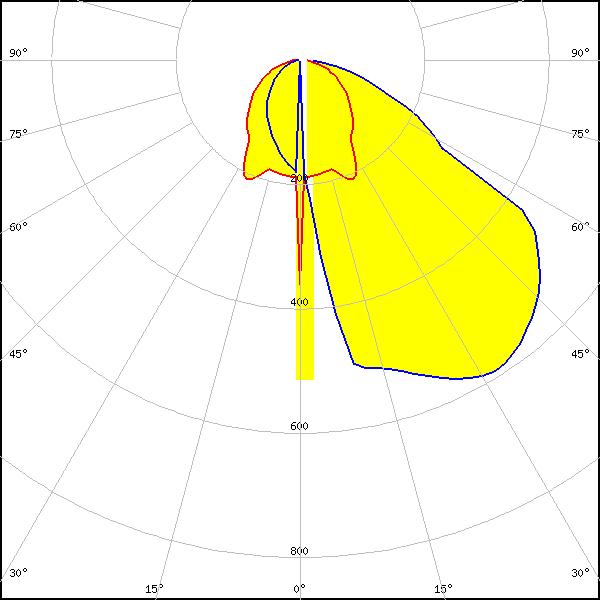

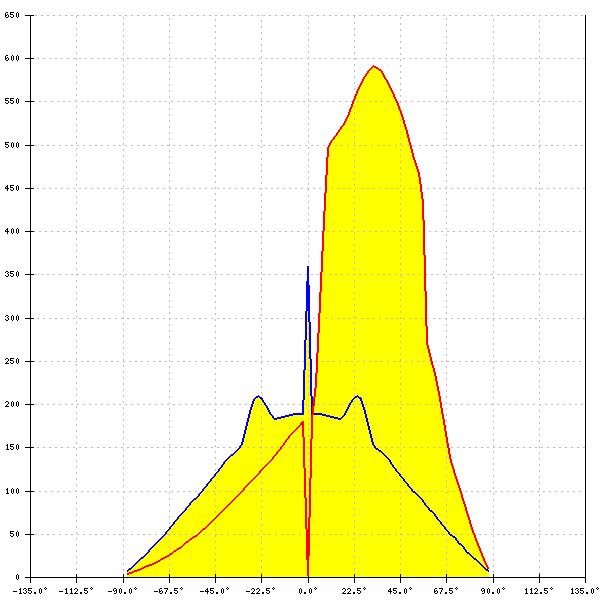

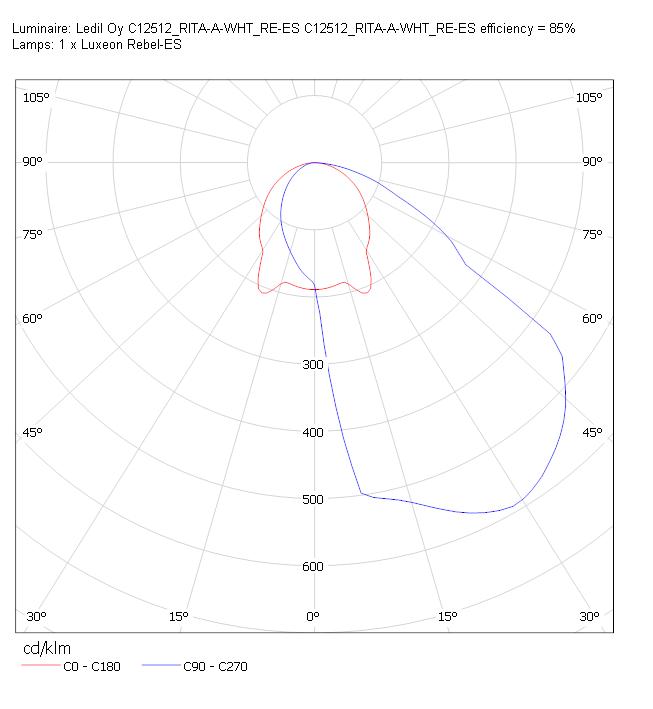

    LED: LUXEON Rebel ES
    FWHM: asymmetric
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
