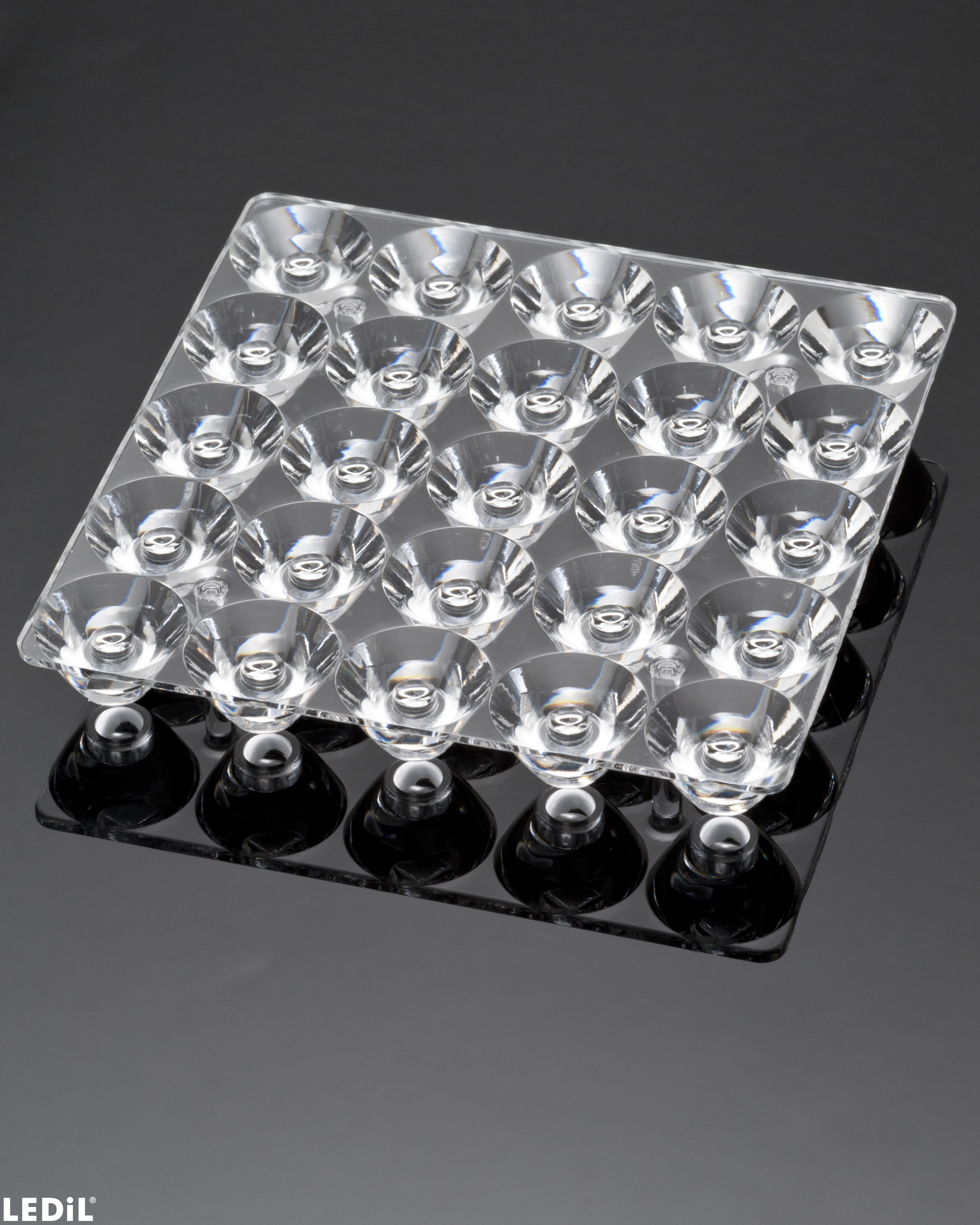

C12607_VIRPI-S

Print

~15° spot beam

Specification
  • Dimensions:
    75 x  75 mm
  • Height:
    9.50 mm
  • Fastening:
    glue, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    360 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    12.0 kg
  • MPQ:
    15 pcs
  • MOQ:
    45 pcs
  • MOQ size:
    480 x 280 x 50 mm
  • MOQ weight:
    1.8 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C12607_VIRPI-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

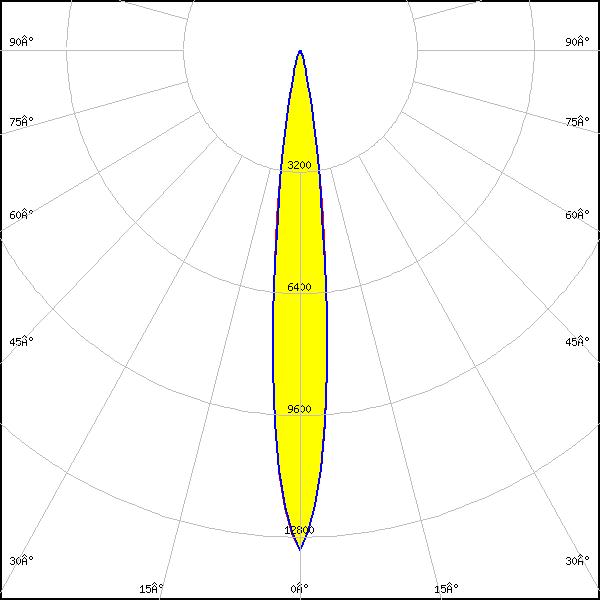

Optical results

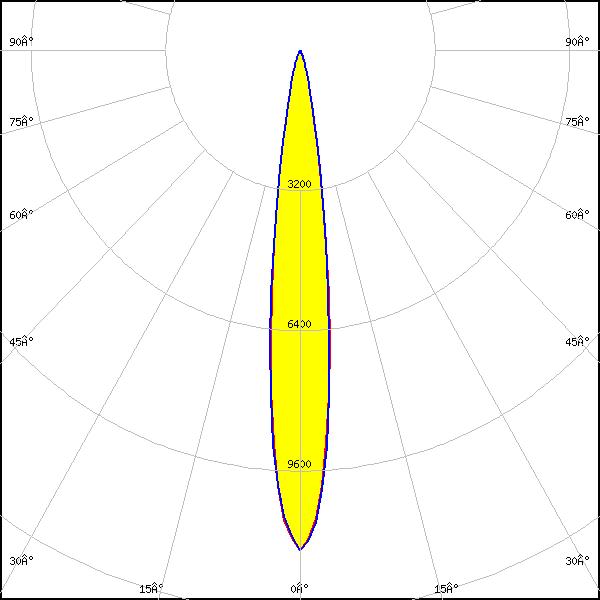

LED: J Series 3030
FWHM: 14°
FWTM: 28°
Peak intensity: 11.411 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

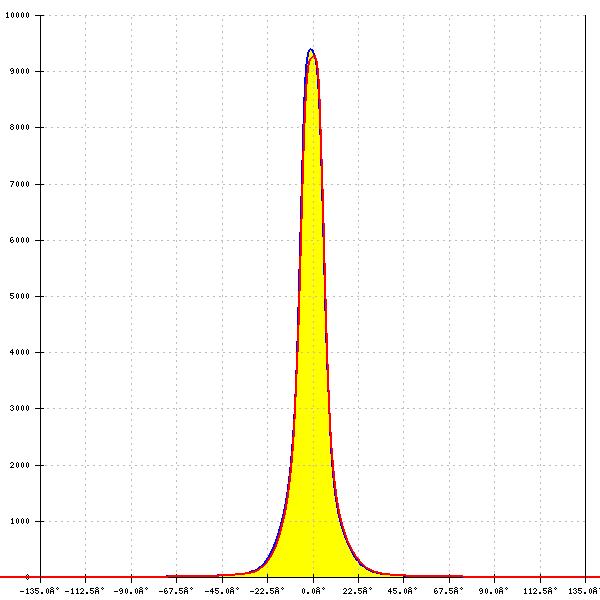

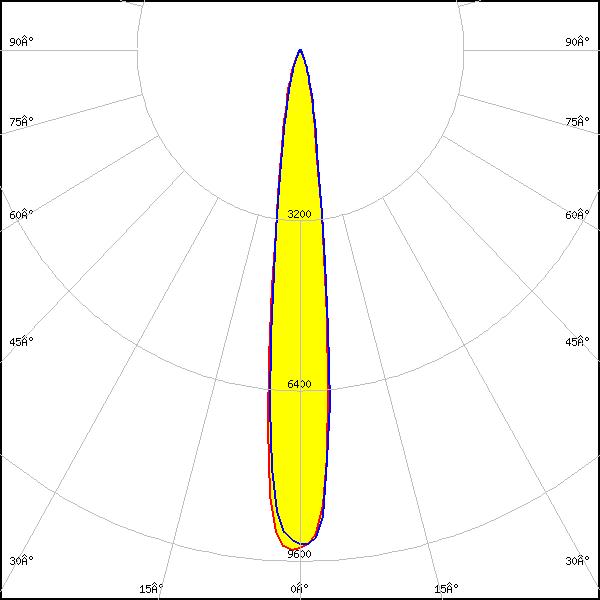

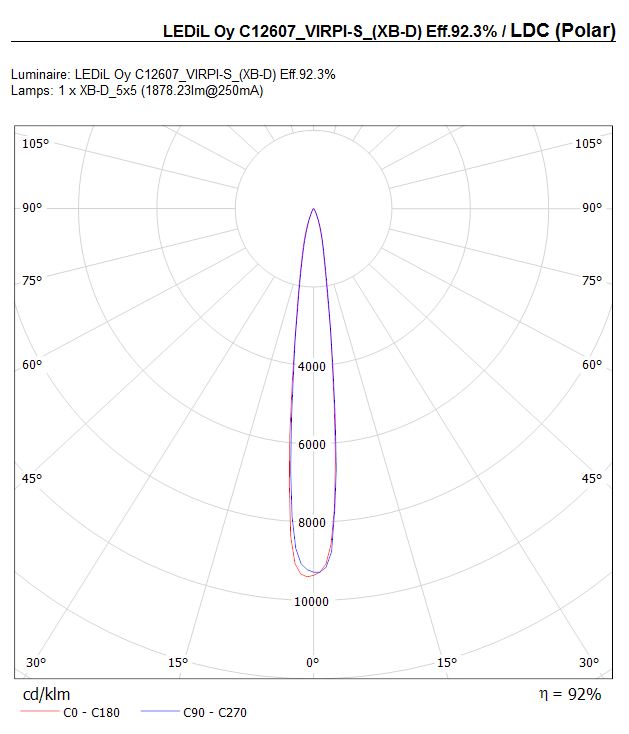

LED: XB-D
FWHM: 13°
FWTM: 30°
Peak intensity: 9.230 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

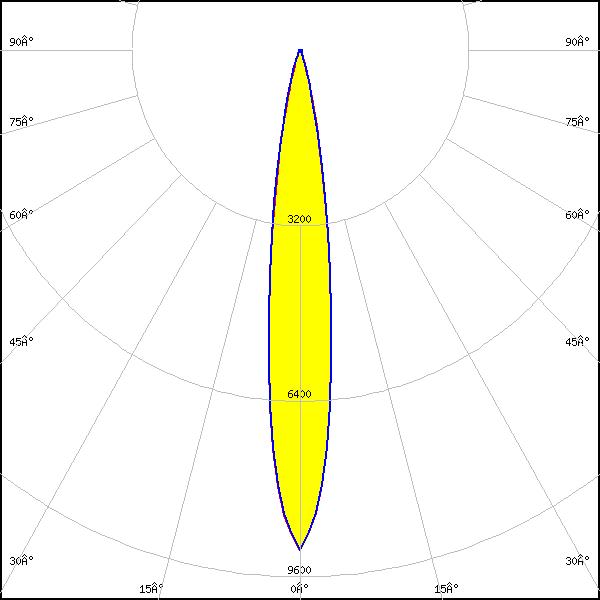

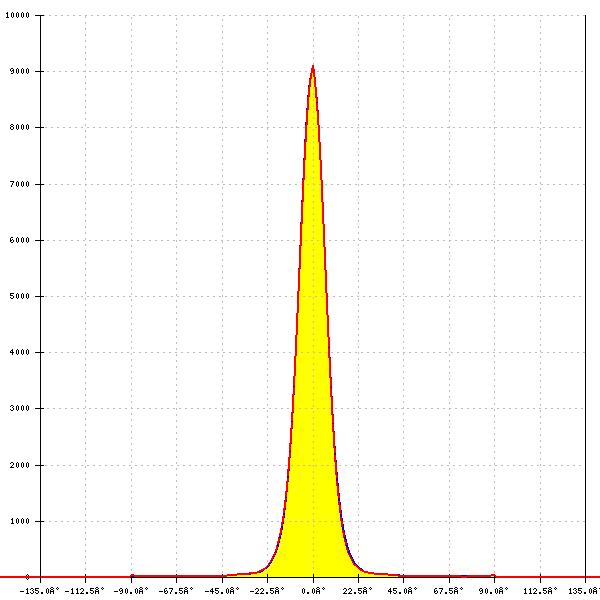

LED: XD16
FWHM: 14°
FWTM: 30°
Peak intensity: 9.118 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

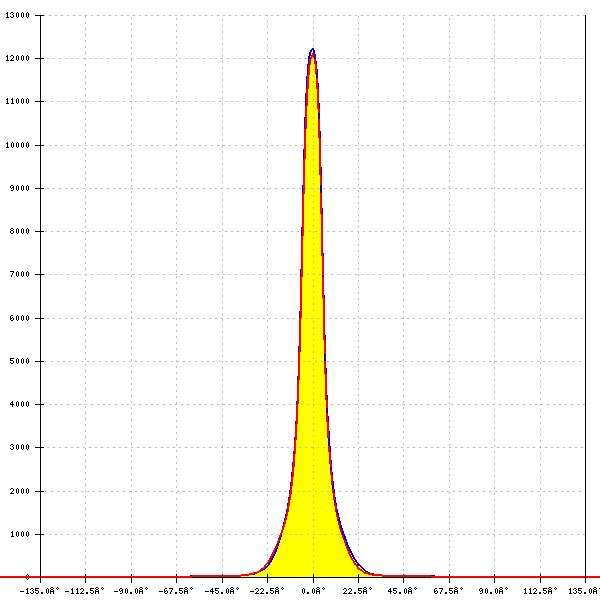

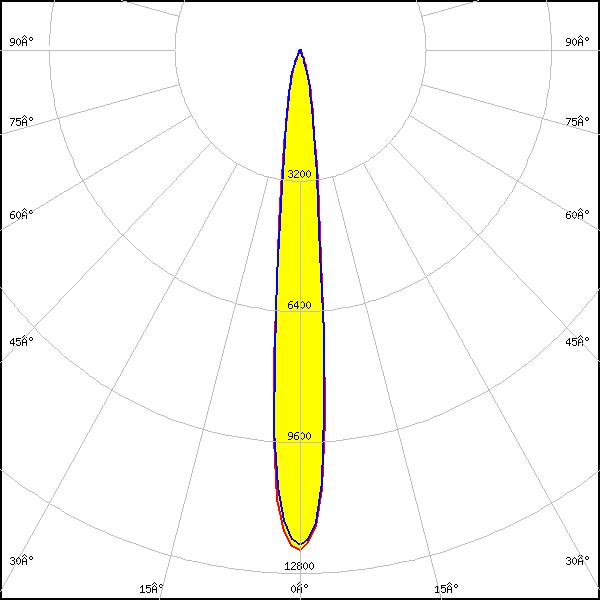

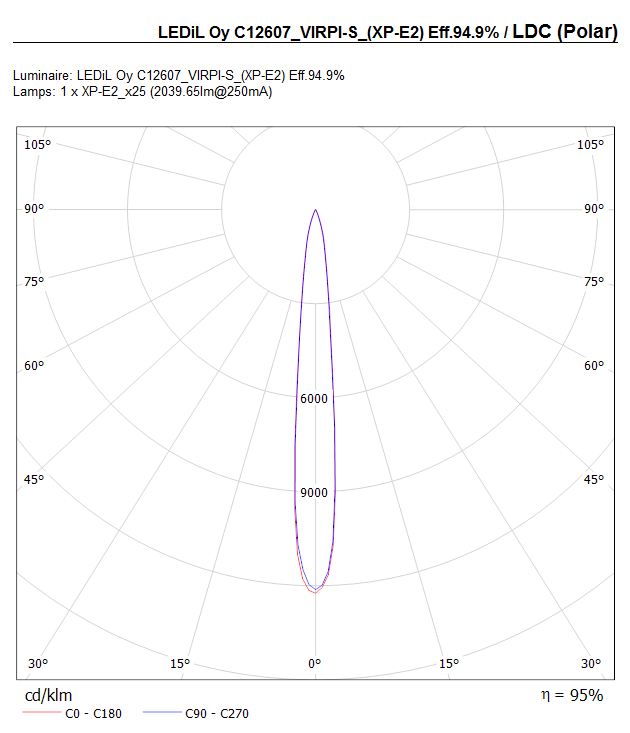

LED: XP-E2
FWHM: 11°
FWTM: 27°
Peak intensity: 12.200 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

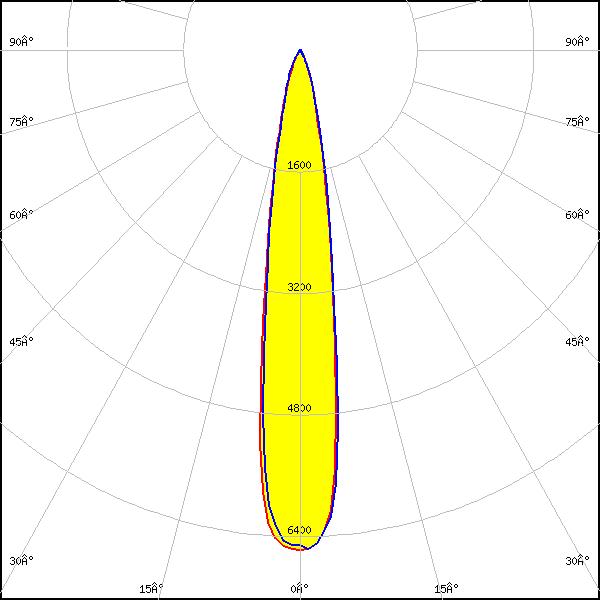

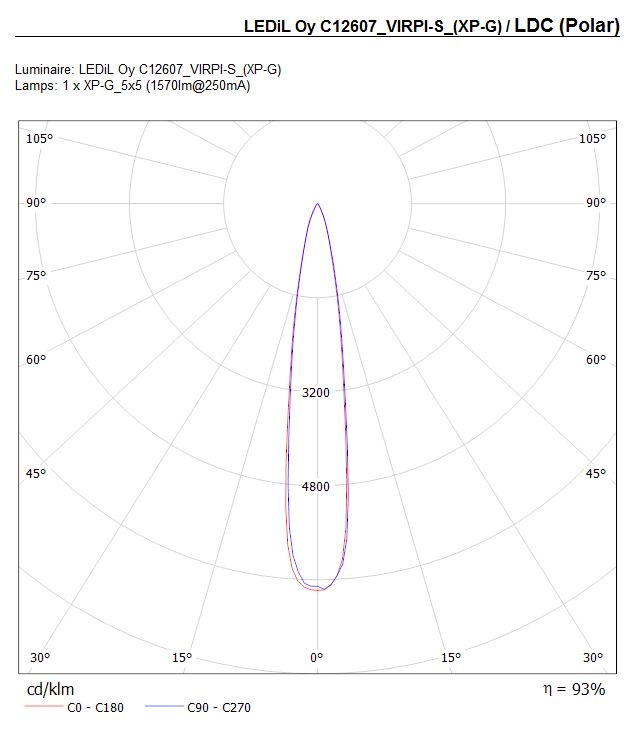

LED: XP-G
FWHM: 16°
FWTM: 36°
Peak intensity: 6.470 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

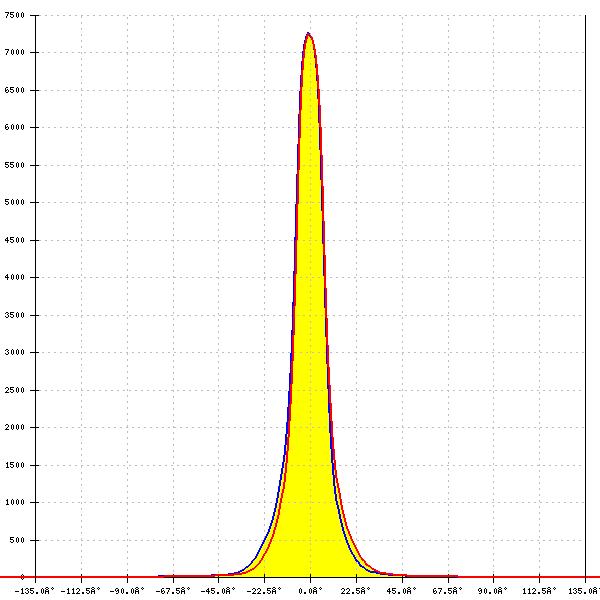

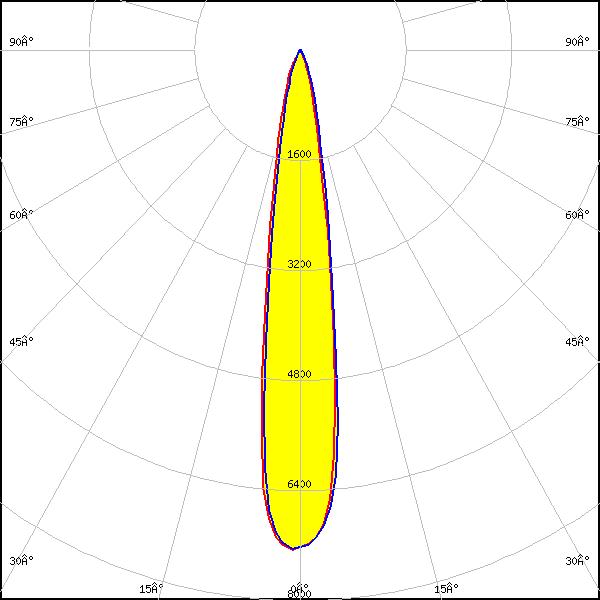

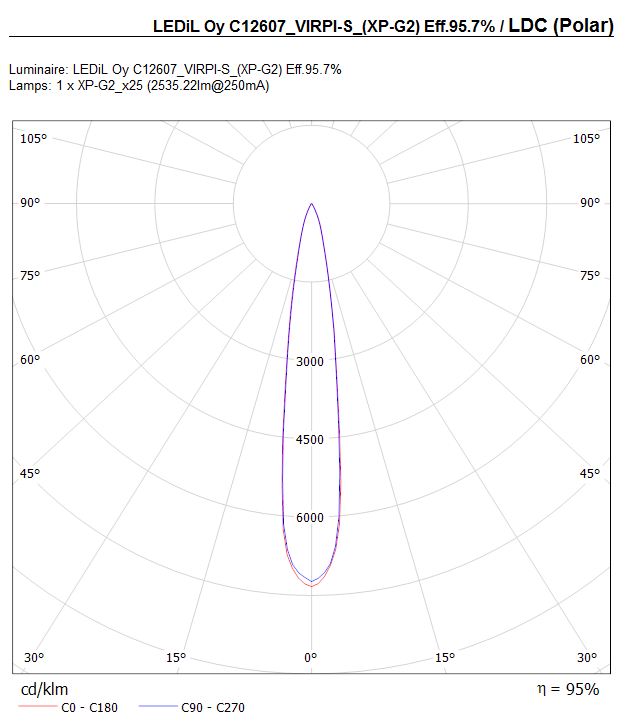

LED: XP-G2
FWHM: 16°
FWTM: 34°
Peak intensity: 7.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

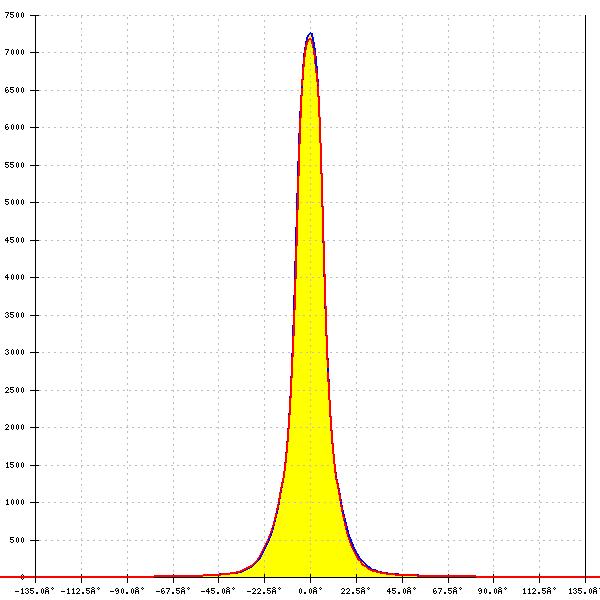

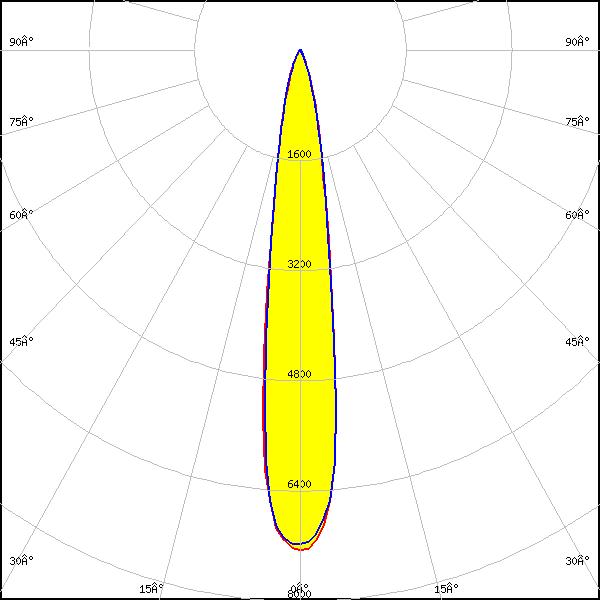

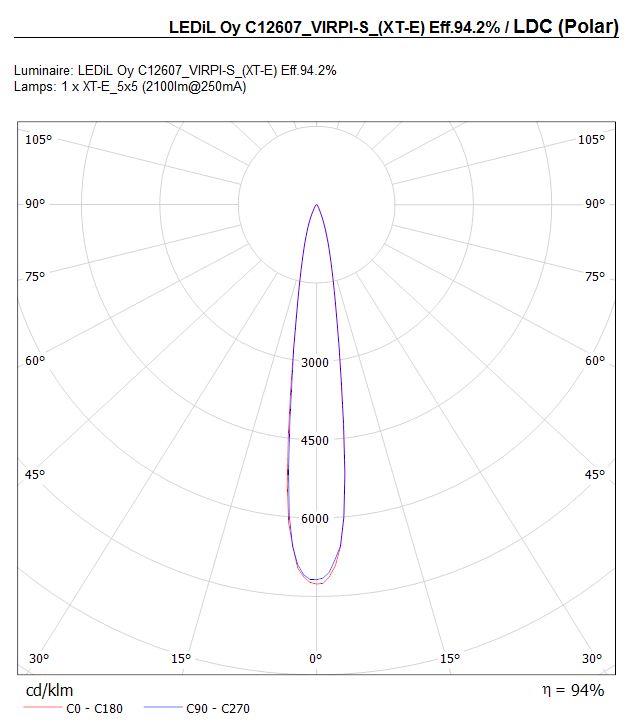

LED: XT-E
FWHM: 15°
FWTM: 34°
Peak intensity: 7.160 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

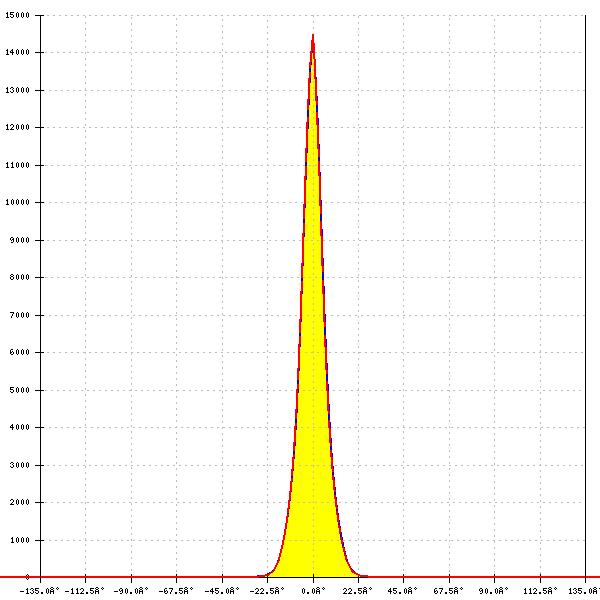

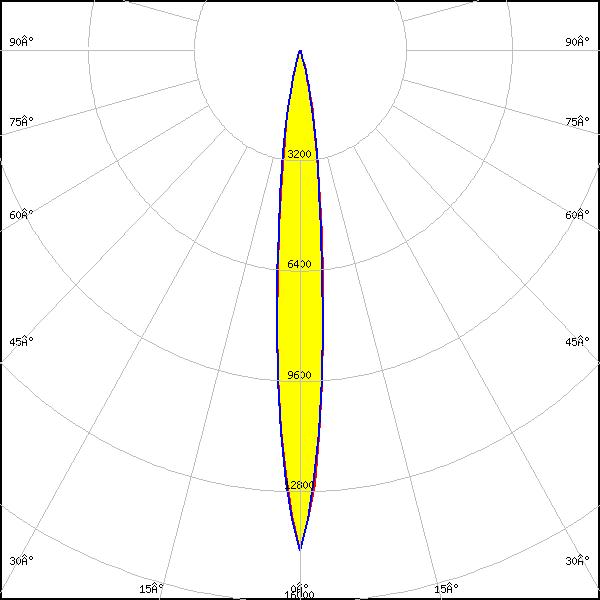

LED: LUXEON C
FWHM: 11°
FWTM: 25°
Peak intensity: 14.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

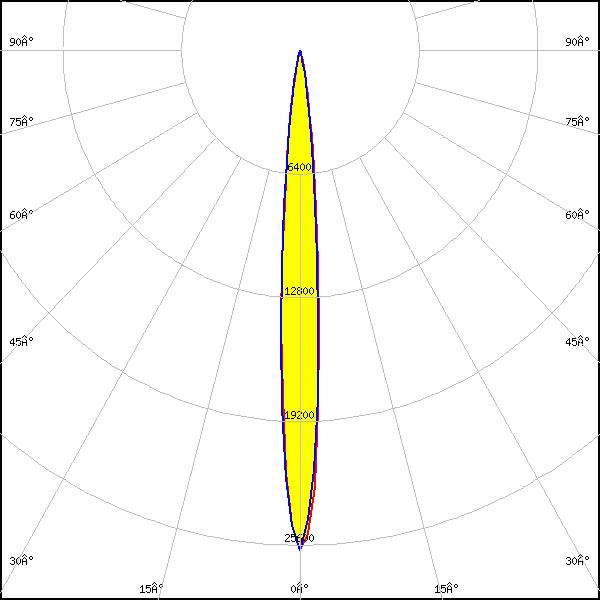

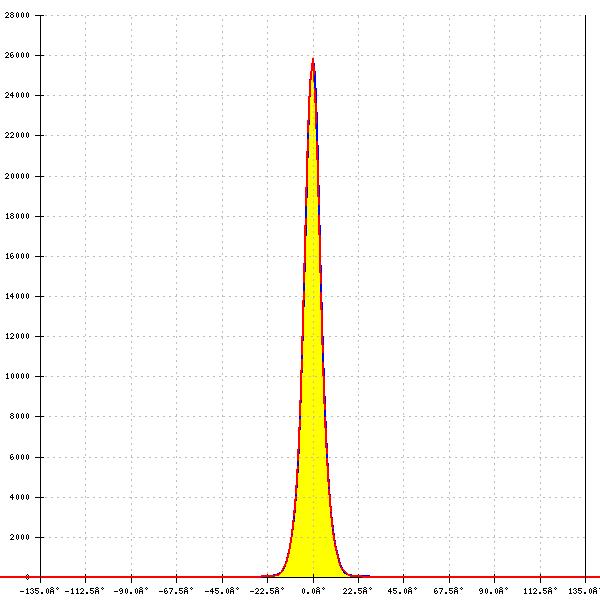

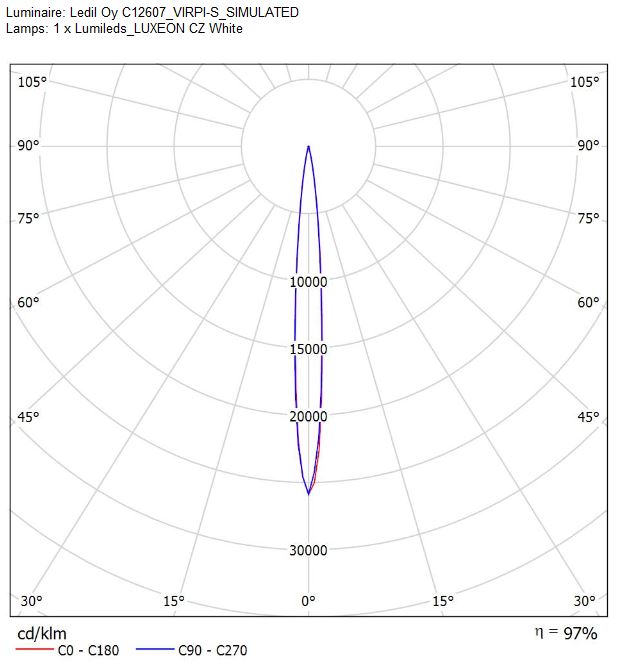

LED: LUXEON CZ
FWHM: 9°
FWTM: 19°
Peak intensity: 26.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

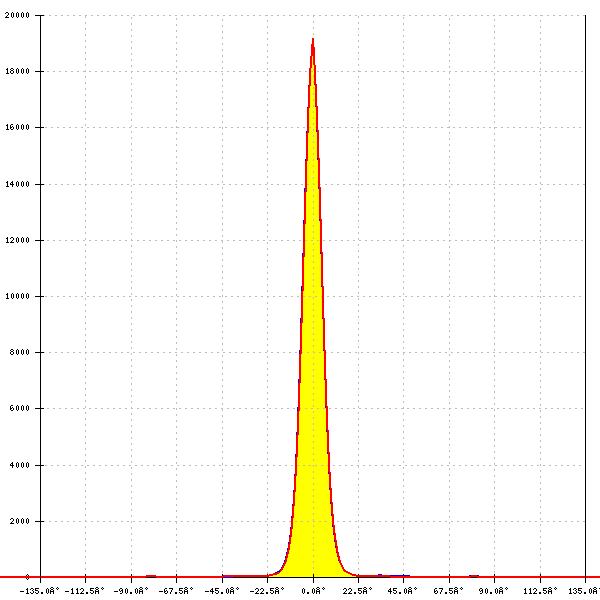

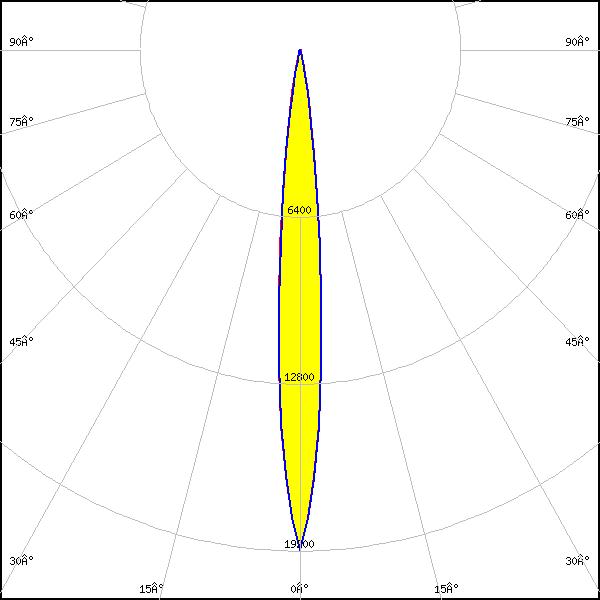

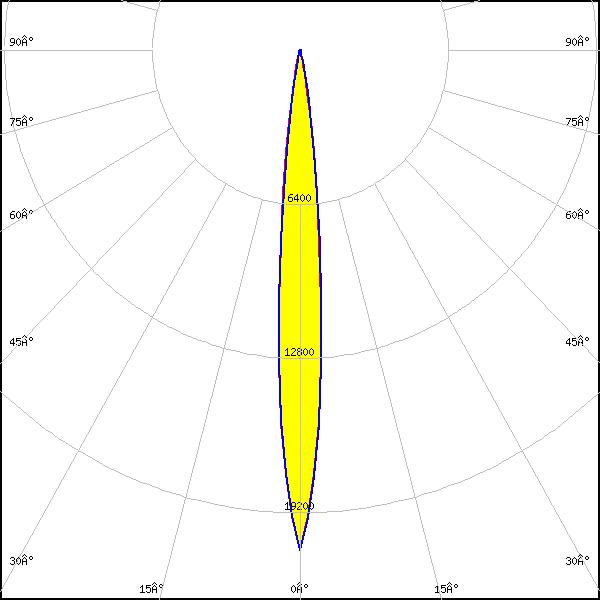

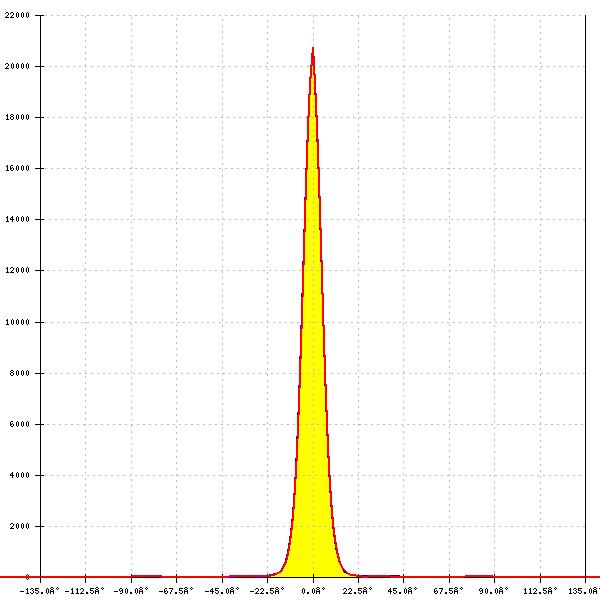

LED: LUXEON HL1Z
FWHM: 10°
FWTM: 20°
Peak intensity: 20.766 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON HL1Z
FWHM: 10°
FWTM: 20°
Peak intensity: 19.175 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

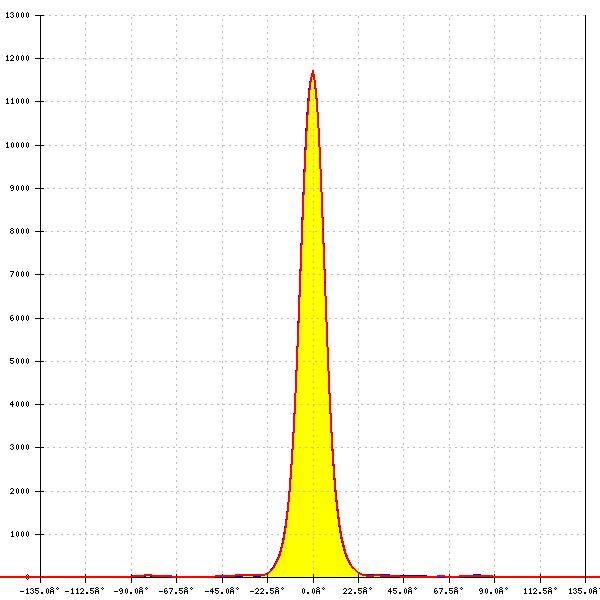

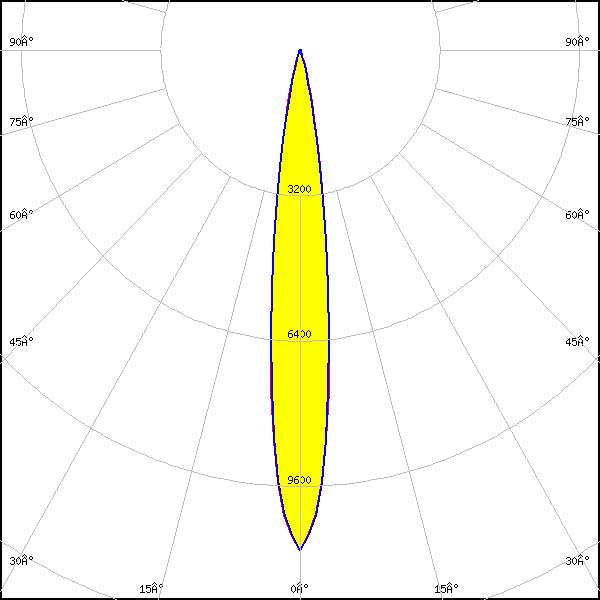

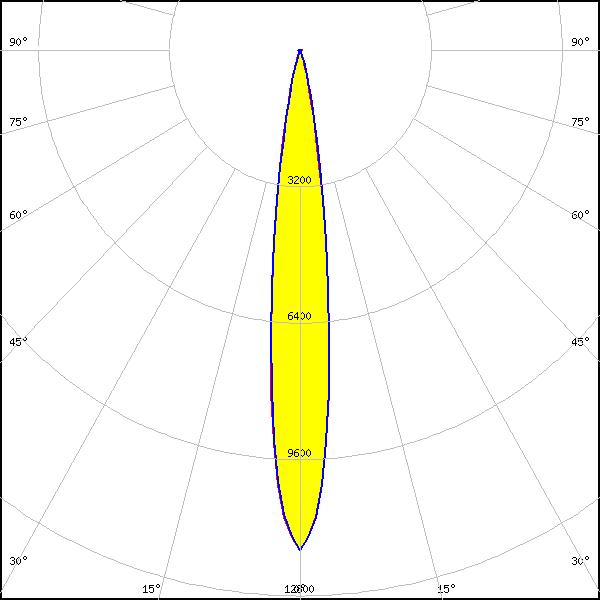

LED: LUXEON HL2Z
FWHM: 14°
FWTM: 26°
Peak intensity: 11.732 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

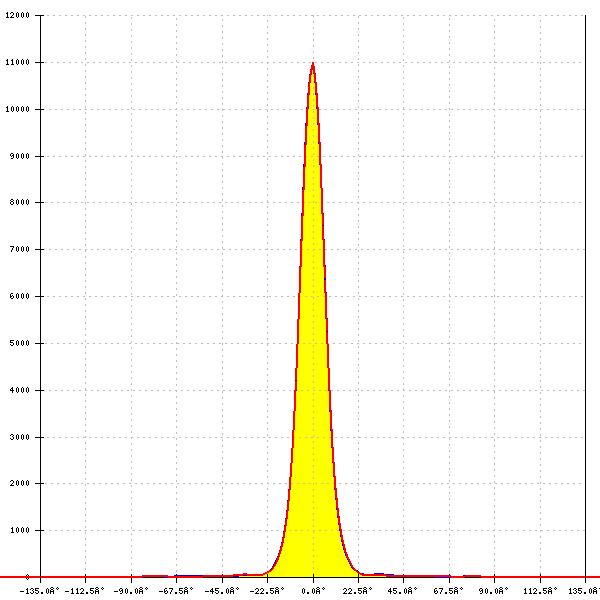

LED: LUXEON HL2Z
FWHM: 14°
FWTM: 26°
Peak intensity: 11.007 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

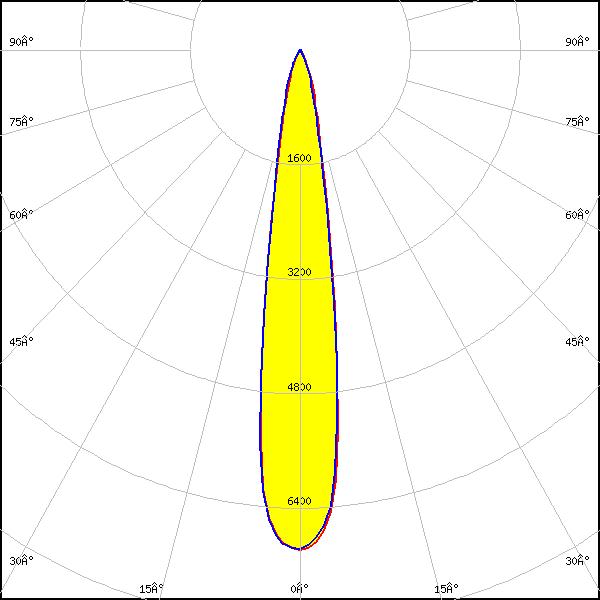

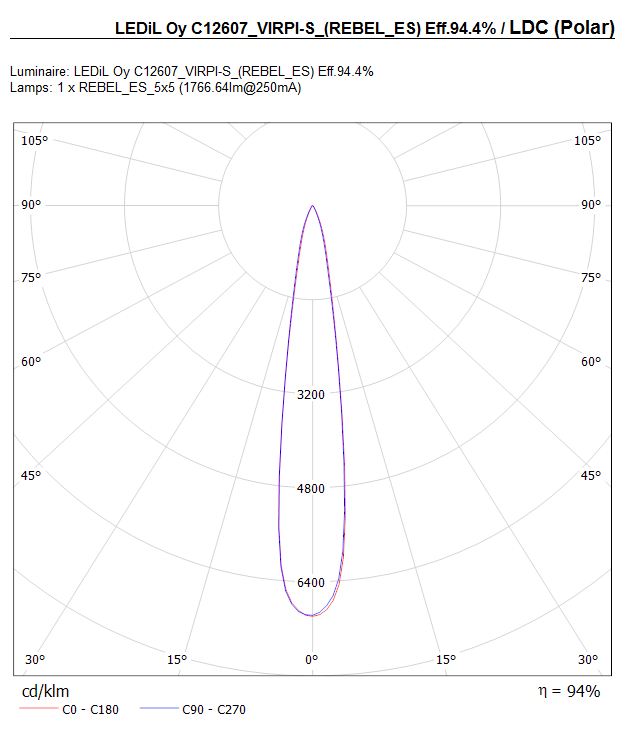

LED: LUXEON Rebel ES
FWHM: 16°
FWTM: 29°
Peak intensity: 6.820 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

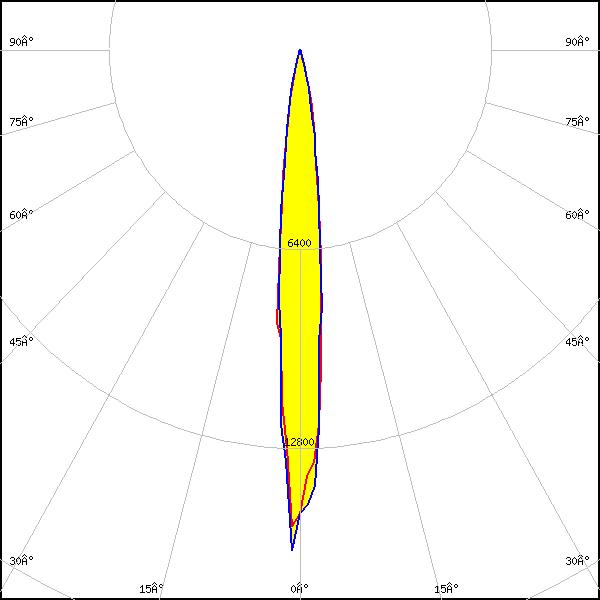

LED: LUXEON SunPlus 20 Line (150 deg)
FWHM: 13°
FWTM: 25°
Peak intensity: 15.200 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

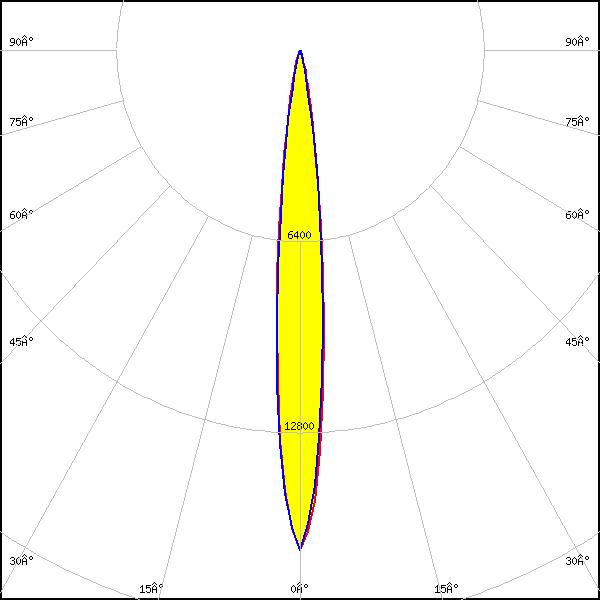

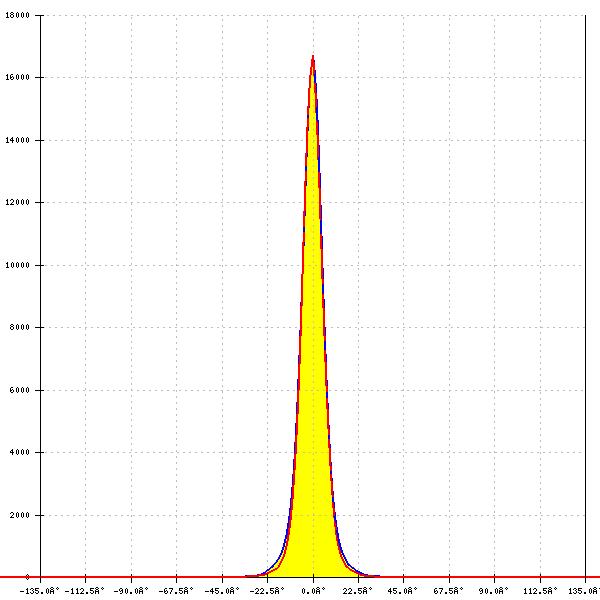

LED: LUXEON SunPlus 35 Line
FWHM: 12°
FWTM: 23°
Peak intensity: 16.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

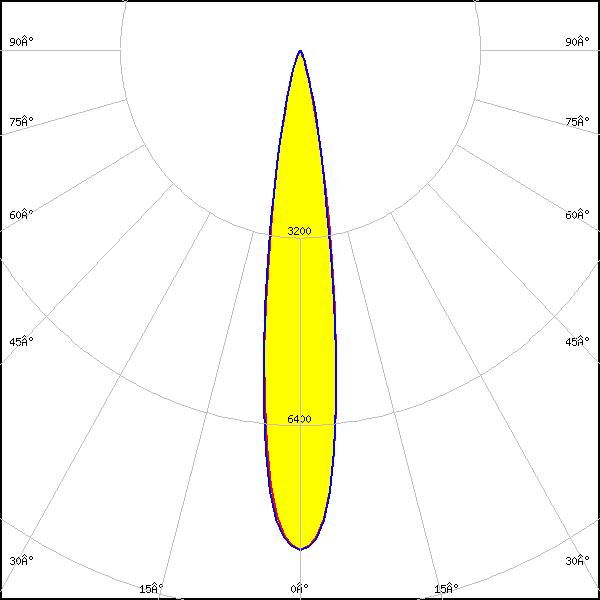

LED: LUXEON T
FWHM: 16°
FWTM: 31°
Peak intensity: 8.530 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

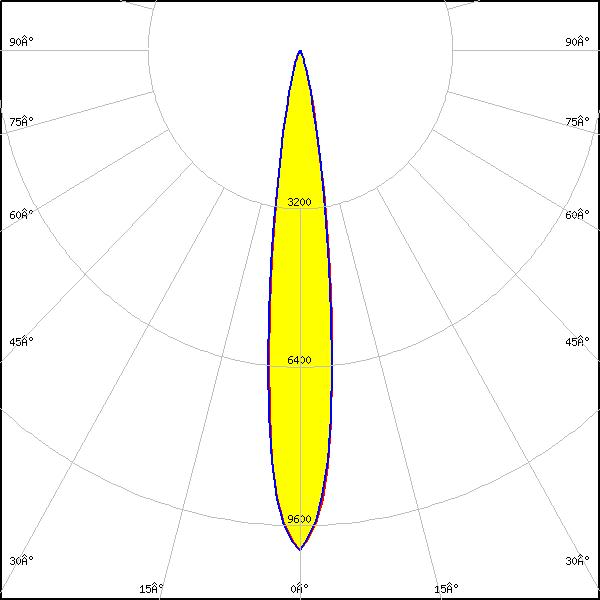

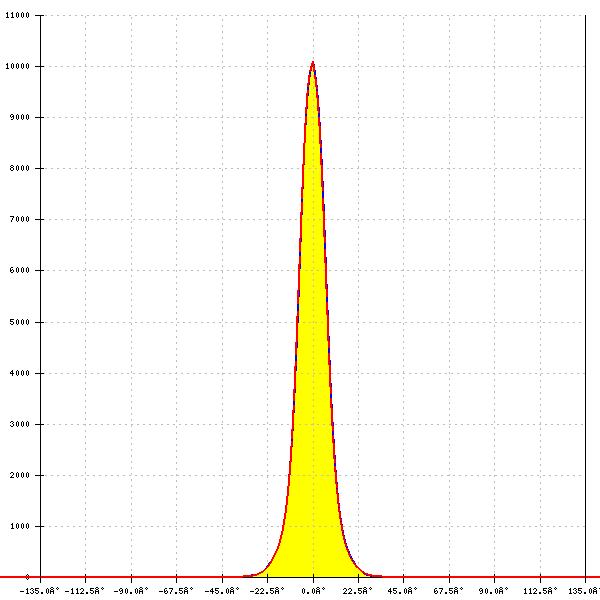

LED: LUXEON TX
FWHM: 15°
FWTM: 29°
Peak intensity: 10.100 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

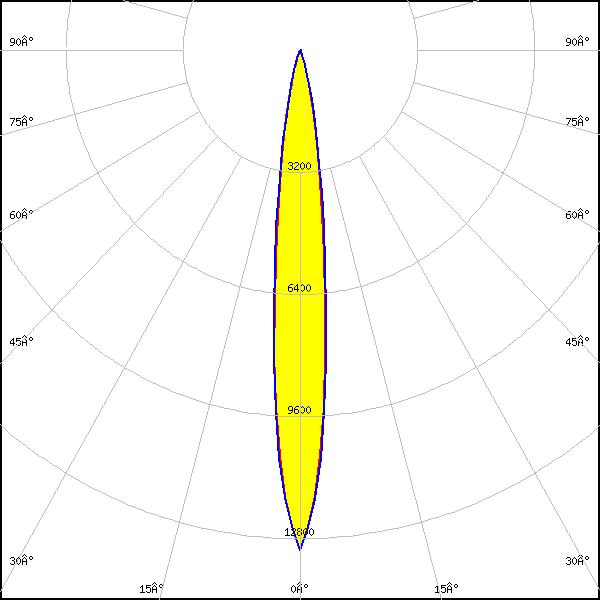

LED: SST-10-B130
FWHM: 12°
FWTM: 27°
Peak intensity: 13.110 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: Red

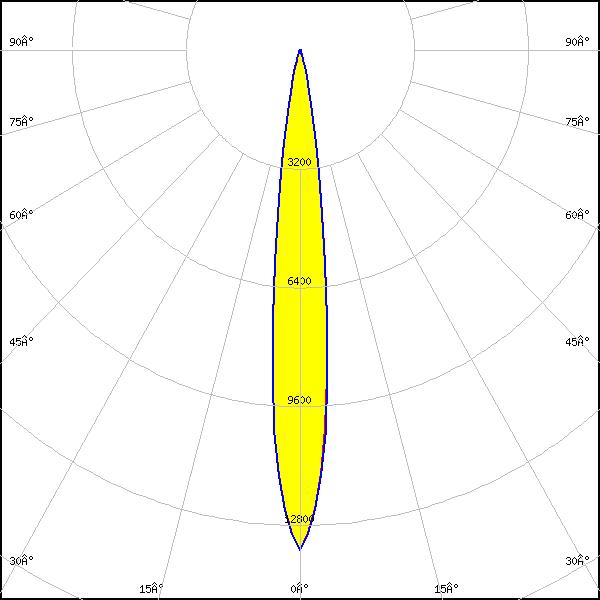

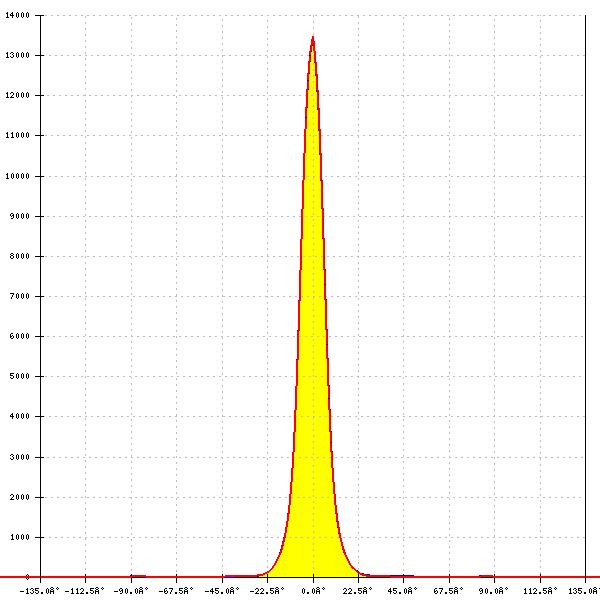

LED: SST-20
FWHM: 12°
FWTM: 24°
Peak intensity: 13.471 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

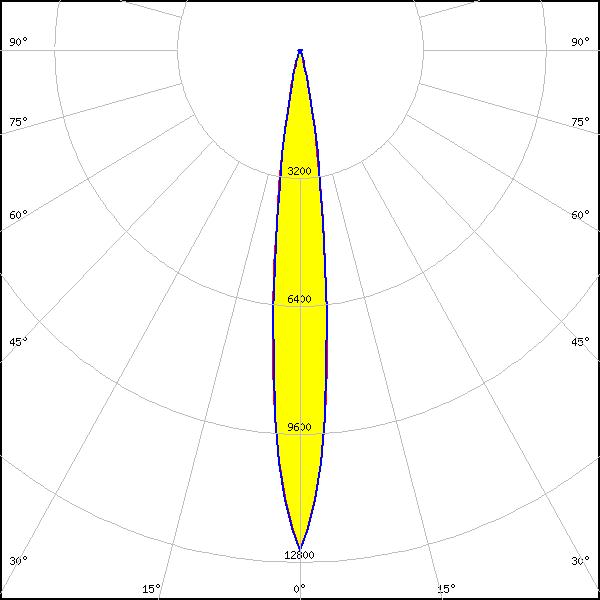

LED: NVSxE21A
FWHM: 12°
FWTM: 26°
Peak intensity: 12.506 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

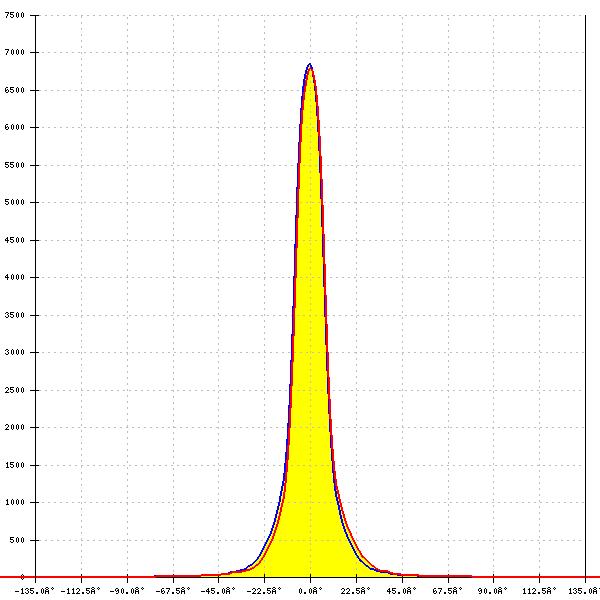

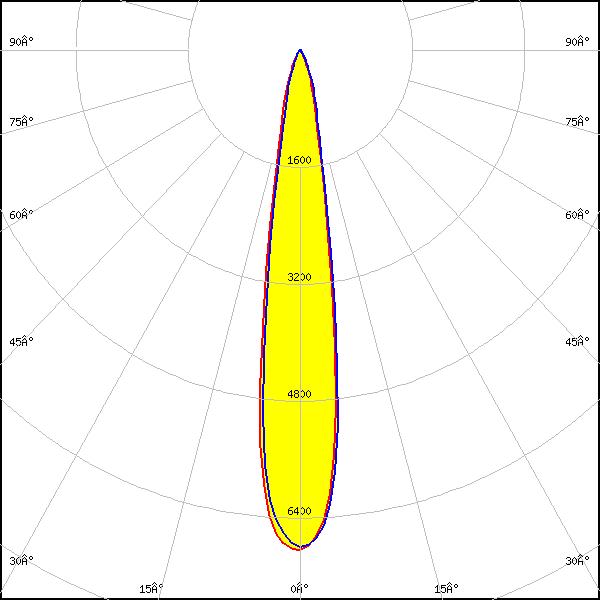

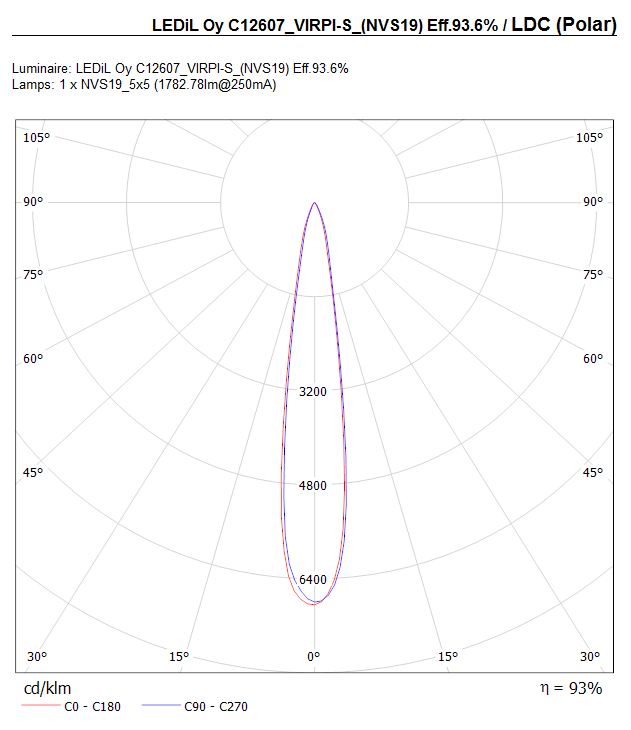

LED: NVSxx19A
FWHM: 16°
FWTM: 34°
Peak intensity: 6.880 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

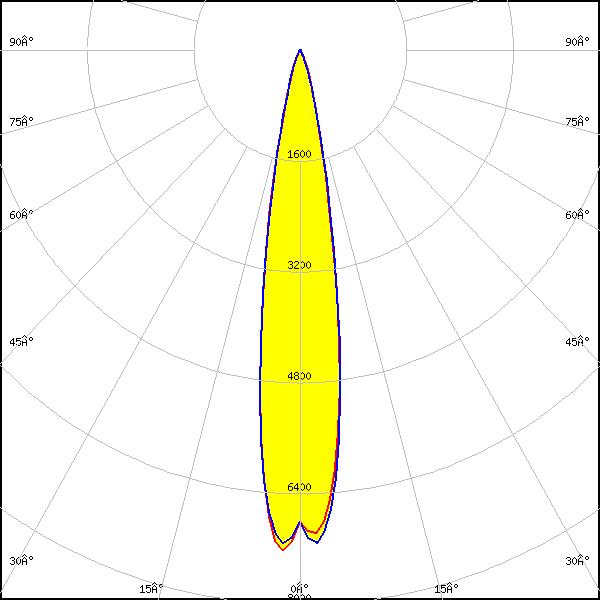

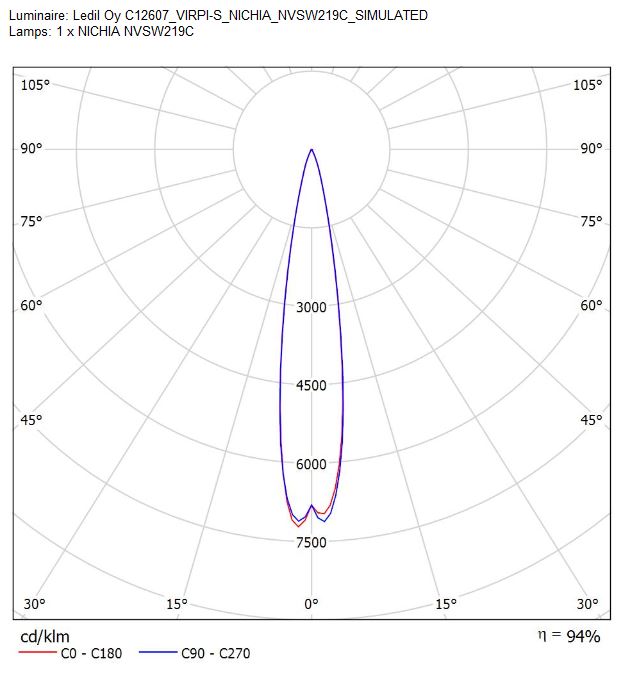

LED: NVSxx19B/NVSxx19C
FWHM: 18°
FWTM: 33°
Peak intensity: 7.270 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

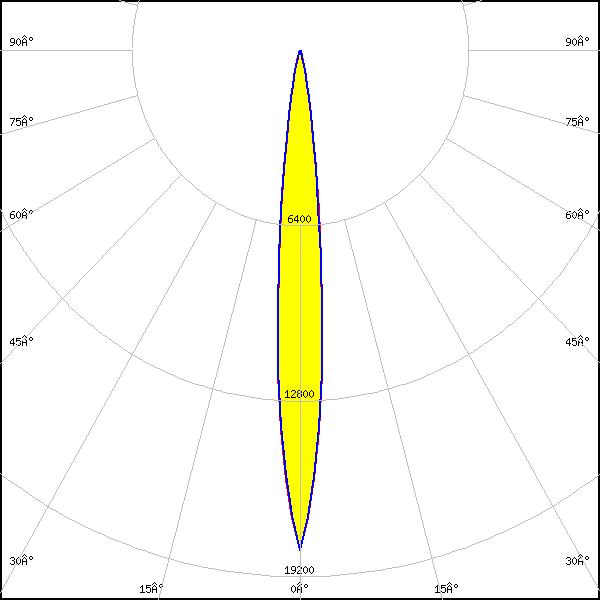

LED: OSCONIQ P 3030
FWHM: 10°
FWTM: 22°
Peak intensity: 18.243 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

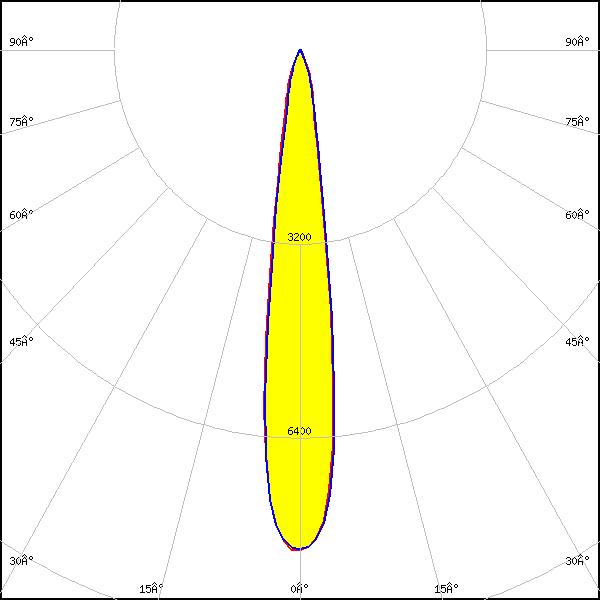

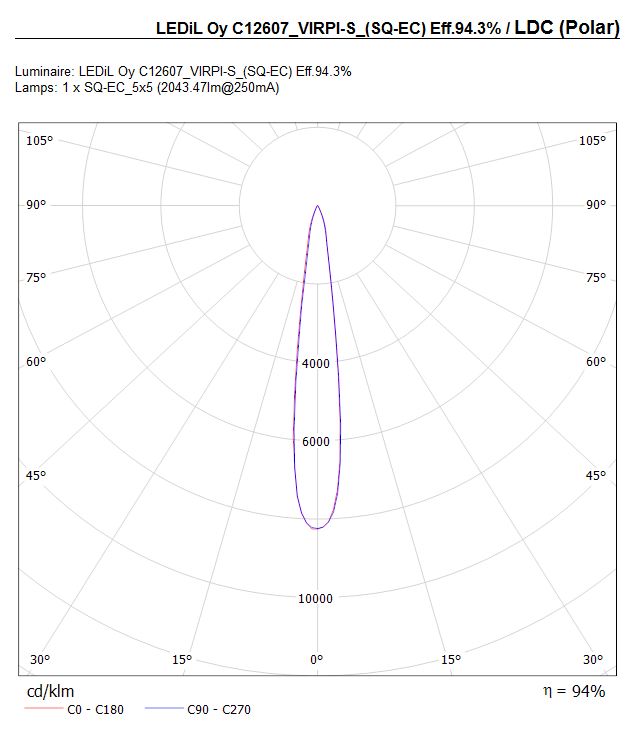

LED: OSLON Square EC
FWHM: 15°
FWTM: 31°
Peak intensity: 8.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

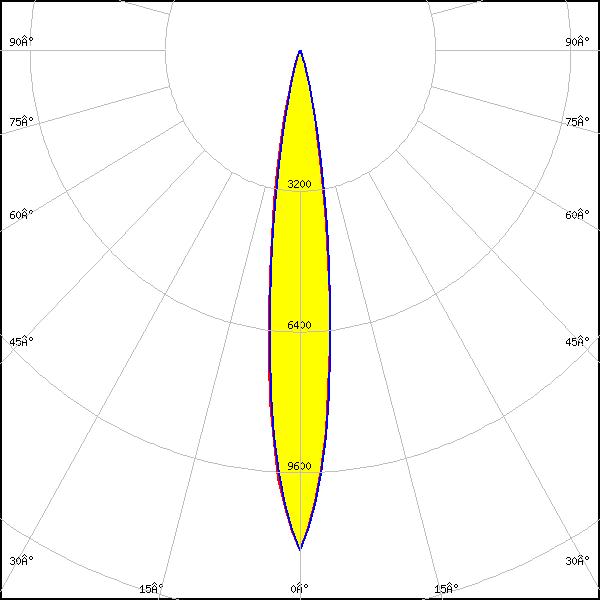

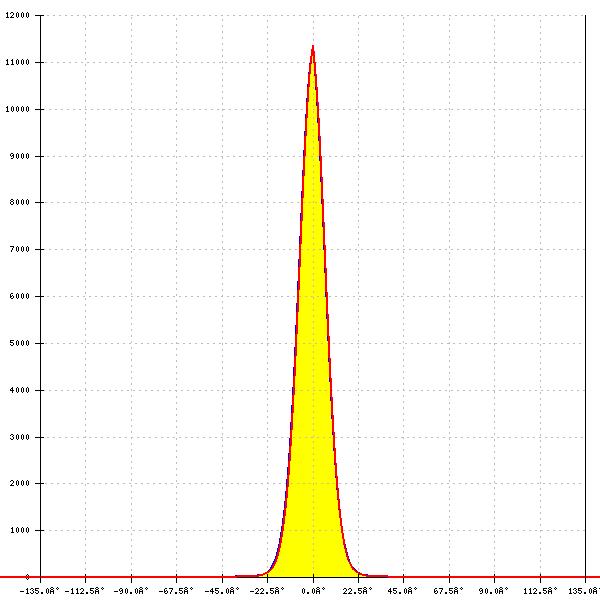

LED: OSLON SSL 150
FWHM: 14°
FWTM: 28°
Peak intensity: 11.362 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: Red

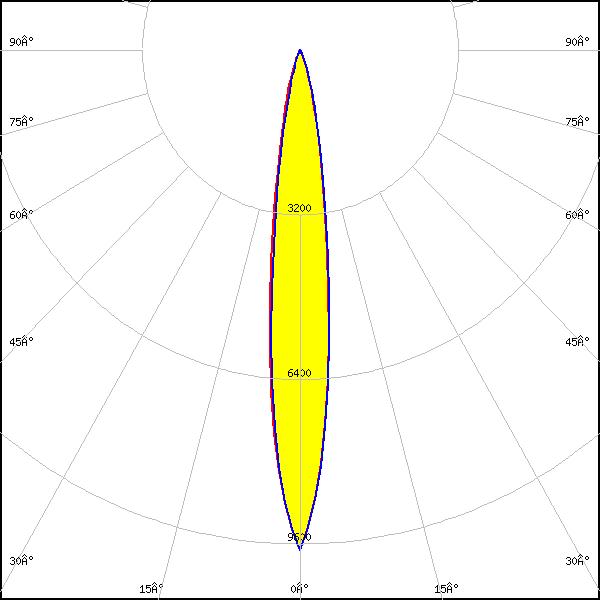

LED: OSLON SSL 80
FWHM: 14°
FWTM: 30°
Peak intensity: 9.726 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: Red
LED: SFH 4715AS
FWHM: 13°
FWTM: 24°
Efficiency: 94 %
LEDs/each optic: 1
Light colour: IR

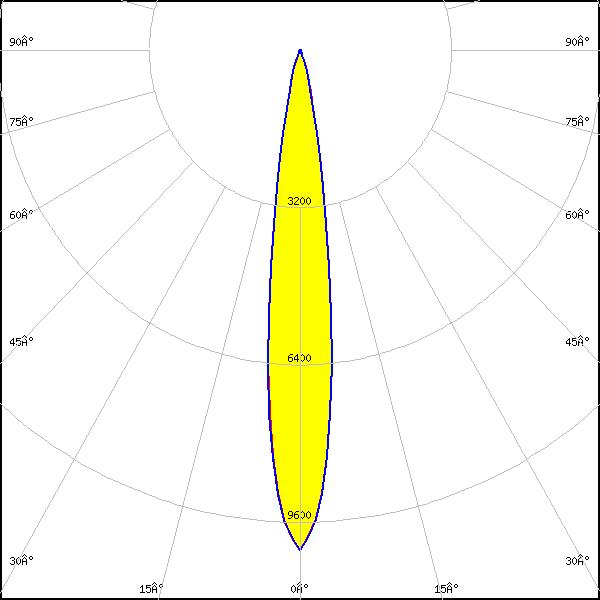

LED: LH181B
FWHM: 14°
FWTM: 28°
Peak intensity: 10.173 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

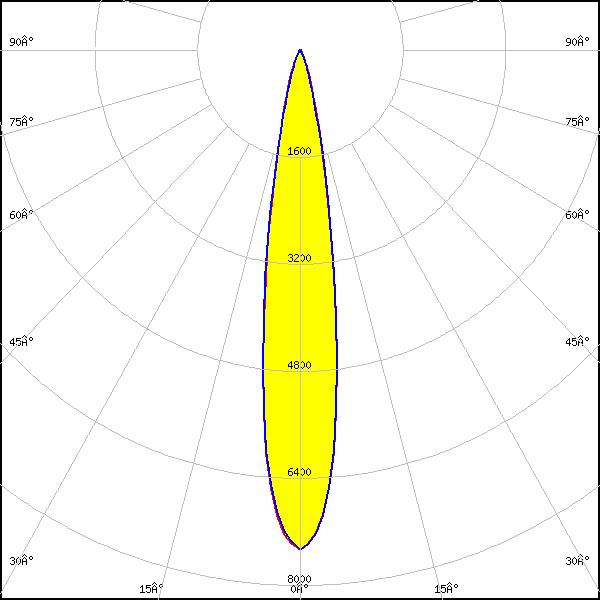

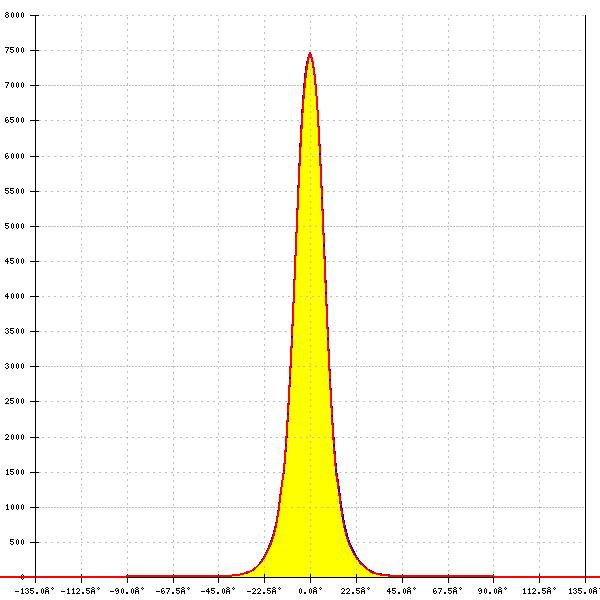

LED: LH351B
FWHM: 17°
FWTM: 33°
Peak intensity: 7.476 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

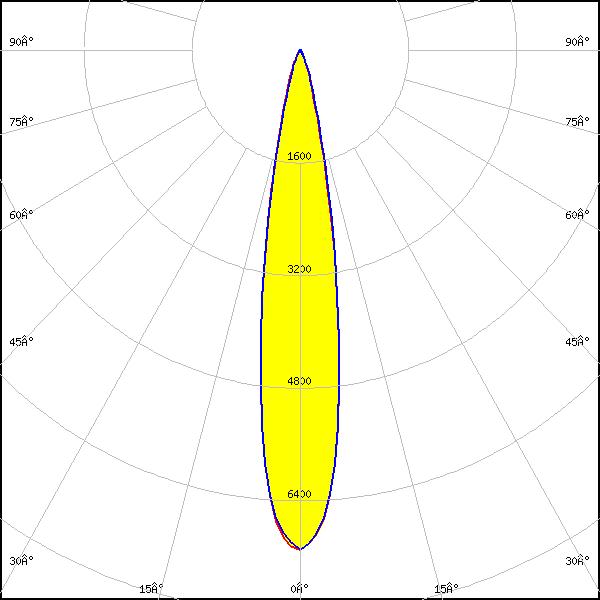

LED: LH351C
FWHM: 18°
FWTM: 34°
Peak intensity: 7.100 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

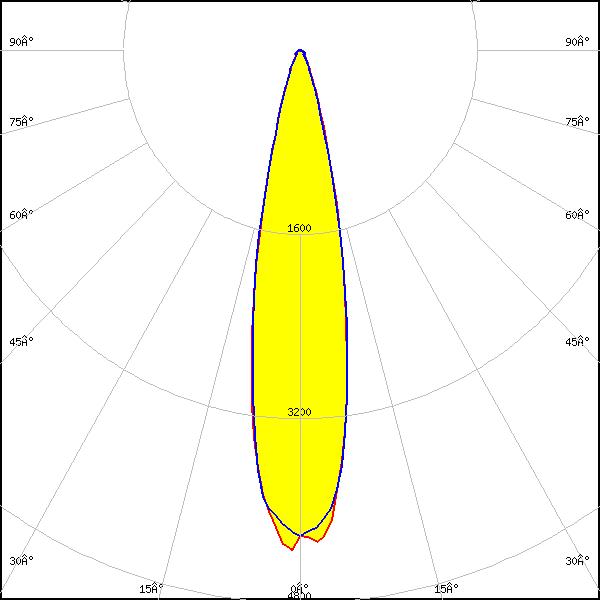

LED: LH351D
FWHM: 22°
FWTM: 42°
Peak intensity: 4.345 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

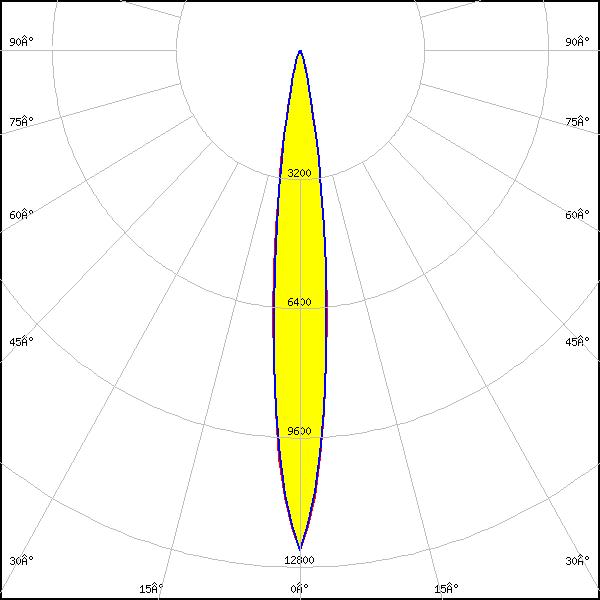

LED: LM301B
FWHM: 12°
FWTM: 26°
Peak intensity: 12.384 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

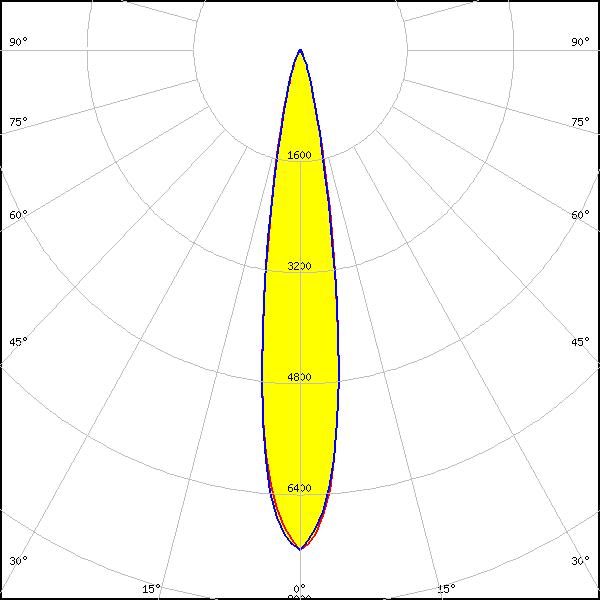

LED: SEOUL DC 3030
FWHM: 15°
FWTM: 30°
Peak intensity: 9.870 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

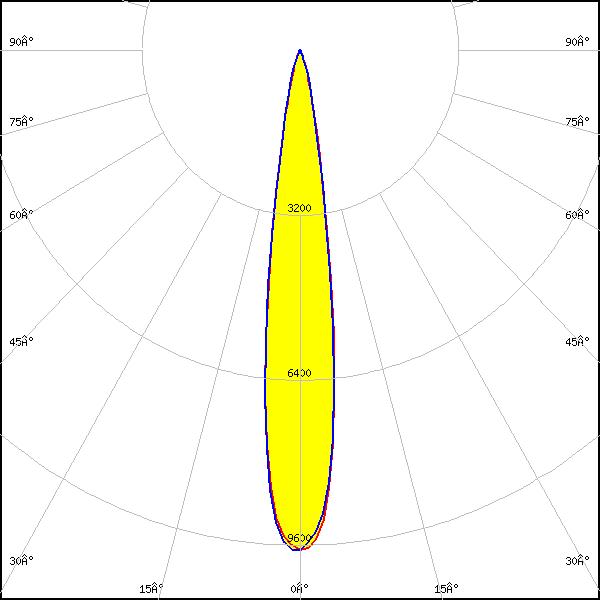

LED: Z5M1/Z5M2
FWHM: 15°
FWTM: 29°
Peak intensity: 9.740 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour: White

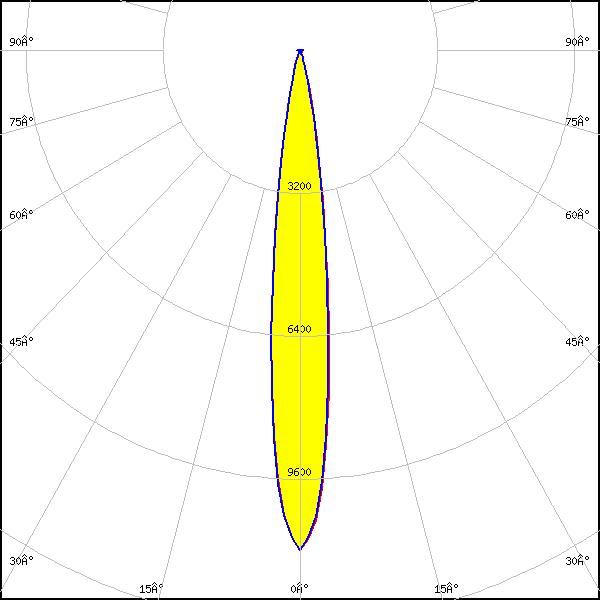

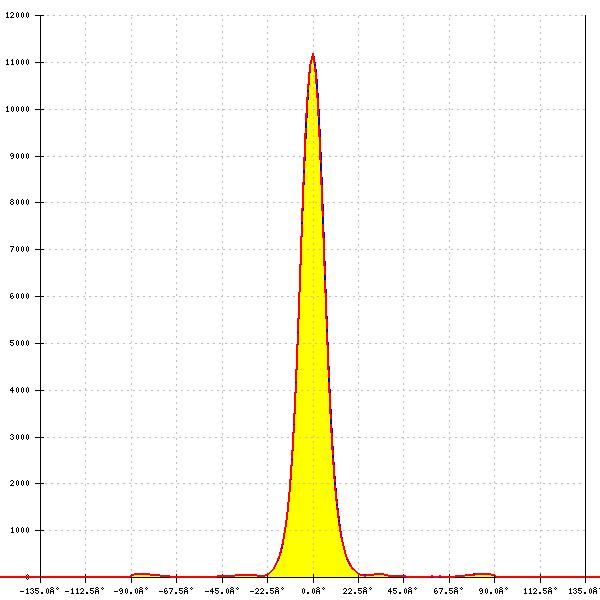

LED: Z8Y19
FWHM: 14°
FWTM: 26°
Peak intensity: 11.190 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

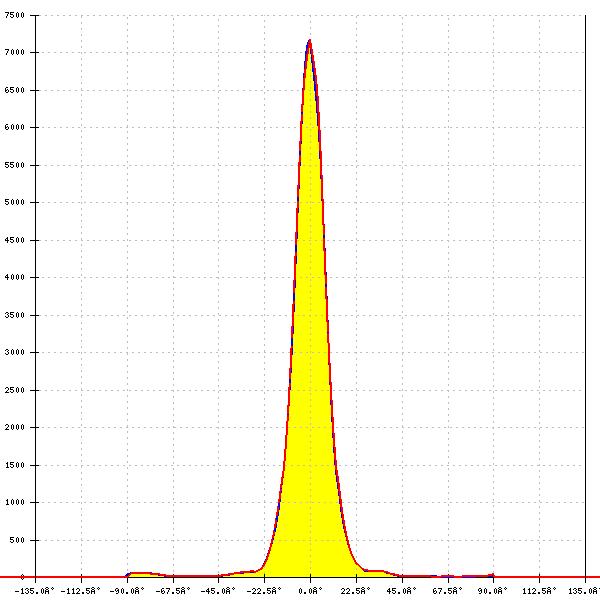

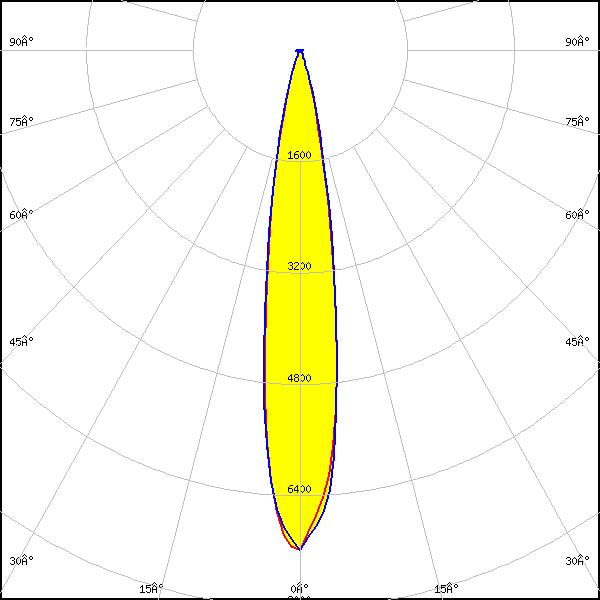

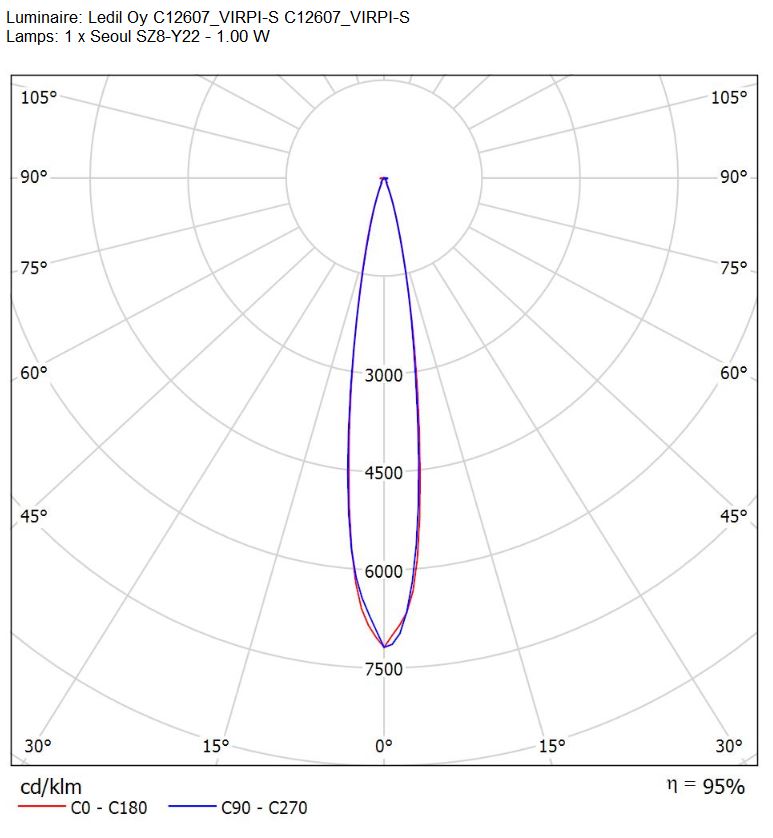

LED: Z8Y22
FWHM: 17°
FWTM: 33°
Peak intensity: 7.200 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
