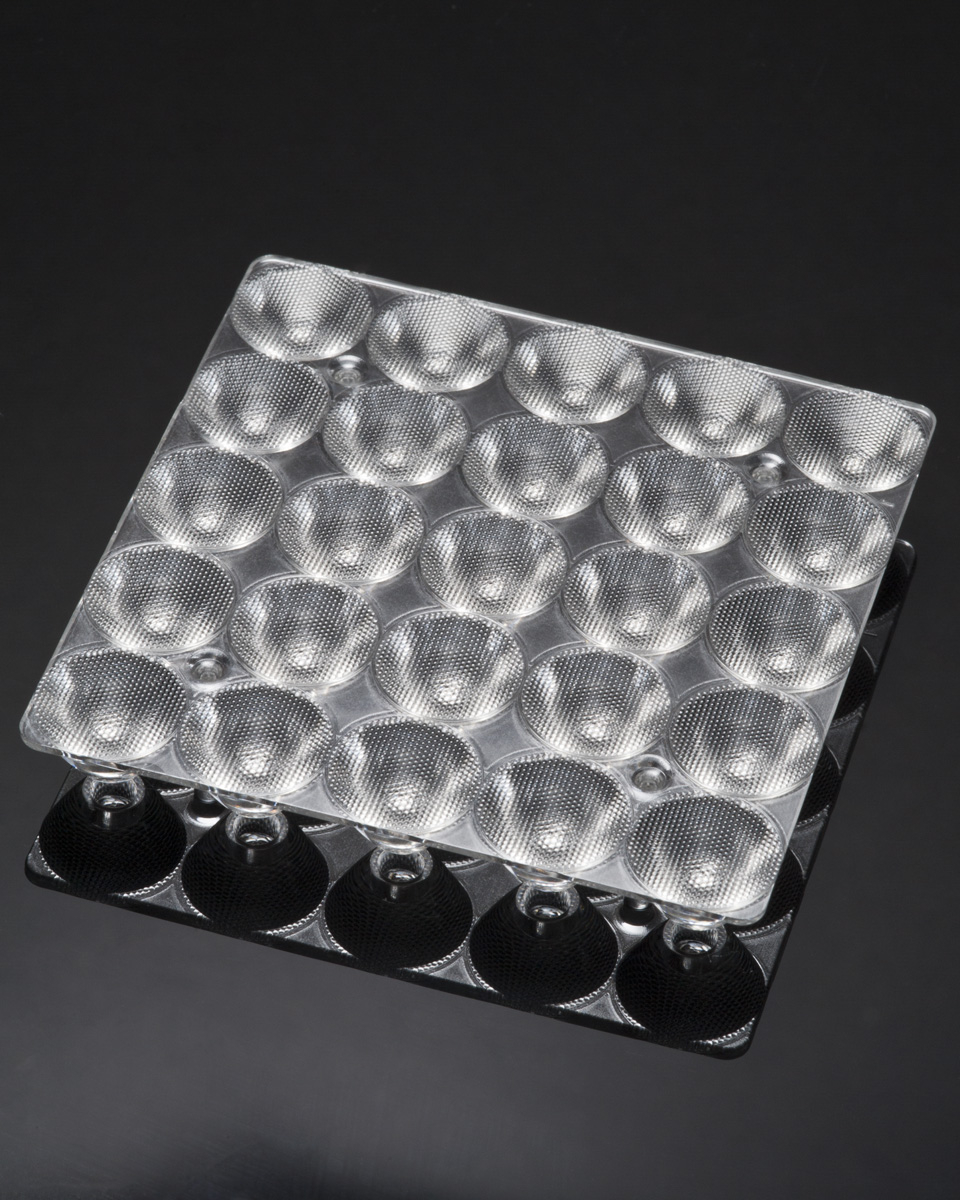

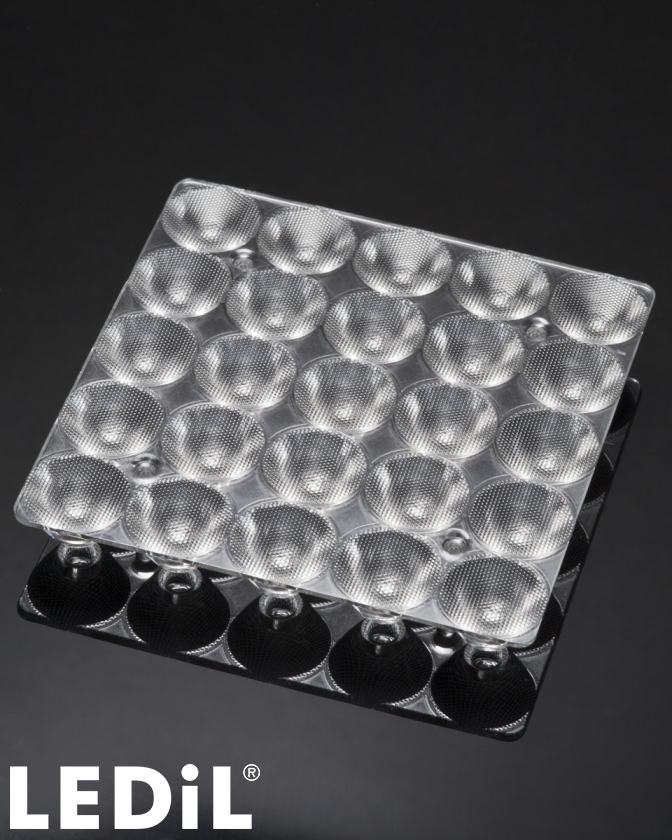

C12608_VIRPI-M

Print

~30° medium beam

Specification
  • Dimensions:
    75 x  75 mm
  • Height:
    9.5 mm
  • Fastening:
    glue, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • PMMA
Packing information
  • Quantity in box:
    360 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    12.2 kg
  • MPQ:
    15 pcs
  • MOQ:
    45 pcs
  • MOQ size:
    480 x 280 x 50 mm
  • MOQ weight:
    1.8 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Typical Applications

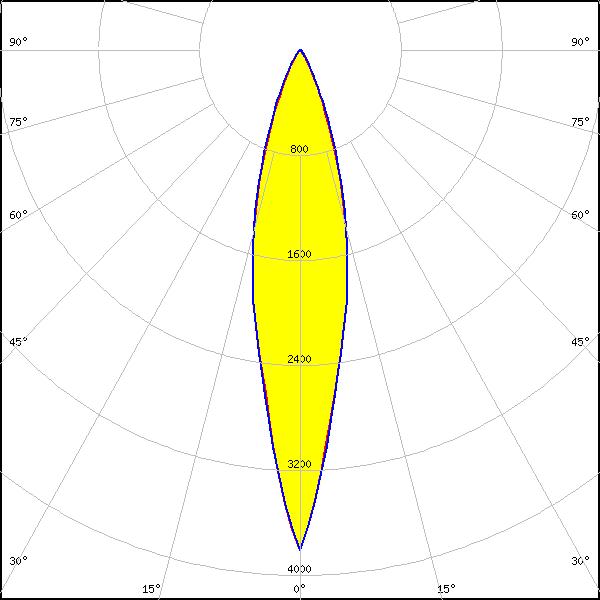

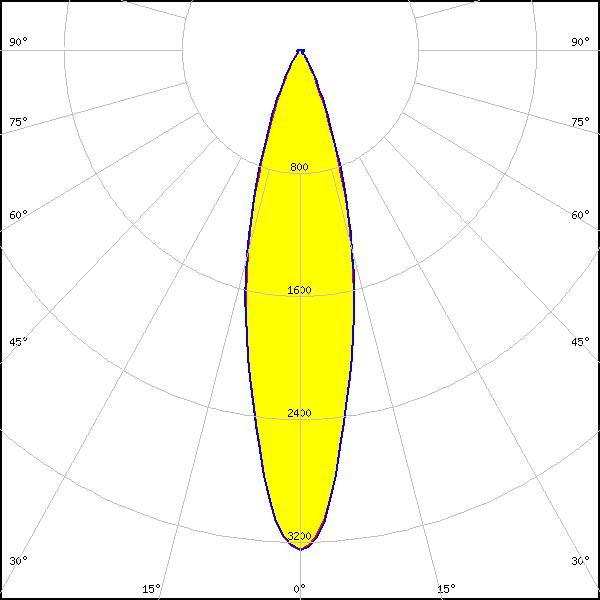

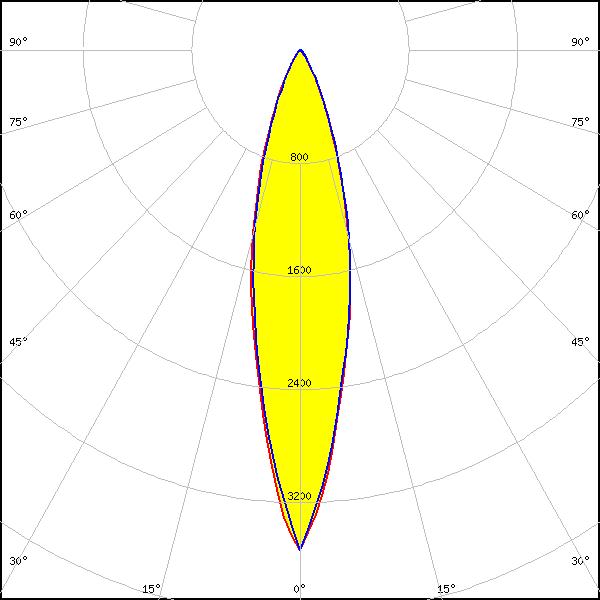

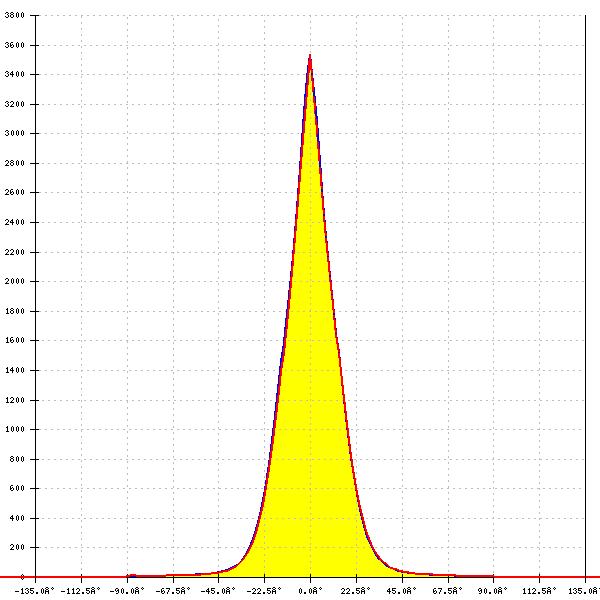

Optical results

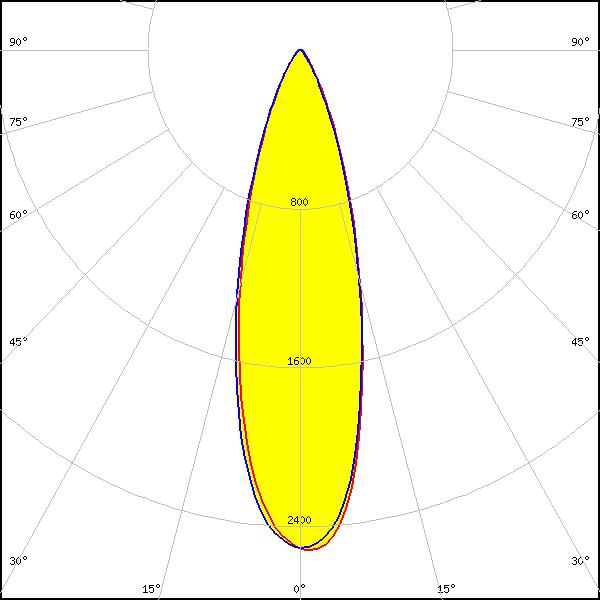

LED: ML-E
FWHM: 29°
Peak intensity: 2.5 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

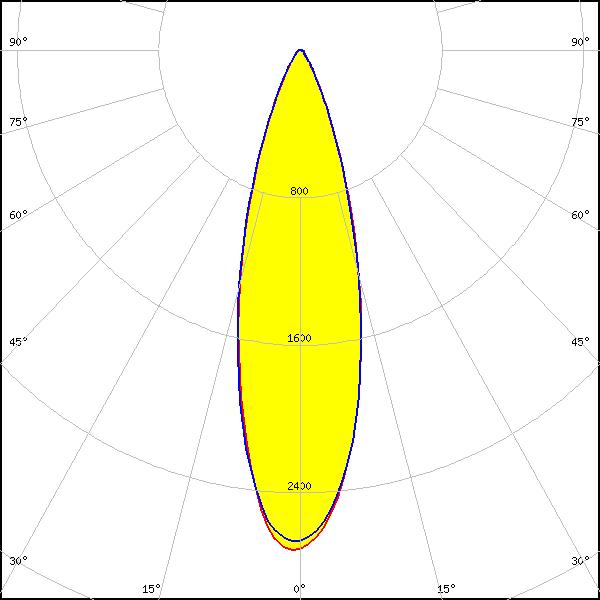

LED: XB-D
FWHM: 28°
Peak intensity: 2.8 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

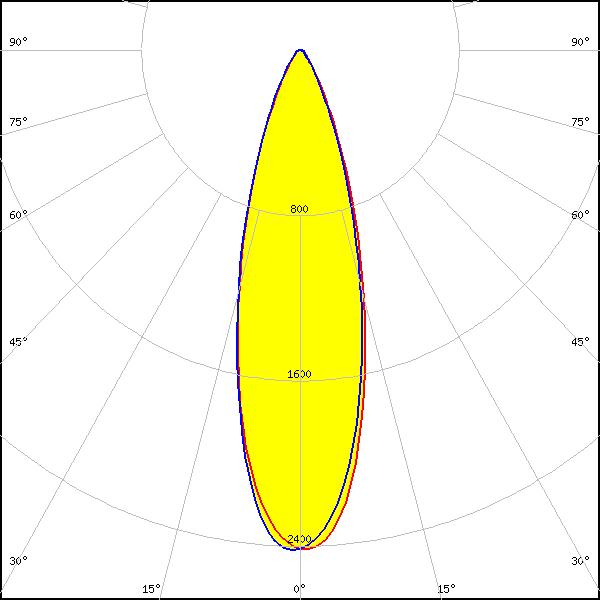

LED: XH-B/G
FWHM: 30°
Peak intensity: 2.4 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

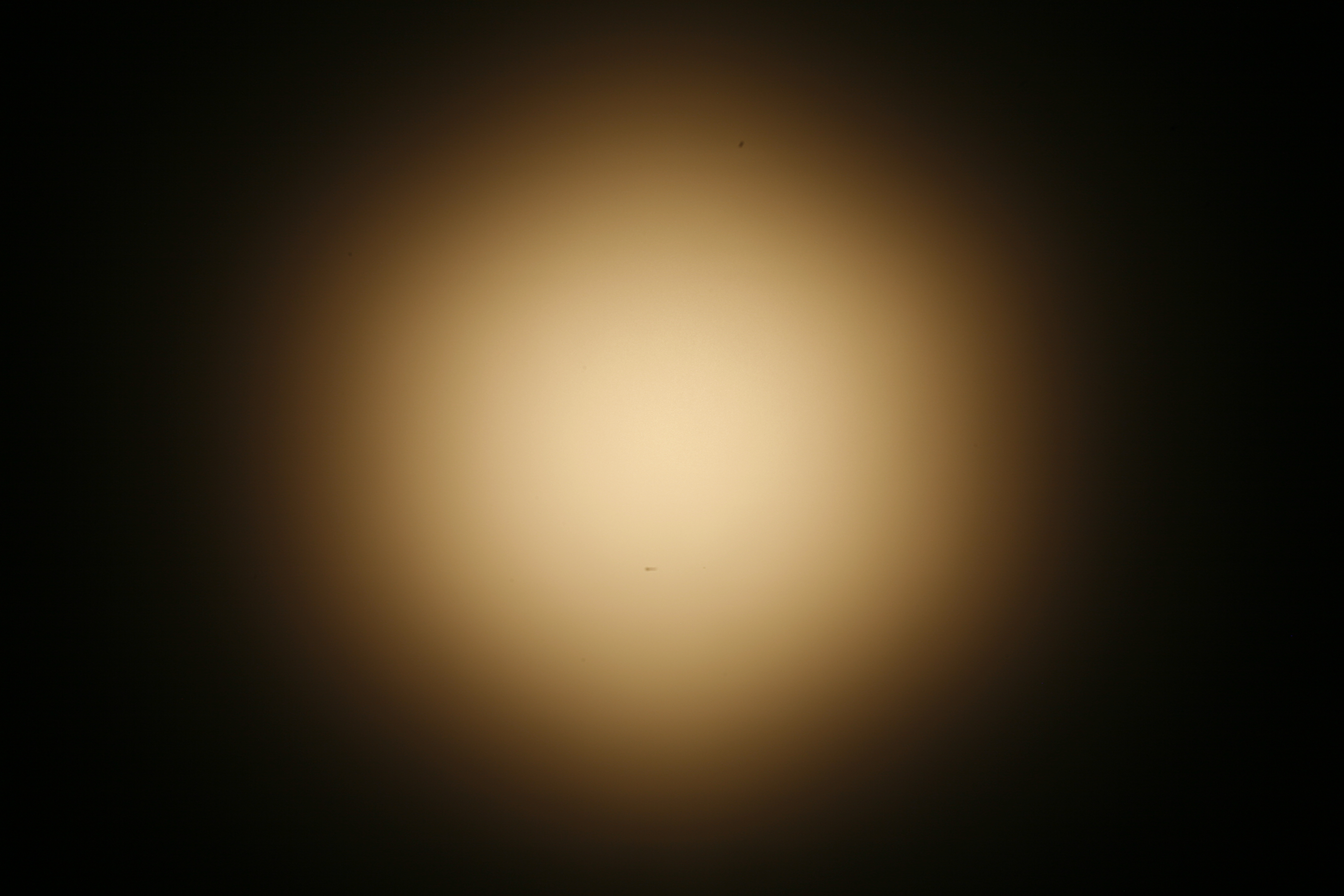

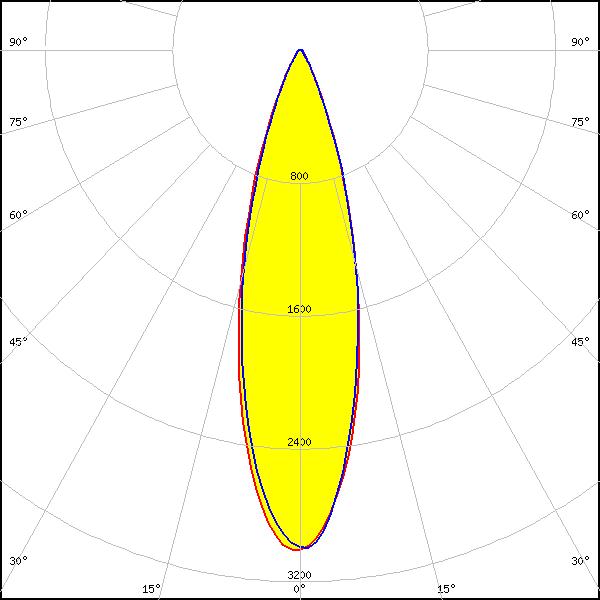

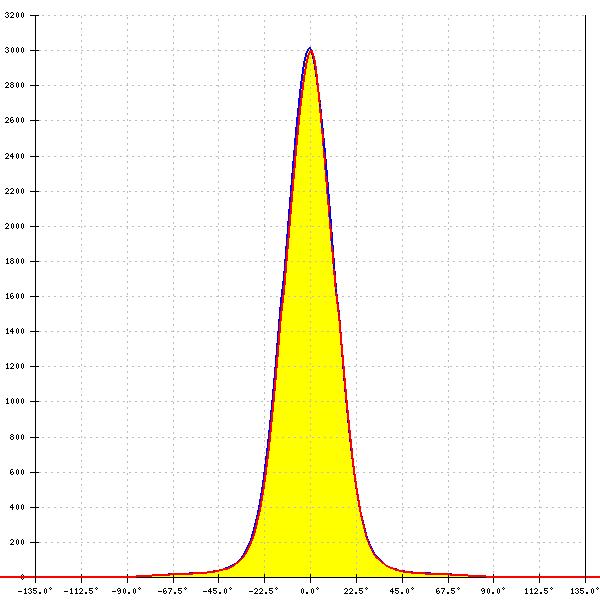

LED: XP-E2
FWHM: 28°
Peak intensity: 3.0 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

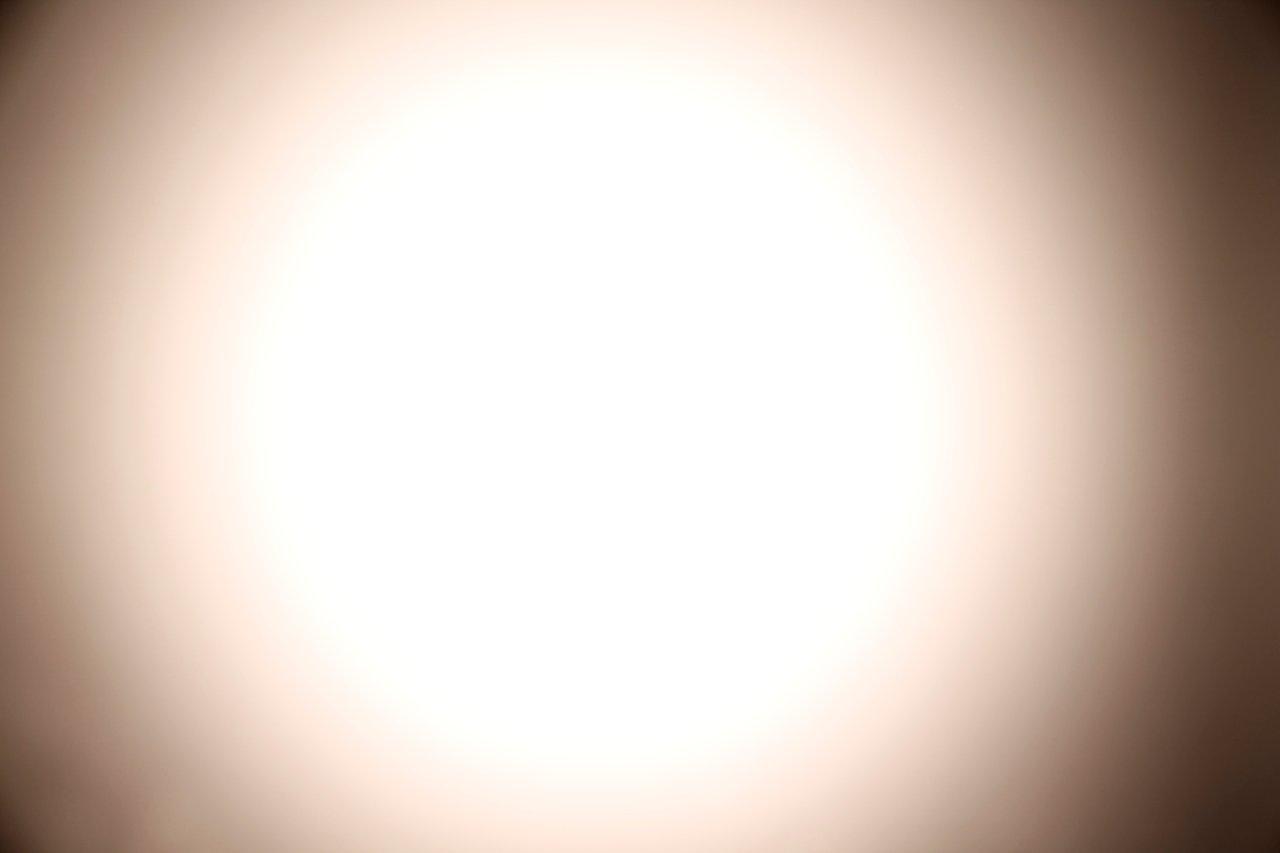

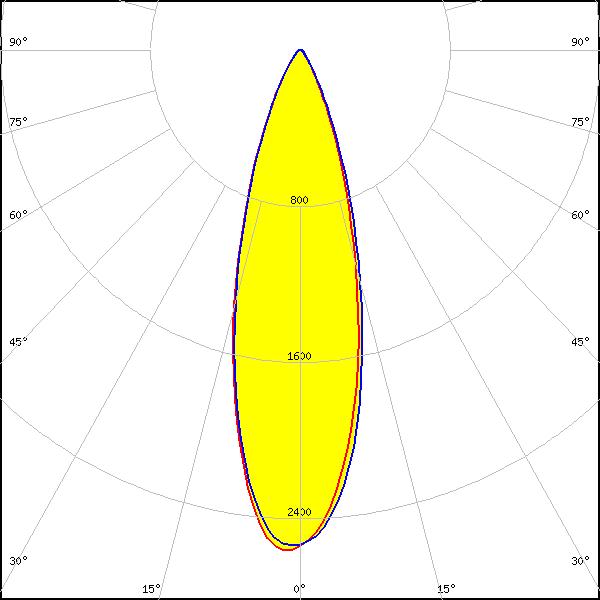

LED: XP-G
FWHM: 29°
Peak intensity: 2.5 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

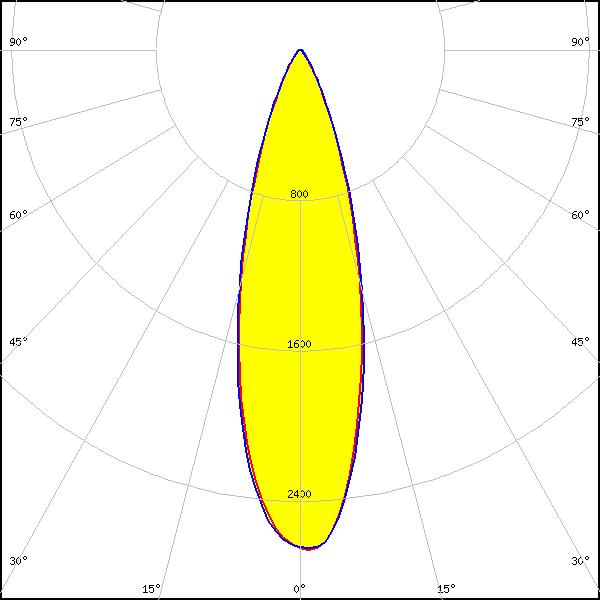

LED: XP-G2
FWHM: 29°
Peak intensity: 2.7 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

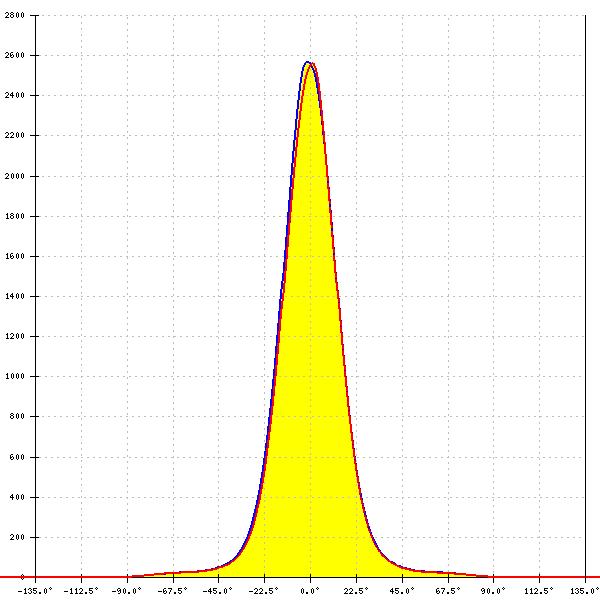

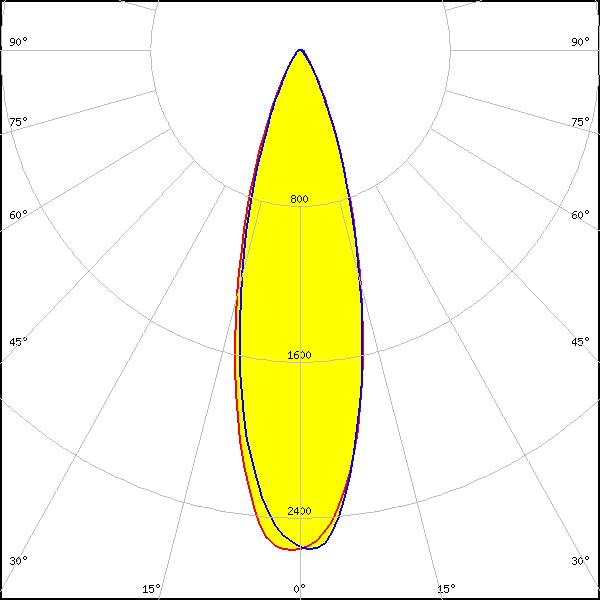

LED: XT-E
FWHM: 29°
Peak intensity: 2.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: LG 3030
FWHM: 28°
Peak intensity: 2.8 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

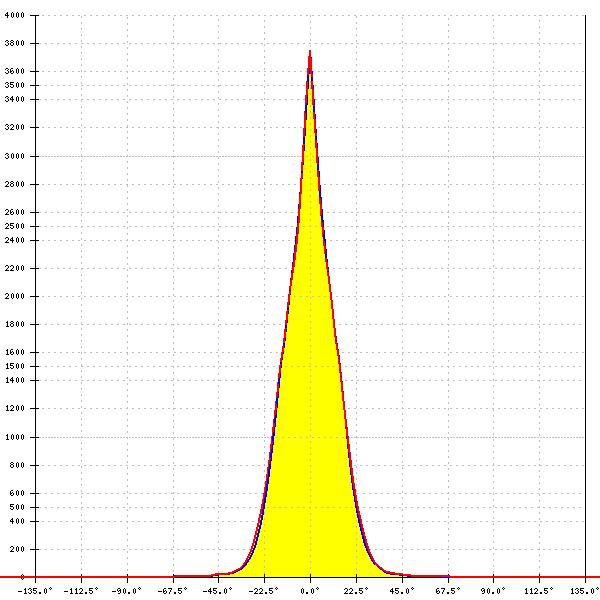

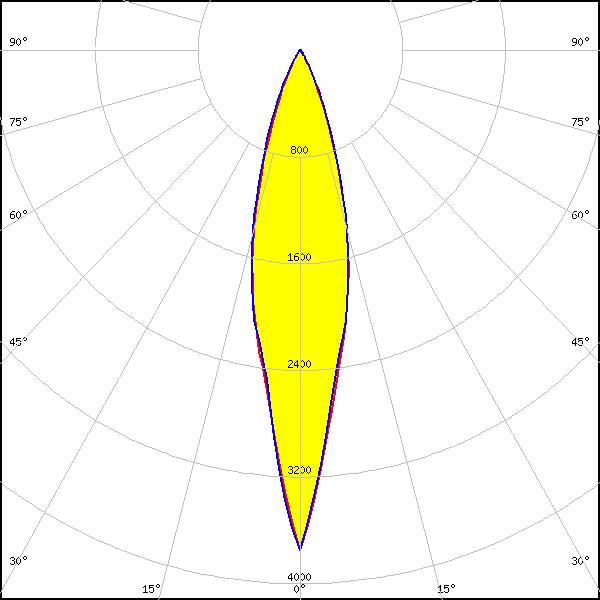

LED: LUXEON C
FWHM: 23°
Peak intensity: 3.7 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

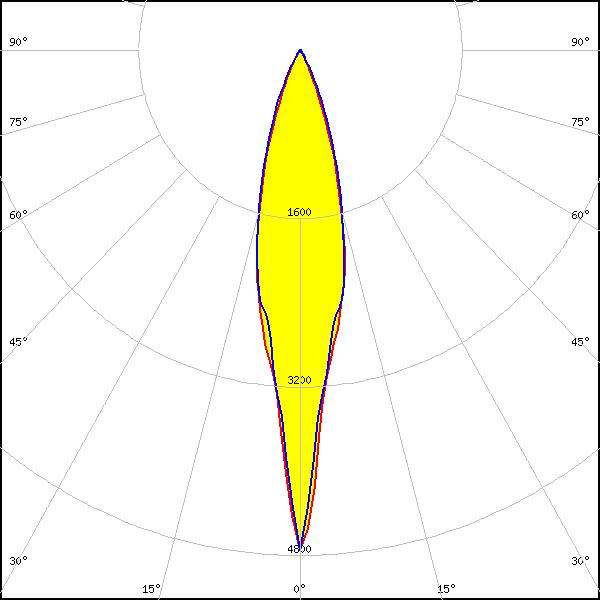

LED: LUXEON CZ
FWHM: 20°
Peak intensity: 4.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

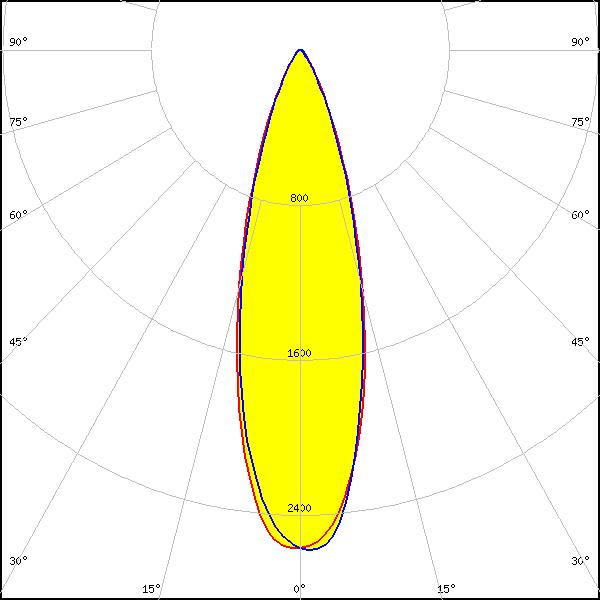

LED: LUXEON Rebel ES
FWHM: 28°
Peak intensity: 2.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

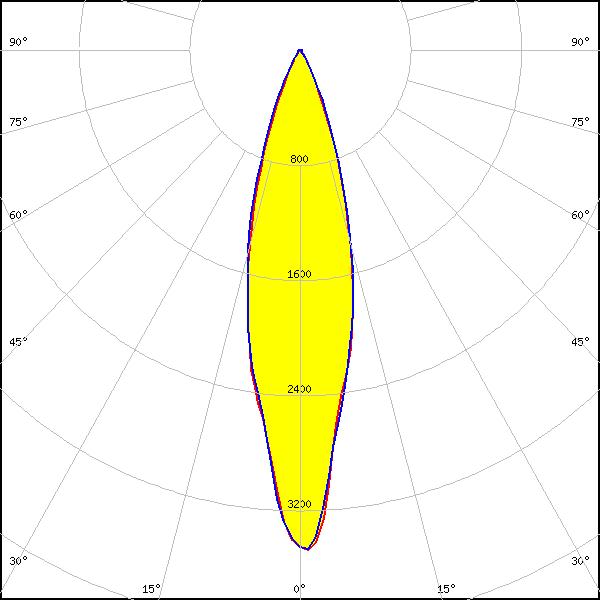

LED: LUXEON SunPlus 20 Line (150 deg)
FWHM: 27°
Peak intensity: 3.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON SunPlus 35 Line
FWHM: 26°
Peak intensity: 3.6 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

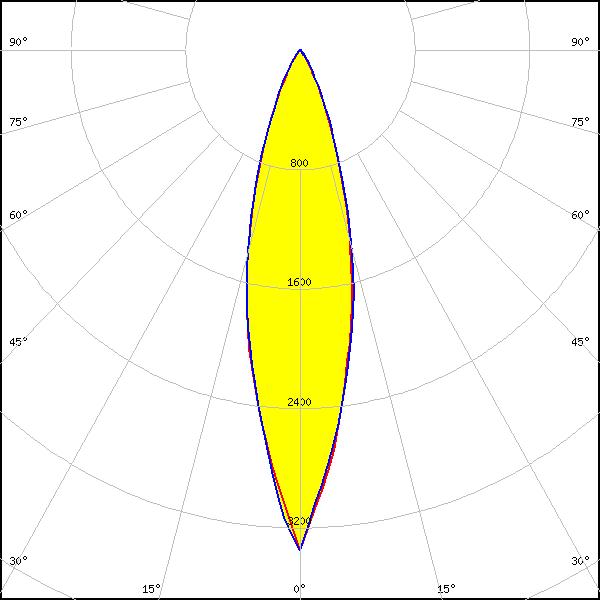

LED: LUXEON T
FWHM: 26°
Peak intensity: 3.4 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

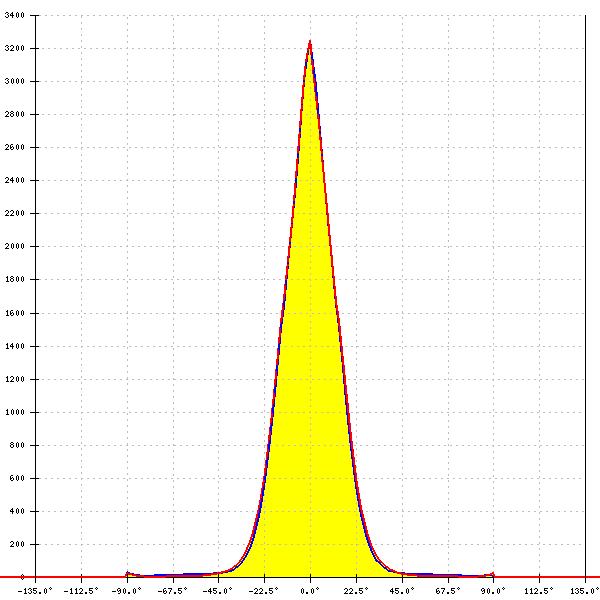

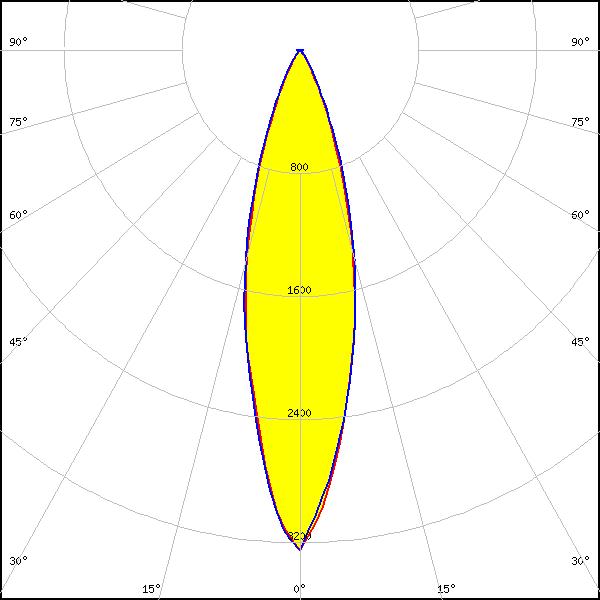

LED: LUXEON TX
FWHM: 27°
Peak intensity: 3.3 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

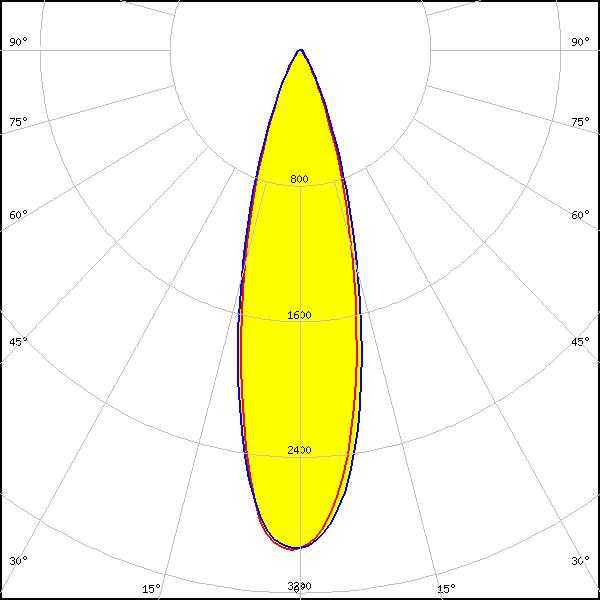

LED: NF2x757A
FWHM: 28°
Peak intensity: 2.9 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

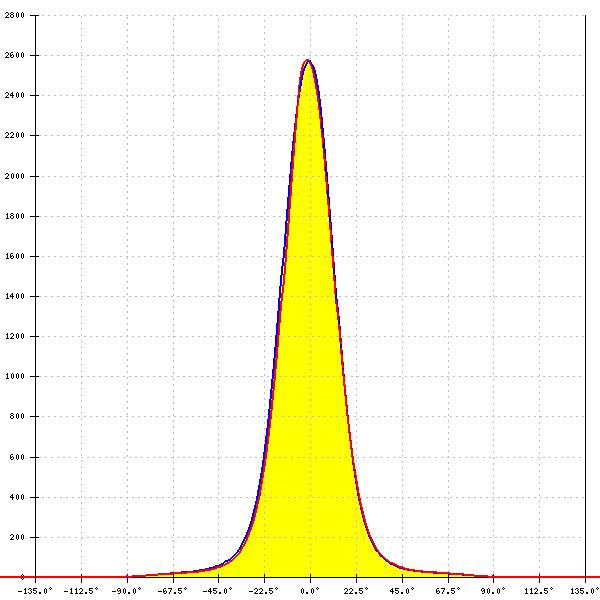

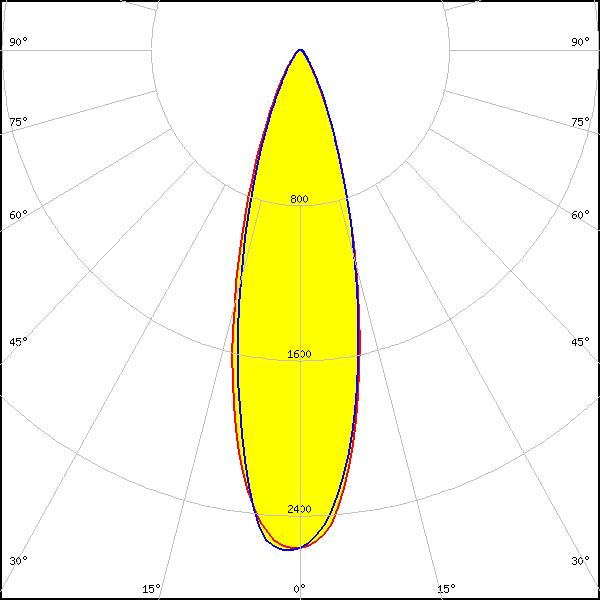

LED: NVSxx19A
FWHM: 29°
Peak intensity: 2.6 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

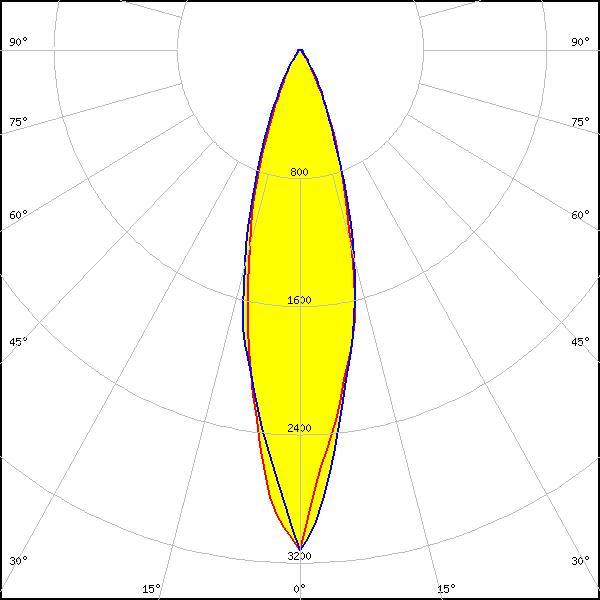

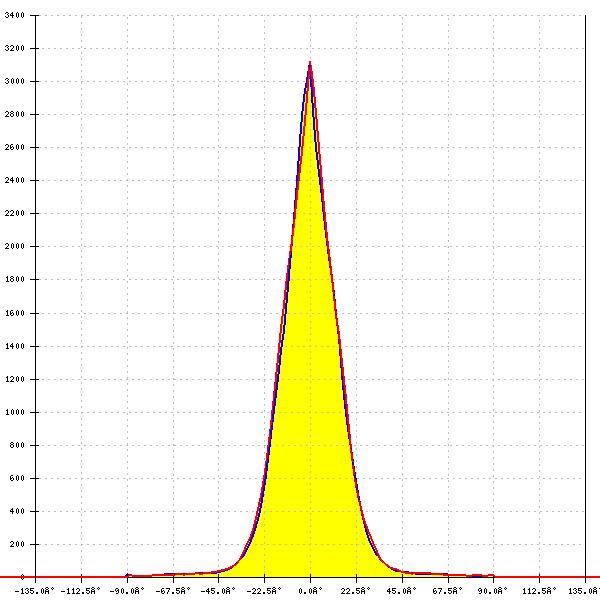

LED: NVSxx19B/NVSxx19C
FWHM: 27°
Peak intensity: 3.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

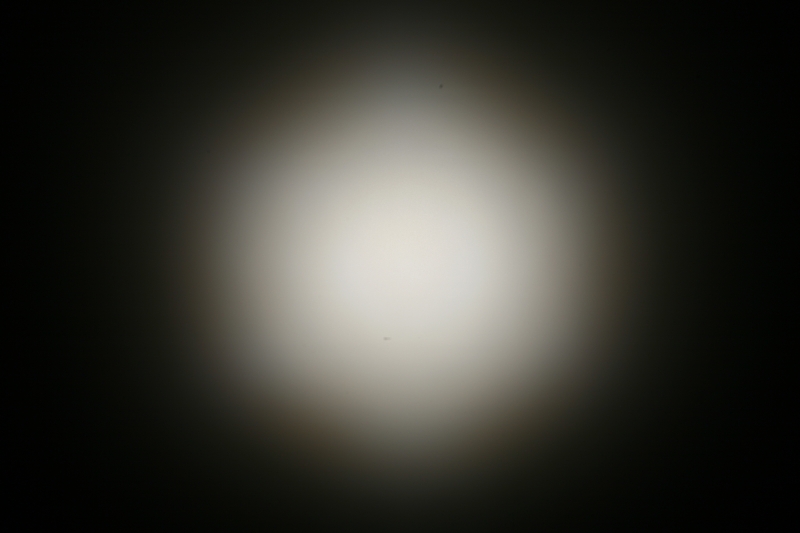

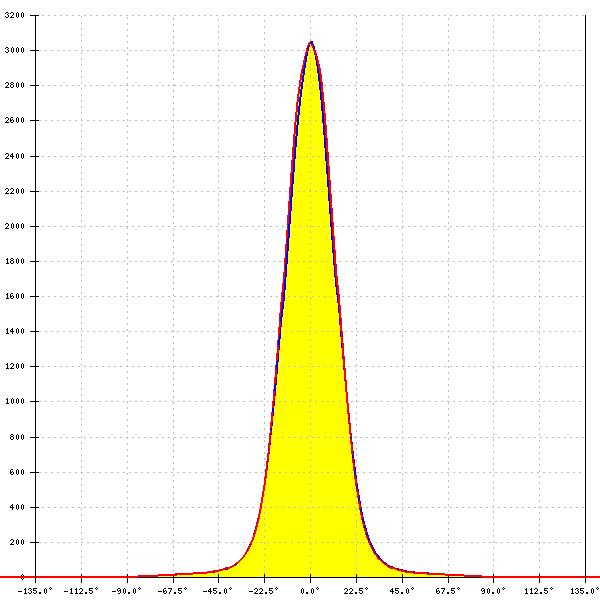

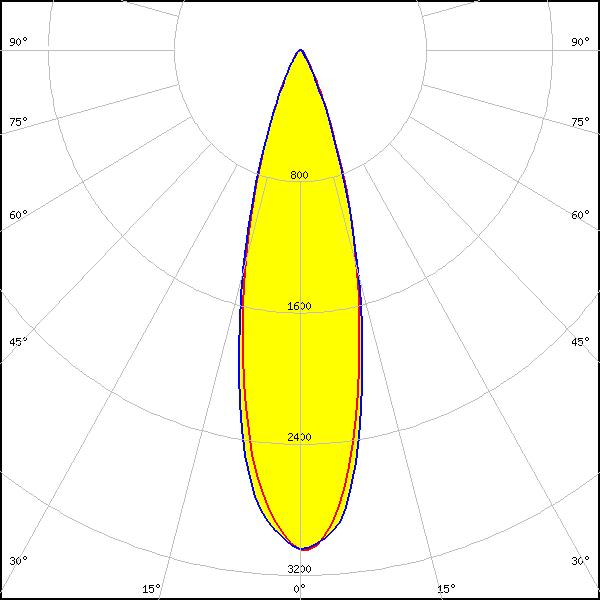

LED: Duris S5 (Single chip)
FWHM: 28°
Peak intensity: 3.1 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 2226
FWHM: 29°
Peak intensity: 2.6 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

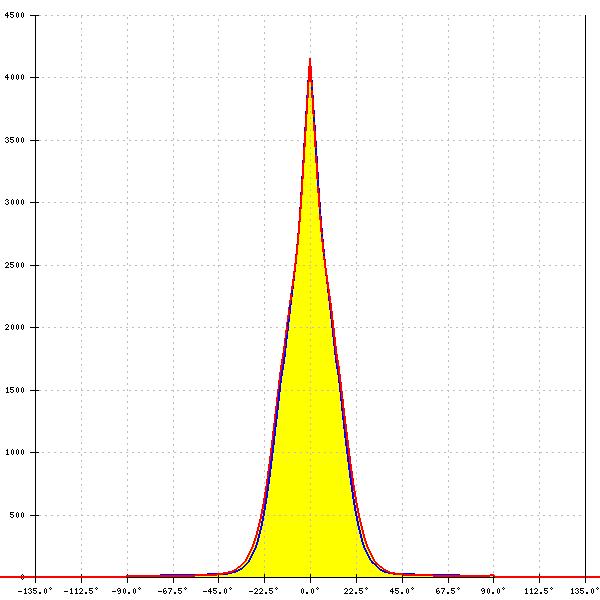

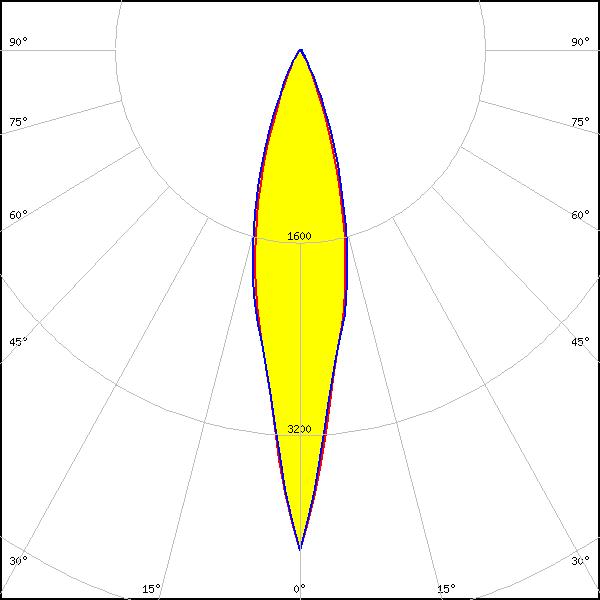

LED: OSCONIQ P 3030
FWHM: 22°
Peak intensity: 4.2 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

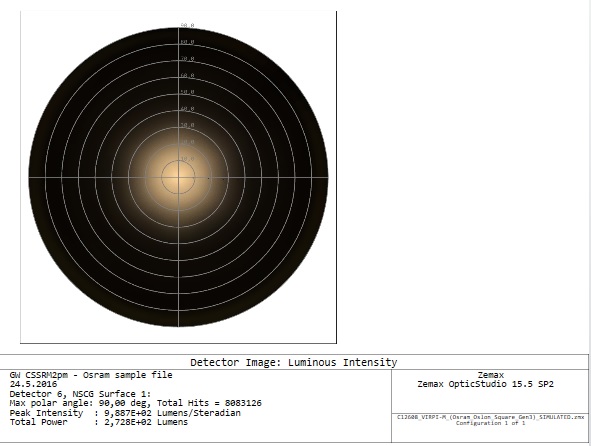

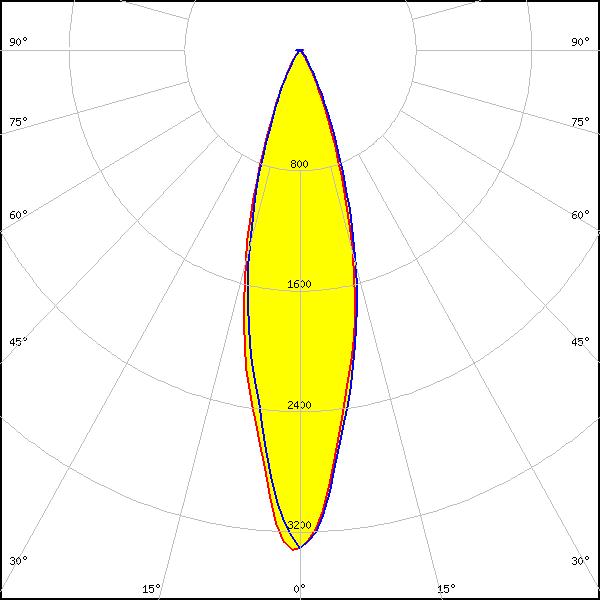

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 26°
Peak intensity: 3.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

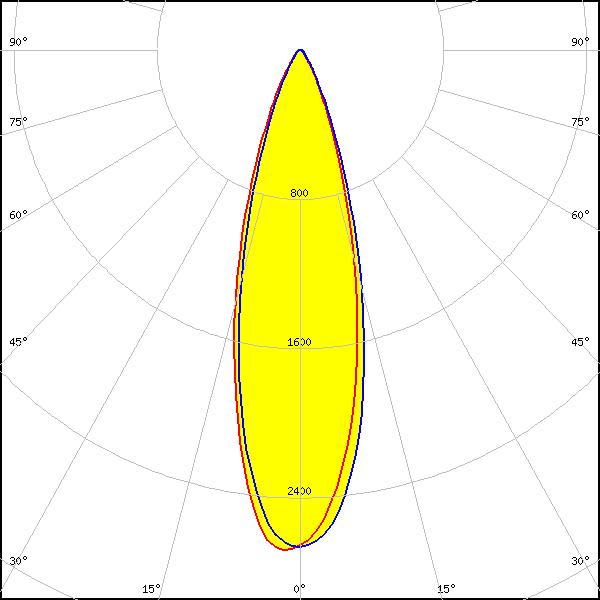

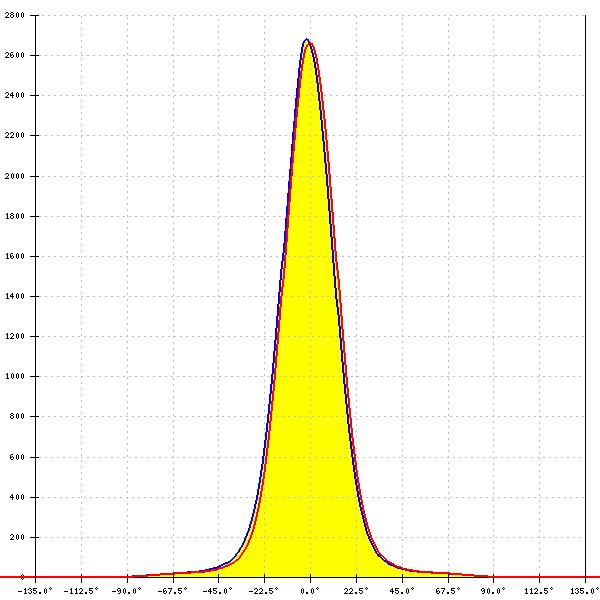

LED: OSLON Square EC
FWHM: 28°
Peak intensity: 2.8 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: SFH 4715AS
FWHM: 20°
Efficiency: 94 %
LEDs/each optic: 1
Light colour: IR

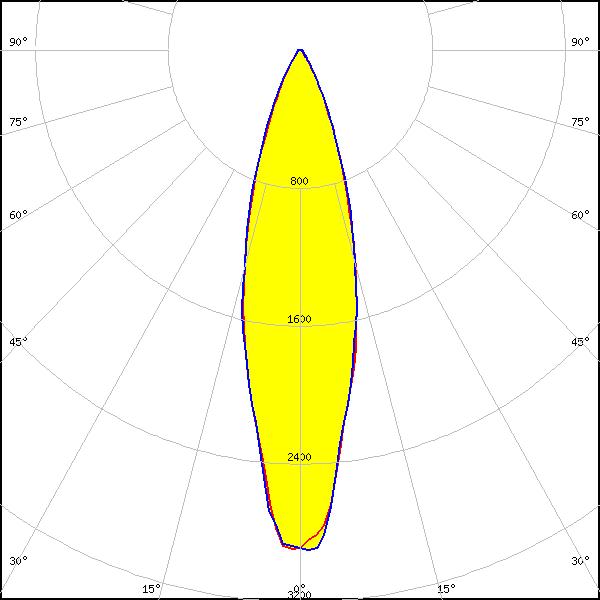

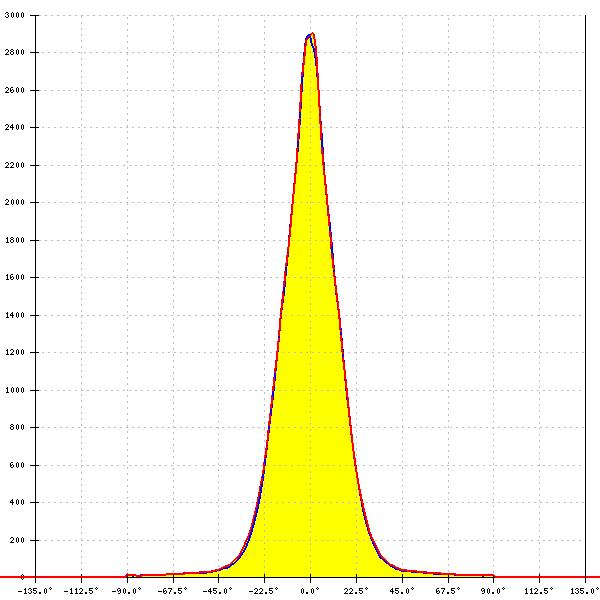

LED: LH351B
FWHM: 27°
Peak intensity: 3.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

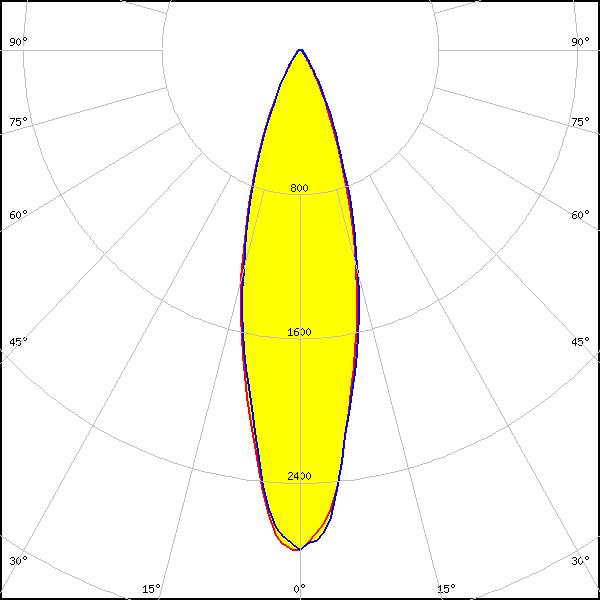

LED: LH351C
FWHM: 28°
Peak intensity: 2.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

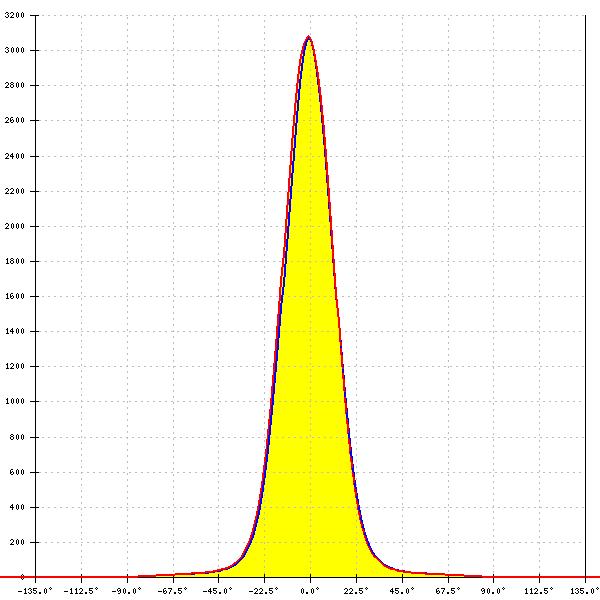

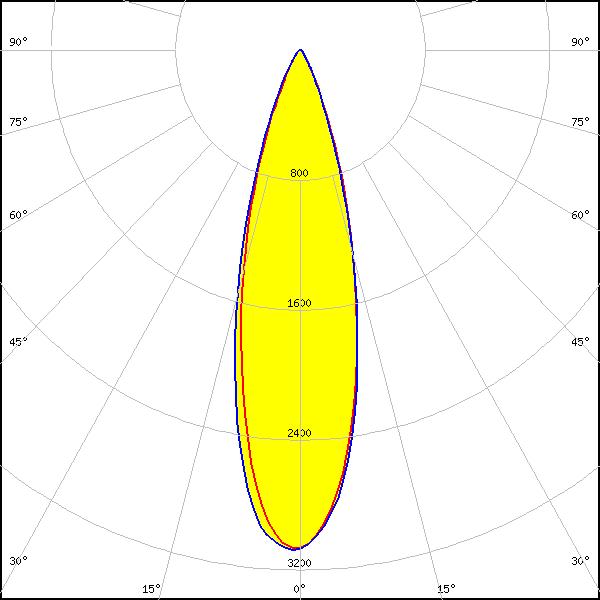

LED: LM231 A/B
FWHM: 28°
Peak intensity: 3.1 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: SEOUL DC 3030
FWHM: 24°
Peak intensity: 3.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

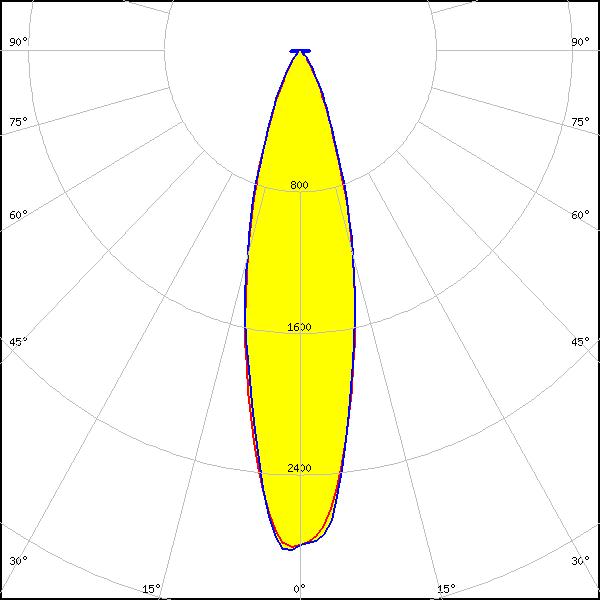

LED: Z8Y22
FWHM: 26°
Peak intensity: 2.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
