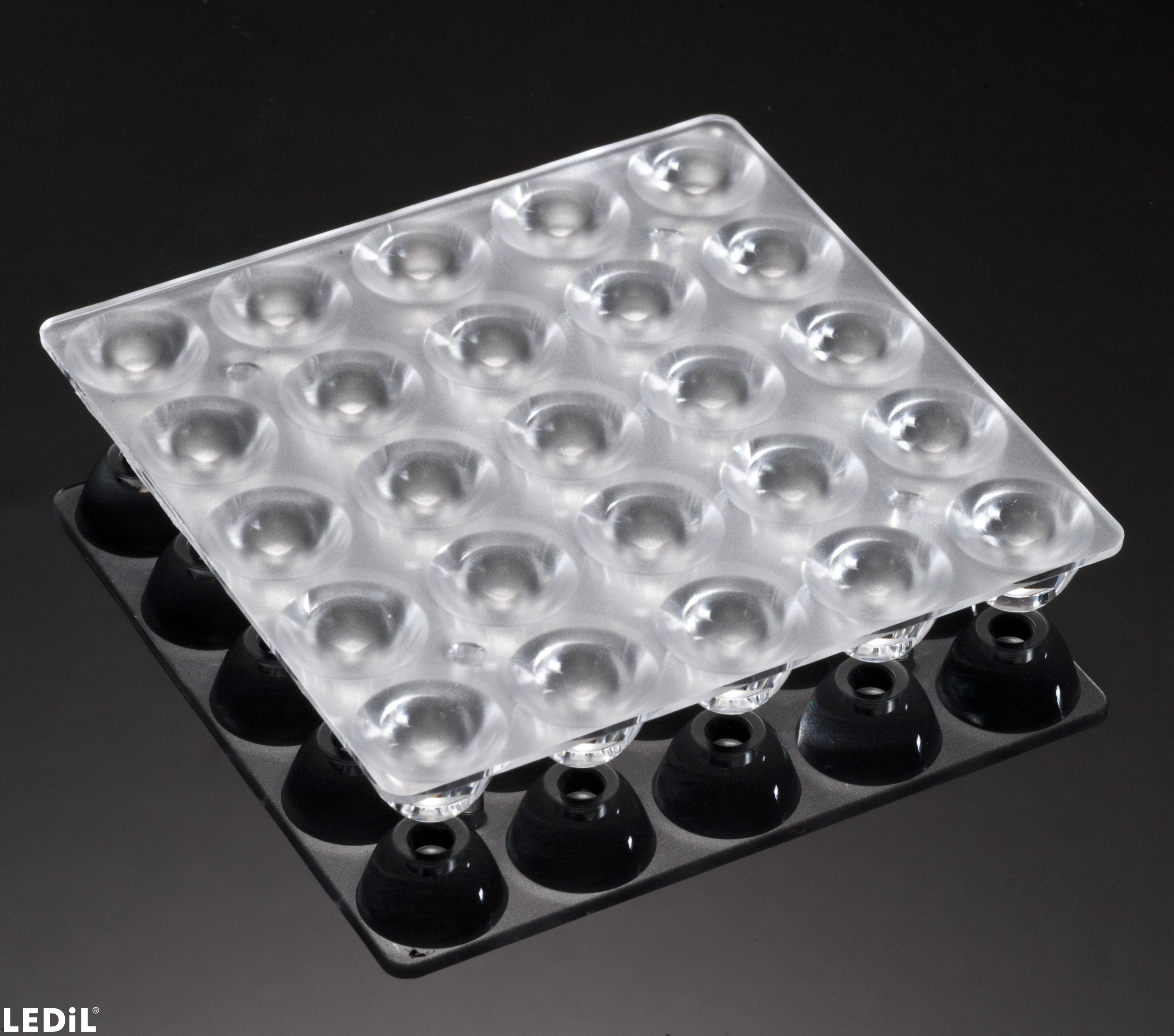

C12609_VIRPI-W

Print

~40° wide beam

Specification
  • Dimensions:
    75 x  75 mm
  • Height:
    9.50 mm
  • Fastening:
    glue, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    360 pcs
  • Box size:
    470 x 280 x 300 mm
  • Box weight:
    12.6 kg
  • MPQ:
    15 pcs
  • MOQ:
    45 pcs
  • MOQ size:
    480 x 280 x 50 mm
  • MOQ weight:
    1.8 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C12609_VIRPI-W

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

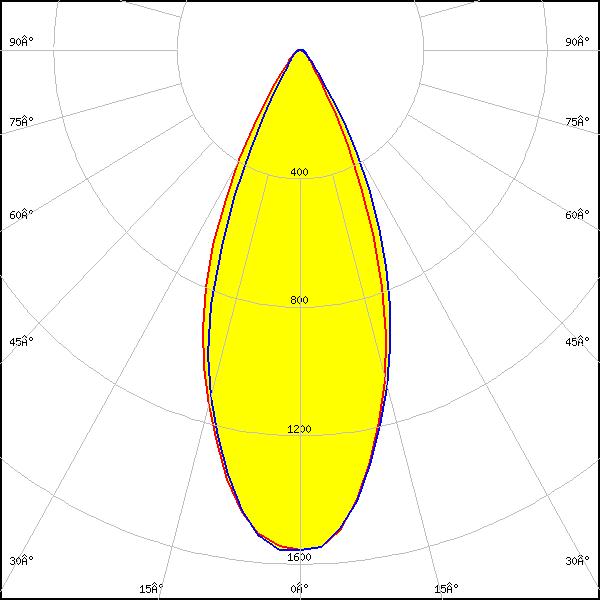

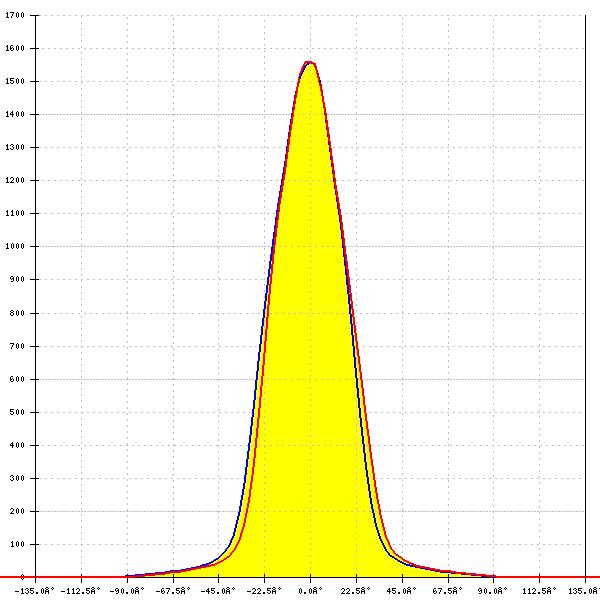

LED: XB-D
FWHM: 40°
FWTM: 65°
Peak intensity: 1.740 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

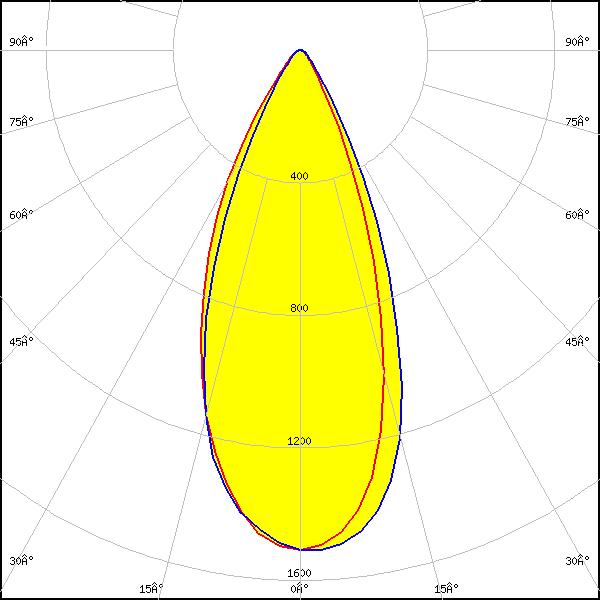

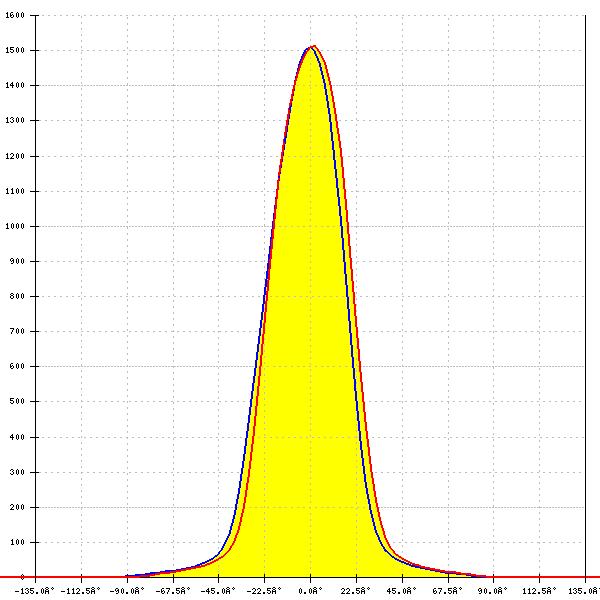

LED: XH-B/G
FWHM: 43°
FWTM: 70°
Peak intensity: 1.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

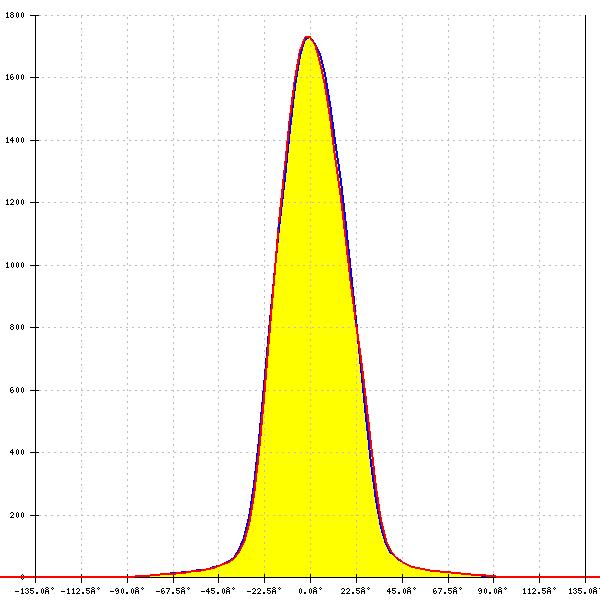

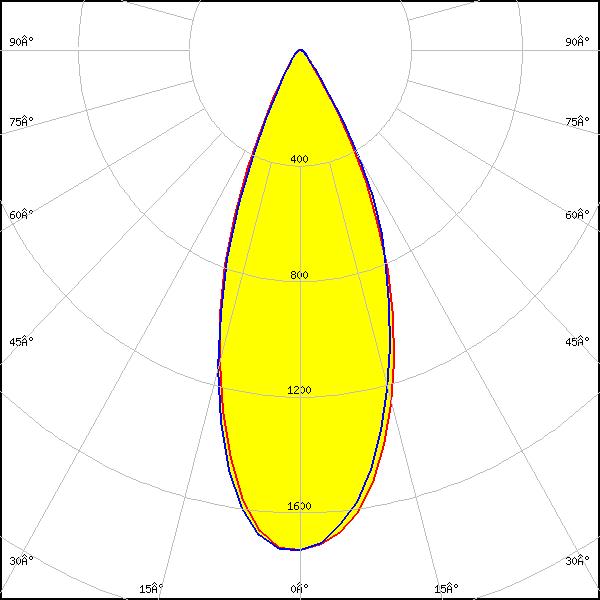

LED: XP-E2
FWHM: 41°
FWTM: 66°
Peak intensity: 1.700 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

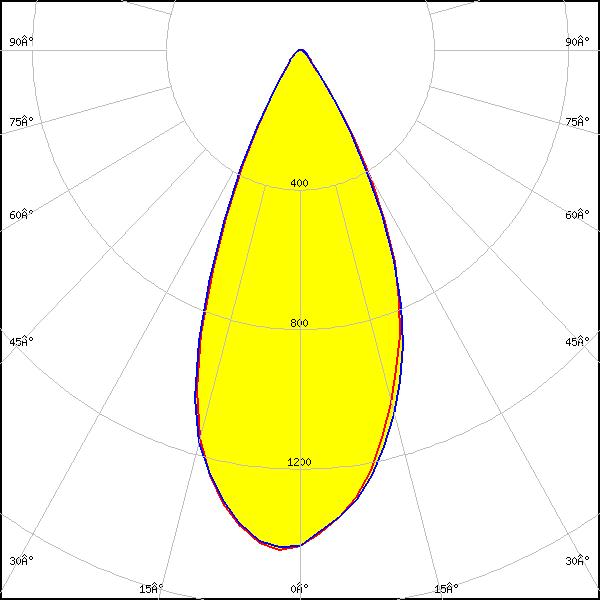

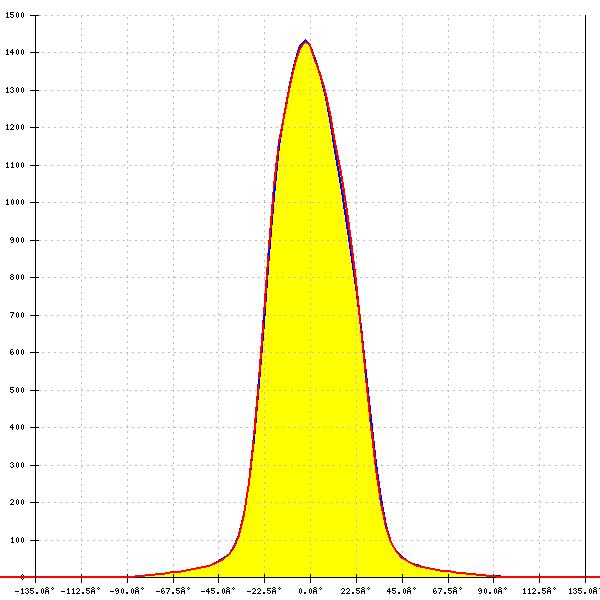

LED: XP-G
FWHM: 48°
FWTM: 71°
Peak intensity: 1.300 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

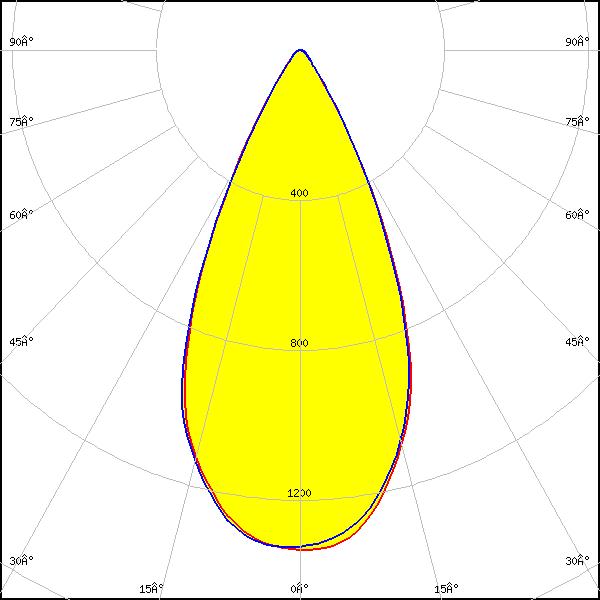

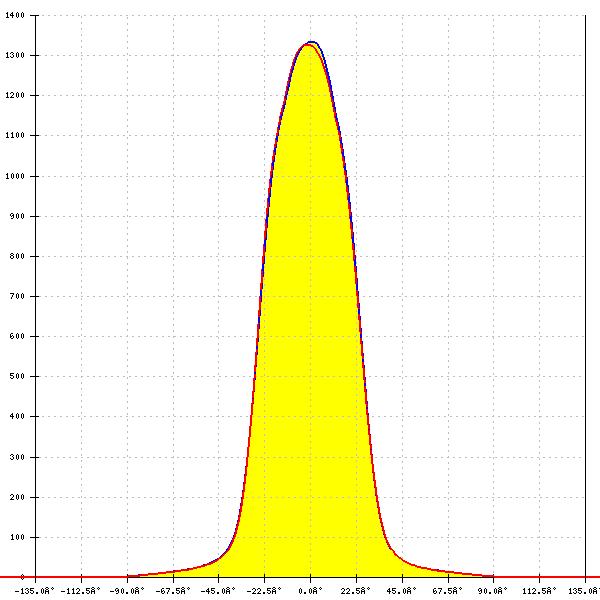

LED: XP-G2
FWHM: 49°
FWTM: 72°
Peak intensity: 1.300 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

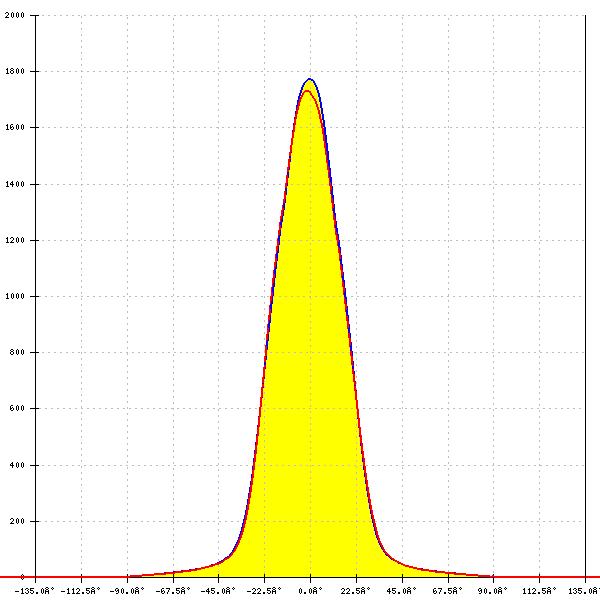

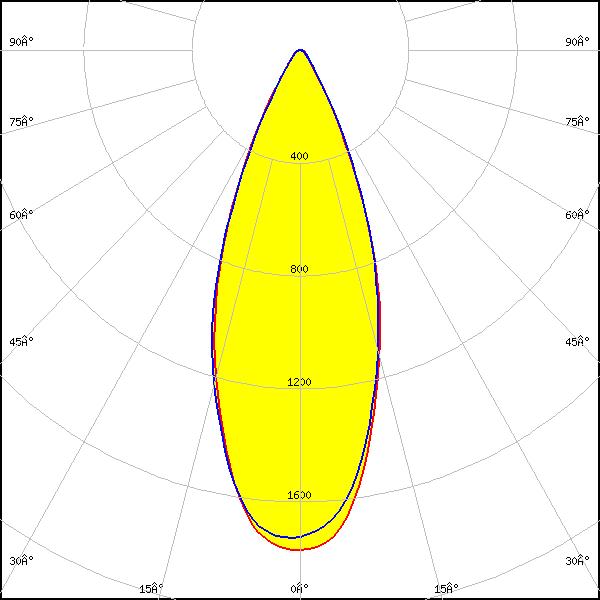

LED: XT-E
FWHM: 41°
FWTM: 65°
Peak intensity: 1.680 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

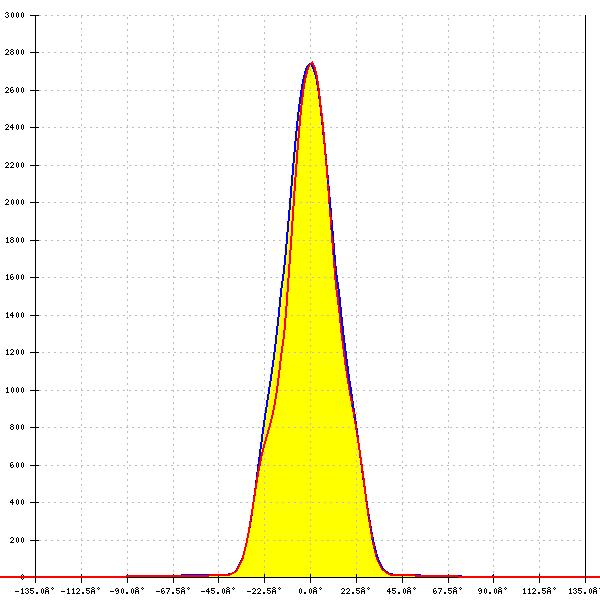

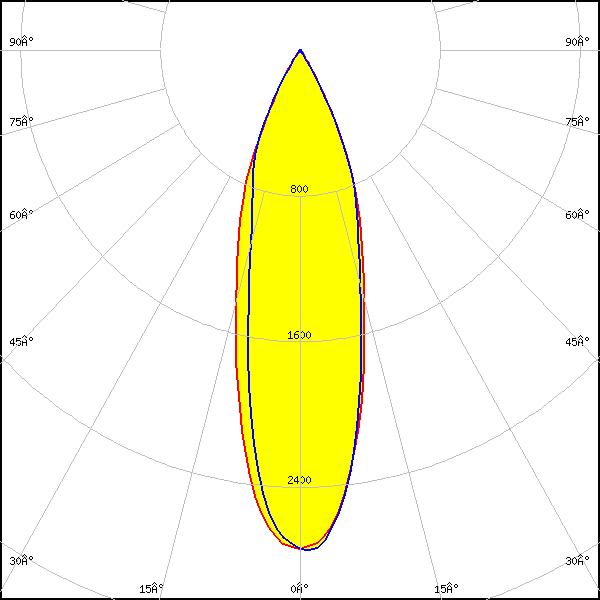

LED: LUXEON 3535L
FWHM: 28°
FWTM: 59°
Peak intensity: 2.800 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

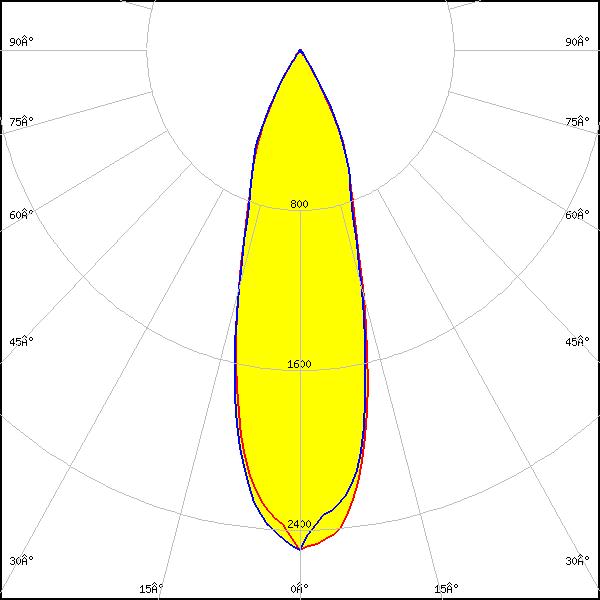

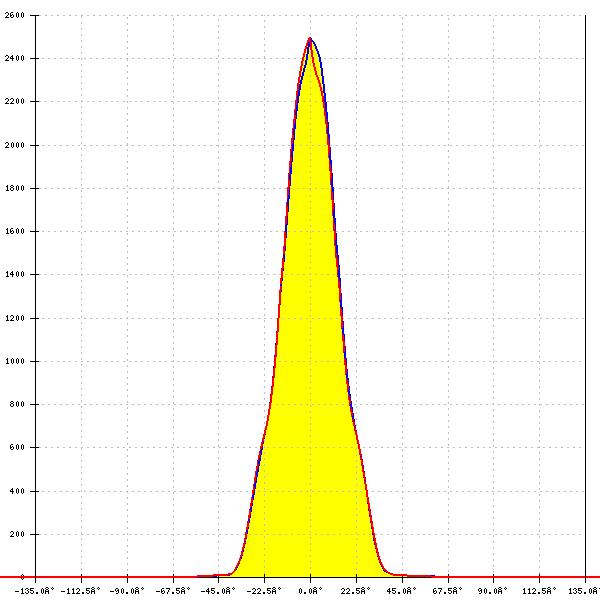

LED: LUXEON C
FWHM: 30°
FWTM: 60°
Peak intensity: 2.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

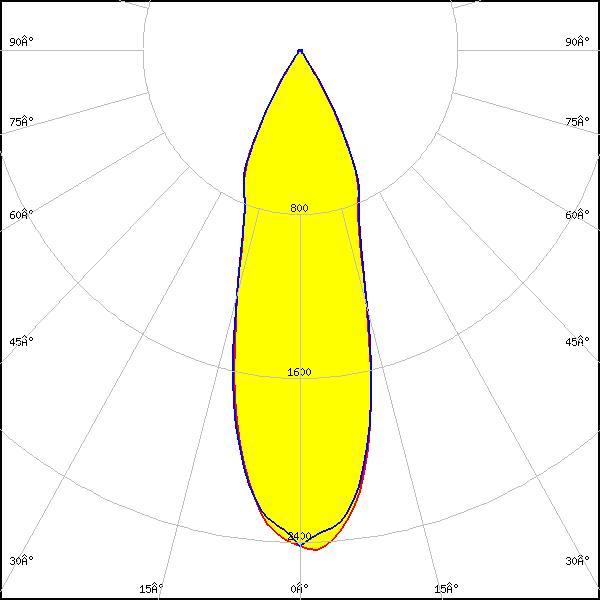

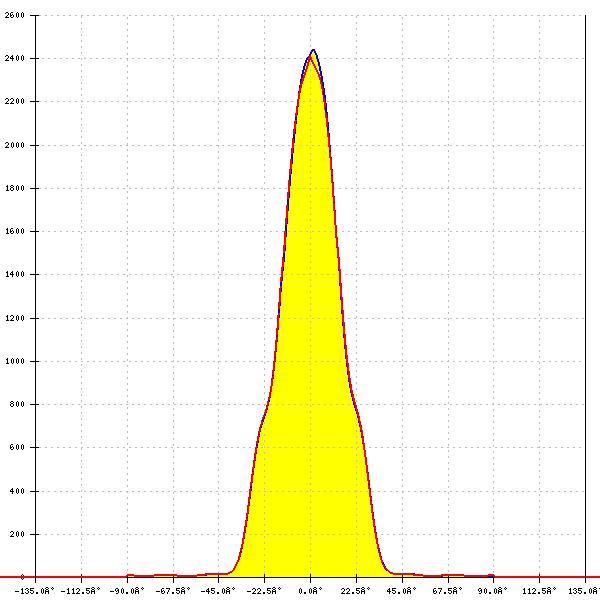

LED: LUXEON CZ
FWHM: 32°
FWTM: 63°
Peak intensity: 2.400 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON IR Domed 150
FWHM: 23°
FWTM: 54°
Efficiency: 94 %
LEDs/each optic: 1
Light colour: IR

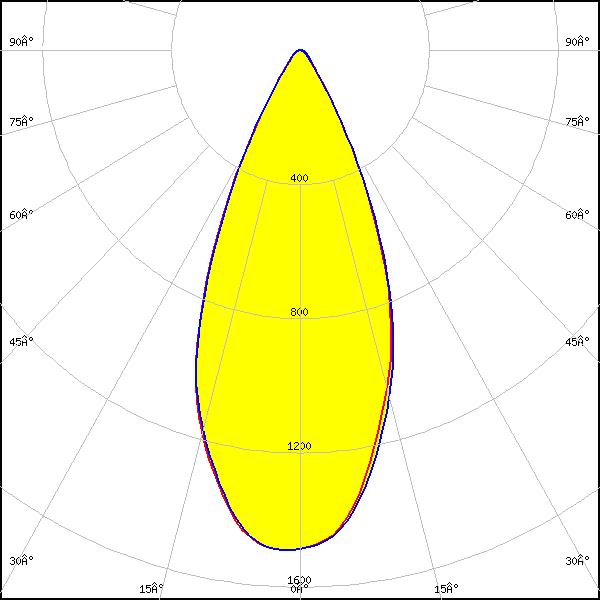

LED: LUXEON Rebel ES
FWHM: 42°
FWTM: 69°
Peak intensity: 1.620 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

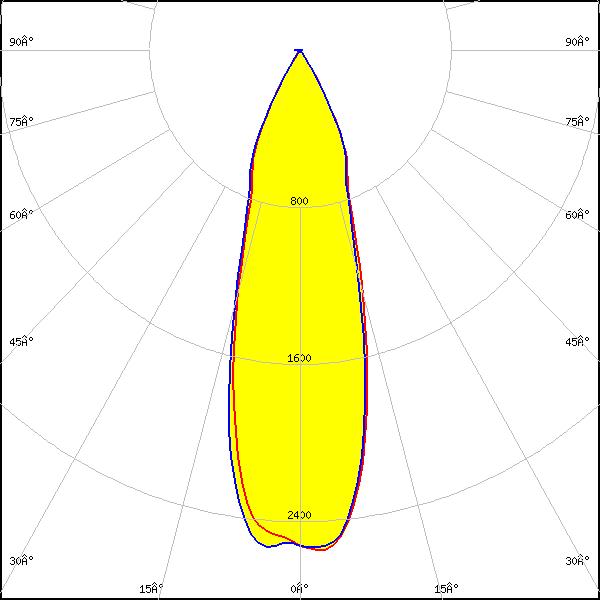

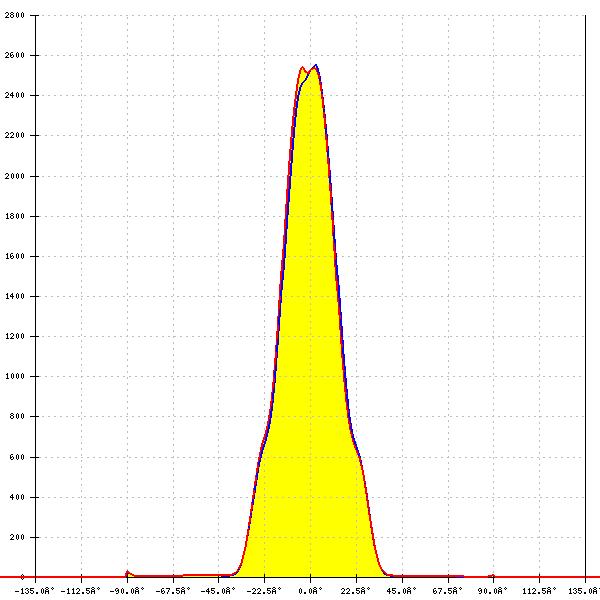

LED: LUXEON SunPlus 20 Line (150 deg)
FWHM: 29°
FWTM: 60°
Peak intensity: 2.500 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

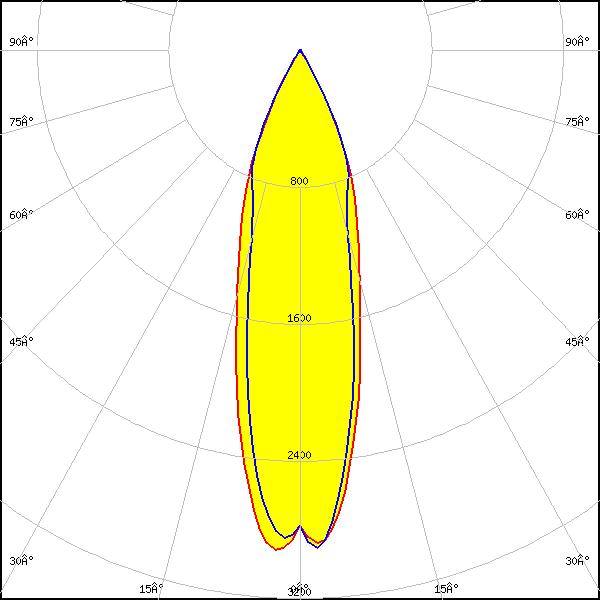

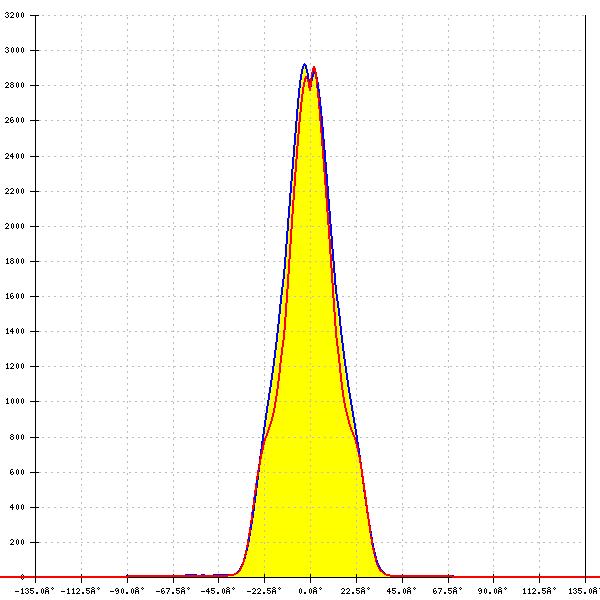

LED: LUXEON SunPlus 35 Line
FWHM: 26°
FWTM: 58°
Peak intensity: 3.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

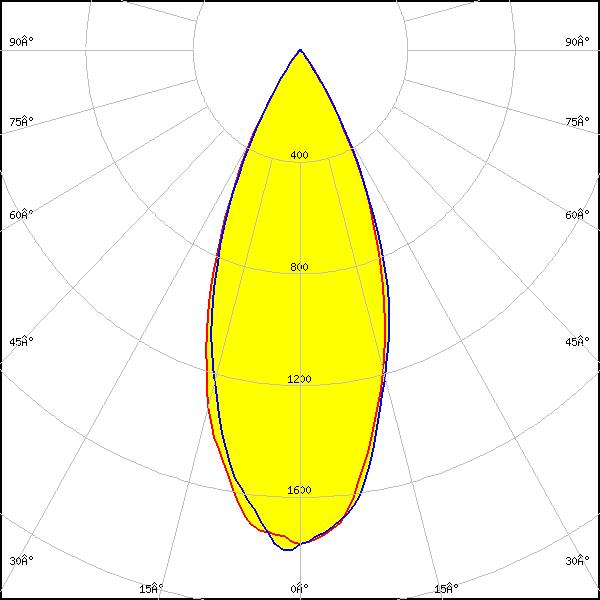

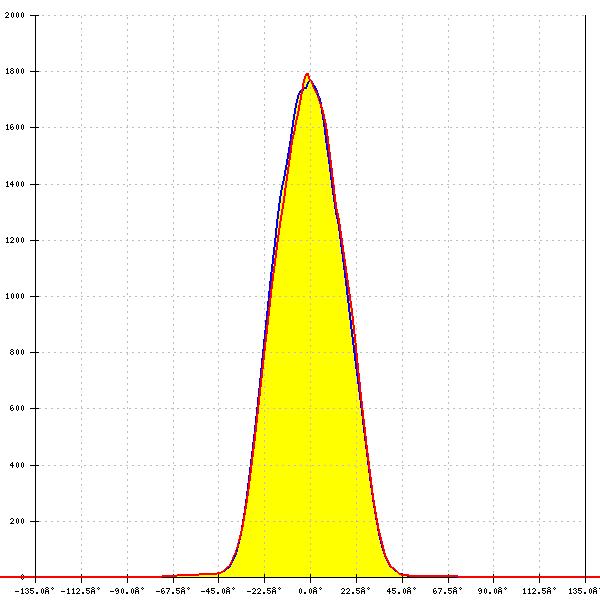

LED: LUXEON T
FWHM: 42°
FWTM: 67°
Peak intensity: 1.790 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

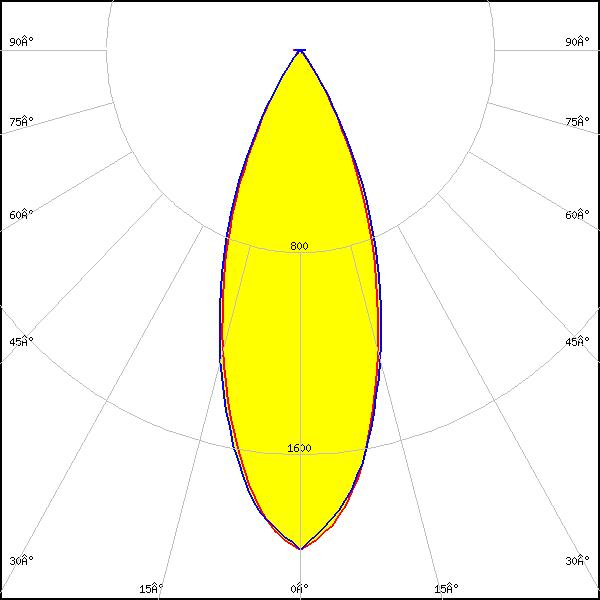

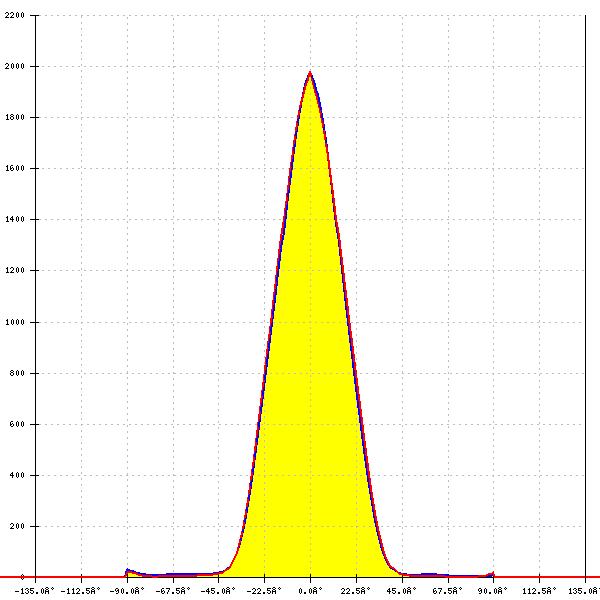

LED: LUXEON TX
FWHM: 38°
FWTM: 66°
Peak intensity: 2.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

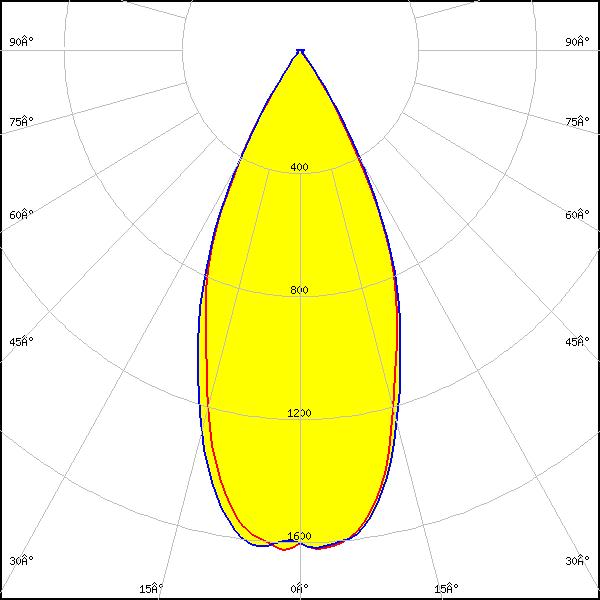

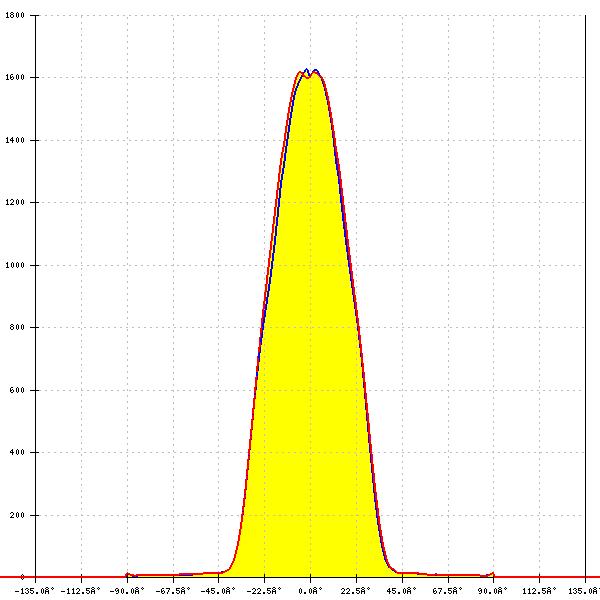

LED: SST-10-B130
FWHM: 47°
FWTM: 68°
Peak intensity: 1.641 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: Red

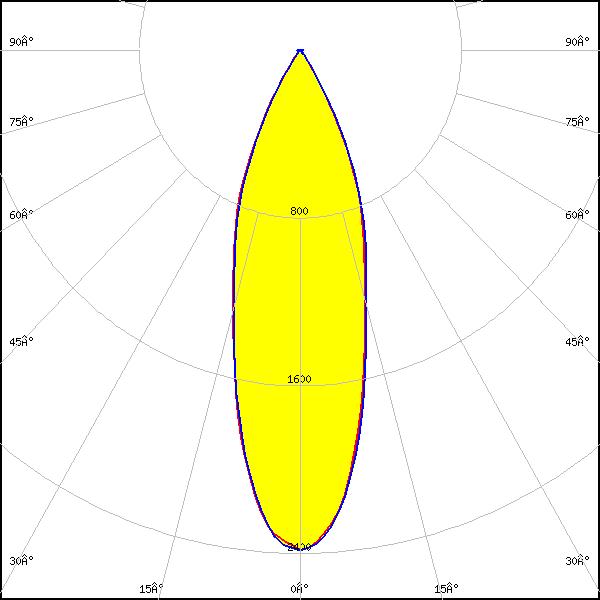

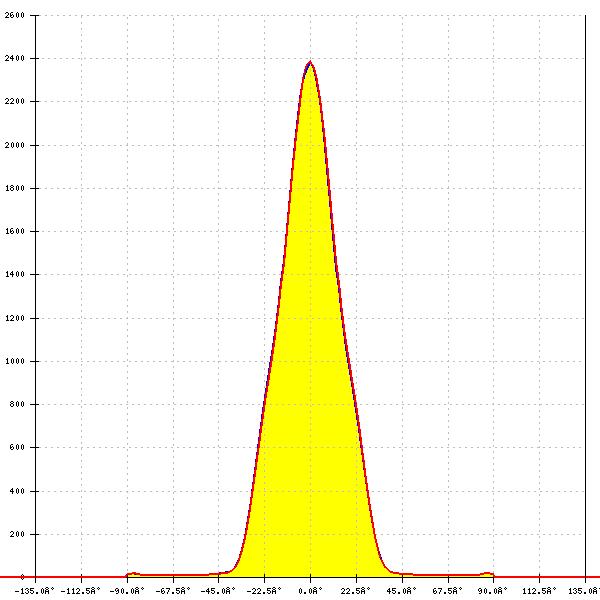

LED: SST-20
FWHM: 32°
FWTM: 62°
Peak intensity: 2.403 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

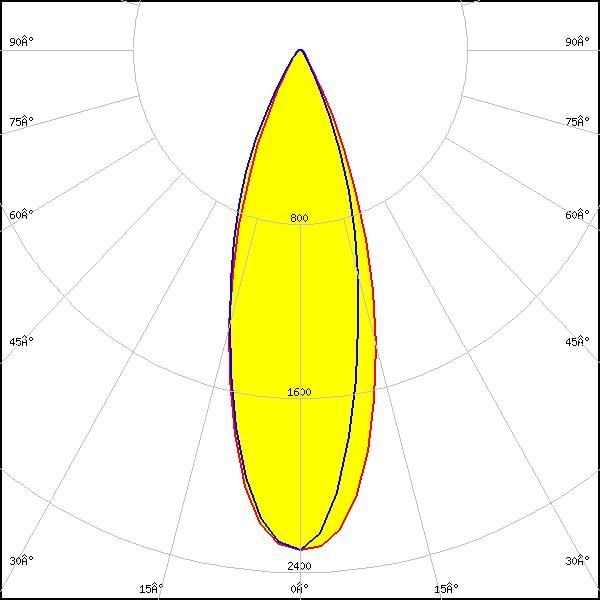

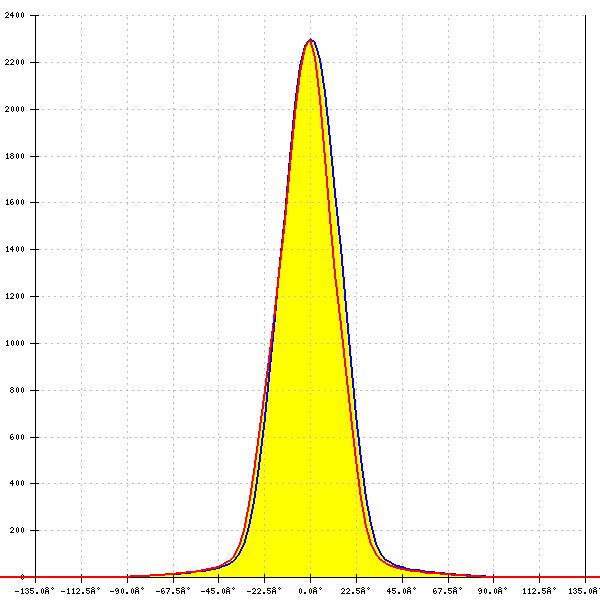

LED: NF2x757A
FWHM: 33°
FWTM: 59°
Peak intensity: 2.300 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

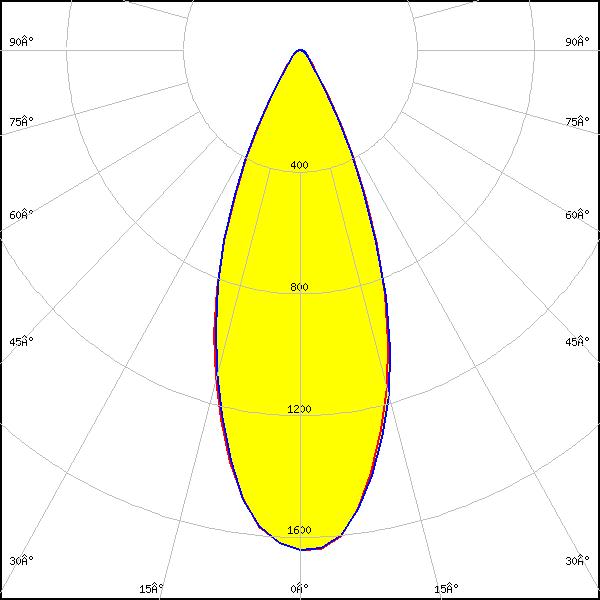

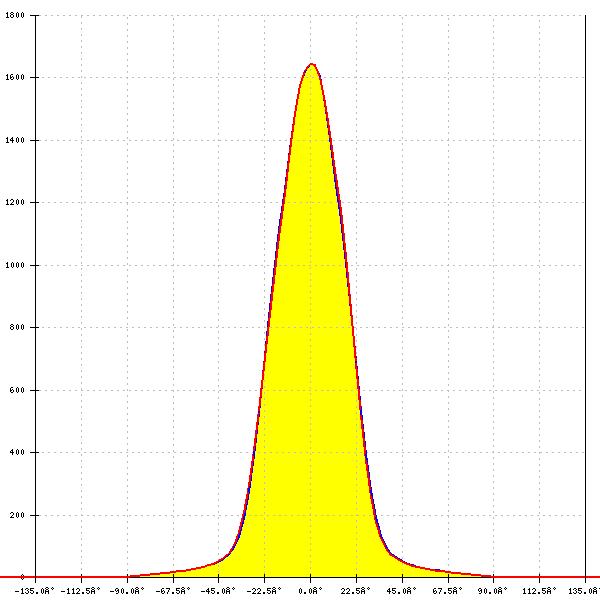

LED: NVSxx19A
FWHM: 40°
FWTM: 65°
Peak intensity: 1.670 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

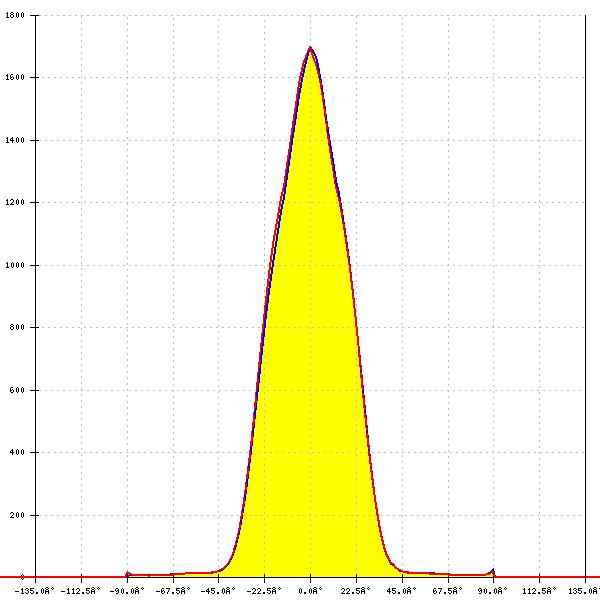

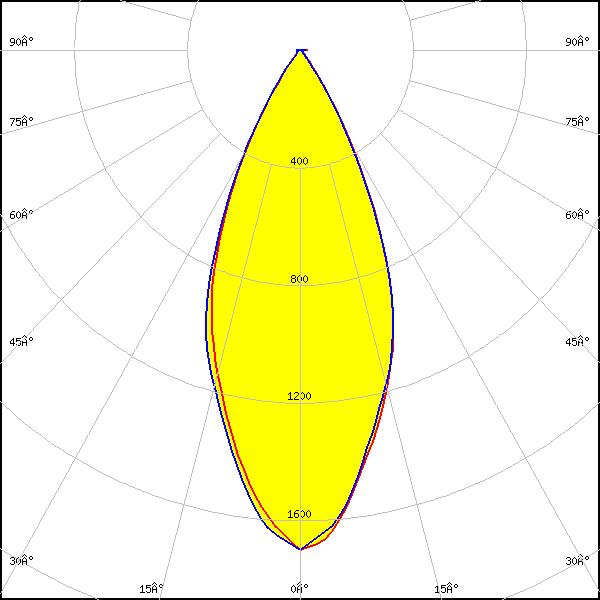

LED: NVSxx19B/NVSxx19C
FWHM: 44°
FWTM: 69°
Peak intensity: 1.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

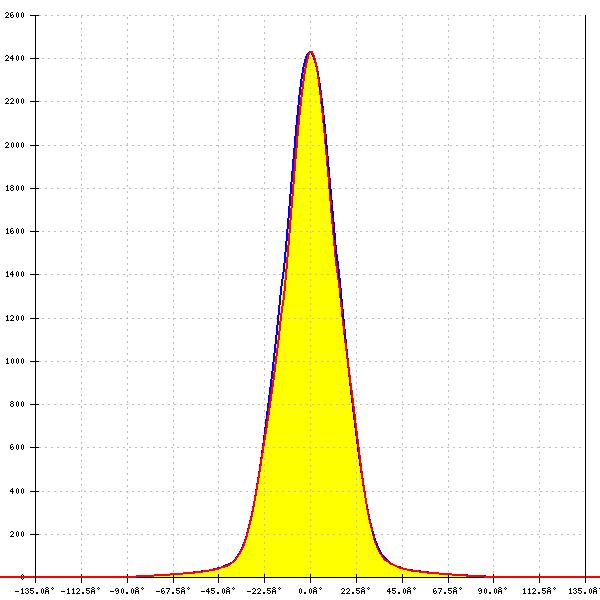

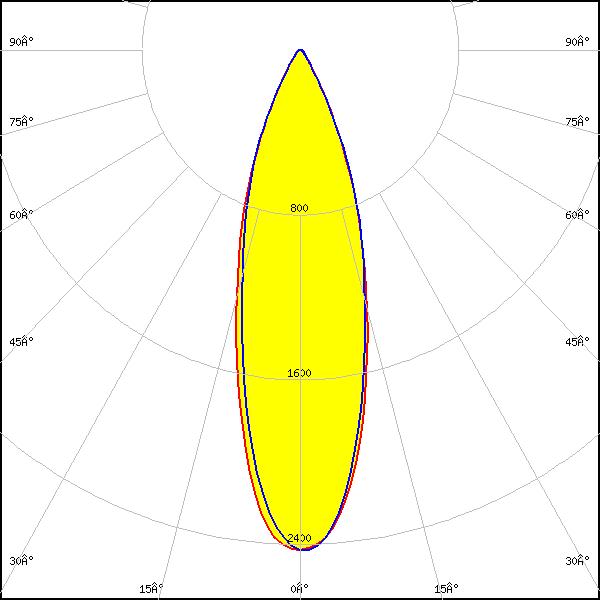

LED: Duris S5 (Single chip)
FWHM: 31°
FWTM: 60°
Peak intensity: 2.400 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 2226
FWHM: 32°
FWTM: 62°
Peak intensity: 2.200 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

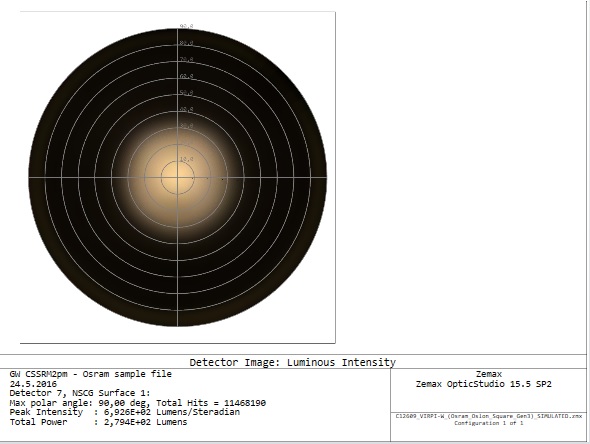

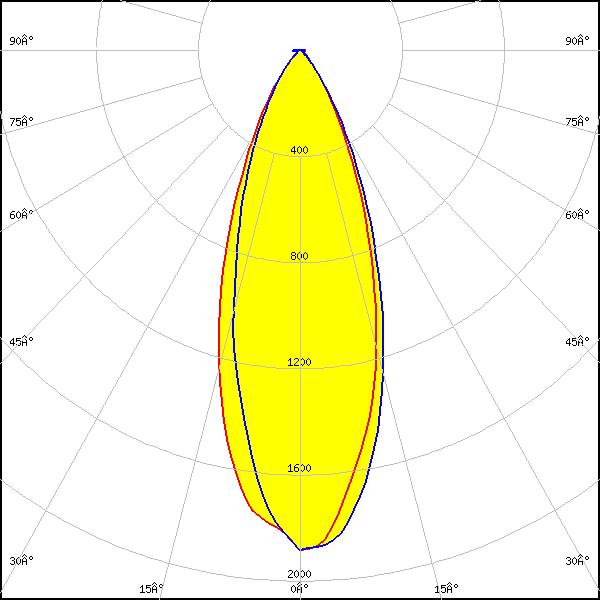

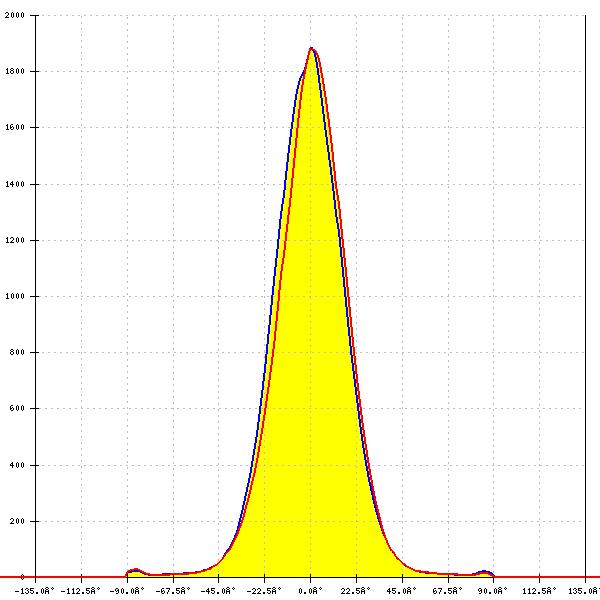

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 36°
FWTM: 69°
Peak intensity: 1.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

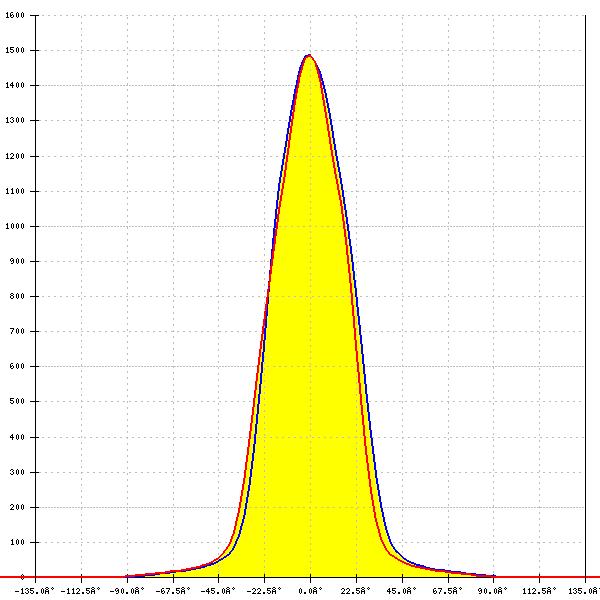

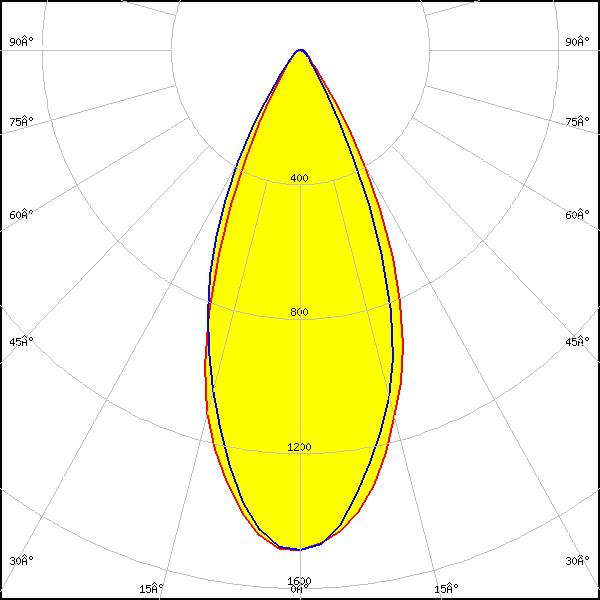

LED: OSLON Square EC
FWHM: 43°
FWTM: 68°
Peak intensity: 1.570 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

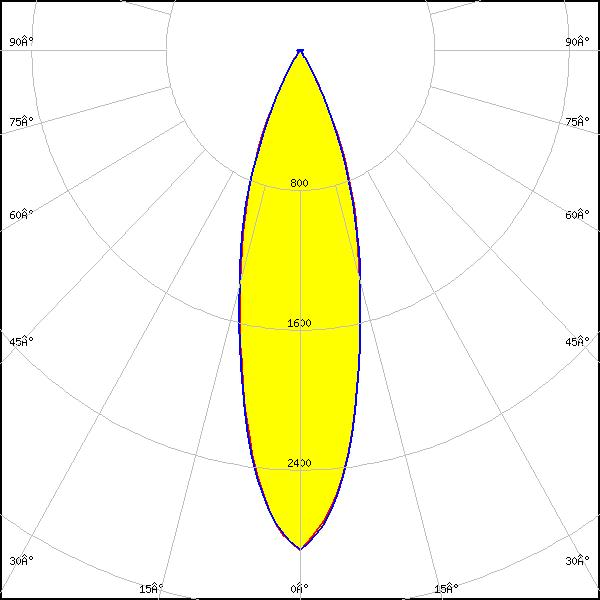

LED: LH181B
FWHM: 29°
FWTM: 56°
Peak intensity: 2.860 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

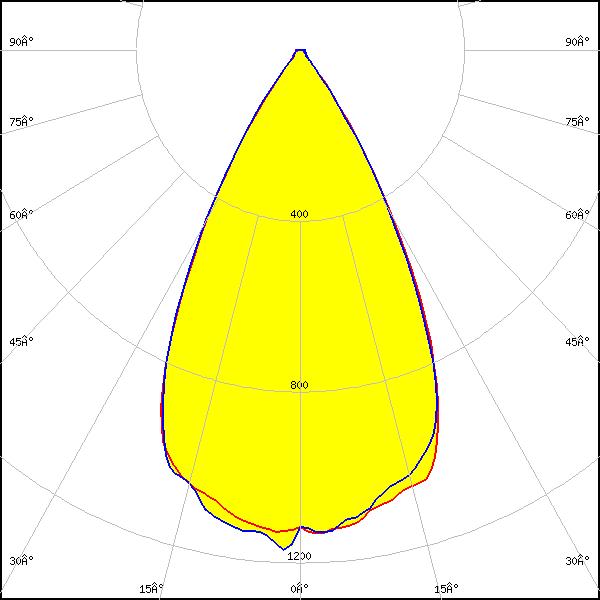

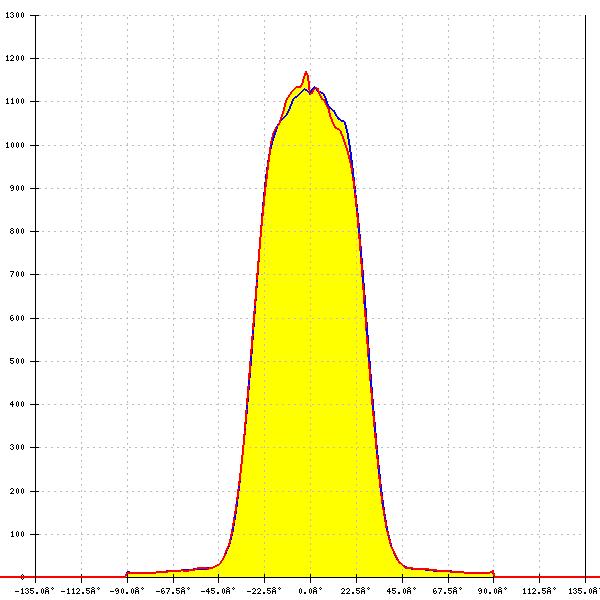

LED: LH351B
FWHM: 55°
FWTM: 76°
Peak intensity: 1.171 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

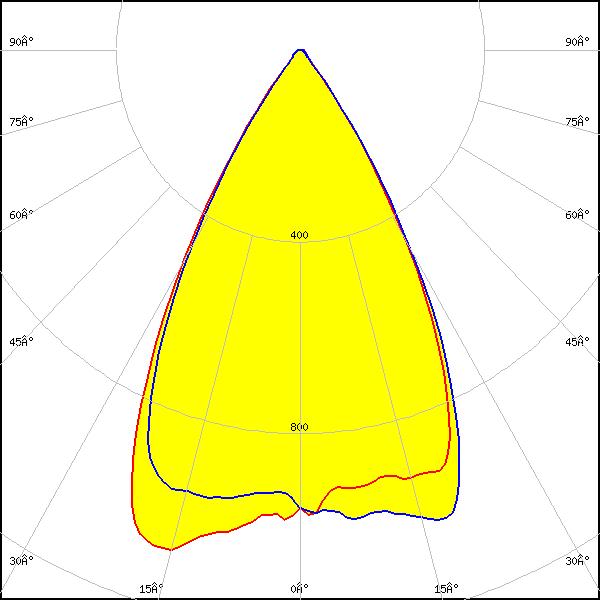

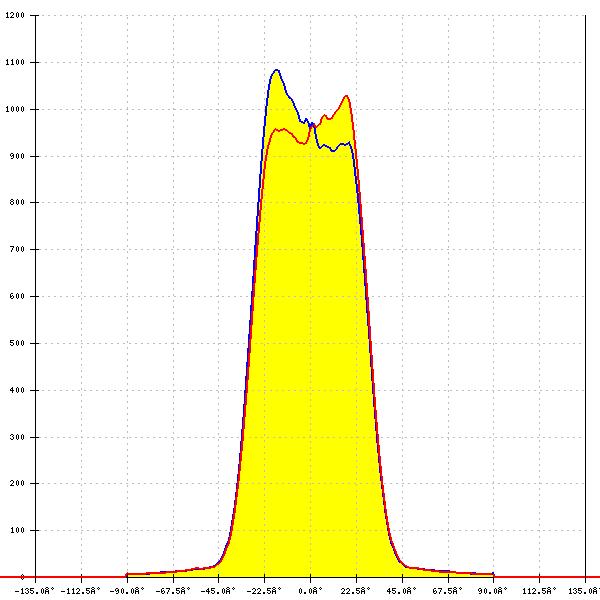

LED: LH351C
FWHM: 54°
FWTM: 75°
Peak intensity: 1.102 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

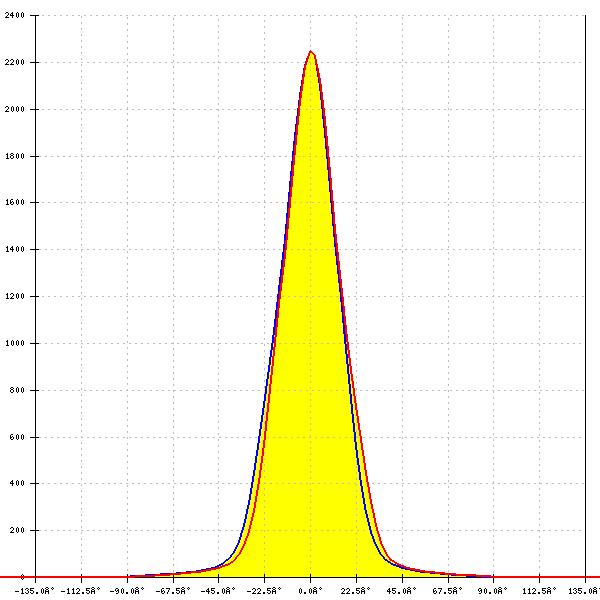

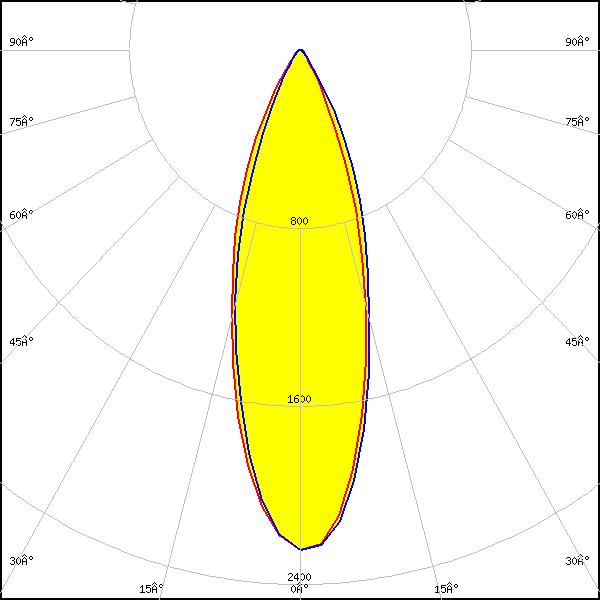

LED: LM231 A/B
FWHM: 32°
FWTM: 62°
Peak intensity: 2.300 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

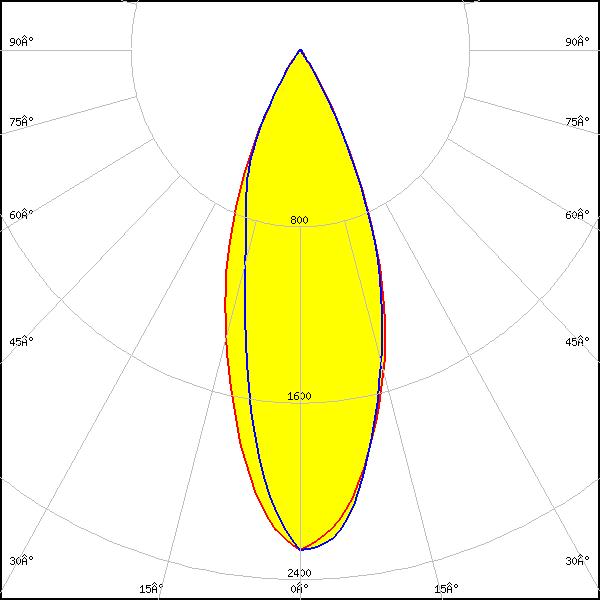

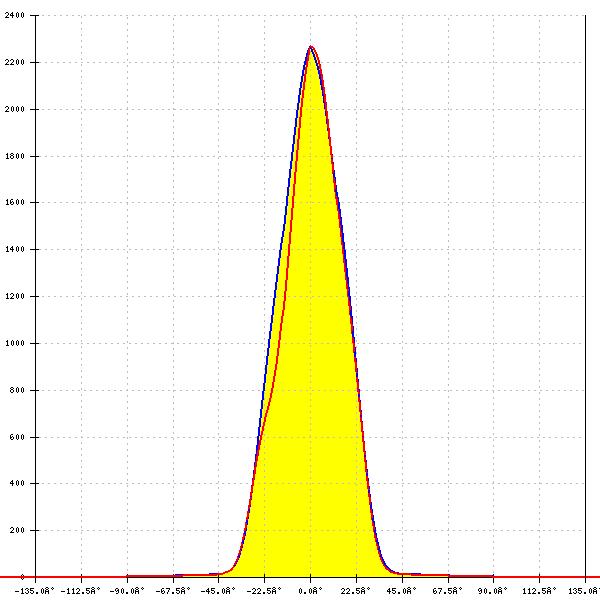

LED: SEOUL DC 3030
FWHM: 36°
FWTM: 63°
Peak intensity: 2.270 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

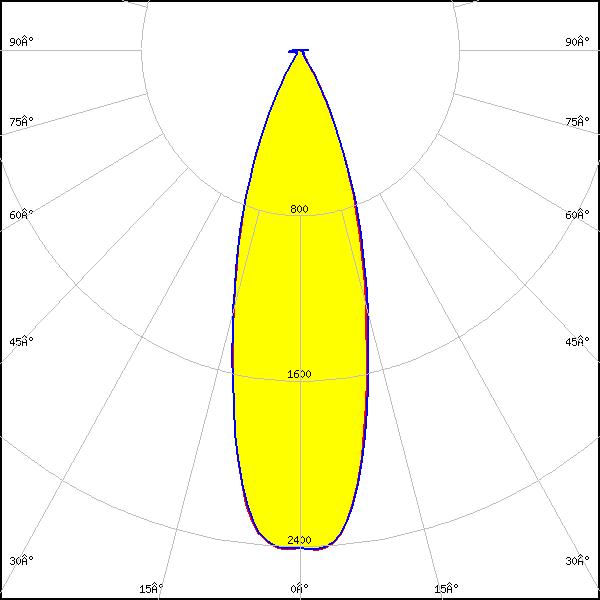

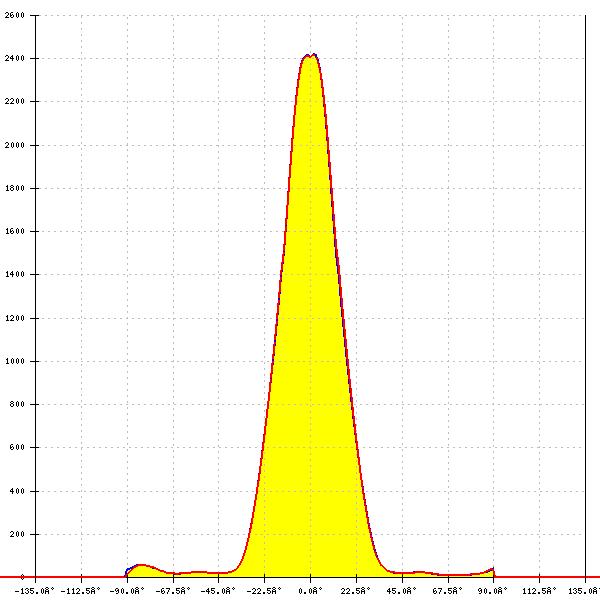

LED: Z8Y22
FWHM: 32°
FWTM: 58°
Peak intensity: 2.400 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
