C12828_EVA-O
Print
~40° x 15° oval beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

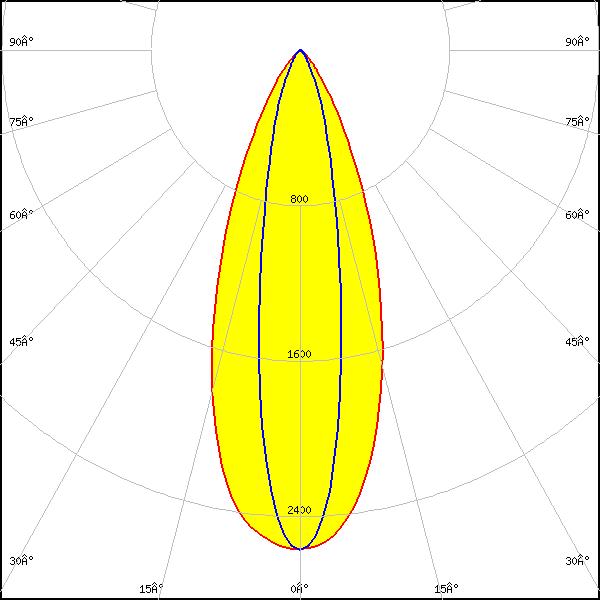

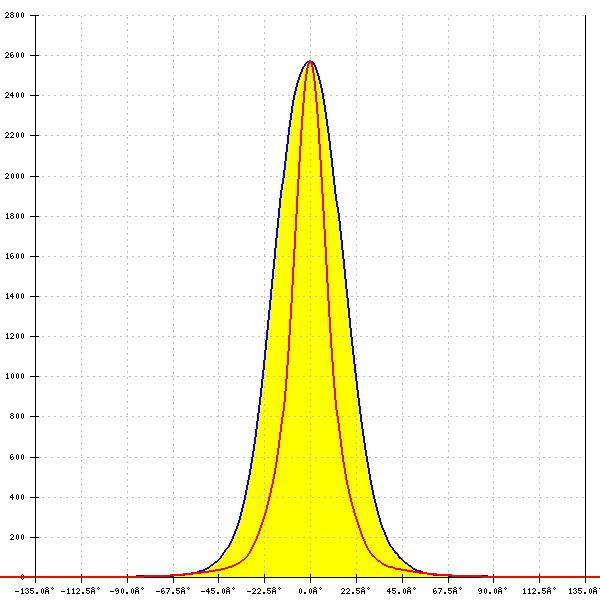

Optical results

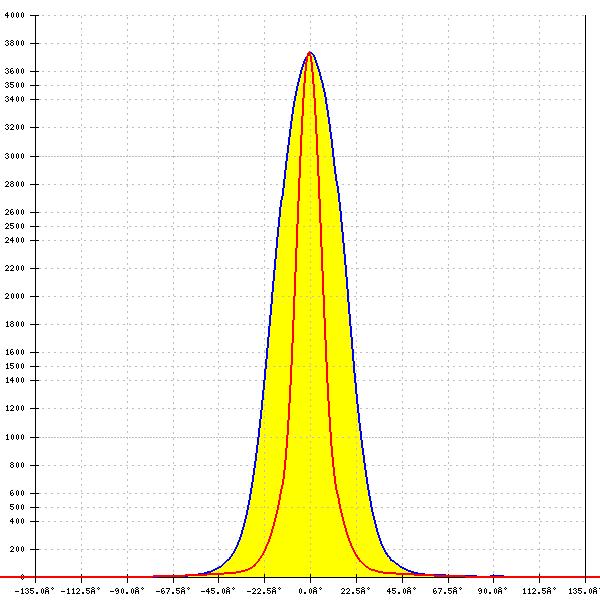

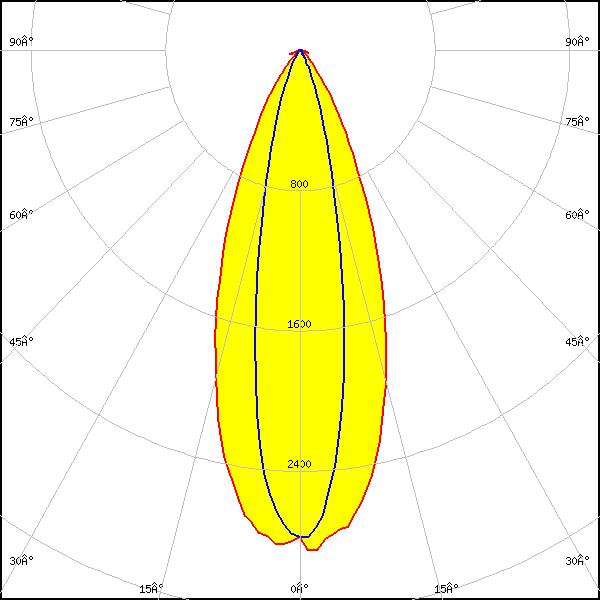

LED:

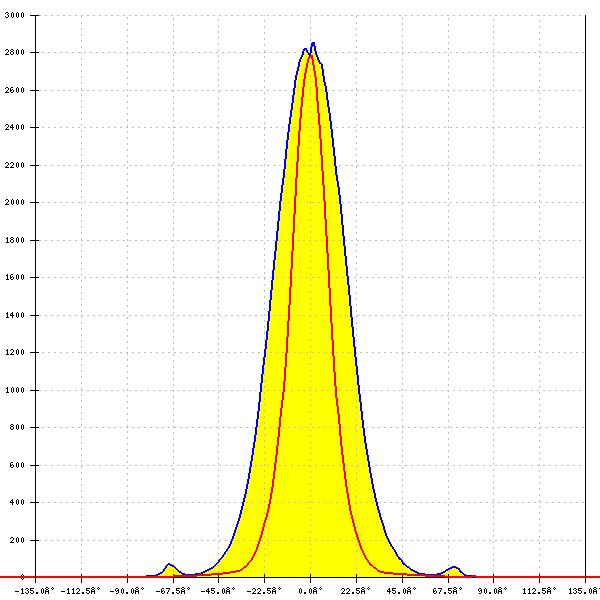

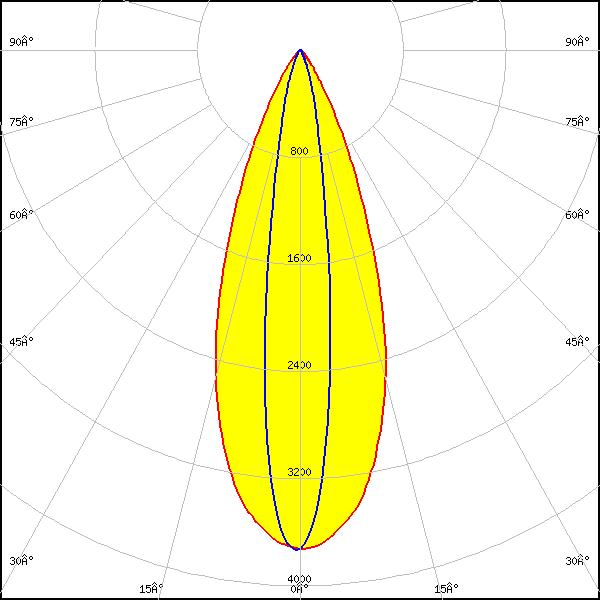

CLU700/701/702/703
FWHM:
40° + 22°
FWTM:
72° + 44°
Peak intensity:
2.955 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7A2/7A3
FWHM:
39° + 15°
FWTM:
65° + 34°
Peak intensity:
3.700 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

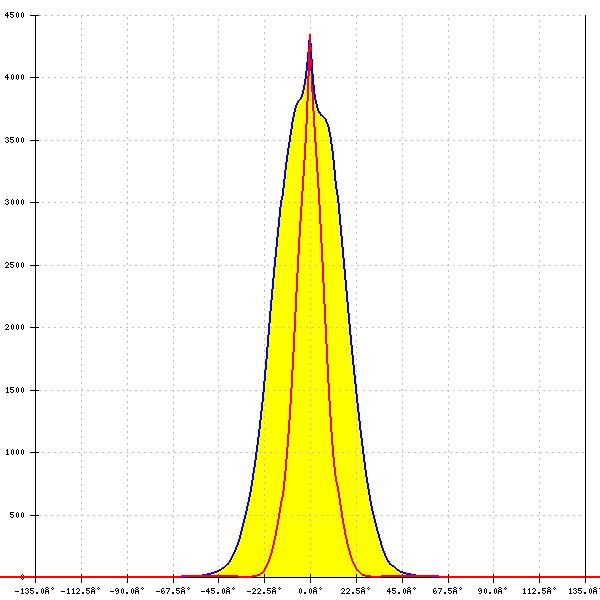

LED:

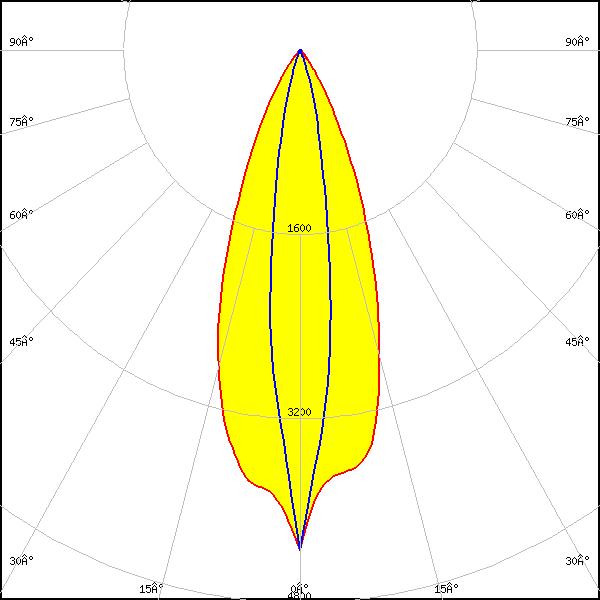

MC-E
FWHM:
16° + 40°
FWTM:
0° + 0°
LEDs/each optic:
1
Light colour/type:
White

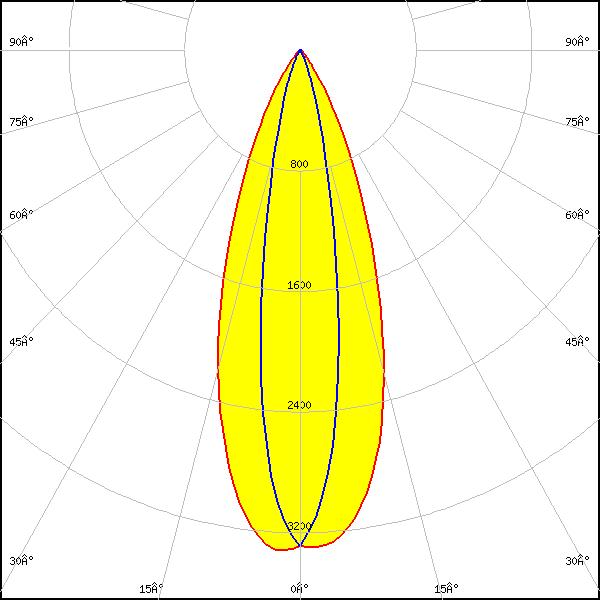

LED:

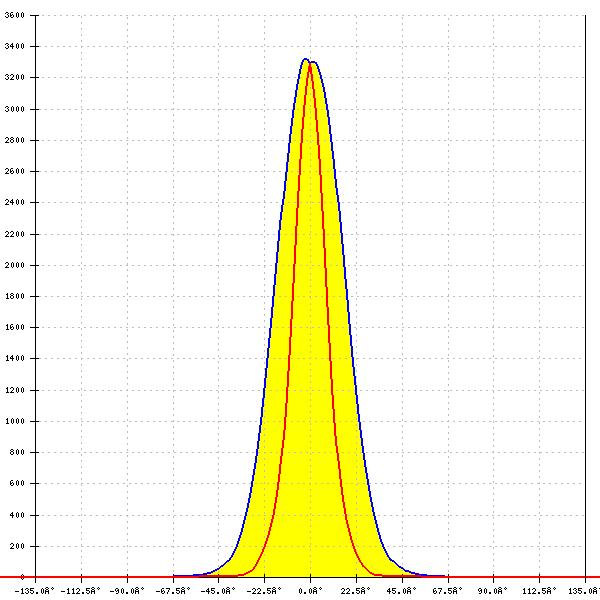

MHB-A/B
FWHM:
39° + 18°
FWTM:
72° + 44°
Peak intensity:
3.100 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HI
FWHM:
39° + 21°
FWTM:
74° + 50°
Peak intensity:
2.200 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

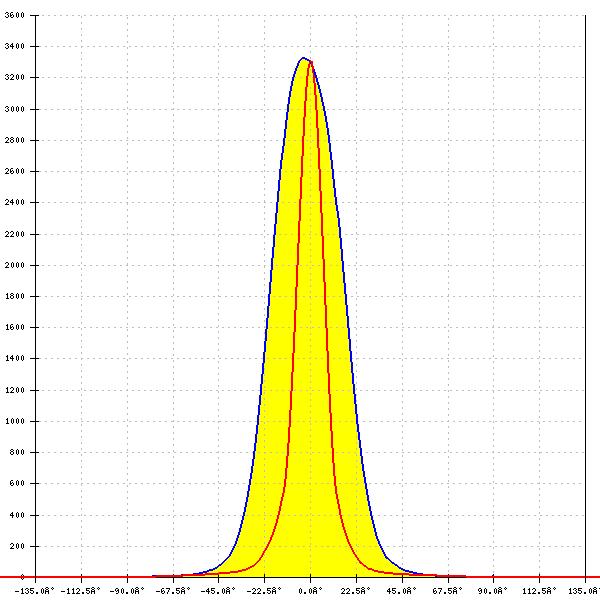

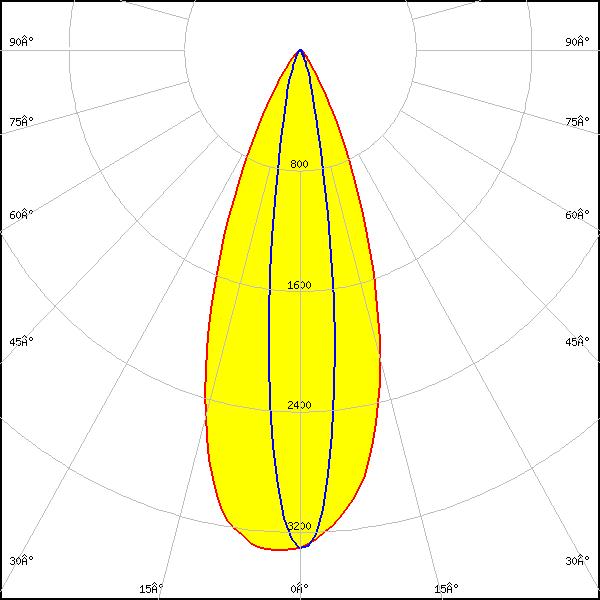

XM-L
FWHM:
16° + 39°
FWTM:
32° + 63°
Peak intensity:
3.300 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

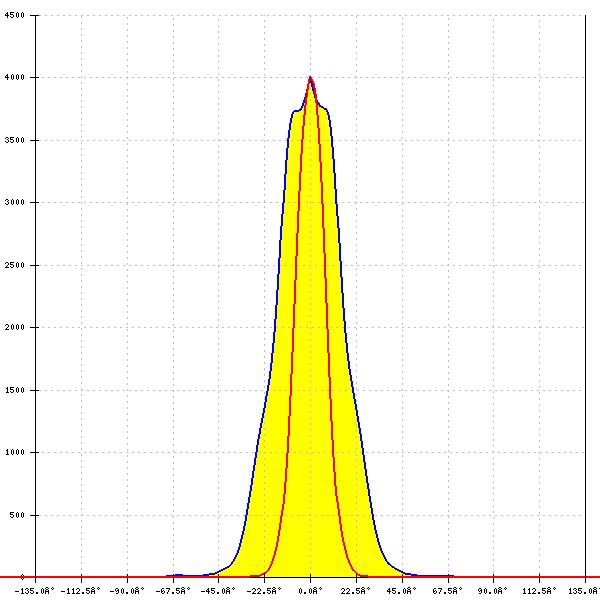

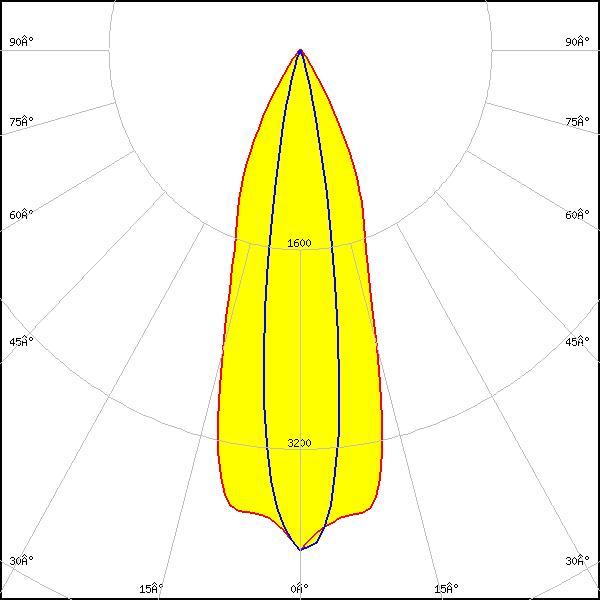

XP-G2
FWHM:
17° + 34°
FWTM:
30° + 65°
Peak intensity:
4.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

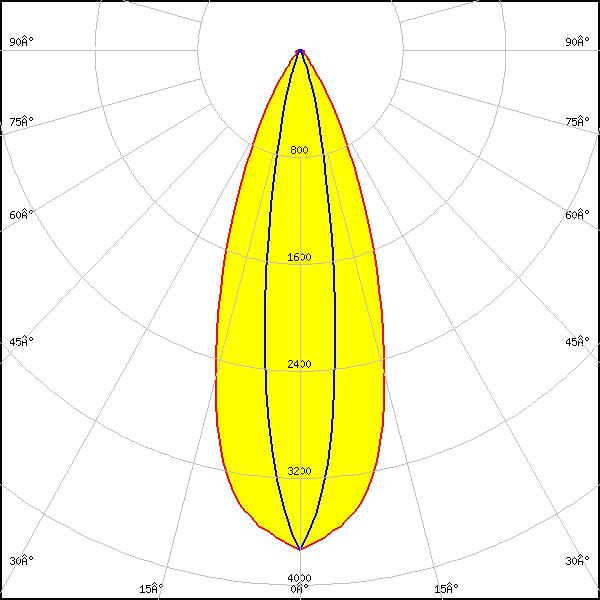

LUXEON 5258
FWHM:
16° + 37°
FWTM:
34° + 64°
Peak intensity:
3.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

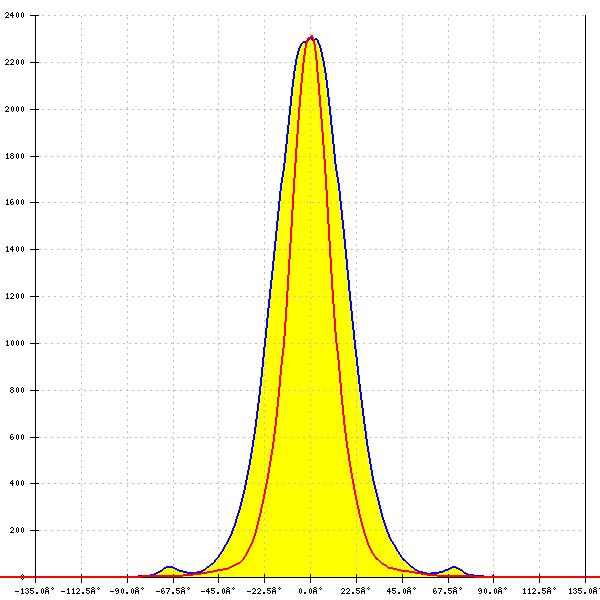

LED:

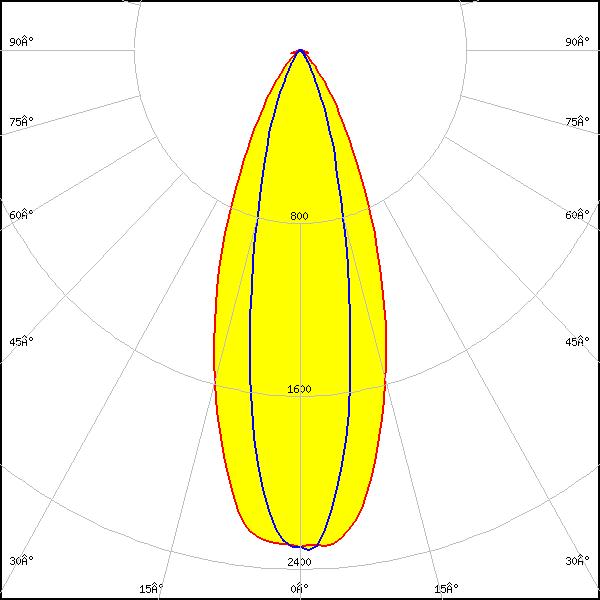

LUXEON 7070
FWHM:
40° + 24°
FWTM:
74° + 51°
Peak intensity:
2.327 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

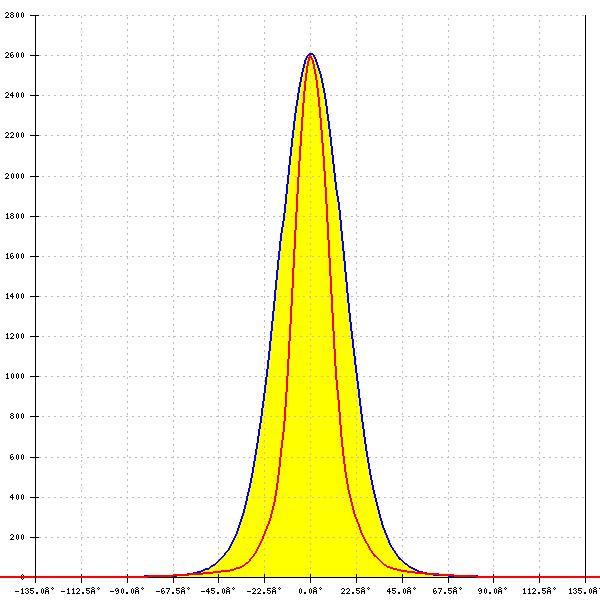

LED:

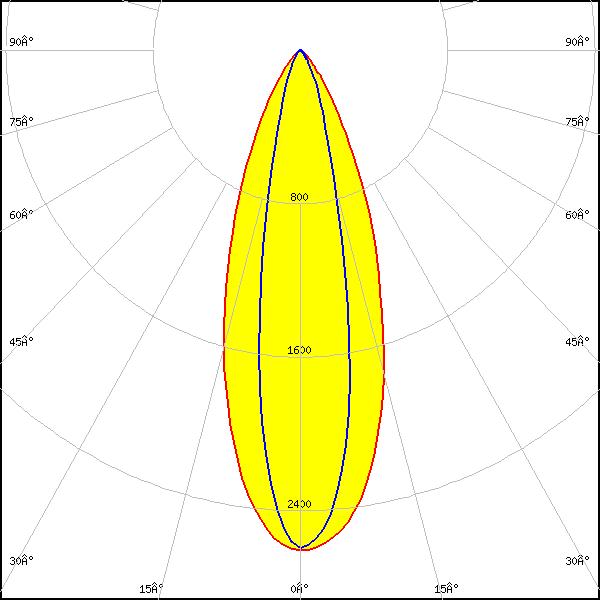

LUXEON M/MX
FWHM:
21° + 37°
FWTM:
42° + 71°
Peak intensity:
2.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

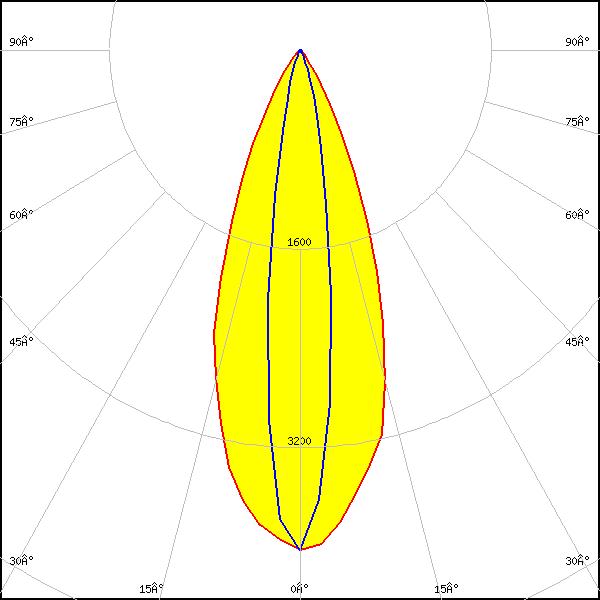

LED:

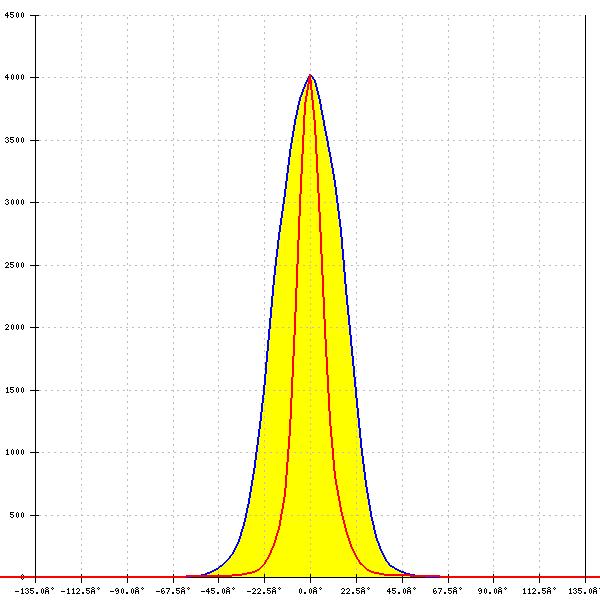

LUXEON MZ
FWHM:
39° + 15°
FWTM:
65° + 33°
Peak intensity:
4.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-3
FWHM:
40° + 14°
FWTM:
66° + 28°
Peak intensity:
4.337 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-4
FWHM:
40° + 18°
FWTM:
68° + 35°
Peak intensity:
3.498 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NS9x383
FWHM:
39° + 15°
FWTM:
66° + 34°
Peak intensity:
3.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NSMx286M
FWHM:
40° + 20°
FWTM:
71° + 48°
Peak intensity:
2.570 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM:
39° + 17°
FWTM:
67° + 34°
Peak intensity:
3.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
19° + 37°
FWTM:
38° + 67°
Peak intensity:
3.320 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y15
FWHM:
41° + 13°
FWTM:
66° + 28°
Peak intensity:
4.880 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y19
FWHM:
41° + 12°
FWTM:
64° + 28°
Peak intensity:
4.870 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
