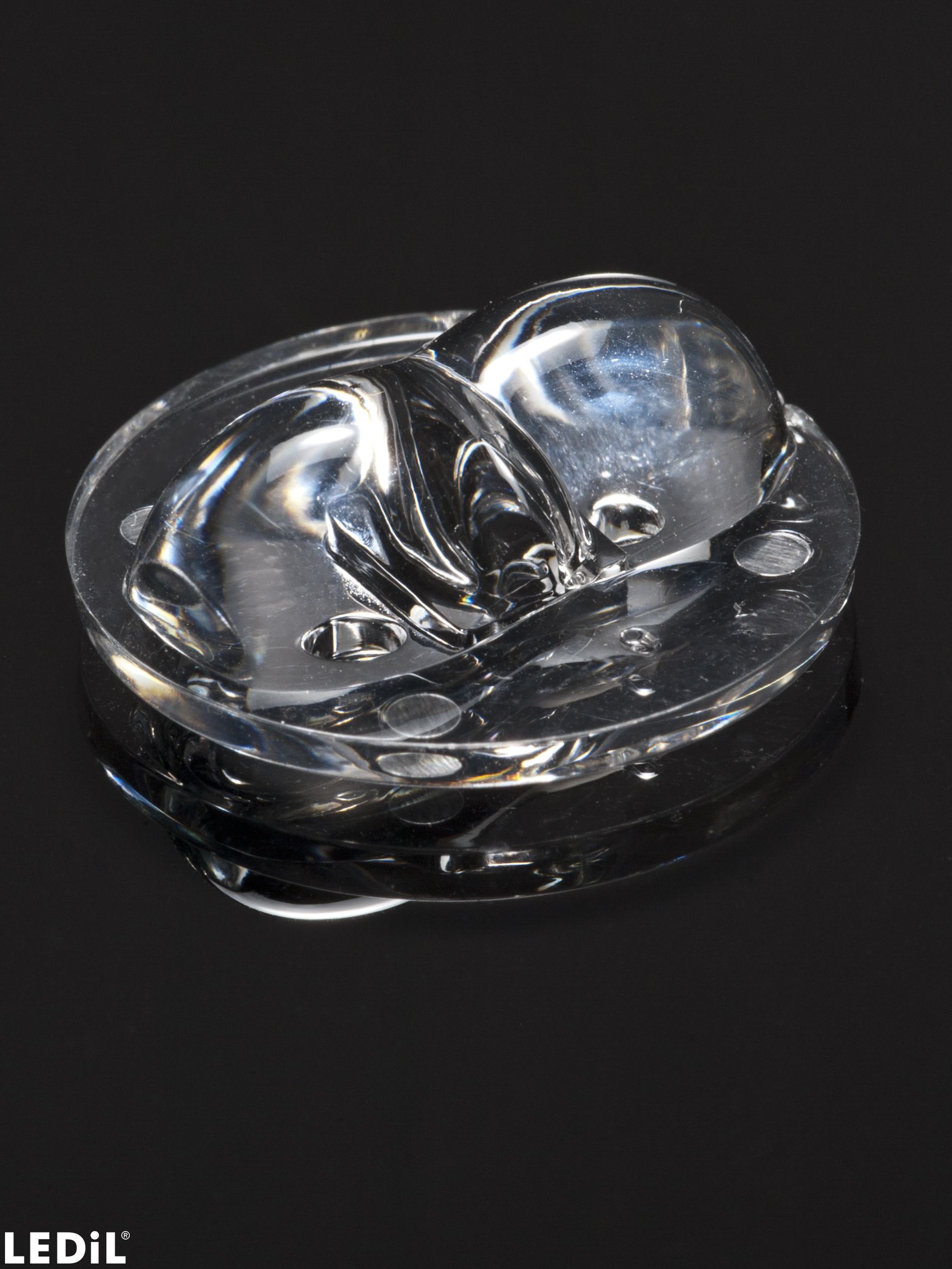

C13155_EMERALD-A

Print

Asymmetric beam

Specification
  • Dimensions:
    22 mm
  • Height:
    6.90 mm
  • Fastening:
    glue, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    2128 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.8 kg
  • MPQ:
    112 pcs
  • MOQ:
    336 pcs
  • MOQ size:
    480 x 280 x 70 mm
  • MOQ weight:
    1.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C13155_EMERALD-A

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

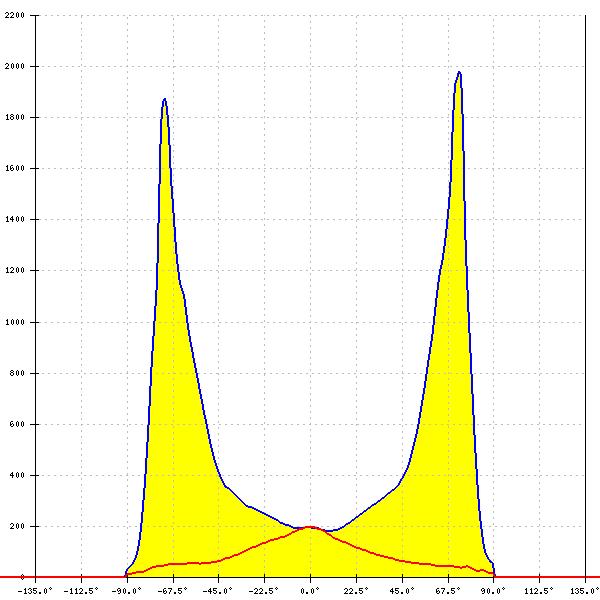

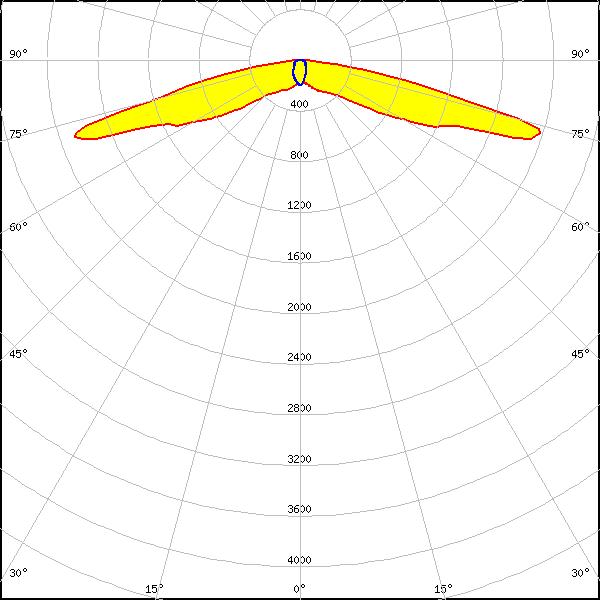

LED: XB-D
FWHM: 157° + 62°
FWTM: 0° + 0°
Peak intensity: 2.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

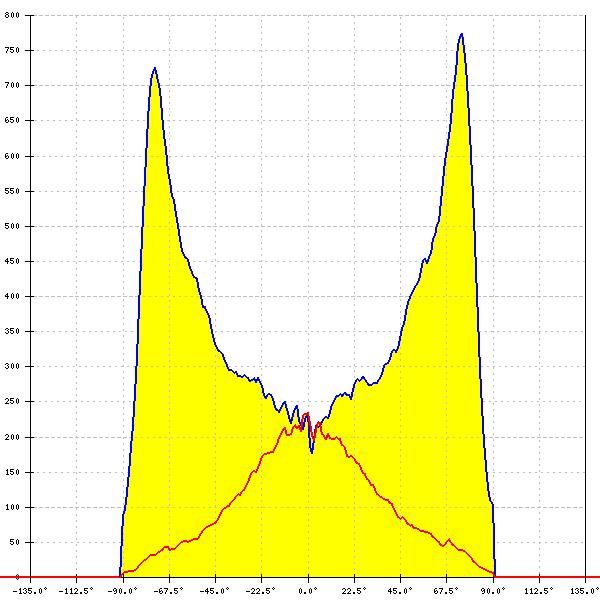

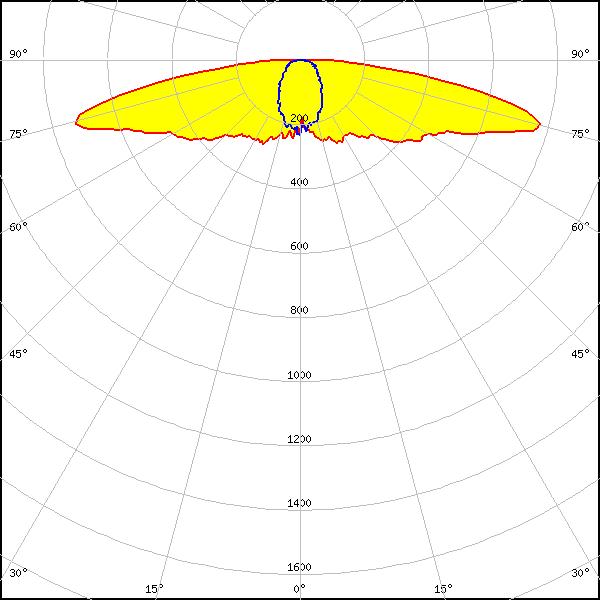

LED: XHP35 HD
FWHM: 164° + 68°
FWTM: 0° + 0°
Peak intensity: 0.770 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

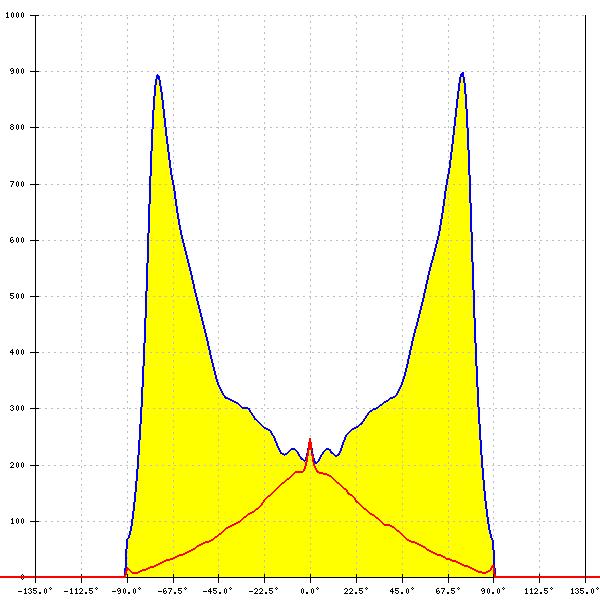

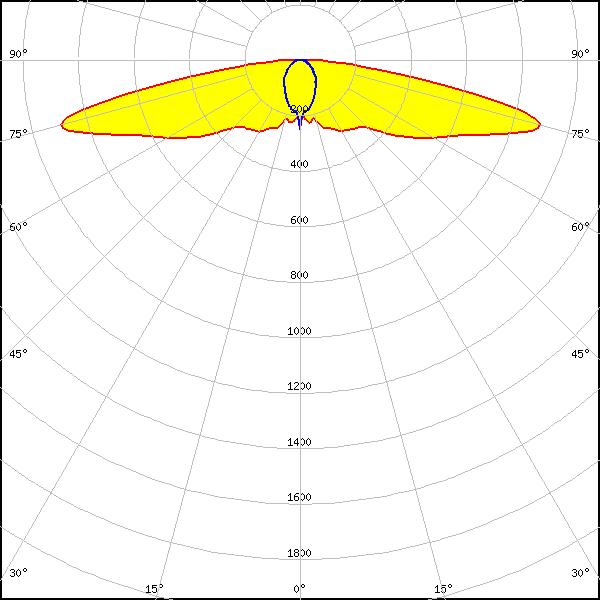

LED: XHP35 HI
FWHM: 162° + 51°
FWTM: 176° + 146°
Peak intensity: 0.896 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

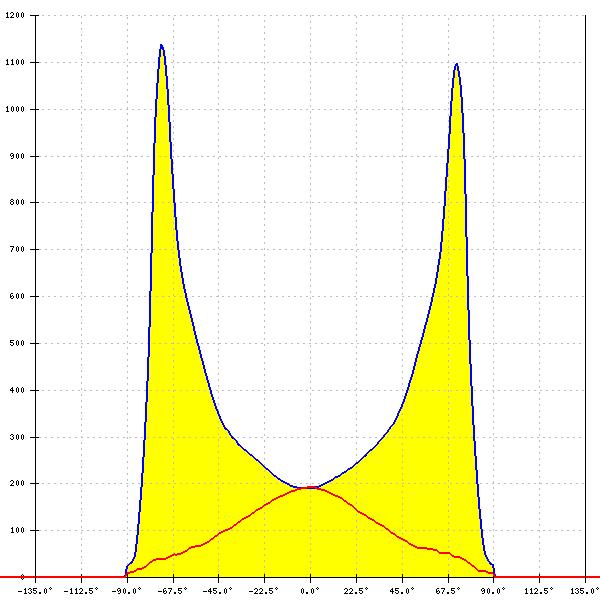

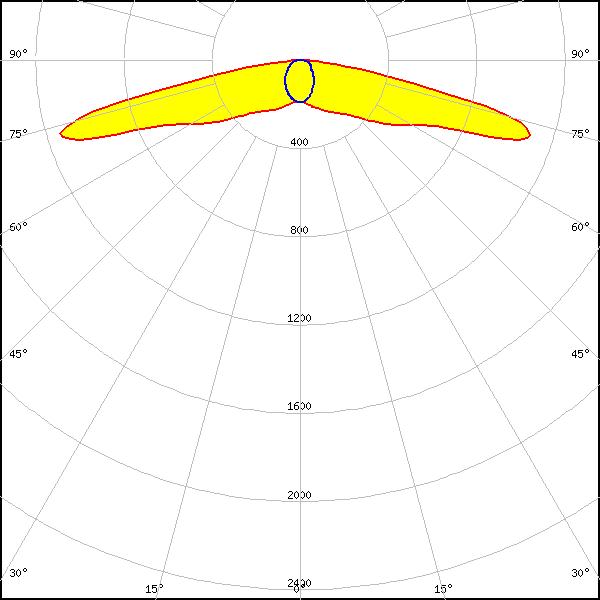

LED: XM-L
FWHM: 157° + 83°
FWTM: 0° + 0°
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

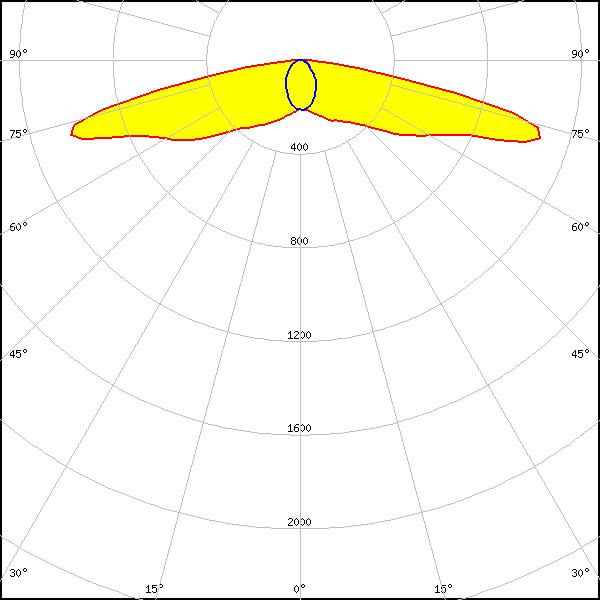

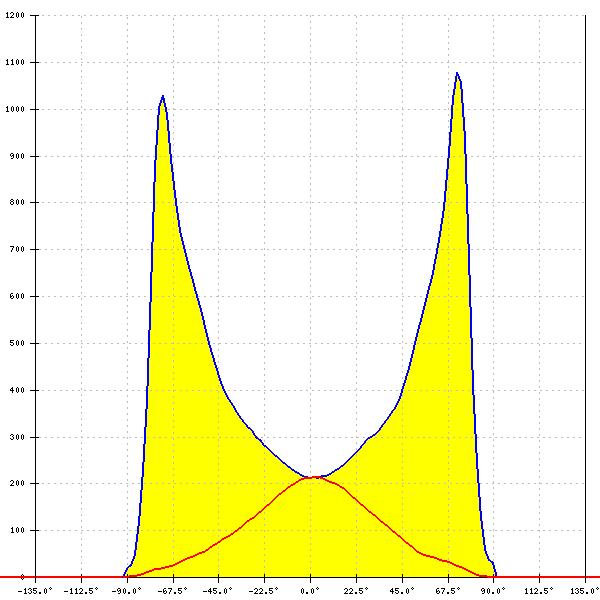

LED: XM-L2
FWHM: 169° + 73°
FWTM: 0° + 0°
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

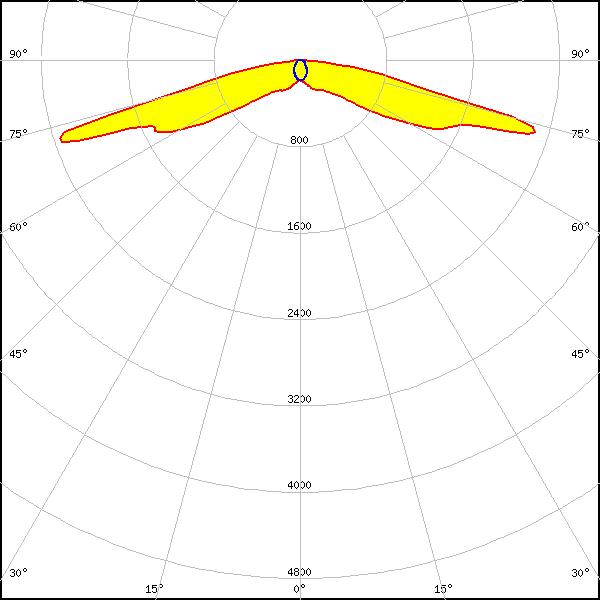

LED: XP-E
FWHM: 158° + 73°
FWTM: 0° + 0°
Peak intensity: 2.300 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

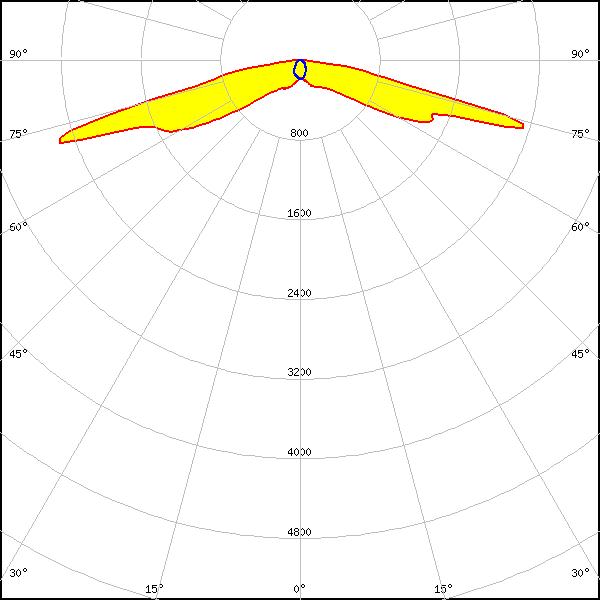

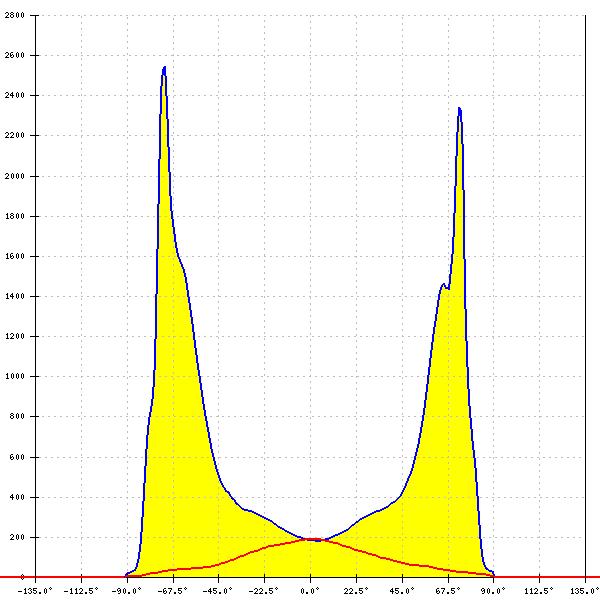

LED: XP-E2
FWHM: 156° + 72°
FWTM: 0° + 0°
Peak intensity: 2.500 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

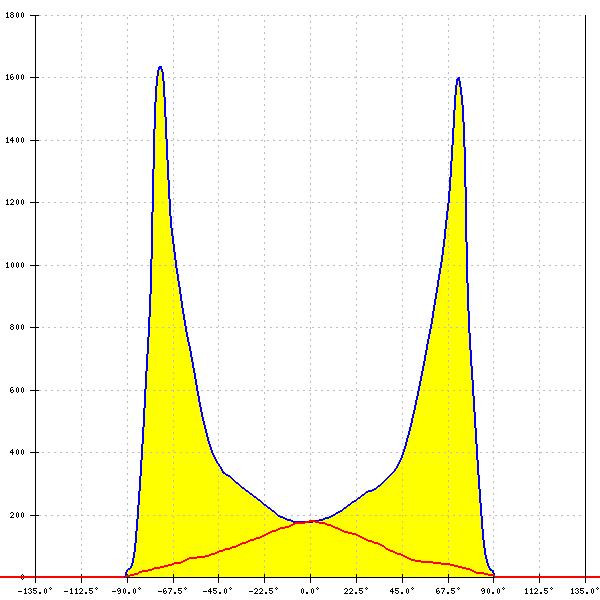

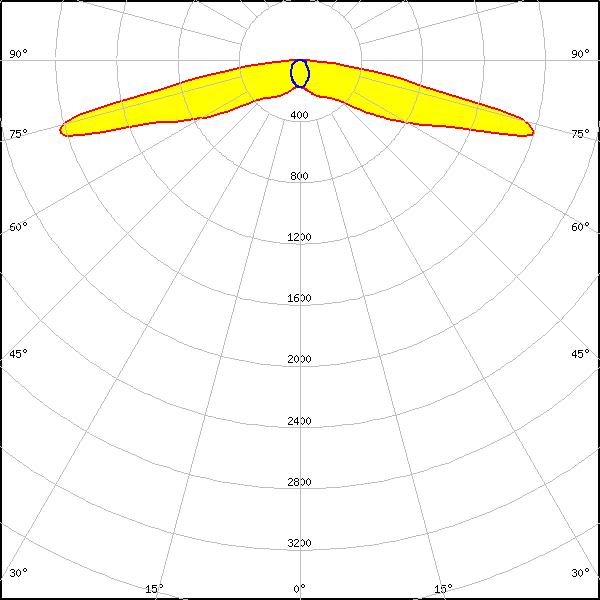

LED: XP-G
FWHM: 159° + 79°
FWTM: 0° + 0°
Peak intensity: 1.600 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

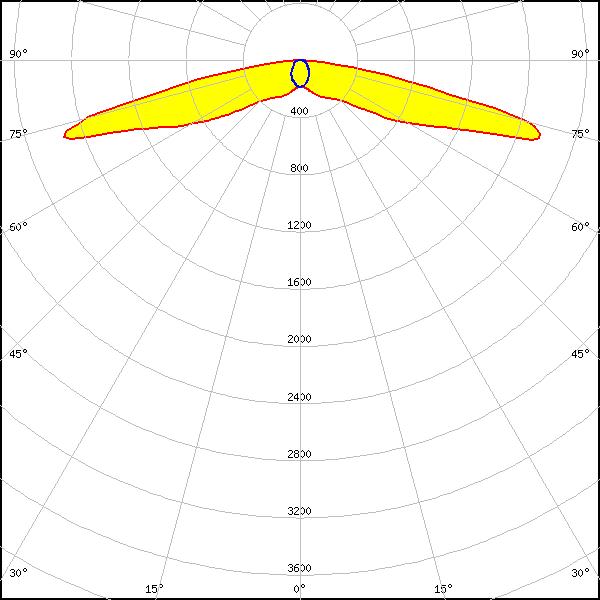

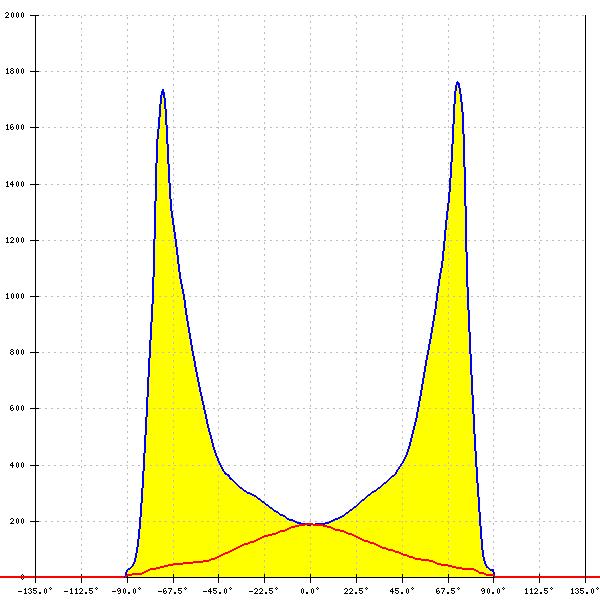

LED: XP-G2
FWHM: 158° + 79°
FWTM: 0° + 0°
Peak intensity: 1.800 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

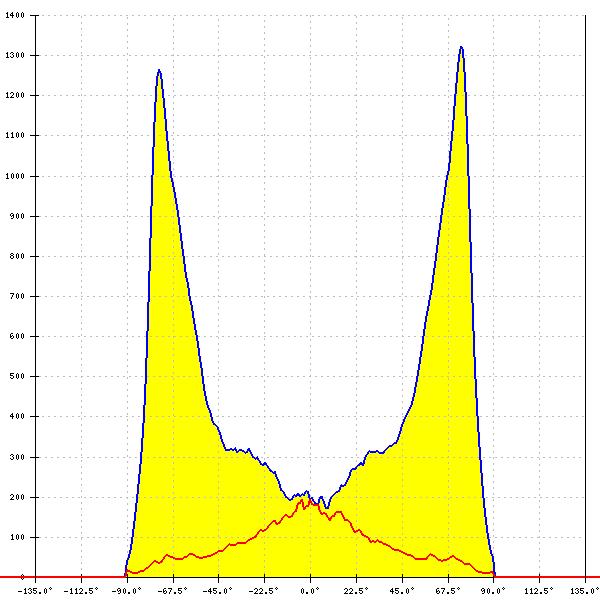

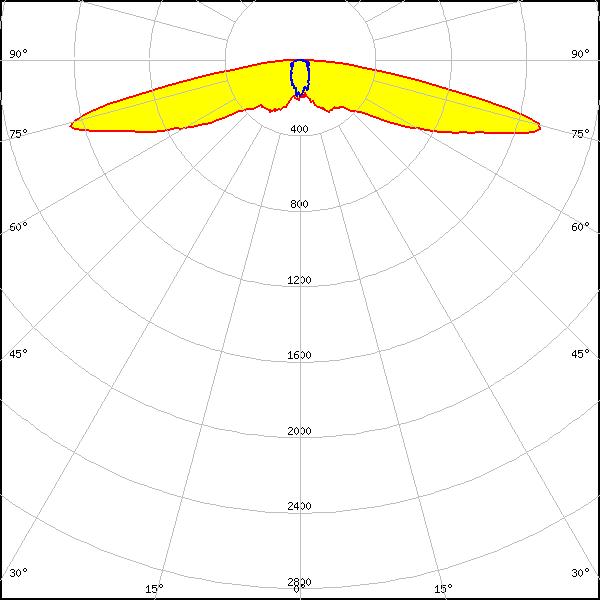

LED: XP-L HI
FWHM: 159°
FWTM: -
Peak intensity: 1.300 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

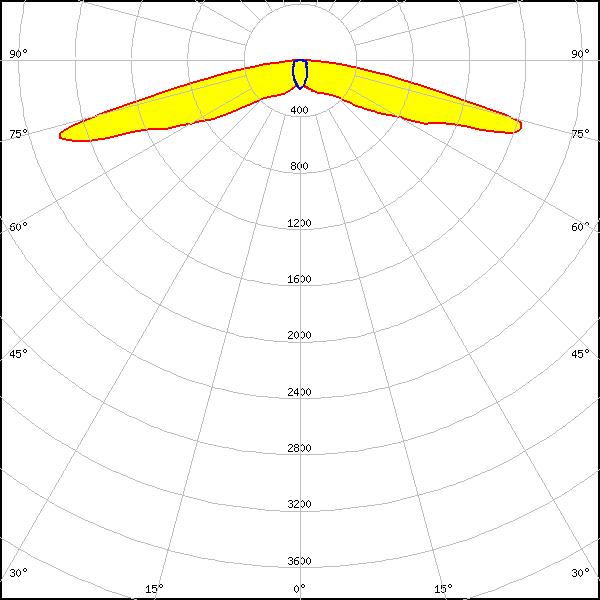

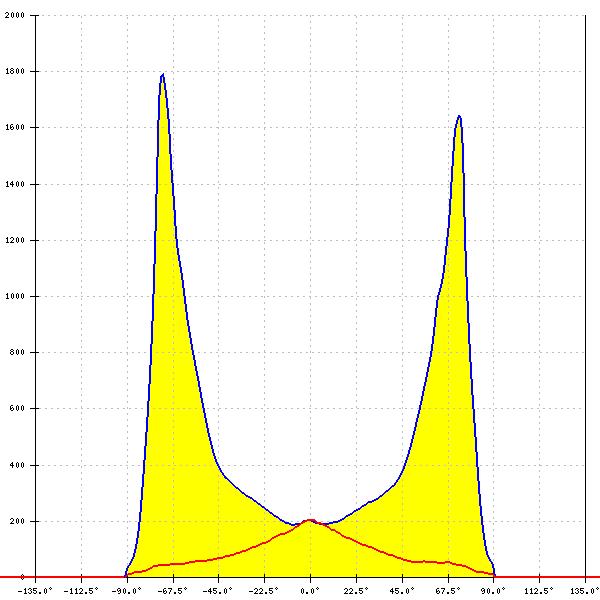

LED: XT-E
FWHM: 157° + 61°
FWTM: 0° + 0°
Peak intensity: 1.800 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

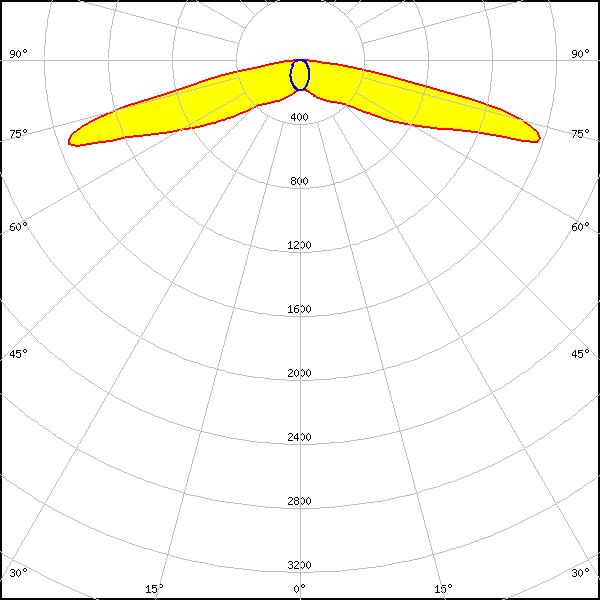

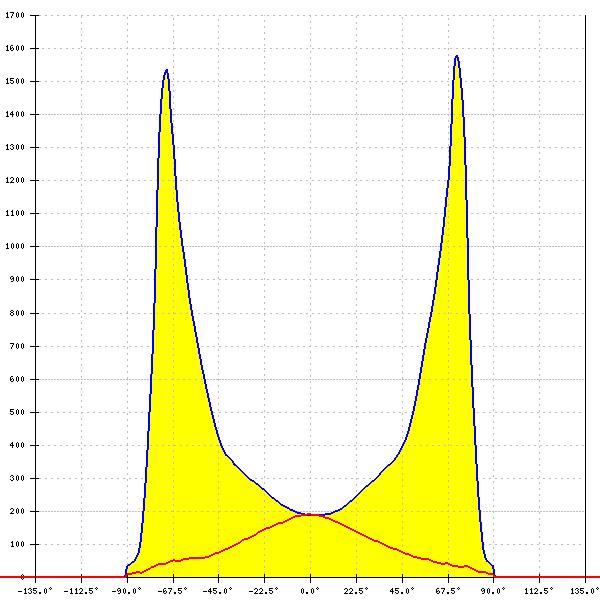

LED: LUXEON A
FWHM: 156° + 75°
FWTM: 0° + 0°
Peak intensity: 1.600 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

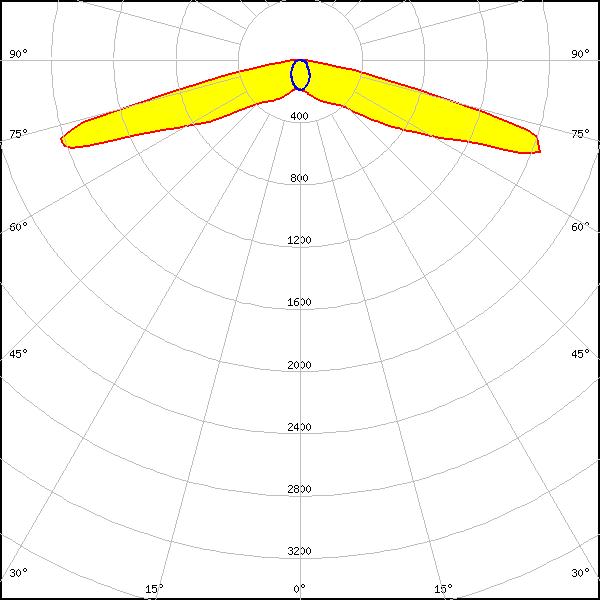

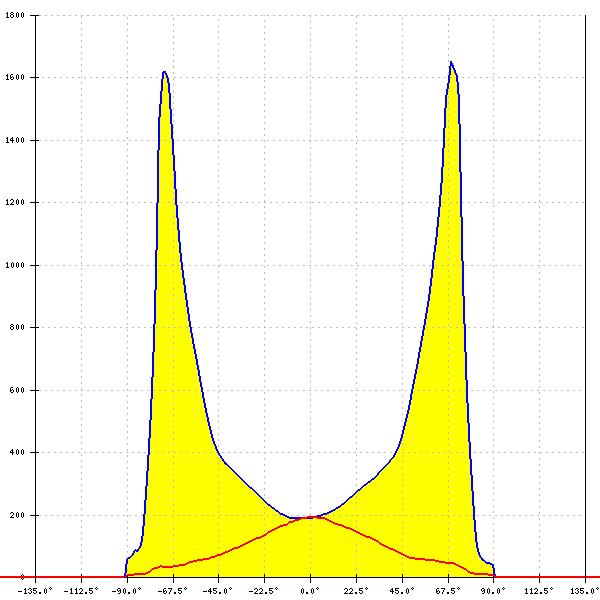

LED: LUXEON R
FWHM: 153° + 73°
FWTM: 0° + 0°
Peak intensity: 1.650 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

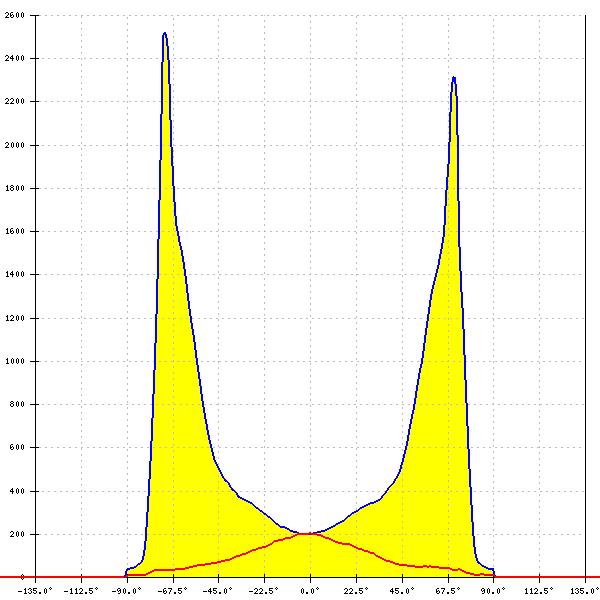

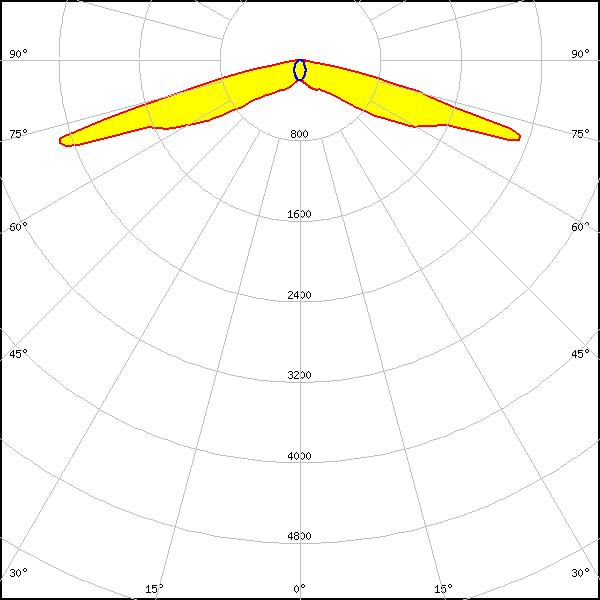

LED: LUXEON Rebel
FWHM: 152° + 67°
FWTM: 0° + 0°
Peak intensity: 2.500 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

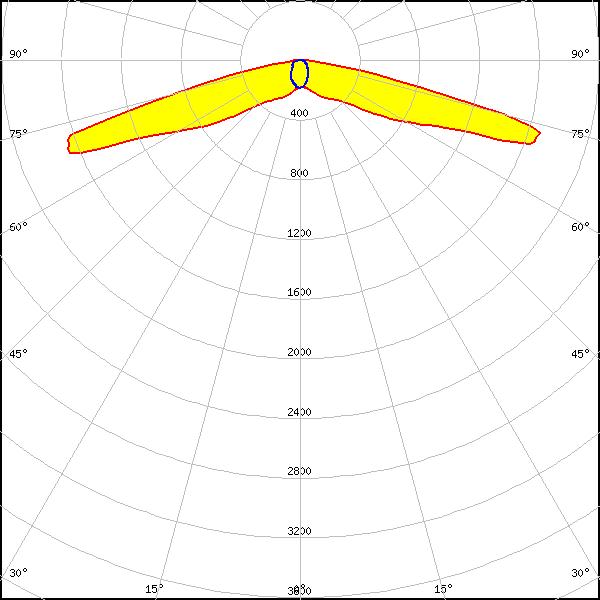

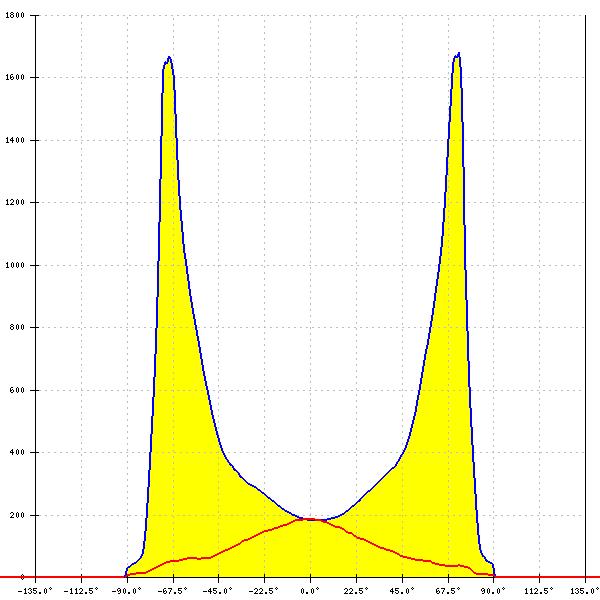

LED: LUXEON Rebel ES
FWHM: 153° + 74°
FWTM: 0° + 0°
Peak intensity: 1.700 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

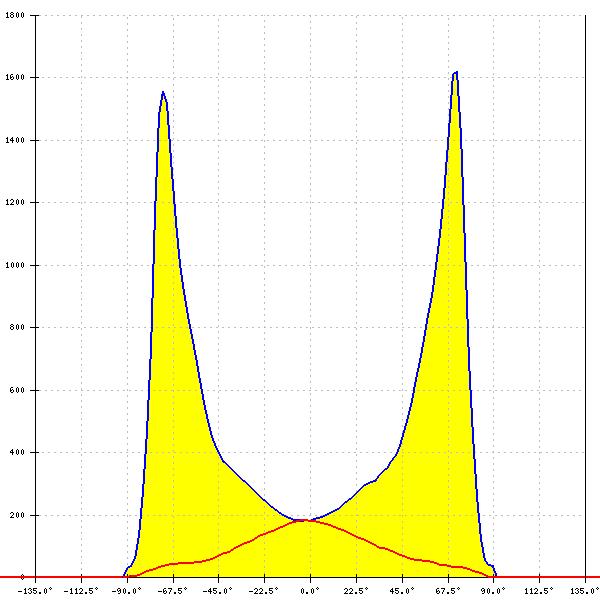

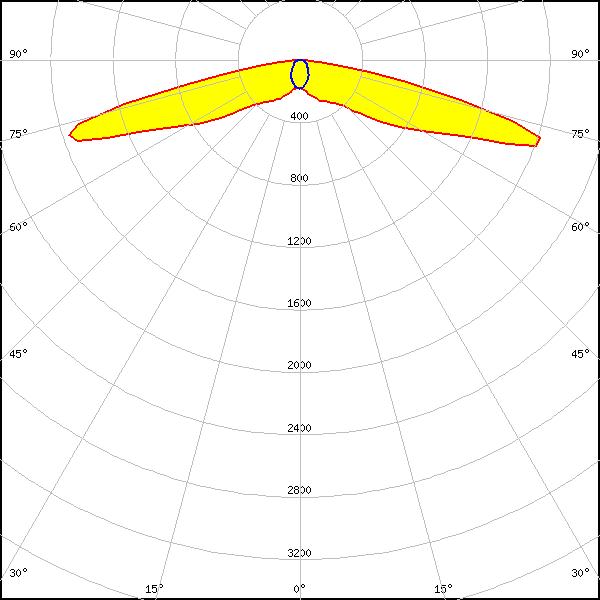

LED: LUXEON T
FWHM: 155° + 76°
FWTM: 0° + 0°
Peak intensity: 2.300 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

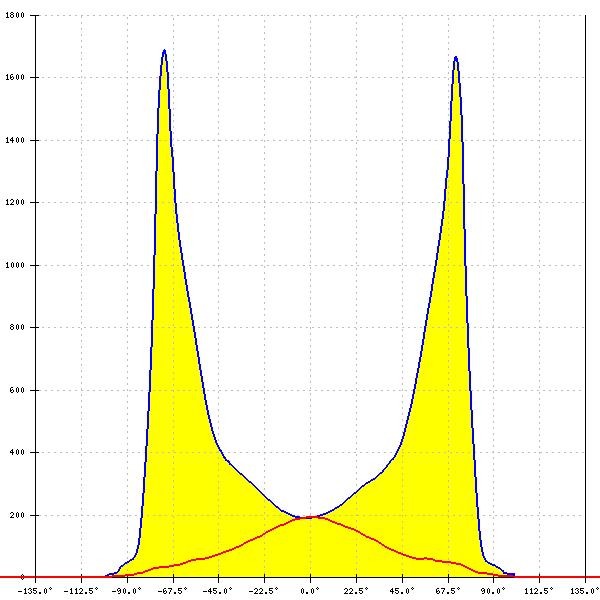

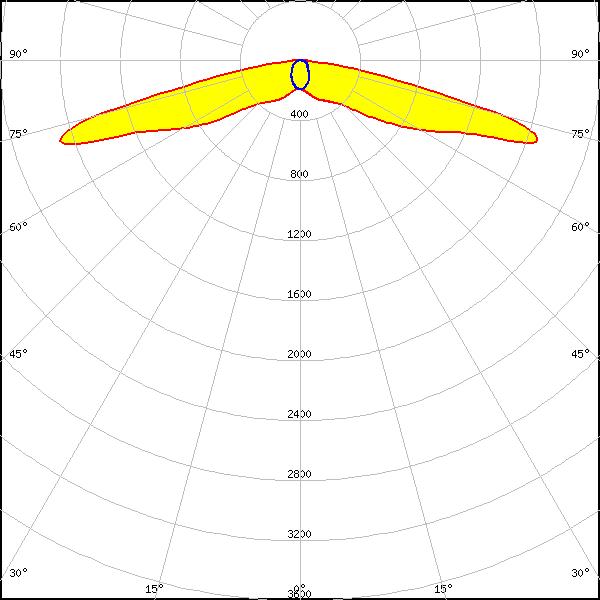

LED: LUXEON TX
FWHM: 156° + 73°
FWTM: 0° + 0°
Peak intensity: 1.690 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

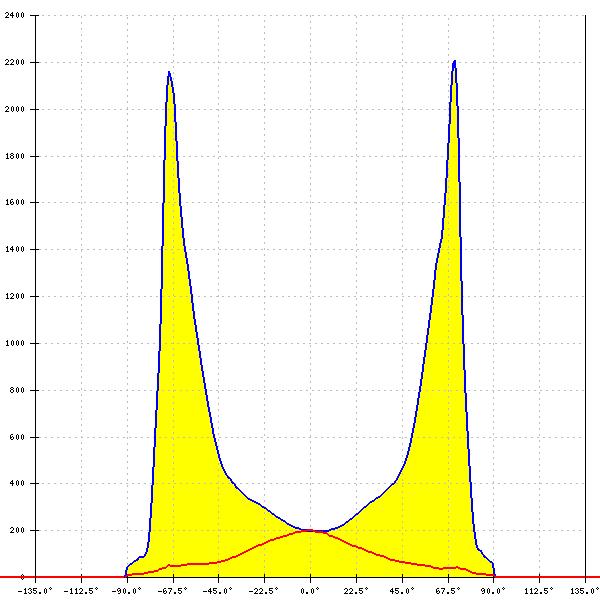

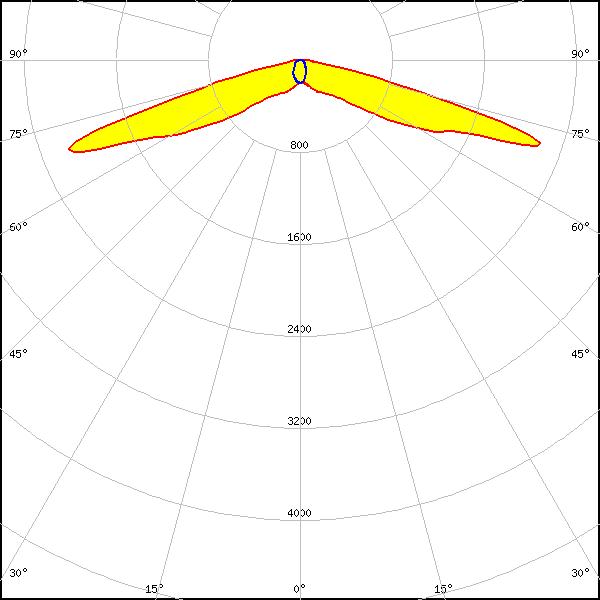

LED: NCSxx19A
FWHM: 151° + 65°
FWTM: 0° + 0°
Peak intensity: 2.200 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

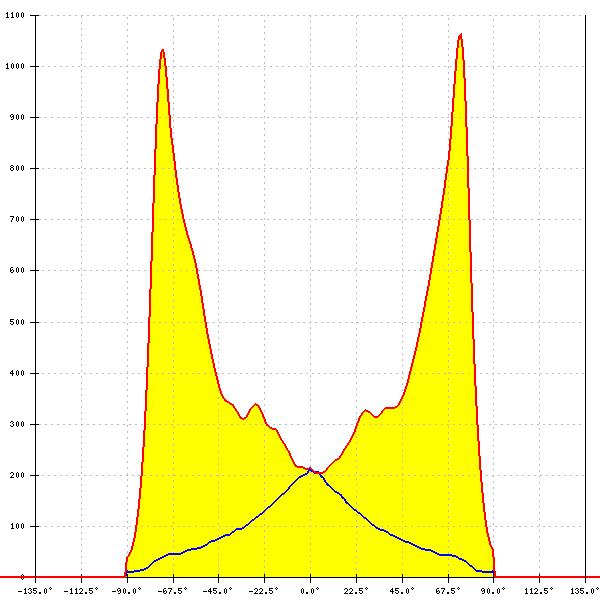

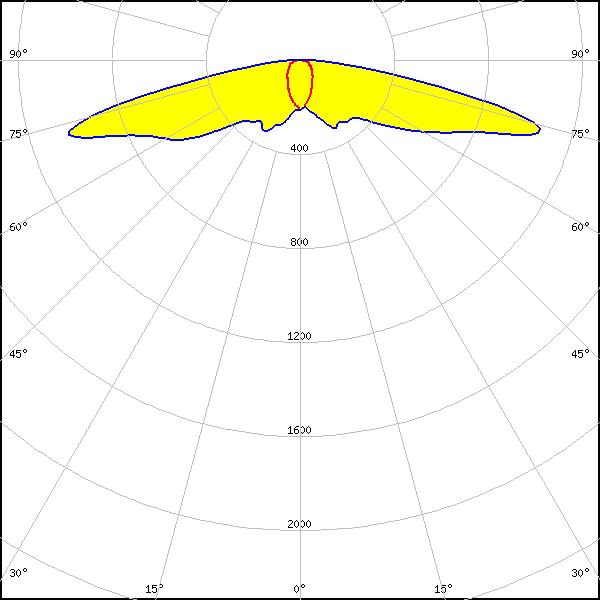

LED: NF2W757G-MT (Tunable White)
FWHM: 159° + 59°
FWTM: 172° + 158°
Peak intensity: 1.062 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: Tunable White

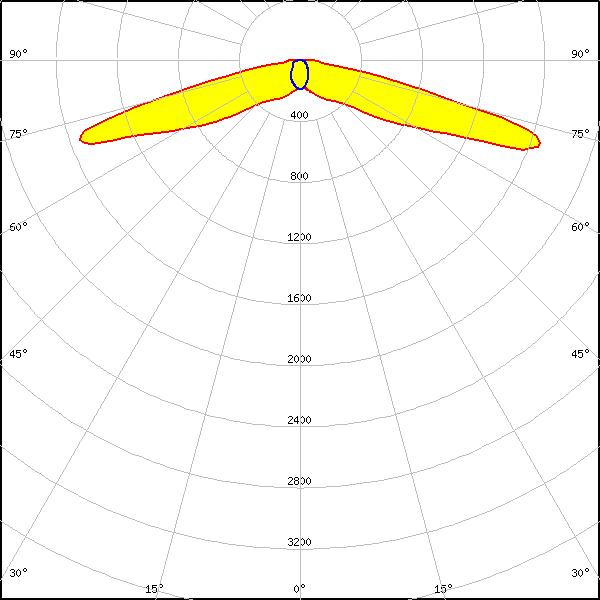

LED: NVSxx19A
FWHM: 153° + 71°
FWTM: 0° + 0°
Peak intensity: 1.700 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

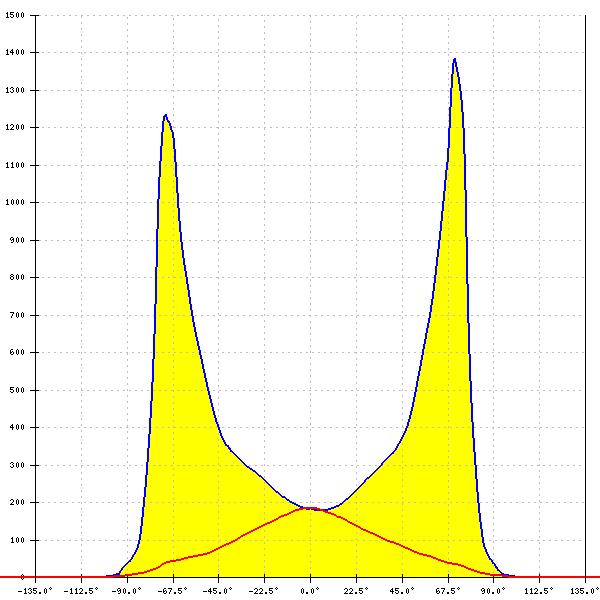

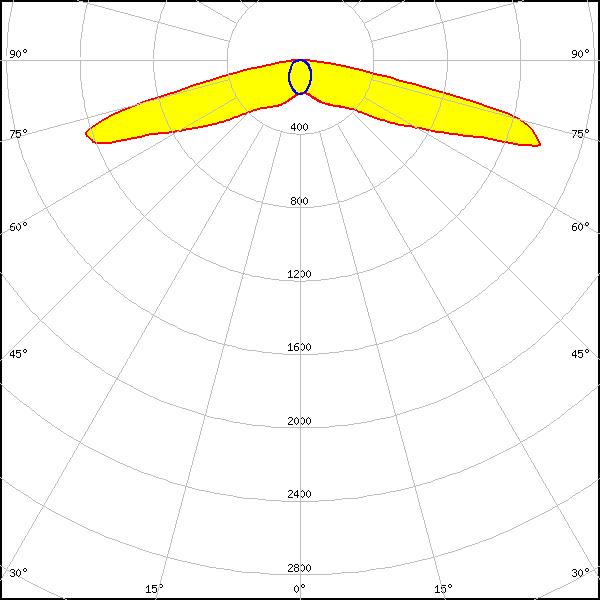

LED: NVSxx19B/NVSxx19C
FWHM: 155° + 80°
FWTM: 168° + 158°
Peak intensity: 1.400 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

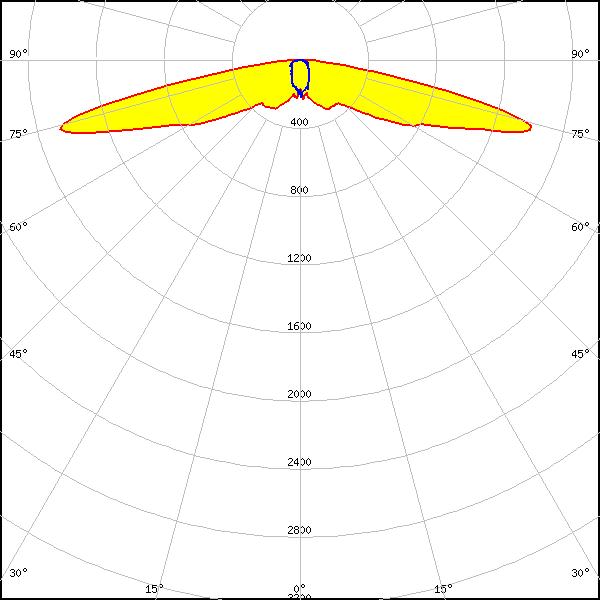

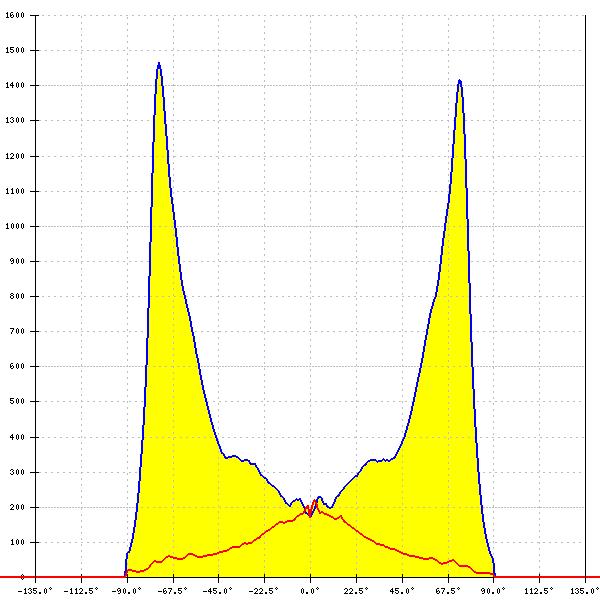

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 158° + 70°
FWTM: 0° + 0°
Peak intensity: 1.500 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

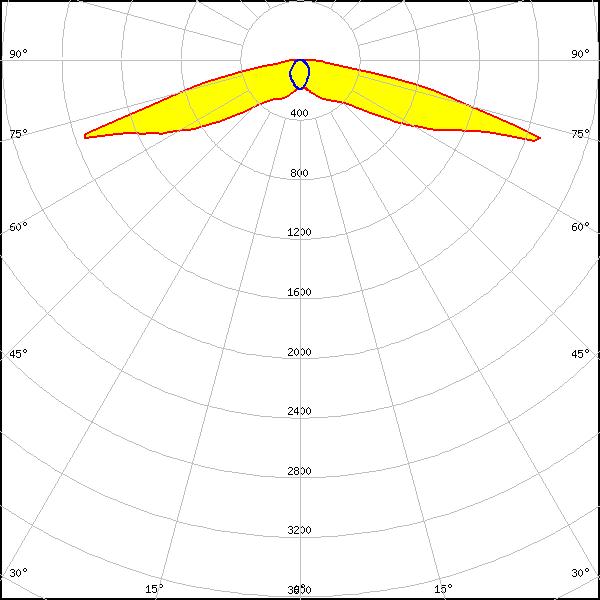

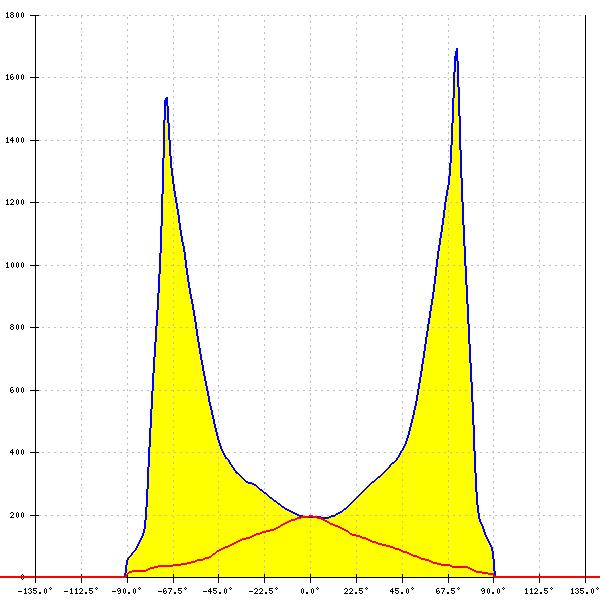

LED: OSLON Square EC
FWHM: 156° + 80°
FWTM: 0° + 0°
Peak intensity: 1.700 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

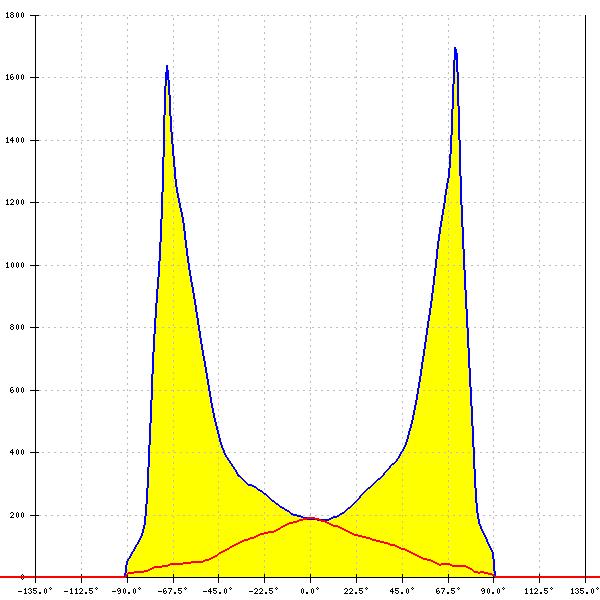

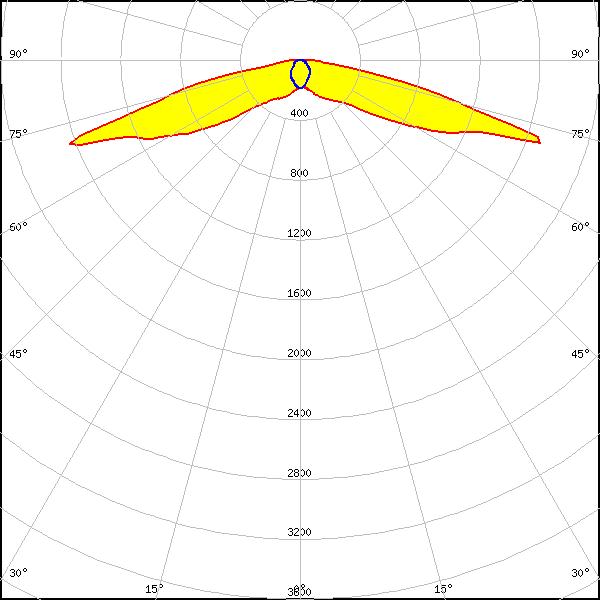

LED: OSLON Square PC
FWHM: 156° + 83°
FWTM: 0° + 0°
Peak intensity: 1.700 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

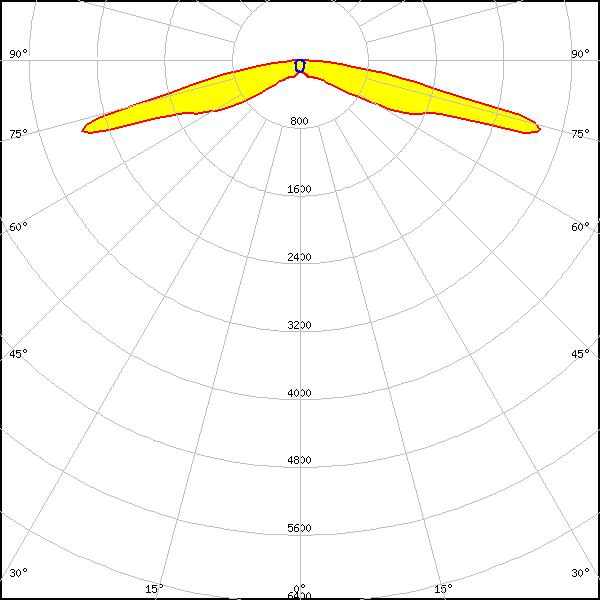

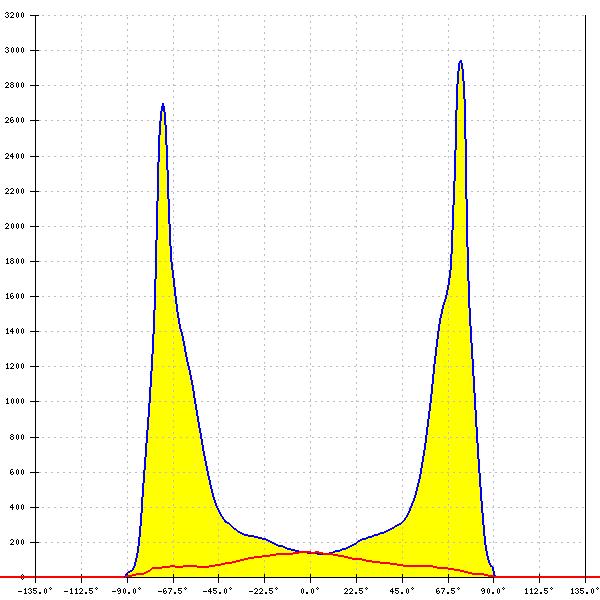

LED: OSLON SSL 150
FWHM: 157° + 86°
FWTM: 0° + 0°
Peak intensity: 2.900 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

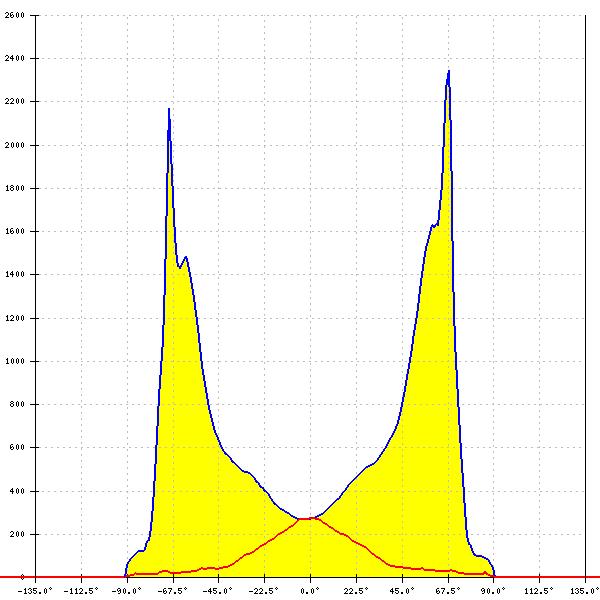

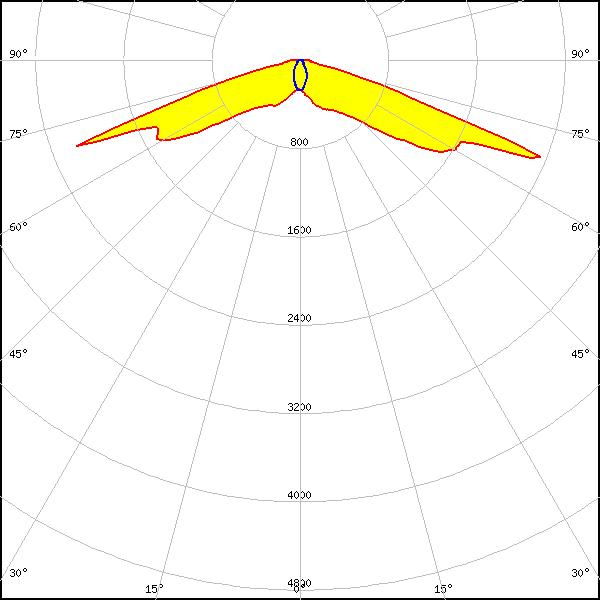

LED: OSLON SSL 80
FWHM: 147° + 52°
FWTM: 0° + 0°
Peak intensity: 1.900 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

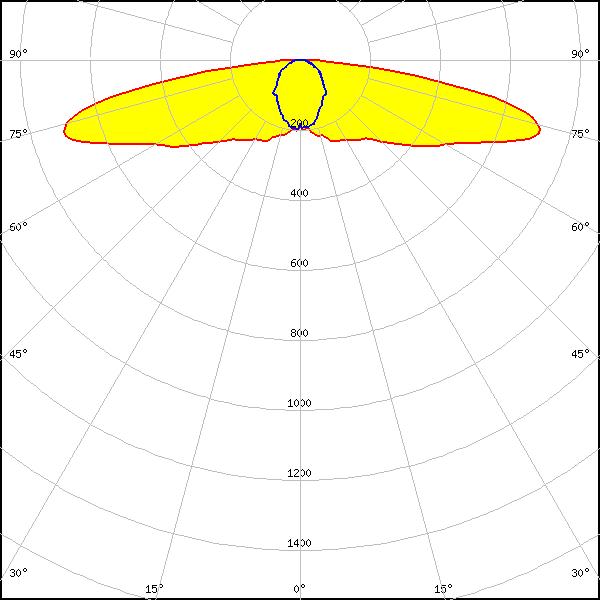

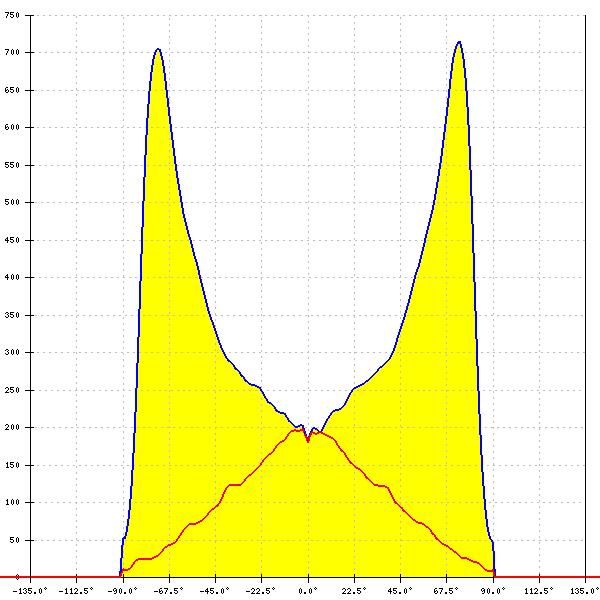

LED: LH351D
FWHM: 86° + 164°
FWTM: 166° + 176°
Peak intensity: 0.714 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

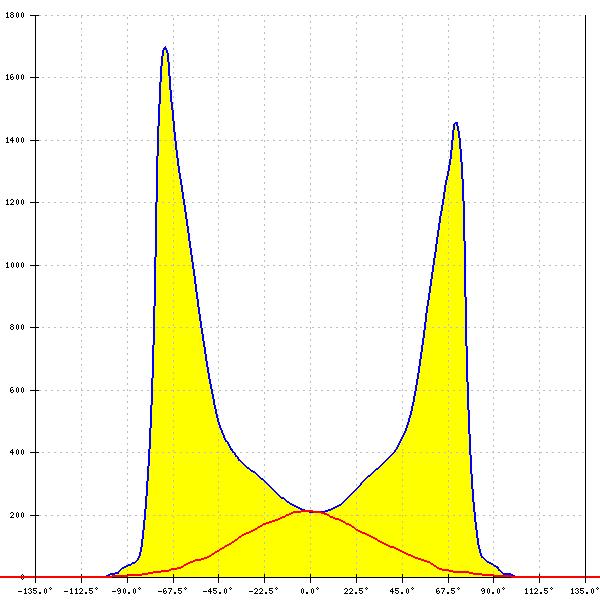

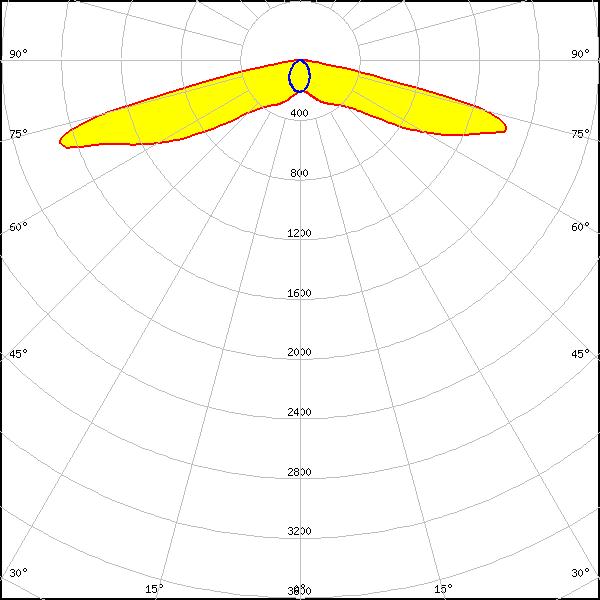

LED: LH351Z
FWHM: 154° + 76°
FWTM: 0° + 0°
Peak intensity: 1.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

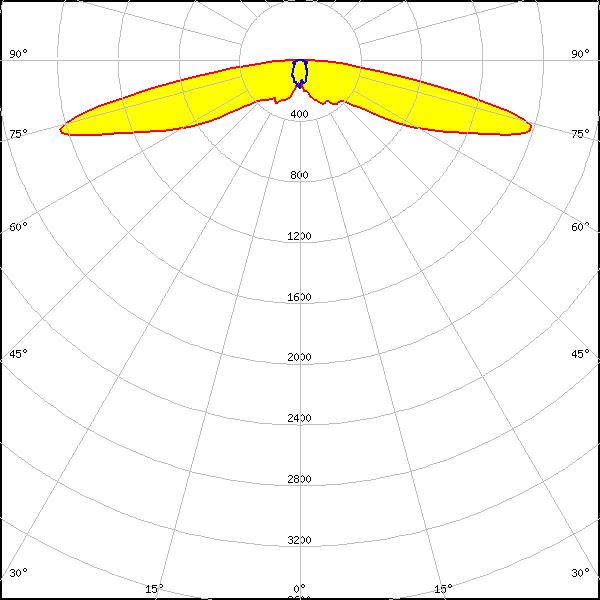

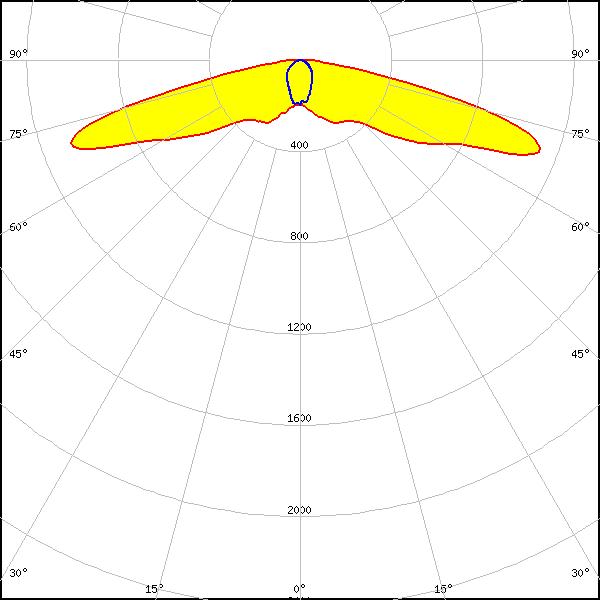

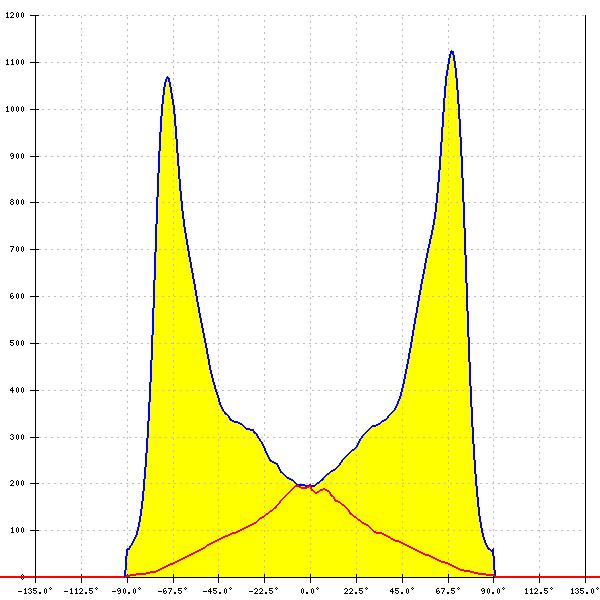

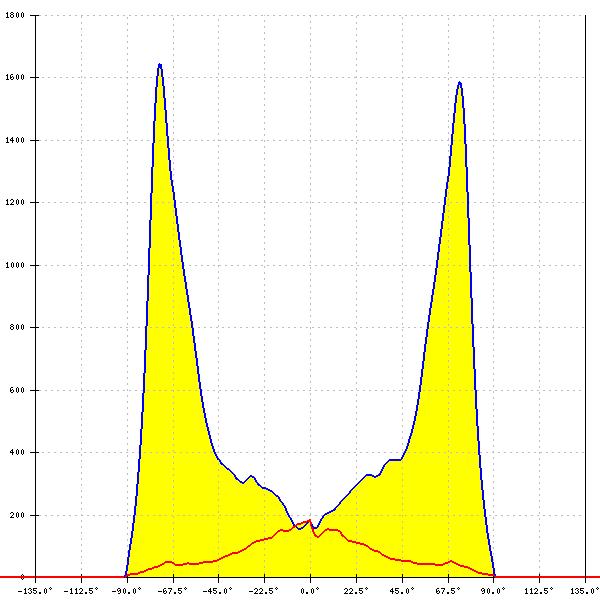

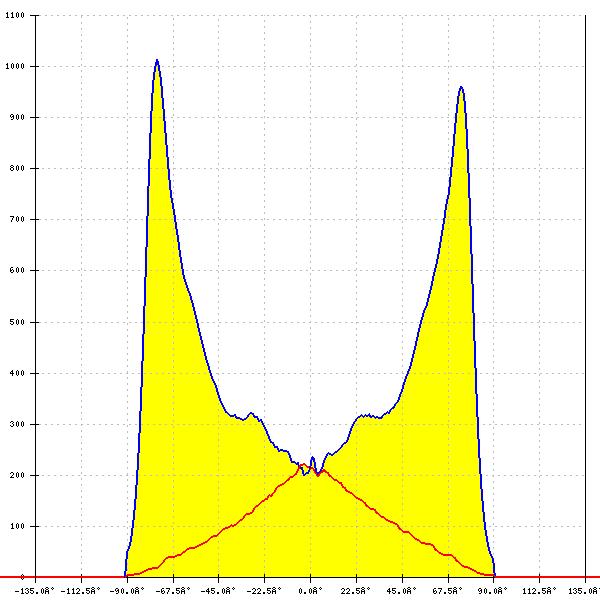

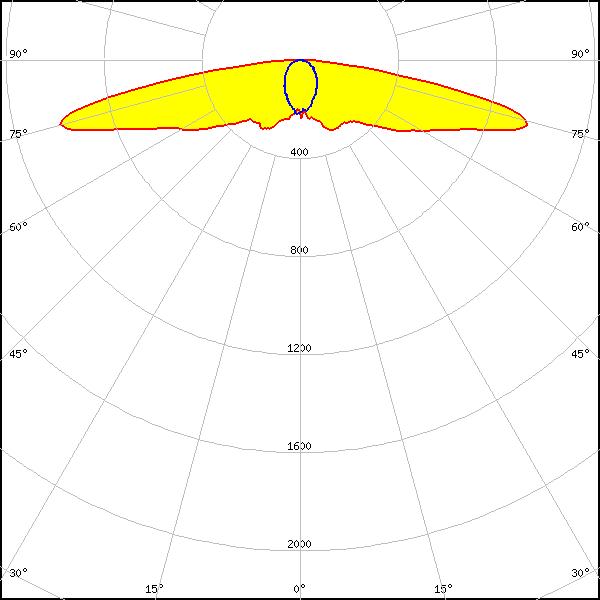

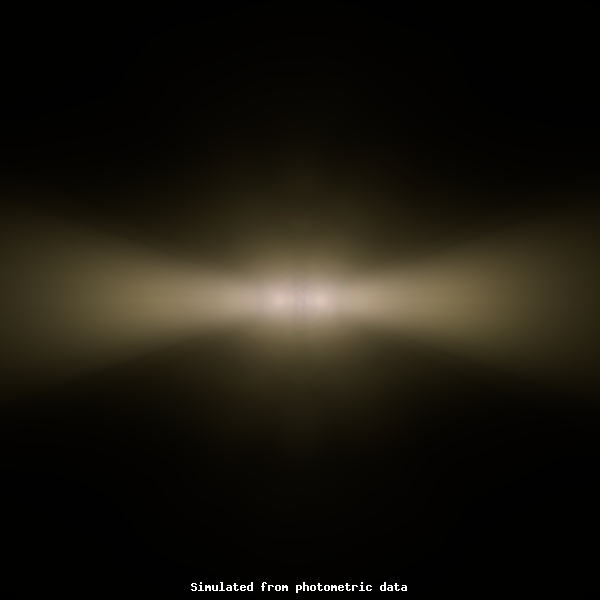

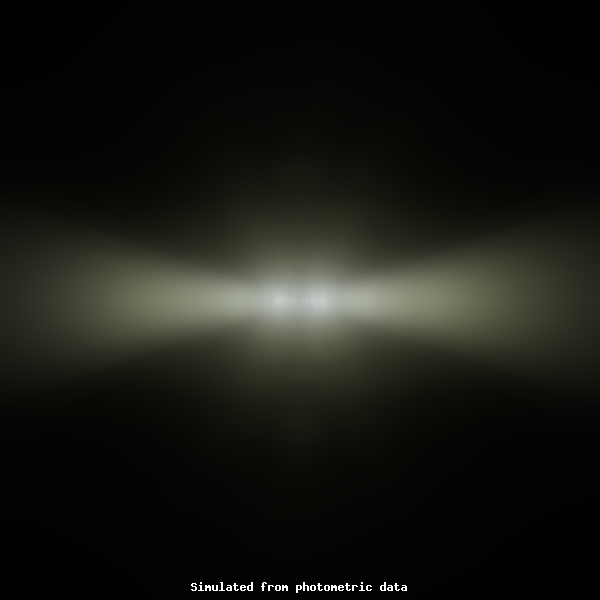

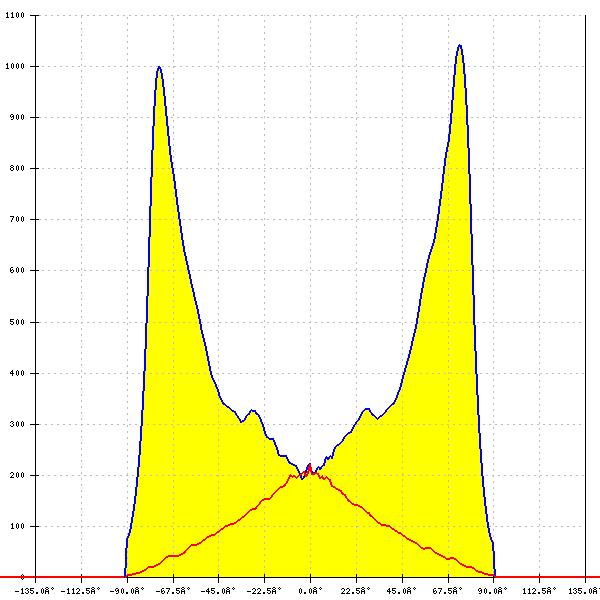

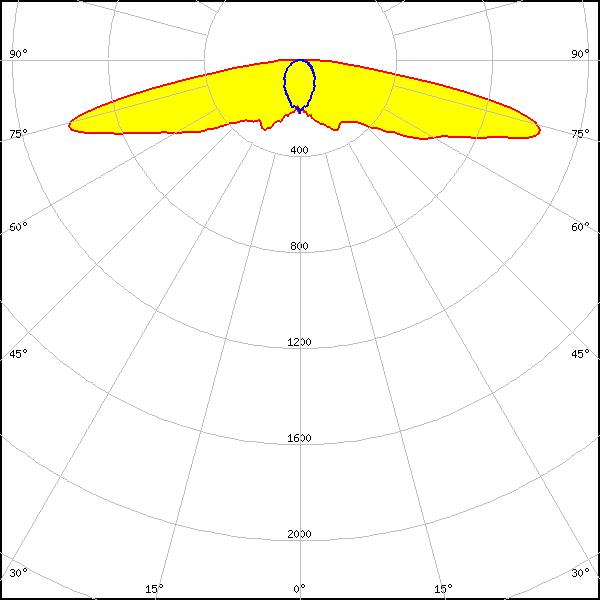

LED: Z5
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
